Article

Spatial Characteristics and Temporal Evolution of Chemical and Biological Freshwater Status as Baseline Assessment on the Tropical Island San Cristóbal (Galapagos, Ecuador)

by
Wout Van Echelpoel
1,*,
Marie Anne Eurie Forio
1,
Christine Van der heyden
2,
Rafael Bermúdez
3,4,
Long Ho
1,
Andrea Mishell Rosado Moncayo
5,
Rebeca Nathaly Parra Narea
5,
Luis E. Dominguez Granda
5,
Danny Sanchez
6 and
Peter L. M. Goethals
1
1
Department of Animal Sciences and Aquatic Ecology, Ghent University, B-9000 Ghent, Belgium
2
University College Ghent, B-9000 Ghent, Belgium
3
Galapagos Marine Research and Exploration, GMaRE. Joint ESPOL-CDF program, Charles Darwin Research Station, 200102 Galapagos Islands, Ecuador
4
Plankton Laboratory, Facultad de Ingeniería Marítima, Ciencias Biológicas, Oceánicas y Recursos Naturales, Escuela Superior Politécnica del Litoral (ESPOL), Campus Gustavo Galindo, 09-01-5863 Guayaquil, Ecuador
5
Centro del Agua y Desarrollo Sustentable, Escuela Superior Politécnica del Litoral (ESPOL), Campus Gustavo Galindo, 09-01-5863 Guayaquil, Ecuador
6
Galapagos Government Council, Puerto Ayora, 200102 Galapagos Islands, Ecuador
*
Author to whom correspondence should be addressed.
Water 2019, 11(5), 880; https://doi.org/10.3390/w11050880
Submission received: 30 March 2019 / Revised: 23 April 2019 / Accepted: 23 April 2019 / Published: 26 April 2019
(This article belongs to the Section Water Quality and Contamination)

Abstract

:
The fragility of geographically isolated islands stresses the necessity of evaluating the current situation, identifying temporal trends and suggesting appropriate conservation measures. To support this, we assessed the freshwater quality of three stream basins on San Cristóbal (Galapagos) for two consecutive years. Abiotic conditions generally complied with existing guidelines, except for the pH in the Cerro Gato basin (<6.5) and orthophosphate concentrations in 2016 (>0.12 mg P L−1). Macroinvertebrate communities were characterized by low family richness (3–11) and were dominated by Atyidae or Chironomidae, thereby causing low diversity (0.33–1.65). Spatial analysis via principal component analysis (PCA) illustrated that abiotic differences between stream basins were mostly related to turbidity, pH, dissolved oxygen (DO), and conductivity. Biotic differences were less clear due to masking by anthropogenic disturbances and dispersal limitations, yet indicated a negative effect of reduced pH and DO on Atyidae presence. In 2017, significantly narrower ranges were found for turbidity, temperature, pH, and diversity (p < 0.01), suggesting a decrease in habitat variability and a need for conservation measures, including mitigating measures related to dam construction for water extraction. As such, further follow-up is highly recommended for the sustainable development and environmental protection of this unique archipelago.

1. Introduction

Freshwater systems located on geographically isolated islands represent sensitive environments prone to irreversible changes when experiencing an unexpected disturbance [1]. Human colonization of these remote areas has occurred throughout history, relying on ground- and/or rainwater to provide for daily freshwater needs. Currently, population growth, tourism, and climate change are major factors affecting both freshwater quantity and quality [2,3,4,5]. For instance, land conversion for human purposes limits rainwater interception and replenishment of water resources, while allowing evaporation to occur at higher rates, hence altering water quantity [3,6]. Water quality, on the other hand, is affected by domestic wastewater, fertilizers, and pesticides, with groundwater levels receiving additional pressure from rising sea levels [2]. As quantity and chemical quality change, ecological quality changes, too, though with a higher degree of irreversibility on isolated island(s) due to the oceanic migration barrier and potentially high degrees of endemism [3,7,8]. Consequently, freshwater diversity on islands is often unbalanced in terms of macroinvertebrate communities and characteristically different from the mainland, especially when considering volcanic islands (e.g., Macaronesia, Galapagos) that have never been in physical contact with the mainland [1,9].
Monitoring freshwater systems returns information on prevailing conditions and supports spatiotemporal analyses, given that appropriate baseline information exists. A myriad of multivariate statistical analyses is available to improve interpretations of spatial analysis based on highly dimensional monitoring data, including correspondence analysis (CA), hierarchical clustering (HC), principal component analysis (PCA), and linear discriminant analysis (LDA). For instance, Li et al. [10] applied PCA and HC as part of a spatial analysis within a lake during and following a period of drought, observing that spatial differences did occur. Similarly, by applying PCA and HC, Rakotondrabe et al. [11] found that sites were affected differently by gold mining, while Ferrier et al. [12] obtained separate clusters of urban rivers on the one hand and highland rivers on the other hand. Moreover, Ferrier et al. [12] complemented their study with a temporal assessment via smoothing splines, obtaining a clear increase in nitrate concentrations. In addition to these indirect gradient analyses, direct gradient analyses are often performed to extract patterns between a set of explanatory variables and one (or more) response variables. For instance, Forio et al. [13] applied a combination of canonical correspondence analysis (CCA) and a multivariate linear regression model (LRM) to infer that velocity, sediment composition, conductivity, and dissolved oxygen affect the prevailing macroinvertebrate community. In contrast, when studying the macroinvertebrate-based ecological water quality in the Guayas basin (Ecuador), Damanik-Ambarita et al. [14] derived the relatively high importance of flow velocity, sediment type, and conductivity from CA following sample clustering based on the observed biological water quality.
Tropical islands are generally believed to host limited macroinvertebrate diversity while facing increasingly growing pressures due to anthropogenic activities, causing biological invasions, wildlife exploitation, and cultivation [5,9,15,16]. Nevertheless, studies on related effects remain limited, despite their potential in steering the development of management plans [5]. A particular example is the Galapagos archipelago, which was placed on the “In Danger” list of the UNESCO World Heritage Sites in 2007 due to overdevelopment, followed by removal from that list in 2010 [17,18]. The archipelago has been subject to a boost in tourism, with about 1000 tourists per year in 1960 increasing to 241,800 in 2017, causing people to migrate from the mainland to the islands to profit from the higher life standards there [4,19]. As population and tourism increase, higher pressures are exerted on local ecosystems, leading to an elevated interest in researchers to study processes, pressures, and impacts within the archipelago, driven by (i) the ecosystems’ high level of unicity [20] and/or (ii) the need for information to support adequate decision-making by local authorities. In contrast to the vast amount of research related to marine [21,22,23] or terrestrial ecosystems [24,25], recent information about inland water systems remains scarce [7,26,27]. For instance, Colinvaux [26] even stated that, when searching for freshwater systems five decades ago, no permanent streams existed on the islands. Moreover, the demand for agricultural products to support the increasing local population requires the application of fertilizers and pesticides, which act as additional potential pressures on the available fresh water and highlight the need for a baseline assessment [2,8]. As such, the collected information on the insular freshwater system allows for a general description of the prevailing conditions and an assessment of spatial patterns. Moreover, following temporal changes in tourism, the climate, and related threats, a temporal evolution in these conditions is expected.
This research provides an assessment of the ecological water quality of the prevailing freshwater systems to provide local authorities on the island of San Cristóbal (the only island with significant permanent fresh water [28]) with baseline information to support adequate management. Within this assessment, we aim to (1) provide an overview of the freshwater systems both chemically and biologically, (2) determine spatial patterns between stream basins, and (3) identify temporal differences over two consecutive years. These findings contribute to a larger study project that aims to understand spatiotemporal variability in water quality, enriching the current limited knowledge on freshwater conditions within tropical islands in general and in the Galapagos in particular. Furthermore, they support local water management by providing a basis for developing stream management plans to avoid potential future degradation.

2. Materials and Methods

2.1. Site Description and Data Collection

The Galapagos archipelago is about 3 to 5 million years old and consists of 13 major and 7 minor islands, consisting of a land area of about 8000 km² [4,28]. Only four islands are permanently inhabited: San Cristóbal, Santa Cruz, Isabela, and Floreana, with the first being the oldest island and containing the only significant permanent source of fresh water within the archipelago [28]. Additionally, small brooks can be found year-round on San Cristóbal, running from the highlands toward the ocean.
Sampling campaigns were organized on San Cristóbal in the dry season (running from June until December, with the main wet season from January until May [29]) of October 2016 and July 2017 to collect chemical and biological data from 10 sampling sites located in three groundwater-fed basins: Toma de la Policía (P), Chino basin (C), and Cerro Gato basin (G). Sampling sites were selected along the stream paths based on accessibility, the surrounding land use, and sampling permit specifications, with the lowest site numbering assigned to the most upstream location (see Figure 1). The P-basin is characterized by a main water extraction site between sites P2 and P3, with an additional barrier having been constructed directly upstream of site P4 between 2016 and 2017. Similarly, within the C-basin, a small extraction site is situated directly downstream of site C2, and a small waterfall (±10 m) is present directly upstream of site C3. Within the G-basin, a vegetated wetland occurs upstream of site G1. All methods were carried out in accordance with the relevant guidelines and regulations of the Galapagos National Park Directorate under research permit PC-02-19. All experimental protocols were reviewed and approved by a Galapagos National Park Directorate committee, which assesses animal care in research activities.
Water temperature (T, °C), acidity (pH, -), conductivity (EC, µS cm−1), and dissolved oxygen (DO, mg O2 L−1) were measured with handheld multiprobes (2016: YSI (9620v2-2 version 1.2, Elscolab Belgium, YSI Xylem Inc., Yellow Springs, Ohio, USA); 2017: Aquaread (AP5000 version 4.07, Eijckelkamp The Netherlands, Aquaread Ltd, Broadstairs, Kent, UK)). Turbidity (nephelometric turbidity units (NTUs)) was measured with a 2100Q portable turbidimeter (Hach; 2016) (Hach USA, Loveland, Colorado, USA) and via multiprobe measurement (Aquaread AP5000; 2017). Calibration was performed prior to sampling and was supplemented with a consistency check after sampling. Chemical oxygen demand (COD, mg O2 L−1) and nutrient status (ammonium (NH4+, mg N L−1), nitrite (NO2, mg N L−1), nitrate (NO3, mg N L−1), and orthophosphate (o-PO43−, mg P L−1)) were determined spectrophotometrically (COD: Hach DR3900 (version 1.15, Hach Belgium, Hach Lange GmbH, Berlin, Germany); nutrients: ThermoFisher Genesys 10S UV-VIS (ThermoFisher Scientific, Madison, Wisconsin, USA) by using low-range Hach (LCK, Hach Belgium, Hach Lange GmbH, Düsseldorf, Germany) and Merck test kits (Spectroquant, VWR Belgium, Merck KGaA, Darmstadt, Germany), respectively (Appendix A, Table A1). Biological samples were collected by executing the kick-net sampling technique according to De Pauw and Vanhooren [30]. This technique consists of walking upstream in a backward way while kicking sediments loose and capturing the dislodged macroinvertebrates in a hand net (0.15 m × 0.15 m metal frame, 500-µm mesh size) within a 5-min timeframe and proportionally covering all available habitats. Collected macroinvertebrates were live-sorted (after sample-sieving using a 500-µm mesh size) and put in >70% ethanol to prevent degradation prior to identification up to the family level (referred to as “taxon”). Subsequently, the Biological Monitoring Working Party score adapted for Colombia (BMWP_Col) [14,31,32], overall richness, and Shannon diversity (Equation (1)) were calculated [33,34]. Data collection methods were similar between sampling sites and years, allowing for comparisons of the obtained results.
H =   i p i × ln p i
Here, H’ is the Shannon entropy representing diversity, i is the taxon, and pi is the fraction of all individuals represented by taxon i. Low values represent low evenness and dominance by a subset of species present.

2.2. Data Exploration and Analysis

Data exploration was performed in MS Excel® and RStudio [35,36]. Prior to analyses, data were checked for the observed ranges, and values below the detection limit were replaced by the lowest detection limit (i.e., a conservative approach). Principal component analysis (PCA) was performed on the normalized abiotic data [37] to identify potential differences between the three basins and the two sampling years. Similarly, PCA was applied to the macroinvertebrate community composition after being transformed according to Equation (2) (Hellinger transformation):
y i , j = y i , j j y i , j
where y is the original value, y’ is the transformed value, i is the sample site, and j is the species.
Redundancy analysis (RDA) was performed on the combined data (original abiotic data and transformed biotic data) to link the observed communities with prevailing environmental conditions. Permutation Analysis of Variance (ANOVA) was run to test the significance of the RDA axes. PCA and RDA were preferred over correspondence analysis (CA) and canonical CA (CCA), as (1) a preliminary detrended correspondence analysis (DCA) resulted in an axis length shorter than 3 units, suggesting the use of a linear ordination [38]; (2) the Hellinger distance provides a better trade-off between resolution and linearity, compared to chi-squared-based techniques [37]; and (3) CCA is not recommended to be used if data richness covers a wide range [39]. The transformation of the biological data reduces the skewed abundance distribution between sampling sites among sampling sites [37] while allowing for a Euclidean-based distance analysis to be performed, with similar results as with CCA [39].
The abiotic-based PCA biplot was investigated for clustered sampling sites with specific attention on clustering based on (1) basin (P, C, and G) or (2) sampling year (2016 and 2017). When shifts in year-based clusters were identified along one of the axes, the correlated variables (>0.5) were selected for further analysis. For each of the selected variables, the difference in observed values between both sampling years (∆17−16) was determined for each location and subsequently linked with the value observed in 2016 via bivariate linear regression (see Equation (3)):
Δ X 17 16 = α + β · X 16 + ε
where X is the selected variable (list of 10 observations), α the intercept, β the slope, and ε the residuals of the linear regression.
Significant slope values (β, p < 0.05) indicated an uneven change in the variable’s value, reflecting (1) a convergence when slope values were negative and (2) a divergence when slope values were positive. The intensity of this behavior was reflected by the absolute slope value. Similarly, the biotic-based PCA and overall RDA were analyzed for the presence of clusters. When clusters or related shifts could not be clearly identified, no further analysis was performed and differences were considered to have occurred by chance. Additionally, richness, BMWP_Col, and Shannon diversity were analyzed via linear regression to determine potential converging or diverging behavior. Whenever the slope was identified to be nonsignificant (p > 0.05) and generally negative or positive differences were found, a paired t-test was performed. Residuals were plotted to assess the potential presence of patterns excluded from the linear model. The R packages used for data analysis were vegan [40] and BiodiversityR [41]. It should be noted that this approach did not represent a complete temporal analysis, as it only considered two consecutive years and excluded additional temporal variation (e.g., diel, monthly, and seasonal patterns). Nevertheless, it could provide a first signal for any temporal evolution being present, allowing for the appropriate response (e.g., early warnings requesting increased monitoring and/or improved protection).

3. Results

3.1. Baseline Data and Spatial Analysis

3.1.1. Abiotic Conditions

Relatively low conductivity values were observed, ranging from 69 up to 156 µS cm−1 in 2016 and between 34 and 130 µS cm−1 in 2017, while pH fluctuated around 7.5 on the National Institute of Standards and Technology (NIST) scale (overall range between 6.06 and 8.51). The lowest dissolved oxygen (DO) concentration (4.62 mg O2 L−1) was observed in site G1 in 2017, but it was mostly higher than 6 mg O2 L−1. Turbidity ranged from 2.6 up to 46.4 NTU in 2016, but presented a narrower range in 2017 (4.1 up to 23.7 NTU). In contrast, COD was characterized by a wider range in 2017 (5.8–21.2 mg O2 L−1) compared to 2016 (2.7–9.2 mg O2 L−1). Ammonium levels were often below the detection limit (0.010 mg N L−1; five sites in 2016, four sites in 2017), as were nitrate levels in 2016 (0.1 mg N L−1; nine sites) and orthophosphate levels in 2017 (0.0025 mg P L−1; nine sites). Consequently, nitrate and orthophosphate were excluded from the data, which were subsequently normalized prior to principal component analysis (PCA). The resulting primary and secondary axes explained 32% and 20% of the overall variance, respectively, with pH, DO, and turbidity negatively correlated with the first axis (−0.57, −0.51, and −0.46, respectively), while conductivity and temperature were negatively correlated with the second axis (−0.62 and −0.55, respectively). A summary of the observed range and mean values is provided in Table 1, while the abiotic-based PCA can be found in Figure 2A.
Six different clusters were identified, representing the two sampling years and three different basins (Figure 2A). Abiotic differences were greater between than within basins and showed an additional temporal influence. For instance, conductivity was generally higher within the C-basin compared to the P- and G-basins in 2016 (139 ± 15 µS cm−1 versus 84 ± 21 µS cm−1 and 77 ± 11 µs cm−1, respectively) and 2017 (126 ± 3 µS cm−1 versus 63 ± 7 µS cm−1 and 38 ± 5 µS cm−1, respectively), with variability between sites being lower in 2017 (Table 1, Figure 2A). Similarly, turbidity scores were higher in the P-basin compared to the C- and G-basins in 2016 (25.3 ± 15.6 µS cm−1 versus 6.4 ± 3.6 µS cm−1 and 5.3 ± 3.7 µs cm−1, respectively) and 2017 (18.4 ± 4.1 µS cm−1 versus 8.5 ± 5.8 µS cm−1 and 5.8 ± 1.0 µs cm−1, respectively), additionally showing reduced variability in 2017 (Table 1, Figure 2A). Moreover, both pH and DO were lower within the G-basin compared to the P- and C-basins, with the highest values in the P-basin: In 2016, the average pH was 6.14 ± 0.11, lower than that observed in the P-basin (8.32 ± 0.17) and C-basin (7.59 ± 0.31), with an analogous pattern in 2017 (6.43 ± 0.09 versus 7.59 ± 0.09 and 7.41 ± 0.21, respectively). Similarly, dissolved oxygen was lower in 2016 (6.88 ± 0.35 mg O2 L−1 versus 8.66 ± 0.23 mg O2 L−1 and 7.15 ± 0.97 mg O2 L−1, respectively) and 2017 (5.30 ± 0.96 mg O2 L−1 versus 8.69 ± 0.09 mg O2 L−1 and 7.77 ± 0.84 mg O2 L−1, respectively). At the level of sampling year, some minor shifts reflected that, for instance, P-sites shifted in the positive direction of PC1, linked with lower pH, DO, and/or turbidity values. In contrast, C-sites shifted in the negative direction of PC2, linked with increased conductivity and/or temperature, while G-sites showed a combined shift in the positive direction of PC1 and negative direction of PC2.

3.1.2. Biotic Conditions

In total, 4381 organisms belonging to 19 taxa were collected in 2016, the majority of which were Atyidae (2197 individuals, 50%) and Chironomidae (1730 individuals, 39%). Yet, only 2950 organisms were collected in 2017, belonging to 18 taxa, with Atyidae (1279 individuals, 43%) and Chironomidae (1019 individuals, 35%) being again the most abundant. The remaining 11% (2016) and 22% (2017) of the overall macroinvertebrate count were occupied by other taxa, including Dytiscidae (2016: 1.3%; 2017: 8.7%), Hyalellidae (2016: 3.3%; 2017: 2.3%), and Veliidae (2016: 1.4%; 2017: 1.3%), with abundances being relatively low compared to Atyidae and Chironomidae, yet no EPT (Ephemeroptera, Plecoptera, and Trichoptera) taxa were observed. Chironomidae were encountered in each sampling site, while Atyidae were only found in the P- and C-basins and were absent in the G-basin (Appendix B, Table A2). In contrast, higher counts of Dytiscidae were observed within the G-basin (up to 30 times higher) compared to the P- and C-basins, both containing sites without Dytiscidae. Several taxa only occurred in a single sampling site, including Dugesiidae (2016, P1), Mesoveliidae (2016, C1), Pleidae (2016, G1), Staphylinidae (2016, P5), Ceratopogonidae (2017, P5), and Palaemonidae (2017, C3), while others only occurred within a specific basin (e.g., Hyalellidae in the P-basin, Notonectidae in the C-basin, and Lymnaeidae in the G-basin) or were absent within a specific basin (e.g., no Veliidae in the P-basin, no Coenagrionidae in the C-basin, and no Simuliidae in the G-basin). A detailed overview of the site-specific community composition can be found in Appendix B, Table A2.
The principal component analysis of the biotic data showed clusters and shifts that were less clear compared to the abiotic analysis, with the primary axis explaining 61% and the secondary axis 11% of the overall variance. The first axis was characterized by a negative correlation with Atyidae and a positive correlation with Chironomidae (−0.79 and 0.51, respectively), while the second axis represented a positive correlation with Notonectidae (0.70) and a negative correlation with Dytiscidae (−0.59) (Figure 2B). Absolute correlation values of the remaining taxa were lower than 0.5 and were excluded from the graphical representation to ease interpretation. The G-sites were distinctly situated to the right, reflecting the absence of Atyidae, while additionally being linked with elevated Dytiscidae presence (Figure 2B). In contrast, the P-sites were mostly situated to the left of the biplot (Figure 2B), suggesting Atyidae-dominated sites, with only limited influence by other taxa, except for sites P4 and P5 in 2017. The C-sites were scattered within the biplot (Figure 2B), with C2 clearly in the top-right corner due to relatively high Notonectidae counts in a Chironomidae-dominated community. In contrast, C3 was clearly Atyidae-dominated (left side of the biplot, Figure 2B), while C1 shifted from an almost balanced situation in 2016 to being Chironomidae-dominated in 2017.
The lowest taxa richness was observed at site G2 in 2017 (3 taxa), resulting in a BMWP_Col score of 8 (very bad quality), while the highest richness was observed at site P5 in 2017 (11 taxa), with an accompanying BMWP_Col score of 51 (poor quality). Similarly, these sites scored relatively low (0.53) and high (0.94) regarding Shannon diversity, but did not represent the minimum and maximum of the diversity range, respectively. The lowest diversity scores were obtained for sites C3 and G1 in 2016 (respectively 0.33 and 0.34), while multiple sites scored higher than P5 in 2017, including sites P4 in 2017 (1.65) and P1 in 2016 (1.18). The average basin-specific metric scores were lowest for the G-basin, although clear differences could not be derived. Moreover, within the G-basin, BMWP_Col and richness declined from 2016 to 2017 (Table 2), with only diversity increasing due to a decrease in dominance by Chironomidae (i.e., 683 to 186 individuals at site G1). In contrast, all metric scores for the P- and C-basins increased from 2016 to 2017, supporting an overall average increase between the two consecutive years (Table 2), but none of the metrics showed significant differences (all p-values > 0.05).
The combination of both datasets (abiotic and biotic) showed (after applying a redundancy analysis) a pattern similar to Figure 2B, with overlaid environmental gradients allowing for the inference of potential relationships between prevailing macroinvertebrate dominance and abiotic conditions. For instance, an increase in DO and/or pH had a positive effect on the Atyidae count and was, consequently, negatively correlated with the Chironomidae count (Figure 3). Similarly, an increase in conductivity and/or temperature had a positive effect on Notonectidae presence, while in contrast, reduced values of DO (and/or pH) and conductivity (and/or temperature) provided better conditions for Dytiscidae (Figure 3). The presence of Atyidae was linked to higher DO and pH values, while Chironomidae was linked to increased values of ammonium as well as reduced values of DO and pH (Figure 3). The primary axis of this constrained analysis explained 47% of the overall variance, while the secondary axis explained an additional 8%, and yet only the first axis was found to be significantly important (ANOVA permutation, p = 0.004), suggesting a relatively high importance of DO in defining the prevailing macroinvertebrate community within the sampled sites.

3.2. Temporal Evolution

The overall rightward shift of the sampling sites along the primary axis (Figure 2A) had its origin in generally lower pH values (8 out of 10 sites) and partially lower turbidity values (4 out of 10 sites). The former was characterized by a narrower range in 2017, with initially high pH values decreasing and vice versa regarding low pH values (Table 1, Figure 4A). Similarly, high turbidity values in 2016 were not observed in 2017, reflecting a reduction in the more extreme conditions (Figure 4B). For both, a significant decreasing behavior could be observed (slope of linear regression significantly different from 0, Table 3). In contrast, no pattern was observed for dissolved oxygen (DO), which showed similar oxygen concentrations in 2017 compared to 2016 (Figure 4C, Table 3).
C- and G-sites showed a slight downward shift within the abiotic PCA (Figure 2A), suggesting an increase in temperature and/or conductivity. Indeed, increased water temperatures were observed in 2017, with a similar maximum value but a higher minimum value (Table 1 and Figure 5A). The significant slope coefficient (−0.59, p = 0.003; Table 3) supported the observation of a narrowing range, with low values increasing and high values remaining almost constant. However, no pattern in conductivity values was observed, with generally lower values in 2017 (Figure 5B). These values were confirmed to be significantly lower based on the performed paired t-test (t = 3.95, df = 9, p = 0.002).
No general clusters or patterns of stream basins were observed when investigating species composition of the different sites (Figure 2B), with some sites shifting upward along the secondary axis and others moving down. Sites shifting away from the primary axis reflected a more complex community composition than sites situated on or near the primary axis. Richness, BMWP_Col, and diversity each showed a higher value in 2017 for six sites, while the remaining four sites showed a decrease. A regression analysis of richness (Figure 6A), BMWP_Col (Figure 6B), and diversity (Figure 6C) showed that biological convergence (i.e., the simultaneous increase of initially lower and decrease of initially higher biotic metric values) occurred on the island. This convergence was only significant for the Shannon diversity index (slope = −1.3, p = 0.008; Table 3) and was marginally nonsignificant for overall richness (slope = −0.62, p = 0.06; Table 3). In contrast, the BMWP_Col score was not observed to have changed significantly (slope = −0.57, p = 0.1; Table 3).

4. Discussion

4.1. Baseline Data and Spatial Analysis

The observed temperature and dissolved oxygen complied with the water quality criteria set by the United States Environmental Protection Agency (USEPA) [42]. COD values remained relatively low due to the limited distance covered by the sampled streams, causing typical mid- and downstream sections (and, hence, the plausibility of reduced quality) to be absent [13]. Nitrate and nitrite concentrations remained well below the limits for drinking water (i.e., 10 mg N L−1 and 1 mg N L−1, respectively) [43]. In contrast, orthophosphate concentrations in 2016 exceeded the suggested threshold to avoid eutrophication (0.1 mg P L−1), while pH within the G-basin was also below the quality guideline (i.e., 6.5–9.0) [42]. The latter was related to the presence of a small, vegetated wetland upstream of the sampling sites, causing decomposition of organic matter in low-flow conditions and related reduced pH and oxygen concentrations. The elevated phosphate concentrations in 2016 increased the risk of eutrophication, but the simultaneous low levels of nitrate suggested a nitrogen deficiency in 2016. However, the indication of a potential phosphorus deficiency in 2017 hinted at an underlying temporal nutrient dynamic that requires further study.
Sampling sites were observed to be mainly situated along an Atyidae/Chironomidae axis, explaining up to 61% of the overall variability in community composition among sites. Atyidae are common inhabitants of littoral drainages within the South American continent and on tropical islands [7,9,13], and hence their survival within the sampled waters is expected and adds to the observations of Peck [7], who reported the overall presence of 52 crustacean species within the archipelago, 2 of which belonged to the Atyidae family (i.e., Typlatya galapagensis and Potimirim glabra cf., the former being endemic). Their absence from the G-basin was linked to the prevailing reduced water quality (low pH and dissolved oxygen), as Atyidae are relatively sensitive to pollution (i.e., tolerance score of 8, with 0 reflecting high tolerance and 10 reflecting high sensitivity, see Appendix B, Table A2). In contrast, Chironomidae are highly tolerant (i.e., tolerance score of 2) and are widely observed within insular and mainland freshwater systems [13,14,44], hence their occurrence in each sampling site. Dytiscidae presence within the Galapagos archipelago was reported three decades ago by Peck and Kukalová-Peck [45], along with 53 other beetle families (including Gyrinidae and Hydrophilidae). Additionally, the presence of both Coenagrionidae (damselfly) and Aeshnidae (dragonfly) is also supported by Peck [46], who reported the presence of seven native and one endemic species in the Galapagos. Yet, diversity remained low, which was clearly reflected in the low richness and diversity scores at C3 (4 and 0.33, respectively) and G1 (6 and 0.34, respectively). Both locations were characterized by an extreme dominance of Atyidae (92% of all organisms) and Chironomidae (93% of all organisms), respectively, with the latter representing the overall highest number of individuals found within a single site (683, Table A2). G-sites were clearly Chironomidae-dominated as a consequence of reduced water quality (low pH and DO), while C-sites shifted longitudinally from being Chironomidae-dominated to Atyidae-dominated between C2 and C3. Site C2 had a slightly lower pH and DO, which in combination with a small dam and waterfall acted as a migration barrier for upstream migration of Atyidae, while Chironomidae could benefit from their nonaquatic life stage to disperse. Similarly, a temporal shift was observed for sites P4 and P5, moving from Atyidae-dominated (characteristic of the P-basin, Figure 2B) in 2016 to a balanced (P4) and Chironomidae-dominated (P5) situation in 2017, illustrating the effects of human disturbance. Indeed, between the campaigns, minor construction works were performed directly upstream of P4 (which consisted of substrate removal and the creation of a small dam), thereby decimating the Atyidae population in downstream sites.
Despite the abiotic differences between basins, no clear biotic-based clusters could be defined due to the general dominance of Atyidae or Chironomidae. These taxa occurred in each sampling site except for the G-basin (Atyidae) due to (i) reduced water quality and (ii) dispersal limitations. The former was supported by observations in the C-basin showing decreased Atyidae presence in site C2 compared to C1 and C3, as this site was also characterized by slightly decreased water quality (see sites G1 and G2). In addition, Atyidae have a completely aquatic life cycle, which impedes easy dispersal to a nonconnected basin (i.e., from P or C to G). The relatively high explanatory power of the first principal axis of the biotic PCA (Figure 2B) suggested that differences in insular macroinvertebrate communities were mainly influenced by biotic processes including (1) dispersal, (2) competition, and (3) stochastic extinctions [1,8]. Additionally, (historical) disturbances could have exacerbated these effects by causing sudden alterations in the community composition [9].
With recent (a)biotic data of freshwater systems on San Cristóbal island being limited, observations were compared with the Portoviejo and Guayas rivers, two main river basins located in the coastal zone of Ecuador. Both river basins were assessed recently, following the same assessment methodology and were assumed to be exposed to similar climatic conditions as the basins in San Cristóbal. In general, the observed abiotic ranges reported in Table 1 were narrower than the ranges reported for the Portoviejo river [44], except for temperature and conductivity, which were consistently lower on San Cristóbal (i.e., 25.6–31.3 °C and 164–2447 µS cm−1 within the Portoviejo river). Similarly, broader ranges were obtained in the Guayas river [14], with reported ranges largely covering the observed ranges in Table 1, including temperature and conductivity (i.e., minima of 19.0 °C and 37 µS cm−1). In general, the observed range of the BMWP_Col index was low compared to the overall range found in the Guayas river (ranging from 0 up to 168) and the Portoviejo river (ranging from 16 up to 140) [14,44]. These discrepancies were inherently linked to the spatial extent of both the Portoviejo and Guayas rivers, as the influences of surrounding land use accumulated toward the mouth, extending the range of most variables [13,14,44]. Hence, a comparison to prevailing conditions within mainland basins could be performed, though care should be taken when inferring conclusions. Assuming that the least disturbed conditions within the Portoviejo and Guayas basins were found in upstream sites, e.g., higher than 250 m a.s.l. [14], reflecting conditions similar to the streams on San Cristóbal (limited anthropogenic influence, relatively high shading, and higher flow velocities), no specific differences between mainland and insular freshwater systems in terms of abiotic conditions were observed. Still, there was a clear difference that occurred at a biological level, as most BMWP_Col scores were higher than 100 [14]. Consequently, based on the observed index scores, it could be inferred that, in comparison to mainland river basins, biological quality in freshwater streams was very bad and highly degraded. Yet, as the development of currently existing assessment techniques and biotic indices focused on continental water bodies, both techniques and indices are considered to be only limitedly type-specific, neglecting the uniqueness of insular systems [1]. For instance, the observed low diversity and nearly complete absence of vulnerable species did not necessarily reflect a highly degraded system, but represented a system that was underdeveloped compared to mainland freshwater systems due to the absence of a physical connection with the mainland, the presence of a vast migration barrier, and the relatively small size and elevation of the considered insular system [9,20,46]. Nevertheless, the mismatch between the uniqueness of island systems and the continental-focused indices stresses the need for (i) an appropriate baseline assessment and (ii) the development of more specific indices to summarize prevailing conditions and determine discrepancies between potential and current conditions. With a freshwater biodiversity crisis raging around the world and with insular biodiversity being threatened by biological invasions, wildlife exploitation and cultivation [15,47], the development of relevant monitoring, and conservation programs have never been more urgent, requiring (local) adaptations of assessment schemes and indices developed for mainland systems. Hence, a translation of the obtained BMWP_Col score into a general condition as part of a baseline assessment (e.g., “very bad and highly degraded”) is to be avoided until specific reference conditions have been defined.

4.2. Temporal Evolution and Implications

Among the steering abiotic variables, no significant converging behavior was observed for DO and conductivity. Conductivity was shown to be significantly lower in 2017 as a potential artifact of seasonality (sampling performed in October 2016 versus July 2017): Sampling in 2017 was performed earlier in the dry season (July), and hence lower conductivity values were expected due to reported increases in conductivity toward the end of the dry season [48]. In contrast, the average values of the remaining variables did not clearly change, and yet average richness, BMWP_Col, and diversity increased from 2016 to 2017. Still, site-specific differences suggested an overall convergence of both chemical and biological freshwater status. The discrepancy between the reported ranges in Table 1, which were wider in 2017 compared to 2016, and the observed temporal evolution in Figure 4, Figure 5 and Figure 6 suggesting a narrowing pattern was attributable to outliers. For instance, diversity in 2016 ranged from 0.33 up to 1.18 (Δ = 0.85) while ranging from 0.48 up to 1.65 (Δ = 1.17) in 2017. However, cutting out the outermost values decreased this difference to 0.82 (2016) and 0.65 (2017), confirming that “extreme” values masked the overall observed range narrowing. The evolution toward similar conditions among freshwater sites, situated in different stream basins, decreased overall variability within the island, hence limiting the presence of specific conditions and related specialized organisms. Nevertheless, apart from the converging behavior, an improvement in average biological water quality status occurred, reflected by an increase in average richness, BMWP_Col, and diversity.
With tourism, agriculture, and related anthropogenic activities continuously increasing and exacerbating the effects of climate change [1,4], it is urgent to develop freshwater management plans to preserve (and improve) current conditions. For instance, limiting surface water extraction by relying more on the desalination of seawater (or brackish groundwater) for human consumption, recycling domestic wastewater (after proper treatment), or training water resource management personnel are only a few options to be considered [2]. In contrast, the construction of dams to support small-scale water extraction activities leads to local disturbances that have the potential to wipe out the established community and make future dispersal harder [8,49]. Moreover, the subsequent reduction in flow velocity alters the biotic and abiotic conditions both at upstream and downstream sites, including the prevailing macroinvertebrate assemblages [13,14]. This was illustrated by the observed decrease in turbidity within the P-basin, which was being used for small-scale water extraction via dams. Following these disturbances, species diversity (alpha, beta, and gamma diversity) is expected to decrease as opportunistic and disturbance-tolerant taxa (e.g., high numbers of Atyidae and Chironomidae) are highly likely to disperse and colonize, subsequently outcompeting less-tolerant species and potentially driving them to (unnoticed) extinction [8].

5. Conclusions

Abiotic conditions indicated differences between stream basins but were not strong enough to uniformly affect the prevailing macroinvertebrate community within each basin. Anthropogenic disturbances and dispersal constraints helped in explaining the prevalence of the most common macroinvertebrates, yet for most macroinvertebrates, presence was a mere consequence of stochastic processes and/or (historical) disturbance impeding high biotic diversity. Overall, biotic water quality improved within the considered basins, yet masked the converging behavior of both abiotic conditions and biotic metrics. Further follow-up of abiotic conditions, nutrient status, and macroinvertebrate communities by means of a continuous monitoring scheme is required and recommended to obtain a synthesis of the underlying temporal pattern and to conserve limited freshwater resources in the Galapagos and on islands facing similar pressures (i.e., increased tourism, demographics, and agriculture), not only at the quantitative but also at the qualitative level. Moreover, as specific climatic, meteorological, and hydrographic information is lacking, installment of a meteorological station as well as mapping the different basins is highly recommended to (1) update the data described in this paper and (2) support the implementation, evaluation, and improvement of management actions.

Author Contributions

Conceptualization, W.V.E., M.A.E.F., and P.L.M.G.; formal analysis, W.V.E. and L.H.; funding acquisition, W.V.E., M.A.E.F., R.B., L.H., L.E.D.G., and P.L.M.G.; methodology, W.V.E., M.A.E.F., C.V.d.h., A.M.R.M., and R.N.P.N.; project administration, R.B., L.E.D.G., D.S., and P.L.M.G.; supervision, R.B., D.S., and P.L.M.G.; writing—original draft, W.V.E.; writing—review and editing, W.V.E., M.A.E.F., C.V.d.h., R.B., L.H., and P.L.M.G.

Funding

Field work was facilitated by research grants from the Flemish Fund of Scientific Research (FWO), assigned to Wout Van Echelpoel (K220017N) and Marie Anne Eurie Forio (V436617N). Additionally, financial support was provided to Marie Anne Eurie Forio through the BiodivERsA COFUND call for research proposals in collaboration with the FWO. Long Ho received a travel grant from the Faculty Mobility Fund (CWO) with reference FBE Research_20170034 and an operational grant from the Global Minds Fund 2017 (B/15090/25). Additional funding was obtained through the Flemish Interuniversity Council and University Development Cooperation (VLIR-UOS) and the VLIR Ecuador Biodiversity Network project.

Acknowledgments

Field work on San Cristóbal was permitted by the authorities of the Galápagos National Park (GNP) Service, Republic of Ecuador (Permit Code: PC-02-19). A Social Development Permit was granted by the GNP to convey the field work within the urban and rural areas of San Cristóbal. The authors are thankful to Koen Lock, who identified the macroinvertebrates. The authors are also grateful for the input of the anonymous reviewers, which improved both the content and structure of the manuscript.

Conflicts of Interest

The authors declare no conflicts of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

Appendix A

Table A1. List of physicochemical variables measured in 2016 and 2017 and the associated method.
Table A1. List of physicochemical variables measured in 2016 and 2017 and the associated method.
VariableTechniqueRemark(s)
TemperatureProbe2016: YSI V6920; 2017: Aquaread AP5000
ConductivityProbe2016: YSI V6920; 2017: Aquaread AP5000
pHProbe2016: YSI V6920; 2017: Aquaread AP5000
Dissolved oxygenProbe2016: YSI V6920; 2017: Aquaread AP5000
Turbidity2016: Turbidimeter
2017: Probe
2016: Hach
2017: Aquaread AP5000
Chemical oxygen demandTest kit code 2415815Hach, limits: 0.7–40.0 mgO2 L−1; follows EPA 5220 D
Ammonia-nitrogenTest kit code 114752Merck, limits: 0.010–3.00 mg N L−1; follows EPA 350.1, APHA 4500-NH3 F, ISO 7150-1, and DIN 38406-5
Nitrite-nitrogenTest kit code 114776Merck, limits: 0.002–1.00 mg N L−1; follows EPA 354.1, APHA 4500-NO2-B, and DIN EN 26 777
Nitrate-nitrogenTest kit code 109713Merck, limits: 0.1–25.0 mg N L−1; follows DIN 38405-9
Orthophosphate-phosphorusTest kit code 114848Merck, limits: 0.0025–5.00 mg P L−1; follows EPA 365.2 + 3, APHA 4500-P E, and DIN EN ISO 6878

Appendix B

Table A2. List of macroinvertebrate taxa, their tolerance score, and abundance at each of the 10 locations sampled in 2016 and 2017. Tolerance scores (TS) were based on Roldán [31] and Álvarez Arango [32].
Table A2. List of macroinvertebrate taxa, their tolerance score, and abundance at each of the 10 locations sampled in 2016 and 2017. Tolerance scores (TS) were based on Roldán [31] and Álvarez Arango [32].
TaxonTS20162017
P1P2P3P4P5C1C2C3G1G2P1P2P3P4P5C1C2C3G1G2
Atyidae8253349366191313881636 2213415958213396
Lymnaeidae8 2 1
Palaemonidae8 1
Planorbidae8 1 1 823
Coenagrionidae7 2 2 156 3 23
Hyalellidae79846 760
Simuliidae71 4 214502
Veliidae7 11 44 6 10 253
Aeshnidae65 32101 2 1115912 21
Dugesiidae61
Pleidae6 2
Staphylinidae6 1
Ceratopogonidae5 1
Gyrinidae5121431913 33 2
Mesoveliidae5 3
Notonectidae5 15 251
Hydrophilidae3 11 531 665 22
Chironomidae234611595619814513968312084275773271751152216837
Tubificidae11 112 6 7
Dytiscidae-11 1 2926 7 3315 2307
Lumbricidae- 5610 10
Lumbriculidae-9 8 47 1199 12 7

References

  1. Hughes, S.J.; Malmqvist, B. Atlantic Island freshwater ecosystems: challenges and considerations following the EU Water Framework Directive. Hydrobiologia 2005, 544, 289–297. [Google Scholar] [CrossRef]
  2. White, I.; Falkland, T. Management of freshwater lenses on small Pacific islands. Hydrogeol. J. 2010, 18, 227–246. [Google Scholar] [CrossRef]
  3. Malmqvist, B.; Nilsson, A.N.; Baez, M. Tenerife’s freshwater macroinvertebrates: Status and threats (Canary Islands, Spain). Aquat. Conserv. Mar. Freshwater Ecosyst. 1995, 5, 1–24. [Google Scholar] [CrossRef]
  4. Self, R.M.; Self, D.R.; Bell-Haynes, J. Marketing tourism in the galapagos islands: Ecotourism or greenwashing? Int. Bus. Econ. Res. J. 2010, 9, 111–125. [Google Scholar] [CrossRef]
  5. Ramírez, A.; De Jesús-Crespo, R.; Martinó-Cardona, D.M.; Martínez-Rivera, N.; Burgos-Caraballo, S. Urban streams in Puerto Rico: What can we learn from the tropics? J. N. Am. Benthol. Soc. 2009, 28, 1070–1079. [Google Scholar] [CrossRef]
  6. Sahin, V.; Hall, M.J. The effects of afforestation and deforestation on water yields. J. Hydrol. 1996, 178, 293–309. [Google Scholar] [CrossRef]
  7. Peck, S.B. Diversity and zoogeography of the non-oceanic Crustacea of the Galápagos Islands, Ecuador (excluding terrestrial Isopoda). Can. J. Zool. 1994, 72, 54–69. [Google Scholar] [CrossRef]
  8. Malmqvist, B.; Rundle, S. Threats to the running water ecosystems of the world. Environ. Conserv. 2002, 29, 134–153. [Google Scholar] [CrossRef]
  9. Bass, D. A Comparison of Freshwater Macroinvertebrate Communities on Small Caribbean Islands. Bioscience 2003, 53, 1094–1100. [Google Scholar] [CrossRef]
  10. Li, T.; Li, S.; Liang, C.; Bush, R.T.; Xiong, L.; Jiang, Y. A comparative assessment of Australia’s Lower Lakes water quality under extreme drought and post-drought conditions using multivariate statistical techniques. J. Cleaner Prod. 2018, 190, 1–11. [Google Scholar] [CrossRef]
  11. Rakotondrabe, F.; Ndam Ngoupayou, J.R.; Mfonka, Z.; Rasolomanana, E.H.; Nyangono Abolo, A.J.; Ako Ako, A. Water quality assessment in the Bétaré-Oya gold mining area (East-Cameroon): Multivariate Statistical Analysis approach. Sci. Total Environ. 2018, 610–611, 831–844. [Google Scholar] [CrossRef]
  12. Ferrier, R.C.; Edwards, A.C.; Hirst, D.; Littlewood, I.G.; Watts, C.D.; Morris, R. Water quality of Scottish rivers: spatial and temporal trends. Sci. Total Environ. 2001, 265, 327–342. [Google Scholar] [CrossRef]
  13. Forio, M.A.E.; Lock, K.; Radam, E.D.; Bande, M.; Asio, V.; Goethals, P.L.M. Assessment and analysis of ecological quality, macroinvertebrate communities and diversity in rivers of a multifunctional tropical island. Ecol. Indic. 2017, 77, 228–238. [Google Scholar] [CrossRef]
  14. Damanik-Ambarita, M.N.; Lock, K.; Boets, P.; Everaert, G.; Nguyen, T.H.T.; Forio, M.A.E.; Musonge, P.L.S.; Suhareva, N.; Bennetsen, E.; Landuyt, D.; et al. Ecological water quality analysis of the Guayas river basin (Ecuador) based on macroinvertebrates indices. Limnologica—Ecol. Manag. Inland Waters 2016, 57, 27–59. [Google Scholar] [CrossRef]
  15. Leclerc, C.; Courchamp, F.; Bellard, C. Insular threat associations within taxa worldwide. Sci. Rep. 2018, 8, 6393. [Google Scholar] [CrossRef] [PubMed]
  16. Kura, N.U.; Ramli, M.F.; Ibrahim, S.; Sulaiman, W.N.A.; Aris, A.Z.; Tanko, A.I.; Zaudi, M.A. Assessment of groundwater vulnerability to anthropogenic pollution and seawater intrusion in a small tropical island using index-based methods. Environ. Sci. Pollut. Res. 2015, 22, 1512–1533. [Google Scholar] [CrossRef] [PubMed]
  17. UNESCO. World Heritage Centre. Available online: https://whc.unesco.org/ (accessed on 15 April 2019).
  18. Hennessy, E.; McCleary, A.L. Nature’s Eden? The Production and Effects of ‘Pristine’ Nature in the Galápagos Islands. Island Stud. J. 2011, 6, 131–156. [Google Scholar]
  19. Dirección del Parque Nacional Galápagos & Observatorio de Turismo de Galápagos. Informe Anual de Visitantes a las áreas Protegidas de Galápagos del año 2017; Dirección del Parque Nacional Galápagos: Galápagos, Ecuador, 2018. [Google Scholar]
  20. Brown, J.H.; Lomolino, M.V. Concluding remarks: historical perspective and the future of island biogeography theory. Glob. Ecol. Biogeogr. 2001, 9, 87–92. [Google Scholar] [CrossRef]
  21. Riebesell, U.; Bach, L.T.; Bellerby, R.G.J.; Monsalve, J.R.B.; Boxhammer, T.; Czerny, J.; Larsen, A.; Ludwig, A.; Schulz, K.G. Competitive fitness of a predominant pelagic calcifier impaired by ocean acidification. Nat. Geosci. 2017, 10, 19–23. [Google Scholar] [CrossRef]
  22. Bermúdez, J.R.; Riebesell, U.; Larsen, A.; Winder, M. Ocean acidification reduces transfer of essential biomolecules in a natural plankton community. Sci. Rep. 2016, 6. [Google Scholar] [CrossRef]
  23. Ruttenberg, B.I.; Haupt, A.J.; Chiriboga, A.I.; Warner, R.R. Patterns, causes and consequences of regional variation in the ecology and life history of a reef fish. Oecologia 2005, 145, 394–403. [Google Scholar] [CrossRef]
  24. Valdebenito, H. A Study Contrasting Two Congener Plant Species: Psidium guajava (Introduced Guava) and P. galapageium (Galapagos Guava) in the Galapagos Islands. In Understanding Invasive Species in the Galapagos Islands: From the Molecular to the Landscape; Torres, M.d.L., Mena, C.F., Eds.; Springer International Publishing: Cham, Switzerland, 2018; pp. 47–68. [Google Scholar]
  25. Trueman, M.; Standish, R.J.; Hobbs, R.J. Identifying management options for modified vegetation: Application of the novel ecosystems framework to a case study in the Galapagos Islands. Biol. Conserv. 2014, 172, 37–48. [Google Scholar] [CrossRef]
  26. Colinvaux, P.A. Reconnaissance and Chemistry of the Lakes and Bogs of the Galapagos Islands. Nature 1968, 219, 590. [Google Scholar] [CrossRef]
  27. Howmiller, R. Studies on Some Inland Waters of the Galapogos. Ecology 1969, 50, 73–80. [Google Scholar] [CrossRef]
  28. Galápagos Conservancy. Galápagos Conservancy. Available online: https://www.galapagos.org/ (accessed on 12 March 2018).
  29. Trueman, M.; d’Ozouville, N. Characterizing the Galapagos terrestrial climate in the face of global climate change. Galapagos Res. 2010, 67, 26–37. [Google Scholar]
  30. De Pauw, N.; Vanhooren, G. Method for biological quality assessment of watercourses in Belgium. Hydrobiologia 1983, 100, 153–168. [Google Scholar] [CrossRef]
  31. Roldán, G. Bioindicación de la calidad del agua en Colombia. Propuesta para el uso del método BMWP/Col; Universidad de Antioquia: Medellín, Colombia, 2003. [Google Scholar]
  32. Álvarez Arango, L.F. Metodología para la utilización de los macroinvertebrados acuáticos como indicadores de la calidad del agua; Instituto de Investigación de Recursos Biológicos Alexander von Humboldt: Bogotá, Colombia, 2005; p. 138. [Google Scholar]
  33. Shannon, C.E. A Mathematical Theory of Communication. Bell Syst. Tech. J. 1948, 27, 379–423. [Google Scholar] [CrossRef]
  34. Spellerberg, I.F.; Fedor, P.J. A tribute to Claude Shannon (1916–2001) and a plea for more rigorous use of species richness, species diversity and the ‘Shannon–Wiener’ Index. Glob. Ecol. Biogeogr. 2003, 12, 177–179. [Google Scholar] [CrossRef]
  35. R Core Team. R: A Language and Environment for Statistical Computing, 3.3.1; R Foundation for Statistical Computing: Vienna, Austria, 2016. [Google Scholar]
  36. RStudio Team. RStudio: Integrated Development for R; 0.99.903; RStudio, Inc.: Boston, MA, USA, 2015. [Google Scholar]
  37. Legendre, P.; Legendre, L. Numerical Ecology; Elsevier: Oxford, UK, 2012; Volume 24. [Google Scholar]
  38. Ter Braak, C.J.F.; Prentice, I.C. A Theory of Gradient Analysis. In Advances in Ecological Research; Academic Press: Cambridge, MA, USA, 2004; Volume 34, pp. 235–282. [Google Scholar]
  39. Legendre, P.; Gallagher, E.D. Ecologically meaningful transformations for ordination of species data. Oecologia 2001, 129, 271–280. [Google Scholar] [CrossRef]
  40. Oksanen, J.; Blanchet, F.G.; Friendly, M.; Kindt, R.; Legendre, P.; McGlinn, D.; Minchin, P.R.; O’Hara, R.B.; Simpson, G.L.; Solymos, P.; et al. Vegan: Community Ecology Package, R Package Version 2.4-6. Available online: https://CRAN.R-project.org/package=vegan (accessed on 31 January 2018).
  41. Kindt, R. Biodiversity R: Package for Community Ecology and Suitability Analysis, R Package Version 2.9-2. Available online: https://cran.r-project.org/web/packages/BiodiversityR/index.html (accessed on 15 February 2018).
  42. USEPA. Quality Criteria for Water, EPA 440/5-86-001; United States Environmental Protection Agency: Washington, WA, USA, 1986.
  43. USEPA. National Primary Drinking Water Regulations. In EPA 816-F-09-004; United States Environmental Protection Agency, Ed.; USEPA: Washington, WA, USA, 2009; pp. 1–7. [Google Scholar]
  44. Nguyen, T.H.T.; Boets, P.; Lock, K.; Forio, M.A.E.; Van Echelpoel, W.; Van Butsel, J.; Utreras, J.A.D.; Everaert, G.; Granda, L.E.D.; Hoang, T.H.T.; et al. Water quality related macroinvertebrate community responses to environmental gradients in the Portoviejo River (Ecuador). Ann. Limnol. Int. J. Limnol. 2017, 53, 203–219. [Google Scholar] [CrossRef]
  45. Peck, S.B.; Kukalová-Peck, J. Origin and biogeography of the beetles (Coleoptera) of the Galápagos Archipelago, Ecuador. Can. J. Zool. 1990, 68, 1617–1638. [Google Scholar] [CrossRef]
  46. Peck, S.B. The dragonflies and damselflies of the Galapagos islands, Ecuador (Insecta: Odonata). Psyche 1992, 99, 309–321. [Google Scholar] [CrossRef]
  47. Harrison, I.; Abell, R.; Darwall, W.; Thieme, M.L.; Tickner, D.; Timboe, I. The freshwater biodiversity crisis. Science 2018, 362, 1369. [Google Scholar] [CrossRef] [PubMed]
  48. Leigh, C. Dry-season changes in macroinvertebrate assemblages of highly seasonal rivers: responses to low flow, no flow and antecedent hydrology. Hydrobiologia 2013, 703, 95–112. [Google Scholar] [CrossRef]
  49. Marchant, R.; Hehir, G. The use of AUSRIVAS predictive models to assess the response of lotic macroinvertebrates to dams in south-east Australia. Freshwater Biol. 2002, 47, 1033–1050. [Google Scholar] [CrossRef]

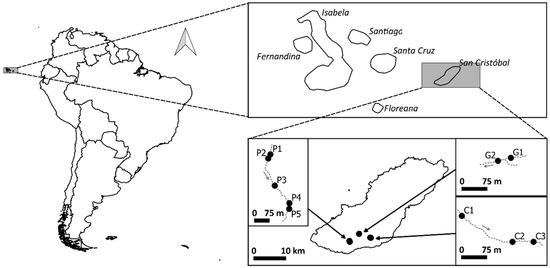

Figure 1. Sampling sites within San Cristóbal island. Five sites were selected within the Toma de la Policía basin (P-sites), three sites in the Chino basin (C-sites), and two sites in the Cerro Gato basin (G-sites). Dotted gray lines depict the observed stream paths, for which the flow direction is indicated with an arrow.
Figure 1. Sampling sites within San Cristóbal island. Five sites were selected within the Toma de la Policía basin (P-sites), three sites in the Chino basin (C-sites), and two sites in the Cerro Gato basin (G-sites). Dotted gray lines depict the observed stream paths, for which the flow direction is indicated with an arrow.
Water 11 00880 g001

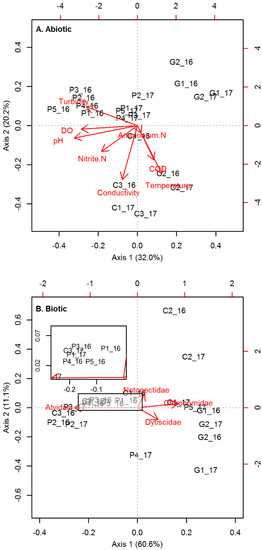

Figure 2. Principal component analysis (PCA) of freshwater sites at San Cristóbal island (Galapagos). (A) Abiotic-based ordination; (B) (simplified) biotic-based ordination. The inset shows a detailed close-up of the area along the primary axis (indicated by a transparent rectangle). The data represent 10 sites within three separate basins (P, C, and G) from two consecutive years (2016 and 2017).
Figure 2. Principal component analysis (PCA) of freshwater sites at San Cristóbal island (Galapagos). (A) Abiotic-based ordination; (B) (simplified) biotic-based ordination. The inset shows a detailed close-up of the area along the primary axis (indicated by a transparent rectangle). The data represent 10 sites within three separate basins (P, C, and G) from two consecutive years (2016 and 2017).
Water 11 00880 g002

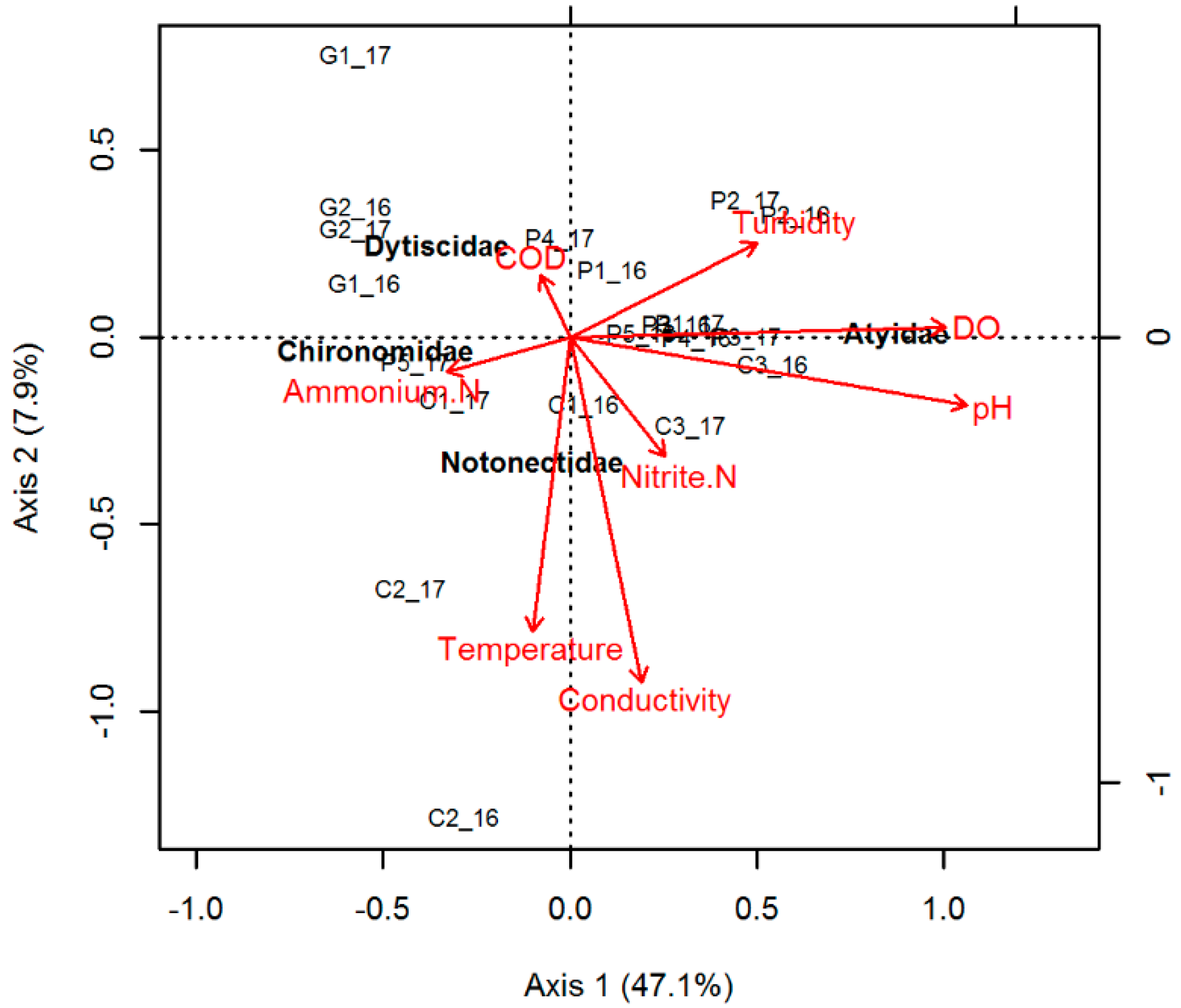

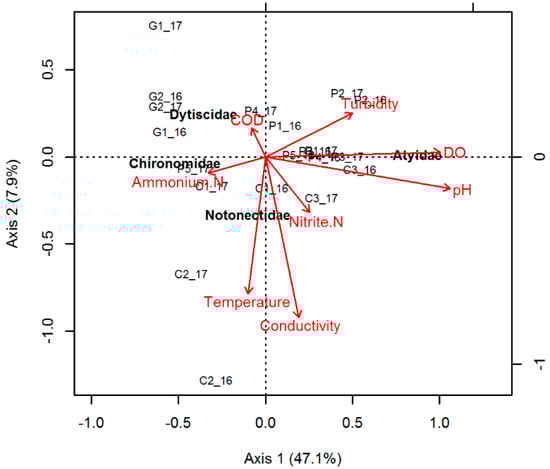

Figure 3. Redundancy analysis (RDA) of freshwater sites at San Cristóbal island (Galapagos). The first axis was found to be statistically significant according to a permutation ANOVA test (p = 0.004). The data represent 10 sites within three separate basins (P, C, and G) from two consecutive years (2016 and 2017).
Figure 3. Redundancy analysis (RDA) of freshwater sites at San Cristóbal island (Galapagos). The first axis was found to be statistically significant according to a permutation ANOVA test (p = 0.004). The data represent 10 sites within three separate basins (P, C, and G) from two consecutive years (2016 and 2017).
Water 11 00880 g003

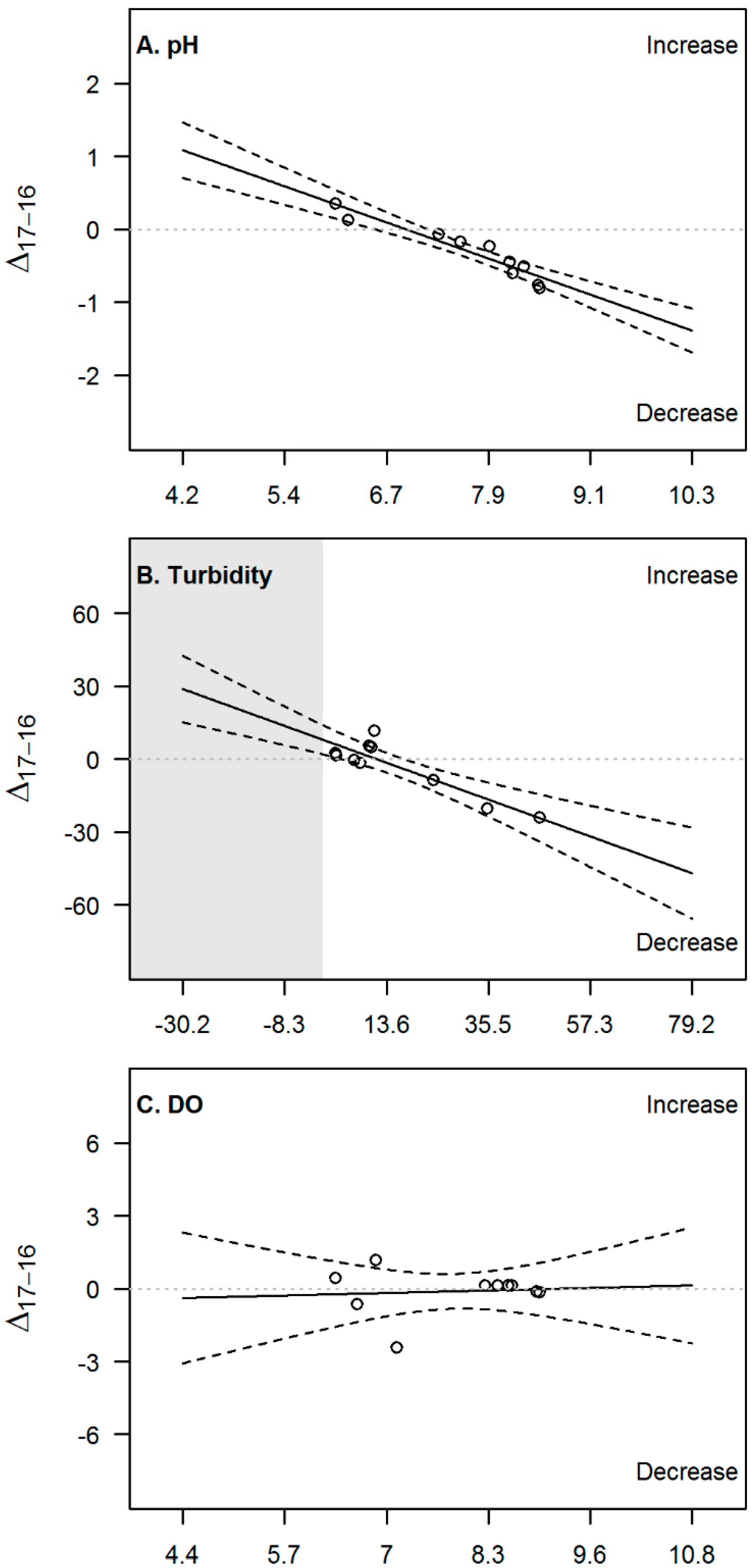

Figure 4. Linear regression lines depicting the change in abiotic variables between 2016 and 2017. Open circles represent the sample sites, the solid black line the fitted trend, and the dotted black lines the confidence (95%) related to it. (A) pH (-); (B) turbidity (NTU); (C) dissolved oxygen (DO, mg L−1). Both pH and turbidity values were characterized by a significant slope (−0.49 and −0.66, respectively, both p < 0.001). The depicted x-range covered 2.5 times the initial range, thereby including negative values (gray zones).
Figure 4. Linear regression lines depicting the change in abiotic variables between 2016 and 2017. Open circles represent the sample sites, the solid black line the fitted trend, and the dotted black lines the confidence (95%) related to it. (A) pH (-); (B) turbidity (NTU); (C) dissolved oxygen (DO, mg L−1). Both pH and turbidity values were characterized by a significant slope (−0.49 and −0.66, respectively, both p < 0.001). The depicted x-range covered 2.5 times the initial range, thereby including negative values (gray zones).
Water 11 00880 g004

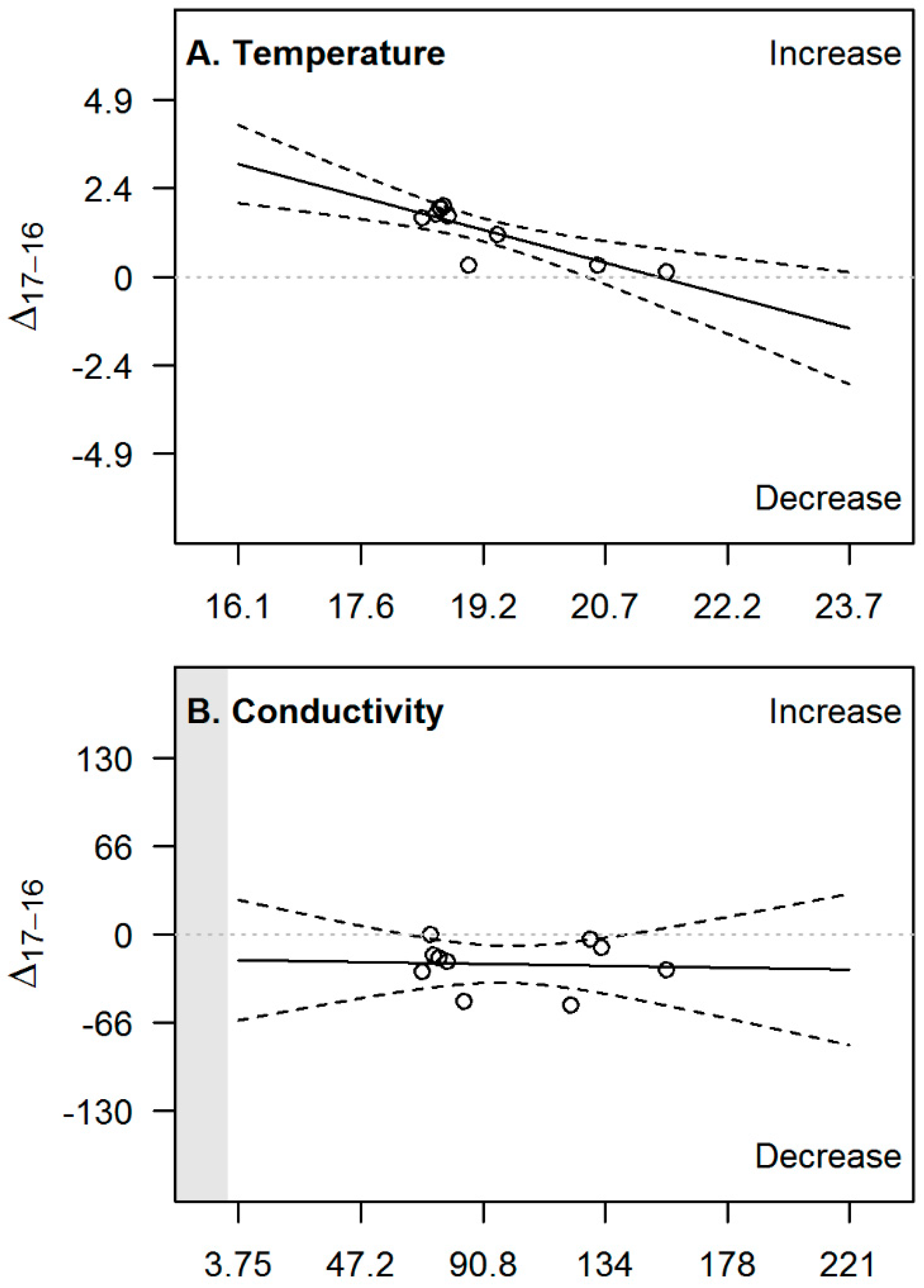

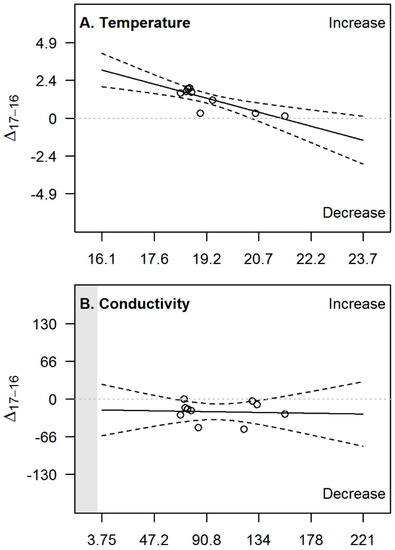

Figure 5. Linear regression lines depicting the change in abiotic variables between 2016 and 2017. Open circles represent the sample sites, the solid black line the fitted trend, and the dotted black lines the confidence (95%) related to it. (A) Temperature (°C); (B) conductivity (µS cm−1). Only temperature differences were characterized by a significant slope value (−0.59, p = 0.003). Conductivity values in 2017 were significantly lower than values recorded in 2016 (p = 0.002). The depicted x-range covered 2.5 times the initial range, thereby including negative values (gray zones).
Figure 5. Linear regression lines depicting the change in abiotic variables between 2016 and 2017. Open circles represent the sample sites, the solid black line the fitted trend, and the dotted black lines the confidence (95%) related to it. (A) Temperature (°C); (B) conductivity (µS cm−1). Only temperature differences were characterized by a significant slope value (−0.59, p = 0.003). Conductivity values in 2017 were significantly lower than values recorded in 2016 (p = 0.002). The depicted x-range covered 2.5 times the initial range, thereby including negative values (gray zones).
Water 11 00880 g005

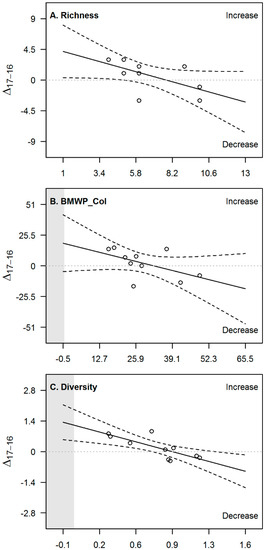

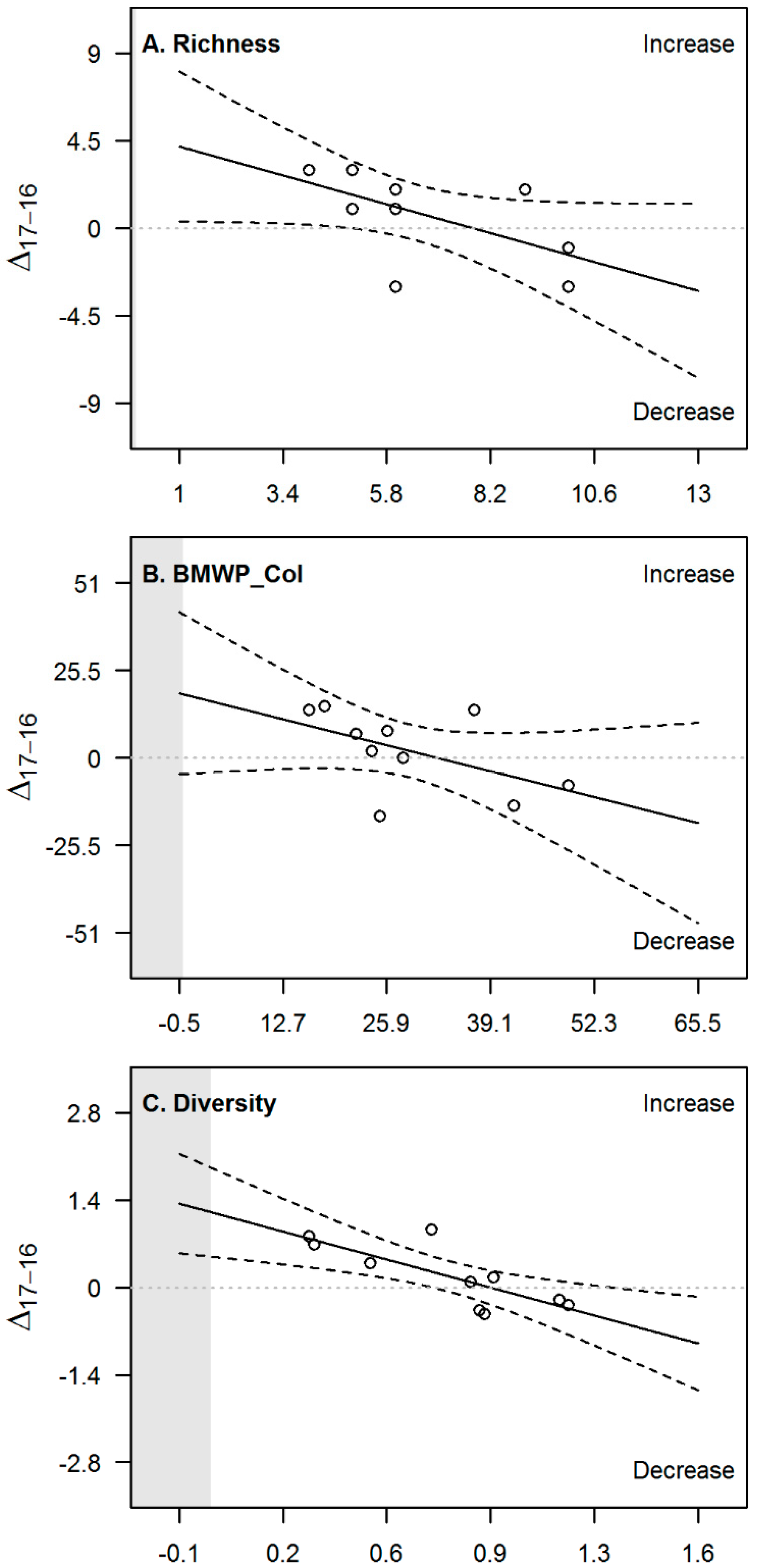

Figure 6. Linear regression lines depicting the change in biotic metrics between 2016 and 2017. Open circles represent the sample sites, the solid black line the fitted trend, and the dotted black lines the confidence (95%) related to it. (A) Richness; (B) Biological Monitoring Working Party (Colombia) (BMWP_Col); (C) diversity. Only diversity values showed a significant negative slope (−1.30, p = 0.008). The depicted x-range covered 2.5 times the initial range, thereby including negative values (gray zones).
Figure 6. Linear regression lines depicting the change in biotic metrics between 2016 and 2017. Open circles represent the sample sites, the solid black line the fitted trend, and the dotted black lines the confidence (95%) related to it. (A) Richness; (B) Biological Monitoring Working Party (Colombia) (BMWP_Col); (C) diversity. Only diversity values showed a significant negative slope (−1.30, p = 0.008). The depicted x-range covered 2.5 times the initial range, thereby including negative values (gray zones).
Water 11 00880 g006
Table 1. Physicochemical variables measured in streams on San Cristóbal island (Galapagos). The observed range (Min–Max), mean, standard deviation (sd), and number of sites below the detection limit (nBDL) are reported for the campaigns in 2016 and 2017, analyzing the same sites (N = 10). Probe measurements were never below the operational limits (reported as “-” for nBDL). NA: Not available due to a high number of sites below the detection limit; NTU: Nephelometric turbidity unit.
Table 1. Physicochemical variables measured in streams on San Cristóbal island (Galapagos). The observed range (Min–Max), mean, standard deviation (sd), and number of sites below the detection limit (nBDL) are reported for the campaigns in 2016 and 2017, analyzing the same sites (N = 10). Probe measurements were never below the operational limits (reported as “-” for nBDL). NA: Not available due to a high number of sites below the detection limit; NTU: Nephelometric turbidity unit.
Variable (Unit)Basin20162017
MeansdMinMaxnBDLMeansdMinMaxnBDL
Temperature (°C)P18.60.118.618.7-20.50.120.320.6-
C20.51.119.321.5-21.00.620.521.6-
G18.70.418.419.0-19.70.519.320.0-
Mean19.21.018.421.5-20.50.619.321.6-
Conductivity (µS cm−1)P842172122-6375872-
C13915129156-1263124130-
G77116984-3853442-
Mean993269156-773634130-
pH (-)P8.320.178.158.51-7.590.097.487.72-
C7.590.317.307.91-7.410.217.237.64-
G6.140.116.066.21-6.430.096.376.49-
Mean7.670.906.068.51-7.300.486.377.64-
Dissolved oxygen (mg O2 L−1)P8.660.238.398.92-8.690.098.548.77-
C7.150.976.368.23-7.770.846.828.39-
G6.880.356.637.13-5.300.964.625.98-
Mean7.850.996.368.92-7.741.454.628.77-
Turbidity (NTU)P25.315.610.246.4-18.44.114.823.7-
C6.43.62.79.9-8.55.84.115.1-
G5.33.72.67.9-5.81.05.16.5-
Mean15.614.72.646.4-12.97.14.123.7-
COD (mg O2 L−1)P6.82.52.79.207.71.15.88.90
C4.82.22.87.1016.74.013.621.20
G3.80.13.73.9014.02.512.215.70
Mean5.62.32.79.2011.64.85.821.20
Ammonium (mg N L−1)P0.076NA0.0760.07640.0660.0460.0140.1002
C0.0480.0120.0390.05610.0740.0720.0230.1251
G0.0380.0160.0270.04900.064NA0.0640.0641
Mean0.0490.0200.0270.07650.0690.0440.0140.1254
Nitrite (mg N L−1)P0.0260.0060.0200.03700.0060.0030.0020.0100
C0.0170.0020.0160.01900.0200.0180.0060.0400
G0.0120.0010.0110.01300.0080.0010.0070.0090
Mean0.0210.0100.0110.03700.0110.0110.0020.0400
Nitrate (mg N L−1)PNANANANA50.520.390.240.962
C0.67NA0.670.6720.880.250.671.160
GNANANANA20.590.020.570.600
Mean0.67NA0.670.6790.670.300.241.162
Orthophosphate (mg P L−1)P0.680.670.161.4300.021NA0.0210.0214
C0.290.210.150.530NANANANA3
G0.12NA0.120.121NANANANA2
Mean0.490.540.121.4310.021NA0.0210.0219
Table 2. Summarizing metrics of macroinvertebrate community within streams on San Cristóbal island (Galapagos). Metrics include richness (number of taxa), the BMWP_Col score (taxa-based tolerance score), and diversity (combining richness and abundance). The observed range (Min–Max) and arithmetic mean (mean) for each metric–year combination as well as the mean metric value for each basin are reported.
Table 2. Summarizing metrics of macroinvertebrate community within streams on San Cristóbal island (Galapagos). Metrics include richness (number of taxa), the BMWP_Col score (taxa-based tolerance score), and diversity (combining richness and abundance). The observed range (Min–Max) and arithmetic mean (mean) for each metric–year combination as well as the mean metric value for each basin are reported.
BasinCodeRichnessBMWP_ColDiversity
201620172016201720162017
Toma de la PolicíaP110742281.180.91
P25822290.530.91
P36728280.910.48
P45624260.731.65
P591137510.860.94
Mean77.830.632.40.8420.978
ChinoC110949411.150.96
C24716300.941.10
C34718330.331.13
Mean67.727.734.70.8071.063
Cerro GatoG16826340.341.02
G2632580.890.53
Mean65.525.5210.6150.775
TotalMin431680.330.48
Max101149511.181.65
Mean6.57.328.730.80.7860.964
Table 3. Results of linear analyses relating the observed differences between 2016 and 2017 (∆17−16), with the observations made in 2016 as represented in Figure 4, Figure 5 and Figure 6. Slope values are given with their accompanying p-value and 95% confidence interval (CI). The R² value describes the model fit to the observations. The significance of the slope value is indicated for p < 0.01 (**) and for p < 0.001 (***).
Table 3. Results of linear analyses relating the observed differences between 2016 and 2017 (∆17−16), with the observations made in 2016 as represented in Figure 4, Figure 5 and Figure 6. Slope values are given with their accompanying p-value and 95% confidence interval (CI). The R² value describes the model fit to the observations. The significance of the slope value is indicated for p < 0.01 (**) and for p < 0.001 (***).
VariableSlopep-ValueR2CI 2.5%CI 97.5%
pH−0.49 ***0.000020.90−0.61−0.36
Turbidity−0.66 ***0.00050.79−0.93−0.38
DO0.0850.80.01−0.710.88
Temperature−0.59 **0.0030.68−0.92−0.26
Conductivity−0.0320.90.00−0.480.42
Richness−0.620.060.37−1.300.03
BMWP_Col−0.570.10.27−1.300.19
Diversity−1.30 **0.0080.61−2.1−0.44

Share and Cite

MDPI and ACS Style

Van Echelpoel, W.; Forio, M.A.E.; Van der heyden, C.; Bermúdez, R.; Ho, L.; Rosado Moncayo, A.M.; Parra Narea, R.N.; Dominguez Granda, L.E.; Sanchez, D.; Goethals, P.L.M. Spatial Characteristics and Temporal Evolution of Chemical and Biological Freshwater Status as Baseline Assessment on the Tropical Island San Cristóbal (Galapagos, Ecuador). Water 2019, 11, 880. https://doi.org/10.3390/w11050880

AMA Style

Van Echelpoel W, Forio MAE, Van der heyden C, Bermúdez R, Ho L, Rosado Moncayo AM, Parra Narea RN, Dominguez Granda LE, Sanchez D, Goethals PLM. Spatial Characteristics and Temporal Evolution of Chemical and Biological Freshwater Status as Baseline Assessment on the Tropical Island San Cristóbal (Galapagos, Ecuador). Water. 2019; 11(5):880. https://doi.org/10.3390/w11050880

Chicago/Turabian Style

Van Echelpoel, Wout, Marie Anne Eurie Forio, Christine Van der heyden, Rafael Bermúdez, Long Ho, Andrea Mishell Rosado Moncayo, Rebeca Nathaly Parra Narea, Luis E. Dominguez Granda, Danny Sanchez, and Peter L. M. Goethals. 2019. "Spatial Characteristics and Temporal Evolution of Chemical and Biological Freshwater Status as Baseline Assessment on the Tropical Island San Cristóbal (Galapagos, Ecuador)" Water 11, no. 5: 880. https://doi.org/10.3390/w11050880

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
