# Experimental Investigation on Characteristics of Sand Waves with Fine Sand under Waves and Currents

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Experimental Installation and Methods

#### 2.1. Experimental Set-Up

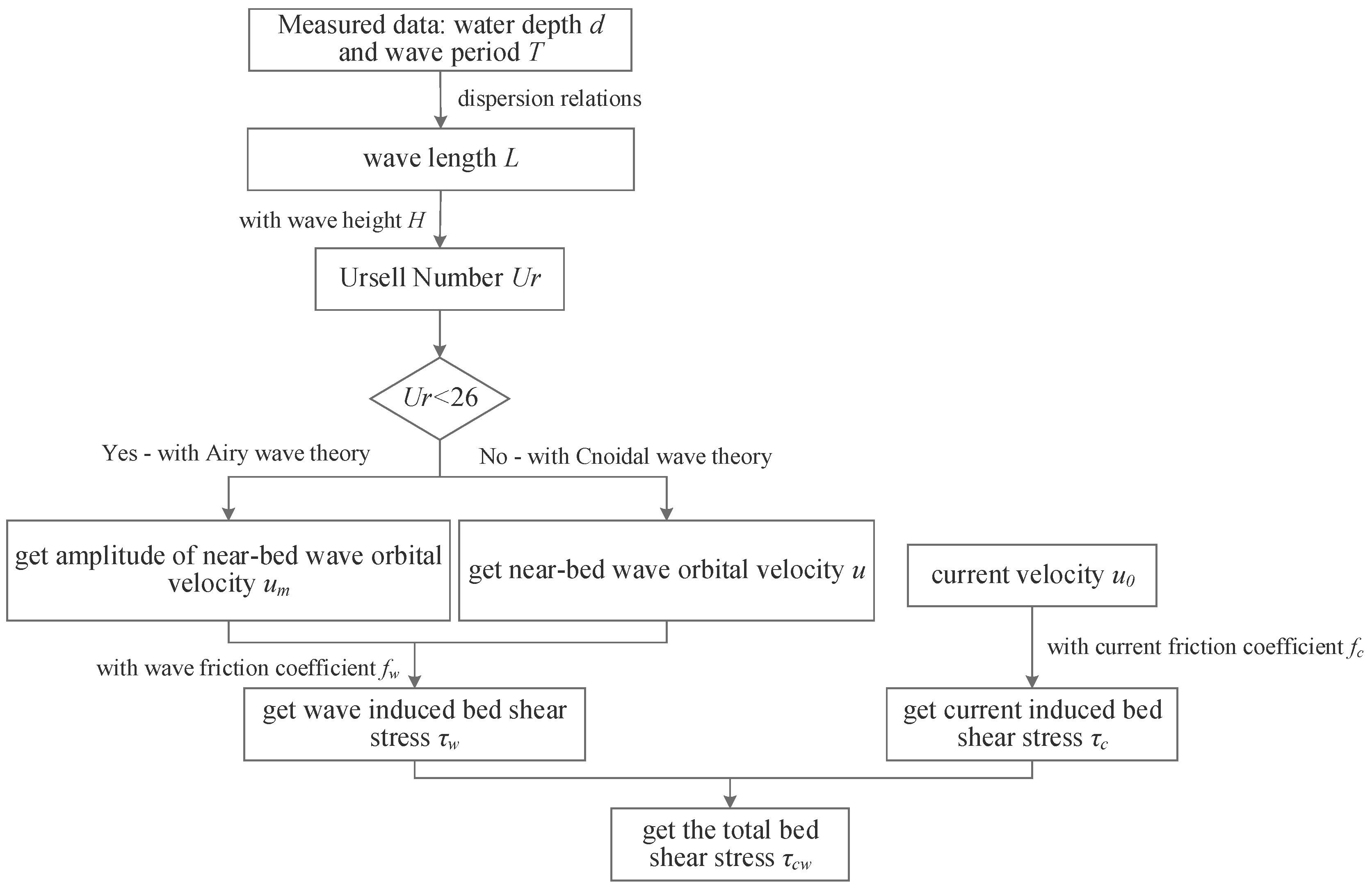

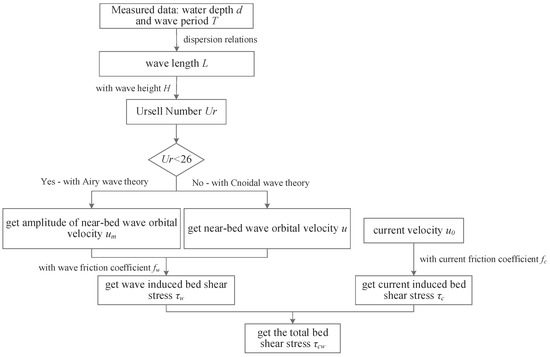

#### 2.2. Water Characteristics Calculation

## 3. Results

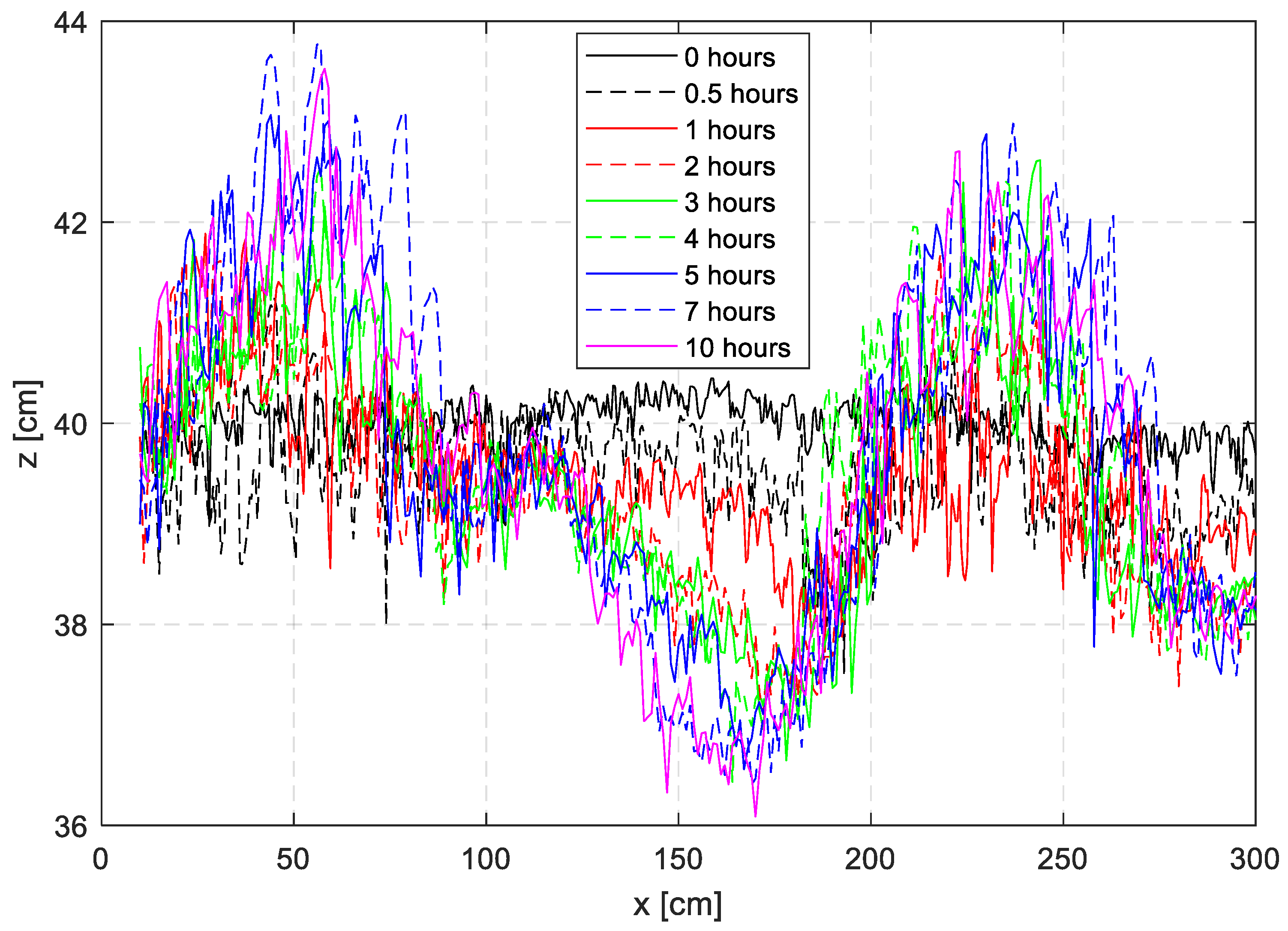

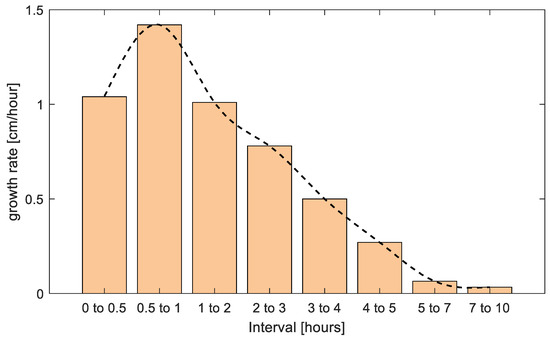

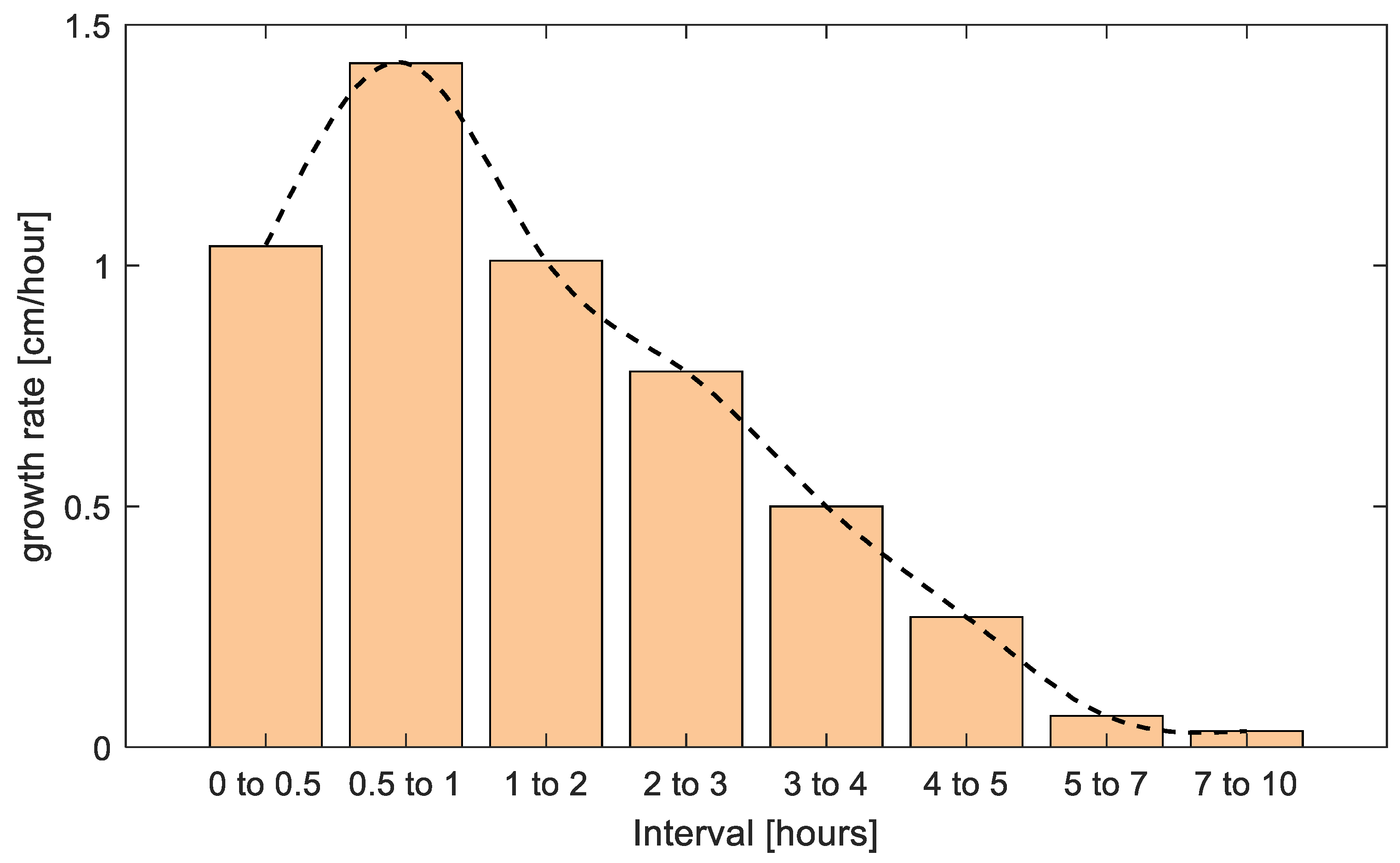

#### 3.1. Dynamic Growth of Sand Waves

#### 3.2. Geometry Characteristics of Sand Waves

## 4. Discussion

#### 4.1. Comparison with the Results of Cataño-Lopera et al. [1]

_{ew}) to express measured values. Twenty one data of tests with waves alone and combined currents were used to analyze the relationship between dimensionless geometric configuration of sand waves and R

_{ew}. The wave characteristics were obtained using small amplitude wave theory for all cases though Ursell number was larger than 26 in about half of the experiments. In this paper, Cnoidal wave theory was used to calculate the wave characteristics for the experiments with a large Ursell number. Additionally, two different sediment diameters were used in this paper, and the Reynolds wave number was no longer suitable as the dimensionless parameter because sediment configuration needs to be considered. Therefore, the dimensionless bed shear stress was used as the hydrodynamic parameter in this paper.

#### 4.2. Bedforms with Dimensionless Shear Stress

## 5. Conclusions

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## Notation

$H$ = wave height |

$T$ = wave period |

${u}_{0}$ = depth-averaged current velocity |

$d$ = water depth |

${D}_{50}$ = median diameter of sediment |

$Ur$ = Ursell number |

$L$ = wave length |

${T}_{*}$ = dimensionless bed-shear stress |

${\tau}_{cw}$ = mean bed shear stress due to current and waves |

${\tau}_{cr}$ = critical bed shear stress |

${\rho}_{s}$ = density of sediment |

${\rho}_{w}$ = density of water |

$g$ = gravitational acceleration |

${\theta}_{cr}$ = critical Shields number |

${D}_{*}$ = dimensionless particle diameter |

$\nu $ = viscosity coefficient of water |

${u}_{m}$ = amplitude of the near-bottom wave orbital velocity |

${f}_{w}$ = wave friction factor |

${f}_{c}$ = current friction factor |

${\tau}_{w}$ = wave-averaged bed shear stress due to waves only |

${\tau}_{c}$ = bed shear stress due to current only |

$k$ = wave number |

${a}_{m}$ = near-bed peak orbital excursion |

$\Delta $ = wave related roughness |

${\eta}_{s}$ = ripple height |

$\kappa $ = modulus of elliptic integral |

$K\left(\kappa \right)$ = the first kind complete elliptic integral |

$E\left(\kappa \right)$ = the second kind complete elliptic integral |

$u$ = near-bed instantaneous velocity due to waves |

$\mathrm{sn}\left(\right)$ = Jacobian elliptic sinusoid function |

$\mathrm{cn}\left(\right)$ = Jacobian elliptic cosine function |

$\mathrm{dn}\left(\right)$ = Jacobian elliptic delta function |

${z}_{t}$ = distance from the wave trough to the sea bed |

${z}_{c}$ = distance from the wave crest to the sea bed |

${h}_{sw}$ = sand wave height |

${l}_{sw}$ = sand wave length |

${\sigma}_{sw}$ = sand wave steepness |

## References

- Cataño-Lopera, Y.A.; García, M.H. Geometry and migration characteristics of bedforms under waves and currents. Part 1: Sandwave morphodynamics. Coast. Eng.
**2006**, 53, 767–780. [Google Scholar] [CrossRef] - Cataño-Lopera, Y.A.; García, M.H. Geometry and migration characteristics of bedforms under waves and currents: Part 2: Ripples superimposed on sandwaves. Coast. Eng.
**2006**, 53, 781–792. [Google Scholar] [CrossRef] - Terwindt, J.H.J. Sand waves in the southern bight of the North Sea. Mar. Geol.
**1971**, 10, 51–67. [Google Scholar] [CrossRef] - Mccave, I.N. Sand waves in the North Sea off the coast of Holland. Mar. Geol.
**1971**, 10, 199–225. [Google Scholar] [CrossRef] - Campmans, G.H.P.; Roos, P.C.; de Vriend, H.J.; Hulshcher, S.J.M.H. Modeling the influence of storms on sand wave formation: A linear stability approach. Cont. Shelf Res.
**2017**, 137, 103–116. [Google Scholar] [CrossRef] - Van Dijk, T.A.G.P.; Kleinhans, M.G. Processes controlling the dynamics of compound sand waves in the North Sea, Netherlands. J. Geophys. Res. Earth Surf.
**2005**, 110, 1–15. [Google Scholar] [CrossRef] - Besio, G.; Blondeaux, P.; Brocchini, M.; Hulshcer, S.J.M.H.; Idier, D.; Knaapen, M.A.F.; Németh, A.; Roos, P.C.; Vittori, G. The morphodynamics of tidal sand waves: A model overview. Coast. Eng.
**2017**, 55, 657–670. [Google Scholar] [CrossRef] - Berg, J.V.D.; Sterlini, F.; Hulscher, S.J.M.H.; Damme, R.V. Non-linear process based modelling of offshore sand waves. Cont. Shelf Res.
**2012**, 37, 26–35. [Google Scholar] [CrossRef] - Knaapen, M.A.F.; Hulscher, S.J.M.H.; Tiessen, M.C.H.; Berg, J.V.D.; Parker, G.; García, M.H. Using a sand wave model for optimal monitoring of a navigation depth. In Proceedings of the Forth IAHR Symposium on River, Coastal and Estuarine Morphodynamics, Urbana, IL, USA, 4–7 October 2005; pp. 999–1007. [Google Scholar]
- Németh, A.; Hulscher, S.J.M.H.; de Vriend, H.J. Offshore sand wave dynamics, engineering problems and future solutions. Pipeline Gas J.
**2003**, 230, 67–69. [Google Scholar] - Roos, P.C.; Blondeaux, P.; Hulscher, S.J.M.H.; Vittor, G. Linear evolution of sandwave packets. J. Geophys. Res. Earth Surf.
**2005**, 110, 1–10. [Google Scholar] [CrossRef] - Ma, X.; Yan, J.; Fan, F. Morphology of submarine barchans and sediment transport in barchans fields off the Dongfang coast in Beibu Gulf. Geomorphology
**2014**, 213, 213–224. [Google Scholar] [CrossRef] - Li, Y.; Lin, M.; Jiang, W.; Fan, F. Process control of the sand wave migration in Beibu Gulf of the South China Sea. J. Hydrodyn.
**2011**, 23, 439–446. [Google Scholar] [CrossRef] - Dodd, N.; Blondeaux, P.; Calvete, D.; Swart, H.E.D.; Falqués, A.; Hulscher, S.J.M.H.; Różyński, G.; Vittori, G. Understanding coastal morphodynamics using stability methods. J. Coast. Res.
**2003**, 19, 849–865. [Google Scholar] - Belderson, R.H. Offshore tidal and non-tidal sand ridges and sheets: Differences in morphology and hydrodynamic setting. In Shelf Sands and Sandstones—Memoir 11; CSPG Special Publications: Calgary, AB, Canada, 1986. [Google Scholar]
- Hulscher, S.J.M.H. Tidal-induced large-scale regular bed form patterns in a three-dimensional shallow water model. J. Geophys. Res. Oceans
**1996**, 101, 20727–20744. [Google Scholar] [CrossRef] - Borsje, B.W.; Roos, P.C.; Kranenburg, W.M.; Hulscher, S.J.M.H. Modeling tidal sand wave formation in a numerical shallow water model: The role of turbulence formulation. Cont. Shelf Res.
**2013**, 60, 17–27. [Google Scholar] [CrossRef] - Németh, A.A.; Hulscher, S.J.M.H.; de Vriend, H.J. Modelling sand wave migration in shallow shelf seas. Cont. Shelf Res.
**2002**, 22, 2795–2806. [Google Scholar] [CrossRef] - Besio, G.; Blondeaux, P.; Brocchini, M.; Vittori, G. On the modeling of sand wave migration. J. Geophys. Res. Oceans
**2004**, 109, 1–13. [Google Scholar] [CrossRef] - Campmans, G.H.P.; Roos, P.C.; de Vriend, H.J.; Hulscher, S.J.M.H. The influence of storms on sand wave evolution: A nonlinear idealized modeling approach. J. Geophys. Res. Earth Surf.
**2018**, 123, 2070–2086. [Google Scholar] [CrossRef] - Campmans, G.H.P.; Roos, P.C.; Schrijen, E.; Hulscher, S.J.M.H. Modeling wave and wind climate effects on tidal sand wave dynamics: A North Sea case study. Estuar. Coast. Shelf Sci.
**2018**, 213, 137–147. [Google Scholar] [CrossRef] - Borsje, B.W.; de Vries, M.B.; Bouma, T.J.; Besio, G.; Hulscher, S.J.M.H.; Herman, P.M.J. Modelling biogeomorphological influences for offshore sandwaves. Cont. Shelf Res.
**2009**, 29, 1289–1301. [Google Scholar] [CrossRef] - Borsje, B.W.; Hulscher, S.J.M.H.; Herman, P.M.J.; de Vries, M.B. On the parameterization of biological influences on offshore sandwave dynamics. Ocean Dyn.
**2009**, 59, 659–670. [Google Scholar] [CrossRef] - Roos, P.C.; Wemmenhove, R.; Hulscher, S.J.M.H.; Hoeijmakers, H.W.M.; Kruyt, N.P. Modeling the effect of nonuniform sediment on the dynamics of offshore tidal sandbanks. J. Geophys. Res. Earth Surf.
**2007**, 112, 1–11. [Google Scholar] [CrossRef] - Van Oyen, T.; Blondeaux, P. Grain sorting effects on the formation of tidal sand waves. J. Fluid Mech.
**2009**, 629, 311–342. [Google Scholar] [CrossRef] - Van Oyen, T.; Blondeaux, P. Tidal sand wave formation: Influence of graded suspended sediment transport. J. Geophys. Res. Oceans
**2009**, 114, 1–18. [Google Scholar] [CrossRef] - Blondeaux, P. Sediment mixtures, coastal bedforms and grain sorting phenomena: An overview of the theoretical analyses. Adv. Water Resour.
**2012**, 48, 113–124. [Google Scholar] [CrossRef] - Borsje, B.W.; Kranenburg, W.M.; Roos, P.C.; Matthieu, J.; Hulscher, S.J.M.H. The role of suspended load transport in the occurrence of tidal sand waves. J. Geophys. Res. Earth Surf.
**2014**, 119, 701–716. [Google Scholar] [CrossRef] - Van Gerwen, W.; Borsje, B.W.; Damveld, J.H.; Hulscher, S.J.M.H. Modelling the effect of suspended load transport and tidal asymmetry on the equilibrium tidal sand wave height. Coast. Eng.
**2018**, 136, 56–64. [Google Scholar] [CrossRef] - Chou, Y.J.; Shao, Y.C.; Sheng, Y.H.; Cheng, C.J. Stabilized formulation for modeling the erosion/deposition flux of sediment in circulation/CFD models. Water
**2019**, 11, 197. [Google Scholar] [CrossRef] - Williams, J.J.; Bell, P.S.; Thorne, P.D. Unifying large and small wave-generated ripples. J. Geophys. Res. Oceans
**2005**, 110, 1–18. [Google Scholar] [CrossRef] - Zhu, X.; Wang, Z.; Wu, Z.; Liu, F.; Liang, B.; He, Y.; Huang, F. Experiment research on geometry and evolution characteristics of sand wave bedforms generated by waves and currents. In 5th International Conference on Coastal and Ocean Engineering, Shanghai, China, 2018; IOP Conference Series: Earth and Environmental Science; IOP Publishing: Bristol, UK, 2018; pp. 9–15. [Google Scholar]
- Van Rijn, L.C. Principles of Sediment Transport in Rivers, Estuaries and Coastal Seas; Aqua Publications: Blokzijl, The Netherlands, 1993. [Google Scholar]
- Swart, D.H. Offshore Sediment Transport and Equilibrium Beach Profiles. Ph.D. Thesis, Civil Engineering and Geosciences, Delft, The Netherlands, December 1974. [Google Scholar]
- Korteweg, D.J.; de Vries, G. On the change of form of long waves advancing in a rectangular canal, and on a new type of stationary waves. Lond. Edinb. Dublin Philos. Magazine J. Sci.
**1895**, 39, 422–443. [Google Scholar] [CrossRef] - Keller, J.B. The solitary wave and periodic waves in shallow water. Commun. Appl. Math.
**1984**, 1, 323–339. [Google Scholar] [CrossRef] - Zou, Z.L. Coastal Dynamics; China Communications Press: Beijing, China, 2009. (In Chinese) [Google Scholar]
- Van Rijn, L.C. Sediment transport, part III: Bed forms and alluvial roughness. J. Hydraul. Eng. ASCE
**1984**, 110, 1733–1754. [Google Scholar] [CrossRef] - Yalin, M.S. River Mechanics; Pergamon Press: Oxford, UK, 1992. [Google Scholar]
- Julien, P.Y. Erosion and Sedimentation; Cambridge University Press: Cambridge, UK, 2010. [Google Scholar]
- Wiberg, P.L.; Sherwood, C.R. Calculating wave-generated bottom orbital velocities from surface-wave parameters. Comput. Geosci.
**2008**, 34, 1243–1262. [Google Scholar] [CrossRef] - Xiong, J.; Wang, Y.P.; Gao, S.; Du, J.; Yang, Y.; Tang, J.; Gao, J. On estimation of coastal wave parameters and wave-induced shear stresses. Limnol. Oceanogr. Meth.
**2018**, 16, 594–606. [Google Scholar] [CrossRef] - Boyd, R.; Forbes, D.L.; Heffler, D.E. Time-sequence observations of wave-formed sand ripples on an ocean shoreface. Sedimentology
**1988**, 35, 449–464. [Google Scholar] [CrossRef] - Allen, J.R.L. Physical Processes of Sedimentation; American Elsevier Pub. Co.: New York, NY, USA, 1970. [Google Scholar]
- Zhao, N.; Liu, X.J.; Lu, G. Characteristics and evolution process and their modeling of sand ripples on Dongtai tidal flats, Jiangsu province China. J. Sediment. Res.
**2012**, 3, 4, (In Chinese with English abstract). [Google Scholar]

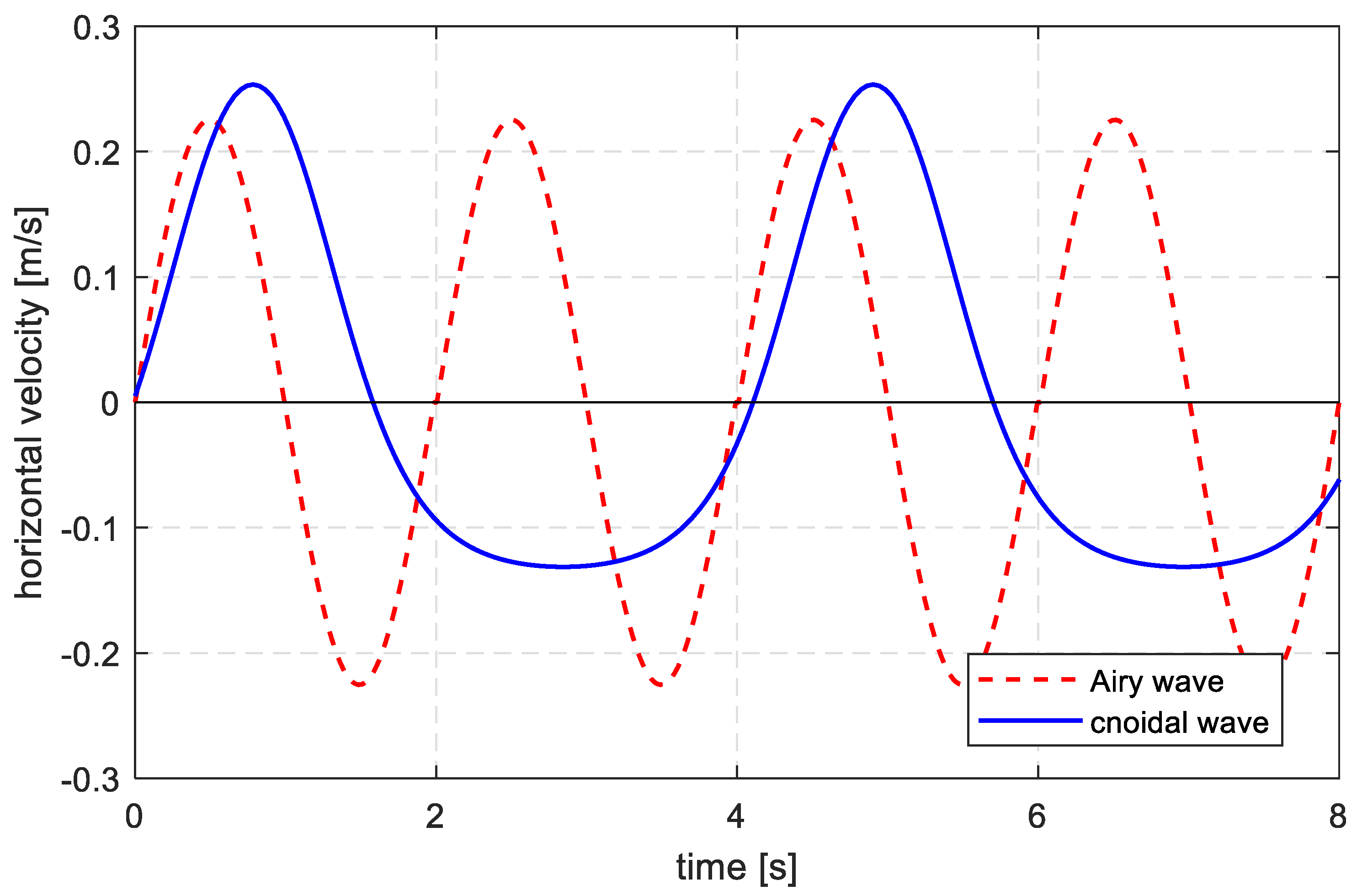

**Figure 3.**Time series of the wave particle horizontal velocity with different wave theories. The red dash line represents the first test and the wave velocity is symmetrical in a wave period. The blue solid line represents the second test and the wave velocity is larger following the wave direction but the duration is shorter.

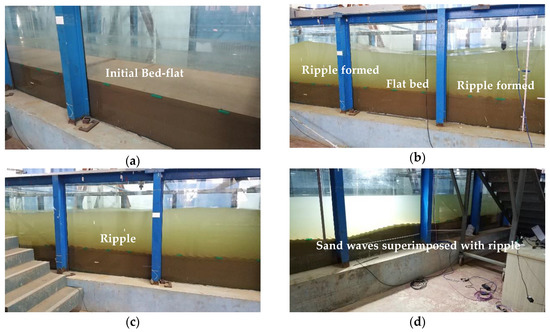

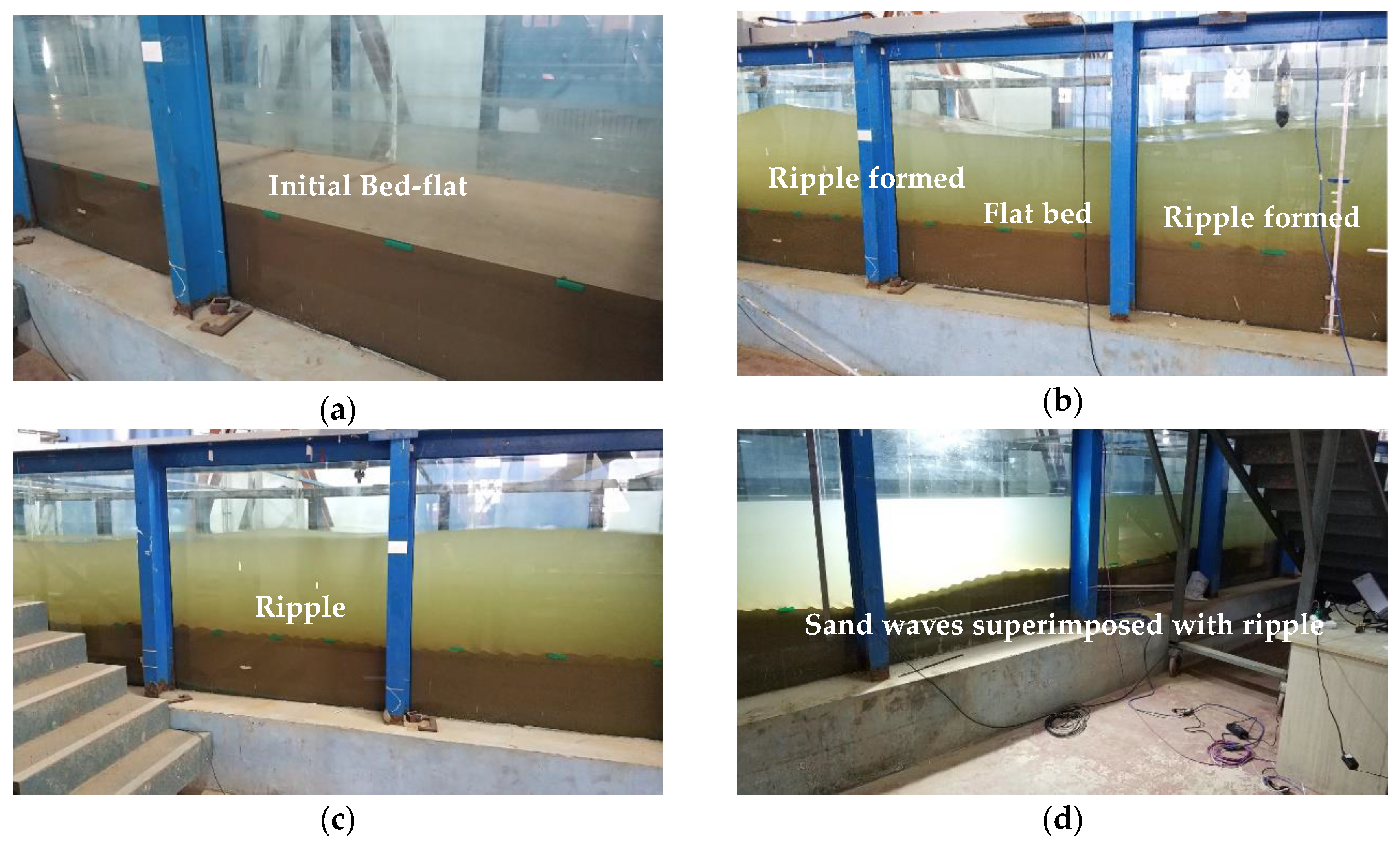

**Figure 4.**Bed evolution over time during the experiment. (

**a**) initial time; (

**b**) several minutes later; (

**c**) 1 h later; (

**d**) 10 h later.

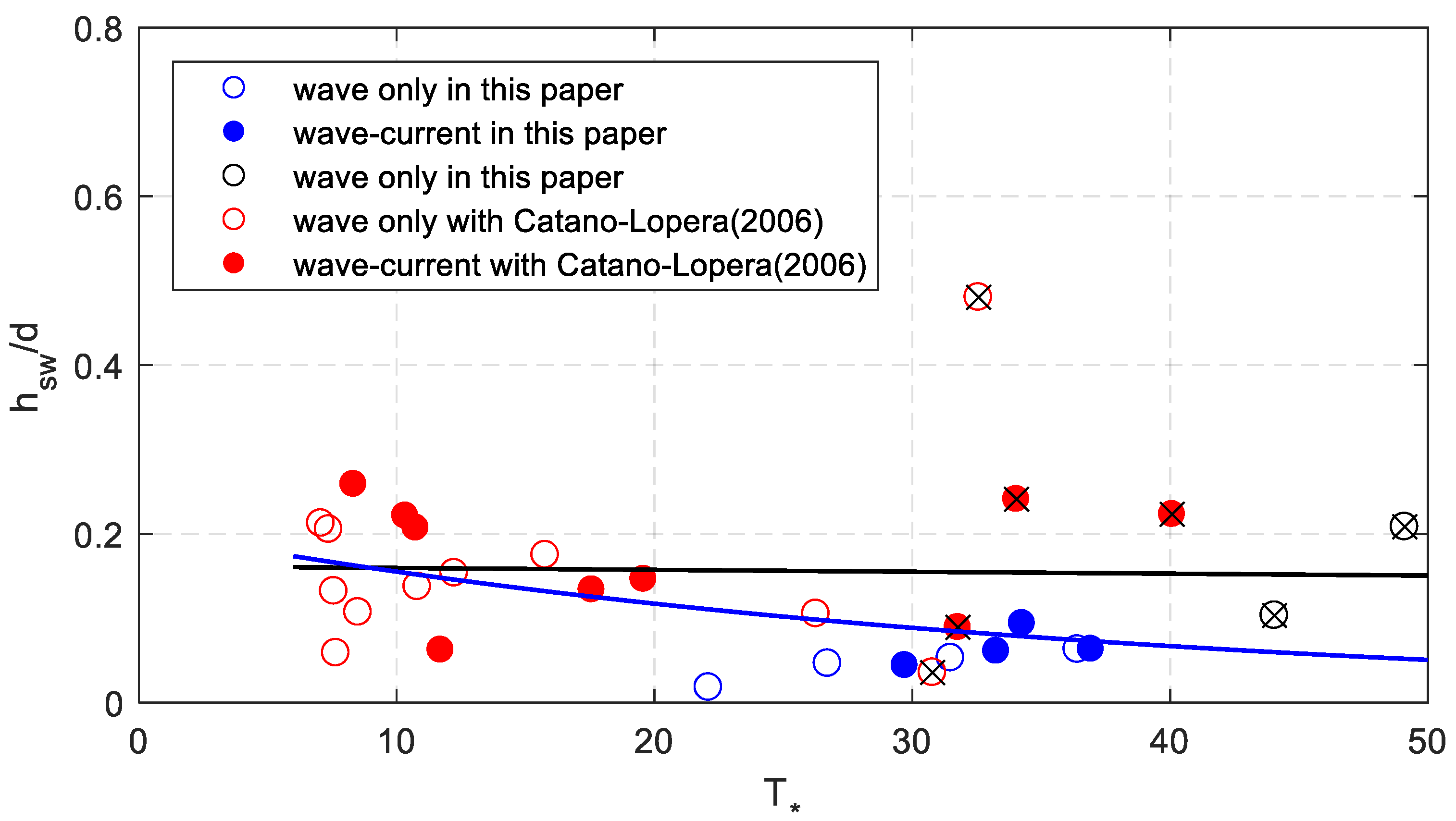

**Figure 7.**The relationship between the measured dimensionless sand wave height and dimensionless shear stress. The blue circles represent the results of experiments of this paper with a medium diameter of 0.17 mm and the dark ones of 0.18 mm. The red circles represent the results of experiments conducted by Cataño-Lopera et al. [1]. The range of the dimensionless shear stress is about 7–49.

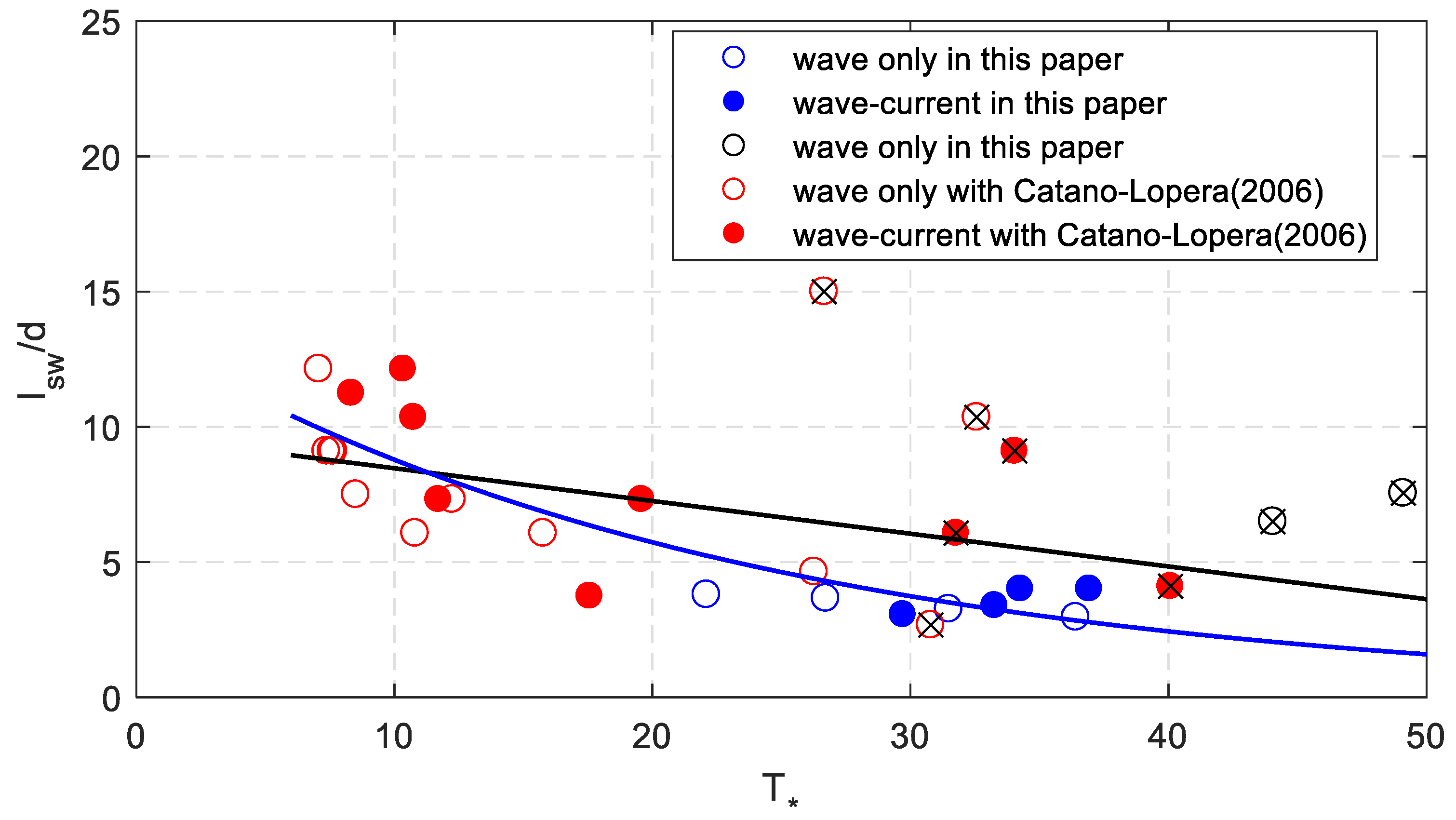

**Figure 8.**The relationship between the measured dimensionless sand wave length and dimensionless shear stress.

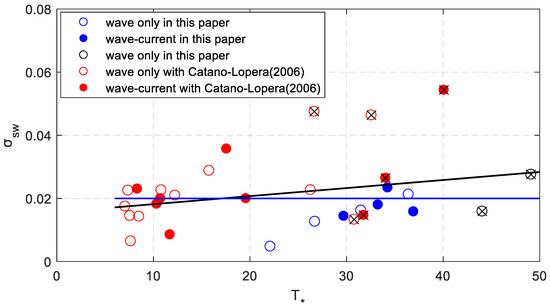

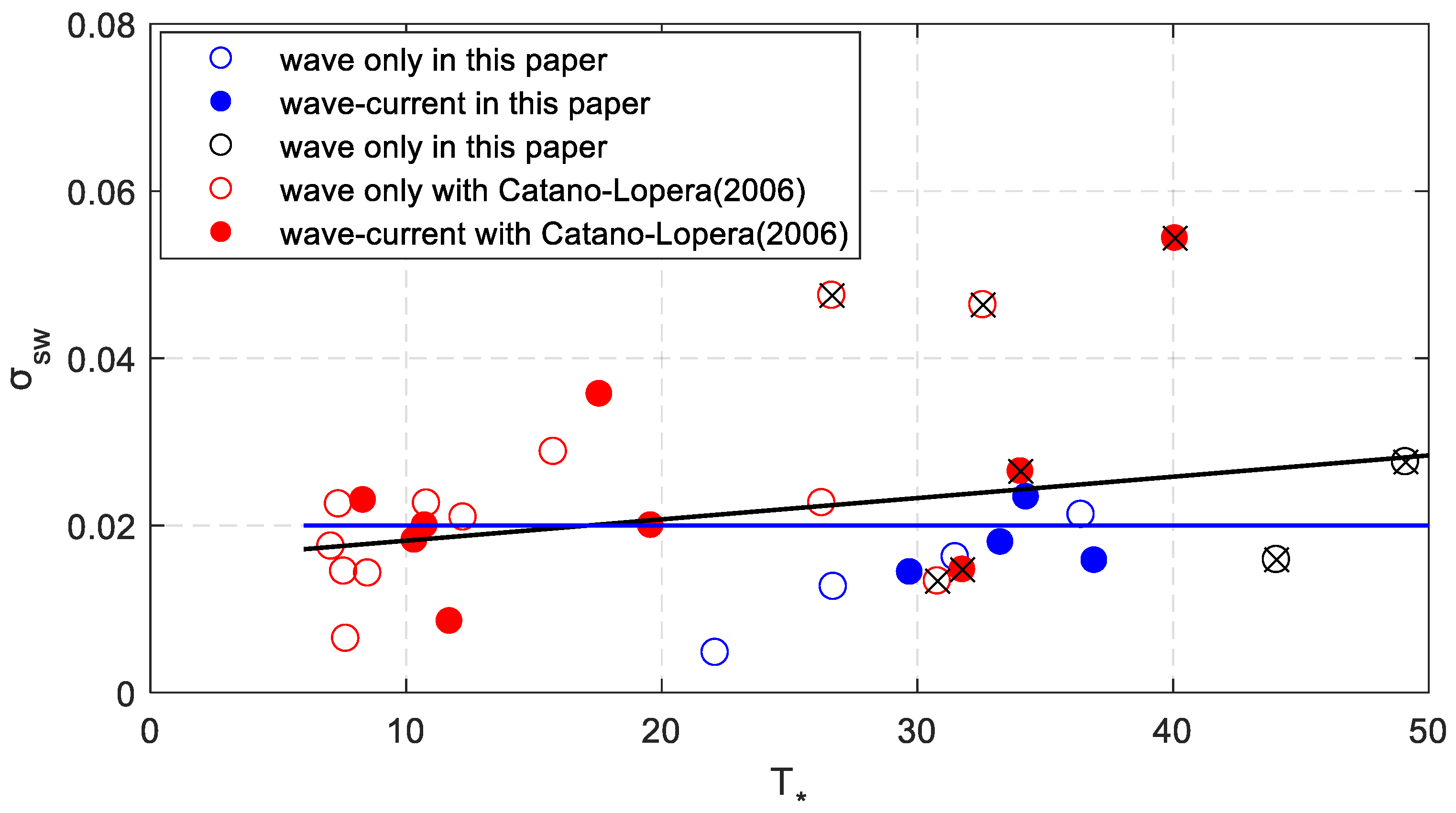

**Figure 9.**The relationship between the measured sand wave steepness and dimensionless shear stress. The black line is the fitting curve for all the data.

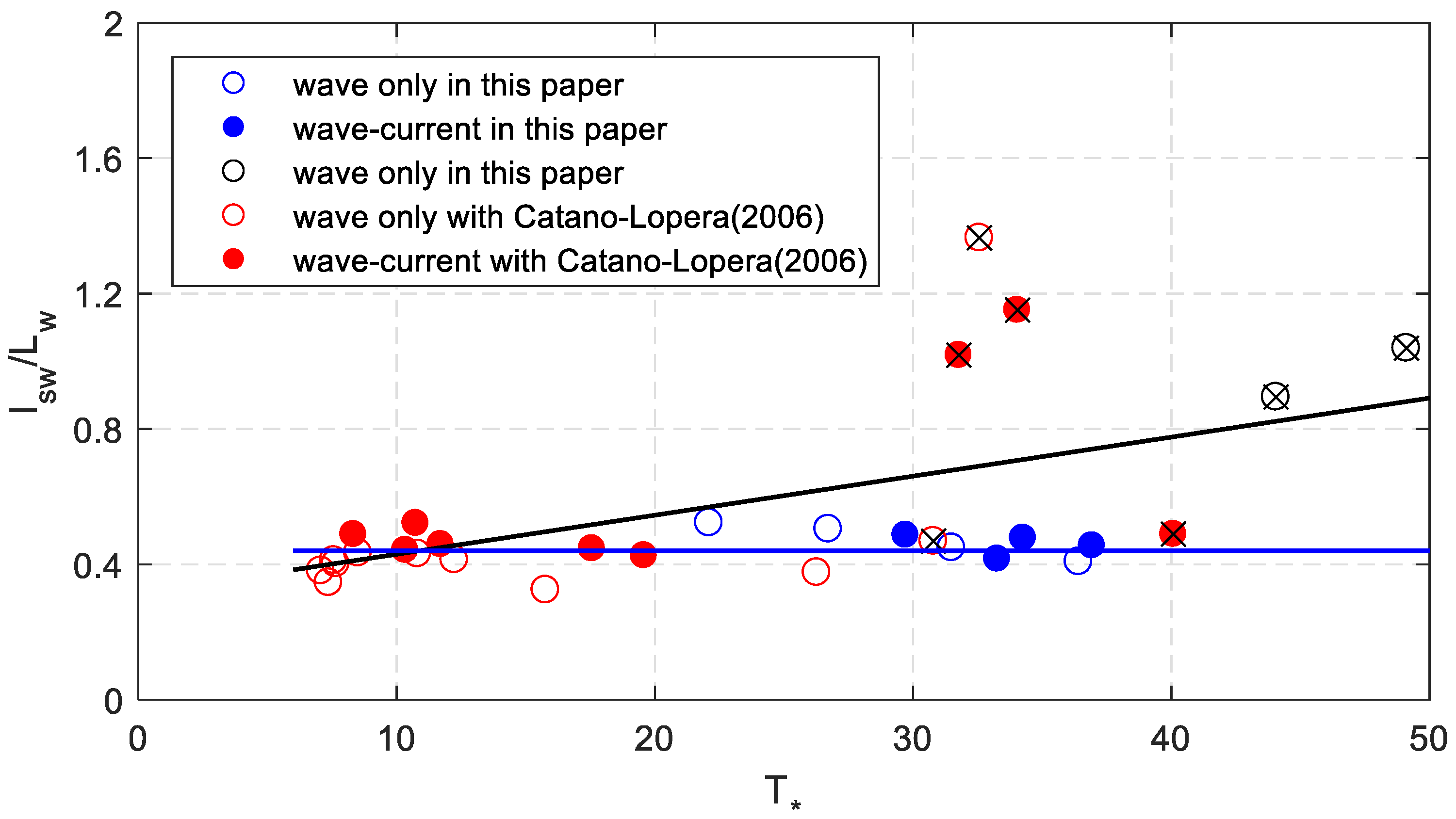

**Figure 10.**The relationship between the measured dimensionless sand wave length and dimensionless shear stress.

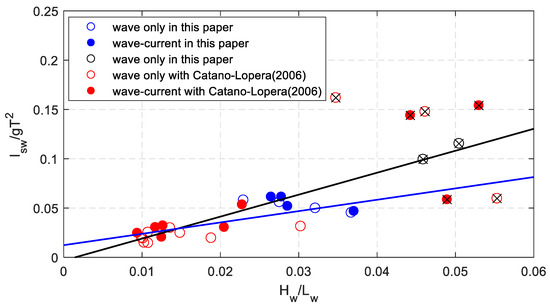

**Figure 11.**The relationship between the measured dimensionless sand wave height and dimensionless wave length.

Scenarios | H (m) | T (s) | u_{0} (m/s) | d (m) | D_{50} (mm) |
---|---|---|---|---|---|

1 | 0.10 | 2 | 0 | 0.6 | 0.17 |

2 | 0.12 | 2 | 0 | 0.6 | 0.17 |

3 | 0.14 | 2 | 0 | 0.6 | 0.17 |

4 | 0.16 | 2 | 0 | 0.6 | 0.17 |

5 | 0.14 | 2 | −0.2 | 0.6 | 0.17 |

6 | 0.14 | 2 | 0.2 | 0.6 | 0.17 |

7 | 0.14 | 2 | 0.25 | 0.6 | 0.17 |

8 | 0.14 | 2 | 0.35 | 0.6 | 0.17 |

9 | 0.20 | 2 | 0 | 0.6 | 0.18 |

10 | 0.22 | 2 | 0 | 0.6 | 0.18 |

_{0}is depth-averaged current velocity; d is the water depth, and D

_{50}is the median diameter of sediment.

Scenarios ^{a} | H (cm) | T (s) | u_{0}(m/s) | d (m) | D_{50}(mm) | h_{sw}(cm) | l_{sw}(m) | Ur | ${\mathit{\tau}}_{\mathit{w}}$ | ${\mathit{\tau}}_{\mathit{c}}$ | ${\mathit{\tau}}_{\mathit{c}\mathit{r}}$ | ${\mathit{T}}_{*}$ |
---|---|---|---|---|---|---|---|---|---|---|---|---|

1 | 10.0 | 2 | 0 | 0.6 | 0.17 | 1.09 | 2.28 | 8.81 | 3.49 | 0.00 | 0.15 | 22.10 |

2 | 12.0 | 2 | 0 | 0.6 | 0.17 | 2.79 | 2.2 | 10.57 | 4.19 | 0.00 | 0.15 | 26.72 |

3 | 14.0 | 2 | 0 | 0.6 | 0.17 | 3.18 | 1.96 | 12.33 | 4.92 | 0.00 | 0.15 | 31.49 |

4 | 16.0 | 2 | 0 | 0.6 | 0.17 | 3.79 | 1.78 | 14.09 | 5.66 | 0.00 | 0.15 | 36.41 |

5 | 14.0 | 2 | −0.2 | 0.6 | 0.17 | 2.65 | 1.84 | 12.33 | 4.92 | −0.27 | 0.15 | 29.71 |

6 | 14.0 | 2 | 0.2 | 0.6 | 0.17 | 3.67 | 2.04 | 12.33 | 4.92 | 0.27 | 0.15 | 33.26 |

7 | 14.0 | 2 | 0.25 | 0.6 | 0.17 | 5.64 | 2.41 | 12.33 | 4.92 | 0.42 | 0.15 | 34.26 |

8 | 14.0 | 2 | 0.35 | 0.6 | 0.17 | 3.81 | 2.41 | 12.33 | 4.92 | 0.82 | 0.15 | 36.93 |

9 | 20.0 | 2 | 0 | 0.6 | 0.18 | 6.2 | 3.9 | 17.62 | 7.22 | 0.00 | 0.16 | 44.05 |

10 | 22.0 | 2 | 0 | 0.6 | 0.18 | 12.5 | 4.53 | 19.38 | 8.03 | 0.00 | 0.16 | 49.10 |

11 | 19.6 | 2 | 0 | 0.56 | 0.25 | 26.9 | 5.8 | 20.12 | 7.47 | 0.00 | 0.22 | 32.57 |

12 ^{b} | 12.8 | 5.2 | 0 | 0.56 | 0.25 | 3.3 | 5.1 | 117.19 | 1.93 | 0.00 | 0.22 | 7.65 |

13 | 19.2 | 6.9 | 0 | 0.56 | 0.25 | 11.9 | 6.8 | 347.56 | 1.80 | 0.00 | 0.22 | 7.07 |

14 | 19.7 | 4.2 | 0 | 0.56 | 0.25 | 9.8 | 3.4 | 123.08 | 3.73 | 0.00 | 0.22 | 15.77 |

15 | 17.7 | 1.6 | 0 | 0.56 | 0.25 | 2 | 1.5 | 10.32 | 7.08 | 0.00 | 0.22 | 30.79 |

16 | 20.9 | 2.9 | 0 | 0.56 | 0.25 | 5.9 | 2.6 | 56.76 | 6.07 | 0.00 | 0.22 | 26.27 |

17 | 10.7 | 3.4 | 0 | 0.56 | 0.25 | 7.7 | 3.4 | 37.88 | 2.63 | 0.00 | 0.22 | 10.81 |

18 | 17.4 | 2.3 | 0 | 0.56 | 0.25 | 39.9 | 8.4 | 24.83 | 6.16 | 0.00 | 0.22 | 26.66 |

19 | 15.1 | 5.9 | 0 | 0.56 | 0.25 | 11.5 | 5.1 | 186.26 | 1.86 | 0.00 | 0.22 | 7.37 |

20 | 10.4 | 4.1 | 0 | 0.56 | 0.25 | 6 | 4.2 | 55.46 | 2.12 | 0.00 | 0.22 | 8.51 |

21 | 14.7 | 4.1 | 0 | 0.56 | 0.25 | 8.6 | 4.1 | 82.12 | 2.95 | 0.00 | 0.22 | 12.24 |

22 | 12.3 | 5.1 | 0 | 0.56 | 0.25 | 7.4 | 5.1 | 107.38 | 1.91 | 0.00 | 0.22 | 7.57 |

23 | 19.6 | 1.9 | 0.17 | 0.56 | 0.25 | 13.5 | 5.1 | 17.75 | 7.60 | 0.20 | 0.22 | 34.04 |

24 | 19.2 | 5.8 | 0.17 | 0.56 | 0.25 | 12.4 | 6.8 | 240.36 | 2.32 | 0.20 | 0.22 | 10.34 |

25 | 19.7 | 3.7 | 0.17 | 0.56 | 0.25 | 8.2 | 4.1 | 92.73 | 4.38 | 0.20 | 0.22 | 19.58 |

26 | 17.7 | 1.5 | 0.17 | 0.56 | 0.25 | 5 | 3.4 | 8.65 | 7.10 | 0.20 | 0.22 | 31.77 |

27 | 11.3 | 3.6 | 0.17 | 0.56 | 0.25 | 3.5 | 4.1 | 45.68 | 2.63 | 0.20 | 0.22 | 11.71 |

28 | 10.7 | 2 | 0.17 | 0.56 | 0.25 | 7.5 | 2.1 | 10.98 | 3.93 | 0.20 | 0.22 | 17.57 |

29 | 12.1 | 5.1 | 0.17 | 0.56 | 0.25 | 14.5 | 6.3 | 105.38 | 1.88 | 0.20 | 0.22 | 8.33 |

30 | 13 | 4.4 | 0.17 | 0.56 | 0.25 | 11.6 | 5.8 | 83.15 | 2.41 | 0.20 | 0.22 | 10.74 |

31 | 23 | 2 | 0.17 | 0.56 | 0.25 | 12.5 | 2.3 | 23.61 | 8.95 | 0.20 | 0.22 | 40.08 |

^{a}The first 10 scenarios were conducted in this paper, the last 21 scenarios were conducted by Cataño-Lopera et al. [1].

^{b}The rows with brown color denote the shallow water, with Cnoidal wave theory.
