Water 2019, 11(11), 2334; https://doi.org/10.3390/w11112334

Article
Magnitude and Frequency of Temperature and Precipitation Extremes and the Associated Atmospheric Circulation Patterns in the Yellow River Basin (1960–2017), China
1
College of Geography and Environmental Science, Northwest Normal University, Lanzhou 730070, China
2
State Key Laboratory of Grassland Agro-ecosystems, School of Life Sciences, Lanzhou University, Lanzhou 730000, China
*
Author to whom correspondence should be addressed.
Received: 14 September 2019 / Accepted: 5 November 2019 / Published: 7 November 2019

Abstract

:
Since there are many destructive effects caused by extreme climate events in the Yellow River, it is of great theoretical and practical significance to explore the variations of climatic extremes in this key basin. We used a meteorological dataset from 66 stations within the Yellow River basin (YRB) for the period 1960–2017 to calculate magnitude and frequency of precipitation/temperature extremes. We also analyzed the relationships between the main large-scale atmospheric circulation patterns (ACPs) and precipitation/temperature extremes. The trends in precipitation extremes were nonsignificant, only a few stations were characterized by significantly increasing or decreasing anomalies; this indicates the precipitation intensity may have been strengthened, and the extreme rainfall duration appears to have been reduced during 1960–2017. The trends of magnitudes for “cold” extremes were larger than those for “warm” extremes, changes of trends in frost days were higher than those for summer days, and the trends in increasing warm nights were higher than those of warm days. The influence of the El Niño–Southern Oscillation (ENSO) and Arctic Oscillation (AO) on temperature extremes outweighed the influence of the North Atlantic Oscillation (NAO), Indian Ocean Dipole (IOD), and Pacific Decadal Oscillation (PDO) for the other extreme climate indices. The YRB might be at risk of increased extreme high temperature events, and more attention should be paid to this higher risk of extreme climatic events.
Keywords:
precipitation; temperature; climatic extremes; atmospheric circulation patterns; the Yellow River basin

1. Introduction

Global warming is the result of increased carbon dioxide and other greenhouse gases concentrations, and it is likely to have some climatic and weather hazards on the eco-environments worldwide [1,2,3,4], leading to losses of property and human lives [5] due to floods, droughts, and cyclones. Climate change is largely expressed by temperature and precipitation variability, and extreme precipitation intensity will continue to strengthen as global warming continues [6,7,8]. According to the investigated results of the Intergovernmental Panel on Climate Change [9], of particular importance are possible changes in extreme events over large parts of the world, including the intensity, frequency, timing, and extent of those climate-related extremes.
Some evaluations of numerical climate model simulations and observational records revealed that the annual average precipitation was increasing with increasing mean temperature at regional and global scales [2,10,11]. Zhang et al. [12] used the Soil and Water Assessment Tool (SWAT) and utilized global climate model simulations (three scenarios) to forecast the future climate conditions for 2013–2042; they suggested that there is an increasing trend in annual rainfalls under all scenarios and pronounced warming trends in temperature. However, Pierre and Ayan [13] noted that precipitation decreased with increasing temperature in Djibouti city from 1966 to 2011.
Additionally, the fact that variability of climatic extremes indices is more sensitive than the mean values of climate change [6,7,14] has been universally acknowledged by the scientific community. Studies showed that increasing temperatures and/or precipitations can strengthen the climatic extremes [15,16,17], which could possibly lead to changes in precipitation frequency, amount, and intensity; river flow; soil moisture content; and evapotranspiration rate on regional and global scales [1,8,18]. For example, the increase of precipitation was due to the increase of the rain frequency and intensity in the Chinese Tianshan Mountains from 1961 to 2011 [19], the heavy precipitation frequency increased with significant increasing temperature [17], the heavy and sustained precipitation events led to waterlogging, landslides, and some other disasters over part of central-eastern China, resulting in severe damage to crops in the lower reaches of the Yangtze River [20].
More and more evidence from climate models shows that most temperature indices that are derived from daily minimum temperature are changed as a result of warming [21,22,23], and the trend of daily minimum temperature warming has a greater impact than that from maximum temperature [24]. For example, in the Djibouti City of eastern Africa, extreme temperatures (≥45 °C) in the past decade were 15 times more frequent than in the period 1966–1975, while extremely cold nights with a minimum temperature equal to or lower than 8.6 °C disappeared during 1966–2011 [13]. A study in Poland also indicated that fifteen out of sixteen of the warmest years on record (1880–2015) occurred since 2001. This means that each of the past fifteen years since 2001 has been warmer by at least 0.54 °C than the long-term average from 1910 to 2000 [25]. In short, the variability of climatic extremes in different regions tends to be different because of the huge differences in climate driving forces and regional terrain characteristics.
China is the third largest land area in the world. The complicated nature and geography of the environment causes many climatic disasters, and these are directly influenced by the spatiotemporal variation of precipitation [20,26,27]. Great attention has been paid to extreme precipitation and temperature due to the global warming and rapid urbanization in China. The Yellow River is the second longest river in China and the fifth largest river in the world; characterized by uneven temporal-spatial patterns of precipitation, it has attracted more studies that focused on climate variations. Many researchers in the early 1960s focused on the entirety or sub-regions of the Yellow River basin (YRB) and investigated the variations of precipitation and/or temperature. Zhao et al. [28] pointed out the annual temperature rose 0.80 °C in the upstream areas of the YRB from 1960 to 2001, but annual precipitation was not significant during the same period. Liu et al. [26] examined the spatiotemporal variability of annual precipitation all along the YRB, and results showed that most regions exhibited prominent decreasing trends of precipitation in the whole basin from 1961 to 2006. Yang and Liu [29] used 80 meteorological stations to determine that 83.75% of stations displayed decreasing trends with a reduction of 10.37% in annual precipitation during 1961–2000. Nevertheless, the precipitation extreme indices have a declining trend and the temperature extreme indices show the patterns of variability consistent with a general warming trend in the YRB over the past few decades [30]. Meanwhile, Wang et al. [15] noted decreasing trends in most extreme rainfall indices and increasing trends in extreme temperature indices in winter due to the increasing frequency of warm days and warm nights, and the decreasing frequency of cold days and cold nights. Dong et al. [31] reported that extreme rainfall events showed a negative trend along the middle and lower reaches of the YRB from 1951 to 2004. Gao et al. [4] explored the spatial and temporal variations and causes of precipitation extremes over the YRB from 1960 to 2011.
One of the physical mechanisms of climatic extremes is atmospheric circulation [32,33], and lead to a variety of precipitation extremes [34,35,36,37]. Some examples of atmospheric patterns are the El Niño–Southern Oscillation (ENSO), the Arctic Oscillation (AO), the Pacific Decadal Oscillation (PDO), the Indian Ocean Dipole (IOD), and the North Atlantic Oscillation (NAO) [9]. These atmospheric circulation patterns (ACPs) are identified by the continuous, recurring, and large-scale modes of pressure anomalies. The ACPs are commonly expressed by numerical indices determining the intensity of the influence of atmospheric circulation during a specific period in a particular geographical region. Studies around the world revealed the influence of the large-scale atmospheric circulation changes on weather regimes, climate change, and hydrological variations [38,39,40,41,42,43]. China climate types are mainly governed by the East Asian Monsoon. Nevertheless, the East Asian Summer Monsoon is significantly influenced by the ENSO [38,44], the PDO [45], the AO [46], the IOD, and the NAO [43]. Global ENSO events, which directly affected the regional precipitation in the river basin, resulted in an approximately 51% decrease in river water discharge to the sea [47].
Here, we built on the existing literature to identify probable responses to the behavior of the atmospheric circulation patterns. Consequently, in this study, we extended these ACPs and attempted to solve the following three problems: (i) What are the trends in the changes of magnitude and frequency of temperature and precipitation extremes in the YRB? (ii) Can the ACPs that influence the climate of the YRB also have significant effects on extreme climate events in the YRB? If so, (iii) how and to what extent can they impact extreme climate events? Our principal objectives were to (i) analyze the temporal and spatial variations of daily temperature and precipitation extremes in the YRB during 1960–2017 and (ii) investigate the ACPs (ENSO, AO, NAO, PDO, and IOD) associated with these extreme indices by using the Pearson correlation analysis method and to interpret possible mechanisms based on the ACPs for observed changes in the YRB from 1960 to 2017. This research can provide a scientific basis for the studies of natural disasters in the whole basin of the Yellow River or its regions as a response to global climate change.

2. Data and Methods

2.1. Data

The homogenized daily minimum and maximum temperature and precipitation data from 66 meteorological stations in the YRB (Figure 1) from 1960 to 2017 were obtained from the Climate Data Center of China, National Meteorological Information Center (Available online: http://www.nmic.gov.cn/). The ACPs’ (ENSO, AO, NAO, PDO, and IOD) indices for the same period were collected from the National Oceanic and Atmospheric Administration’s National Centers for Environmental Information (available at https://www.ncdc.noaa.gov/teleconnections/). In addition, three typical regions in the YRB were selected to further investigate the multi-timescale characteristics of the climate extremes. As shown in Figure 1, these regions, defined by latitude and longitude, reflect climatic and landform conditions in the YRB. To ensure that the best data sources were used, quality control was performed using the RClimDex software (Climate Research Branch Environment Canada, Downsview, ON, Canada) from the CCl/CLIVAR/JCOMM Expert Team on Climate Change Detection and Indices ETCCDI [48] with the aim of identifying the errors in data processing. After data quality control and homogeneity, sixteen extreme indices (Table 1) were selected. These indices are widely used to evaluate the changes in climate extremes [22,49,50,51]. The possible associations between the chosen indices and the ACPs were analyzed by a multiple regression method. All the climatic indices were available at the monthly scale. In our analysis, we averaged the monthly values to calculate the annual mean. The temporal and spatial variations in temperature and precipitation extremes were analyzed using Origin Pro 8.0 (OriginLab Corporation, Northampton, MA, USA), SPSS 22.0 (SPSS Inc., IBM, New York, NY, USA) and ArcGIS 10.2 (ESRI, Redlands, CA, USA).

2.2. Trend Analysis

The non-parametric Mann–Kendall (M–K) test and Sen’s slope estimates were used to calculate trends in the selected time series of temperature and precipitation extremes for the YRB. The M–K test is widely used to analyze the monotonically increasing or decreasing trends in climate change research [43,52,53,54]. It produces two important parameters: the slope magnitude (change per unit time) in a time series and the statistic Z value that indicates the direction of the trend. Positive Z values indicate increasing trends while negative ones show decreasing trends. The testing is carried out at a specific α significance levels. In this study, significance levels α = 0.05 and α = 0.01 were used. In addition, the arithmetic mean method by giving all the stations an equal weight was adopted in order to calculate the trend magnitudes in three sub-regions.
S m , n = 1 n i = 1 n S m , i ,
where n is the sum of stations in region m, Sm,i is the magnitude of station i in region m, and Sm,n is the regional mean magnitude in the region m.

2.3. Correlation Analysis

The ACPs indices (ENSO, NAO, AO, PDO, and IOD) were used to evaluate the influences of the ACPs on the temperature and precipitation extremes in the YRB. Statistically significant correlations between the climatic extremes and the ACPs indices were obtained by the Poisson regression model and the F value was used to determine the significance level.

3. Results

3.1. Variation of the Extreme Precipitation Indices

The variation of trends for the extreme precipitation indices is presented in Figure 2. In addition, the trends of the extreme precipitation indices in the whole YRB and three sub-regions are shown in Table 2. The spatial trends for consecutive dry days (CDD) showed that 68.2% of stations demonstrated decreasing trends (Figure 2a). An increasing trend was identified for 24.2% of stations, these were distributed in the middle and lower reaches of the research area. The trend magnitudes from these stations ranged from −8.8 to 2.35 d/decade, with only five stations (7.6%) having significant negative trends at the 0.01 confidence level (Table 2, Figure 2a). It should be noted that significant negative trends were identified for the regional average series of CDD in the upper region, indicating that precipitation increased during the past decades. Approximately 15.2% of the stations exhibited increasing trends in the number of heavy precipitation days (R10mm), and for 3% of the stations, this increase was significant. The spatial distribution of R10mm showed that 25.8% of stations recorded a decreasing trend (Table 2), and these stations were located in the southeastern parts of the YRB (Figure 2b). More than 50% of stations recorded a stationary trend for R10mm. Similar to R10mm, only one station showed a significant negative trend in the number of very heavy precipitation days (R25mm). The changes of R25mm were not obvious, and although there was an ascending tendency, the change was very small. Stations with no identifiable trends were generally scattered across the whole YRB (Figure 2c). In general, the trend magnitudes in R10mm and R25mm were 0.025 and 0.033 d/decade, respectively; however, neither result was significant (Table 2). Across the whole of the YRB, very wet day precipitation (R95p) and extremely wet day precipitation (R99p) increased over the investigation period, with an average magnitude of 0.65 and 0.075 mm/decade, respectively (Table 2). Results for R95p showed that 39.4% of stations recorded increasing trends and 47% of stations showed decreasing trends, ranging from −13.72 to 8.8 mm/decade (Figure 2d). However, only two of these stations were significant at the 95% confidence level (Table 2). As for R99p, 97% of stations located in the whole area identified no trend (Figure 2e), which indicates that the precipitation intensity was not obviously enhanced during 1960–2017. Maximum 1-day precipitation (RX1day) and maximum 5-day precipitation (RX5day) decreased from 1960 to 2017, by −0.29 and 0.46 mm/decade, respectively, but only 1.5% of stations showed significant increases at the 0.01 level (Figure 2f,g). For RX1day and RX5day, the proportion of stations with negative trends for these indices was 53%, 59.1%, respectively, and the proportion of stations with positive trends for these indices was 47% and 40.9%, respectively (Table 2). Although the numbers of stations showing decreasing trends for RX1day and RX5day are similar, the spatial characteristics of insignificant stations are different. The simple daily intensity index (SDII) exhibited an increase of 0.064 mm/day/decade over 1960–2017. Approximately 77.3% of stations with an increasing SDII trend were in the middle and lower reaches of the YRB (Figure 2h). Therefore, regional average series of SDII in the upper, middle, lower, and whole regions showed positive trends.
Overall, for all the precipitation indices, only a few stations were characterized by a significant increasing or decreasing extreme precipitation anomaly. The intensity of precipitation may have been strengthened, and the duration of extreme rainfall events appears to have been reduced; therefore, the heavy precipitation outbreaks tended to be increasingly shorter during 1960–2017 in the YRB.

3.2. Variation of the Extreme Temperature Indices

Figure 3 presents the spatial change of the M–K test for extreme temperature indices at 66 meteorological stations during 1960–2017 in the YRB. The percentage of stations with upward and downward trends, and the regional trends for eight indices in three regions as well as the whole YRB are shown in Table 3. For the period 1960–2017, the trends of frost days (FD) showed a strong pattern of decreasing trends, and 92.4% out of the 93.9% decreasing stations showed significance at the 0.01 level (Figure 3a and Table 3). The regional trends for FD were all significant in the whole region, ranging from −3.72 d/decade in the upper reaches to −4.11 d/decade in the lower reaches. Alexander et al. [55] concluded that the largest significant change for FD appeared in the Tibet Plateau, which was consistent with the results in this study. Conversely, the number of summer days (SU) showed a significant increasing trend of 2.16 d/decade over the whole YRB. The percentage of stations with significant positive trends was 71.2%. Geographically, the greatest magnitude for SU was found in the middle reaches at a rate of 2.56 d/decade (Figure 3b and Table 3), and ten stations had no trends in the upper reaches due to the high elevations and low temperatures. For the YRB as a whole, the warmest days (TXx) significantly increased with a trend of 0.18 °C/decade, with approximately 45.5% of stations showing significant increasing trends (Table 3). Stations in the upper reaches had the largest magnitude of 0.34 °C/decade for TXx, indicating more rapid warming in this region. The reduction was distributed sporadically in the middle and lower reaches of the YRB (Figure 3c). The coldest nights (TNn) had a significant warming trend with a magnitude of 0.45 °C/decade (Table 3). The main reason is a faster increase in minimum temperature than maximum temperature. TNn displayed very similar patterns to TXx, but wirh greater magnitudes in all regions. The smallest trend for TNn was found in the middle reaches of the YRB, where an insignificant trend of 0.43 °C/decade was observed (Figure 3d and Table 3). Statistically, warming trends were detected in the number of the cold days (TX10p) and cold nights (TN10p) at an α = 0.01 level. For TX10p, the whole YRB exhibited a significant decreasing trend of −2.0 day/decade, and 92.4% of stations showed significant negative trends. Greater magnitudes occurred in the upper and middle reaches of the YRB with trends of −2.06 and −2.12 day/decade, respectively (Figure 3e and Table 3). For the trend per decade of TN10p, approximately 92.4% of the total stations were featured by positive trends, and all of them passed the significance test at the 0.01 level (Table 3). The TN10p had a more pronounced warming trend than TX10p, which can be reflected not only by the trend magnitude of the regional series of TX10p and TN10p but also by the comparison of their spatial patterns (Figure 3e,f). The warm days (TX90p) and warm nights (TN90p) presented significant increasing trends with corresponding rates of change of 2.29 and 3.32 days/decade, respectively (Table 3). As for TX90p, significant upward trends mainly occurred in the upper regions, whereas the 7.6% of stations with decreasing trends for TX90p mainly occurred in the lower regions of the YRB (Figure 3g). Spatially, the increasing trend of TN90 was apparent and significant but did not include any stations located in the lower regions (Figure 3h). TN90p and TX90p all experienced significant warming. However, the warming was more pronounced in TN90P, showing greater warming at nighttime than daytime.
On average, the trend magnitudes for cold extremes were larger than those for warm extremes. For example, the trend magnitudes in TN90p (−3.3 days/decade) were more than that of TX90p (2.3 days/decade). Similarly, the changes of regional trends in FD (−3.72 days/decade) were higher than SU (2.16 days/decade) from 1960 to 2017. Therefore, these results also reflected the instability and complexity of climate change in a large river basin under the background of global change. Such findings were confirmed by many studies of the Yangtze River [18] and of Southwest China [56]. Additionally, trends analysis of temperature extremes revealed significant warming over the whole YRB during 1960–2017, while precipitation extremes did not show significant variation trends.

3.3. Relationship between the Extreme Climatic Indices and the ACPs

Figure 4, Figure 5, Figure 6, Figure 7 and Figure 8 show the correlation between extreme climatic indices and the ACP indices of ENSO, AO, NAO, PDO, and IOD. However, the correlation between the precipitation extremes and the ACPs shows that ACPs are not clearly associated with the precipitation extremes (data not shown) and we do not explore that in this article. Generally, only a few stations exhibited a significant correlation with ENSO, AO, NAO, PDO, and IOD indices. However, some spatial characteristics still can be identified. ENSO exhibited a cluster of significantly negative correlations for FD and TX10p in the middle and lower regions of the YRB. Obviously, the correlation between ENSO indices with SU, TNn, and TX90p was dominated by significantly positive values for stations in the lower reaches and northern area of the YRB (Figure 4). For AO, it mainly exhibited a significantly negative correlation for FD and TN10p in most areas, and for TXx and TX90p in the lower reaches of the YRB. Only a few stations, which are sporadically distributed in the YRB, showed significantly positive correlation with TN90p and TNn (Figure 5). Figure 6 shows significant negative correlations between these temperature extreme indices (FD, TN10P, and TXx) and NAO indices, and significant positive correlations between TNn and NAO in some parts of the YRB. The TN10p values, which had significant negative correlations with PDO indices, are sporadically distributed in some areas of the YRB, while the TNn values, which had significant positive correlations with PDO indices, tend to a cluster in the north of the YRB (Figure 7). For IOD, the few stations that exhibited a significantly negative correlation with SU, TNn, and TX90p are sporadically distributed in northern and eastern parts of the YRB (Figure 8).

4. Discussion

In the present study, a total of 16 indices that represent climatic extreme events were calculated by using daily precipitation and maximum and minimum temperature data from 66 stations from 1960 to 2017 and analyzed thoroughly for characteristic variation trends and their connections to the ACPs (ENSO, AO, NAO, PDO and IOD) over the entire YRB.
Our study concluded that there were no significant change trends in precipitation extremes during 1960–2017 in this basin. It should be noted that the significant decreasing trend (−2.88 days/decade) of CDD was observed in the upper regions (Table 2). In addition, both the SDII and heavy precipitation events (e.g., R10mm and R25mm) had slightly increasing trends over the investigation period. Recently, precipitation changes were associated with latitude and elevation in some studies that found increased precipitation frequency in higher altitudes and a decreasing trend at lower altitudes in the southwest of China [53,56]. The Intergovernmental Panel on Climate Change (IPCC) [30] also pointed out that increases in the amount of precipitation were very likely at high latitudes while declines were likely in most subtropical land regions. These changes are consistent with previous studies in other parts of China [4,19,26,37,57].
In this study, warming trends were observed in the indices of TXx and TNn, but the trend magnitude of TNn (0.45 °C/decade) was much larger than that of TXx (0.18 °C/decade). This asymmetry between the magnitudes of changes in TNn and TXx agrees with an earlier global study [55] and a regional study [58]. The trend magnitude of TNn in the YRB is lower than the average value of China and smaller than that on the global scale (0.71 °C/decade) [55], but larger than that in the Yangtze River Basin (0.42 °C/decade) [18], which is the longest river in China. In addition, we found that the occurrence of TX10p and TN10p significantly decreased, while the occurrence of TX90p and TN90p exhibited statistically significant increases during 1960–2017. These results were generally consistent with Li et al. [56] and Guan et al. [18]. Our results also revealed that the spatial pattern of changes in frequency and magnitude for climatic extremes presents obvious spatial differences. These results were in line with previous studies, for example, Tian et al. [59] found that the annual precipitation did not show a significant trend and the annual mean temperature had a significant increasing trend over three major river basins of China (Yellow River, Yangtze River, and Pearl River) in the last few decades. Taken together, the increasing trends of extreme temperature indices (SU, TXx, TNn, TX90p, and TN90p) and decreasing trends of others (FD, TX10p, and TN10p) obtained in this study illustrate that there was more drought in the YRB in the last six decades despite a slight increase in the magnitude and frequency of heavy precipitation events.
Finally, we found that ENSO, AO, NAO, and PDO indices exhibited significant positive correlation for the TNn, and significant negative correlation for TN10p only at a few stations. ENSO indices exhibited significant positive correlation for the TX90p in most stations of the whole YRB, but AO and IOD indices showed significant negative correlation for TX90p in the lower reach of the YRB (Figure 4, Figure 5, Figure 6 and Figure 7). Additionally, we found that those ACP indices exhibited positive correlation for the increasing trends of most extreme temperature indices, but negative correlation for those that showed decreasing trends. We conclude that the atmospheric circulation patterns have enhanced the gap of the maximum and minimum temperature and were the physical mechanisms for the extreme cold/warm events in the past decades. These results are consistent with previous studies in most parts of East Asia [38,43,45,60,61,62], including the YRB of China [4,63].

5. Conclusions

Based on the above analysis and discussions, the important conclusions can be summarized as follows.
For all the precipitation extreme indices, only a few stations were characterized by significantly increasing or decreasing extreme precipitation anomalies during 1960–2017 in the YRB. Nonsignificant increasing trends were detected for the most extreme indices including heavy precipitation and heaviest precipitation days, very wet and extremely wet day precipitation, and simple precipitation intensity index. However, nonsignificant decreasing trends were maximum 1-day and 5-day precipitation, and the consecutive dry days (e.g., CDD) exhibited a prominent significant decreasing trend (−2.88 days/decade) in the upper regions of the YRB. In addition, both precipitation intensity (e.g., SDII) and heavy precipitation magnitudes and frequencies (e.g., R95p, R10mm, and R25mm) increased slightly over the investigation period. These results reveal that the precipitation intensity may have been strengthened, and the duration of extreme rainfall events appears to have been reduced. Therefore, the heavy rainfall events tended to be increasingly shorter during 1960–2017 in the YRB.
All the temperature extreme indices revealed widespread significant changes associated with global warming in most regions of the YRB during the study period. For TNn, TN10p, TN90p, and FD, the warming trends were of greater magnitude than those of the indices TXx, TX10p, and TX90. For the vast majority of stations, significant increases in TX90p, TN90p, and SU, but significant decreases in TN10p, FD, and TX10p were observed over the entire study period.
In this study, we found that the relationship between the ACPs (ENSO, AO, NAO, PDO, and IOD) and precipitation extremes showed that the ACPs are not clearly associated with precipitation extremes. However, the relationship between the ACPs and temperature extremes shows that the influence of the ENSO and AO on temperature extremes outweighs that of the NAO, IOD, and PDO for most extreme indices in the YRB. The ENSO, AO, NAO, and PDO indices exhibited significant positive correlation for TNn, but significant negative correlation for TN10p. Therefore, the relationship between the ACPs and climatic extremes demonstrates that the influence of the ACPs on temperature extremes outweighs that on precipitation extremes in the YRB. We can conclude that the change of the ACPs is an important physical mechanism affecting the heat and moisture transportation in this region. Admittedly, the changes of climatic extremes are driven by the broader context of climate change; we did not make more detailed assessments of the physical mechanisms between the ACPs and climatic extremes in this paper, and further work needs to be carried out to clarify this issue.

Author Contributions

Conceptualization, X.D. and S.Z.; Data curation, X.D., L.J., Z.Z., and Y.L.; Formal analysis, X.D., Z.Z., and Y.L.; Funding acquisition, X.D. and J.Z.; Methodology, X.D. and S.Z.; Software, X.D., J.Z., and L.J.; Validation, S.Z. and J.C.; Visualization, X.D.; Writing—original draft, X.D.; Writing—review and editing, S.Z., J.Z., and J.C.

Funding

This research was funded by the National Key Research and Development Program of China (Grant Number: 2018YFD0502401), the National Natural Science Foundation of China (Grant Number: 31870435 and 41761047), and the Sci & Tech. Department of Northwest Normal University, China (Grant Number: NWNU-LKQN-18-1).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Kunkel, K.E.; Pielke, R.A.; Changnon, S.A. Temporal fluctuations in weather and climate extremes that cause economic and human health impacts: A review. Bull. Am. Meteorol. Soc. 1999, 80, 1077–1098. [Google Scholar] [CrossRef]
  2. Easterling, D.R.; Evans, J.L.; Groisman, P.Y.; Karl, T.R.; Kunkel, K.E.; Ambenje, P. Observed variability and trends in extreme climate events: A brief review. Bull. Am. Meteorol. Soc. 2000, 81, 417–425. [Google Scholar] [CrossRef]
  3. Wuebbles, D.; Meehl, G.; Hayhoe, K.; Karl, T.R.; Kunkel, K.; Santer, B.; Fu, R. CMIP5 climate model analyses: Climate extremes in the United States. Bull. Am. Meteorol. Soc. 2014, 95, 571–583. [Google Scholar] [CrossRef]
  4. Gao, T.; Wang, H.L. Trends in precipitation extremes over the yellow river basin in north china: Changing properties and causes. Hydrol. Process. 2017, 31, 2412–2428. [Google Scholar] [CrossRef]
  5. Cinco, T.A.; Guzman, R.G.D.; Hilario, F.D.; Wilson, D.M. Long-term trends and extremes in observed daily precipitation and near surface air temperature in the Philippines for the period 1951–2010. Atmos. Res. 2015, 14, 12–26. [Google Scholar] [CrossRef]
  6. Katz, R.W.; Brown, B.G. Extreme events in a changing climate: Variability is more important than averages. Clim. Chang. 1992, 21, 289–302. [Google Scholar] [CrossRef]
  7. Plummer, N.; Salinger, M.J.; Nicholis, N.; Suppiah, R.; Hennessy, K.J.; Leighton, R.M.; Trewin, B.; Page, C.M.; Lough, J.M. Changes in climate extremes over the Australian region and New Zealand during the twentieth century. Clim. Chang. 1999, 42, 183–202. [Google Scholar] [CrossRef]
  8. Ingram, W. Extreme precipitation: Increases all round. Nat. Clim. Chang. 2016, 6, 443–444. [Google Scholar] [CrossRef]
  9. IPCC. Climate change 2013: The physical science basis. In Working Group I Contribution to the Intergovernmental Panel on Climate Change Fifth Assessment Report (AR5)—Changes to the Underlying Scientifc/Technical Assessment; Cambridge University Press: Cambridge, UK, 2013. [Google Scholar]
  10. Zhang, X.Z.; Li, P.; Li, D.S. spatiotemporal variations of precipitation in the southern part of the Heihe river basin (China), 1984–2014. Water 2018, 10, 410. [Google Scholar] [CrossRef]
  11. Donat, M.G.; Lowry, A.L.; Alexander, L.V.; O’Gorman, P.A.; Maher, N. More extreme precipitation in the world’s dry and wet regions. Nat. Clim. Chang. 2016, 6, 508–513. [Google Scholar] [CrossRef]
  12. Zhang, Y.G.; Su, F.G.; Hao, Z.C.; Xu, C.Y.; Yu, Z.B.; Wang, L.; Tong, K. Impact of projected climate change on the hydrology in the headwaters of the Yellow River basin. Hydrol. Process. 2015, 29, 4379–4397. [Google Scholar] [CrossRef]
  13. Ozer, P.; Mahamoud, A. Recent extreme precipitation and temperature changes in Djibouti city (1966–2011). J. Climatol. 2013, 2013, 1–8. [Google Scholar] [CrossRef]
  14. Diffenbaugh, N.; Pal, J.; Trapp, R.; Giorgi, F. Fine-scale processes regulate the response of extreme events to global climate change. Proc. Natl. Acad. Sci. USA 2005, 102, 15774–15778. [Google Scholar] [CrossRef] [PubMed]
  15. Wang, H.; Chen, Y.; Xun, S.; Lai, D.; Fan, Y.; Li, Z. Changes in daily climate extremes in the arid area of northwestern China. Theor. Appl. Climatol. 2013, 112, 15–28. [Google Scholar] [CrossRef]
  16. Liu, W.L.; Zhang, M.J.; Wang, S.J.; Wang, B.L.; Li, F.; Che, Y.J. Changes in precipitation extremes over Shaanxi province, northwestern China, during 1960–2011. Quatern. Int. 2013, 313–314, 118–129. [Google Scholar] [CrossRef]
  17. Gu, X.H.; Zhang, Q.; Singh, V.P.; Shi, P.J. Changes in magnitude and frequency of heavy precipitation across China and its potential links to summer temperature. J. Hydrol. 2017, 547, 718–731. [Google Scholar] [CrossRef]
  18. Guan, Y.H.; Zhang, X.C.; Zheng, F.L.; Wang, B. Trends and variability of daily temperature extremes during 1960–2012 in the Yangtze River basin, China. Glob. Planet. Chang. 2015, 124, 79–94. [Google Scholar] [CrossRef]
  19. Wang, S.J.; Zhang, M.J.; Sun, M.P.; Wang, B.L.; Li, X.F. Changes in precipitation extremes in alpine areas of the Chinese Tianshan Mountains, central Asia, 1961–2011. Quatern. Int. 2013, 311, 97–107. [Google Scholar] [CrossRef]
  20. Li, C.X.; Tian, Q.H.; Yu, R.; Zhou, B.Q.; Xia, J.J.; Burke, C.; Dong, B.W. Attribution of extreme precipitation in the lower reaches of the Yangtze River during May 2016. Environ. Res. Lett. 2018, 13, 14–15. [Google Scholar] [CrossRef]
  21. Zhang, X.B.; Aguilar, E.; Sensoy, S. Trends in Middle East climate extreme indices from 1950 to 2003. J. Geophys. Res. 2005, 110, 3159–3172. [Google Scholar] [CrossRef]
  22. New, M.; Hewitson, B.; Stephenson, D.B.; Tsiga, A.; Kruger, A.; Manhique, A.; Gomez, B.; Coelho, C.A.S.; Masisi, D.N.; Kululanga, E.; et al. Evidence of trends in daily climate extremes over Southern and West Africa. J. Geophys. Res. Atmos. 2006, 111, 3007–3021. [Google Scholar] [CrossRef]
  23. Perkins, S.E.; Moise, A.; Whetton, P.; Katzfey, J. Regional changes of climate extremes over Australia-a comparison of regional dynamical downscaling and global climate model simulations. Int. J. Climatol. 2014, 34, 3456–3478. [Google Scholar] [CrossRef]
  24. Wang, H.J.; Pan, Y.P.; Chen, Y.N.; Ye, Z.W. Linear trend and abrupt changes of climate indices in the arid region of northwestern China. Atmos. Res. 2017, 196, 108–118. [Google Scholar] [CrossRef]
  25. Kundzewicz, Z.W. Extreme weather events and their consequences. Pap. Glob. Chang. Igbp. 2016, 23, 59–69. [Google Scholar] [CrossRef]
  26. Liu, Q.; Yang, Z.F.; Cui, B.S. Spatial and temporal variability of annual precipitation during 1961–2006 in Yellow River basin, China. J. Hydrol. 2008, 361, 330–338. [Google Scholar] [CrossRef]
  27. Piao, S.; Ciais, P.; Huang, Y.; Shen, Z.; Peng, S.; Li, J.; Zhou, L.; Liu, H.; Ma, Y.; Ding, Y.; et al. The impacts of climate change on water resources and agriculture in China. Nature 2010, 467, 43–51. [Google Scholar] [CrossRef]
  28. Zhao, F.F.; Xu, Z.X.; Huang, J.X.; Li, J.Y. Monotonic trend and abrupt changes for major climate variables in the headwater catchment of the Yellow River basin. Hydrol. Process. 2008, 22, 4587–4599. [Google Scholar] [CrossRef]
  29. Yang, Z.F.; Liu, Q. Response of Streamflow to Climate Changes in the Yellow River Basin, China. J. Hydrometeorol. 2011, 12, 1113–1126. [Google Scholar] [CrossRef]
  30. IPCC. Summary for Policymakers of Climate Change 2007, the Physical Science Basis. Contribution of Working Group I to the Fourth Assessment Report of the Intergovernmental Panel on Climate Change; Cambridge University Press: Cambridge, UK; New York, NY, USA, 2007. [Google Scholar]
  31. Dong, Q.; Chen, X.; Chen, T.X. Characteristics and changes of extreme precipitation in the Yellow–Huaihe and Yangtze–Huaihe Rivers basins, China. J. Clim. 2011, 24, 3781–3795. [Google Scholar] [CrossRef]
  32. Irannezhad, M.; Chen, D.; Kløve, B.; Moradkhani, H. Analysing the variability and trends of precipitation extremes in Finland and their connection to atmospheric circulation patterns. Int. J. Climatol. 2017, 37, 1053–1066. [Google Scholar] [CrossRef]
  33. Wibig, J.; Piotrowski, P. Impact of the air temperature and atmospheric circulation on extreme precipitation in Poland. Int. J. Climatol. 2018, 38, 4533–4549. [Google Scholar] [CrossRef]
  34. Haylock, M.; Goodess, C. Interannual variability of European extreme winter rainfall and links with mean large-scale circulation. Int. J. Climatol. 2004, 24, 759–776. [Google Scholar] [CrossRef]
  35. Toreti, A.; Xoplaki, E.; Maraun, D.; Kuglitsch, F.G.; Wanner, H.; Luterbacher, J. Characterisation of extreme winter precipitation in mediterranean coastal sites and associated anomalous atmospheric circulation patterns. Nat. Hazards Earth Syst. Sci. 2010, 10, 1037–1050. [Google Scholar] [CrossRef]
  36. She, D.X.; Xia, J.; Zhang, D.; Ye, A.Z.; Sood, A. Regional extreme dry-spell frequency analysis using the L-moments method in the middle reaches of the Yellow River basin, China. Hydrol. Processes 2014, 28, 4694–4707. [Google Scholar] [CrossRef]
  37. Liang, K.; Liu, S.; Bai, P.; Nie, R. The Yellow River basin becomes wetter or drier? The case as indicated by mean precipitation and extremes during 1961–2012. Theor. Appl. Climatol. 2015, 119, 701–722. [Google Scholar] [CrossRef]
  38. Duan, W.L.; He, B.; Takara, K.; Luo, P.P.; Hu, M.C.; Nor, E.A.; Daniel, N. Changes of precipitation amounts and extremes over Japan between 1901 and 2012 and their connection to climate indices. Clim. Dynam. 2015, 45, 2273–2292. [Google Scholar] [CrossRef]
  39. Rusticucci, M.; Barrucand, M.; Collazo, S. Temperature extremes in the Argentina central region and their monthly relationship with the mean circulation and ENSO phases. Int. J. Climatol. 2017, 37, 3003–3017. [Google Scholar] [CrossRef]
  40. Hoerling, M.; Eischeid, J.; Perlwitz, J.; Quan, X.W.; Wolter, K.; Cheng, L.Y. Characterizing recent trends in U.S. heavy precipitation. J. Clim. 2016, 29, 2313–2332. [Google Scholar] [CrossRef]
  41. Mallakpour, I.; Villarini, G. Investigating the relationship between the frequency of flooding over the central United States and large-scale climate. Adv. Water Resour. 2016, 92, 159–171. [Google Scholar] [CrossRef]
  42. Yue, Y.; Shen, S.H.; Wang, Q. Trend and variability in droughts in northeast China based on the reconnaissance drought index. Water 2018, 10, 318. [Google Scholar] [CrossRef]
  43. Deng, Y.; Jiang, W.G.; He, B.; Chen, Z.; Jia, K. Change in intensity and frequency of extreme precipitation and its possible teleconnection with large-scale climate index over the China from 1960 to 2015. J. Geophys. Res. Atmos. 2018, 123, 2068–2081. [Google Scholar] [CrossRef]
  44. Rong, X.Y.; Zhang, R.H.; Li, T. Impacts of Atlantic sea surface temperature anomalies on Indo-East Asian summer monsoon-ENSO relationship. Chin. Sci. Bull. 2010, 55, 1397–1408. [Google Scholar] [CrossRef]
  45. Xiao, M.Z.; Zhang, Q.; Singh, V.P. Influences of enso, nao, iod and pdo on seasonal precipitation regimes in the Yangtze River basin, China. Int. J. Climatol. 2015, 35, 3556–3567. [Google Scholar] [CrossRef]
  46. Zhang, K.X.; Qian, X.Q.; Liu, P.X.; Xu, Y.H.; Cao, L.G.; Hao, Y.P. Variation characteristics and influences of climate factors on aridity index and its association with AO and ENSO in northern China from 1961 to 2012. Theore. Appl. Climatol. 2017, 130, 523–533. [Google Scholar] [CrossRef]
  47. Wang, H.J.; Yang, Z.S.; Saito, Y.; Liu, J.P.; Sun, X.X. Interannual and seasonal variation of the Huanghe (Yellow River) water discharge over the past 50 years: Connections to impacts from ENSO events and dams. Glob. Planet. Chang. 2006, 50, 212–225. [Google Scholar] [CrossRef]
  48. Zhang, X.B.; Yang, F. RClimDex (1.0) User Manual. Available online: http://etccdi. Pacific climate.org/software.shtml (accessed on 10 September 2004).
  49. Choi, G.; Collins, D.; Ren, G.Y.; Trewin, B.; Baldi, M.; Fukuda, Y.; Afzaal, M.; Pianmana, T.; Gomboluudev, P.; Huong, P.T.T.; et al. Changes in means and extreme events of temperature and precipitation in the Asia-Pacific Network region, 1955–2007. Int. J. Climatol. 2009, 29, 1906–1925. [Google Scholar] [CrossRef]
  50. Vincent, L.A.; Aguilar, E.; Saindou, M.; Hassane, A.F.; Jumaux, G.; Roy, D.; Booneeady, P.; Virasami, R.; Randriamarolaza, L.Y.A.; Faniriantsoa, F.R.; et al. Observed trends in indices of daily and extreme temperature and precipitation for the countries of the western Indian Ocean, 1961–2008. J. Geophys. Res. Atmos. 2011, 116, 521–541. [Google Scholar] [CrossRef]
  51. Yu, L.J.; Sui, C.J.; Lenschow, D.H.; Zhou, M.Y. The relationship between wintertime extreme temperature events north of 60°N and large scale atmospheric circulations. Int. J. Climatol. 2017, 37, 597–611. [Google Scholar] [CrossRef]
  52. Zhang, Q.; Xu, C.Y.; Gemmer, M.; Chen, Y.D.; Liu, C.L. Changing properties of precipitation concentration in the Pearl river basin, China. Stoch. Env. Res. Risk A 2009, 23, 377–385. [Google Scholar] [CrossRef]
  53. Zhang, K.X.; Pan, S.M.; Cao, L.G.; Wang, Y.; Zhao, Y.F.; Zhang, W. Spatial distribution and temporal trends in precipitation extremes over the Hengduan Mountains region, China, from 1961 to 2012. Quatern. Int. 2014, 349, 346–356. [Google Scholar] [CrossRef]
  54. Guan, Y.H.; Zheng, F.L.; Zhang, X.C.; Wang, B. Trends and variability of daily precipitation and extremes during 1960–2012 in the Yangtze River basin, China. Int. J. Climatol. 2016, 37, 1282–1298. [Google Scholar] [CrossRef]
  55. Alexander, L.V.; Zhang, X.; Peterson, T.C.; Caesar, J.; Gleason, B.; Klein, A.; Haylock, M.; Collins, D.; Trewin, B.; Rahimzadeh, F.; et al. Global observed changes in daily climate extremes of temperature and precipitation. J. Geophys. Res. Atmos. 2006, 111, 1042–1063. [Google Scholar] [CrossRef]
  56. Li, Z.X.; He, Y.Q.; Wang, P.Y.; Theakstone, W.H.; An, W.L.; Wang, X.F. Changes of daily climate extremes in southwestern China during 1961–2008. Glob. Planet. Chang. 2012, 80–81, 255–272. [Google Scholar] [CrossRef]
  57. Pei, F.S.; Wu, C.J.; Liu, X.P.; Hu, Z.L.; Xia, Y.; Liu, L.A.; Wang, K.; Zhou, Y. Detection and attribution of extreme precipitation changes from 1961 to 2012 in the Yangtze River Delta in China. Catena 2018, 169, 183–194. [Google Scholar] [CrossRef]
  58. Gao, T.; Xie, L.; Liu, B. Association of extreme precipitation over the Yangtze River basin with global air-sea heat fluxes and moisture transport. Int. J. Climatol. 2015, 36, 3020–3038. [Google Scholar] [CrossRef]
  59. Tian, Q.; Prange, M.; Merkel, U. Precipitation and temperature changes in the major chinese river basins during 1957–2013 and links to sea surface temperature. J. Hydrol. 2016, 536, 208–221. [Google Scholar] [CrossRef]
  60. Yu, L.; Rienecker, M.M. Evidence of an extra-tropical atmospheric influence during the onset of the 1997–98 El Nino. Geophys. Res. Lett. 1998, 25, 3537–3540. [Google Scholar] [CrossRef]
  61. Zhong, K.Y.; Zheng, F.L.; Wu, H.Y.; Qin, C.; Xu, X.M. Dynamic changes in temperature extremes and their association with atmospheric circulation patterns in the Songhua River Basin, China. Atmos. Res. 2017, 190, 77–88. [Google Scholar] [CrossRef]
  62. Shi, J.; Cui, L.L.; Ma, Y.; Du, H.Q.; Wen, K.M. Trends in temperature extremes and their association with circulation patterns in China during 1961–2015. Atmos. Res. 2018, 212, 259–272. [Google Scholar] [CrossRef]
  63. Wang, W.G.; Shao, Q.X.; Yang, T.; Peng, Z.Z.; Yu, Z.B.; Taylor, J.; Xing, W.Q.; Zhao, C.P.; Sun, F.C. Changes in daily temperature and precipitation extremes in the Yellow River Basin, China. Stoch. Env. Res. Risk A 2013, 27, 401–421. [Google Scholar] [CrossRef]
Figure 1. The Digital Elevation Model (DEM) and location of the meteorological stations in this study. The two straight lines dividing the basin into three regions are from the following points: A (34°15′ N, 104°45′ E); B (37°10′ N, 103°00′ E); C (34°15′ N, 107°15′ E); and D (36°45′ N, 112°30′ E).
Figure 1. The Digital Elevation Model (DEM) and location of the meteorological stations in this study. The two straight lines dividing the basin into three regions are from the following points: A (34°15′ N, 104°45′ E); B (37°10′ N, 103°00′ E); C (34°15′ N, 107°15′ E); and D (36°45′ N, 112°30′ E).
Water 11 02334 g001
Figure 2. Interannual variation of precipitation extreme indices in the Yellow River basin (YRB) during 1960–2017.
Figure 2. Interannual variation of precipitation extreme indices in the Yellow River basin (YRB) during 1960–2017.
Water 11 02334 g002

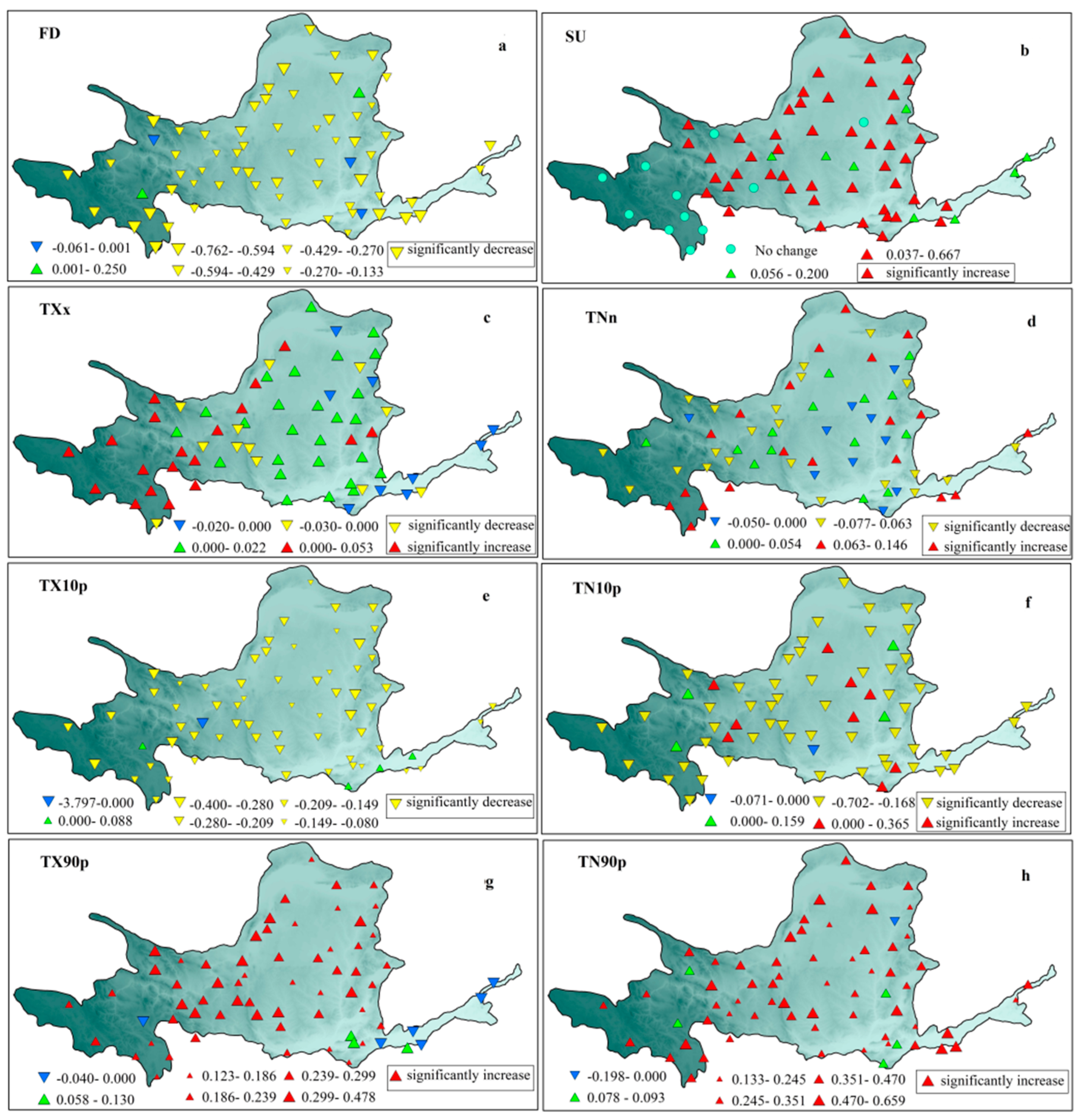

Figure 3. The spatial change of temperature extreme indices in the Yellow River basin (YRB) during 1960–2017.
Figure 3. The spatial change of temperature extreme indices in the Yellow River basin (YRB) during 1960–2017.
Water 11 02334 g003

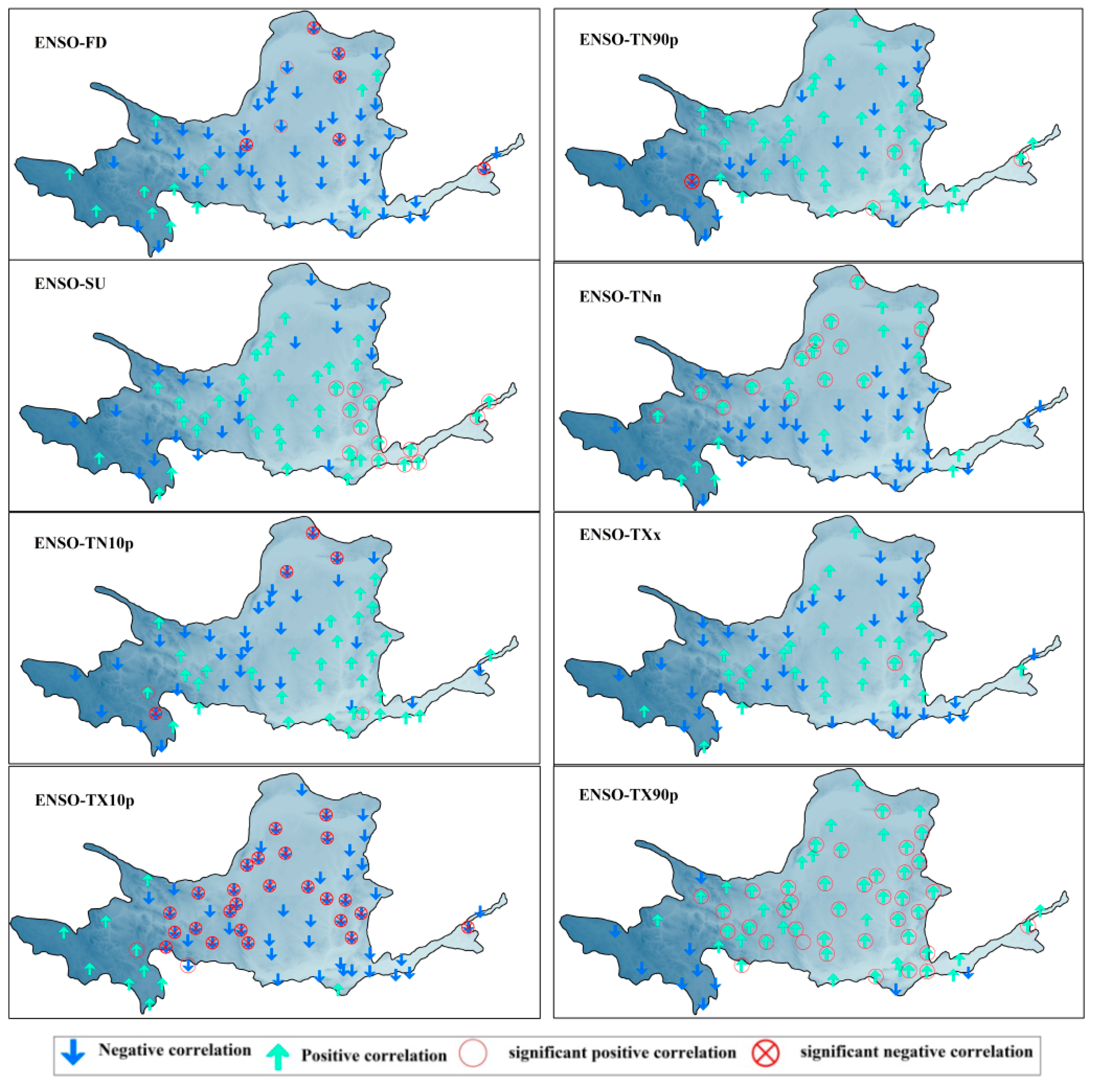

Figure 4. The potential connection between temperature extremes and the El Niño–Southern Oscillation (ENSO).
Figure 4. The potential connection between temperature extremes and the El Niño–Southern Oscillation (ENSO).
Water 11 02334 g004

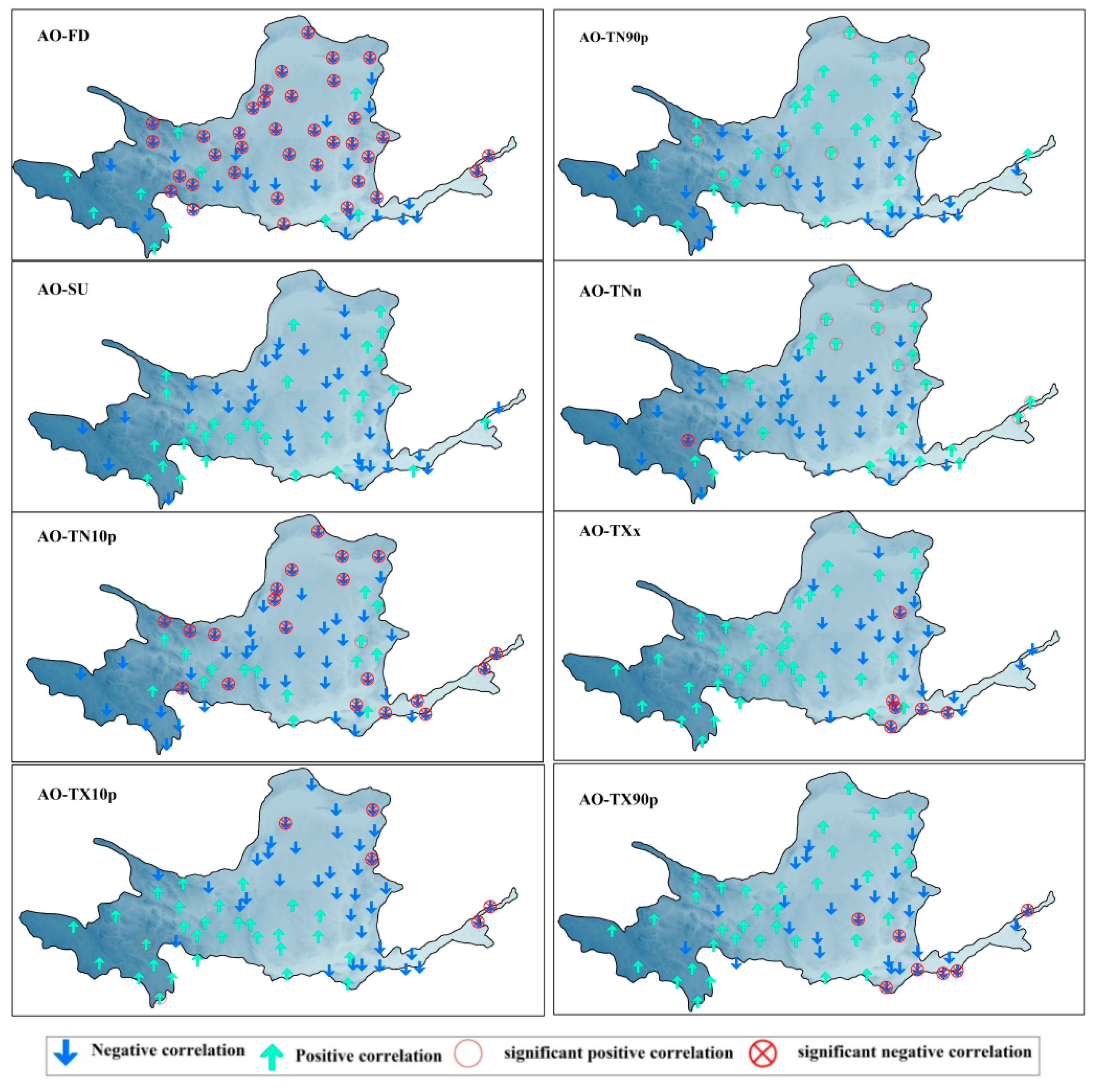

Figure 5. The potential connection between temperature extremes and the Arctic Oscillation (AO).
Figure 5. The potential connection between temperature extremes and the Arctic Oscillation (AO).
Water 11 02334 g005

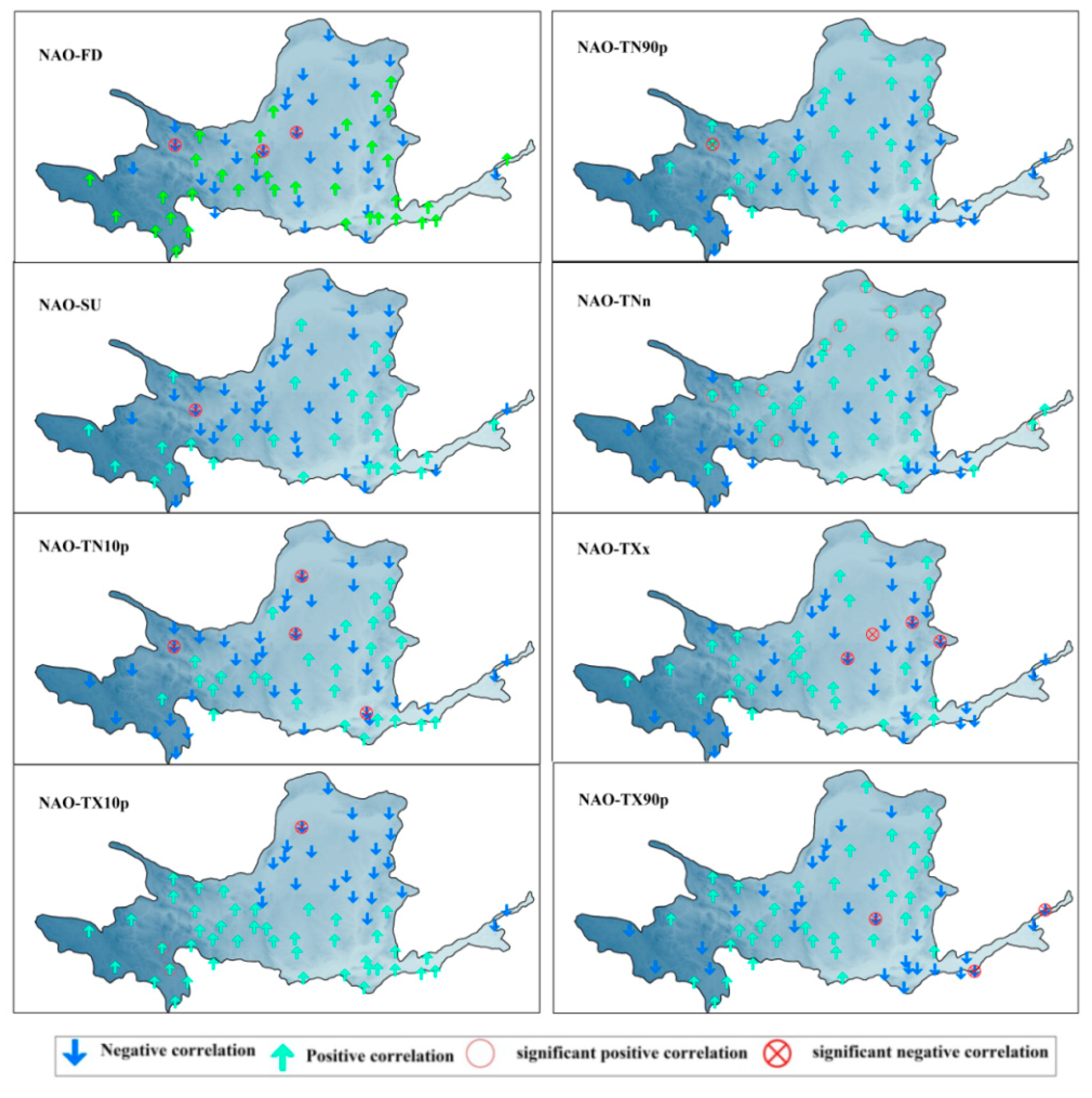

Figure 6. The potential connection between temperature extremes and the North Atlantic Oscillation (NAO).
Figure 6. The potential connection between temperature extremes and the North Atlantic Oscillation (NAO).
Water 11 02334 g006

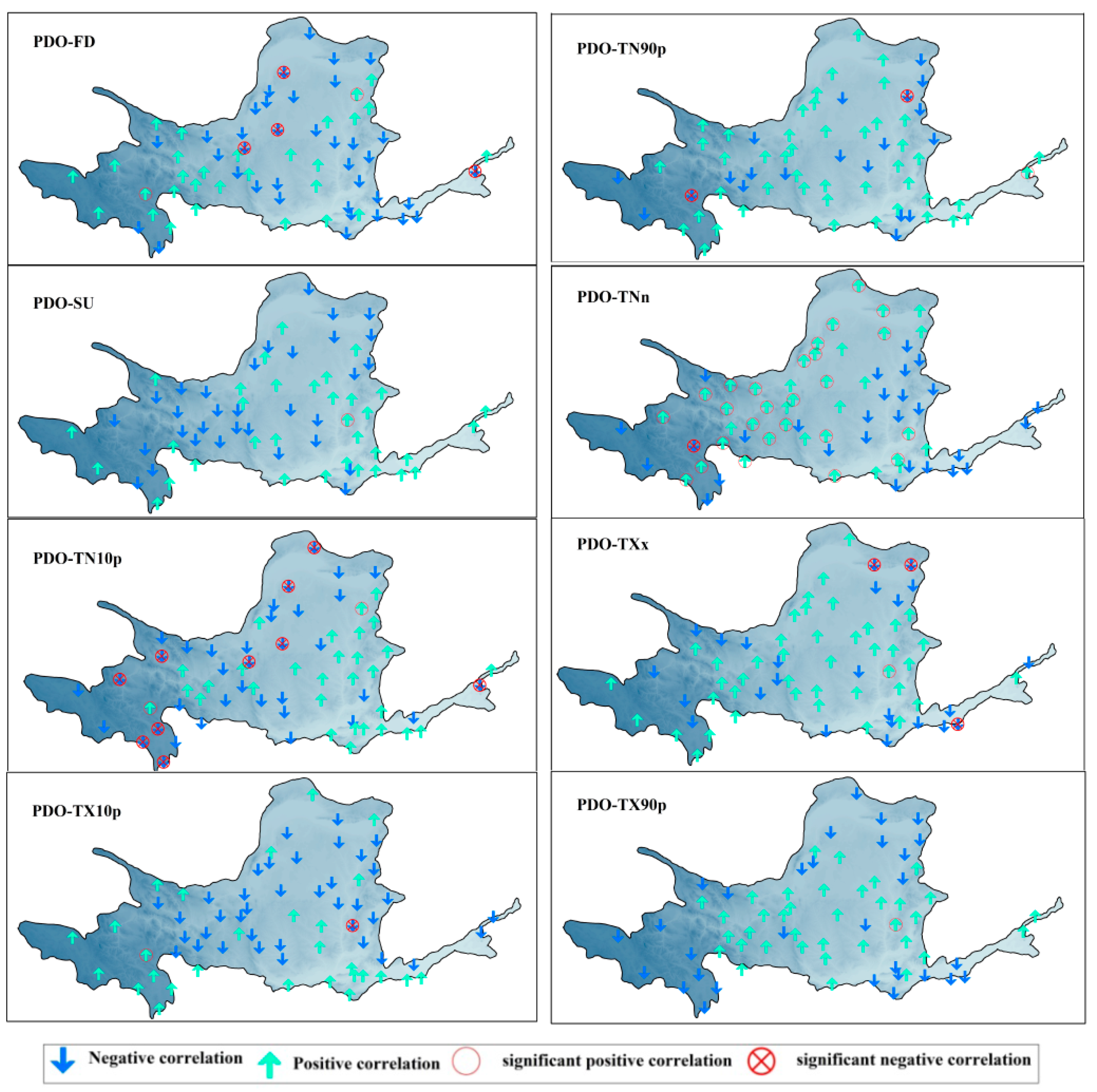

Figure 7. The potential connection between temperature extremes and the Pacific Decadal Oscillation (PDO).
Figure 7. The potential connection between temperature extremes and the Pacific Decadal Oscillation (PDO).
Water 11 02334 g007

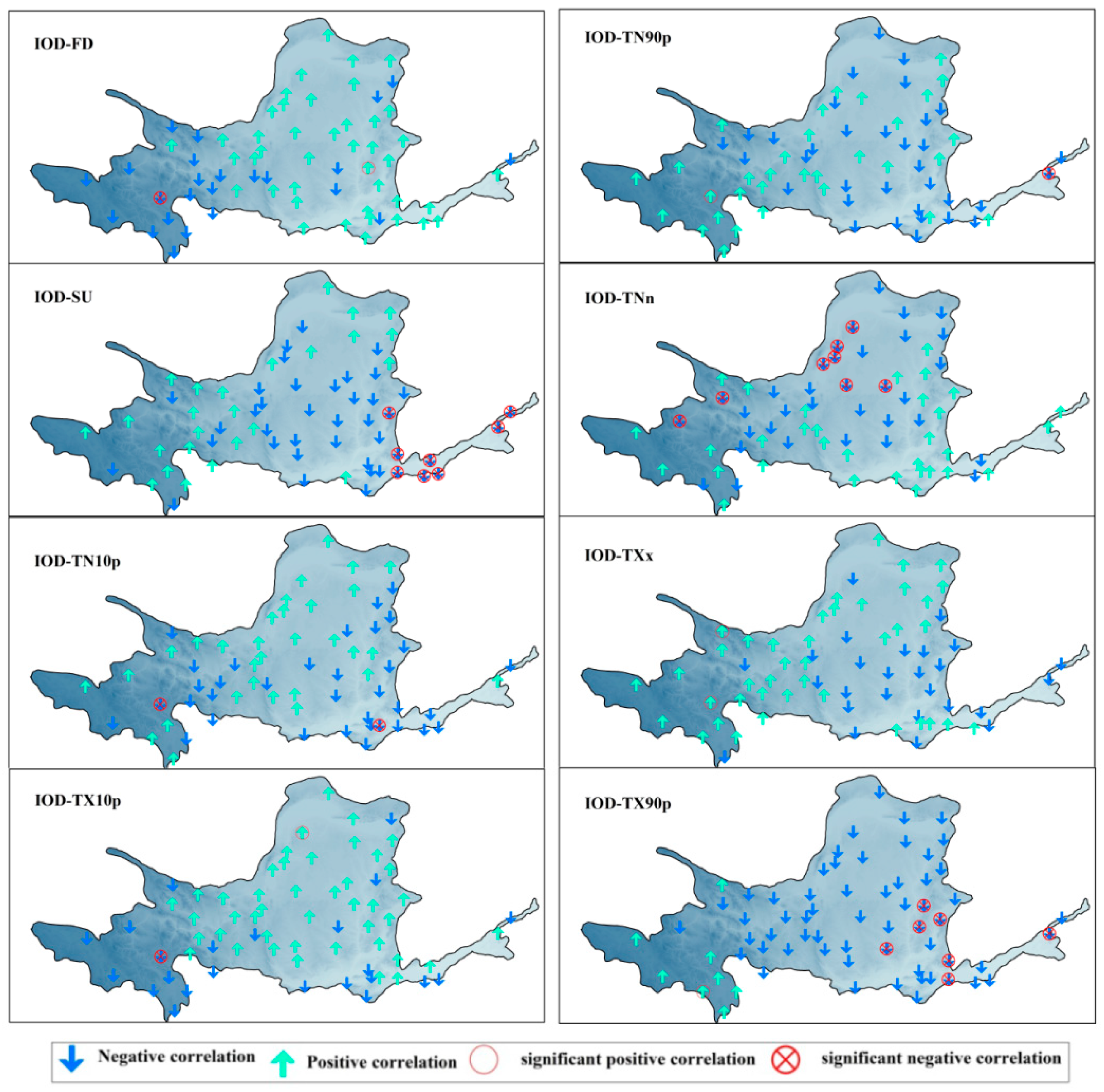

Figure 8. The potential connection between temperature extremes and the Indian Ocean Dipole (IOD).
Figure 8. The potential connection between temperature extremes and the Indian Ocean Dipole (IOD).
Water 11 02334 g008
Table 1. Definitions of the temperature and precipitation indices used in this study.
Table 1. Definitions of the temperature and precipitation indices used in this study.
Index (Unit)Description NameDefinition
FD (days)Frost daysAnnual count of days when TN < 0 °C
SU (days)Summer daysAnnual count of days when TX > 25 °C
TXx (°C)Hottest dayThe maximum value of TX records
TNn (°C)Coldest nightThe minimum value of TN records
TN10p (days)Cold nightsPercentage of days when TN < 10th percentile
TX10p (days)Cold daysPercentage of days when TX < 10th percentile
TN90p (days)Warm nightsPercentage of days when TN > 90th percentile
TX90p (days)Warm daysPercentage of days when TX > 90th percentile
CDD (days)Consecutive dry daysMaximum number of consecutive days with RR < 1mm
RX1day (mm)Maximum 1-day precipitationMonthly maximum 1-day precipitation
RX5day (mm)Maximum 5-day precipitationMonthly maximum consecutive 5-day precipitation
R10mm (days)Heavy precipitation daysAnnual count of days when RR ≥ 10mm
R25mm (days)Heaviest precipitation daysAnnual count of days when RR ≥ 25mm
R95p (mm)Very wet day precipitationAnnual total precipitation when RR > 95th percentile of 1960–2017 daily rainfall
R99p (mm)Extremely wet day precipitationAnnual total precipitation when RR > 99th percentile of 1960–2017 daily rainfall
SDII (mm/day)Simple precipitation intensity indexAverage precipitation on wet days
Note: TX: daily maximum temperature; TN: daily minimum temperature; RR: daily precipitation.
Table 2. Percentage of stations with positive (significant at the 0.01 level), negative (significant at the 0.01 level), and stationary trends for the trend test in annual extreme precipitation indices during 1960–2017.
Table 2. Percentage of stations with positive (significant at the 0.01 level), negative (significant at the 0.01 level), and stationary trends for the trend test in annual extreme precipitation indices during 1960–2017.
IndexYRBRangePositiveNegativeStationaryUpperMiddleLower
CDD−0.267−0.880–0.23524.2%68.2% (7.6%)7.6%−0.287 **−0.090−0.077
R10mm0.003−0.091–0.06815.2% (3%)25.8%59.1%0.005−0.001−0.001
R25mm0.003−0.029–0.00001.5% (1.5%)98.5%0.0000.0030.000
R95p0.065−1.372–0.88039.4% (1.5%)47% (1.5%)13.6%−0.022−0.033−0.044
R99p0.008−0.011–0.0251.5%1.5%97%0.048−0.0460.004
RX1day−0.029−0.292–0.21547% (1.5%)53%00.012−0.0430.019
RX5day−0.046−0.380–0.41040.9% (1.5%)59.1%0−0.008−0.041−0.041
SDII0.006−0.020–0.02963.6% (4.5%)22.7% (3.0%)13.6%0.0020.0060.007
Note: ** indicates significant values at the 0.01 confidence level. YRB denotes the trends in the whole YRB, stationary denotes that there are no trends for the stations accounting for this proportion, and zero denotes that there are no trends for the stations.
Table 3. Percentage of stations with positive (significant at the 0.01 level), negative (significant at the 0.01 level), and stationary trends for the trend test in annual extreme temperature indices during 1960–2017.
Table 3. Percentage of stations with positive (significant at the 0.01 level), negative (significant at the 0.01 level), and stationary trends for the trend test in annual extreme temperature indices during 1960–2017.
IndexYRBRangePositiveNegativeStationaryUpperMiddleLower
FD−0.372 **−0.762–0.2504.5%93.9% (92.4%)1.5%−0.372 **−0.381 **−0.411 **
SU0.216 **0.000–0.66783.3% (71.2%)016.7%0.158 **0.256 **0.208 **
TN10p−0.359 **−0.702–0.3657.6%92.4% (92.4%)0−0.361 **−0.344 **−0.337 **
TN90p0.332 **−0.198–0.65997% (90.9%)3%00.345 **0.340 **0.334 **
TNn0.045 **−0.077–0.14686.4% (62.1%)9.1% (3%)4.5%0.052 **0.043 **0.044 **
TXx0.018 *−0.029–0.05384.8% (45.5%)12.1% (1.5%)3%0.034 **0.014 *0.002
TX10p−0.200 **−3.797–0.0881.5%98.5% (92.4%)0−0.206 **−0.212 **−0.142 **
TX90p0.229 **−0.040–0.47990.9% (86.4%)9.1%00.258 **0.239 **0.116 *
Note: * and ** indicate significant values at the 0.05 and 0.01 confidence level, respectively. YRB denotes the trends in the whole YRB, stationary denotes that there are no trends for the stations accounting for this proportion, and zero denotes that there are no trends for the stations.

© 2019 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Back to TopTop
