Seasonal Crop Water Balance Using Harmonized Landsat-8 and Sentinel-2 Time Series Data
Abstract
:1. Introduction
2. Material and Methods

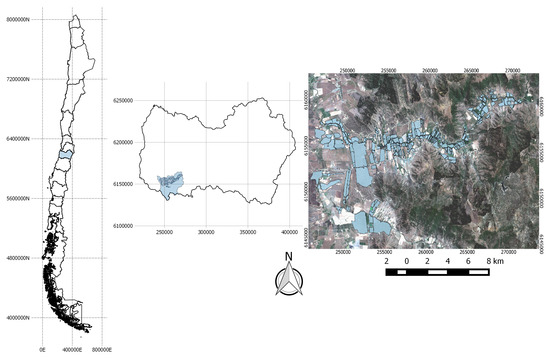

2.1. Study Site
2.2. Satellite Imagery

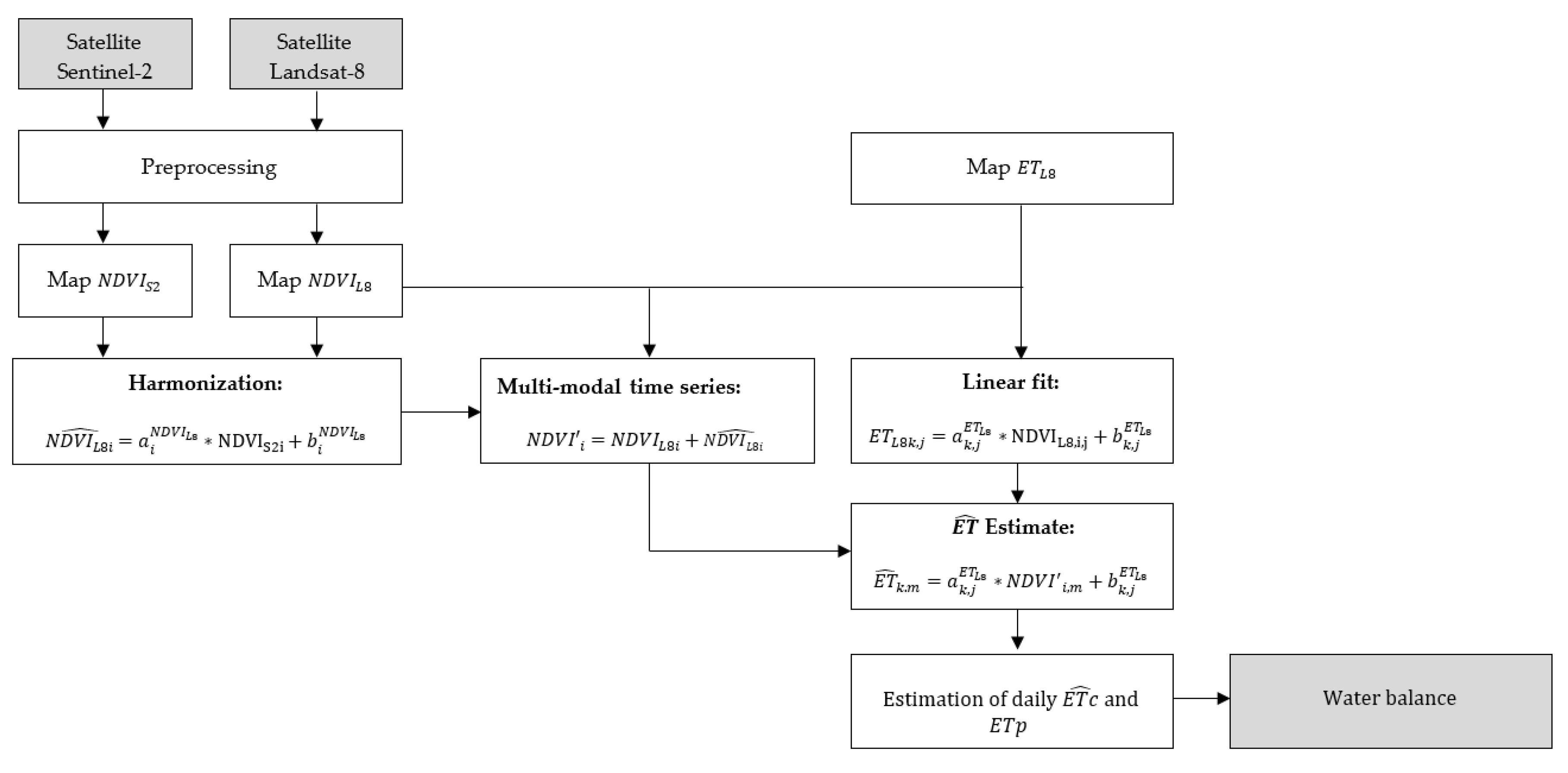

2.3. Methods
3. Results
4. Conclusions
Author Contributions
Funding
Acknowledgments
Conflicts of Interest
References
- Al-Ansari, T.; Korre, A.; Shah, N. Integrated modelling of the energy, water and food nexus to enhance the environmental performance of food production systems. In Proceedings of the 9th International Conference on Life Cycle Assessment in the Agri-Food Sector (LCA Food 2014), San Francisco, CA, USA, 8–10 October 2014; pp. 1–10. [Google Scholar]
- FAO; IFAD; WFP. The State of Food Insecurity in the World: Meeting the 2015 International Hunger Targets: Taking Stock of Uneven Progress; FAO: Rome, Italy, 2015. [Google Scholar]
- Aitken, D.; Rivera, D.; Godoy-Faúndez, A.; Holzapfel, E. Water scarcity and the impact of the mining and agricultural sectors in Chile. Sustainability 2016, 8, 128. [Google Scholar] [CrossRef]
- Valdés-Pineda, R.; Pizarro, R.; García-Chevesich, P.; Valdés, J.B.; Olivares, C.; Vera, M.; Balocchi, F.; Pérez, F.; Vallejos, C.; Fuentes, R.; et al. Water governance in Chile: Availability, management and climate change. J. Hydrol. 2014, 519, 2538–2567. [Google Scholar] [CrossRef]
- Rivera, D.; Godoy-Faúndez, A.; Lillo, M.; Alvez, A.; Delgado, V.; Gonzalo-Martín, C.; Menasalvas, E.; Costumero, R.; García-Pedrero, Á. Legal disputes as a proxy for regional conflicts over water rights in Chile. J. Hydrol. 2016. [Google Scholar] [CrossRef]
- Gonzalo-Martin, C.; Lillo-Saavedra, M.; Garcia-Pedrero, A.; Lagos, O.; Menasalvas, E. Daily Evapotranspiration Mapping Using Regression Random Forest Models. IEEE J. Sel. Top. Appl. Earth Obs. Remote Sens. 2017, 10, 5359–5368. [Google Scholar] [CrossRef]
- Levidow, L.; Zaccaria, D.; Maia, R.; Vivas, E.; Todorovic, M.; Scardigno, A. Improving water-efficient irrigation: Prospects and difficulties of innovative practices. Agric. Water Manag. 2014. [Google Scholar] [CrossRef]
- Santos, C.; Lorite, I.J.; Tasumi, M.; Allen, R.G.; Fereres, E. Performance assessment of an irrigation scheme using indicators determined with remote sensing techniques. Irrig. Sci. 2010. [Google Scholar] [CrossRef]
- López-Mata, E.; Tarjuelo, J.M.; Orengo-Valverde, J.J.; Pardo, J.J.; Domínguez, A. Irrigation scheduling to maximize crop gross margin under limited water availability. Agric. Water Manag. 2019. [Google Scholar] [CrossRef]
- Nouri, H.; Stokvis, B.; Galindo, A.; Blatchford, M.; Hoekstra, A.Y. Water scarcity alleviation through water footprint reduction in agriculture: The effect of soil mulching and drip irrigation. Sci. Total Environ. 2019. [Google Scholar] [CrossRef]
- Dalezios, N.R.; Dercas, N.; Spyropoulos, N.V.; Psomiadis, E. Remotely Sensed Methodologies for Crop Water Availability and Requirements in Precision Farming of Vulnerable Agriculture. Water Resour. Manag. 2019. [Google Scholar] [CrossRef]
- Tan, S.; Wu, B.; Yan, N.; Zhu, W. An NDVI-based statistical ET downscaling method. Water 2017, 9, 995. [Google Scholar] [CrossRef]
- Kloss, S.; Grundmann, J.; Seidel, S.J.; Werisch, S.; Trümmner, J.; Schmidhalter, U.; Schütze, N. Investigation of deficit irrigation strategies combining SVAT-modeling, optimization and experiments. Environ. Earth Sci. 2014. [Google Scholar] [CrossRef]
- DeJonge, K.C.; Ascough, J.C.; Andales, A.A.; Hansen, N.C.; Garcia, L.A.; Arabi, M. Improving evapotranspiration simulations in the CERES-Maize model under limited irrigation. Agric. Water Manag. 2012. [Google Scholar] [CrossRef]
- Li, Y.; Kinzelbach, W.; Zhou, J.; Cheng, G.D.; Li, X. Hydrology and Earth System Sciences Modelling irrigated maize with a combination of coupled-model simulation and uncertainty analysis, in the northwest of China. Hydrol. Earth Syst. Sci 2012, 16, 1465–1480. [Google Scholar] [CrossRef]
- Paço, T.A.; Ferreira, M.I.; Rosa, R.D.; Paredes, P.; Rodrigues, G.C.; Conceição, N.; Pacheco, C.A.; Pereira, L.S. The dual crop coefficient approach using a density factor to simulate the evapotranspiration of a peach orchard: SIMDualKc model versus eddy covariance measurements. Irrig. Sci. 2012. [Google Scholar] [CrossRef]
- Mu, Q.; Heinsch, F.A.; Zhao, M.; Running, S.W. Development of a global evapotranspiration algorithm based on MODIS and global meteorology data. Remote Sens. Environ. 2007. [Google Scholar] [CrossRef]
- Jensen, J.; Wright, J.L.; Pratt, B. Estimating soil moisture depletion from climate, crop and soil data. Trans. ASAE 1971, 14, 954–959. [Google Scholar] [CrossRef]
- Allen, R.; Pereira, L.; Raes, D.; Smith, M. Crop Evapotranspiration: Guidelines for Computing Crop Requirement; Irrigation and Drainage Paper No. 56; FAO: Rome, Italy, 1998. [Google Scholar]
- ASCE. The ASCE Standardized Equation for Calculating Reference Evapotranspiration; Task Committee Report; Environment and Water Resources Institute of ASCE: New York, NY, USA, 2002. [Google Scholar]
- Monteith, J. Evaporation and the environment. Symp. Soc. Expl. Biol. 1965, 19, 205–234. [Google Scholar]
- Alves, I.; Santos Pereira, L. Modelling surface resistance from climatic variables? Agric. Water Manag. 2000, 42, 371–385. [Google Scholar] [CrossRef]
- Ortega-Farias, S.; Olioso, A.; Antonioletti, R.; Brisson, N. Evaluation of the Penman-Monteith model for estimating soybean evapotranspiration. Irrig. Sci. 2004, 23, 1–9. [Google Scholar] [CrossRef]
- Shuttleworth, W. Towards one-step estimation of crop water requirements. Trans. ASAE 2006, 49, 925–935. [Google Scholar] [CrossRef]
- Flores, H. Penman-Monteith Formulation for Direct Estimation of Maize Evapotranspiration in Well Watered Conditions with Full Canopy. Ph.D. Thesis, University of Nebraska, Lincoln, NE, USA, 2007. [Google Scholar]
- Irmak, S.; Mutiibwa, D.; Irmak, A.; Arkebauer, T.; Weiss, A.; Martin, D.; Eisenhauer, D. On the scaling up leaf stomatal resistance to canopy resistance using photosynthetic photon flux density. Agric. For. Meteorol. 2008, 148, 1034–1044. [Google Scholar] [CrossRef]
- Rawat, K.S.; Singh, S.K.; Bala, A.; Szabó, S. Estimation of crop evapotranspiration through spatial distributed crop coefficient in a semi-arid environment. Agric. Water Manag. 2019, 213, 922–933. [Google Scholar] [CrossRef]
- Glenn, E.P.; Nagler, P.L.; Huete, A.R. Vegetation index methods for estimating evapotranspiration by remote sensing. Surv. Geophys. 2010, 31, 531–555. [Google Scholar] [CrossRef]
- Gowda, P.H.; Chavez, J.L.; Colaizzi, P.D.; Evett, S.R.; Howell, T.A.; Tolk, J.A. ET mapping for agricultural water management: Present status and challenges. Irrig. Sci. 2008, 26, 223–237. [Google Scholar] [CrossRef]
- Meneti, M.; Choudhary, B. Parameterization of land surface evapotranspiration using a location dependent potential evapotranspiration and surface temperature range. In Exchange Processes at the Land Surface for a Range of Space and Time Series; Bolle, H.J., Feddes, R.A., Kalma, J.D., Eds.; International Association of Hydrological Sciences: Wallingford, UK, 1993; Volume 212, pp. 561–568. [Google Scholar]
- Kustas, W.; Norman, J. Evaluation of soil and vegetation heat flux predictions using a simple two-source model with radiometric temperatures for partial canopy cover. Agric. For. Meteorol. 1999, 94, 13–29. [Google Scholar] [CrossRef]
- Loheide, S.P.; Gorelick, S.M. A local-scale, high-resolution evapotranspiration mapping algorithm (ETMA) with hydroecological applications at riparian meadow restoration sites. Remote Sens. Environ. 2005, 98, 182–200. [Google Scholar] [CrossRef]
- Allen, R.; Tasumi, M.; Trezza, R. Satellite-based energy balance for mapping evapotranspiration with internalized calibration (METRIC). Model. J. Irrig. Drain. Eng. 2007, 133, 380–394. [Google Scholar] [CrossRef]
- Bastiaanssen, W.; Meneti, M.; Feddes, R.; Holtslag, A. A remote sensing surface energy balance algorithm for land (SEBAL). Formulation. J. Hydrol. 1998, 212-213, 198–212. [Google Scholar] [CrossRef]
- Abuzar, M.; Whitfield, D.; McAllister, A.; Sheffield, K. Application of ET-NDVI-relationship approach and soil-water-balance modelling for the monitoring of irrigation performance of treed horticulture crops in a key fruit-growing district of Australia. Int. J. Remote Sens. 2019. [Google Scholar] [CrossRef]
- Senay, G.B.; Budde, M.E.; Verdin, J.P. Enhancing the Simplified Surface Energy Balance (SSEB) approach for estimating landscape ET: Validation with the METRIC model. Agric. Water Manag. 2011, 98, 606–618. [Google Scholar] [CrossRef]
- García-Pedrero, A.M.; Gonzalo-Martín, C.; Lillo-Saavedra, M.F.; Rodriguéz-Esparragón, D.; Menasalvas, E. Convolutional neural networks for estimating spatially distributed evapotranspiration. In Proceedings of the Image and Signal Processing for Remote Sensing XXIII, Warsaw, Poland, 11–13 September 2017; International Society for Optics and Photonics: Bellingham, WA, USA, 2017; Volume 10427, p. 104270P. [Google Scholar]
- Fisher, J.B.; Melton, F.; Middleton, E.; Hain, C.; Anderson, M.; Allen, R.; McCabe, M.F.; Hook, S.; Baldocchi, D.; Townsend, P.A.; et al. The future of evapotranspiration: Global requirements for ecosystem functioning, carbon and climate feedbacks, agricultural management, and water resources. Water Resour. Res. 2017, 53, 2618–2626. [Google Scholar] [CrossRef]
- Claverie, M.; Masek, J.G.; Ju, J.; Dungan, J.L. Harmonized Landsat-8 Sentinel-2 (HLS) Product User’s Guide; Product Version 1.3; Technical Report; National Aeronautics and Space Administration (NASA): Washington, DC, USA, 2017.
- Masek, J.; Ju, J.; Roger, J.C.; Skakun, S.; Claverie, M.; Dungan, J. Harmonized Landsat/Sentinel-2 Products for Land Monitoring. In Proceedings of the IGARSS 2018—2018 IEEE International Geoscience and Remote Sensing Symposium, Valencia, Spain, 22–27 July 2018; IEEE: Piscataway, NJ, USA, 2018; pp. 8163–8165. [Google Scholar] [Green Version]
- Frantz, D. FORCE—Landsat + Sentinel-2 Analysis Ready Data and Beyond. Remote Sens 2019, 11, 1124. [Google Scholar] [CrossRef]
- Wulder, M.A.; Loveland, T.R.; Roy, D.P.; Crawford, C.J.; Masek, J.G.; Woodcock, C.E.; Allen, R.G.; Anderson, M.C.; Belward, A.S.; Cohen, W.B.; et al. Current status of Landsat program, science, and applications. Remote Sens. Environ. 2019, 225, 127–147. [Google Scholar] [CrossRef]
- Síntesis Agropecuaria – Encuestas Intercensales Agropecuarias 2018–2019. Available online: https://www.ine.cl/estadisticas/economicas/estadsticas-agropecuarias (accessed on 15 June 2019).
- Fonseca-Luengo, D.; Lillo-Saavedra, M.; Lagos, L.O.; García-Pedrero, A.; Gonzalo-Martín, C. Use of Machine Learning to Improve the Robustness of Spatial Estimation of Evapotranspiration. In Iberoamerican Congress on Pattern Recognition; Springer: Berlin/Heidelberg, Germany, 2017; pp. 237–245. [Google Scholar]
- Holzapfel, E.; Hepp, R.; Mariño, M. Effect of irrigation on fruit production in blueberry. Agric. Water Manag. 2004, 67, 173–184. [Google Scholar] [CrossRef]
- Souto, C.; Lagos, O.; Holzapfel, E.; Maskey, M.L.; Wunderlich, L.; Shapiro, K.; Marino, G.; Snyder, R.; Zaccaria, D. A Modified Surface Energy Balance to Estimate Crop Transpiration and Soil Evaporation in Micro-Irrigated Orchards. Water 2019, 11, 1747. [Google Scholar] [CrossRef]
- Tello, J.; Gómez-Báguena, R.; Casterad, M.A. Comparación y Ajuste en Zonas Agrícolas de índices de Vegetación Derivados de Landsat-8 y Sentinel-2; XVII Congreso de la Asociación Española de Teledetección: Murcia, España, 2017. [Google Scholar]
- Nagler, P.L.; Cleverly, J.; Glenn, E.; Lampkin, D.; Huete, A.; Wan, Z. Predicting riparian evapotranspiration from MODIS vegetation indices and meteorological data. Remote Sens. Environ. 2005. [Google Scholar] [CrossRef]
- Rossato, L.; Alvala, R.C.S.; Ferreira, N.J.; Tomasella, J. Evapotranspiration estimation in the Brazil using NDVI data. In Remote Sensing for Agriculture, Ecosystems, and Hydrology VII; SPIE: Bellingham, WA, USA, 2006. [Google Scholar] [CrossRef]
- Glenn, E.P.; Huete, A.R.; Nagler, P.L.; Nelson, S.G. Relationship Between Remotely-sensed Vegetation Indices, Canopy Attributes and Plant Physiological Processes: What Vegetation Indices Can and Cannot Tell Us About the Landscape. Sensors 2008, 8, 2136–2160. [Google Scholar] [CrossRef] [Green Version]
- Ayed, M.; Silva, T.d.; Younes, B.; Salah, B. Colegio de Postgraduados. Agrociencia 2017, 51, 13–26. [Google Scholar]
- Bryla, D.R.; Strik, B.C. Effects of Cultivar and Plant Spacing on the Seasonal Water Requirements of Highbush Blueberry. J. Am. Soc. Hortic. Sci. 2007, 132, 270–277. [Google Scholar] [CrossRef] [Green Version]
- Goldhamer, D.A.; Viveros, M.; Salinas, M. Regulated deficit irrigation in almonds: Effects of variations in applied water and stress timing on yield and yield components. Irrig. Sci. 2006. [Google Scholar] [CrossRef]
- Naor, A.; Peres, M.; Greenblat, Y.; Gal, Y.; Ben Arie, R. Effects of pre-harvest irrigation regime and crop level on yield, fruit size distribution and fruit quality of field-grown ’Black Amber’ Japanese plum. J. Hortic. Sci. Biotechnol. 2004. [Google Scholar] [CrossRef]
- Romero, P.; Gil-Muñoz, R.; del Amor, F.M.; Valdés, E.; Fernández, J.I.; Martinez-Cutillas, A. Regulated Deficit Irrigation based upon optimum water status improves phenolic composition in Monastrell grapes and wines. Agric. Water Manag. 2013. [Google Scholar] [CrossRef]
- Munitz, S.; Netzer, Y.; Schwartz, A. Sustained and regulated deficit irrigation of field-grown Merlot grapevines. Aust. J. Grape Wine Res. 2017. [Google Scholar] [CrossRef]
- Medrano, H.; Escalona, J.M.; Cifre, J.; Bota, J.; Flexas, J. A ten-year study on the physiology of two Spanish grapevine cultivars under field conditions: Effects of water availability from leaf photosynthesis to grape yield and quality. Funct. Plant Biol. 2003. [Google Scholar] [CrossRef]
- Agam, N.; Cohen, Y.; Berni, J.; Alchanatis, V.; Kool, D.; Dag, A.; Yermiyahu, U.; Ben-Gal, A. An insight to the performance of crop water stress index for olive trees. Agric. Water Manag. 2013. [Google Scholar] [CrossRef]
- Ben-Gal, A.; Yermiyahu, U.; Zipori, I.; Presnov, E.; Hanoch, E.; Dag, A. The influence of bearing cycles on olive oil production response to irrigation. Irrig. Sci. 2011. [Google Scholar] [CrossRef]
- Chapagain, A.K.; Orr, S. An improved water footprint methodology linking global consumption to local water resources: A case of Spanish tomatoes. J. Environ. Manag. 2009. [Google Scholar] [CrossRef]
- Zaccaria, D.; Oueslati, I.; Neale, C.M.; Lamaddalena, N.; Vurro, M.; Pereira, L.S. Flexible delivery schedules to improve farm irrigation and reduce pressure on groundwater: A case study in southern Italy. Irrig. Sci. 2010. [Google Scholar] [CrossRef]
Landsat-8 OLI | Sentinel-2 MSI | ||||
---|---|---|---|---|---|
Temporal Resolution: 16 Days | Temporal Resolution: 5 Days | ||||
Bands (m) | Spatial Resol. (m) | Bands (m) | Spatial Resol. (m) | ||
B1: Coastal | 0.435–0.451 | 30 | B1: Coastal | 0.433–0.453 | 60 |
B2: Blue | 0.452–0.511 | 30 | B2: Blue | 0.458–0.523 | 10 |
B3: Green | 0.533–0.590 | 30 | B3: Green | 0.543–0.578 | 10 |
B4: Red | 0.636–0.673 | 30 | B4: Red | 0.650–0.680 | 10 |
B5: Vegetation Red Edge | 0.698–0.713 | 20 | |||
B6: Vegetation Red Edge | 0.733–0.748 | 20 | |||
B7: Vegetation Red Edge | 0.773–0.793 | 20 | |||
B8: NIR | 0.767–0.908 | 10 | |||
B5: NIR | 0.85–0.88 | 30 | B8a: NIR | 0.848–0.881 | 20 |
B9: WV | 0.931–0.958 | 60 | |||
B9: Cirrus | 1.363–1.384 | 30 | B10: Cirrus | 1.338–1.414 | 60 |
B6: SWIR | 1.567–1.651 | 30 | B11: SWIR | 1.539–1.681 | 20 |
B7: SWIR | 2.107–2.294 | 30 | B12: SWIR | 2.072–2.312 | 20 |
B8: PAN | 0.503–0.676 | 15 | |||
B10: TIRS | 10.60–11.19 | 100 | |||
B11: TIRS | 11.50–12.51 | 100 |
Date | Satellite | Date | Satellite | Date | Satellite |
---|---|---|---|---|---|
10 December 2017 (DOY 344) | 19 January 2018 (DOY 19) | Mar/10/2018 (DOY 69) | |||
20 December 2017 (DOY 354) | 08 February 2018 (DOY 39) | Mar/15/2018 (DOY 74) | |||
25 December 2017 (DOY 359) | 13 February 2018 (DOY 44) | Mar/20/2018 (DOY 79) | |||
30 December 2017 (DOY 364) | 18 February 2018 (DOY 49) | Mar/25/2018 (DOY 84) | - | ||
04 January 2018 (DOY 4) | 21 February 2018 (DOY 52) | Mar/30/2018 (DOY 89) | |||
09 January 2018 (DOY 9) | 05 March 2018 (DOY 64) |

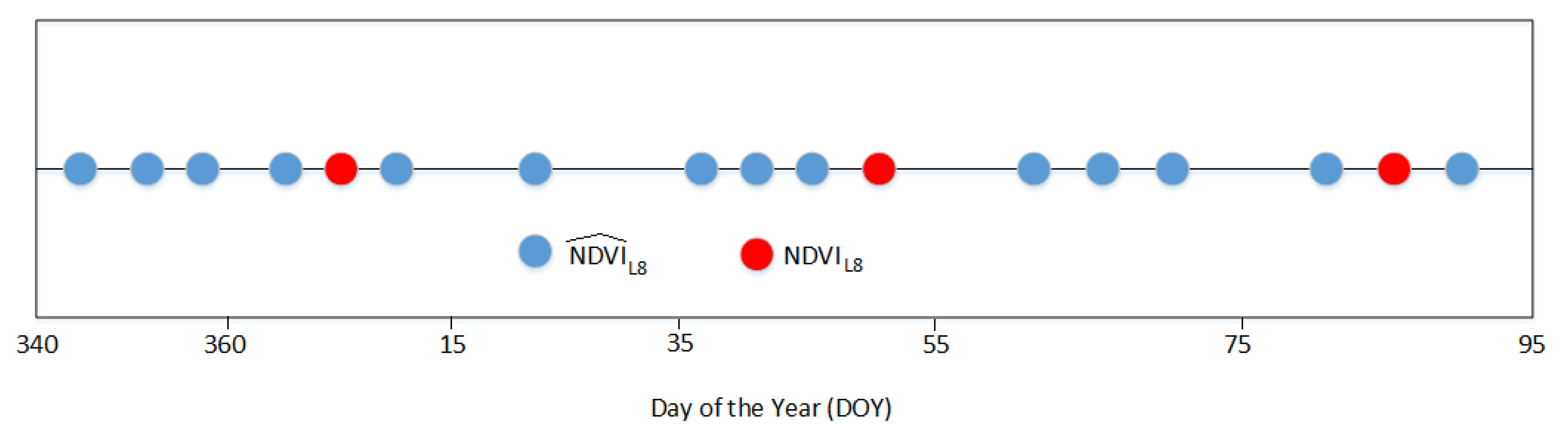

Landsat 8 | Sentinel 2 | |
---|---|---|
04 January 2018 (DOY 4) | ⟶ | 09 January 2018 (DOY 9) |
21 February 2018 (DOY 52) | ⟶ | 18 February 2018 (DOY 49) |
25 March 2018 (DOY 84) | ⟶ | 25 March 2018 (DOY 84) |
04 January 2018 | 21 February 2018 | 25 March 2018 | ||||||||
---|---|---|---|---|---|---|---|---|---|---|
DOY 4 | DOY 52 | DOY 84 | ||||||||
Orchards | Almonds | 9.6331 | −2.2964 | 0.95 | 9.5884 | −2.6277 | 0.89 | 5.5133 | −0.4960 | 0.79 |
Blueberries | 4.970 | −0.0216 | 0.84 | 3.5310 | 0.2247 | 0.84 | 2.6192 | 0.7221 | 0.80 | |
Plums | 7.6880 | −1.3594 | 0.77 | 6.3071 | −1.1207 | 0.84 | 5.0152 | −0.5987 | 0.79 | |
Olives | 8.0158 | −1.8227 | 0.89 | 9.8622 | −2.7053 | 0.77 | 7.5290 | −1.3265 | 0.77 | |
Table grapes | 9.5418 | −3.0590 | 0.94 | 3.1905 | 0.9724 | 0.55 | 3.3327 | 0.3498 | 0.86 | |
Vine | 9.2916 | −2.5368 | 0.96 | 6.0001 | −1.0156 | 0.93 | 3.1834 | 0.9047 | 0.84 | |
Annual Crops | Corn | 8.1881 | −1.5872 | 0.97 | 5.0615 | −0.4432 | 0.90 | 2.2771 | 1.3574 | 0.70 |
Alfalfa | 5.3963 | −0.4837 | 0.80 | 4.4676 | −0.6641 | 0.82 | 3.1753 | 0.0803 | 0.81 | |
Cereals | 8.1596 | −1.7149 | 0.98 | 6.6392 | −1.3811 | 0.93 | 6.3676 | −0.8058 | 0.82 | |
Wheat | 7.8890 | −1.5880 | 0.95 | 5.5146 | −0.7694 | 0.93 | 3.5682 | 0.2759 | 0.63 | |
Tomato | 8.9797 | −2.1934 | 0.98 | 5.8506 | −1.0944 | 0.94 | 4.2877 | −0.1040 | 0.89 |
