# Effects of Water Depth and Ice Thickness on Ice Cover Blasting for Ice Jam Flood Prevention: A Case Study on the Heilong River, China

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Methods

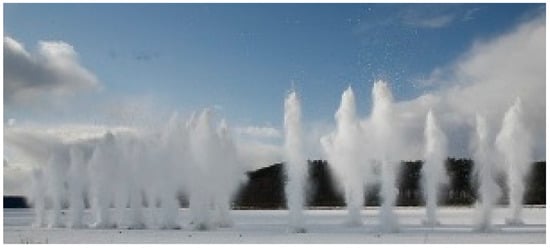

#### 2.1. Selection of Explosive Type, Amount, and Timing

_{opt}is the optimal amount of explosives (kg) and $t$ is the ice cover thickness (m). This equation was fitted based on a large amount of measured data and shows that the optimal amount of explosives is positively correlated to t

^{3}. In practice, once the ice cover thickness exceeds 1.0 m, the amount of explosives necessary increases quickly.

#### 2.2. Selection of Blasting Locations

#### 2.3. Challenges to the Study of Blasting Craters

#### 2.4. Regression Analysis for Ice-Blasting Variables

## 3. Results

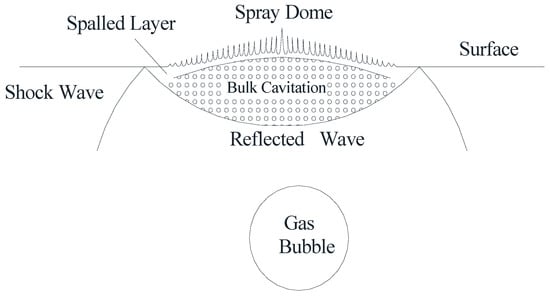

#### 3.1. Behavior and Characteristics of Blasting Craters

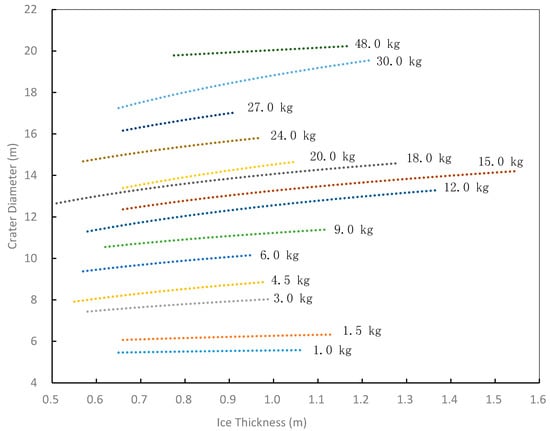

#### 3.2. Relationship between Blasting Crater Radius and Ice Cover Thickness

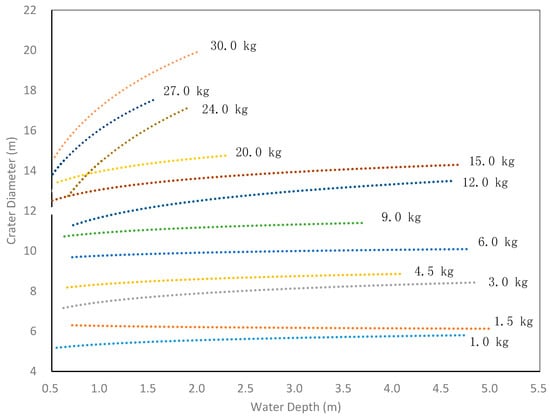

#### 3.3. Relationship between Water Depth, Blasting Crater Radius, and Ice Cover Thickness

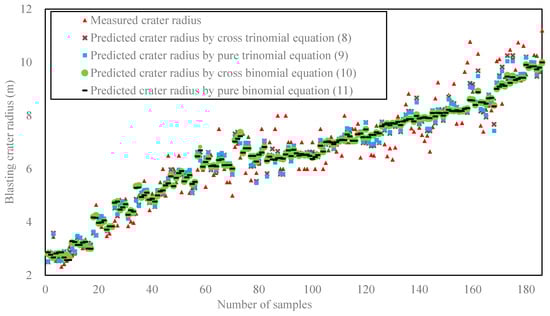

#### 3.4. Proposed Formula and Analysis of Experiment Results

## 4. Conclusions

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## References

- Beltaos, S. River Ice Jams; Water Resources Publications: Littleton, CO, USA, 1995. [Google Scholar]
- Beltaos, S. River Ice Breakup; Water Resource Publication: Littleton, CO, USA, 2008. [Google Scholar]
- Shen, H.T. Research on River Ice Processes, Progress and Missing Links. J. Cold Reg. Eng.
**2003**, 17, 135–142. [Google Scholar] [CrossRef] - Zhang, F.; Mosaffa, M.; Chu, T.; Lindenschmidt, K.-E. Using remote sensing data to parameterize ice jam modeling for a Northern Inland Delta. Water
**2017**, 9, 306. [Google Scholar] [CrossRef] - Mellor, M. Derivation of guidelines for blasting floating ice. Cold Reg. Sci. Technol.
**1987**, 13, 193–206. [Google Scholar] [CrossRef] - Mellor, M. Breaking Ice with Explosives; Cold Regions Research & Engineering Laboratory, US Army Corps of Engineers: Hanover, NH, USA, 1982; p. 3. [Google Scholar]
- Ding, L.Q.; He, B.S.; Yan, X.G. New technology of breaking ice to ice prevention. China Flood Drought Manag.
**2010**, 2, 19–24. (In Chinese) [Google Scholar] - Liang, X.Q.; He, B.S.; Xie, W.H. Experiment study on the blasting upon thick ice. Eng. Blast.
**2012**, 18, 83–85. (In Chinese) [Google Scholar] - Tong, Z.; Yang, X.S.; Xue, P.X. Ice-Broken Explosion Mechanism of Yellow River/New Blasting Technology in China III; Metallurgical Industry Press: Beijing, China, 2012; pp. 57–66. (In Chinese) [Google Scholar]
- Duan, Y.S.; Wang, X.H.; Liu, S.B. Application of blasting technique to against ice jam. J. Glaciol. Geocryol.
**2003**, 220–226. Available online: http://caod.oriprobe.com/articles/32266117/Application_of_Blasting_Technique_to_Against_Ice_Jam.htm (accessed on 22 May 2018). (In Chinese). - Yin, H.T.; Yang, X.H.; Jiang, M.; Jin, J.L. Experimental research on ice breaking by extended blasting cartridge under ice. Eng. Blast.
**2010**, 16, 12–15. (In Chinese) [Google Scholar] - Wang, T.; Yang, K.L.; Guo, Y.X. Application of artificial neural networks to forecasting ice conditions of the Yellow River in the Inner Mongolia Reach. J. Hydrol. Eng.
**2008**, 13, 811–816. [Google Scholar] - Wang, T.; Liu, Z.P.; Guo, X.L.; Fu, H.; Liu, W. Prediction of breakup ice jam with artificial neural networks. J. Hydraul. Eng.
**2017**, 48, 1355–1362. (In Chinese) [Google Scholar] - Xia, L.F. Research and practice of underwater ice jam breaking by manual-operated blasting. Blasting
**2014**, 31, 126–130. (In Chinese) [Google Scholar] - Shi, R.; Xu, G.G.; Liu, D.R.; Qin, J. Underwater test and analysis for explosion energy of explosives. Chin. J. Explos. Propellants
**2008**, 31, 1–5. (In Chinese) [Google Scholar] - Liang, X.Q.; Xiong, F.; Lu, X.L. Experimental research on underwater shock wave characteristic of ice blasting at Yellow River. Blasting
**2014**, 4, 1–4. (In Chinese) [Google Scholar] - Dai, C.L.; Yu, C.G.; Liao, H.C.; Zhang, B.S. Survey and Forecast of River Ice; China Water & Power Press: Beijing, China, 2010. (In Chinese) [Google Scholar]
- Yu, T.C.; Wang, X.F.; Wang, J.L. Underwater shockwave performance of explosives. Energ. Mater.
**2003**, 11, 182–186. (In Chinese) [Google Scholar] - Liu, Z.P.; Fu, H.; Guo, X.L.; Wang, T.; Cui, H. Double frequency radar system for ice thickness and water depth measurement. J. Hydraul. Eng.
**2017**, 48, 1341–1347. (In Chinese) [Google Scholar] - Bonanno, R.; Loglisci, N.; Cavalletto, S.; Cassardo, C. Analysis of different freezing/thawing parameterizations using the UTOPIA Model. Water
**2010**, 2, 468–483. [Google Scholar] [CrossRef] - Wang, J.; Sui, J.Y.; Zhang, H.Y.; Chen, P.; Hirshfield, F. Mechanisms of ice accumulation in a river bend—An experimental study. Int. J. Sediment Res.
**2012**, 27, 521–537. [Google Scholar] [CrossRef] - Guo, X.L.; Yang, K.L.; Fu, H.; Xia, Q.; Wang, T.; Yang, S. Ice processes modeling during reverse water transfer of open canals: A case study. J. Hydro-Environ. Res.
**2017**, 17, 56–67. [Google Scholar] [CrossRef] - Shen, H.T.; Gao, L.; Kolerski, T.; Liu, L. Dynamics of ice jam formation and release. J. Coast. Res.
**2008**, 24, 25–32. [Google Scholar] [CrossRef] - Kolerski, T.; Shen, H.T. Possible effects of the 1984 St. Clair River ice jam on bed changes. Can. J. Civ. Eng.
**2015**, 42, 696–703. [Google Scholar] [CrossRef]

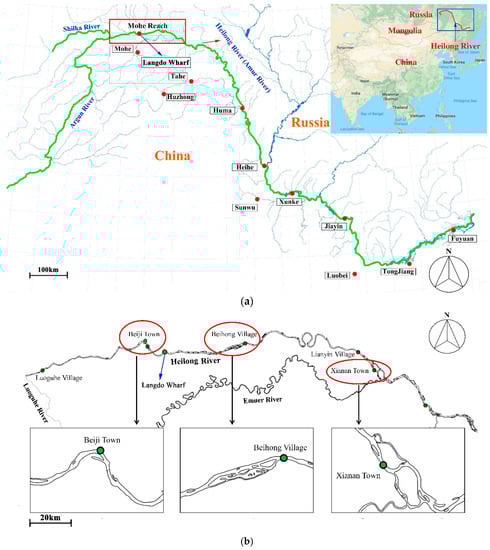

**Figure 1.**Study area: (

**a**) Location of the Heilong River and its major tributaries; (

**b**) detail of the Mohe reach on the Heilong River.

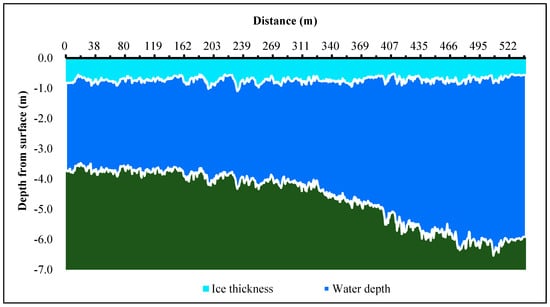

**Figure 2.**Ice cover thickness and water depth as measured along the Longdao Wharf section of the Mohe reach, Heilong River.

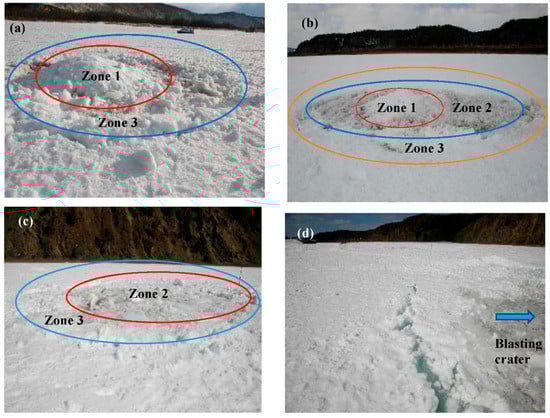

**Figure 4.**Typical blasting crater types and post-blasting features: (
