Assessment of the Water Treatment Process’s Empirical Model Predictions for the Management of Aesthetic and Health Risks Associated with Cyanobacteria
- Sudden changes in raw water characteristics (for example, pH), disruption of treatment processes including malfunction of flocculation reactions, increasing the consumption of coagulant and generation of disinfection by-products due to organic materials associated with bloom matrix;
- Production of potent toxins with human health hazards from hepatotoxins to neurotoxins;
- Production of T&O compounds such as the most commonly occurring geosmin and 2-methylisoborneol (MIB). These T&O compounds are very difficult to remove from water, for example, conventional treatment (coagulation/clarification, filtration, and oxidation using chlorine and hydrogen peroxide) is inefficient for their treatment;
- How can utilities have confidence in the application of various treatment processes when they are often site/system specific?
- What is the evidence of the removals of cyanobacteria and metabolites reported in the literature and of the achievability of guidance manuals at the full-scale?
- How can we assess and validate the efficiencies of unit processes at individual treatment plants?
- What is the combined mitigation effect of the entire treatment train?
- In the case of a toxic bloom, how can we determine the point at which we are at risk of distributing water that does not meet the guidelines for toxin concentrations?
2. Materials and Methods
2.1. Development of Empirical Models for the Removal of Cyanobacteria and Their Metabolites
- The removals of the metabolites by PAC are the same in all water quality
- The PAC used is the equivalent of Activated Carbon Technologies’ PS1000 (unless otherwise stated)
- PAC adsorption will achieve the same removal of metabolites as determined in batch experiments undertaken in the laboratory
- PAC application removes only dissolved metabolites and does not affect the intracellular component
- The removal of the cyanobacteria through coagulation and clarification is constant at 95% regardless of the type of cyanobacteria, coagulant, or clarification process
- Coagulation and clarification does not affect the concentration of the dissolved metabolites
- Filtration does not remove dissolved or intracellular metabolites
- Chorine will lyse any cyanobacteria reaching the disinfection point
- Chlorination will achieve the same oxidation of toxins as determined in batch experiments undertaken in the laboratory
- The removals of the cyanotoxins by chlorination are the same in all water quality

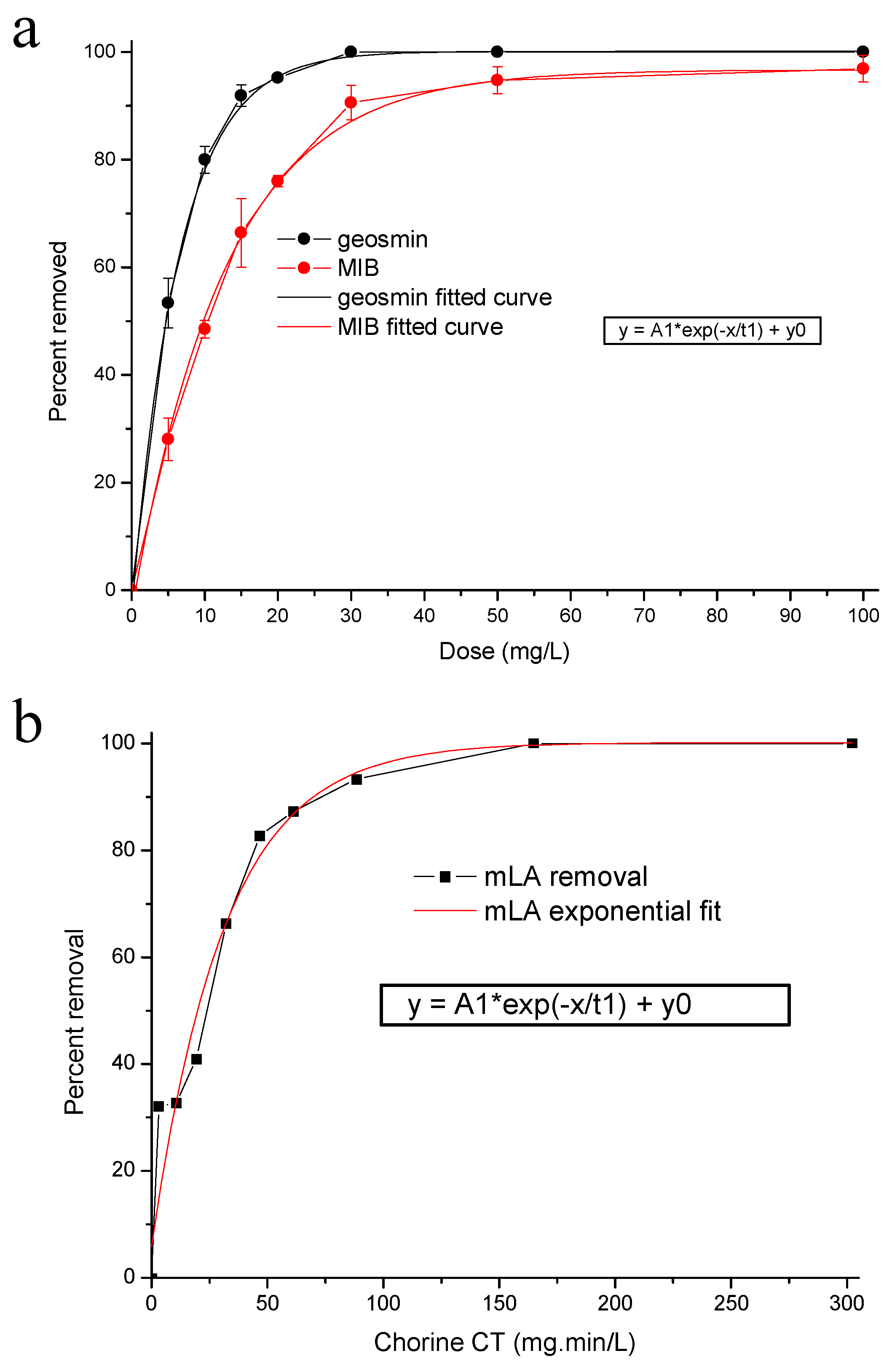

2.1.1. PAC and Chlorine Removal Equations
2.1.2. Cyanobacteria and Metabolite Removal Tools
2.2. Monitoring in Full-Scale Plants for Verification of the Estimates Produced by the Tools
3. Results and Discussion

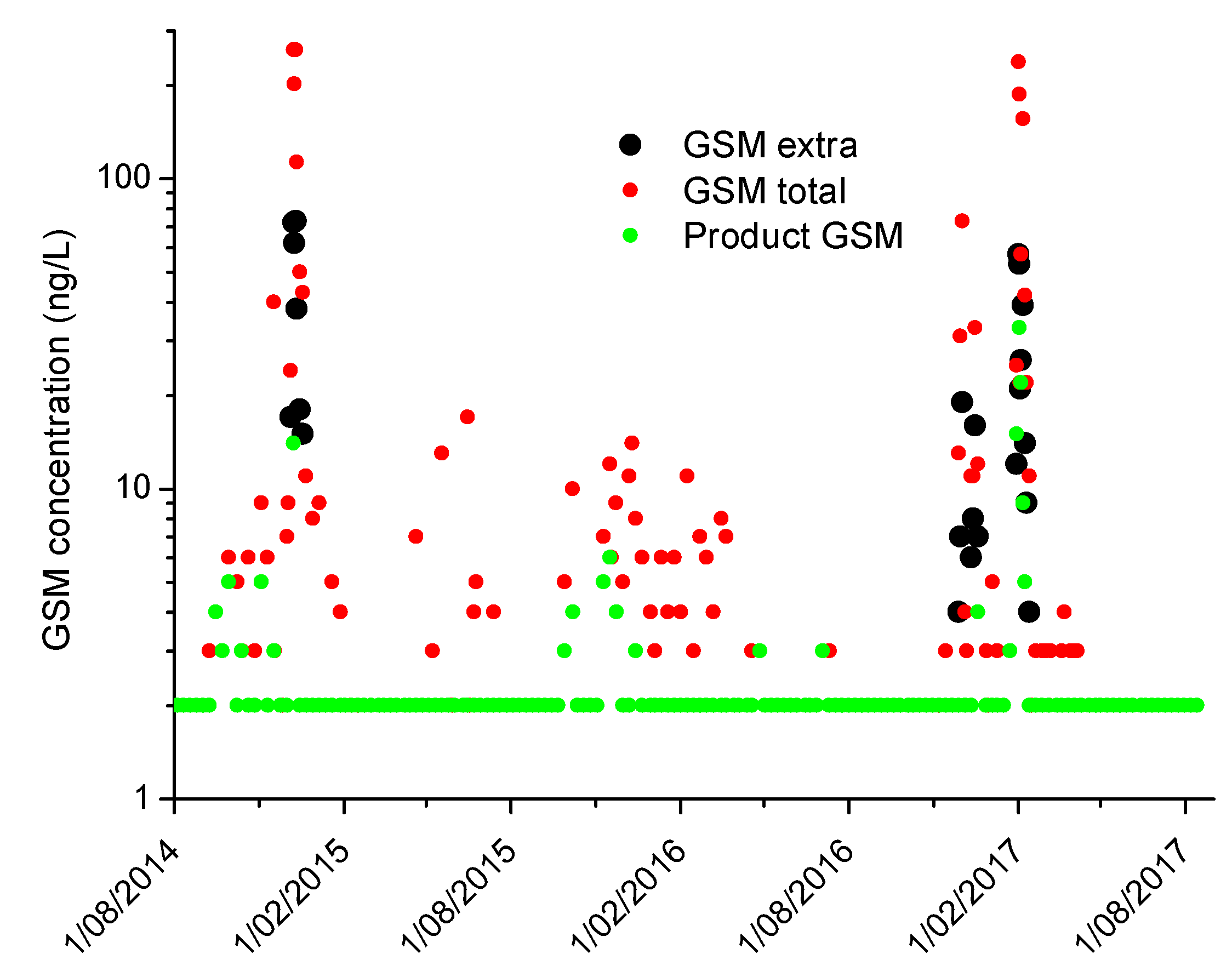

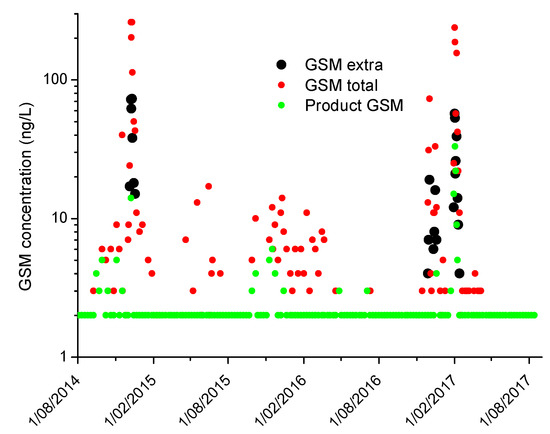

3.1. Guide Development to Perform Plant Audits and Investigative Sampling to Assess Risk Associated with Cyanobacteria
3.2. Model Development and Validation
3.2.1. Model Development
3.2.2. Model Validation
- Conventional treatment with PAC where there is no (or very low) contact time prior to coagulant addition (conv with PAC no contact)
- Conventional treatment with PAC where there is a contact time prior to coagulant addition (conv with PAC)
- Dissolved air flotation with PAC (DAF with PAC)
- Dissolved air flotation without PAC (DAF no PAC)
- Dissolved air flotation followed by GAC (DAF GAC)
- Plants where biological filtration is known to occur through comprehensive laboratory testing (biological filtration)

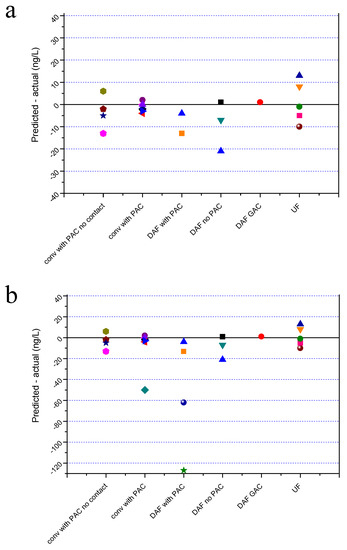

- For the plants with pre-contact tanks for PAC followed by conventional treatment, the spreadsheet predicted the actual final concentrations within +/−5 ng/L in 8 of the 9 sampling events. The other sampling represented an extreme event with raw water geosmin concentration of 611 ng/L where the PAC may have lysed cells and released further geosmin.
- For the two conventional plants without a pre-coagulation contact time, the predictions were within 2 ng/L and 11 ng/L.

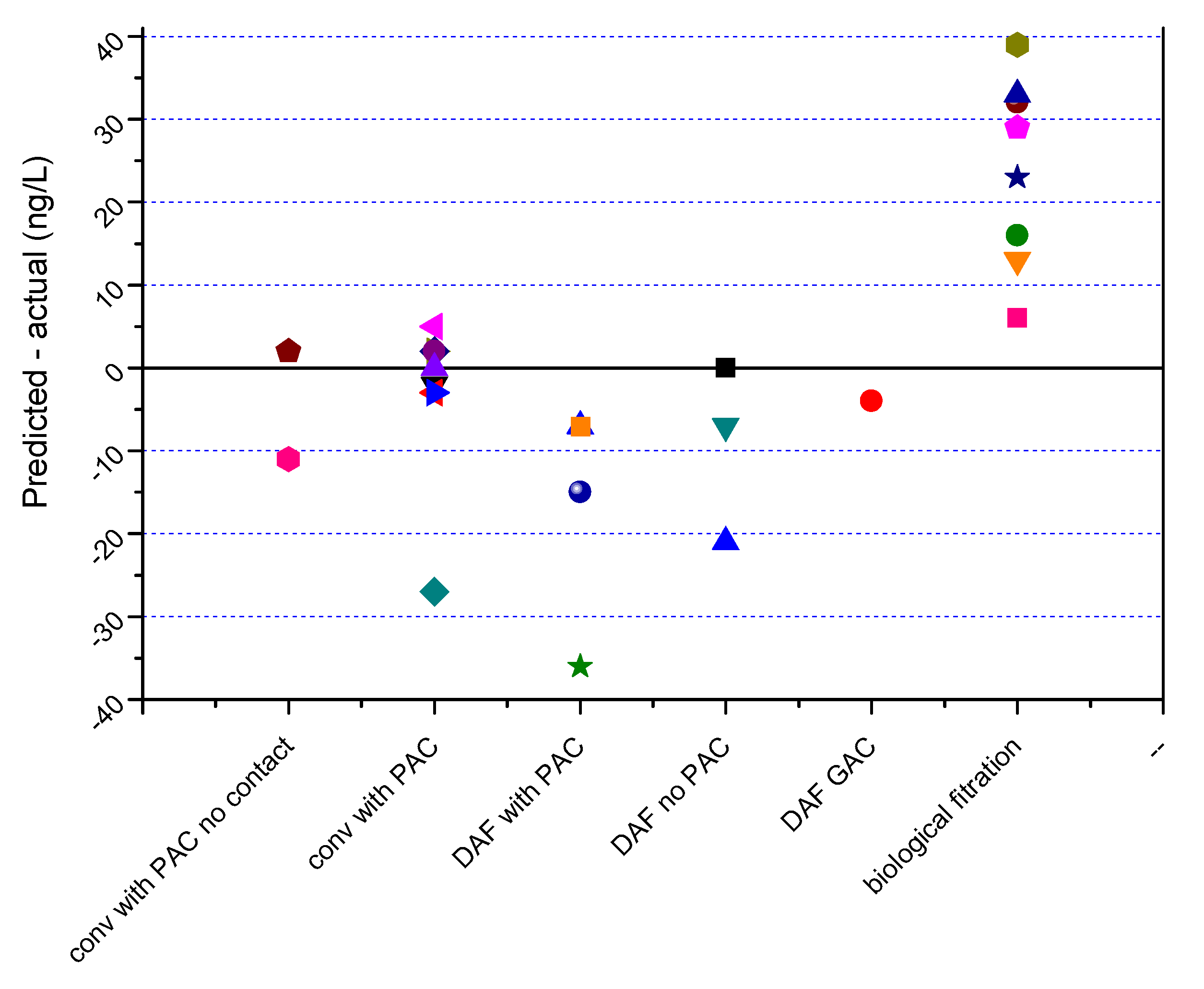

- The plants utilizing DAF, and where biological filtration was effective, deviated from the predictions to a greater degree.
- Where there is known and consistent biological removal, the spreadsheet could easily be modified to take this into account.
- For the DAF plants, the calculator spreadsheet predictions deviated from the actual by between 1 ng/L and 127 ng/L for the sample prior to filtration and between 0 and 36 ng/L for the filtered samples.
- The investigative sampling procedures developed are effective and have been successfully applied by three project partners;
- While routine monitoring data is important, investigative sampling within the WTP provides more detailed and insightful information about the effectiveness of unit processes within the plant;
- PAC can be effective for the removal of dissolved T&O, with the optimum application point at least 20 min prior to coagulant addition;

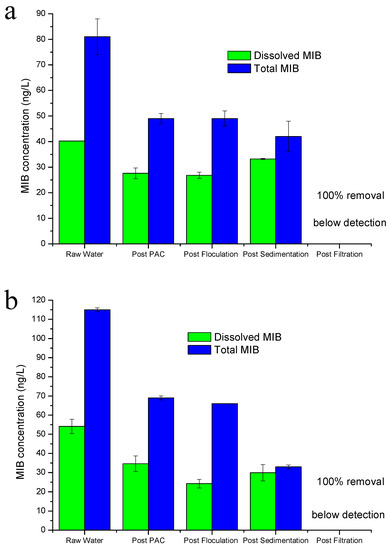

- When there is a pre-contact time there is little or no further removal of dissolved T&O during the subsequent treatment processes;
- Water transfer and reactive spiking techniques may damage cyanobacteria cells and release metabolites into the dissolved state. Particularly at high T&O concentrations, this could lead to lower removals than expected and/or higher PAC dose requirements;
- Coagulation and clarification using sedimentation or UF are very effective for the removal of intracellular metabolites, generally with removals of >95%;

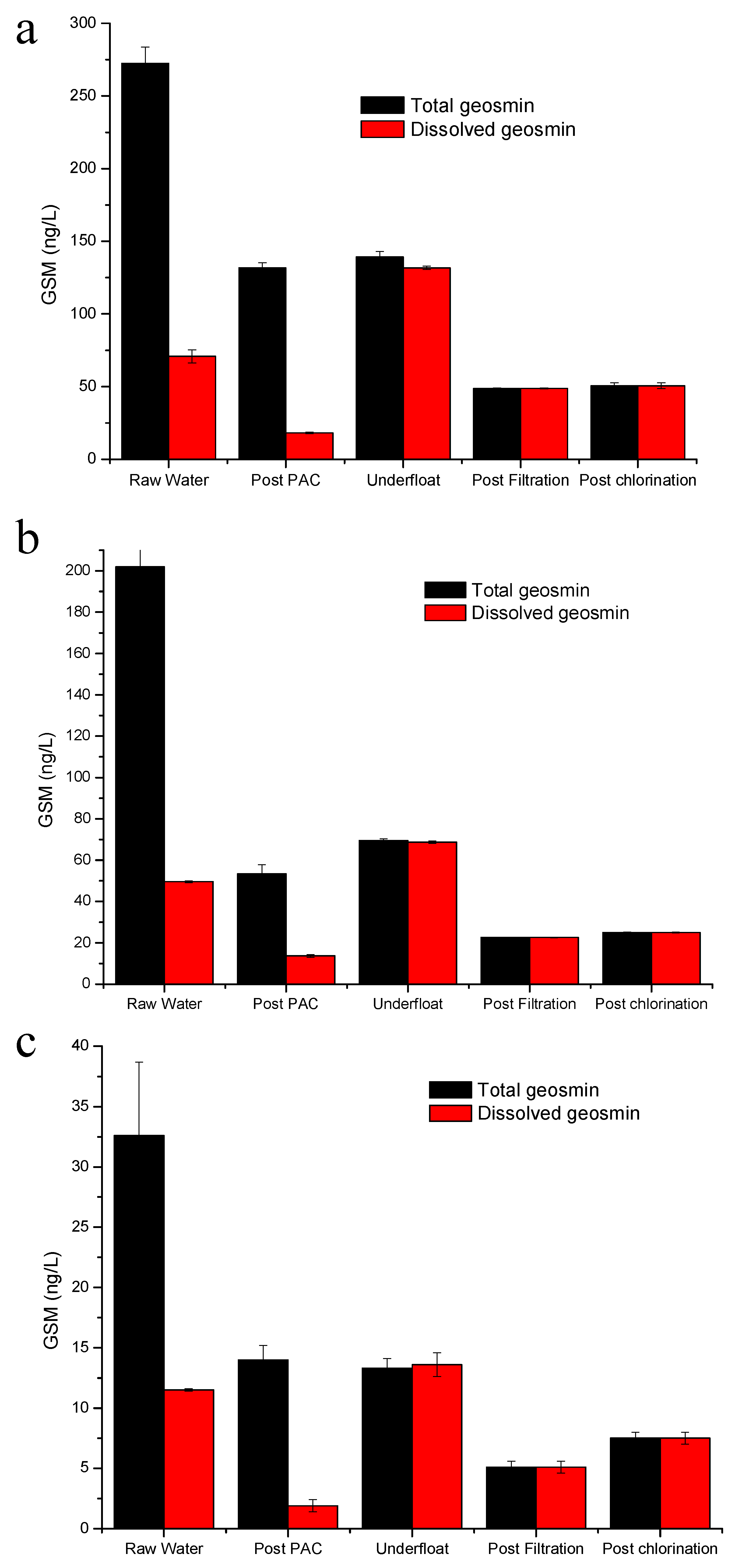

- Dissolved air flotation may lead to lysis of cyanobacteria within the plant. With no further removal processes, this may lead to a breakthrough of unacceptable T&O (or toxins if present) levels into the treated water;
- Biological processes can take place within full-scale treatment plants and can be extremely effective for T&O. However, biological removal does not take place on filters that are backwashed with chlorinated or chloraminated water.
- Further work is required to quantify the damage to cells during PAC mixing at the full-scale plants. Some laboratory testing has suggested that cultured cells are robust and are not damaged by mixing with PAC in a jar test environment. At the full-scale, the bloom may be in decline, resulting in cells that are more prone to damage, or the more rigorous mixing regime, for example, turbulent flow in the pipeline at WTP-A, may result in damage to cells and release of T&O.
- Clearly, DAF can result in damages to the cells, possibly due to the points outlined above. The flotation process may be more disruptive than the settling process, and the float may be subject to further stresses as the bubbles continue to impact the flocculated cells, potentially causing metabolite release. This finding requires further clarification and the identification of operational mitigation strategies.
- While based on a very simple concept, the tools show potential for use at the full-scale to aid in operational decisions. For more accurate predictions, it is recommended that the empirical models used in the calculations are generated for individual WTPs (PAC type and contact time, water quality conditions, and so forth). In addition, it should be noted that there is no full-scale verification for the toxin calculators. The limited full-scale data in the literature suggests that the cyanobacteria are effectively removed by conventional processes, there may be accumulation in sedimentation tanks, and that chlorination of toxins in filtered water is not as effective as suggested by laboratory tests. Therefore it is recommended that the toxin calculators are not relied upon to aid in operational decisions at this stage. When further full-scale verification data is available improvements can be made to these calculators to allow more confident application.
- Further research is required to develop a real-time, in-situ technique for the measurement of metabolites entering WTPs. Currently, the lead time for cell counts and/or metabolite concentration analysis prevents the tools and predictions being applied as they are required for PAC dosing for example.
