Water 2018, 10(12), 1828; https://doi.org/10.3390/w10121828

Review
Assessment of Sulfate Radical-Based Advanced Oxidation Processes for Water and Wastewater Treatment: A Review
1
Department of Industrial Chemical & Environmental Engineering, Escuela Técnica Superior de Ingenieros Industriales, Universidad Politécnica de Madrid, Calle José Gutiérrez Abascal 2, 28006 Madrid, Spain
2
Department of Civil Engineering, Indian Institute of Technology Bombay, Powai, Mumbai 400076, India
*
Author to whom correspondence should be addressed.
Received: 16 November 2018 / Accepted: 6 December 2018 / Published: 11 December 2018

Abstract

:
High oxidation potential as well as other advantages over other tertiary wastewater treatments have led in recent years to a focus on the development of advanced oxidation processes based on sulfate radicals (SR-AOPs). These radicals can be generated from peroxymonosulfate (PMS) and persulfate (PS) through various activation methods such as catalytic, radiation or thermal activation. This review manuscript aims to provide a state-of-the-art overview of the different methods for PS and PMS activaton, as well as the different applications of this technology in the field of water and wastewater treatment. Although its most widespread application is the elimination of micropollutants, its use for the disinfection of wastewater is gaining increasing interest. In addition, the possibility of combining this technology with ultrafiltration membranes to improve the water quality and lifespan of the membranes has also been discussed. Finally, a brief economic analysis of this technology has been undertaken and the different attempts made to implement it at full-scale have been summarized. As a result, this review tries to be useful for all those people working in that area.
Keywords:
advanced oxidation processes; disinfection; micropollutants; organic matter sulfate radicals; tertiary wastewater treatment

1. Introduction

In recent decades, industrialization and population growth have caused a significant increase in water consumption and contamination. This supposes a decrease in the water quality and the amount of available hydric resources, so that by 2030, the world is projected to face a 40% global water deficit [1]. The regeneration and reuse of wastewater could be a serious alternative to reducing the hydric stress in some regions [2]. For this purpose, water quality must obey the specifications indicated in the corresponding regulations or guidelines depending the final use of reclaimed water. Normally, water from the secondary treatment in wastewater treatment plants (WWTP) does not achieve these specifications, and advanced treatment is required, also known as tertiary treatment [3]. The variety of tertiary treatments is wide, depending of the final required quality of water and the target pollutants to remove. For instance, some examples are sedimentation, coagulation/flocculation, membrane technologies, biological filters, ionic exchange, adsorption, chemical oxidation, etc. [3].
Regulations or guidelines on the regeneration and reuse of wastewater establish maximum admissible values for different physical-chemical (suspended solids, turbidity, organic matter, metals, etc.) and biological (pathogen microorganisms) parameters regarding the final use of reclaimed water. The main risk in the reuse of treated wastewater comes from the presence of pathogen microorganisms. These pathogens are already responsible for waterborne diseases causing thousands of deaths every year around the world [4].
For that, disinfection is a vital process for the removal of microorganisms, pathogenic or not, and, so far, chlorination is the most common disinfectant process to this end [5]. Although chlorination is considered as an ideal disinfectant process because of it obeys almost all the conditions to be considered as that [6], it presents some important disadvantages as the formation of potentially dangerous disinfection by-products (DBPs) such as trihalomethanes (THMs) and haloacetic acids (HAAs) [7]. This generation is produced due to the reaction of chlorine and natural organic matter. Many THMs have been identified as genotoxic mutagens that can be toxic to aquatic life, and even to humans, some of them being considered as carcinogenic [8,9]. For this reason, during the last decades, the scientific community has focused on the search for disinfection alternatives [10,11]. Among them are the advanced oxidation processes (AOPs) [11,12,13,14].
Moreover, the increase of human activities along with the development of more sensitive technologies for the determination of pollutants, have led to an increase in the detection of emerging pollutants (EP). The presence of EP in water bodies has revealed a worldwide problem [15]. These compounds are defined by Geissen et al. as synthetic or naturally occurring chemicals that are not commonly monitored in the environment, but they have the potential to enter the environment and cause known or suspected adverse ecological and (or) human health effects [16]. EP can come from various sources such as, for instance, pharmaceutical active compounds and personal care products. Currently, there is no specific EP regulation anywhere in the world [17], but there are some attempts to compile a priority list. One of them, compiled by the Joint Research Centre of the European Commission, which contains more than 2700 substances [18].
In the majority of cases, EPs can be detected in WWTP effluent [15,17]. These substances are usually present in wastewater at very low concentrations (ppb or ppt) and current treatments are not designed to appropriately remove them. For this reason, it is imperative to keep developing effective technologies that can remove refractory compounds and EP [19]. Again, AOPs have proved to be a good alternative for emerging pollutant removal, although more research is still needed (especially on full-scale implementation) [20].
AOPs are based on the in situ generation of strongly reactive free radicals [21] which are capable of inactivating microorganisms and to oxidize complex organic molecules, partially or totally mineralize them [22,23]. AOPs occur in two steps: in situ formation of radicals and their reaction with organic or biological pollutants [21]. These technologies are based on the use of a broad range of photocatalysts, TiO2 being the most used, or the combination of oxidants such as hydrogen peroxide, peroxymonosulfate or persulfate with metal catalysts or ultraviolet (UV) radiation [24]. AOPs based on the generation of hydroxyl radicals are the most deliberated treatments. The hydroxyl radical has a higher oxidation potential (2.8 V) than common disinfectant agents as chlorine, ozone or permanganate as can be observed in Table 1 [23,25]. In recent years, sulfate radicals have attracted attention. These radicals could play an important role because of their high oxidation potential.
One of the most studied AOPs is the Fenton’s reagent and its variations, where iron species (mainly Fe2+) is used as catalyst and hydrogen peroxide acts as oxidant [23,24,25,26]. This technology presents some operation problems that have to be addressed [22,23]:
  • H2O2 instability
  • Restricted pH working range (pH 2–4)
  • Generation of sludge [19,27]
Taking this into account, sulfate radical-based advanced oxidation processes (SR-AOPs) seems to be a good alternative as they have the same, or even higher, oxidation potential than hydroxyl radical (Table 1) and none of the aforementioned disadvantages. In fact, sulfate radicals presents numerous advantages which can be summarized as follows [22]:
  • As mentioned, SO4˙ possesses a high oxidation potential (2.5–3.1 V) comparable or even higher than ˙OH.
  • Sulfate radical reacts more selectively and efficiently via electron transfer with organic compounds that contain unsaturated bonds or aromatic π electrons. By contrast, ˙OH is a non-selective radical and may also react with the diverse background constituted by hydrogen abstraction or electrophilic addition [28,29].
  • SO4˙ reacts efficiently with organic compounds over a wide pH range of 2–8, reaching higher standard oxidation potential than hydroxyl radical at neutral pH [19].
  • The half-life of sulfate radicals is supposed to be 30–40 µs, which enables SO4˙ to have more stable mass transfer and better contact with target compounds than hydroxyl radicals, whose half-life is 20 ns [30].
Given the above information, the interest on SR-AOPs has increased sharply [30,31,32,33] as can be deduced from the strong growth of the number of publications concerning this issue, which has been depicted in Figure 1, according to the information gathered from the database of Scopus. The number of publications concerning photo-Fenton (which can be considered as the treatment that most directly competes with SR-AOPs because of their similarity) has also continued to grow, but this growth follows a lineal tend, while the number of publications concerning SR-AOPs has increased exponentially, surpassing that of photo-Fenton since 2016.
Sulfate radicals are usually generated from peroxymonosulfate (PMS) and persulfate (PS). As shown in Table 1, PMS and PS have significant oxidation potentials (1.82 and 2.1 V respectively). However, direct reaction with contaminants takes place at a very low rate so they must be activated to generate sulfate radicals [29]. PMS and PS activation can occur by various methods such as heat, UV, ultrasound or heterogeneous and homogeneous catalysis [26,32]. Nevertheless, combination of two or more different methods has been widely studied to increase the efficiency [34,35,36].
The main goal of this chapter is to analyse and compare the various activation methods of PS and PMS, and to show the advances during the last years in the use of sulfate radicals-based AOPs, especially in disinfection and removal of micropollutants present in water and wastewater.

2. Chemistry of Peroxymonosulfate (PMS) and Persulfate (PS)

PMS (HSO5) is a white powder that can be easily dissolved in water (solubility > 250 g/L). It has unsymmetrical structure and the distance of the O-O bond is 1.453 Å [26]. PMS is typically commercialized as Oxone® (Sigma-Aldrich), which is a triple potassium salt (2KHSO5·KHSO4·K2SO4). The main disadvantage of Oxone® is that it has two “dead” sulfate salts in its structure which cannot be activated [32]; nevertheless, PMS activation does not only involve a sulfate radical, but also a hydroxyl radical is generated. More chemical properties are listed in Table 2.
On the contrary, PS is a symmetric oxidant that can be found as sodium and potassium salts. These salts form white crystals which have high solubility and stability [26]. In this case, the O-O bond length is 1.497 Å; this value is higher than that for PMS, which symbolises a lower O-O bond dissociation energy (140 kJ·mol−1) [32].

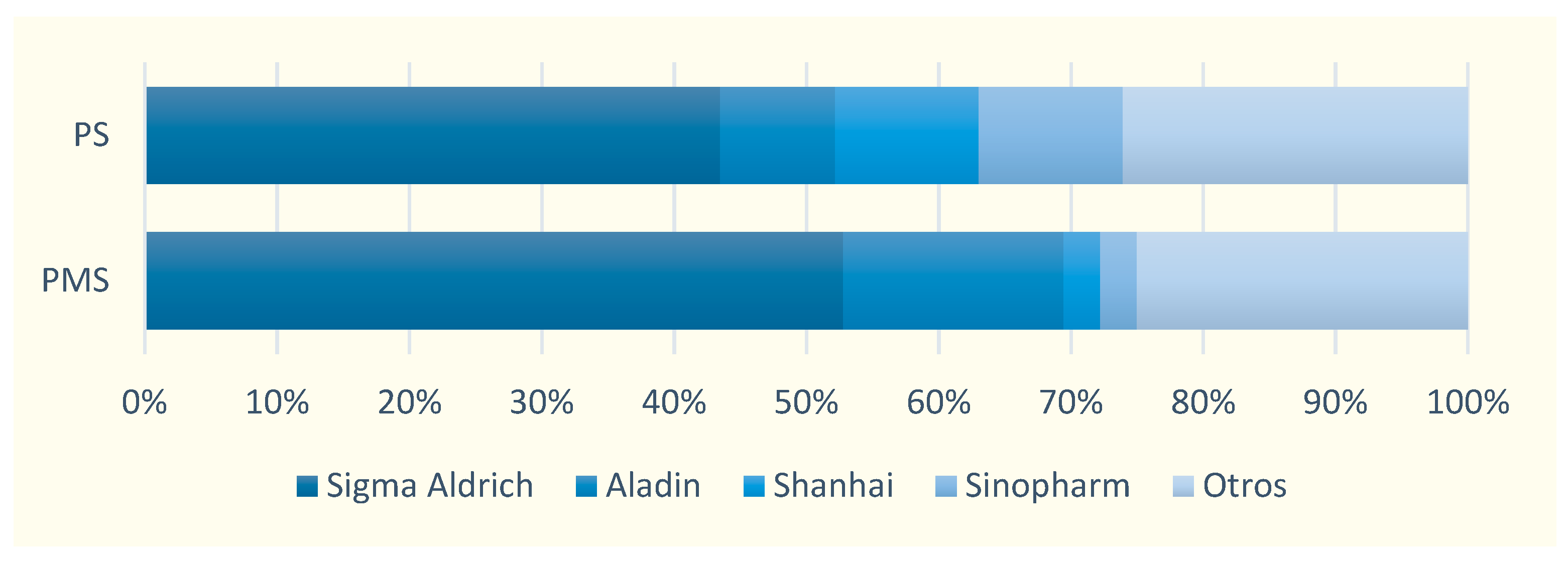

A study made among more than 100 articles of recent years reveals that there are several companies that distribute PMS and PS salts. As depicted in Figure 2, Sigma–Aldrich is the major supplier in both cases, followed by Aladdin. Specifically, when speaking of PMS, Sigma–Aldrich holds a market share of over 50% and markets it as Oxone®, which is a registered trademark.

3. Activation Methods and Application in Micropollutants Removal

3.1. Radiation Activation

Radiation, such as ultraviolet (UV), ultrasound (US) and gamma radiation [38,39], have proved to be efficient in activating PS and PMS, albeit the use of the latter is not very extensive.
Two activation pathways might occur when using radiation. The first one is the O-O bond fission provoked by the input of energy (Equations (1) and (2)). Furthermore, the radiation might dissociate water molecules (Equations (3)–(5)) producing the electron which activates PS and PMS by electron conduction [26].
S 2 O 8 2 h v 2   S O 4 ˙
H S O 5 h v   S O 4 ˙ + O H ˙
H 2 O h v H ˙ + O H ˙
S 2 O 8 2 + H ˙   S O 4 ˙ +   S O 4 2 + H +
H S O 5 +   H ˙   S O 4 ˙ + H 2 O
Some contaminants can be degraded to some degree using single UV if their maximum absorption occurs near the used wavelength [40], but this is uncommon. Most organic pollutants resist UV radiation, but their combinations with persulfates have demonstrated to be really efficient [40,41,42,43,44,45,46,47,48,49]. From Table 3, which listed some reports of the use of UV for sulfate radical activation, it is noted that 254 nm is the most commonly used wavelength, which combined with the results achieved to lead to believe that PS and PMS have their maximum absorption in the UV-C spectrum. By contrast, Wacławek et al. has determined that the best wavelength for PMS activation is 350 nm [50].
For different micropollutants removal, different concentrations of PS or PMS was required, as well as different contact times. However, most of them have been effectively degraded in less than an hour. Even those whose complete degradation takes longer form tetramethylammonium hydroxide (TMAH) and Bisphenol A, which can be degraded by more than 80% in 60 min [48,51].
The application of ultrasound for the activation of PS and PMS is less widespread than in the case of UV radiation, although there is a greater record of its use for the generation of hydroxyl radicals from hydrogen peroxide [52,53,54]. It is considered a clean, safe and energy saving technology, but on its own it does not have a great effect and is expensive, which makes it unviable [55].
However, as shown in Table 4, its combination with PMS and PS has produced promising results in recent years. One of the advantages of these technologies is that US could cause the rapid formation and collapse of cavitation bubbles, leading to an increase of pressure and temperature. This means that the oxidant, in addition to the direct action of radiation, can be thermally activated [60]. Degradations of >90% were achieved in less than 30 min operating at neutral pH and temperatures close to ambient for 1,1,1-trichloroethane, sulfamethazine and Naphthol Blue Black [41,61,62]. Despite this, 1,4-dioxane could not be efficiently removed after 2 h of treatment in similar conditions [63], hence the specific optimal conditions for the elimination of each pollutant must be determined.

3.2. Thermal Activation

Persulfates have also been successfully activated by heat in several reports, as reflected in Table 5. This activation mechanism is equivalent to that in radiation activation: energy input can cause fission of the O-O bond in PS and PMS, resulting in sulfate and hydroxyl radicals (Equations (6) and (7)).
S 2 O 8 2 h e a t 2   S O 4 ˙
H S O 5 h e a t   S O 4 ˙ + O H ˙
Usually, the higher the temperature, the higher is the radical generation rate and, therefore, the faster is the pollutant’s removal [64]. This correlation fits properly to the Arrhenius equation (Equation (8)) [65,66]. Moreover, the contaminant removal rate adjusts in most of the studied cases to pseudo-first order kinetics (Equation (9)) [65,66,67]. However, extremely high temperature does not achieve better micropollutant degradation because those conditions may lead to radical–radical reactions instead of radical–contaminant reactions due to the high radical’s concentration [63,64].
ln ( k ) = l n A E a R T
d   [ c o n t a m i n a n t ] d t = k × [ c o n t a m i n a n t ]
In addition, in the study of benzoic acid degradation, it was discovered that temperature controls, not only the PS activation rate, but also the rate and distribution of breakdown products [68].
Most of the studies carried out on the field indicate that heat activation is more effective in acidic or neutral pH because acidic conditions are beneficial to SO4˙ generation, but its effectiveness decreases in basic pH [69,70,71]. However, the elimination of bitumen has been found to be more efficient in basic medium, which indicates that the optimal conditions depend directly on the contaminant [63].

3.3. Metal Catalyst

Several studies have proved that PS and PMS can be efficiently activated by transition metals [34,75,76,77]. Metal catalyst can be classified in two groups: homogeneous catalysts (transition metal ions) and heterogeneous catalysts (i.e., metal oxides, synthetized nanomaterials, natural minerals...).

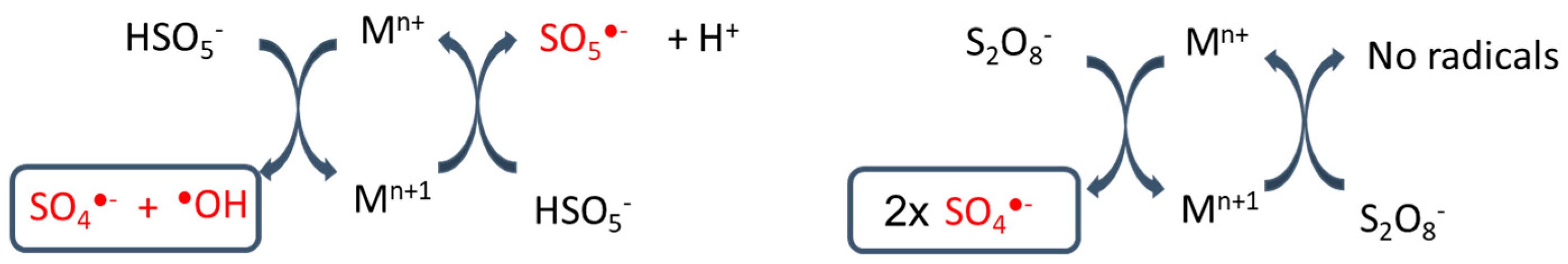

Figure 3 illustrates the activation mechanism of PS and PMS by metal catalysts, both heterogeneous and homogeneous. As in the activation methods already analyzed, PS activation gives rise to two sulfate radicals, whereas the activation of PMS gives rise to a hydroxyl and sulfate radicals. In addition, PMS has the advantage that it is capable of reacting with the oxidized metal (Mn+1) giving rise to sulfur pentoxide radical (SO5 ˙), less reactive than SO4 ˙ (1.1 V vs 2.5 V) but also capable of attacking contaminants.
Among homogeneous catalysts, Anispistakis and Dionysious determine that silver is the most efficient activator for PS and cobalt (II) for PMS [78]. Despite being slightly less efficient, iron has been the most widely studied material for this purpose, since it is environmentally friendly, relatively nontoxic and cost effective when compared with other options [75,78,79]. Even though satisfactory results have been obtained by homogeneous metal catalysts, this method has several drawbacks, among which the difficulty of recovering metal ions, and the consequent high concentration thereof in the treated water, stands out.
Heterogeneous catalysis presents a solution to these drawbacks since they are easier to recover, and it is not necessary to carry out subsequent treatment to remove metals from the water. Moreover, in many cases it can be reused, thus lengthening its useful life and decreasing the cost of the treatments [80,81]. In addition, they are much more stable under different conditions, being able to operate in a wide range of pH [37,82,83]. For example, Bisphenol A was successfully removed with PMS activated with nickel foam-supported Co3O4-Bi2O3 (90%, in 30 min), and no important changes were observed in effectiveness when pH varies from 3 to 11 [82].
As the problem of the presence of toxic metal ions in product water is theoretically solved when employing heterogeneous catalysts, cobalt-based materials have been synthesized to take maximum advantage of this metal’s catalytic capacities [22,82,83,84]. Unfortunately, several investigations have concluded that Co leaching of the catalyst can be produced in the medium [85,86], so a lot of studies are being carried out with heterogeneous catalysts based on other metals such as iron or manganese [86,87,88,89]. Nitrobenzene degradation by PMS activated with surface minerals, reached 87% and 42% of nitrobenzene removal when using hematite and goethite (iron-based minerals) but only 15% removal was achieved when Mn-based minerals were used [33]. Among iron-based catalysts, zero-valent iron nanoparticles have recently attracted the attention of several researchers, with the number of recently published articles being numerous [90,91,92,93]. Kang et al. compared the efficiency of nano zerovalent iron (nZVI) for 1,4-Dioxane removal when activating PS and PMS, reaching 85% and 43% degradation respectively in 6 h [90].

3.4. Carbon-Based Catalysts

Carbon-based materials are attracting growing attention for their use as catalysts thanks to their excellent characteristics, such as their great specific surface area (SSA), their great chemical and thermal stability and the fact that there is no metal leaching and, hence no secondary contamination [28,94]. Carbon nanotubes (CNT), graphene oxide (GO), nanodiamonds (NND) and activated carbon (AC) are some of the most used structures as can be seen in Table 6. To improve the performance of the catalysts, their structure can be modified by adding other compounds, such as nitrogen or sulphur [95,96,97,98].
Activation of PMS and PS via these materials can occur through 3 different pathways: (a) radical generation (Equations (10) and (11)), (b) non-radical pathway, involving the formation of charge transfer complex, generation of singlet oxygen, and/or direct catalysis or (c) combination of both [94]. In addition, these materials usually have a strong adsorption capacity, so it is common for them to be able to eliminate a fraction of the contaminants by itself [99,100,101].
S 2 O 8 2 + e     S O 4 ˙ +     S O 4 2
H S O 5 + e     S O 4 ˙ +   O H
Some studies have tested their reusability, concluding that it is possible to reuse them up to 5 times [102], although progressively they lose efficiency [96,102,103].
The advantages of using carbon-based materials for the activation of PMS and PS are clear, but there are still some barriers to their implementation on a large scale. The complex synthesis method makes its price high and it is also necessary to better understand the activation mechanisms and study their behaviour in the presence of several pollutants at the same time, since all the reports analyse their use for the elimination of a single contaminant.

3.5. Hybrid Activation Treatments

Each of the activation methods mentioned has its pros and cons, so the application of two or more of them simultaneously allows the removal efficiency to be improved. Table 7 shows some examples of contaminant removal by hybrid treatments. It is very common to combine a metallic catalyst (either homogeneous or heterogeneous) with radiation, such as UV and US.
Combination of nZVI and ultrasound improved the propranol and 4-Chlorophenol degradation by more than 20% because US increased the mass transfer rate and dispersed the aggregation of nZVI [111,116]. Three different activators (Fe2+/sodium citrate/UV) have been combined for PS activation for carbamazepine removal, reaching removal efficiencies 2.6 to 5 times higher than the activation with each one of them separately [113]. The improvement implied by hybrid methods is indisputable, but a cost/benefit study must be made in each case to know if it would be viable.

4. Sulfate Radicals Applied in Disinfection

The effectiveness of the SR-AOPs has been proven in the elimination of organic contaminants on many occasions, but only few investigations have focused on testing their effectiveness for the inactivation of pathogenic microorganisms. However, an increasing number of reports published on the subject confirm its efficiency.
To the best of our knowledge, only the effectiveness of metallic catalysis, both heterogeneous and homogeneous, for the activation of PMS and PS in order to eliminate microorganisms from water has been analysed. Specifically, iron (in various forms and oxidation states) is the most commonly used transition metal, followed by Co2+ [35,119,120,121,122,123,124]. It seems necessary to expand the number of activation methods assessed in order to choose the most effective one for full-scale implementation.
Most studies in this field are performed over strains of Escherichia coli [13,121,122,123,124]. This is because this bacterium is recognized as an indicator of faecal contamination in aquatic environments [125], and it is well known in its structure and composition. However, the inactivation of other bacteria such as S. aureus, B. mycoides, Enterococcus sp. and various fungus species has also been studied, although to a lesser extent [119,120,126].
Table 8 summarizes the results of all the reports published so far about sulfate-based AOPs applied in disinfection. To calculate the effectiveness of disinfection treatments, a parameter known as disinfection rate is used, which is calculated as the logarithm of the ratio between the concentration of microorganisms at a given time and the initial concentration. A 1 log disinfection rate is equivalent to a 90% elimination of the population, while 2 log equals 99% and so on.
Most of the experiments for Escherichia coli elimination have produced good results. The best results were obtained in those experiments in which a heterogeneous iron catalyst (ilmenite and pyrrhotite) was used, obtaining a complete disinfection in 20 min in both cases [120,123]. On the contrary, the combination of PMS/UV-A/Co2+ has had a very low effect on the bacterial population [119], although these results may be due to interference in the treatment due to the composition of the wastewater used in the experiments, since the same process achieves within 60 min the complete elimination of microorganisms in other studies [124].
The best inactivation rate of S. aureus has been achieved using natural magnetic pyrrhotite (NP) as a heterogeneous catalyst [120]. Among the homogeneous catalysts, Co2+ has been the most effective activator [119,124]. In the case of the elimination of B. mycoides, the treatments carried out with both Co2+ and Fe2+ have provided similar results, achieving a maximum disinfection rate still far from complete disinfection (3.4 log) [119,124].
In addition, the preliminary results of various experiments carried out by this research group, reveal that Enterococcus spp. is more resistant to disinfection treatments than E. coli. This indicates that the efficiency of the treatment is greatly affected by the cellular structure of the microorganism to be inactivated, which makes it necessary to continue studying the response of as many species as possible to the proposed treatments. Among the different iron species assessed, Fe(III)-citrate was the only one capable of activating PS and PMS for good disinfection results. This agrees with the studies carried out by Bianco et al. where a disinfection rate of 6 log was achieved after 30 min of treatment using the couple PS/Fe3+ together with visible light [13].
When inactivating fungal species, C. albicans has been found to be significantly more difficult to eliminate than E. coli, needing an amount of oxidant 50 times greater for its complete elimination in the same time [124]. In addition, other species such as Acremonium sp., Cladosporium sp., Penicillium sp., and Trichoderma sp. have been effectively eliminated using PS and PMS activated by UV-C radiation, the results obtained in PMS treatments being greater in all cases [126]. These good results are probably a consequence of the type of radiation used. Also, in addition to acting as an activator for the generation of sulfate radicals, UV-C radiation has high disinfecting power by itself.

5. Coupling with Ultrafiltration Membrane

The effectiveness of sulfate radical-based AOPs as tertiary treatment for micropollutants and the removal of pathogenic microorganisms has been widely analysed throughout this chapter. However, this technology can be combined with other technologies to improve the performance of certain treatments. An example of this is the application of SR-AOPs as pretreatment for ultrafiltration processes to reduce membrane fouling.
Nowadays, ultrafiltration (UF) membrane is one of the most promising and reliable alternatives for water and wastewater [127]. However, a major drawback of this technology is membrane fouling, which may lead to higher energy consumption and faster membrane degradation, reducing membrane productivity. Natural organic matter (NOM), mainly humic acids, polysaccharides, proteins, and lipids, is considered to be one of the major membrane foulants causing both reversible and irreversible membrane fouling [128].
In order to mitigate this problem, several options for the pretreatment of feed water has been put to the test, among which coagulation and adsorption are the most popular alternatives. Even if coagulation is generally considered one of the most successful pretreatments for fouling control, this method remains ineffective in the removal of some fractions in NOM [127]. AOPs have attracted greater interest in recent years due to their capacity to remove NOM, particularly when it comes to emerging organic contaminants.
There are not still many reports involving fouling mitigation with SR-AOPs, but those that exist have yielded good results. For example, Fe2+/PMS treatment have proved to significantly mitigate fouling caused by NOM, obtaining a fouling control performance slightly higher than single coagulation with the same iron dose [129]. Moreover, in another study, pretreatments with Fe2+/PMS significantly increased the efficiency by 12–76% and showed the best performance for the reduction of both reversible and irreversible fouling in comparison with coagulation and ozonation [130].
Despite great ability in mitigating fouling, Fe2+/PS and Fe2+/PMS pretreatments may produce sludge because of the formation of ferric flocs. PS and PMS can also be activated by UV radiation as an eco-friendlier method for the generation of sulfate radicals [131]. Experiments carried out using UV/PS pretreatment have achieved a significant mitigation of membrane fouling caused by NOM, reaching a decrease in dissolved organic carbon decrease to 58% and delaying irreversible membrane fouling up to 75% (within 120 min) [128].
Finally, Cheng et al. have compared Fe2+/PMS, UV/PMS, and UV/Fe2+/PMS pretreatments and has determined that the removal performance showed an apparent regularity of UV/Fe2+/PMS > Fe2+/PMS > UV/PMS [129]. Moreover, while Fe2+/PMS pretreatment mitigated both reversible and irreversible membrane fouling, UV/PMS only reduced reversible fouling [127,129].
Even though a lot of research is still needed, it is of particular interest to integrate SR-AOPs pretreatment with UF membrane to control membrane fouling and ensuring a better-quality product water.

6. Economic Cost of Sulfate Radical-Based Advanced Oxidation Processes (SR-AOPs)

Once the effectiveness of a treatment has been proved at lab-scale and pilot-plant scale, it is crucial to make an economic study to evaluate the viability of the full-scale process.
In spite of the growing interest shown by the research community in SR-AOPs, to the best of our knowledge there are only two reports that discuss the full-scale implementation of a tertiary treatment based on sulfate radicals [132,133]. However, a few authors have done a preliminary economic study considering the estimated electrical consumption of the installation and the cost of the reagents [74,134].
A comparative study carried out in two SR-AOPs treatments involving PMS and PS concluded that the latter is cheaper when employing the same amount of product, even though it is slightly less efficient. In addition to that, the cost associated with reagents purchasing when working with PMS and PS corresponds to 95 and 87% of the total treatment cost, respectively. [74]. This agrees with the result of the economic analysis carried out by Rodríguez-Chueca et al. whose results are shown in Figure 4 [132]. In this case, the percentage over the total cost of each of the individual costs (iron, oxidant, energy consumed by the pumps and energy consumed by the UV-C lamps) is compared for PMS and PS being activated only by ultraviolet radiation or adding iron. As expected, adding Fe decreases the cost of the oxidant in total; however, even under these conditions, this value is 82.26% and 97.52% when using PS and PMS respectively. On the other hand, when comparing the cost/effectiveness ratio of the H2O2/UV-C and PMS or PS/UV-C treatments it has been concluded that treatments involving peroxide are more efficient [132].
At the current level of technological development, due to the amount of reagent needed and its cost, this type of treatment is not economically profitable [134]. In order to achieve the viability of full-scale installation, persulfates activation must be improved. In addition, once the technologies are well established, the large-scale production of the reagents will entail a mandatory reduction in their cost [74].

7. Conclusions and Perspectives

In recent years the interest generated by the application of sulphate radicals for the treatment of water and wastewater has grown, since they have a high oxidation potential. Throughout this chapter different activation methods and applications of said radicals generated from PS and PMS have been analysed.
Among the possible activation methods, metal catalysis is one of the most widespread. However, metal leaching and the consequent high concentration of ions in the product water are the main disadvantages of homogeneous catalysts. Heterogeneous catalysts appear as an alternative to avoid this, obtaining good activation results. However, for the moment it has not been possible to eliminate 100% of leaching, so it is still necessary to go deeper into the structural design to obtain more stable and efficient catalysts.
Moreover, activation by carbon-based catalysts gives very good results as a metal-free alternative. Its main advantages are that they do not leave any residue in the product water and that it is usually possible to reuse them several times before they need to be regenerated. However, its high cost and some knowledge gaps make it not so widespread. Among other things, it is necessary to improve the synthesis processes to make them cheaper and to know in depth the activation mechanisms in order to improve their structure to optimize results.
The activation methods by radiation or heat give good results in the elimination of many pollutants, but the great energy contribution they entail makes them very expensive on their own. Its combination with catalysts giving rise to hybrid activation methods enhances the effectiveness of each of the activators, obtaining better results at a lower cost.
In addition to eliminating micropollutants, sulfate radicals can be used for disinfection. The treatment of disinfection by PS and PMS activated by transition metals promises good results in the elimination, mainly, of Escherichia coli (although some studies have also considered other species of microorganisms). However, there are very few published articles dealing with this topic and it seems necessary to study the efficiency of other activation methods, as well as their effectiveness against a wide range of microorganisms in order to confirm the effectiveness of the treatment.
The combination of SR-AOPs with other water treatment technologies is also very interesting and is a field with a good future projection. In the case of its combination with ultrafiltration treatments, a pretreatment with sulfate radicals has been shown to improve the efficiency of the process, as well as to extend the lifespan of the membranes.
Regarding the cost, although there are few analyses performed, it is known that the treatments with PS and PMS are more expensive than other advanced oxidation processes due to the price of the reagents. On the other hand, the large-scale implementation of SR-AOPs is virtually non-existent, so one of the necessary advances is the study of the scalability of these treatments. It is expected that the implementation of this technology will allow the necessary reagents to be reduced, making the treatments more viable.
