Groundwater Flow Modeling in Karst Aquifers: Coupling 3D Matrix and 1D Conduit Flow via Control Volume Isogeometric Analysis—Experimental Verification with a 3D Physical Model

Faculty of Civil Engineering, Architecture and Geodesy, University of Split, 21000 Split, Croatia
Computer Science and Mathematics Division, Oak Ridge National Laboratory, Oak Ridge, TN 37831, USA
Author to whom correspondence should be addressed.
Water 2018, 10(12), 1787;
Submission received: 19 November 2018 / Revised: 1 December 2018 / Accepted: 3 December 2018 / Published: 5 December 2018
(This article belongs to the Section Hydraulics and Hydrodynamics)


A novel numerical model for groundwater flow in karst aquifers is presented. A discrete-continuum (hybrid) approach, in which a three-dimensional matrix flow is coupled with a one-dimensional conduit flow, was used. The laminar flow in the karst matrix is described by a variably saturated flow equation to account for important hydrodynamic effects in both the saturated and unsaturated zones. Turbulent conduit flow for both free surface and pressurized flow conditions was captured via the noninertia wave equation, whereas the coupling of two flow domains was established through an exchange term proportional to head differences. The novel numerical approach based on Fup basis functions and control-volume formulation enabled us to obtain smooth and locally conservative numerical solutions. Due to its similarity to the isogeometric analysis concept (IGA), we labeled it as control-volume isogeometric analysis (CV-IGA). Since realistic verification of the karst flow models is an extremely difficult task, the particular contribution of this work is the construction of a specially designed 3D physical model ( dimensions: 5.66 × 2.95 × 2.00 m) in order to verify the developed numerical model under controlled laboratory conditions. Heterogeneous porous material was used to simulate the karst matrix, and perforated pipes were used as karst conduits. The model was able to capture many flow characteristics, such as the interaction between the matrix and conduit, rainfall infiltration through the unsaturated zone, direct recharge through sinkholes, and both free surface and pressurized flow in conduits. Two different flow experiments are presented, and comparison with numerical results confirmed the validity of the developed karst flow model under complex laboratory conditions.

1. Introduction

Approximately 20–25% of the global population depends largely or entirely on groundwater obtained from karst aquifers [1]. For proper water management and protection, it is important to understand and be able to predict groundwater flow in karst. Numerical modeling is an efficient method for describing many physical phenomena and is frequently used in traditional hydrogeology. However, the existence of a highly permeable conduit network embedded in a less permeable rock matrix results in a highly heterogeneous permeability distribution and makes karst different from other aquifers [2]. Moreover, this duality in the permeability results in different flow conditions and makes karst particularly difficult to model. The conduit system occupies only a small portion of the total aquifer but has a major impact on the hydraulic behavior of the karst system [3]. Normally, most of the recharge water is collected and transmitted toward the spring by the conduit network [1]. The karst conduits are characterized by fast, mostly turbulent flow, which can be free surface (partially saturated conduit) or pressurized (fully saturated conduit). The remaining part of the aquifer is characterized by a system of small fissures and pores and is herein referred to as the karst matrix (generally, one can speak about a triple-porosity system: conduits, fractures, and a porous matrix; however, for flow modeling purposes, the latter two are usually combined and referred to as the matrix). The matrix is important for water storage and attenuation of contaminants. In contrast with conduits, the flow in the matrix is generally laminar (seepage) but can be both saturated and unsaturated. The complexity of the karst aquifers is further increased by the existence of many special karst forms (such as caves, sinkholes, and epikarst) and the fact that there is interaction between conduit and matrix systems. During drought season, the pressure in conduits is generally lower than the pressure in the matrix, and conduits are recharged by groundwater stored in the matrix. In contrast, during storm flow intervals, the pressure in the conduits increases faster than in the surrounding matrix, and a substantial pressure difference between the matrix and conduit occurs. The flow in conduits normally becomes pressurized, and hydraulic head inversion occurs; i.e., the conduit network starts to recharge the matrix storage.
In recent years, many approaches for modeling groundwater flow in karst have been suggested (e.g., [4,5,6]). Generally, they are divided into two main groups [3]: spatially lumped (hydrological) and spatially distributed (hydraulic) models. In the following, only a short overview of the mentioned approaches is given; for more detailed descriptions, we refer to [7,8]. Spatially lumped models transform recharge events (input) into spring hydrographs (output). They are often called global models since they consider the system as a single unit and simulate the global hydraulic behavior of the entire system. These models are relatively simple to use and do not require detailed knowledge about the system; however, they do not simulate actual physical processes and cannot account for spatial variability within an aquifer. To account for spatial variations in the involved parameters (e.g., permeability or recharge distribution) and flow variables (e.g., pressure or velocity), spatially distributed (physical-based) models are needed. The physical processes of flow are described via partial differential equations (PDEs), and numerical (discretization) techniques are used to solve initial-boundary value problems (IBVPs). The solution of a particular IBVP is given by the flow variables, which have both spatial and temporal variability.
Among the different approaches suggested within the spatially distributed models (e.g., Kovács and Sauter [7], Hartmann et al. [8]), the focus of this work is the so-called (coupled) discrete-continuum (DC) or hybrid approach. In this approach, karst conduits are discretized as one-dimensional elements, and governing equations similar to the one for hydraulic networks are used to describe the (usually pressurized) flow in the conduit network. The low-permeability matrix is discretized in three dimensions, and the Darcy flow is generally assumed to be valid. The coupling between two domains is established via a first-order exchange term governed by the conduit-matrix head difference [9] or by assuming continuous heads [10]. The first DC model was presented by Király [11], and example applications of DC models include [9,10,12,13,14,15,16,17,18,19,20], among others. The most popular and widely used DC model is the conduit flow process (CFP) model [21] integrated into MODFLOW-2005 [22]. CFP is an open-source finite difference solver that has been documented for wider use and developed to account for dual-porosity nature, such as that observed in karst aquifers. The flow in the karst matrix is based on the classical MODFLOW approach, whereas the turbulent conduit flow is based on the Darcy–Weisbach equation. Partially filled conduits are simulated as fully saturated pipes by using a corrected diameter. However, most of the MODFLOW-CFP applications were performed under fully saturated conditions. The main reason for considering only fully saturated conditions is the robustness of the numerical simulations. It is well known that a high nonlinearity of soil properties in the unsaturated zone can produce severe convergence problems [23]. Similarly, the transition between a free surface and pressurized flow can affect the numerical behavior in terms of robustness and correctness [17]. Thus, it can be stated that MODFLOW-CFP has been designed and used as a compromise between practical applicability and numerical stability. Further, the two advanced karst flow models were presented by de Rooij [24] and de Rooij et al. [25]. First, in his thesis [24], the turbulent conduit flow was coupled with a laminar matrix flow via a finite element model that accounted for variable saturation in both flow domains. The coupling was imposed by head continuity on the matrix–conduit interface. Later, a novel model in which surface flow was added to the previously mentioned subsurface system was developed [25]. The subsurface equations remained the same, but the conduit-matrix coupling was based on Peaceman’s well index. Finite-difference discretization was used, and certain numerical problems mentioned in [24] were avoided. Both models were applied to hypothetical karst systems.
The DC approach can be generally considered as the most advanced among practically used models. While still being computationally acceptable, it accounts for a heterogeneity and duality of karst and can be used to better understand complicated hydrodynamic processes as well as for testing different conceptual models. However, in addition to the complexity of developing reliable numerical models, this approach requires large input data, which usually limits its practical application [7]. The shape and position of the conduit network and a reasonable distribution of hydraulic parameters and recharge are necessary to obtain realistic results. Moreover, the verification of such complex numerical models is quite difficult, but it is still important before their practical usage. Since analytical solutions are not available (except for some trivial cases) and collected field data are generally insufficient for true verification, laboratory experiments are one possible logical choice. Based on the literature, there seems to have been only a few attempts to construct laboratory analogues of karst. Models such as those presented by Öllős and Németh [26] and Wu and Hunkeler [27] were constructed to analyze flows dominated by a conduit network. In Faulkner et al. [28], the authors demonstrated a laboratory model that is capable of simulating coupled conduit-matrix conditions. It was used to analyze both groundwater flow and solute transport, and their numerical model has been verified with measured results. However, the overall dimensions (0.6 × 0.26 × 0.02 m) of their model make it essentially two-dimensional and applicable only for laminar flow in conduits. Recently, the authors in Castro [29] presented a 3D sandbox with overall dimensions 1.044 × 0.419 × 0.434 m. The sandbox was filled with homogeneous porous material, and a perforated steel pipe with an external diameter of 0.019 m was used to simulate karst conduit. Steady-state experiments under saturated flow conditions were performed, and collected data were used for the validation of MODFLOW-CFP.
Thus, the purpose of this work is twofold. First, our aim is to develop a novel computational model based on a nonconventional numerical method. The model is of the discrete-continuum type and accounts for variably saturated conditions in both flow domains. Since groundwater flow modeling in karst is quite complex, we believe that advancement in a pure mathematical and numerical sense is important for future improvement in modeling capabilities in karst hydrogeology. Moreover, in such a complex area, critical consideration of the used methods and obtained results is necessary. Furthermore, as a second objective, a three-dimensional physical model was constructed. Although it is not an exact representation of a realistic karst system, the presented unique and quite complex physical karst flow model can be used for verification and validation of different mathematical and numerical models. The most important features of karst systems, such as laminar porous medium flow (through both unsaturated and saturated zones), turbulent conduit flow (both free surface and pressurized conditions), as well as groundwater exchange between two systems, can be captured. Different boundary conditions and recharge characteristics, in addition to many other possibilities, enable the testing of different flow conditions. The pressure distribution in a karst matrix and discharge from both systems were continuously measured during experiments.
The paper is organized as follows: Section 2 describes the mathematical background of the governing equations used in numerical models. In Section 3, a novel numerical approach is presented, and discretization of the governing equations is demonstrated in detail. In Section 4, examples from the literature are used to verify the matrix and conduit solvers without their interaction. In Section 5, experimental results from the physical model are compared with results obtained via a numerical model. Finally, Section 6 discusses the obtained results and some future perspectives, while Section 7 concludes the work. In addition, a detailed description of the novel physical model and presented experimental results are available online via supplementary materials.

2. Mathematical Models

Generally, the same physical laws (i.e., conservation of mass and momentum) govern both matrix and conduit flows. However, for practical purposes, they often have to be simplified.
Thus, the matrix system is modeled as a continuum using the Darcy law and the representative elementary volume (REV) concept [30]. Additionally, in many practical applications, the variably saturated flow equation [31,32] (often referred to as Richards’ equation) is capable of accurately simulating flow through both saturated and unsaturated zone.
Flow in the conduits is generally described with a system of 3D Navier–Stokes equations. However, the solution of the full 3D equations is very demanding, and the possible free surface flow condition necessitates special approaches. Additionally, the flow in conduits is usually turbulent, and the scale of interest is large [33,34]. All these reasons, together with the fact that the geometry of the karst conduits is very complex and, in most cases, unknown, lead to simplified mathematical models. Thus, as in usual approaches for a hydraulic network and open-channel flow modeling [35,36], the flow in karst conduits is treated as one-dimensional.
Since flow equations of the two systems (i.e., matrix and conduit) are governed by different partial differential equations (PDEs) and dimensionality, mathematical models have to be coupled. This section describes mathematical models for matrix flow, conduit flow, and the conduit–matrix interface.
In the following, uppercase ( H , Ψ ) and lowercase ( h , ψ ) will be used to distinguish between matrix and conduit hydraulic and pressure heads, respectively.

2.1. Variably Saturated Flow in a Karst Matrix

The mathematical model for flow in the karst matrix is based on the governing equation for variably saturated subsurface flow in a porous medium [21,31,37]:
S s θ η H t + θ t = · k r ( θ ) K s · H + q M s
where S s is the specific storage coefficient (L 1 ), θ is the volumetric water content (-), η is the porosity (-), H is the hydraulic (piezometric) head (L), k r is the relative permeability (-), K s is the saturated hydraulic conductivity tensor (L T 1 ), and q M s is the volumetric flux per unit volume representing sources and (or) sinks (T 1 ). Let [ 0 , t e n d ] be the time interval of interest, Ω be a bounded domain, and  Γ D and Γ N be domain boundaries with Dirichlet and Neumann boundary conditions, respectively. The appropriate initial and boundary conditions are given by
H = H 0 on Ω , t = 0
H = H D on Γ D , t [ 0 , t e n d ]
( k r ( θ ) K s · H ) · n = q N on Γ N , t [ 0 , t e n d ]
where n (-) is the outward normal vector and H 0 , H D , and q N are prescribed initial and boundary condition functions. To solve Equations (1)–(4), constitutive relationships for describing the unsaturated flow and storage properties must be defined. In this work, we use the bimodal constrained form of the van Genuchten–Mualem model [38,39].
The water content is expressed through the effective saturation Θ e (-):
Θ e ( Ψ ) = θ θ r θ s θ r
where Ψ is the pressure head ( Ψ = H z ) (L), z is the elevation head (L), θ r is the residual volumetric water content, and θ s is the saturated volumetric water content (often assumed to be equal to the porosity). Generally, the saturation and volumetric water content are related by the porosity, i.e., ( θ = Θ · η ) .
The relationship between the water content and pressure head (retention function) is given by
Θ e ( Ψ ) = j = 1 2 w j Θ e , j Ψ < 0 1 Ψ 0
where each mode of the curve is given by [40]
Θ e , j ( Ψ ) = [ 1 + ( | α j Ψ | ) n j ] m j .
The specific moisture capacity is given as a function of the effective saturation:
C ( Θ e ) = θ Ψ = j = 1 2 w j η m j α j ( 1 Θ r ) 1 m j Θ r 1 / m j ( 1 Θ e , j 1 / m j ) m j .
The relative permeability is given as a function of the effective saturation:
k r ( Θ e ) = j = 1 2 w j Θ e , j τ j = 1 2 w j α j 1 ( 1 Θ e , j 1 / m j ) m j j = 1 2 w j α j 2
where α j is the inverse of the air entry pressure head (L 1 ), n j is the pore size distribution index ( n j > 1 ) (-), m j is the parameter defined as m j = 1 1 / n j (-), and τ is an additional fitting parameter (-), called the tortuosity parameter, which is often set to τ = 0.5 . This model is a weighted superposition of two van Genuchten functions, where the weighting factors w j are subject to 0 w j 1 and w j = 1 . This function is much more suitable to fit data that do not perfectly follow the van Genuchten unimodal shape and will be used in this work to describe soil properties of our physical model. Note that the bimodal model also covers the commonly used unimodal van Genuchten model by simply setting w 1 = 1 and w 2 = 0 .

2.2. Variably Saturated Flow in Karst Conduits

The one-dimensional flow in karst conduits in the l-direction is given by
C ( h ) h t = l K C ( h ) | h l | h l + q C s
where C is the capacity term (L), h is the hydraulic (piezometric) head (L), l is the spatial longitudinal coordinate (L), K C is the conveyance factor (L 3 T 1 ), and q C s is a sink/source term (L 2 T 1 ). Appropriate initial and boundary conditions are given by
h = h 0 on Ω , t = 0
h = h D on Γ D , t [ 0 , t e n d ]
K C ( h ) | h l | h l = Q N on Γ N , t [ 0 , t e n d ]
where h 0 , h D , and Q N are prescribed initial and boundary condition functions. The nonlinear diffusion Equation (10) is usually called the noninertia wave equation and can be derived by neglecting inertia terms in the general momentum equation and combining with the mass conservation equation [24]. The noninertia wave equation can be used to describe both free surface and pressurized flows by modifying the capacity term (de Rooij et al. [25]):
C = W for free surface flow ρ w g A c κ w for pressurized flow
where W is the top width of the flow (L), ρ w is the density of the water (M L 3 ), g is the acceleration of the gravity (L T 2 ), A c is the cross-section flow area (L 2 ), and κ w is the compressibility of water (L T 2  M 1 ). The conveyance factor K C is given by the Manning equation [41]:
K C = 1 n M R 2 / 3 · A c
where n M is Manning’s roughness coefficient (L 1 / 3  T) and R is the hydraulic radius (L), defined as R = A c / p w , where p w is the wetted perimeter (L). The variables W, A c , and p w in the general case depend on the geometry of the conduit cross-section and water depth ψ (L). For a circular conduit with radius r c (L), they are given by
W = 2 ψ 2 r c ψ 1
A c = r c 2 arccos 1 ψ r c + ψ ( ψ r c ) 2 r c ψ 1 for free surface flow π r c 2 for pressurized flow
p w = 2 r c arccos 1 ψ r c for free surface flow 2 π r c for pressurized flow .

2.3. Exchange of Water Between the Matrix and Conduit Flow

The exchange of water is established by defining a linear flux relation on the interface between different flow systems (e.g., Liedl et al. [9]):
q e x = α e x ( H h )
where H and h are, as defined before, the hydraulic heads in the matrix and conduit, and α e x is the exchange coefficient (T 1 ), which is usually determined via calibration. From a mathematical point of view, q e x is expressed as a scalar value while being aware that its direction coincides with the normal direction of the conduit–matrix interface. Expression (19) will be used to couple the matrix and conduit flow systems. The incorporation of this term into both the matrix and conduit flow equations will be explained in more detail in the next section.

3. The Numerical Model

This section describes the numerical model used for discretization of the presented mathematical model. A novel numerical approach based on Fup basis functions and control-volume formulation is used for spatial discretization. The temporal discretization is based on the well-known implicit (backward) Euler method, whereas the Picard technique is used for linearization of the governing equations. The coupling of the matrix and the conduit flow is based on the iterative (segregate) coupling approach. In this approach, each system has its own solver, and an iterative procedure is performed until convergence of both systems is not achieved. The solution from the latest iteration of one system is used to calculate the exchange fluxes in the other systems. Additionally, when needed, superscripts M and C will be used to distinguish matrix and conduit variables.

3.1. Control-Volume Isogeometric Analysis (CV-IGA)

3.1.1. Overview

Generally, spline-based basis functions (i.e., B-splines, NURBS, T-splines, etc.) are used in the computational geometry field, whereas classical polynomials have been dominated in the field of numerical analysis. In the last decade, so-called isogeometric analysis (IGA, Hughes et al. [42], Cottrell et al. [43]) has attracted great interest from the numerical analysis community. The main idea is to use spline-based basis functions to both represent the computational geometry and build approximation spaces for numerical analysis. Beside the advantages in representing the geometry and generation of the computational mesh, these basis functions have been shown to have some interesting approximation properties for solutions fields, such as higher continuity and increased accuracy and robustness compared to classical finite element analysis (FEA).
The presented method in this work is not classical IGA, which mostly uses B-spline or NURBS basis function in conjunction with the Galerkin or collocation formulation. Rather, here, we use Fup basis functions [44,45,46] and the control-volume formulation and refer to the method as control-volume isogeometric analysis (CV-IGA). Fup basis functions belong to the class of atomic basis functions and can be regarded as infinitely differentiable B-splines. The order of the basis functions determines the polynomial degree, which can be exactly represented within the vector space of the chosen basis function. Similar to the Lagrangian polynomials (the usual choice in classical finite element analysis (FEA)), the order of convergence is determined by the order of the basis functions; however, the crucial difference from Lagrangian polynomials is the enhanced continuity of Fup basis functions, which enables smooth numerical solutions. For example, subsurface contaminant transport simulations require the velocity field, which usually needs to be calculated by solving the groundwater flow (GWF) equation. However, the velocity is expressed by the Darcy law, which requires first derivatives of the hydraulic head (the solution of GWF equation). It is well known that classical FEA produces a discontinuous velocity field due to the C 0 property of the numerical solution, even in the case of a homogeneous aquifer. Unlike FEA, finite difference (FD) and finite volume (FV) methods do not use basis functions in the classical sense. Rather, the solution is obtained only as grid-point values without any reference to how the solution varies between grid points [47]. However, this problem is conveniently (to some extent) avoided by adopting auxiliary interpolation profiles. Still, these profiles are generally one-dimensional and thus miss the true multidimensional description of the flow field.
Contrary to classical numerical methods, the application of Fup basis functions enables a full multidimensional representation of the flow field with a continuous and smooth solution, enabling efficient and accurate representation of solution derivatives.
In this work, we use only first-order Fup 1 basis functions. Whereas any order of Fup basis functions possess C differentiability, in practice, it is reasonable to use up to the p derivative, where p is the order of the Fup basis function. The trial function space of F u p 1 ( x ) basis functions is shown in Figure 1, whereas multidimensional Fup basis functions are obtained as tensor products of the one-dimensional basis functions. Figure 2 shows the two-dimensional F u p 1 ( x , y ) basis function and one of its partial derivatives.
Until recently, Fup basis functions were used mostly in the collocation framework in a manner conceptually similar to the finite difference method. Applications of the adaptive Fup collocation method (AFCM) to groundwater flow and transport problems are presented in, e.g., Gotovac et al. [48], Cvetkovic and Gotovac [49], Fiori et al. [50]. However, the main drawback was the lack of local and global mass balance due to the collocation nature of the algorithm. Thus, in this work, we use a conservative control-volume formulation together with full multidimensional Fup basis function properties. The control-volume formulation enables local and global conservation properties, and the computational cost lies between Galerkin (high-cost) and collocation (low-cost). The differences in the computational cost are mostly determined by the number of non-zero elements in a discretized system of equations and by the cost of numerical integration per each non-zero element. The collocation is the cheapest method because it produces the smallest number of non-zero matrix elements and there is no need for numerical integration (i.e., one point evaluation is needed for each non-zero element). However, the consequence of this low cost is the lowest accuracy for a given number of basis functions (e.g., [51]). To the contrary, the Galerkin formulation is the most expensive because it produces the largest number of non-zero elements, and numerical integration is needed to calculate each non-zero element value. Thus, it can be stated that control-volume formulation represents a compromise between the two methods, because the number of non-zero elements is higher than that for collocation, but lower than that for Galerkin approach. Moreover, as in the Galerkin case, numerical integration is needed; however, integration is performed only over control-volume boundaries and is significantly cheaper than integration over full control volume (the dimensionality of control-volume boundaries is lower than dimensionality of problem). Finally, the direct physical meaning of the discretized equations is an interesting property and enables the physically based coupling of two flow domains with different dimensionality. Discretization of the governing equation is shown in the sequel.

3.1.2. Discretization Process

Since both the matrix and conduit PDEs can be regarded as diffusion-type equations, we will demonstrate the discretization process by considering a simple linear PDE of the type:
u t = · ( D u )
with appropriate initial and boundary conditions:
u = u 0 on Ω , t = 0
u = u D on Γ D , t [ 0 , t e n d ]
( D u ) · n = q N on Γ N , t [ 0 , t e n d ]
where u = u ( x , t ) is the (scalar) dependent variable and D is generally the diffusion function. The computational domain Ω is subdivided into a set of small nonoverlapping control (finite) volumes Ω i , such that Ω = i Ω i . Control volumes (CVs) are constructed in a manner such that each CV edge lies in the middle between two basis function vertices.
Equation (20) can be integrated over i-th CV to obtain
Ω i u t d Ω = Ω i · ( D u ) d Ω .
The conservative form of Equation (24) can be derived by applying the divergence theorem to the diffusion term:
Ω i u t d Ω = Γ i ( D u ) · n d Γ
where n (-) is the outward normal vector, and Γ i is the boundary of the i-th CV. The next step is to approximate solution u as a linear combination of the Fup coefficients α j and the Fup basis functions φ j as
u ( x , t ) = j = 1 n α j ( t ) φ j ( x )
where the number of degrees of freedom n is equal to the number of CVs. The solution (Fup) coefficients are usually called control variables in the IGA terminology [43]. Contrary to the classical finite element method (FEM), the non-interpolatory nature of Fup/Spline basis functions prevents interpreting the Fup coefficients as nodal values. This is a consequence of the existence of the multiple basis functions with nonzero nodal values (see Figure 1), which is not case when a more standard choice of Lagrange basis functions is used.
In the following, the Einstein summation notation j α j ( t ) φ j ( x ) = α j ( t ) φ j ( x ) will be used. The substitution of Equation (26) into Equation (25) produces
d α j d t Ω i φ j d Ω = α j Γ i ( D φ j ) · n d Γ .
The ordinary differential equation (ODE) (27) is a semidiscrete form of Equation (25) that must be discretized in time to produce a fully discretized equation. This can be done by using a large number of methods developed for the numerical integration of ODEs and differential algebraic equations (DAEs) [52]. For stability reasons, in this work, we limit ourselves to the first-order implicit Euler temporal discretization, which when applied to Equation (27) produces a final discrete counterpart of Equation (20):
α j t + Δ t α j t Δ t Ω i φ j d Ω = α j t + Δ t Γ i ( D φ j ) · n d Γ
where Δ t is the discretization time step. Writing Equation (28) for all CVs produces a set of discretized algebraic equations, written in matrix form as
A α = b
where A = { a i j } is the system matrix, α = { α i t + Δ t } is the vector of unknowns, and b = { b i } is the right-hand side (RHS) vector, where
a i j = Ω i φ j d Ω Δ t Γ i ( D φ j ) · n d Γ
b i = α i t Ω i φ j d Ω .
Certainly, to obtain a well-posed problem, initial and boundary conditions must be imposed on the system (29), which is described in the following sections.

3.1.3. Initial Conditions

The analytically described function of initial conditions u 0 ( x ) has to be projected to the space spanned by basis functions. In the standard numerical methods (e.g., FEM or FDM), this is done by setting nodal values u i 0 = u 0 ( x i ) . In the case of non-interpolatory basis functions, this is not possible, since degrees of freedom are not associated with nodal values of the solution [53]. Therefore, a control-volume projection of the form
α i 0 Ω i φ j d Ω = Ω i u 0 ( x ) d Ω
is defined for each CV to produce a system of equations whose solution (coefficients α i 0 ) represents numerically specified initial conditions.

3.1.4. Boundary Conditions

CVs with faces coinciding with the domain boundary require special treatment. The equations for these CVs have to be modified to incorporate the boundary condition contributions. In CV-IGA, we use weak imposition for both Dirichlet and Neumann boundary conditions. The implementation will be demonstrated by considering the conservative form of Equation (25).

Dirichlet Boundaries

The weak imposition of Dirichlet boundary conditions can be obtained by the addition of an extra term to Equation (25):
Ω i u t d Ω = Γ i ( D u ) · n d Γ + σ Γ D ( u u D ) d Γ
where σ is the penalty coefficient, normally set to 1. Using a large value for the penalty coefficient will produce a similar effect as if a boundary condition was strongly imposed. The ability to satisfy the Dirichlet boundary condition approximately can be a significant advantage if it allows for greater accuracy in the interior of the domain and in some cases can help eliminate some of the spurious oscillations encountered with traditional strongly imposed conditions [43].

Neumann Boundaries

Equation (25) for a boundary CV with Neumann boundary conditions can be written in the form
Ω i u t d Ω = Γ i * ( D u ) · n d Γ Γ N q N d Γ
where Γ i * = Γ i \ Γ N and q N are the Neumann boundary condition value and function according to Equation (23). The result of weak imposition is that the boundary condition is never enforced exactly. However, the accuracy is excepted to improve, together with the solution in the interior of the domain, as the mesh is refined. This approach is known to be superior when highly nonlinear boundary conditions must be imposed. The authors in Šimůnek et al. [54] also reported that a strong imposition of Neumann boundary conditions for unsaturated soil flow can quickly lead to relatively unstable solutions when the boundary fluxes at the soil surface vary strongly with time.

3.2. Discretization of the Governing Equation for the Matrix Flow

The governing equation for variably saturated flow in the matrix of Equation (1) is first discretized in time and linearized by following the approach suggested by Celia et al. [23]. Backward Euler temporal discretization of Equation (1) produces
S s η θ t + Δ t H t + Δ t H t Δ t + θ t + Δ t θ t Δ t = · k r ( θ t + Δ t ) K s · H t + Δ t + q M s t + Δ t .
Picard linearization can be applied to Equation (35) to obtain
S s η θ t + Δ t , m H t + Δ t , m + 1 H t Δ t + θ t + Δ t , m + 1 θ t Δ t = · k r ( θ t + Δ t , m ) K s · H t + Δ t , m + 1 + q M s t + Δ t , m
where m + 1 and m denote the current and previous iteration levels. As suggested by Celia et al. [23], the term θ t + Δ t , m + 1 can be expanded in a truncated Taylor series with respect to the hydraulic head H as
θ t + Δ t , m + 1 = θ t + Δ t , m + d θ d H | t + Δ t , m H t + Δ t , m + 1 H t + Δ t , m + O ( 2 ) .
Neglecting all terms that of are an order higher than linear and incorporating Equation (37) into Equation (36) gives
S s η θ * H t + Δ t H t Δ t + θ * + C * ( H t + Δ t H * ) θ t Δ t = · k r ( θ * ) K s · H t + Δ t + q M s *
where C = d θ d H , whereas the symbol (*) is introduced to denote ( t + Δ t , m ), i.e., the previous iteration, and ( t + Δ t ) now denotes the current iteration, i.e., ( t + Δ t , m + 1 ). This approach, which is called the modified Picard approximation and was introduced by Celia et al. [23], enables the discretize mixed-form Equation (1) in a manner such that instead of two unknown variables (the water content and hydraulic head), the only remaining unknown variable is the hydraulic head. Contrary to the usually used pressure-based formulation [23], this form retains the mass conservative properties of the numerical solution. The simple rearrangement of variables is performed to group all unknowns on the left side and all known variables on the right side:
H t + Δ t S s η θ * + C * Δ t · k r ( θ * ) K s · H t + Δ t = S s η θ * H t + C * H * + θ t θ * + Δ t q M s * .
Next, spatial discretization is performed by first integrating semidiscrete differential Equation (39) over a matrix finite control volume Ω i M :
Ω i M H t + Δ t S s η θ * + C * d Ω Δ t Γ i M k r ( θ * ) K s · H t + Δ t · n d Γ = Ω i M S s η θ * H t + C * H * + θ t θ * + Δ t q M s * d Ω
where the divergence theorem is applied on the second term of the left-hand side, as described in Section 3.1.2. Following Equation (26), the hydraulic head can be expressed as
H ( x , t ) = α j M ( t ) φ j M ( x ) .
Introducing Equation (41) into Equation (40) produces the full discretized counterpart of Equation (1) over Ω i M , written in the form
α j M , t + Δ t · S i j M , * + C i j M , * K i j M , * = α j M , t · S i j M , * + α j * · C i j M , * + V i M , t V i M , * + W i M , *
S i j M , * = S s η Ω i M θ * φ j d Ω
C i j M , * = Ω i M C * φ j d Ω
K i j M , * = Δ t Γ i M k r ( θ * ) K s · φ j · n d Γ
V i M , t = Ω i M θ t d Ω
V i M , * = Ω i M θ * d Ω
W i M , * = Δ t Ω i M q M s * d Ω
In the general case, the terms (43)–(48) must be calculated via numerical integration. Writing equations for all CVs and incorporating initial and boundary conditions produces a system of equations whose solution is the set of Fup coefficients α i t + Δ t , which define the matrix hydraulic head solution by Equation (41). After the hydraulic head H is known, the water content θ can be obtained by using Equations (5)–(7). Additionally, the numerical solution for the Darcy velocity field q (L/T) is smooth and defined at any point of domain Ω by
q ( x , t ) = k r ( θ ) K s · α j M ( t ) φ j M ( x ) .

3.3. Discretization of the Governing Equation for Conduit Flow

Following the approach and notation used for matrix discretization, the equation for the conduit flow of Equation (10) is first discretized in time by the implicit Euler method and linearized via the Picard technique:
C * h t + Δ t h t Δ t = l K C * | h * l | h t + Δ t l + q C s * .
Regrouping variables and integration over the one-dimensional conduit CV Ω i C produces
Ω i C h t + Δ t C * d Ω Δ t Ω i C l K C * | h * l | h t + Δ t l d Ω = Ω i C h t C * + Δ t q C s * d Ω .
h ( x , t ) = α j C ( t ) φ j C ( x )
into Equation (51) produces
α j C , t + Δ t · C i j C , * K i j C , * = α j C , t · C i j C , * + W i C , *
C i j C , * = Ω i C C * φ j d Ω
K i j C , * = Δ t Ω i C l K C * | h * l | φ j l d Ω
= Δ t K C * | h * l | φ j l | Γ i e C Δ t K C * | h * l | φ j l | Γ i w C
W i C , * = Δ t Ω i C q C s * d Ω
where Γ i e C and Γ i w C denote the east and west boundaries of the i-th one-dimensional conduit control volume.

3.4. The Numerical Procedure for Matrix–Conduit Coupling

The exchange of water between the matrix and conduit occurs at the interface between two flow domains. Since the control-volume formulation of the governing PDEs has a direct physical interpretation in terms of the underlying (mass) conservation laws, the exchange term can be conveniently expressed in terms of volumetric discharge as
Q e x = Γ e x α e x ( H h ) d Γ
where Γ e x is the interface surface area (L 2 ). Coupling is established by incorporating the term (58) in both equations through the source term. Since the calculated discharge leaves one domain and enters another, different signs are needed in different systems. The exchange term is fully explicit treated, i.e., the latest calculated matrix and conduit solutions are used to calculate the exchange term in both systems. Thus, the matrix source term (48) is modified to account for the conduit’s contribution and now has the form
W i M , * = Δ t Ω i M q M s * d Ω Δ t Γ i e x M α e x ( H * h * ) d Γ ,
whereas the conduit source term (57) is modified to account for the matrix’s contribution according to
W i C , * = Δ t Ω i C q C s * d Ω + Δ t Γ i e x C α e x ( H * h * ) d Γ .
Although the mathematical model for the conduit flow is one-dimensional, the exchange term is still calculated by considering a full three-dimensional conduit geometry. Additionally, due to the properties of the Fup basis functions, the matrix and conduit discretizations are not constrained by each other. Consequently, the CV boundaries of two flow domains and the vertices of different-dimensionality Fup basis functions do not need to match.

3.5. Overview of the Numerical Procedure

As already mentioned, the coupling is based on an iterative (segregate) approach. The overall solution procedure for the coupled model is summarized in Algorithm 1. Since both flow equations are nonlinear, there is a possibility of numerical instability. The usual techniques for increasing the robustness of the algorithm for Equations (1) and (10) are mass lumping, upstream weighting, positivity preserving [24], and underrelaxations [47]. In this work, all of these techniques are implemented and tested in some form; however, for the numerical examples used in this work, only explicit underrelaxation for solution of the nonlinear system of equations is used. Additionally, a simple adaptive time-stepping procedure based on counting the matrix–conduit coupling iterations is implemented. If the number of coupling iterations exceeds some user-predefined limit, the calculation is restarted at the beginning of the current time step, and a smaller time step is used.
Algorithm 1: The numerical algorithm.
  • Initial guess = initial condition
  • H * = H 0
  • h * = h 0
  • Time step iterations
  • for T S = 1 , N T S do
  •     Matrix conduit coupling iterations
  •     for I C = 1 , N I C do
  •         Matrix solver iterations
  •         for M = 1 , N M do
  •            Solve for H t + Δ t
  •             H * = H t + Δ t
  •         end for
  •         Conduit solver iterations
  •         for C = 1 , N C do
  •            Solve for h t + Δ t
  •             h * = h t + Δ t
  •         end for
  •     end for
  •      t = t + Δ t
  • end for

4. Verification Examples

4.1. Matrix Flow

Two-dimensional variably saturated infiltration data, presented by Vauclin et al. [55] and modeled by others (e.g., Clement et al. [31], Shoemaker et al. [21]), are used to verify the matrix solver. The flow domain is a 6.00 × 2.00 m box filled with homogeneous sandy soil. The initial conditions are a horizontal water table set at a height of 0.65 m from the bottom, and the water level on both the left and the right faces is maintained at 0.65 m. A constant flux of q = 3.55 m/day was applied across the central 1.0 m of the soil surface, whereas the remaining surface was covered to prevent evaporation losses. Because of the experiment’s symmetry, only half (the right part) of the domain (3.00 m × 2.00 m) is modeled. Boundary conditions are the specified flux on the left part (0.5 m) of the soil surface and the specified water level on the right face up to z = 0.65 m. Other boundaries (including the left symmetry plane and the right plane above the water table) are defined as no-flow boundary conditions. The soil properties used in the model are a saturated hydraulic conductivity of K S = 8.40 m day 1 , a porosity of η = θ s = 0.3 , and a residual saturation of θ r = 0.01 . The unsaturated soil properties are fitted with a unimodal constrained van Genucthen model with α = 3.3 m 1 and n = 4.1 . The specific storage S s is neglected and set to zero.
The three-dimensional matrix solver described in Section 3.1 and Section 3.2 is used to model this problem, whereas the results are shown as two-dimensional water table positions for selected times (Figure 3). Relatively coarse discretization is used ( Δ x = Δ z = 0.1 m and Δ t = 10.0 min); still, the model satisfactorily captures the water-table dynamics.

4.2. Conduit Flow

To verify the conduit solver, we use the second challenge test case performed by Rossman [56], which includes the transition between the free surface and pressurized flow. The problem consists of five conduit sections in series (Figure 4), each being 1000 ft long. The first, third, and fifth sections have diameters of 12 ft., whereas the second and third have diameters of 3 ft. The slope of the conduits is 0.05, and Manning’s roughness coefficient is given by n M = 0.02 m 1 / 3 s. Initially, the conduit is dry, and during the first 15 min the inflow discharge is linearly increased from 0 to 50 ft 3 /s. After 3 h of simulation, the discharge is linearly decreased to zero in 15 min. The total simulation is 6 h.

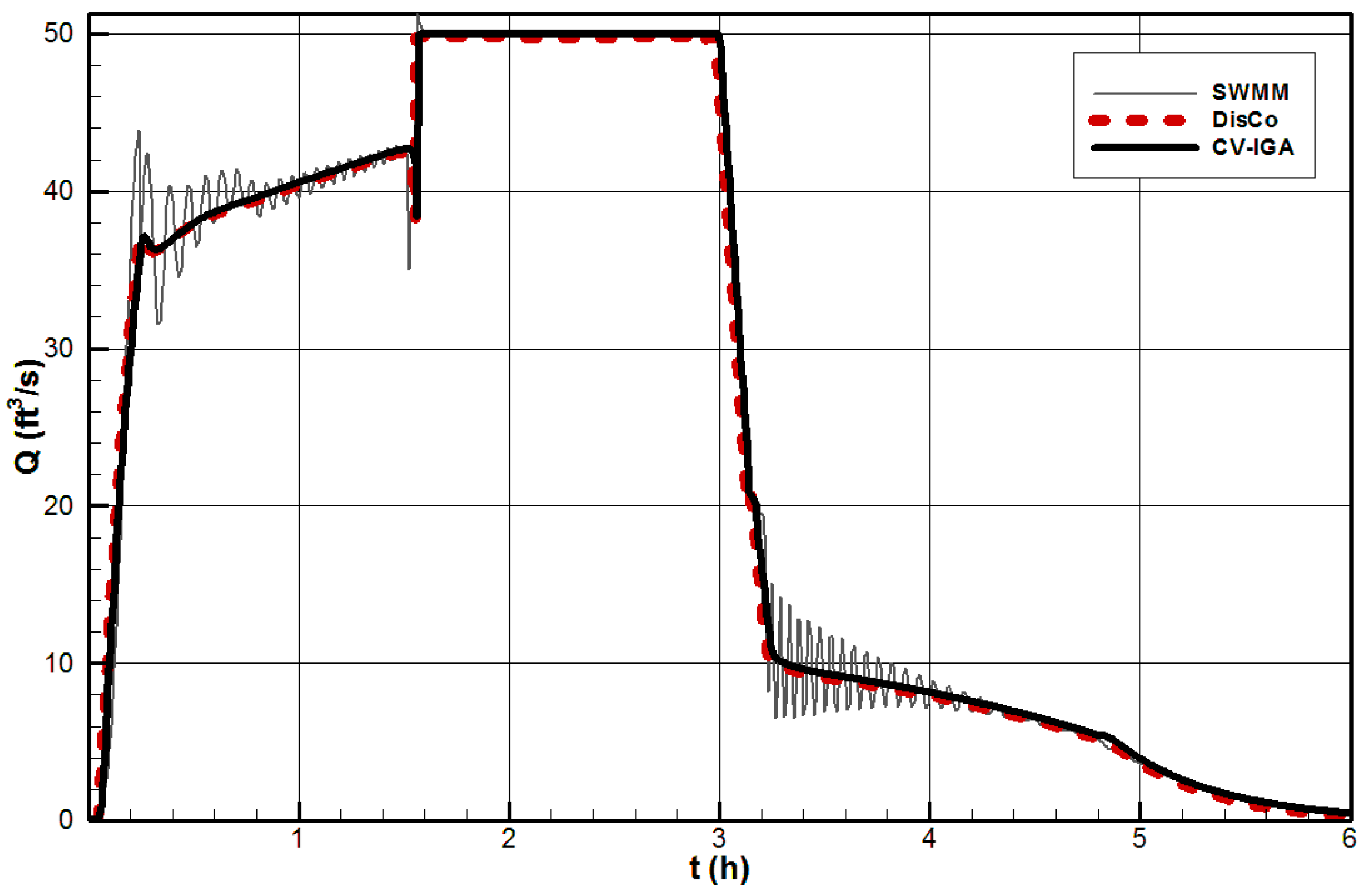

Each conduit section is discretized by 50 control volumes, and a time step of Δ t = 15 s is used. The results are compared with those of the Storm Water Management Model (SWMM) presented by Rossman [56] and the DisCon model presented by de Rooij et al. [25]. Figure 5 shows the flow rate in the middle of the first conduit section. The transition from a free surface to a pressurized flow is realized after approximately 1.5 h. The results are in excellent agreement with the de Rooij model, which is based on the same noninertia wave approximation (Equation (10)) as our model. SWMM uses the full dynamic wave equation; still, good agreement of the results is observed.

5. Verification of the CV-IGA Karst Flow Model With Experimental Data

In this section, the experimental setup is introduced, and the experimental results are compared with the numerical results. The details of the physical model and additional experimental results can be found in the supplementary materials.

5.1. Experimental Setup

The physical model (Figure 6) is made of a concrete construction with overall dimensions 5.66 × 2.95 × 2.00 m. Two water reservoirs, as shown in Figure 7, are used to specify the water levels (boundary conditions) on the upstream and downstream ends of the model. Between reservoirs, the model is filled by heterogeneous porous material, which is used to simulate the karst matrix. Three types of materials are used: coarse quartz sand (CQS—67%), fine quartz sand (FQS—14%), and gravel (G—19%). The top 25 cm of the soil is filled by gravel to simulate epikarst effects. This layer prevents surface runoff and enables the investigation of additional effects, such as fast infiltration and ponding on the interface with lower-permeability materials. In the middle of the model, there is a zone of fine quartz sand, which is used to produce a pressure drop and to decrease the overall matrix velocities. The rest is mostly filled by coarse quartz sand, but there are also particular zones with two other materials to magnify heterogeneity effects (Figure 8). Plastic perforated pipes are installed through the porous medium and are used to simulate karst conduits, whereas vertical branches are directly connected with conduits to simulate sinkholes. There are three independent conduit systems; however, during the experiment, only one conduit system is activated. The perforated parts of the pipes are surrounded by fine quartz sand and covered with geotextile to prevent perforations from clogging. On the top of the concrete construction, there are sprinklers and shower heads for rainfall simulation. The flow (computational) domain of the matrix excludes walls and reservoirs, and the dimensions are L x = 4.0 , L y = 2.55 , and L z = 2.0 m.
During the experiment, there is continuous measurement of discharges and pressures. The discharge is measured on the downstream ends of the model for both the matrix and conduit systems. The matrix discharge is regarded as the overall discharge from the porous medium that overflows from the downstream reservoir. The conduit discharge is measured on the outlet as sketched in Figure 7. In the comparison with realistic karst aquifers, the conduit outlet could be regarded as a main spring, whereas the matrix discharge can be considered as the total water that flows beside the main spring, regarding the porous matrix, fractures, and small conduits. Measurement of the matrix discharge enables information that is generally unknown in practice. In addition to discharge, the pressure distribution is measured at 44 fixed points by pipes that are installed through the foundation slab and rise vertically. These pipes are perforated only on their ends (inside the porous medium) and are denoted as piezometers. Additionally, 25 fully perforated vertical pipes are installed starting from the soil surface; they are denoted as boreholes. Since these pipes are fully perforated, borehole packers are used to isolate part of the pipe (approximately 10 cm) at a specific depth. A pressure sensor or water hose can be installed at any depth of borehole and used for pressure measurements or performing partially penetrating pumping tests, respectively.
The soil parameters for three different material types are presented in Table 1. The soil samples were sent to a specialized laboratory for measurements of the saturated and unsaturated soil parameters. However, because of the extremely high conductivity, the results for gravel (G) were not obtained. Therefore, Darcy experiments were performed for all three materials and, in addition to obtained values in laboratory (for CQS and FQS), used to determine the range of hydraulic conductivities for each material. Then, additional steady-state experiments (included in the supplementary materials) were performed, and numerical calibration was used to define the final values of the saturated conductivities. The numerical calibration revealed moderate anisotropy of vertical conductivities, which is important to consider, especially because conduit-matrix interaction produces significant velocities in the vertical direction. All values adopted during the numerical calibration were inside the range of measured values. The laboratory measurements of unsaturated soil properties were available for CQS and FQS, and bimodal van Genuchten curves (presented in Section 2.1) were used since classical (unimodal) van Genuchten curves were not able to fit the data accurately. For G, there were no measurements, and the parameters were determined by guidelines from the literature and numerical calibration. The specific storage coefficient ( S s ) values were taken from the literature.
As mentioned above, there are three different conduit systems installed in the model, labeled C1, C2, and C3, that have differences in the shape, the pipe diameter, and the number and size of perforations. If any of these conduits is clogged at the outlet, its influence on the matrix flow is minor and therefore can be neglected; this was confirmed by the numerical model. Three types of PVC pipes were used, and the Manning coefficients are defined by the manufacturer for Conduit C1, Conduit C3, and the unperforated part of Conduit C2. For the perforated part of C2, which is corrugated, there was no specified value. Therefore, numerical calibration was needed; moreover, specific flow conditions (significant lateral inflow) inside the model prevented reliable empirical determination from being performed outside the model.
The physical karst flow model enables different experimental setups including different water levels in reservoirs, different rain distribution and intensity, and pumping/extracting water from any of boreholes. Additionally, many different flow conditions can be achieved to test numerical models; for example, there are both saturated and unsaturated flow conditions in the matrix, flow in the conduits can be free surface or pressurized, and interaction between the matrix and conduit can be tested for different conditions. In the following, we present two test cases with comparisons between experimental and numerical results.

5.2. Comparison between Numerical and Experimental Results

In this section, the CV-IGA karst flow model is used to simulate experimental data obtained with the novel 3D physical model. The water levels in both the upstream and downstream reservoirs are implemented as Dirichlet boundary conditions by specifying constant head values. Above the water levels in the reservoirs (up to the top of the soil), the no-flow (flux q N = 0 ) Neumann boundary condition is used since there is no development of the seepage face. The same no-flow condition is used on remaining boundaries except on the top soil layer, where rain is specified by a nonzero flux value. Evaporation is neglected due to the short duration of the experiment. The conduit upstream boundary is defined as a no-flow condition, whereas the downstream boundary depends on the flow conditions.

5.2.1. Test Case 1

In the first test case, we considered a straight circular pipe with perforations uniformly distributed along the pipe (Conduit C1). The position of the conduit was defined by the starting and ending coordinates of the pipe bottom, L 1 = ( 0.36 , 1.47 , 0.75 ) and L 3 = ( 4.97 , 1.47 , 0.70 ) . The conduit diameter was 0.0155 m, and the Manning roughness coefficient was n M = 0.009 m 1 / 3 s. The water levels in two reservoirs were kept fixed at H u p s t r e a m = 1.555 m and H d o w n s t r e a m = 1.463 m. Since for this test case, the conduit flow was pressurized, the Dirichlet boundary condition at the outlet was defined by the hydraulic head value, which is equal to the conduit top elevation (the atmospheric pressure at the outlet). Numerical results were obtained using matrix spatial discretization Δ x M = Δ z M = 0.1 m and Δ y M = 0.102 m, whereas the conduit discretization was set as Δ x C = 0.02305 m. The same time step Δ t = 1.0 min was used for both matrix and conduit solvers, and the matrix–conduit exchange coefficient was set after calibration to α e x = 0.18 s 1 . Comparisons between the measured and calculated values for discharges and selected hydraulic heads are shown in Figure 9 and Figure 10, respectively. Detailed experimental results for all piezometers can be found in the supplementary materials.
Before the measurement was started, the steady-state matrix flow (blue line) was established, while the conduit outlet was clogged (see Figure 9). t = 0 was defined as the moment at which Conduit C1 was opened. Both the conduit (red line) and matrix responses were very fast due to high matrix conductivities. Basically, the conduit represented a highly permeable zone and drained groundwater from the surrounding porous medium. At t = 20 min, the sprinkler rainfall with a total discharge of 10.17 L/min started, whereas its influence on the matrix discharge began to be visible approximately 10 min later. This delay was mostly because of slow water infiltration through the unsaturated zone. Further, the matrix discharge was slowly raising and started to approach a steady-state value after t = 50 min, whereas the conduit discharge remained practically the same. The reason for this is as follows. The conduit discharge can be increased by increasing the matrix pressure in the vicinity of the conduit. However, due to high overall matrix permeability and moderate rainfall intensity, the increase in the matrix pressure around the conduit is not sufficiently high to be visible on conduit discharge. Thus, to achieve more significant variations of a matrix–conduit exchange, the direct recharge (5.80 L/min) through a conduit sinkhole (connected with the upstream end of the conduit) was started at t = 60 min. The applied direct recharge produced an increase in the conduit’s pressure, and significant effects on both the matrix and conduit flow were achieved. The numerical results reveal that increased conduit pressure produced by the direct recharge only reduced exchange discharge, and there was still no flow from the conduit toward the matrix (head inversion). The total increase in conduit discharge was smaller than the applied recharge because the matrix inflow was reduced. Moreover, at t = 70 min, the direct recharge was increased from 5.80 to 14.65 L/min, and a further increase in the conduit pressure produced head inversion, but only in the upstream part of the model. At t = 80 min, both rainfall and direct recharge were turned off, while measurements were continued until the end of the experiment ( t = 120 min).
The hydrograph comparison shows that the numerical model follows the behavior of the experimental results. The differences are mostly inside the range of measurement error, which is estimated to be around 1.0 L/min. The numerical results are sharper then the experimental ones, which are smoothed by the measuring equipment.
The hydraulic head comparison in Figure 10 also demonstrates good agreement of the results. The precision of the measurements was mostly influenced by the precision of photogrammetry and was approximately 1.5 cm. For most results, this error is lower. Figure 11 shows the hydraulic head comparison for two piezometers that are closest to Conduit C1 and mostly influenced by the matrix–conduit interaction. Again, the experimental results are slightly smoothed mostly because of the time lag produced by filling the piezometers. These results clearly demonstrate that the numerical model is capable of capturing the realistic flow dynamics of the physical model.
Further, Figure 12 demonstrates conduit solutions in three representative time steps. These results confirm that head inversion can only happen from t = 70–80 min because, for the remaining time, the hydraulic head in the conduit is lower than the minimum matrix head defined by the downstream reservoir ( H d o w n s t r e a m = 1.463 m). Additionally, the calculated Reynolds number at the conduit outlet was between 15,000 and 22,000 during simulation.
Finally, Figure 13 demonstrates the matrix’s hydraulic head solutions at different time steps. At t = 0 min (before conduit opening), the steady-state matrix solution is shown, whereas at t = 15 min, a high conduit influence on the matrix flow is clearly visible. At t = 65 min, the matrix is influenced both by rainfall and the direct recharge from the conduit, whereas at t = 75 min the direct recharge is increased, and head inversion is visible in the upstream part of the model.

5.2.2. Test Case 2

For the second test case, we used a straight circular pipe with a larger diameter that was perforated only at the upstream part of the model (Conduit C2). The position of the conduit was defined by the starting and ending coordinates of the pipe bottom M 1 = ( 0.40 , 1.64 , 0.75 ) and M 3 = ( 5.06 , 1.64 , 0.70 ) , while the conduit was perforated only for x [ 0.4 , 2.1 ] . The conduit diameter was 0.042 m, and the Manning roughness coefficients were n M = 0.044 m 1 / 3 s and n M = 0.015 m 1 / 3 s for the perforated and unperforated parts, respectively. The water levels in two reservoirs were kept fixed at H u p s t r e a m = 1.515 m and H d o w n s t r e a m = 1.351 m. Since for this test case, there was free surface flow at the conduit outlet, the free outfall boundary condition [57] was used. This condition was implemented as a Dirchlet boundary condition, where the hydraulic head was calculated using a smaller value between the critical and normal water depth. The same numerical discretization was used as in the previous test case, while the exchange coefficient was set after calibration α e x = 0.23 s 1 . The measured and calculated values for discharges and hydraulic heads are shown in Figure 14 and Figure 15, respectively.
As for the previous test case, the steady state matrix flow (blue lines) was established before the start of measurements. At t = 0 , Conduit C2 was opened, and conduit discharge (red lines) was increased instantaneously. In the first time step, the numerical model showed a much higher discharge value then that obtained by experiment. This value was the outcome of the initial conduit emptying. Because of the larger pipe diameter, there was a free surface (partially filled) flow at the downstream end; thus, the conduit needed to release excessive water, which was initially stored in the conduit. The measuring equipment used for experimental data was not able to capture this effect (see how discharges are measured in the supplementary materials). Additionally, this behavior was not observed in the previous test case (Conduit C1) because of a smaller pipe diameter and the fact that flow in the conduit remained pressurized.
At time t = 10 min, the water depth at outlet boundary was measured to be 19 mm, while the numerical model predicted a value of 22 mm. At t = 20 min, sprinkler rainfall of total discharge 12.00 L/min started. At this time, the rainfall influence on the matrix discharge was observed later than indicated by the experimental data. The good agreement of rainfall infiltration obtained in the first test case suggests that the main cause could be coarse quartz sand (CQS), which dominated in the additional infiltration area that was saturated in the previous test case (the water table was lower in this case). Even though the water retention curve for this material was obtained in the laboratory, it is well known that the accurate measurement of soil parameters in the unsaturated zone is a very difficult task. For example, the soil hysteresis or initial saturation deviations can significantly affect results due to the high nonlinearity of water retention curves.
Moreover, as in the previous case, the rainfall did not significantly affect conduit discharge; thus, at t = 60 min, the rainfall intensity was increased by turning on two additional shower heads. The total discharge of 42.30 L/min was distributed on the square area defined by two corner points R 1 = ( 1.20 , 0.80 , 2.00 ) and R 2 = ( 2.10 , 1.70 , 2.00 ) , while keeping the same sprinkler rainfall (12.00 L/min) distributed on the overall top area. This high-intensity rain then produced a fast and significant increase in the matrix discharge, but an increase in the conduit discharge was also observed. The maximum matrix discharge value was slightly underestimated by the numerical model, which was followed by underestimated pressures in the downstream part of the model, meaning that concentrated rainfall influence was distributed differently than was predicted by the numerical model. The imperfection of the measurements of rainfall distribution and the model’s heterogeneity are likely the main reasons for these differences. The increase in conduit discharge was significantly smaller than in the matrix because the high matrix permeability was able to collect most of the rainfall water and prevented a significant increase in matrix pressures. Both the sprinkler and shower heads rains were turned off at t = 90 min, while measurements were continued until the end of the experiment, t = 120 min.
In this case, the head variations were more pronounced. The pressure drop introduced by opening the conduit was higher than in the previous case, and high-intensity rainfall produced an increase of the head up to 6 cm. The general behavior of the hydraulic head was quite realistic, but as mentioned before, the accuracy was lower in the downstream part of the model. The same two piezometers as in the previous case were the most dynamic and are shown separately in Figure 16. Even though Conduit C2 was only partially perforated, it produced a large amount of conduit discharge, followed by a significantly large pressure drop (especially observed by Piezometer C6 in Figure 16). The free surface flow caused by high pipe conductivity and a larger percentage of perforated area were the main reasons for this behavior. The highest pressured drop measured by piezometers was 0.61 m, while the numerical model had a predicted value of 0.48 m. Even though discrete-continuum models are not capable of the detailed resolution of flow interface, it seems that this model quite realistically simulates the hydrodynamics of the physical model.
Figure 17 demonstrates the numerical solution for the hydraulic head inside the conduit where it dominated free surface flow. However, in part of the conduit, the water surface reached the top of the conduit, and flow was slightly pressurized. The conduit solution is shown only for one time step because there are no significant changes in the hydraulic head during the solution. Finally, Figure 18 presents the matrix solution at t = 75 min.

6. Discussion

In this paper, we present the development of the hybrid (discrete-continuum) karst flow model. With respect to the wide range of karst-distributed models (continuum, discrete, hybrid, etc.…), these hybrid models have the potential to describe many karst complex properties, especially karst heterogeneity, which includes the usually uncertain conduit geometry and soil properties of a matrix. Moreover, if we take into account the description of different flow regimes in conduits (turbulent flow) and the matrix (laminar Darcy flow), as well as their complex relationship, hybrid models temporally serve as the best candidate for realistic karst flow modeling. The two main issues that appear most important for the development of realistic hybrid karst flow models are as follows: (a) its numerical complexity, which requires the solving of high nonlinearity, the preserving of numerical stability, and an adequate description of karst multiphysics, and (b) uncertain measurements and sparse collection of input data causing the difficult (in many cases, impossible) verification of karst flow models under realistic catchment conditions.
Complex karst flow modeling usually requires even more than the “state-of-the-art” modern numerical techniques. This is the main reason why, in this work, a new karst flow model was developed using some important ingredients: (a) control-volume formulation, which ensures local and global mass balance (e.g., finite element usually enables only global mass balance); (b) Fup basis functions inside relatively novel isogeometric analysis (IGA) (Hughes et al. [42], Cottrell et al. [43]), which enable the description of geometry, high approximation properties, the continuity of velocities and fluxes, and efficient multiresolution adaptive algorithms (Gotovac et al. [45]); and (c) the handling of high nonlinearity, which requires a presented segregated iterative algorithm, and very “careful” modeling between the matrix and conduit separate solvers ninvolving underrelaxation for increased stability. Possible further improvements include the solving of the large system of nonlinear equations due to the description of the large catchment area. One possible direction is incorporating this algorithm into the open source code Petiga (Dalcin et al. [58]), which is based on robust parallel nonlinear library PETSc (Balay et al. [59]) and IGA. Furthermore, one bottleneck is the high nonlinearity introduced by Richards’ equation as well as the definition and measurements of unsaturated curves. A new improved description of the unsaturated zone is highly desirable. Last but not least, the definition of the exchange flux is still an open research topic. In this paper, we used a classical linear relationship depending on the head differences and questionable first-order exchange parameter. Some improvements using the Peaceman well index are given for example in de Rooij et al. [25].
The realistic verification of the karst flow models is also an open research topic, especially for distributed models such as the presented one. Realistic verification includes knowledge of a wide range of parameters and karst properties (for example, Croatian karst aquifers in Jadro and Ombla catchments; see Bonacci [60]). The most needed data are conduit geometry (diameters, positions, and network structure), matrix heterogeneity (conductivity and porosity), unsaturated matrix properties in terms of van Genuchten curves and uncertainty of its parameters, boundary conditions such as matrix inland conditions and outlet conduit condition, uncertainty of rainfall distribution, etc. Due to usual lack of collected data, its great number, and the relatively large number of needed calibration parameters, realistic verification is definitely complex and usually an extremely difficult task. Therefore, as a first step for the verification of the presented karst flow model, it was performed in this case under controlled laboratory conditions.
Therefore, a large 3D physical karst flow model was constructed (5.66 × 2.95 × 2.00 m). To the best of our knowledge, this is the first such model that enables many of the mentioned karst flow characteristics and a detailed knowledge of most of the mentioned input data (see other, simpler laboratory models in Faulkner et al. [28] and Castro [29]). Despite the still presented uncertainty in soil properties (see also the supplementary materials), most of the input data are defined by measurements and “fine-tuning” by additional smaller flow test experiments given in the supplementary materials. Thus, verification is performed on two different flow test cases, where the only parameters that were calibrated during the presented experiments were the matrix–conduit exchange coefficient and roughness in the perforated part of the larger Conduit C2. Since it is a substantial improvement in comparison with realistic flow conditions in karst, the presented verification can be regarded as the first attempt for the realistic verification of karst flow models.
The two flow test cases were presented, and numerical results were confronted with experimental data. In the first test case, the matrix flow was disturbed by opening the smaller conduit (diameter: 0.0155 m). The activation of the conduit produced a decrease in both the matrix discharge and the heads since the conduit represents a highly permeable zone and redirected a significant amount of flow. The total discharge (from both the matrix and the conduit) was significantly higher, whereas the conduit flow was pressurized due to the small conduit diameter and sufficient exchange capacity. Moreover, moderate rainfall was applied to test nonlinear infiltration through the unsaturated zone, while direct recharge was used as an additional test for water exchange between the matrix and conduit. While conduits drained the matrix during most of the experiment, the numerical results show that, for a maximum applied direct recharge (from t = 70 –80 min), there was head inversion in the upstream part, where the conduit recharged the matrix. The numerical results are in excellent agreement during most of the experiment and inside the measurement error. The largest deviation from the measurement results was observed during direct recharge through the conduit. This can also be due to measurement error; however, there is a possibility that an exchange term that uses a constant exchange coefficient (i.e., linear dependency of exchange discharge with head difference) is not capable of accurately capturing this range of pressure variations. However, it can be stated that the overall dynamics of the physical model were realistically and accurately simulated by the numerical model.
In the second test case, the matrix flow interacted with the partially perforated pipe/conduit (diameter: 0.042 m). This setup was shown to be more demanding for flow modeling. The free surface conduit flow that used a demanding and unknown outlet boundary condition, a longer infiltration depth, a higher and concentrated rainfall intensity, and larger discharge rates followed by large pressure variations in the matrix are some of the main differences that represent serious challenges for the numerical model. Again, the model captured complex physics very realistically. The largest difference occurred in the model response to applied rainfall. For this case, the water table was lower, and, due to a deeper infiltration depth, the influence on the matrix discharge was observed later than in the experiment. The watering of dry soil represents a very serious problem and is highly influenced by (always) uncertain van Genuchten parameters and imperfection in rainfall distribution. Further, the concentrated high-intensity rainfall produced a lower matrix discharge than measured. Measurement errors are likely to be more pronounced for higher flow rates values, but the underestimation of the hydraulic head in the downstream part of the model suggests that the model response to this rainfall was different than in the physical model. The imperfection of rainfall distribution, the complex heterogeneity, and the complex physics of infiltration above the water table are the greatest challenges in obtaining accurate results. Finally, measurement errors for both test cases were considered to be dominated by photogrammetry errors, which were estimated at approximately 1.5 cm for head and 1.0 L/min for discharges.
The two presented test cases were significantly different and captured many complicated processes that occur in real karst aquifers. The numerical model was mostly inside the range of measurement precision, and the observed experimental behavior was realistically simulated, which is an encouraging result and demonstrates the robustness of the developed numerical model. Finally, the first test case used approximately 60 min of CPU time, while the second test case needed approximately 81 min. Both calculations were performed by serial computing on a single processor (Intel Core i7, 2.60 GHZ).
We are planning to use the presented karst flow model to investigate the sensitivity and validity of the water exchange term. The exchange coefficient is the main calibration parameter that directly determines the matrix–conduit exchange. We have verified our numerical model in the sense that it can produce accurate and realistic results by calibrating the exchange parameter; however, the serious sensitivity analysis of this parameter was not considered. Thus, we are also planning to use different experimental setups and investigate how obtained values of exchange parameters describe different flow conditions on the scale of our physical model. This is an important topic for practical application since numerical karst flow models are needed for the prediction of different scenarios and not only for understanding and reproducing obtained measured data. Finally, the quality of the velocity results of our karst flow model will enable more realistic analysis of tracer tests and contaminant transport.

7. Conclusions

In this work, a novel numerical model for groundwater flow modeling in karst aquifers is presented. The hybrid (discrete-continuum) approach is used as the best candidate for realistic karst flow modeling. Due to the high nonlinearity introduced by the unsaturated zone, most karst flow models neglect important hydrodynamic behavior above the water table. Thus, in this work, matrix flow is described by a more realistic variably saturated flow equation (usually called Richards’ equation). Additionally, the mixed form of the equation is used to obtain a mass conservative solution in both the saturated and unsaturated zones. The flow in the karst conduits is represented as one-dimensional and captured by a noninertia wave equation. This equation conveniently describes both the free surface and pressurized flow conditions by simply modifying the capacity term in governing equations. Since two flow domains (i.e., matrix and conduit) are governed by different partial differential equations (as well as dimensionality), the equations need to be coupled. The coupling is established on a classical first-order exchange term, which is proportional to the head difference on the matrix-conduit interface.
A novel numerical technique based on control-volume formulation and Fup basis functions was used for spatial discretization and labeled control-volume isogeometric analysis (CV-IGA). Fup basis functions belong to the class of atomic functions and can be regarded as infinitely differentiable B-splines. The application of Fup functions enables higher continuity and smoothness of the solution, while control-volume formulation retains the conservation property of governing equations. The karst flow model is based on a segregated (iteratively coupled) scheme, in which each flow domain is solved independently by using the last known solution of the other domain to calculate the exchange term.
A particular difficulty with complex 3D karst flow models is the verification and validation process due to lack of input (such as conduits geometry and parameters of aquifer) and measured (head distribution and discharges) data. Therefore, in this work, a novel 3D physical karst flow model able to reproduce many important flow features in karst is presented. This physical model enables substantial improvement in comparison with real aquifers, especially in terms of the detailed knowledge of mentioned input and measured data. Two complex experimental setups were used and simulated by the numerical model. The numerical model was mostly inside the range of measurement precision and has been capable of realistically simulating demanding flow in the physical model.

Supplementary Materials

The following are available online at Figure S1: Photography of the physical model. Figure S2: Ground plan of physical model with positions of pipes (karst conduits). Figure S3: Cross section through conduit C2. Figure S4: Photography of three conduit outlets. Figure S5: Filling the material. Figure S6: Schematic representation of layer 1. Figure S7: Schematic representation of layer 2. Figure S8: Schematic representation of layer 3. Figure S9: Schematic representation of layer 4. Figure S10: Schematic representation of layer 5. Figure S11: Schematic representation of layer 6. Figure S12: Schematic representation of layer 7. Figure S13: Schematic representation of layer 8. Figure S14: Water retention curves for used materials. Figure S15: Photography of rain simulation by two shower heads. Figure S16: Overflow in upstream reservoir. Figure S17: Overflow in downstream reservoir. Figure S18: V-Notch weirs for discharge measurment. Figure S19: Installation of piezometers. Figure S20: Positions of piezometers. Figure S21: Borehole pakers. Figure S22: Borehole positions. Figure S23: Curves defining paths along water height level (cyan) and curves defining levels (blue). Buoy for water level detection are red blobs. Figure S24: Typical measurements output, depicting accepted values, rejected values, smoothed output and error boundary. Table S1: Coordinates of the conduit geometries. Table S2: Used materials. Table S3: Allocation of material. Table S4: Hydraulic conductivities: measured range and final values after calibration. Table S5: Unsaturated soil parameters for three different materials: coarse quartz sand (CQS), fine quartz sand (FQS) and gravel (G). Table S6: Coordinates of the piezometers. Table S7: Coordinates of the boreholes. Table S8: Description of additional experiments. Workbook S1: Experimental Data.

Author Contributions

Conceptualization, L.M., H.G., G.K., S.S., S.A. and V.D.; Funding acquisition, H.G.; Investigation, L.M., H.G. and G.K.; Methodology, L.M., H.G., S.S. and S.A.; Software, L.M.; Supervision, H.G.; Validation, L.M. and H.G.; Visualization, L.M., G.K. and V.D.; Writing—original draft, L.M.; Writing—review and editing, H.G.


This research was funded by the Croatian Science Foundation (in Croatian Hrvatska zaklada za znanost—HRZZ) through grant number: UIP-2013-11-8103.


We thank Sc. Mijo Vranjes and our technician Kresimir Vranjes for valuable help related to the physical model.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Ford, D.; Williams, P.D. Karst Hydrogeology and Geomorphology; Wiley: Hoboken, NJ, USA, 2007. [Google Scholar]
  2. Bakalowicz, M. Karst groundwater: A challenge for new resources. Hydrogeol. J. 2005, 13, 148–160. [Google Scholar] [CrossRef]
  3. Ghasemizadeh, R.; Hellweger, F.; Butscher, C.; Padilla, I.; Vesper, D.; Field, M.; Alshawabkeh, A. Review: Groundwater flow and transport modeling of karst aquifers, with particular reference to the North Coast Limestone aquifer system of Puerto Rico. Hydrogeol. J. 2012, 20, 1441–1461. [Google Scholar] [CrossRef] [Green Version]
  4. Jukić, D.; Denić-Jukić, V. Groundwater balance estimation in karst by using a conceptual rainfall–runoff model. J. Hydrol. 2009, 373, 302–315. [Google Scholar] [CrossRef]
  5. Xing, L.; Huang, L.; Chi, G.; Yang, L.; Li, C.; Hou, X.; Xing, L.; Huang, L.; Chi, G.; Yang, L.; et al. A Dynamic Study of a Karst Spring Based on Wavelet Analysis and the Mann-Kendall Trend Test. Water 2018, 10, 698. [Google Scholar] [CrossRef]
  6. Dvory, N.; Ronen, A.; Livshitz, Y.; Adar, E.; Kuznetsov, M.; Yakirevich, A.; Dvory, N.Z.; Ronen, A.; Livshitz, Y.; Adar, E.; et al. Quantification of Groundwater Recharge from an Ephemeral Stream into a Mountainous Karst Aquifer. Water 2018, 10, 79. [Google Scholar] [CrossRef]
  7. Kovács, A.; Sauter, M. Modelling karst hydrodynamics. Methods Karst Hydrogeol. 2007, 201–222. [Google Scholar] [CrossRef]
  8. Hartmann, A.; Goldscheider, N.; Wagener, T.; Lange, J.; Weiler, M. Karst water resources in a changing world: Review of hydrological modeling approaches. Rev. Geophys. 2014. [Google Scholar] [CrossRef]
  9. Liedl, R.; Sauter, M.; Hückinghaus, D.; Clemens, T.; Teutsch, G. Simulation of the development of karst aquifers using a coupled continuum pipe flow model. Water Resour. Res. 2003, 39. [Google Scholar] [CrossRef] [Green Version]
  10. Kiraly, L. Modelling karst aquifers by the combined discrete channel and continuum approach. Bulletin du Centre d’Hydrogéologie 1998, 16, 77–98. [Google Scholar]
  11. Király, M.G. Remarques sur hydrogramme des sources karstiques simulé par modèles mathématiques (Remarks on karst springs hydrographs simulated with mathematical models). Bulletin d’Hydrogéologie de l’Université de Neuchâtel 1976, 1, 37–60. [Google Scholar]
  12. Kiraly, L. FEM 301—A Three Dimensional Model for Groundwater Flow Simulation; Technical Report; Nagra: Baden, Switzerland, 1985. [Google Scholar]
  13. Clemens, T.; Hückinghaus, D.; Liedl, R.; Sauter, M. Simulation of the development of karst aquifers: Role of the epikarst. Int. J. Earth Sci. 1999, 88, 157–162. [Google Scholar] [CrossRef]
  14. Bauer, S.; Liedl, R.; Sauter, M. Modelling of karst development considering conduit-matrix exchange flow. In Calibration and Reliability in Groundwater Modelling: Coping With Uncertainty. Proceedings of the ModelCARE’99 Conference Held in Zurich, Switzerland, 20–23 September 1999; IAHS: London, UK, 2000; pp. 10–15. [Google Scholar]
  15. Bauer, S.; Liedl, R.; Sauter, M. Modeling of karst aquifer genesis: Influence of exchange flow. Water Resour. Res. 2003, 39. [Google Scholar] [CrossRef] [Green Version]
  16. Birk, S.; Liedl, R.; Sauter, M.; Teutsch, G. Hydraulic boundary conditions as a controlling factor in karst genesis: A numerical modeling study on artesian conduit development in gypsum. Water Resour. Res. 2003, 39, SBH 2-1–SBH 2-14. [Google Scholar] [CrossRef]
  17. Reimann, T.; Geyer, T.; Shoemaker, W.B.; Liedl, R.; Sauter, M. Effects of dynamically variable saturation and matrix-conduit coupling of flow in karst aquifers. Water Resour. Res. 2011, 47. [Google Scholar] [CrossRef] [Green Version]
  18. Reimann, T.; Giese, M.; Geyer, T.; Liedl, R.; Maréchal, J.C.; Shoemaker, W.B. Representation of water abstraction from a karst conduit with numerical discrete-continuum models. Hydrol. Earth Syst. Sci. 2014, 18, 227–241. [Google Scholar] [CrossRef] [Green Version]
  19. Giese, M.; Reimann, T.; Bailly-Comte, V.; Maréchal, J.C.; Sauter, M.; Geyer, T. Turbulent and Laminar Flow in Karst Conduits Under Unsteady Flow Conditions: Interpretation of Pumping Tests by Discrete Conduit-Continuum Modeling. Water Resour. Res. 2018, 54, 1918–1933. [Google Scholar] [CrossRef]
  20. Xue, Y.; Teng, T.; Zhu, L.; He, M.; Ren, J.; Dong, X.; Liu, F.; Xue, Y.; Teng, T.; Zhu, L.; et al. Evaluation of the Non-Darcy Effect of Water Inrush from Karst Collapse Columns by Means of a Nonlinear Flow Model. Water 2018, 10, 1234. [Google Scholar] [CrossRef]
  21. Shoemaker, W.B.; Kuniansky, E.L.; Birk, S.; Bauer, S.; Swain, E.D. Documentation of a Conduit Flow Process (CFP) for MODFLOW-2005; Technical Report; Geological Survey (U.S.): Reston, VA, USA, 2005. [Google Scholar]
  22. Harbaugh, A.W. MODFLOW-2005, The U.S. Geological Survey Modular Ground-Water Model—The Ground-Water Flow Process; USGS: Reston, VA, USA, 2005.
  23. Celia, M.A.; Bouloutas, E.T.; Zarba, R.L. A general mass conservative numerical solution for the unsaturated flow equation. Water Resources Res. 1990, 26, 1483–1496. [Google Scholar] [CrossRef]
  24. De Rooij, R. Towards Improved Numerical Modeling of Karst Aquifers: Coupling Turbulent Conduit Flow and Laminar Matrix Flow Under Variably Saturated Conditions. Ph.D. Thesis, University of Neuchâtel, Neuchâtel, Switzerland, 2008; p. 130. [Google Scholar]
  25. De Rooij, R.; Perrochet, P.; Graham, W. From rainfall to spring discharge: Coupling conduit flow, subsurface matrix flow and surface flow in karst systems using a discrete–continuum model. Adv. Water Resour. 2013, 61, 29–41. [Google Scholar] [CrossRef]
  26. Öllős, G.; Németh, E. Szakvélemény a Repedezett Kőzetekben Lejátszódó Folyamatok Kisminta vizsgálatáról (Study of the Physical Modelling of the Flow Processes in Fractured Rock); Technical University Budapest: Budapest, Hungary, 1960. [Google Scholar]
  27. Wu, Y.; Hunkeler, D. Hyporheic exchange in a karst conduit and sediment system—A laboratory analog study. J. Hydrol. 2013, 501, 125–132. [Google Scholar] [CrossRef]
  28. Faulkner, J.; Hu, B.X.; Kish, S.; Hua, F. Laboratory analog and numerical study of groundwater flow and solute transport in a karst aquifer with conduit and matrix domains. J. Contam. Hydrol. 2009, 110, 34–44. [Google Scholar] [CrossRef]
  29. Castro, R.B.P. Statistical Analysis of Karst Aquifer Pollution, Karst Flow Model Validation at Laboratory Scale, and Development of Seepage Meter; Florida State University: Tallahassee, FL, USA, 2017. [Google Scholar]
  30. Furman, A. Modeling Coupled Surface–Subsurface Flow Processes: A Review. Vadose Zone J. 2008, 7, 741. [Google Scholar] [CrossRef]
  31. Clement, T.P.; Wise, W.R.; Molz, F.J. A physically based, two-dimensional, finite-difference algorithm for modeling variably saturated flow. J. Hydrol. 1994, 161, 71–90. [Google Scholar] [CrossRef]
  32. Szymkiewicz, A. Modelling Water Flow in Unsaturated Porous Media: Accounting for Nonlinear Permeability and Material Heterogeneity; GeoPlanet: Earth and Planetary Sciences; Springer: Berlin, Germany, 2013; Volume 9, p. 1. [Google Scholar] [CrossRef]
  33. Jeannin, P.Y. Modeling flow in phreatic and epiphreatic karst conduits in the Hölloch cave (Muotatal, Switzerland). Water Resour. Res. 2001, 37, 191–200. [Google Scholar] [CrossRef]
  34. White, W.B. Karst hydrology: Recent developments and open questions. Eng. Geol. 2002, 65, 85–105. [Google Scholar] [CrossRef]
  35. Jovic, V. Analysis and Modelling of Non-Steady Flow in Pipe; John Wiley & Sons Ltd.: Chichester, UK, 2013. [Google Scholar]
  36. Szymkiewicz, R. Numerical Modeling in Open Channel Hydraulics; Springer: Dordrecht, The Netherlands, 2010; p. 419. [Google Scholar]
  37. Lappala, E.G.; Healy, R.W.; Weeks, E.P. Documentation of Computer Program VS2D to Solve the Equations of Fluid Flow in Variably Saturated Porous Media; Water-Resources Investigations Report 83-4099; U.S. Geological Survey: Reston, VA, USA, 1987; p. 193.
  38. Durner, W. Hydraulic conductivity estimation for soils with heterogeneous pore structure. Water Resour. Res. 1994, 30, 211–223. [Google Scholar] [CrossRef]
  39. Priesack, E.; Durner, W. Closed-Form Expression for the Multi-Modal Unsaturated Conductivity Function. Vadose Zone J. 2006, 5, 121–124. [Google Scholar] [CrossRef]
  40. Van Genuchten, M.T. A Closed-form Equation for Predicting the Hydraulic Conductivity of Unsaturated Soils1. Soil Sci. Soc. Am. J. 1980, 44, 892. [Google Scholar] [CrossRef]
  41. Bjerklie, D.M.; Dingman, S.L.; Bolster, C.H. Comparison of constitutive flow resistance equations based on the Manning and Chezy equations applied to natural rivers. Water Resour. Res. 2005, 41. [Google Scholar] [CrossRef] [Green Version]
  42. Hughes, T.J.; Cottrell, J.A.; Bazilevs, Y. Isogeometric analysis: CAD, finite elements, NURBS, exact geometry and mesh refinement. Comput. Methods Appl. Mech. Eng. 2005, 194, 4135–4195. [Google Scholar] [CrossRef]
  43. Cottrell, J.A.; Hughes, T.J.R.; Bazilevs, Y. Isogeometric Analysis Toward Intergration of CAD and FEA; Wiley: Hoboken, NJ, USA, 2009; p. 335. [Google Scholar]
  44. Gotovac, B.; Kozulic, V. On a selection of basis functions in numerical analyses of engineering problems. Int. J. Eng. Model. 1999, 12, 25–41. [Google Scholar]
  45. Gotovac, H.; Andricevic, R.; Gotovac, B. Multi-resolution adaptive modeling of groundwater flow and transport problems. Adv. Water Resour. 2007, 30, 1105–1126. [Google Scholar] [CrossRef]
  46. Kozulić, V.; Gotovac, B. Application of the Solution Structure Method in Numerically Solving Poisson’s Equation on the Basis of Atomic Functions. Int. J. Comput. Methods 2018, 15, 1850033. [Google Scholar] [CrossRef]
  47. Patankar, S.V. Numerical Heat Transfer and Fluid Flow; Hemisphere Pub. Corp.: Philadelphia, PA, USA, 1980; p. 197. [Google Scholar]
  48. Gotovac, H.; Cvetković, V.; Andričević, R. Adaptive Fup multi-resolution approach to flow and advective transport in highly heterogeneous porous media: Methodology, accuracy and convergence. Adv. Water Resour. 2009, 32, 885–905. [Google Scholar] [CrossRef]
  49. Cvetkovic, V.; Gotovac, H. On the upscaling of chemical transport in fractured rock. Water Resour. Res. 2014, 50, 5797–5816. [Google Scholar] [CrossRef] [Green Version]
  50. Fiori, A.; Zarlenga, A.; Gotovac, H.; Jankovic, I.; Volpi, E.; Cvetkovic, V.; Dagan, G. Advective transport in heterogeneous aquifers: Are proxy models predictive? Water Resour. Res. 2015, 51, 9577–9594. [Google Scholar] [CrossRef]
  51. Schillinger, D.; Evans, J.A.; Reali, A.; Scott, M.A.; Hughes, T.J. Isogeometric collocation: Cost comparison with Galerkin methods and extension to adaptive hierarchical NURBS discretizations. Comput. Methods Appl. Mech. Eng. 2013, 267, 170–232. [Google Scholar] [CrossRef]
  52. Ascher, U.M.; Petzold, L.R. Computer Methods for Ordinary Differential Equations and Differential-Algebraic Equations; Society for Industrial and Applied Mathematics: Philadelphia, PA, USA, 1998; p. 314. [Google Scholar]
  53. Jaeschke, A.M. Isogeometric Analysis for Compressible Flows with Application in Turbomachinery. Master’s Thesis, TU Delft, Delft, The Netherlands, 2015. [Google Scholar]
  54. Šimůnek, J.; Šejna, M.; van Genuchten, M.T. The HYDRUS-2D Software Package for Simulating the Two-Dimensional Movement of Water, Heat, and Multiple Solutes in Variably-Saturated Media. Version 2.0. arXiv, 1998; arXiv:1011.1669v3. [Google Scholar]
  55. Vauclin, M.; Khanji, D.; Vachaud, G. Experimental and numerical study of a transient, two-dimensional unsaturated-saturated water table recharge problem. Water Resour. Res. 1979, 15, 1089–1101. [Google Scholar] [CrossRef]
  56. Rossman, L.A. Storm Water Management Model Quality Assurance Report: Dynamic Wave Flow Routing; U.S. Environmental Protection Agency: Washington, DC, USA, 2006; pp. 1–115.
  57. Rossman, L. Storm Water Management Model Reference Manual Volume II—Hydraulics; Technical Report EPA/600/R-17/111PA/600/R-17/111; Environmental Protection Agency: Washington, DC, USA, 2017.
  58. Dalcin, L.; Collier, N.; Vignal, P.; Côrtes, A.; Calo, V. PetIGA: A framework for high-performance isogeometric analysis. Comput. Methods Appl. Mech. Eng. 2016, 308, 151–181. [Google Scholar] [CrossRef] [Green Version]
  59. Balay, S.; Brown, J.; Buschelman, K.; Eijkhout, V.; Gropp, W.D.; Kaushik, D.; Knepley, M.G.; McInnes, L.C.; Smith, B.F.; Zhang, H. PETSc Users Manual; Technical Report ANL-95/11—Revision 3.3; Argonne National Laboratory: Du Page County, IL, USA, 2012.
  60. Bonacci, O. Karst Hydrology; Springer Series in Physical Environment; Springer: Berlin/Heidelberg, Germany, 1987; Volume 2, p. 184. [Google Scholar]
Figure 1. F u p 1 ( x ) basis function trial space.
Figure 1. F u p 1 ( x ) basis function trial space.
Water 10 01787 g001
Figure 2. 2D Fup basis function F = F u p 1 ( x , y ) : (a) F; (b) F x .
Figure 2. 2D Fup basis function F = F u p 1 ( x , y ) : (a) F; (b) F x .
Water 10 01787 g002
Figure 3. Water-table positions for infiltration study of [55].
Figure 3. Water-table positions for infiltration study of [55].
Water 10 01787 g003
Figure 4. The Rossman [56] test example.
Figure 4. The Rossman [56] test example.
Water 10 01787 g004
Figure 5. Hydrograph: comparison between SWMM [56], DisCo [25], and CV-IGA (the present model).
Figure 5. Hydrograph: comparison between SWMM [56], DisCo [25], and CV-IGA (the present model).
Water 10 01787 g005
Figure 6. Photograph of the physical model.
Figure 6. Photograph of the physical model.
Water 10 01787 g006
Figure 7. Scheme of the physical model.
Figure 7. Scheme of the physical model.
Water 10 01787 g007
Figure 8. Heterogeneity of the porous medium.
Figure 8. Heterogeneity of the porous medium.
Water 10 01787 g008
Figure 9. Hydrograph: Experimental (dashed line) and numerical (solid line) results for matrix (M—blue line) and conduit discharge (C—red line), respectively.
Figure 9. Hydrograph: Experimental (dashed line) and numerical (solid line) results for matrix (M—blue line) and conduit discharge (C—red line), respectively.
Water 10 01787 g009
Figure 10. Hydraulic head: Experimental (dashed line) and numerical (solid line) results.
Figure 10. Hydraulic head: Experimental (dashed line) and numerical (solid line) results.
Water 10 01787 g010
Figure 11. Hydraulic head: Experimental (dashed line) and numerical (solid line) results for the two most dynamic piezometers that were closest to the conduits.
Figure 11. Hydraulic head: Experimental (dashed line) and numerical (solid line) results for the two most dynamic piezometers that were closest to the conduits.
Water 10 01787 g011
Figure 12. Conduit C1 (black lines) and the hydraulic head h (m) (blue lines) at different time steps.
Figure 12. Conduit C1 (black lines) and the hydraulic head h (m) (blue lines) at different time steps.
Water 10 01787 g012
Figure 13. Contours of the matrix hydraulic head H (m) at different time steps.
Figure 13. Contours of the matrix hydraulic head H (m) at different time steps.
Water 10 01787 g013
Figure 14. Hydrograph: Experimental (dashed line) results and numerical (solid line) results for matrix (M—blue line) and conduit discharge (C—red line), respectively.
Figure 14. Hydrograph: Experimental (dashed line) results and numerical (solid line) results for matrix (M—blue line) and conduit discharge (C—red line), respectively.
Water 10 01787 g014
Figure 15. Hydraulic head: Experimental (dashed line) and numerical (solid line) results.
Figure 15. Hydraulic head: Experimental (dashed line) and numerical (solid line) results.
Water 10 01787 g015
Figure 16. Hydraulic head: Experimental (dashed line) and numerical (solid line) results for the two most dynamic piezometers that were closest to the conduits.
Figure 16. Hydraulic head: Experimental (dashed line) and numerical (solid line) results for the two most dynamic piezometers that were closest to the conduits.
Water 10 01787 g016
Figure 17. Conduit C2 (black lines) and the hydraulic head h (m) (blue line) at t = 20.0 min.
Figure 17. Conduit C2 (black lines) and the hydraulic head h (m) (blue line) at t = 20.0 min.
Water 10 01787 g017
Figure 18. Contours of the matrix hydraulic head H (m) at t = 75.0 min.
Figure 18. Contours of the matrix hydraulic head H (m) at t = 75.0 min.
Water 10 01787 g018
Table 1. Soil parameters for three different materials: coarse quartz sand (CQS), fine quartz sand (FQS), and gravel (G).
Table 1. Soil parameters for three different materials: coarse quartz sand (CQS), fine quartz sand (FQS), and gravel (G).
K H (m/s) 3.40 × 10 3 2.00 × 10 4 6.00 × 10 2
K V (m/s) 1.26 × 10 3 8.00 × 10 5 6.00 × 10 2
S s (m 1 ) 1.0 × 10 5 1.0 × 10 4 1.0 × 10 6
α 1 (m 1 ) 18.00 3.00 10.00
α 2 (m 1 ) 0.50 2.00 -
n 1 (-) 3.2 9.2 2.9
n 2 (-) 1.3 2.2 -
w 1 (-) 0.62 0.67 1.0
w 2 (-) 0.38 0.33 0.0
τ (-) 2.96 2.295 0.5
η (-) 0.325 0.38 0.40
θ r (-) 0.005 0.02 0.01

Share and Cite

MDPI and ACS Style

Malenica, L.; Gotovac, H.; Kamber, G.; Simunovic, S.; Allu, S.; Divic, V. Groundwater Flow Modeling in Karst Aquifers: Coupling 3D Matrix and 1D Conduit Flow via Control Volume Isogeometric Analysis—Experimental Verification with a 3D Physical Model. Water 2018, 10, 1787.

AMA Style

Malenica L, Gotovac H, Kamber G, Simunovic S, Allu S, Divic V. Groundwater Flow Modeling in Karst Aquifers: Coupling 3D Matrix and 1D Conduit Flow via Control Volume Isogeometric Analysis—Experimental Verification with a 3D Physical Model. Water. 2018; 10(12):1787.

Chicago/Turabian Style

Malenica, Luka, Hrvoje Gotovac, Grgo Kamber, Srdjan Simunovic, Srikanth Allu, and Vladimir Divic. 2018. "Groundwater Flow Modeling in Karst Aquifers: Coupling 3D Matrix and 1D Conduit Flow via Control Volume Isogeometric Analysis—Experimental Verification with a 3D Physical Model" Water 10, no. 12: 1787.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
