Assessing the Importance of Potholes in the Canadian Prairie Region under Future Climate Change Scenarios

by
Ameer Muhammad
1,*,
Grey R. Evenson
2,
Tricia A. Stadnyk
1,
Alaba Boluwade
3,
Sanjeev Kumar Jha
4 and
Paulin Coulibaly
5
1
Department of Civil Engineering, University of Manitoba, Winnipeg, MB R3T 5V6, Canada
2
Deportment of Water Environment, Agricultural and Biological Engineering, The Ohio State University, Columbus, OH 43210, USA
3
Department of Soils, Water & Agricultural Engineering College of Agricultural & Marine Sciences Sultan Qaboos University, P.O. Box 34, Al-Khod 123, Oman
4
Earth and Environmental Sciences, Indian Institute of Science Education and Research Bhopal, Bhopal, Bhauri Bypass Road, Bhauri, Bhopal 462066, Madhya Pradesh, India
5
Department of Civil Engineering, McMaster University, Hamilton, ON L8S 4L7, Canada
*
Author to whom correspondence should be addressed.
Water 2018, 10(11), 1657; https://doi.org/10.3390/w10111657
Submission received: 20 October 2018 / Revised: 12 November 2018 / Accepted: 12 November 2018 / Published: 14 November 2018
(This article belongs to the Special Issue Catchment Modelling)
Browse Figures
Versions Notes

Abstract

:
The Prairie Pothole Region (PPR) of Canada contains millions of small isolated wetlands and is unique to North America. The goods and services of these isolated wetlands are highly sensitive to variations in precipitation and temperature. We evaluated the flood proofing of isolated wetlands (pothole wetlands) under various climate change scenarios in the Upper Assiniboine River Basin (UARB) at Kamsack, a headwater catchment of the Lake of the Prairies in the Canadian portion of the PPR. A modified version of the Soil Water Assessment Tool (SWAT) model was utilized to simulate projected streamflow under the potential impacts of climate change, along with changes to the distribution of pothole wetlands. Significant increases in winter streamflow (~200%) and decreases (~11%) in summer flow, driven by changes in future climates, were simulated. Simulated changes in streamflow resulting from pothole removal were between 55% for winter and 15% for summer, suggesting that climate will be the primary driver in the future hydrologic regime of the study region. This research serves as an important guide to the various stakeholder organizations involved in quantifying the aggregate impacts of pothole wetlands in the hydrology of the Canadian Prairie Region.

1. Introduction

The North American Prairie Pothole Region (PPR) spans across Alberta, Saskatchewan, and Manitoba in Canada and extends into North Dakota, South Dakota, Iowa, Minnesota, and Montana in the United States (US) (Figure 1). The PPR is home to millions of isolated wetlands (i.e., pothole wetlands) that provide a range of ecosystem goods and services such as flood attenuation, groundwater recharge, biogeochemical processing, and regional diversity [1,2,3,4,5,6]. Despite the numerous benefits, nearly 70% of the wetlands have been lost in the PPR, with 84% of this loss attributed to agricultural development [6,7].
Wetlands play a major role in watershed health [8,9,10,11] and can be seen as an integral component of much of the prairie landscape. Wetlands help to mitigate the effects of climate change by reducing the effects of drought and inundation. During wetter periods, they store a large amount of water, helping to reduce peak flood flows. In dry periods, they retain water, helping to recharge groundwater [12,13,14]. Wetlands, however, due to their shallow nature, are highly susceptible to changes in climate and land use [4,7,15]. The Intergovernmental Panel on Climate change (IPCC), in its fifth assessment report, projected a 2–5 °C rise in the surface temperature [16,17]. Consequently, it is very likely that extreme precipitation events will become more intense and frequent, altering the hydrologic cycle and water availability in many regions [18,19].
Global Circulation Models (GCMs) have been considered effective tools in exploring the physical processes of the earth’s surface atmospheric system and are widely utilized to gain information regarding historical, current, and future climates [20]. Based on estimates of future population levels, economic activity, and technological patterns [16,21,22], the future climate change scenarios from GCMs are used to assess future vulnerability attributed to climate change [23]. Numerous studies have suggested that climate change may have a far more significant impact on the PPR of North America, where runoff is mainly driven by seasonal snowmelt [24,25,26,27,28]. Most regions of the Canadian Prairie Pothole Region (CPPR) are projected to warm over the next 60 years [29], in particular the central CPPR, where warming is expected to be more pronounced [30], thus potentially resulting in increased drought and excessive moisture risk [31]. For example, snowfall in the CPPR accounts for about 30% of total annual precipitation and produces 80% or more of the total annual surface runoff [32,33]. Changes in the amount and seasonality of air temperatures and precipitation could significantly alter the volume, distribution, and timing of snowfall, which may affect the hydrology of the prairie.
While it is essential to consider the potential effects of climate change, several studies have also highlighted the significance of land use change and its vital role in the hydrology of the CPPR [6,15,34,35,36]. For example, the loss of wetland surface runoff in the prairie often drains into depressions, forming wetlands or pothole wetlands. Pothole wetlands are closed basins that retain water for a longer duration due to their higher retention capacity [12,37,38,39], and do not contribute flow to streams under normal condition. However, during times of high runoff, pothole wetlands connect to each other and to streams via a fill-and-spill process [40], which results in a dynamic increase in the contributing area for runoff to streams [13,15]. Land use changes, in particular the loss of pothole wetlands mainly due to agricultural development, greatly alter hydrological processes, affecting both water quality and quantity. Thus, there is a pressing need to thoroughly investigate the coupled effect of climate and land use change on the hydrology of the CPPR.
Watershed-scale hydrologic models can be valuable tools that enhance our understanding of complex natural processes and aid in examining land use change and best management practices (BMPs). Advances in computational resources have further enhanced modeling at finer-scale resolutions while discretizing the geospatial heterogeneity of a watershed. The Soil Water Assessment Tool (SWAT) is a watershed-scale model that has been widely used for water resources assessment [41,42,43,44], climate and land use changes [45,46,47,48,49], water quality, pollutants and nutrients loading [50,51,52,53], and watershed management practices [54,55,56]. Hydrologic models constructed to study PPR watersheds must pay close attention to the important role that pothole wetlands play in the PPR hydrologic cycle.
The SWAT model has been utilized for studying climate-induced changes in hydrology and nutrient fluxes of the Upper Assiniboine River Basin (UARB) [57]. The study, however, did not explore land use as a factor—along with climate change—affecting hydrology. References [58,59] examined uncertainty in hydrological responses due to climate change in the Assiniboia watershed of Saskatchewan, Canada, using the SWAT model. A few other studies [34,60,61,62] used the SWAT model for investigating the impact of pothole wetlands on downstream hydrographs without considering the effects of climate change.
Given the importance of pothole wetlands to ecological goods and services, especially flood mitigation, there is a need for more research on the coupled impacts of climate and land use change. The primary focus of this research is to present an analysis of the compounding effects of climate and land use change on streamflow in the CPPR. Our method of land use change involved removal of pothole wetlands from the land surface. Our specific interests were to (1) examine the hydrological response at the outlet resulting from changes in both land use and climate change, and to (2) evaluate the effects on hydrograph sensitivity due to pothole wetland removal for extreme events. This research provides quantitative information for water managers and stakeholders in the PPR regarding the importance and significance of pothole wetlands in controlling the future PPR runoff response.

2. Materials and Methods

2.1. Study Area

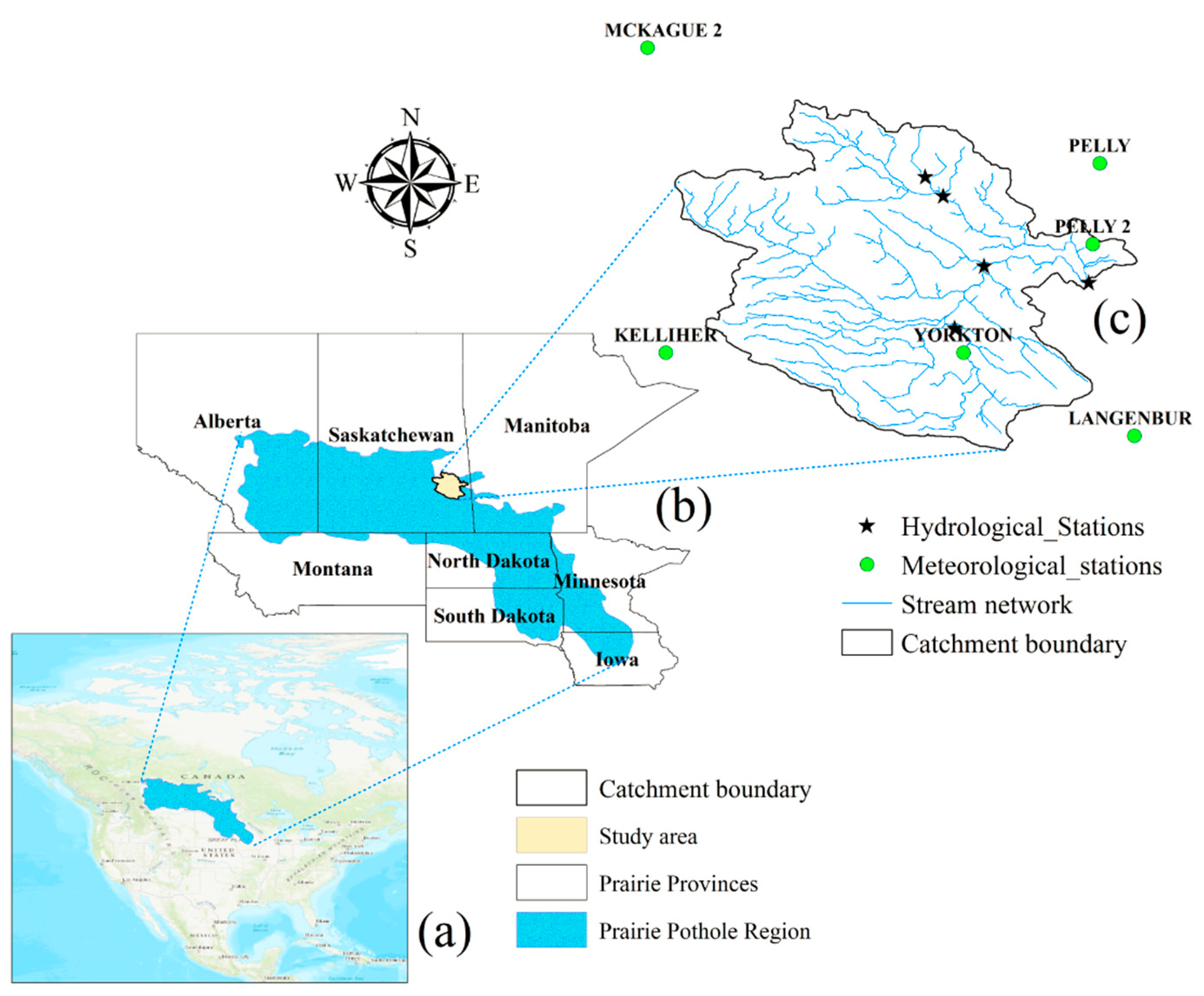

The presence of potholes that create intermittent flow, the existence of numerous lakes, and the dynamics of the wetlands are defining characteristics of the UARB at Kamsack. Spanning the provinces of Saskatchewan and Manitoba, the UARB has a total area of 13,000 km2 and is monitored by five streamflow gauging stations (Figure 1c). The basin is of vital importance, as flow generated in the basin enters the Lake of the Prairies (the Shellmouth Reservoir), which was constructed for flood mitigation purposes and is situated approximately 45 km downstream of the watershed outlet. The Manitoba Hydrologic Forecasting Centre (HFC) has a deep interest in the basin, as the volume of water that generates in the basin directly flows into the Shellmouth Reservoir, for which HFC is tasked to set operating rules. Knowing the long-term climate and land use change impact on the hydrology of the basin, the HFC will be better able to prepare water resource planning and management operations.

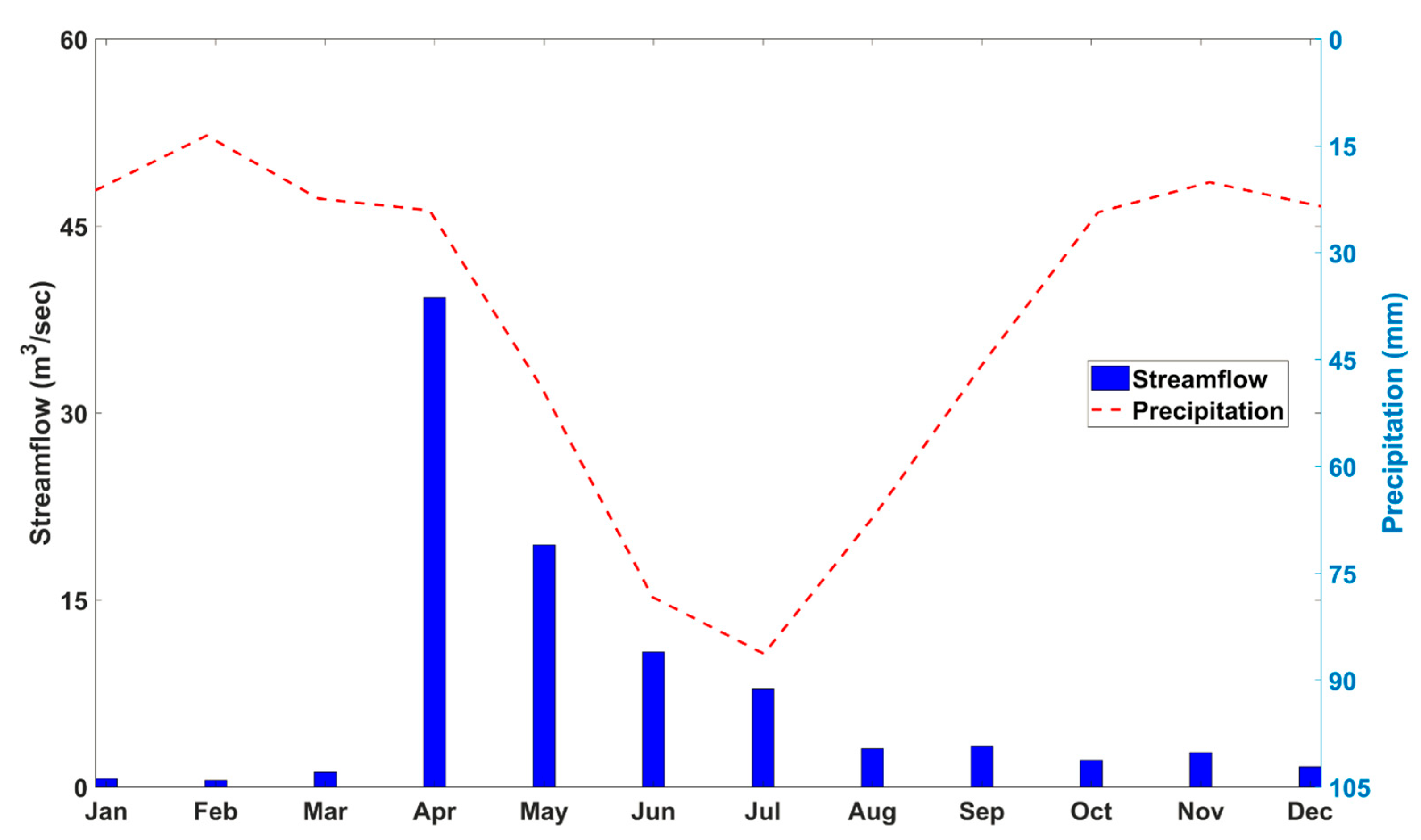

The climate of the UARB is continental subhumid characterized by long, cold winters and short summers, where the mean annual temperature and potential evapotranspiration is about 1 °C and 850 mm, respectively [63]. Average annual precipitation is 450 mm, with approximately 26% of the precipitation falling as snow [57]. Spring freshet occurs from April to June, accounting for 82%, on average, of total mean annual streamflow [57] (Figure 2).
Black Chernozemic soils overlay almost 70% of the basin: They are high in organic matter and have generally developed under native grassland [64]. A detailed literature review and investigation that highlights the distribution of wetland soils in the PPR was presented in Reference [65], whereas Reference [66] presented a discussion on the types and presence of wetlands in the PPR and what impacts they may have on ecohydrology.

2.2. Geospatial and Hydroclimatic Data

SWAT requires climate data, topography, land use, and soil type as inputs. Climate data at a daily time step for the period 1981–2015 were obtained from Environment and Climate Change Canada (ECCC). Six meteorological stations were considered, of which two resided within the basin and four were nearby (Figure 1c). A digital elevation model (DEM) using 20 m spatial resolution [67] and 30 m spatial resolution land use data [68] were obtained from the GeoGratis Data Portal (http://geogratis.gc.ca/). Detailed soil data were obtained from Agriculture and Agri-Food Canada’s Manitoba regional office. These data were of 30 m spatial resolution with information for up to six layers of soil depth at 5, 15, 30, 60, 100, and 200 cm. The observed daily streamflow time series, which was required for model calibration and validation, was obtained from ECCC’s Water Survey of Canada (WSC) hydrometric database (HYDAT) (Table 1).

2.3. Hydrological Model

This study utilized the modified version of the SWAT (ver. 2012 rev. 627) model. Potholes in the SWAT are defined at the Hydrologic Response Unit (HRU) level. The standard version of the SWAT does not recognize the hydrologic relationship of pothole wetlands to uplands and other upgradient pothole wetlands. For instance, in the prairie region, the upgradient drainage area of a pothole may stretch out past the limits of its particular HRU and would receive inflow from numerous upgradient HRUs. The SWAT does not mimic between pothole fill-and-spill connections in light of the fact that hydrologic transport between HRUs is unrealistic inside the model [69]. Consequently, a new geographically isolated wetlands (GIWs) module was added to the model to simulate GIWs (i.e., potholes). However, modifications were also made to a number of other modules to facilitate simulation of fill-and-spill processes (e.g., where upgradient HRUs drain to downgradient pothole HRUs, and pothole HRUs fill to capacity and spill to a downgradient pothole HRU). Additional information regarding model modification was provided by Reference [70]. The modified version, which has enhanced representation of pothole wetlands, was able to better adapt to the physical processes that occurred in our study watershed.

2.4. Calibration and Validation

The Sequential Uncertainty Fitting version 2 (SUFI-2) was used as a mean of calibrating and validating the model. SUFI-2 is programmed in the SWAT-Calibration and Uncertainty Program (SWAT-CUP), which is a module developed to automate calibration [71]. In SUFI-2, parameter uncertainty is described by a multivariate uniform distribution, which is expressed in ranges, while output uncertainty is described by the 95% prediction uncertainty band (95PPU). The 95PPU is calculated at the 2.5% and 97.5% levels of the cumulative distribution function (CDF) for the output variables [51,72]. Latin hypercube sampling is used to draw independent parameter sets [51]. The goodness of fit during calibration and prediction uncertainty are evaluated based on the closeness of the p-factor to 100% (i.e., all observations fall within the 95PPU) and the r-factor to 0 (i.e., the width of the 95PPU). Reference [73] suggested that p-factor values above 0.7 and r-factor values below 1.5 are satisfactory.
In this study, the model was calibrated for the period 1981–2010 and verified from 2011–2015, considering all flow gauging stations. The Kling–Gupta [74] efficiency (KGE) metric was used as a guide for selecting the most optimal parameters and for evaluating model performance (Equation (1)):
K G E = 1 − ( r − 1 ) 2 + ( ∝ − 1 ) 2 + ( β − 1 ) 2 ,
where α = σ s σ m , β = μ s μ m .
Here, σs and σm are the standard deviation of simulated and measured data, µs and µm are the means for simulated and measured data, respectively, and r is the linear regression coefficient between measured and simulated data. KGE allowed for a multi-objective perspective by focusing on correlation error, variability error, and bias (volume) error [75]. A KGE > 0.5, recommended by Reference [74], was set as the threshold value for selecting simulation runs while running the autocalibration program. Other performance metrics such as Nash–Sutcliffe efficiency (NSE) [76] and percent bias (PBIAS) [74,77] were also utilized to further assess model performance. In this paper, the model calibration effort should have satisfied the following criteria for satisfactory performance:
  • KGE ≥ 0.5, as recommended by Reference [74];
  • NSE ≥ 0.5, as recommended by Reference [78];
  • PBIAS ≤ ±0.25, as recommended by Reference [78]; and
  • p-factor ≥ 0.7 and r-factor ≤ 1.5, as suggested by Reference [73], for the 95% prediction uncertainty when using SUFI-2.

2.5. Scenario Formulation: Climate and Land Use Change

The Canadian Regional Climate Model (CRCM) version 5 was used to extract future climate data. It has a higher resolution than GCM data, is the most up-to-date CRCM, and has several improvements, such as an improved land surface scheme [79,80,81]. We selected Representative Concentration Pathways (RCPs) 4.5 and 8.5 and two future periods, near future (2030s: 2011–2040) and middle future (2050s: 2041–2070), in our study. RCP 4.5 represented a moderate population and economic growth, with an average of a 1.4 °C rise in temperature. RCP 8.5 portrayed rapid population growth with modest technological changes and relatively slow income growth, thus leading to increased greenhouse gas emissions, resulting in an average of about a 2.0 °C rise in temperature [17,82].

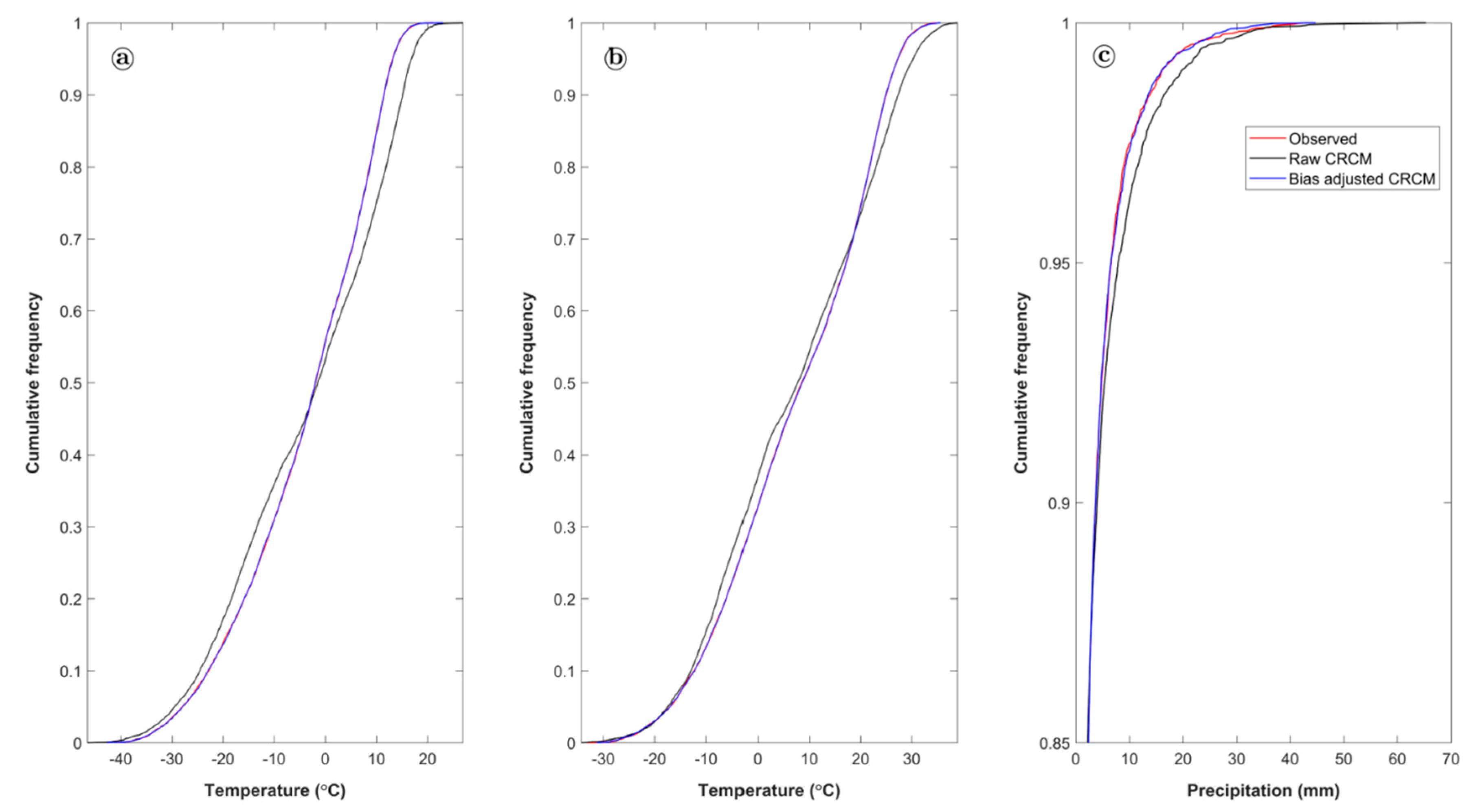

Output from RCMs is subject to systematic biases [83,84,85,86] that may potentially affect hydrological simulations [87]. Thus we bias-corrected these data before application in our hydrological model. Performance and effectiveness of bias-correction techniques is dependent on the study location [88]. We utilized a quantile-quantile (Q-Q) mapping approach [89] to bias-correct the RCM data used in our study based on recommendations from References [88,90]. Figure 3 presents basin-averaged RCM data before and after the application of our Q-Q mapping bias correction.
The land use scenarios were created by varying the percent of pothole wetland coverage in the watershed. We used five land use scenarios by randomly removing 0%, 25%, 50%, 75%, and 100% of pothole wetlands from the land surface.

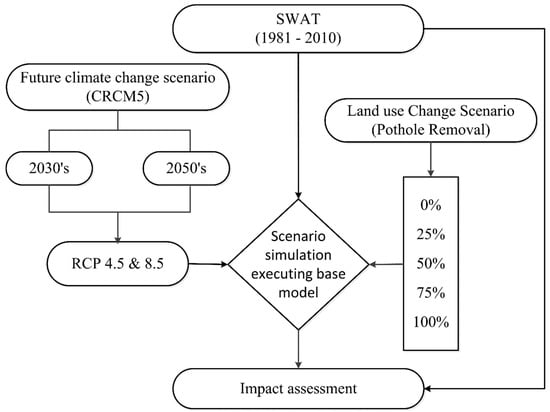

The calibrated model as a baseline model was used to run the combination of land use and climate change scenarios to assess the effect on the downstream hydrograph (WSC ID: 05MD004). Figure 4 shows a schematic diagram outlining scenario formulation. The combination of four climate and five land use change scenarios resulted in a total of 20 coupled land use and climate change scenarios.

3. Results

3.1. Model Calibration and Validation

For model calibration, key parameters that govern hydrologic processes of the study watershed were selected based on available literature [34,35,57,58,60,61,62,91,92,93]. A total of 27 parameters were considered in the calibration process. The minimum, maximum, and fitted values (Table 2) and observed and simulated hydrographs with 95% prediction uncertainty for the catchment outlet are presented (Figure 5).

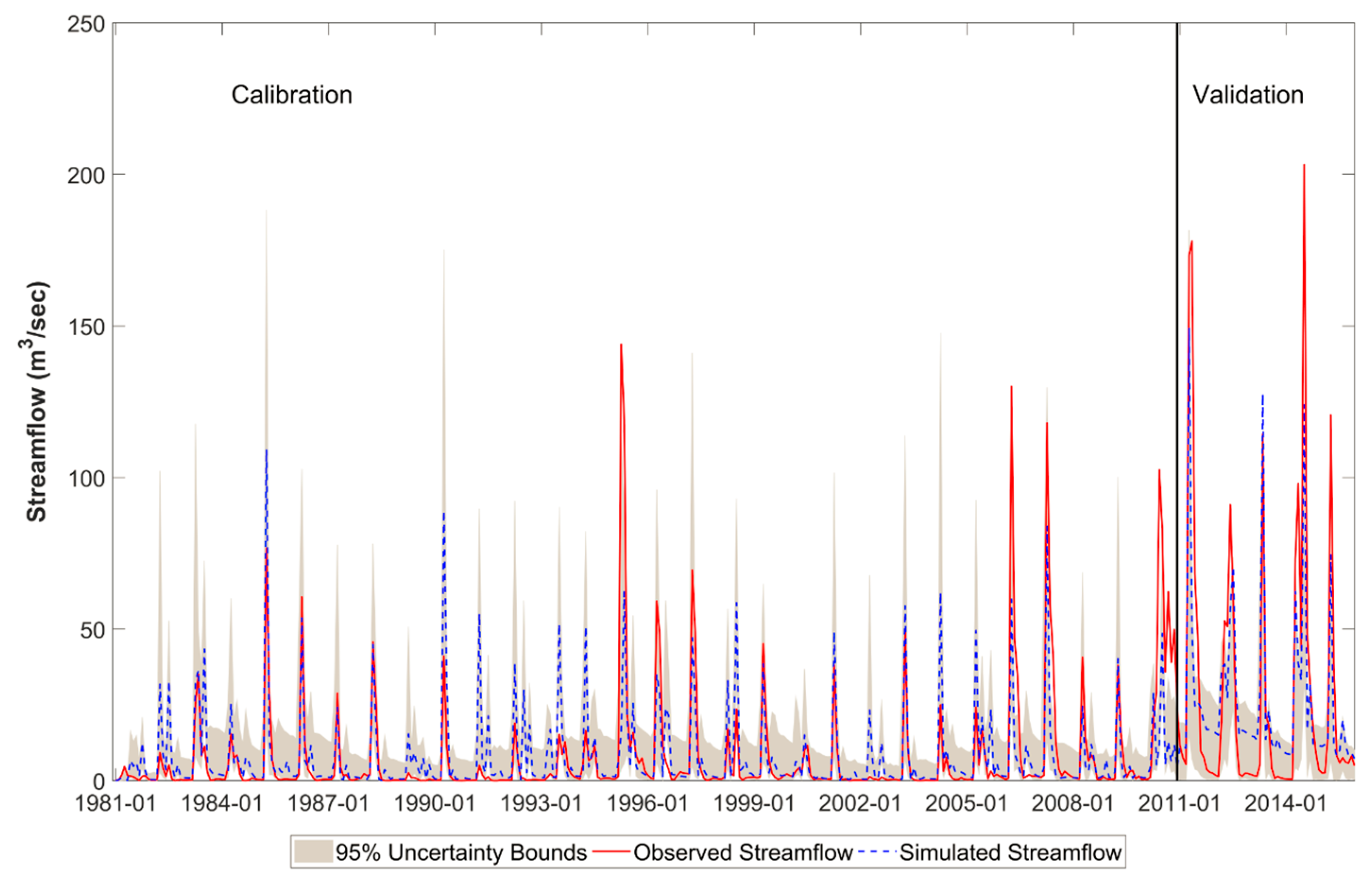

In general, the model was able to capture the variability of streamflow, particularly the timing of the peak flow. In places, the model overestimated observed streamflow, such as during the years 1982–83, 1989, and in the spring of the year 2002, were dry years (relative to normal). During the validation period, low flows were overestimated and high flows underestimated. However, the model generally followed the seasonal patterning of streamflow. The p-factor and r-factor were within an acceptable range (Table 3). KGE, NSE, and PBIAS indicated satisfactory modeling results. All gauging stations listed in Table 3 were parameterized and optimized simultaneously. This may have led to some outlets being more poorly simulated than others, for example, at Ebenezer (WSC ID: 05MB001). In this case, the gauge was located downstream of approximately ten unregulated reservoirs, collectively known as the Yorkton complex, which significantly impacted the SWAT model performance due to the poor parameterization of reservoir releases.

3.2. Future Climate for the 2030s and 2050s Periods under RCP 4.5 and RCP 8.5 Scenarios

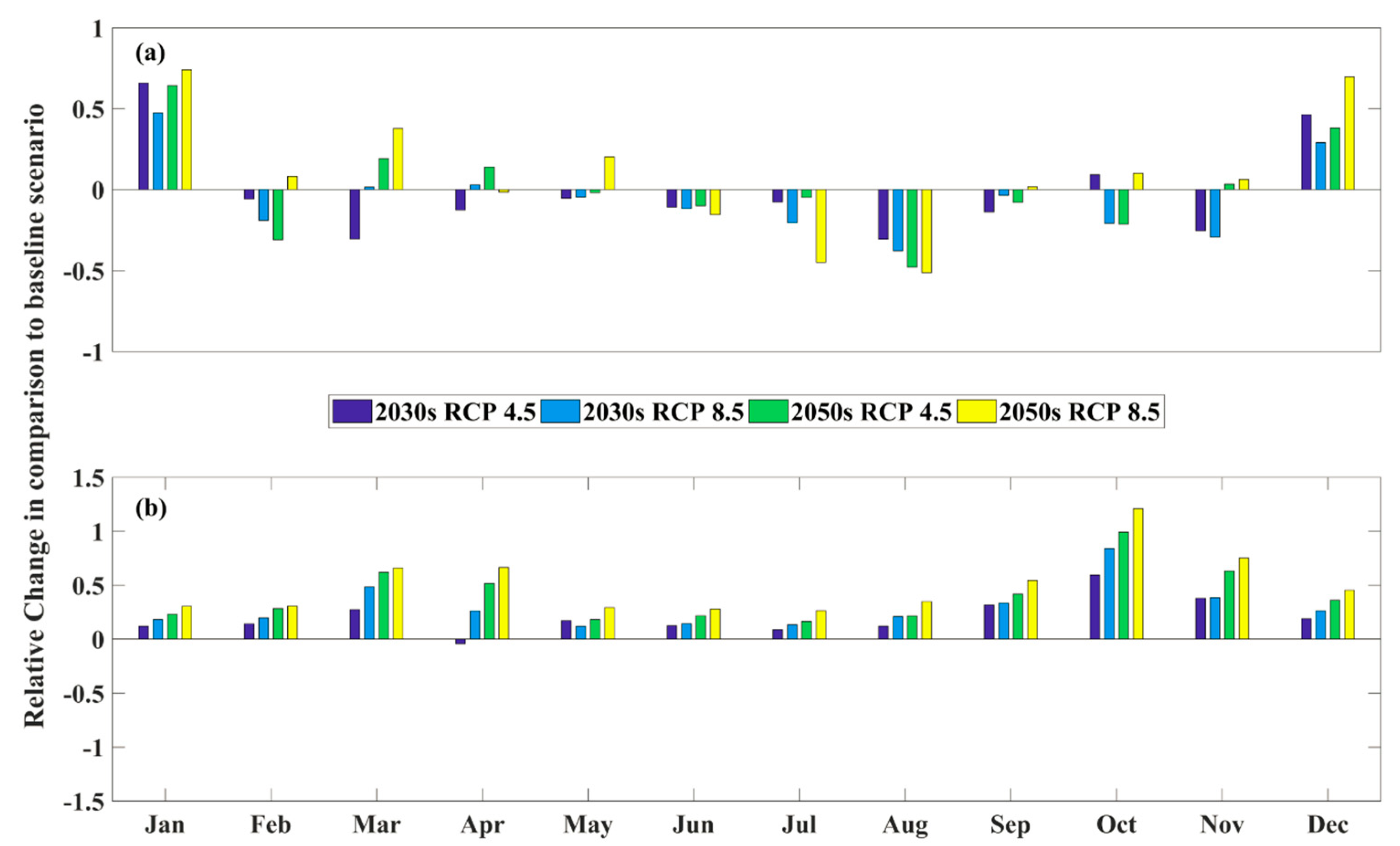

Figure 6 shows changes in the mean monthly (a) precipitation (mm) and (b) temperature (°C) for RCP 4.5 and 8.5 over two climatological periods centered around 2030 (2011–2040) and 2050 (2041–2070).
We used seasonal averages for ease of intercomparison. Our seasons were defined as winter (DJF), spring (MAM), summer (JJA), and fall (SON). There was a notable increase in winter precipitation, especially in December and January, under all climate projections. Precipitation decreased during summer, as also noted in Reference [94]. The climate model indicated an increase in temperature across the year for the basin. Increasing temperature, averaged across the basin, was more pronounced under RCP 8.5 (3.5 °C) compared to RCP 4.5 (2.5 °C) for the 2030s, but reversed by the 2050s (6 °C and 4.8 °C for RCP 4.5 and 8.5, respectively). Thus, it should not be assumed that the RCP 8.5 scenario represented the most extreme changes in climate for this region.

3.3. Variations in Streamflow

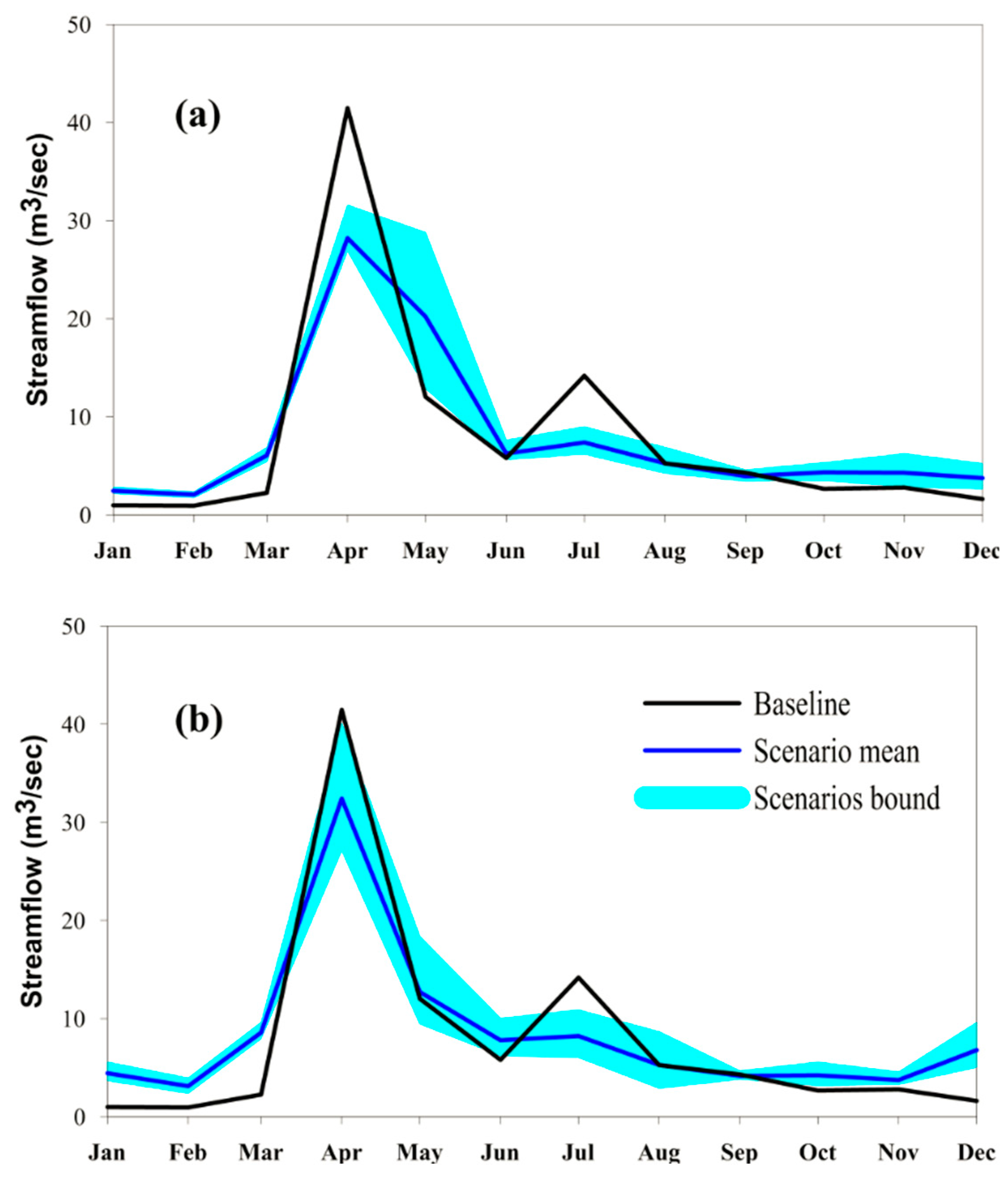

We began our evaluation by comparing future changes in the ensemble mean of all climate and land use change scenarios. Ensemble mean was used to reduce the uncertainty of future projections, primarily resulting from future climate. The mean monthly variation in streamflow response under climate and land use change for the two future time periods showed a significant increase in streamflow during winter, and decreases in spring peak discharge and summer streamflow across all scenarios (Figure 7). Such variations in streamflow were not unexpected for this region [95] and could be attributed to a shift toward wetter winters and drier summers. We, however, saw relatively high spring streamflow during the 2050s period in comparison to the 2030s period. This could be attributed to higher precipitation in the 2050s period.

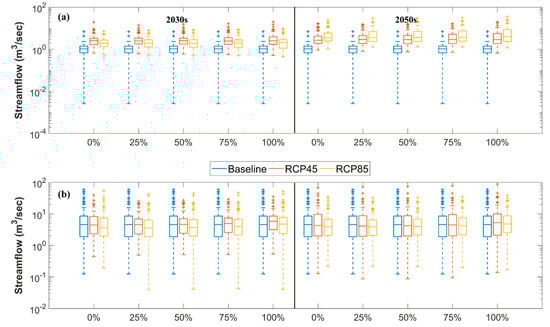

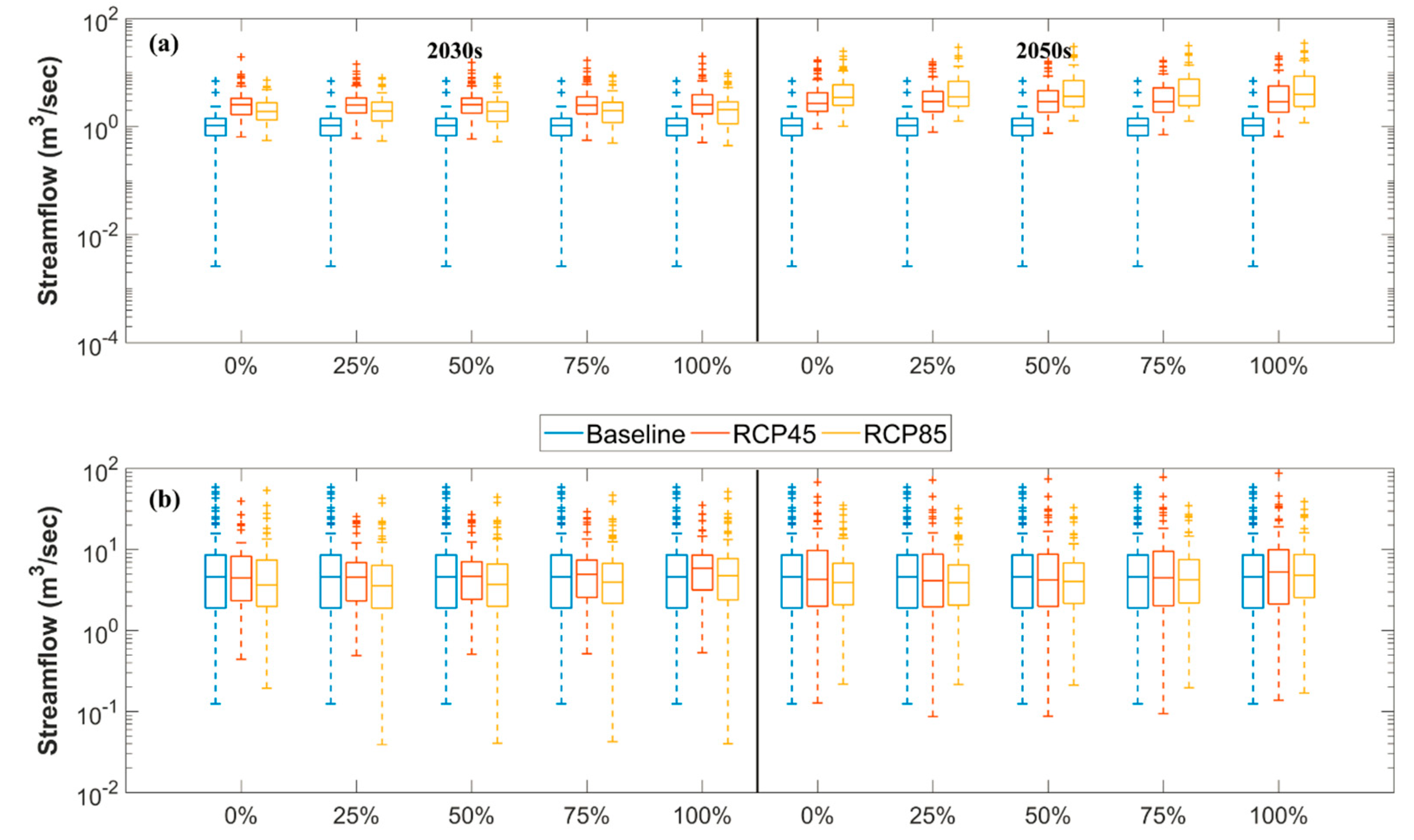

To further investigate the coupled impact of land use and climate change, seasonal analyses were carried out. Changes in winter and summer streamflow were most notable (Figure 8). Median streamflow for winter was likely to increase (based on all climate scenarios, as seen in Figure 8), perhaps due to increasing precipitation falling as rain. Interestingly, increases from RCP 4.5 were relatively higher compared to RCP 8.5 for the 2030s. This could be linked to the climate data, where increasing precipitation for RCP 4.5 was observed compared to RCP 8.5 (Figure 6a).
The expansion of agriculturally dominated regions through pothole wetland removal further increased streamflow, indicating the sensitivity of streamflow to land use changes. For example, in comparison to the zero-removal scenario, a 30% increase in streamflow could be observed if all pothole wetlands were removed (Table 4) under the RCP 4.5 2030s period. The change under RCP 4.5 for the 2050s period could be up to a 65% increase in streamflow when all pothole wetlands were removed. A similar increasing pattern from the aforementioned future period was observed under RCP 8.5. For example, during the middle future, winter streamflow could nearly threefold with no land use change, up to a fourfold increase if all pothole wetlands were removed. Changes regarding percentage variation in summer streamflow were not as high in comparison to winter flows. For example, there was a 16% decrease in summer streamflow under RCP 4.5 with no wetland removal in comparison to a 160% increase in winter for the same period and scenario. Similarly, impact on streamflow variability between the two extreme land use scenarios during summer (~20%) was also lower in comparison to that during the winter season (~30%).

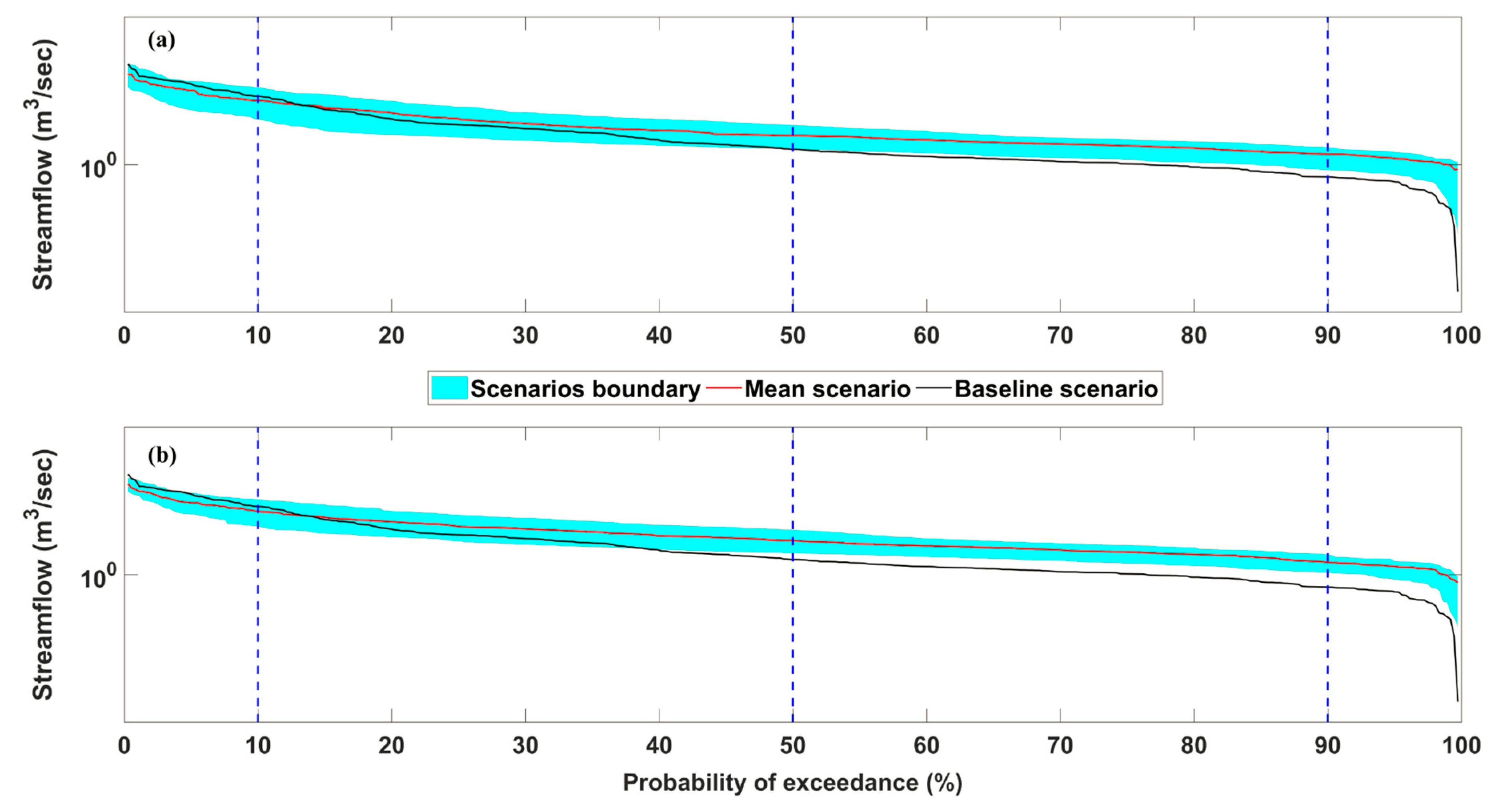

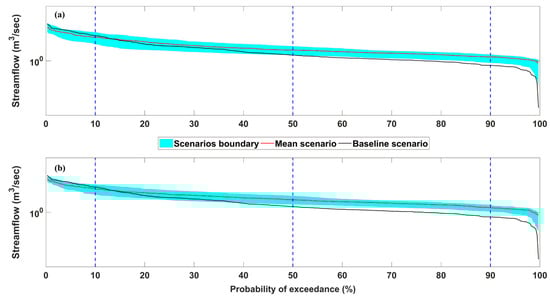

The flow duration curve for the baseline, extreme climate, and land use change scenarios, and the ensemble mean of the future scenarios (Figure 9), along with quantiles for 10%, 50%, and 90% exceedance probabilities (Table 5), are presented. A log10-normal probability curve for the extreme (high and low) of the combined land use and climate change, mean of the scenario, and baseline scenario were used to allow the low and high quantiles to be more visible. In general, we saw increasing flow in the near and middle futures in comparison to the baseline period. This means that, in the future, the probability of exceedance for low flow increased while the probability of exceedance for high flow decreased. Consequently, there would be a more frequent occurrence of low flow periods and less frequent high flow periods.
While the coupled impact of climate and land use change indicated overall increasing streamflow, there was a greater likelihood of lower high flows (relative to the baseline) based on Q10 (10% exceedance). Mean low flows in the future may have increased by up to 106% based on Q90 relative to the baseline period. Changes in the median quantile (i.e., Q50) suggested an increase of up to 180% over the baseline period (Table 5).

4. Discussion

Hydrology in the Canadian Prairie Region (CPR) is highly complex. Historically, only one-third of the precipitation occurs during winter, in the form of snow. However, snowmelt contributes approximately 80% of spring discharge. Both the timing and duration of seasonality are essential aspects of the CPPR climate. For the CPPR, variability in climate means changes in the distribution of solid and liquid precipitation, for example increased precipitation during winter (accumulated solid precipitation resulting in spring discharge) and decreased rainfall runoff during summer. Increasing precipitation coupled with a potential increase in temperature likely resulted in more precipitation falling as rain during the winter, or shoulder season, months, thus causing a shift toward earlier spring peak flow events (Figure 7). Consequently, this led to less water availability during summer and autumn when evaporative potential and agriculture demand was the highest. Dibike et al. (2012, 2017) also showed increasing water supply variability in the CPPR and, more specifically, decreased summer flows, where extreme deficits in water availability during summer months were projected.
Though climate warming is not uniformly projected across the globe, results for the CPPR indicate that warming (~6 °C rise by 2070 across the basin) may be more pronounced than the global average (~2–3 °C) for the same period. Previous studies [96,97,98] highlighted that rising temperatures would act as a catalyst in enhancing evapotranspiration, which has the potential to cause more water stress in summer. The combined effects of a water availability deficit, increasing temperatures, and increasing evapotranspiration suggest the potential for increasing frequency and severity of drought.
Our research indicated that the disappearance of isolated pothole wetlands played an equally critical role as the climate did in changing the hydrology of the CPPR. In our study, a 55% increase in winter streamflow was simulated for the 100% pothole removal scenario compared to our baseline scenario. Removing pothole wetlands could also potentially cause an increase in summer flow (~16%). Similar findings were observed by References [61,99] when isolated wetlands were fully drained.
All climate and land use change scenarios suggested an increase in low and median streamflow and a decrease in high flows (Figure 9), resulting in a more uniform streamflow behavior. The lack of variability in streamflow is often viewed negatively in the ecological community. For example, ecologists see changes in streamflow positively as it maintains channel structure through sediment transport and interaction between the river and its floodplain that drives nutrient exchange and breeding cycles.

5. Study Limitations

We utilized future climate projections from the CRCM version 5. Our selection of a climate model was based on past performance [100], since the model has been found to be skillful [80,101] at simulating future climate because of various improvements, including the inclusion of the latest Canadian Land Surface Scheme (CLASS 3.5) [102]. It is, however, important to recognize the effect on output due to uncertainties in future climate projection. The reader is referred to Reference [103] for detail. The use of an ensemble of climate models would provide the ability to add confidence bounds to our projections, but would not necessarily improve accuracy.
Our method of pothole wetlands definition was based on the work by Reference [104] using a 20 m DEM. Availability of high-resolution input data (e.g., LiDAR) could assist in better representing local drainage pathways and complex pothole terrain within the catchment, which may further improve the capability of our model to simulate the hydrology of this region.
Moreover, the UARB at Kamsack has a sparse meteorological gauge network as indicated by the presence of only two active meteorological stations, concentrated toward the outlet of the basin (Figure 1c). We, therefore, made use of those stations, which surround the basin, within a radius of 100 km2. While the overall performance of the model was satisfactory, some of the stations, such as the Assiniboine River at Ebenezer, did not replicate streamflow adequately. Availability of more rainfall gauging networks would have improved the performance and reliability of the results.

6. Conclusions

In our research both individual and combined impacts of climate and land use change on the hydrology of the Upper Assiniboine River Basin at Kamsack were examined and quantified. A total of 20 different climate and land use change (pothole wetlands removal) scenarios were analyzed to assess impacts on future water availability. The climate data were extracted from the Canadian Regional Climate Model version 5 for two different time horizons, the 2030s and the 2050s, for the RCP 4.5 and 8.5 scenarios.
The study highlights the important role that pothole wetlands play in future climates in the hydrology of the CPR. While the analysis suggests that both land use and climate change will intensify hydrological processes within the study region, changes in climate appeared to play a more dominant role in altering streamflow in the watershed. In particular, a significant increase (~threefold) in streamflow during winter and a decrease during summer was observed. The decrease in summer water availability will have far more impacts on different sectors, as demands are high, and thus serious adaptation strategies to manage these impacts will be required.
In this study, we utilized the modified form of the SWAT model to assess changes in streamflow hydrographs downstream of the UARB at Kamsack due to climate and land use change. We, however, foresee many other applications of the current model, such as conducting policy and impact studies, flood forecasting, impacts on reservoir operation (in particular, for the Lake of the Prairies) and water management, quantifying nitrogen loading from upstream to downstream, and the overall export of nutrients to Lake Winnipeg.

Author Contributions

Conceptualization A.M. and T.A.S.; Methodology, A.M., T.A.S. and G.R.E.; Formal Analysis, A.M.; Data Curation, A.M.; Writing-Original Draft Preparation, A.M.; Writing-Review & Editing, G.R.E., T.A.S., S.K.J., A.B., P.C.; Visualization, A.M., T.A.S., S.K.J., A.B.; Supervision, T.A.S.; Project Administration, A.M.; Funding Acquisition, T.A.S. and P.C.

Funding

The Natural Sciences and Engineering Research Council (NSERC) of Canada provided funding to support this research through NSERC FloodNet (Grant number: NETGP 451456), a strategic research network.

Acknowledgments

The authors acknowledge the Manitoba Hydrologic Forecasting Centre and Agriculture and Agri-Food Canada for providing research-related data. Also, the Matlab script for bias-correcting the climate data was provided by Micheal Viera and is greatly acknowledged. The paper is dedicated to the memory of Peter Rasmussen, who was a key to the journey of the first author’s PhD research.

Conflicts of Interest

The authors declare no conflicts of interest.
