Effect of Aeration Modes and COD/N Ratios on Organic Matter and Nitrogen Removal in Horizontal Subsurface Flow Constructed Wetland Mesocosms

by
Xin Chen
1,2,
Hui Zhu
1,*,
Yingying Xu
3,
Brian Shutes
4,
Baixing Yan
1 and
Qingwei Zhou
5
1
Key Laboratory of Wetland Ecology and Environment, Northeast Institute of Geography and Agroecology, Chinese Academy of Sciences, Changchun 130012, China
2
College of Resources and Environment, University of Chinese Academy of Sciences, Beijing 100049, China
3
Key Laboratory of Songliao Aquatic Environment, Ministry of Education, School of Municipal and Environmental Engineering, Jilin Jianzhu University, Xincheng Street, District 5088, Changchun 130118, China
4
Urban Pollution Research Centre, Middlesex University, Hendon, London NW4 4BT, UK
5
Institute of Environmental Materials and Applications, College of Materials and Environmental Engineering, Hangzhou Dianzi University, Zhejiang 310018, China
*
Author to whom correspondence should be addressed.
Water 2018, 10(11), 1530; https://doi.org/10.3390/w10111530
Submission received: 23 August 2018 / Revised: 11 September 2018 / Accepted: 16 October 2018 / Published: 27 October 2018
(This article belongs to the Special Issue Recent Progress of Constructed Wetland for Wastewater Treatment)
Browse Figures
Versions Notes

Abstract

A series of mesocosm-scale horizontal subsurface flow constructed wetlands (HSSF-CWs) were established. In Experiment 1, four artificial aeration (AA) modes, including pre-aeration at 24 h before the input of influent water (PA), aeration at 6 h (6AA) and 12 h (12AA) after the input of influent water and non-aeration (NA), were tested to obtain an optimal aeration mode for chemical oxygen demand (CODCr) and nitrogen removal. The results showed that aeration after the input of influent water could improve the removal efficiencies of CODCr and ammonia-nitrogen (NH4⁺-N), but lead to an accumulation of nitrate-nitrogen (NO3−-N). The above observation demonstrated that a single aeration cannot create an ideal alternation of aerobic and anaerobic conditions for simultaneous nitrification and denitrification. Therefore, HSSF-CWs with intermittent aeration (IA), after the input of influent water and NA were established to evaluate the combined effects of IA and influent COD/N ratios on pollutant removal in Experiment 2. The HSSF-CW with IA exhibited a better performance in CODCr and nitrogen removal compared to HSSF-CW with NA. The highest removal percentages of CODCr (90.1%), NH4+-N (99.8%) and total nitrogen (TN, 99.5%) were achieved at a COD/N ratio of 9.3 in HSSF-CW with IA.

1. Introduction

Constructed wetlands (CWs) have been widely used in many countries and regions in the last few decades, owing to their advantages of high efficiency, appropriate ecological environment, low cost and aesthetic value [1,2,3,4,5]. Moreover, the important role of CWs as a wildlife habitat and greenspace make them an appropriate alternative to conventional wastewater treatment, mainly in isolated small communities [6]. In CWs, the interaction of substrate, plants and microorganisms leads to natural processes (i.e., physical, chemical and biological) that are used to remove contaminants from wastewater [7,8]. As far as is known, the removal of organic matter and nitrogen mainly rely on biodegradation and the rate of biodegradation depends on dissolved oxygen (DO) concentration [9]. It was reported that a DO concentration below 0.50 mg/L is essential for denitrification and nitrification occurs when the DO concentration is above 1.50 mg/L [10]. Liu et al. [11] also reported that DO was one of the main factors affecting pollutant removal in CWs. To overcome the lack of oxygen in CWs, artificial aeration (AA) can be employed. Recently, several investigations were carried out to study the impact of aeration on organic matter and nitrogen removal in CWs. For example, high removal efficiencies of organic matter (19.3 mg/m2·day), ammonia-nitrogen (NH4+-N) (3.5 mg/m2·day) and total nitrogen (TN) (3.3 mg/m2·day) were obtained simultaneously in an intermittent aerated subsurface flow constructed wetland [12]. Zapater-Pereyra et al. [13] observed an increase in the removal of organic matter (81–89%) in an aerated horizontal subsurface flow constructed wetland (HSSF-CW). Zhang et al. [14] found that the performance of aerated and planted HSSF-CWs in organic matter and nitrogen removal were better than non-aerated HSSF-CWs. However, there is very limited information available regarding the pollutant removal performance in CWs with different aeration modes (e.g., aeration before input, aeration after input, etc.).
Influent COD/N ratios can significantly affect the microbial degradation of chemical oxygen demand (COD), as well as the nitrification and denitrification functions of microorganisms [15,16,17,18]. A few previous studies have investigated the effect of COD/N ratios on the removal of COD and nitrogen in CWs. For example, Zhu et al. [18] found that the removal rate of TN increased with increasing C/N ratios and achieved the greatest value at a C/N ratio of 5. Ding et al. [19] showed that TN removal rate increased when COD/N ratios increased from 0 to 9 in HSSF-CWs. The maximal nitrogen removal efficiencies (NH4+-N 98% and TN 90%) were achieved at a C/N ratio of 12:1 by Liang et al. [3]. These above studies show contradictory results due to different experimental conditions (e.g., the types of CWs, plant species, influent loads, temperature, etc.).
Moreover, both aeration and COD/N ratios are important factors affecting COD and nitrogen removal in CWs and the combination of both factors could lead to complicated effectiveness in CWs. Liu et al. [20] found that the TN removal rate in vertical flow constructed wetlands (VFCWs) with intermittent aeration (IA) was approximately 0.04~0.71 g/m2·d greater than that in VFCWs with non-aeration (NA) when the COD/N ratios ranged from 0 to 10. Higher removal percentages of COD (96%), NH4+-N (99%) and TN (90%) were obtained at an influent COD/N ratio of 10 in intermittently aerated VFCWs, while the removal percentages of COD (75%), NH4+-N (25%) and TN (26%) were obtained in non-aerated VFCWs by Fan et al. [21]. In general, the influence of COD/N ratios on the removal efficiencies of pollutants may be compensated or improved by IA in HSSF-CWs. Therefore, more detailed investigation on the combined effect of IA and COD/N ratios on the performance of HSSF-CWs is necessary.
The objectives of this study were: (1) to investigate the influence of aeration modes on organic matter and nitrogen removal in HSSF-CWs; (2) to elucidate the effect of influent COD/N ratios on organic matter and nitrogen removal in both HSSF-CWs with IA and non-aeration. The results obtained from this study will both provide reference for obtaining the optimal aeration mode and COD/N ratio for increasing the efficiency of HSSF-CWs in practical application and a comprehensive understanding of the interaction between oxygen content and organic matter degradation within HSSF-CWs.

2. Materials and Methods

2.1. Experimental Setup

Two experiments were carried out in an environment-controlled greenhouse located at the Northeast Institute of Geography and Agroecology, Chinese Academy of Sciences, Changchun, China. Four parallel mesocosm-scale HSSF-CWs were constructed for treating synthetic wastewater. The schematic diagram of the HSSF-CWs is shown in Figure 1. Each respective HSSF-CW was made from plexiglas with a length of 0.98 m, a width of 0.56 m and a height of 0.5 m. The emergent plants employed in HSSF-CWs were Canna indica with an original height of ~20 cm and a density of 9 plants/m2. The same cultivar of Canna indica was applied in a previous study and the results showed that it had a greater nutrient removal performance [3]. Each HSSF-CW included an inlet area (0.16 m), working area (0.66 m) and outlet area (0.16 m). In the working area, a 0.4 m layer of gravel (10 ± 2 mm in diameter) was filled at the bottom and a 0.1 m layer of local black soil was placed above the gravel layer for the growth of plants. The water level was maintained at 0.05 m below the black soil surface, giving a total water depth of 0.45 m. The inlet and outlet area were filled with gravel with a diameter of 15 ± 5 mm, accordingly ensuring a uniform inlet and outlet. The gravel was rinsed thoroughly with tap water before both formal experiments were carried out. There were three sampling points for each HSSF-CW (a distance of 10 cm from the bottom) along the wetland.
In Experiment 1, four respective different aeration modes including aeration at 24 h before input of the influent water (PA), aeration at 6 h and 12 h after input of the influent water (refer to 6AA and 12AA, respectively) and non-aeration (NA) were tested. For HSSF-CW with PA, the aeration was constructed in a feed tank and three aeration pipes were inserted at 10 cm below the surface of the influent water in a feed tank. For HSSF-CWs with 6AA and 12AA, three aeration pipes were installed vertically from the surface of each HSSF-CW and the vertical distance from these pipe nozzles to the bottom of the HSSF-CWs was 0.3 m. All the aeration pipes in HSSF-CWs with PA, 6AA and 12AA, were connected to aeration pumps and the aeration strength was 1 L min−1 for all the aerated treatments.
In Experiment 2, for the HSSF-CW with IA, the equipment was similar to HSSF-CW with 6AA in Experiment 1 and the aeration was at a frequency of 12 h/day after the input of influent water. HSSF-CWs without aeration (refer to NA) were set up in both Experiment 1 and Experiment 2 as controls. The environmental temperature was recorded daily during the operation of both experiments.

2.2. Experimental Operation

The influents were synthetically prepared in a feed tank by dissolving sodium acetate (CH3COONa), KNO3 and NH4Cl in tap water in this study. All of the chemical reagents were of analytical grade. All the treatments in both experiments were carried out for one cycle and the hydraulic retention time (HRT) was 6 days. The inflow of synthetic water to each HSSF-CW was 75 L. The experiments were carried out after Canna indica had grown in HSSF-CWs for 1 month, during which time the plants and microorganisms adapted to the wetland environment.
In Experiment 1, the influent concentrations of NH4+-N, NO3−-N and COD were 32.2 mg/L, 37.2 mg/L and 222.4 mg/L, respectively. In HSSF-CW with PA, the influent water was aerated at a rate of 1 L min−1 for 24 h in a feed tank and was then put into an HSSF-CW. In HSSF-CWs with 6AA and 12AA, the influent water was aerated at a rate of 1 L min−1 for 6 h and 12 h, respectively, once it was put into the HSSF-CWs. Experiment 2 aimed to determine the effect of COD/N ratios on the performance of HSSF-CWs with aeration modes of IA and NA. CH3COONa was added into the synthetic wastewater to obtain influent water with designated COD/N ratios (i.e., 3.0, 3.9, 8.0, 9.3 and 11.0). The composition of the influent is shown in Table 1.

2.3. Sampling and Analysis

The water samples were collected daily from the three sampling points of each HSSF-CW and then mixed together to make one sample. Water samples were analyzed for dissolved oxygen (DO), oxidation-reduction potential (ORP), CODCr, NH4+-N, NO3−-N and TN. DO and ORP were determined in situ by a magnetic portable multiparameter analyzer (DZB-718, INESA INSTRUMENT, Shanghai, China). CODCr was analyzed by the potassium chromate method [22]. Concentrations of NH4+-N, NO3−-N and TN were determined by using a full-automatic analyzer (SMART CHEM200, Italy). Data analysis and cartography were performed using Origin 9.0.

3. Results and Discussion

3.1. Influence of Aeration Modes on Performance of HSSF-CWs

3.1.1. DO and ORP Change in HSSF-CWs with Different Aeration Modes

DO plays an important role in regulating microbial activity in wetlands and is a crucial environmental parameter that controls nitrification and organic matter biodegradation processes [19]. The distribution of DO and ORP in the four HSSF-CWs with different aeration modes are presented in Figure 2. As is shown in Figure 2a, the influent DO concentrations were all approximately 6.28 mg/L in HSSF-CWs with 6AA, 12AA and NA treatments, while DO concentration in HSSF-CW with PA treatment was 8.30 mg/L due to pre-aeration at 24 h before input. For HSSF-CW with NA treatment, a fast depletion of DO mainly occurred during the first 6 h, causing anoxic/anaerobic conditions with DO ≤ 1 mg/L. In HSSF-CW with PA treatment, although the initial DO concentration was greater than other treatments, due to the 24 h pre-aeration, the DO concentration also decreased rapidly owing to the fast consumption of oxygen during the process of nitrification and organic matter biodegradation. When the HRT was 24 h, the DO concentration was ≤1 mg/L in HSSF-CW with PA. The observed DO concentrations in the aerated HSSF-CWs with 6AA and 12AA were always greater than NA and PA with increasing HRT. Moreover, the DO concentrations were ≤1 mg/L when the HRT was 96 h in both HSSF-CWs with 6AA and 12AA. It can be summarized that AA improved the oxygen availability and prolonged the duration of aerobic conditions for all aerated HSSF-CWs. However, the change and fluctuation of DO concentrations observed in different treatments were different. Aeration after the input of influent water (refer to 6AA and 12AA) could enhance the concentrations of DO more than NA and PA.
ORP represents the change in the oxidation-reduction condition in CWs and previous studies have indicated that redox manipulation with AA improves the DO level [18,23,24]. The ORP of influent water in the feed tank of all HSSF-CWs was ~281.3 mV. The ORP in all HSSF-CWs sharply decreased in the first 48 h due to the consumption of DO. Afterwards, the ORP slowly decreased with extension of the HRT. The ORP of NA treatment decreased to a negative value and the ORP of PA treatment was close to zero at a HRT of 96 h and both remained decreased afterwards. In contrast, the ORP of 6AA and 12AA remained positive because AA after the input of influent water increased the oxygen content. These above observations demonstrate that a single aeration cannot substantially and enduringly improve the redox condition of HSSF-CWs and cannot create suitable alternating aerobic and anaerobic conditions.

3.1.2. Organic Matter Removal in HSSF-CWs with Different Aeration Modes

The physical processes of sedimentation, filtration, interception and the microbial processes of biodegradation are major pathways for organic matter removal from CWs [8]. Organic matter removal efficiencies in the HSSF-CWs with different aeration modes are shown in Figure 3. The removal percentages of CODCr in HSSF-CWs with PA, 6AA and 12AA were 83.9%, 73.2% and 77.9%, respectively, while the CODCr removal percentage in HSSF-CW with NA was 63.2%. Substantial improvement in organic matter removal in aerated CWs was also observed in many previous studies [8,12]. This could be explained by the fact that increased DO concentrations with AA could enhance the activity of microorganisms, which would contribute to the biodegradation of organic matter. Moreover, the final CODCr removal percentage in HSSF-CW with 12AA was lower than that in PA but higher than that in HSSF-CW with 6AA, demonstrating a substantial difference in the treatment efficiency of organic matter with different aeration modes.

3.1.3. Nitrogen Removal in HSSF-CWs with Different Aeration Modes

The removal percentages of NH4+-N and NO3−-N in HSSF-CWs with different aeration modes are illustrated in Figure 4. The removal percentages of NH4+-N in HSSF-CWs with 6A and 12A (96.2% and 92.9%, respectively) were slightly higher than in HSSF-CWs with PA and NA (87.9% and 90.8%, respectively). This observation indicates that the NH4+-N removal efficiency in HSSF-CWs could be enhanced by aeration after the input of influent water. In contrast to NH4+-N removal, the NO3−-N removal was found to be better in HSSF-CWs with PA (94.7%) and NA (94.1%) compared to HSSF-CWs with 6AA (68.1%) and 12AA (77.1%). This is because the excessive oxygen could lead to an aerobic environment, which inhibits the denitrification of nitrate. Additionally, the limited available organic matter might also restrain the denitrification process in HSSF-CWs [5,9,25].
Although greater removal efficiencies of CODCr and NO3−-N were achieved in HSSF-CW with PA, a single pre-aeration could not stably and chronically maintain a greater removal performance with the exhaustion of oxygen. While the removal efficiencies of CODCr and NH4+-N were enhanced, NO3−-N accumulated in HSSF-CWs with aeration after the input of influent water. These above observations indicate that a single aeration (aeration before/after input) could not achieve simultaneous nitrification and denitrification. As far as is known, IA could, not only increase DO concentrations, but also reduce the operation cost of continuous aeration [26]. The influent COD/N ratios can also significantly affect the removal performance of pollutants. The appropriate IA may compensate or improve the adverse effects induced by influent COD/N ratios in HSSF-CWs. Therefore, in the subsequent experiment, the combination of IA at a frequency of 12 h/day and different COD/N ratios were tested to observe the removal performance of CODCr and nitrogen in HSSF-CWs.

3.2. Impact of Influent COD/N Ratios on Organic Matter and Nitrogen Removal in HSSF-CWs with IA Mode

3.2.1. CODCr Removal in HSSF-CWs under Different Influent COD/N Ratios

The removal efficiency of CODCr in HSSF-CWs with NA and IA under various influent COD/N ratios is shown in Figure 5. In HSSF-CW with NA, the removal percentage of CODCr remained below 70% and relatively higher removal percentages were observed under lower influent COD/N ratios (refer to COD/N ratios at 3.0 and 3.9). Sufficient oxygen ensures the biodegradation of CODCr when the influent COD/N ratios are lower. With the increase in COD/N ratios, the removal percentage of CODCr gradually decreased. This is because the limitation of oxygen deficiency in organic matter biodegradation became more obvious in HSSF-CW with NA. The removal percentages of CODCr in HSSF-CW with IA were 98.2%, 96.2%, 88.5%, 90.1% and 85.2% for influent COD/N ratios of 3.0, 3.9, 8.0, 9.3 and 11.0, respectively. A markedly better performance in organic matter degradation was observed in HSSF-CW with IA than in HSSF-CW with NA. The increasing COD/N ratios did not influence the removal efficiency of CODCr in HSSF-CW with IA. The activity of aerobic chemoheterotrophic bacteria, that utilize oxygen as the final electron acceptor, is largely dependent on the supply of organic matter and oxygen [12,27]. Therefore, sufficient oxygen supply can improve the aerobic biodegradation of organic matter and enhance CODCr removal in HSSF-CWs.

3.2.2. NH4+-N and TN Removal in HSSF-CWs under Different Influent COD/N Ratios

Nitrogen removal efficiency in most CWs was low due to their inability to provide an aerobic condition for nitrification and an anaerobic condition for denitrification simultaneously [21]. The change in NH4+-N and TN removal percentages with increasing COD/N ratios in HSSF-CWs with IA and NA are presented in Figure 6. As shown in Figure 6a, the removal percentages of NH4+-N were 92.7% and 91.1% in HSSF-CW with NA under influent COD/N ratios of 3.0 and 3.9, respectively. Subsequently, the removal percentage of NH4+-N decreased when the COD/N ratio increased to 8.0 and continued to be relatively stable when the COD/N ratios were further increased. This is because the additional organic matter had a high demand for DO and further hindered the nitrification. However, in HSSF-CW with IA, the removal percentage of NH4+-N basically remained stable with increasing COD/N ratios and was always greater than 99.2%. Rising oxygen availability in HSSF-CW with IA might contribute to the aerobic chemo-autotrophic microbial process of nitrification [11]. Other previous studies also demonstrated that the activity of ammonia-oxidizing bacteria could be improved by IA [28]. This observation indicated that the aeration system could markedly improve NH4+-N removal even with the additional increasing carbon source.
Denitrification is an anaerobic microbial driven process and is reported to account for typically 60–95% of permanent TN removal in CWs [29]. NO3−-N (produced via the nitrification process) serves as an electron acceptor for respiratory electron transport and organic matter serves as an electron donor in the process of denitrification [9]. The influent COD/N ratios could affect both the processes of nitrification and denitrification, so TN was selected as an index in this experiment for comprehensively evaluating the performance of CWs. As shown in Figure 6b, the removal percentages of TN were 88.2% and 87.7% in HSSF-CW with NA under influent COD/N ratios of 3.0 and 3.9, respectively. The removal percentage of TN reached its peak value at the influent COD/N ratio of 8.0. It is possible that more organic matter was provided for HSSF-CW with NA, which supplied plenty of electron donors for denitrification [18]. Subsequently, the removal percentages of TN decreased from 91.5% to 82.2% in the HSSF-CW with NA when COD/N ratios increased from 8.0 to 11.0. This observation might be an outcome of organic matter degradation consuming a large amount of DO that would restrict the process of denitrification due to insufficient supply of NO3−-N as electron acceptors. In HSSF-CW with IA, the removal percentages of TN were lower with COD/N ratios of 3.0 and 3.9. The lack of organic matter supply hindered the process of denitrification and further led to the accumulation of NO3−-N in the presence of aeration. Wang et al. [30] also revealed that the carbon source was insufficient when COD/N ratios were less than 4. Subsequently, the removal percentages of TN increased to 99.5% at a COD/N ratio of 9.3 and then slightly decreased to 97.3% in HSSF-CW with IA. This observation indicated that a high efficiency of nitrification and denitrification simultaneously occurred in intermittently aerated HSSF-CWs with high COD/N ratios.
It is observed that IA could achieve greater NH4+-N and TN removal percentages compared with NA. IA could facilitate the establishment of both aerobic and anaerobic environments that were suitable for nitrification and denitrification, which enhance TN removal [12,21,31]. It is noteworthy that HSSF-CW with IA could still achieve a relatively higher TN removal percentage with high COD/N ratios, which indicates that IA is suitable for the treatment of wastewater with a high concentration of organic matter.
The efficacy of CWs with AA have mostly been investigated in the laboratory or pilot scales and the pollutant removal efficiency in aerated CWs has been shown to outperform conventional CWs in many previous investigations [12,13,14,32]. In this study, we further tested both the influence of different aeration modes and the combined effects of IA and different COD/N ratios on the efficiency of CWs and the application of AA in CWs was also shown to be more effective than NA. Although this study was still conducted at the mesocosm scale, it could be inferred that AA might improve the performance of large scale CWs to some extent based upon results from both the current and previous studies. Future studies are recommended to evaluate and quantify the effectiveness of AA in CWs in real conditions.

4. Conclusions

The use of single aeration, both before and after the input of the influent water, could not simultaneously achieve relatively high removal efficiencies of NH4+-N and NO3−-N in HSSF-CWs. Unlike HSSF-CW with NA, an increase in COD/N ratios led to an increased removal percentage of TN and the NH4+-N removal percentage was maintained at a high level in HSSF-CW with IA. The greatest removal percentages of NH4+-N and TN were obtained when the COD/N ratio was 9.3. Although the removal percentage of CODCr slightly decreased with increasing COD/N ratios, it was always greater than 85.2% in HSSF-CW with IA. In conclusion, HSSF-CW with IA was suitable for treating wastewater with high COD/N ratios and a COD/N ratio of 9.3 was optimal for the removal of CODCr and nitrogen in HSSF-CW with IA.

Author Contributions

H.Z. designed the experiment, Q.Z., X.C. and Y.X. conducted the experiments, X.C. wrote the manuscript, H.Z., B.S. and B.Y. revised the manuscript.

Funding

This research was funded by the National Key R&D Program of China (No. 2016YFC0500404-4), the National Natural Science Foundation of China (No. 41471406) and the Youth Innovation Promotion Association of CAS (No. 2017274).

Acknowledgments

The kind assistance and advice during the whole experiment by Xiangfei Yu is appreciated.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Donde, O.O.; Xiao, B.D. Understanding wastewater treatment mechanisms: A review on detection, removal and purification efficiencies of faecal bacteria indicators across constructed wetlands. Environ. Rev. 2017, 25, 444–451. [Google Scholar] [CrossRef]
  2. Chyan, J.-M.; Senoro, D.-B.; Lin, C.-J.; Chen, P.-J.; Chen, I.M. A novel biofilm carrier for pollutant removal in a constructed wetland based on waste rubber tire chips. Int. Biodeterior. Biodegrad. 2013, 85, 638–645. [Google Scholar] [CrossRef]
  3. Liang, Y.X.; Zhu, H.; Banuelos, G.; Yan, B.X.; Shutes, B.; Cheng, X.W.; Chen, X. Removal of nutrients in saline wastewater using constructed wetlands: Plant species, influent loads and salinity levels as influencing factors. Chemosphere 2017, 187, 52–61. [Google Scholar] [CrossRef] [PubMed]
  4. Liang, Y.X.; Zhu, H.; Banuelos, G.; Yan, B.X.; Zhou, Q.W.; Yu, X.F.; Cheng, X.W. Constructed wetlands for saline wastewater treatment: A review. Ecol. Eng. 2017, 98, 275–285. [Google Scholar] [CrossRef]
  5. Wu, H.; Fan, J.; Zhang, J.; Huu Hao, N.; Guo, W.; Liang, S.; Hu, Z.; Liu, H. Strategies and techniques to enhance constructed wetland performance for sustainable wastewater treatment. Environ. Sci. Pollut. Res. 2015, 22, 14637–14650. [Google Scholar] [CrossRef] [PubMed]
  6. Uggetti, E.; Hughes-Riley, T.; Morris, R.H.; Newton, M.I.; Trabi, C.L.; Hawes, P.; Puigagut, J.; Garcia, J. Intermittent aeration to improve wastewater treatment efficiency in pilot-scale constructed wetland. Sci. Total Environ. 2016, 559, 212–217. [Google Scholar] [CrossRef] [PubMed]
  7. Vymazal, J. Horizontal sub-surface flow and hybrid constructed wetlands systems for wastewater treatment. Ecol. Eng. 2005, 25, 478–490. [Google Scholar] [CrossRef]
  8. Wang, X.O.; Tian, Y.M.; Zhao, X.H.; Peng, S.; Wu, Q.; Yan, L.J. Effects of aeration position on organics, nitrogen and phosphorus removal in combined oxidation pond-constructed wetland systems. Bioresour. Technol. 2015, 198, 7–15. [Google Scholar] [CrossRef] [PubMed]
  9. Saeed, T.; Sun, G.Z. A review on nitrogen and organics removal mechanisms in subsurface flow constructed wetlands: Dependency on environmental parameters, operating conditions and supporting media. J. Environ. Manag. 2012, 112, 429–448. [Google Scholar] [CrossRef] [PubMed]
  10. Ye, F.X.; Li, Y. Enhancement of nitrogen removal in towery hybrid constructed wetland to treat domestic wastewater for small rural communities. Ecol. Eng. 2009, 35, 1043–1050. [Google Scholar] [CrossRef]
  11. Liu, H.Q.; Hu, Z.; Zhang, J.; Ngo, H.H.; Guo, W.S.; Liang, S.; Fan, J.L.; Lu, S.Y.; Wu, H.M. Optimizations on supply and distribution of dissolved oxygen in constructed wetlands: A review. Bioresour. Technol. 2016, 214, 797–805. [Google Scholar] [CrossRef] [PubMed]
  12. Fan, J.L.; Zhang, B.; Zhang, J.; Ngo, H.H.; Guo, W.S.; Liu, F.F.; Guo, Y.Y.; Wu, H.M. Intermittent aeration strategy to enhance organics and nitrogen removal in subsurface flow constructed wetlands. Bioresour. Technol. 2013, 141, 117–122. [Google Scholar] [CrossRef]
  13. Zapater-Pereyra, M.; Gashugi, E.; Rousseau, D.P.L.; Alam, M.R.; Bayansan, T.; Lens, P.N.L. Effect of aeration on pollutants removal, biofilm activity and protozoan abundance in conventional and hybrid horizontal subsurface-flow constructed wetlands. Environ. Technol. 2014, 35, 2086–2094. [Google Scholar] [CrossRef] [PubMed]
  14. Zhang, L.Y.; Zhang, L.; Liu, Y.D.; Shen, Y.W.; Liu, H.; Xiong, Y. Effect of limited artificial aeration on constructed wetland treatment of domestic wastewater. Desalination 2010, 250, 915–920. [Google Scholar] [CrossRef]
  15. Roy, D.; Hassan, K.; Boopathy, R. Effect of carbon to nitrogen (C:N) ratio on nitrogen removal from shrimp production waste water using sequencing batch reactor. J. Ind. Microbiol. Biotechnol. 2010, 37, 1105–1110. [Google Scholar] [CrossRef] [PubMed]
  16. Shen, Z.Q.; Zhou, Y.X.; Liu, J.; Xiao, Y.; Cao, R.; Wu, F.P. Enhanced removal of nitrate using starch/PCL blends as solid carbon source in a constructed wetland. Bioresour. Technol. 2015, 175, 239–244. [Google Scholar] [CrossRef] [PubMed]
  17. Zhao, Y.J.; Liu, B.; Zhang, W.G.; Ouyang, Y.; An, S.Q. Performance of pilot-scale vertical-flow constructed wetlands in responding to variation in influent C/N ratios of simulated urban sewage. Bioresour. Technol. 2010, 101, 1693–1700. [Google Scholar] [CrossRef] [PubMed]
  18. Zhu, H.; Yan, B.X.; Xu, Y.Y.; Guan, J.N.; Liu, S.Y. Removal of nitrogen and cod in horizontal subsurface flow constructed wetlands under different influent C/N ratios. Ecol. Eng. 2014, 63, 58–63. [Google Scholar] [CrossRef]
  19. Ding, Y.; Song, X.S.; Wang, Y.H.; Yan, D.H. Effects of dissolved oxygen and influent COD/N ratios on nitrogen removal in horizontal subsurface flow constructed wetland. Ecol. Eng. 2012, 46, 107–111. [Google Scholar] [CrossRef]
  20. Liu, L.; Zhao, X.H.; Zhao, N.; Shen, Z.; Wang, M.; Guo, Y.Z.; Xu, Y.B. Effect of aeration modes and influent COD/N ratios on the nitrogen removal performance of vertical flow constructed wetland. Ecol. Eng. 2013, 57, 10–16. [Google Scholar] [CrossRef]
  21. Fan, J.L.; Wang, W.G.; Zhang, B.; Guo, Y.Y.; Ngo, H.H.; Guo, W.S.; Zhang, J.; Wu, H.M. Nitrogen removal in intermittently aerated vertical flow constructed wetlands: Impact of influent cod/n ratios. Bioresour. Technol. 2013, 143, 461–466. [Google Scholar] [CrossRef] [PubMed]
  22. Water Quality-Determination of Chemical Oxygen Demand-Dichromate Method; GB11914-89; Environmental Protection Agency (EPA) of China: Beijing, China, 1989.
  23. Zhang, X.; Inoue, T.; Kato, K.; Harada, J.; Izumoto, H.; Wu, D.; Sakuragi, H.; Ietsugu, H.; Sugawara, Y. Performance of hybrid subsurface constructed wetland system for piggery wastewater treatment. Water Sci. Technol. 2016, 73, 13–20. [Google Scholar] [CrossRef] [PubMed]
  24. Zhong, F.; Wu, J.; Dai, Y.R.; Yang, L.H.; Zhang, Z.H.; Cheng, S.P.; Zhang, Q. Bacterial community analysis by PCR-DGGE and 454-pyrosequencing of horizontal subsurface flow constructed wetlands with front aeration. Appl. Microbiol. Biotechnol. 2015, 99, 1499–1512. [Google Scholar] [CrossRef] [PubMed]
  25. Dong, H.Y.; Qiang, Z.M.; Li, T.G.; Jin, H.; Chen, W.D. Effect of artificial aeration on the performance of vertical-flow constructed wetland treating heavily polluted river water. J. Environ. Sci. 2012, 24, 596–601. [Google Scholar] [CrossRef]
  26. Ilyas, H.; Masih, I. The performance of the intensified constructed wetlands for organic matter and nitrogen removal: A review. J. Environ. Manag. 2017, 198, 372–383. [Google Scholar] [CrossRef] [PubMed]
  27. Garcia, J.; Rousseau, D.P.L.; Morato, J.; Lesage, E.; Matamoros, V.; Bayona, J.M. Contaminant removal processes in subsurface-flow constructed wetlands: A review. Crit. Rev. Env. Sci. Technol. 2010, 40, 561–661. [Google Scholar] [CrossRef]
  28. Wu, H.M.; Fan, J.L.; Zhang, J.; Ngo, H.H.; Guo, W.S.; Hu, Z.; Liang, S. Decentralized domestic wastewater treatment using intermittently aerated vertical flow constructed wetlands: Impact of influent strengths. Bioresour. Technol. 2015, 176, 163–168. [Google Scholar] [CrossRef] [PubMed]
  29. Lee, C.G.; Fletcher, T.D.; Sun, G.Z. Nitrogen removal in constructed wetland systems. Eng. Life Sci. 2009, 9, 11–22. [Google Scholar] [CrossRef]
  30. Wang, W.; Ding, Y.; Ullman, J.L.; Ambrose, R.F.; Wang, Y.H.; Song, X.S.; Zhao, Z.M. Nitrogen removal performance in planted and unplanted horizontal subsurface flow constructed wetlands treating different influent COD/N ratios. Environ. Sci. Pollut. Res. Int. 2016, 23, 9012–9018. [Google Scholar] [CrossRef] [PubMed]
  31. Foladori, P.; Ruaben, J.; Ortigara, A.R.C. Recirculation or artificial aeration in vertical flow constructed wetlands: A comparative study for treating high load wastewater. Bioresour. Technol. 2013, 149, 398–405. [Google Scholar] [CrossRef] [PubMed]
  32. Ilyas, H.; Masih, I. Intensification of constructed wetlands for land area reduction: A review. Environ. Sci. Pollut. Res. 2017, 24, 12081–12091. [Google Scholar] [CrossRef] [PubMed]
Water 10 01530 g001
Figure 1. Experimental constructed wetland design.
Figure 1. Experimental constructed wetland design.
Water 10 01530 g001
Water 10 01530 g002
Figure 2. The changes in DO (a) and ORP (b) in HSSF-CWs with different aeration modes with increasing HRT (PA: Pre-aeration at 24 h before the input of influent water; 6AA: Aeration at 6 h after the input of influent water; 12AA: Aeration at 12 h after the input of influent water; NA: Non-aeration). HRT: hydraulic retention time.
Figure 2. The changes in DO (a) and ORP (b) in HSSF-CWs with different aeration modes with increasing HRT (PA: Pre-aeration at 24 h before the input of influent water; 6AA: Aeration at 6 h after the input of influent water; 12AA: Aeration at 12 h after the input of influent water; NA: Non-aeration). HRT: hydraulic retention time.
Water 10 01530 g002
Water 10 01530 g003
Figure 3. The CODCr removal efficiency in HSSF-CWs with different aeration modes with increasing HRT (PA: Pre-aeration at 24 h before the input of influent water; 6AA: Aeration at 6 h after the input of influent water; 12AA: Aeration at 12 h after the input of influent water; NA: Non-aeration). HRT: hydraulic retention time.
Figure 3. The CODCr removal efficiency in HSSF-CWs with different aeration modes with increasing HRT (PA: Pre-aeration at 24 h before the input of influent water; 6AA: Aeration at 6 h after the input of influent water; 12AA: Aeration at 12 h after the input of influent water; NA: Non-aeration). HRT: hydraulic retention time.
Water 10 01530 g003
Water 10 01530 g004

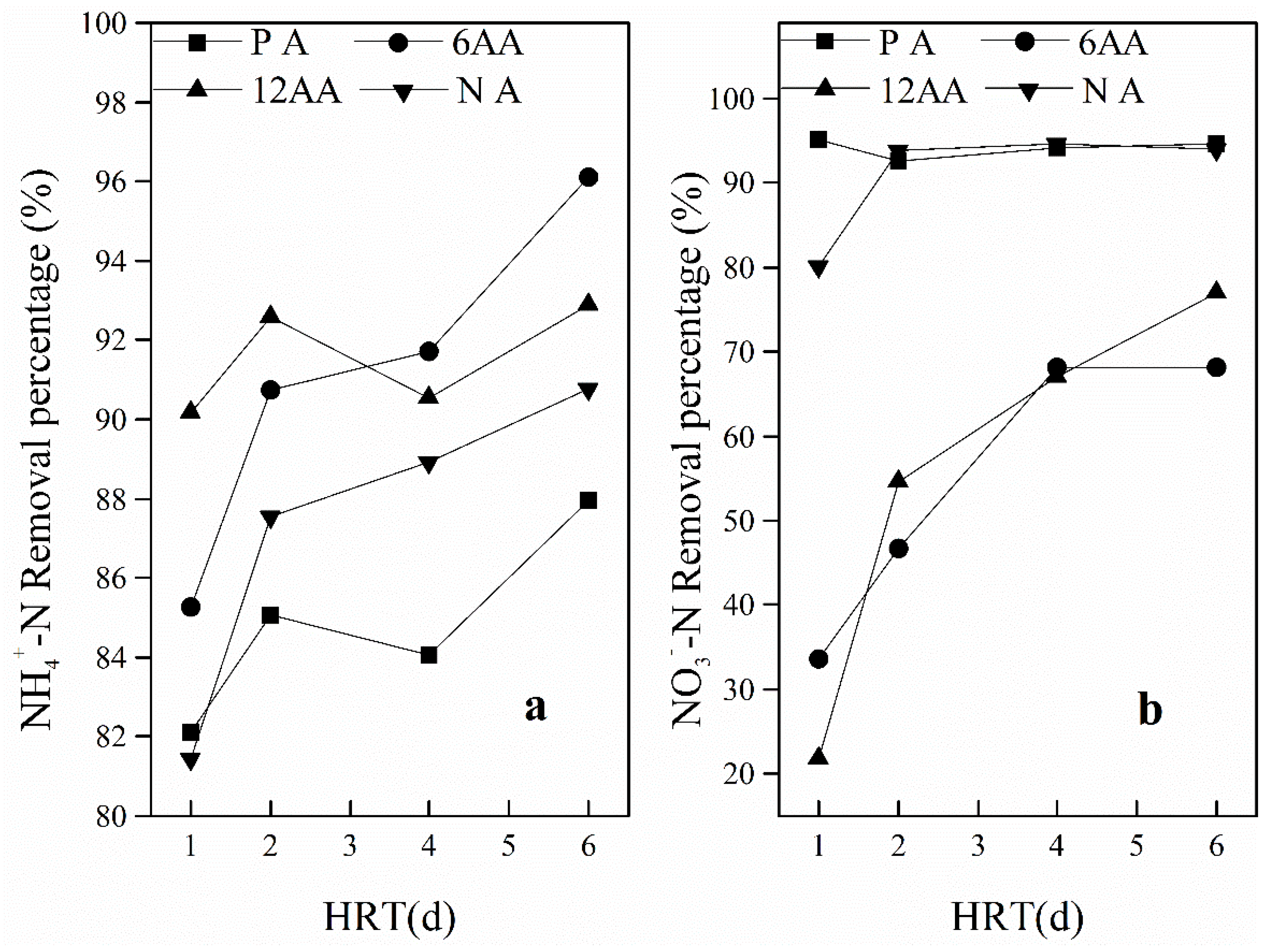

Figure 4. The removal efficiencies of NH4+-N (a) and NO3−-N (b) in HSSF-CWs with different aeration modes. (PA: Pre-aeration at 24 h before the input of influent water; 6AA: Aeration at 6 h after the input of influent water; 12AA: Aeration at 12 h after the input of influent water; NA: Non-aeration)
Figure 4. The removal efficiencies of NH4+-N (a) and NO3−-N (b) in HSSF-CWs with different aeration modes. (PA: Pre-aeration at 24 h before the input of influent water; 6AA: Aeration at 6 h after the input of influent water; 12AA: Aeration at 12 h after the input of influent water; NA: Non-aeration)
Water 10 01530 g004
Water 10 01530 g005

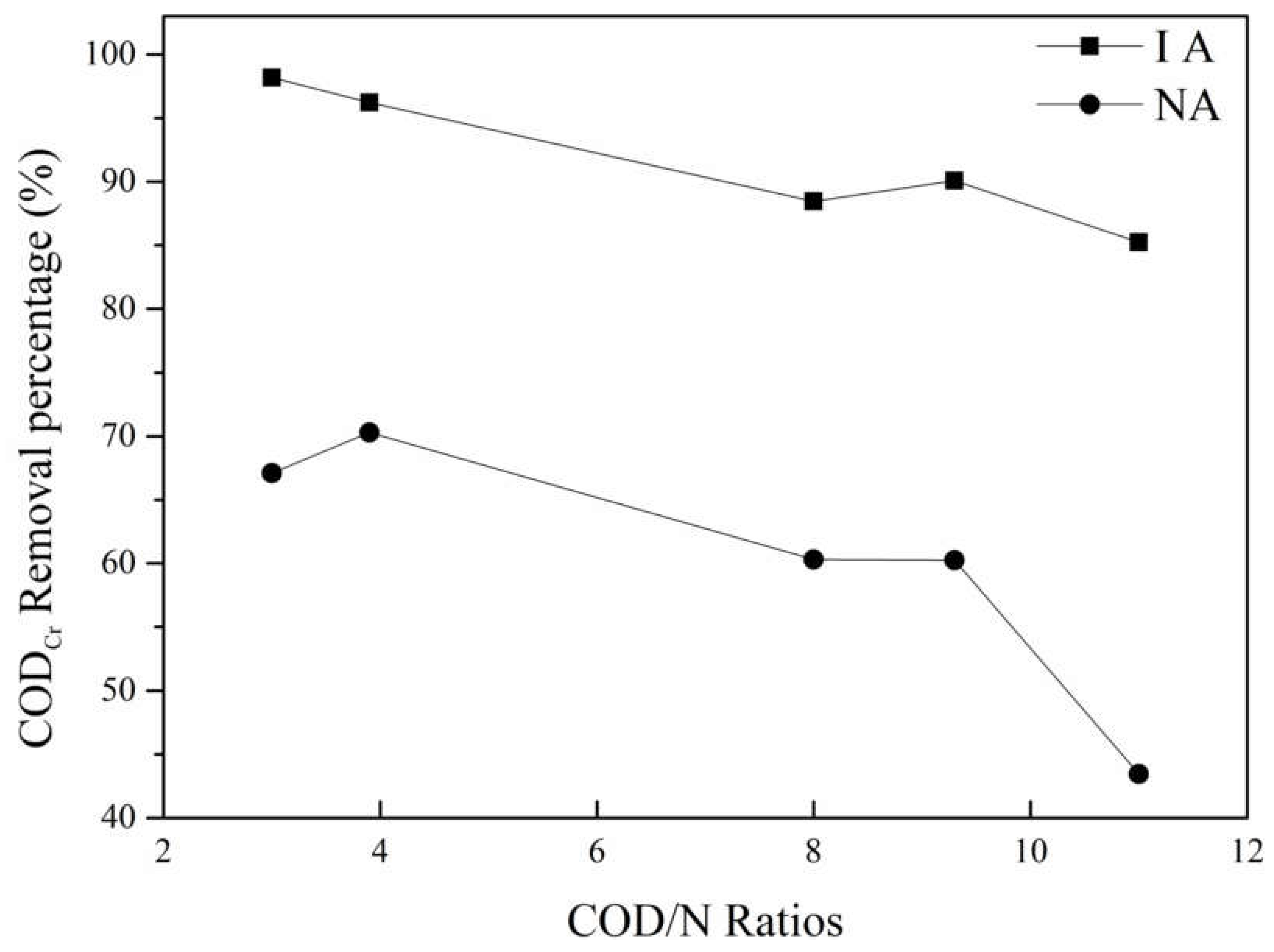

Figure 5. The removal efficiency of CODCr in HSSF-CWs with IA and NA under different COD/N ratios. (IA: Intermittent aeration; NA: Non-aeration).
Figure 5. The removal efficiency of CODCr in HSSF-CWs with IA and NA under different COD/N ratios. (IA: Intermittent aeration; NA: Non-aeration).
Water 10 01530 g005
Water 10 01530 g006
Figure 6. The removal efficiencies of NH4+-N (a) and TN (b) in HSSF-CWs with IA and NA under different COD/N ratios (IA: Intermittent aeration; NA: Non-aeration).
Figure 6. The removal efficiencies of NH4+-N (a) and TN (b) in HSSF-CWs with IA and NA under different COD/N ratios (IA: Intermittent aeration; NA: Non-aeration).
Water 10 01530 g006
Table 1. The influent concentrations of pollutants under different COD/N ratios.
Table 1. The influent concentrations of pollutants under different COD/N ratios.
NH4+-N(mg/L)TN (mg/L)COD (mg/L)COD /N Ratios
59.459.7180.93.0
59.459.7231.23.9
56.460.1481.38.0
57.460.3561.99.3
59.659.7659.111.0
