# On the Interpretation of Gravity Wave Measurements by Ground-Based Lidars

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Gravity Wave Signatures in Ground-Based Lidar Data

## 3. Basic Considerations

#### 3.1. Plane Boussinesq Waves

#### 3.2. Wave Packets

#### 3.3. Doppler Shift

#### 3.4. Illustrations

#### 3.4.1. Plane Waves in an Atmosphere with Zero Wind

#### 3.4.2. Wave Packets in an Atmosphere with Zero Wind

- (a)
- the observed phase lines belong to a spatially- and temporally-localized wave packet,
- (b)
- the observed phase lines allow the graphical determination of the vertical wavelength ${\lambda}_{z}$ and of the ground-based frequency ω,
- (c)
- the observed waves obey a dispersion relation for internal Boussinesq wave like Equation (3),
- (d)
- the background stratification N is nearly constant over an altitude range of at least one vertical wavelength ${\lambda}_{z}$ and can be computed from the observation or meteorological data and
- (e)
- there is no mean wind in the atmosphere.

#### 3.4.3. Doppler-Shifted Wave Packets

## 4. Idealized Numerical Simulations

#### 4.1. Archetypal Regimes of Vertically-Propagating Internal Gravity Waves

- (i)
- non-hydrostatic wave regime, the
- (ii)
- hydrostatic “nonrotating” wave regime and the
- (iii)
- hydrostatic “rotating” wave regime.

#### 4.2. Results

## 5. Conclusions

## Acknowledgments

## Author Contributions

## Conflicts of Interest

## Appendix A. Setup of the Numerical Simulations

## References

- Wilson, R.; Chanin, M.L.; Hauchecorne, A. Gravity waves in the middle atmosphere observed by Rayleigh lidar: 1. Case studies. J. Geophys. Res. Atmos.
**1991**, 96, 5153–5167. [Google Scholar] [CrossRef] - Li, T.; She, C.Y.; Liu, H.L.; Leblanc, T.; McDermid, I.S. Sodium lidar observed strong inertia-gravity wave activities in the mesopause region over Fort Collins, Colorado (41° N, 105° W). J. Geophys. Res. Atmos.
**2007**, 112, D22104. [Google Scholar] [CrossRef] - Lu, X.; Liu, A.Z.; Swenson, G.R.; Li, T.; Leblanc, T.; McDermid, I.S. Gravity wave propagation and dissipation from the stratosphere to the lower thermosphere. J. Geophys. Res. Atmos.
**2009**, 114, D11101. [Google Scholar] [CrossRef] - Chen, C.; Chu, X.; McDonald, A.J.; Vadas, S.L.; Yu, Z.; Fong, W.; Lu, X. Inertia-gravity waves in Antarctica: A case study using simultaneous lidar and radar measurements at McMurdo/Scott Base (77.8° S, 166.7° E). J. Geophys. Res. Atmos.
**2013**, 118, 2794–2808. [Google Scholar] [CrossRef] - Suzuki, S.; Lübken, F.-J.; Baumgarten, G.; Kaifler, N.; Eixmann, R.; Williams, B.P.; Nakamura, T. Vertical propagation of a mesoscale gravity wave from the lower to the upper atmosphere. J. Atmos. Sol. Terr. Phys.
**2013**, 97, 29–36. [Google Scholar] [CrossRef] - Baumgarten, G.; Fiedler, J.; Hildebrand, J.; Lübken, F.-J. Inertia gravity wave in the stratosphere and mesosphere observed by Doppler wind and temperature lidar. Geophys. Res. Lett.
**2015**, 42, 10929–10936. [Google Scholar] [CrossRef] - Ehard, B.; Kaifler, B.; Dörnbrack, A.; Preusse, P.; Eckermann, S.D.; Bramberger, M.; Gisinger, S.; Kaifler, N.; Liley, B.; Wagner, J.; et al. Horizontal propagation of large-amplitude mountain waves into the polar night jet. J. Geophys. Res. Atmos.
**2017**. [Google Scholar] [CrossRef] - Chanin, M.L.; Hauchecorne, A. Lidar observation of gravity and tidal waves in the stratosphere and mesosphere. J. Geophys. Res. Oceans
**1981**, 86, 9715–9721. [Google Scholar] [CrossRef] - Gardner, C.S.; Miller, M.S.; Liu, C.H. Rayleigh lidar observations of gravity wave activity in the upper stratosphere at Urbana, Illinois. J. Atmos. Sci.
**1989**, 46, 1838–1854. [Google Scholar] [CrossRef] - Whiteway, J.A.; Carswell, A.I. Lidar observations of gravity wave activity in the upper stratosphere over Toronto. J. Geophys. Res. Atmos.
**1995**, 100, 14113–14124. [Google Scholar] [CrossRef] - Whiteway, J.A.; Duck, T.J.; Donovan, D.P.; Bird, J.C.; Pal, S.R.; Carswell, A.I. Measurements of gravity wave activity within and around the Arctic stratospheric vortex. Geophys. Res. Lett.
**1997**, 24, 1387–1390. [Google Scholar] [CrossRef] - Duck, T.J.; Whiteway, J.A.; Carswell, A.I. The gravity wave-arctic stratospheric vortex interaction. J. Atmos. Sci.
**2001**, 58, 3581–3596. [Google Scholar] [CrossRef] - Rauthe, M.; Gerding, M.; Höffner, J.; Lübken, F.-J. Lidar temperature measurements of gravity waves over Kühlungsborn (54° N) from 1 to 105 km: A winter-summer comparison. J. Geophys. Res. Atmos.
**2006**, 111, D24108. [Google Scholar] [CrossRef] - Yamashita, C.; Chu, X.; Liu, H.L.; Espy, P.J.; Nott, G.J.; Huang, W. Stratospheric gravity wave characteristics and seasonal variations observed by lidar at the South Pole and Rothera, Antarctica. J. Geophys. Res. Atmos.
**2009**, 114, D12101. [Google Scholar] [CrossRef] - Alexander, S.P.; Klekociuk, A.R.; Murphy, D.J. Rayleigh lidar observations of gravity wave activity in the winter upper stratosphere and lower mesosphere above Davis, Antarctica (69° S, 78° E). J. Geophys. Res. Atmos.
**2011**, 116, D13109. [Google Scholar] [CrossRef] - Ehard, B.; Achtert, P.; Gumbel, J. Long-term lidar observations of wintertime gravity wave activity over northern Sweden. Ann. Geophys.
**2014**, 32, 1395–1405. [Google Scholar] [CrossRef] - Khaykin, S.M.; Hauchecorne, A.; Mzé, N.; Keckhut, P. Seasonal variation of gravity wave activity at midlatitudes from 7 years of COSMIC GPS and Rayleigh lidar temperature observations. Geophys. Res. Lett.
**2015**, 42, 1251–1258. [Google Scholar] [CrossRef] - Kaifler, B.; Lübken, F.-J.; Höffner, J.; Morris, R.J.; Viehl, T.P. Lidar observations of gravity wave activity in the middle atmosphere over Davis (69° S, 78° E), Antarctica. J. Geophys. Res. Atmos.
**2015**, 120, 4506–4521. [Google Scholar] [CrossRef] - Triplett, C.C.; Collins, R.L.; Nielsen, K.; Harvey, V.L.; Mizutani, K. Role of wind filtering and unbalanced flow generation on middle atmosphere gravity wave activity at Chatanika Alaska. Atmosphere
**2017**, 8, 27. [Google Scholar] [CrossRef] - Ehard, B.; Kaifler, B.; Kaifler, N.; Rapp, M. Evaluation of methods for gravity wave extraction from middle-atmospheric lidar temperature measurements. Atmos. Meas. Tech.
**2015**, 8, 4645–4655. [Google Scholar] [CrossRef] - Le Pichon, A.; Assink, J.D.; Heinrich, P.; Blanc, E.; Charlton-Perez, A.; Lee, C.F.; Keckhut, P.; Hauchecorne, A.; Rüfenacht, R.; Kämpfer, N.; et al. Comparison of co-located independent ground-based middle atmospheric wind and temperature measurements with numerical weather prediction models. J. Geophys. Res. Atmos.
**2015**, 120, 8318–8331. [Google Scholar] [CrossRef] - Kaifler, B.; Kaifler, N.; Ehard, B.; Dörnbrack, A.; Rapp, M.; Fritts, D.C. Influences of source conditions on mountain wave penetration into the stratosphere and mesosphere. Geophys. Res. Lett.
**2015**, 42, 9488–9494. [Google Scholar] [CrossRef] - Eliassen, A.; Palm, E. On the transfer of energy in stationary mountain waves. Geofys. Publ.
**1961**, 22, 1–23. [Google Scholar] - Satomura, T.; Sato, K. Secondary generation of gravity waves associated with the breaking of mountain waves. J. Atmos. Sci.
**1999**, 56, 3847–3858. [Google Scholar] [CrossRef] - Sato, K. Sources of gravity waves in the polar middle atmosphere. Adv. Polar Upper Atmos.
**2000**, 14, 233–240. [Google Scholar] - Vadas, S.L.; Fritts, D.C.; Alexander, M.J. Mechanism for the generation of secondary waves in wave breaking regions. J. Atmos. Sci.
**2003**, 60, 194–214. [Google Scholar] [CrossRef] - Fritts, D.C.; Alexander, M.J. Gravity wave dynamics and effects in the middle atmosphere. Rev. Geophys.
**2003**, 41. [Google Scholar] [CrossRef] - Zhang, F.; Wang, S.; Plougonven, R. Uncertainties in using the hodograph method to retrieve gravity wave characteristics from individual soundings. Geophys. Res. Lett.
**2004**, 31, L11110. [Google Scholar] [CrossRef] - Sutherland, B.R. Internal Gravity Waves; Cambridge University Press: Cambridge, UK, 2010; p. 394. [Google Scholar]
- Gill, A.E. Atmosphere-Ocean Dynamics; Academic Press: Cambridge, MA, USA, 1982; p. 662. [Google Scholar]
- Whitham, G.B. Linear and Nonlinear Waves; John Wiley and Sons: Chichester, UK, 1974; p. 636. [Google Scholar]
- Nappo, C.J. An Introduction to Atmospheric Gravity Waves, 2nd ed.; Academic Press: Cambridge, MA, USA, 2012; p. 400. [Google Scholar]
- Smolarkiewicz, P.K.; Margolin, L.G. On forward-in-time differencing for fluids: An Eulerian/Semi-Lagrangian Non-Hydrostatic Model for stratified flows. Atmos.-Ocean
**1997**, 35, 127–152. [Google Scholar] [CrossRef] - Prusa, J.M.; Smolarkiewicz, P.K.; Wyszogrodzki, A.A. EULAG, a computational model for multiscale flows. Comput. Fluids
**2008**, 37, 1193–1207. [Google Scholar] [CrossRef] - Queney, P. The problem of the airflow over mountains: A summary of theoretical studies. Bull. Am. Meteorol. Soc.
**1948**, 29, 16–26. [Google Scholar] - Long, R.R. Some aspects of the flow of stratified fluids: I. A theoretical investigation. Tellus
**1953**, 5, 42–58. [Google Scholar] [CrossRef] - Dörnbrack, A.; Birner, T.; Fix, A.; Flentje, H.; Meister, A.; Schmid, H.; Browell, E.V.; Mahoney, M.J. Evidence for inertia gravity waves forming polar stratospheric clouds over Scandinavia. J. Geophys. Res. Atmos.
**2002**, 107, SOL 30-1–SOL 30-18. [Google Scholar] [CrossRef] - Smolarkiewicz, P.K.; Margolin, L.G. MPDATA: A finite-difference solver for geophysical flows. J. Comput. Phys.
**1998**, 140, 459–480. [Google Scholar] [CrossRef] - Smolarkiewicz, P.K. Multidimensional positive definite advection transport algorithm: An overview. Int. J. Numer. Methods Fluids
**2006**, 50, 1123–1144. [Google Scholar] [CrossRef] - Smolarkiewicz, P.K.; Margolin, L.O. On forward-in-time differencing for fluids: Extension to a curvilinear framework. Mon. Weather Rev.
**1993**, 121, 1847–1859. [Google Scholar] [CrossRef] - Schröttle, J.; Dörnbrack, A. Turbulence structure in a diabatically heated forest canopy composed of fractal Pythagoras trees. Theor. Comput. Fluid Dyn.
**2013**, 27, 337–359. [Google Scholar] [CrossRef] - Gisinger, S.; Dörnbrack, A.; Schröttle, J. A modified Darcy’s law. Theor. Comput. Fluid Dyn.
**2015**, 29, 343–347. [Google Scholar] [CrossRef] - Kühnlein, C.; Smolarkiewicz, P.K.; Dörnbrack, A. Modelling atmospheric flows with adaptive moving meshes. J. Comput. Phys.
**2012**, 231, 2741–2763. [Google Scholar] [CrossRef] - Prusa, J.M.; Smolarkiewicz, P.K.; Garcia, R.R. Propagation and breaking at high altitudes of gravity waves excited by tropospheric forcing. J. Atmos. Sci.
**1996**, 53, 2186–2216. [Google Scholar] [CrossRef] - Smolarkiewicz, P.K.; Dörnbrack, A. Conservative integrals of adiabatic Durran’s equations. Int. J. Numer. Methods Fluids
**2008**, 56, 1513–1519. [Google Scholar] [CrossRef] - Kühnlein, C.; Dörnbrack, A.; Weissmann, M. High-resolution Doppler lidar observations of transient downslope flows and rotors. Mon. Weather Rev.
**2013**, 141, 3257–3272. [Google Scholar] [CrossRef] - Smolarkiewicz, P.K.; Charbonneau, P. EULAG, a computational model for multiscale flows: An MHD extension. J. Comput. Phys.
**2013**, 236, 608–623. [Google Scholar] [CrossRef] - Smolarkiewicz, P.K.; Szmelter, J.; Xiao, F. Simulation of all-scale atmospheric dynamics on unstructured meshes. J. Comput. Phys.
**2016**, 322, 267–287. [Google Scholar] [CrossRef] - Grinstein, F.F.; Margolin, L.G.; Rider, W. Implicit Large Eddy Simulation: Computing Turbulent Fluid Dynamics; Cambridge University Press: Cambridge, UK, 2007; p. 552. [Google Scholar]

^{1.}from B. Dylan: “One of us must know (sooner or later)”; Blonde On Blonde (1966).^{2.}H. Grogger, Simulation of Deep Gravity Wave Propagation Using EULAG, Master Thesis, University of Innsbruck, 2017.

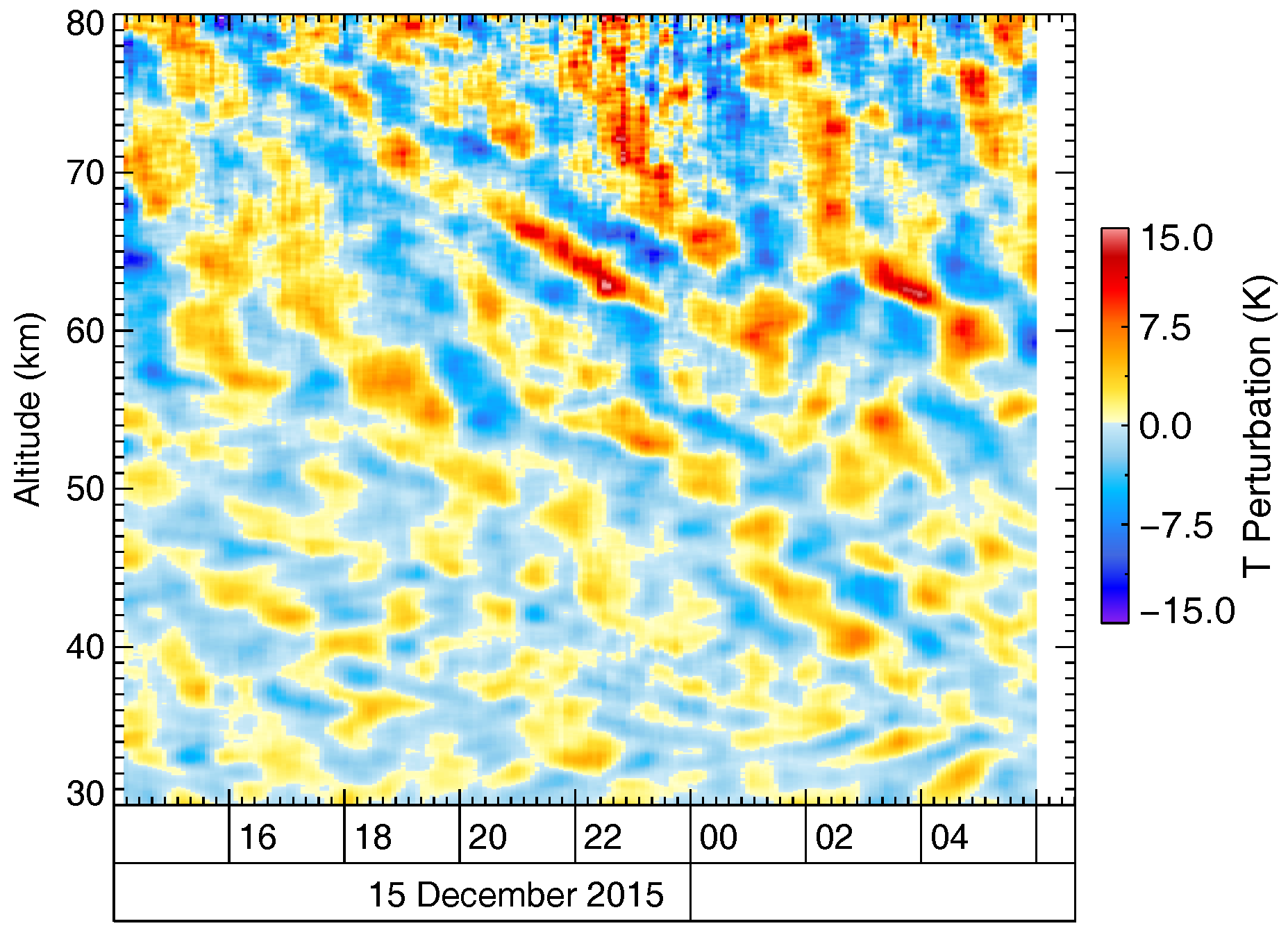

**Figure 1.**Gravity wave-induced temperature perturbations observed by Rayleigh lidar on 15/16 December 2015 above Sodankylä, Finland. The temperature measurements are filtered with a 3-h running mean to highlight signatures of gravity waves with periods in the range of approximately 1 to 5 h. The temporal and vertical resolutions are 30 min and 1 km, respectively.

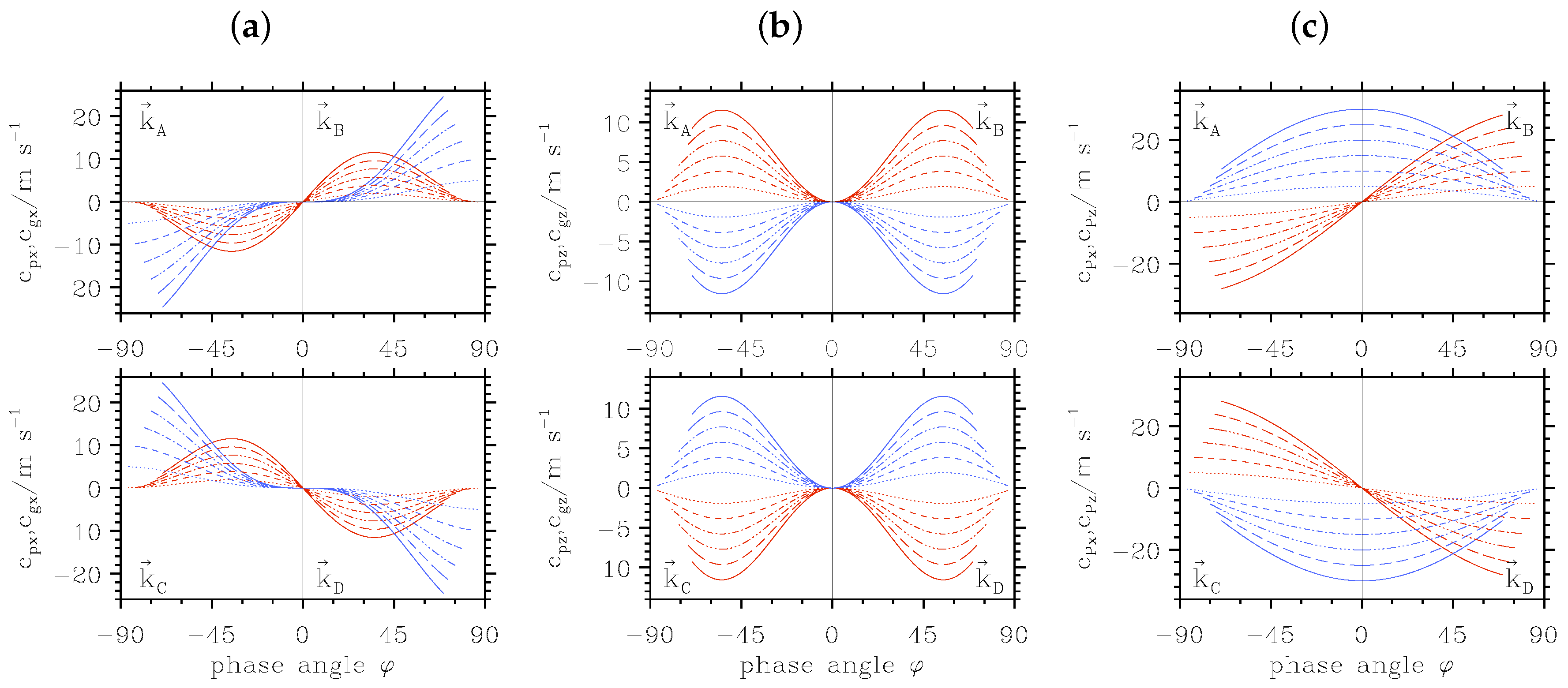

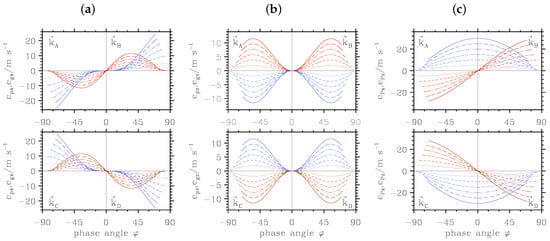

**Figure 2.**Horizontal (

**a**) and vertical (

**b**) components of the phase velocities ${c}_{px}$ and ${c}_{pz}$ (red lines) and group velocities ${c}_{gx}$ and ${c}_{gz}$ (blue lines). (

**c**) Horizontal (red lines) and vertical (blue lines) phase velocities ${c}_{Px}$ and ${c}_{Pz}$. All curves are drawn for fixed values of m > 0 (upper row) and m < 0 (lower row). Vertical wavelengths ${\lambda}_{z}$ = π, 2π, 3π, 4π, 5π and 6π km are represented by lines from dotted to solid, respectively. The wavenumber vectors ${\overrightarrow{\mathbf{k}}}_{\mathrm{A}}$, ${\overrightarrow{\mathbf{k}}}_{\mathrm{B}}$, ${\overrightarrow{\mathbf{k}}}_{\mathrm{C}}$ and ${\overrightarrow{\mathbf{k}}}_{\mathrm{D}}$ denote the four possible orientations of the wave number vector in the respective area of the phase angle φ, as described in Section 3.1.

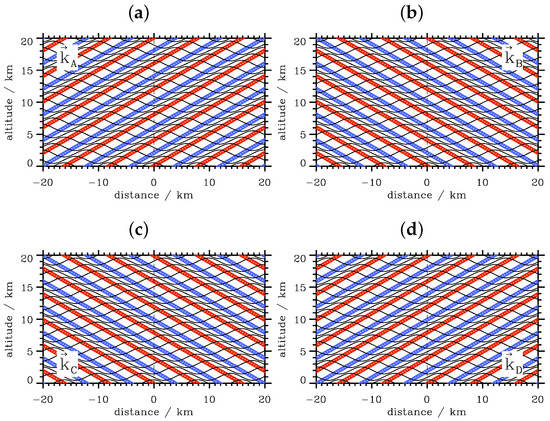

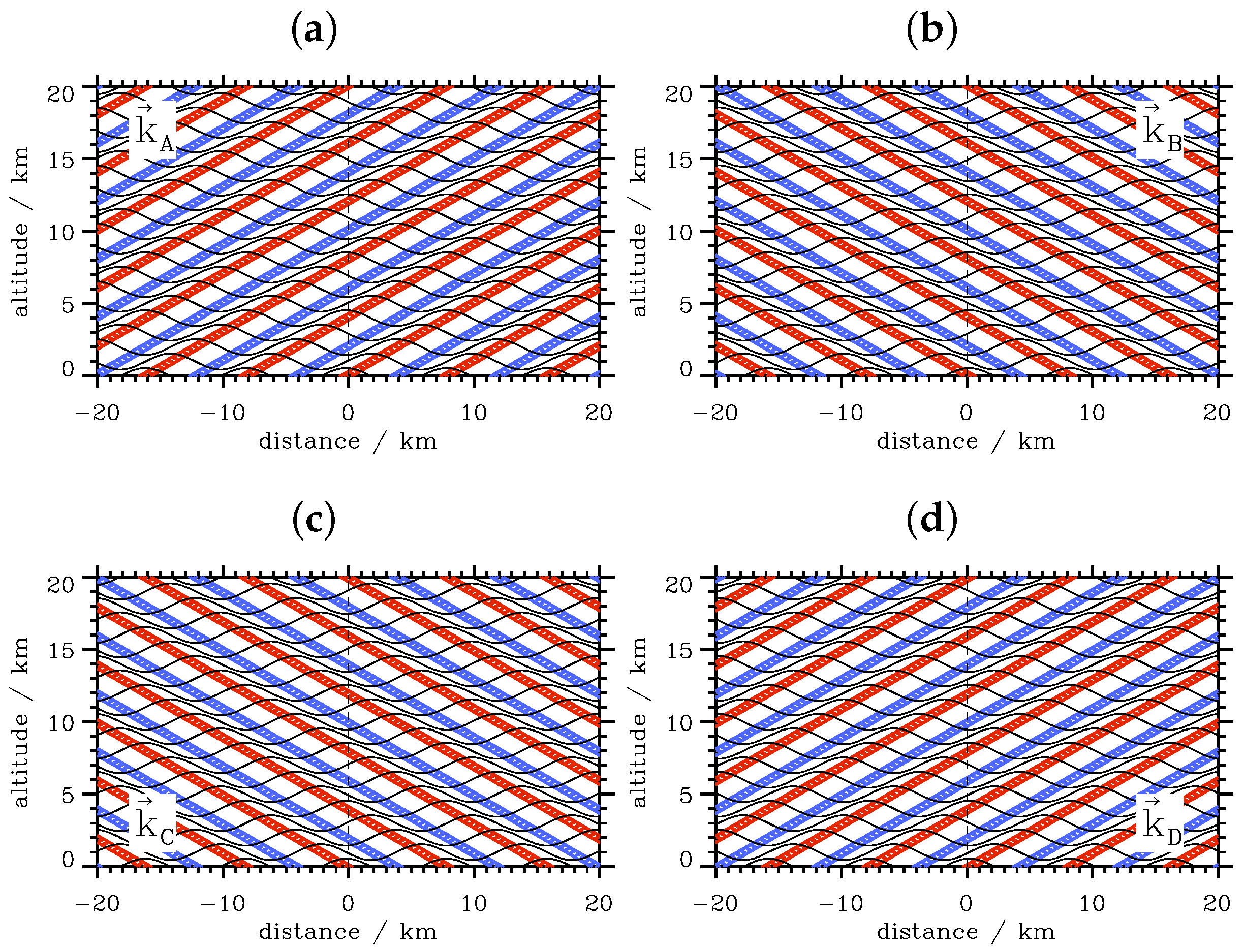

**Figure 3.**Spatial snapshots of the vertical displacements $\xi (x,z,t)$ of horizontally- and vertically-propagating plane waves for the four wavenumber vectors ${\overrightarrow{\mathbf{k}}}_{\mathrm{A}}$ (

**a**), ${\overrightarrow{\mathbf{k}}}_{\mathrm{B}}$ (

**b**), ${\overrightarrow{\mathbf{k}}}_{\mathrm{C}}$ (

**c**) and ${\overrightarrow{\mathbf{k}}}_{\mathrm{D}}$ (

**d**) at t = 24 min, respectively. The values of the horizontal and vertical wavenumber components are k = $\pm 2\phantom{\rule{0.166667em}{0ex}}\pi /{\lambda}_{x}$ with ${\lambda}_{x}$ = 8 km and m = $\pm 2\phantom{\rule{0.166667em}{0ex}}\pi /{\lambda}_{z}$ with ${\lambda}_{z}$ = 4 km, respectively. Red and blue contour lines refer to ± 0.95 times the wave amplitude and illustrate phase lines. The dashed black lines refer to the horizontal position where the vertical time series shown in Figure 4 are recorded.

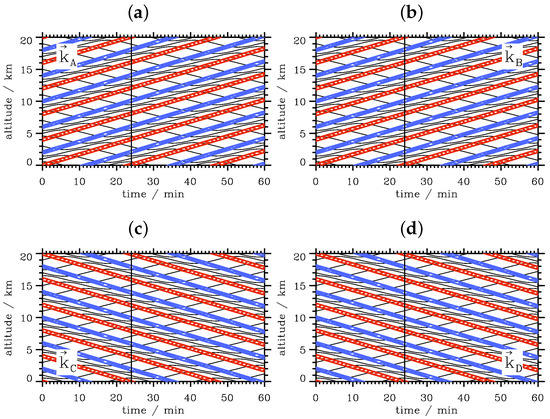

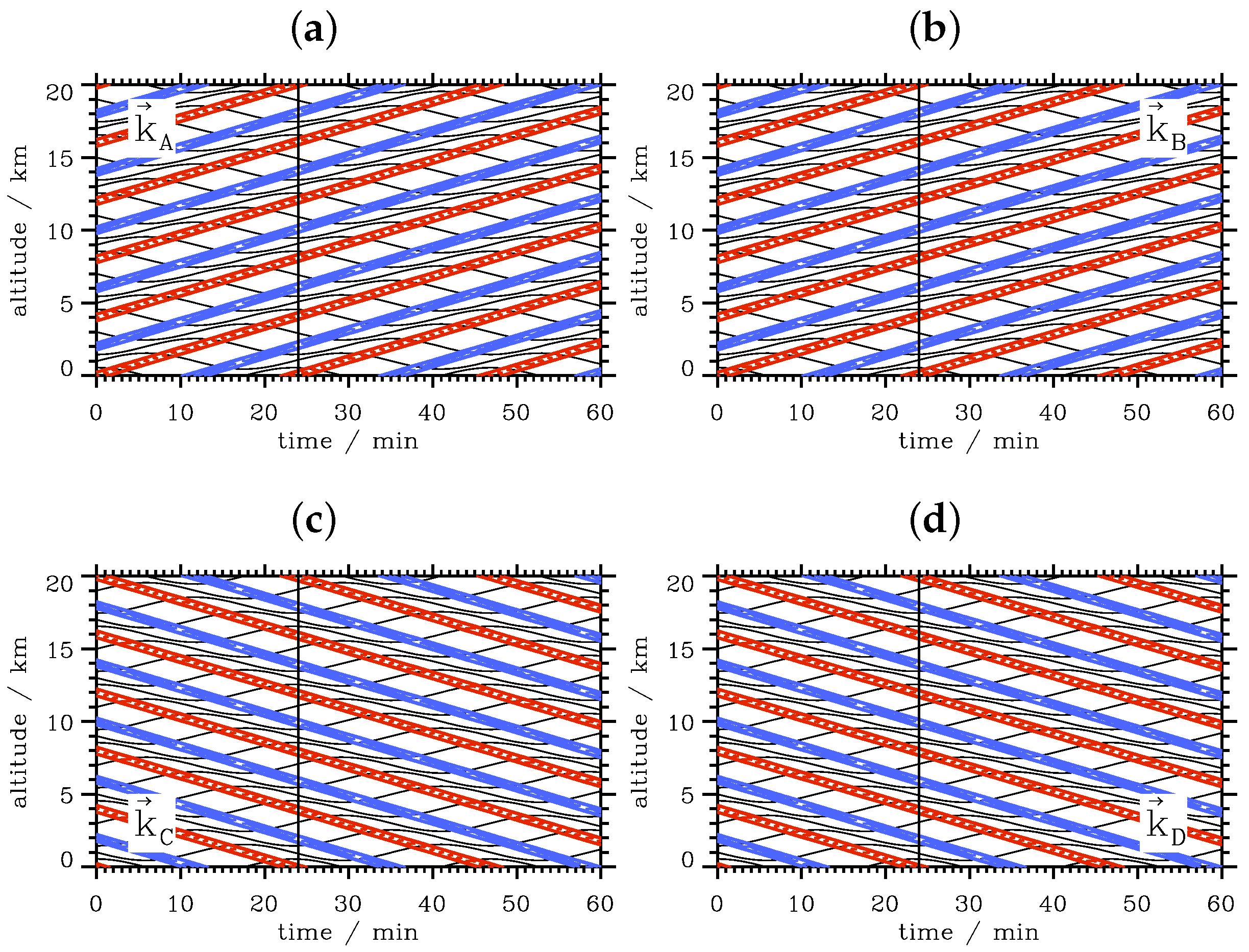

**Figure 4.**Vertical time series of the vertical displacements $\xi (x,z,t)$ of horizontally- and vertically-propagating plane waves for the four wavenumber vectors ${\overrightarrow{\mathbf{k}}}_{\mathrm{A}}$ (

**a**), ${\overrightarrow{\mathbf{k}}}_{\mathrm{B}}$ (

**b**), ${\overrightarrow{\mathbf{k}}}_{\mathrm{C}}$ (

**c**) and ${\overrightarrow{\mathbf{k}}}_{\mathrm{D}}$ (

**d**) recorded at the positions marked in Figure 3. The values of the horizontal and vertical wavenumber components are k = $\pm 2\phantom{\rule{0.166667em}{0ex}}\pi /{\lambda}_{x}$ with ${\lambda}_{x}$ = 8 km and m = $\pm 2\phantom{\rule{0.166667em}{0ex}}\pi /{\lambda}_{z}$ with ${\lambda}_{z}$ = 4 km, respectively. Red and blue contour lines refer to ±0.95 times the wave amplitude and illustrate phase lines. The vertical black lines refer to the time when the plots shown in Figure 3 are drawn.

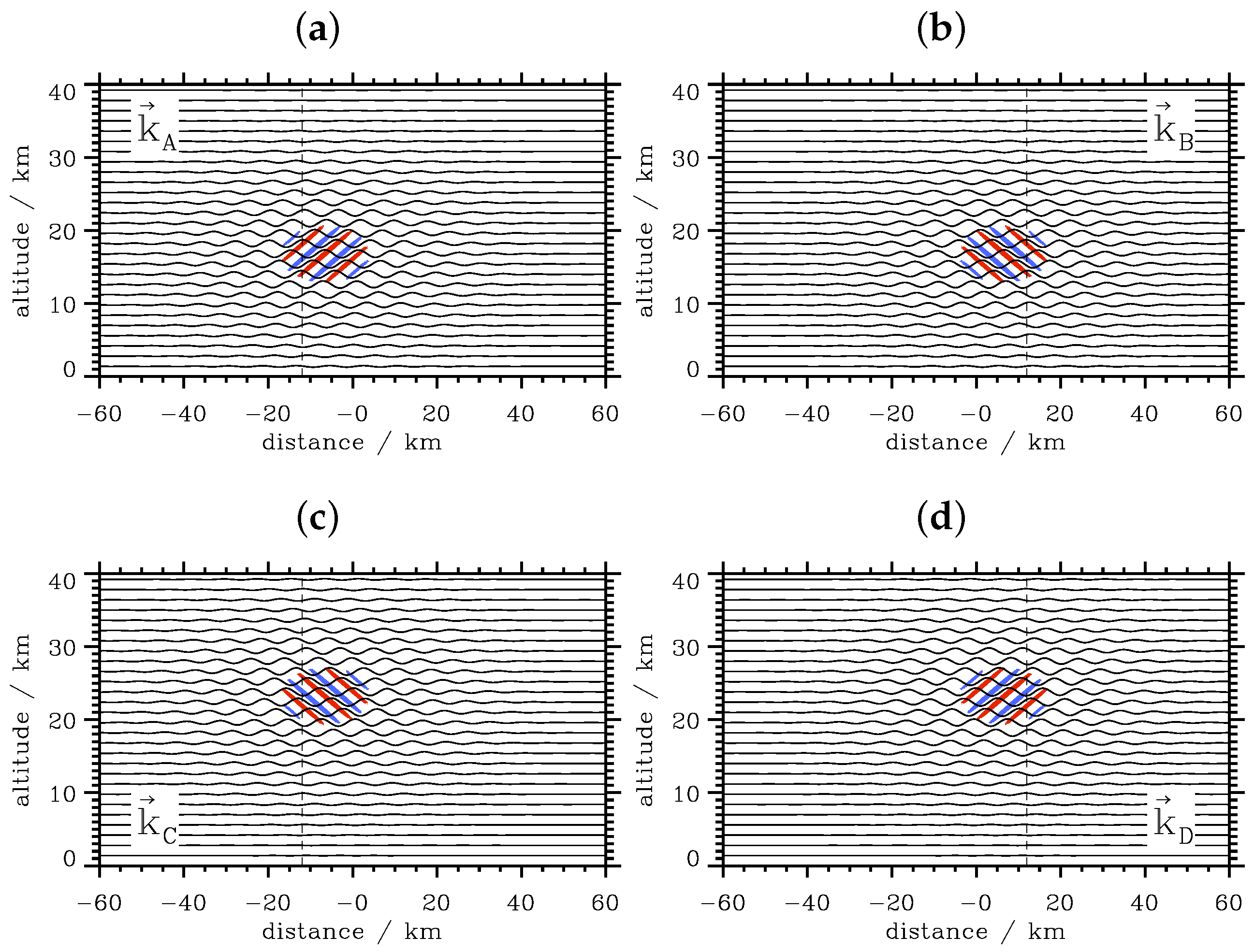

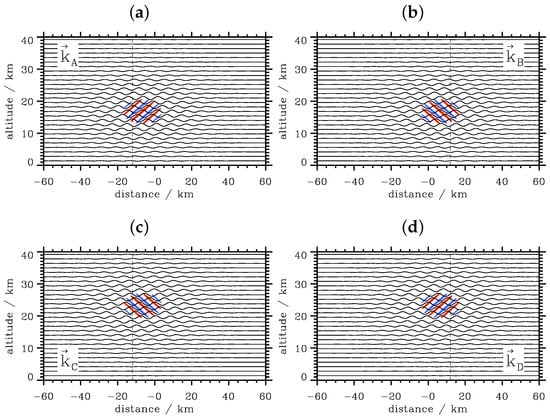

**Figure 5.**Spatial snapshots of the vertical displacements $\xi (x,z,t)$ of horizontally- and vertically-propagating wave packets with four different wavenumber vectors ${\overrightarrow{\mathbf{k}}}_{\mathrm{A}}$ (

**a**), ${\overrightarrow{\mathbf{k}}}_{\mathrm{B}}$ (

**b**), ${\overrightarrow{\mathbf{k}}}_{\mathrm{C}}$ (

**c**) and ${\overrightarrow{\mathbf{k}}}_{\mathrm{D}}$ (

**d**) at t = 24 min, respectively. The wave packets are propagating downward (${c}_{gz}$ < 0) in the top row and upward (${c}_{gz}$ > 0) in the bottom row. Red and blue contour lines refer to ±0.95 times the wave amplitude and illustrate phase lines. The dashed black lines refer to the horizontal position where the time series shown in Figure 6 are recorded.

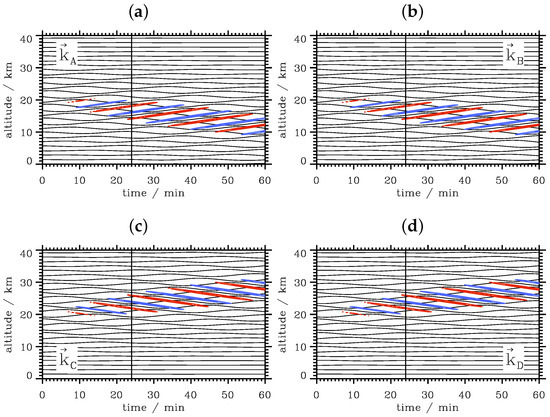

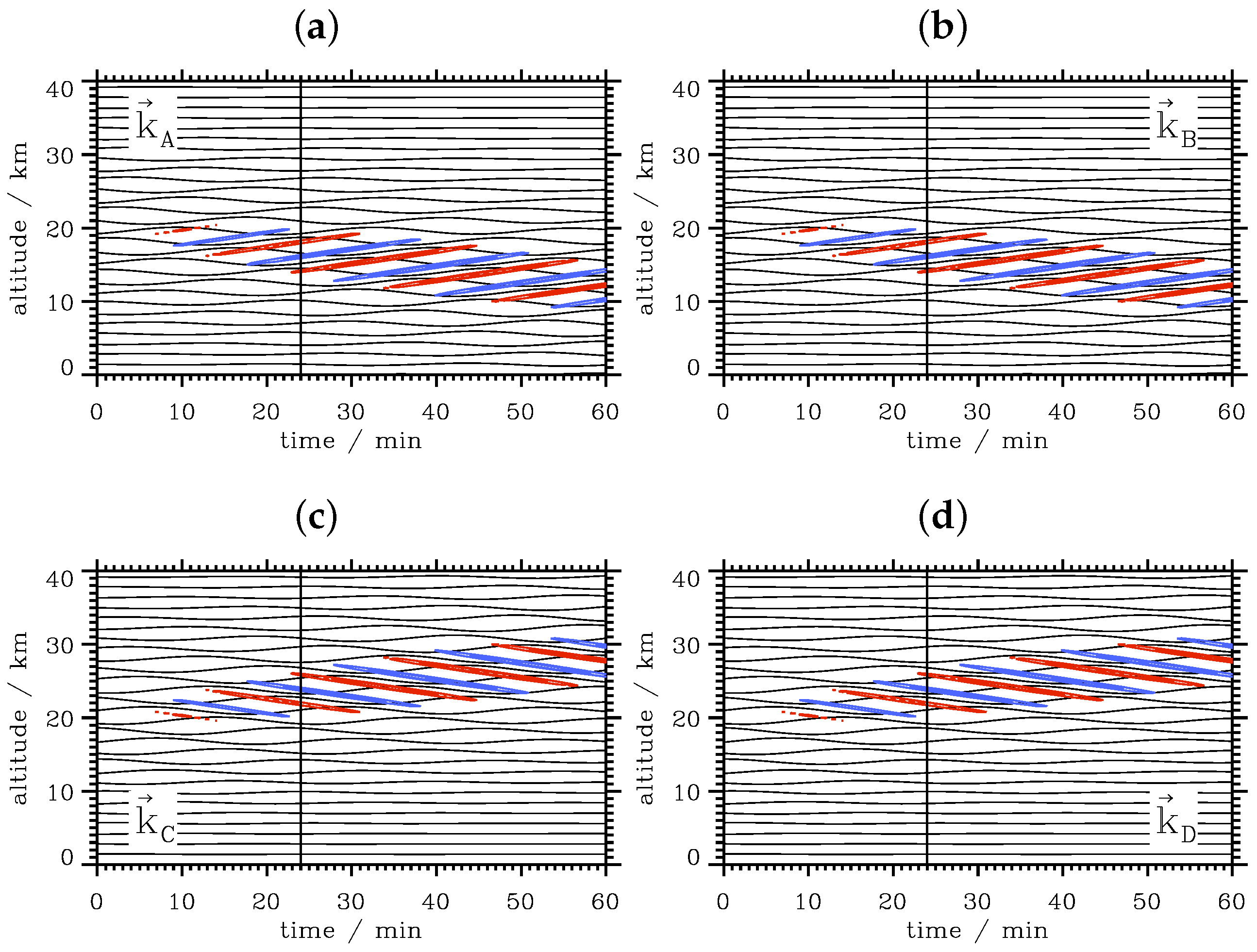

**Figure 6.**Vertical time series of the vertical displacements $\xi (x,z,t)$ of horizontally- and vertically-propagating wave packets with four different wavenumber vectors ${\overrightarrow{\mathbf{k}}}_{\mathrm{A}}$ (

**a**), ${\overrightarrow{\mathbf{k}}}_{\mathrm{B}}$ (

**b**), ${\overrightarrow{\mathbf{k}}}_{\mathrm{C}}$ (

**c**) and ${\overrightarrow{\mathbf{k}}}_{\mathrm{D}}$ (

**d**) recorded at the positions marked in Figure 5, respectively. The wave packets are propagating downward (${c}_{gz}$ < 0) in the top row and upward (${c}_{gz}$ > 0) in the bottom row. Red and blue contour lines refer to ±0.95 times the wave amplitude and illustrate phase lines. The vertical black lines refer to the time when the plots shown in Figure 5 are drawn.

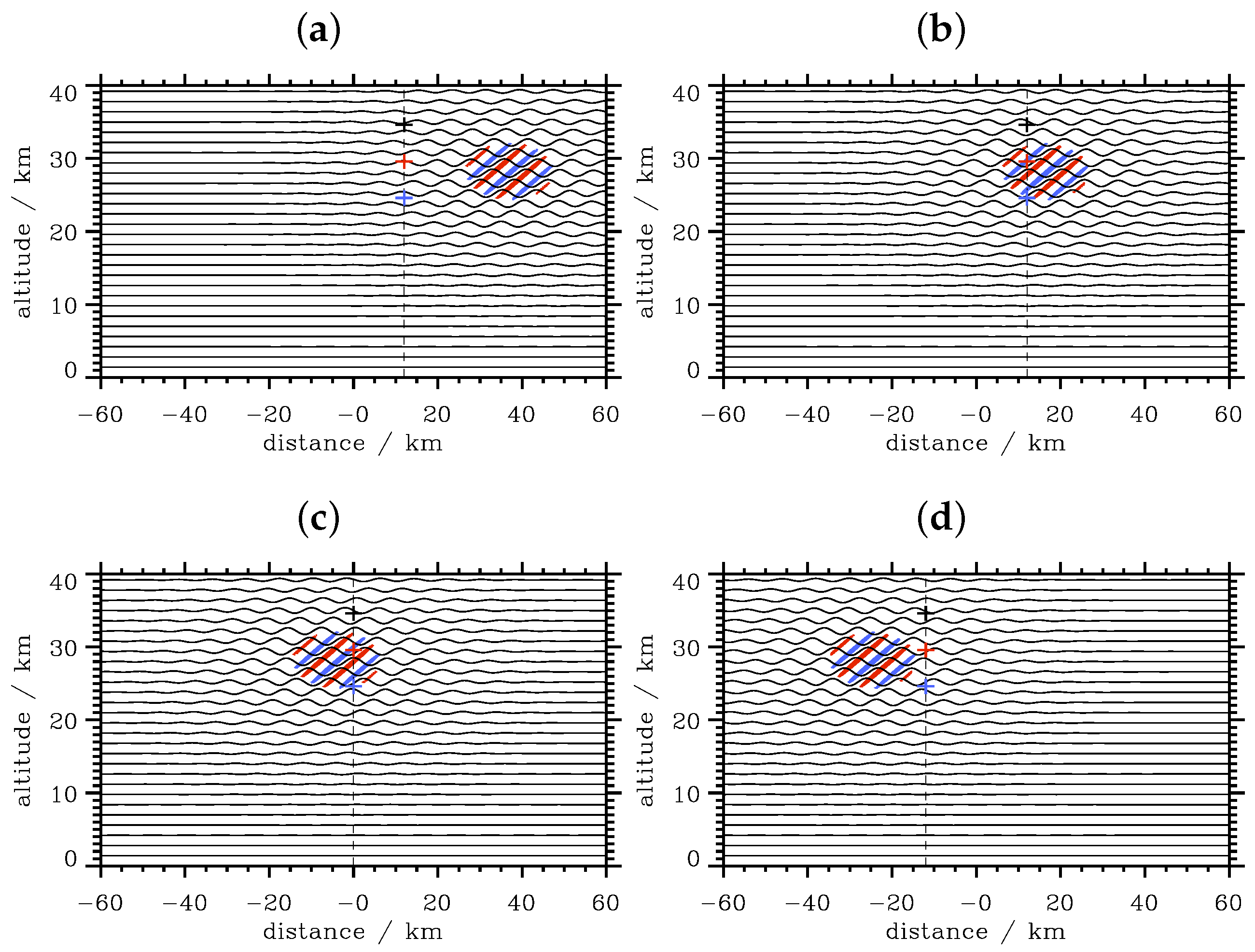

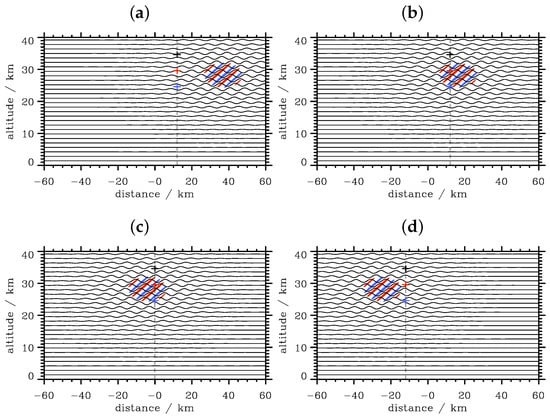

**Figure 7.**Spatial snapshots of the vertical displacements $\xi (x,z,t)$ of horizontally- and vertically-propagating wave packets with wavenumber vectors ${\overrightarrow{\mathbf{k}}}_{\mathrm{D}}$ at t = 60 min. The wave frequencies are Doppler shifted by U = $+{c}_{Px}$ (

**a**), U = 0 (

**b**), U = $-{c}_{Px}$ (

**c**) and U = $-2\phantom{\rule{0.166667em}{0ex}}{c}_{Px}$ (

**d**), respectively. Red and blue contour lines refer to ± 0.95 times the wave amplitude and illustrate phase lines. The dashed vertical black lines refer to the horizontal positions x = −12 km, 0, 12 km where the vertical time series shown in Figure 8 are recorded. The blue, red, and black crosses refer to the vertical positions z = 24.6 km, 29.6 km and 34.6 km where the time series of Figure 9 are recorded.

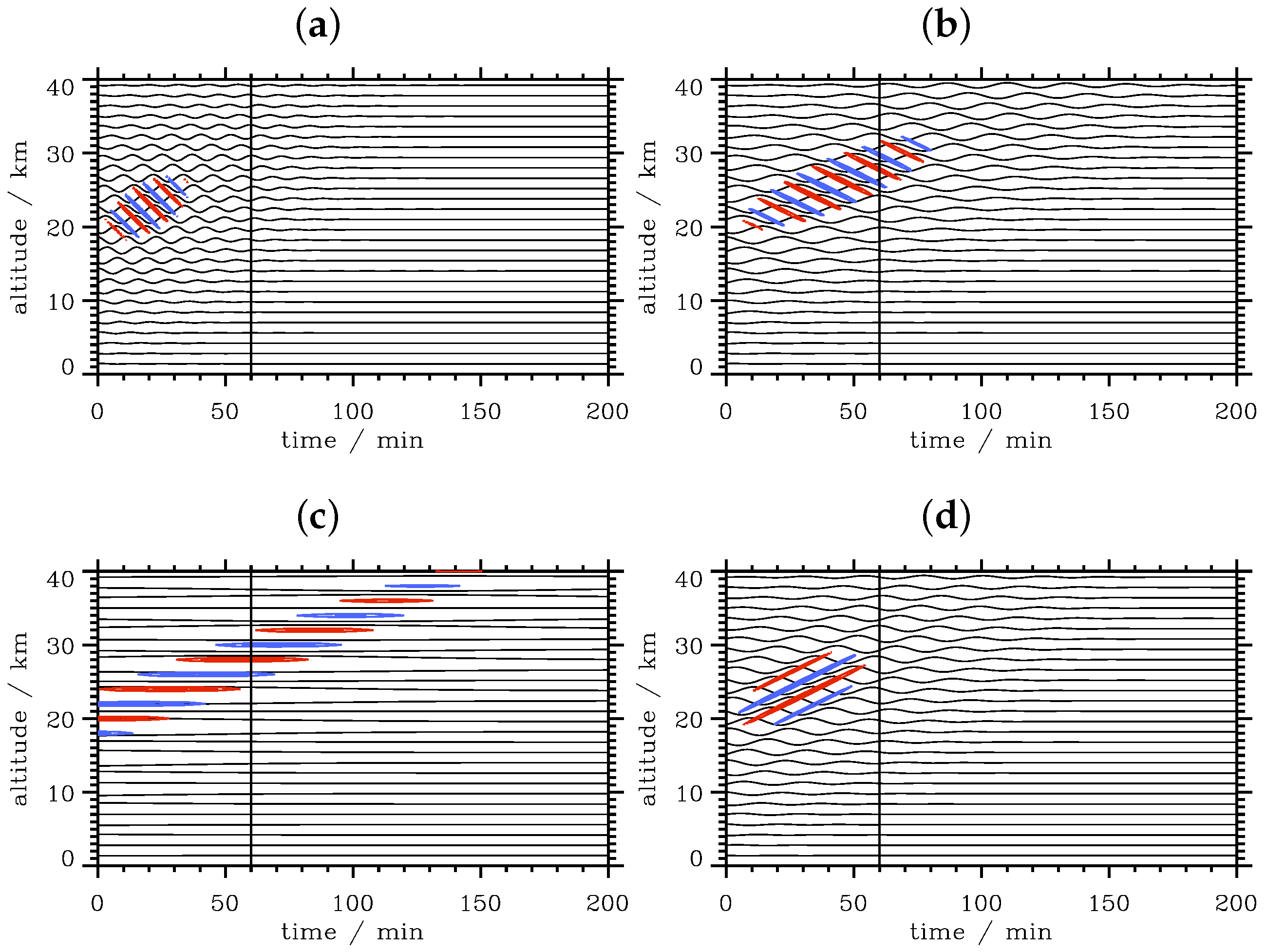

**Figure 8.**Vertical time series of the vertical displacements $\xi (x,z,t)$ of horizontally- and vertically-propagating wave packets with the wavenumber vector ${\overrightarrow{\mathbf{k}}}_{\mathrm{D}}$ recorded at the horizontal positions marked in Figure 7. The wave frequencies are Doppler shifted by U $=\phantom{\rule{0.166667em}{0ex}}+{c}_{Px}$ (

**a**), U $=\phantom{\rule{0.166667em}{0ex}}$0 (

**b**), U =$-{c}_{Px}$ (

**c**) and U =$-2{c}_{Px}$ (

**d**), respectively. Red and blue contour lines refer to ±0.95 times the wave amplitude and illustrate phase lines. The vertical black lines refer to the time t = 60 min where the altitude-distance plots are shown in Figure 7.

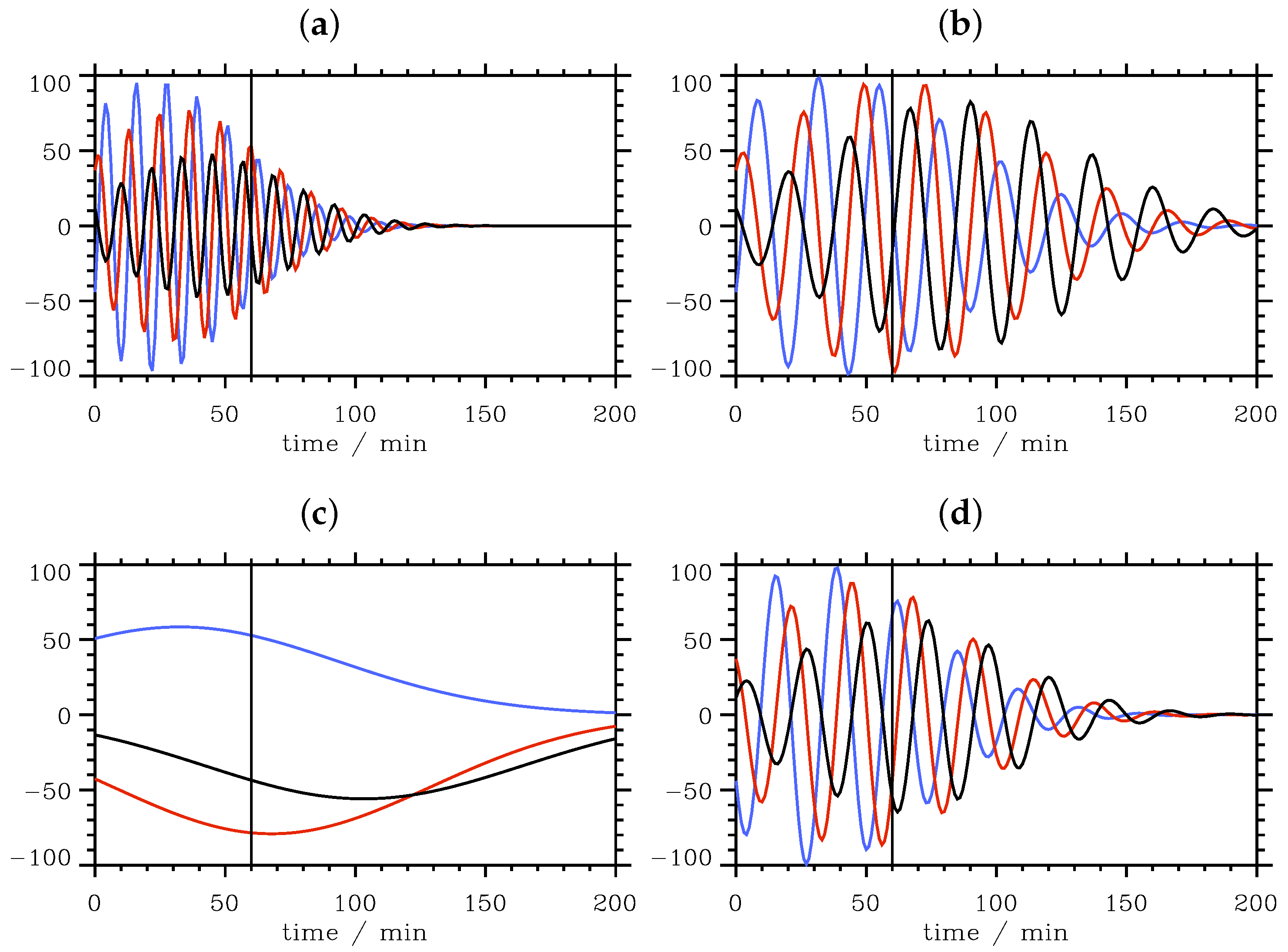

**Figure 9.**Time series of the vertical displacements $\xi (x,z,t)$ of horizontally- and vertically-propagating wave packets with the wavenumber vector ${\overrightarrow{\mathbf{k}}}_{\mathrm{D}}$ recorded at the three positions as marked by colored crosses in Figure 7. The wave frequencies are Doppler shifted by U = $+{c}_{Px}$ (

**a**), U = 0 (

**b**), U = $-{c}_{Px}$ (

**c**) and U = $-2\phantom{\rule{0.166667em}{0ex}}{c}_{Px}$ (

**d**), respectively. The vertical black lines refer to the time t = 60 min where the altitude-distance plots are shown in Figure 7.

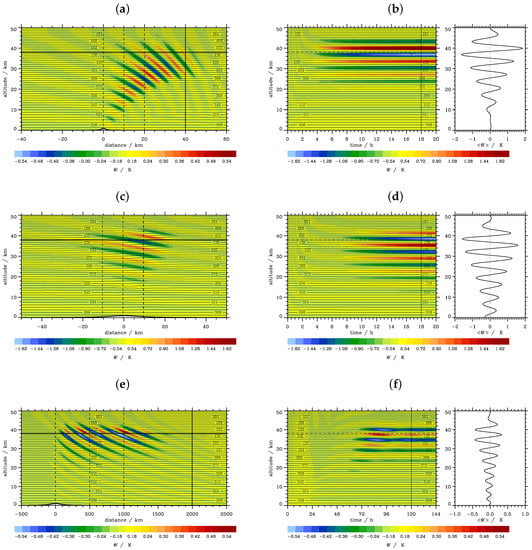

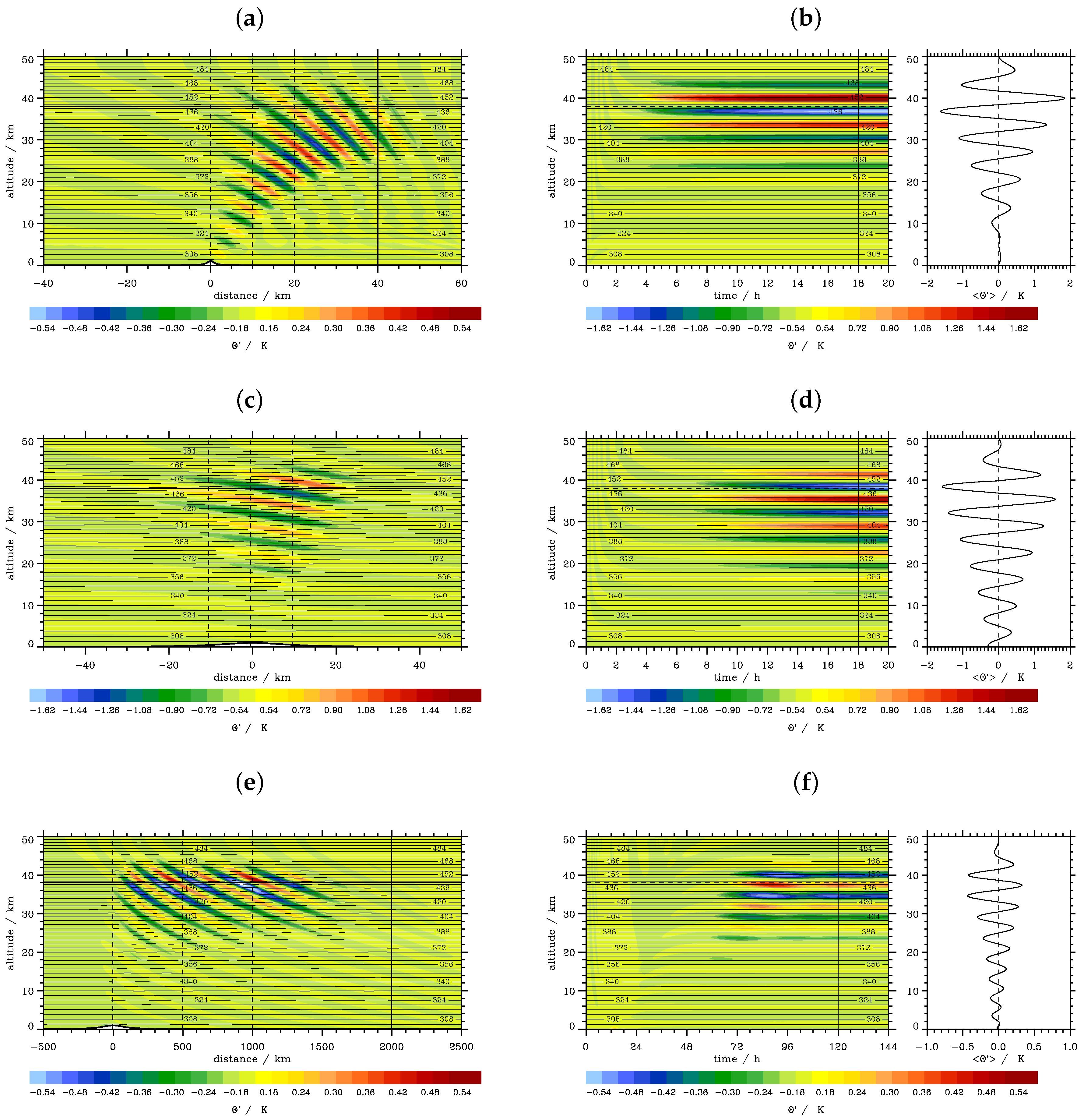

**Figure 10.**Spatial snapshots

**left**(

**a**,

**c**,

**e**) and vertical times series

**right**(

**b**,

**d**,

**f**) of the potential temperature perturbations ${\mathrm{\Theta}}^{\prime}$ for the three different wave regimes. (a,b) non-hydrostatic wave regime; (c,d) hydrostatic nonrotating wave regime; (e,f) hydrostatic rotating wave regime. The right panels in (b,d,f) depict time-averaged ${\mathrm{\Theta}}^{\prime}$-profiles computed over the period from the time indicated by the vertical line until the end time of the respective panels. The spatial snapshots are taken at t = 125 min (a), t = 10 h (c) and t = 5 d (e). The vertical time series are recorded at x = 10 km (b), x = 0 (d) and x = 500 km (f), as indicated by the vertical dashed lines in (a,c,e). The amplitude of the surface topography is exaggerated by a factor of 10 in (a,c,e).

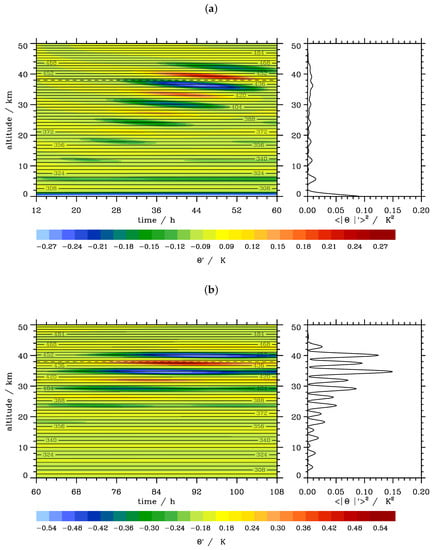

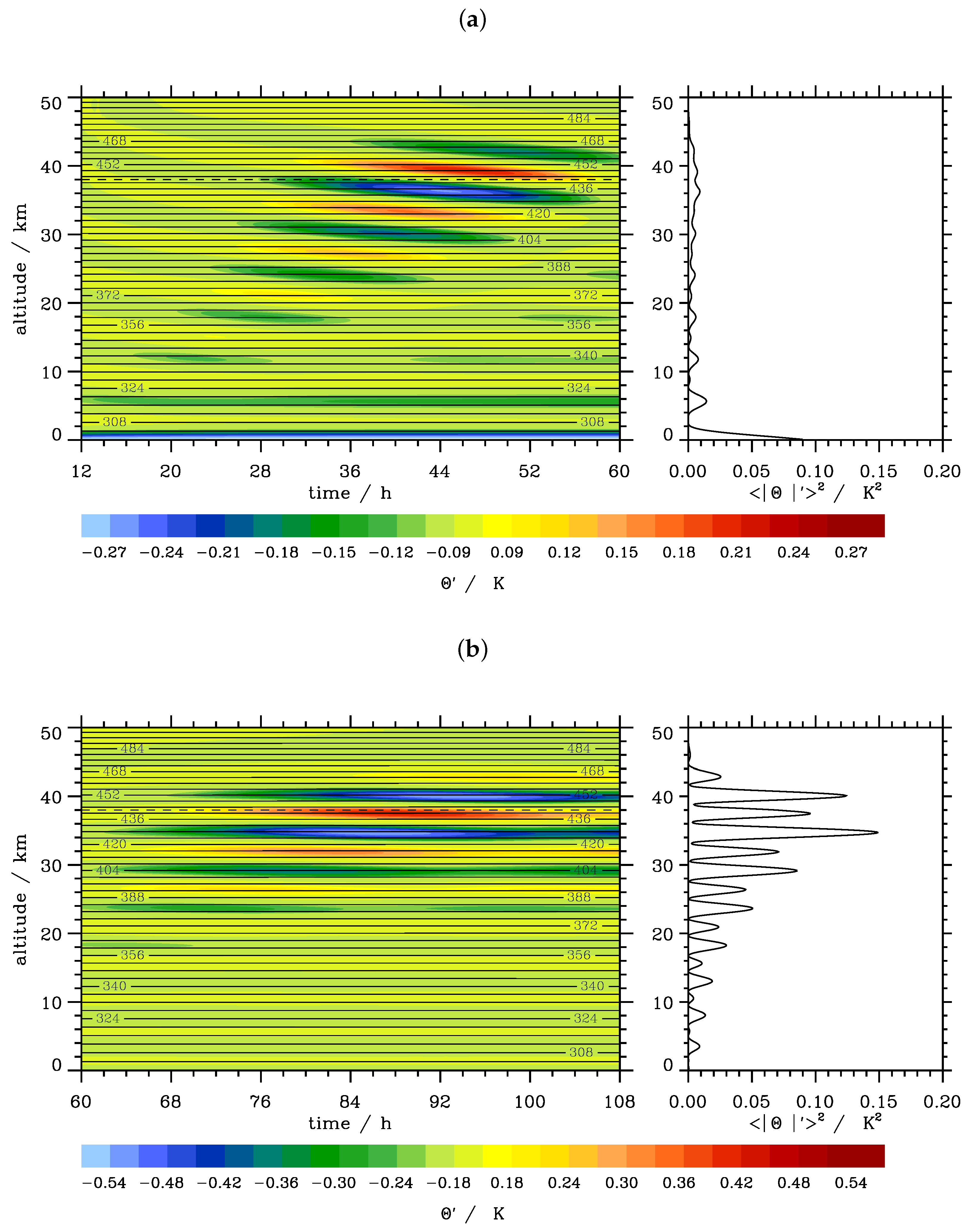

**Figure 11.**Vertical time series of the potential temperature perturbations ${\mathrm{\Theta}}^{\prime}$ from wave regime (iii) directly above the mountain (

**a**) at x = 0 and (

**b**) at x = 500 km for two different periods. The right panels depict the time-averaged $|{\mathrm{\Theta}}^{\prime}{|}^{2}$-profiles over the respective periods.

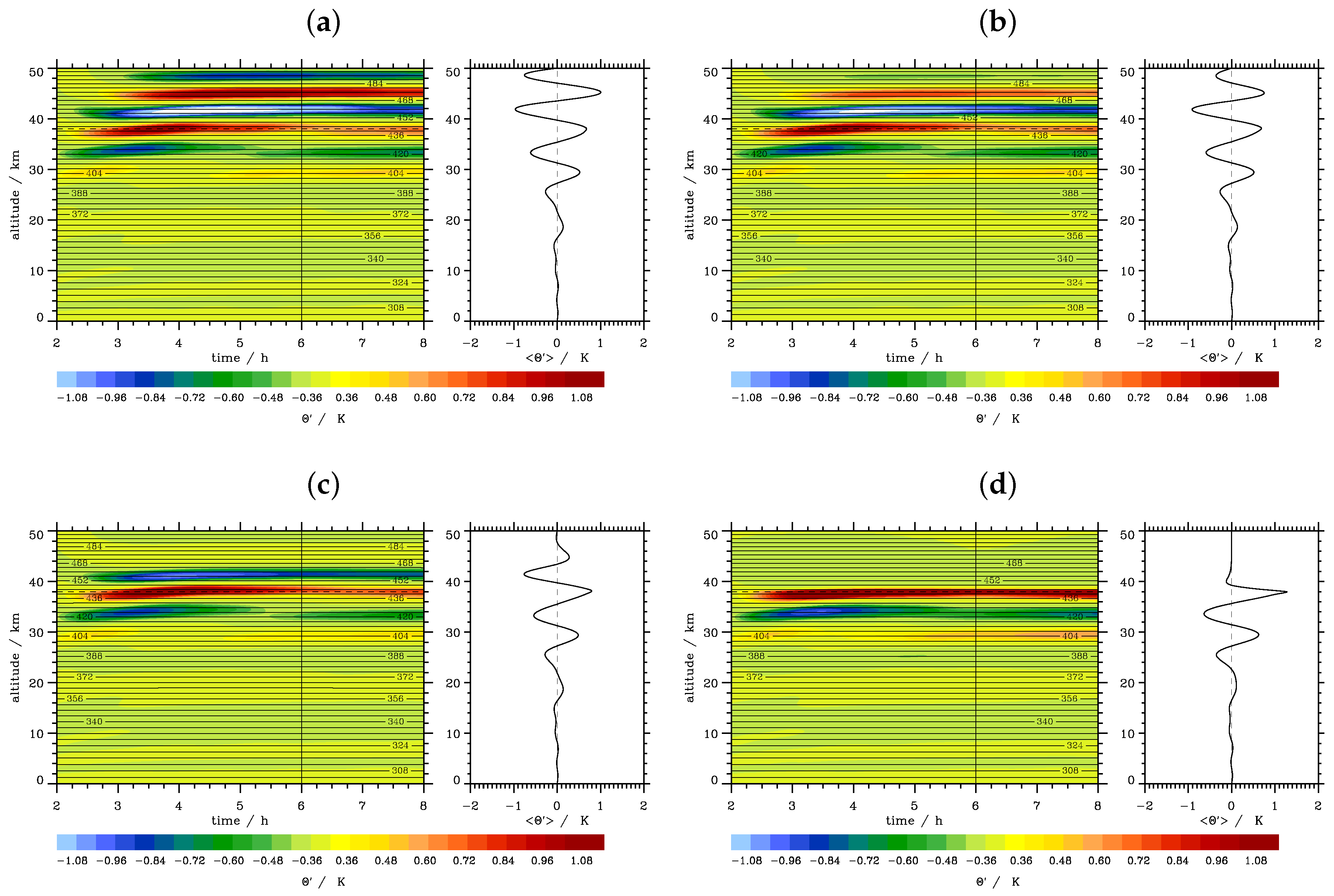

**Figure 12.**Vertical time series of the potential temperature perturbations ${\mathrm{\Theta}}^{\prime}$ from wave regime (i) at x = 30 km for (

**a**) ${\tau}_{z}$ = 900 s, (

**b**) ${\tau}_{z}$ = 600 s, (

**c**) ${\tau}_{z}$ = 270 s and (

**d**) ${\tau}_{z}$ = 30 s. The right panels depict the time-averaged ${\mathrm{\Theta}}^{\prime}$-profiles over the respective periods.

**Table 1.**The characteristics of plane Boussinesq gravity waves for the four wavenumber vectors ${\overrightarrow{\mathbf{k}}}_{\mathrm{A}}$ (A), ${\overrightarrow{\mathbf{k}}}_{\mathrm{B}}$ (B), ${\overrightarrow{\mathbf{k}}}_{\mathrm{C}}$ (C) and ${\overrightarrow{\mathbf{k}}}_{\mathrm{D}}$ (D) with horizontal and vertical wavenumber components are k = $\pm 2\phantom{\rule{0.166667em}{0ex}}\pi /{\lambda}_{x}$ with ${\lambda}_{x}$ = 8 km and m = $\pm 2\phantom{\rule{0.166667em}{0ex}}\pi /{\lambda}_{z}$ with ${\lambda}_{z}$ = 4 km, respectively. The background stratification is N = 0.01 s${}^{-1}$, and the quantities in the table are computed using Equation (4) for φ, Equation (3) for $\widehat{\omega}$, Equation (9) for ${c}_{Px}$ and ${c}_{Pz}$, Equation (6) for ${c}_{px}$ and ${c}_{pz}$ and Equations (12) and (13) for ${c}_{gx}$ and ${c}_{gz}$, respectively. The units are m s${}^{-1}$ for the phase and group velocities and s${}^{-1}$ for the wave frequency, respectively.

Case | k | m | φ | $\widehat{\mathit{\omega}}$ | ${\mathit{c}}_{\mathit{Px}}$ | ${\mathit{c}}_{\mathit{Pz}}$ | ${\mathit{c}}_{\mathit{px}}$ | ${\mathit{c}}_{\mathit{pz}}$ | ${\mathit{c}}_{\mathit{gx}}$ | ${\mathit{c}}_{\mathit{gz}}$ |
---|---|---|---|---|---|---|---|---|---|---|

A | − | + | −63.4 | 0.0045 | −5.69 | +2.84 | −1.14 | +2.28 | −4.56 | −2.28 |

B | + | + | +63.4 | 0.0045 | +5.69 | +2.84 | +1.14 | +2.28 | +4.56 | −2.28 |

C | − | − | +63.4 | 0.0045 | −5.69 | −2.84 | −1.14 | −2.28 | −4.56 | +2.28 |

D | + | − | −63.4 | 0.0045 | +5.69 | −2.84 | +1.14 | −2.28 | +4.56 | +2.28 |

**Table 2.**Parameters for the numerical simulations: mountain width L, spatial increments $\Delta x$ and $\Delta z$ in the horizontal and vertical directions, time step $\Delta t$, thickness $\delta {x}_{ab}$ and time scale ${\tau}_{x}$ of the horizontal and altitude ${z}_{ab}$ and time scale ${\tau}_{z}$ of the vertical absorbers.

Run | L/km | $\mathbf{\Delta}\mathit{x}$/m | $\mathbf{\Delta}\mathit{z}$/m | $\mathbf{\Delta}\mathit{t}$/s | $\mathit{\delta}{\mathit{x}}_{\mathit{ab}}$/km | ${\mathit{\tau}}_{\mathit{x}}$/s | ${\mathit{z}}_{\mathit{ab}}$/km | ${\mathit{\tau}}_{\mathit{z}}$/s |
---|---|---|---|---|---|---|---|---|

(i) | 1 | 100 | 100 | 5 | 24 | 1800 | 38 | 900 |

(ii) | 10 | 1000 | 100 | 5 | 240 | 300 | 38 | 900 |

(iii) | 100 | 5000 | 100 | 60 | 1200 | 300 | 38 | 3600 |
