Long-Range Transport of SO₂ from Continental Asia to Northeast Asia and the Northwest Pacific Ocean: Flow Rate Estimation Using OMI Data, Surface in Situ Data, and the HYSPLIT Model

Abstract

This present study suggests a method to calculate the SO₂ flow rate from a source area to receptor areas on a regional scale using Ozone Monitoring Instrument (OMI) SO₂ products, surface in situ SO₂ data, and the hybrid single particle Lagrangian integrated trajectory (HYSPLIT) model. The method was implemented to calculate the SO₂ flow rate from continental Asia to northeast Asia and the Northwest Pacific Ocean. For the high SO₂ events when SO₂ was transported from continental Asia to Japan via the Korean Peninsula on 22–24 December 2006, the long-range transported SO₂ flow rates were 14.0 (21.0) Mg·h⁻¹ OMI·gird⁻¹ at Gangneung (Seoul) in Korea and 4.2 (5.3) Mg·h⁻¹ OMI·gird⁻¹ at Hiroshima (Kumamoto) in Japan. For the long-range transport of SO₂ from continental Asia to the Northwest Pacific Ocean on 6–7 October 2008 (9–11 October 2006), the flow rates were 16.1 (16.2) Mg·h⁻¹ OMI·gird⁻¹ at Hokkaido, Japan (Vladivostok, Russia) and 5.6 (16.7) Mg·h⁻¹ OMI·gird⁻¹ at the Aleutian Islands, Northwest Pacific Ocean (Bering Sea). The mean rates of decrease in the SO₂ flow rate per 1000 km were also calculated between continental Asia and the receptor areas. Uncertainties in the flow rate estimates were also assessed and discussed.

1. Introduction

Sulfur dioxide (SO₂) in the atmosphere is emitted from anthropogenic and natural sources [1,2,3,4,5]. More than 70% of the global total SO₂ emission is from anthropogenic sources and half of this is from fossil-fuel combustion [6]. In last two decades, atmospheric SO₂ has shown a decreasing trend in regions including North America and Europe [7]; however, the global total SO₂ has increased due to increased fossil-fuel combustion in China [8,9]. Although China has started showing a decreasing trend in SO₂ emission since 2008 [10], SO₂ emission in China is still reported to account for more than 60% of the total Asian SO₂ emission. Today, SO₂ emission in China is reported to account for about 25% of the global total SO₂ emission and more than 90% of the total East Asian SO₂ emission [10,11].

Chemical reactions transform SO₂ into sulfate and sulfuric acid [5]. These sulfuric species may directly degrade the local air quality in receptor areas while they also cause acid rain and poor visibility at the receptor areas via long-range transport (LRT) [12,13,14]. SO₂ and various sulfuric aerosols are also known to affect radiative forcing [15]. Therefore, to establish effective air-quality control strategies at receptor areas, it is necessary to quantify the contribution of long-range transported air pollutants such as SO₂ to the atmospheric environment of that area.

Recent studies have examined long-range transported SO₂ (LRT-SO₂) emitted from continental Asia and investigated its contribution to downwind regions. Some of these studies utilized SO₂ data from satellite sensors that enable the investigation of SO₂ LRT as they provide regional and global coverage over short time intervals from one to several days. Chemical transport models and the data obtained from aircraft and satellite (Moderate Resolution Imaging Spectroradiometer (MODIS), Multi-angle Imaging Spectroradiometer (MISR)) measurements have been utilized to estimate the contribution of LRT-SO₂ from East Asia to North America [14]. The LRT of SO₂ from continental Asia to the Korean Peninsula has been detected using data from the Scanning Imaging Absorption Spectrometer for Atmospheric Chartography (SCIAMACHY) and validated through comparison with Multi Axis Differential Optical Absorption Spectroscopy (MAX-DOAS) and in situ measurements [16]. The meteorological mechanisms of transport were reported based on aircraft observations over Northeast China [17]. Lu et al. [8] reported correlations between sulfur variations in East Asia and SO₂ emissions in China using the Ozone Monitoring Instrument (OMI) and SCIAMACHY data. Jeong et al. [18] estimated the contribution of LRT-SO₂ from China to increased SO₂ concentration in Seoul using a Conditional Potential Source Contribution Function (CPSCF) with SO₂ data obtained from OMI and in situ measurements. Hsu et al. [19] reported high SO₂ events over the Pacific Ocean due to LRT from China, as inferred from OMI, Cloud-Aerosol Lidar and Infrared Pathfinder Satellite Observations (CALIPSO) data, and the hybrid single particle Lagrangian integrated trajectory (HYSPLIT) model. Mallik et al. [20] reported an episode of high SO₂ concentration over Northern India as a result of LRT from Africa using OMI, CALIPSO, and backward trajectory analysis data. Li et al. [21] reported a case study of transport and evolution of a SO₂ plume from Northern China using OMI, MODIS, and backward trajectory analysis data. The above studies revealed that LRT of SO₂ and sulfuric species emitted in China and East Asia can affect not only neighboring areas but also remote regions such as the Pacific Ocean and North America. They either reported the detection of LRT-SO₂ or estimated the contribution of LRT-SO₂ to the surface SO₂ concentration at receptor areas.

For better understanding of the LRT-SO₂ contribution to changes in the SO₂ amount at a receptor area, it is necessary to identify the total amount of LRT-SO₂ at the receptor area, meaning, in turn, that we need to calculate LRT-SO₂ flow rate. The flow rate information can be directly used to quantify the total LRT-SO₂ amounts for a duration at a receptor area if it is obtained either hourly or daily by Low Earth Orbit (LEO) or geostationary orbit (GEO) satellite measurement, respectively. Here, SO₂ flow rate denotes the mass of SO₂ that passes per unit time. In the present study, we calculate the flow rate of LRT-SO₂ from continental Asia to the Korean Peninsula, Japan, and the Northwest Pacific Ocean using OMI SO₂ column data, in situ SO₂ data, and HYSPLIT backward trajectory simulations. In addition, we investigate the changes in the LRT-SO₂ flow rate as a function of distance from continental Asia. Uncertainties in the flow rate estimates are also discussed.

2. Method

2.1. Data

The SO₂ column data used to calculate the flow rate of the LRT-SO₂ were obtained from the OMI onboard NASA’s Earth Observing System (EOS)/Aura satellite [22] that was launched on 15 July 2004 in a sun-synchronous ascending polar orbit at 705 km altitude with 13:45 local equator crossing time. The details of the SO₂ retrieval method have been described previously [23,24]. SO₂ column data in the OMSO2e level-3 products (i.e., OMSO2e at a resolution of 0.25°) were acquired from NASA’s Goddard Earth Sciences Data and Information Services Center (GES-DISC) [25]. We used the SO₂ data produced with the updated algorithm in 2015 [26]. We averaged six pixels of OMI PBL SO₂ to enhance the accuracy (NASA’s Goddard Earth Sciences Data and Information Services Center (GES-DISC) [27]).

We used the OMI SO₂ data for the domain 110°E–180°E and 20°N–70°N (Figure 1) for the four years of the study period (2005–2008) when the OMI CCD detector condition was good since the amount of available SO₂ data has been reduced in recent years due to row anomaly problems in the OMI CCD detector (NASA’s Goddard Earth Sciences Data and Information Services Center (GES-DISC) [28]). During the study period, the flow rates of the LRT-SO₂ were calculated only for high SO₂ events. LRT-SO₂ event dates in the present study denote the dates when the contribution of LRT-SO₂ from continental Asia is considered to significantly change the atmospheric SO₂ level at a receptor area. The method for determining the event dates is described in Section 2.3.

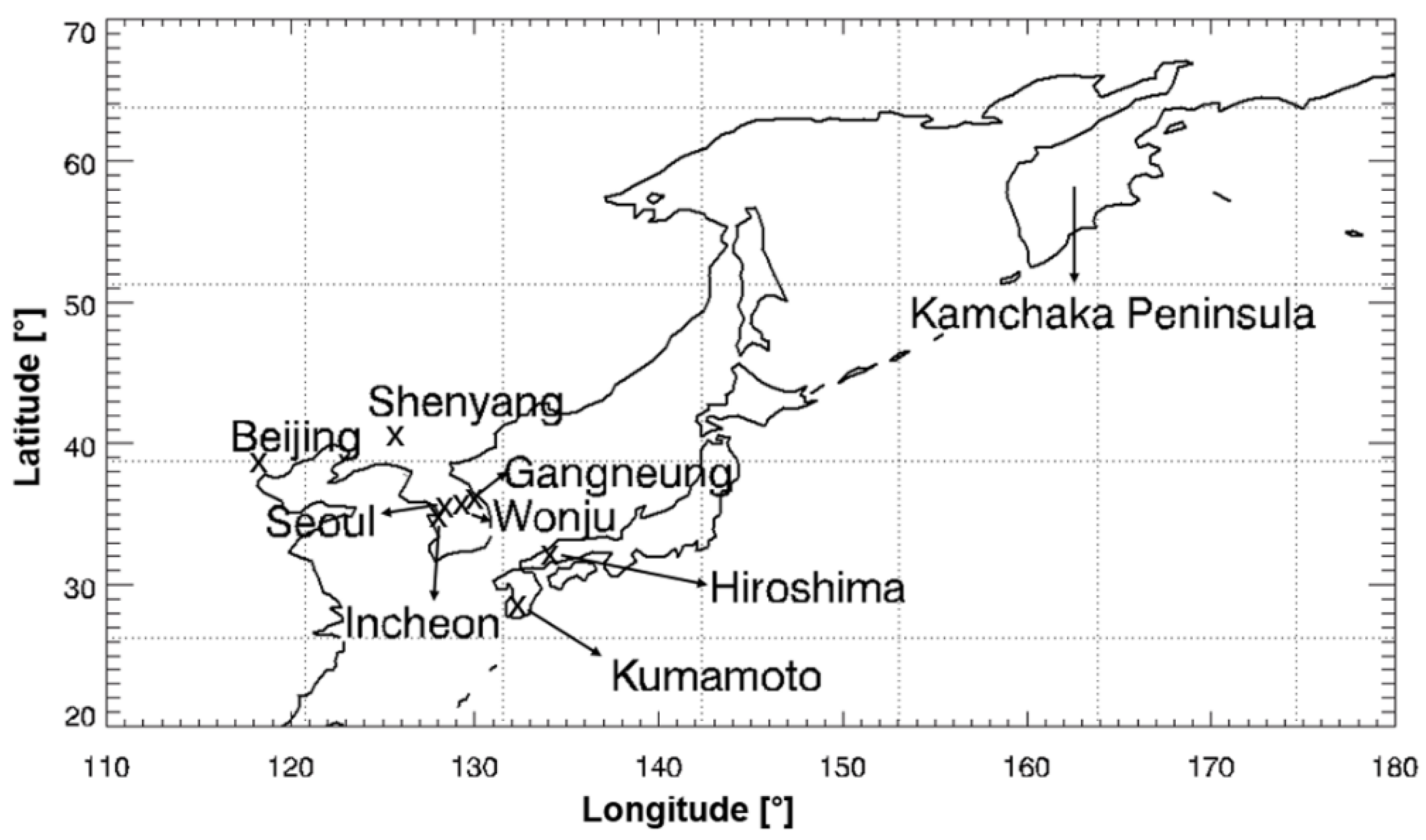

Surface SO₂ concentration data, which are continuously available, were used to determine the SO₂ event date. We used SO₂ concentration data obtained from in situ measurements at surface level on the Korean Peninsula. Figure 1 shows the locations of the in situ measurement sites at Seoul, Incheon, Gangneung, and Wonju. These four sites benefit from high availability of continuously monitored surface SO₂ data and a large amount of in situ data synchronous with the OMI SO₂ column data. SO₂ concentrations were measured using the ultraviolet fluorescence method with a sulfur dioxide analyzer (model 4108, Dasibi Enviromental Corp., Glendale, CA; US Environmental Protection Agency reference method EQSA-1086-061). The analyzer provides SO₂ concentration every 10 min. We used the hourly mean SO₂ concentration.

2.2. HYSPLIT Backward Trajectory Simulation

Three-day backward trajectories from the receptor sites (Seoul, Incheon, Gangneung, and Wonju) were calculated every hour at intervals of 0.1 km above ground level using the HYSPLIT model version 4.9 developed by the National Oceanic and Atmospheric Administration, Air Resources Laboratory (NOAA/ARL) [29]. Re-analysis meteorological data from the National Centers for Environmental Prediction/National Center for Atmospheric Research (NCEP/NCAR) were used for the trajectory calculation. The global reanalysis data are available on a 2.5° grid at 6 h intervals (synoptic times) on pressure surfaces. HYSPLIT backward trajectory simulations were conducted for the calculation of average air mass transportation speed between source and receptor areas. The calculation of average air mass transportation speed is described in Section 3.2. Uncertainties in the trajectory endpoints have been reported to be ~20% of the travel distance [30]. A more recent study of biases in backward trajectories reported that the errors in single trajectories may, in fact, be greater than 20%, especially if the error is in the first few time steps [31].

2.3. Study Locations and Dates

The flow rates of the LRT-SO₂ were calculated for LRT-SO₂ event dates. We define LRT-SO₂ event dates as those when the SO₂ at receptor sites is greatly enhanced by SO₂ long-range transported from continental Asia. The flowchart in Figure 2 is used to determine LRT-SO₂ events on the Korean Peninsula and Japan. Continuously monitored SO₂ data are useful in quantifying the background SO₂ level and are necessary to determine the LRT-SO₂ event since the difference between the background SO₂ level and the increase in SO₂ level due to the LRT event at a receptor area is required. Therefore, we used in situ measurement data, which provide high continuity of surface SO₂ data, together with OMI data to determine LRT-SO₂ events as shown in Figure 2.

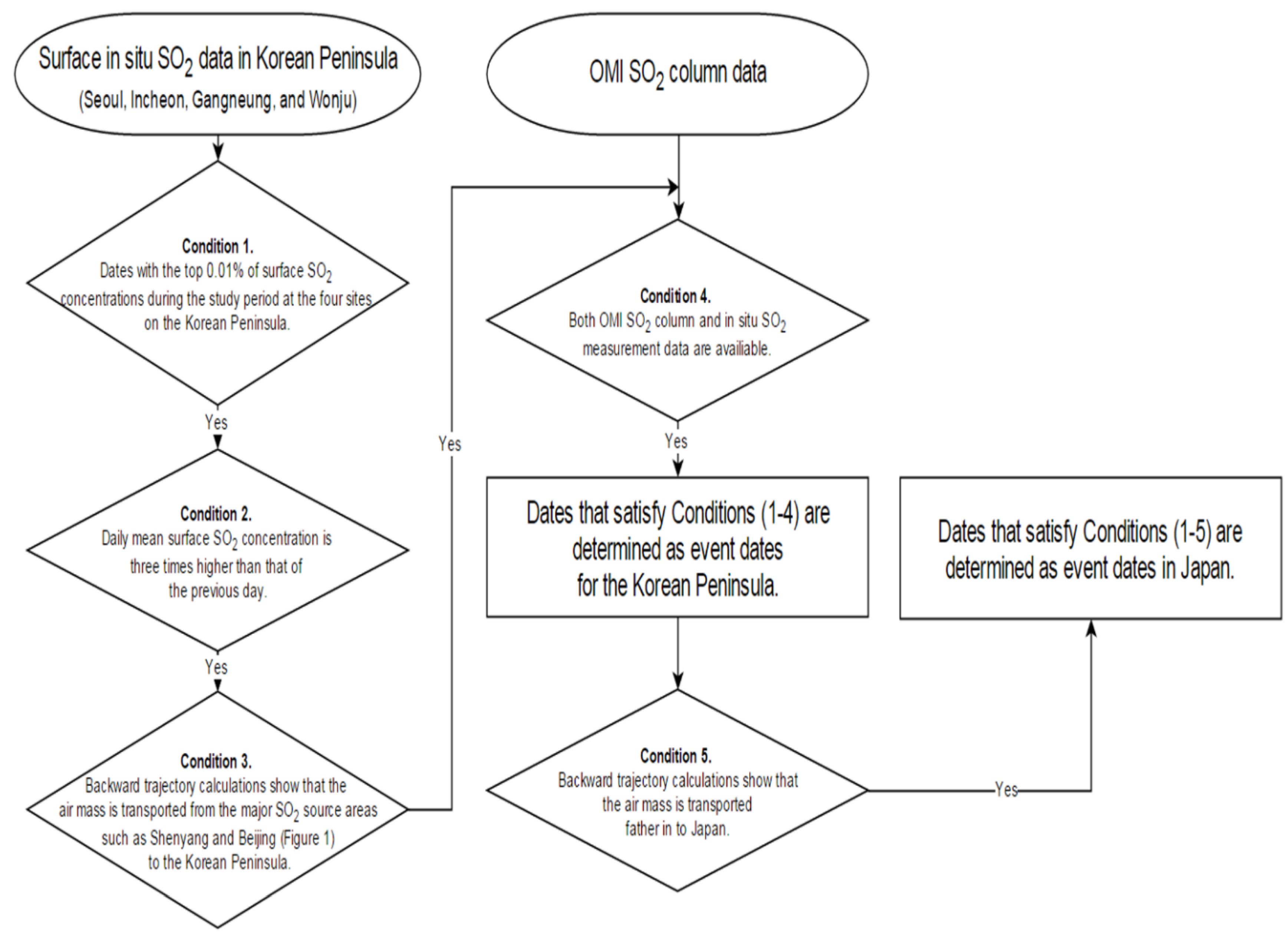

The following conditions (Figure 2) are applied in sequence to determine the dates of LRT-SO₂ events when the contribution of LRT-SO₂ from continental Asia to a receptor area is considered significant.

•

Condition 1. Dates with the top 0.01% of surface SO₂ concentrations during the study period at the four sites on the Korean Peninsula.

•

Condition 2. Daily mean surface SO₂ concentration is three times higher than that of the previous day.

•

Condition 3. Backward trajectory calculations show that the air mass is transported from the major SO₂ source areas such as Shenyang and Beijing (Figure 1) to the Korean Peninsula.

•

Condition 4. Both OMI SO₂ column and in situ SO₂ measurement data are available. Dates that satisfy Conditions (1–4) are determined as event dates for the Korean Peninsula.

•

Condition 5. Backward trajectory calculations show that the air mass is transported farther into Japan. Dates that satisfy Conditions (1–5) are determined as event dates in Japan.

If SO₂ concentration rapidly and significantly increases for a short time interval at the receptor sites, LRT-SO₂ event is very likely to take place due to the almost negligible SO₂ emission in Korean Peninsula in comparison with that at upwind regions [11]. Thus, Conditions 1 and 2 are applied to ensure the both rapid and significant increase in SO₂ concentration for a short time interval at the receptor sites.

A low threshold value in Condition 1 allows dates with high surface SO₂ concentration and also possibly high OMI SO₂ column. On those dates, there can be larger differences between LRT-SO₂ level and background SO₂ level, which is controlled by local SO₂ emission, than that on dates with low surface SO₂ concentration (See Section 3.1 for the detailed description of the background SO₂ level calculation). For example, on the dates that satisfy Condition 1 with the threshold of 0.05% instead of 0.01%, the average in situ mixing ratio and OMI SO₂ column are 8 ppbv and 0.011 g·m⁻², respectively. The OMI SO₂ column of 0.011 g·m⁻² is smaller than 0.016 g·m⁻², the sum of background OMI SO₂ level (0.004 g·m⁻²) and its uncertainty. The uncertainty of background OMI SO₂ column in this present study is the sum of 0.001 g·m⁻², the standard deviation of the background SO₂ and 0.011 g·m⁻², 1σ error of OMI SO₂ column according to the literature [11]. Thus, there can be a large uncertainty in quantifying LRT-SO₂. In the case of Condition 1 with the threshold 0.03%, the OMI SO₂ column of 0.018 g·m⁻² is slightly larger but still similar to 0.016 g·m⁻², the sum of background OMI SO₂ level and its uncertainty. In the case of Condition 1 with the threshold 0.01%, the OMI SO₂ column of 0.033 g·m⁻² is about two times larger than 0.016 g·m⁻², the sum of background OMI SO₂ level and its uncertainty, which is likely to lead to a smaller uncertainty in quantifying LRT-SO₂ than that of using higher threshold values in Condition 1.

Table 1. LRT-SO₂ events determined for each receptor area.

Event	Date	Receptor Area
E1	23 January 2005	Seoul, Wonju
	24 January 2005	Seoul, Wonju
E2	11 February 2006	Seoul, Incheon
E3	22 December 2006	Seoul, Incheon, Wonju
	23 December 2006	Seoul, Incheon, Wonju
E4	13 March 2007	Seoul, Incheon
	14 March 2007	Seoul, Incheon
	15 March 2007	Seoul, Incheon
E5	7 November 2007	Seoul, Wonju
	8 November 2007	Seoul, Wonju
E6	11 March 2008	Seoul, Wonju
E7	6 January 2008	Incheon, Gangneung
	7 January 2008	Incheon, Gangneung
E8	22 December 2006	Shenyang
	23 December 2006	Gangneung
	24 December 2006	Hiroshima
E9	21 December 2006	North Yellow Sea
	22 December 2006	Seoul
	23 December 2006	Kumamoto
E10	6 October 2008	Hokkaido
	7 October 2008	Northwest Pacific Ocean (Aleutian islands)
E11	9 October 2006	Vladivostok
	10 October 2006	Magadan
	11 October 2006	Northwest Pacific Ocean (Bering Sea)

lists the LRT-SO₂ event dates determined using the five conditions shown in Figure 2. E1 through E7 represent high SO₂ events when LRT-SO₂ reaches the Korean Peninsula, whereas E8 and E9 refer to the events when LRT-SO₂ reaches Japan via the Korean Peninsula. E10 and E11 did not meet the above five conditions, which require the surface SO₂ in situ data since air mass pathways from the source areas do not pass over the Korean Peninsula where the surface SO₂ in situ data are available. However, E10 and E11 were considered as LRT-SO₂ events in the Northwest Pacific Ocean according to Hsu et al. [19], who reported events in which LRT-SO₂ from continental Asia reached the Northwest Pacific Ocean using both OMI data and a transport model (HYSPLIT).

3. Flow Rate Calculation

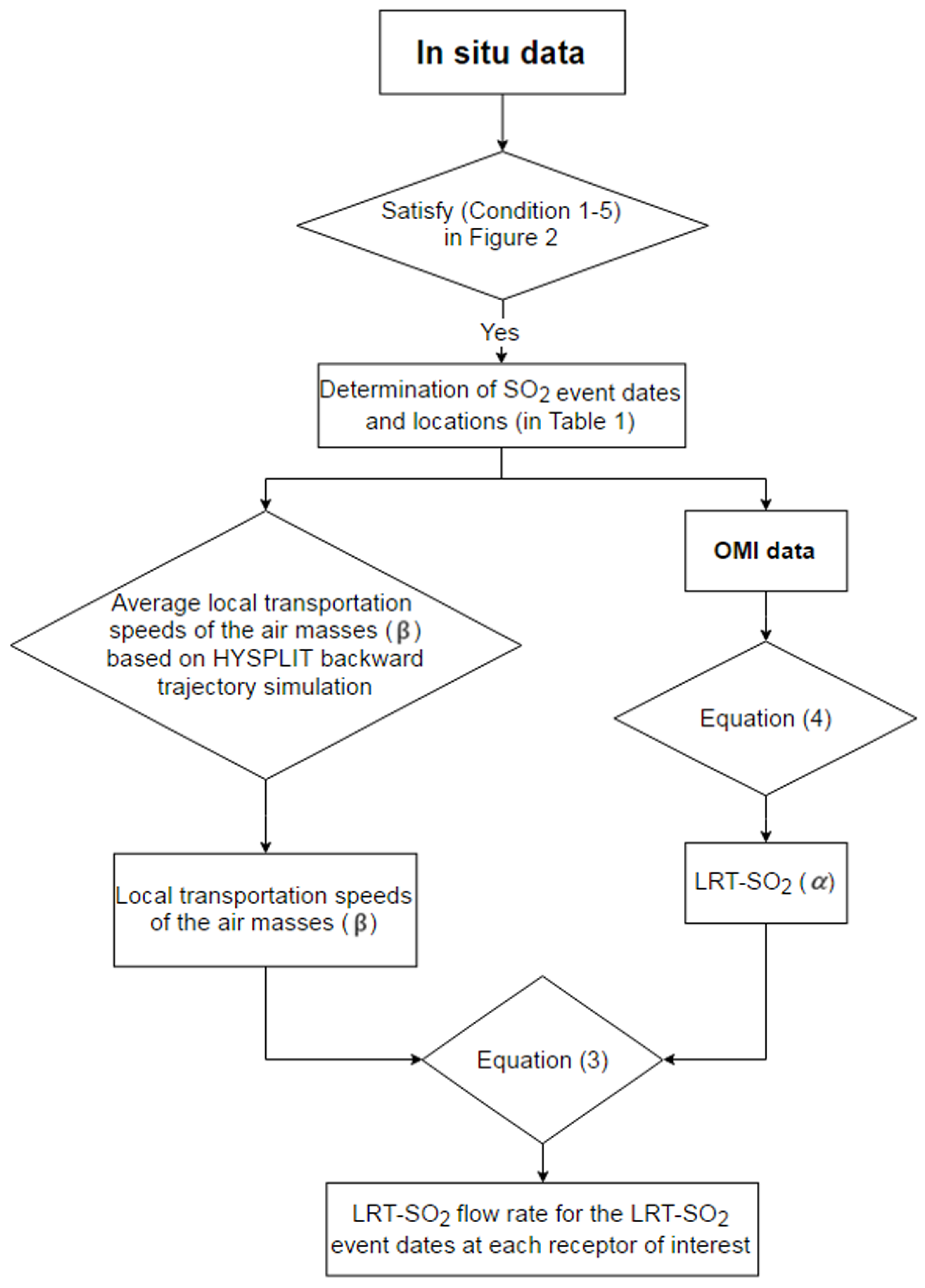

Figure 3 summarizes the flow rate calculation for the LRT-SO₂ event dates at each receptor location of interest. The LRT-SO₂ flow rate in the present study represents the total mass of SO₂ transported from continental Asia into the atmosphere over a receptor area of size equal to an OMI grid length per unit time. The LRT-SO₂ flow rate can be expressed in terms of the average flux and cross-sectional area:

$$\text{Flow rate} \left(\text{Mg}·{\mathrm{h}}^{-1} \text{OMI}·{\text{gird}}^{-1}\right) = \text{average flux} \left(\text{Mg}·{\text{km}}^{-2}·{\mathrm{h}}^{-1}\right) \times \text{cross-sectional area} \left({\text{km}}^2\right)$$

(1)

The cross-sectional area in Equation (1) can be defined as the total cross-sectional area of the atmosphere that the long-range transported air mass flows through at a receptor area, and is located perpendicular to the long-range transported air mass transport direction at the receptor area. In the present study, the cross-sectional area is obtained by multiplying the OMI grid length by the atmospheric thickness. Atmospheric thickness is the distance between the surface and the Top Of the Atmosphere (TOA). The term “atmospheric thickness” eventually has no effect on the flow rate estimation since it is canceled out in Equation (3). The average flux term can be expressed as follows:

$$\text{Average flux} \left(\text{Mg}·{\text{km}}^{-2}·{\mathrm{h}}^{-1}\right)= \frac{\mathsf{\alpha } \left(\text{Mg}·{\text{km}}^{-2}\right)}{\text{atmospheric thickness} \left(\text{km}\right)} \times \mathsf{\beta } \left(\text{km}·{\mathrm{h}}^{-1}\right)$$

(2)

Here, α denotes the LRT-SO₂ column. LRT-SO₂ column ($\mathsf{\alpha }$) means the SO₂ column at a receptor area due to LRT from continental Asia. $\mathsf{\beta }$ denotes the average transportation speed of air mass. The transportation speed of air mass ($\mathsf{\beta }$) can be defined as the average local transportation speeds of the air masses, which are originated within the PBL in a source area and are also within the OMI grid at a receptor site and the air mass here is assumed to contain SO₂ that originates from the source region. Replacing the average flux term in Equation (1) with the terms on the right hand side of Equation (2), we have

$${\text{SO}}_2 \text{flow rate} \left(\text{Mg}·{\mathrm{h}}^{-1}\text{OMI}·{\text{gird}}^{-1}\right)= \mathsf{\alpha } \left(\text{Mg}·{\text{km}}^{-2}\right) \times \mathsf{\beta } \left(\text{km}·{\mathrm{h}}^{-1}\right) \times \text{OMI grid length} \left(\text{km}\right)$$

(3)

The OMI grid length is 25 km, since OMI Level 3 data were used in this study. The methods used to obtain the $\mathsf{\alpha }$ and $\mathsf{\beta }$ are described in Section 3.1 and Section 3.2, respectively.

3.1. Calculation of α

$\mathsf{\alpha }$ was calculated as follows:

$$\mathsf{\alpha } ={\text{SO}}_2{\text{VCD}}_{\text{event}}-{\text{SO}}_2{\text{VCD}}_{\text{local}}$$

(4)

In Equation (4), SO₂ VCD_local represents the SO₂ vertical column density (VCD) due to local SO₂ emission at a receptor area at an OMI overpass time for each event in Table 1. SO₂ VCD_local was calculated by averaging OMI SO₂ column data that were available for the 15 days before and after each event date, excluding the data measured on the event date. SO₂ VCD_event represents the OMI SO₂ column measured for each event in Table 1.

Table 2. Estimated LRT-SO₂ flow rate and the parameters (α and β) used to estimate the long-range transported flow rate for each event.

Event		α a, α b, α c, α d (g·m−2)	β a, β b, β c, β d (m·s−1)	Flow Rate (Error) (Mg·h−1 OMI·grid−1)
E1	23	0.036 a, 0.019 d	3.0 a, 3.0 d	9.7 a (±2.5), 5.1 d (±1.4)
	24	0.038 a, 0.022 d	5.1 a, 4.7 d	17.4 a (±4.7), 9.3 d (±2.5)
E2	11	0.049 a, 0.020 b	6.3 a, 6.3 b	27.8 a (±7.5), 11.3 b (±3.1)
E3	22	0.036 a, 0.031 b, 0.054 d	7.3 a, 7.2 b, 6.8 d	23.7 a (±6.3), 20.0 b (±5.3), 33.4 d (±8.7)
	23	0.024 a, 0.024 b,0.092 d	4.1 a, 4.1 b, 3.8 d	8.9 a (±2.4), 8.9 b (±2.4), 31.5 d (±8.3)
E4	13	0.040 a, 0.027 b	4.3 a, 4.1 b	15.5 a (±4.1), 10.0 b (±2.7)
	14	0.048 a, 0.040 b	1.1 a, 1.1 b	4.8 a (±1.3), 4.0 b (±1.1)
	15	0.034 a, 0.025 b	4.6 a, 4.8 b	14.1 a (±3.8), 10.8 b (±3.0)
E5	7	0.029 a, 0.018 d	3.3 a, 3.8 d	8.6 a (±2.2), 6.2 d (±1.5)
	8	0.027 a, 0.016 d	1.5 a, 2.0 d	3.6 a (±1.0), 2.9 d (±0.8)
E6	11	0.033 a, 0.053 d	3.7 a, 2.4 d	11.0 a (±2.9), 11.4 d (±3.0)
E7	6	0.030 b, 0.021 c	1.5 b, 2.7 c	4.1 b (±1.1), 5.1 c (±1.4)
	7	0.026 b, 0.035 c	7.8 b, 8.6 c	18.3 b (±4.8), 27.1 c (±7.0)
E8	22	0.035	7.2	22.7 (±7.4)
	23	0.033	4.7	14.0 (±3.7)
	24	0.013	3.6	4.2 (±1.2)
E9	21	0.047	5.8	24.5 (±7.5)
	22	0.032	7.3	21.0 (±5.2)
	23	0.010	5.9	5.3 (±1.4)
E10	6	0.028	6.4	16.1 (±4.5)
	7	0.019	3.3	5.6 (±1.6)
E11	9	0.034	5.3	16.2 (±4.4)
	10	0.020	5.0	9.0 (±2.4)
	11	0.025	7.4	16.7 (±4.6)

^a Seoul; ^b Incheon; ^c Gangneung; ^d Wonju.

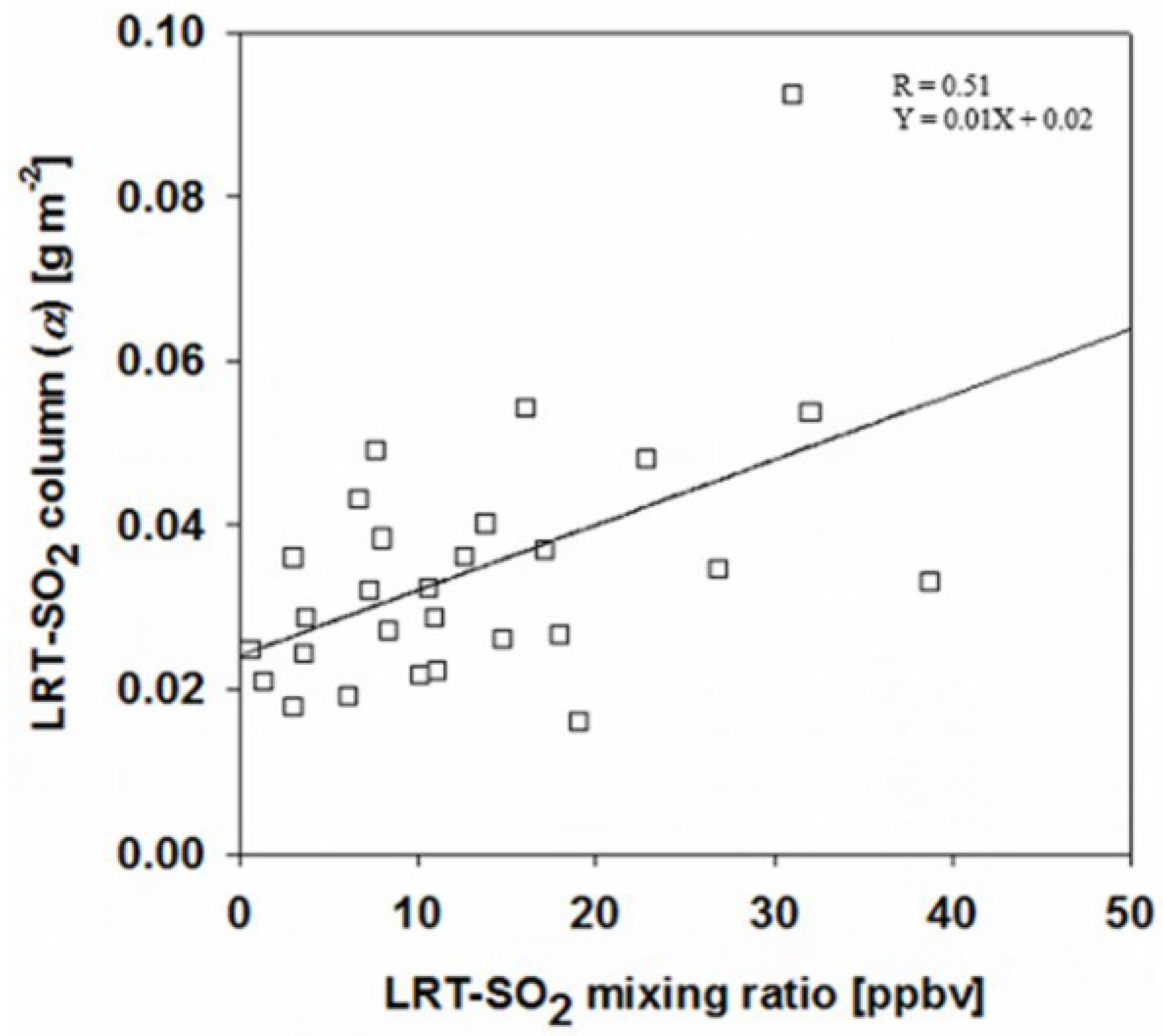

lists the $\alpha$ values calculated for each event and receptor site. We found the mean value (0.033 g·m⁻²) of $\alpha$ to be much larger than 0.008 g·m⁻², which is the sum of the mean SO₂ VCD_local (0.006 g·m⁻²) and the standard deviation of SO₂ VCD_local (0.001 g·m⁻²). This large $\mathsf{\alpha }$ value, compared with SO₂ VCD_local plus its standard deviation, clearly distinguishes LRT-SO₂ from local SO₂. We also calculated LRT-surface SO₂ mixing ratio using the Equation (4) but for surface mixing ratio instead of VCD. In Figure 4, LRT-SO₂ mixing ratios were calculated using the in situ data averaged for a one-hour interval between 13:30 and 14:30 (LT). The $\mathsf{\alpha }$ values are plotted against LRT-SO₂ mixing ratios, showing certain agreement (R = 0.51) in Figure 4. The high R value between LRT-SO₂ column and LRT-SO₂ mixing ratio implies that the contribution of long-range transported SO₂ to a receptor area is vertically similar, whereas the low R value means that the contribution of long-range transported SO₂ to a receptor area is vertically different. The slope and intercept of the regression equation in Figure 4 do not mean much in comparison with the R value. However, there exists the y-interceptor (0.02) of the regression equation in Figure 4 due to no zero values present at x- and y-axis because only the data for the SO₂ event periods can be used to calculate either LRT-SO₂ column or LRT-SO₂ mixing ratio in this present study.

3.2. Calculation of β

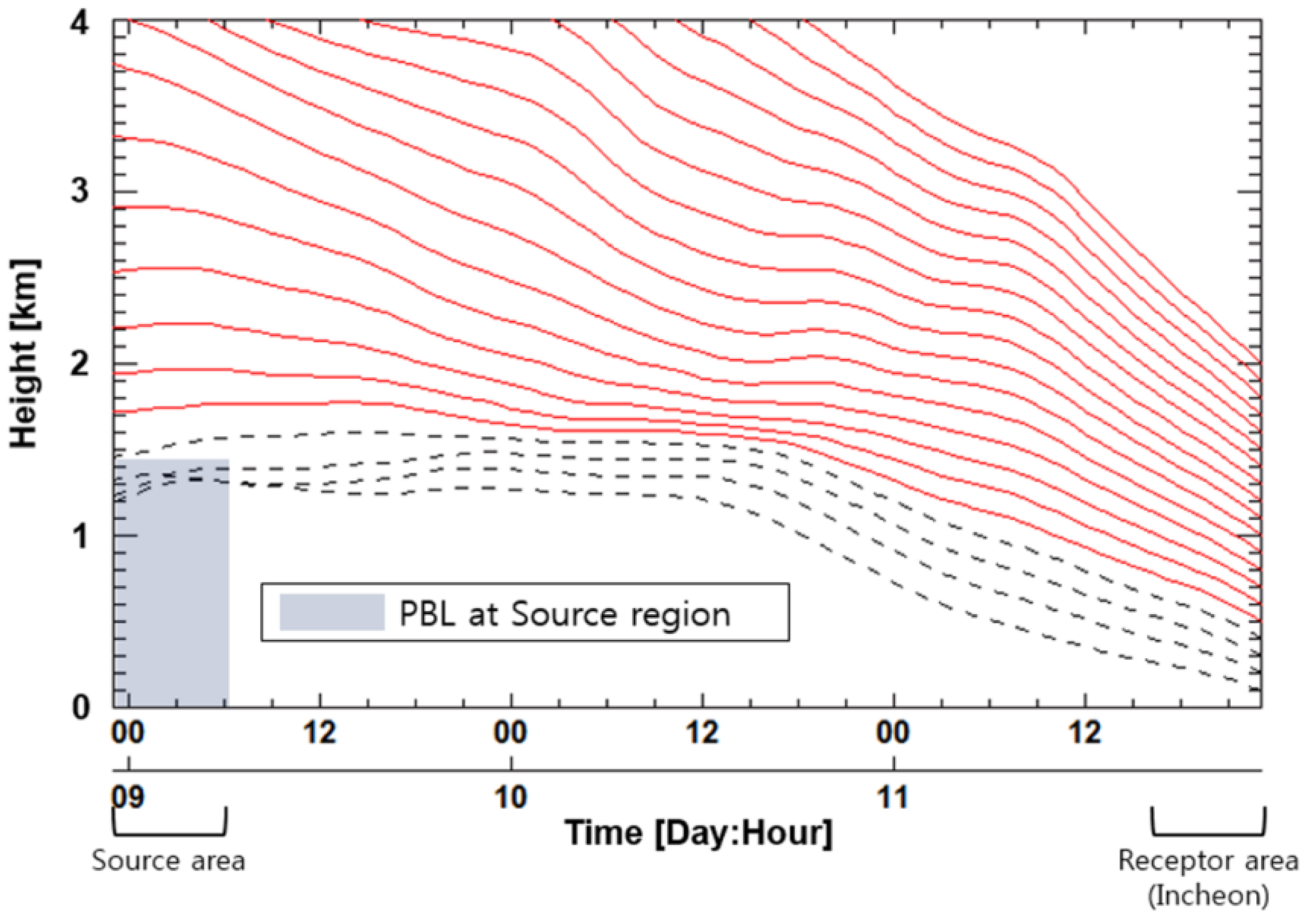

Sulfur dioxide is likely to be concentrated within the PBL at the source area. Therefore, the air mass that starts traveling within the PBL over continental Asia during the event in Table 1 is assumed to contain SO₂ from the source area. We used the seasonal mean PBL height information reported by von Engeln and Teixeira [32] in order to reflect seasonal PBL variations at the source region on continental Asia. Air mass backward trajectories from each receptor site were computed every 0.1 km above ground level (agl) for each event, using the HYSPLIT model. The source areas, which are identified in this present study, are coincident with the areas with high SO₂ emission reported in the Asian emission inventory study [8,11,33] and also the receptor modeling study [18]. β was calculated by averaging the local transportation speeds of the air masses, which are originated within the PBL in a source area and are also within the OMI grid at a receptor site. Figure 5 shows an example of the vertical distribution of the backward trajectories that started traveling between continental Asia and Incheon on 11 February 2006. Table 2 lists the β values for each event and receptor site as well as the LRT-SO₂ flow rates for each event and receptor site using Equation (3) with the α and β values in Table 2.

4. Results

4.1. LRT-SO₂ Flow Rates

Table 2 lists α and β, and LRT-SO₂ flow rate for each event over the Korean Peninsula, Japan, and the Northwest Pacific Ocean. In events E1–E7, when LRT-SO₂ reached the Korean Peninsula, the maximum flow rate is 33.4 Mg·h⁻¹ OMI·gird⁻¹ in Wonju on 22 December 2006, while the minimum flow rate is 2.9 Mg·h⁻¹ OMI·gird⁻¹ in Wonju on 8 November 2007. In events E8 and E9 when LRT-SO₂ reaches Japan via the Korean Peninsula, the maximum flow rate is 24.5 Mg·h⁻¹ OMI·gird⁻¹ over the North Yellow Sea on 21 December 2006 while the minimum flow rate is 4.2 Mg·h⁻¹ OMI·gird⁻¹ at Hiroshima on 24 December 2006. In events E10 and E11, when LRT-SO₂ reaches the Northwest Pacific Ocean, the maximum flow rate is 16.7 Mg·h⁻¹ OMI·gird⁻¹ at the Northwest Pacific Ocean (Bering Sea) Hokkaido 11 October 2006 whereas the minimum flow rate is 5.6 Mg·h⁻¹ OMI·gird⁻¹ at the Northwest Pacific Ocean (Aleutian islands) on 7 October 2008. A general decrease in LRT-SO₂ flow rates with increasing distance from continental Asia can be associated with reduction in either α or β according to Equation (3). As shown in Table 2, the decreasing tendency in LRT-SO₂ flow rate over transport distance is mostly due to a decreasing trend of α since β does not show any trend. The decreasing trend of α could be attributed to dispersion of SO₂ over transport distance between a source area and a receptor area. In Table 2, average LRT-SO₂ flow rates over the Korean Peninsula, Japan, and the Northwest Pacific Ocean are calculated to be 13.1, 8.5, and 11.2 Mg·h⁻¹ OMI·gird⁻¹, respectively. We have the average flow rate over the Northwest Pacific Ocean higher than that over Japan due to the contribution of the volcanic emissions, which are explained in detail later in this section.

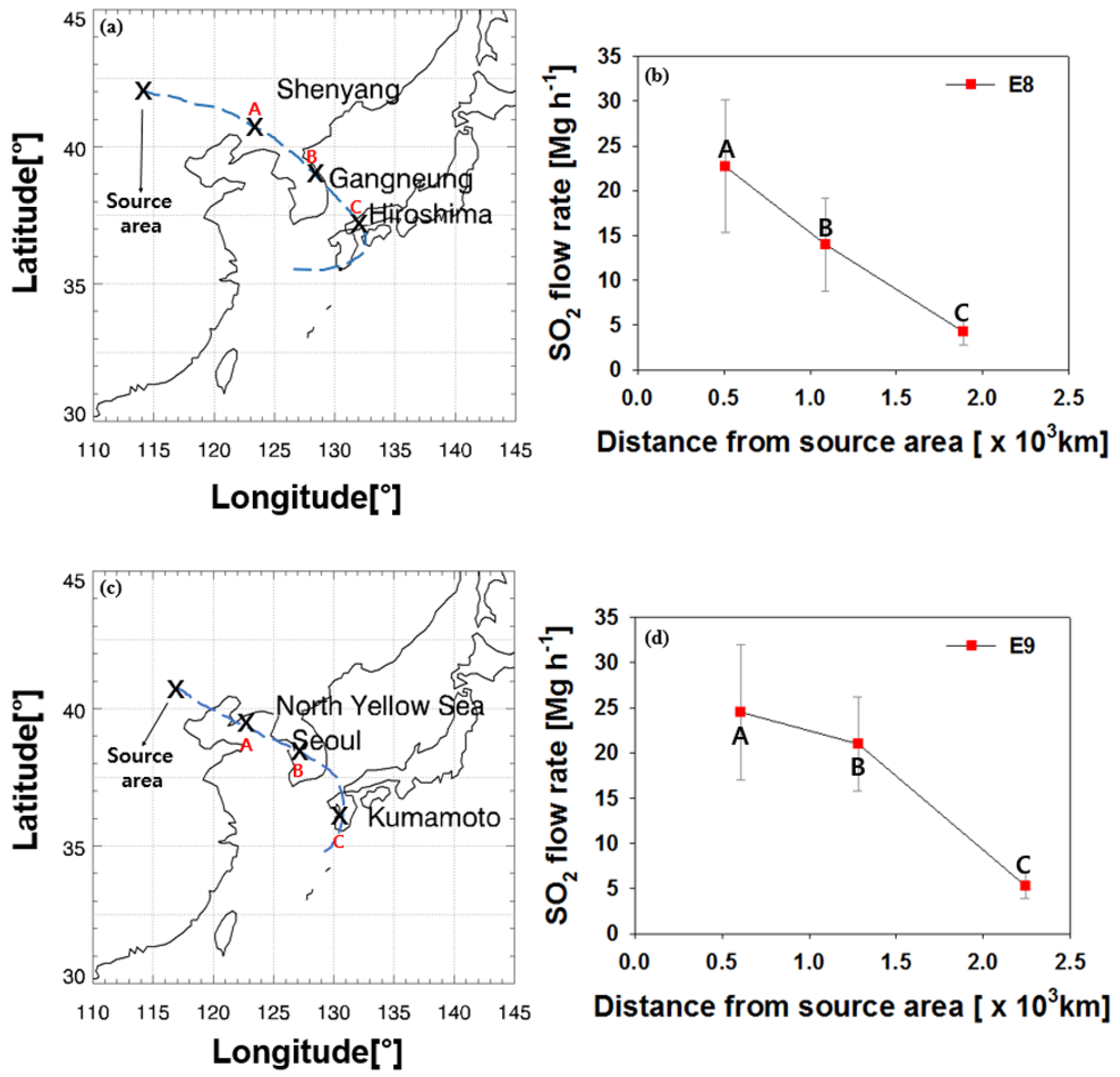

We investigated the variations in LRT-SO₂ flow rates as a function of distance from continental Asia for events E8–E11. Figure 6a shows the backward trajectories that correspond to events E8 in Table 1, while Figure 6b shows the variation of the LRT-SO₂ flow rate for event E8 as a function of distance from continental Asia. In Figure 6a, A, B, and C represent the locations of the air mass backward trajectory for event E8 on 22–24 December 2006 at Shenyang, Gangneung, and Hiroshima, respectively. The corresponding SO₂ flow rates, shown in Figure 6b, have values of 22.7, 14.0, and 4.2 Mg·h⁻¹ OMI·gird⁻¹ at A, B, and C, which are 510, 1090, and 1890 km from the source area, respectively. Figure 6c,d is the same as Figure 6a,b but for E9. In Figure 6c, A, B, and C represent the locations of the air mass backward trajectories for event E9 on 21–23 December 2006 over the North Yellow Sea, Seoul, and Kagoshima, respectively. The corresponding SO₂ flow rates for E9, shown in Figure 6d, have values of 24.5, 21.0, and 5.3 Mg·h⁻¹ OMI·gird⁻¹ at A, B, and C, which are 610, 1280, and 2240 km from the source area, respectively. Although the distances between the receptor locations (B and C) and the source area for event E8 in Figure 6a,b are slightly different from those for event in Figure 6c,d, we found that the LRT-SO₂ flow rates at receptor sites B and C in Figure 6b are closely similar to those for B and C in Figure 6d. The similarity between the LRT-SO₂ flow rates in Figure 6b,d may be associated with the similarity between the two event periods in December 2006 as well as between the air mass pathways for events E8 and E9. The rate of decrease in the LRT-SO₂ flow rate between locations A and C is 13.4 Mg·h⁻¹ OMI·gird⁻¹ per 1000 km distance from the source area in Figure 6b compared with 11.8 Mg·h⁻¹ OMI·gird⁻¹ per 1000 km distance from the source area in Figure 6d.

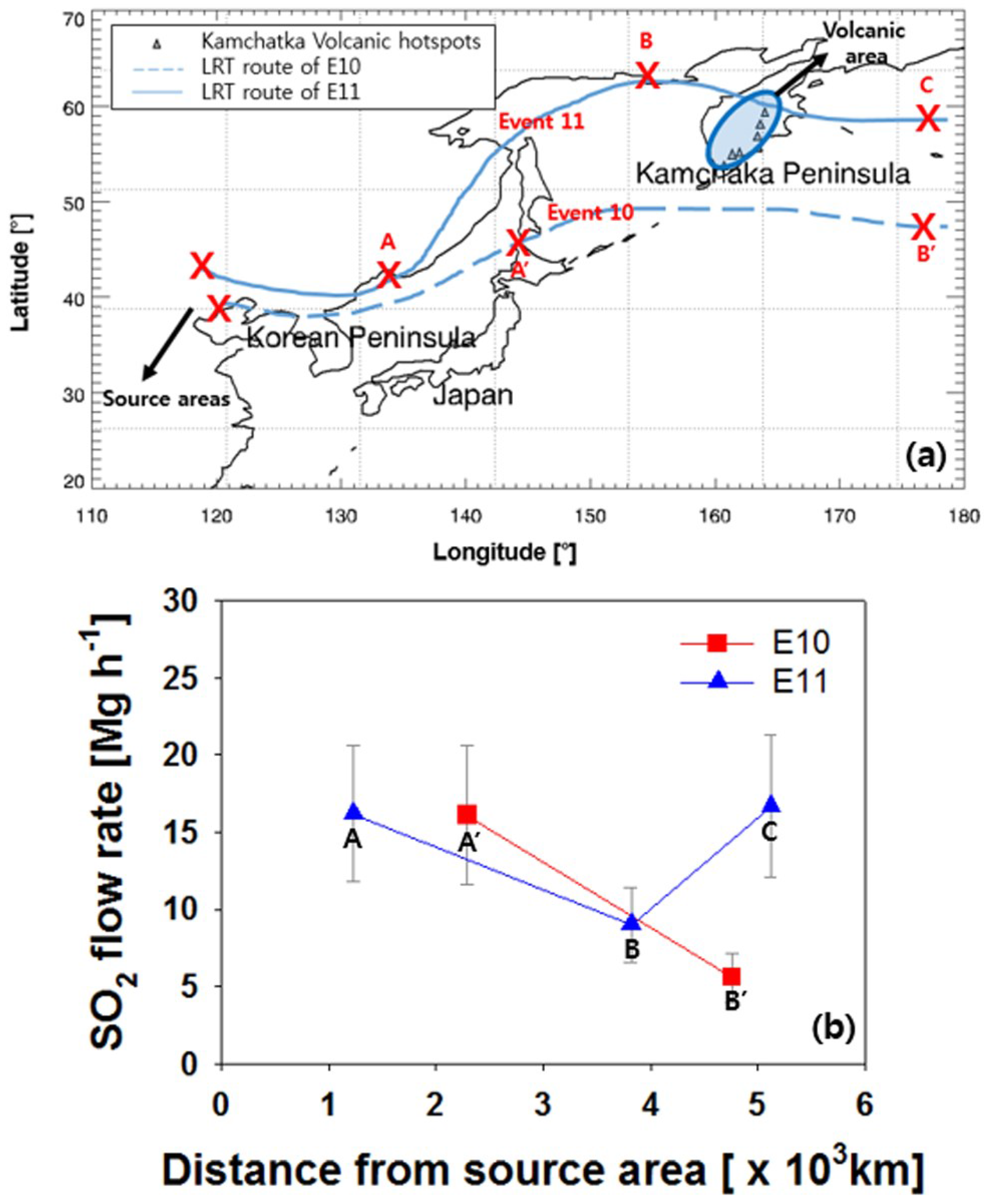

Figure 7a shows the backward trajectories that correspond to events E10 and E11 in Table 1, while Figure 7b shows the variation of the LRT-SO₂ flow rate for events E10 and E11 as a function of distance from continental Asia. In Figure 7a, A’ and B’ represent the locations of the air mass backward trajectory for event E10 on 6–7 October 2008 at Hokkaido and the Northwest Pacific Ocean (Aleutian Islands), respectively, and A, B, and C represent those for event E11 on 9–11 October 2006 at Vladivostok, Magadan, and the Northwest Pacific Ocean (Bering Sea), respectively. The corresponding LRT-SO₂ flow rates are shown in Figure 7b. The values for event E10 are calculated to be 16.1 and 5.6 Mg·h⁻¹ OMI·gird⁻¹ at A’ and B’, which are 2290 and 4760 km from the source area, respectively. The values for event E11 are 16.2, 9.0, and 16.7 Mg·h⁻¹ OMI·gird⁻¹ at A, B, and C, which are 1230, 3820, and 5120 km from the source area, respectively. We found a general decrease in LRT-SO₂ flow rates with distance from the source region except for locations between B and C. The increase in LRT-SO₂ between B and C in Figure 7b could be attributed to the contribution of SO₂ from continuous volcanic emissions (e.g., Sheveluch, Klyuchevskov, Bezymianny, Karymsky, Ebeko, Severgin, and Berga) over the Kamchatka Peninsula, which is located on the air mass pathway between B and C in Figure 7a. The increase in LRT-SO₂ between B and C in Figure 7b is thought to be associated with the contribution of the volcanic emissions since the volcanic gas emissions except for large eruption cases are generally known to affect the lower troposphere [34,35,36,37]. The rate of decrease in the LRT-SO₂ flow rate between locations A’ and B’ is 4.3 Mg·h⁻¹ OMI·gird⁻¹ per 1000 km distance from the source area for event E10, whereas that between locations A and B is 4.5 Mg·h⁻¹ OMI·gird⁻¹ per 1000 km distance from the source area for event E11.

4.2. Error Estimation

The uncertainties in LRT-SO₂ flow rate were calculated following the error propagation analysis of Clifford [38]:

$$\mathsf{\sigma }=\sqrt{ {\text{flow rate}}^2\times \left({\left(\frac{{\mathsf{\sigma }}_{\mathsf{\alpha }}}{\mathsf{\alpha }}\right)}^2+{\left(\frac{{\mathsf{\sigma }}_{\mathsf{\beta }}}{\mathsf{\beta }}\right)}^2\right)}$$

(5)

Here, flow rate represents the LRT-SO₂ flow rate. $\mathsf{\sigma }$ represents the uncertainty in LRT-SO₂ flow rate, and ${\mathsf{\sigma }}_{\mathsf{\alpha }}$ and ${\mathsf{\sigma }}_{\mathsf{\beta }}$ represent the uncertainties in $\mathsf{\alpha }$ and $\mathsf{\beta }$, respectively. In this present study, OMI SO₂ column uncertainty of 45% was used for ${\mathsf{\sigma }}_{\mathsf{\alpha }}$ following Lee at el. [39]. We also calculated ${\mathsf{\sigma }}_{\mathsf{\beta }}$, which is composed of the covariance of the distance and time for each trajectory as well as the uncertainty in air mass transportation speed. We used 20% for the uncertainty in air mass transportation speed, following Stohl [30]. The LRT-SO₂ flow rate uncertainties calculated using Equation (5) are shown as numbers in brackets in Table 2. The uncertainties are also indicated by the error bars in Figure 6b,d and Figure 7b. For all events from E1 through E11, the uncertainties in LRT-SO₂ flow rate range from 51% to 61% (average, 56%).

5. Conclusions

We report the first use of the OMI SO₂ column and backward trajectory simulation to calculate the LRT-SO₂ flow rate from continental Asia to the Korean Peninsula, Japan, and the Northwest Pacific Ocean. In general, we found a decreasing trend in LRT-SO₂ flow rates with distance from the source region. However, the flow rate increased with distance from continental Asia in the case of event E11 when large volcanic areas in the Kamchatka Peninsula, another significant SO₂ source, are located on the air mass pathway between continental Asia and the Northwest Pacific Ocean (Bering Sea). For future studies, the method for estimation of LRT-SO₂ can be applied to other downwind regions with significant SO₂ emission sources. The method can also be utilized for other atmospheric species (e.g., CO and aerosol). As the information of a transported air pollutant amount can be available at a receptor area, this method is expected to be useful for the efficient local air quality management. In addition, the application of this method to geostationary measurements (e.g., Geostationary Environmental Monitoring Spectrometer (GEMS)) allows quantifying the hourly amount of gases or aerosols that are long-range transported from a source area to receptor areas.
