Application of Effective Conversion Rates between NO and NO₂ in a Standard Airport Dispersion Model System

Abstract

The NO/NO₂/O₃ reaction mechanism of the standard VDI 3783 Part 19 was coupled to the Lagrangian particle model LASAT and quasi-stationary, individual plumes were calculated for a point source under various conditions. First-order conversion rates between NO and NO₂ were derived by fitting to these plumes and further simplified to sets of categorized conversion rates which depend on background NO₂ concentration, atmospheric stability and time of the day. The rates were applied in the standard airport dispersion model system LASPORT and compared to measured NO₂ concentrations at Los Angeles International Airport. The agreement between modelled and measured NO₂ concentrations (weekly averages) and ratios NO₂ over NO_x at monitor stations dominated by airport emissions was in most cases better than a factor of 2 with a Pearson correlation coefficient of about 0.9 or above.

1. Introduction

In the emission from combustion processes, only a fraction of the emitted nitrogen oxide (NO_x) is in the form of nitrogen dioxide (NO₂). The usually larger part is in the form of nitrogen monoxide (NO). During subsequent atmospheric transport, chemical conversion processes then lead to an effective increase in the fraction of NO₂ in NO_x. Limit values on ambient air quality usually refer to NO₂; therefore, atmospheric dispersion modelling requires an estimate of the effective conversion between NO and NO₂ after emission. Dedicated meso-scale chemical transport models can account for complex reaction mechanisms of higher order. On the other hand, local dispersion models often have limited capabilities.

NO/NO₂ chemistry is governed by reactions of higher order [1]. A standardized description of gas-phase reactions is provided in the German standard VDI 3783 Part 19 (2017) [2]. Its mechanism M1 covers the photolysis of NO₂ and the oxidation of NO with O₃, and mechanism M2 contains several additional reaction paths. These reactions can be accounted for in a model system (LASREA) which combines the Lagrangian particle model LASAT with a chemical QSSA solver. This allows the modelling of the mixing of ambient air into a pollutant plume together with the dynamics of the higher-order reactions at a high temporal (order of seconds) and spatial (order of metres) resolution.

LASREA was developed for the investigation of specific situations and it is computationally expensive. It was applied to derive simplified conversion rates of first order that can be easily applied in standard dispersion models. In a recent project [3], this concept was applied to derive effective conversion rates between NO and NO₂ for application with the regulatory model AUSTAL [4], which implements the specifications of Annex 2 (dispersion calculation) of the German Technical Instructions on Air Quality Control (TA Luft) [5].

In the work presented here, the effective conversion rates were implemented into the airport dispersion model system LASPORT [6,7] and applied in a dispersion calculation for Los Angeles International Airport, for which measured concentrations of NO and NO₂ were available. Further details are provided in [3]. Figure 1 shows a schematic diagram of the applied standards and model systems.

2. Foundations

2.1. Reaction Mechanism

The reaction mechanism M1 of the standard VDI 3783 Part 19 reads

$$\begin{array}{ccc}\mathrm{N}{\mathrm{O}}_2+h\nu & \stackrel{j_1}{⟶}& \mathrm{O}{(}^3\mathrm{P})+\mathrm{N}\mathrm{O}\end{array}$$

(1)

$$\begin{array}{ccc}\mathrm{O}{(}^3\mathrm{P})+{\mathrm{O}}_2& \stackrel{k_2}{⟶}& {\mathrm{O}}_3\end{array}$$

(2)

$$\begin{array}{ccc}{\mathrm{O}}_3+\mathrm{N}\mathrm{O}& \stackrel{k_3}{⟶}& \mathrm{N}{\mathrm{O}}_2+{\mathrm{O}}_2\end{array}$$

(3)

Reaction (2) is very fast so that the mechanism can be simplified to

$$\begin{array}{ccc}\mathrm{N}{\mathrm{O}}_2+h\nu +{\mathrm{O}}_2& \stackrel{j_1}{⟶}& {\mathrm{O}}_3+\mathrm{N}\mathrm{O}\end{array}$$

(4)

$$\begin{array}{ccc}{\mathrm{O}}_3+\mathrm{N}\mathrm{O}& \stackrel{k_3}{⟶}& \mathrm{N}{\mathrm{O}}_2+{\mathrm{O}}_2\end{array}$$

(5)

The conserved quantities are $\left[\mathrm{N}{\mathrm{O}}_{\mathrm{x}}\right]=\left[\mathrm{N}\mathrm{O}\right]+\left[\mathrm{N}{\mathrm{O}}_2\right]$ and $D=\left[{\mathrm{O}}_3\right]-\left[\mathrm{N}\mathrm{O}\right]$. If quantities of $\mathrm{N}\mathrm{O}$, $\mathrm{N}{\mathrm{O}}_2$ and ${\mathrm{O}}_3$ (and a practically infinite reservoir of O₂) are inserted into a closed volume, the reactions take place and lead after a certain time to a quasi-stationary state with the steady-state concentration

$$\begin{array}{c}\left[\mathrm{N}{\mathrm{O}}_2\right]=\frac{k_3\left[{\mathrm{O}}_3\right]}{j_1+k_3\left[{\mathrm{O}}_3\right]}\left[\mathrm{N}{\mathrm{O}}_{\mathrm{x}}\right]\end{array}$$

(6)

where $\left[{\mathrm{O}}_3\right]$ is the steady-state concentration of O₃. The temporal behaviour of $\left[\mathrm{N}{\mathrm{O}}_2\right]$ can be solved fully analytically [3]. The characteristic time to reach the steady-state is

$$\begin{array}{ccc}\tau & =& \frac{1}{\sqrt{4j_1{k}_3\left[\mathrm{N}{\mathrm{O}}_{\mathrm{x}}\right]+{(j_1+k_{3}D)}^2}}.\end{array}$$

(7)

Another presentation of the steady state concentration is

$$\begin{array}{ccc}\left[\mathrm{N}{\mathrm{O}}_2\right]& =& \frac{1}{2k_3}\left\{j_1+k_3(D+2\left[\mathrm{N}{\mathrm{O}}_{\mathrm{x}}\right])-\frac{1}{\tau }\right\}.\end{array}$$

(8)

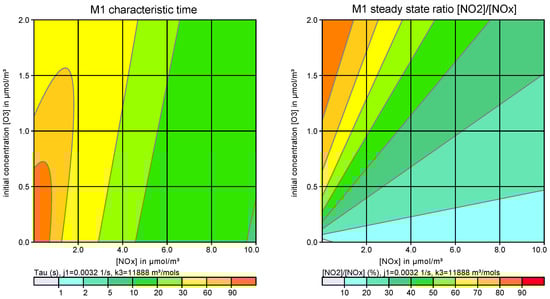

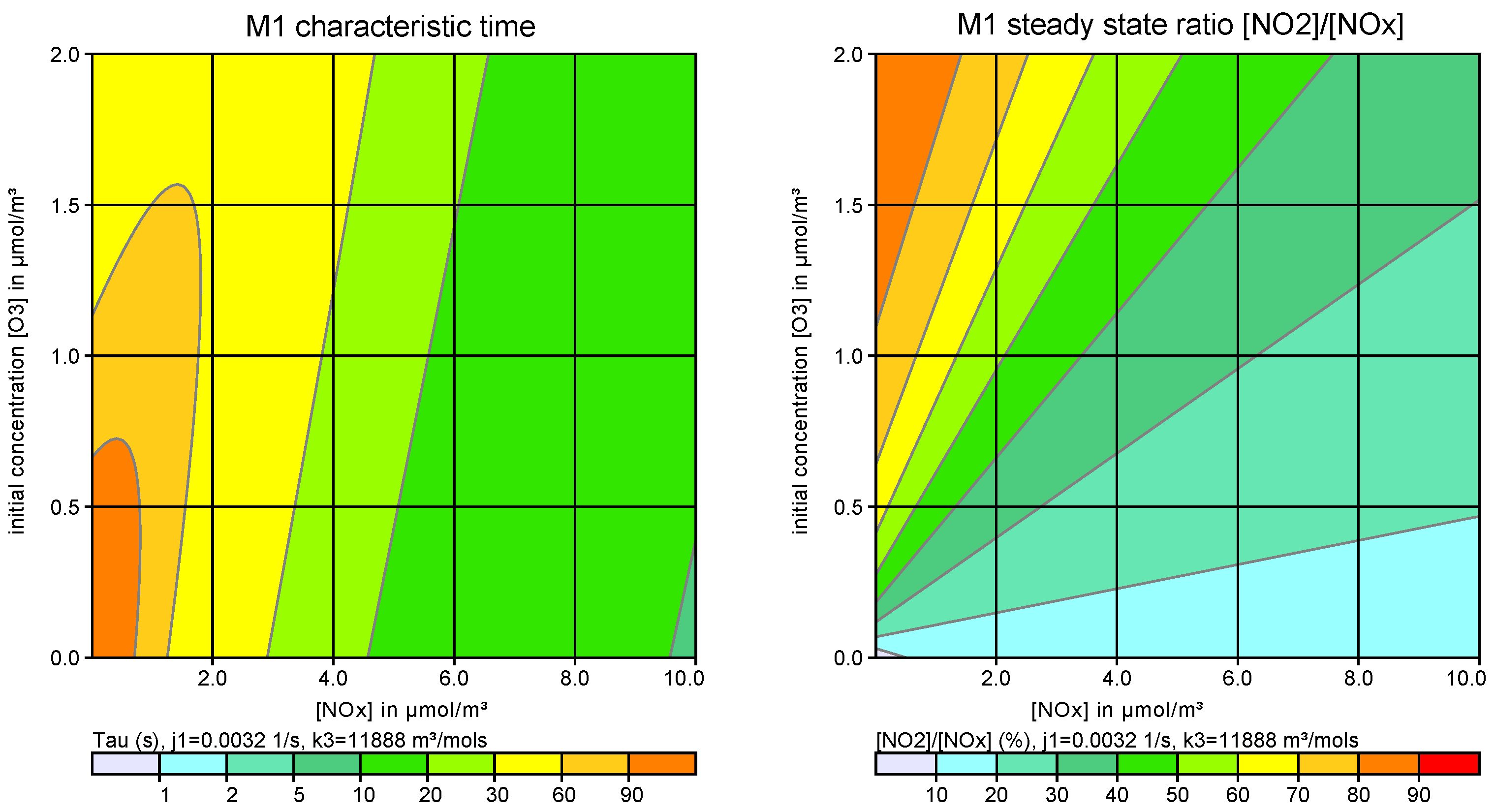

Figure 2 shows an example for the characteristic time and the ratio [NO₂]/[NO_x] as a function of the NO_x concentration and initial O₃ concentration.

2.2. Photolysis Frequency

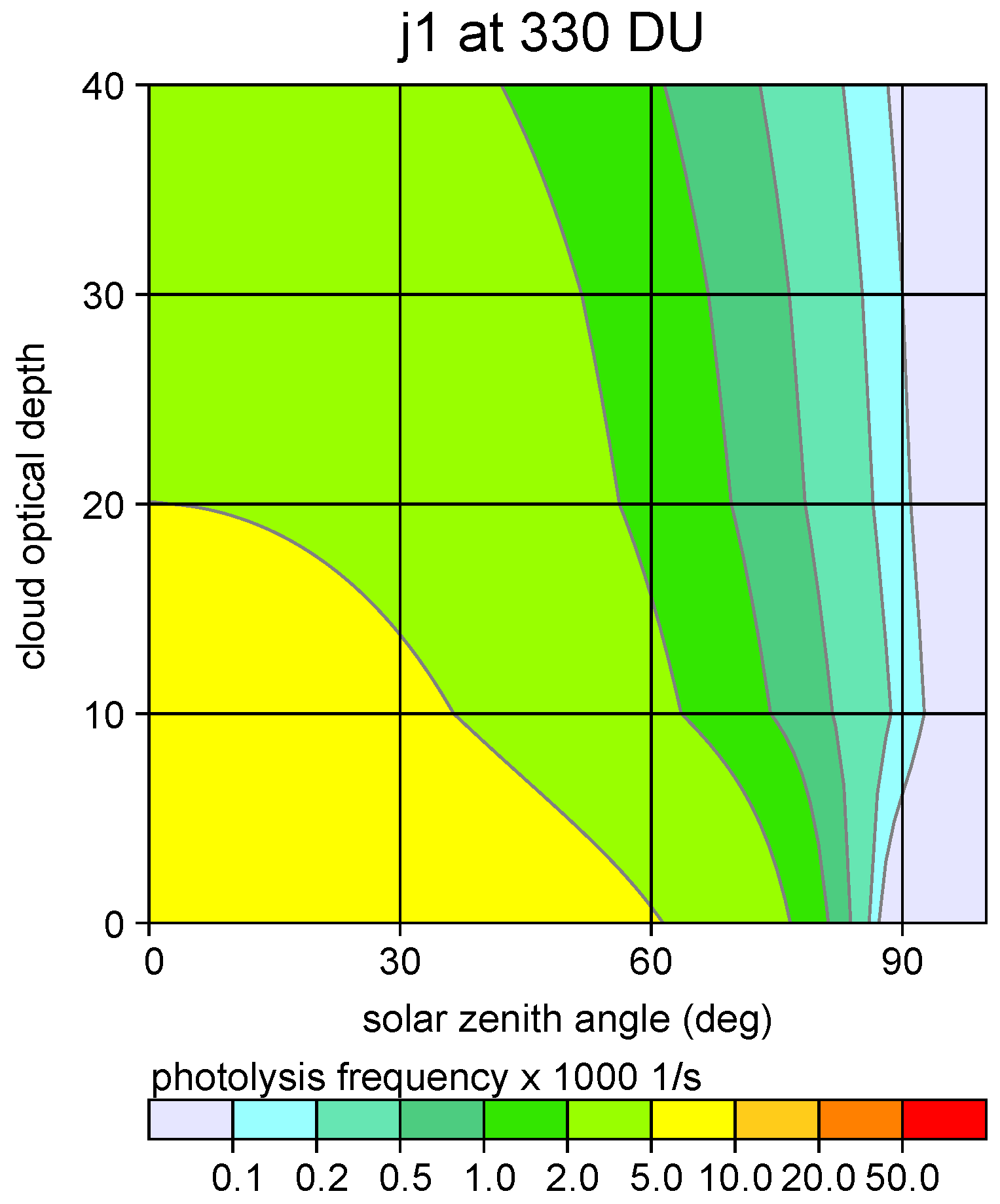

Photolysis frequencies were taken from the standard VDI 3783 Part 18 [8]. Their parametrisation is based on the solar zenith angle, optical cloud depth, ozone column density and aerosol pollution. Different levels of cloudiness are accounted for by a cloud modification factor. Figure 3 shows as an example the photolysis frequency of Reaction (1) as a function of the solar zenith angle and cloud optical depth.

2.3. LASREA

The tool LASREA serves to handle higher-order chemical reactions in combination with the Lagrangian particle model LASAT. LASAT (Lagrangian Simulation of Aerosol Transport) [9] is a particle model according to the standard VDI 3945 Part 3 [10]. It is applied in various model systems [11] and served as the basis of the regulatory model AUSTAL [4].

Usually, a particle model only handles reactions of first order because in this case the change of quantity (e.g., mass) carried by a simulation particle per unit time is independent of the other particles, such that the simulations particles can be processed independent of each other. In contrast for reactions of higher order, it is necessary to determine first the concentrations of the species in a given volume in order to obtain the reaction rate, and this requires information of all particles in the volume. LASREA performs the following steps to simulate the dispersion in a time interval of length T:

• LASAT carries out the dispersion calculation for the time interval 0 to $T/2$ without conversions, writes out the particle tables (locations, species quantities and other parameters) and pauses.
• LASREA reads the particle tables, calculates on the LASAT grid the current concentrations (volume average over a grid cell) and adds the pre-defined background concentrations.
• LASREA calculates for each grid cell the chemical reactions for the time interval 0 to T using a QSSA method.
• LASREA subtracts the background concentrations, distributes in each grid cell the calculated species quantities over the particles of the grid cell and writes out the particle tables.
• LASAT reads in the particles tables and continues the dispersion calculation for the time interval $T/2$ to T.

As LASREA defines the plume as a difference to a homogeneous background, it is important that the background concentrations are in equilibrium according to the implemented reaction mechanism. Otherwise changes of background concentration within the plume volume would be assigned to the plume itself. A different approach is reported in [12]. The QSSA procedure is based on a formulation by Dabdub and Seinfeld (1995) [13]. In a series of verification tests, LASREA was applied to a closed, single grid cell and the calculated concentrations were in agreement with the ones from a direct QSSA integration of the chemical differential equations [3].

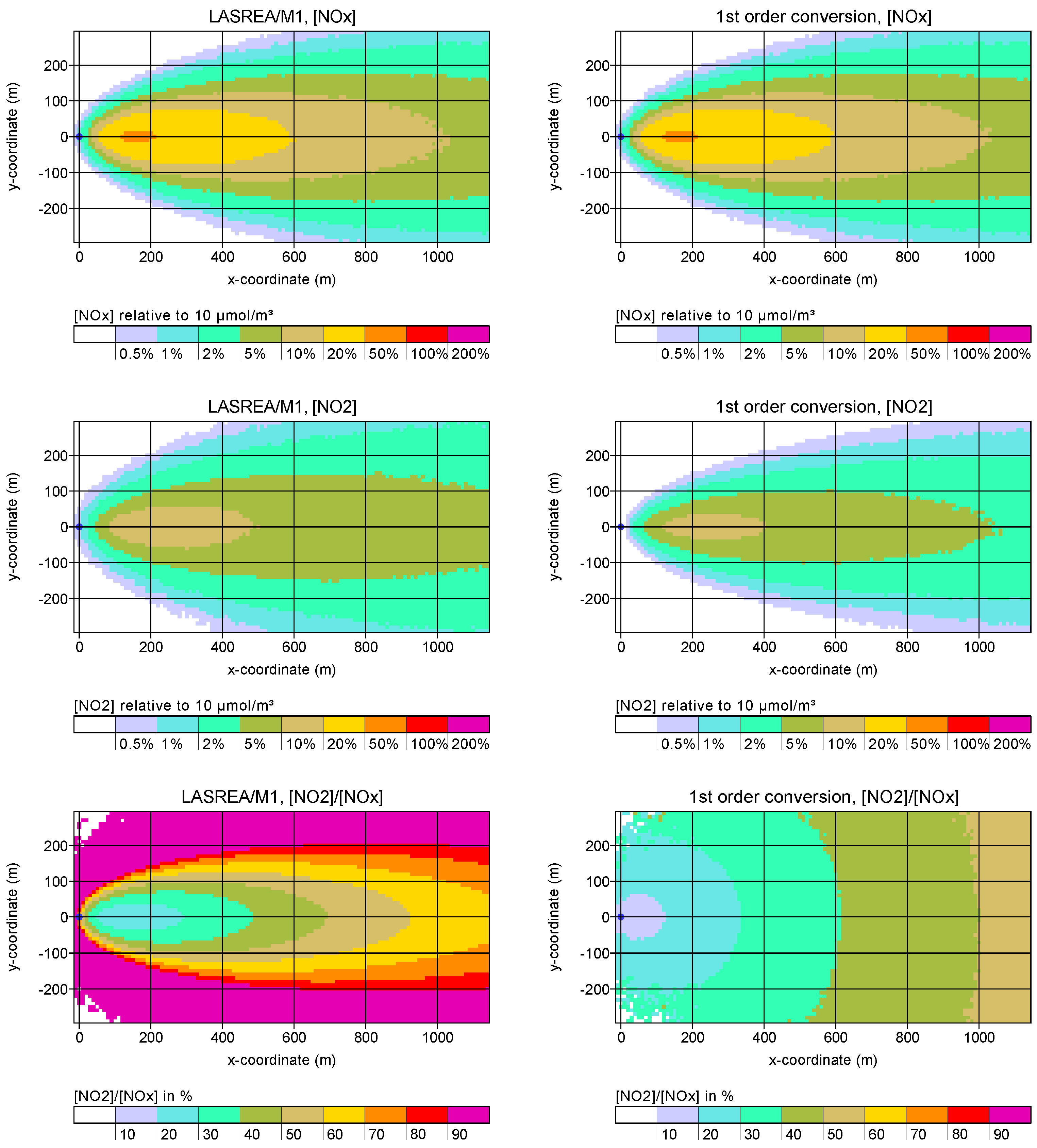

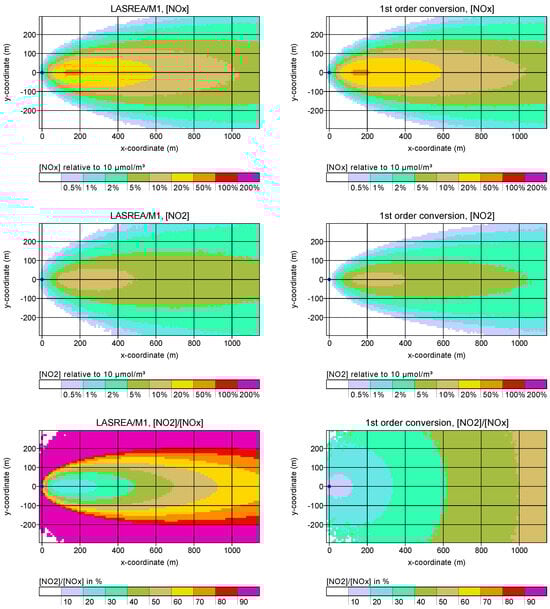

Figure 4 shows as an example the quasi-stationary concentration plumes near ground from a calculation with LASREA and the mechanism M1 (left side) and from a calculation with a first order conversion from NO to NO₂ at a time constant of 600 s (right side). The emission height was 20 m and the emission rate 0.1 mol/s NO_x (4.6 g/s) with an initial fraction of 10% NO₂ in NO_x. The LASREA plumes on the left side show the difference to the background, for which an ozone concentration of about 1 $\mathsf{\mu }$mol/m³ (50 $\mathsf{\mu }$g/m³) and a NO₂ concentration of about 0.2 $\mathsf{\mu }$mol/m³ (10 $\mathsf{\mu }$g/m³) were assumed. The background concentration of NO was determined from the M1 equilibrium (about 0.2 $\mathsf{\mu }$mol/m³), the rate constants were $j_1=0.0032$ 1/s and $k_3=11888$ m³/mol s.

The concentration distribution of NO_x is the same in both cases. The calculation with the first-order rate constant 1/600 s yields a somewhat smaller NO₂ concentration. The most remarkable difference between the two calculations becomes apparent for the ratio NO₂ over NO_x concentration. In the first-order conversion, the ratio is simply a function of transport time. With M1, it strongly depends on the location inside the plume: At the edges of the plume it is high because of the small concentrations (relative to the background) together with the mixing of ozone-rich ambient air, while at the plume centre it is limited by the available ozone.

The comparison shows that the effective conversion time in this LASREA/M1 example is of the order of 10 min. This is much longer than the characteristic time of M1 (see Figure 2), because the limiting factor for NO₂ production in the plume is the entrainment of ambient air. This explains why simplified or measurement-based approaches for effective first order conversions in pollutant plumes may apply conversion times considerably larger than the characteristic time of M1 itself.

3. Effective Conversion Rates

3.1. Plume Calculations

Test calculations showed that, for transport times of the order of 1 hour or below, the mechanism M1 of the standard VDI 3783 Part 19 is sufficiently accurate and that other reactions included in the standard (mechanism M2, e.g., conversion of NO_x to HNO₃, HCHO conversion and HO radicals) can be neglected on this time scale [3]. A variety of single-plume calculations were performed with LASREA/M1 and a boundary layer model according to the standard VDI 3783 Part 8 [14] for various emission heights, emission rates, ambient temperatures, background concentrations and solar zenith angles.

To categorize the ambient background, measured and extrapolated data of NO₂ and O₃ at various monitor stations in Germany [15] were used to assign for different levels of the NO₂ concentration an average O₃ concentration. Then, the M1 equilibrium was applied to derive the according NO and NO_x concentration for day and night time. The resulting background categories are listed in

Table 1. Categories of ambient background concentrations applied for the derivation of effective conversion rates.

NO2 μg/m3	O3 μg/m3	Time	NOx μg/m3	[NO2]/[NOx]
5	55	day	9.2	0.54
5	55	night	5.2	0.97
10	50	day	19.3	0.52
10	50	night	10.3	0.97
20	45	day	40.6	0.49
20	45	night	20.8	0.96
30	40	day	64.8	0.46
30	40	night	31.3	0.96

.

For daytime, the solar zenith angle was set to 0 deg (maximum photolysis rates), and for night time to 85 deg. The value smaller than 90 deg for night time allows a small photolysis and O₃ production. Test calculations showed that these assumptions and the assumed cloudiness were not critical for the derivation of effective conversion rates.

3.2. Conversion Rates

The plumes calculated with LASREA/M1 were compared to LASAT plume calculations that applied a first-order conversion between the two substances A (NO) and B (NO₂) with concentrations a and b:

$$\begin{array}{ccc}\frac{\mathrm{d}a}{\mathrm{d}t}& =& -\alpha a+\beta b\end{array}$$

(9)

$$\begin{array}{ccc}\frac{\mathrm{d}b}{\mathrm{d}t}& =& -\beta b+\alpha a\end{array}$$

(10)

The conversion rate from A to B is $\alpha$, the one from B to A is $\beta$, the according conversion times are $T_{\mathrm{a}}=1/\alpha$ and $T_{\mathrm{b}}=1/\beta$. The characteristic time of this reaction mechanism is $T=1/(\alpha +\beta )$. The ansatz

$$\begin{array}{ccc}a\left(t\right)& =& a_{\infty }+(a_0-a_{\infty })e^{-(\alpha +\beta )t}\end{array}$$

(11)

$$\begin{array}{ccc}b\left(t\right)& =& b_{\infty }+(b_0-b_{\infty })e^{-(\alpha +\beta )t}\end{array}$$

(12)

yields

$$\begin{array}{ccc}{a}_{\infty }& =& \frac{\beta }{\alpha +\beta }(a_0+b_0)\end{array}$$

(13)

$$\begin{array}{ccc}{b}_{\infty }& =& \frac{\alpha }{\alpha +\beta }(a_0+b_0)\end{array}$$

(14)

and there remain two conditions that can be used to fit the values of $\alpha$ and $\beta$ to a plume calculated by LASREA/M1. The concentrations a and b were identified with the cross-integrated concentrations of NO and NO₂ at the emission height. The ratio

$$\begin{array}{ccc}f& =& \frac{b}{a+b}\end{array}$$

(15)

$$\begin{array}{ccc} & =& f_{\infty }+(f_0-f_{\infty })e^{-(\alpha +\beta )t}\end{array}$$

(16)

with

$$\begin{array}{ccc}{f}_0& =& \frac{b_0}{a_0+b_0}\end{array}$$

(17)

$$\begin{array}{ccc}{f}_{\infty }& =& \frac{b_{\infty }}{a_{\infty }+b_{\infty }}=\frac{\alpha }{\alpha +\beta }\end{array}$$

(18)

was used for fitting. The value $f_{\infty }$ was set to the ratio of the according background concentrations $f_{\mathrm{b}}$. This corresponds to the assumption that, after sufficient transport time and dilution, the plume should adjust to the properties of the background. As second condition, the ratio f at a fixed transport time $t_1$ (tests yielded a suitable time of $t_1=180$ s) was set to the value derived from the LASREA/M1 calculation $f_1$. These two conditions yield

$$\begin{array}{ccc}\alpha & =& \frac{f_{\mathrm{b}}}{t_1}\ln \left(\frac{f_{\mathrm{b}}-f_0}{f_{\mathrm{b}}-f_1}\right)\end{array}$$

(19)

$$\begin{array}{ccc}\beta & =& \frac{1-f_{\mathrm{b}}}{f_{\mathrm{b}}}\alpha \end{array}$$

(20)

If $f_{\mathrm{b}}>f_1>f_0$, then $\alpha >0$ and $\beta >0$.

3.3. Categorized Conversion Rates

Each LASREA/M1 plume was re-calculated with the first order conversion scheme and the fitted values of $\alpha$ and $\beta$. It was shown that it is possible to reproduce in this way the NO₂ plumes from LASREA/M1 quite accurately, both in view of near-ground maximum values and in view of near-ground cross-integrated concentrations [3].

The values of $\alpha$ and $\beta$ depend, among other things, on the source height and the NO_x emission rate. For practical applications it is desirable to define the effective conversion rates independent of the source properties, otherwise plumes and their conversions must be handled separately for every source. Hence, different averages over the data sets were performed and tested to obtain categorized, averaged and effective conversion rates. One set was derived by extracting the values for a source height of 20 m and an emission rate of NO_x (4.6 g/s) together with categorized values of the atmospheric stability and the NO₂ background concentration.

Table 2. Categorized conversion times ($T_{\mathrm{a}}$: NO to NO₂, $T_{\mathrm{b}}$: NO₂ to NO) as a function of background NO₂, atmospheric stability and time of the day.

NO2 μg/m3	Stability	Time	Ta min	Tb min
5	stable	day	32.9	38.6
5	neutral	day	6.0	7.0
5	unstable	day	7.0	8.2
5	stable	night	25.2	815.2
5	neutral	night	4.6	148.5
5	unstable	night	5.1	163.4
10	stable	day	37.0	40.1
10	neutral	day	6.9	7.5
10	unstable	day	8.1	8.8
10	stable	night	27.8	898.0
10	neutral	night	5.1	165.0
10	unstable	night	5.6	181.3
20	stable	day	42.6	40.9
20	neutral	day	8.4	8.1
20	unstable	day	9.8	9.4
20	stable	night	30.9	741.3
20	neutral	night	5.7	137.1
20	unstable	night	6.3	150.6
30	stable	day	49.9	42.5
30	neutral	day	10.4	8.9
30	unstable	day	12.2	10.4
30	stable	night	34.9	837.0
30	neutral	night	6.5	156.4
30	unstable	night	7.2	171.6

lists the according conversion times $T_{\mathrm{a}}=1/\alpha$ and $T_{\mathrm{b}}=1/\beta$.

These categorized conversion rates can be applied in a standard dispersion calculation for NO and NO₂. For a calculation over a calendar year, the conversion rates are specified for example in a time series of hourly means as a function of atmospheric stability (stable, neutral, unstable) and time of the day (day, night) for a selected level of background NO₂.

4. Airport Application

The effective conversion rates were implemented into the airport dispersion modelling system LASPORT, applied in a dispersion calculation for Los Angeles International Airport and compared to measurements.

4.1. LASPORT

LASPORT (LASAT for Airports) is a program system for the calculation of emissions and concentrations at and around an airport [6,7]. It is the standard model tool of the German Airport Association and has been applied in various national and international projects (see, e.g., [6,16,17]). It has been approved for use in ICAO/CAEP [18] and complies to ICAO document 9889 [19].

LASPORT applies the Lagrangian particle model LASAT as dispersion core. Aircraft can be modelled individually as moving emission sources with a time resolution down to 10 s. Other sources (e.g., APU, GPU, GSE, landside and airside motor traffic) can be modelled as point, line, area, or volume sources with time-dependent emissions. Typical results from LASPORT are the annual emission inventory of an airport, the near-ground concentration distributions according to EU regulations (e.g., annual means and maximum daily means) and the time series of concentrations (usually hourly means) at given monitor stations.

4.2. Los Angeles International Airport

For Los Angeles International Airport (LAX) and a period of 6 weeks in summer 2012, meteorological data, flight data and measurements of NO and NO₂ at various monitor stations were available [20].

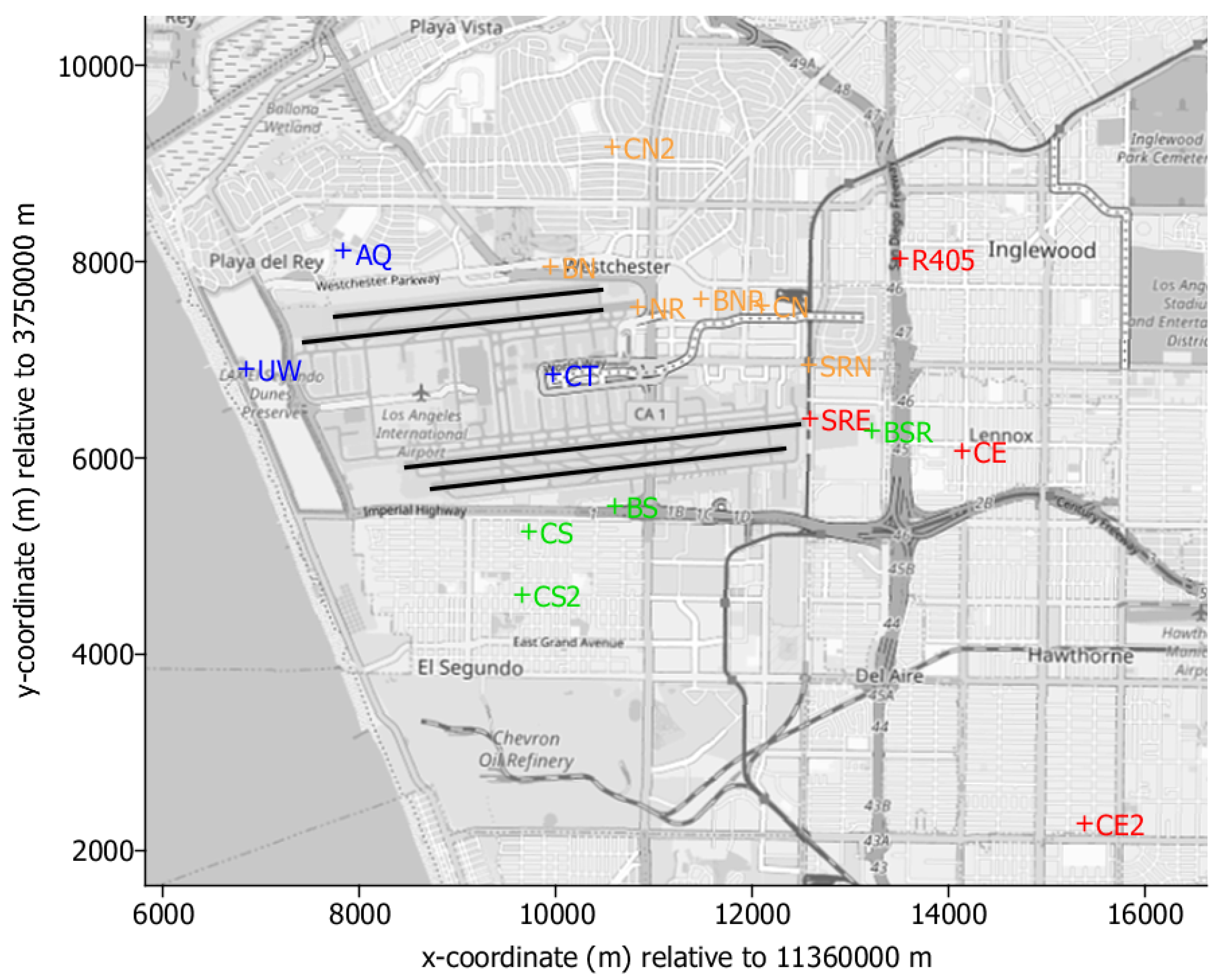

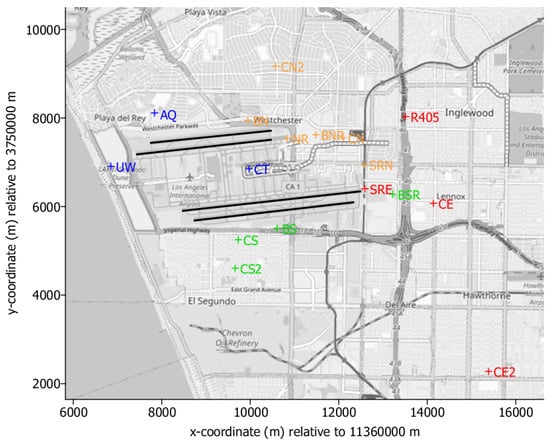

Figure 5 shows the locations of monitor stations at the airport,

Table 3. List of monitor stations, their characterization in view of assumed dominant emission contributors and their symbol in the scatter plots.

Station	Characteristics	Symbol
AQ	background, airport	–
BN	road, airport	–
BNR	airport, runway	orange, triangle
BS	airport, road	green, triangle
BSR	runway, airport	green, square
CE	road, urban	–
CE2	urban	–
CN	airport, urban	orange, circle
CN2	urban	–
CS	road, airport	–
CS2	background, industry	–
CT	taxiways, terminal	blue, triangle
NR	runway, road	orange, square
R405	road, urban	–
SRE	runway	red, square
SRN	airport, urban	orange, star
UW	background, airport	–

provides a short description of their characterization in view of the presumably dominant emission contributors together with a description of their encoding in subsequent scatter plots. Note that, in the summer period of 2012, the prevailing wind direction was wind from west.

Measured concentrations of NO and NO₂ were available at all monitor stations in form of weekly averages over 6 subsequent weeks (18 July 2012 to 28 August 2012). They were compared to the calculated weekly concentrations of LASPORT (Version 2.4). The calculation applied measured meteorological data (hourly means) and a detailed flight journal of the airport. Every movement was modelled as a moving emission source with a time-resolution down to 10 s. The concentrations were stored as hourly mean concentrations and then averaged to provide successive weekly averages.

In the calculations, emissions from the main emission sources of the airport were accounted for: aircraft main engines (AC), auxiliary power units (APU), ground support equipment (GSE). The total NO_x emission over the 42 days up to a height of 600 m above ground level was 333 Mg. 95% of this mass resulted from aircraft main engines and about 50% from main engine emissions near ground (taxiing, departure).

To allow for a better comparison with the measured data, estimated background concentrations of NO and NO₂ were subtracted from the measured data. Background was estimated in a simplified and approximate way for each week as 90% of the measured concentration at the station with the lowest measured value. If the resulting background corrected concentration was negative, then the station was excluded from the analysis for the given week.

In the modelling, the categorized conversion rates for a background concentration of 30 $\mathsf{\mu }$g/m³ NO₂ were applied. The values for stable stratification were replaced by the ones for neutral stratification because the dynamics of the aircraft engine exhaust is expected to circumvent the very low mixing process that was assumed in the underlying LASREA calculations for stable stratification. For each engine and load setting, the NO_x emission rate was determined from the ICAO Engine Emission Databank. Based on estimates [21,22], the initial NO₂ fraction was set to 5% for take-off and climb, 15% for approach and 40% for taxiing.

4.3. Results

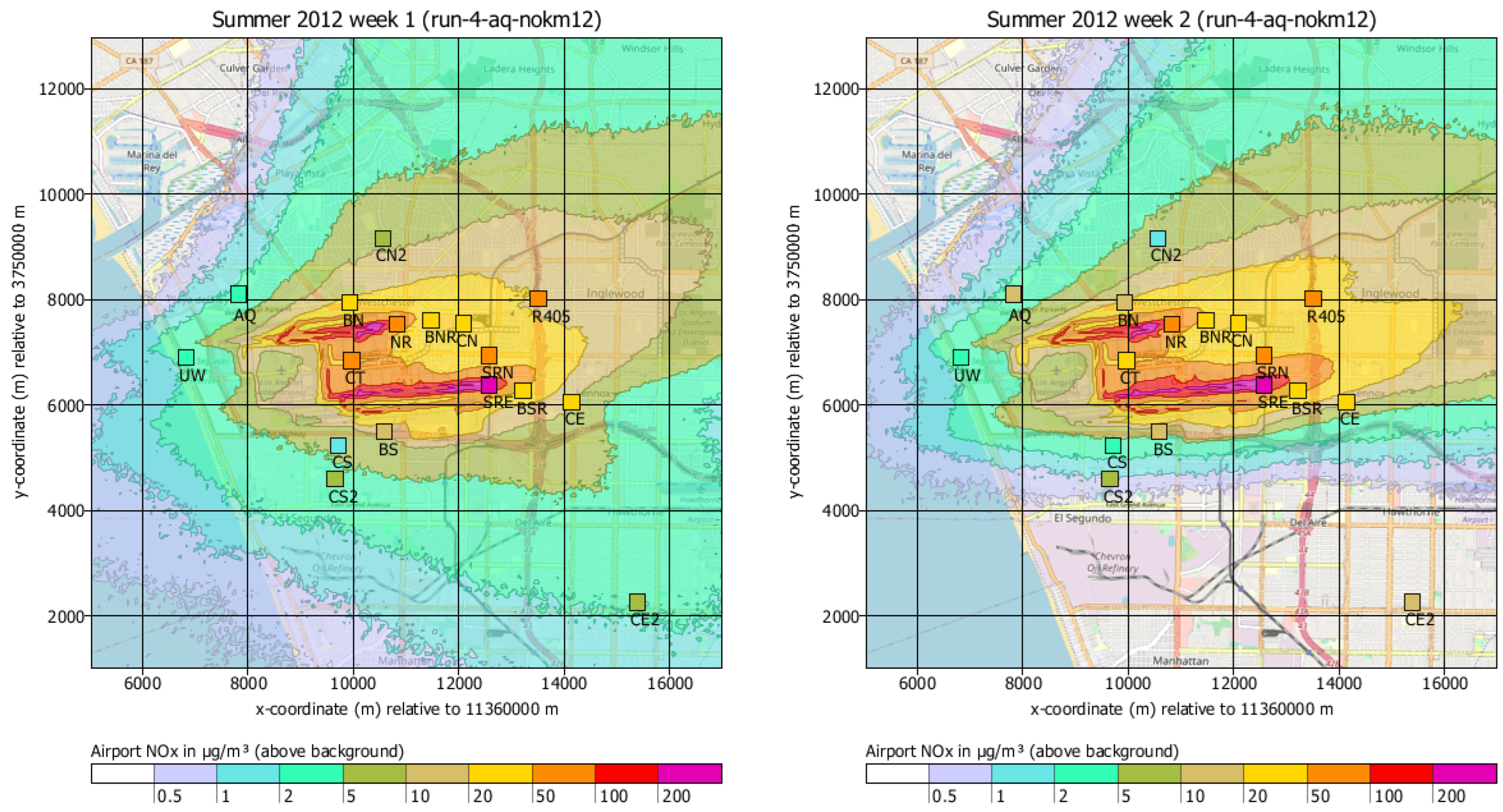

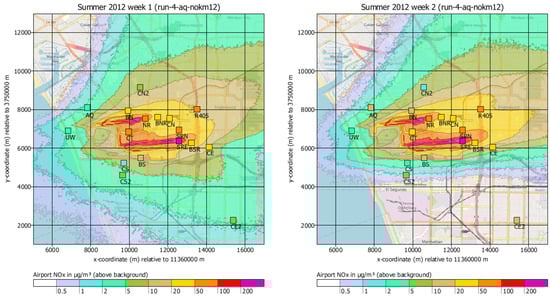

Figure 6 shows as an example the calculated concentration distributions of NO_x for the first two weeks and the according measured concentrations. A further analysis revealed that several monitor stations were influenced by local sources not accounted for in the dispersion calculation (in particular landside motor traffic and industrial sites). For a subset of stations, the airport was likely the main contributor (stations NR, BNR, CN, SRN, BS, CT, SRE, BSR) and a more detailed evaluation was performed for these stations. Stations UW and AQ were excluded because they were assumed to be dominated by background concentration due to the strong prevailing wind direction from West.

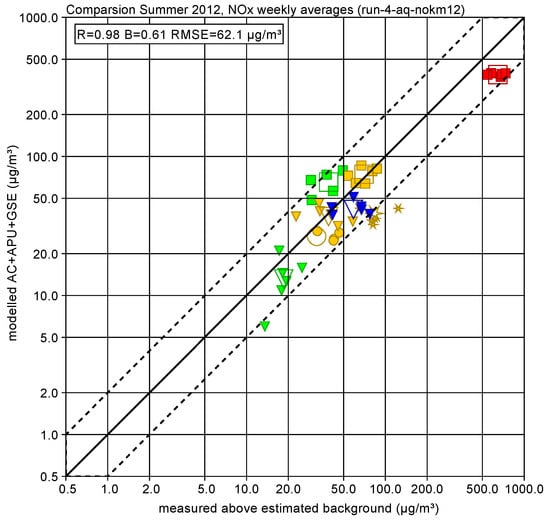

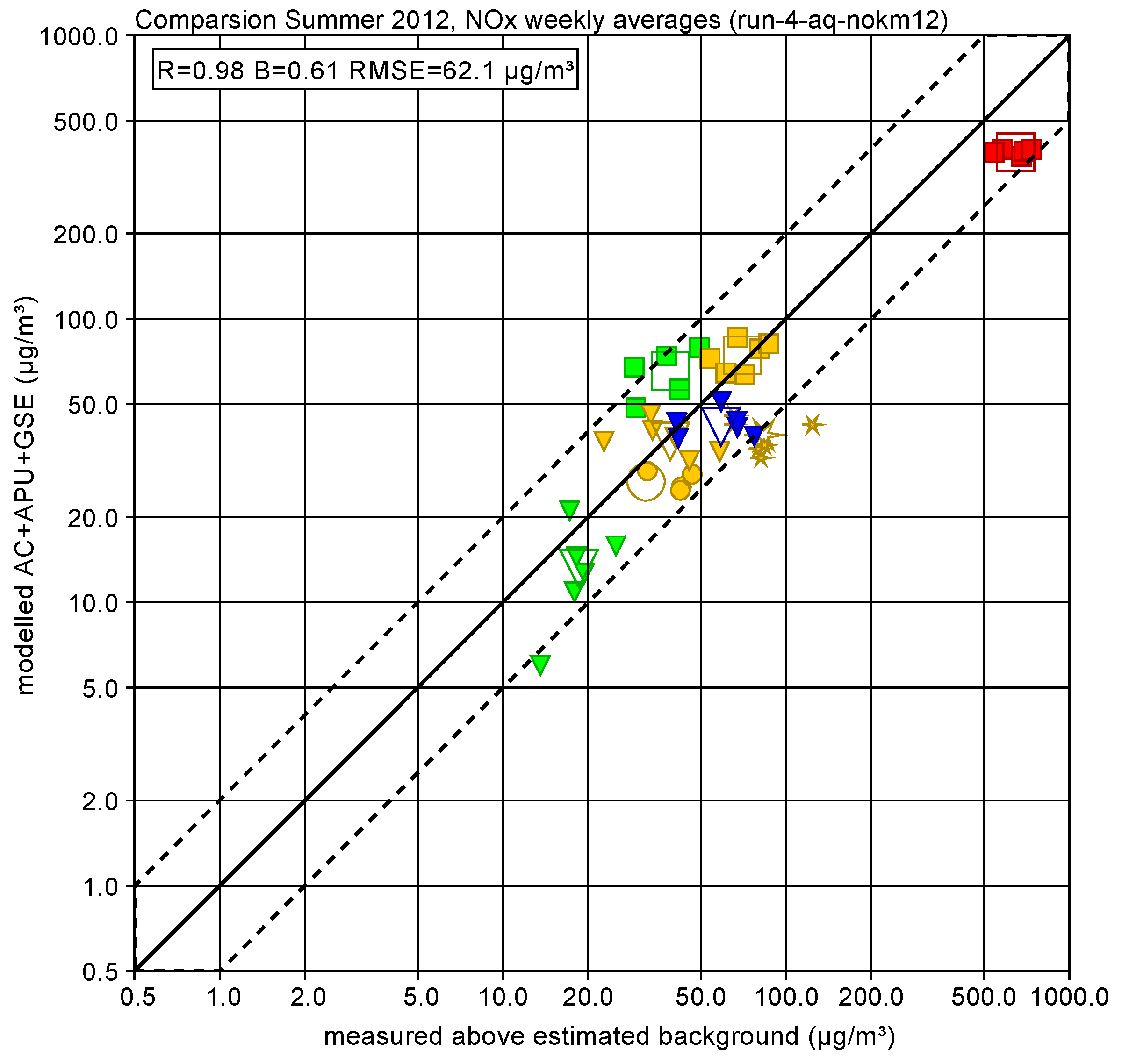

Figure 7 shows a scatter plot of measured and modelled concentrations for this subset for each week and averaged over all 6 weeks. The overall agreement is mostly better than a factor of 2, the Pearson product-moment correlation coefficient is 0.98, the slope of a linear regression fit without offset is 0.61 (dominated by the underestimation of the high concentration at station SRE) and the root mean square error is 62.1 $\mathsf{\mu }$g/m³. Figure 8 shows the scatter plot of NO₂ concentrations.

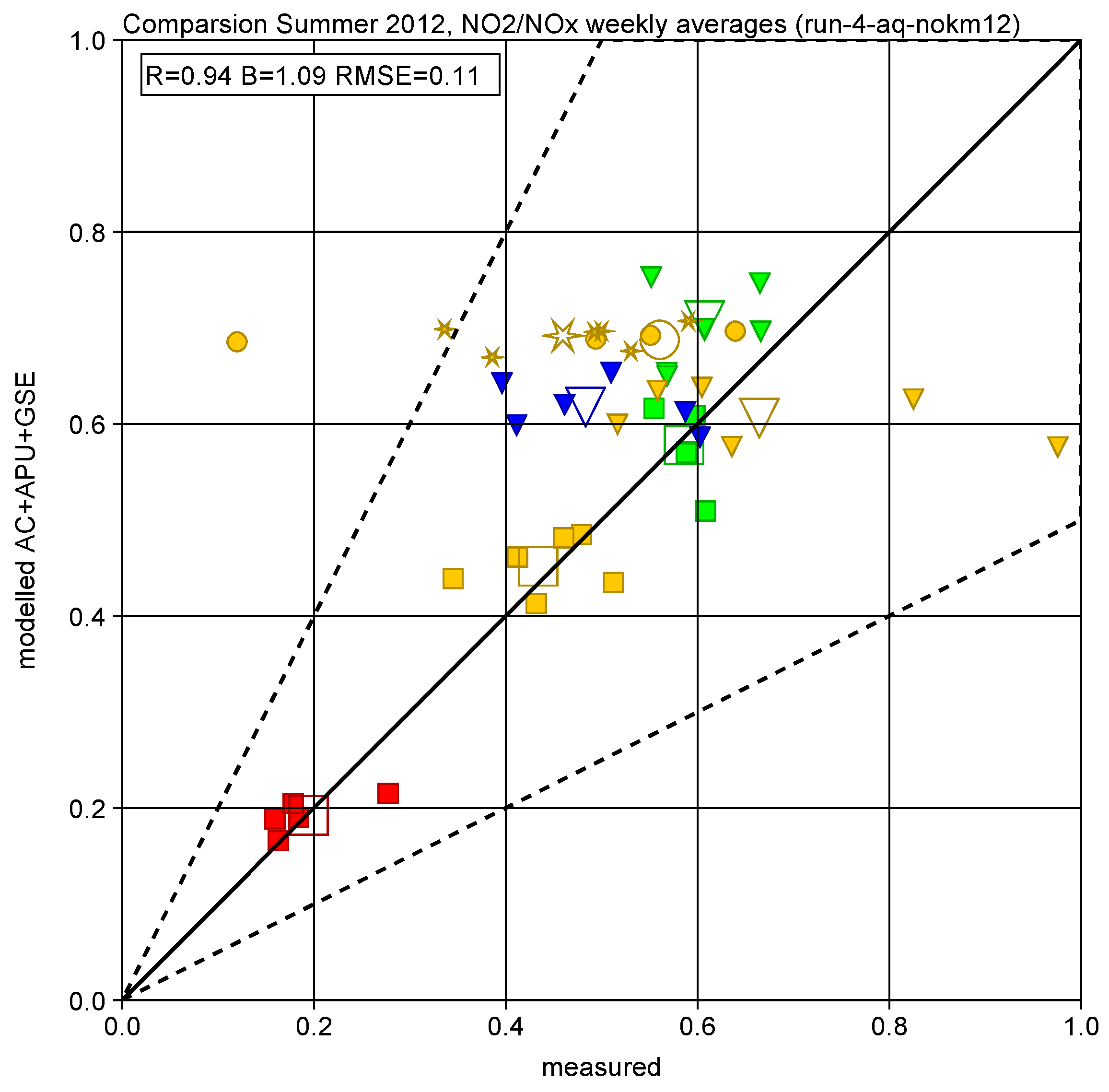

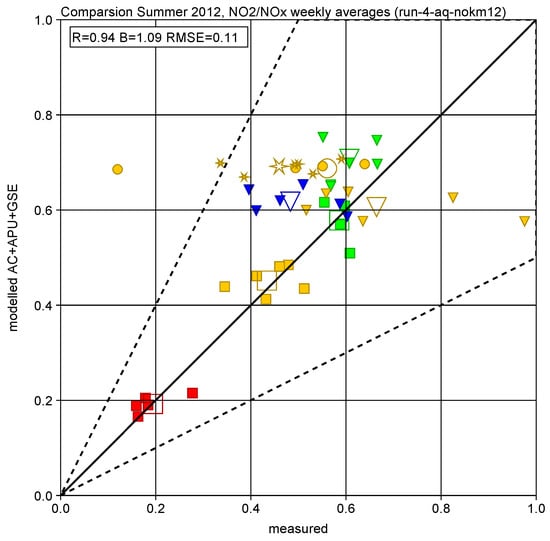

Figure 9 shows the scatter plot of the ratio NO₂ over NO_x (without background adjustment). The overall agreement between modelled and measured concentrations and ratios gives a Pearson correlation coefficient of about 0.9 or above and an absolute difference smaller than a factor of 2 in almost all cases.

Investigating the differences between the concentration ratios shown in Figure 9 in more detail, it can be observed that the agreement is very good for most of the runway-dominated stations (NR, SRE, BSR). As the transport times between these stations and the adjacent runway thresholds are rather short, this mainly implies that the assumed fraction of primary NO₂ at take-off is adequate and that the applied conversion times are generally not too short. The ratios for the other stations (airport contributions in general) show a larger spread with some tendency of overestimation.

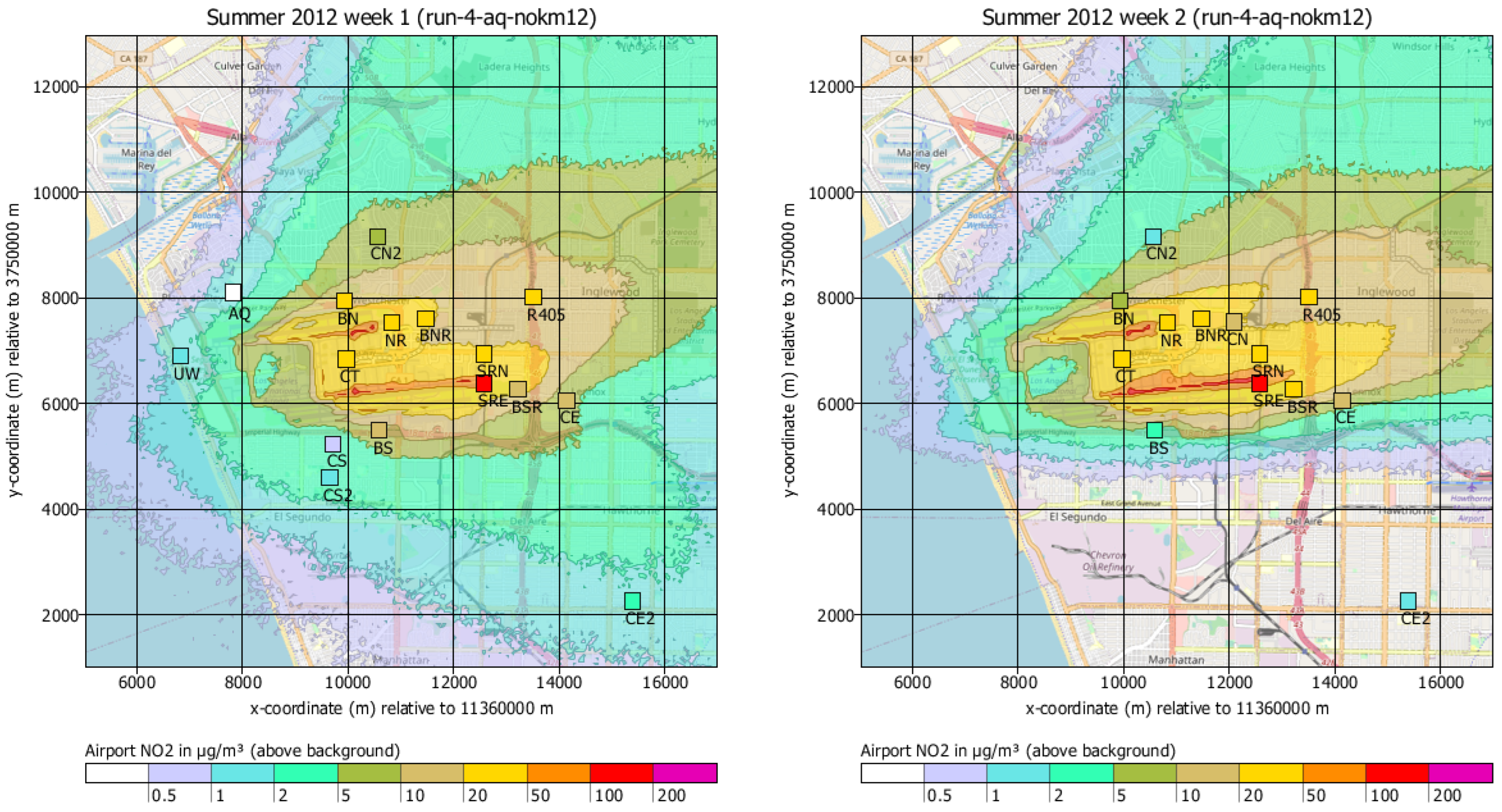

Finally, Figure 10 shows the near-ground concentration distributions of NO₂ for the first two weeks.

5. Discussion

When interpreting the results it must be considered that the modelled concentrations depend not only on the conversion rates but also on the dispersion model, the meteorological boundary layer model, the modelling of engine exhaust dynamics and the assumed emission rates. In addition, not all emission sources contributing to the measured concentrations were accounted for, and the measured data are subject to uncertainties. Nevertheless, the results for NO_x give an indication of the overall quality of model performance for the simpler case of an (approximately) chemically inert substance. The results for NO₂, which are driven by the effective conversion rates, were of a comparable quality.

The comparison focused on weekly averages because such averages were available from measurement at all the monitor stations. The total period of 6 weeks in summer 2012 was likely influenced to seasonal effects, hence it is not directly possible to deduce the model quality for a period of a complete calendar year. The definition of effective conversion rates as a function of atmospheric stability and time of the day (with and without daylight) is expected to be flexible enough to account for the main effects in other seasons of the year.

Ambient limit values of NO₂ exist for the annual mean, e.g., 40 $\mathsf{\mu }$g/m³ in the European Union [23] and 53 ppbv (103 $\mathsf{\mu }$g/m³ at standard atmosphere) in the United States of America [24], and also for the hourly mean (200 $\mathsf{\mu }$g/m³ and 100 ppbv/195 $\mathsf{\mu }$g/m³, respectively). Therefore it is of interest to carry out comparisons also for the hourly mean concentrations, which is planned as subsequent work. In addition, the annual mean of NO₂ will attract increasing interest in the European Union in view of the planned reduction of the annual limit value from 40 $\mathsf{\mu }$g/m³ to 20 $\mathsf{\mu }$g/m³ [25].

6. Conclusions

Based on the reaction mechanism M1 of the standard VDI 3783 Part 19 and its coupling to the Lagrangian particle model LASAT, effective conversion rates of first order between NO and NO₂ were derived. The results showed that mixing of ambient air into the plume was usually the limiting factor for the effective oxidation of NO to NO₂.

The rates were further simplified into sets of categorized rates, distinguished by NO₂ background concentration, atmospheric stability and time of the day. A set of rates was applied to a complex emission system (Los Angeles International Airport) with the standard model system LASPORT. The modelled NO₂ concentrations (weekly averages) and their ratios NO₂ over NO_x agreed with the measured ones by usually better than a factor of 2 with a Pearson correlation coefficient around 0.9 or above.

The results support the validity and practicability of the applied approach of deriving effective conversion rates. The categorized rates are simple enough such that they can be applied in almost any dispersion model on local air quality and they seem to be detailed enough to provide a useful estimate of NO₂ concentrations.

Further validation work is required to demonstrate the performance for other seasons of the year, for annual averages, and for short-time averages such as hourly means.
