Integrated Life Cycle Analysis of Cost and CO2 Emissions from Vehicles and Construction Work Activities in Highway Pavement Service Life
Abstract
:1. Introduction
2. Materials and Methodology

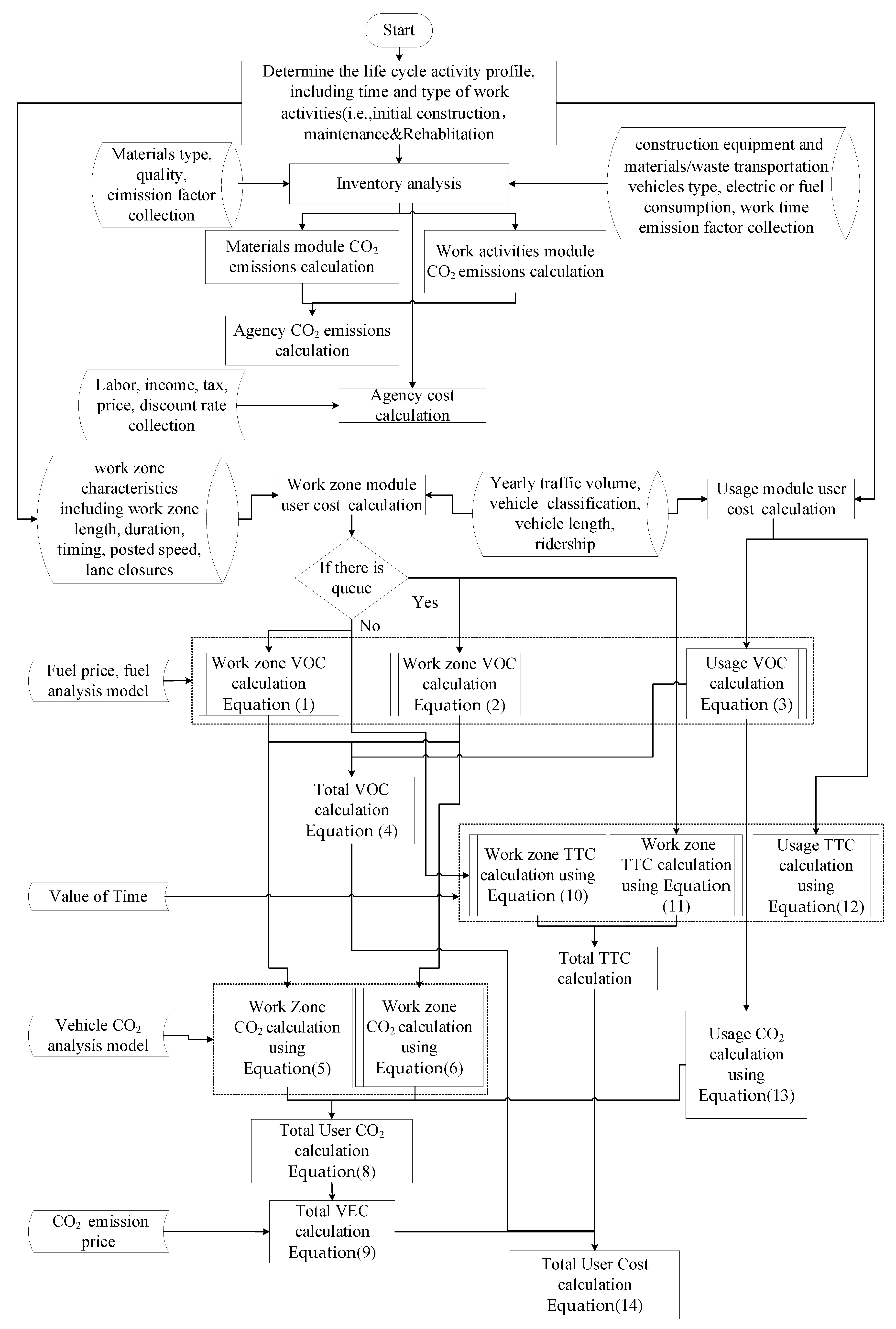

2.1. Methodology Framework
2.2. Agency CO2 Emissions and Agency Cost
2.2.1. Agency CO2 Emissions
2.2.2. Agency Cost
2.2.3. User CO2 Emissions and User Cost
2.3. Data Sources
2.3.1. Brief of Case Study
2.3.2. Data Collection
Life-Cycle Activity Profiles
Work Zone Characteristics
Traffic Characteristics
3. Results
3.1. Total CO2 Emissions and Their Distribution
3.2. Total Costs and Their Distribution
4. Conclusions and Recommendations

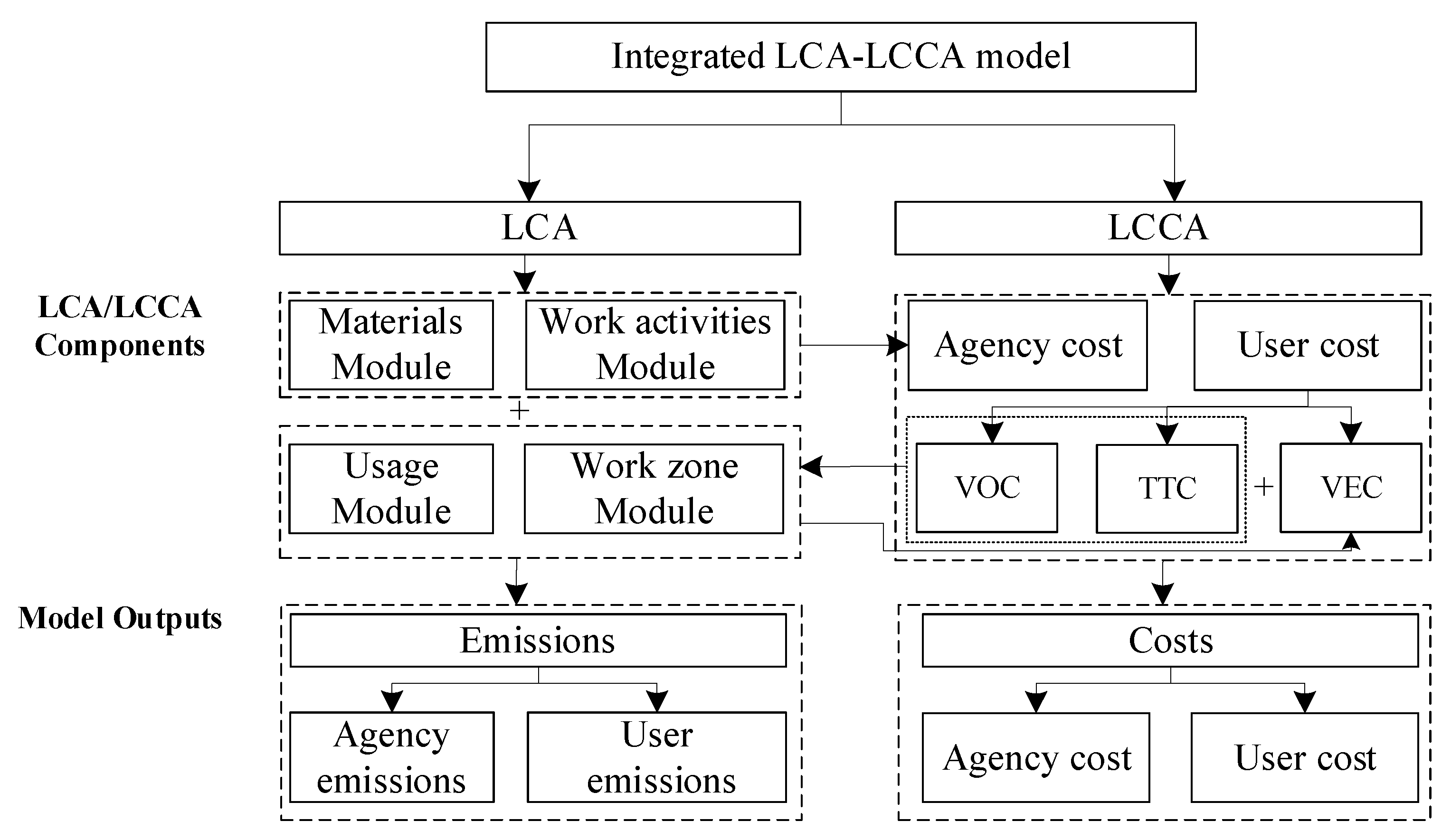

- The integrated LCA-LCCA model was able to provide consistent outputs, such as CO2 emissions and costs results for each component covered by the four main modules, namely, the materials module, the work activities module, the work zone module and the usage module.

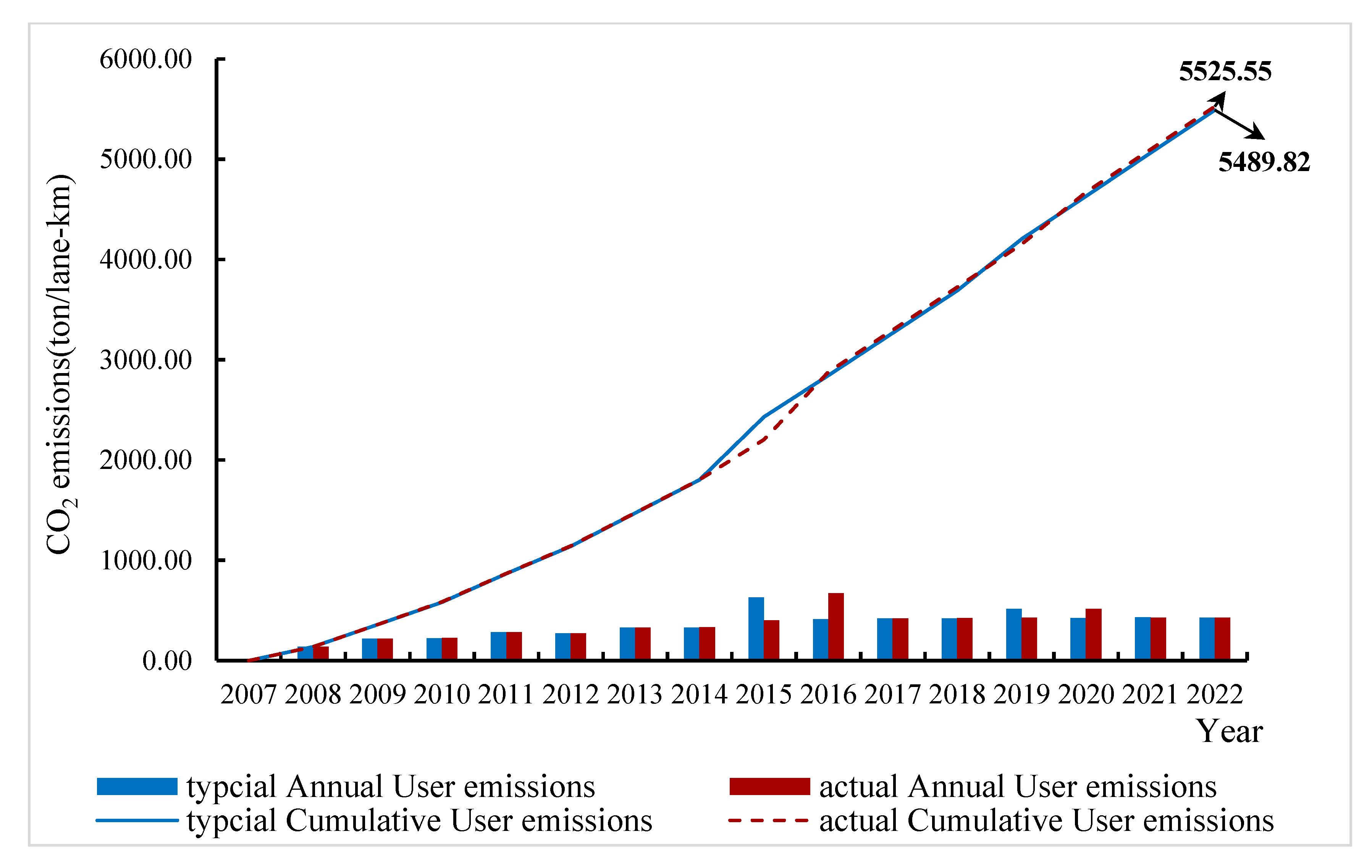

- Maintaining the typical activity profile could help to reduce CO2 emissions. Over the 15-year analysis period, the total CO2 emissions from the actual activity profile were 36.76 tons higher in one lane of one kilometer in length than that from the typical activity profile, and about 97.2% of CO2 emissions savings in the typical activity profile were from user CO2 emissions.

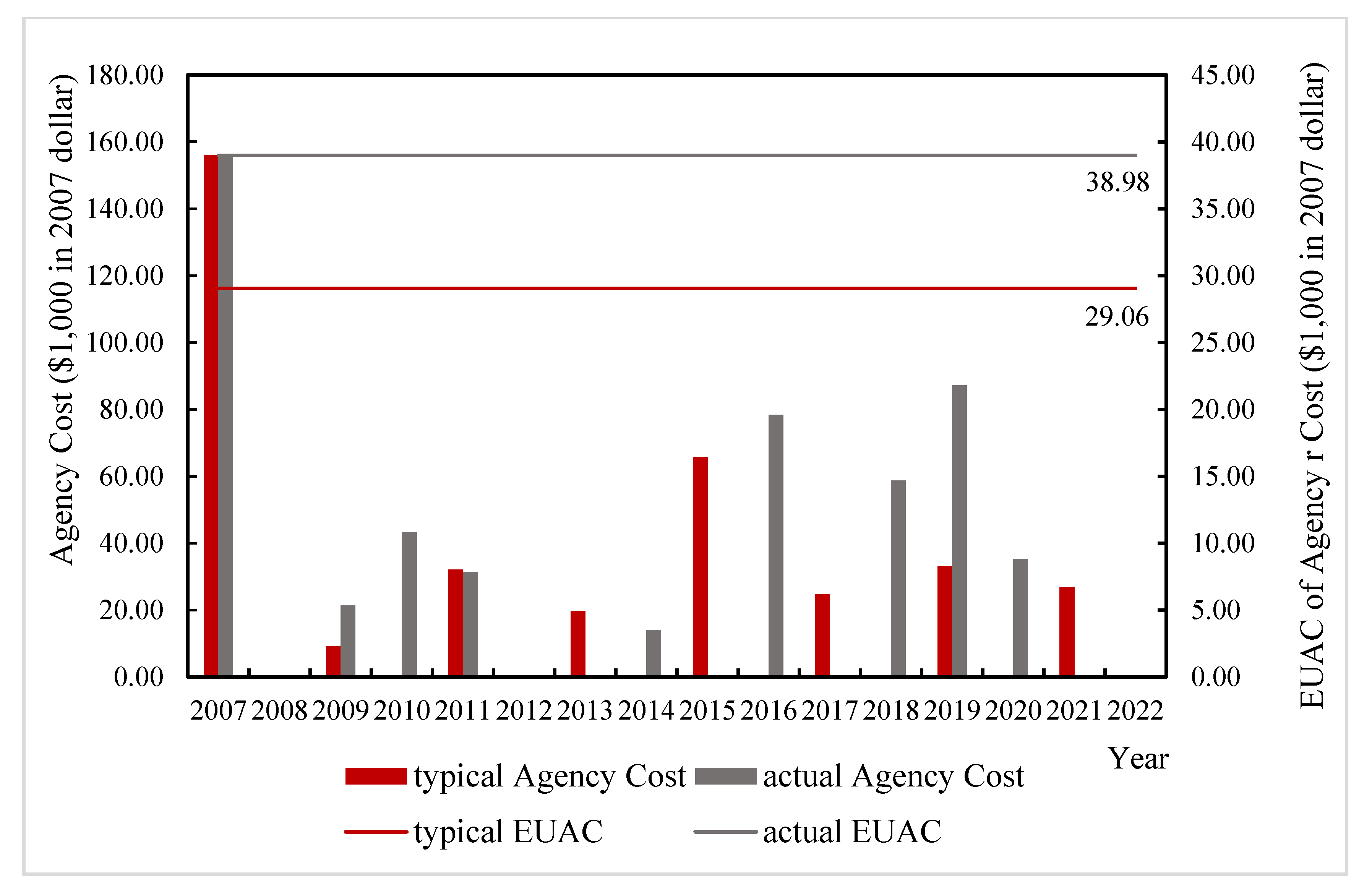

- Maintaining the typical activity profile could help to save agency costs of USD 9920 /lane/km in 2007 dollars after normalized processing of the data into equivalent uniform annual cost (EUAC) over the 15-year analysis period.

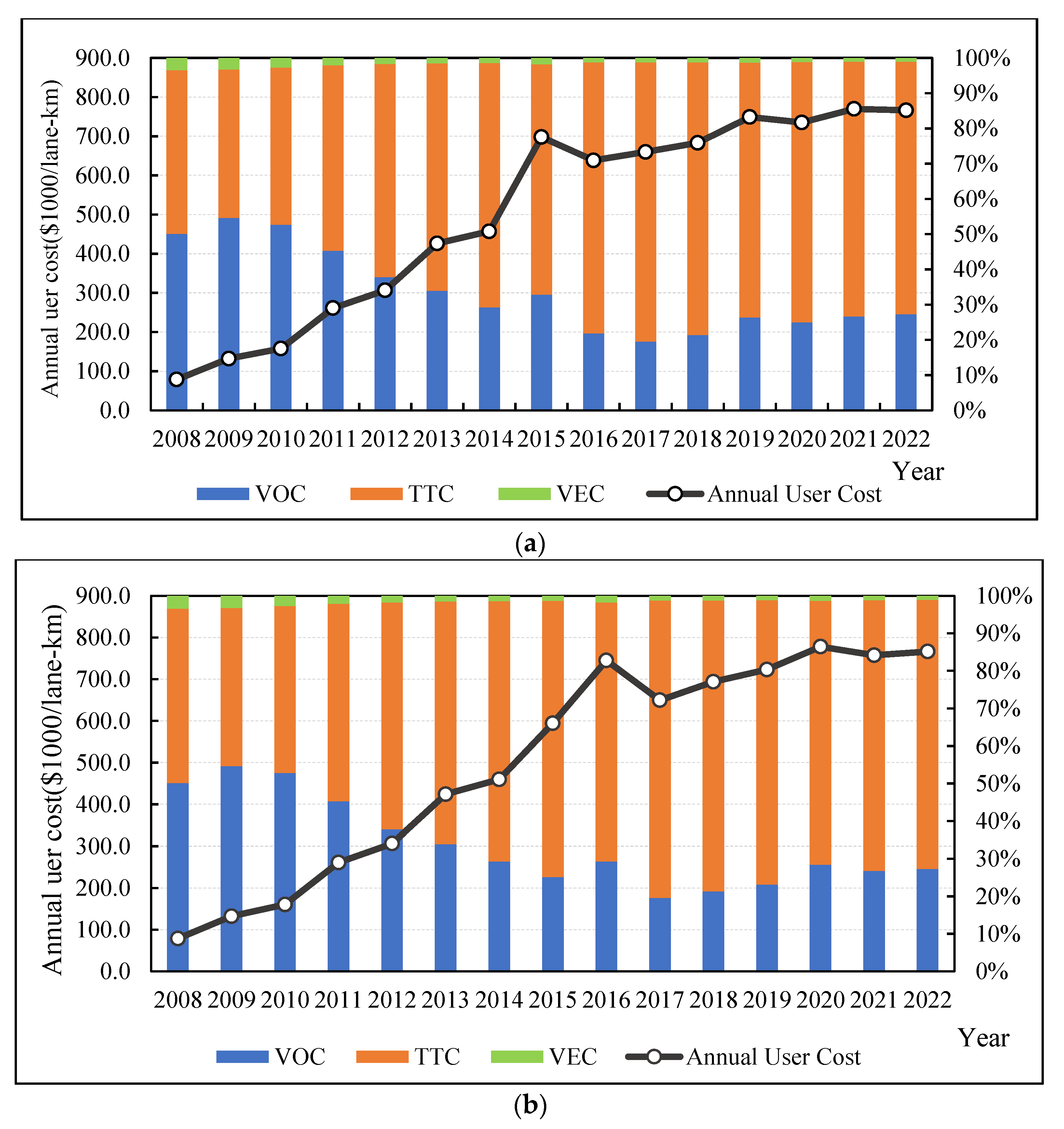

- During the life cycle of highway’s asphalt pavement, the annual user cost increased steadily with the increase in the highway’s service life, whereas yearly significant growth was caused by the occurrence of rehabilitation and maintenance activities, mainly due to the detours of users.
- Regarding the user cost components, VOC and TTC were the major contributors to user cost, followed by VEC. Specially, TTC was the top contributor to the total user cost when traffic volume was increasing.
Supplementary Materials
Author Contributions
Funding
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Kirchain, R.E., Jr.; Gregory, J.R.; Olivetti, E.A. Environmental life-cycle assessment. Nat. Mater. 2017, 16, 693–697. [Google Scholar] [CrossRef] [PubMed]
- Axsen, J.; Plötz, P.; Wolinetz, M. Crafting strong, integrated policy mixes for deep CO2 mitigation in road transport. Nat. Clim. Chang. 2020, 10, 809–818. [Google Scholar] [CrossRef]
- Ministry of Transport of the People’s Republic of China (MTPRC). 2021 Statistical Bulletin on the Development of the Transportation Sector. Available online: https://xxgk.mot.gov.cn/2020/jigou/zhghs/202205/t20220524_3656659.html. (accessed on 3 December 2022).
- Kikstra, J.S.; Nicholls, Z.R.J.; Smith, C.J.; Lewis, J.; Lamboll, R.D.; Byers, E.; Sandstad, M.; Meinshausen, M.; Gidden, M.J.; Rogelj, J.; et al. The IPCC Sixth Assessment Report WGIII climate assessment of mitigation pathways: From emissions to global temperatures. Geosci. Model Dev. 2022, 15, 9075–9109. [Google Scholar] [CrossRef]
- Liu, Y.; Wang, Y.; An, D. Life-cycle CO2 emissions and influential factors for asphalt highway construction and maintenance activities in China. Int. J. Sustain. Transp. 2018, 12, 497–509. [Google Scholar] [CrossRef]
- Santos, J.; Bryce, J.; Flintsch, G.; Ferreira, A. A comprehensive life cycle costs analysis of in-place recycling and conventional pavement construction and maintenance practices. Int. J. Pavement Eng. 2017, 18, 727–743. [Google Scholar] [CrossRef]
- FHWA, U.S. Department of Transportation. Life-Cycle Cost Analysis Primer. 2002. Available online: https://www.fhwa.dot.gov/asset/lcca/010621.pdf (accessed on 3 December 2022).
- FHWA, U.S. Department of Transportation. Life-Cycle Cost Analysis Real Cost User Manual. 2004. Available online: https://www.fhwa.dot.gov/infrastructure/asstmgmt/rc210704.pdf (accessed on 3 December 2022).
- Pasha, A.; Mansourian, A.; Ravanshadnia, M. A hybrid fuzzy multi-attribute decision making model to select road pavement type. Soft Comput. 2020, 24, 16135–16148. [Google Scholar] [CrossRef]
- Ziyadi, M.; Ozer, H.; Shakiba, M.; Al-Qadi, I.L. Vehicle excess fuel consumption due to pavement deflection. Road Mater. Pavement Des. 2022, 1–22. [Google Scholar] [CrossRef]
- Liu, W.; Qiang Li, J.; Yang, X.; Wang, K.; Yu, W. Integrating Skid Resistance and Safety Benefits into Life Cycle Cost Analysis for Pavement Surface Treatment Selection. J. Transp. Eng. Part B Pavements 2022, 148, 04022015. [Google Scholar] [CrossRef]
- Zhou, Q.; Al-Qadi, I.L. Economic and Environmental Impacts of Platoon Trucks on Pavements. Transp. Res. Rec. 2022, 2676, 460–473. [Google Scholar] [CrossRef]
- Yu, B.; Lu, Q. Life cycle assessment of pavement: Methodology and case study. Transp. Res. Part D Transp. Environ. 2012, 17, 380–388. [Google Scholar] [CrossRef]
- Santos, J.; Ferreira, A.; Flintsch, G. A life cycle assessment model for pavement management: Methodology and computational framework. Int. J. Pavement Eng. 2015, 16, 268–286. [Google Scholar] [CrossRef]
- Liu, Y.; Wang, Y.; Li, D. Estimation and uncertainty analysis on carbon dioxide emissions from construction phase of real highway projects in China. J. Clean. Prod. 2017, 144, 337–346. [Google Scholar] [CrossRef]
- Jiang, R.; Wu, C.; Song, Y.; Wu, P. Estimating carbon emissions from road use, maintenance and rehabilitation through a hybrid life cycle assessment approach–A case study. J. Clean. Prod. 2020, 277, 123276. [Google Scholar] [CrossRef]
- Wang, H.; Al-Saadi, I.; Lu, P.; Jasim, A. Quantifying greenhouse gas emission of asphalt pavement preservation at construction and use stages using life-cycle assessment. Int. J. Sustain. Transp. 2020, 14, 25–34. [Google Scholar] [CrossRef]
- Blaauw, S.A.; Maina, J.W.; Mturi, G.A.; Visser, A.T. Flexible pavement performance and life cycle assessment incorporating climate change impacts. Transp. Res. Part D Transp. Environ. 2022, 104, 103203. [Google Scholar] [CrossRef]
- Huang, Y.; Bird, R.; Bell, M. A comparative study of the emissions by road maintenance works and the disrupted traffic using life cycle assessment and micro-simulation. Transp. Res. Part D Transp. Environ. 2009, 14, 197–204. [Google Scholar] [CrossRef]
- Galatioto, F.; Huang, Y.; Parry, T.; Bird, R.; Bell, M. Traffic modelling in system boundary expansion of road pavement life cycle assessment. Transp. Res. Part D Transp. Environ. 2015, 36, 65–75. [Google Scholar] [CrossRef]
- Liu, Y.; Wang, Y.; Li, D.; Feng, F.; Yu, Q.; Xue, S. Identification of the potential for carbon dioxide emissions reduction from highway maintenance projects using life cycle assessment: A case in China. J. Clean. Prod. 2019, 219, 743–752. [Google Scholar] [CrossRef]
- Kang, S.; Yang, R.; Ozer, H.; Al-Qadi, I.L. Life-cycle greenhouse gases and energy consumption for material and construction phases of pavement with traffic delay. Transp. Res. Rec. 2014, 2428, 27–34. [Google Scholar] [CrossRef]
- Haslett, K.E.; Dave, E.V.; Mo, W. Realistic traffic condition informed life cycle assessment: Interstate 495 maintenance and rehabilitation case study. Sustainability 2019, 11, 3245. [Google Scholar] [CrossRef] [Green Version]
- Yu, B.; Lu, Q.; Xu, J. An improved pavement maintenance optimization methodology: Integrating LCA and LCCA. Transp. Res. Part A Policy Pract. 2013, 55, 1–11. [Google Scholar] [CrossRef]
- Lidicker, J.; Sathaye, N.; Madanat, S.; Horvath, A. Pavement resurfacing policy for minimization of life-cycle costs and greenhouse gas emissions. J. Infrastruct. Syst. 2013, 19, 129–137. [Google Scholar] [CrossRef]
- Santos, J.; Ferreira, A.; Flintsch, G.; Cerezo, V. A multi-objective optimisation approach for sustainable pavement management. Struct. Infrastruct. Eng. 2018, 14, 854–868. [Google Scholar] [CrossRef]
- Choi, J.H. Strategy for reducing carbon dioxide emissions from maintenance and rehabilitation of highway pavement. J. Clean. Prod. 2019, 209, 88–100. [Google Scholar] [CrossRef]
- Reger, D.; Madanat, S.; Horvath, A. Economically and environmentally informed policy for road resurfacing: Tradeoffs between costs and greenhouse gas emissions. Environ. Res. Lett. 2014, 9, 104020. [Google Scholar] [CrossRef]
- France-Mensah, J.; O’Brien, W.J. Developing a sustainable pavement management plan: Tradeoffs in road condition, user costs, and greenhouse gas emissions. J. Manag. Eng. 2019, 35, 04019005. [Google Scholar] [CrossRef]
- Swei, O.; Gregory, J.; Kirchain, R. Probabilistic life-cycle cost analysis of pavements: Drivers of variation and implications of context. Transp. Res. Rec. 2015, 2523, 47–55. [Google Scholar] [CrossRef]
- Zhang, K.; Batterman, S.; Dion, F. Vehicle emissions in congestion: Comparison of work zone, rush hour and free-flow conditions. Atmos. Environ. 2011, 45, 1929–1939. [Google Scholar] [CrossRef]
- Song, Y.Y.; Yao, E.J.; Zuo, T.; Lang, Z.F. Emissions and fuel consumption modeling for evaluating environmental effectiveness of ITS strategies. Discret. Dyn. Nat. Soc. 2013, 2013, 581945. [Google Scholar] [CrossRef] [Green Version]
Items | Sub-Components | Formula | Equation Number |
---|---|---|---|
VOC | (1) | ||
(2) | |||
(3) | |||
(4) | |||
User CO2 emissions | (5) | ||
(6) | |||
(7) | |||
(8) | |||
VEC | (9) | ||
TTC | (10) | ||
(11) | |||
(12) | |||
(13) | |||
Total user cost | Null | ++ | (14) |
Items | Typical Activity Profile (T) | Actual Activity Profile (A) | Difference (T-A) | ||
---|---|---|---|---|---|
ton/lane-km | % | ton/lane-km | % | ||

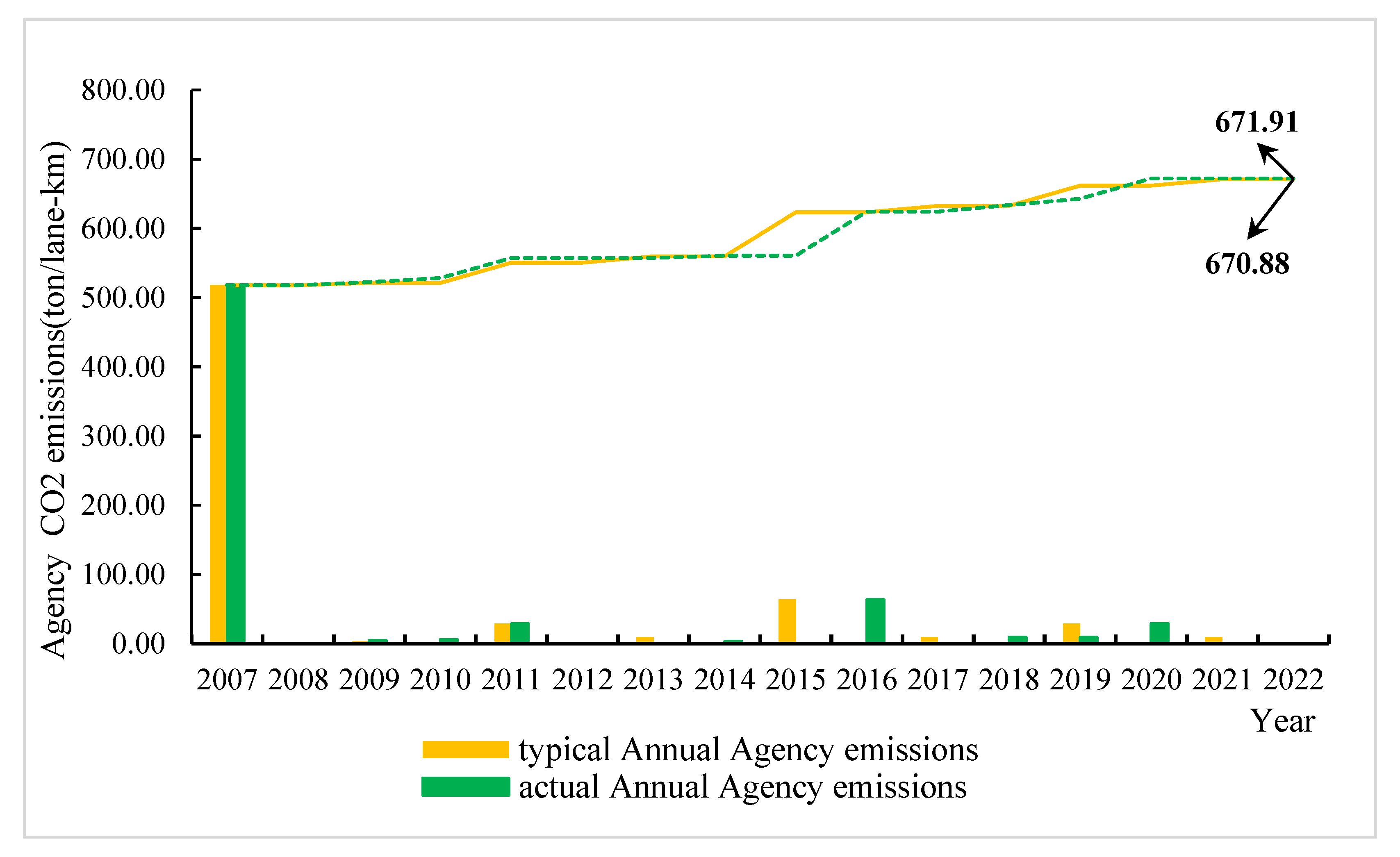

Agency CO2 emissions | 671.91 | 10.8 | 670.88 | 10.9 | 1.03 |
User CO2 emissions | 5525.55 | 89.2 | 5489.82 | 89.1 | 35.73 |
Total | 6197.1 | 100 | 6160.7 | 100 | 36.76 |
