Article

Regional Features of the Arctic Sea Ice Area Changes in 2000–2019 versus 1979–1999 Periods

1
Institute of Geography, Russian Academy of Science, Staromonetny Lane, 29, 119017 Moscow, Russia
2
A.M. Obukhov Institute of Atmospheric Physics, Russian Academy of Sciences, Pyzhyovskiy Lane, 119017 Moscow, Russia
*
Author to whom correspondence should be addressed.
Atmosphere 2022, 13(9), 1434; https://doi.org/10.3390/atmos13091434
Received: 29 July 2022 / Revised: 28 August 2022 / Accepted: 30 August 2022 / Published: 5 September 2022
(This article belongs to the Special Issue The Ocean’s Role in Climate Change)

Abstract

:
One of the most striking manifestations of ongoing climate change is a rapid shrinking of the Arctic sea ice area (SIA). An important feature of the observed SIA loss is a nonlinear rate of a decline with an accelerated decrease in the 2000–2019 period relative to a more gradual decline in 1979–1999. In this study, we perform a quantitative assessment and comparison of the spatial-temporal SIA changes during these two periods. It was found that winter Arctic SIA loss is primarily associated with changes in the Barents Sea, where the SIA decline in 2000–2019 has accelerated more than three-fold in comparison with 1979–1999. In summer and autumn, rates of SIA decline in 2000–2019 increased most strongly in the Kara, Beaufort Seas, the Northwestern Passage, and inner Arctic Ocean. The amplitude of the SIA seasonal cycle has also increased in 2000–2019 in comparison with the earlier period, with the largest changes in the inner Arctic Ocean, the Kara, Laptev, East Siberian and Beaufort Seas in summer and in the Barents Sea in winter. The results may reflect a transition to a new dynamic state in the recent two decades with the triggering of positive feedbacks in the Arctic climate system.

1. Introduction

One of the most drastic manifestations of ongoing climate change is the rapid shrinking of the Arctic sea ice cover over the last decades (e.g., [1]). The sea ice plays an important role in the Arctic climate system and beyond. It takes part in a number of important climate feedbacks, modulates energy fluxes at the ocean-atmosphere interface, and interacts with atmospheric and oceanic circulation (e.g., [2,3,4]). The sea ice is also a crucial element for the Arctic biodiversity [5,6], and economic and social development. In particular, the Arctic sea ice decline facilitates exploration of resources and usage of marine transportation routes [7,8,9,10].
Since the beginning of satellite observation era in 1979, the total September Arctic sea ice area (SIA) (climatological minimum) has been declining on average by about 11% per decade [11,12]. Despite the SIA decline in summer being more than three times faster in relative percentage terms in comparison with the winter decline of 3%, the difference in absolute trend values is not so drastic due to the greater SIA in winter. The summer SIA absolute trend is only twice as fast as the winter one.
As sea ice melts, surface albedo decreases and the upper ocean absorbs more solar radiation that provokes a stronger melt (co-called ice–albedo feedback, e.g., [13,14]). This positive feedback is one reason for the Arctic amplification of the global warming [15], especially over the Arctic Ocean.
Importantly, the decrease has not been uniform over time and has accelerated to almost twice the previous rate since 2000 (e.g., [16,17]). Such rates of decrease imply a complete disappearance of the sea ice already by the 2030s [18].
The changes in the Arctic sea ice are manifested in several important characteristics including specific temporal and spatial patterns, timings of ice onset and removal, duration of the melt season [13,19], the thinning of first-year sea ice and decreases in multi-year ice area (e.g., [4,20]). The observed Arctic SIA decline is reasonably well simulated by modern climate models under scenarios of anthropogenic climate forcing, although the recent accelerated trends are on average somewhat underestimated [1,13]. This implies an important role of the external anthropogenic forcing in driving the observed Arctic sea ice changes, but also suggests a contribution from internal climate variability [21], which is highly non-uniform [22]. Natural variability causes variations in the oceanic and atmospheric heat inflows to the Arctic from the North Pacific [23] and the North Atlantic [4,24]. A long-term internal variation enhanced by positive feedbacks could explain a strong SIA decline during the Early Twentieth Century Warming indicated by observations, reconstructions and model simulations [25,26,27,28].
Sea ice loss features are regionally dependent, with different forcing factors and processes involved in different regions [22]. For example, [29] demonstrated an increasing role of ocean variability in the Arctic SIA reduction, in particular, the major role of the Atlantic inflow in the sea ice variations in the Barents, Kara, Laptev and East Siberian Seas [30,31]. This role will further increase in the future [32]. The important contribution of the internal multidecadal variability in the North Atlantic to the Arctic sea ice changes has been indicated by several studies (e.g., [33,34]). Furthermore, some recent studies also suggest an important contribution of the Pacific Ocean to the recent sea ice loss [35,36].
With the accelerated Arctic sea ice loss in the 21st century accompanied by cooling over North Eurasia, the interest in the links between sea ice and atmospheric circulation has resulted in an avalanche of studies (e.g., [37,38,39,40,41,42]).
The SIA changes impact atmospheric circulation with the response being dependent on the region and the magnitude of the sea ice loss (e.g., [3,43,44]). Atmospheric circulation in turn also affects sea ice variations, in particular, on interannual and decadal time scales. Large scale atmospheric variability modes including the Arctic Oscillation, Arctic Dipole, and Ural Blocking have been implicated in the summer SIA minima in 2007 and 2012, contribute to winter SIA decline, and may explain the absence of new summer SIA record minima since 2012 [45,46,47]. We note, however, that some studies attribute only a small fraction of the summer SIA decline in the recent decades to atmospheric circulation changes [48].
The changes of cloudiness may also play an important role in the variability and trends in the Arctic sea ice. It has been demonstrated that increasing cloud cover could have contributed significantly to the recent and historical sea ice changes [49,50,51]. This impact may increase as thinner ice, which has been occupying larger areas and replacing thicker ice in vast regions, is more sensitive to the changes of cloud cover [52].
One of the important features of the observed Arctic SIA loss is the nonlinear rate of the decline with the accelerated decrease in the beginning of the 21st century for the total Arctic SIA relative to the more gradual decline in previous decades, as well as its regional dependence. This implies an existence of tipping points in the sea ice dynamics, thresholds where the related processes qualitatively alter [53]. The issue of the sea ice tipping points remains controversial. Such tipping points suggest that the analysis of the sea ice changes should be performed for the periods before and after the point is reached [54,55]. The exact change point in the SIA time series is hard to define precisely, as it depends on both the season and region under consideration. There are a variety of studies dealing with statistical approaches to detect such points (e.g., [56,57]). Applying one of the methods [58] results in years 2004 and 2005 for March and September, respectively, for the total Arctic SIA, and in a range of years from 1996 to 2007 for different Arctic Seas. Considering the length of the analyzed SIA record spanning from 1979 to 2019 and the above mentioned uncertainties in defining change points, we choose to divide the period into two almost equal size sub-periods, 1979–1999 and 2000–2019, as a reasonable compromise.
Given the outlined spatial inhomogeneity of the Arctic sea ice changes and non-linearity of the changes during the last four decades, it is important to assess SIA changes in the different Arctic seas for different periods. Several studies estimated changes of SIA in individual Arctic seas [12,59,60], but they did not focus on the difference in rates of SIA decline in different periods. The major questions we address in this study are the following: what are the regional features of the spatial-temporal SIA changes, and how do they differ during these two periods? Studying these issues is important for understanding the modern transformation of the Arctic climate system.

2. Materials and Methods

In contrast to many studies on Arctic sea ice, where sea ice extent (defined as a grid cell area with a sea ice concentration greater than 15%) is analyzed, we use sea ice area (SIA) as a measure characteristic of the sea ice coverage (i.e., integrated sea ice concentration, SIC, values without any threshold). The use of sea ice extent reduces errors associated with the uncertainty of observational data. However, a significant disadvantage of sea ice extent is the loss of information on SIC within a given area (where SIC is greater than 15% but less than 100%) because this SIC range contains significant variations which strongly affect turbulent heat fluxes at the ocean-atmosphere boundary (especially in winter) [1]).
The main modern data source of SIC is satellite microwave radiometers, which retrieve SIC from brightness temperature data using different algorithms. It was revealed by [61] that different algorithms for SIC retrieval result in noticeable differences in both absolute values and trends of estimated sea ice area and extent. For example, for the annual mean Arctic SIA, the difference among algorithms reached 1.3 × 106 km2. It could be caused by different choice of the microwave channels, weather filters and other factors [62].
We use data on SIC from ERA5 Reanalysis [63], which includes passive microwave satellite data reprocessed by Ocean and Sea Ice Satellite Application Facility (OSI-SAF). OSI-SAF uses the combination of two SIC algorithms, called Bootstrap frequency mode [62] and Bristol [64], with different weights for different concentrations. The main advantage of OSI-SAF processed data over passive microwave satellite data is the use of numerical weather prediction data for correction of initial data on brightness temperatures prior to calculating SIC, which results in more reliable SIC estimates.
We compared the passive microwave satellite data NOAA/NSIDC Version 3 [65], ERA5 [63] and the Hadley Centre Sea Ice and Sea Surface Temperature data set Version 1 (HadISST1) [66]. Since the true values are basically unknown, and the data from different source show agreement in direction of SIA changes, we selected the ERA5 data due to the use of numerical weather prediction data for initial guess corrections, which is suggested to be a more advanced method.
The 1979–2019 period of continuous satellite observations was used for the analysis. Within this period, the total northern hemisphere (NH) sea ice cover has been changing with visibly different rates (Figure 1a). Therefore, two periods of almost the same length representing (relatively) slow and fast SIA declines were chosen for detailed consideration: 1979–1999 (SIA trends in March and September are −145 × 103 km2 per decade and −411 × 103 km2 per decade, respectively); and 2000–2019 (SIA trends in March and September are −542 × 103 km2 per decade and −1063 × 103 km2 per decade, respectively).
Fifteen regions in the Arctic Ocean and marginal seas were selected for the regional analysis. The boundaries of these regions on 0.25° × 0.25° lat/lon grid (as in ERA5 data) are shown in Figure 1b. They basically correspond to the broadly accepted geographical definitions of the Arctic seas [67]. In addition, we also considered the inner Arctic Ocean dividing it into two parts, south of 80° N and north of 80° N. The SIA data for all studied Arctic seas calculated in this study is available through Mendeley Data [68].

3. Results

3.1. Seasonal Cycle and Coverage

The NH SIA and SIA in all the studied Arctic regions has a seasonal cycle with a maximum in March and a minimum in August–September. However, it is characterized by noticeable regional differences (Figure 2). In some seas, seasonal sea ice melt begins in April–May (e.g., in Barents, Okhotsk, Bering Seas), and in the most part of the Arctic region, the major sea ice melt occurs later, in May–June. After the minimum in September (when several seas even remain ice-free), the sea ice refreezes rapidly during the two subsequent months in the Laptev, East Siberian, Beaufort Seas, Northwestern Passages, and Arctic Ocean, whereas the other regions do not refreeze until December or even January–February.
However, the seasonal cycle has significantly changed during the satellite era of observation. The NH SIA in 2000–2019, on average, is about 0.88 × 106 km2 less in the period from December to March and about 1.84 × 106 km2 less in July–October than in 1979–1999 (grey bars in Figure 2). In general, the amplitude of the seasonal cycle has increased in the recent two decades in comparison to the 1979–1999 period (red and blue curves in Figure 2 for coverage in the two periods, and grey bars for the difference between them). In December–February (DJF), the largest changes in the ice coverage occurred in the Barents Sea. The SIA decreased by 17% in 2000–2019 compared with 1979–1999, and the difference in SIA between these two periods is 280 × 103 km2. In summer and early autumn, SIA decreased in the Kara Sea by 17% (294 × 103 km2) and the Laptev Sea by 19% (105 × 103 km2), with almost unchanged coverage in winter (these Seas used to be completely covered with sea ice in winter, but in the recent years, the Kara Sea was just partly sea ice covered [12]). It decreased by 21% in the East Siberian Sea (154 × 103 km2), and by 18% (89 × 103 km2) in the Beaufort Sea. The greatest changes in the amplitude of the seasonal cycle were observed in the Arctic Ocean south of 80° N, where SIA coverage reduced in July–September by 28% (532 × 103 km2) and in October by 24% (466 × 103 km2). In the northern part of the Arctic Ocean (north of 80° N) the decline of SIA was smaller in summer and autumn, only 4%. In the other seas, there were no significant changes in the SIA seasonal cycle.

3.2. Contributions of Different Seas to the Total Arctic SIA Trend

The contributions of different seas to the total Arctic SIA trend in 1979–2019 are shown in Figure 3. Note that the majority of SIA trends in the Artic seas are negative, i.e., SIA is decreasing. The largest negative trend for total NH SIA is observed in August (864 × 103 km2 per decade), September (881 × 103 km2 per decade), and October (859 × 103 km2/decade). From December to April, the main contribution to the trend is the Barents Sea (33% of the total trend) and the Sea of Okhotsk (24%, where the main decline occurred before the 21st century). In May, the Barents Sea plays the major role in the negative trend (about 40% of total Arctic SIA trend). The strong negative trend in the Barents Sea has been noted in existing literature (e.g., [69,70]). The large contributions of the Barents Sea and Okhotsk Sea in winter and early spring have also been reported in recent studies (e.g., [60]). The variability of SIA in these seas is more pronounced in winter, whereas in summer they are practically ice-free, and their areas are relatively large; therefore, observed warming air temperature and sea surface temperature (SST), increased Atlantic inflow to the Barents Sea [32,71,72] and changes of atmospheric circulation (in particular, variations in the position of the Aleutian Low) affect SIA fluctuations in the Okhotsk Sea [73], resulting in a strengthening of the decline rate of SIA in these seas and their greater contribution to the decrease of SIA of the total Arctic. In June–July, major contributions to the total trend are made by the Kara (16%) and Barents (20%) Seas, and the Northwestern Passages (10%).
In August–September, the largest part of the total trend is due to sea ice loss in the Arctic Ocean south of 80° N (about 35% of the total trend), north of 80° N (13%), and by the East Siberian Sea (12%). These regions are typically completely ice covered in winter, but in summer and earlier autumn they have a significant variability in SIA and play a major role in the total Arctic trend. Warmer air temperatures and increased SST lead to earlier ice melt onset and enhancement of the positive ice-albedo feedback, which causes a thinning of the sea ice and, as a result, a delay in autumn freeze-up. These features were also highlighted in [60]. In October, when the sea ice begins to refreeze and SIA increases in several regions, the Arctic Ocean to the south of 80° N (26%) and Kara (13%), Laptev (10%), and East Siberian (15%) Seas are the most influential to the total trend. In November–December, the Barents Sea again makes the greatest contribution (23%), as well as the Kara (14%) and Baffin (11%) Seas, and Hudson Bay (10%).

3.3. SIA Trends in Different Seas

Monthly SIA trends in different regions for three periods, 1979–1999, 2000–2019 and 1979–2019, are shown in Figure 4. The structure of SIA trends during the whole period 1979–2019 (Figure 4a) is similar to the structure of sea ice extent trends for different seas shown by [60]. However, the changes in SIA during 1979–2019 were not linear, and the structure of trends for the whole period 1979–2019 differs noticeably from that in 1979–1999 (Figure 4b), appearing more similar to the trends for 2000–2019 (Figure 4c). The trends in absolute values are also different.
In comparison with 1979–2019, the 2000–2019 decline in SIA increases mostly from June to November in the Kara, Laptev, East Siberian, Beaufort Seas, the Northwestern Passages and Central Arctic (both south and north of 80° N). In June–July, the largest difference in SIA trend between the 2000–2019 and 1979–1999 periods is observed in the Laptev (52 × 103 km2 per decade), Beaufort (41 × 103 km2 per decade) Seas, and in the Arctic Ocean south of 80° N (96 × 103 km2 per decade). Here, the rate of reduction of SIA in July almost more than doubled over the past 20 years (from 75 × 103 to 154 × 103 km2 per decade). The negative trend in July also increased in the Northwestern Passages (by 43 × 103 km2 per decade). In August–September, the reduction of SIA notably accelerated in the Arctic Ocean south of 80° N by 201 × 103 km2 per decade, and north of 80° N by 186 × 103 km2 per decade. In the same months, the trend in the Kara Sea changed from near zero in 1979–1999 to 91 × 103 km2 per decade in 2000–2019, caused, in general, by increased Atlantic inflow to this region. The most significant changes are observed in October, when the rate of NH SIA decline increased by 0.97 × 106 km2 per decade in 2000–2019 compared with 1979–1999. The strongest trend changes occurred in the Arctic Ocean south of 80° N (by 231 × 103 km2 per decade). In the northern part of the Arctic Ocean around the Pole, the decreasing SIA trend has also strengthened (by 106 × 103 km2 per decade). The large changes in SIA trend in October between the two periods are also observed in the Kara (by 186 × 103 km2 per decade), Laptev (by 131 × 103 km2 per decade), and East Siberian (by 124 × 103 km2/decade) Seas. These changes are mainly caused by the increasing air temperature and SST in the polar region. Accelerated warming trends were observed over most of the Arctic in the recent decades (e.g., [9,74,75]) accompanied by a reduction of multi-year sea ice [76].
From December to March, SIA melting rates increased in the Barents, and Greenland Seas. In the Bering Sea and Central Arctic north of 80° N, SIA trends even changed from positive values in 1979–1999 to strongly negative rates in 2000–2019. In the Bering Sea and Central Arctic, the open-water period lengthened and freeze-up dates in autumn were delayed. In the Barents Sea, the difference in SIA trends between 2000–2019 and 1979–1999 is 116 × 103 km2/decade (averaged for December to March). The variations in the Atlantic waters inflow are a dominant influence on the recently accelerated SIA loss in the Barents Sea [2,32,72]. This process leads to an increased accumulation of heat in the upper ocean layer during the summer. This additional heat favors more active winter thermohaline convection and transport of heat from the Atlantic water layer to the sea ice. This causes the sea ice thinning and longer open-water season, which, in turn, leads to an increased accumulation of heat in the ocean in the following summer [70,77]. In April–May, the SIA trends notably decrease in 2000–2019 in the Barents Sea by 72 × 103 km2 per decade, and in the Bering Sea by 116 × 103 km2 per decade.

3.4. Spatial Changes of SIC Trends

The SIC trends also significantly changed in 2000–2019 compared with 1979–1999. In March, the area of intense sea ice reduction in the Greenland Sea unexpectedly moved southward in 2000–2019, and extended towards the northeastern, eastern, and southeastern margins of the Barents Sea (Figure 5). An area of significant sea ice loss appeared to the east and to the north of Svalbard. In addition, a region with strong sea ice loss emerged in the southern part of the Bering Sea and in the southwestern margins of Okhotsk Sea (not shown).
In September, the area with noticeable SIC loss in 2000–2019 covers a larger region and extends to the north of the Franz Josef Land, the northern boundaries of the Kara, East Siberian, Laptev, and Beaufort Seas, and moves into the inner Arctic Ocean. More areas with significant decrease appear in the Northwestern Passages.
The area with trends exceeding 10% per decade in September grew from 1.48 million to 2.72 million km2 in March and from 1.86 million to 3.69 million km2 for 1979–1999 and 2000–2019 periods, respectively.

4. Discussion

Disentangling the major factors accelerating the sea ice reduction is a complicated task. Here, we would like to initiate and support further investigations of this problem by comparing SIA trends as observed and simulated by the latest generation of CMIP6 climate models. Trends for the 1979–1999 and 2000–2019 periods for September and March are shown in Figure 6. A majority of models do exhibit a faster September SIA decline in the recent period, whereas in March, more than a half of the models show a stronger decline in the end of the 20th century. For several models, the SIA decline was faster in 1979–1999 than in 2000–2019 (12 models in March and 7 models in September). In March, 7 models even demonstrate positive trends in 2000–2019. The large uncertainties can be caused by different representations of SIA-related processes in the models and great deviation of SIA within even a particular model, with some models showing an earlier start of fast SIA decline, than others. This suggests an important role of internal climate variability in winter in driving decadal sea ice trends in the Arctic (e.g., [21,33]). We also note that Figure 6 shows Arctic wide SIA changes in CMIP6 models without breaking it up regionally, compared with the ERA5 data used in this study. Regional changes can be another source of error and additional uncertainties.
The internal climate variability that could be a major cause of the described differences in SIA characteristics between the 1979–1999 and 2000–2019 periods is also suggested as a reason for a sharp increase in Arctic amplification in 1999 recently found by Chylek et al. [78] based on comparison of observed and simulated (CMIP6) temperature changes.

5. Conclusions

The contributions of SIA trends in the Arctic seas to the total NH SIA trend during the 1979–2019 period were estimated. From December to April, the largest contributions to the NH SIA changes were from sea ice retreat in the Barents Sea and the Sea of Okhotsk. In May, the major contribution in the total SIA trend was made by SIA changes in the Barents Sea. In June–July, the Kara, Laptev, East Siberian Seas and the Northwestern Passages play the most important role in the total NH trend. In August–September, the SIA decline in the inner Arctic Ocean south of 80° N and in the East Siberian Sea play the major role in the total NH SIA trend. In October, the Arctic Ocean to the south of 80° N, the Kara, Laptev and East Siberian Seas contribute most to the total Arctic SIA trend. In November–December, the Barents Sea makes the greatest contribution, as well as the Kara, Baffin Seas, and Hudson Bay.
In contrast to the previous studies (e.g., [12,59,60]) that focused of sea ice changes in the whole period from 1979 onwards, in this study we compared regional changes between the period of the modern accelerated decline and the previous, more gradual decline. In the Barents Sea, the mean winter SIA trends in 2000–2019 increased more than two-fold in comparison with the trends in 1979–1999. In April–May, the SIA trends notably decrease in 2000–2019 in the Barents Sea and in the Bering Sea. In June–July, SIA reduction in the 21st century accelerated most strongly in the Laptev, Beaufort Seas, in the inner Arctic Ocean south of 80° N, and in the Northwestern Passages. In August–September, the reduction of SIA accelerated notably in the Arctic Ocean (both south and north of 80° N), and in the Kara Sea. The strongest changes in trends during 2000–2019 compared with the 1979–1999 period occurred in October in the Arctic Ocean south of 80° N. In the northern part of the Arctic Ocean around the Pole, in the Kara, Laptev, and East Siberian Seas, the decreasing trend has also strengthened in October.
It was shown that the amplitude of the SIA seasonal cycle increased in 2000–2019 in comparison with the 1979–1999 period. The largest changes in the amplitude between the 2000–2019 and 1979–1999 periods occurred in the Barents, Kara, Laptev, East Siberian, and Beaufort Seas. The most dramatic changes in SIA were observed in the Arctic Ocean south of 80° N, where the SIA coverage reduced by almost half in the summer and early autumn. When considering mean SIA changes between the two chosen periods, the largest changes in winter occurred in the Barents Sea. In summer and early autumn, SIA strongly decreased in the Kara, Laptev, East Siberian and Beaufort Seas.
Spatial patterns of SIC trends for the 1979–1999 and 2000–2019 periods in March and September were presented. In summer, the area of sea ice concentration trends exceeding 10%/decade increased from 1.87 to 3.69 million km2, extending northward around the pole except for the Canadian Archipelago and Greenland sectors of the Arctic Ocean. In winter, changes in the areas of SIA decrease are smaller (from 1.48 to 2.72 million km2) and mostly located in the Atlantic sector spreading to the eastern part of the Barents Sea and east of Svalbard in the beginning of the 21st century.
The accelerated Arctic sea ice melt in the beginning of the 21st century can be related to the increasing anthropogenic greenhouse forcing, and also may reflect a transition to a new dynamic state with increasing ocean and atmosphere heat transport to the Arctic [30,32,45] with triggering positive feedbacks in the Arctic climate system (e.g., [4,77]), thus implying a possible tipping point [53].

Author Contributions

Conceptualization, T.A.M. and V.A.S.; methodology, T.A.M. and V.A.S.; software, T.A.M.; validation, T.A.M.; formal analysis, T.A.M. and V.A.S.; investigation, T.A.M.; writing—original draft preparation, T.A.M. and V.A.S.; writing—review and editing, T.A.M. and V.A.S.; visualization, T.A.M.; supervision, V.A.S. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Russian Ministry of Science and Education (Agreement No. 075-15-2020-776).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

General data used in this study is archived in the repository (Datasets Generated: “Mendeley Data”: Sea ice area in different Arctic Seas (timeseries based on ERA5), Mendeley Data, V1, https://doi.org/10.17632/v8xt3xy87t.1 [accessed date: 19 April 2022].

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Semenov, V.A.; Martin, T.; Behrens, L.K.; Latif, M. Arctic sea ice area in CMIP3 and CMIP5 climate model ensembles–variability and change. Cryosphere Discuss 2015, 9, 1077–1131. [Google Scholar] [CrossRef]
  2. Smedsrud, L.H.; Esau, I.N.; Ingvaldsen, R.B.; Eldevik, T.; Haugan, P.M.; Li, C.; Lien, V.S.; Olsen, A.; Omar, A.M.; Otterå, O.H.; et al. The role of the Barents Sea in the Arctic climate system. Rev. Geophys. 2013, 51, 415–449. [Google Scholar] [CrossRef]
  3. Semenov, V.A.; Latif, M. Nonlinear winter atmospheric circulation response to Arctic sea ice concentration anomalies for different periods during 1966–2012. Environ. Res. Lett. 2015, 10, 054020. [Google Scholar] [CrossRef]
  4. Alexeev, V.A.; Walsh, J.E.; Ivanov, V.V.; Semenov, V.A.; Smirnov, A. Warming in the Nordic Seas, North Atlantic storms and thinning Arctic sea ice. Environ. Res. Lett. 2017, 12, 084011. [Google Scholar] [CrossRef]
  5. Kortsch, S.; Primicerio, R.; Beuchel, F.; Renaud, P.E.; Rodrigues, J.; Lønne, O.J.; Gulliksen, B. Climate-driven regime shifts in Arctic marine benthos. Proc. Natl. Acad. Sci. USA 2012, 109, 14052–14057. [Google Scholar] [CrossRef]
  6. Hirawake, T.; Uchida, M.; Abe, H.; Alabia, I.D.; Hoshino, T.; Masumoto, S.; Mori, A.S.; Nishioka, J.; Nishizawa, B.; Ooki, A.; et al. Response of Arctic biodiversity and ecosystem to environmental changes: Findings from the ArCS project. Pol. Sci. 2021, 27, 100533. [Google Scholar] [CrossRef]
  7. Melia, N.; Haines, K.; Hawkins, E. Sea ice decline and 21st century trans-Arctic shipping routes. Geophys. Res. Lett. 2016, 43, 9720–9728. [Google Scholar] [CrossRef]
  8. Khon, V.C.; Mokhov, I.I.; Semenov, V.A. Transit navigation through Northern Sea Route from satellite data and CMIP5 simulations. Environ. Res. Lett. 2017, 12, 024010. [Google Scholar] [CrossRef]
  9. Chen, J.; Kang, S.; Chen, C.; You, Q.; Du, W.; Xu, M.; Zhong, X.; Zhang, W.; Chen, J. Changes in sea ice and future accessibility along the Arctic Northeast Passage. Glob. Planet. Change 2020, 195, 103319. [Google Scholar] [CrossRef]
  10. Li, X.; Otsuka, N.; Brigham, L.W. Spatial and temporal variations of recent shipping along the Northern Sea Route. Pol. Sci. 2021, 27, 100569. [Google Scholar] [CrossRef]
  11. Stroeve, J.; Notz, D. Changing state of Arctic sea ice across all seasons. Environ. Res. Lett. 2018, 13, 03001. [Google Scholar] [CrossRef]
  12. Matveeva, T.A.; Semenov, V.A.; Astafyeva, E.S. Arctic sea ice coverage and its relation to the surface air temperature in the Northern Hemisphere. Ice Snow 2020, 60, 134–148. (In Russian) [Google Scholar] [CrossRef]
  13. Stroeve, J.C.; Markus, T.; Boisvert, L.; Miller, J.; Barrett, A. Changes in Arctic melt season and implications for sea ice loss. Geophys. Res. Lett. 2014, 41, 1216–1225. [Google Scholar] [CrossRef]
  14. Marcianesi, F.; Aulicino, G.; Wadhams, P. Arctic sea ice and snow cover albedo variability and trends during the last three decades. Pol. Sci. 2021, 28, 100617. [Google Scholar] [CrossRef]
  15. Huang, J.; Zhang, X.; Zhang, Q.; Lin, Y.; Hao, M.; Luo, Y.; Zhao, Z.; Yao, Y.; Chen, X.; Wang, L.; et al. Recently amplified arctic warming has contributed to a continual global warming trend. Nat. Clim. Change 2017, 7, 875–879. [Google Scholar] [CrossRef]
  16. Walsh, J.E.; Fetterer, F.; Stewart, J.S.; Chapman, W.L. A database for depicting Arctic sea ice variations back to 1850. Geogr. Rev. 2017, 107, 89–107. [Google Scholar] [CrossRef]
  17. Chen, J.L.; Kang, S.C.; Meng, X.H.; You, Q.L. Assessments of the Arctic amplification and the changes in the Arctic sea surface. Adv. Clim. Change Res. 2019, 10, 193–202. [Google Scholar] [CrossRef]
  18. Wang, M.; Overland, J.E. A sea ice free summer Arctic within 30 years: An update from CMIP5 models. Geophys. Res. Lett. 2012, 39, L18501. [Google Scholar] [CrossRef]
  19. Wang, M.; Yang, Q.; Overland, J.E.; Stabeno, P. Sea-ice cover timing in the Pacific Arctic: The present and projections to mid-century by selected CMIP5 models. Deep Sea Res. Part II: Top. Stud. Oceanogr. 2018, 152, 22–34. [Google Scholar] [CrossRef]
  20. Kwok, R. Arctic sea ice thickness, volume, and multiyear ice coverage: Losses and coupled variability (1958–2018). Environ. Res. Lett. 2018, 13, 105005. [Google Scholar] [CrossRef]
  21. Swart, N.C.; Fyfe, J.C.; Hawkins, E.; Kay, J.E.; Jahn, A. Influence of internal variability on Arctic sea-ice trends. Nat. Clim. Change 2015, 5, 86–89. [Google Scholar] [CrossRef]
  22. England, M.; Jahn, A.; Polvani, L. Nonuniform contribution of internal variability to recent Arctic sea ice loss. J. Clim. 2019, 32, 4039–4053. [Google Scholar] [CrossRef]
  23. Woodgate, R.A.; Weingartner, T.J.; Lindsay, R. Observed increases in Bering Strait oceanic fluxes from the Pacific to the Arctic from 2001 to 2011 and their impacts on the Arctic Ocean water column. Geophys. Res. Lett. 2012, 39, L24603. [Google Scholar] [CrossRef]
  24. Semenov, V.A. Influence of oceanic inflow to the Barents Sea on climate variability in the Arctic region. Dokl. Earth Sci. 2008, 418, 91–94. [Google Scholar] [CrossRef]
  25. Semenov, V.; Latif, M. The early twentieth century warming and winter Arctic sea ice. Cryosphere 2012, 6, 1231–1237. [Google Scholar] [CrossRef]
  26. Semenov, V.A.; Matveeva, T.A. Arctic sea ice in the first half of the 20th century: Temperature based spatiotemporal reconstruction. Izv. Atmos. Ocean. Phys. 2020, 56, 534–538. [Google Scholar] [CrossRef]
  27. Brennan, M.K.; Hakim, G.J.; Blanchard-Wrigglesworth, E. Arctic Sea-Ice Variability During the Instrumental Era. Geophys. Res. Lett. 2020, 47, e2019GL086843. [Google Scholar] [CrossRef]
  28. Bokuchava, D.D.; Semenov, V.A. Mechanisms of the Early 20th Century Warming in the Arctic. Earth-Sci. Rev. 2021, 222, 103820. [Google Scholar] [CrossRef]
  29. Carmack, E.; Polyakov, I.; Padman, L.; Fer, I.; Hunke, E.; Hutchings, J.; Jackson, J.; Kelley, D.; Kwok, R.; Layton, C.; et al. Toward quantifying the increasing role of oceanic heat in sea ice loss in the new Arctic. Bull. Am. Meteorol. Soc. 2015, 96, 2079–2105. [Google Scholar] [CrossRef]
  30. Polyakov, I.V.; Pnyushkov, A.V.; Alkire, M.B.; Ashik, I.M.; Baumann, T.M.; Carmack, E.C.; Goszczko, I.; Guthrie, J.; Ivanov, V.V.; Kanzow, T.; et al. Greater role for Atlantic inflows on sea-ice loss in the Eurasian Basin of the Arctic Ocean. Science 2017, 356, 285–291. [Google Scholar] [CrossRef]
  31. Schlichtholz, P. Influence of oceanic heat variability on sea ice anomalies in the Nordic Seas. Geophys. Res. Lett. 2011, 38, L05705. [Google Scholar] [CrossRef]
  32. Årthun, M.; Eldevik, T.; Smedsrud, L.H. The role of Atlantic heat transport in future Arctic winter sea ice loss. J. Clim. 2019, 32, 3327–3341. [Google Scholar] [CrossRef]
  33. Day, J.J.; Hargreaves, J.C.; Annan, J.D.; Abe-Ouchi, A. Sources of multi-decadal variability in Arctic sea ice extent. Environ. Res. Lett. 2012, 7, 034011. [Google Scholar] [CrossRef]
  34. Miles, M.W.; Divine, D.V.; Furevik, T.; Jansen, E.; Moros, M.; Ogilvie, A.E.J. A signal of persistent Atlantic multidecadal variability in Arctic sea ice. Geophys. Res. Lett. 2014, 41, 463–469. [Google Scholar] [CrossRef]
  35. Screen, J.A.; Francis, J.A. Contribution of sea-ice loss to Arctic amplification is regulated by Pacific Ocean decadal variability. Nat. Clim. Change 2016, 6, 856–860. [Google Scholar] [CrossRef]
  36. Shimada, K.; Kamoshida, T.; Itoh, M.; Nishino, S.; Carmack, E.; McLaughlin, F.; Zimmermann, S.; Proshutinsky, A. Pacific Ocean inflow: Influence on catastrophic reduction of sea ice cover in the Arctic Ocean. Geophys. Res. Lett. 2006, 33, L08605. [Google Scholar] [CrossRef]
  37. Honda, M.; Inoue, J.; Yamane, S. Influence of low Arctic sea-ice minima on anomalously cold Eurasian winters. Geophys. Res. Lett. 2009, 36, L08707. [Google Scholar] [CrossRef]
  38. Outten, S.D.; Esau, I. A link between Arctic sea ice and recent cooling trends over Eurasia. Clim. Change 2012, 110, 1069–1075. [Google Scholar] [CrossRef]
  39. Mori, M.; Watanabe, M.; Shiogama, H.; Inoue, J.; Kimoto, M. Robust Arctic sea-ice influence on the frequent Eurasian cold winters in past decades. Nat. Geosci. 2014, 7, 869–873. [Google Scholar] [CrossRef]
  40. Gao, Y.Q.; Sun, J.; Li, F.; He, S.; Sandven, S.; Yan, Q.; Zhang, Z.; Lohmann, K.; Keenlyside, N.; Furevik, T.; et al. Arctic sea ice and Eurasian climate: A review. Adv. Atmos. Sci. 2015, 32, 92–114. [Google Scholar] [CrossRef]
  41. McCusker, K.E.; Fyfe, J.C.; Sigmond, M. Twenty-five winters of unexpected Eurasian cooling unlikely due to Arctic sea-ice loss. Nat. Geosci. 2016, 9, 838–842. [Google Scholar] [CrossRef]
  42. Luo, B.; Wu, L.; Luo, D.; Dai, A.; Simmonds, I. The winter midlatitude-Arctic interaction: Effects of North Atlantic SST and high-latitude blocking on Arctic sea ice and Eurasian cooling. Clim. Dyn. 2019, 52, 2981–3004. [Google Scholar] [CrossRef]
  43. Ding, Q.; Schweige, A.; L’Heureux, M.; Battisti, D.S.; Po-Chedley, S.; Johnson, N.C.; Blanchard-Wrigglesworth, E.; Harnos, K.; Zhang, Q.; Eastman, R.; et al. Influence of high-latitude atmospheric circulation changes on summertime Arctic sea ice. Nat. Clim. Change 2017, 7, 289–295. [Google Scholar] [CrossRef]
  44. Rinke, A.; Knudsen, E.M.; Mewes, D.; Dorn, W.; Handorf, D.; Dethloff, K.; Moore, J.C. Arctic summer sea ice melt and related atmospheric conditions in coupled regional climate model simulations and observations. J. Geophys. Res. Atmos. 2019, 124, 6027–6039. [Google Scholar] [CrossRef]
  45. Deser, C.; Teng, H. Evolution of Arctic sea ice concentration trends and the role of atmospheric circulation forcing, 1979–2007. Geophys. Res. Lett. 2008, 35, L02504. [Google Scholar] [CrossRef]
  46. Luo, B.; Luo, D.; Wu, L.; Zhong, L.; Simmonds, I. Atmospheric circulation patterns which promote winter Arctic sea ice decline. Environ. Res. Lett. 2017, 12, 054017. [Google Scholar] [CrossRef]
  47. Francis, J.A.; Wu, B. Why has no new record-minimum Arctic sea-ice extent occurred since September 2012? Envir. Res. Lett. 2020, 15, 114034. [Google Scholar] [CrossRef]
  48. Yu, L.; Zhong, S.; Vihma, T.; Sun, B. Attribution of late summer early autumn Arctic sea ice decline in recent decades. Npj Clim. Atmos. Sci. 2021, 4, 3. [Google Scholar] [CrossRef]
  49. Kay, J.E.; L’Ecuyer, T.; Chepfer, H.; Loeb, N.; Morrison, A.; Cesana, G. Recent advances in Arctic cloud and climate research. Curr. Clim. Change Rep. 2016, 2, 159–169. [Google Scholar] [CrossRef]
  50. Chernokulsky, A.V.; Esau, I.; Bulygina, O.N.; Davy, R.; Mokhov, I.I.; Outten, S.; Semenov, V.A. Climatology and interannual variability of cloudiness in the Atlantic Arctic from surface observations since the late 19th century. J. Clim. 2017, 30, 2103–2120. [Google Scholar] [CrossRef]
  51. Huang, Y.; Dong, X.; Bailey, D.A.; Holland, M.M.; Xi, B.; DuVivier, A.K.; Kay, J.E.; Landrum, L.L.; Deng, Y. Thicker clouds and accelerated Arctic Sea ice decline: The atmosphere-sea ice interactions in spring. Geophys. Res. Lett. 2019, 46, 6980–6989. [Google Scholar] [CrossRef]
  52. Letterly, A.; Key, J.; Liu, Y. The influence of winter cloud on summer sea ice in the Arctic, 1983–2013. J. Geophys. Res. Atmos. 2016, 121, 2178–2187. [Google Scholar] [CrossRef]
  53. Lenton, T.M.; Held, H.; Kriegler, E.; Hall, J.W.; Lucht, W.; Rahmstorf, S.; Schellnhuber, H.J. Tipping elements in the Earth’s climate system. Proc. Natl. Acad. Sci. USA 2008, 105, 1786–1793. [Google Scholar] [CrossRef] [PubMed]
  54. Stroeve, J.C.; Serreze, M.C.; Holland, M.M.; Kay, J.E.; Malanik, J.; Barrett, A.P. The Arctic’s rapidly shrinking sea ice cover: A research synthesis. Clim. Change 2012, 110, 1005–1027. [Google Scholar] [CrossRef]
  55. Yang, X.Y.; Yuan, X. The early winter sea ice variability under the recent Arctic climate shift. J. Clim. 2014, 27, 5092–5110. [Google Scholar] [CrossRef]
  56. Werner, R.; Valev, D.; Danov, D.; Guineva, V. Study of structural break points in global and hemispheric temperature series by piecewise regression. Adv. Space Res. 2015, 56, 2323–2334. [Google Scholar] [CrossRef]
  57. Sharma, S.; Swayne, D.A.; Obimbo, C. Trend analysis and change point techniques: A survey. Energy Ecol. Envir. 2016, 1, 123–130. [Google Scholar] [CrossRef]
  58. Killick, R.; Fearnhead, P.; Eckley, I.A. Optimal detection of changepoints with a linear computational cost. J. Am. Stat. Assoc. 2012, 107, 1590–1598. [Google Scholar] [CrossRef]
  59. Mahoney, A.R.; Barry, R.G.; Smolyanitsky, V.; Fetterer, F. Observed sea ice extent in the Russian Arctic, 1933–2006. J. Geophys. Res. Ocean. 2008, 113, C11005. [Google Scholar] [CrossRef]
  60. Onarheim, I.H.; Eldevik, T.; Smedsrud, L.H.; Stroeve, J.C. Seasonal and regional manifestation of Arctic sea ice loss. J. Clim. 2018, 31, 4917–4932. [Google Scholar] [CrossRef]
  61. Ivanova, N.; Johannessen, O.M.; Pedersen, L.T.; Tonboe, R.T. Retrieval of Arctic sea ice parameters by satellite passive microwave sensors: A comparison of eleven sea ice concentration algorithms. IEEE Trans. Geosci. Remote Sens. 2014, 52, 7233–7246. [Google Scholar] [CrossRef]
  62. Comiso, J.C.; Cavalieri, D.J.; Parkinson, C.L.; Gloersen, P. Passive microwave algorithms for sea ice concentration: A comparison of two techniques. Remote Sens. Environ. 1997, 60, 357–384. [Google Scholar] [CrossRef]
  63. Hersbach, H.; Bell, B.; Berrisford, P. The ERA5 global reanalysis. Q. J. R. Meteorol. Soc. 2020, 146, 1999–2049. [Google Scholar] [CrossRef]
  64. Smith, D.M. Extraction of winter total sea-ice concentration in the Greenland and Barents Seas from SSM/I data. Remote Sens. 1996, 17, 2625–2646. [Google Scholar] [CrossRef]
  65. Meier, W.N.; Fetterer, F.; Savoie, M.; Mallory, S.; Duerr, R.; Stroeve, J. NOAA/NSIDC Climate Data Record of Passive Microwave Sea Ice Concentration, Version 3; National Snow and Ice Data Center: Boulder, CO, USA, 2017. [Google Scholar] [CrossRef]
  66. Rayner, N.A.; Parker, D.E.; Horton, E.B.; Folland, C.K.; Alexander, L.V.; Rowell, D.P.; Kent, E.C.; Kaplan, A. Global analyses of sea surface temperature, sea ice, and night marine air temperature since the late nineteenth century. J. Geophys. Res. 2003, 108, 4407. [Google Scholar] [CrossRef]
  67. IHO (International Hydrographic Organization). Limits of Oceans and Seas, 3rd ed.; Special Publication No. 23 (S-23); International Hydrographic Organization: Monte Carlo, Monaco, 1953. [Google Scholar]
  68. Matveeva, T. Sea Ice Area in Different Arctic Seas (Timeseries Based on ERA5); Mendeley Data, V1. 2022. Available online: https://data.mendeley.com/datasets/v8xt3xy87t/1 (accessed on 19 April 2022).
  69. Cavalieri, D.J.; Parkinson, C.L. Arctic sea ice variability and trends, 1979–2010. Cryosphere 2012, 6, 881. [Google Scholar] [CrossRef]
  70. Onarheim, I.H.; Årthun, M. Toward an ice-free Barents Sea. Geophys. Res. Lett. 2017, 44, 8387–8395. [Google Scholar] [CrossRef]
  71. Ivanov, V.V.; Repina, I.A. The effect of seasonal variability of Atlantic water on the Arctic Sea ice cover. Izv. Atmos. Ocean. Phys. 2018, 54, 65–72. [Google Scholar] [CrossRef]
  72. Barton, B.I.; Lenn, Y.; Lique, C. Observed Atlantification of the Barents Sea causes the Polar Front to limit the expansion of winter sea ice. J. Phys. Oceanogr. 2018, 48, 1849–1866. [Google Scholar] [CrossRef]
  73. Kashiwase, H.; Ohshima, K.I.; Nihashi, S. Long-term variation in sea ice production and its relation to the intermediate water in the Sea of Okhotsk. Prog. Oceanogr. 2014, 126, 21–32. [Google Scholar] [CrossRef]
  74. Steele, M.; Ermold, W.; Zhang, J. Arctic Ocean surface warming trends over the past 100 years. Geophys. Res. Lett. 2008, 35, L02614. [Google Scholar] [CrossRef]
  75. Singh, R.K.; Maheshwari, M.; Oza, S.R.; Kumar, R. Long-term variability in Arctic sea surface temperatures. Pol. Sci. 2013, 7, 233–240. [Google Scholar] [CrossRef]
  76. Polyakov, I.V.; Walsh, J.E.; Kwok, R. Recent changes of Arctic multiyear sea ice coverage and the likely causes. Bull. Am. Meteorol. Soc. 2017, 93, 145–151. [Google Scholar] [CrossRef]
  77. Ivanov, V.; Smirnov, A.; Alexeev, V.; Koldunov, N.V.; Repina, I.; Semenov, V. Contribution of Convection-Induced Heat Flux to Winter Ice Decay in the Western Nansen Basin. J. Geoph. Res. Ocean. 2018, 123, 6581–6597. [Google Scholar] [CrossRef]
  78. Chylek, P.; Folland, C.; Klett, J.D.; Wang, M.; Hengartner, N.; Lesins, G.; Dubey, M.K. Annual Mean Arctic Amplification 1970–2020: Observed and Simulated by CMIP6 Climate Models. Geophys. Res. Lett. 2022, 49, e2022GL099371. [Google Scholar] [CrossRef]

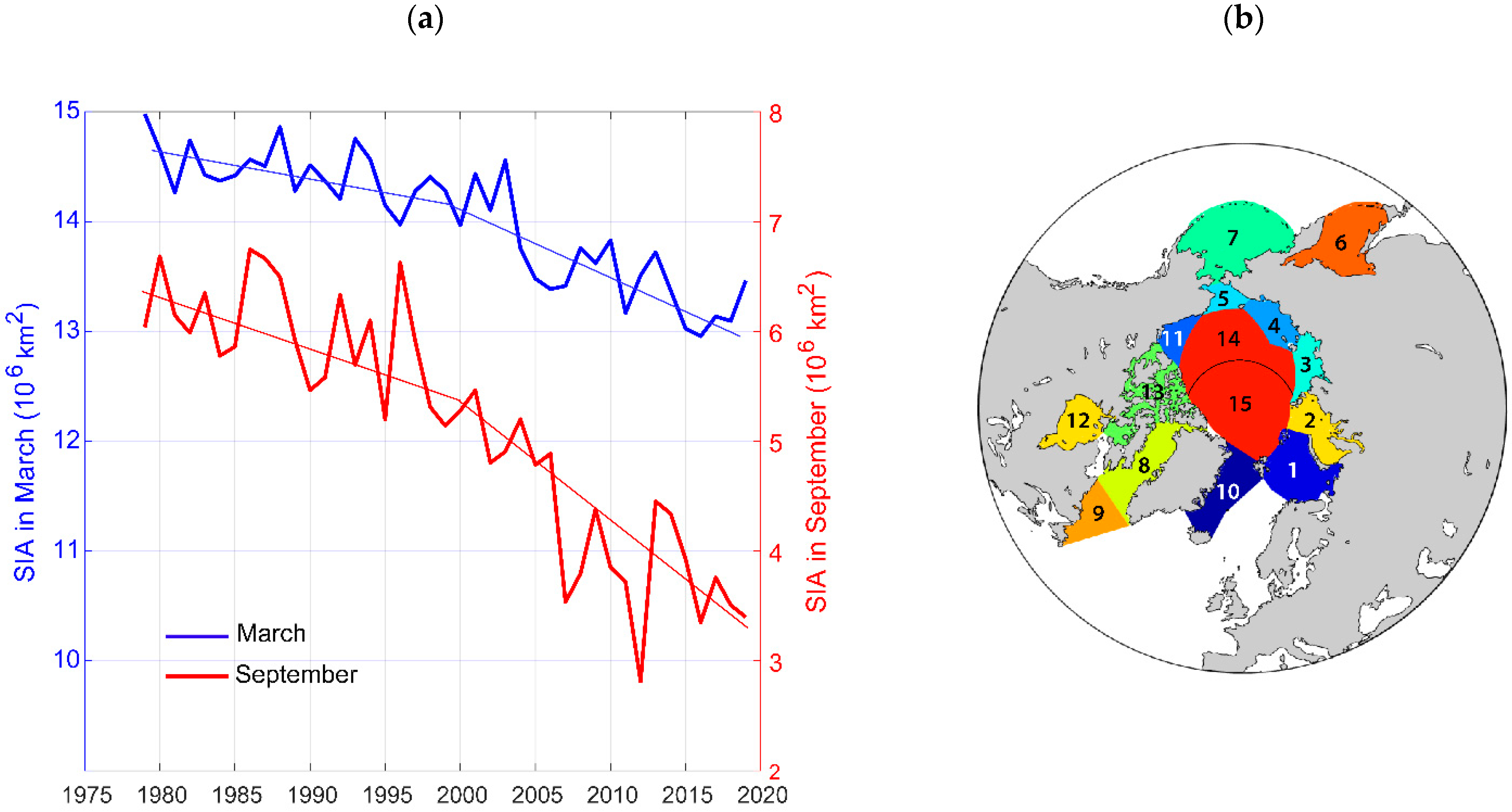

Figure 1. (a) Northern hemisphere SIA time series from 1979 to 2019 (based on ERA5 SIC data) for March (blue) and September (red) with linear trends for 1979–1999 and 2000–2019 periods. (b) The boundaries of the Arctic seas: 1—Barents; 2—Kara; 3—Laptev; 4—East Siberian; 5—Chukchi; 6—Okhotsk; 7—Bering; 8—Baffin; 9—Labrador; 10—Greenland; 11—Beaufort; 12—Hudson Bay; 13—Northwestern Passages; 14—Arctic Ocean (south of 80° N); 15—Arctic Ocean (north of 80° N).
Figure 1. (a) Northern hemisphere SIA time series from 1979 to 2019 (based on ERA5 SIC data) for March (blue) and September (red) with linear trends for 1979–1999 and 2000–2019 periods. (b) The boundaries of the Arctic seas: 1—Barents; 2—Kara; 3—Laptev; 4—East Siberian; 5—Chukchi; 6—Okhotsk; 7—Bering; 8—Baffin; 9—Labrador; 10—Greenland; 11—Beaufort; 12—Hudson Bay; 13—Northwestern Passages; 14—Arctic Ocean (south of 80° N); 15—Arctic Ocean (north of 80° N).
Atmosphere 13 01434 g001

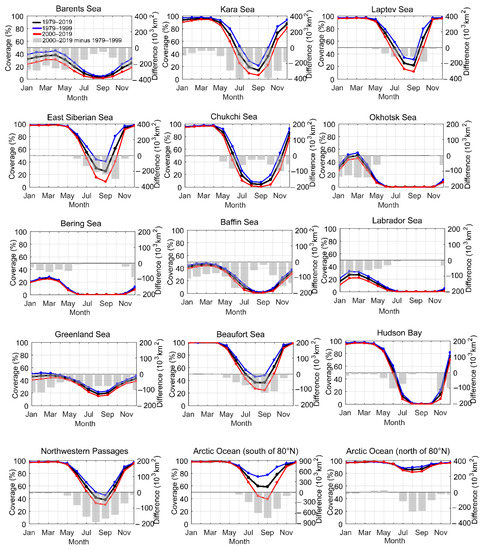

Figure 2. Monthly sea ice coverage (% of the selected sea/region area) for individual seas in three periods: 1979–2019 (black curve), 1979–1999 (blue curve) and 2000–2019 (red curve) and differences between mean SIA in 2000–2019 and 1979–1999 (grey bars).
Figure 2. Monthly sea ice coverage (% of the selected sea/region area) for individual seas in three periods: 1979–2019 (black curve), 1979–1999 (blue curve) and 2000–2019 (red curve) and differences between mean SIA in 2000–2019 and 1979–1999 (grey bars).
Atmosphere 13 01434 g002

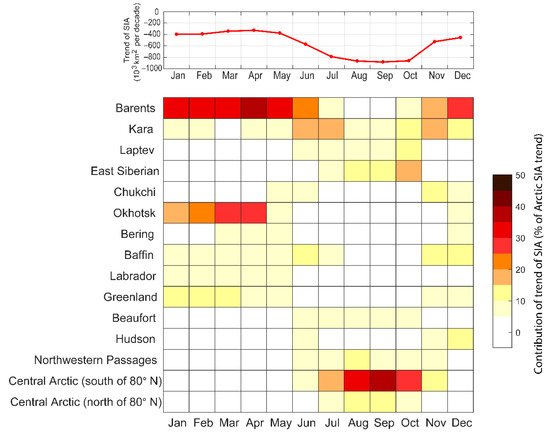

Figure 3. Northern hemisphere SIA trends in 1979–2019 for different months (top) and the contribution of trends in individual Arctic regions to total northern hemisphere SIA trend (bottom) (Contributions exceeding 5% are shaded).
Figure 3. Northern hemisphere SIA trends in 1979–2019 for different months (top) and the contribution of trends in individual Arctic regions to total northern hemisphere SIA trend (bottom) (Contributions exceeding 5% are shaded).
Atmosphere 13 01434 g003
Figure 4. Trends for monthly SIA in (a) 1979–2019, (b) 1979–1999, and (c) 2000–2019. (Statistically significant (95% confidence level) trends are marked with dots, according Mann–Kendall Test).
Figure 4. Trends for monthly SIA in (a) 1979–2019, (b) 1979–1999, and (c) 2000–2019. (Statistically significant (95% confidence level) trends are marked with dots, according Mann–Kendall Test).
Atmosphere 13 01434 g004

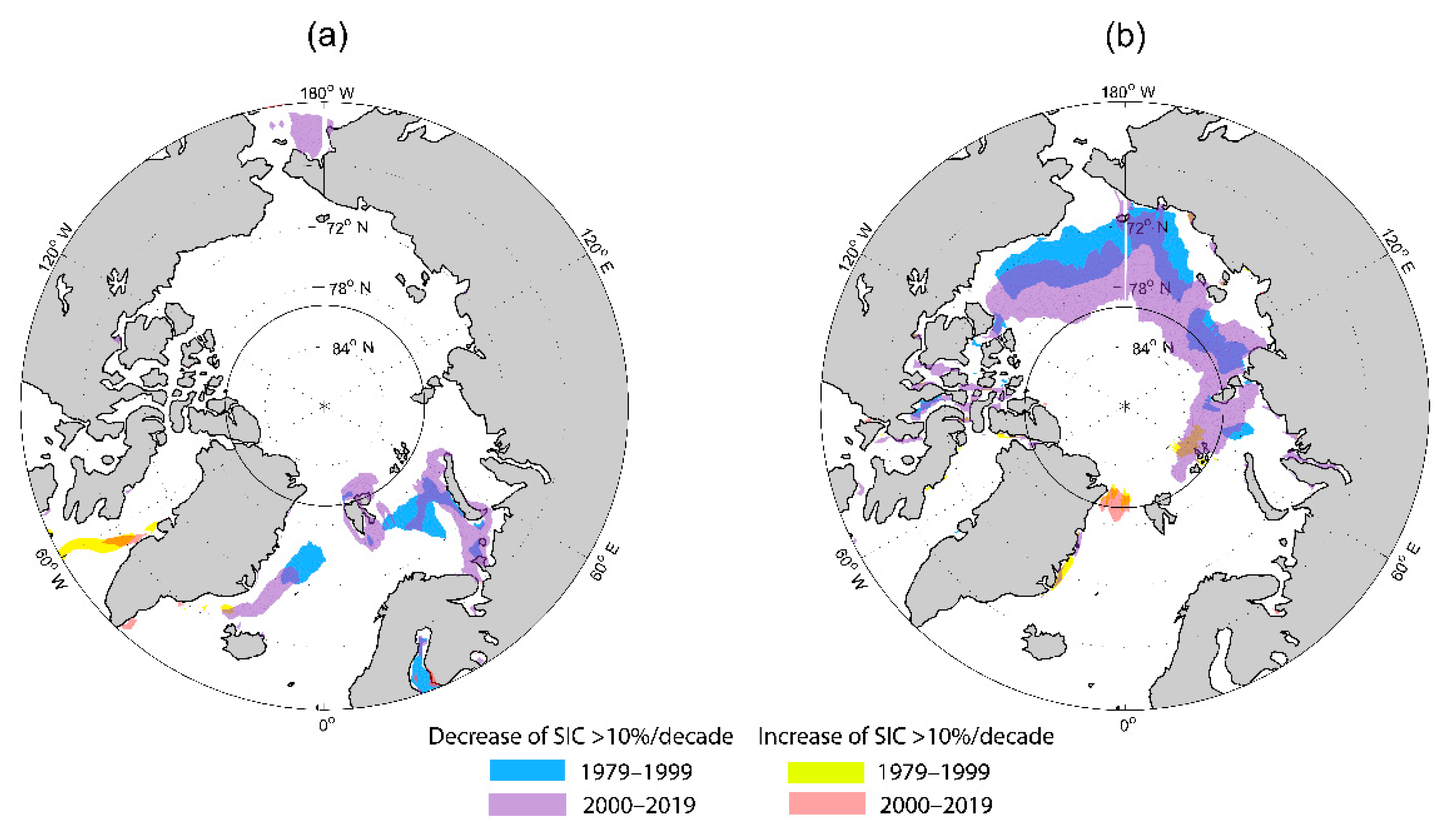

Figure 5. Areas of noticeable SIC trends (more than 10% per decade) in 1979–1999 and 2000–2019 for (a) March and (b) September (Black circle shows 80° N latitude). All indicated (shaded) trends are statistically significant (p < 0.1).
Figure 5. Areas of noticeable SIC trends (more than 10% per decade) in 1979–1999 and 2000–2019 for (a) March and (b) September (Black circle shows 80° N latitude). All indicated (shaded) trends are statistically significant (p < 0.1).
Atmosphere 13 01434 g005

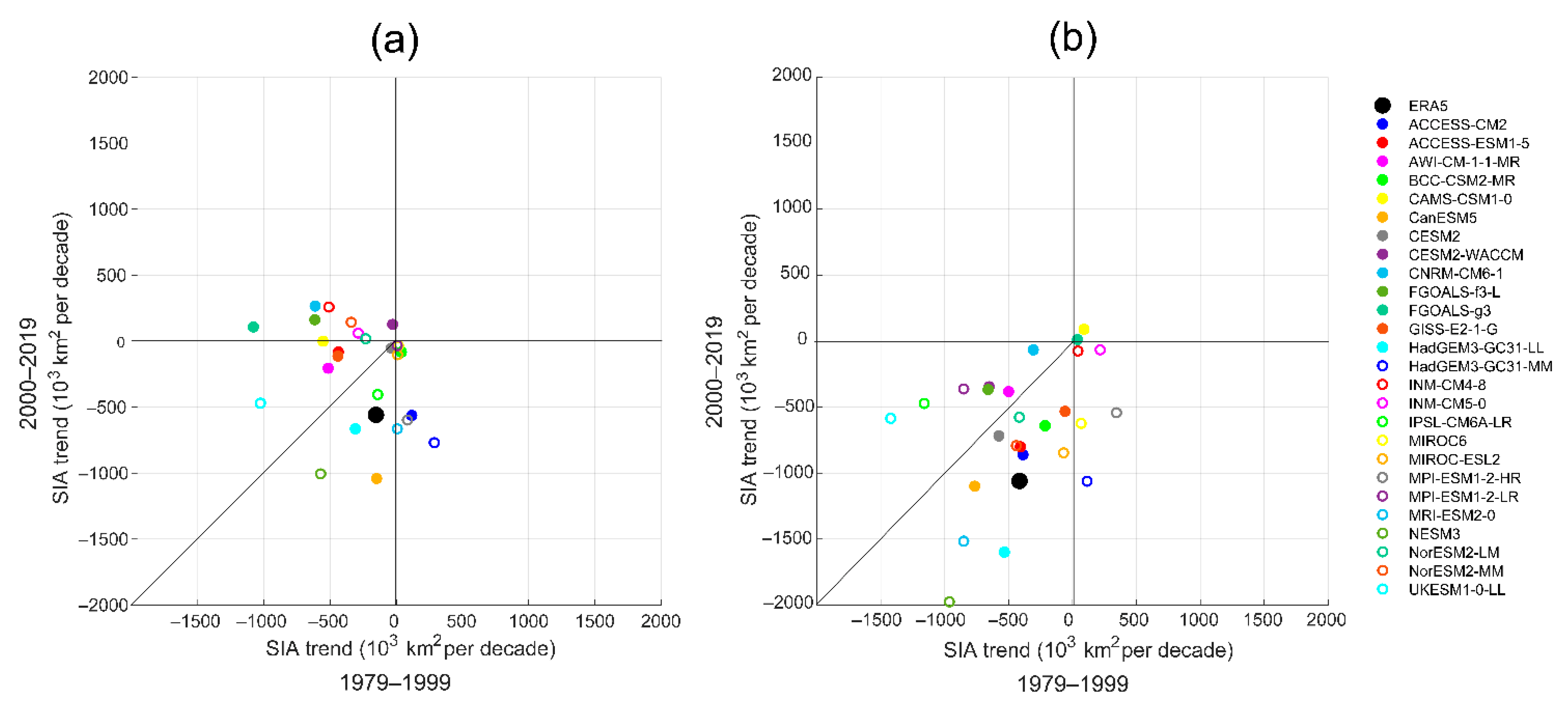

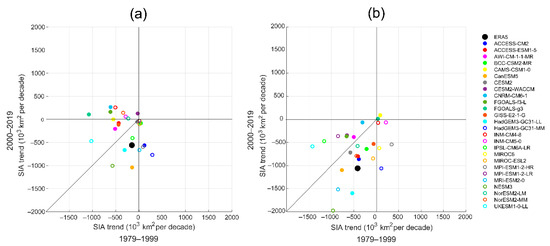

Figure 6. Relationship between Arctic SIA trends in 1979–1999 and 2000–2019 for 26 CMIP6 models and ERA5 data in (a) March and (b) September.
Figure 6. Relationship between Arctic SIA trends in 1979–1999 and 2000–2019 for 26 CMIP6 models and ERA5 data in (a) March and (b) September.
Atmosphere 13 01434 g006
