Sixteen-Year Monitoring of Particulate Matter Exposure in the Parisian Subway: Data Inventory and Compilation in a Database

Tesnim Ben Rayana
Amélie Debatisse
Valérie Jouannique
Kirushanthi Sakthithasan
Sophie Besançon
Romain Molle
Pascal Wild
Benjamin C. Guinhouya
3 and
Irina Guseva Canu
Center for Primary Care and Public Health (Unisanté), University of Lausanne, 1066 Epalinges-Lausanne, Switzerland
Autonomous Parisian Transportation Administration (RATP), 75012 Paris, France
ULR 2694-METRICS, CHU Lille, Université de Lille, 59000 Lille, France
Author to whom correspondence should be addressed.
Atmosphere 2022, 13(7), 1061;
Submission received: 20 April 2022 / Revised: 23 June 2022 / Accepted: 25 June 2022 / Published: 4 July 2022


The regularly reported associations between particulate matter (PM) exposure, and morbidity and mortality due to respiratory, cardiovascular, cancer, and metabolic diseases have led to the reduction in recommended outdoor PM10 and PM2.5 exposure limits. However, indoor PM10 and PM2.5 concentrations in subway systems in many cities are often higher than outdoor concentrations. The effects of these exposures on subway workers and passengers are not well known, mainly because of the challenges in exposure assessment and the lack of longitudinal studies combining comprehensive exposure and health surveillance. To fulfill this gap, we made an inventory of the PM measurement campaigns conducted in the Parisian subway since 2004. We identified 5856 PM2.5 and 18,148 PM10 results from both personal and stationary air sample measurements that we centralized in a database along with contextual information of each measurement. This database has extensive coverage of the subway network and will enable descriptive and analytical studies of indoor PM exposure in the Parisian subway and its potential effects on human health.

1. Introduction

Particulate matter (PM) refers to particles, either solid or liquid, suspended in the air with sizes ranging from 2.5 to 100 µm. The span of the diameter for PM2.5 is less than or equal to 2.5 µm while that of PM10 is less than or equal to 10 µm. Within electric subways, particulate matter is produced by three primary sources through the process of abrasion between the wheel-rail, wheel-brake, and the rolling stock with the power supply system [1]. Numerous studies revealed that PM mass concentrations in subways are often higher than outdoor PM concentrations. This has been observed in the subways of London [2,3], Rome [4], Lisbon [5], Shanghai [6], Seoul [7], and Paris [8]. Studies of subway PM concentrations allowed identifying several concentration determinants, including ventilation rate [9], railway rolling stock [10], presence of platform screen doors [11], railway depth [12], station passenger traffic [10], local ambient air [13], train frequency [14], and others. It was also reported that subway PMs have different physical and chemical properties compared to outdoor PMs, due to their particular shape [15], size [2], and elemental content rich in heavy metals, particularly iron [16].
It has been well established that PM exposure is associated with an increase in the incidence of inflammatory chronic diseases such as respiratory diseases [17,18], cardiovascular diseases [19,20], cancer [21], metabolic diseases such as diabetes [22], and also with mortality [23]. The metallic components of PM appear to play an important role in oxidative stress induction and the resulting inflammatory process. Oxidative stress and inflammation are considered the key elements in the pathogenesis of several chronic diseases, particularly those related to PM exposure [24,25]. PM size also plays an important role in pathogenesis, since fine particles, such as PM2.5 and ultrafine particles (UFPs, i.e., particles with an average aerodynamic diameter smaller than 0.1 µm) are more likely to reach distal airways and lung alveoli and translocate into the bloodstream [26,27,28]. The greater adverse health effects of UFPs compared to those of PMs that have been demonstrated in different studies [29] might also be explained in part by the large surface area (at the same volume) in contact with pulmonary alveoli [26,30]. Given the evidence of the adverse health effects of PM exposure [31,32], the World Health Organization (WHO) revised its recommended air quality guidelines (AQG) in 2021 and reduced the AQC levels for both PM2.5 and PM10. Today, the WHO recommended annual mean AQG level for PM10 and PM2.5 is set to 15 µg/m3 and 5 µg/m3 while the recommended daily mean (24 h) is set to 45 µg/m3 and 15 µg/m3, respectively [33]. It is worth mentioning that in its assessment, the WHO considered the exposure through ambient air, which encompasses the exposure in both outdoor and indoor environments. Therefore, the application of the WHO’s AQGs, which have been established for ambient PM, cannot be directly relevant for subway PM exposure.
Despite the accumulating knowledge on the adverse health effects of ambient PM, studies on subway PM exposure remain rare [34,35,36,37,38]. Moreover, none of the existing studies have considered long-term exposure (i.e., longer than two weeks), to enable prospective or retrospective exposure assessment, which is necessary in epidemiology. This situation precludes any conclusion regarding the long-term effects of occupational exposure to PM on subway workers’ health [39].
In France, occupational exposure to chemicals is regulated by the French labor law. In this regulation, insoluble or poorly soluble particles in the size range of PM are considered as dusts without specific effect (i.e., dusts that do not present any effect other than those resulting from the consequences of pulmonary overload, in the absence of having been able to demonstrate a specific effect) [40]. For these dusts, two occupational exposure limits (OELs) will take effect on 1 January 2023. The OEL for the alveolar deposition fraction of dusts, assessed over an eight-hour period, is set at 0.9 mg/m3, and that of total deposition fraction or total dusts is set at 4 mg/m3 for (article R-4222-10 of the French labor law). However, the obligation to monitor occupational exposure to PM only applies to settings where specific pollution is generated. As such, in the Parisian subway network (14 metro lines and two intercity lines, all powered by electricity), the regulation applies differently across various jobs. For the three jobs that constitute the majority of the underground workforce of 15,000 individuals (i.e., locomotive operators, security guards, and station agents), there is no regulation in place toward occupational exposure. Despite this, several exposure measurement campaigns including PM measurement have been conducted. The first, very exploratory, measurements started in the late 1990s. However, a more systematic methodology was established and implemented in 2004, subsequent to a research project on subway air quality.
Our objective was to conduct an inventory of the historical PM measurements conducted in the Parisian subway network since 2004, and to create a database of measured PM2.5 and PM10 concentrations along with contextual information of each measurement.

2. Materials and Methods

2.1. PM Measurements Conducted in the Parisian Subway

PM measurements have been usually conducted within the company in two ways: stationary (using fixed samplers) or personal (using portable samplers positioned within proximity to the worker). The department housing the air quality section is solely responsible for the monitoring of stationary PM concentrations. In contrast, personal measurements are usually commanded either by the department housing the occupational health section (at the mandate of occupational physicians) or by departments specific to each profession. Departments have the flexibility in commanding measurement campaigns either by mandating the company-affiliated laboratory specialized in physicochemical measurement, or by mandating other laboratories external to the company, certified for physicochemical measurements.

2.2. Identification of Available PM Measurement Data

We contacted all the departments susceptible to have commanded PM measurements and scheduled two meetings in order to identify all existing PM measurement campaigns and their data. The first meeting aimed to formally inform them about the study and to set the data identification and collection procedure. This meeting was held in the presence of two occupational physicians from the health service, hygienists from all departments, as well as with officials of the company-affiliated laboratory. The second meeting was held individually with each department in the presence of the department head and hygienists and aimed to review all exposure measurement campaigns conducted by external laboratories and to identify those where PM concentrations have been measured.
The company-affiliated laboratory provided the identified data either through an online company data repository or in paper format (i.e., for the reports prior to 2008). In fact, PM measurement results were recorded in the campaign reports, which were cataloged and kept for a minimum of ten years.
After identifying and reviewing all available reports of PM measurement campaigns conducted in the subway network, we excluded those conducted due to exceptional requests, such as the observation of a dust cloud, or measurements other than PM2.5 and PM10. All other reports were used for quantitative and contextual data extraction.

2.3. Analytical Methods Considered

The PM mass concentration measurements at the Parisian subway network were conducted using three different methods and devices (Figure 1).
The gravimetric method represents the reference method on which PM regulations in both the United States (US) and the European Union (EU) are based [42,43]. Its working principle consists of weighting PM left on the sampler’s filter. The samplers’ pump collects PM by sucking air through a pre-weighed Teflon filter (pump flow rate: 4 L/min) that is re-weighted under controlled conditions to determine the quantity of PM accumulated on it. The PM mass concentration is then estimated using sample volume measurements, and converted into occupational exposure based on an 8 h shift, i.e., the 8-h time-weighted average (TWA) exposure [44].
The DustTrack is a real-time optical device that operates by light scattering using a laser diode. The generated signal is converted into a voltage that is proportionate to the PM mass concentration of the sample [45]. This device (model: DRX, brand: TSI), used to conduct the measurements, was intended for hierarchical comparison of recorded PM concentrations between stations and, on a larger scale, between subway lines.
The Tapered Element Oscillating Microbalance (TEOM) is another direct-reading instrument widely used at the company. In this device (model: 1400; brand: Thermo Scientific), PM of a specific size range is pumped through a tube, and the difference in magnitude detected on the filter’s frequency induced by the collection of particles is translated into particle mass [46]. This device is validated by the French accreditation committee (COFRAC) and provides average concentrations over a period of 15 min for PM2.5 and PM10.

2.4. Construction of a PM Database

The relevant contextual measurement data, as well as the measured PM concentration values were extracted from the reports using an ad hoc developed data extraction form to feed a database, that is structured in a similar way to the ExpoSYN [47]. The ExpoSYN database contains quantitative data on occupational exposure to five major lung carcinogens and has been used to develop a job-exposure matrix SYN-JEM [48] enabling retrospective quantitative exposure in epidemiological studies. Table 1 describes the content of our database and the data format. Besides numeric values of PM concentrations, about 30 contextual variables characterizing each recorded PM measurement were documented. These data will later be used in a statistical analysis of subway PM exposure and its determinants [49].
Within this database, mass concentrations were distinguished between the analytical methods and also, between raw measured values and 8 h TWA values, which were assessed using the gravimetric method. The jobs and workplace locations were also systematically extracted.

2.4.1. Definition of Jobs

Jobs were defined according to the worker’s occupation, workplace location, and tasks performed. There are three main occupations in the underground subway network (i.e., locomotive operators, security guards, and station agents). Among station agents, we distinguished those with a fixed workplace (at the ticket counter desk at a subway station) and mobile station agents. Moreover, station agents are assigned within each line to a geographic sector (i.e., East, West, North, and South) covering a certain portion of stations. The security service of the company, employing security guards, is divided into five geographical zones (GZ). The city of Paris is covered by the GZ1, while the other four zones cover the suburbs of Paris. Since the work-assignment logic is different for each job, two additional variables were created to specify the station agents’ sector and the security guard’s geographical zone. All locomotive operators are assigned to a specific subway line with the exception of a small number of reserve locomotive operators who can operate on several lines.

2.4.2. Missing Data

The missing data were classified into three modalities: 1. “no relevance” (i.e., data not documented), for example, for a job variable in case of stationary measurements; 2. “no measurement” (i.e., data not measured), for example, in case of renovation work at the station; and 3. “no data” (i.e., data absent despite its measurement, for example, in case of the non-respect of the analytical protocol or due to a dysfunction of the measuring instrument.

2.5. Statistical Analysis

Statistical analysis consisted of descriptive estimates of the PM concentrations stratified by type of measurement campaign and by type of measurement method. Analysis was conducted separately for PM2.5 and PM10. Whenever possible we estimated monthly and annual average concentrations by aggregating data from the same measurement method. Furthermore, to explore the usefulness of this database for monitoring temporal and spatial variation in PM concentrations, we summarized and visualized the data using box plots. All analyses were conducted using STATA (version 16) statistical software.

3. Results

3.1. Stationary Measurement Campaigns

Two types of stationary measurement campaigns were identified (Table 2). The first type records measurements once in a while, and is referred to as occasional measurements throughout this article. The second type records the measurement results repeatedly, and will be referred to as continuous measurements.
In terms of occasional measurements, two campaigns were conducted in order to map PM concentrations over the subway network. The measurements were conducted on train platforms using the DustTrak device, and average concentrations were estimated based on the measurement duration. The first of the two occasional mapping campaigns of stationary PM measurements was conducted in 2014 (January) on lines 1 and 9. The measurements lasted for 15 min on platforms in both directions between 7:00 a.m. and 9:00 a.m. (i.e., 30 min per station). The second campaign of stationary PM measurements was conducted in 2016 (between June and December) on all stations of the subway, comprising 14 subway lines and two intercity lines, namely, RER A and RER B. The RER lines (regional express network, from Réseau Express Regional (RER) in French) operate less frequently but are faster and cover regions outside the city, compared to regular subway lines. The measurements lasted for 30 min on platforms in a single direction between 7:30 a.m. and 9:30 a.m. Exceptionally, when platforms were not facing one another, measurements were taken for both directions. It should be noted that measurements were not conducted at uncovered aerial stations that constitute (over the total number of stations) a proportion equal to or less than 10% on all lines. The only exceptions are line 2 and line RER B, which have 16% and 84% of uncovered aerial stations, respectively. DustTrack measurements are carefully controlled through systematic calibration to zero, before each usage, of the device in a particle-free environment (environment supplied with the device). Moreover, the company-affiliated laboratory in charge of PM measurements manages to annually send each DustTrack device to a metrology laboratory to ensure the full calibration. Data measurements are also controlled through the validation of an expert physical–chemical engineer at the laboratory. Each significant change in concentration must be interpreted with regard to the context of the measurements. In the absence of explaining factors, these data are considered aberrant and invalid. Nevertheless, this is seldom the case, and we have no invalidated measurements in the database.
In terms of continuous measurements, in 1997, the company decided to set up an underground air quality monitoring program, named “Squales”. This program aimed to monitor trends at two subway stations “Chatelet” on line 4 and “Franklin Roosevelt” on line 1 and at three intercity train stations on the RER A line: “Chatelet les Halles”, “Auber”, and “Nation” of the same direction, namely, Boissy-Saint-Leger (Figure 2). Measurements within this monitoring program have also been conducted on other stations but discontinuously (over several months or years, Table 2). Squales measurements were conducted using TEOM devices (Figure 1 and Figure 2), such devices are certified by the French accreditation committee (COFRAC); they must be calibrated on a regular basis to comply with the standards. Since 2004, the measurement results were provided in monthly reports by the company-affiliated laboratory, although in varying levels of detail. Some reports contained daily average concentrations over 24 h, as well as monthly average concentrations, while others only included monthly average concentrations. PM10 concentrations were measured at all stations, as opposed to PM2.5 concentrations, which were taken at five among the nine stations that were subjected to measurements within the Squales monitoring program. Incidentally, within the stations that record PM2.5 concentrations, measurements are discontinuous for certain periods. Additional measurements obtained during the operational hours of the subway (i.e., between 5:30 a.m. and 1:30 a.m.) for both PM2.5 and PM10 were included in the reports during certain periods. Furthermore, Squales measurements do lack data for certain months/years in some stations for different reasons but mostly due to periods of renovation when measurements have ceased.

3.2. Personal Measurement Campaigns

Three personal measurement campaigns have been identified (Table 2). All estimated an 8-h time-weighted average (TWA) exposure using the gravimetric method. The campaign conducted in 2016 was focused on locomotive operators. The 2017 campaign was focused on security guards, while in 2019, three types of subway jobs were monitored: locomotive operators, security guards, and station agents.
In the campaign conducted in 2016, measurements were conducted on a single day for each subway and intercity line for locomotive operators on active duty during their morning shift (from November to December). In addition, three locomotive operators were monitored using the gravimetric method, while one of them was monitored by the DustTrak at the same time. The DustTrak measurements were taken at the start of the shift, but they were shorter due to the device’s reliance on battery life, which only lasts around four hours.
In the 2017 campaign, measurements were conducted during a three-day period on one security guard team for each of the three geographic zones (GZ1-Paris, GZ 2-La Defense, and GZ 3-Bobigny), while on active duty during their afternoon shift (in January and February). Every security team was monitored by the gravimetric method and the DustTrak on a daily basis. The gravimetric measurements were recorded over the work shift, while the DustTrak measurements were shorter.
In the campaign conducted in October and November 2019, which corresponds to a pilot study conducted as part of a research project ROBoCoP, measurements were only conducted using the gravimetric method every day for two weeks of active duty for each of the three jobs (i.e., station agents, locomotive operators, and security guards [50,51]. Two measurements were conducted on station agents during their afternoon shift on subway line 7 at two distinct stations: one at the information desk with two fixed station agents and another one on a mobile station agent. One series of measurements operated every day in turn on one of the three locomotive operators during their morning shift. Finally, the third series of measurements operated every day on a security team from the Paris GZ, during their afternoon shift.

3.3. Database Measurements Content

In total, 372 measurement campaign reports were identified and checked for eligibility by the work group. Five reports were excluded. A total of 18,148 PM10 and 5856 PM2.5 measurements recorded between January 2004 and November 2020 were compiled in the database. For PM10 measurements: the Squales-monitoring program accounted for 96.3% (N = 17,475 including 17,106 records of daily average concentrations and 369 records of monthly average concentrations) of the recorded measurements (24 h or during the operational hours of the subway, i.e., 5:30 a.m.–1:30 a.m.); occasional mapping campaigns for 3.1% (N = 563). Personal measurement campaigns accounted for only 0.6% (N = 112). For PM2.5, these proportions were 88.4% (N = 5179 including 5062 records of daily average concentrations and 117 records of monthly average concentrations), 9.6% (N = 563), and 1.9% (N = 114), respectively (Table 2). Among the missing data in PM10 measurement records, the number of “no data” accounted for 5.7% (N = 866) in the Squales-monitoring program and 6.2% (N = 9) in personal measurement campaigns, while there were no missing data in the occasional mapping campaigns. For PM2.5 measurements, these proportions were 6.9% (N = 382) in the Squales-monitoring program and 4.9% (N = 7) in personal measurement campaigns, while there were no missing data in the occasional mapping campaigns.
Figure 3 presents the annual distributions of PM10 and PM2.5 concentrations measured on the Auber platform of the RER A intercity line (direction: Boissy Saint Leger) from 2010 to 2018 within the Squales-monitoring program (using TEOM). For both types of PM, we observed a large variation in monthly average concentration in 2010, 2013, and 2015. While annual average concentration did not change much between 2010 and 2018 (PM10 concentrations decreased from 170 to 130 µg/m3, while PM2.5 concentrations decreased from around 70 to 55 µg/m3), there was a marked decrease in PM exposure between 2013 and 2017 in both PM2.5 and PM10. For both particle sizes, this corresponds to a reduction of approximately 25%. The drop in PM concentration initiated in 2014 coincides with the change in rolling stock, with MS61 (suburban equipment built in 1961) being replaced by MI09 (Intercity equipment bought in 2009).
Despite some fluctuations, the PM10 concentrations recorded at different stations of the Squales network (three stations belonging to the RERA line: Nation, Auber, and Chatelet les Halles noted as “ChateletLH” on the graph; and two other stations Franklin Roosevelt and Chatelet belonging to line 1 and 4, respectively) show a general decrease since 2017 (Figure 4). It is worth noting that the decreasing slope was of the same order of magnitude for the four stations concerned by this between 2017 and 2020. The only exception is the Auber station, for which we only had data from 2016 to 2018.
To illustrate the spatial distribution of PM concentrations over the network, we used the measurements recorded by DustTrack, and presented the average concentrations. In Figure 5, we presented the distributions of PM2.5 and PM10 concentrations recorded in the 2016 mapping campaign at three subway lines (line 1; line 2; and line 6). We chose these three lines as they cover different geographical areas and serve emblematic monuments within the French capital. On the one hand, we observe a proportionality of PM2.5 and PM10 concentrations between the three lines that were the subject of the graphical representation (line 1; line 2; and line 6). The median of the concentrations of line 1 is slightly higher than that of line 2, which is itself much higher than that of line 6. On the other hand, we can observe that the intra-line distribution of PM2.5 and PM10 (represented by the width of the box) is similar for each of the three lines mentioned. The levels of these PM2.5 and PM10 concentrations present more heterogeneity for line 2 than for line 1, while line 6 seems relatively homogeneous. The analysis of contextual information along with data on exposure determinants, such as topography, ventilation, and architecture of the different stations on the same line, will be helpful to better understand these figures and results.

4. Discussion

4.1. Strengths and Limitations of the Database

The constructed database is divided into three types of measurements, i.e., personal measurements, occasional mapping measurements, and continuous measurements conducted on a few stations of the Parisian subway network. Among these data, stationary measurements comprise the vast majority of results. According to Borghi et al., all types of measurements should be used to obtain the most accurate retrospective exposure assessment [52].
The personal measurements, on the downside, are rare but, on the upside, they were recorded in realistic working conditions while having the added advantage of using the standard gravimetric technique. Furthermore, the campaign conducted in 2019 on the three types of jobs was conducted over a relatively long period of two weeks, which should serve as a reflection of regular professional activity. These measurements should be used as a starting point to assess occupational exposure, as suggested in the literature [53].
The stationary mapping campaign measurements were conducted by the DustTrack device occasionally: however, on the upside, the mapping campaign maintained a high coverage of the underground subway. The measurements operationalized using devices such as the DustTrack, often lacked accuracy. Therefore, recommendations related to calibration must be followed in order to undertake comparisons of these recorded measurements with personal measurements and Squales measurement campaigns using the gravimetric technique and TEOM [54].
Finally, the stationary measurements within the Squales-monitoring program were conducted on the subway network at a few selected stations; however, these measurements were conducted over for more than a decade using the TEOM device, which is validated and certified in France. These measurements will be analyzed as a function of a certain number of potential determinants for PM concentrations and will assist in the modeling of temporal trends.
The combination of measurements and subsequently the strengths identified in each campaign will compensate for their limitations and will serve for assessing PM exposure retrospectively. In fact, by containing more than a decade of measurements, this database represents the longest documentation period for PM measurements in subway environments found in the literature.
Indeed, the combined use of different types of data will require rigorous processing of the raw data, including between-method calibration, time standardization, and application of appropriate conversion equations to render them comparable. This work should be conducted as a next step, prior to a comprehensive statistical analysis of PM exposure and its potential determinants. The absence of data prior to 2004 is the main limitation of the current study and resulting database. This limitation can hardly be managed in the future, as PM exposure monitoring in subways is still not compulsory in many countries.
Since the presence of ultrafine particles (UFPs) in subway networks was pointed out as a concern, it seems suitable in the future to include UFP concentrations in our database as well. As for the time being, UFPs are not subject to any regulation, and their measurements in the Parisian subway are still exceptional [55,56,57]. Moreover, details on the chemical composition of PMs, especially their heavy metal content, which plays a role in the biological inflammation caused by these pollutants [24,25], would be important to assess in the future.

4.2. Relevance of the Database for Monitoring PM Exposure and Investigating Its Origins

The elaborated database will be used to analyze PM exposure by comparing concentrations recorded in different locations within the Parisian subway network and beyond. This will provide a better understanding of the exposure levels to which both the agents working in this environment and the millions of subway passengers, who use it on a regular basis, are exposed. For example, using the data for Auber station in 2018, we clearly see that PM concentrations in the subway are much higher than outdoor concentrations in Paris and its suburbs. At Auber station, the annual average concentration was nearly 130 µg/m3, while that recorded by the 10 outdoor air monitoring stations (near the main road axes) using the same analytical method (TEOM) ranged from 22 to 42 µg/m3. These data suggest that the PM present in the subway has, for the most part, an internal origin. Since all these concentrations massively exceed the recently updated WHO AQGs (i.e., 5 µg/m3 for PM2.5 and 15 µg/m3 for PM10), monitoring and recording of this exposure for epidemiological study purposes is important
This database will also be used to carry out further analysis on PM concentrations in relation to a variety of potential determinants, similar to what was conducted on the effects of changing parameters in the subway system (e.g., the rolling stock) on PM2.5 concentrations recorded between 2011 and 2018, in the subway of Toronto [58]. Several parameters have been identified in the literature as potential determinants of PM exposure. Among these parameters, we are currently collecting data on the depth of the rails (distance from the surface above ground), the type of railway rolling stock, the passenger frequency at the station, the number of transitory lines at the station, the presence (or absence) of platform screen doors, the number of fans operating in the station, the station design (underground; semi-underground; aerial), the train frequency, and the season. In order to identify the determinants of PM concentrations in the Parisian subway, we intend to conduct analyses on the effect of these parameters on PM concentrations using statistical modeling. This will allow us to have a better understanding of the variability of PM concentration levels across the Parisian subway network. Moreover, this could subsequently facilitate the implementation of exposure control interventions in the subway network (e.g., installation of platform screen doors) and assessment of their effectiveness.

4.3. Relevance of the Database for Retrospective Exposure Assessment

The elaborated database will enable the construction of a job–exposure matrix (JEM) for subway workers and use it in epidemiological studies. JEMs are an efficient tool widely used in occupational epidemiology in order to classify job titles based on the knowledge of exposure while this job or a particular task is performed [59]. The JEM that will be developed could become a valuable tool for retrospective exposure assessment as well as being the first JEM for PM exposure in the subway environment. As we collected a large volume of quantitative results of PM measurements within the database, the combined use of these data, after appropriate calibration, will allow the construction of a quantitative JEM. Thanks to the contextual information available in the database, this future JEM will have three dimensions: the job, the work-assignment site, and the calendar period.
Quantitative JEMs, unlike qualitative or semi-quantitative JEMs, allow the quantitative assessment of occupational exposure to be performed retrospectively. This feature is highly valuable in epidemiological studies aimed to investigate exposure–response relationships. Indeed, any inaccuracy in the exposure assessment might have a significant impact on the findings in terms of relationships between exposure and its health effects [60]. The future JEM for subway PM exposure could then be used to estimate workers’ cumulative exposure based on their occupational history, which is retraced based on human resources data in the EDGAR cohort of 45,000 subway employees dating back to 1 January 1980 [61].
Consequently, our database offers a great opportunity to develop a JEM for PM exposure in the Parisian subway and use it for investigating their relationship with health impairments in the cohort of Parisian subway workers. This would expand the scientific understanding of the health effects of long-term exposure to PM in subway environments, which is presently lacking in the international literature. It should be noted that there are already several instances of quantitative JEMs on air pollutants in the literature [48,62,63,64,65], including one on PM2.5 and total PM [63].
Further work will be included in the development of the JEM. The time interval that should define the step of the period variable constituting the JEM, based on relatively homogenous concentration levels [60], will be defined later through the time trends statistical modeling that will be applied to the Squales-monitoring program measurements. Furthermore, the JEM will be constructed concurrently with incorporating the expertise of hygienists and occupational physicians, who may contribute their knowledge from the field of PM exposure determinants [66].

5. Conclusions

We made an exhaustive inventory of the PM10 and PM2.5 measurement records available since 2004. Overall, 24,004 quantitative records of PM concentrations were centralized in a database along with contextual data on exposure measurement campaigns, which permits to inform occupational and environmental PM exposure in the Parisian subway over the last 16 years. The data show that PM concentrations have declined over the last five years. However, the current PM exposure is still higher than the WHO air quality guidelines. The database constructed in this study will be used along with contextual data to examine the exposure determinants in order to identify those that enable a reduction in PM exposure (e.g., platform screen doors and ventilation). The data will be also used for constructing a job–exposure matrix for PM in the Parisian subway, as part of a retrospective occupational exposure assessment in the frame of an epidemiological study of subway workers.

Author Contributions

Conceptualization, T.B.R., P.W. and I.G.C.; data curation, P.W. and T.B.R.; methodology, P.W. and I.G.C.; supervision, B.C.G. and I.G.C.; investigation, T.B.R., A.D., V.J., S.B., K.S. and R.M.; writing—original draft preparation, T.B.R. and I.G.C.; critical review, A.D., V.J., S.B., K.S., R.M., P.W., B.C.G. and I.G.C. All authors have read and agreed to the published version of the manuscript.


This study is funded by the Swiss National Research Foundation (FNS) (Grant N° IZCOZ0_177067) and the French National Research and Technology Agency (ANRT), via the Industrial Training Agreements through Research (CIFRE) (Grant N° 2018/1900).

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.


  1. Sitzmann, B.; Kendall, M.; Watt, J.; Williams, I. Characterisation of airborne particles in London by computer-controlled scanning electron microscopy. Sci. Total Environ. 1999, 241, 63–73. [Google Scholar] [CrossRef]
  2. Seaton, A.; Cherrie, J.; Dennekamp, M.; Donaldson, K.; Hurley, J.F.; Tran, C.L. The London Underground: Dust and hazards to health. Occup. Environ. Med. 2005, 62, 355–362. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Smith, J.D.; Barratt, B.M.; Fuller, G.W.; Kelly, F.J.; Loxham, M.; Nicolosi, E.; Priestman, M.; Tremper, A.H.; Green, D.C. PM2.5 on the London Underground. Environ. Int. 2020, 134, 105188. [Google Scholar] [CrossRef]
  4. Perrino, C.; Marcovecchio, F.; Tofful, L.; Canepari, S. Particulate matter concentration and chemical composition in the metro system of Rome, Italy. Environ. Sci. Pollut. Res. 2015, 22, 9204–9214. [Google Scholar] [CrossRef] [PubMed]
  5. Correia, C.; Martins, V.; Cunha-Lopes, I.; Faria, T.; Diapouli, E.; Eleftheriadis, K.; Almeida, S. Particle exposure and inhaled dose while commuting in Lisbon. Environ. Pollut. 2019, 257, 113547. [Google Scholar] [CrossRef] [PubMed]
  6. Mao, P.; Li, J.; Xiong, L.; Wang, R.; Wang, X.; Tan, Y.; Li, H. Characterization of Urban Subway Microenvironment Exposure—A Case of Nanjing in China. Int. J. Environ. Res. Public Health 2019, 16, 625. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Kim, K.Y.; Kim, Y.S.; Roh, Y.M.; Lee, C.M.; Kim, C.N. Spatial distribution of particulate matter (PM10 and PM2.5) in Seoul Metropolitan Subway stations. J. Hazard. Mater. 2008, 154, 440–443. [Google Scholar] [CrossRef]
  8. Raut, J.-C.; Chazette, P.; Fortain, A. Link between aerosol optical, microphysical and chemical measurements in an underground railway station in Paris. Atmos. Environ. 2009, 43, 860–868. [Google Scholar] [CrossRef]
  9. Song, X.-Y.; Lu, Q.-C.; Peng, Z.-R. Spatial Distribution of Fine Particulate Matter in Underground Passageways. Int. J. Environ. Res. Public Health 2018, 15, 1574. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  10. Tu, M.; Olofsson, U. PM levels on an underground metro platform: A study of the train, passenger flow, urban background, ventilation, and night maintenance effects. Atmos. Environ. X 2021, 12, 100134. [Google Scholar] [CrossRef]
  11. Martins, V.; Moreno, T.; Minguillón, M.C.; Amato, F.; de Miguel, E.; Capdevila, M.; Querol, X. Exposure to airborne particulate matter in the subway system. Sci. Total Environ. 2015, 511, 711–722. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Colombi, C.; Angius, S.; Gianelle, V.; Lazzarini, M. Particulate matter concentrations, physical characteristics and elemental composition in the Milan underground transport system. Atmos. Environ. 2013, 70, 166–178. [Google Scholar] [CrossRef]
  13. Li, Z.; Che, W.; Frey, H.C.; Lau, A.K.; Lin, C. Characterization of PM(2.5) exposure concentration in transport microenvironments using portable monitors. Environ. Pollut. 2017, 228, 433–442. [Google Scholar] [CrossRef] [PubMed]
  14. Johansson, C.; Johansson, P. Particulate matter in the underground of Stockholm. Atmos. Environ. 2003, 37, 3–9. [Google Scholar] [CrossRef]
  15. Abbasi, S.; Jansson, A.; Olander, L.; Olofsson, U.; Sellgren, U. A pin-on-disc study of the rate of airborne wear particle emissions from railway braking materials. Wear 2012, 284–285, 18–29. [Google Scholar] [CrossRef] [Green Version]
  16. Byeon, S.H.; Willis, R.; Peters, T.M. Chemical characterization of outdoor and subway fine (PM(2.5-1.0)) and coarse (PM(10-2.5)) particulate matter in Seoul (Korea) by computer-controlled scanning electron microscopy (CCSEM). Int. J. Env. Res. Public Health 2015, 12, 2090–2104. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  17. Doiron, D.; De Hoogh, K.; Probst-Hensch, N.; Fortier, I.; Cai, Y.; De Matteis, S.; Hansell, A.L. Air pollution, lung function and COPD: Results from the population-based UK Biobank study. Eur. Respir. J. 2019, 54, 1802140. [Google Scholar] [CrossRef] [PubMed]
  18. Xing, Y.-F.; Xu, Y.H.; Shi, M.H.; Lian, Y.X. The impact of PM2.5 on the human respiratory system. J. Thorac. Dis. 2016, 8, E69–E74. [Google Scholar] [PubMed]
  19. Wolf, K.; Stafoggia, M.; Cesaroni, G.; Andersen, Z.J.; Beelen, R.; Galassi, C.; Hennig, F.; Migliore, E.; Penell, J.; Ricceri, F.; et al. Long-term Exposure to Particulate Matter Constituents and the Incidence of Coronary Events in 11 European Cohorts. Epidemiology 2015, 26, 565–574. [Google Scholar] [CrossRef] [Green Version]
  20. Du, Y.; Xu, X.; Chu, M.; Guo, Y.; Wang, J. Air particulate matter and cardiovascular disease: The epidemiological, biomedical and clinical evidence. J. Thorac. Dis. 2016, 8, E8–E19. [Google Scholar] [CrossRef]
  21. Hamra, G.B.; Guha, N.; Cohen, A.; Laden, F.; Raaschou-Nielsen, O.; Samet, J.M.; Vineis, P.; Forastiere, F.; Saldiva, P.; Yorifuji, T.; et al. Outdoor Particulate Matter Exposure and Lung Cancer: A Systematic Review and Meta-Analysis. Environ. Health Perspect. 2014, 122, 906–911. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Bowe, B.; Xie, Y.; Li, T.; Yan, Y.; Xian, H.; Al-Aly, Z. The 2016 global and national burden of diabetes mellitus attributable to PM 2·5 air pollution. Lancet Planet. Health 2018, 2, e301–e312. [Google Scholar] [CrossRef] [Green Version]
  23. Mak, H.; Ng, D. Spatial and Socio-Classification of Traffic Pollutant Emissions and Associated Mortality Rates in High-Density Hong Kong via Improved Data Analytic Approaches. Int. J. Environ. Res. Public Health 2021, 18, 6532. [Google Scholar] [CrossRef]
  24. Strak, M.; Janssen, N.A.; Godri, K.J.; Gosens, I.; Mudway, I.S.; Cassee, F.R.; Lebret, E.; Kelly, F.J.; Harrison, R.M.; Brunekreef, B.; et al. Respiratory Health Effects of Airborne Particulate Matter: The Role of Particle Size, Composition, and Oxidative Potential—The RAPTES Project. Environ. Health Perspect. 2012, 120, 1183–1189. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Crobeddu, B.; Santiago, L.A.; Bui, L.-C.; Boland, S.; Squiban, A.B. Oxidative potential of particulate matter 2.5 as predictive indicator of cellular stress. Environ. Pollut. 2017, 230, 125–133. [Google Scholar] [CrossRef]
  26. Schmid, O.; Möller, W.; Semmler-Behnke, M.; Ferron, G.A.; Karg, E.; Lipka, J.; Schulz, H.; Kreyling, W.; Stoeger, T. Dosimetry and toxicology of inhaled ultrafine particles. Biomarkers 2009, 14, 67–73. [Google Scholar] [CrossRef]
  27. Kreyling, W.G.; Hirn, S.; Möller, W.; Schleh, C.; Wenk, A.; Celik, G.; Lipka, J.; Schäffler, M.; Haberl, N.; Johnston, B.D.; et al. Air–Blood Barrier Translocation of Tracheally Instilled Gold Nanoparticles Inversely Depends on Particle Size. ACS Nano 2013, 8, 222–233. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  28. Deng, Q.; Deng, L.; Miao, Y.; Guo, X.; Li, Y. Particle deposition in the human lung: Health implications of particulate matter from different sources. Environ. Res. 2018, 169, 237–245. [Google Scholar] [CrossRef]
  29. Loxham, M.; Cooper, M.J.; Gerlofs-Nijland, M.E.; Cassee, F.R.; Davies, D.; Palmer, M.R.; Teagle, D.A.H. Physicochemical Characterization of Airborne Particulate Matter at a Mainline Underground Railway Station. Environ. Sci. Technol. 2013, 47, 3614–3622. [Google Scholar] [CrossRef] [PubMed]
  30. Oberdörster, G. Pulmonary effects of inhaled ultrafine particles. Int. Arch. Occup. Environ. Health 2000, 74, 1–8. [Google Scholar] [CrossRef] [PubMed]
  31. Chen, J.; Hoek, G. Long-term exposure to PM and all-cause and cause-specific mortality: A systematic review and meta-analysis. Environ. Int. 2020, 143, 105974. [Google Scholar] [CrossRef] [PubMed]
  32. Orellano, P.; Reynoso, J.; Quaranta, N.; Bardach, A.; Ciapponi, A. Short-term exposure to particulate matter (PM10 and PM2.5), nitrogen dioxide (NO2), and ozone (O3) and all-cause and cause-specific mortality: Systematic review and meta-analysis. Environ. Int. 2020, 142, 105876. [Google Scholar] [CrossRef] [PubMed]
  33. World Health Organization. WHO Global Air Quality Guidelines: Particulate Matter (PM2.5 and PM10), Ozone, Nitrogen Dioxide, Sulfur Dioxide and Carbon Monoxide; World Health Organization: Geneva, Switzerland, 2021.
  34. Choi, S.; Park, J.H.; Kim, S.Y.; Kwak, H.; Kim, D.; Lee, K.H.; Park, D.U. Characteristics of PM(2.5) and Black Carbon Exposure Among Subway Workers. Int. J. Environ. Res. Public Health 2019, 16, 2901. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Plato, N.; Bigert, C.; Larsson, B.-M.; Alderling, M.; Svartengren, M.; Gustavsson, P. Exposure to Particles and Nitrogen Dioxide Among Workers in the Stockholm Underground Train System. Saf. Health Work 2019, 10, 377–383. [Google Scholar] [CrossRef]
  36. Ji, W.; Liu, C.; Liu, Z.; Wang, C.; Li, X. Concentration, composition, and exposure contributions of fine particulate matter on subway concourses in China. Environ. Pollut. 2021, 275, 116627. [Google Scholar] [CrossRef]
  37. Bigert, C.; Alderling, M.; Svartengren, M.; Plato, N.; de Faire, U.; Gustavsson, P. Blood markers of inflammation and coagulation and exposure to airborne particles in employees in the Stockholm underground. Occup. Environ. Med. 2008, 65, 655–658. [Google Scholar] [CrossRef]
  38. Bigert, C.; Alderling, M.; Svartengren, M.; Plato, N.; Gustavsson, P. No short-term respiratory effects among particle-exposed employees in the Stockholm subway. Scand. J. Work. Environ. Health 2010, 37, 129–135. [Google Scholar] [CrossRef] [Green Version]
  39. Loxham, M.; Nieuwenhuijsen, M.J. Health effects of particulate matter air pollution in underground railway systems—a critical review of the evidence. Part. Fibre Toxicol. 2019, 16, 12. [Google Scholar] [CrossRef] [Green Version]
  40. ANSES. Valeurs Limites D’exposition en Milieu Professionnel, Les Poussières Dites sans Effet Spécifique (Effets Sanitaires); Expertise Collective; ANSES: Maison Alfort, France, 2019; p. 6.
  41. Cecala, A.B.; Chekan, G.J.; Colinet, J.; Organiscak, J.A.; Wolfe, A.L. Best Practices for Dust Control in Metal/Nonmetal Mining; 2013. Available online: (accessed on 23 April 2022).
  42. Noble, C.A.; Vanderpool, R.W.; Peters, T.M.; McElroy, F.F.; Gemmill, D.B.; Wiener, R.W. Federal Reference and Equivalent Methods for Measuring Fine Particulate Matter. Aerosol Sci. Technol. 2001, 34, 457–464. [Google Scholar] [CrossRef]
  43. Marco, G.; Bo, X. Air Quality Legislation and Standards in the European Union: Background, Status and Public Participation. Adv. Clim. Chang. Res. 2013, 4, 50–59. [Google Scholar] [CrossRef]
  44. Amaral, S.S.; de Carvalho, J.A.; Costa, M.A.M.; Pinheiro, C. An Overview of Particulate Matter Measurement Instruments. Atmosphere 2015, 6, 1327–1345. [Google Scholar] [CrossRef] [Green Version]
  45. Perera, I.E.; Litton, C.D. Quantification of Optical and Physical Properties of Combustion-Generated Carbonaceous Aerosols (<PM(2.5)) Using Analytical and Microscopic Techniques. Fire Technol. 2015, 51, 247–269. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Giechaskiel, B.; Maricq, M.; Ntziachristos, L.; Dardiotis, C.; Wang, X.; Axmann, H.; Bergmann, A.; Schindler, W. Review of motor vehicle particulate emissions sampling and measurement: From smoke and filter mass to particle number. J. Aerosol Sci. 2014, 67, 48–86. [Google Scholar] [CrossRef]
  47. Peters, S.; Vermeulen, R.; Olsson, A.; Van Gelder, R.; Kendzia, B.; Vincent, R.; Savary, B.; Williams, N.; Woldbæk, T.; Lavoué, J.; et al. DeveloPMent of an Exposure Measurement Database on Five Lung Carcinogens (ExpoSYN) for Quantitative Retrospective Occupational Exposure Assessment. Ann. Occup. Hyg. 2011, 56, 70–79. [Google Scholar] [CrossRef] [PubMed]
  48. Peters, S.; Vermeulen, R.; Portengen, L.; Olsson, A.; Kendzia, B.; Vincent, R.; Savary, B.; Lavoué, J.; Cavallo, D.M.; Cattaneo, A.; et al. SYN-JEM: A Quantitative Job-Exposure Matrix for Five Lung Carcinogens. Ann. Occup. Hyg. 2016, 60, 795–811. [Google Scholar] [CrossRef] [Green Version]
  49. Rajan, B.; Alesbury, R.; Carton, B.; Gerin, M.; Litske, H.; Marquart, H.; Olsen, E.; Scheffers, T.; Stamm, R.; Woldbaek, T. European Proposal for Core Information for the Storage and Exchange of Workplace Exposure Measurements on Chemical Agents. Appl. Occup. Environ. Hyg. 1997, 12, 31–39. [Google Scholar] [CrossRef]
  50. Canu, I.G.; Hemmendinger, M.; Sauvain, J.J.; Suarez, G.; Hopf, N.B.; Pralong, J.A.; Ben Rayana, T.; Besançon, S.; Sakthithasan, K.; Jouannique, V.; et al. Respiratory Disease Occupational Biomonitoring Collaborative Project (ROBoCoP): A longitudinal pilot study and implementation research in the Parisian transport company. J. Occup. Med. Toxicol. 2021, 16, 22. [Google Scholar] [CrossRef]
  51. Canu, I.G.; Crézé, C.; Hemmendinger, M.; Ben Rayana, T.; Besançon, S.; Jouannique, V.; Debatisse, A.; Wild, P.; Sauvain, J.; Suárez, G.; et al. Particle and metal exposure in Parisian subway: Relationship between exposure biomarkers in air, exhaled breath condensate, and urine. Int. J. Hyg. Environ. Health 2021, 237, 113837. [Google Scholar] [CrossRef]
  52. Borghi, F.; Mazzucchelli, L.A.; Campagnolo, D.; Rovelli, S.; Fanti, G.; Keller, M.; Cattaneo, A.; Spinazzè, A.; Cavallo, D.M. Retrospective Exposure Assessment Methods Used in Occupational Human Health Risk Assessment: A Systematic Review. Int. J. Environ. Res. Public Health 2020, 17, 6190. [Google Scholar] [CrossRef]
  53. Rodes, C.E.; Thornburg, J.W. Breathing Zone Exposure Assessment. In Aerosols Handbook: Measurement, Dosimetry, and Health Effects; CRC Press: Boca Raton, FL, USA, 2005; pp. 61–74. [Google Scholar]
  54. Giordano, M.R.; Malings, C.; Pandis, S.N.; Presto, A.A.; McNeill, V.; Westervelt, D.M.; Beekmann, M.; Subramanian, R. From low-cost sensors to high-quality data: A summary of challenges and best practices for effectively calibrating low-cost particulate matter mass sensors. J. Aerosol Sci. 2021, 158, 105833. [Google Scholar] [CrossRef]
  55. Pétremand, R.; Wild, P.; Crézé, C.; Suarez, G.; Besançon, S.; Jouannique, V.; Debatisse, A.; Canu, I.G. Application of the Bayesian spline method to analyze real-time measurements of ultrafine particle concentration in the Parisian subway. Environ. Int. 2021, 156, 106773. [Google Scholar] [CrossRef] [PubMed]
  56. Ben Rayana, T.; Hemmendinger, M.; Crézé, C.; Wild, P.; Sauvain, J.-J.; Suarez, G.; Besançon, S.; Méthy, N.; Sakthithasan, K.; Carillo, G.; et al. Analyse exploratoire des mesures de particules ultrafines en temps réel dans des enceintes ferroviaires souterraines de transport public. Arch. Mal. Prof. l’Environ. 2022, 83, 159–170. [Google Scholar] [CrossRef]
  57. Pétremand, R.; Suárez, G.; Besançon, S.; Dil, J.H.; Canu, I.G. A Real-Time Comparison of Four Particulate Matter Size Fractions in the Personal Breathing Zone of Paris Subway Workers: A Six-Week Prospective Study. Sustainability 2022, 14, 5999. [Google Scholar] [CrossRef]
  58. Van Ryswyk, K.; Kulka, R.; Marro, L.; Yang, D.; Toma, E.; Mehta, L.; McNeil-Taboika, L.; Evans, G.J. Impacts of Subway System Modifications on Air Quality in Subway Platforms and Trains. Environ. Sci. Technol. 2021, 55, 11133–11143. [Google Scholar] [CrossRef] [PubMed]
  59. Fischer, H.J.; Vergara, X.P.; Yost, M.; Silva, M.; Lombardi, D.A.; Kheifets, L. Developing a job-exposure matrix with exposure uncertainty from expert elicitation and data modeling. J. Expo. Sci. Environ. Epidemiol. 2015, 27, 7–15. [Google Scholar] [CrossRef]
  60. Dahmann, D.; Taeger, D.; Kappler, M.; Büchte, S.; Morfeld, P.; Brüning, T.; Pesch, B. Assessment of exposure in epidemiological studies: The example of silica dust. J. Expo. Sci. Environ. Epidemiol. 2007, 18, 452–461. [Google Scholar] [CrossRef] [Green Version]
  61. Campagna, D.; Randon, A.; Ihaddadene, K.; Marchand, J.L.; Mattei, N.; Imbernon, E.; Goldberg, M. Mortality Among Paris Public Transportation Workers: The EDGAR-Cohort, Preliminary Results. Epidemiology 2006, 17, S509–S510. [Google Scholar] [CrossRef]
  62. de Vocht, F.; Sobala, W.; Peplonska, B.; Wilczynska, U.; Gromiec, J.; Szeszenia-Dabrowska, N.; Kromhout, H. Elaboration of a quantitative job-exposure matrix for historical exposure to airborne exposures in the Polish rubber industry. Am. J. Ind. Med. 2008, 51, 852–860. [Google Scholar] [CrossRef]
  63. Noth, E.M.; Dixon-Ernst, C.; Liu, S.; Cantley, L.; Tessier-Sherman, B.; Eisen, E.A.; Cullen, M.R.; Hammond, S.K. DeveloPMent of a job-exposure matrix for exposure to total and fine particulate matter in the aluminum industry. J. Expo. Sci. Environ. Epidemiol. 2013, 24, 89–99. [Google Scholar] [CrossRef] [Green Version]
  64. Plato, N.; Lewné, M.; Gustavsson, P. A historical job-exposure matrix for occupational exposure to diesel exhaust using elemental carbon as an indicator of exposure. Arch. Environ. Occup. Health 2020, 75, 321–332. [Google Scholar] [CrossRef] [Green Version]
  65. Feletto, E.; Kovalevskiy, E.V.; Schonfeld, S.J.; Moissonnier, M.; Olsson, A.; Kashanskiy, S.V.; Ostroumova, E.; Bukhtiyarov, I.V.; Schüz, J.; Kromhout, H. Developing a company-specific job exposure matrix for the Asbest Chrysotile Cohort Study. Occup. Environ. Med. 2021, 79, 339–346. [Google Scholar] [CrossRef] [PubMed]
  66. Johnson, C.Y.; Rocheleau, C.M.; Hein, M.J.; Waters, M.A.; Stewart, P.A.; Lawson, C.C.; Reefhuis, J. The National Birth Defects Prevention Study Agreement between two methods for retrospective assessment of occupational exposure intensity to six chlorinated solvents: Data from The National Birth Defects Prevention Study. J. Occup. Environ. Hyg. 2017, 14, 389–396. [Google Scholar] [CrossRef] [PubMed]

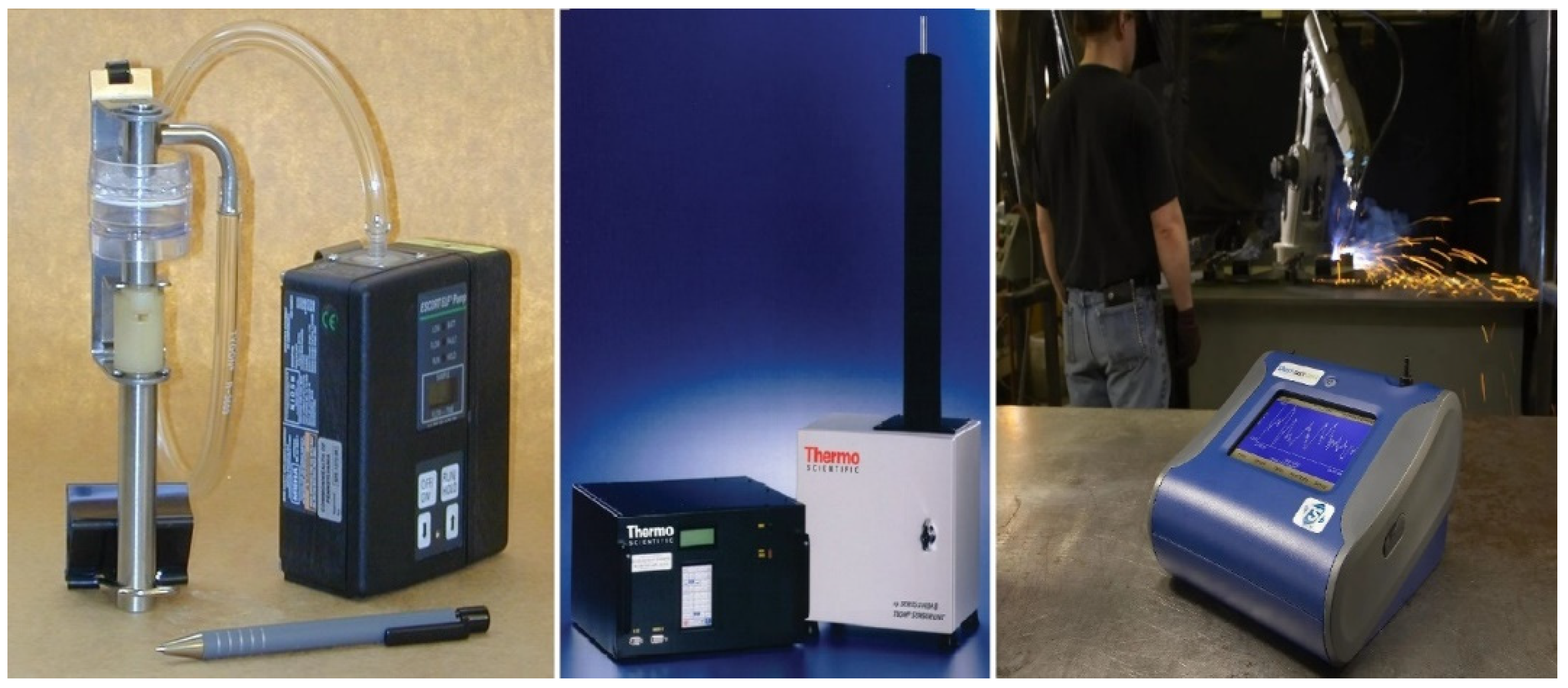

Figure 1. Devices used in PM measurement campaigns conducted within the Parisian underground subway: Left: Gravimetric method equipment [41]; Middle: TEOM (model: 1400; brand: Thermo Scientific); Right: DustTrack (model: DRX; brand: TSI).
Figure 1. Devices used in PM measurement campaigns conducted within the Parisian underground subway: Left: Gravimetric method equipment [41]; Middle: TEOM (model: 1400; brand: Thermo Scientific); Right: DustTrack (model: DRX; brand: TSI).
Atmosphere 13 01061 g001

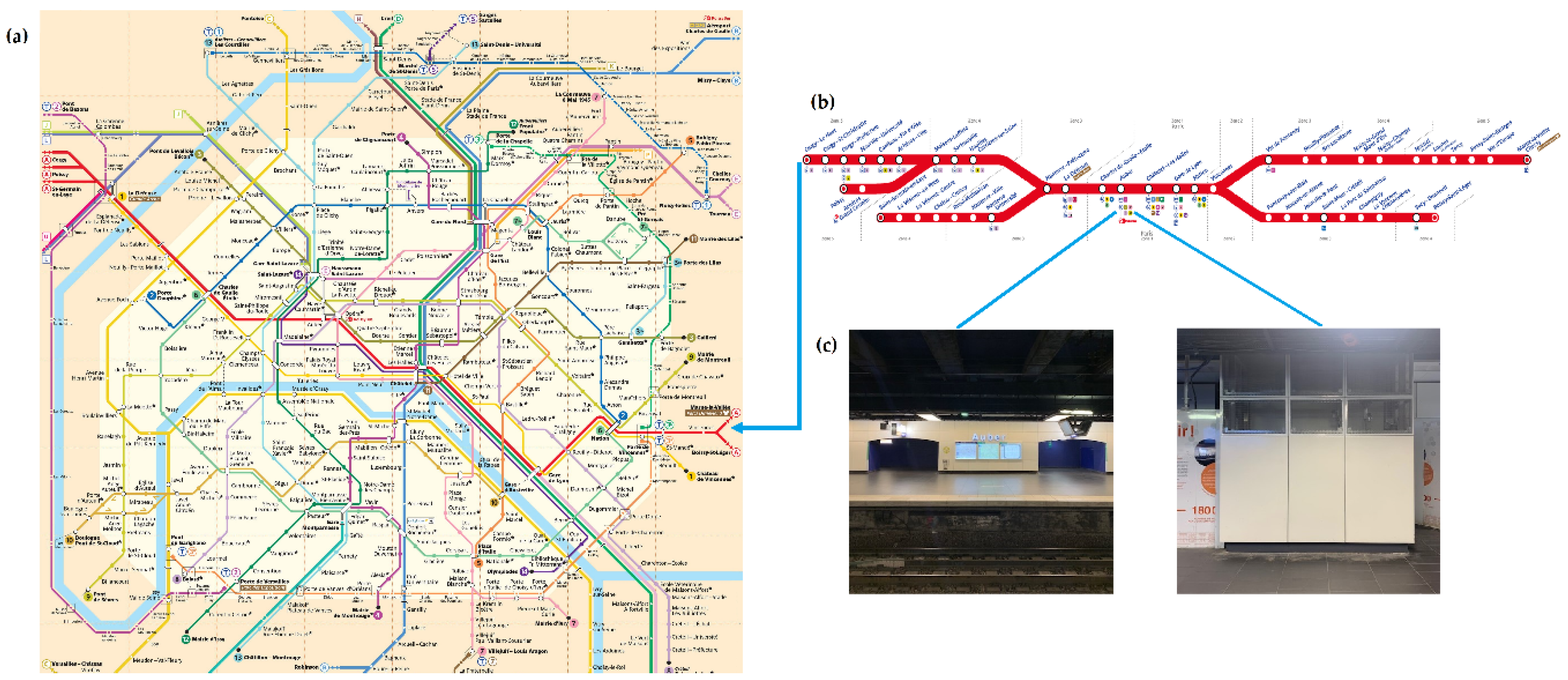

Figure 2. One station on the intercity line RER A of the Parisian subway network chosen to illustrate the PM monitoring measurements: (a) Map of the Parisian subway network. (b) Map of the RER A intercity line. (c) Cabinet dedicated for PM measurements (right figure) on the Auber station platform (left figure).
Figure 2. One station on the intercity line RER A of the Parisian subway network chosen to illustrate the PM monitoring measurements: (a) Map of the Parisian subway network. (b) Map of the RER A intercity line. (c) Cabinet dedicated for PM measurements (right figure) on the Auber station platform (left figure).
Atmosphere 13 01061 g002

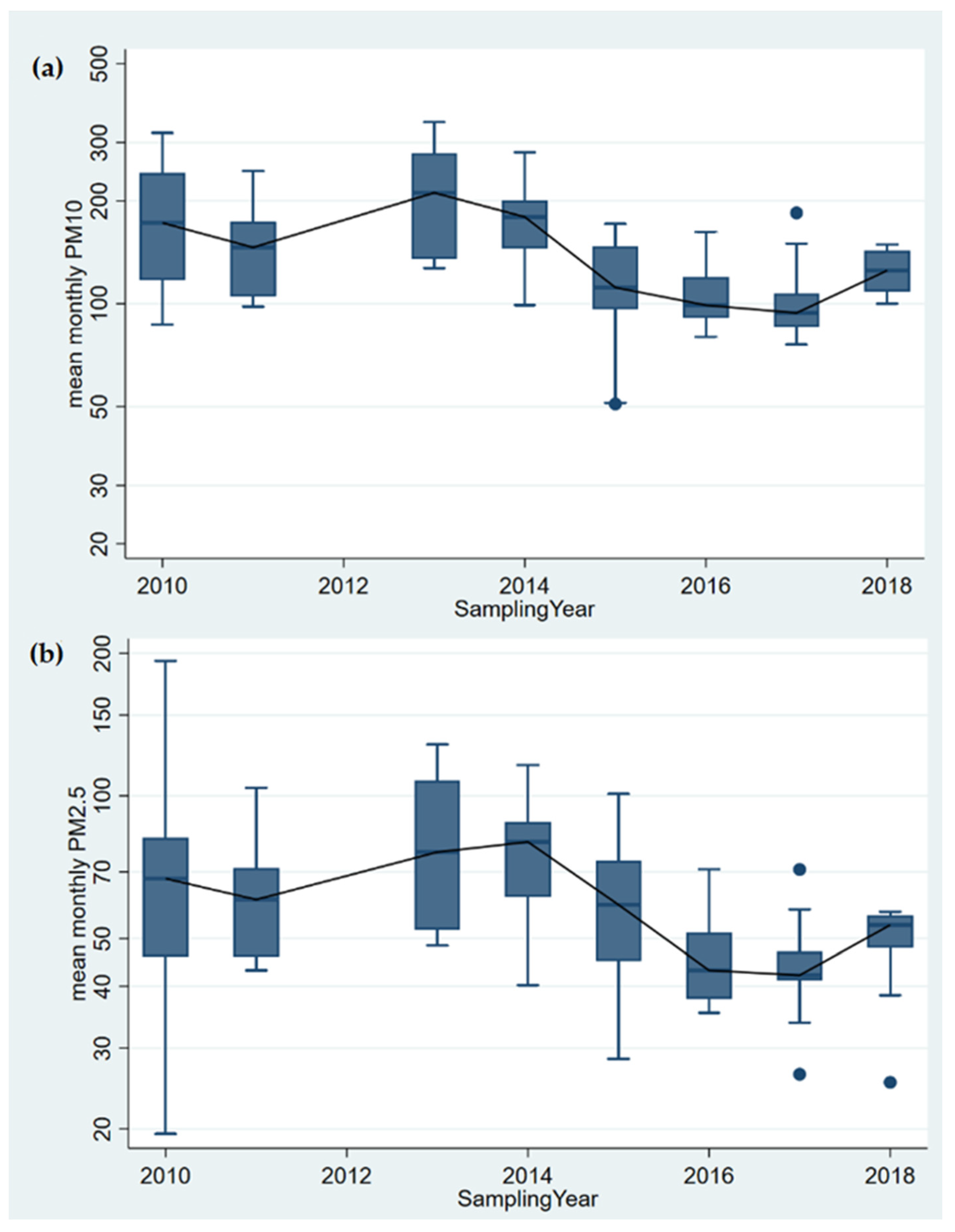

Figure 3. PM mass concentration monitored at “Auber” station of the Parisian subway network (using TEOM device): (a) PM10 mass concentration. (b) PM2.5 mass concentration.
Figure 3. PM mass concentration monitored at “Auber” station of the Parisian subway network (using TEOM device): (a) PM10 mass concentration. (b) PM2.5 mass concentration.
Atmosphere 13 01061 g003

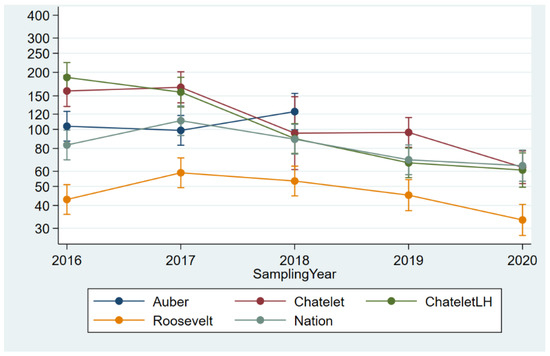

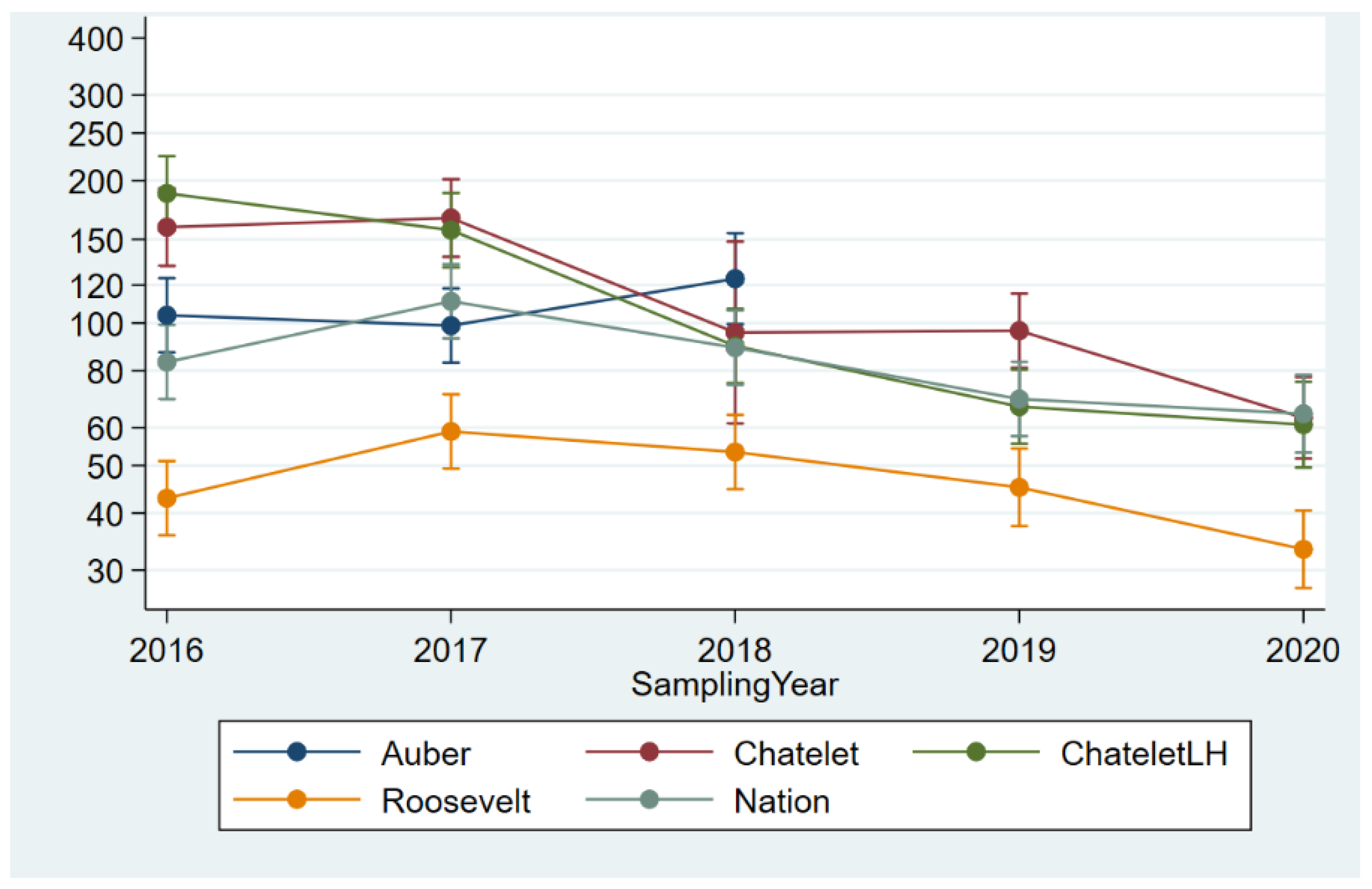

Figure 4. Geometrical means and confidence intervals of the PM10 mass concentration monitored on five stations of the Parisian subway network over the five last years of the data collection (using TEOM). On the Y-axis: Yearly average (95% CI) of monthly stationary PM10 measurements (µg/m3) since 2016 according to five underground stations.
Figure 4. Geometrical means and confidence intervals of the PM10 mass concentration monitored on five stations of the Parisian subway network over the five last years of the data collection (using TEOM). On the Y-axis: Yearly average (95% CI) of monthly stationary PM10 measurements (µg/m3) since 2016 according to five underground stations.
Atmosphere 13 01061 g004

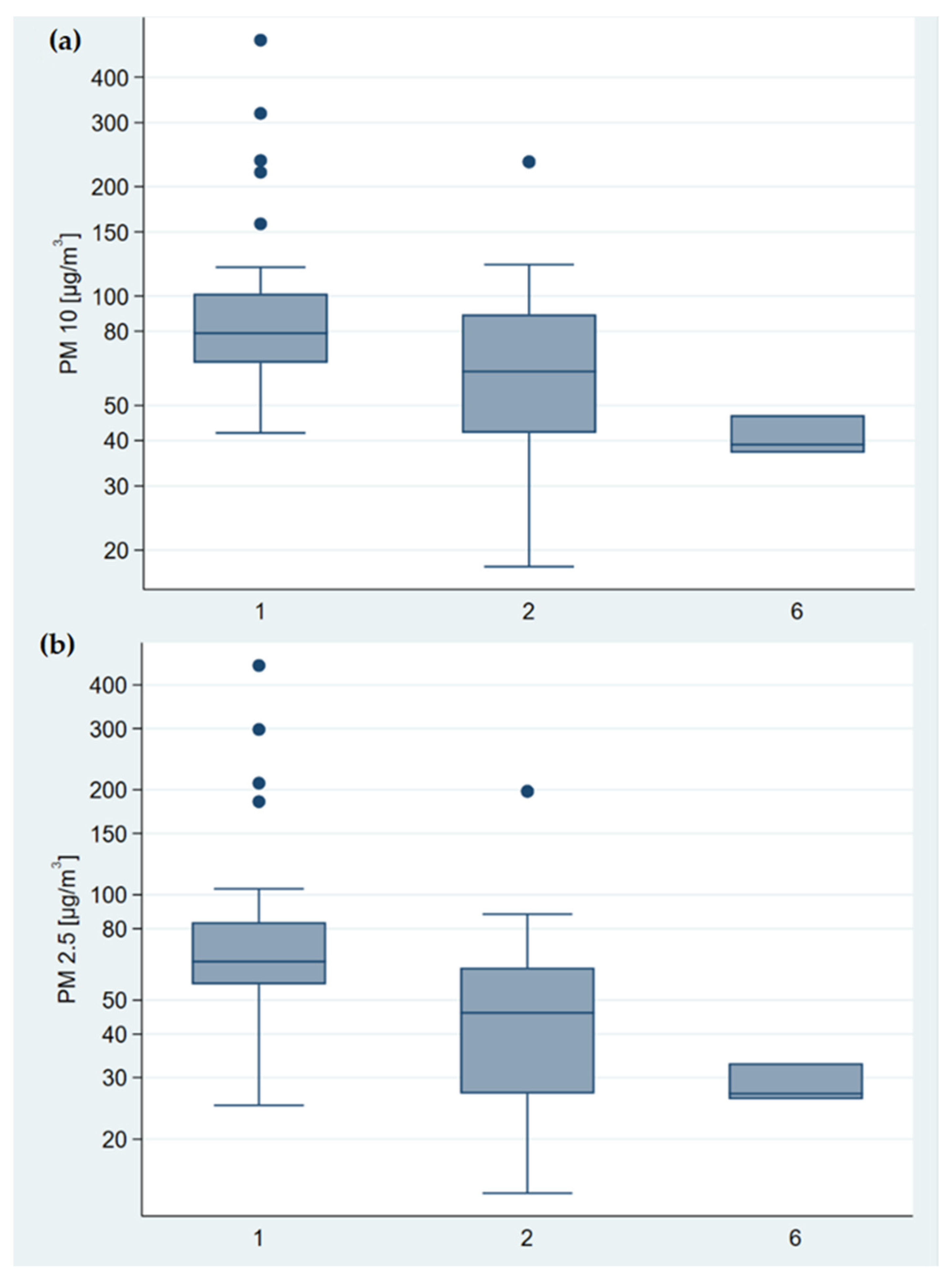

Figure 5. PM mass concentrations monitored in underground stations of three metro lines (l.1; l.2; l.6) deserving emblematic monuments within the French capital (using DustTrack device): (a) PM10 mass concentration. (b) PM2.5 mass concentration.
Figure 5. PM mass concentrations monitored in underground stations of three metro lines (l.1; l.2; l.6) deserving emblematic monuments within the French capital (using DustTrack device): (a) PM10 mass concentration. (b) PM2.5 mass concentration.
Atmosphere 13 01061 g005
Table 1. Variables included in the Subway-PM database.
Table 1. Variables included in the Subway-PM database.
Type of Informations VariablesLabelFormat
GeneralReport_IDReport of measurement campaignAlphanumeric
Report_DateDate of final reportDD-MM-YYYY
CommanderDepartment ordering measurementsText
ExecutorLaboratory executing samplings and analysesText
Worker_IDReference characterizing the workerText
Sample_IDReference characterizing the sampleText
Subway_lineTrain lineNumber
Subway_stationTrain stationText
Rolling_stockRolling stock type operating on the train lineAlphanumeric
Subway_frequencyTrain frequencyNumber
Fans_numberNumber of operating fans in the train stationNumber
Subway_settingUnderground or Above ground or HybridText
Job_characteristicsJobStation agent or Security guard or Locomotive operatorsText
SA_sectorStation agent’s assigned workplace sector Text
SG_SectorSecurity guard’s assigned workplace sector Number
LEVPresence of local exhaust ventilation at workplaceYes/No
MeasurementSample_dateDate of the measurementDD-MM-YYYY
WeekdayDay of the week Text
Sample_durationDuration of samplings Number
Sample_dur_unitMin or Hour or Day Text
Sampler_PlaceSampler location at the stationText
Sampler_HeightHeight in metersNumber
Sample_typePersonal or StationaryText
Starting_TimeStarting time of measurementHH-MM
Meas_concMeasured concentration valueNumber
Meas_unitMeasured concentration unitText
TWA_ConcTime-weighted average concentrationsNumber
TWA_unitAdjusted TWA unitText
Hours_TWATime duration TWA in hoursNumber
Analyse_methodTEOM or Dustrak or Gravimetric methodText
LOQ_valueLimit of Quantification valueText
LOQ_catAbove the LOQ or Bellow LOQ or EqualNumber
LOQ_unitUnit of LOQText
Table 2. Inventory of PM measurement campaigns conducted in the Parisian subway (2004–2020).
Table 2. Inventory of PM measurement campaigns conducted in the Parisian subway (2004–2020).
Campaign NameType and Place of Air SamplingNetwork CoverageCalendar PeriodDevice Used
(PM Size)
Measurements Time IntervalMeasurement DurationMeasurement
Reported PM Concentration Number of Recorded Measurements N (%)
PM2.5 PM10
(1 platform)
6 stations (l.1; l.4; l.9; 3 on RER A)January 2004–November 2020TEOM
(PM 10 with or without PM 2.5)
15 min24 h/7 daysContinuousDaily 2531
5:30–13:30 Daily 2531


(2 platforms)
l.1 and l.9 stationsJanuary 2014DustTrak
(PM 2.5; PM 10)
30 s15 min 7:00 to 9:00 Average concentration on 30 min 122
(1 platform)
All network lines and stationsJune–December 2016DustTrak
(PM 2.5; PM 10)
30 s30 min 7:30 to 9:30 Average concentration on 30 min (1 platform)441
Occupational exposure assessment 2016Personal
(3 locomotive operators per line)
along all network linesNovember–December 2016Gravimetric method *
(PM 2.5; PM 10)
_7 h workshift Morning
(≃5:00 to 12:00)
exposure (8 h TWA)47
(1 locomotive operator per line)
(PM 2.5; PM 10)
30 s≃ 4 h Average concentration on ≃4 h14
Occupational exposure assessment 2017Personal
(each GZ team)
GZ 1, 2, 3 †January–February 2017, February 2018Gravimetric method *
(PM 2.5; PM 10)
_7 h work shifts Afternoon
(≃12:00 to 19:00)
Exposure (8 h TWA)8
(PM 2.5; PM 10)
30 s≃ 4 hAverage concentration on ≃4 h9
pilot study
(for each station agents type)
2 stations of l.7 (station agents)October 2019Gravimetric method *
(PM 2.5; PM 10)
_10 days work shifts Afternoon
(≃12:00 to 19:00)
exposure (8 h TWA)20
PersonalAlong l.7 (locomotive operators)October 2019Gravimetric method *
(PM 2.5; PM 10)
_9 days work shiftsMorning
(≃5:00 to 12:00)
Exposure (8 h TWA)8
PersonalGZ 1 (security guards)November 2019Gravimetric method *
(PM 2.5; PM 10)
_9 days work shiftsAfternoon
(≃12:00 to 19:00)
Exposure (8 h TWA)8
*: Teflon filter and pump debit (4 L/min); †: GZ 1: Paris; GZ 2: La Défense; GZ 3: Bobigny.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Ben Rayana, T.; Debatisse, A.; Jouannique, V.; Sakthithasan, K.; Besançon, S.; Molle, R.; Wild, P.; Guinhouya, B.C.; Guseva Canu, I. Sixteen-Year Monitoring of Particulate Matter Exposure in the Parisian Subway: Data Inventory and Compilation in a Database. Atmosphere 2022, 13, 1061.

AMA Style

Ben Rayana T, Debatisse A, Jouannique V, Sakthithasan K, Besançon S, Molle R, Wild P, Guinhouya BC, Guseva Canu I. Sixteen-Year Monitoring of Particulate Matter Exposure in the Parisian Subway: Data Inventory and Compilation in a Database. Atmosphere. 2022; 13(7):1061.

Chicago/Turabian Style

Ben Rayana, Tesnim, Amélie Debatisse, Valérie Jouannique, Kirushanthi Sakthithasan, Sophie Besançon, Romain Molle, Pascal Wild, Benjamin C. Guinhouya, and Irina Guseva Canu. 2022. "Sixteen-Year Monitoring of Particulate Matter Exposure in the Parisian Subway: Data Inventory and Compilation in a Database" Atmosphere 13, no. 7: 1061.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
