Analysis of PM2.5 and Meteorological Variables Using Enhanced Geospatial Techniques in Developing Countries: A Case Study of Cartagena de Indias City (Colombia)

by
José Antonio Álvarez Aldegunde
1,*,
Adrián Fernández Sánchez
2,3,
Manuel Saba
1,
Edgar Quiñones Bolaños
1 and
José Úbeda Palenque
2,3
1
Civil Engineering Department, Universidad de Cartagena, St. San Agustín, Cra. 6, Nª 36-100, Cartagena de Indias 130001, Colombia
2
Departamento de Geografía, Universidad Complutense de Madrid, St. Profesor Aranguren, s/n, 28040 Madrid, Spain
3
Guías de Espeleología y Montaña, Calle Caserio Casilla del Mortero, s/n, 28189 Madrid, Spain
*
Author to whom correspondence should be addressed.
Atmosphere 2022, 13(4), 506; https://doi.org/10.3390/atmos13040506
Submission received: 6 February 2022 / Revised: 9 March 2022 / Accepted: 14 March 2022 / Published: 22 March 2022
(This article belongs to the Section Air Quality)
Browse Figures
Versions Notes

Abstract

:
The dispersion of air pollutants and the spatial representation of meteorological variables are subject to complex atmospheric local parameters. To reduce the impact of particulate matter (PM2.5) on human health, it is of great significance to know its concentration at high spatial resolution. In order to monitor its effects on an exposed population, geostatistical analysis offers great potential to obtain high-quality spatial representation mapping of PM2.5 and meteorological variables. The purpose of this study was to define the optimal spatial representation of PM2.5, relative humidity, temperature and wind speed in the urban district in Cartagena, Colombia. The lack of data due to the scarcity of stations called for an ad hoc methodology, which included the interpolation implementing an ordinary kriging (OK) model, which was fed by data obtained through the inverse distance weighting (IDW) model. To consider wind effects, empirical Bayesian kriging regression prediction (EBK) was implemented. The application of these interpolation methods clarified the areas across the city that exceed the recommended limits of PM2.5 concentrations (Zona Franca, Base Naval and Centro district), and described in a continuous way, on the surface, three main weather variables. Positive correlations were obtained for relative humidity (R2 of 0.47), wind speed (R2 of 0.59) and temperature (R2 of 0.64).

1. Introduction

Spatial continuous data, or spatial continuous surfaces, play a significant role in planning, risk assessment and decision making in environmental management [1]. Sparse networks for measurements therefore have to be carefully considered as representative of non-measured spaces. Interpolations are key solutions for estimating unknown continuous values, while geostatistics represents the most accurate technique of that methodology [2]. Moreover, analyzing the spatial distribution of air pollutants in populated areas is essential for urban management and territorial planning.
Geostatistical interpolation methods have widespread use in estimating individual exposure to outdoor air pollutants, and in modeling atmospheric phenomena, among other uses [3,4,5,6]. The toxic nature of particulate matter (PM2.5 and PM10) to human health has promoted the extensive use of geostatistical methods with geographic information system (GIS) tools to analyze the spatial distribution of these pollutants. Although some of the air quality interpolation approaches have been carried out by deterministic methods with excellent results [7,8], other studies have reduced errors using geostatistical methods that employ inverse distance weighting [9], ordinary kriging [10,11] or empirical Bayesian kriging [2,12]. Spatiotemporal variabilities have also shown to be a great fit, with geostatistical methods of interpolation for PM2.5 and PM10 having been used, for instance, in Cusco, Perú [13]. In addition, [14] found geostatistical techniques to be the best fitting interpolation model for 71 interpolations of air pollutants.
In a similar way to air pollution analysis, various studies have carried out different kinds of spatial interpolations of atmospheric variables, such as temperature, pressure, relative humidity (RH) and precipitation [15,16,17,18]. The necessity of analyzing the influence of weather variables on air quality is justified by recent findings on the topic, where PM2.5 has been strongly related to meteorological parameters [19,20]. Zhao et al. [21] found that relative humidity, precipitation and pressure had more influence on PM2.5 than temperature or wind speed. However, the influences of meteorological variables are also related to location. Although variables such as precipitation and temperature have been found to have positive and negative influences, respectively, on PM2.5 in countries such as Japan [22], precipitation has been found to have an inverse relation in the USA [23]. New machine learning methods [24,25] have been also widely used to study the relationship between air quality and meteorological variables.
In the present work, in order to determine which of the meteorological variables is the main contributor to changes in PM2.5 in Cartagena de Indias (Colombia), spatial analysis was conducted. The aim of this paper is to introduce the relation between PM2.5 and available weather records. In the study, continuous spatial representations and estimates of PM2.5 concentration data, temperature and relative humidity in Cartagena were studied by the IDW and ordinary Kriging methods, which considered virtual information points. In addition, the spatial average data of fine particle variables, temperature and relative humidity were estimated across the city by considering the influence of wind speed on PM2.5 concentrations. Fine particles such as PM are harmful for human health as they corrode the alveolar wall in the lungs after being breathed in [26]. Among all PM particles, PM2.5 is the most harmful for human health [27].

Location

This study focused on Cartagena de Indias, in Colombia (10°25′30″ N, 75°32′25″ W). Cartagena is one of the most important urban areas in the Colombian Caribbean region.
Basic regulations on air quality are derived from the Environmental Ministry of Colombia (Ministerio de Medio Ambiente y Desarrollo Sostenible), who decreed that by 2011, every main urban area must have a network for measuring air quality. The Environmental Public Agency of Cartagena (EPA-Cartagena), uses an algorithm to calculate the air quality index in which PM2.5 values between 15 and 40 µg/m3 (over 24 h) are considered to be a moderate influence on human health, and values between 40 to 65 µg/m3 are considered harmful for human health [28].
In Cartagena de Indias, the scarcity of technical resources has not allowed for the development of an extensive network (in a spatial and temporal sense) of measuring stations for the continuous observation of pollutants and weather variables. This situation is a very common one in developing countries around the world [29,30,31,32,33].
Previous measurements of air quality in Cartagena [34] have demonstrated that the concentrations of gases, such as SO2 and CO2, were below the limits recommended by national regulations. The mean values of PM2.5 in Cartagena have been found to be 25.5 µg/m3, rendering the city with the second highest mean PM values, surpassed only by Medellin at 30 µg/m3, but which has double the population of Cartagena.
Cartagena de Indias’s climate corresponds to an equatorial/subtropical type. With a mean temperature of 28 °C and a mean relative humidity of 77%, Cartagena is usually expected to have a rainy season (August to November) controlled mainly by the displacement of the ITCZ (Intertropical Convergence Zone) to northern positions at 8° latitude [35,36]. The southward displacement of the ITCZ brings a displacement of the Azores High and a dry season with strong northeastern winds [37].

2. Methodology

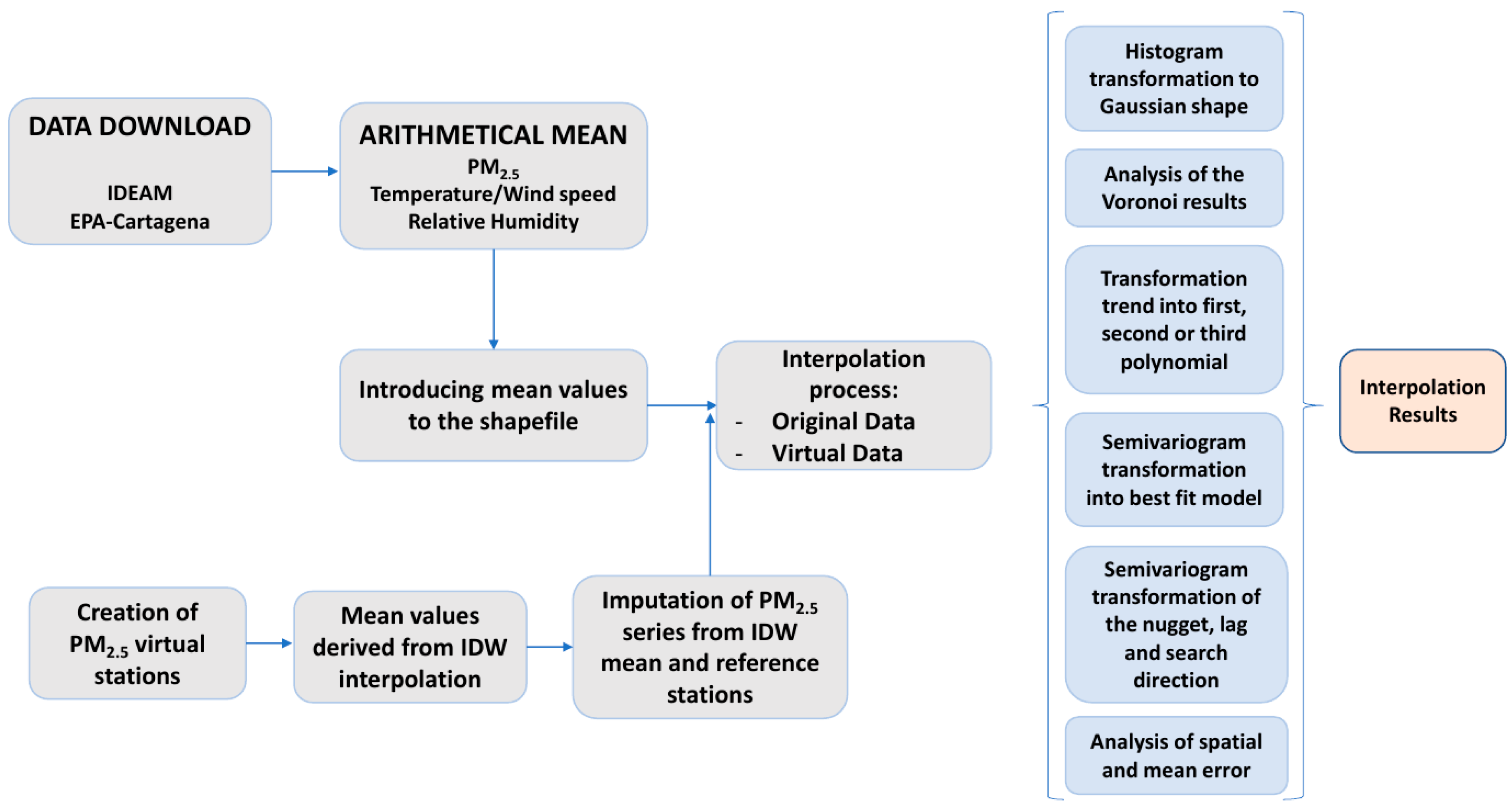

Different spatial analyses were carried out to determine the spatial distribution of fine particles and meteorological variables. The main objective of the spatial interpolation was to predict the PM2.5 concentrations at ground level and the meteorological variables of Cartagena. The workflow is presented in Figure 1.

2.1. Data Source

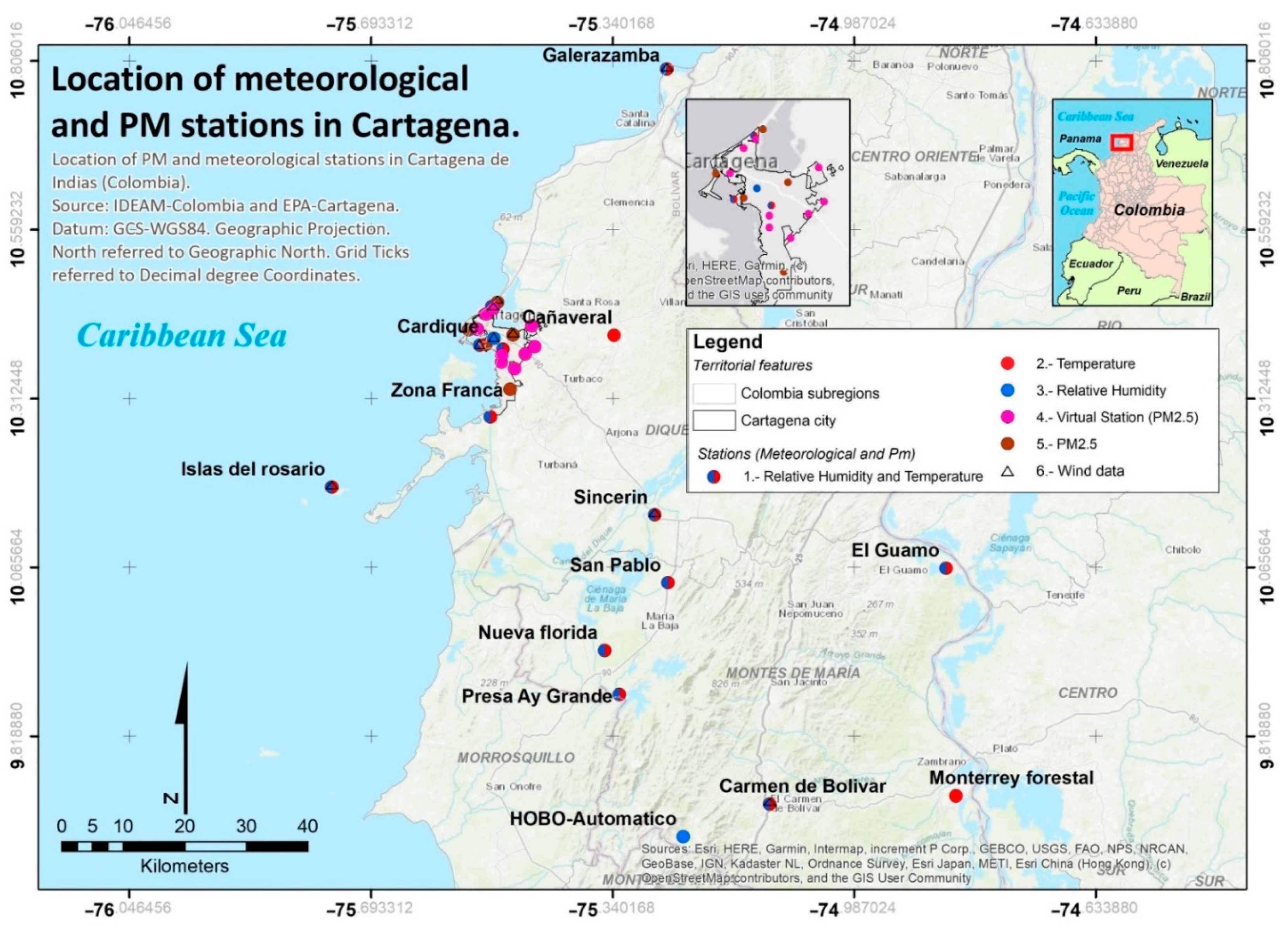

Data records of PM2.5 and weather variables were obtained from different public agencies and some non-governmental organizations.
A total of 21 weather stations were selected, with the data analysis focusing on the temperature, wind speed and RH (Figure 2). The location and source of the information for each meteorological station, and the variables collected, are shown in Table 1. Most of the stations presented data for the years 1971 to 2001, whereas 5 stations (the main ones within the Cartagena urban area) had data from 2014 to 2015, and the rest recorded data from 2019 to 2021. The relatively stable climate of this region of Colombia allowed for the study to be carried out with homogeneous data.
The series of data analyzed for relative humidity were expressed at an hourly time scale, whereas temperature series were expressed at hourly and daily time scales. Both variables were derived from measurements made by the meteorological agency of Colombia, IDEAM (for its initials in Spanish), the Environmental Public Agency of Cartagena network (EPA-Cartagena, for its initials in Spanish), the oceanographic center CIOH (for its initials in Spanish) and the non-governmental organization, Oasis Jacquin. The PM2.5 and PM10 data series available were monthly and were derived from daily measurements carried out by the EPA-Cartagena public agency. The analyzed temperature data series were of an hourly and daily nature and were derived from measurements carried out by all the aforementioned organizations.
Wind speed data were downloaded from the IDEAM-Colombia network of stations and from the EPA-Cartagena air quality measurements stations, which had anemometers for measuring wind. The data downloaded had 10-year records (2011–2021) in the case of the IDEAM stations [38] and 2-year records (2014–2015) for the EPA-Cartagena stations [28,39]. In total, up to 10 stations with wind data were analyzed.
Meteorological data corresponded to different time periods ranging from 1971 to 2021. Records of pollutant concentrations of PM2.5 (µg/m3) and PM10 (µg/m3) were collected by the EPA-Cartagena [39,40,41] environmental public authority between January 2014 and September 2017 (Figure 2 and Table 2). Data concentrations of PM10 were transformed to PM2.5 data assuming a PM2.5/PM10 ratio of 0.5 units [42,43,44]. La Bocana Station, which measures PM10, was useful because it had estimations from the northwestern side of the city, also offering more stability for the interpolation process through the addition of more data.
For some of the interpolation analyses, a 30 m. resolution digital elevation model was used, provided by the Aster program [45].

2.2. Pre-Treatment of Data Series

Using the Rstudio software [46], hourly data of temperature and relative humidity were transformed into maximum and minimum daily values in order to homogenize all the variables to a daily time scale.
Then, daily values of different basic statistics were calculated for the whole series, such as the arithmetic mean, the median and the standard deviation. The arithmetic mean was the main parameter that fed the subsequent interpolation analyses. These parameters were calculated for all the variables of this study.
In the case of wind parameters, graphs of the “wind compass” type were derived, which indicated the average speed and direction. The wind direction showed significant inconsistencies between stations, so this parameter was omitted from the analyses. Omitting wind direction implies a lower accuracy in the results of PM2.5 estimated values. The wind direction exerts a great influence on the redistribution of pollutants over certain areas, creating spatial differences [47,48,49].

2.3. Spatial Data Analysis

To have a good understanding of the internal structure of the data, ArcGIS was used, which offers a set of tools through which the distribution can be explored in order to identify global trends and to calculate the spatial autocorrelation of data series [50,51].
The tool used to test the normality of the data series was the histogram. Histograms were transformed using logarithmic functions and Box–Cox functions, until the best fit to a Gaussian shape was achieved. When the spatial representation of the data presented a Gaussian shape, a more transitional interpolation without any “breaks” or discontinuities in the data was achieved using a continuous (or smooth) search neighborhood. Box–Cox transformations were selected according to a numeric vector of finite values indicating which powers should be used for the transformation. Those values were expressed as subscripts.
Additionally, the spatial trends of the data series on an X-Y-Z graph were also analyzed for each variable. The Z-axis was represented vertically, in order to give a 3D position according to the values of each of the stations (represented by points). The greater the value was, the “higher” the position given in the Z value. The X and Y values corresponded to the geographic coordinates of each of the points representing the stations. In this case, on the graph, it may be seen that the polynomial trend was the one that best fit the trend of the data according to the two cardinal axes (North–South and East–West) represented by two perpendicular planes.
Subsequently, the semivariograms of the data for each variable were analyzed. A semivariogram is the graphical representation of the distances and values for each variable, and they provide a representation of the autocorrelation. They measure the degree of dissimilarity [52] and represent the relationship between the distance of two points (stations in the case of this study) and their differences in value. The lower the difference and the distance between two points, the closer the semivariogram to the axis origin in the graph. Semivariograms are composed of a series of parts including the nugget and the lag size. The nugget is the separation distance of the semivariogram values with the “Y” axis. If the interception of the values of the semivariogram is within the value 2, then the nugget is 2. The value should be greater than 0. The lag size is the size of a distance class into which pairs of locations are grouped to reduce the large number of possible combinations.
y h = 1 2 N h ∑ i = 1   N h z x − x i + h
Equation (1) shows the mathematical representation of a semivariogram, where yh is the representation of dissimilarity, z (xi) and z (xj + h) are pairs of samples (the stations in this case) in classes within a given distance and direction, and N(h) represents the number of data pairs in each of the classes.
Autocorrelation is maximized when performing an interpolation through geostatistical methods. Geostatistical processes are based on the autocorrelation concept, so the distance and direction between points of values govern the estimated values. Predicted values of the unknown attributes have less error when the spatial autocorrelation approaches the maximum [5]. In this study, in order to achieve autocorrelation, the data were adjusted from a predefined theoretical model to the experimental semivariogram. Adjusting the semivariogram was carried out by adjusting a theoretical model to the measured values until a best fit was achieved.
The interpolation of mean relative humidity during the dry season was ruled out because the data could not be adjusted during the process, due to the lack of homogeneous records. Even so, the process was attempted, but a great spatial error was generated (>12%), and the error range for other processes was between 0.31% and 2.87%, so the analysis was rejected. The geostatistical analyst tool estimated two statistical error calculations for each interpolation: an estimated error for each location on the data source station and a spatial error for each area of the interpolation.

2.4. Interpolation Analyses

Interpolations under different situations have been used to provide spatially continuous estimates of fine particle and weather records [53,54,55,56]. In this study, geostatistical techniques were used to estimate the behavior of variables affecting human health in Cartagena with minimal error. By adjusting these data through pre-processing, it is possible to generate a result with reduced error [2,57,58].
The pieces of software used for data interpolation were ArcGIS 10.5 and ArcGISs Pro 2.6.0 [59,60]. ArcGIS 10.5 Geostatistical Wizard tool enabled data exploration prior to interpolation generation, which allowed for further tuning of internal data in ArcGIS-Pro. Interpolations were performed for all available variables, generating 9 interpolations, whose specifications are listed in Table 3.
The variables subjected to interpolation were as follows: average temperature, mean temperature during the dry season (December to April), average temperature during the wet season (August to November), mean RH, average RH in the dry season, average RH in the wet season, mean of PM2.5 and PM2.5 in the dry season, mean of PM2.5 in the wet season and mean wind speed.
All the results were adjusted to obtain a 30 m spatial resolution raster.
Since in some cases PM2.5 records for interpolations were scarce, a series of virtual stations were created at random and peripheral locations, which supported the interpolation process. The creation of virtual stations is a methodology widely used in air pollution studies [61,62] and in interpolation of climatological variables [63,64,65]. Data from these stations were mapped considering an estimate according to the inverse distance weighted (IDW) method, which interpolates PM2.5 concentrations.
In the IDW interpolation analysis, the mean spatial values at selected locations were derived to feed those virtual stations, with new values obtained for the corresponding area of each new station. Those mean values were used for an imputation process (gap-filling) where the estimated value through the IDW technique is the reference mean value. The imputation process was carried out according to Paulhus and Köhler’s [66,67,68,69,70,71,72,73,74,75,76,77,78,79,80,81,82,83] methodology in order to obtain PM2.5 values at stations for each month. The new monthly data of each virtual station were related to reference stations (the closest existing one with complete data), so it could take the monthly variability from existing data. The mean of that monthly PM2.5 interpolated value fed the data for the virtual station in the interpolation. Equation (2) expresses the procedure:
Imputed monthly value = (Coef. a + Coef. b) − Reference Value
Coefficients “a” and “b” were obtained according to Equations (3) and (4):
C o e f .   a = x ˜ i n c o m p − σ x y σ 2 · x ˜ c o m p
C o e f .   b = σ x y x ˜ c o m p
where x ˜ c o m p is the mean of the reference station, x ˜ i n c o m p is the mean of the incomplete station, σ x y represents the covariance of both stations and σ 2 is the variance of the reference station. The reference value is the PM2.5 monthly value of the selected station with completed data.
Therefore, the value used in the virtual station was the one derived from the IDW interpolation and later imputed monthly in order to obtain different season values and a general value for the whole period (2014–2017). Introducing virtual stations can lead to a spatial representation with more transitional values that is close to the average, as this methodology is not sampling real variability.
The use of the original data in the PM2.5 interpolation process (5 stations) would have led to a failure of the operation, since they contained fewer stations than those required by the software tool. Therefore, virtual stations were needed for the tool to work in a place such as Cartagena, where scarcity of data is a problem. The implications of an interpolation process within the limit of stations (8–10 stations, depending on the spatial distribution) would lead to less semivariogram model adjustment and a loss of accuracy. In the case of this study, the minimum number of stations used for interpolations was 10. This number of stations is enough for the tool to work but requires a longer processing time due to the need of adjusting the semivariogram to the model used. The problems with adjusting the semivariogram do not necessarily imply a loss in accuracy but lead to a longer processing time for adjusting other associated parameters such as the lag size or nugget.
The interpolation results were divided into predictive maps and spatial standard error maps. The error maps were used to calibrate the quality of the data in each area of Cartagena, and to propose the installation of new monitors or meteorological stations in the areas with the greatest spatial error.
Although a calibration process was not possible, the interpolation returned results of the error and standard error between the measured values in each station and the corresponding pixel predicted value in the raster. These errors were relatively low, with a maximum of 1.23 and 1.53 obtained for the error and standard error, respectively.
Interpolation techniques such as inverse distance weighting (IDW) base their operation on gradual changes from the inverse distance, according to Tobler’s [84] first law [68,69]. Conversely, geostatistics techniques consider relative distance, according to the internal structure of the data, based on Tobler’s second law [70,71]. Thus, in conventional methods such as IDW, information on spatial correlation is not used, whereas geostatistical estimation considers both spatial and distance correlation [72].

2.4.1. Inverse Distance Weighting (IDW)

One of the most commonly used deterministic methods is IDW [73]. The IDW algorithm is based on the notion that the degree of influence of nearby monitors should be greater than the dependence on distant monitors. Basically, in this case, the unknown values can be calculated as a distance-weighted average of the sample point values. The weights (λi) are calculated as follows (Equation (5)):
λ i = D i − α ∑ i = 1 n ( D i − ∝ )
where λi is the weight of the monitor i, Di is the distance between station i and an unknown point, and α is the weighting power.
IDW analysis was performed to obtain the mean values for the data series ascribed in the virtual stations of PM2.5.

2.4.2. Ordinary Kriging (OK)

Similar to IDW, the OK method calculates a weighted average of concentrations at measuring stations. However, through this algorithm, the weights use a distance function based on a variogram [4]. The OK geostatistical function assumes the model described below (Equation (6)):
Z ( X 0 ) = ∑ ∝ = 1 n w ∝ Z ( X ∝ )
where X0 is the unknown attribute, n is the neighboring values of the samples and X ∝ information points are linearly combined with weighting w ∝ .
The existing literature recommends the use of simple kriging for interpolations that observe defined spatial trends [74,75]. However, although spatial trends were observed in the data in this study, the use of this methodology was rejected because it did not have fully reliable series, so the OK feature was used. Ordinary kriging was used for analyzing the variables of mean temperature, mean temperature during the dry season, mean temperature during the humid season, mean relative humidity, mean relative humidity during the dry season and relative humidity during the humid season.

2.4.3. Empirical Bayesian Kriging Regression Prediction (EBK-RP)

The interpolations of wind speed and PM distribution were derived with the empirical Bayesian kriging regression prediction tool, present in ArcGIS Pro applications [2,76,77,78,79]. Given that wind speed may have a strong dependence on the topography [80,81], and PM could be related to the weather variables studied in this research, the empirical Bayesian kriging regression prediction tool was used. This tool allows for the introduction of explanatory variables having a known influence on the main variable in raster format. The introduction of these independent variables and the use of spatial regressions, combined with the kriging analyses, allow for the generation of more precise analyses than both processes separately [82]. In the case of the wind speed interpolation, the topography extracted from the 30 m resolution DEM of the Aster satellite was taken as a reference. This DEM was introduced as an independent variable and the wind measurements as dependent variables of that topography. For the case of PM2.5 interpolation, the raster resulted from the interpolations of mean relative humidity, mean wind speed and mean temperature.

2.5. Spatial Correlation

To assess the spatial correlation, some regression analyses were performed for the PM2.5 measurements with the climatic variables. These regressions were performed in the context of the EBK regression prediction tool. Regression was performed by this tool by comparing the station measurements with the values of a raster introduced as an independent variable. This comparison was based on the location of the station and the pixels in a neighborhood radius selected as 500 m.
In order to compare the correlation between PM2.5 and each weather variable separately, regression analysis with each variable alone was performed.

3. Results

Characteristics of the time series of each variable before they were transformed are shown in Table 3 and Table 4.
The PM time series before they were transformed reflect the seasonal variability of PM pollutants at the corresponding station locations. The values of the series ranged from a maximum of 52.70 µg/m3 (Base Naval station), to a minimum of 13.60 µg/m3 (Zona Franca station). The histogram was positive and had leptokurtic asymmetry. It was left scored with a high frequency of values in the center, and it did not fit a Gaussian shape.
The temperature values ranged from a maximum of 39.5 °C (Olaya-Turistic Police station) to a minimum of 8.5 °C (Cañaveral station). The series histogram was slightly positively asymmetric and had a platykurtic shape. The values of the RH series ranged from 89.61% (Cartagena University station) to a minimum of 46.96% (Sincerin station). The histogram of the data series had a platykurtic shape and a symmetric distribution. The values of the wind speed series ranged from a maximum of 11.4 m/s (Galerazamba station) to a minimum of 0 m/s (all stations). The series histogram was slightly positively asymmetric and had a platykurtic shape. It had no concentrated values and a high frequency of values in both extremes of the graph not fitting a Gaussian shape.
Through this geostatistical tool, when the analysis of global data trends is completed, the spatial correlation analysis should be carried out using a semivariogram tool. The objective of this step is to adjust the first data from the experimental semivariogram to the transformed theoretical model, in accordance with Tobler’s [84] first law [83]. The best-fit models found in this research were the Gaussian (used for five variables), J-Bessel and hole effect models. In all cases, a previous data optimization process was required. All adjustments made to each interpolation are presented in Table 5. All the variables had a second polynomial trend, and an optimization process was performed for five variables (all temperature interpolations and the mean relative humidity interpolation). The EBK regression prediction results, such as for wind speed and mean PM2.5, were performed with the K-Bessel model, and no lag size, nugget, optimization or histogram transformation was allowed.
Best-fit models were chosen according to the semivariogram shape. In the semivariogram graph, measured values (PM2.5, temperature or RH) are represented by red dots, and the mean values of those measured values are represented by blue crosses (Figure 3, Figure 4 and Figure 5). Both variables were used for adjusting the model (represented as a continuous line) to the first measured and mean values in order to obtain a best fit. Those first measured values are related to each other when the distance is lower, as expressed by Tobler’s first law [84]. For that purpose, a number of changes in the values and in the models can be carried out.
The first of the possibilities is the optimization of the values. Optimization is focused on the range of the semivariogram (the value in the Y-axis where the semivariogram becomes stable) and uses the local polynomial interpolation to fit the model [85]. Other possibilities include changing the values of the nugget and lag size until the best fit is approached.
The last step is modifying the search direction of the neighborhood. If the measured values have less spatial autocorrelation with the prediction location with less effect on the predicted value, these measures can be eliminated from the calculation of that particular prediction point by defining a search neighborhood.

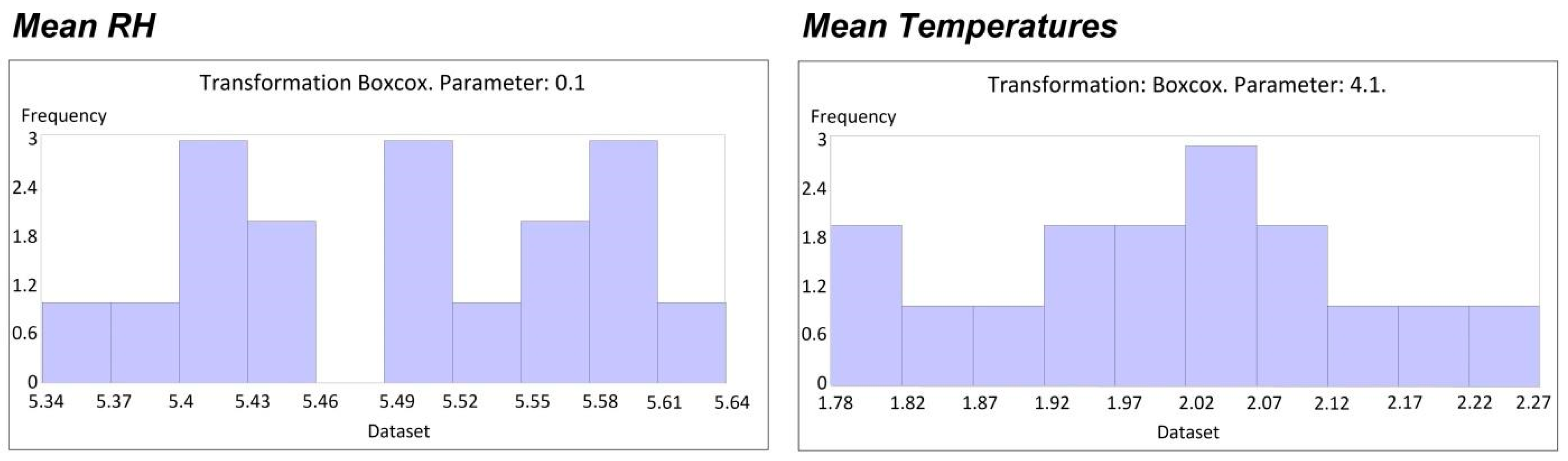

In Figure 3, the transformed histograms for mean temperature and mean relative humidity are shown, which were both adjusted to the best Gaussian shape.
Spatial trends for both temperature and RH were calculated as second-order polynomial distributions for three of the space orientations (North–South and West–East) and as a first-order polynomial distribution for one of the sides of the mean RH (West–East). A trend transformation or detrending was subsequently performed with respect to the higher order found on the three axes. A careful observation of the polynomials represented indicates that the lines begin at high values that decrease in trend, as there is a scrolling from south to north that increases as it moves west from the center of the domain in the case of mean temperature.

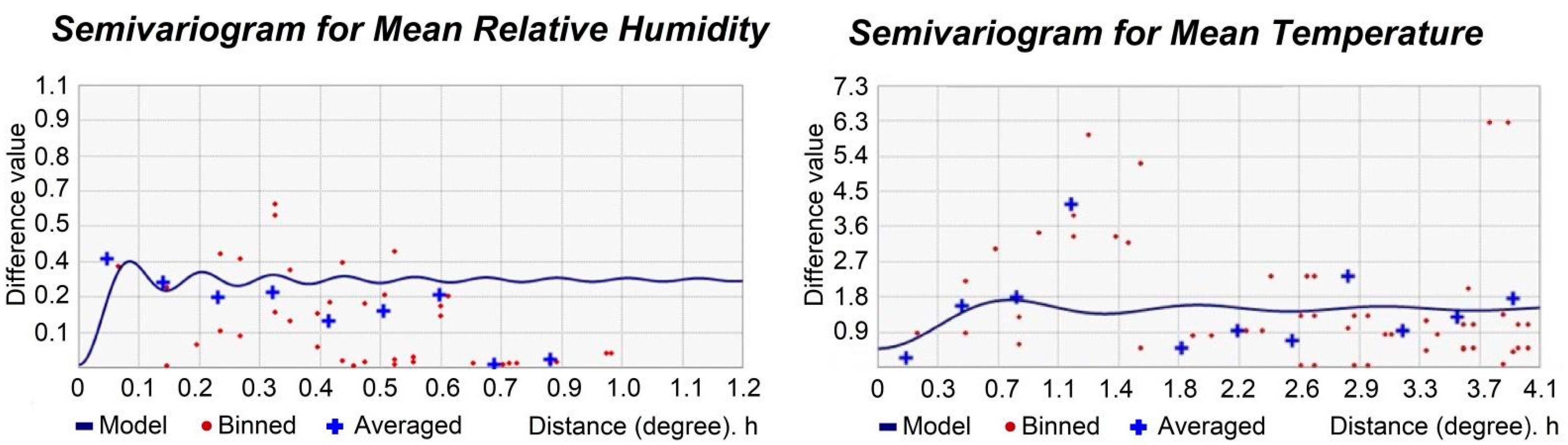

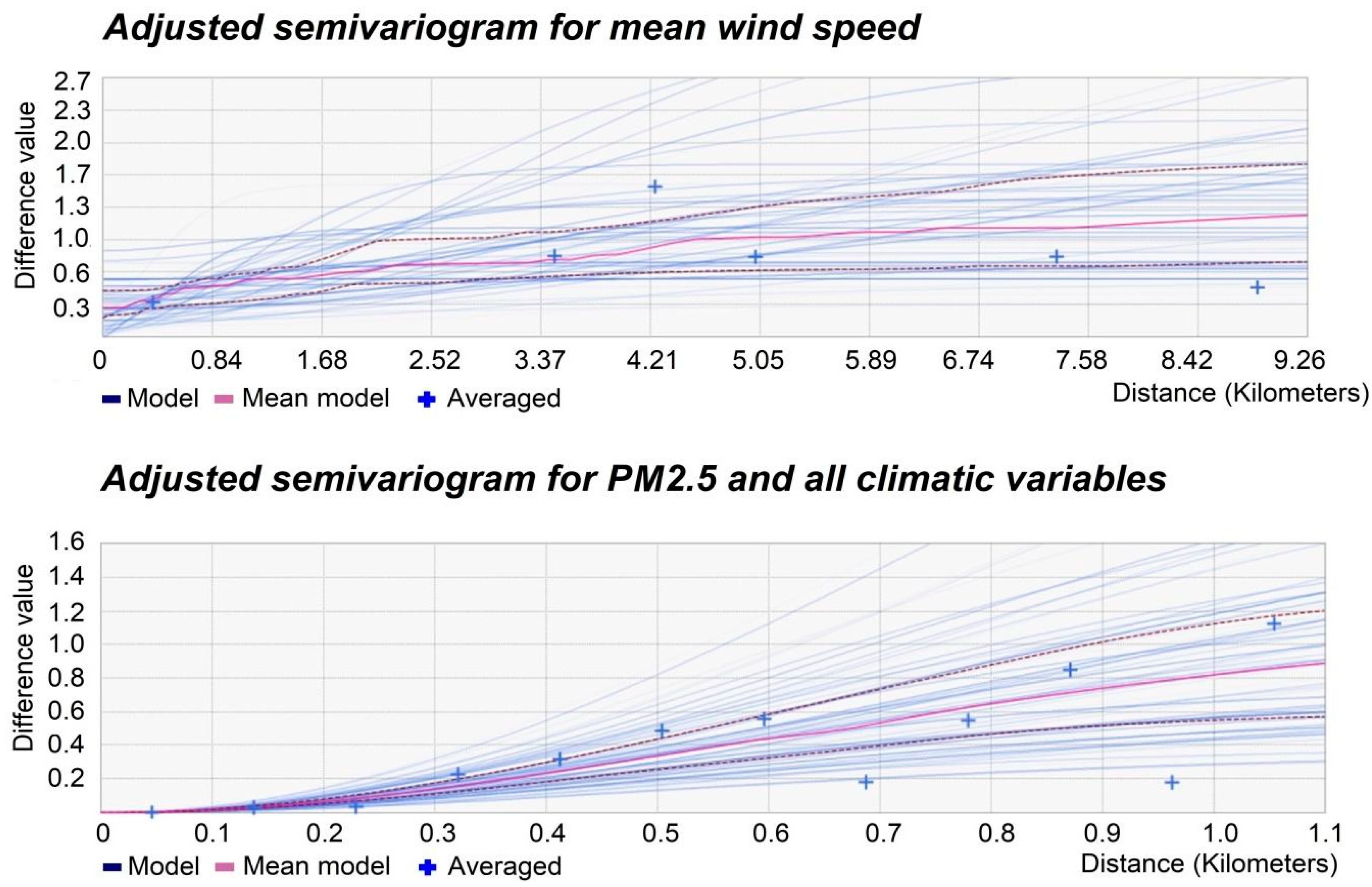

In Figure 4, semivariograms with the adjusted functions using the EBK regression prediction for wind speed and PM2.5 are shown, and in Figure 5, the semivariograms corrected for mean temperature and mean RH are presented.
The first calculation of the estimated spatial error returned relatively acceptable values: they were only elevated in places remote from Cartagena. This error is smaller the closer it is to the value of 1, so high values (above 1) will have a lower reliability [86]. The spatial error estimated values less than 4% in all cases, with the exception of the dry season RH, which had an error above 12%. Finally, the results were exported from a GA Layer format into a GRID format, and they were analyzed to provide a spatial mean calculation that could feed future health impact function analyses.

Results of the Interpolation of Weather Variables

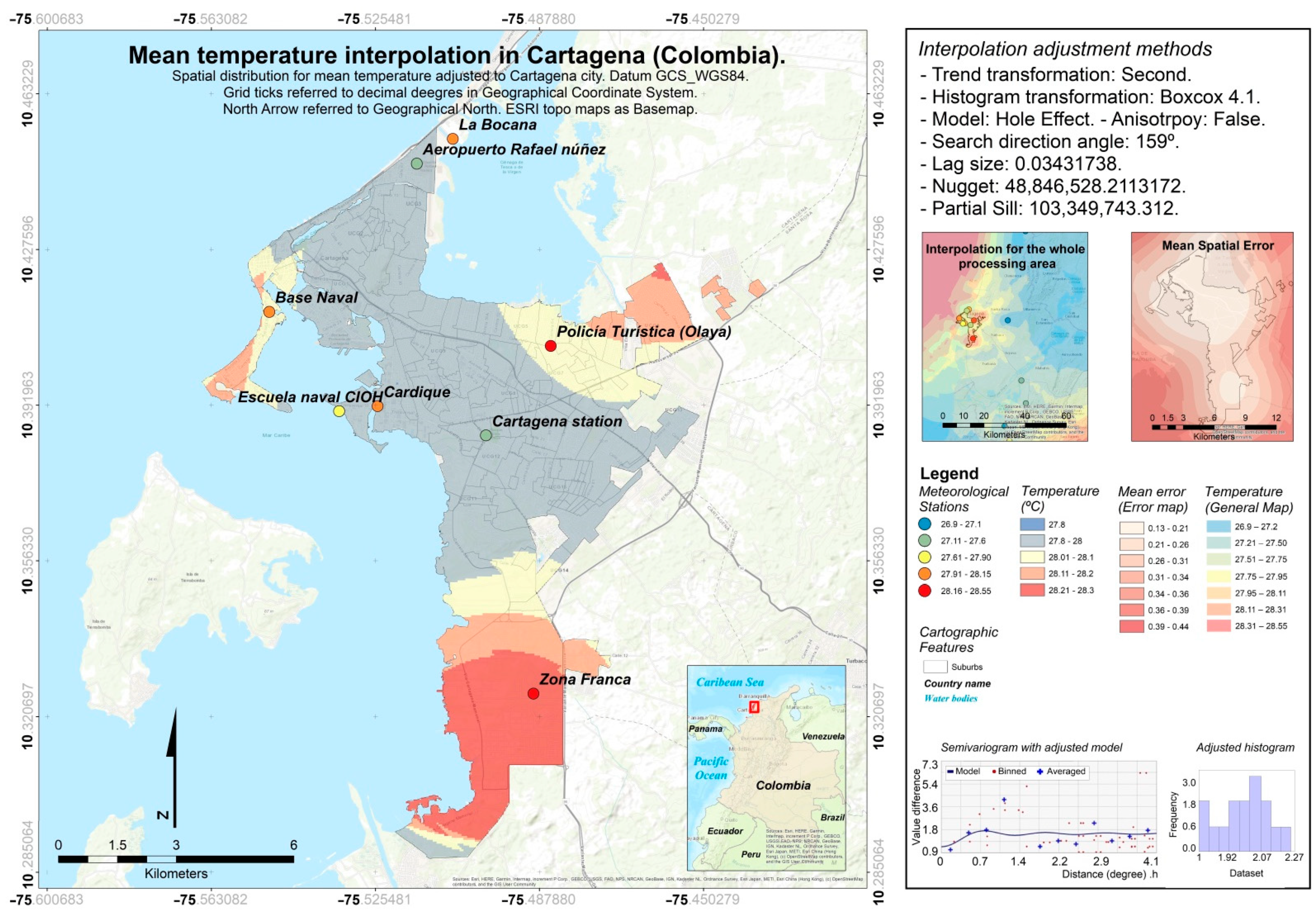

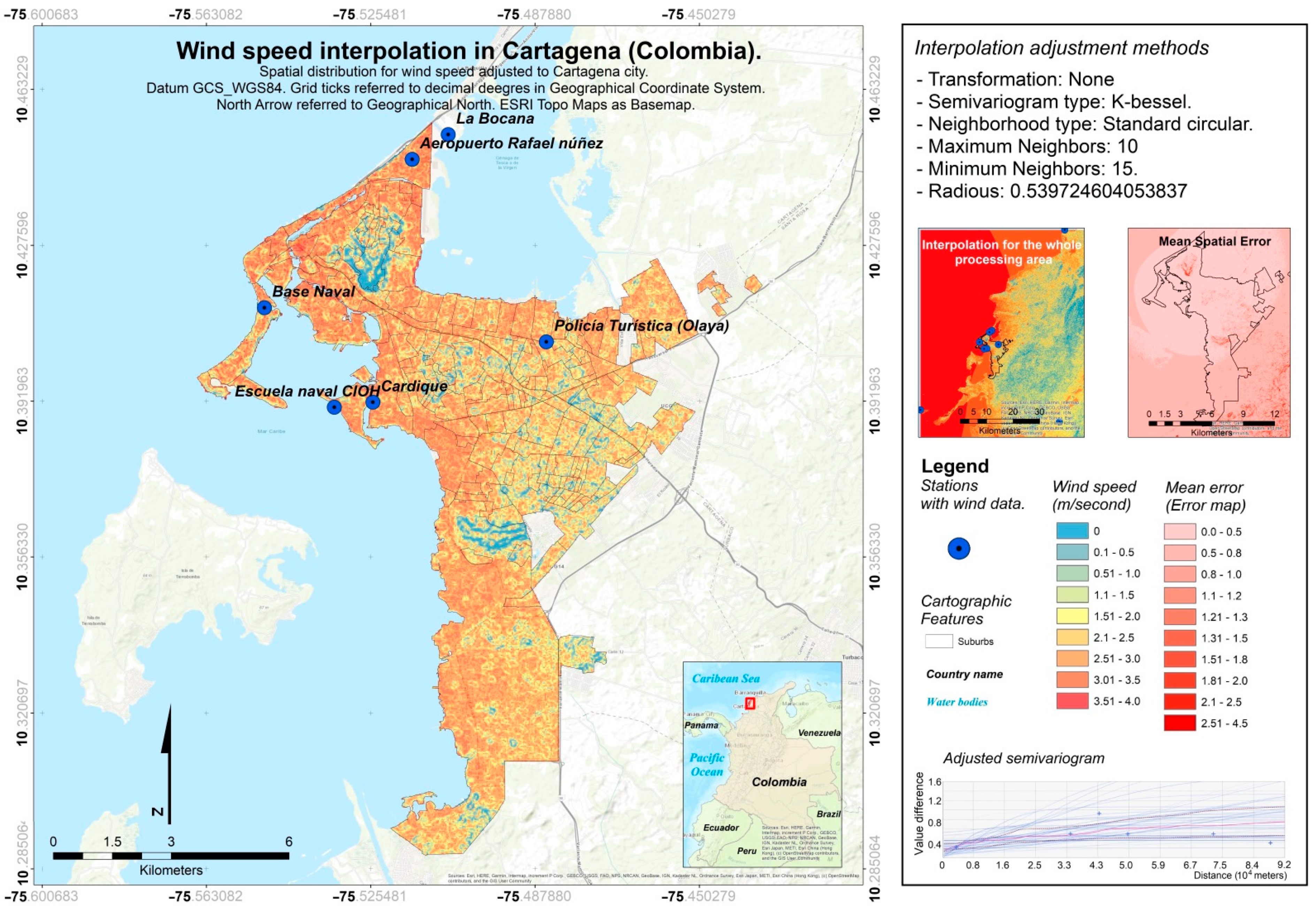

Geostatistical interpolation analyses resolved up to nine different results considering each meteorological and PM2.5 concentration variable, and one result more in the case of IDW. The following figures show the results in a mapping format for the top four variables of this study: mean PM2.5 distribution (Figure 6), average temperature (Figure 7), and wind speed (Figure 8).
The rest of the interpolation results are presented in Table 6, where some basic spatial statistics are adjusted to Cartagena. In turn, the arithmetic mean for each variable is displayed based on the data of all the stations analyzed. The latter value does not include the spatial weight granted by the interpolation.
In the case of mapping meteorological variables, it is possible to observe that RH and temperature parameters were found to be relatively stable and homogeneous throughout the city of Cartagena. The average temperature varied between 27.0 and 28.3 °C, with a slight difference of half a degree Celsius, which was mostly visible between the north and south of the city and between the center and the east and west distal areas. The mean spatial average was 28.01 °C for Cartagena, which was slightly greater than the mean derived from the data series. During the humid season, the spatial average equaled 28.22 °C, which was the same as the data series mean. Some differences were found in the temperature averages during the dry season, where the spatial mean equaled 27.84 °C, whereas the mean from the data series equaled 27.59 °C.
The average RH had the greatest differences among the values found in the city. However, its percentage expression indicates that the differences were also low. This may be indicative of some stability. Humidity in Cartagena seems to increase radially, from the center-west of the city to the north and south ends. The dynamic seems to be associated with its proximity to the open sea, the lowest humidity being in the center of the city due to the existence of the Tierra Bomba island, which blocks the entry of wet air towards Cartagena. In this study, values were found to range from 70.1% to 81%. Some differences can be found in the average spatial values, where the mean was situated at 75.34%, while the mean of the data series was greater at 76.89%. For the dry season, a slight difference of 0.26% was found in the comparison between the mean from the data series and the spatial mean, whereas during the wet season, up to 0.68 of a difference was found between the spatial mean and the data series mean. The wind speed average reached 2.3 m/s for the interpolation calculated, whereas according to the mean from the stations, the value was 1.56 m/s.

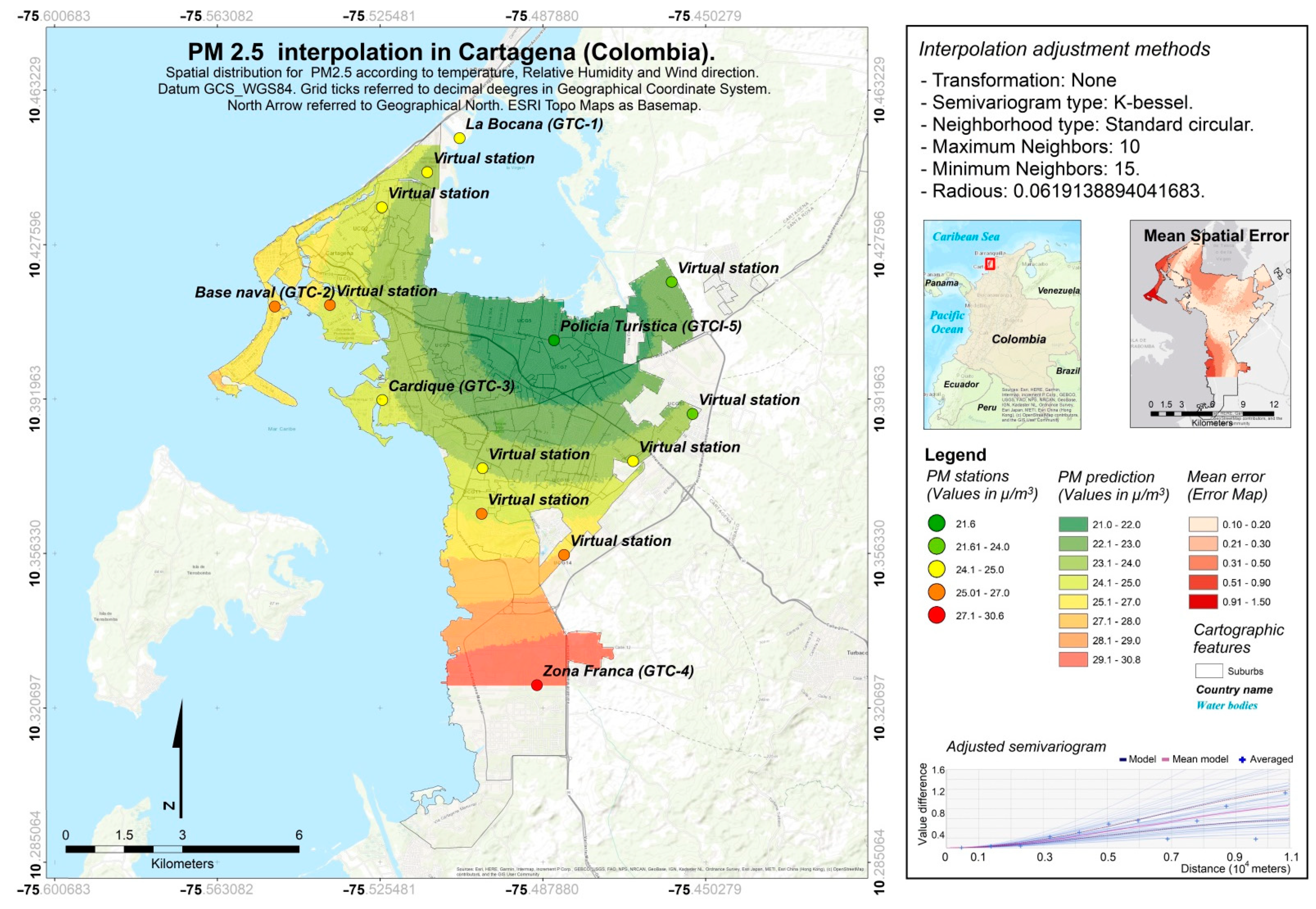

The interpolation of average PM2.5 presented a clear trend of reduction towards the north of the city. In turn, there were relatively high values in the area of Naval Base and Bocagrande. The high PM2.5 values recorded in the south of the city could have been a consequence of the industrial activity that is recorded in this area, whereas the high levels recorded in the northwest may have been due to port activity and the suspension of fine particles from beach areas.

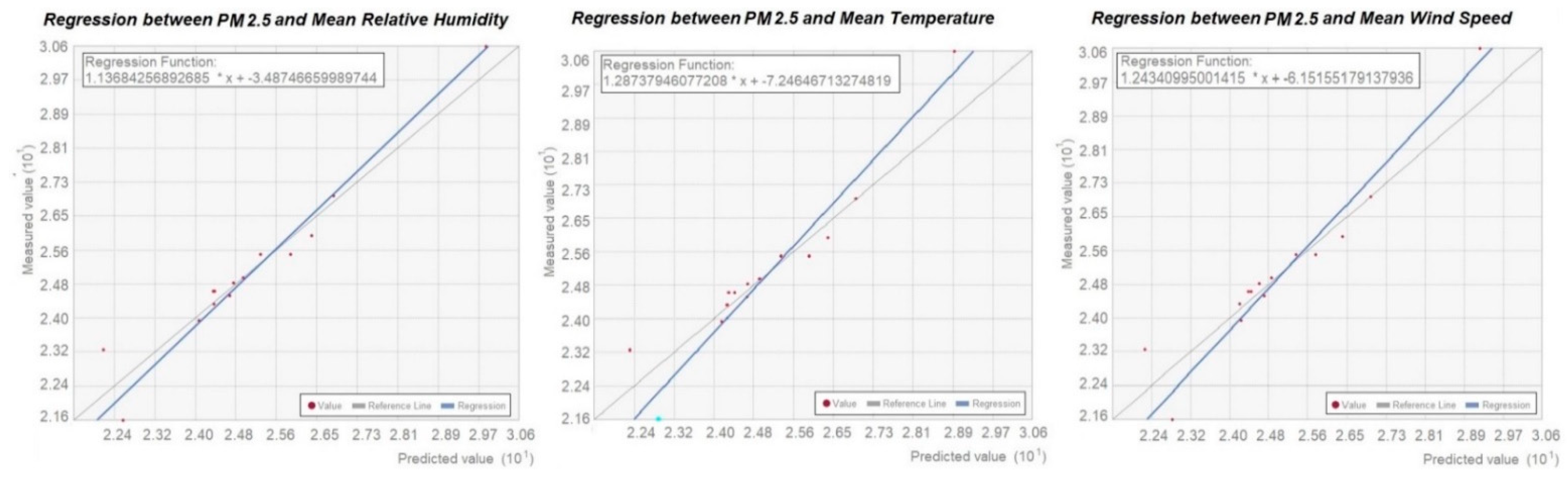

Regressions comparing PM2.5 with each weather variable are shown in Figure 9.
Regression analysis showed relative fitness for the spatial comparison between PM2.5 and mean RH (Figure 9) and slight fitness for the comparison between PM2.5 and mean temperature (Figure 9). Regression analysis also derived root mean square values, which were 0.64 in the case of PM2.5—mean temperature, and 0–47 in the case of PM2.5 and mean RH.
Regression analysis between PM2.5 and mean wind speed is shown in Figure 9. A slight correlation was found between these two parameters, with a root mean square value of 0.59 obtained.
The error between the measured and predicted values ranged from a maximum of 1.28 and a minimum of −0.14, and the standard error ranged from a maximum of 1.53 to a minimum of 0.19 (Table 7).
For spatial errors derived from the spatial standard error maps of PM2.5, the interpolation showed major gaps in the northwestern side of the city (between Avenida Pedro Heredia and the southwestern corner of the Tesca Swamp) and to the southwest of Base Naval Station.

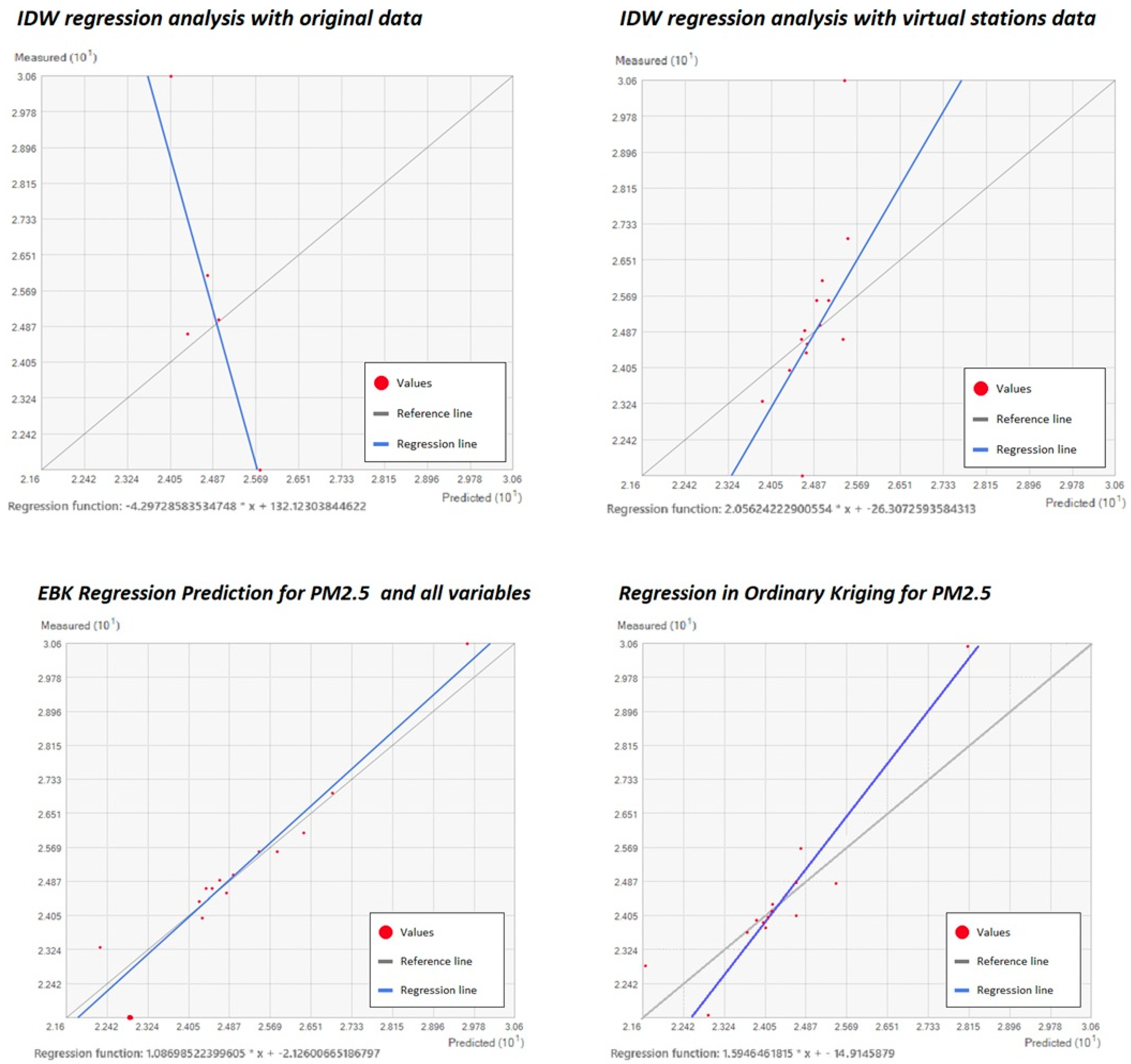

The mean errors for each interpolation method used in this study are shown in Table 8.
When comparing the estimated errors, it can be observed that the method with the lowest error was EBK regression prediction, where the range of errors was between 1.2 and −1.01, and the mean of the estimated error was −0.10. The IDW interpolation method with virtual stations returned an error range of 3.43 to −1.14, with a mean of 1.60. The IDW method with the original stations (without the use of virtual stations) estimated an error of between 4.17 and −6.50, with a mean of 2.46. The ordinary kriging error ranged from 3.88 to −1.76, and the mean error was 0.79.

4. Discussion

The objective of this study was to estimate the PM2.5 concentrations at ground level and the continuous representation in space of essential weather variables. The application of geostatistical calculations led to a spatial characterization of the concentration levels of fine particles and of the temperature, wind direction and relative humidity meteorological variables in Cartagena, presenting a minimal error.
The spatial characterization at the maximum resolution of a particularly toxic pollutant, such as PM2.5, is of great importance for exactly determining the exposed population in urban centers. In the specific case of Cartagena, it was determined that there are three areas that exceed the average concentration limits recommended by the World Health Organization [87] for fine PM2.5. Specifically, high PM2.5 concentration levels were found, through interpolation, in the Base Naval, Centro district and Zona Franca areas. Although a physical–chemical study of fine particles was not conducted, it is assumed that the particle-generating elements are mainly road traffic and industrial activities, because there are no other combustion processes in the city or surrounding areas that may generate this pollutant.
In the case of meteorological variables, continuous temperature, wind speed and relative humidity values were obtained for the first time across the city of Cartagena. Temperature variability across the city was small, although a positive correlation between temperature and PM2.5 values was found. High PM2.5 values coincident with high temperature values were revealed again in the Zona Franca industry area, Centro district and in the Base Naval tourism sector.
Correlations between PM2.5 and wind speed, temperature and relative humidity showed the close influence of those meteorological variables on pollution in Cartagena, and allowed for the creation of highly accurate cartographic products for determining the distribution of PM2.5 in Cartagena de Indias.
As can be seen, the correlation between meteorological variables and PM2.5 was found to be positive; therefore, a direct influence of these variables on the behavior of PM2.5 was expected. Despite this supposed direct influence, the R2 values did not reach values higher than 0.64. This could lead one to thinking that there must also be other variables that are influencing PM2.5 concentrations. These variables could be the wind direction or the distribution of human activities throughout the city (industrial areas and main communication routes), factors that could not be measured in this study. However, it should be remembered that various investigations have found that the meteorological variables of wind speed, temperature and relative humidity exert both positive and negative influences [88].
The positive influences of meteorological variables on PM2.5 can range from the atmospheric stability on days of lower surface temperature [89], periods of weak wind due to the presence of blocking anticyclones [90], and the existence of PM2.5 attached to water vapor during episodes of higher relative humidity [22,91], to the existence of PM2.5 precursors due to greater photochemical reaction during temperature increases [92,93].
The negative influences of meteorological factors on PM2.5 can reduce the spatial correlation and consequently cause a decrease in R2. The negative influences of the meteorological variables on PM2.5 can be higher temperature episodes that lead to greater turbulence and atmospheric convection [94,95], precipitation of PM2.5 aggregates during increases in relative humidity above 70% [22,96], diffusion of PM2.5 due to higher wind speed [97,98,99,100,101,102,103,104,105,106,107,108,109,110,111] and higher evaporation-derived strong winds [98].
In the specific case of Cartagena de Indias, it is possible that the variables that influence the positive relationship are the photochemical reactions due to higher temperatures and the accumulation of PM2.5 due to the low wind intensity. However, the existing high relative humidity (over 70%) may be forming aggregates of PM that precipitate by gravity processes or during rain episodes. In turn, PM2.5 may be reduced by the convective precipitation processes that are common on the Caribbean coast. The combination of all these specific influences would allow for the spatial correlation between PM2.5 and meteorological variables to be moderate, with values between 0.47 and 0.64 expected in the R2.
Some studies of pollutants in Cartagena de Indias found a low linear relationship between the same meteorological variables studied in this article and PM2.5, and with other pollutants such as ozone or PM10 [34] determined that various environmental cofactors (such as humidity, temperature and wind dynamics) did not significantly modify concentrations of PM2.5, or those of other atmospheric pollutants. These results are in contrast to those obtained in this analysis using the spatial and geostatistical correlation methods [34].
Changes in meteorological variables have been found to exert a great influence on PM2.5 levels. Xu et al. [99] found that low wind speed, high relative humidity and low precipitation can lead to an increase of 29–42% of PM2.5 in China. Zhao et al. [21] also found that RH, precipitation and pressure were the most important variables for PM2.5. They also found a good correlation between winter events and higher concentrations of PM2.5, likely derived from heating devices and atmospheric stability. The results of these studies are in line with the main findings of this paper.
The characterization of PM2.5 emissions throughout Cartagena has been measured in various studies [100], corroborating the linkage of PM2.5 with human activities and placing the highest concentrations in the industrial areas or near the main communication routes. Some technical reports of the environmental public body EPA-Cartagena [28] analyzed the spatial distributions of PM2.5 in the city, obtaining a general circular pattern of decreases in PM values near the Cardique station (in the west of the city), whereas to the south of the city, the highest concentrations were found. This distribution is in line with the results obtained in the present study, differing slightly when showing the minimum values of PM2.5, which are located in the northeast of Cartagena.
Though the inverse distance weighting tool did not provide a spatial error estimation in ArcGis 10.5 or ArcGis Pro, the only possible evaluation of each method used was comparing the mean error and predicted values from the interpolation result.
When performing the interpolation with the IDW method and using the virtual stations, the predictive surface corresponding to average values (24–27 μg/m3) was found to increase, reducing the area represented for the lowest values (21–23 μg/m3) and higher ones (27–30 μg/m3). In the case of the IDW interpolation with original values, a large area with average values was also found, fundamentally to the west of the city, whereas the area with higher values, fundamentally to the south of the city (27–30 μg/m3), was found to increase.
The geostatistical approach in this study showed better results than deterministic (non-geostatistical) methods, as can be seen in the errors’ description in Table 8 and Figure 10. The lowest mean error and the lowest range of errors were achieved during the use of the EBK regression prediction tool and ordinary kriging. Therefore, technicians may find the geostatistical approach useful for pollutant interpolations. The reliability of the PM2.5 interpolation method by the EBK regression prediction methodology can be specifically compared with the interpolation by ordinary kriging, where independent meteorological variables were not included. EBK regression prediction also showed more accurate results than ordinary kriging.
Since the error was also very small, it was decided to use the EBK-RP method due to its reduction in error by up to 0.69 points in comparison to ordinary kriging interpolation, or by up to 1.5 in comparison to IDW performed with virtual stations, as can be seen in Table 8.
Certain studies consider that non-geostatistical methods, such as IDW, are an accurate technique for performing the interpolation of meteorological variables [101], and also for particulate matter interpolations [5].
However, some other investigations have determined the benefits of using kriging techniques instead of IDW due to lower spatial error results for pollutants [102,103,104] or when interpolating meteorological variables [101,105].
Interpolation techniques which do not attempt to fit the data to a normal distribution can lead to interpolations with leptokurtic or platykurtic and left-scored histograms in the specific case of Cartagena. These types of distributions can lead to interpolations with discontinuities and so-called “bull-eyes” errors, meaning that no autocorrelation is achieved [106]. These errors can be solved with a geostatistical approach.
Satellite remote sensing related to air quality is one of the methods that has been most developed in recent decades and is likely to be further developed in the coming years [107]. Satellite images can provide an overview of the spatial distribution of PM2.5 or of meteorological variables (excluding wind) with decameter precision. The main advantage of using satellite images is to obtain products with a spatially continuous distribution without the need for interpolation. Research in Colombia has found the measurement of NO2 by satellite image to have a very good correlation (0.91) with ground stations [108].
However, the satellite images used in this method do not have a temporal continuity, being only representations of an exact moment. Measurements at ground stations have the disadvantage of relying on spatial interpolation methods, but also the advantage of collecting measurements with greater temporal continuity.
In Cartagena de Indias, no specific air quality studies have been carried out using satellite images. Certain studies on the scale of the entire Colombian territory (with 1° resolution in latitude) found the Cartagena area to be one of the most polluted cities by PM10 [109], in addition to observing a relationship of this pollutant with vehicular traffic and anthropogenic activities. Other studies in the Bogotá area related 90% increases in PM2.5 and PM10 pollutants to the dry season [110].
Some shortcomings could be pointed out from this study. Estimates of the values between points always have biases because of the sampling method. When the sampling network (in this case the ground stations) is not correctly distributed, over or under estimations could occur.
The distribution of PM2.5 in a city can increase locally due to the presence of certain urban elements, such as unvegetated vacant lots or highways with a high density of road traffic. If there are no stations near these urban elements, the PM may have estimation errors. An erroneous representation can also come from the proximity of a station to one of these elements, interpolating a PM2.5 value corresponding to a small space (such as a sand space without vegetation), which can become a generalized value for a larger space.
There may also be certain shortcomings when relating PM2.5 to meteorological variables. First, comparisons using unique data frames like those of this study can lead to errors by eliminating the comparison with daily variability, which is important for observing correlations in the increase or decrease in PM2.5 values and meteorological changes. Second, the absence of a meteorological network with homogenized data in Cartagena may prevent comparison with variables such as wind direction and may add errors by not allowing for comparisons with humidity and temperature variables during the same period.
Despite these limitations, the data analyzed in the case of Cartagena de Indias are the only data currently existing. It seems that the installation of new stations and the restarting of existing ones will not be taking place in the near future.
Due to the development of this study, improved values were obtained from the considered environmental variables that can be used to provide data to models of the impact of PM2.5 on human health. Estimating health impacts due to air pollutants is complicated in South America due to the absence of homogeneous series of data and the accuracy needed to define the dispersion of air pollutants, a task that may be facilitated through the use of spatial statistics techniques.

5. Conclusions

In this study, the spatial distribution of the pollutant PM2.5 in Cartagena de Indias, Colombia, was analyzed based on different spatial interpolation methods. An attempt to determine the existence of a positive correlation between the spatial distribution of PM2.5 and the spatial distribution of the meteorological variables of mean wind speed, mean temperature and mean relative humidity was undertaken.
Three areas of the city of Cartagena de Indias were found to exceed World Health Organization PM2.5 recommendations: the Zona Franca Industrial area, Centro district, and Base Naval tourism sector.
The relationships between PM2.5 and the meteorological variables showed a positive correlation, with moderately high R2 values. In turn, the relationship between PM2.5 and each variable separately provided estimates with an R2 of 0.47 for the correlation of PM2.5 and mean relative humidity, 0.59 for PM2.5 with mean wind speed, and 0.64 between the mean temperature and PM2.5.
EBK regression prediction proved to be the most accurate tool for obtaining results. The ordinary kriging tool can obtain results with a reduced error but without the possibility of adding independent variables in the estimates. Deterministic (non-geostatistical) methods, such as IDW, result in interpolations with a special representation similar to geostatistical methods, but with a greater error than these.
Therefore, the most reliable methods for mapping the PM2.5 pollutant in Cartagena are geostatistical methods.
Future studies may be related to comparisons between satellite images and PM ground measurements in Cartagena with meteorological variables on a daily scale. A better network for PM measurement, with a greater number of stations (outside and inside the city) and an hourly–daily time scale, is needed in Cartagena de Indias.

Author Contributions

All authors whose names appear on the submission: (1) made substantial contributions to the conception or design of the work; or the acquisition, analysis, or interpretation of data; or the creation of new software used in the work; (2) drafted the work or revised it critically for important intellectual content; (3) approved the version to be published; and (4) agree to be accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. All the authors contributed to the study conception and design. Material preparation, Data curation, Conceptualization and Analysis were performed by J.A.Á.A. and A.F.S.; Resources, E.Q.B.; Supervision, M.S. and J.Ú.P. The first draft of the manuscript was written by J.A.Á.A. and A.F.S. and all authors commented on previous versions of the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by ELARCH scholarship, grant number 552129-EM-1-2014-1-IT-ERAMUNDUS-EMA21. ELARCH is a project funded under the Erasmus Mundus Action 2 Partnership (EMA 2) by the European Commission and coordinated by the University of Basilicata. ELARCH Project: Reference number 552129-EM-1-2014-1-IT-ERAMUNDUS-EMA21 funded with the support of the European Commission.

Institutional Review Board Statement

The study did not required ethical approval. Data considered in the present document are public.

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study.

Data Availability Statement

The dataset used and/or analyzed during the current study are available from the corresponding author on reasonable request.

Acknowledgments

The research has also been made possible thanks to the cooperation of NGO Guías de Espeleología y Montaña (Speleology and Mountain Guides) and Canal de Isabel II (public water supplying institution to Madrid, Spain). Additionally, the authors thank the University of Cartagena for the collaboration and technical support received. This document reflects the view only of the authors, and the Commission cannot be held responsible for any use which may be made of the information contained therein.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Li, J.; Heap, A.D. A Review of Spatial Interpolation Methods for Environmental Scientists; Geoscience Australia: Canberra, Australia, 2008; Volume 23, 137p.
  2. Krivoruchko, K.; Gribov, A. Evaluation of empirical Bayesian kriging. Spat. Stat. 2019, 32, 100368. [Google Scholar] [CrossRef]
  3. Ramos, Y.; St-Onge, B.; Blanchet, J.P.; Smargiassi, A. Spatio-temporal models to estimate daily concentrations of fine particulate matter in Montreal: Kriging with external drift and inverse distance-weighted approaches. J. Expo. Sci. Environ. Epidemiol. 2016, 26, 405–414. [Google Scholar] [CrossRef]
  4. Rivera-González, L.O.; Zhang, Z.; Sánchez, B.N.; Zhang, K.; Brown, D.G.; Rojas-Bracho, L.; O’Neill, M.S. An assessment of air pollutant exposure methods in Mexico City, Mexico. J. Air Waste Manag. Assoc. 2015, 65, 581–591. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Sajjadi, S.A.; Zolfaghari, G.; Adab, H.; Allahabadi, A.; Delsouz, M. Measurement and modeling of particulate matter concentrations: Applying spatial analysis and regression techniques to assess air quality. MethodsX 2017, 4, 372–390. [Google Scholar] [CrossRef] [PubMed]
  6. Shukla, K.; Kumar, P.; Mann, G.S.; Khare, M. Mapping spatial distribution of particulate matter using Kriging and Inverse Distance Weighting at supersites of megacity Delhi. Sustain. Cities Soc. 2020, 54, 101997. [Google Scholar] [CrossRef]
  7. Ma, J.; Ding, Y.; Gan VJ, L.; Lin, C.; Wan, Z. Spatiotemporal Prediction of PM2.5 Concentrations at Different Time Granularities Using IDW-BLSTM. IEEE Access 2019, 7, 107897–107907. [Google Scholar] [CrossRef]
  8. Gu, K.; Zhou, Y.; Sun, H.; Dong, F.; Zhao, L. Spatial distribution and determinants of PM2.5 in China’s cities: Fresh evidence from IDW and GWR. Environ. Monit. Assess. 2021, 193, 15. [Google Scholar] [CrossRef]
  9. Jumaah, H.J.; Ameen, M.H.; Kalantar, B.; Rizeei, H.M.; Jumaah, S.J. Air quality index prediction using IDW geostatistical technique and OLS-based GIS technique in Kuala Lumpur, Malaysia. Geomat. Nat. Hazards Risk 2019, 10, 2185–2199. [Google Scholar] [CrossRef]
  10. Liu, J.; Li, W.; Wu, J. A framework for delineating the regional boundaries of PM2.5 pollution: A case study of China. Environ. Pollut. 2018, 235, 642–651. [Google Scholar] [CrossRef]
  11. Okpoko, J.S.; Audu, H.A.P. Geostatistical Modelling and Mapping of the Concentration of Gaseous Pollutants. Niger. J. Environ. Sci. Technol. 2018, 2, 219–232. [Google Scholar] [CrossRef]
  12. Krivoruchko, K. Spatial Statistical Data Analysis for GIS Users; ESRI Press: Redlands, CA, USA, 2011. [Google Scholar]
  13. Pearce, J.L.; Rathbun, S.L.; Aguilar-Villalobos, M.; Naeher, L.P. Characterizing the spatiotemporal variability of PM2.5 in Cusco, Peru using kriging with external drift. Atmos. Environ. 2009, 43, 2060–2069. [Google Scholar] [CrossRef]
  14. Eslami, A.; Ghasemi, S.M. Determination of the best interpolation method in estimating the concen-tration of environmental air pollutants in Tehran city in 2015. J. Air Pollut. Health 2019, 3, 187–198. [Google Scholar] [CrossRef]
  15. Attorre, F.; Alfo, M.; De Sanctis, M.; Francesconi, F.; Bruno, F. Comparison of interpolation methods for mapping climatic and bioclimatic variables at regional scale. Int. J. Climatol. 2007, 27, 1825–1843. [Google Scholar] [CrossRef] [Green Version]
  16. Ghorbani, M.A.; Mahmoud Alilou, S.; Javidan, S.; Naganna, S.R. Assessment of spatio-temporal variability of rainfall and mean air temperature over Ardabil province, Iran. SN Appl. Sci. 2021, 3, 728. [Google Scholar] [CrossRef]
  17. Ly, S.; Charles, C.; Degré, A. Geostatistical interpolation of daily rainfall at catchment scale: The use of several variogram models in the Ourthe and Ambleve catchments, Belgium. Hydrol. Earth Syst. Sci. 2011, 15, 2259–2274. [Google Scholar] [CrossRef] [Green Version]
  18. Zhang, X.; Srinivasan, R. GIS based Spatial Precipitation Estimation for SWAT. J. Am. Water Resour. Assoc. (JAWRA) 2009, 4, 894–906. [Google Scholar] [CrossRef]
  19. Li, Y.; Chen, Q.; Zhao, H.; Wang, L.; Tao, R. Variations in PM10, PM2.5 and PM1.0 in an urban area of the sichuan basin and their relation to meteorological factors. Atmosphere 2015, 6, 150–163. [Google Scholar] [CrossRef] [Green Version]
  20. Seinfeld, J.H.; Pandis, S.N. Atmospheric Chemistry and Physiscs: From Air Pollution to Climate Change, 2nd ed.; Wiley-Interscience: New York, NY, USA, 2006. [Google Scholar]
  21. Zhao, D.; Chen, H.; Yu, E.; Luo, T. PM2.5/PM10 ratios in eight economic regions and their relationship with meteorology in China. Adv. Meteorol. 2019, 2019, 15. [Google Scholar] [CrossRef] [Green Version]
  22. Wang, J.; Ogawa, S. Effects of meteorological conditions on PM2.5 concentrations in Nagasaki, Japan. Int. J. Environ. Res. Public Health 2015, 12, 9089–9101. [Google Scholar] [CrossRef]
  23. Tai, A.P.K.; Mickley, L.J.; Jacob, D.J.; Leibensperger, E.M.; Zhang, L.; Fisher, J.A.; Pye, H.O.T. Meteorological modes of variability for fine particulate matter (PM2.5) air quality in the United States: Implications for PM2.5 sensitivity to climate change. Atmos. Chem. Phys. 2012, 12, 3131–3145. [Google Scholar] [CrossRef] [Green Version]
  24. Deters, J.; Zalakeviciute, R.; Gonzalez, M.; Rybarczyk, Y. Modeling PM2.5 Urban Pollution Using Machine Learning and Selected Meteorological Parameters. J. Electr. Comput. Eng. 2017, 2017, 5106045. [Google Scholar] [CrossRef] [Green Version]
  25. Akbal, Y.; Ünlü, K.D. A deep learning approach to model daily particular matter of Ankara: Key features and forecasting. Int. J. Environ. Sci. Technol. 2021. [Google Scholar] [CrossRef]
  26. Xing, Y.F.; Xu, Y.H.; Shi, M.H.; Lian, Y.X. The impact of PM2.5 on the human respiratory system. J. Thorac. Dis. 2016, 8, E69–E74. [Google Scholar] [CrossRef] [PubMed]
  27. Hassanvand, M.S.; Naddafi, K.; Kashani, H.; Faridi, S.; Kunzli, N.; Nabizadeh, R.; Yunesian, M. Short-term effects of particle size fractions on circulating biomarkers of inflammation in a panel of elderly subjects and healthy young adults. Environ. Pollut. 2017, 223, 695–704. [Google Scholar] [CrossRef] [PubMed]
  28. EPA; Diana Ribon, R.; Cecilia, M.; Guerrea, H.; Jader Navarro, O.; Méndez Hoyos, S.; Crespo Pájaro, N. Análisis de Resultados de Concentraciones Mensuales Calculo de Indice de Calidad del Aire del año 2014; EPA: Cartagena de Indias, Colombia, 2015.
  29. Briggs, D. Environmental pollution and the global burden of disease. Br. Med. Bull. 2003, 68, 1–24. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  30. Gulia, S.; Shiva Nagendra, S.M.; Khare, M.; Khanna, I. Urban air quality management—A review. Atmos. Pollut. Res. 2015, 6, 286–304. [Google Scholar] [CrossRef] [Green Version]
  31. Hirota, K. Comparative studies on vehicle related policies for air pollution reduction in ten Asian countries. Sustainability 2010, 2, 145–162. [Google Scholar] [CrossRef] [Green Version]
  32. Morawska, L.; Thai, P.K.; Liu, X.; Asumadu-Sakyi, A.; Ayoko, G.; Bartonova, A.; Williams, R. Applications of low-cost sensing technologies for air quality monitoring and exposure assessment: How far have they gone? Environ. Int. 2018, 116, 286–299. [Google Scholar] [CrossRef]
  33. Rai, P.K. Particulate Matter and Its Size Fractionation. In Biomagnetic Monitoring of Particulate Matter; Elsevier: Amsterdam, The Netherlands, 2016; pp. 1–13. [Google Scholar] [CrossRef]
  34. Sánchez, J.; Urrego, J.; Zakzuk, J.; Bornacelly, A.; Castro, I.; Caraballo, L. Niveles de Contaminantes en el aire de Cartagena, Colombia. Rev. Univ. Ind. Santander. Salud 2013, 45, 35–44. [Google Scholar]
  35. Waliser, D.; Gautier, C. A Satellite—Derived Climatology of the ITCZ. J. Clim. 1993, 6, 2162–2175. [Google Scholar] [CrossRef]
  36. Jury, M.R. Northward excursion of the ITCZ across the inter-Americas during boreal summer. Meteorol. Atmos. Phys. 2018, 131, 1357–1366. [Google Scholar] [CrossRef]
  37. CIOH. Climatología y Situaciones Sinópticas en Cartagena de Indias, Colombia; CIOH: Cartagena de Indias, Colombia, 2008. [Google Scholar]
  38. IDEAM, Instituto de Hidrología, Meteorología y Estudios Ambientales. Consulta y Descarga de Datos Meteorológicos. 2021. Available online: http://dhime.ideam.gov.co/atencionciudadano/ (accessed on 20 May 2021).
  39. EPA; Mendez Hoyos, S.; Crespo Pájaro, N.; Navarro, J.O.; Luis Lopez, E. Calidad del Aire de Cartagena 2016; EPA: Cartagena de Indias, Colombia, 2016. Available online: http://airedecalidad.org/calidad-del-aire#uno (accessed on 20 May 2021).
  40. EPA; Luis, S.; Hoyos, M.; Navarro, J.O. Informe Consolidado año 2015 y 2016; EPA: Cartagena de Indias, Colombia, 2017.
  41. EPA. Informe del Sistema de Vigilancia de la Calidad del Aire de Cartagena año 2017; EPA: Cartagena de Indias, Colombia, 2018.
  42. Brook, J.R.; Dann, T.F.; Burnett, R.T. The relationship among TSP, PM10, PM2.5, and inorganic constituents of atmospheric particulate matter at multiple Canadian locations. J. Air Waste Manag. Assoc. 1997, 47, 2–19. [Google Scholar] [CrossRef] [Green Version]
  43. Ortiz-Durán, E.Y.; Rojas-Roa, N.Y. Estimación de los beneficios económicos en salud asociados a la reducción de PM10 en Bogotá. Rev. Salud Publica 2013, 15, 90–102. [Google Scholar]
  44. Duan, J.; Chen, Y.; Fang, W.; Su, Z. Characteristics and relationship of PM, PM10, PM2.5 concentration in a polluted city in northern China. Procedia Eng. 2015, 102, 1150–1155. [Google Scholar] [CrossRef] [Green Version]
  45. ASTER GDEM 2—Advanced spaceborne thermal emission and reflection radiometer (Aster) global digital elevation model (GDEM) Version 2—2011. METI, ERSDAC, NASA, EOS, EOSDIS, LP, DAAC. 2011. Available online: https://lpdaac.usgs.gov/products/astgtmv002/ (accessed on 20 May 2021).
  46. RStudio Team. RStudio|Open Source & Professional Software for Data Science Teams; RStudio: Boston, MA, USA, 2015. [Google Scholar]
  47. Guerra, S.A.; Lane, D.D.; Marotz, G.A.; Carter, R.E.; Hohl, C.M.; Baldauf, R.W. Effects of wind direction on coarse and fine particulate matter concentrations in southeast Kansas. J. Air Waste Manag. Assoc. 2006, 56, 1525–1531. [Google Scholar] [CrossRef] [Green Version]
  48. Liu, Z.; Shen, L.; Yan, C.; Du, J.; Li, Y.; Zhao, H. Analysis of the Influence of Precipitation and Wind on PM2.5 and PM10 in the Atmosphere. Adv. Meteorol. 2020, 2020, 5039613. [Google Scholar] [CrossRef]
  49. Zhang, B.; Jiao, L.; Xu, G.; Zhao, S.; Tang, X.; Zhou, Y.; Gong, C. Influences of wind and precipitation on different-sized particulate matter concentrations (PM2.5, PM10, PM2.5–10). Meteorol. Atmos. Phys. 2018, 130, 383–392. [Google Scholar] [CrossRef]
  50. Kethireddy, S.R.; Tchounwou, P.B.; Ahmad, H.A.; Yerramilli, A.; Young, J.H. Geospatial interpolation and mapping of tropospheric ozone pollution using geostatistics. Int. J. Environ. Res. Public Health 2014, 11, 983–1000. [Google Scholar] [CrossRef]
  51. Koo, H.; Chun, Y.; Griffith, D.A. Integrating spatial data analysis functionalities in a GIS environment: Spatial Analysis using ArcGIS Engine and R (SAAR). Trans. GIS 2018, 22, 721–736. [Google Scholar] [CrossRef]
  52. Goovaerts, P. Using elevation to aid the geostatistical mapping of rainfall erosivity. Catena 1999, 34, 227–242. [Google Scholar] [CrossRef]
  53. Huang, F.; Li, X.; Wang, C.; Xu, Q.; Wang, W.; Luo, Y.; Guo, X. PM2.5 spatiotemporal variations and the relationship with meteorological factors during 2013–2014 in Beijing, China. PLoS ONE 2015, 10, e0141462. [Google Scholar] [CrossRef] [PubMed]
  54. Jeong, D.I.; St-Hilaire, A.; Gratton, Y.; Bélanger, C.; Saad, C. A guideline to select an estimation model of daily global solar radiation between geostatistical interpolation and stochastic simulation approaches. Renew. Energy 2017, 103, 70–80. [Google Scholar] [CrossRef] [Green Version]
  55. Ozelkan, E.; Bagis, S.; Ozelkan, E.C.; Ustundag, B.B.; Yucel, M.; Ormeci, C. Spatial interpolation of climatic variables using land surface temperature and modified inverse distance weighting. Int. J. Remote Sens. 2015, 36, 1000–1025. [Google Scholar] [CrossRef]
  56. Xu, H.; Bechle, M.J.; Wang, M.; Szpiro, A.A.; Vedal, S.; Bai, Y.; Marshall, J.D. National PM2.5 and NO2 exposure models for China based on land use regression, satellite measurements, and universal kriging. Sci. Total. Environ. 2019, 655, 423–433. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  57. ESRI. ArcGISTM Geostatistical Analyst: Statistical Tools for Data Exploration, Modeling, and Advanced Surface Generation. ESRI White Papers; ESRI: Redlands, CA, USA, 2001. [Google Scholar]
  58. Saz-Sánchez, M.; Serrano-Novitoli, R.; Luis-Arrillaga, M.; Longares-Alardén, L. Comparación de métodos de interpolación y de regresión para la cartografía de temperaturas máximas y mínimas absolutas: El caso de Navarra (Norte de España) en 2009. In Proceedings of the Conference in VII Congreso AEC: Clima, Ciudad y Ecosistemas, Madrid, Spain, 24–26 November 2010. [Google Scholar]
  59. ESRI. ArcGIS Desktop 10.5 ArcGIS Desktop; ESRI: Redlands, CA, USA, 2016. [Google Scholar]
  60. ESRI. ArcGIS PRO: Essential Workflows; ESRI: Redlands, CA, USA, 2016. [Google Scholar]
  61. Beaulant, A.L.; Perron, G.; Kleinpeter, J.; Weber, C.; Ranchin, T.; Wald, L. Adding virtual measuring stations to a network for urban air pollution mapping. Environ. Int. 2008, 34, 599–605. [Google Scholar] [CrossRef] [Green Version]
  62. Narashid, R.H.; Wan Mohd, W.M.N. Air quality monitoring using remote sensing and GIS technologies. In Proceedings of the 2010 International Conference on Science and Social Research (CSSR 2010), Kuala Lumpur, Malaysia, 5–8 December 2010. [Google Scholar] [CrossRef]
  63. Dobesch, H.; Dumolard, P.; Dyras, I. Spatial Interpolation for Climate Data: The Use of GIS in Climatology and Meteorology; ISTE: Eugene, OR, USA, 2010. [Google Scholar] [CrossRef]
  64. Franco, B.M.; Hernández-Callejo, L.; Navas-Gracia, L.M. Virtual weather stations for meteorological data estimations. Neural Comput. Appl. 2020, 32, 12801–12812. [Google Scholar] [CrossRef]
  65. World Meteorological Organization. Climate Data and Monitoring. Budapest: Ninth Seminar for Homogenization and Quality Control in Climatological Databases and Fourth Conference on Spatial Interpolation Techniques in Climatology and Meteorology. 2017. Available online: https://library.wmo.int/index.php?lvl=notice_display&id=20745#.YOxROj1xdEY (accessed on 12 July 2021).
  66. Galbraith, S. Applied Missing Data Analysis by Craig K Enders. Aust. N. Z. J. Stat. 2012, 54, 251. [Google Scholar] [CrossRef]
  67. Paulhus, J.L.H.; Köhler, M.A. Interpolation of missing precipitation records. Mon. Weather Rev. 1952, 80, 129–133. [Google Scholar] [CrossRef] [Green Version]
  68. Thapa, R.B.; Estoque, R.C. Geographically weighted regression in geospatial analysis. In Progress in Geospatial Analysis; Springer: Berlin/Heidelberg, Germany, 2012. [Google Scholar] [CrossRef]
  69. Yan, L. Distance decay. In Encyclopedia of Tourism; Springer International Publishing: Cham, Switzerland, 2016; pp. 263–264. [Google Scholar] [CrossRef]
  70. Tobler, W. Three Presentations on Geographical Analysis and Modeling: Non-Isotropic Geographic Modeling; Speculations on the Geometry of Geography Global Spatial Analysis (93-1); Technical Report; National Center for Geographic Information and Analysis: New York, NY, USA, 1993. [Google Scholar]
  71. Zhu, A.; Lu, G.; Liu, J.; Qin, C.; Zhou, C. Spatial prediction based on Third Law of Geography. Ann. GIS 2018, 24, 225–240. [Google Scholar] [CrossRef]
  72. Zhang, Y. Introduction to Geostatistics—Course Notes; Course Notes; University of Wyoming: Laramie, WY, USA, 2011. [Google Scholar]
  73. Pellicone, G.; Caloiero, T.; Modica, G.; Guagliardi, I. Application of several spatial interpolation techniques to monthly rainfall data in the Calabria region (southern Italy). Int. J. Climatol. 2018, 38, 3651–3666. [Google Scholar] [CrossRef]
  74. Giraldo, R. Introducción a la Geoestadística; Universidad Nacional de Colombia: Bogotá, Colombia, 2003. [Google Scholar]
  75. Tyagi, A.; Singh, P. Applying Kriging Approach on Pollution Data Using Gis Software. Int. J. Environ. Eng. Manag. 2013, 4, 185–190. [Google Scholar]
  76. Ali, G.; Sajjad, M.; Kanwal, S.; Xiao, T.; Khalid, S.; Shoaib, F.; Gul, H.N. Spatial–temporal characterization of rainfall in Pakistan during the past half-century (1961–2020). Sci. Rep. 2021, 11, 6935. [Google Scholar] [CrossRef] [PubMed]
  77. Krivoruchko, K.; ESRI. Empirical Bayesian Kriging Implemented in ArcGIS Geostatistical Analyst. Shanghai Jiaotong Daxue Xuebao/J. Shanghai Jiaotong Univ. 2012, 5, 1–5. [Google Scholar]
  78. Mallik, S.; Bhowmik, T.; Mishra, U.; Paul, N. Mapping and prediction of soil organic carbon by an advanced geostatistical technique using remote sensing and terrain data. Geocarto Int. 2020, 1, 17. [Google Scholar] [CrossRef]
  79. Requia, W.J.; Coull, B.A.; Koutrakis, P. The influence of spatial patterning on modeling PM2.5 constituents in Eastern Massachusetts. Sci. Total. Environ. 2019, 682, 247–258. [Google Scholar] [CrossRef]
  80. Raupach, M.R.; Finnigan, J.J. The influence of topography on meteorological variables and surface-atmosphere interactions. J. Hydrol. 1997, 190, 182–213. [Google Scholar] [CrossRef]
  81. Rouf, T.; Mei, Y.; Maggioni, V.; Houser, P.; Noonan, M. A physically based atmospheric variables downscaling technique. J. Hydrometeorol. 2020, 21, 93–108. [Google Scholar] [CrossRef]
  82. Chilès, J.P.; Delfiner, P. Geostatistics: Modeling Spatial Uncertainty, 2nd ed.; Wiley: Hoboken, NJ, USA, 2012. [Google Scholar] [CrossRef]
  83. Walker, R.T. Geography, Von Thünen, and Tobler’s First Law: Tracing the Evolution of A Concept. Geogr. Rev. 2021, 1–17. [Google Scholar] [CrossRef]
  84. Tobler, W. A Computer Movie Simulating Urban Growth in the Detroit Region. Proc. Int. Geogr. Union Comm. Quant. Methods 1970, 46, 234–240. [Google Scholar] [CrossRef]
  85. Schaum, A. Principles of local polynomial interpolation. In Proceedings of the 37th IEEE Applied Imagery Pattern Recognition Workshop, Washington, DC, USA, 15–17 October 2008. [Google Scholar] [CrossRef]
  86. ESRI. Performing Cross-Validation and Validation. Available online: https://desktop.arcgis.com/es/arcmap/latest/extensions/geostatistical-analyst/performing-cross-validation-and-validation.htm (accessed on 12 July 2021).
  87. World Health Organization. WHO global air quality guidelines. In Coastal and Estuarine Processes; World Health Organization (WHO): Bonn, Germany, 2021. Available online: https://apps.who.int/iris/handle/10665/345329 (accessed on 5 February 2022).
  88. Chen, Z.; Chen, D.; Zhao, C.; Kwan M po Cai, J.; Zhuang, Y.; Xu, B. Influence of meteorological conditions on PM2.5 concentrations across China: A review of methodology and mechanism. Environ. Int. 2020, 139, 105558. [Google Scholar] [CrossRef]
  89. Wang Jun Hu, Z.; Chen, Y.; Chen, Z.; Xu, S. Contamination characteristics and possible sources of PM10 and PM2.5 in different functional areas of Shanghai, China. Atmos. Environ. 2013, 68, 221–229. [Google Scholar] [CrossRef]
  90. Yang, Y.; Liao, H.; Lou, S. Decadal trend and interannual variation of outflow of aerosols from East Asia: Roles of variations in meteorological parameters and emissions. Atmos. Environ. 2015, 100, 141–153. [Google Scholar] [CrossRef]
  91. Cheng, L.X.; Fan, M.; Chen, L.F.; Jiang, T.; Su, L. Effects on the haze pollution from autumn crop residue burning over the Jing-Jin-Ji Region. Zhongguo Huanjing Kexue/China Environ. Sci. 2017, 37, 2801–2812. [Google Scholar]
  92. Dhaka, S.K.; Chetna Kumar, V.; Panwar, V.; Dimri, A.P.; Singh, N.; Hayashida, S. PM2.5 diminution and haze events over Delhi during the COVID-19 lockdown period: An interplay between the baseline pollution and meteorology. Sci. Rep. 2020, 10, 13442. [Google Scholar] [CrossRef] [PubMed]
  93. Jian, L.; Zhao, Y.; Zhu, Y.P.; Zhang, M.B.; Bertolatti, D. An application of ARIMA model to predict submicron particle concentrations from meteorological factors at a busy roadside in Hangzhou, China. Sci. Total. Environ. 2012, 426, 336–345. [Google Scholar] [CrossRef] [PubMed]
  94. Qiu, D.; Liu, J.; Zhu, L.; Mo, L.; Zhang, Z. Particulate matter assessment of a wetland in Beijing. J. Environ. Sci. China 2015, 36, 93–101. [Google Scholar] [CrossRef]
  95. Yang, X.; Zhao, C.; Zhou, L.; Wang, Y.; Liu, X. Distinct impact of different types of aerosols on surface solar radiation in China. J. Geophys. Res. 2016, 121, 6459–6471. [Google Scholar] [CrossRef]
  96. Li, J.; Chen, H.B.; Li, Z.Q.; Wang, C.P.; Cribb, M.; Fan, X.H. Low-level temperature inversions and their effect on aerosol condensation nuclei concentrations under different large-scale synoptic circulations. Adv. Atmos. Sci. 2015, 32, 898–908. [Google Scholar] [CrossRef]
  97. Zhang, Z.; Gong, D.; Mao, R.; Kim, S.J.; Xu, J.; Zhao, X.; Ma, Z. Cause and predictability for the severe haze pollution in downtown Beijing in November–December 2015. Sci. Total. Environ. 2017, 592, 627–638. [Google Scholar] [CrossRef]
  98. Han, J.; Wang, J.; Zhao, Y.; Wang, Q.; Zhang, B.; Li, H.; Zhai, J. Spatio-temporal variation of potential evapotranspiration and climatic drivers in the Jing-Jin-Ji region, North China. Agric. For. Meteorol. 2018, 256–257, 75–83. [Google Scholar] [CrossRef]
  99. Xu, Y.; Xue, W.; Lei, Y.; Zhao, Y.; Cheng, S.; Ren, Z.; Huang, Q. Impact of meteorological conditions on PM2.5 pollution in China during winter. Atmosphere 2018, 9, 429. [Google Scholar] [CrossRef] [Green Version]
  100. Álvarez Aldegunde, J.A.; Álvarez, V.; Quiñones Bolaños, E.; Saba, M.; Herrera Atencio, C. Estimation of the Vehicle Emission Factor in Different Areas of Cartagena de Indias. Rev. Cienc. 2020, 23, 53–74. [Google Scholar] [CrossRef]
  101. Hsu, S.; Mavrogianni, A.; Hamilton, I. Comparing Spatial Interpolation Techniques of Local Urban Temperature for Heat-related Health Risk Estimation in a Subtropical City. Procedia Eng. 2017, 198, 354–365. [Google Scholar] [CrossRef]
  102. Rahmatizadeh, S.; Zarandi, S.M. Air Pollution Modeling with Geostatistical Analysis. In Proceedings of the Map India Conference 2006, New Delhi, India, 30 January–1 February 2006. [Google Scholar]
  103. Gholizadeh, A.; Neshat, A.A.; Conti, G.O.; Ghaffari, H.R.; Aval, H.E.; Almodarresi, S.A.; Miri, M. PM2.5 concentration modeling and mapping in the urban areas. Model. Earth Syst. Environ. 2019, 5, 897–906. [Google Scholar] [CrossRef]
  104. Knudsen, H.P.; Lefohn, A.S. The use of geostatistics to characterize regional ozone exposures. In Assessment of Crop Loss from Air Pollutants; Tingey, D.T., Heck, W.W., Taylor, O.C., Eds.; Springer: Dordrecht, The Netherlands, 1988; pp. 91–105. [Google Scholar] [CrossRef]
  105. Álvarez, J.; Estrela Monreal, T.; Llasat Botija, M.d.C. Estimación de la Distribución espacial de la Precipitación en zonas Montañosas Mediante Métodos Geoestadísticos. Ph.D. Thesis, E.T.S.I. Caminos, Canales y Puertos, Madrid, Spain, 2011. [Google Scholar]
  106. Norton, M.; Boucher, S.; Chiu, L.V. Geostatistics, Basis Risk and Weather Index Insurance. In Research in Agricultural and Applied Economics, Proceedings of the 2015 AAEA & WAEA Joint Annual Meeting, 26–28 July 2015; Agricultural and Applied Economics Association: San Francisco, CA, USA, 2015; pp. 1–13. [Google Scholar] [CrossRef]
  107. Holloway, T.; Miller, D.; Anenberg, S.; Diao, M.; Duncan, B.; Fiore, A.M.; Zondlo, M.A. Satellite Monitoring for Air Quality and Health. Annu. Rev. Biomed. Data Sci. 2021, 4, 417–447. [Google Scholar] [CrossRef]
  108. Grajales, J.F.; Baquero-Bernal, A. Inference of surface concentrations of nitrogen dioxide (NO2) in Colombia from tropospheric columns of the ozone measurement instrument (OMI). Atmosfera 2014, 27, 193–214. [Google Scholar] [CrossRef] [Green Version]
  109. Guevara, M.; Guevara, F.; Méndez, J.; Belalcázar, L. Spatial and temporal evaluation of PM10 and PM2.5 in Colombia using satellite information (CAMS, MODIS-AOD) and surface air quality measurements. In Proceedings of the 2019 Congreso Colombiano y Conferencia Internacional de Calidad de Aire y Salud Pública (CASP), Bogotá, Colombia, 14–16 August 2019. [Google Scholar] [CrossRef]
  110. Aragón-Moreno JA, A.; Martínez LI, E.; Garzón PA, C. An approach for the identification of particulate matter in the clouds of bogotá using satellite imagery analysis. Ing. Univ. 2019, 2, 23. [Google Scholar] [CrossRef] [Green Version]
  111. Zhang, H.; Zhan, Y.; Li, J.; Chao, C.Y.; Liu, Q.; Wang, C.; Jia, S.; Ma, L.; Biswas, P. Using Kriging incorporated with wind direction to investigate ground-level PM2.5 concentration. Sci. Total Environ. 2021, 751, 141813. [Google Scholar] [CrossRef] [PubMed]
Atmosphere 13 00506 g001 550
Figure 1. Workflow of the present study.
Figure 1. Workflow of the present study.
Atmosphere 13 00506 g001
Atmosphere 13 00506 g002 550
Figure 2. Location of the stations used in this study.
Figure 2. Location of the stations used in this study.
Atmosphere 13 00506 g002
Atmosphere 13 00506 g003 550
Figure 3. Transformed histograms for mean RH and mean temperature.
Figure 3. Transformed histograms for mean RH and mean temperature.
Atmosphere 13 00506 g003
Atmosphere 13 00506 g004 550
Figure 4. Adjusted semivariograms for PM2.5 and mean wind speed.
Figure 4. Adjusted semivariograms for PM2.5 and mean wind speed.
Atmosphere 13 00506 g004
Atmosphere 13 00506 g005 550
Figure 5. Transformed semivariograms for mean temperature and mean relative humidity.
Figure 5. Transformed semivariograms for mean temperature and mean relative humidity.
Atmosphere 13 00506 g005
Atmosphere 13 00506 g006 550
Figure 6. Improved spatial distribution of mean PM2.5 (µg/m3) in Cartagena (Colombia).
Figure 6. Improved spatial distribution of mean PM2.5 (µg/m3) in Cartagena (Colombia).
Atmosphere 13 00506 g006
Atmosphere 13 00506 g007 550
Figure 7. Spatial distribution of mean temperatures (°C) in Cartagena (Colombia).
Figure 7. Spatial distribution of mean temperatures (°C) in Cartagena (Colombia).
Atmosphere 13 00506 g007
Atmosphere 13 00506 g008 550
Figure 8. Wind speed interpolation (m/s) in Cartagena (Colombia).
Figure 8. Wind speed interpolation (m/s) in Cartagena (Colombia).
Atmosphere 13 00506 g008
Atmosphere 13 00506 g009 550
Figure 9. Regression analysis between PM2.5 and temperature, wind speed and relative humidity.
Figure 9. Regression analysis between PM2.5 and temperature, wind speed and relative humidity.
Atmosphere 13 00506 g009
Atmosphere 13 00506 g010 550
Figure 10. Errors for PM2.5 in the different interpolation processes.
Figure 10. Errors for PM2.5 in the different interpolation processes.
Atmosphere 13 00506 g010
Table
Table 1. Meteorological stations used in the present study.
Table 1. Meteorological stations used in the present study.
Station NameVariablePeriodSource
Base NavalT, W and RH2014–2015EPA-Cartagena
CardiqueT, W and RH2014–2015EPA-Cartagena
Policía Turística (Olaya)T, W and RH2014–2015EPA-Cartagena
Zona FrancaT and RH2014–2015EPA-Cartagena
La BocanaT, W and RH2014–2015EPA-Cartagena
Escuela naval CIOHT, W and RH1972–2000CIOH *
Aeropuerto Rafael núñezT, W and RH1971–2000IDEAM **
CañaveralTemperature1985–2019IDEAM
SincerinT, W and RH1971–2021IDEAM
Carmen de BolivarT, W and RH1971–2021IDEAM
Monterrey forestallTemperature1971–2000IDEAM
San PabloT and RH1971–2000IDEAM
El GuamoT and RH1971–2021IDEAM
GalerazambaT, W and RH1971–2000IDEAM
HOBO-AutomaticoRH2020IDEAM
Cartagena UniversityRH2020–2021IDEAM
Presa Ay GrandeT and RH1971–2000IDEAM
Nueva floridaT and RH1971–2000IDEAM
Cartagena stationT and RHJanuary 2021IDEAM
Islas del RosarioT, W and RH1971–2000IDEAM
Oasis de Jacquin f.T and RH2019–2021Oasis de Jacquin NGO
Note: * CIOH-Centro de Investigaciones Oceanográficas e Hidrográficas; ** IDEAM-Instituto Colombiano de Hidrología, Meteorología y Estudios Ambientales. “T” means temperature, “W” means wind speed and “RH” means relative humidity.
Table
Table 2. List of measurement station locations and measured particulate types.
Table 2. List of measurement station locations and measured particulate types.
NameCodeCoordinate X (Decimal Degrees)Coordinate Y (Decimal Degrees)Measure
CardiqueGTC310.391716−75.525014PM2.5
La BocanaGTC110.452916−75.50775PM10
Base NavalGTC210.413333−75.549825PM2.5 & PM10
Zona Franca (Mamonal)GTC410.32598−75.48929PM2.5 & PM10
Policía turística (Olaya)GTCI510.405539−75.485317PM10
Table
Table 3. Descriptive statistics of the main studied variables.
Table 3. Descriptive statistics of the main studied variables.
VariableMin–MaxMeanSD
Temperature (°C)8.50–39.527.870.86
Relative Humidity (%)46.96–89.6174.207.86
Wind Speed (m/s)0.00–11.42.111.33
PM2.5 (μg/m3)13.60–52.7025.647.36
SD = Standard Deviation.
Table
Table 4. Variogram model parameter deviations of the main studied variables.
Table 4. Variogram model parameter deviations of the main studied variables.
VariableRangeSillNuggetLag Size
Temperature1.281291.97000.15717290.1067742
Relative Humidity0.012810.01970.15717290.1067742
Wind Speed3.370001.70000.3410.22742806
PM2.50.006100.34600.001390.00699759
Table
Table 5. Data setting and parameters used for interpolation of each variable. OK means ordinary Kriging and “EBK-RP” means empirical Bayesian kriging regression prediction.
Table 5. Data setting and parameters used for interpolation of each variable. OK means ordinary Kriging and “EBK-RP” means empirical Bayesian kriging regression prediction.
Interpolated VariableTypeHistogramSearch DirectionModelNuggetLag
Mean TemperatureOKBox–Cox 4.1199.5°Hole effect46,846,5280.0343
Humid season TemperatureOKBox–Cox 6113.9°Gaussian66,517,332,6210.0444
Dry season TemperatureOKNo transformation54.1°Gaussian0.0331168300.0608
Humid season RHOKBox–Cox 0.5296.8°Gaussian0.000060.2165
Dry season RHOKBox–Cox 5.0278.9°J-Bessel2,439,4540.0049
Mean relative humidityOKBox–Cox 0.130.7°Hole effect0.00010.1032
Mean PM2.5EBK-RP--------K-Bessel--------
Dry season PM2.5OKBox–Cox 0.5198°Gaussian0.003250.0144
Humid Season PM2.5OKLogarithmic126.9°J-Bessel0.000120.0132
Mean Wind SpeedEBK-RP-------K-Bessel--------
Table
Table 6. Results of the interpolations.
Table 6. Results of the interpolations.
Interpolated VariableMean Spatial ValueMean Spatial ErrorStandard DeviationMean (from Stations Only)
Mean temperature (°C)28.010.390.1328
Humid season temperature (°C)28.220.460.3428.22
Dry season temperature (°C)27.840.430.3427.59
Mean relative humidity (%)75.344.362.8776.89
Humid season RH (%)75.320.11.2476.05
Mean PM2.5 (µg/m3)24.80.572.0225.8
Dry season PM2.5 (µg/m3)25.720.4312.4126.44
Humid season PM2.5 (µg/m3)23.030.391.624.08
Note. Units: temperature (°C), relative humidity (%), PM2.5 (µg/m3).
Table
Table 7. Table of errors in PM2.5 stations (µg/m3).
Table 7. Table of errors in PM2.5 stations (µg/m3).
StationMeasured PM2.5PredictedErrorStandard Error
Cardique25.0324.93−0.090.51
Base Naval26.0426.350.310.61
Policía Turística21.622.871.280.69
Zona Franca30.629.64−0.951.53
La Bocana24.724.4−0.290.29
Virtual Station24.424.25−0.140.35
Virtual Station23.322.26−1.030.96
Virtual Station24.924.67−0.220.28
Virtual Station2726.93−0.060.46
Virtual Station25.625.830.230.35
Virtual Station24.0124.320.310.51
Virtual Station24.724.51−0.180.31
Virtual Station24.624.80.200.19
Virtual Station25.625.46−0.130.31
Table
Table 8. Mean errors for each interpolation method.
Table 8. Mean errors for each interpolation method.
MethodMaximum ErrorMinimum ErrorMean Error
IDW (Original)4.17−6.52.46
IDW (Virtual)3.43−1.141.6
Ordinary Kriging3.88−1.760.79
EBK-Regression Prediction1.28−1.01−0.1
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Aldegunde, J.A.Á.; Sánchez, A.F.; Saba, M.; Bolaños, E.Q.; Palenque, J.Ú. Analysis of PM2.5 and Meteorological Variables Using Enhanced Geospatial Techniques in Developing Countries: A Case Study of Cartagena de Indias City (Colombia). Atmosphere 2022, 13, 506. https://doi.org/10.3390/atmos13040506

AMA Style

Aldegunde JAÁ, Sánchez AF, Saba M, Bolaños EQ, Palenque JÚ. Analysis of PM2.5 and Meteorological Variables Using Enhanced Geospatial Techniques in Developing Countries: A Case Study of Cartagena de Indias City (Colombia). Atmosphere. 2022; 13(4):506. https://doi.org/10.3390/atmos13040506

Chicago/Turabian Style

Aldegunde, José Antonio Álvarez, Adrián Fernández Sánchez, Manuel Saba, Edgar Quiñones Bolaños, and José Úbeda Palenque. 2022. "Analysis of PM2.5 and Meteorological Variables Using Enhanced Geospatial Techniques in Developing Countries: A Case Study of Cartagena de Indias City (Colombia)" Atmosphere 13, no. 4: 506. https://doi.org/10.3390/atmos13040506

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
