A Study of False Alarms of a Major Sudden Stratospheric Warming by Real-Time Subseasonal-to-Seasonal Forecasts for the 2017/2018 Northern Winter

Abstract

This study investigates false alarms of a major sudden stratospheric warming (MSSW) by real-time subseasonal-to-seasonal forecast data of the European Centre for Medium-Range Weather Forecasts system for the 2017/2018 Northern Hemisphere winter season. The analysis reveals two false alarm cases in the season, one in early December and the other in early February. Each case is characterized by ensembles of which a considerable part of the members (MSSW members) show an MSSW, that is, reversal of the zonal mean zonal wind in the extratropical stratosphere on similar calendar dates. Ensemble forecasts that are initialized earlier or later basically lack an MSSW, demonstrating clear intraseasonal variability in the frequency of forecasted MSSWs. For each false alarm case, the MSSW member mean field shows equatorward displacement of the polar vortex around the onset date. For both cases, the MSSW members accompany stronger wave activity in the lower stratosphere than other non-MSSW members and reanalysis data. They are further associated with higher geopotential height than the non-MSSW members, in the upper troposphere over northeastern Canada and Greenland before the first case, and lower height over northeastern Eurasia before the second case. These are located over the ridge and trough, respectively, of the climatological planetary wave of zonal wave number one, and are consistent with the increased wave activity.

1. Introduction

It is widely accepted that knowledge of the stratospheric state contributes to enhanced tropospheric predictability over intraseasonal and longer time scales as stratospheric variability influences the troposphere over various time scales [1,2]. A strong downward influence can occur when the stratosphere experiences significant anomalies, such as sudden stratospheric warmings (SSWs) [3]. SSWs are a dramatic phenomenon, during which the polar vortex largely distorts or even breaks down, accompanied by a strong warming in the polar stratosphere [4,5]. An SSW is often classified as a major SSW (MSSW) if the zonal mean zonal wind at 60° N, 10 hPa reverses from westerly to easterly [6,7]. A surge of recent studies investigated the predictability of SSWs or MSSWs [1].

Several previous studies examined the predictability of an MSSW that occurred in mid-February of the 2017/2018 Northern Hemisphere winter season, which is a target season in this study. Analysis of forecasts of the Beijing Climate Center Climate System Model for the MSSW shows that the maximum deterministic predictable time limit is 1–2 weeks, and increased wave activity is well predicted only within this limit [8]. It also suggests that extratropical tropospheric disturbances, such as East Asian and East United States troughs and Alaskan blocking, are important for the upward wave propagation to the stratosphere in the real world and forecast data. Using the subseasonal to seasonal (S2S) multi-system prediction database [9], Karpechko et al. [10] showed that MSSW forecast skill is reduced with errors in the forecast location of a Ural high and underestimated magnitude of upward wave activity flux. Lee et al. [11] further pointed out that an anticyclonic Rossby wave break associated with a cyclone plays an important role in building the Ural high. They showed that the ensemble members that fail to capture the pair underestimated the enhanced vertical wave activity flux and stratospheric polar vortex weakening. The importance of an Ural high in weakening the stratospheric polar vortex is consistent with the numerical experiments [12], although the experiments targeted a stratospheric response in early winter.

The S2S prediction database has been extensively utilized for a multi-system comparison of the predictability of MSSWs. Taguchi [13] compared S2S multi-system forecasts for five characteristic MSSWs, and showed that some systems are more skillful than others. More comprehensive comparisons using more MSSWs obtained consistent results [14,15]. Studies for two recent cases, MSSW in January 2019 and minor SSW in September 2019 in the Southern Hemisphere, revealed prolonged predictable time limits of about 18 days or longer for these cases [16,17], compared with the typical range between 5 and 15 days [1]. A study for final warmings in the Northern Hemisphere, that is, final reversal of the stratospheric circulation toward its easterly state in summer showed that the interannual variability in its timing was well forecasted more than four weeks in advance [18].

A possible role of the February 2018 MSSW in the tropospheric cold spell observed over Eurasia in the late winter season has been also investigated as follows. Karpechko et al. [10] showed that the cold anomaly was predicted more than two weeks ahead with a weaker magnitude, and suggested that this predictability is more associated with persistence of tropospheric anomalies in the forecast, with a smaller role of the MSSW. Kautz et al. [19] conducted forecast experiments (comparing observationally nudged stratosphere versus climatologically nudged stratosphere) and obtained an increased probability of a cold spell for the former, supporting enhanced predictability of surface weather extremes following MSSWs. They also suggested that the subsequent evolution in the lower stratosphere, rather than the MSSW itself, plays a crucial role in coupling to large-scale tropospheric flow patterns. Analysis of the S2S database for the two MSSWs in February 2018 and January 2019 by Rao et al. [20] emphasized the importance of the strength of the MSSWs in determining their downward propagation features.

Previous studies for the MSSW (or SSW) predictability, including the aforementioned studies for the MSSW in February 2018, commonly took an approach to identify target MSSWs that occurred in the real world and then examine how they were forecasted. When forecasts are initialized before the predictable time limit of a target MSSW, which depends on MSSWs and systems, they tend to miss or underestimate zonal wind deceleration to the target MSSW. Such large stratospheric forecast errors occur when the forecasts are unsuccessful in representing enhanced planetary wave activity in the lower stratosphere and troposphere [8,10,21,22].

This study seeks to take a different approach, that is, conducts a case study of false alarms of a MSSW for the NH winter season of 2017/2018 in a S2S prediction system, that is, the European Centre for Medium-Range Weather Forecasts (ECMWF) system. A false alarm here means that an MSSW is forecasted to occur, but no MSSW occurred in reality. For example, a contingency analysis of Japan Meteorological Agency (JMA) forecast data by Taguchi [22] suggested several false alarm cases, but their specific features were not investigated. The 2017/2018 season is targeted here, as it turns out that two clear false alarm cases are found in the S2S ECMWF forecast data. Such an analysis of false alarms, though relatively unpracticed so far, will be useful to better understand the characteristics of forecast data as well as variability in the stratosphere and troposphere in the real world.

The rest of the paper is organized as follows. Section 2 documents the data analyzed in this study. Section 3 describes the results, from an overview to specific features of the two false alarm cases. Finally, Section 4 provide the summary and discussion.

2. Data

This study employs daily averages of the Japanese 55-year Reanalysis (JRA-55) data [23] as a representation of the real atmosphere. The data analyzed here extend from January 1979 to June 2018. The seasonally varying climatology of a target quantity is obtained by taking the time (yearly) mean of the quantity for the whole period, and then retaining only low frequency components of its Fourier-series expansion whose periods are longer than about 90 days. The choice of the JRA-55 data will not affect the present assessment, as modern reanalysis datasets, such as the JRA-55 and ECMWF interim reanalysis (ERA-interim) data, yield similar results when diagnosing large-scale features of MSSWs [24,25].

For a forecast dataset, this study targets ECMWF real-time forecasts available in the S2S prediction database [9]. The forecasts analyzed are those initialized in the 2017/2018 Northern Hemisphere winter season, from November to February. We chose the ECMWF system for this study, because it provides relatively abundant data in terms of initialization frequency and ensemble size [9]. The system was also shown to be one of the best systems in the S2S project database in forecasting MSSWs [13,14,15,16]. The initialization frequency is every 3 or 4 days. The ensemble size is 51 for each initialization.

We analyze the following quantities for both JRA-55 and forecast data. The zonal mean zonal wind [U] at 60° N, 10 hPa is used to measure the strength and flow direction of the stratospheric polar vortex. The square brackets denote the zonal mean. The index is also used to identify MSSWs. An MSSW is identified when the wind at the grid point reverses from westerly to easterly [6]. An onset date of an MSSW is defined as the date of the first wind reversal. Synoptic patterns of the stratospheric polar vortex are examined using the geopotential height at 10 hPa. Possible planetary wave forcings to stratospheric dynamical events such as MSSWs are quantified with the poleward heat flux [V*T*] of planetary waves of zonal wave numbers 1–3 (waves 1–3) averaged over 40–90° N, 100 hPa. The asterisks denote waves, or departures from the zonal mean. The poleward heat flux is proportional to the Eliassen–Palm flux for the quasi-geostrophic approximation [4]. When averaged in the extratropical lower stratosphere, it measures wave activity entering the stratosphere. We also seek to relate heat flux variations to planetary wave signatures in the geopotential height at 300 hPa in the upper troposphere.

Statistical significance of a composite difference or correlation coefficient is evaluated using Student’s t-distribution with a confidence level of 95% (two-sided test).

3. Results

3.1. Overview

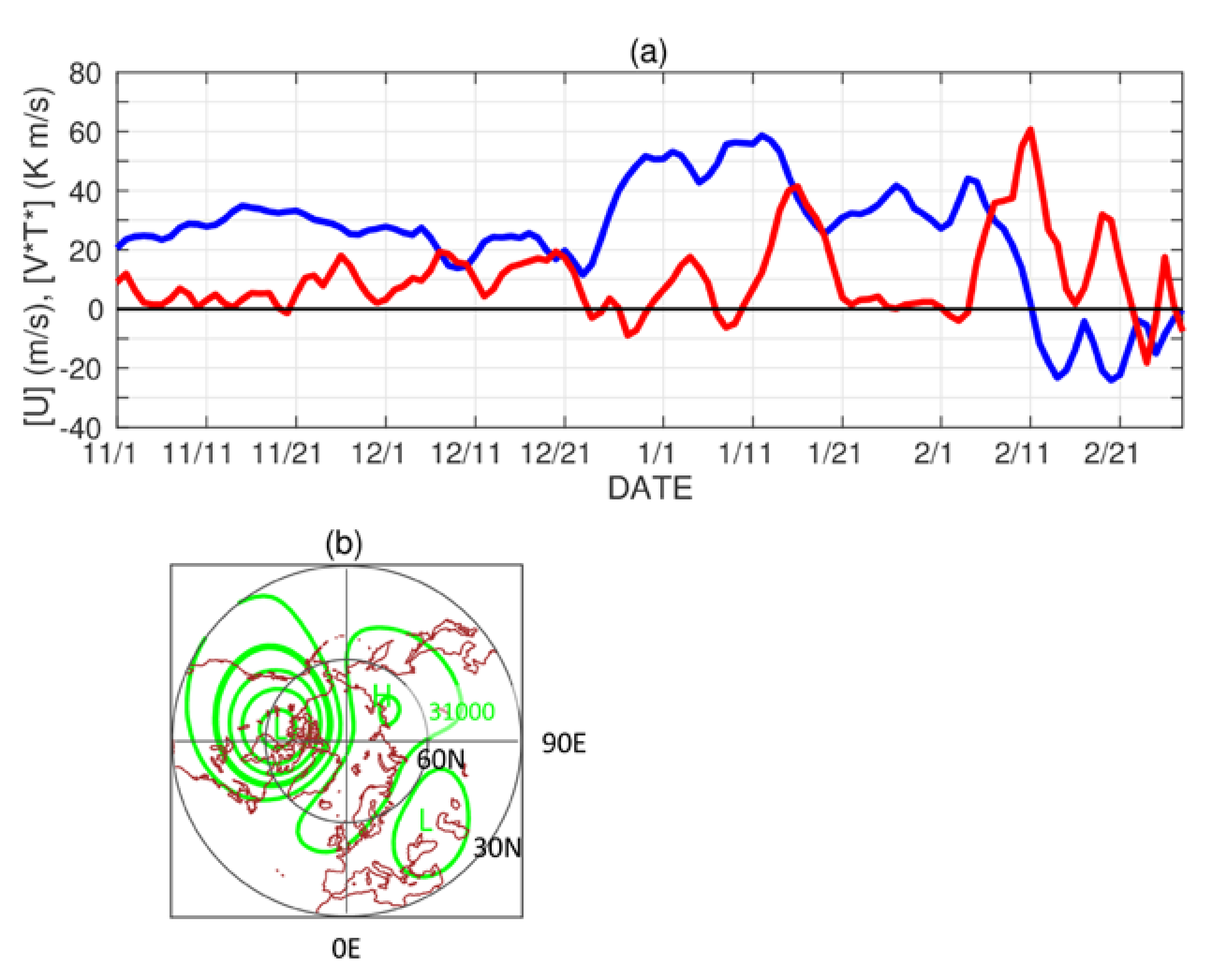

Figure 1a plots time series of the zonal mean zonal wind at 60° N, 10 hPa and waves 1–3 heat flux in 40–90° N, 100 hPa in the JRA-55 data for the Northern Hemisphere winter season. The zonal wind, or polar vortex strength, is relatively weak between 10 and 40 m/s until late December, before it strengthens mostly above 30 m/s until early February. The zonal wind reverses from westerly to easterly on 12 February, confirming the occurrence of the MSSW. This MSSW and its possible influence on the troposphere were examined by previous studies as introduced in Section 1. This onset date is identical to the result using another reanalysis dataset [10].

The heat flux covaries with the zonal wind, as expected (Figure 1a). Specifically, there is a clear tendency that weakenings of the zonal wind occur with increases in the heat flux, and vice versa. Such covariability is a well-known relationship between the mean flow and planetary waves [26,27].

Figure 1b plots the 10 hPa geopotential height in the JRA-55 data averaged for 5 days (±2 days) around the MSSW onset date. The height distribution shows two cyclonic vortices, indicating a split of the polar vortex in the MSSW. The two cyclones are different in strength in the 10 hPa height at this timing.

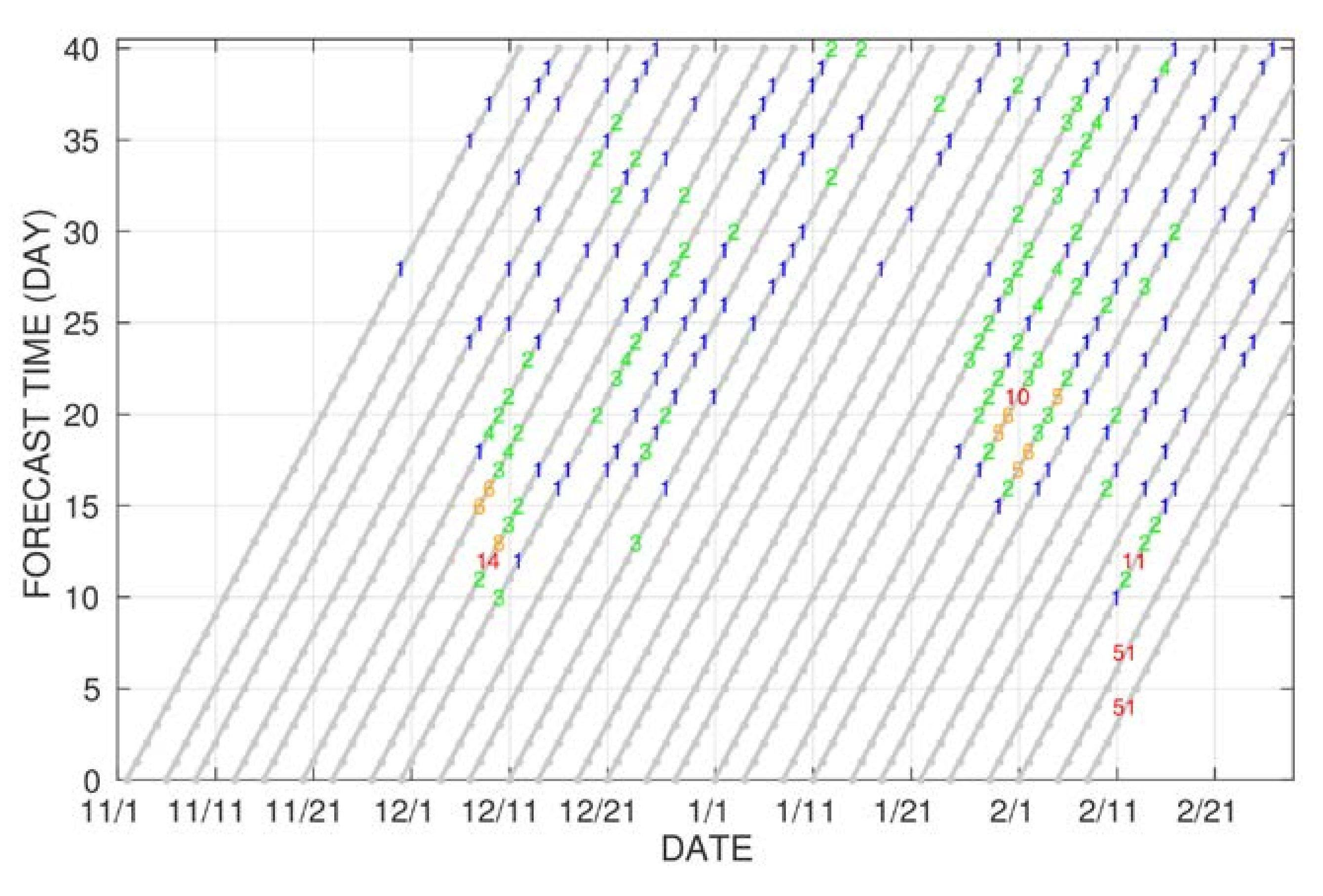

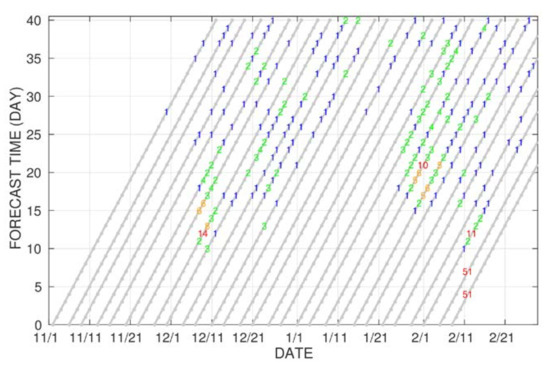

We examine all ECMWF real-time forecasts available for the season in the S2S database, and find if and when each member of each ensemble set shows a zonal wind reversal during its forecast period. We count only the first wind reversal in each member when it has two or more reversals. Forecasts initialized after the MSSW onset date in the JRA-55 data are excluded. The results are plotted in Figure 2. One can notice that there are clusters of ensemble members showing an MSSW on similar calendar dates. The clusters are around 9 December, 1 February, and 12 February. The first two cases are false alarms, as no MSSW was observed in the real world around the timings (Figure 1a). These two clusters are the focus in the following, and the calendar dates are used as their reference dates (RDs,

Table 1. Initial dates of ensembles analyzed for two clusters in this study. The initial dates are given in mm/dd format. MSSW, major sudden stratospheric warming.

	First Cluster	Second Cluster
Reference date (RD)	9 December	1 February
Initial date of target MSSW ensemble Forecast time to RD	11/27 (N27) 12 days	01/11 (J11) 21 days
Initial dates of non-MSSW ensembles for comparison	11/16 (N16) 12/04 (D04)	12/28 (D28) 01/18 (J18)

). Note that the first and second clusters occur for forecast times around 12 and 21 days, respectively. The former forecast time is within the representative range of the predictable time limits for MSSWs [1], and the latter forecast time is outside it, but close to the predictable limit for the MSSW in January 2019 [16]. The last cluster corresponds to the real MSSW identified in the JRA-55 data. For the last case, the forecasts become more successful as initialized closer to the onset date; all members initialized on 5 and 8 February successfully forecast the onset date. The ensemble set initialized on 1 February includes both successful and unsuccessful members. The difference between these members is likely to be explained by the reproducibility of the Ural high and increased wave activity flux [11].

It is further interesting to note that each of the first two clusters is sandwiched by ensembles that are relatively free from MSSWs. For example, the first cluster is seen especially around the forecast time of 12 days for the ensemble initialized on 27 November. In the following, we adopt a shorter expression for initial dates, such as N27 for 27 November. The N27 initialization has 29 members forecasting MSSWs in the 7-day period around RD. We refer to such members, which show the first zonal wind reversal in the RD ± 3 day window, as MSSW members. In addition, as non-MSSW members, we refer to members that show the first zonal wind reversal only after (inclusive) RD + 4 or show no reversal in the forecast period. Note that there may be other members, called the rest, that show the first zonal wind reversal before the 7-day period. The ensembles of similar initial dates also forecast MSSWs around RD. We refer to such ensembles, which include many MSSW members, as MSSW ensembles. The ensembles initialized further earlier or later hardly forecast MSSWs around RD. We refer to such ensembles as non-MSSW ensembles.

A similar variation is also the case with the second cluster, which is seen for the ensembles initialized on J04 to J15. The ensembles initialized later around late January are relatively free from MSSWs, and those initialized further later (early February) start to forecast the real mid-February MSSW. The forecasted MSSWs in the second cluster are thus different from the real MSSW. They also have different horizontal patterns of the polar vortex from the mid-February MSSW, as shown later.

Such variability of the presence or absence of forecasted MSSWs has been relatively unrecognized, as previous studies were mostly interested in the predictability of real MSSWs, that is, how forecasts are improved with decreasing lead time to the MSSWs that occurred in reality. In the following, we characterize such variability for each of the first and second clusters. For each cluster, we contrast an MSSW ensemble to two sandwiching non-MSSW ensembles, as listed in Table 1. For each MSSW ensemble, we also contrast MSSW members to non-MSSW members.

3.2. First Cluster

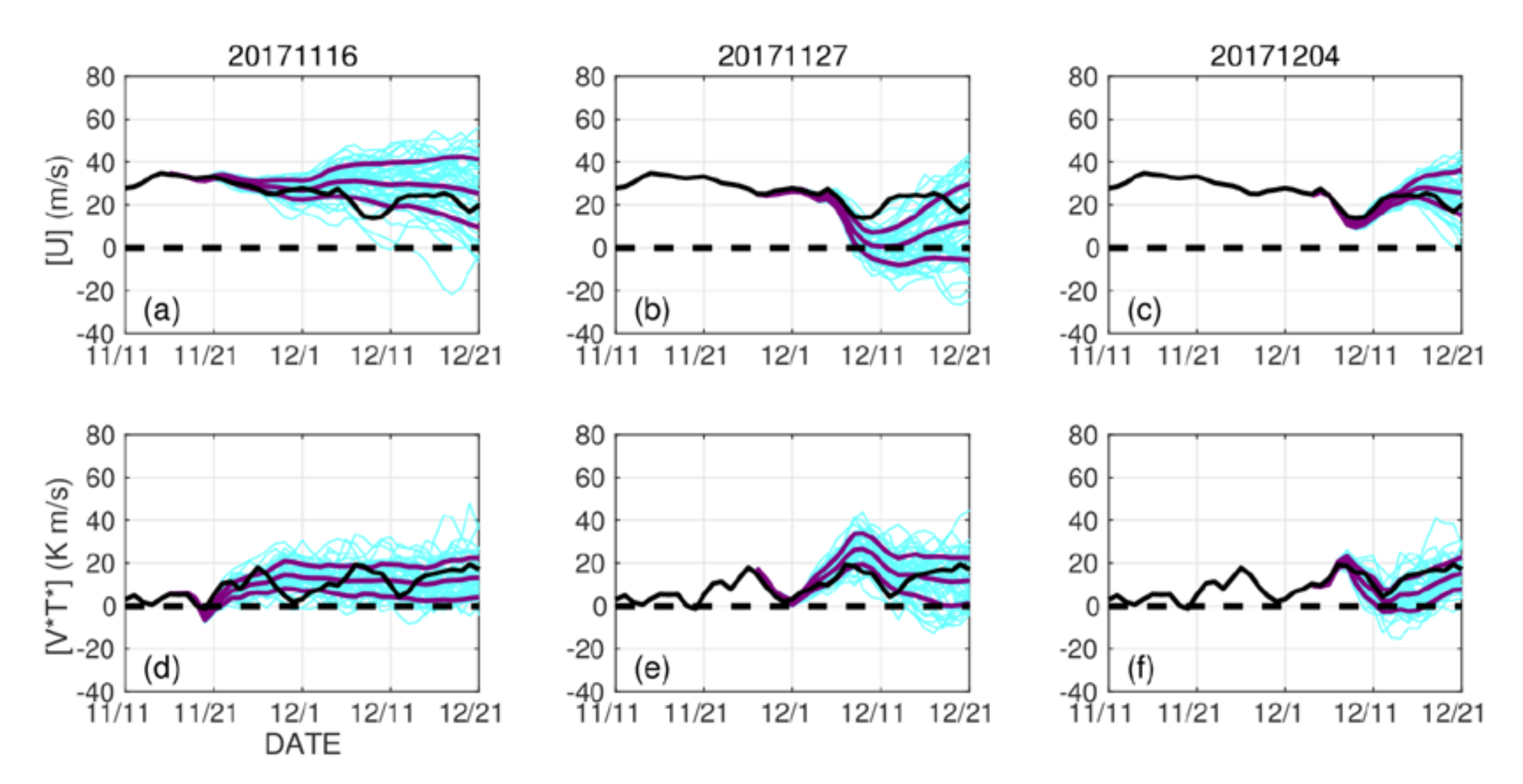

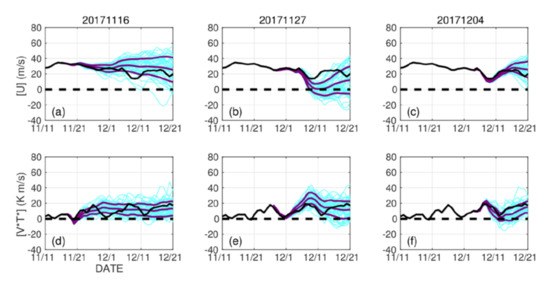

Time series of the stratospheric zonal wind in the target and comparison ensembles are plotted in Figure 3a–c for the first cluster. By definition, the target MSSW ensemble includes a large part of MSSW members, that is, members forecasting MSSWs, or negative zonal wind values, around RD, whereas in comparison, the non-MSSW ensembles do not. The JRA-55 zonal wind shows some weakening to about 15 m/s around RD (see also Figure 1a).

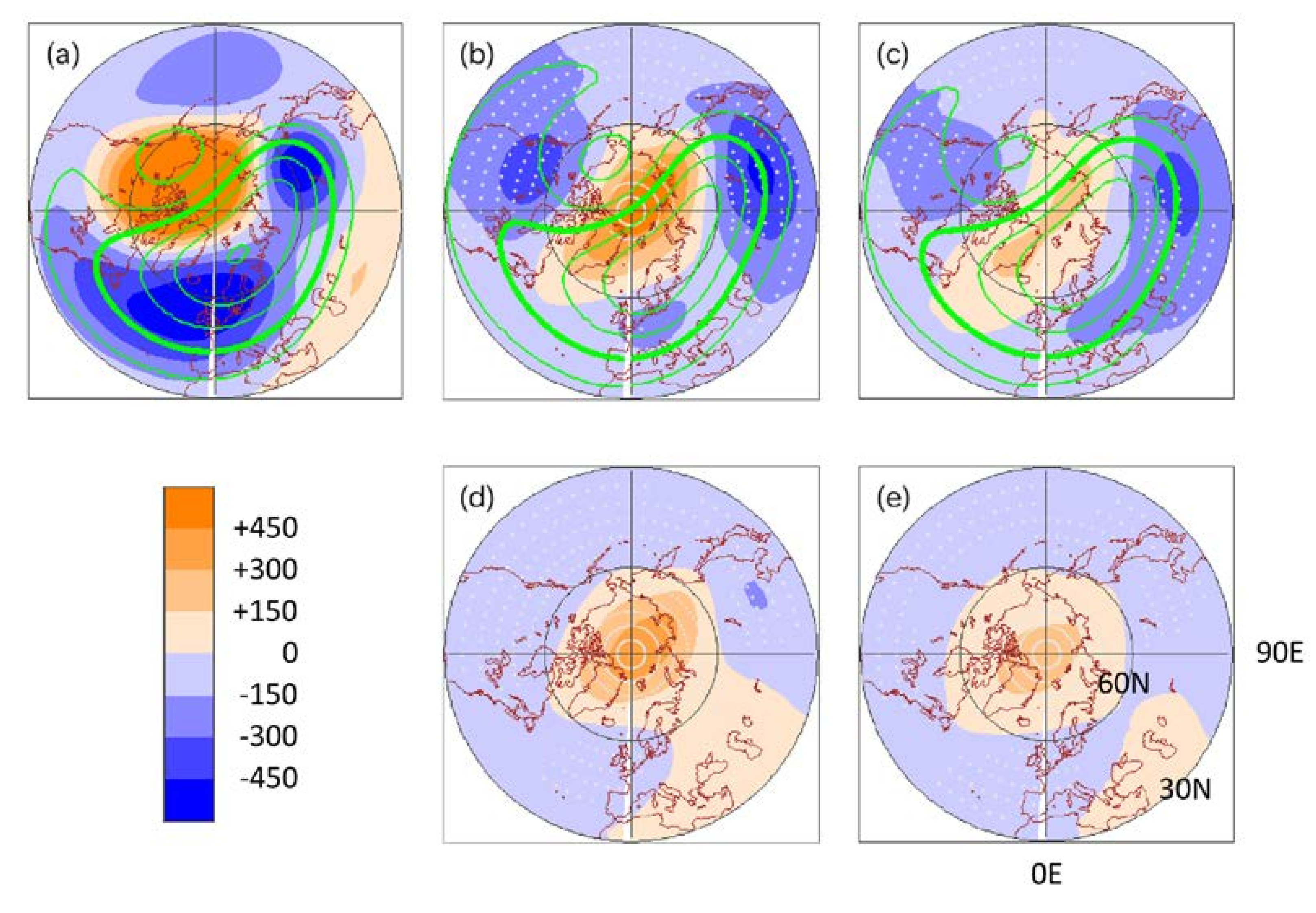

Figure 4a–c plot maps of the 10 hPa height, averaged for 5 days around RD, for the JRA–55 data, MSSW member mean, and non-MSSW member mean of the MSSW ensemble. It is common in the JRA-55 and forecast data that the polar vortex center shifts off from the polar region toward northwestern Eurasia around 30–45° E. An anticyclone is seen over Alaska. A comparison of the MSSW member mean to the JRA-55 data and non-MSSW member mean shows that the MSSW member mean has relatively high height values over the polar region and low values in surrounding latitudes. The height difference pattern is consistent, through the geostrophic wind relationship, with the fact that only the MSSW members have easterly winds at 60° N around RD.

Such stratospheric disturbances are often associated with planetary wave forcings from the troposphere. This is seen in time series of the waves 1–3 heat flux in the lower stratosphere (Figure 3d–f). Many of the ensemble members have stronger heat fluxes than the JRA-55 data around RD for the MSSW ensemble, as the ensemble mean ± 1 standard deviation range is almost above the JRA-55 result. For the non-MSSW ensembles, the JRA-55 heat flux data are basically within the range.

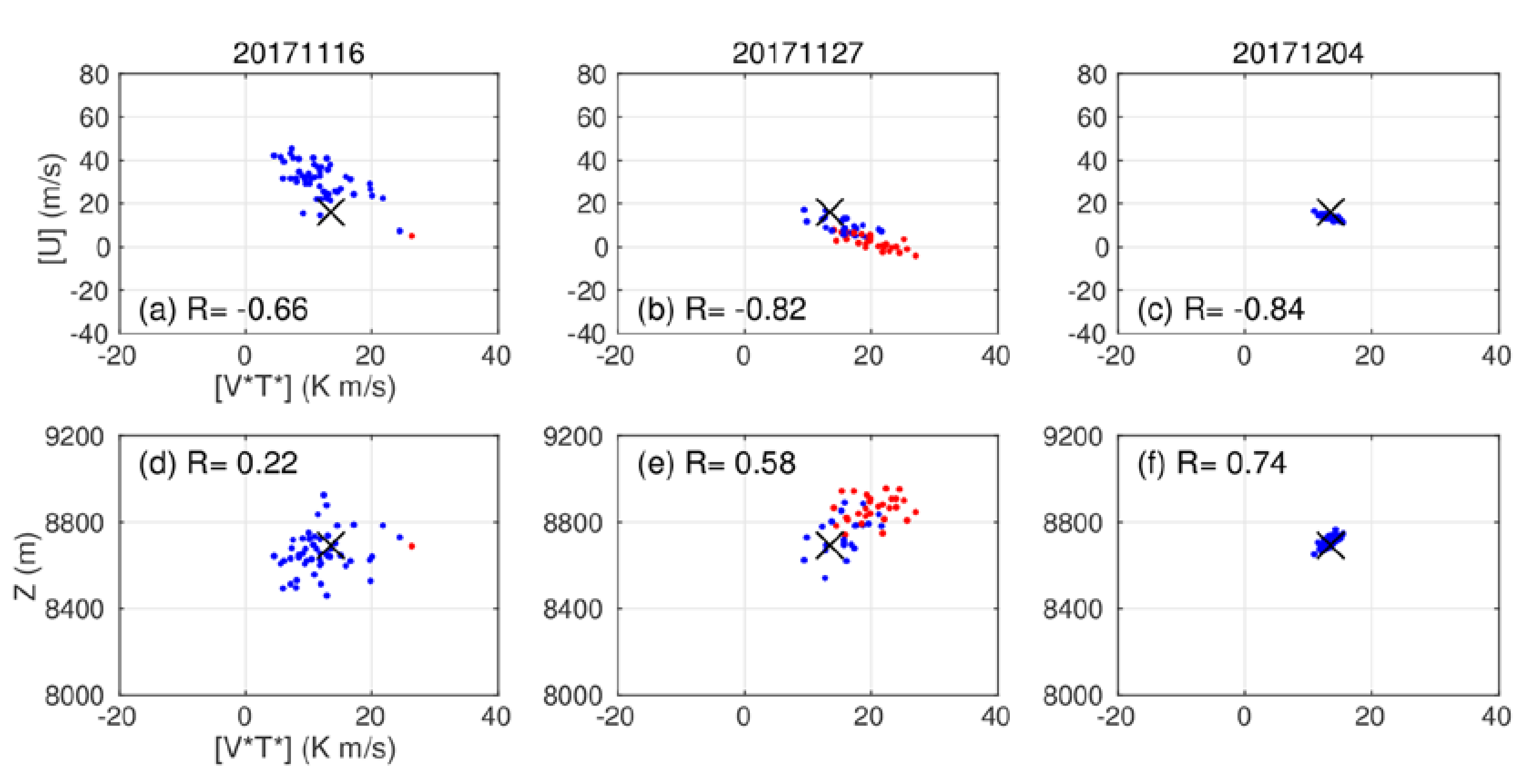

This relationship is further supported in scatter plots between the heat flux and stratospheric zonal wind (Figure 5a–c). The zonal wind is averaged for 5 days around RD. The heat flux is averaged for 7 days before RD, that is, from RD-6 to RD. The 7-day time period is determined to capture the increase in the heat flux (Figure 3e). As expected, the two quantities are linearly (negatively) correlated for all three initializations, as stronger heat fluxes are related to weaker zonal winds. All correlations are statistically significant. Such a relationship was pointed out when verifying forecast data for MSSWs that occurred in reality [8,21,22]. One sees that, only for the MSSW ensemble, many of the members have stronger heat fluxes and weaker zonal winds than the JRA-55 data. The situation is opposite for the N16 initialization. For the D04 initialization, all members are close to the JRA-55 data, far from an MSSW condition.

The difference in the 10 hPa height between the MSSW and non-MSSW members in the MSSW ensemble is well reproduced when applying a regression analysis to all members (Figure 4d,e). In the analysis, the 5-day mean 10 hPa height fields are regressed onto to the 7-day mean lower stratospheric heat flux. The good reproducibility supports a close relationship between the lower stratospheric heat flux, stratospheric zonal wind, and geopotential height.

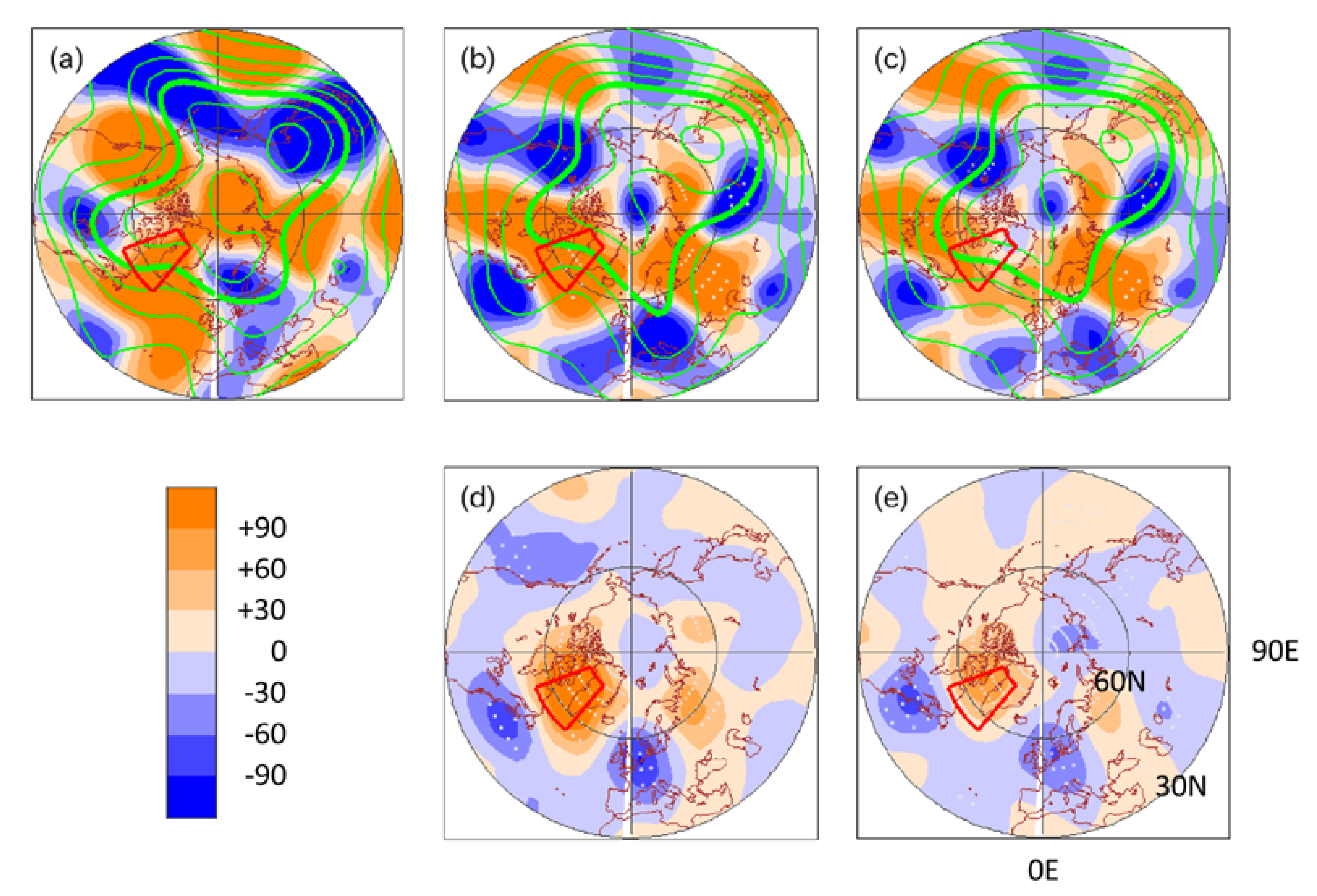

In order to seek possible tropospheric traces of the lower stratospheric heat flux, Figure 6 examines the 300 hPa height averaged for the same 7-day period (from RD-6 to RD) in the JRA-55 data, MSSW member mean, and non-MSSW member mean. A notable difference of the MSSW members from the JRA-55 data and non-MSSW members is seen in higher height values over northeastern Canada and Greenland around 65° N, 305° E (55° W) for the MSSW members (Figure 6b,d). A similar signal is seen in a regression field of the 300 hPa height onto the heat flux (Figure 6e). Figure 5e shows that, for the MSSW ensemble, the lower stratospheric heat flux is positively correlated to the 300 hPa height averaged over the region of 65 ± 10° N, 305 ± 15° E, where the difference and regression fields have positive values (Figure 6d,e). The correlation is statistically significant. The D04 initialization also shows a significant positive correlation, while the N16 initialization does not (Figure 5d,f).

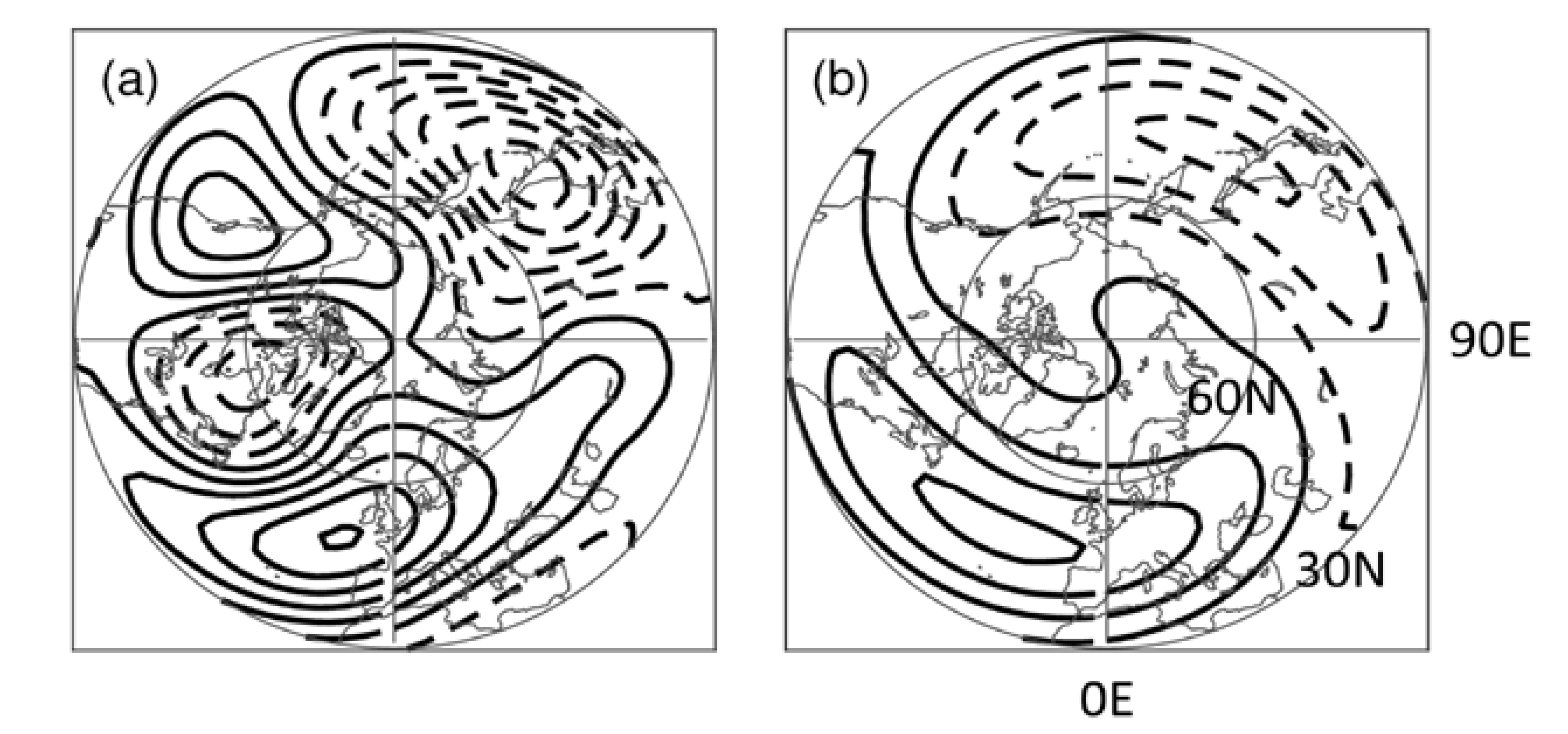

The positive height values over northeastern Canada and Greenland in Figure 6d,e are in phase with the ridge of the climatological wave 1 (Figure 7), and hence are likely to lead to increased wave 1 amplitude and activity through constructive interference. They are also reminiscent of a precursory tropospheric height signal for MSSWs obtained for a reanalysis data set [28,29].

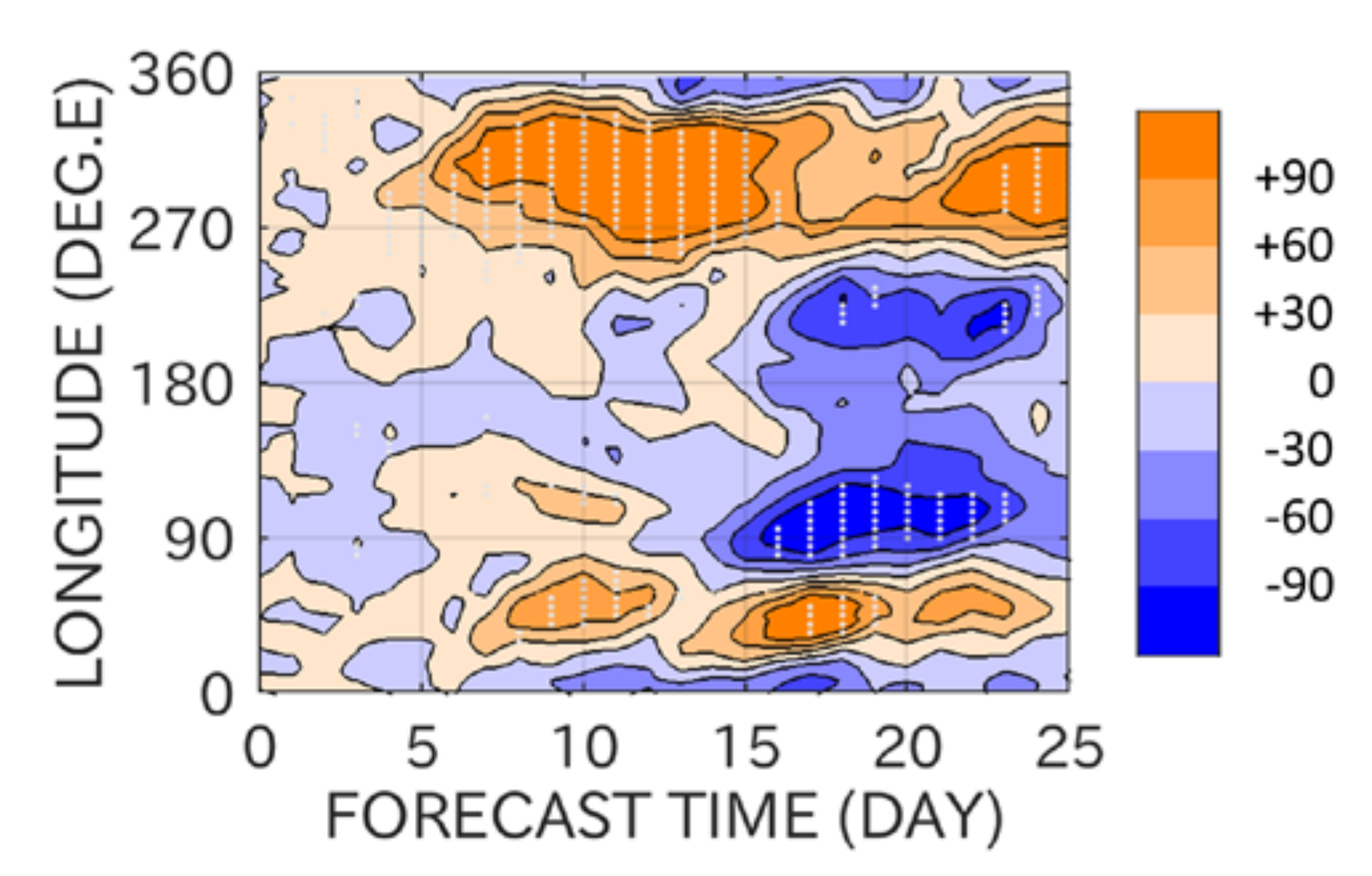

Such higher height values appear around the forecast day of 4 days, and amplify with time until the forecast day of about 13 days while being roughly stationary in longitude (Figure 8). It is interesting to further explore a trigger that differentiates the MSSW and non-MSSW members, although it is beyond the scope of the paper.

3.3. Second Cluster

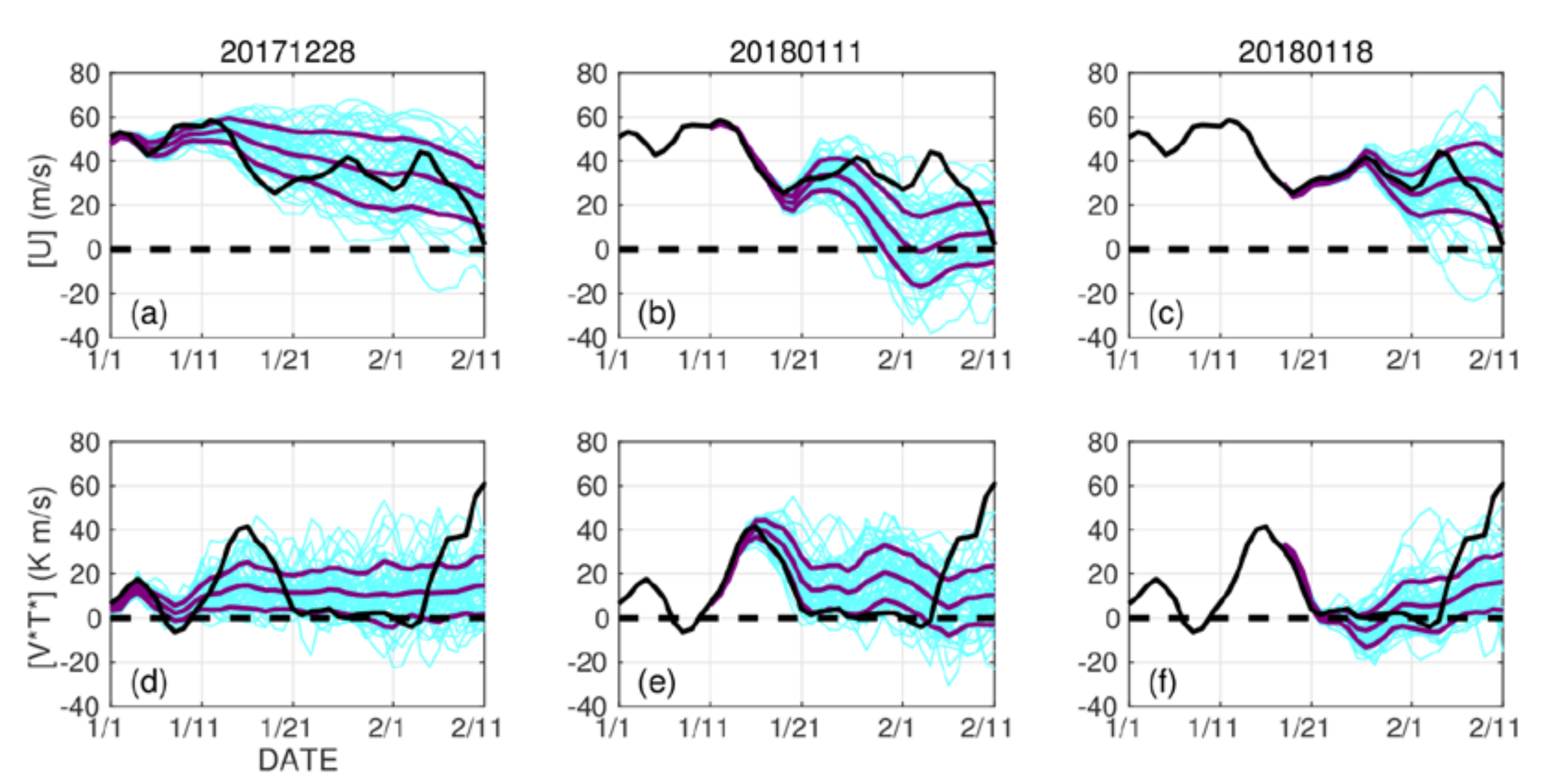

The same methodology is applied to the second cluster (Figure 2 and Table 1). Whereas the JRA-55 zonal wind is above 20 m/s around RD, even the ensemble mean wind for the J11 initialization is close to 0 m/s, with 29 MSSW members (Figure 9b). The JRA-55 heat flux stays around 0 K m/s in late January (Figure 9e). The ensemble mean heat flux increases near the end of January. It is noted that these JRA-55 data states do not outlie compared with the ensemble members of the J11 initialization, but are within the ensemble range.

Such MSSW members are basically absent or much fewer for the comparison non-MSSW ensembles. For the D28 initialization, the ensemble mean wind gradually decreases toward about 20 m/s in early February, whereas the ensemble mean heat flux is almost constant in time (Figure 9a,d). For the J18 initialization, the ensemble mean wind closely follows the JRA-55 data in January, and only a limited number of the members show easterly winds in early February (Figure 9c). Most members overestimate the JRA-55 zonal wind on 11 February, one day before the mid-February MSSW onset date, hinting that they miss the MSSW. It is not until the F01 initialization that the MSSW is more or less forecasted by the system (Figure 2).

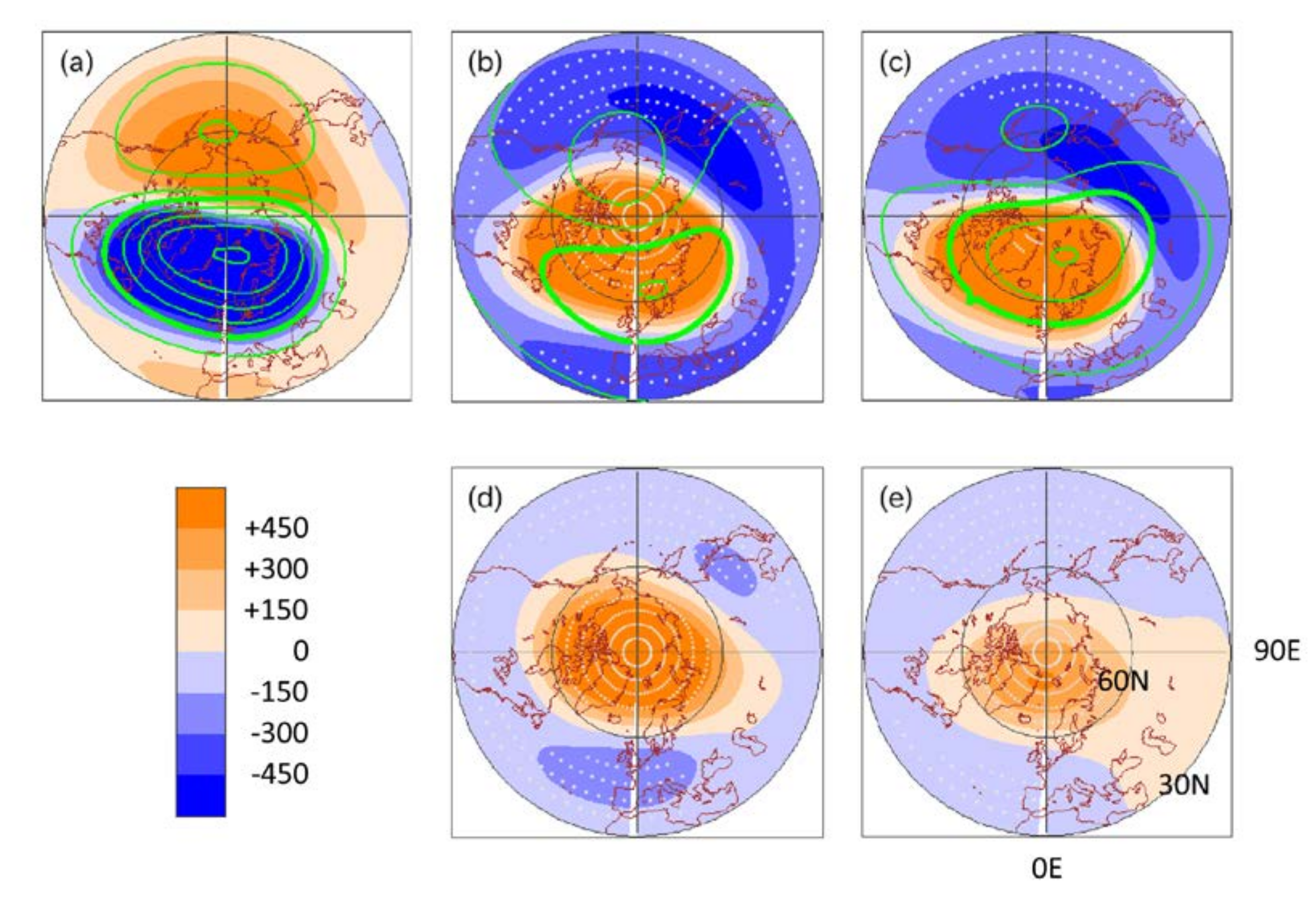

The polar vortex in the 10 hPa height shifts equatorward near 0° E in the JRA-55 data, MSSW member mean, and non-MSSW member mean (Figure 10a–c). The polar vortex in the MSSW member mean shows a larger shift than the JRA-55 counterpart, and is much weaker. Note that the MSSW member mean pattern is different from the mid-February MSSW that occurred in reality (Figure 1b). The non-MSSW member mean vortex is also weaker than the JRA-55 data (Figure 10c). These are consistent with Figure 9b, where the JRA-55 zonal wind is close to the edge in the stronger westerly wind side of the ensemble members.

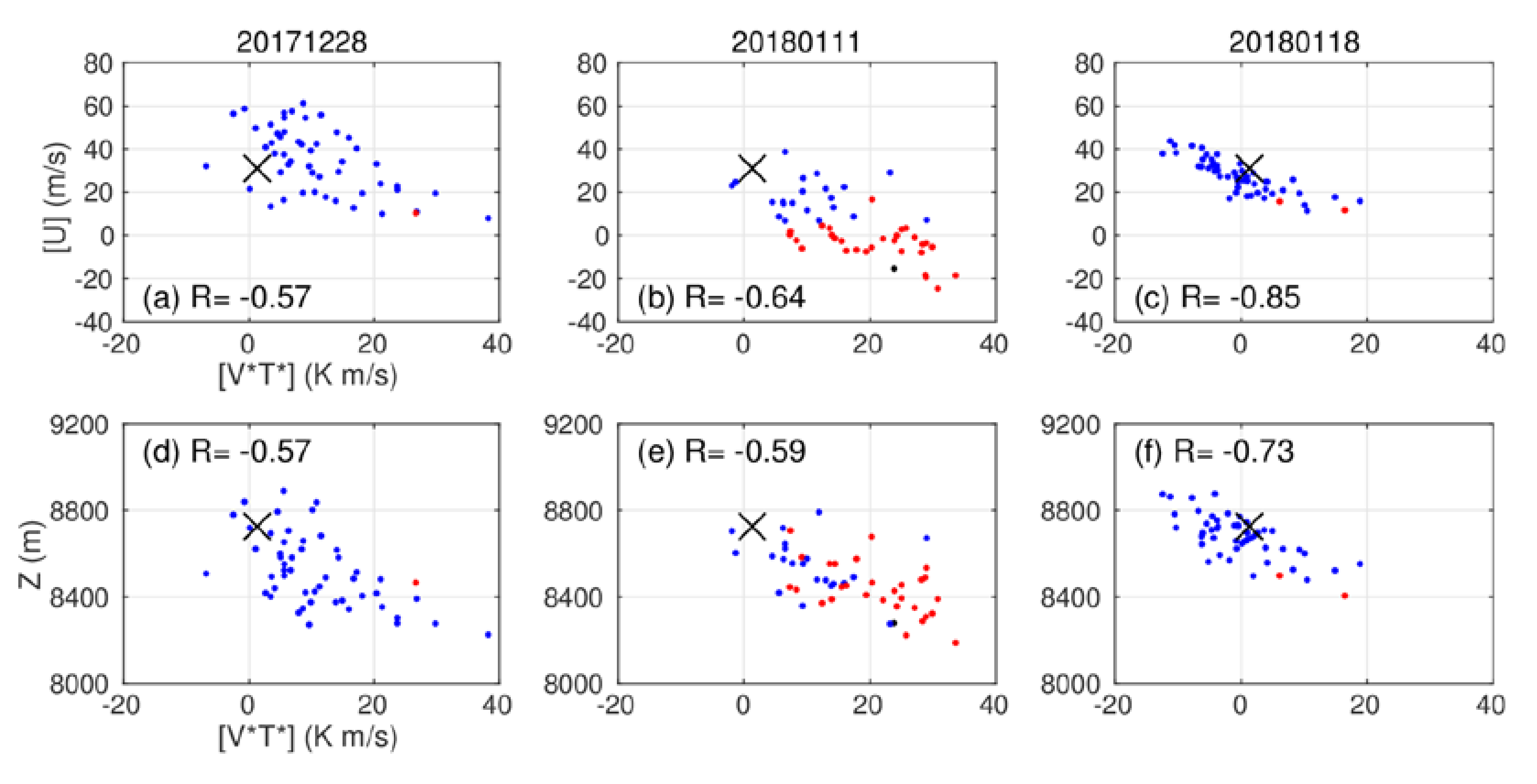

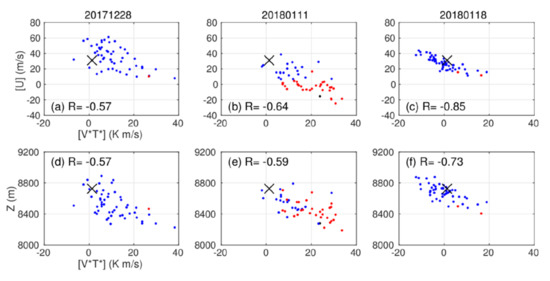

The second cluster shows similar changes between the MSSW and non-MSSW ensemble, to the first cluster, in scatter plots between the zonal wind and heat flux. For the MSSW ensemble, the data points form a straight line, and a considerable part of them are located below or close to the 0 m/s wind (Figure 11b). The JRA-55 data point is located near the other edge (i.e., stronger westerly wind) of the scatter plot distribution. The distributions for the non-MSSW ensembles are characterized by stronger winds and weaker heat fluxes compared with the MSSW ensemble (Figure 11a,c).

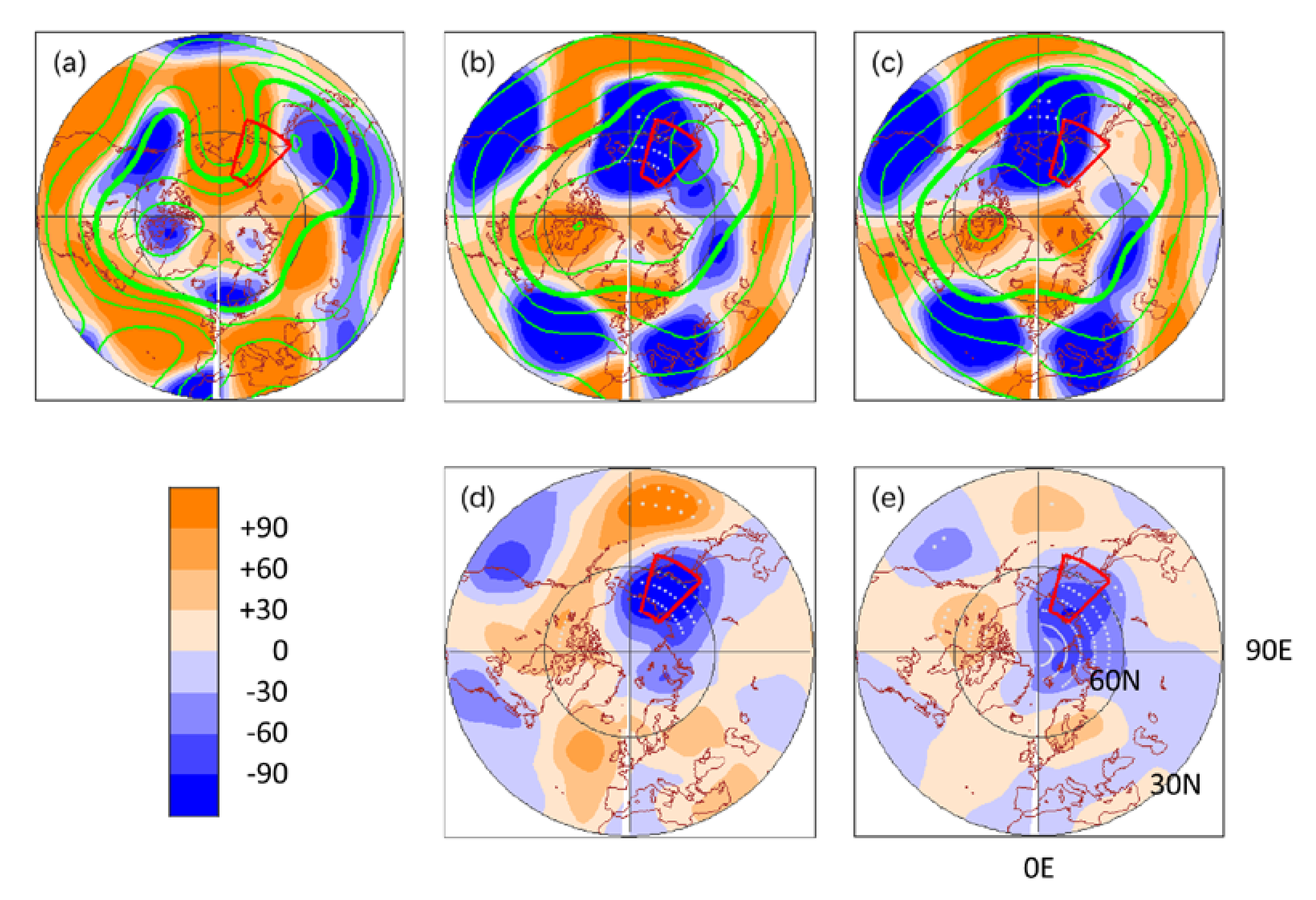

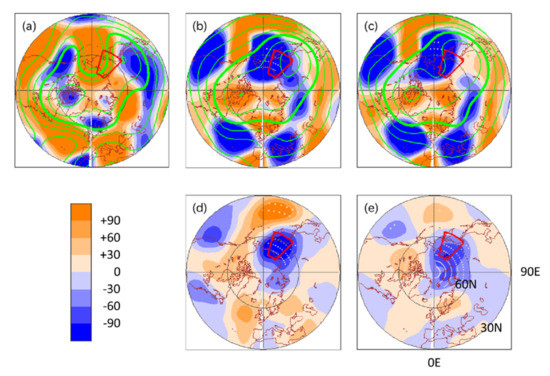

Figure 12b,c compare 300 hPa height fields between the MSSW and non-MSSW member means. The comparison shows lower values, indicating a more pronounced upper-air low or trough, over northeastern Eurasia around 65° N, 150° E (Figure 12d). This location corresponds to where the climatological wave field has a trough (Figure 7). This signal is again reminiscent of the observational result [28,29].

This suggests a relationship of the more pronounced low to the larger heat fluxes for the MSSW members. The relationship between the enhanced heat flux and northeastern Euriasia low is supported when comparing the two indices (Figure 11d–f). Both MSSW and non-MSSW ensembles show similar distributions between the two indices, as larger heat fluxes are associated with lower height values. In particular, in the MSSW ensemble, most of the members have stronger heat flux and lower height values than the JRA-55 data.

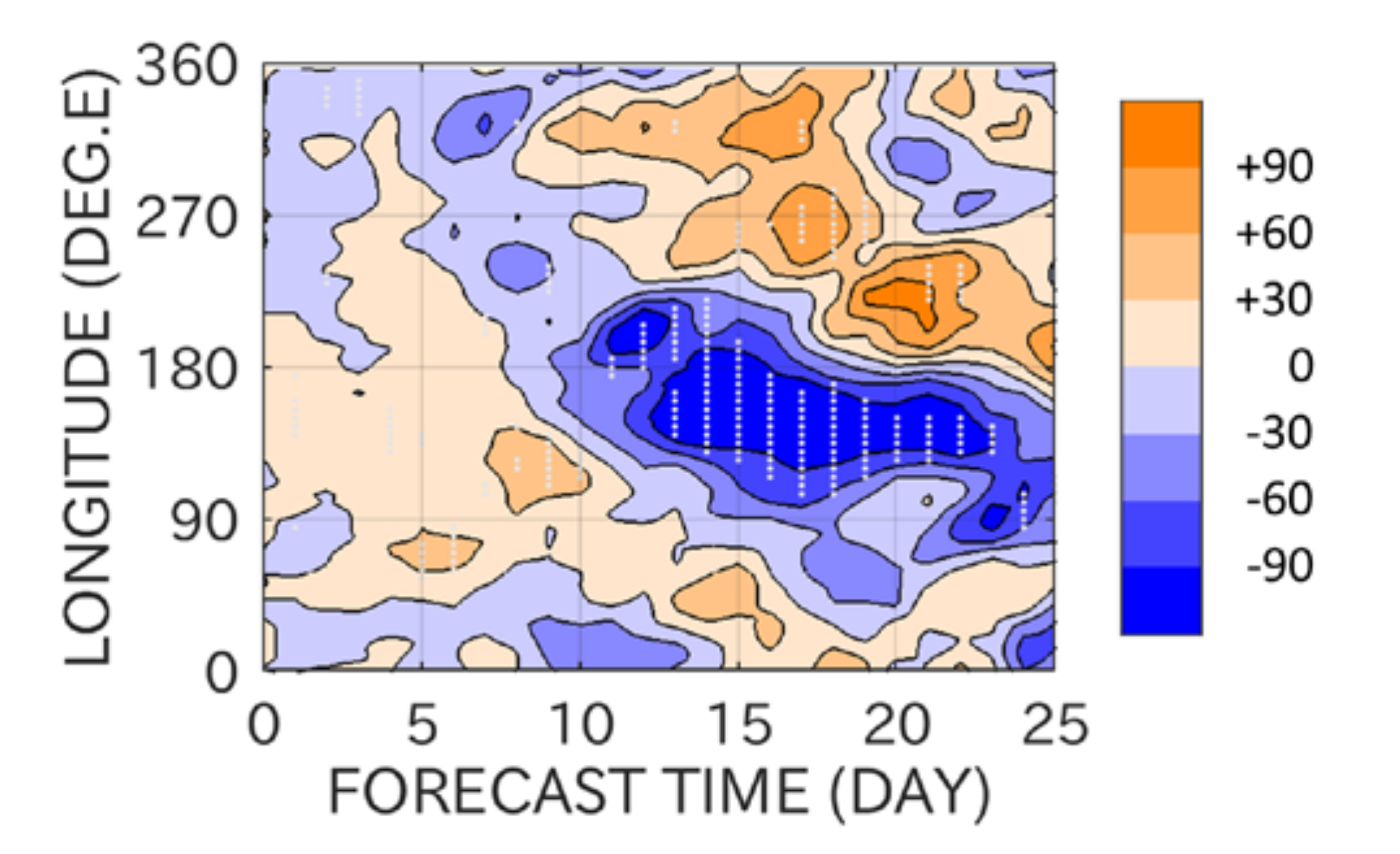

The lower height for the MSSW member mean develops from the forecast time of about 10 days to RD (Figure 13). It appears roughly stationary in longitude, with some hint of slight westward movement.

4. Summary and Discussion

While stratospheric predictability, especially MSSW predictability, has drawn a lot of attention, previous studies mostly focused on MSSWs that occurred in reality [1]. The present case study has taken a different approach, that is, investigated false alarms of an MSSW by real-time S2S forecasts for the 2017/2018 Northern Hemisphere winter season. The target ECMWF system is one of the systems that were shown to have relatively good skill in forecasting real MSSWs [13,14,15,16].

Analysis has revealed two false alarm cases in early December and early February of the season, characterized by clusters of ensemble members forecasting an MSSW on similar calendar dates. Each cluster, that is, MSSW ensembles, is sandwiched by non-MSSW ensembles. The MSSW members accompany weaker polar vortex states by definition, and are associated with increased heat fluxes, as expected. In other words, the MSSW members overestimate the zonal wind deceleration seen in the JRA-55 data (Figure 3b and Figure 9b). The MSSW member mean fields also exhibit an equatorward displacement of the polar vortex around RD for both clusters, whereas the real mid-February MSSW is a vortex split type. The MSSW members are further associated with tropospheric traces, that is, higher height (compared with the non-MSSW members) over northeastern Canada and Greenland for the first cluster, and lower height over northeastern Eurasia for the second cluster. These are located over the ridge and trough of climatological wave 1, respectively, and hence are consistent with the increased heat fluxes. For each cluster, the JRA-55 data are located near the edge of the members of the target MSSW ensemble in the stronger wind and weaker heat flux side.

This study leaves a couple of questions and extensions for future research. First, it will be interesting to further explore, for each false alarm case, if there is some trigger phenomenon that differentiates the MSSW and non-MSSW members in the MSSW ensembles. This is also the case with differentiating the MSSW and non-MSSW ensembles. For the MSSW in mid-February 2018, Lee et al. [11] pointed out the importance of an anticyclonic Rossby wave break in building the Ural high and increased wave activity to the stratosphere. The intraseasonal variability (existence and absence of forecasted MSSWs) for the 2017/2018 season is associated with the planetary wave activity and pattern in the extratropical lower stratosphere and upper troposphere (Figure 5, Figure 6, Figure 11 and Figure 12). The extratropical signals may be affected by intraseasonally varying external forcings, with the most important agent being the Madden-Julian Oscillation [30,31], although it is beyond the scope of this paper to examine the possible relationship between the false alarm MSSWs and such external forcings.

Second, it is obvious that one can extend the present approach to other years and systems. Some years are likely to prefer more forecasted MSSWs than others, as various interannually varying external factors, such as the Quasi-Biennial Oscillation and El Niño/Southern Oscillation, are known to affect the occurrence of MSSWs [5]. It is also possible that some systems exhibit different false alarm MSSWs than others.

Finally, the most interesting extension of this study will be to use such false alarms to suggest a possibility that the real atmosphere might have experienced an MSSW, that is, in early December or early February for the 2017/2018 season. This suggestion depends on the fidelity of the forecast data; the ensemble members and real evolution should be equally likely to happen. If the fidelity is guaranteed for the present S2S system, then the existence of the MSSW ensembles, sandwiched by the non-MSSW ensembles, will imply intraseasonal variability of likelihood of a MSSW; an increased MSSW frequency or probability is obtained when forecasts are initialized in only limited periods of time. Conversely, the suggestion can not be made if the false alarms are just artifacts, apart from the real world. The present results do not deny the fidelity of the forecast data, as the JRA-55 data are within the range covered by the ensemble members, although they examine only limited quantities. The suggestion may also depend on the forecast time for which many ensemble members forecast a MSSW and the degree to which the members are clustered in terms of the timing. Future study will further explore these aspects using multi-year forecast data for the suggestion.
