Mapping Grain Iron and Zinc Content Quantitative Trait Loci in an Iniadi-Derived Immortal Population of Pearl Millet

Sushil Kumar
Charles Tom Hash
Thirunavukkarasu Nepolean
Mahesh D. Mahendrakar
Chellapilla Tara Satyavathi
Govind Singh
Abhishek Rathore
Rattan S. Yadav
Rajeev Gupta
2 and
Rakesh K. Srivastava
Plant Biotechnology Centre, SK Rajasthan Agricultural University, Bikaner 334006, India
International Crops Research Institute for the Semi-Arid Tropics (ICRISAT), Patancheru, Telangana 502324, India
Centre of Excellence in Biotechnology, Anand Agricultural University, Anand, Gujarat 388110, India
International Crops Research Institute for the Semi-Arid Tropics (ICRISAT), Niamey 8001, Niger
Indian Agricultural Research Institute (IARI), New Delhi 110012, India
Institute of Biological, Environmental and Rural Sciences, Aberystwyth University, Aberystwyth SY23, 3EB, UK
Author to whom correspondence should be addressed.
Genes 2018, 9(5), 248;
Submission received: 3 March 2018 / Revised: 23 April 2018 / Accepted: 1 May 2018 / Published: 11 May 2018
(This article belongs to the Section Plant Genetics and Genomics)


Pearl millet is a climate-resilient nutritious crop requiring low inputs and is capable of giving economic returns in marginal agro-ecologies. In this study, we report large-effect iron (Fe) and zinc (Zn) content quantitative trait loci (QTLs) using diversity array technology (DArT) and simple sequence repeats (SSRs) markers to generate a genetic linkage map using 317 recombinant inbred line (RIL) population derived from the (ICMS 8511-S1-17-2-1-1-B-P03 × AIMP 92901-S1-183-2-2-B-08) cross. The base map [seven linkage groups (LGs)] of 196 loci was 964.2 cM in length (Haldane). AIMP 92901-S1-183-2-2-B-08 is an Iniadi line with high grain Fe and Zn, tracing its origin to the Togolese Republic, West Africa. The content of grain Fe in the RIL population ranged between 20 and 131 ppm (parts per million), and that of Zn from 18 to 110 ppm. QTL analysis revealed a large number of QTLs for high grain iron (Fe) and zinc (Zn) content. A total of 19 QTLs for Fe and Zn were detected, of which 11 were for Fe and eight were for Zn. The portion of the observed phenotypic variance explained by different QTLs for grain Fe and Zn content varied from 9.0 to 31.9% (cumulative 74%) and from 9.4 to 30.4% (cumulative 65%), respectively. Three large-effect QTLs for both minerals were co-mapped in this population, one on LG1 and two on LG7. The favorable QTL alleles of both mineral micronutrients were contributed by the male parent (AIMP 92901-deriv-08). Three putative epistasis interactions were observed for Fe content, while a single digenic interaction was found for Zn content. The reported QTLs may be useful in marker-assisted selection (MAS) programs, in genomic selection (GS) breeding pipelines for seed and restorer parents, and in population improvement programs for pearl millet.

1. Introduction

Pearl millet [Pennisetum glaucum (L). R. Br.] is a climate-resilient crop of the semi-arid tropics of Asia and Africa [1]. It is a major source of energy, proteins, vitamins, and minerals for millions of the poorest people in these regions [2]. Drought and salinity tolerance and high water-use efficiency of pearl millet place it as one of the most preferred cops in the advent of changing climate characterized by global warming, mounting temperatures, growing water shortages, and escalating salinity. Globally, pearl millet is a leading crop for subsistence- and market-oriented crop-livestock production systems in the harsher environments of Asia and Africa. Globally, pearl millet is a staple food for above 90 million people [3].
For pearl millet, several molecular marker systems, such as restriction fragment length polymorphisms (RFLPs) [4], sequence tagged sites (STSs) [5], amplified fragment length polymorphisms (AFLPs) [6], single-stranded conformational polymorphism (SSCP) [7], gSSRs (simple sequence repeats) [8,9,10], EST-SSRs (expressed sequence tag- simple sequence repeats) [11,12,13,14,15], and diversity array technology (DArT) [14,15] have been deployed in last 25 years. Among the different marker systems, SSRs is considered a powerful system for marker-assisted breeding (MAB) because of its co-dominant nature, abundance, reproducibility, and variability. However, the relatively high cost per data point and low genome coverage restrict the application of SSRs in quantitative trait loci (QTL) mapping and marker-assisted selection programs. The current trend in cereal molecular breeding is to deploy high-throughput and cost-efficient markers, such as single nucleotide polymorphism (SNP) [16] and DArT [17]. DArT, a sequence-independent alternative to the common gel-based marker system, can overcome the limitations of the present marker systems in pearl millet. DArT is developed using the metagenome, offers a high multiplexing level, and can even include diversity surveys of newly developed varieties for analysis [18], as the same platform is used for discovering and scoring polymorphic markers. DArT has been employed for genetic mapping, genotyping, and diversity assessment in cereals and millets [15,19,20]. Recently, DArT-based linkage maps have been developed in pearl millet [14,15].
During QTL mapping, the type and size of the mapping population determine the gene effect for a trait [21,22,23]. Among various types of mapping population, recombinant inbred lines (RILs) population constitutes a permanent resource, as it can be replicated indefinitely. Moreover, because of several rounds of meiosis and recombination cycles, mapping resolution in RILs is more than in F2 and doubled haploid (DH) populations. Therefore, RIL populations can determine the map positions of even tightly linked markers. However, the mapping resolution and the ability to determine the marker order is fundamentally dependent on the population size [24]. The available literature on pearl millet (Table S1) displays that genetic maps are constructed using F2/RIL with a population size of <200. Hence, the objective of this study was to construct a linkage map using DArT markers in a large-sized RIL mapping population of pearl millet.
Deficiencies or insufficient intakes of nutrients, especially vitamins or minerals, lead to several dysfunctions and diseases in humans that together are referred to as micronutrient malnutrition or hidden hunger. More than three billion people in the world today may be affected by micronutrient malnutrition [25,26,27]. Carbohydrate-rich, cereal-based monotonous consumption of foods with low contents and reduced bioavailability of Fe and Zn has been considered a major reason for Zn and Fe deficiency, especially among resource-poor women, infants, and children in the developing countries [28,29]. Targeted strategies available to alleviate micronutrient deficiencies include dietary diversification, food fortification, and supplementation. The breeding of agricultural crops for higher nutrient levels (or ‘biofortification’) is an emerging approach that complements the existing “toolbox” of interventions.
Being a multipurpose crop, pearl millet is an important food for the undernourished people of the semi-arid tropics. Moreover, it is also well established that high metabolizable energy, proteins, and micronutrients make pearl millet an extremely nutrient-rich cereal [14]. Hence, pearl millet has been targeted for breeding-based biofortification to combat sinister forms of micronutrient malnutrition and hidden hunger. Its micronutrients contribution, particularly of iron (Fe) and zinc (Zn), varies from 30 to 50% of the intake of both micronutrients from cereals [14]. Therefore, the newly developed mapping population was utilized to map the QTLs for grain Fe and Zn content in an Iniadi-genetic background, known for high grain Fe and Zn content.

2. Materials and Methods

2.1. Plant Material

A segregating population of 317 F6-RILs was obtained from the cross of two inbred lines (ICMS 8511-S1-17-2-1-1-B-P03 × AIMP 92901-S1-183-2-2-B-08). The inbred ICMS 8511-S1-17-2-1-1-B-P03 (hereafter, ICMS) was derived from an experimental synthetic variety of pearl millet, namely, ICMS 8511, and bred at International Crops Research Institute for the Semi-Arid Tropics (ICRISAT)-Patancheru by random-mating a small number of inbred lines. It has small grain size and low grain Fe and Zn content [30]. The second inbred AIMP 92901-S1-183-2-2-B-08 (hereafter AIMP) was also developed at ICRISAT-Patancheru by selfing and selection within the released improved open-pollinated variety AIMP 92901 (Samrudhi-MP-282), which was bred collaboratively by ICRISAT and the pearl millet breeding team at National Agricultural Research Project (NARP) Aurangabad, Maharashtra, using the C4 cycle bulk of ICRISAT’s Bold Seeded Early Composite (BSEC) as a base population. AIMP 92901-S1-183-2-2-B-08 is an Iniadi parent tracing its origin to the Togolese Republic, West Africa. The lines originating from this region are known to have a high grain Fe and Zn content. This fertilizer-responsive, short-statured, and downy mildew-resistant inbred produces large grain having high grain Fe and Zn content [30]. Thus, the population segregated for grain iron and zinc content along with many other agronomic traits.
A single F1 plant produced after the initial plant × plant cross of both parents was selfed to produce F2 seeds, and the progeny was then advanced through single-seed descent (SSD) till the F6 generation, after which it was maintained as self-bulk. During generation advance, hand-sowing was done for each entry to provide five plants in every plot of 1 m length for producing self-seeds. Bulk seeds were harvested from the middle three out of five plants in each plot. For each entry, one selfed panicle was also harvested to provide a stock of nucleus seeds to maintain the purity and for future use in the advancing of every individual RIL.

2.2. DNA Extraction and Marker Analysis

Genomic DNA was extracted from the 15-days-old leaves of the population using sodium dodecyl sulphate (SDS) buffer as mentioned in Kumar et al. [14]. DNA quality was assessed by electrophoresis on agarose gels, and the DNA concentration was adjusted to 10 ng μL−1. Though the cost per data point of SSR is higher than that of DArT, on the basis of previous SSR based maps, SSRs are helpful in the designation of linkage groups and in the anchoring of the DArT markers in the new mapping population. Therefore, a total of 342 fluorescently labeled SSRs primer pairs of the Xpsmp series [8,9,31], Xctm series [10], Xicmp series [12], and Xipes series [13] were used for a polymorphism survey of the parental lines. Polymerase chain reaction (PCR) amplification of the Xpsmp, Xctm, and Xicmp series primers was performed in a reaction mixture (5 µL) containing 1 µL (10 ng) of genomic DNA, 0.5 µL of each primer (2 pmole/µL), 0.5 µL of 10× PCR buffer (ABI), 0.2 µL of 25 mM MgCl2, 0.2 U Taq DNA polymerase (Applied Biosystems, Foster City, CA, USA), 0.5 µL of 2 mM dNTPs, and double-distilled sterilized water. The selective amplification was carried out using a touchdown PCR method consisting of one cycle at 94 °C for 5 min, followed by five cycles over which the annealing temperature was decreased by 1 °C per cycle, and a final step of 30 cycles at 94 °C for 30 s, 52 °C for 30 s, and 72 °C for 1 min. M13-tailed Xipes series primers were amplified as per Rajaram et al. [13].
After checking the amplicons in 1.2% agarose gel, the SSR amplicons were resolved on capillary electrophoresis (3730 DNA fragment analyser, Applied Biosystems, USA). The data were analyzed using GeneMapper software (Applied Biosystems, USA) for estimating the sizes of the PCR amplicons by comparison with the internal size standard LIZ500 (Applied Biosystems). A DNA marker was considered to be valid if it had a peak height of at least 100 fluorescent units.
For DArT analysis, DNA samples at 50 ng μL−1 concentration were submitted to the Genotyping Service Laboratory (GSL) at ICRISAT-Patancheru. A set of 6912 DArT clones developed by PstI/BamII complexity reduction at ICRISAT was used for population genotyping. DNA from RILs and both parental lines were genotyped with DArT, using a previously established protocol [15].

2.3. Construction of Linkage Map

To analyze the segregation pattern of markers for assessing deviations from the expected Mendelian ratio (1:1), a χ2-test was performed. Initially, markers with the goodness of fit were chosen for map construction, but later some of the distorted markers were also integrated into the map on the logarithm of the odds (LOD) value >3.0. The polymorphic markers were grouped into different linkage groups, using LOD scores ranging from 3 to 16 by Mapmaker/Exp 3.0 [32]. Markers within the groups were ordered by the “RIPPLE”, “BUILD”, and “TRY” commands in Mapmaker/ExP. The inter-marker distance was calculated using the Haldane mapping function (cM), and the maps were visualized using MapChart 2.2 [33].

2.4. Experimental Conditions and Phenotyping of the Population

The field trial was performed in an α-lattice design on Alfisol fields at ICRISAT Patancheru with two replications in one environment during summer (2010). The trial was carried out with a total of 324 entries (317 RILs + repeated parental line) in 18 blocks of 18 plots. Each line was sown in two-row plots (length 4 m) with 60 cm inter- and 15 cm intra-row spacing to produce bulks of selfed grains for iron and zinc analysis.
Threshed seeds were cleaned and oven-dried at 80 °C for 2 h. The dried seeds were ground with a cyclone sample mill to get sample powder (Udy Corporation, Fort Collins, CO, USA). One gram of grain powder was digested in a triacid mixture of 5:2:1 by volume of concentrated nitric acid, sulfuric acid, and perchloric acid using an electric hot plate until smoke appeared. The minerals analysis (Fe at 248.3 nm wavelength and Zn at 213.9 nm wavelength) of the seeds was conducted in an Atomic Absorption Spectrophotometer (Model: Spectra AA 20, Varian, Palo Alto, CA, USA), according to Velu et al. [30]. For the preparation of the standard solution from the stock solution of 10 mg L−1 Fe or Zn, aliquots of 1, 2, 3, 4, and 5 mL were pipetted out into well-labeled 25 mL volumetric flasks. For each flask, the volume was made up to 25 mL with 0.5% H2SO4. These sets of standards were used for the calculation of the instrumental calibration curve for both minerals. For error control, the samples were measured in sets of 40 samples containing three blanks and two standard samples with one check sample of known mineral elements content. The grain Fe and Zn content were computed as parts per million (ppm).

2.5. Statistical Analysis

The phenotypic variance was partitioned using the residual maximum likelihood (ReML) algorithm with a mixed model, where replication and block were considered to be fixed effects, while genotypes were random effects, to obtain the best linear unbiased predictions (BLUPs) of the performance of genotypes for each observed trait. Pearson correlation coefficients were determined for the studied traits, namely, Fe and Zn content (ppm) using ‘PROC CORR’ in SAS (SAS Institute Inc., Cary, North Carolina, USA). Because a normal distribution could not be assumed for all the observed variables, Spearman’s rank correlation (rs) was also used as a robust estimation of the correlation coefficient. Similarly, genotypic correlations were also estimated. The significance of the correlation coefficients at p ≤ 0.05 and 0.01 was indicated as * and **, respectively. Broad-sense heritability on a plot means basis was computed from the estimates of genetic (σ2g) and residual (σ2e) variances using the progeny means across RILs in each environment for both traits, using PROC MIXED in SAS. Heritability (H2) was estimated as explained by Falconer [34].

2.6. Quantitative Trait Loci Detection

Composite interval mapping (CIM) [35] with best linear unbiased prediction (BLUP) data of each trait was used to identify QTL using PLABQTL [36] with two centiMorgan (cM) increments. To declare a putative QTL as statistically significant, a minimum LOD score of three was fixed according to the Bonferroni correction. The critical LOD threshold was analyzed empirically for each trait using 1000 permutation runs. The proportion of the phenotypic variance explained by the QTL was determined by the estimator R2 (%). The putative QTLs detected for each of the respective traits were assigned to linkage groups on the basis of the map positions of their flanking markers.

3. Results and Discussion

3.1. Linkage Map

Linkage maps are important pre-requisite for QTL mapping and for marker-assisted breeding programs. RIL is the most favored mapping population, but the accuracy of the mapping resolution depends on the population size. So far, in pearl millet, linkage maps have been predominantly constructed using F2 populations and, up to certain extent, RILs. The number of genotypes in individual populations of pearl millet was less than 190 individuals, which is lower than the theoretically required size to achieve precise mapping [37]. The RIL population, namely, 81B × ICMP 451, presently accommodating 321 loci (258 DArTs and 63 SSRs) was developed from only 140 RILs [15]. However, the here presented mapping population with 317 RILs is the largest mapping population in pearl millet.
During the polymorphism survey, a set of 235 DArT clones (3.3%) was found polymorphic between both parents. The number of polymorphic DArT clones was comparatively lower than that found by Supriya et al. [15]. In the case of SSRs, 112 (33%) SSRs out of 342 were polymorphic and comprised 18% of Xipes, 13% of Xpsmp, and 2% of Xicmp markers. To construct the framework linkage map, a small set of 33 polymorphic SSRs was used for genotyping the RILs. The SSR polymorphism level was lower than that determined by Senthilvel et al. [12], which was 74%. The reason for a low polymorphism in the present study may be the closer relatedness of the mapping population parents in the present study compared to that of Senthilvel et al. [12].
As far as the positioning of the SSR markers on the genetic map, all SSRs mapped on the same linkage group (LG) as in previous pearl millet maps reported by various researchers [12,14,15,38]. A set of 75% of DArT loci was polymorphic, which is similar to the result of Kumar et al. [14] but is lower than the percentage found by Supriya et al. [15], who reported 80% polymorphism. Out of 235 polymorphic markers, 177 DArTs and 19 SSRs were assigned to seven previously established pearl millet linkage groups (base map), (Figure 1a), in which LG4 had two sub-groups (LG4A and LG4B). Thirty-four loci (28 DArT and 6 SSRs) not linked to any of the existing LGs and were grouped in 14 small groups (LG A to LG N), (Figure 1b), with markers ranging from two to five per group. Similar to the current study, Kumar et al. [14] also reported small LGs in the pearl millet linkage map. Moreover, attempts for linking any such small segments to any major group drastically increased the length of that major group, with huge inter-marker distances. Hence, these 14 segments were kept separate and treated as small LGs. The 34 unmapped markers either had a too high degree of segregation distortion or were positioned too distantly in relation to the next markers assigned to the linkage groups and were presumably on the distal ends of the LGs. The un-mapping of polymorphic markers in pearl millet was also reported earlier [14,15]
In the current study, the distribution of DArT throughout the chromosome was uniform. The map of seven LGs consisting of 196 loci was 964 cM in length, as shown in Table 1. The average length of the LGs in this base map was 121 cM, and the average number of loci per LG was 24.5. LG1 was the longest, having 38 loci with a distance of 218 cM. The shortest LG in pearl millet on the basis of the previous studies of Gulia [39] and Yadav et al. [38] with four (30.2 cM) and nine markers (15.4 cM), respectively, was LG3; however, in the present study, LG6 was found to be the shortest LG (47 cM), holding 13 markers only. This indicates that the marker number was not sufficient in the previous investigations [14,15] to cover the full length of LG3. The length of LG2 was one-third of that previously reported in the DArT map of pearl millet.
The present map had a length greater than the one reported by Yadav et al. [38] and Gulia [39], and smaller than in the other maps [14,15]. The map covers 964 cM, which is comparable to the 815 cM of the map recently developed by Sehgal et al. [40], and 84% of the intervals were less than 10 cM, which is comparable with the intervals reported by Supriya et al. [15].
The average inter-marker lengths on the base map ranged from 3.6 cM (LG6) to 9.2 cM (LG5). Among the small segments, LG H was the longest (34 cM), while LG I was the shortest (1.9 cM). The average distance between markers in the base map was a little higher in the DArT linkage map of Supriya et al. [15]. DArT markers in large-sized population constitute a significant improvement in marker density and, possibly, inter-marker distance. A positive correlation was found between the number of mapped markers and the length of linkage groups. For instance, LG1 spans a distance of 219 cM with 33 markers, and LG4B, with 5 loci, spans a distance of 26 cM. Similar observations were recorded in an earlier DArT-based map of pearl millet study [15]. The markers that were unlinked to any of the major LGs will be merged into larger LGs with the availability of an additional set of polymorphic markers in the near future.
The improved inter-marker distance of the current map, as compared to previously reported pearl millet maps [14,15,38,39,41], developed on a variable size population and a different number of markers, indicates that this map is one of the densest genetic maps for pearl millet.

3.2. Segregation Distortion and Inter-Marker Gaps

RILs usually show segregation distortion, because, during the RIL development process, many recessive lethal genes become homozygous, and their expression caused failure to contribute seeds to subsequent generations, consequently resulting in a skewed population [14]. It was found that 60% of loci showed segregation distortion in the present linkage map. Distorted markers showing p > 0.001 were also used for mapping in the framework linkage groups. Segregation distortion was found in both maternal and parental loci, although it was much higher in ‘ICMS’, the female parent of our mapping population. In previous studies, segregation distortion in favor of the female parent alleles was observed [15,42]. Out of 196 markers on the base map, the segregations of 118 DArTs and 14 SSRs were distorted, and, of these, 60 were skewed towards AIMP, and these loci were distributed across all seven LGs. In pearl millet, pollen abortion is more common than abnormalities in the female gametes, leading to a relatively greater loss of male parent alleles and the ensuing skewness towards the female parent. The distorted markers mapped on LG1 and LG2 were skewed towards the alleles of the male parent (AIMP), while most of the distorted markers were skewed towards the alleles of the female parent (ICMS) in the remaining LGs. Most of the loci on linked fragments were skewed towards ICMS.
Distortion from expected Mendelian segregation has been observed previously in barley [43,44], rice [45,46], maize [47,48], wheat [49,50,51], and pearl millet [15,39]. It has been suggested that the protogynous nature of pearl millet also contributes to segregation distortion [4]. Residual heterozygosity and inbreeding depression during inbred development may also contribute, as previously demonstrated by Cloutier et al. [52] and Livingstone et al. [53]. At the same time, the residual heterozygosity existing in some RIL may be beneficial, since deleterious genetic combinations in the form of lethality or reduced fitness can be overcome. In contrast to previous studies, the segregation of almost all loci of LG3 was distorted, which may explain part of the increase in LG3 map length.
The characteristic feature of pearl millet linkage maps is the presence of large gaps between centromere and telomere. LG4 was split into two pieces, suggesting additional polymorphic markers are needed to fill-up the gap between these two pieces. Senthilvel et al. [12] also reported a similar big gap in LG4. The previously constructed framework map for the cross ICMB 841-P3 × 863B-P2 had large gaps in LG2 and LG7 [12,54]. This new population also showed a large gap (>25 cM) in LG2, LG5, and LG7, for which the most probable reason could be the extreme localization of recombination at the ends of LG2 and LG7 [38]. According to various researchers, large gaps in the distal regions reflect regions of high recombination, rather than a lack of markers in these regions [12,41,55].
It is, however, possible, on the other hand, that these linkage groups are still incomplete, and genomic resources can be extended to develop new markers that are located on the distal regions of the linkage groups. Moreover, areas of low marker density and gaps may correspond to regions of similar ancestry or identity by descent in the germplasm included in the initial diversity representation for the development of the DArT markers [56]. In the case of potato, a gap was observed, and the authors postulated that this could be due either to recombination hot spots or to fixation (homozygosity) of the potato genome [57]. The number of large gaps has decreased in the present study compared to previous linkage maps, although there is still the possibility to map more markers to saturate these gaps.

3.3. Variance Components and Heritability

There is a great variation of mineral and agronomic traits in pearl millet. The parents of this RIL population showed statistically significant divergent phenotypes for both the traits studied. The differences between BLUP means of RILs and AIMP 92901-deriv-08 were significant for both traits. A very wide range of variation for both traits was detected among the RILs of this mapping population (Table 2). The genotypic components of variance (σ2g) for both traits were significant in this RIL population, and the operational heritability (H2) estimates were very high, ranging from 0.83 (Zn) to 0.88 (Fe) (Table 3). The relatively high operational heritability indicates that much of the phenotypic variance in the RIL populations is genetically controlled, and QTLs can be mapped with a reasonable degree of reliability, given an appropriate genetic map of this RIL population. Broad-sense operational heritability was generally high enough to permit effective QTL mapping, indicating moderately high to high proportions of genetic variance for the traits studied.

3.4. Correlation Analysis

The knowledge of the associations between nutritional and agronomic traits will enable the breeders to decide suitable selection/breeding program criteria for the simultaneous genetic improvement of complex and associated traits like mineral content. The correlation between grain Fe and Zn contents has been studied in several crops, with the results, by a large, showing similar trends. Both genotypic (9.4**) and phenotypic (9.3**) associations between Fe and Zn were very strong and significantly positive. This may point to common molecular mechanisms controlling the uptake and metabolism of these minerals in grains or to common transporters controlling the movement of these minerals within the plants [58,59]. The co-segregation of genes for these traits might be the reason of the strong association between these minerals in both populations. The direction and intensity of the association suggest that there are good opportunities for the simultaneous genetic improvement of both micronutrients by co-transferring superior alleles controlling these traits into the genetic backgrounds of elite lines [30]. Genotypic correlations were observed to be higher than their corresponding phenotypic correlations for all the traits, suggesting less interaction between the genetic makeup of the traits and the environmental conditions. The higher genotypic correlation coefficients compared to the phenotypic coefficients also are an indicator that there are inherent relationships between the traits studied. This finding is in agreement with those of Khairwal et al. [60] and Ezeaku and Mohammed [61].

3.5. Frequency Distributions

The frequency distributions for the studied traits are given in Figure 2. The histogram of the RILs represents the frequency distributions of the overall means for both traits in the genotypes. In the case of the ICMS 8511-deriv × AIMP 92901-deriv-08 population, the distributions of RILs for Fe and Zn was skewed toward the ICMS 8511-deriv values. The bimodal distribution indicates the presence of one major genomic segment influencing the trait, with modifiers contributing to its quantitative variation. For both traits, the phenotypic normal distributions and transgressive segregations in the RIL population indicate polygenic inheritance. The presence of asymmetry in the distribution or skewness in the plot with transgressive segregation is indicative of epistatic interactions [62,63]. The presence of transgressive segregation also indicates the occurrence of genetic recombination [34], which points out that both favorable and unfavorable alleles for the trait studied are scattered between the parents.

3.6. Quantitative Trait Loci for Grain Iron (Fe) and Zinc (Zn) Content and Epistasis

The base map accommodated eight putative QTLs out of 11 detected for Fe content of self-pollinated grain in the summer 2010 dataset. R2 values (phenotypic expression) for individual QTLs ranged from 9 to 31.9%, while the R2 for their final simultaneous fit was 74.6%. The range of R2 was higher than that found by Kumar et al. (2016). A major putative QTL with R2 of 31.9% and a LOD value of 25.36 was detected on LG1. It had an additive effect of 9.7 ppm, and the favorable allele was the from high-Fe parent AIMP 92901-deriv-08 (Table 4). Compared to the present study, Kumar et al. [14] reported a major QTL for Fe on LG3. This indicated the role of the genome content in the parental genotypes. The result of one major QTL on LG1 and numerous putative QTLs with small effect is indicative of the probable complexity of inheritance of this trait, with effects distributed across the whole genome contributing to the control of uptake, accumulation, and content of this mineral micronutrient. The existence of multiple QTLs for grain iron content was also identified in different crops, like rice [64] and Medicago [65]. On the basis of the single-environment data analysis, three putative QTL × QTL interactions (QQI) were observed for Fe.
Eight putative QTLs for selfed grain Zn content were mapped, with their final simultaneous fit providing an R2 of 65.4%. All favorable alleles were from AIMP 92901-deriv-08, except for two QTLs on LG4B at position eight and 22 cM. The R2 values for the individual putative QTLs for this trait ranged from 9.4 to 30.4% (Table 4). Similarly, their additive effects ranged from 0.6 to 6.7. Using single-environment data, one putative digenic interaction was observed for Zn.
Pleiotropism and linkage in quantitative traits are responsible for the correlations among QTLs and, consequently, the detection of co-localized QTLs. Similar to Kumar et al. [14], QTLs for Fe and Zn were co-mapped (Figure 3) on LG1 (major QTL) and LG7 (minor QTL), and favorable alleles for these QTLs were contributed by the male parent. The co-mapping of QTLs for minerals content has been earlier observed in cereals and millet in many studies [14]. Such outcomes indicate that some QTLs control the expression of multiple traits. The co-localization of QTLs also suggests the presence of QTLs with major effects for positively correlated traits [66]. From the crop improvement point of view, co-localized QTLs are of importance for the simultaneous improvement of Fe and Zn content in the grain of pearl millet.

4. Conclusions

Increasing grain iron and zinc content in pearl millet is an important breeding target for the nutritional security of the poor, especially women and children, in the semi-arid tropics. The development of trait-specific mapping populations is the prerequisite to dissect complex traits like micronutrient content in pearl millet. Therefore, an Iniadi-derived immortal bi-parental RIL mapping population with 319 lines was developed, segregating for grain iron and zinc content. The high genetic variation in the studied population for grain Fe and Zn content was exploited to detect QTLs for both minerals. Two co-localized QTLs were detected on LG1 and LG7. After further validation, these QTL may be used in marker-assisted breeding programs for the development of high grain Fe and Zn hybrid parental (A-/B- and R-) lines and in marker-assisted population improvement (MAPI) programs globally.

Supplementary Materials

The following are available online at, Table S1: Total mapped genome and linkage group lengths for various pearl millet mapping populations.

Author Contributions

C.T.H. and R.K.S. designed the research. S.K., R.K.S., C.T.H., T.N., and G.S. performed the research. R.K.S. supervised data analysis and interpretation. S.K. and A.R. analyzed the data. R.KS., S.K., C.T.H., C.T.S., R.S.Y., M.D.M., and R.G. wrote the paper. R.K.S. critically revised the paper for publication.


The first author gratefully acknowledges the Jawaharlal Nehru Memorial Fund (JNMF), New Delhi, India, and the University Grants Commission (UGC), New Delhi, India, for providing a Doctoral Fellowship and a Junior Research Fellowship (JRF), respectively. This work has been published as part of the Consultative Group on International Agricultural Research (CGIAR) Research Program on Dryland Cereals, ICRISAT, India. ICRISAT is a member of the CGIAR System Organization.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Ramya, A.R.; Ahamed, M.L.; Satyavathi, C.T.; Rathore, A.; Katiyar, P.; Raj, A.G.B.; Kumar, S.; Gupta, R.; Mahendrakar, M.D.; Yadav, R.S.; et al. Towards defining heterotic gene pools in pearl millet [Pennisetum glaucum (L.) R. Br.]. Front. Plant Sci. 2018, 8. [Google Scholar] [CrossRef] [PubMed]
  2. Anuradha, N.; Satyavathi, C.T.; Bharadwaj, C.; Nepolean, T.; Sankar, S.M.; Singh, S.P.; Meena, M.C.; Singhal, T.; Srivastava, R.K. Deciphering genomic regions for high grain iron and zinc content using association mapping in pearl millet. Front. Plant Sci. 2017, 8, 412. [Google Scholar] [CrossRef] [PubMed]
  3. Gangashetty, P.I.; Motagi, B.N.; Pavan, R.; Roodagi, M.B. Breeding Crop Plants for Improved Human Nutrition through Biofortification: Progress and Prospects. In Advances in Plant Breeding Strategies: Agronomic, Abiotic and Biotic Stress Traits, 1st ed.; Al-Khayri Jameel, M., Jain, S.M., Johnson, D., Eds.; Springer International Publishing: Cham, Switzerland, 2016; pp. 35–76. ISBN 978-3-319-22518-0. [Google Scholar]
  4. Liu, C.J.; Witcombe, J.R.; Pittaway, T.S.; Nash, M.; Hash, C.T.; Busso, C.S.; Gale, M.D. An RFLP-based genetic map of pearl millet (Pennisetum glaucum). Theor. Appl. Genet. 1994, 4, 481–487. [Google Scholar] [CrossRef] [PubMed]
  5. Gale, K.R.; Ma, W.; Zhang, W.; Rampling, L.; Hill, A.S.; Appels, R.; Morris, P.; Morrel, M. Simple high-throughput DNA markers for genotyping in wheat. In Proceedings 10th Australian Wheat Breeders Assembly, Mildura, Australia, 16–21 September 2001; CSIRO: Canberra, Australia, 2001; pp. 26–31. [Google Scholar]
  6. Vom Brocke, K.; Christinck, A.; Weltzien, E.; Presterl, T.; Geiger, H.H. Farmers’ seed systems and management practices determine pearl millet genetic diversity patterns in semiarid regions of India. Crop Sci. 2003, 5, 1680–1689. [Google Scholar] [CrossRef]
  7. Bertin, I.; Zhu, J.H.; Gale, M.D. SSCP-SNP in pearl millet—A new marker system for comparative genetics. Theor. Appl. Genet. 2005, 8, 1467–1472. [Google Scholar] [CrossRef] [PubMed]
  8. Qi, X.; Lindup, S.; Pittaway, T.S.; Allouis, S.; Gale, M.D.; Devos, K.M. Development of simple sequence repeat markers from bacterial artificial chromosomes without subcloning. Biotechnol. 2001, 2, 355–358. [Google Scholar]
  9. Qi, X.; Pittaway, T.S.; Lindup, S.; Liu, H.; Waterman, E.; Padi, F.K.; Hash, C.T.; Zhu, J.; Gale, M.D.; Devos, K.M. An integrated genetic map and a new set of simple sequence repeat markers for pearl millet, Pennisetum glaucum. Theor. Appl. Genet. 2004, 7, 1485–1493. [Google Scholar] [CrossRef] [PubMed]
  10. Budak, H.; Pedraza, F.; Cregan, P.B.; Baenziger, P.S.; Dweikat, I. Development and utilization of SSRs to estimate the degree of genetic relationships in a collection of pearl millet germplasm. Crop Sci. 2003, 6, 2284–2290. [Google Scholar] [CrossRef]
  11. Mariac, C.; Luong, V.; Kapran, I.; Mamadou, A.; Sagnard, F.; Deu, M.; Chantereau, J.; Gerard, B.; Ndjeunga, J.; Bezançon, G.; et al. Diversity of wild and cultivated pearl millet accessions (Pennisetum glaucum [L.] R. Br.) in Niger assessed by microsatellite markers. Theor. Appl. Genet. 2006, 1, 49–58. [Google Scholar] [CrossRef] [PubMed]
  12. Senthilvel, S.; Jayashree, B.; Mahalakshmi, V.; Kumar, P.S.; Nakka, S.; Nepolean, T.; Hash, C. Development and mapping of simple sequence repeat markers for pearl millet from data mining of expressed sequence tags. BMC Plant Biol. 2008, 8, 119. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Rajaram, V.; Nepolean, T.; Senthilvel, S.; Varshney, R.K.; Vadez, V.; Rakesh, K.; Shah, T.M.; Supriya, A.; Kumar, S.; Kumari, B.R.; et al. Pearl millet [Pennisetum glaucum (L.) R. Br.] consensus linkage map constructed using four RIL mapping populations and newly developed EST-SSRs. BMC Genomics 2013, 14, 159. [Google Scholar] [CrossRef] [PubMed]
  14. Kumar, S.; Hash, C.T.; Thirunavukkarasu, N.; Singh, G.; Rajaram, V.; Rathore, A.; Senapathy, S.; Mahendrakar, M.D.; Yadav, R.S.; Srivastava, R.K. Mapping quantitative trait loci controlling high iron and zinc content in self and open pollinated grains of pearl millet [Pennisetum glaucum (L.) R. Br.]. Front. Plant Sci. 2016, 7, 1636. [Google Scholar] [CrossRef] [PubMed]
  15. Supriya, A.; Senthilvel, S.; Nepolean, T.; Eshwar, K.; Rajaram, V.; Shaw, R.; Hash, C.T.; Kilian, A.; Yadav, R.C.; Narasu, M.L. Development of a molecular linkage map of pearl millet integrating DArT and SSR markers. Theor. Appl. Genet. 2011, 2, 239–250. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Varshney, R.K.; Thundi, M.; May, G.D.; Jackson, S.A. Legume Genomics and Breeding. In Plant Breed Reviews; Wiley Publisher: Hoboken, NJ, USA, 2010; Volume 33, pp. 257–304. ISBN 9780470535486. [Google Scholar]
  17. Jaccoud, D.; Peng, K.; Feinstein, D.; Kilian, A. Diversity Arrays: A solid state technology for sequence information independent genotyping. Nucleic Acids Res. 2001, 29, E25. [Google Scholar] [CrossRef] [PubMed]
  18. Yang, S.Y.; Saxena, R.K.; Kulwal, P.L.; Ash, G.J.; Dubey, A.; Harper, J.D.; Upadhyaya, H.D.; Gothalwal, R.; Kilian, A.; Varshney, R.K. The first genetic map of pigeon pea based on diversity arrays technology (DArT) markers. J. Genet. 2011, 1, 103–109. [Google Scholar] [CrossRef]
  19. Mace, E.S.; Xia, L.; Jordan, D.R.; Halloran, K.; Parh, D.K.; Huttner, E.; Wenzl, P.; Kilian, A. DArT markers: Diversity analyses and mapping in Sorghum bicolor. BMC Genom. 2008, 9, 26. [Google Scholar] [CrossRef] [PubMed]
  20. Jing, H.C.; Bayon, C.; Kanyuka, K.; Berry, S.; Wenzl, P.; Huttner, E.; Kilian, A.; Hammond-Kosack, K.E. DArT markers: Diversity analyses, genomes comparison, mapping and integration with SSR markers in Triticum monococcum. BMC Genom. 2009, 10, 458. [Google Scholar] [CrossRef] [PubMed]
  21. Soller, M.; Brody, T.; Genizi, A. On the power of experimental designs for the detection of linkage between marker loci and quantitative loci in crosses between inbred lines. Theor. Appl. Genet. 1976, 1, 35–39. [Google Scholar]
  22. Lander, E.S.; Botstein, D. Mapping mendelian factors underlying quantitative traits using RFLP linkage maps. Genetics 1989, 121, 185–199. [Google Scholar] [PubMed]
  23. Lynch, M.; Walsh, B. Genetics Analysis of Quantitative Traits, 1st ed.; Sinauer Associates: Sunderland, MA, USA, 1998; pp. 469–476. ISBN 0878934812. [Google Scholar]
  24. Darvasi, A.; Weinreb, A.; Minke, V.; Weller, J.I.; Soller, M. Detecting marker-QTL linkage and estimating QTL gene effect and map location using a saturated genetic map. Genetics 1993, 3, 943–951. [Google Scholar]
  25. Bouis, H.E. Micronutrient fortification of plants through plant breeding: Can it improve nutrition in man at low cost? Proc. Nutr. Soc. 2003, 2, 403–411. [Google Scholar] [CrossRef]
  26. Welch, R.M.; Graham, R.D. Breeding for micronutrients in staple food crops from a human nutrition perspective. J. Exp. Bot. 2004, 396, 353–364. [Google Scholar] [CrossRef] [PubMed]
  27. White, P.J.; Broadley, M.R. Biofortification of crops with seven mineral elements often lacking in human diets–iron, zinc, copper, calcium, magnesium, selenium and iodine. New Phytol. 2009, 1, 49–84. [Google Scholar] [CrossRef] [PubMed]
  28. Graham, R.D.; Welch, R.M.; Bouis, H.E. Addressing micronutrient malnutrition through enhancing the nutritional quality of staple foods: Principles, perspectives and knowledge gaps. Adv. Agron. 2001, 70, 77–142. [Google Scholar]
  29. Welch, R.M. Importance of seed mineral nutrient reserves in crop growth and development. In Mineral Nutrition of Crops: Fundamental Mechanisms and Implications, 1st ed.; Rengel, Z., Ed.; CRC Press: New York, NY, USA, 1999; pp. 205–226. ISBN 978-1560228806. [Google Scholar]
  30. Velu, G.; Kulkarni, V.N.; Muralidharan, V.; Rai, K.N.; Longvah, T.; Sahrawat, K.L.; Raveendran, T.S. A rapid screening method for grain iron content in pearl millet. International Sorghum and Millets Newsletter. 2006. Available online: (accessed on 15 December 2017).
  31. Allouis, S.; Qi, X.; Lindup, S.; Gale, M.D.; Devos, K.M. Construction of a BAC library of pearl millet, Pennisetum glaucum. Theor. Appl. Genet. 2001, 102, 1200–1205. [Google Scholar] [CrossRef]
  32. Lander, E.S.; Green, P.; Abrahamson, J.; Barlow, A.; Daly, M.J.; Lincoln, S.E.; Newberg, L.A. MAPMAKER: An interactive computer package for constructing primary genetic linkage maps of experimental and natural populations. Genomics 1987, 2, 174–181. [Google Scholar] [CrossRef]
  33. Voorrips, R.E. MapChart: Software for the graphical presentation of linkage maps and QTLs. J. Heredity 2002, 93, 77–78. [Google Scholar] [CrossRef]
  34. Falconer, D.S. Introduction to Quantitative Genetics, 3rd ed.; John Wiley & Sons: New York, NY, USA, 1989; pp. 261–266. ISBN 0321042472. [Google Scholar]
  35. Zeng, Z.B. Precision mapping of quantitative trait loci. Genetics 1994, 4, 1457–1468. [Google Scholar]
  36. Utz, H.F.; Melchinger, A.E. PLABQTL: A program for composite interval mapping of QTL. J. Quant. Trait Loci 1996, 2, 1–5. [Google Scholar]
  37. Ferreira, A.; da Silva, M.F.; Silva, L.C.; Cruz, C.D. Estimating the effects of population size and type on the accuracy of genetic maps. Genet. Mol. Biol. 2006, 29, 187–192. [Google Scholar] [CrossRef]
  38. Yadav, R.S.; Hash, C.T.; Bidinger, F.R.; Devos, K.M.; Howarth, C.J. Genomic regions associated with grain yield and aspects of post-flowering drought tolerance in pearl millet across stress environments and tester background. Euphytica 2004, 136, 265–277. [Google Scholar] [CrossRef]
  39. Gulia, S.K. QTL Mapping for improvement of downy mildew [Sclerospora Graminicola (Sacc.) J. Schroet.] resistance (DMR) in pearl millet [Pennisetum glaucum (L.) R. Br.] hybrid parental line ICMB 89111. Ph.D. Thesis, Chaudhary Charan Singh Haryana Agricultural University, Hisar, India, 2004. [Google Scholar]
  40. Sehgal, D.; Rajaram, V.; Armstead, I.P.; Vadez, V.; Yadav, Y.P.; Hash, C.T.; Yadav, R.S. Integration of gene-based markers in a pearl millet genetic map for identification of candidate genes underlying drought tolerance quantitative trait loci. BMC Plant Bio. 2012, 12, 9. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  41. Devos, K.M.; Pittaway, T.S.; Reynolds, A.; Gale, M.D. Comparative mapping reveals a complex relationship between the pearl millet genome and those of foxtail millet and rice. Theor. Appl. Genet. 2000, 100, 190–198. [Google Scholar] [CrossRef]
  42. Singh, K.; Ghai, M.; Garg, M.; Chhuneja, P.; Kaur, P.; Schnurbusch, T.; Keller, B.; Dhaliwal, H.S. An integrated molecular linkage map of diploid wheat based on a Triticum boeoticum × T. monococcum RIL population. Theor. Appl. Genet. 2007, 115, 301–312. [Google Scholar] [CrossRef] [PubMed]
  43. Graner, A.; Jahoor, A.; Schondelmaier, J.; Siedler, H.; Pillen, K.; Fischbeck, G.; Wenzel, G.; Herrmann, R.G. Construction of a RFLP map of barley. Theor. Appl. Genet. 1991, 83, 250–256. [Google Scholar] [CrossRef] [PubMed]
  44. Devaux, P.; Kilian, A.; Kleinhofs, A. Comparative mapping of the barley genome with male and female recombination-derived, doubled haploid populations. Mol. Gen. Genet. 1995, 6, 600–608. [Google Scholar] [CrossRef]
  45. Causse, M.A.; Fulton, T.M.; Cho, Y.G.; Ahn, S.N.; Chunwongse, J.; Wu, K.S.; Xiao, J.H.; Yu, Z.H.; Ronald, P.C.; Harrington, S.E.; et al. Saturated molecular map of the rice genome based on an interspecific backcross population. Genetics 1994, 138, 1251–1274. [Google Scholar] [PubMed]
  46. Xu, Y.; Zhu, L.; Xiao, J.; Huang, N.; McCouch, S.R. Chromosomal regions associated with segregation distortion of molecular markers in F2, backcross, doubled haploid, and recombinant inbred populations in rice (Oryza sativa L.). Mol. Gen. Genet. 1997, 5, 535–545. [Google Scholar] [CrossRef]
  47. Wendel, J.F.; Edwards, M.D.; Stuber, C.W. Evidence for multilocus genetic control of preferential fertilization in maize. Heredity 1987, 2, 297–301. [Google Scholar] [CrossRef]
  48. Lu, H.; Romero-Severson, J.; Bernardo, R. Chromosomal regions associated with segregation distortion in maize. Theor. Appl. Genet. 2002, 105, 622–628. [Google Scholar] [PubMed]
  49. Blanco, A.; Simeone, R.; Cenci, A.; Gadaleta, A.; Tanzarella, O.A.; Porceddu, E.; Salvi, S.; Tuberosa, R.; Figliuolo, G.; Spagnoletti, P.; et al. Extension of the Messapia × dicoccoides linkage map of Triticum turgidum (L.) Thell. Cell Mol. Biol. Lett. 2004, 9, 529–541. [Google Scholar] [PubMed]
  50. Peng, J.; Korol, A.B.; Fahima, T.; Röder, M.S.; Ronin, Y.I.; Li, Y.C.; Nevo, E. Molecular genetic maps in wild emmer wheat, Triticum dicoccoides: Genome-wide coverage, massive negative interference, and putative quasi-linkage. Genome Res. 2000, 10, 1509–1531. [Google Scholar] [CrossRef] [PubMed]
  51. Quarrie, S.A.; Steed, A.; Calestani, C.; Semikhodskii, A.; Lebreton, C.; Chinoy, C.; Steele, N.; Pljevljakusić, D.; Waterman, E.; Weyen, J.; et al. A high-density genetic map of hexaploid wheat (Triticum aestivum L.) from the cross Chinese Spring × SQ1 and its use to compare QTLs for grain yield across a range of environments. Theor. Appl. Genet. 2005, 5, 865–880. [Google Scholar] [CrossRef] [PubMed]
  52. Cloutier, S.; Cappadocia, M.; Landry, B.S. Analysis of RFLP mapping inaccuracy in Brassica napus L. Theor. Appl. Genet. 1997, 95, 83–91. [Google Scholar] [CrossRef]
  53. Livingstone, K.D.; Lackney, V.K.; Blauth, J.R.; Van Wijk, R.I.K.; Jahn, M.K. Genome mapping in capsicum and the evolution of genome structure in the Solanaceae. Genetics 1999, 152, 1183–1202. [Google Scholar] [PubMed]
  54. Yadav, R.S.; Sehgal, D.; Vadez, V. Using genetic mapping and genomics approaches in understanding and improving drought tolerance in pearl millet. J. Exp. Bot. 2011, 2, 397–408. [Google Scholar] [CrossRef] [PubMed]
  55. Varshney, R.K.; Hoisington, D.A.; Tyagi, A.K. Advances in cereal genomics and applications in crop breeding. Trends Biotechnol. 2006, 11, 490–499. [Google Scholar] [CrossRef] [PubMed]
  56. Mace, E.S.; Rami, J.F.; Bouchet, S.; Klein, P.E.; Klein, R.R.; Kilian, A.; Wenzl, P.; Xia, L.; Halloran, K.; Jordan, D.R. A consensus genetic map of sorghum that integrates multiple component maps and high-throughput Diversity Array Technology (DArT) markers. BMC Plant Biol. 2009, 9, 13. [Google Scholar] [CrossRef] [PubMed]
  57. Van Os, H.; Andrzejewski, S.; Bakker, E.; Barrena, I.; Bryan, G.J.; Caromel, B.; Ghareeb, B.; Isidore, E.; de Jong, W.; Van Koert, P.; et al. Construction of a 10,000-marker ultra-dense genetic recombination map of potato: Providing a framework for accelerated gene isolation and a genome wide physical map. Genetics 2006, 2, 1075–1087. [Google Scholar] [CrossRef] [PubMed]
  58. Vreugdenhil, D.; Aarts, M.G.M.; Koornneef, M.; Nelissen, H.; Ernst, W.H.O. Natural variation and QTL analysis for cationic mineral content in seeds of Arabidopsis thaliana. Plant Cell Environ. 2004, 27, 828–839. [Google Scholar] [CrossRef]
  59. Ghandilyan, A.; Vreugdenhil, D.; Mark, G.M.; Aart, M. Progress in the genetic understanding of plant iron and zinc nutrition. Physiol. Plant. 2006, 126, 407–417. [Google Scholar] [CrossRef]
  60. Khairwal, I.S.; Rai, K.N.; Andrew, D.J.; Harinarayana, G. Pearl Millet Breeding; Oxford and IBH Publishing Co.: New Delhi, India, 1999; p. 511. ISBN 81-204-1305-9. [Google Scholar]
  61. Ezeaku, I.E.; Mohammed, S.G. Character association and path analysis in grain sorghum. Afr. J. Biotechnol. 2006, 14, 1337–340. [Google Scholar]
  62. Jinks, J.L.; Pooni, H.S. Predicting the properties of pure breeding lines extractable from a cross in the presence of linkage. Heredity 1982, 49, 265–270. [Google Scholar] [CrossRef]
  63. Rieseberg, L.H.; Widmer, A.; Arntz, A.M.; Burke, J.M. The genetic architecture necessary for transgressive segregation is common in both natural and domesticated populations. Philos. Trans. R. Soc. B 2003, 358, 1141–1147. [Google Scholar] [CrossRef] [PubMed]
  64. Lu, K.; Li, L.; Zheng, X.; Zhang, Z.; Mou, T.; Hu, Z. Quantitative trait loci controlling Cu, Ca, Zn, Mn and Fe content in rice grains. J. Genet. 2008, 87, 305–310. [Google Scholar] [CrossRef] [PubMed]
  65. Sankaran, R.P.; Huguet, T.; Grusak, M.A. Identification of QTL affecting seed mineral concentrations and content in the model legume Medicago truncatula. Theor. Appl. Genet. 2009, 119, 241–253. [Google Scholar] [CrossRef] [PubMed]
  66. Kumar, S.; Hash, C.T.; Nepolean, T.; Satyavathi, C.T.; Singh, G.; Mahendrakar, M.D.; Yadav, R.S.; Srivastava, R.K. Mapping QTLs controlling flowering time and important agronomic traits in pearl millet. Front. Plant Sci. 2017, 8, 1731. [Google Scholar] [CrossRef] [PubMed]

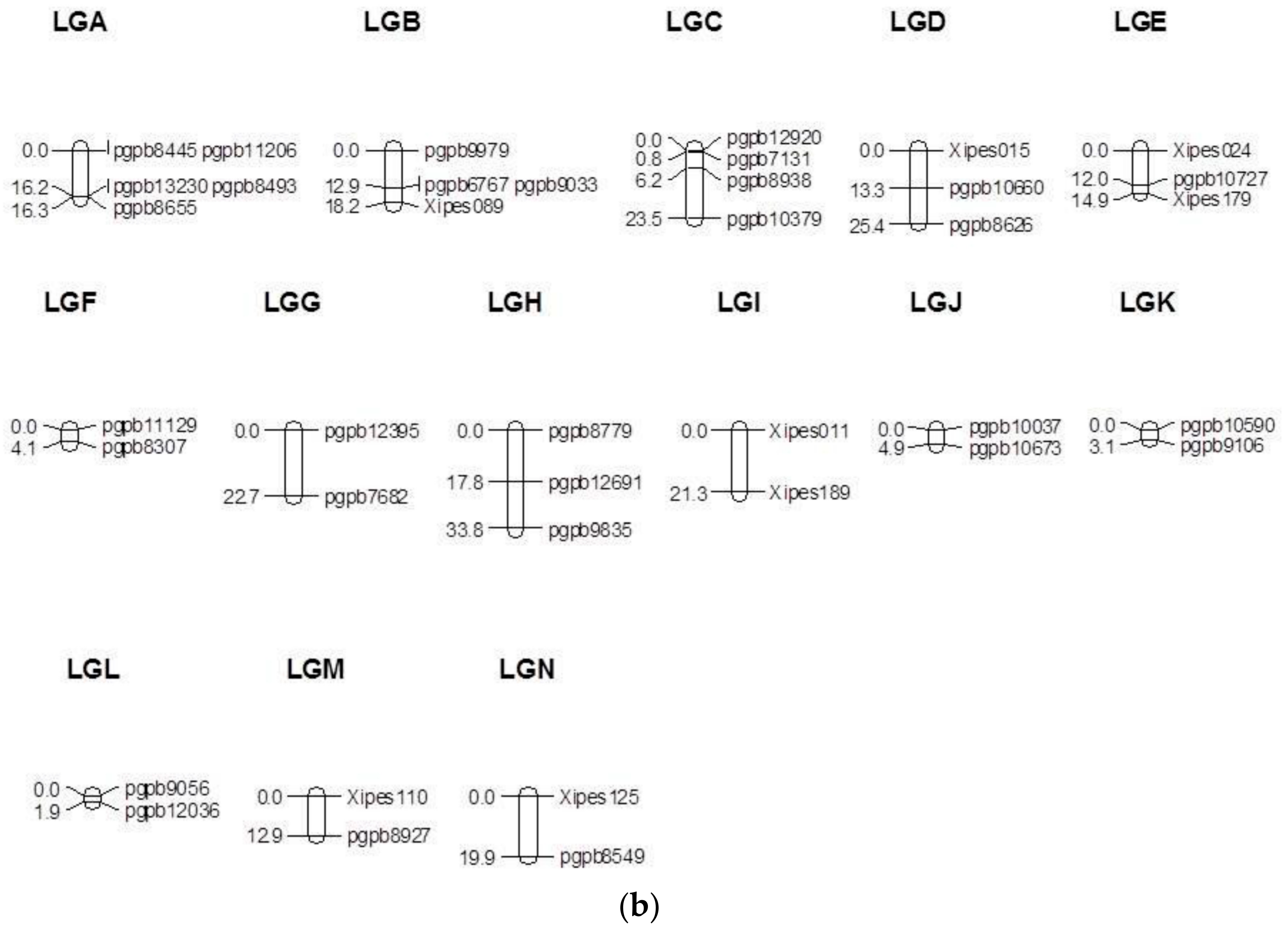

Figure 1. (a) Base linkage map (linkage groups LG1–LG7) of the pearl millet recombinant inbred line (RIL) population based on the cross (ICMS 8511-deriv × AIMP 92901-deriv-08); (b) Linked fragments from the genetic map of the pearl millet RIL population based on the cross (ICMS 8511-deriv × AIMP 92901-deriv-08).
Figure 1. (a) Base linkage map (linkage groups LG1–LG7) of the pearl millet recombinant inbred line (RIL) population based on the cross (ICMS 8511-deriv × AIMP 92901-deriv-08); (b) Linked fragments from the genetic map of the pearl millet RIL population based on the cross (ICMS 8511-deriv × AIMP 92901-deriv-08).
Genes 09 00248 g001aGenes 09 00248 g001b
Figure 2. Frequency distribution of grain iron and zinc best linear unbiased predictions (BLUPs) among RILs of the ICMS 8511B (P1) × AIMP 92901-deriv-08 (P2)-based mapping population grown at ICRISAT-Patancheru.
Figure 2. Frequency distribution of grain iron and zinc best linear unbiased predictions (BLUPs) among RILs of the ICMS 8511B (P1) × AIMP 92901-deriv-08 (P2)-based mapping population grown at ICRISAT-Patancheru.
Genes 09 00248 g002

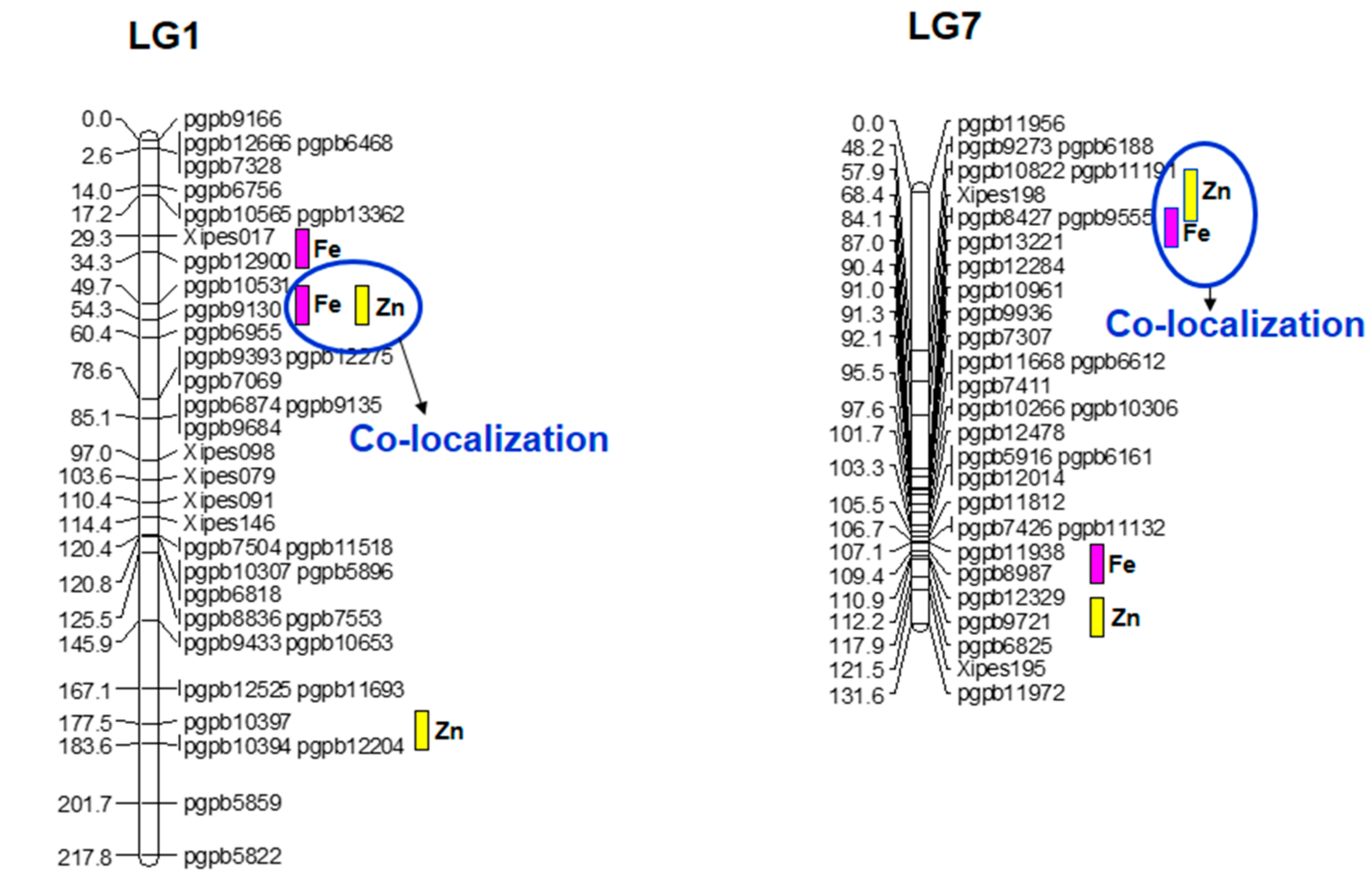

Figure 3. QTL positions for grain Fe and Zn content in (ICMS 8511-deriv × AIMP 92901-deriv-08)-based RIL population. Note that all QTLs are from high grain Fe-Zn content parent AIMP 92901.
Figure 3. QTL positions for grain Fe and Zn content in (ICMS 8511-deriv × AIMP 92901-deriv-08)-based RIL population. Note that all QTLs are from high grain Fe-Zn content parent AIMP 92901.
Genes 09 00248 g003
Table 1. Details of the diversity array technology (DArT)- and simple sequence repeats (SSRs)-based genetic map of the pearl millet RIL population based on the cross ICMS 8511-deriv × AIMP92901-deriv-08.
Table 1. Details of the diversity array technology (DArT)- and simple sequence repeats (SSRs)-based genetic map of the pearl millet RIL population based on the cross ICMS 8511-deriv × AIMP92901-deriv-08.
Linkage GroupSSR Marker LociSkewed SSR LociDArT Marker LociSkewed DArT LociTotal Marker LociTotal Skewed Marker LociSkewed Loci (%)Total Length (cM)Average Inter-Marker Distance (cM)
Total27 (19) #19 (14)207 (177)142 (118)234 (196)161 (132)69 (68) 1187 (964)5.0 (4.9)
# The values in parentheses show statistics of the base map from LG1 to LG7. RIL: Recombinant inbred line.
Table 2. Descriptive statistics of phenotypic values observed in RILs derived from the cross ICMS 8511B × AIMP 92901-08 at ICRISAT-Patancheru.
Table 2. Descriptive statistics of phenotypic values observed in RILs derived from the cross ICMS 8511B × AIMP 92901-08 at ICRISAT-Patancheru.
8511 (P1)AIMP (P2)RILsP1 vs. P2P1 vs. RILsP2 vs. RILs
TraitMeanMeanMeanRangePr > FPr > FPr > F
Fe29.8 ± 3.3124.1 ± 2.954.0 ± 0.320.0–131.0******
Zn27.7 ± 2.786.3 ± 2.443.9 ± 0.318.2–109.8******
Fe = Self-pollinated grain Fe content (ppm); Zn = Self-pollinated grain Zn content (ppm); ** Significant at 1% level.
Table 3. Genotypic variance (σ2g), standard error (SE), and operational heritability (H2, broad-sense) for the traits observed in the (ICMS 8511-deriv × AIMP 92901-deriv-08)-derived RIL population at ICRISAT-Patancheru.
Table 3. Genotypic variance (σ2g), standard error (SE), and operational heritability (H2, broad-sense) for the traits observed in the (ICMS 8511-deriv × AIMP 92901-deriv-08)-derived RIL population at ICRISAT-Patancheru.
Table 4. Positions and descriptions of QTLs affecting various traits in the (ICMS 8511-deriv × AIMP 92901-deriv-08)-based RIL population.
Table 4. Positions and descriptions of QTLs affecting various traits in the (ICMS 8511-deriv × AIMP 92901-deriv-08)-based RIL population.
TraitQTL 1Marker IntervalSupport IntervalLOD 2R2 (%)Additive Effects 3
1 Leading number: Linkage group; trailing number: QTL position in cM; 2 LOD: logarithm of the odds; 3 Positive additive effects indicate that the favorable alleles originated from AIMP 92901.
