Alternative Splicing of L-type CaV1.2 Calcium Channels: Implications in Cardiovascular Diseases

Department of Physiology, Yong Loo Lin School of Medicine, National University of Singapore, Singapore 117593, Singapore
Neurobiology/Ageing Programme, Center for Life Sciences, NUS Graduate School for Integrative Sciences and Engineering, Singapore 117456, Singapore
Neurobiology/Ageing Programme, Center for Life Sciences, National University of Singapore, Singapore 117456, Singapore
Author to whom correspondence should be addressed.
Genes 2017, 8(12), 344;
Received: 11 October 2017 / Revised: 9 November 2017 / Accepted: 21 November 2017 / Published: 24 November 2017
(This article belongs to the Special Issue Aberrant Pre-mRNA Splicing in Disease)


L-type CaV1.2 calcium channels are the major pathway for Ca2+ influx to initiate the contraction of smooth and cardiac muscles. Alteration of CaV1.2 channel function has been implicated in multiple cardiovascular diseases, such as hypertension and cardiac hypertrophy. Alternative splicing is a post-transcriptional mechanism that expands CaV1.2 channel structures to modify function, pharmacological and biophysical property such as calcium/voltage-dependent inactivation (C/VDI), or to influence its post-translational modulation by interacting proteins such as Galectin-1. Alternative splicing has generated functionally diverse CaV1.2 isoforms that can be developmentally regulated in the heart, or under pathophysiological conditions such as in heart failure. More importantly, alternative splicing of certain exons of CaV1.2 has been reported to be regulated by splicing factors such as RNA-binding Fox-1 homolog 1/2 (Rbfox 1/2), polypyrimidine tract-binding protein (PTBP1) and RNA-binding motif protein 20 (RBM20). Understanding how CaV1.2 channel function is remodelled in disease will provide better information to guide the development of more targeted approaches to discover therapeutic agents for cardiovascular diseases.

1. Introduction

L-type voltage-gated calcium channels (LTCC) contain four subtypes, CaV1.1, CaV1.2, CaV1.3 and CaV1.4, and they are sensitive to blockade by 1,4-dihydropyridines (DHPs) [1]. Among the L-type calcium channels, CaV1.1 channels are mainly localized in skeletal muscle, while CaV1.2 channels predominate in brain [2], cardiac [3] and vascular smooth muscle [4]. On the other hand, CaV1.3 channels are mainly expressed in the adrenal gland [5], pancreas [6], brain [7], cochlea [8] and sinoatrial node [9], and are essential for neurotransmission in the auditory hair cells and for cardiac pacemaker activity [10]. The CaV1.4 channels, however, have a restricted expression and play an important role in synaptic transmission in the retina [11].
The CaV1.2 channel is a multi-protein complex and is composed of the transmembrane pore-forming α1C subunit (referred to as the CaV1.2 channel in this review), the auxiliary α2δ and β subunits, and also the γ subunit in skeletal muscle (Figure 1) [12]. The α2δ-subunit has four isoforms (α2δ1–4) and the smooth muscle isoform, α2δ1, has been shown to promote the surface expression of CaV1.2 channels and increase the contractile ability of cerebral arteries [13,14]. Moreover, the β-subunit is essential for CaV1.2 channel function, as binding of the β-subunit to the α1-interacting domain (AID) within the I–II loop prevents endoplasmic reticulum-associated degradation (ERAD), and promotes channel trafficking to the cell membrane [15]. Similar to the α2δ-subunit, the β-subunit also has four subtypes (β1–4). In smooth muscle, the β2 and β3 subunits were dominantly expressed with detectable protein levels [16]. Global β2 knockout was reported to be embryonic lethal due to cardiovascular dysfunction [17], while β3-deficient mice infused with angiotensin II displayed inhibited CaV1.2 channel expression and lower blood pressure compared with wild-type mice [18]. In cardiac muscle, 18 different β-subunit isoforms have been identified in canine and human ventricle with distinct subcellular localizations [19]. The β2 subunit was suggested to be the predominant isoform in the heart [19]. Moreover, overexpression of β2a-subunit in mice resulted in higher L-type calcium currents and cardiac hypertrophy at 4 months of age [20].
Alternative splicing is a key biological mechanism that generates functionally distinct splice variants of CaV1.2 channels, some of which may be tissue-specific [21], developmentally regulated [22] or involved in cardiovascular diseases, such as atherosclerosis [23] and heart failure [24]. The human CaV1.2 gene (CACNA1C) consists of 50 exons, while that from mouse and rat have 49 exons due to the lack of exon 45. Among these exons, at least 20 of them in the N- and C- terminus, loops I–II and II–III, S6 of Domain I, S2 of Domain II, S3 of Domain IV, between S5 and S6 in Domain I, between S2 and S3 in Domain IV and between S3 and S4 in Domain IV undergo alternative splicing [25] (Figure 1). More than 50 CaV1.2 splice combinations have been identified in the heart and smooth muscles, with different localizations and functions [24].
In this review, we have mainly focused on the alternative splicing of CaV1.2 channels that is developmentally regulated or cardiovascular disease-related by highlighting splice variant-specific biophysical properties and functions. Moreover, we will briefly introduce the splicing factors that regulate the alternative splicing of CaV1.2 channels.

2. Overview of CaV1.2 Channel Function in the Cardiovascular System

Calcium ion influx through CaV1.2 channels is critical for the initiation of various cell processes including excitation–contraction coupling via Ca2+-induced Ca2+ release [26], excitation–secretion coupling [27], regulation of Ca2+-dependent enzymes and modulation of the biophysical properties of ion channels [12] (Figure 2). Alterations in vascular and cardiac CaV1.2 calcium channel activity have been associated with hypertension, cardiac hypertrophy and heart failure [28]. Smooth muscle-specific knockout of CaV1.2 channels in mice abolished the development of myogenic tone and drastically reduced arterial blood pressure [29], validating the central role CaV1.2 channels play in regulating blood pressure. Moreover, the CaV1.2 protein level was also significantly up-regulated in the mesenteric and skeletal artery of spontaneously hypertensive rats (SHR) [30]. Additionally, malfunction in CaV1.2 channels is associated with cardiac disorders including Timothy syndrome that is characterized by a long QT interval and ventricular arrhythmia due to sustained activation of CaV1.2 channels, and Brugada syndrome that is notable for a short QT interval and sudden cardiac death due to inactivation of CaV1.2 channels [31]. While the role of CaV1.2 channels in electrical heart diseases is well known, its role in mechanical or structural heart diseases remains controversial. Cardiac-specific overexpression of β2a-subunit or α1C-subunit in mice was reported to induce cardiac hypertrophy and cardiomyopathy by increasing Ca2+ influx through CaV1.2 channels [20,32]. However, α1C+/− mice with decrease in Ca2+ influx through CaV1.2 channels displayed a similar phenotype [28]. The reason for CaV1.2 downregulation-induced cardiac hypertrophy may be that, due to the lack of sufficient LTCC current, Ca2+ release from Ryanodine receptor 2 (RYR2) is sensitized to compensate for reduced systolic Ca2+ in order to maintain cardiac contractility, thereby resulting in hypertrophic remodeling through activating the calcineurin/Nuclear factor of activated T cells (NFAT) pathway. However, this notion still requires more experiments for validation as the CaV1.2 channels from two different microdomains in human and feline cardiomyocytes were considered to play different roles in cardiac function [33,34]: One sub-population of CaV1.2 channels in the T-tubules accounts for excitation–contraction coupling, while another in the caveolae activates the transcription factor NFAT by hypertrophic Ca2+ signaling. In contrast, with specific overexpression of a caveolae-targeted CaV1.2 inhibitor (CBD-REM, a truncated REM1-265 fused N-terminal to caveolin-binding domain) or activator (CBD-β2a, a mutated β2aC3S/C4S fused C-terminal to CBD) in cardiac muscles, the transgenic mice subject to the transverse aortic constriction model did not show significant changes in hypertrophic signaling and cardiac function [35], suggesting that, at least in adult mouse heart, the caveolae-resident CaV1.2 channels may not contribute to the development of cardiac hypertrophy. However, this study does not exclude the possibility that caveolae-resident LTCC could moderately affect the predisposition of the mouse heart to a lower-level stress, as β2a-trangenic mice displayed more severe cardiac hypertrophy under phenylephrine stimulation through Calcium/calmodulin-dependent protein kinase II (CaMKII)-mediated phosphorylation of caveolae-resident β2a subunits and the resulting up-regulation of caveolae-resident LTCC [36].

3. Developmentally Regulated Cardiac CaV1.2 Splicing

During cardiac development, the inclusion level of certain alternatively spliced exons in CaV1.2 channels has been shown to change gradually in rodent and human hearts, suggesting a differential role of CaV1.2 isoforms in fetal and mature hearts. One of the developmentally regulated CaV1.2 splice variants is the novel CaV1.233L channel containing exon 33L that forms part of the S3–4 linker of domain IV (Figure 3). The inclusion of rat exon 33L (RGSC 6.0/rn6, chr4: 150674656-150674726) causes a frame shift, which results in premature termination and C-terminal truncation of the channel protein to produce a non-functional CaV1.2 channel [22]. The percentage of this splice variant was found to reduce from 9.7% in neonatal hearts to 4.3% in left ventricles of adult hearts. More importantly, this non-functional CaV1.2 splice isoform showed significant dominant-negative suppression on wild-type CaV1.2 channel function by accelerating the degradation of CaV1.2 channels via the ubiquitin-proteasome system in transfected HEK 293 cells. However, the alternative splicing in exon 33L was found to be species-specific, as human exon 33L (GRCh38/hg38, chr12: 2648403-2648474) with a single nucleotide insertion generated a functional full-length CaV1.2 channel (Figure 3) which can conduct Ca2+ current, although at a much lower level than wild-type human CaV1.2 channels.
Besides exon 33L, there is another alternatively spliced site in the S3–4 linker of domain IV, namely mutually exclusive exons 31 (RGSC 6.0/rn6, chr4: 150682589-150682672) and exon 32 (RGSC 6.0/rn6, chr4: 150681903-150681986), which are also developmentally regulated in rat heart [37]. Both exons 31 and 32 were reported to be equally expressed in newborn and fetal rat hearts, but only exon 31 was significantly reduced in adult hearts, which indicated that a significant switch from exon 31 to 32 occurred during cardiac development. To date, it still remains unclear what specific physiological role each CaV1.2 isoform may play during cardiac development. Whole-cell patch-clamp recordings of exon 31- or exon 32-contaning human CaV1.2 channels in transfected HEK 293 cells did not show any changes in their electrophysiological properties [38]. However, the biophysical properties of exon 31- or exon 32-containing cardiac CaV1.2 channels need further validation in native fetal or adult cardiomyocytes and as such their defining roles in cardiac development remain to be examined.
Recently, a new developmentally regulated CaV1.2 splice variant in rodent and human hearts, CaV1.2e21+22 (Figure 3) was identified [39]. The CaV1.2e21+22 channel contains both exon 21 and exon 22. Exons 21/22 are mutually exclusive exons and the exon encodes the IIIS2 transmembrane segment and part of the linker region between IIIS1 and IIIS2. Transcript-screening showed that the abundance of exons 21 + 22 inclusion (RGSC 6.0/rn6, chr4: 150718378-150718639) was reduced from 14.3% in rat neonatal heart to 5.5% in adult heart. Further functional assays showed that the CaV1.2e21+22 channel was not able to conduct any Ca2+ influx, but had a stronger interaction with β subunits. Thus, co-expression of CaV1.2e21+22 channels was able to promote the proteasomal degradation of wild-type CaV1.2 channels by competing for β-subunits.

4. Cardiovascular Conditions-Related Splice Variants of CaV1.2 Channels

4.1. Timothy Syndrome

Exon 8 (GRCh38/hg38, chr12: 2504842-2504945)-containing CaV1.2 splice exhibited higher sensitivity to dihydropyridine (DHP), which may be the reason why the smooth muscle splice variant Cav1.2b (Figure 3) expressing exon 8 is more sensitive to inhibition by DHPs than the heart variant Cav1.2a (Figure 3) containing exon 8a (GRCh38/hg38, chr12: 2504436-2504539) [25]. Mutations found in the mutually exclusive exons 8 and 8a of the human CACNA1C gene that encodes the CaV1.2 channel are associated with the multi-organ disorder named Timothy syndrome (TS) [31,40]. A point to note is that the authors of the TS articles have labelled exons 8 and 8a differently from the rest of the community. Exon 8a, which is upstream of exon 8 in genomic sequence and known to be predominantly expressed in cardiac muscle [41], is labelled as exon 8 by the authors of the TS articles [31]. Similarly, exon 8, which is predominantly expressed in smooth muscles [41], is labelled as exon 8a by the authors [31]. Their nomenclature for exon 8 and 8a is still used for TS in this review to avoid confusion when referencing the original articles. One de novo missense mutation G406R in exon 8 (GRCh38/hg38, chr12: 2504436-2504539) or exon 8a (GRCh38/hg38, chr12: 2504842-2504945) has been reported to induce classical Timothy syndrome (TS1) and the mutant channels lack normal voltage-dependent inactivation (VDI) which led to sustained depolarization; while G402S and G406R mutations in exon 8 caused more severe atypical Timothy syndrome (TS2), which has been shown to generate long QT syndrome and resultant arrhythmia. In addition to defects in VDI, the TS variants also led to calcium-dependent inactivation (CDI) deficits with G402S mutation causing a decrease in FCDI (a function of Ca2+) and G406R mutation, primarily resulting in a reduction of CDImax (a function of channel gating) [42]. As exon 8 (GRCh38/hg38, chr12: 2504436-2504539) is much more dominant in the heart than exon 8a (GRCh38/hg38, chr12: 2504842-2504945), generally patients suffering from atypical TS displayed worsened cardiac defects.
In addition, another six novel gain-of-function mutations, A28T, R860G, I1166T, I1166V, I1475M and E1496K identified in patients with long QT, which resulted in a similar strong gain-of-function as the known TS mutations, did not cause TS, but only caused the non-syndromic long QT [43]. These results suggested that TS’s phenotypes may only be produced by specific Cav1.2 mutations located in exon 8/8a. As for those gain-of-function mutations in other exons of Cav1.2, they may only lead to restricted phenotypes such as long QT syndrome without the multi-organ characteristics of TS. However, these six mutations were identified in blood lymphocytes from patients. Therefore, it remains unclear whether these mutant CaV1.2 channels are expressed in the hearts of the patients with non-syndromic long QT syndrome or even with TS.

4.2. Heart Failure

CaV1.2 channel lacking exon 33 (CaV1.2Δe33) showed hyperpolarized shifts for steady-state inactivation and activation potential compared to the CaV1.2e33 channel in transfected HEK 293 cells [44]. Moreover, the exclusion level of exon 33 (RGSC 6.0/rn6, chr4: 150674623-150674655) was found to increase in the scar region of rat heart subject to chronic myocardial infarction [44]. However, it is still not clear how this molecular alteration of exon 33 affects cardiac function. In exon 33 (GRCm38/mm10, chr6: 118630399-118630431) null mice, the cardiac contractility and output is significantly increased and the hearts were more susceptible to the generation of ventricular tachyarrhythmia [45]. Additionally, the inclusion level of exon 33 (GRCh38/hg38, chr12: 2648475-2648507) increased significantly by about 20% in failing hearts from patients with ischemic or dilated cardiomyopathy [45]. However, the potential role that exon 33 inclusion in CaV1.2 channels may play in the pathogenesis of human heart failure remains unclear.
Besides exon 33, the mutually exclusive exons 31/32 were also associated with human heart failure [24]. Briefly, the level of exon 32 inclusion (GRCh38/hg38, chr12: 2634297-2634380) is about two times higher than exon 31 (GRCh38/hg38, chr12: 2633629-2633712) in left ventricles of human failing hearts, while the exon 31 level is 2.5 times higher in non-failing hearts. However, the regulatory mechanisms underlying isoform switching are still unknown and the specific physiological role each CaV1.2 isoform may play in human normal and failing hearts remains to be determined.

4.3. Atherosclerosis

Atherosclerosis is characterized by inflammation-mediated endothelial perturbation, local release of cytokines and proliferation and migration of smooth muscle cells in medium and large size arteries [46]. In atherosclerotic smooth muscle cells isolated from carotid and femoral arteries of patients with atherosclerosis, the switch of exon 21 (GRCh38/hg38, chr12: 2597230-2597289) to exon 22 (GRCh38/hg38, chr12: 2597437-2597496) is the molecular signature of CACNA1C alternative splicing [47]. It is noteworthy that, in the quiescent non-proliferating smooth muscle cells, the AvrII-sensitive exon 22-containing CaV1.2 isoform is not expressed, while under the pathophysiological proliferating state, the exon 21 is completely switched to exon 22. Based on these findings, inhibition of the exon 22 inclusion level may suppress the smooth muscle cell proliferation that leads to vascular remodeling in atherosclerosis.

4.4. Hypertension

Hypertension is a leading cause of cardiovascular diseases such as coronary heart diseases and stroke [48]. Although the upregulated protein level of the smooth muscle CaV1.2 channel is essential for hypertension [1,29], the underlying mechanisms are still unclear. Given the diversified pharmacological and biophysical properties, various vascular CaV1.2 splice isoforms have been reported to associate with hypertension. Generally, the alternative splicing of CACNA1C in smooth muscle is limited to three mutually exclusive (1b/c, 21/22 and 31/32) and two alternate (9*, 33) exons [49].
In 4.5-month-old spontaneously hypertensive rats (SHR), the exon 9* (RGSC 6.0/rn6, chr4: 150760674-150760748) inclusion level in the left ventricle was increased from 3% to 11% in Wistar Kyoto (WKY) rats [21], and was upregulated from 40.1% to 50.4% in mesenteric artery [50]. More importantly, exon 9*-containing CaV1.2 channels (CaV1.2b, Figure 3) were considered to play a dominant role in the constriction of cerebral artery as the antisense oligonucleotides targeting CaV1.2b channels led to larger constriction in intact cerebral arteries from New Zealand white rabbits (Broad/oryCun2, chr8: 35146587-35146660) compared to that of CaV1.2Δe9* channels (Figure 3) [51]. Additionally, whole-cell patch clamp recordings in transfected HEK 293 demonstrated that smooth muscle CaV1.2b channels displayed hyperpolarized shift in voltage-dependent activation and I–V relationships by 9 and 11 mV, respectively, compared to CaV1.2Δe9* channels [52]. These results suggested an important role of exon 9* in contributing to the increased vasoconstriction in SHR vessels.
As for alternative splicing of exon 1 in smooth muscle, exon 1b (usually referred to as exon 1, RGSC 6.0/rn6, chr4: 151176108-151176156) is the most dominant isoform compared to exon 1c (RGSC 6.0/rn6, chr4: 151146677-151147042) with a ratio at 60:1 in mesenteric arteries from both WKY rats and SHR [53]. The protein level of exon 1b-containing CaV1.2 channels (CaV1.2e1b) showed a 3–4 fold increase in aorta and mesenteric artery from SHR compared to WKY rats by using an exon 1b-specific antibody [54]. However, the changes of CaV1.2e1c protein level remain to be determined although the mRNA level of exon 1c showed differences in between SHR and WKY rats, as the differences in mRNA levels are insufficient to account for the differences in CaV1.2 protein levels in SHR.

5. Splice Variant-Specific Modulation of CaV1.2 Channel Function

Alternative splicing diversifies CaV1.2 function through inclusion or exclusion of alternative exons in various combinations. The combinatorial arrays of alternative exons may affect the modulation of CaV1.2 channels by their interacting protein partners, such as Galectin-1 and α2δ-1 subunit, or may affect their sensitivity to calcium channel blockers, such as DHPs.

5.1. Modulation by CaV1.2-Interacting Partners

Galectin-1, a member of the β-galactoside-binding protein family [55], was reported to bind to exon 9 within CaV1.2 I–II loop and negatively modulate CaV1.2 channel function [56]. However, inclusion of exon 9* downstream of exon 9 completely abolished the inhibitory effects of Galectin-1 protein on CaV1.2 channel function [56], suggesting that the inhibitory effects of Galectin-1 is selective to CaV1.2Δe9* channels. This may be explained by the possibility that the ER export signals that contain a few negatively charged amino residues may interact with the positively charged amino acids found in the neighboring exon 9*, and hence this interaction prevents Galectin-1 binding and modulation.
The α2δ-1-subunit is one α2δ isoform that is largely expressed in skeletal muscle and is also present in cardiac and smooth muscle [57]. Notably, the α2δ-1-subunit is significantly elevated in cerebral arteries from SHR [13,14], and was found to selectively traffic exon 1c-containing CaV1.2 channels (CaV1.2e1c, Figure 3) to the plasma membrane of the cerebral artery [49]. Knock-down of α2δ-1 subunit inhibited the surface expression of CaV1.2e1c channels more than CaV1.2e1b channels. Also, as compared to CaV1.2e1b channels, knock-down of CaV1.2e1c channels by a short hairpin RNA (shRNA) resulted in a larger reduction of CaV1.2 currents and vasodilation of cerebral artery. This study also suggested that the CaV1.2 N-terminus may be a critical element required for channel trafficking in cerebral artery [49].

5.2. Modulation by Calcium Channel Blockers

Besides exon 8/8a, the exon 33 level in CaV1.2 channels also affect the sensitivity to nifedipine, one of the first generation DHPs. In exon 33−/− cardiomyocytes, the IC50 for nifedipine inhibition of the CaV1.2Δe33 channels was 10.6 nM, as compared to 22.8 nM for CaV1.2e33 in wild-type cardiomyocytes [45]. This study also strengthened the hypothesis that alternative splicing-induced changes of biophysical properties of CaV1.2 channels are associated with the sensitivity to nifedipine blockade [4].
Diltiazem, a non-dihydropyridine calcium channel blocker, also displayed different inhibitory effects on the cardiac isoform (CaV1.2a, Figure 3) and smooth muscle isoforms (CaV1.2b and CaV1.2SM, Figure 3) of CaV1.2 channels [58]. The IC50 of diltiazem for the cardiac isoform of Cav1.2 was about two times that for the other two vascular smooth muscle isoforms. By substitution of cardiac exon 1a and/or 8a into smooth muscle exon 1 or 8, the IC50 of diltiazem for the chimeric cardiac isoform of CaV1.2 channels was significantly reduced, suggesting that all three exons 1, 8 and 9* contribute to the different sensitivities of the cardiac and smooth muscle splice isoforms to diltiazem.

6. Regulation of CaV1.2 Splicing by Splicing Factors

Based on the above findings, alternative splicing generated functionally distinct CaV1.2 channels that may be involved in the pathology of or adaptation to cardiovascular diseases. Thus, it is essential to understand the upstream regulatory principles and cofactors which control the inclusion or exclusion of alternatively spliced exons. To date, there are three splice factors that were found to regulate CaV1.2 splicing as follows.

6.1. Rbfox Proteins

The RNA-binding Fox family (Rbfox) proteins including Rbfox1 and Rbfox2 were reported to differentially regulate CACNA1C exon 9* and exon 33 expression in the mouse cortex during development [59]. Both Rbfox1 and Rbfox2 were induced and were able to bind to the adjacent introns of exon 9* and exon 33, thereby upregulating the exon 9* exclusion and exon 33 inclusion, respectively, during neuronal development. Similarly, Rbfox1 protein was also upregulated during postnatal maturation of zebrafish and murine hearts, but was found to be significantly decreased in hearts from patients with dilated cardiomyopathy [60] and from mice subject to transverse aortic constriction (TAC) [61]. Given the increased inclusion of exon 33 in human failing hearts [45], it suggests that the regulatory mechanisms underlying exon 33 inclusion by Rbfox1 may be different between cortical neurons and cardiomyocytes. More importantly, loss of Rbfox1 significantly contributed to the development of cardiac hypertrophy and heart failure in the mouse pressure-overload model and restored Rbfox1 expression was able to prevent pathological hypertrophy [61]. This study provides evidence that regulation of RNA splicing by Rbfox1 may play an important role in transcriptome reprogramming, including CACNA1C mRNA, during cardiac hypertrophy that influences the pathogenesis of the disease.
In addition to cardiac diseases, dysregulated Rbfox2 was recently reported to be involved in hypertension through regulating the splicing of CACNA1C exon 9* and exon 33 in arteries [50]. The total Rbfox2 protein level was increased by about three-fold in mesenteric arteries (MA) from SHR compared to WKY rats. However, the mRNA level of wild-type Rbfox2 was significantly downregulated in MA from SHR, while a dominant-negative form of Rbfox2 lacking exon 6 was markedly up-regulated, which eventually resulted in an increase of exon 9* by 10.3% and a decrease of exon 33 by 10.5% in MA from SHR.

6.2. PTBP1

Additionally, the polypyrimidine tract-binding protein (PTBP1) has been shown to strongly repress exon 8a (GRCm38/mm10, chr6: 118742265-118742368) inclusion and switch CaV1.2 splicing to the exon 8 (GRCm38/mm10, chr6: 118741871-118741974) isoform through directly binding to the conserved sequence elements upstream of exon 8a in mouse cortex [62]. Inclusion of exon 8a was largely inhibited in mouse embryonic brains, but was found to be gradually upregulated during neuronal development in correlation with the depletion of PTBP1 [49]. Similarly, PTBP1 protein was highly expressed in embryonic hearts and then dramatically reduced during cardiac development in both rats and mice [63]. This may contribute to the dominant expression of exon 8a-containing CaV1.2 channels in the heart [25]. However, more experiments are necessary to further validate the regulation of alternative splicing of exons 8/8a by PTBP1 in the heart.

6.3. RBM20

RNA-binding motif protein 20 (RBM20) is a well-known Titin splicing repressor [64] and a gene for hereditary cardiomyopathy [65,66]. Recently, deep sequencing of the cardiac transcriptome of rat and human validated RBM20-dependent regulation of CaV1.2 splicing. RBM20 mainly regulated the splicing of exon 8, 9*, 22 and 31 in rat and human hearts. However, the RBM20-dependent variance at the inclusion level of these exons was quite weak as the score of change in percentage spliced-in (PSI) was less than 10 [66]. Hence, the cardiac effects of RBM20-mediated CaV1.2 splicing remain to be determined.
Altogether, targeting splicing factors of CACNA1C may provide alternative ways to prevent or even treat cardiac diseases.

7. Conclusions

The L-type CaV1.2 channel is the major pathway for Ca2+ influx to initiate contraction in cardiac and smooth muscles. Alternative splicing provides the fine-tuning of CaV1.2 function in adaption to various cellular or tissue conditions or in response to various diseases. Understanding the splicing patterns of CACNA1C in diseases may not only help us evaluate the functional changes of CaV1.2 channels, but also provide potential therapeutic targets for developing novel methods to manage cardiovascular diseases.


This work was supported by the National University Health Systems (NUHSRO/2014/086/AF-Partner/02 to T.W.S.) and Ministry of Education NUSMed Post-Doctoral Fellowship (Z.H.). The University of California Santa Cruz (UCSC) Genome Browser was used to describe the chromosome coordinates of the spliced exons in this review.

Author Contributions

Z.Y.H. and T.W.S. drafted the manuscript. M.C.L. and Z.Y.H. prepared the figures. T.W.S. edited the manuscript.

Conflicts of Interest

The authors declare no conflicts of interest.


  1. Hofmann, F.; Flockerzi, V.; Kahl, S.; Wegener, J.W. L-type CaV1.2 calcium channels: From in vitro findings to in vivo function. Physiol. Rev. 2014, 94, 303–326. [Google Scholar] [CrossRef] [PubMed]
  2. Hell, J.W.; Westenbroek, R.E.; Warner, C.; Ahlijanian, M.K.; Prystay, W.; Gilbert, M.M.; Snutch, T.P.; Catterall, W.A. Identification and differential subcellular localization of the neuronal class C and class D L-type calcium channel alpha 1 subunits. J. Cell Biol. 1993, 123, 949–962. [Google Scholar] [CrossRef] [PubMed]
  3. Xu, M.; Welling, A.; Paparisto, S.; Hofmann, F.; Klugbauer, N. Enhanced expression of L-type Cav1.3 calcium channels in murine embryonic hearts from Cav1.2-deficient mice. J. Biol. Chem. 2003, 278, 40837–40841. [Google Scholar] [CrossRef] [PubMed]
  4. Liao, P.; Yu, D.; Li, G.; Yong, T.F.; Soon, J.L.; Chua, Y.L.; Soong, T.W. A smooth muscle Cav1.2 calcium channel splice variant underlies hyperpolarized window current and enhanced state-dependent inhibition by nifedipine. J. Biol. Chem. 2007, 282, 35133–35142. [Google Scholar] [CrossRef] [PubMed]
  5. Scholl, U.I.; Goh, G.; Stolting, G.; de Oliveira, R.C.; Choi, M.; Overton, J.D.; Fonseca, A.L.; Korah, R.; Starker, L.F.; Kunstman, J.W.; et al. Somatic and germline CACNA1D calcium channel mutations in aldosterone-producing adenomas and primary aldosteronism. Nat. Genet. 2013, 45, 1050–1054. [Google Scholar] [CrossRef] [PubMed]
  6. Yang, S.N.; Berggren, P.O. The role of voltage-gated calcium channels in pancreatic β-cell physiology and pathophysiology. Endocr. Rev. 2006, 27, 621–676. [Google Scholar] [CrossRef] [PubMed]
  7. Striessnig, J.; Koschak, A.; Sinnegger-Brauns, M.J.; Hetzenauer, A.; Nguyen, N.K.; Busquet, P.; Pelster, G.; Singewald, N. Role of voltage-gated L-type Ca2+ channel isoforms for brain function. Biochem. Soc. Trans. 2006, 34, 903–909. [Google Scholar] [CrossRef] [PubMed]
  8. Brandt, A.; Striessnig, J.; Moser, T. CaV1.3 channels are essential for development and presynaptic activity of cochlear inner hair cells. J. Neurosci. 2003, 23, 10832–10840. [Google Scholar] [PubMed]
  9. Mangoni, M.E.; Couette, B.; Bourinet, E.; Platzer, J.; Reimer, D.; Striessnig, J.; Nargeot, J. Functional role of L-type Cav1.3 Ca2+ channels in cardiac pacemaker activity. Proc. Natl. Acad. Sci. USA 2003, 100, 5543–5548. [Google Scholar] [CrossRef] [PubMed]
  10. Zampini, V.; Johnson, S.L.; Franz, C.; Lawrence, N.D.; Munkner, S.; Engel, J.; Knipper, M.; Magistretti, J.; Masetto, S.; Marcotti, W. Elementary properties of CaV1.3 Ca2+ channels expressed in mouse cochlear inner hair cells. J. Physiol. 2010, 588, 187–199. [Google Scholar] [CrossRef] [PubMed]
  11. Baumann, L.; Gerstner, A.; Zong, X.; Biel, M.; Wahl-Schott, C. Functional characterization of the L-type Ca2+ channel Cav1.4alpha1 from mouse retina. Investig. Ophthalmol. Vis. Sci. 2004, 45, 708–713. [Google Scholar] [CrossRef]
  12. Catterall, W.A. Voltage-gated calcium channels. Cold Spring Harb. Perspect. Biol. 2011, 3, a003947. [Google Scholar] [CrossRef] [PubMed]
  13. Bannister, J.P.; Adebiyi, A.; Zhao, G.; Narayanan, D.; Thomas, C.M.; Feng, J.Y.; Jaggar, J.H. Smooth muscle cell α2δ-1 subunits are essential for vasoregulation by CaV1.2 channels. Circ. Res. 2009, 105, 948–955. [Google Scholar] [CrossRef] [PubMed]
  14. Bannister, J.P.; Bulley, S.; Narayanan, D.; Thomas-Gatewood, C.; Luzny, P.; Pachuau, J.; Jaggar, J.H. Transcriptional upregulation of α2δ-1 elevates arterial smooth muscle cell voltage-dependent Ca2+ channel surface expression and cerebrovascular constriction in genetic hypertension. Hypertension 2012, 60, 1006–1015. [Google Scholar] [CrossRef] [PubMed]
  15. Altier, C.; Garcia-Caballero, A.; Simms, B.; You, H.; Chen, L.; Walcher, J.; Tedford, H.W.; Hermosilla, T.; Zamponi, G.W. The Cavβ subunit prevents RFP2-mediated ubiquitination and proteasomal degradation of L-type channels. Nat. Neurosci. 2011, 14, 173–180. [Google Scholar] [CrossRef] [PubMed]
  16. Hill-Eubanks, D.C.; Werner, M.E.; Heppner, T.J.; Nelson, M.T. Calcium signaling in smooth muscle. Cold Spring Harb. Perspect. Biol. 2011, 3, a004549. [Google Scholar] [CrossRef] [PubMed]
  17. Shaw, R.M.; Colecraft, H.M. L-type calcium channel targeting and local signalling in cardiac myocytes. Cardiovasc. Res. 2013, 98, 177–186. [Google Scholar] [CrossRef] [PubMed]
  18. Kharade, S.V.; Sonkusare, S.K.; Srivastava, A.K.; Thakali, K.M.; Fletcher, T.W.; Rhee, S.W.; Rusch, N.J. The β3 subunit contributes to vascular calcium channel upregulation and hypertension in angiotensin II-infused C57BL/6 mice. Hypertension 2013, 61, 137–142. [Google Scholar] [CrossRef] [PubMed]
  19. Foell, J.D.; Balijepalli, R.C.; Delisle, B.P.; Yunker, A.M.; Robia, S.L.; Walker, J.W.; McEnery, M.W.; January, C.T.; Kamp, T.J. Molecular heterogeneity of calcium channel β-subunits in canine and human heart: Evidence for differential subcellular localization. Physiol. Genom. 2004, 17, 183–200. [Google Scholar] [CrossRef] [PubMed]
  20. Chen, X.; Nakayama, H.; Zhang, X.; Ai, X.; Harris, D.M.; Tang, M.; Zhang, H.; Szeto, C.; Stockbower, K.; Berretta, R.M.; et al. Calcium influx through Cav1.2 is a proximal signal for pathological cardiomyocyte hypertrophy. J. Mol. Cell. Cardiol. 2011, 50, 460–470. [Google Scholar] [CrossRef] [PubMed]
  21. Tang, Z.Z.; Liao, P.; Li, G.; Jiang, F.L.; Yu, D.; Hong, X.; Yong, T.F.; Tan, G.; Lu, S.; Wang, J.; et al. Differential splicing patterns of L-type calcium channel Cav1.2 subunit in hearts of Spontaneously Hypertensive Rats and Wistar Kyoto Rats. Biochim. Biophys. Acta 2008, 1783, 118–130. [Google Scholar] [CrossRef] [PubMed]
  22. Liao, P.; Yu, D.; Hu, Z.; Liang, M.C.; Wang, J.J.; Yu, C.Y.; Ng, G.; Yong, T.F.; Soon, J.L.; Chua, Y.L.; et al. Alternative splicing generates a novel truncated Cav1.2 channel in neonatal rat heart. J. Biol. Chem. 2015, 290, 9262–9272. [Google Scholar] [CrossRef] [PubMed]
  23. Liao, P.; Zhang, H.Y.; Soong, T.W. Alternative splicing of voltage-gated calcium channels: From molecular biology to disease. Pflugers Arch. 2009, 458, 481–487. [Google Scholar] [CrossRef] [PubMed]
  24. Yang, Y.; Chen, X.; Margulies, K.; Jeevanandam, V.; Pollack, P.; Bailey, B.A.; Houser, S.R. L-type Ca2+ channel α1c subunit isoform switching in failing human ventricular myocardium. J. Mol. Cell. Cardiol. 2000, 32, 973–984. [Google Scholar] [CrossRef] [PubMed]
  25. Liao, P.; Yong, T.F.; Liang, M.C.; Yue, D.T.; Soong, T.W. Splicing for alternative structures of Cav1.2 Ca2+ channels in cardiac and smooth muscles. Cardiovasc. Res. 2005, 68, 197–203. [Google Scholar] [CrossRef] [PubMed]
  26. Schwoerer, A.P.; Neef, S.; Broichhausen, I.; Jacubeit, J.; Tiburcy, M.; Wagner, M.; Biermann, D.; Didie, M.; Vettel, C.; Maier, L.S.; et al. Enhanced Ca(2)+ influx through cardiac L-type Ca2+ channels maintains the systolic Ca2+ transient in early cardiac atrophy induced by mechanical unloading. Pflugers Arch. 2013, 465, 1763–1773. [Google Scholar] [CrossRef] [PubMed]
  27. Best, J.M.; Kamp, T.J. Different subcellular populations of L-type Ca2+ channels exhibit unique regulation and functional roles in cardiomyocytes. J. Mol. Cell. Cardiol 2012, 52, 376–387. [Google Scholar] [CrossRef] [PubMed]
  28. Goonasekera, S.A.; Hammer, K.; Auger-Messier, M.; Bodi, I.; Chen, X.; Zhang, H.; Reiken, S.; Elrod, J.W.; Correll, R.N.; York, A.J.; et al. Decreased cardiac L-type Ca2+ channel activity induces hypertrophy and heart failure in mice. J. Clin. Investig. 2012, 122, 280–290. [Google Scholar] [CrossRef] [PubMed]
  29. Moosmang, S.; Schulla, V.; Welling, A.; Feil, R.; Feil, S.; Wegener, J.W.; Hofmann, F.; Klugbauer, N. Dominant role of smooth muscle L-type calcium channel Cav1.2 for blood pressure regulation. EMBO J. 2003, 22, 6027–6034. [Google Scholar] [CrossRef] [PubMed]
  30. Pratt, P.F.; Bonnet, S.; Ludwig, L.M.; Bonnet, P.; Rusch, N.J. Upregulation of L-type Ca2+ channels in mesenteric and skeletal arteries of SHR. Hypertension 2002, 40, 214–219. [Google Scholar] [CrossRef] [PubMed]
  31. Splawski, I.; Timothy, K.W.; Sharpe, L.M.; Decher, N.; Kumar, P.; Bloise, R.; Napolitano, C.; Schwartz, P.J.; Joseph, R.M.; Condouris, K.; et al. CaV1.2 calcium channel dysfunction causes a multisystem disorder including arrhythmia and autism. Cell 2004, 119, 19–31. [Google Scholar] [CrossRef] [PubMed]
  32. Song, L.S.; Guia, A.; Muth, J.N.; Rubio, M.; Wang, S.Q.; Xiao, R.P.; Josephson, I.R.; Lakatta, E.G.; Schwartz, A.; Cheng, H. Ca2+ signaling in cardiac myocytes overexpressing the α1 subunit of L-type Ca2+ channel. Circ. Res. 2002, 90, 174–181. [Google Scholar] [CrossRef] [PubMed]
  33. Makarewich, C.A.; Correll, R.N.; Gao, H.; Zhang, H.; Yang, B.; Berretta, R.M.; Rizzo, V.; Molkentin, J.D.; Houser, S.R. A caveolae-targeted L-type Ca2+ channel antagonist inhibits hypertrophic signaling without reducing cardiac contractility. Circ. Res. 2012, 110, 669–674. [Google Scholar] [CrossRef] [PubMed]
  34. Glukhov, A.V.; Balycheva, M.; Sanchez-Alonso, J.L.; Ilkan, Z.; Alvarez-Laviada, A.; Bhogal, N.; Diakonov, I.; Schobesberger, S.; Sikkel, M.B.; Bhargava, A.; et al. Direct Evidence for Microdomain-Specific Localization and Remodeling of Functional L-Type Calcium Channels in Rat and Human Atrial Myocytes. Circulation 2015, 132, 2372–2384. [Google Scholar] [CrossRef] [PubMed]
  35. Correll, R.N.; Makarewich, C.A.; Zhang, H.; Zhang, C.; Sargent, M.A.; York, A.J.; Berretta, R.M.; Chen, X.; Houser, S.R.; Molkentin, J.D. Caveolae-localized L-type Ca2+ channels do not contribute to function or hypertrophic signalling in the mouse heart. Cardiovasc. Res. 2017, 113, 749–759. [Google Scholar] [CrossRef] [PubMed]
  36. Tonegawa, K.; Otsuka, W.; Kumagai, S.; Matsunami, S.; Hayamizu, N.; Tanaka, S.; Moriwaki, K.; Obana, M.; Maeda, M.; Asahi, M.; et al. Caveolae-specific activation loop between CaMKII and L-type Ca2+ channel aggravates cardiac hypertrophy in α1-adrenergic stimulation. Am. J. Physiol. Heart Circ. Physiol. 2017, 312, H501–H514. [Google Scholar] [CrossRef] [PubMed]
  37. Diebold, R.J.; Koch, W.J.; Ellinor, P.T.; Wang, J.J.; Muthuchamy, M.; Wieczorek, D.F.; Schwartz, A. Mutually exclusive exon splicing of the cardiac calcium channel α 1 subunit gene generates developmentally regulated isoforms in the rat heart. Proc. Natl. Acad. Sci. USA 1992, 89, 1497–1501. [Google Scholar] [CrossRef] [PubMed]
  38. Tang, Z.Z.; Liang, M.C.; Lu, S.; Yu, D.; Yu, C.Y.; Yue, D.T.; Soong, T.W. Transcript scanning reveals novel and extensive splice variations in human l-type voltage-gated calcium channel, Cav1.2 alpha1 subunit. J. Biol. Chem. 2004, 279, 44335–44343. [Google Scholar] [CrossRef] [PubMed]
  39. Hu, Z.; Wang, J.W.; Yu, D.; Soon, J.L.; de Kleijn, D.P.; Foo, R.; Liao, P.; Colecraft, H.M.; Soong, T.W. Aberrant Splicing Promotes Proteasomal Degradation of L-type CaV1.2 Calcium Channels by Competitive Binding for CaVbeta Subunits in Cardiac Hypertrophy. Sci. Rep. 2016, 6, 35247. [Google Scholar] [CrossRef] [PubMed]
  40. Splawski, I.; Timothy, K.W.; Decher, N.; Kumar, P.; Sachse, F.B.; Beggs, A.H.; Sanguinetti, M.C.; Keating, M.T. Severe arrhythmia disorder caused by cardiac L-type calcium channel mutations. Proc. Natl. Acad. Sci. USA 2005, 102, 8089–8096. [Google Scholar] [CrossRef] [PubMed]
  41. Wang, D.; Papp, A.C.; Binkley, P.F.; Johnson, J.A.; Sadee, W. Highly variable mRNA expression and splicing of L-type voltage-dependent calcium channel alpha subunit 1C in human heart tissues. Pharmacogenet. Genom. 2006, 16, 735–745. [Google Scholar] [CrossRef] [PubMed]
  42. Dick, I.E.; Joshi-Mukherjee, R.; Yang, W.; Yue, D.T. Arrhythmogenesis in Timothy Syndrome is associated with defects in Ca2+-dependent inactivation. Nat. Commun. 2016, 7, 10370. [Google Scholar] [CrossRef] [PubMed]
  43. Wemhoner, K.; Friedrich, C.; Stallmeyer, B.; Coffey, A.J.; Grace, A.; Zumhagen, S.; Seebohm, G.; Ortiz-Bonnin, B.; Rinne, S.; Sachse, F.B.; et al. Gain-of-function mutations in the calcium channel CACNA1C (Cav1.2) cause non-syndromic long-QT but not Timothy syndrome. J. Mol. Cell. Cardiol. 2015, 80, 186–195. [Google Scholar] [CrossRef] [PubMed]
  44. Liao, P.; Li, G.; Yu, D.J.; Yong, T.F.; Wang, J.J.; Wang, J.; Soong, T.W. Molecular alteration of CaV1.2 calcium channel in chronic myocardial infarction. Pflugers Arch. 2009, 458, 701–711. [Google Scholar] [CrossRef] [PubMed]
  45. Li, G.; Wang, J.; Liao, P.; Bartels, P.; Zhang, H.; Yu, D.; Liang, M.C.; Poh, K.K.; Yu, C.Y.; Jiang, F.; et al. Exclusion of alternative exon 33 of CaV1.2 calcium channels in heart is proarrhythmogenic. Proc. Natl. Acad. Sci. USA 2017, 114, E4288–E4295. [Google Scholar] [CrossRef] [PubMed]
  46. Libby, P.; Ridker, P.M.; Maseri, A. Inflammation and atherosclerosis. Circulation 2002, 105, 1135–1143. [Google Scholar] [CrossRef] [PubMed]
  47. Tiwari, S.; Zhang, Y.; Heller, J.; Abernethy, D.R.; Soldatov, N.M. Atherosclerosis-related molecular alteration of the human CaV1.2 calcium channel α1C subunit. Proc. Natl. Acad. Sci. USA 2006, 103, 17024–17029. [Google Scholar] [CrossRef] [PubMed]
  48. Mozaffarian, D.; Benjamin, E.J.; Go, A.S.; Arnett, D.K.; Blaha, M.J.; Cushman, M.; Das, S.R.; de Ferranti, S.; Despres, J.P.; Fullerton, H.J.; et al. Executive Summary: Heart Disease and Stroke Statistics--2016 Update: A Report From the American Heart Association. Circulation 2016, 133, 447–454. [Google Scholar] [CrossRef] [PubMed]
  49. Bannister, J.P.; Thomas-Gatewood, C.M.; Neeb, Z.P.; Adebiyi, A.; Cheng, X.; Jaggar, J.H. Ca(V)1.2 channel N-terminal splice variants modulate functional surface expression in resistance size artery smooth muscle cells. J. Biol. Chem. 2011, 286, 15058–15066. [Google Scholar] [CrossRef] [PubMed]
  50. Zhou, Y.; Fan, J.; Zhu, H.; Ji, L.; Fan, W.; Kapoor, I.; Wang, Y.; Zhu, G.; Wang, J. Aberrant Splicing Induced by Dysregulated Rbfox2 Produces Enhanced Function of CaV1.2 Calcium Channel and Vascular Myogenic Tone in Hypertension. Hypertension 2017, 70, 1183–1192. [Google Scholar] [CrossRef] [PubMed]
  51. Nystoriak, M.A.; Murakami, K.; Penar, P.L.; Wellman, G.C. CaV1.2 splice variant with exon 9* is critical for regulation of cerebral artery diameter. Am. J. Physiol. Heart Circ. Physiol. 2009, 297, H1820–H1828. [Google Scholar] [CrossRef] [PubMed]
  52. Liao, P.; Yu, D.; Lu, S.; Tang, Z.; Liang, M.C.; Zeng, S.; Lin, W.; Soong, T.W. Smooth muscle-selective alternatively spliced exon generates functional variation in Cav1.2 calcium channels. J. Biol. Chem. 2004, 279, 50329–50335. [Google Scholar] [CrossRef] [PubMed]
  53. Cox, R.H.; Fromme, S. Expression of Calcium Channel Subunit Variants in Small Mesenteric Arteries of WKY and SHR. Am. J. Hypertens. 2015, 28, 1229–1239. [Google Scholar] [CrossRef] [PubMed]
  54. Wang, W.Z.; Saada, N.; Dai, B.; Pang, L.; Palade, P. Vascular-specific increase in exon 1B-encoded CAV1.2 channels in spontaneously hypertensive rats. Am. J. Hypertens. 2006, 19, 823–831. [Google Scholar] [CrossRef] [PubMed]
  55. Camby, I.; Le Mercier, M.; Lefranc, F.; Kiss, R. Galectin-1: A small protein with major functions. Glycobiology 2006, 16, 137R–157R. [Google Scholar] [CrossRef] [PubMed]
  56. Wang, J.; Thio, S.S.; Yang, S.S.; Yu, D.; Yu, C.Y.; Wong, Y.P.; Liao, P.; Li, S.; Soong, T.W. Splice Variant Specific Modulation of Cav1.2 Calcium Channel by Galectin-1 Regulates Arterial Constriction. Circ. Res. 2011, 109, 1250–1258. [Google Scholar] [CrossRef] [PubMed]
  57. Dolphin, A.C. The α2δ subunits of voltage-gated calcium channels. Biochim. Biophys. Acta 2013, 1828, 1541–1549. [Google Scholar] [CrossRef] [PubMed]
  58. Zhang, H.Y.; Liao, P.; Wang, J.J.; Yu, D.J.; Soong, T.W. Alternative splicing modulates diltiazem sensitivity of cardiac and vascular smooth muscle CaV1.2 calcium channels. Br. J. Pharmacol. 2010, 160, 1631–1640. [Google Scholar] [CrossRef] [PubMed]
  59. Tang, Z.Z.; Zheng, S.; Nikolic, J.; Black, D.L. Developmental control of CaV1.2 L-type calcium channel splicing by Fox proteins. Mol. Cell. Biol. 2009, 29, 4757–4765. [Google Scholar] [CrossRef] [PubMed]
  60. Wang, J.; Li, G.; Yu, D.; Wong, Y.P.; Yong, T.F.; Liang, M.C.; Liao, P.; Foo, R.; Hoppe, U.C.; Soong, T.W. Characterization of CaV1.2 exon 33 heterozygous knockout mice and negative correlation between Rbfox1 and CaV1.2 exon 33 expressions in human heart failure. Channels 2017. [Google Scholar] [CrossRef] [PubMed]
  61. Gao, C.; Ren, S.; Lee, J.H.; Qiu, J.; Chapski, D.J.; Rau, C.D.; Zhou, Y.; Abdellatif, M.; Nakano, A.; Vondriska, T.M.; et al. RBFox1-mediated RNA splicing regulates cardiac hypertrophy and heart failure. J. Clin. Investig. 2016, 126, 195–206. [Google Scholar] [CrossRef] [PubMed]
  62. Tang, Z.Z.; Sharma, S.; Zheng, S.; Chawla, G.; Nikolic, J.; Black, D.L. Regulation of the mutually exclusive exons 8a and 8 in the CaV1.2 calcium channel transcript by polypyrimidine tract-binding protein. J. Biol. Chem. 2011, 286, 10007–10016. [Google Scholar] [CrossRef] [PubMed]
  63. Zhang, J.; Bahi, N.; Llovera, M.; Comella, J.X.; Sanchis, D. Polypyrimidine tract binding proteins (PTB) regulate the expression of apoptotic genes and susceptibility to caspase-dependent apoptosis in differentiating cardiomyocytes. Cell Death Differ. 2009, 16, 1460–1468. [Google Scholar] [CrossRef] [PubMed]
  64. Li, S.; Guo, W.; Dewey, C.N.; Greaser, M.L. Rbm20 regulates titin alternative splicing as a splicing repressor. Nucleic Acids Res. 2013, 41, 2659–2672. [Google Scholar] [CrossRef] [PubMed]
  65. Refaat, M.M.; Lubitz, S.A.; Makino, S.; Islam, Z.; Frangiskakis, J.M.; Mehdi, H.; Gutmann, R.; Zhang, M.L.; Bloom, H.L.; MacRae, C.A.; et al. Genetic variation in the alternative splicing regulator RBM20 is associated with dilated cardiomyopathy. Heart Rhythm 2012, 9, 390–396. [Google Scholar] [CrossRef] [PubMed]
  66. Guo, W.; Schafer, S.; Greaser, M.L.; Radke, M.H.; Liss, M.; Govindarajan, T.; Maatz, H.; Schulz, H.; Li, S.; Parrish, A.M.; et al. RBM20, a gene for hereditary cardiomyopathy, regulates titin splicing. Nat. Med. 2012, 18, 766–773. [Google Scholar] [CrossRef] [PubMed]

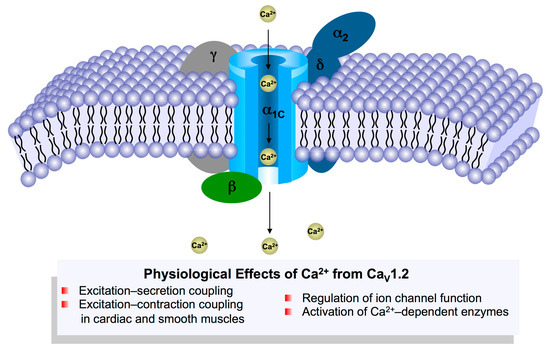

Figure 1. Subunit assembly of the CaV1.2 protein complex and the major physiological effects of Ca2+ entry into the muscle cells through CaV1.2 channels.
Figure 1. Subunit assembly of the CaV1.2 protein complex and the major physiological effects of Ca2+ entry into the muscle cells through CaV1.2 channels.
Genes 08 00344 g001

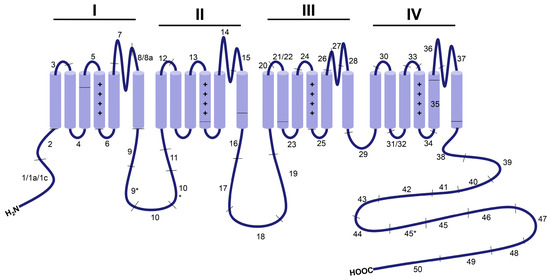

Figure 2. Representative sites of alternative splicing in the pore-forming CaVα1C subunit. The exons encoding α1C-subunit are indicated numerically and separated by lines across the schematic diagram.
Figure 2. Representative sites of alternative splicing in the pore-forming CaVα1C subunit. The exons encoding α1C-subunit are indicated numerically and separated by lines across the schematic diagram.
Genes 08 00344 g002

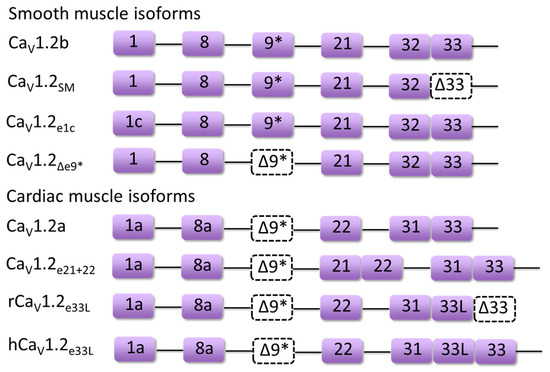

Figure 3. Combinatorial key alternatively spliced exons of major CaV1.2 isoforms mentioned in this review such as CaV1.2a, CaV1.2b, CaV1.2e21+22 are labeled as purple boxes. Dashed boxes indicate the exclusion of exons (Δ9* or Δ33).
Figure 3. Combinatorial key alternatively spliced exons of major CaV1.2 isoforms mentioned in this review such as CaV1.2a, CaV1.2b, CaV1.2e21+22 are labeled as purple boxes. Dashed boxes indicate the exclusion of exons (Δ9* or Δ33).
Genes 08 00344 g003
