Integrated Bioinformatics and Machine Learning Analysis Identifies Inflammation-Related Biomarkers and Immune Infiltration Patterns in Atherosclerosis

Abstract

Background: Atherosclerosis (AS) is a chronic inflammatory vascular disease lacking reliable biomarkers for early diagnosis and risk stratification. This study aimed to identify hub genes with diagnostic potential and characterize immune microenvironment remodeling in AS. Methods: GSE43292 and GSE100927 were integrated as the training cohort (n = 168), while GSE41571, GSE120521, and GSE28829 served as independent validation cohorts (n = 48). Batch effects were corrected using the ComBat algorithm. Differentially expressed genes (DEGs) were identified using limma, followed by GO/KEGG enrichment analysis. LASSO regression and Random Forest analysis were performed to identify hub genes. A logistic regression diagnostic model was constructed and evaluated using ROC analysis, 5-fold cross-validation, and external validation. Immune infiltration was assessed using ssGSEA, and correlations between hub genes and immune cells were analyzed using Spearman correlation. Results: A total of 1349 DEGs (870 upregulated and 479 downregulated) were identified. GO and KEGG analyses demonstrated significant enrichment of immune- and inflammation-related biological processes and pathways. Seven hub genes (IBSP, XAF1, SCAMP5, SAMD9L, MYBL1, PCDH12, and CDH19) were identified through the combined application of LASSO regression and Random Forest analysis. The 7-gene logistic model achieved excellent performance in the training cohort (AUC = 0.992, 95% CI: 0.981–1.000), with a mean 5-fold cross-validation AUC of 0.984 ± 0.014, and maintained robust performance in three independent validation cohorts (AUC range: 0.952–1.000). Immune infiltration analysis revealed extensive immune microenvironment remodeling, with significantly increased infiltration of 22 of the 24 immune cell types, particularly monocytes, macrophages, and myeloid cells. Spearman correlation analysis demonstrated strong associations between hub genes, particularly SAMD9L and IBSP, and immune cell infiltration. Conclusions: This study identified a robust 7-gene diagnostic signature for AS and revealed its close association with the inflammatory immune microenvironment, providing potential biomarkers for early diagnosis and risk stratification.

1. Introduction

Atherosclerosis (AS) is a chronic and progressive inflammatory vascular disease [1]. Its major pathological features include lipid accumulation within the arterial wall, endothelial dysfunction, vascular smooth muscle cell proliferation, and inflammatory cell infiltration [2]. These pathological alterations gradually promote arterial lumen narrowing, plaque formation, and plaque rupture, ultimately leading to severe cardiovascular events such as myocardial infarction, stroke, and peripheral arterial disease [3]. In recent years, driven by population aging and lifestyle changes, the global incidence and prevalence of AS have continued to rise, making it one of the leading causes of morbidity and mortality worldwide [4]. Epidemiological studies have shown that cardiovascular diseases account for approximately 17.9 million deaths annually, representing nearly 32% of all deaths worldwide, with the majority being closely associated with AS [5]. Although current therapeutic strategies, including statin-based lipid-lowering therapy, antiplatelet treatment, and revascularization procedures, have significantly improved clinical outcomes, a substantial proportion of patients still experience residual cardiovascular risk. This finding suggests that the molecular mechanisms underlying AS remain incompletely understood and that existing preventive and therapeutic approaches still have important limitations [6]. Therefore, elucidating the molecular pathogenesis of AS and identifying key genes with potential value for early diagnosis and risk assessment are of considerable scientific significance and clinical relevance for improving the prognosis of patients with AS.

Currently, the clinical diagnosis of AS mainly depends on imaging techniques, such as vascular ultrasound, computed tomography angiography, and magnetic resonance imaging, combined with the assessment of traditional cardiovascular risk factors including hypertension, hyperlipidemia, diabetes mellitus, and smoking [7,8]. However, these methods remain insufficient for the early detection of AS, assessment of plaque vulnerability, and prediction of cardiovascular risk. Imaging examinations usually detect lesions only after plaque formation or hemodynamic changes have occurred, limiting their value in early diagnosis [9]. In addition, AS is a highly heterogeneous disease characterized by marked differences in plaque phenotype, inflammatory status, and disease progression among individuals, while reliable biomarkers reflecting its molecular pathological features are still lacking [10]. With the rapid development of high-throughput sequencing and bioinformatics, transcriptomic analysis of differentially expressed genes has become an important approach for elucidating the molecular mechanisms of AS and identifying novel diagnostic biomarkers [11]. Nevertheless, most current transcriptomic studies are based on single datasets or platforms and are therefore limited by small sample sizes, data heterogeneity, and poor reproducibility [12]. Thus, integrated analysis of multiple independent datasets may help overcome these limitations and improve the reliability of differential gene identification.

Accumulating evidence has demonstrated that inflammatory responses and dysregulation of the immune microenvironment play central roles in the initiation, progression, and plaque rupture of AS [13,14,15]. The “inflammatory hypothesis” of AS is now widely accepted, proposing that atherosclerosis is essentially a lipid-driven chronic inflammatory disease [16,17]. During the early stage of AS, endothelial cells are activated by disturbed shear stress, oxidized lipoproteins, and inflammatory mediators, leading to the upregulation of adhesion molecules and chemokines that recruit circulating monocytes into the subendothelial space [18]. These monocytes subsequently differentiate into macrophages, engulf oxidized low-density lipoprotein to form foam cells, and release various pro-inflammatory cytokines and matrix metalloproteinases, thereby amplifying local inflammatory responses and promoting plaque formation and instability [19,20]. In addition to the monocyte–macrophage lineage, multiple immune cell types, including T lymphocytes, B lymphocytes, dendritic cells, and mast cells, are deeply involved in the immune-inflammatory network of AS [21]. Among them, CD4+ T helper cells regulate inflammatory responses through the secretion of cytokines such as interferon-γ and interleukin-17, whereas regulatory T cells exert immunosuppressive effects that help limit excessive inflammatory injury [22,23]. CD8+ cytotoxic T cells and natural killer cells also contribute to endothelial injury and plaque erosion [24,25]. These immune cells interact through cytokine networks, direct cell–cell contact, and antigen presentation, collectively shaping the immune microenvironment of AS lesions. Therefore, systematic evaluation of immune cell infiltration patterns in AS tissues may provide important insights into the immunopathological mechanisms underlying AS.

With the rapid development of microarray and RNA sequencing technologies, large amounts of disease-related gene expression data have accumulated in public databases such as the Gene Expression Omnibus (GEO), providing valuable resources for bioinformatics research [26]. Integrative analysis of multiple independent datasets can effectively increase sample size, reduce batch effects, and improve statistical power, thereby facilitating the identification of more robust differentially expressed genes. Functional enrichment analyses, including GO and KEGG analyses, further enable the exploration of the biological processes and signaling pathways associated with these genes [27]. In addition, protein–protein interaction network analysis can identify key hub genes at the molecular interaction level, providing a basis for subsequent feature selection [28]. However, high-dimensional gene expression data often contain redundant and noisy features, which may lead to overfitting and poor generalizability when directly applied to diagnostic model construction. Therefore, least absolute shrinkage and selection operator (LASSO) regression is widely used for feature selection by shrinking irrelevant variables to zero and identifying core genes most closely associated with disease classification. This method improves model stability, interpretability, and potential clinical applicability. Logistic regression, as a classical interpretable classification algorithm, is commonly used to construct multigene diagnostic models [29]. Compared with single-gene biomarkers, multigene models based on integrated transcriptomic features may provide improved robustness and predictive performance for AS diagnosis and risk assessment. Moreover, combining machine learning strategies with immune infiltration analysis may facilitate the identification of biologically relevant biomarkers associated with inflammatory immune remodeling in AS. Moreover, ROC curves and the AUC are widely applied to evaluate model performance, while external validation using independent datasets is essential for assessing model generalizability and potential overfitting.

Based on the above research background and analytical strategy, this study integrated multiple atherosclerosis-related gene expression datasets from the GEO database to systematically identify differentially expressed inflammation-related genes and further determine key genes through functional enrichment and protein–protein interaction network analyses. Subsequently, machine learning approaches were applied to screen core feature genes and construct a diagnostic prediction model, which was further validated in independent datasets to assess its generalizability. In addition, immune infiltration analysis was performed to characterize the immune microenvironment of AS. Overall, this study aimed to elucidate the inflammation- and immune-related molecular characteristics of AS and to identify potential biomarkers for early diagnosis and risk stratification.

2. Methods

2.1. Data Acquisition and Batch Effect Correction

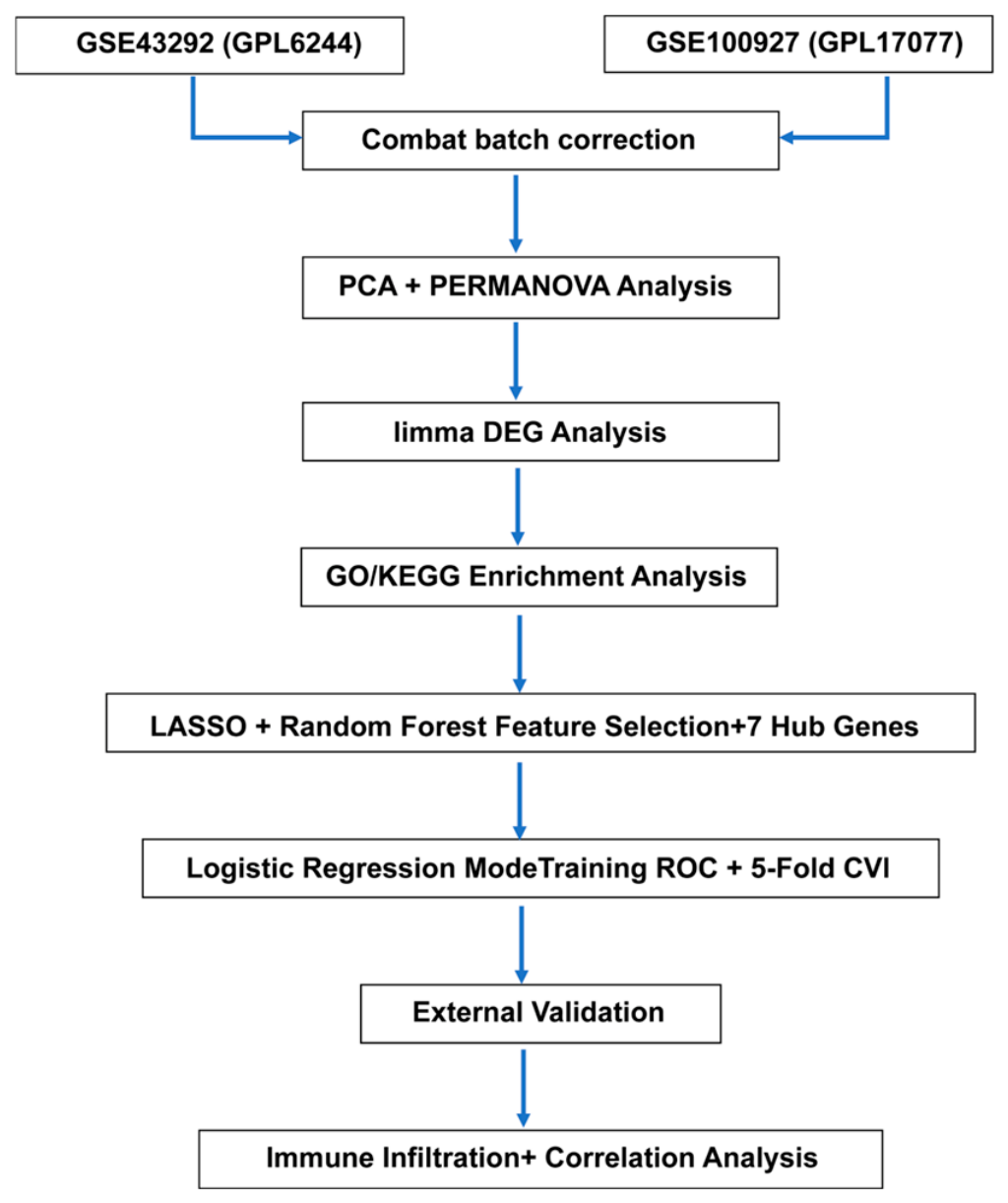

The overall workflow of the present study is illustrated in Figure 1. Gene expression datasets related to AS were downloaded from the GEO database, including two training datasets (GSE43292 and GSE100927) and three independent validation datasets (GSE41571, GSE120521, and GSE28829). GSE43292, generated on the GPL6244 platform, included 32 atherosclerotic plaque samples and 32 adjacent normal tissue samples, whereas GSE100927, generated on the GPL17077 platform, contained 69 atherosclerotic plaque samples and 35 normal control samples.

Raw expression matrices were imported and preprocessed using Python (pandas, version 2.0.3). A total of 17,573 genes shared between GSE43292 and GSE100927 were retained, and the two datasets were subsequently merged. Batch effects introduced by different microarray platforms were corrected using the ComBat algorithm implemented in the sva package (version 3.58.0) in R. ComBat employs an empirical Bayes framework to estimate batch-specific effects while incorporating the AS/Control grouping variable as a covariate, thereby minimizing technical variation while preserving biological differences between groups.

After batch correction, the merged training cohort comprised 168 samples, including 101 AS samples and 67 control samples. Detailed information on the training datasets, including the microarray platforms and sample sizes, is summarized in Supplementary Table S1.

The three independent validation cohorts (GSE41571, GSE120521, and GSE28829) were preprocessed using the same pipeline as the training cohort, including log₂ transformation, probe annotation, gene mapping, and normalization. GSE41571 (GPL570) included 6 stable plaques and 5 ruptured plaques, GSE120521 (GPL11154) comprised 4 stable plaques and 4 unstable plaques, and GSE28829 (GPL570) consisted of 13 early-stage plaques and 16 advanced plaques. Collectively, these three validation cohorts comprised 48 samples and were analyzed separately for external validation of the diagnostic model.

2.2. Principal Component Analysis

To evaluate the effectiveness of ComBat batch correction and the overall sample distribution of the training cohort, principal component analysis (PCA) was performed on the corrected expression matrix. The first three principal components were calculated using the sklearn.decomposition module in Python. PCA plots were generated with samples colored according to dataset origin (GSE43292 vs. GSE100927) to assess batch effect removal. Substantial intermixing of samples from different datasets was considered indicative of successful batch correction. PCA plots colored according to sample group (AS vs. Control) were further used to evaluate whether biological differences were preserved following batch correction. In addition, permutational multivariate analysis of variance (PERMANOVA) was performed to quantitatively assess the effectiveness of batch correction.

2.3. Differential Expression Analysis

Differential expression analysis between AS and control samples in the training cohort was performed using the limma package (version 3.66.0) in R. The limma algorithm applies empirical Bayes moderation to the t-statistics, thereby improving the stability and reliability of differential expression analysis, particularly for datasets with relatively small sample sizes. Genes satisfying the criteria of |log₂FC| > 0.5 and Benjamini–Hochberg false discovery rate (FDR) < 0.05 were considered differentially expressed genes (DEGs). The log₂ fold change (log₂FC) represents the logarithm (base 2) of the relative expression level between AS and control samples.

The identified DEGs were subsequently used for GO and KEGG enrichment analyses, LASSO regression, Random Forest feature selection, and all downstream analyses.

2.4. Visualization Analysis of DEGs

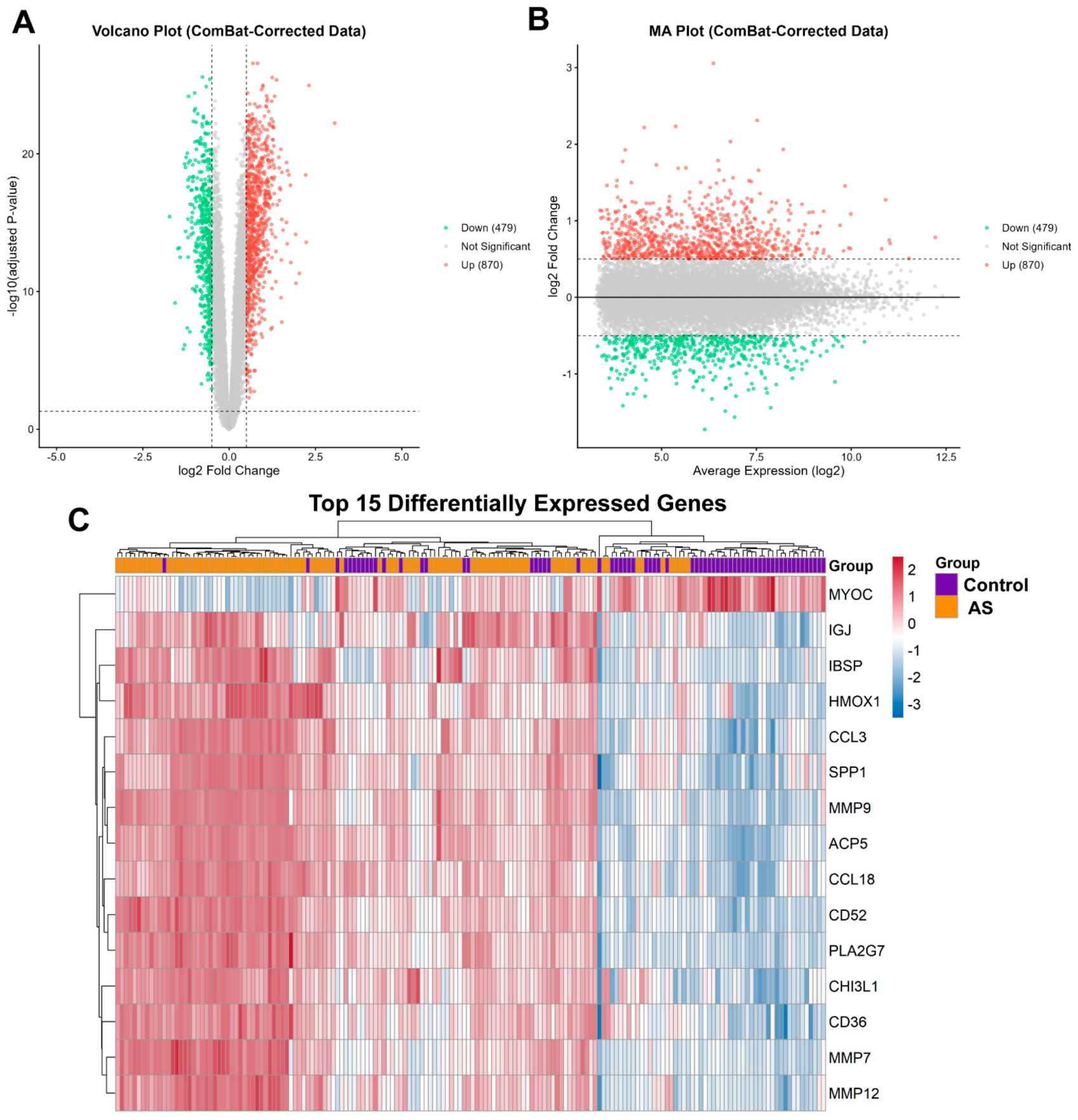

To visualize the overall distribution and expression patterns of DEGs, volcano plots and M–A (MA) plots were generated. Volcano plots illustrate the statistical significance and magnitude of gene expression changes, whereas MA plots depict the relationship between mean expression levels and log₂ fold changes, reflecting the global distribution of gene expression differences.

In addition, heatmaps of the top 15 DEGs ranked by adjusted p-value were generated based on Z-score-normalized expression matrices. Hierarchical clustering analysis was performed to evaluate expression patterns across both samples and genes.

2.5. Functional Enrichment Analysis Methods

GO and KEGG enrichment analyses were performed on the identified DEGs using the clusterProfiler package (version 4.10.0) in R. GO analysis included three categories: biological process (BP), cellular component (CC), and molecular function (MF).

Statistical significance of enrichment was assessed using Fisher’s exact test, followed by Benjamini–Hochberg correction for multiple testing. Terms with FDR < 0.05 were considered significantly enriched. KEGG pathway enrichment analysis was conducted using the same statistical framework. Significantly enriched GO terms were visualized using bubble plots, whereas significantly enriched KEGG pathways were visualized using bar plots.

2.6. LASSO Regression and Random Forest Feature Selection

To identify robust diagnostic biomarkers for atherosclerosis, machine learning-based feature selection was performed using LASSO regression followed by Random Forest analysis. LASSO regression was implemented using the glmnet package (version 4.1.8) in R. The optimal regularization parameter (λ) was determined by 5-fold cross-validation, and the lambda.1se criterion was selected to obtain a more parsimonious feature set. Consequently, 16 candidate genes with non-zero coefficients were retained (MYBL1, IBSP, SAMD9L, XAF1, CDH19, SNORD116-4, SCAMP5, EGR2, CX3CR1, PCDH12, HLA-DOB, GPC3, SMPX, CLTC-IT1, NR1D1, and SERPINA3).

These 16 candidate genes were subsequently subjected to Random Forest analysis using the randomForest package (version 4.7-1). Gene importance was evaluated according to MeanDecreaseAccuracy and MeanDecreaseGini. The top eight genes ranked by MeanDecreaseGini were retained for further evaluation. Because SNORD116-4 was unavailable across the independent validation datasets due to platform differences, it was excluded from subsequent analyses. Consequently, seven hub genes (IBSP, XAF1, SCAMP5, SAMD9L, MYBL1, PCDH12, and CDH19) were retained for diagnostic model construction, external validation, and immune infiltration analysis.

2.7. Methods for Diagnostic Model Construction and Evaluation

A diagnostic model was constructed using logistic regression based on the seven hub genes (IBSP, XAF1, SCAMP5, SAMD9L, MYBL1, PCDH12, and CDH19). Model fitting was performed using the glm function in R, and regression coefficients were estimated by maximum likelihood estimation. The model was defined as follows:

P(Y = 1|X) = 1/(1 + e^{−(β0 + ΣβjXj)})

where $P(Y=1\mid X)$ represents the probability of a sample being classified as AS, ${\beta }_0$ is the intercept, and ${\beta }_i$ represents the regression coefficient of each hub gene.

Diagnostic performance was evaluated using receiver operating characteristic (ROC) curves and the area under the ROC curve (AUC). Sensitivity, specificity, and the optimal cutoff determined by the Youden index were also calculated. Model robustness was assessed by 5-fold cross-validation within the training cohort and further validated in three independent validation cohorts (GSE41571, GSE28829, and GSE120521). The 95% confidence intervals (CIs) of the AUCs were calculated using the DeLong method.

The results of the 5-fold cross-validation were visualized using boxplots and bar plots to illustrate the distribution and consistency of AUC values across folds.

2.8. Immune Infiltration Analysis

To characterize the immune microenvironment of atherosclerosis, single-sample gene set enrichment analysis (ssGSEA) was performed to quantify immune cell infiltration levels in the training cohort using the GSVA package (version 1.50.0) in R. A total of 24 immune cell types were evaluated, including T cells (CD4⁺ T, CD8⁺ T, Treg, Th1, Th2, Th17, Tfh, and γδ T cells), B cells, plasma cells, NK cells, NKT cells, macrophages (M1 and M2), monocytes, dendritic cells (DCs, pDCs, and mDCs), neutrophils, eosinophils, mast cells, lymphocytes, and myeloid cells. Gene signatures for immune cell types were obtained from the study by Charoentong et al. [30] The gene signatures used to define the 24 immune cell types are summarized in Supplementary Table S2.

Based on the ssGSEA-derived infiltration scores, heatmaps, bar plots, and boxplots were generated to characterize immune infiltration patterns and compare differences between the AS and control groups. Group comparisons were performed using the Mann–Whitney U test, followed by Benjamini–Hochberg FDR correction. FDR < 0.05 was considered statistically significant.

2.9. Correlation Analysis Between Hub Genes and Immune Cell Infiltration

To further investigate the relationship between hub genes and the immune microenvironment, Spearman rank correlation analysis was performed between the expression levels of the seven hub genes and the infiltration scores of 24 immune cell types. The Spearman correlation coefficients (ρ) and corresponding p values were calculated using the stats package in R, followed by Benjamini–Hochberg FDR correction for multiple testing. Only correlations satisfying |ρ| ≥ 0.5 and FDR < 0.05 were retained and visualized using a heatmap.

2.10. Statistical Analysis

All statistical analyses were performed using R software (version 4.5.3; R Foundation for Statistical Computing, Vienna, Austria). Comparisons between two groups of continuous variables were conducted using the Mann–Whitney U test. Correlation analyses were performed using Spearman’s rank correlation. All statistical tests were two-sided, and p < 0.05 was considered statistically significant. For analyses involving multiple comparisons, p values were adjusted using the Benjamini–Hochberg false discovery rate (FDR) method. A summary of all statistical methods is provided in Supplementary Table S3.

3. Results

3.1. Results of Principal Component Analysis

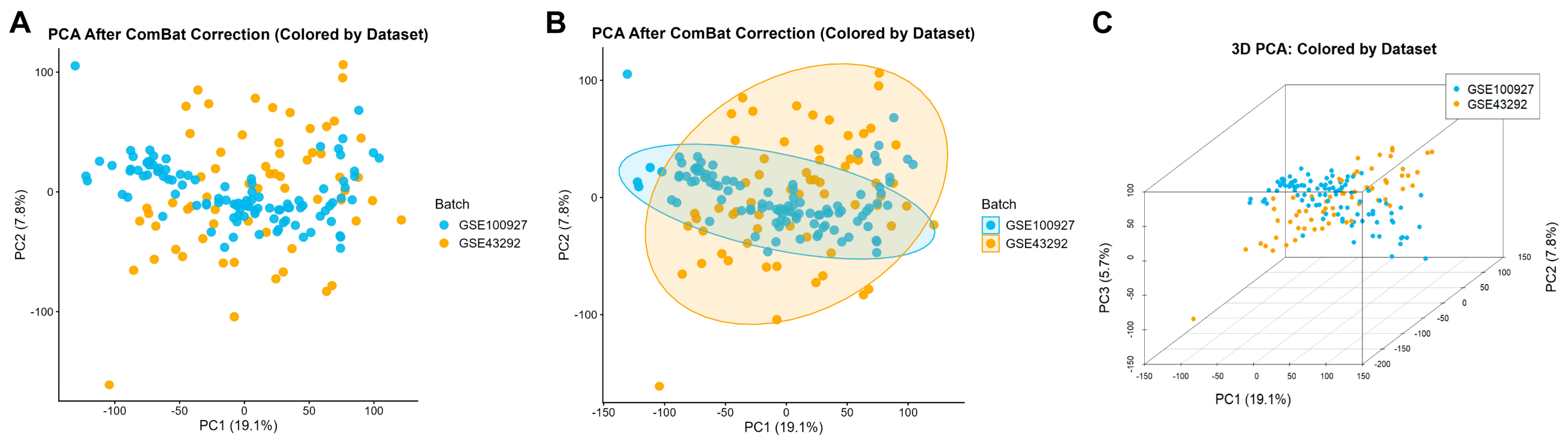

To evaluate the effectiveness of batch correction and the overall distribution of the training cohort, PCA was performed on the ComBat-corrected expression matrix. As shown in Figure 2A, samples from GSE43292 and GSE100927 were substantially intermixed after ComBat correction. The 95% confidence ellipses further demonstrated considerable overlap between the two datasets (Figure 2B), indicating effective removal of batch effects. The three-dimensional PCA plot (Figure 2C) further confirmed the mixing of samples from different datasets. PC1 and PC2 explained 19.1% and 7.8% of the total variance, respectively.

PERMANOVA analysis showed no significant difference between GSE43292 and GSE100927 after ComBat correction (F = 0.8103, p = 0.558, 999 permutations), further supporting the effectiveness of batch correction. In addition, PCA with samples colored according to biological group (Control vs. AS) showed clear separation between the two groups (Supplementary Figure S1). PERMANOVA analysis also confirmed a significant difference between AS and Control samples (F = 34.5244, p = 0.001, 999 permutations), indicating that biological differences were preserved after batch correction. These results demonstrated that the ComBat correction effectively minimized batch effects while preserving biological variation, supporting the suitability of the training cohort for subsequent differential expression analysis and machine learning modeling.

3.2. Identification of Differentially Expressed Genes

Differential expression analysis between AS and Control samples was conducted using the limma package with empirical Bayes moderation. A total of 1349 differentially expressed genes (DEGs) were identified using the thresholds of |log₂FC| > 0.5 and adjusted p < 0.05 (Benjamini–Hochberg FDR correction), including 870 upregulated and 479 downregulated genes in AS samples compared with Controls. The top 15 DEGs ranked by adjusted p value are summarized in

Table 1. Top 15 differentially expressed genes between AS and Control groups in the training cohort.

Rank	Gene	log2FC	Adj.p	Regulation
1	MMP9	3.056	5.99 × 10−23	Up
2	IBSP	2.311	1.08 × 10−25	Up
3	MMP7	2.234	2.68 × 10−14	Up
4	ACP5	2.217	3.45 × 10−19	Up
5	MMP12	2.034	4.88 × 10−12	Up
6	CCL18	1.933	2.52 × 10−11	Up
7	CHI3L1	1.926	7.03 × 10−15	Up
8	SPP1	1.786	7.95 × 10−13	Up
9	CCL3	1.773	1.92 × 10−18	Up
10	CD36	1.73	3.46 × 10−19	Up
11	MYOC	−1.726	3.69 × 10−16	Down
12	HMOX1	1.69	1.73 × 10−19	Up
13	IGJ	1.685	3.39 × 10−14	Up
14	CD52	1.661	4.29 × 10−20	Up
15	PLA2G7	1.659	9.64 × 10−16	Up

Note: Genes were identified using limma with empirical Bayes moderation. DEGs were defined as genes with |log₂FC| > 0.5 and adjusted p < 0.05 (Benjamini–Hochberg FDR correction). Regulation indicates whether the gene was up-regulated or down-regulated in AS samples compared to Control samples.

. Among the top-ranked DEGs, MMP9 (log₂FC = 3.056, adjusted p = 5.99 × 10⁻²³), IBSP (log₂FC = 2.311, adjusted p = 1.08 × 10⁻²⁵), and MMP7 (log₂FC = 2.234, adjusted p = 2.68 × 10⁻¹⁴) were the most significantly upregulated genes, whereas MYOC (log₂FC = −1.726, adjusted p = 3.69 × 10⁻¹⁶) was the most significantly downregulated gene. The volcano plot and MA plot illustrated the overall distribution of DEGs and their expression changes (Figure 3A,B). The heatmap of the top 15 DEGs further demonstrated distinct expression patterns between AS and Control samples, with hierarchical clustering effectively separating the two groups (Figure 3C).

The consistency of differential expression between the two training datasets was further evaluated by comparing DEGs identified independently in GSE43292 and GSE100927. As shown in Supplementary Figure S2, 1098 DEGs were identified in GSE43292 and 1868 DEGs were identified in GSE100927, with 719 shared DEGs, accounting for 65.5% of the DEGs identified in GSE43292. A summary of the DEG overlap analysis is provided in Supplementary Table S4. These findings indicate that differential expression patterns were highly reproducible across the two independent training cohorts.

3.3. Functional Enrichment Analysis

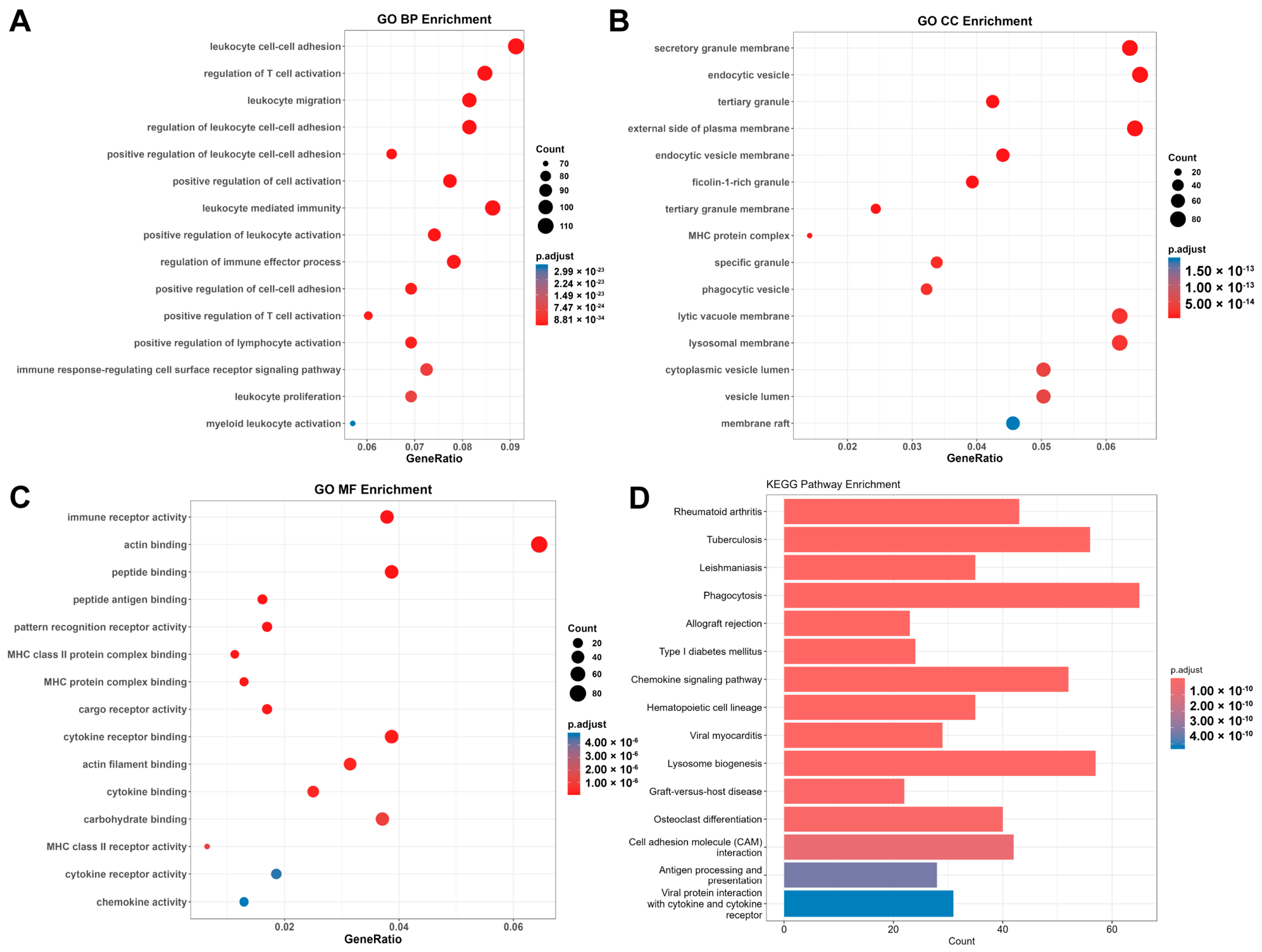

Gene Ontology (GO) and Kyoto Encyclopedia of Genes and Genomes (KEGG) enrichment analyses were performed to investigate the biological functions and signaling pathways associated with the identified differentially expressed genes (DEGs). GO enrichment analysis demonstrated that the DEGs were predominantly enriched in immune- and inflammation-related biological processes, including leukocyte cell–cell adhesion, regulation of T cell activation, leukocyte migration, positive regulation of leukocyte activation, and leukocyte-mediated immunity (Figure 4A, FDR < 0.05). In the cellular component (CC) category, the DEGs were mainly enriched in secretory granule membrane, endocytic vesicle, external side of the plasma membrane, lysosomal membrane, and cytoplasmic vesicle lumen (Figure 4B). Molecular function (MF) analysis further revealed significant enrichment in immune receptor activity, cytokine binding, cytokine receptor binding, peptide binding, and pattern recognition receptor activity (Figure 4C).

KEGG pathway analysis identified multiple significantly enriched pathways associated with immune regulation and inflammatory responses, including phagocytosis, chemokine signaling pathway, osteoclast differentiation, cell adhesion molecules (CAMs), lysosome, and rheumatoid arthritis (Figure 4D, FDR < 0.05). These enrichment results indicate that dysregulated immune activation, inflammatory signaling, leukocyte migration, and innate immune responses are closely associated with the pathogenesis of AS.

3.4. Identification of Hub Genes by Machine Learning

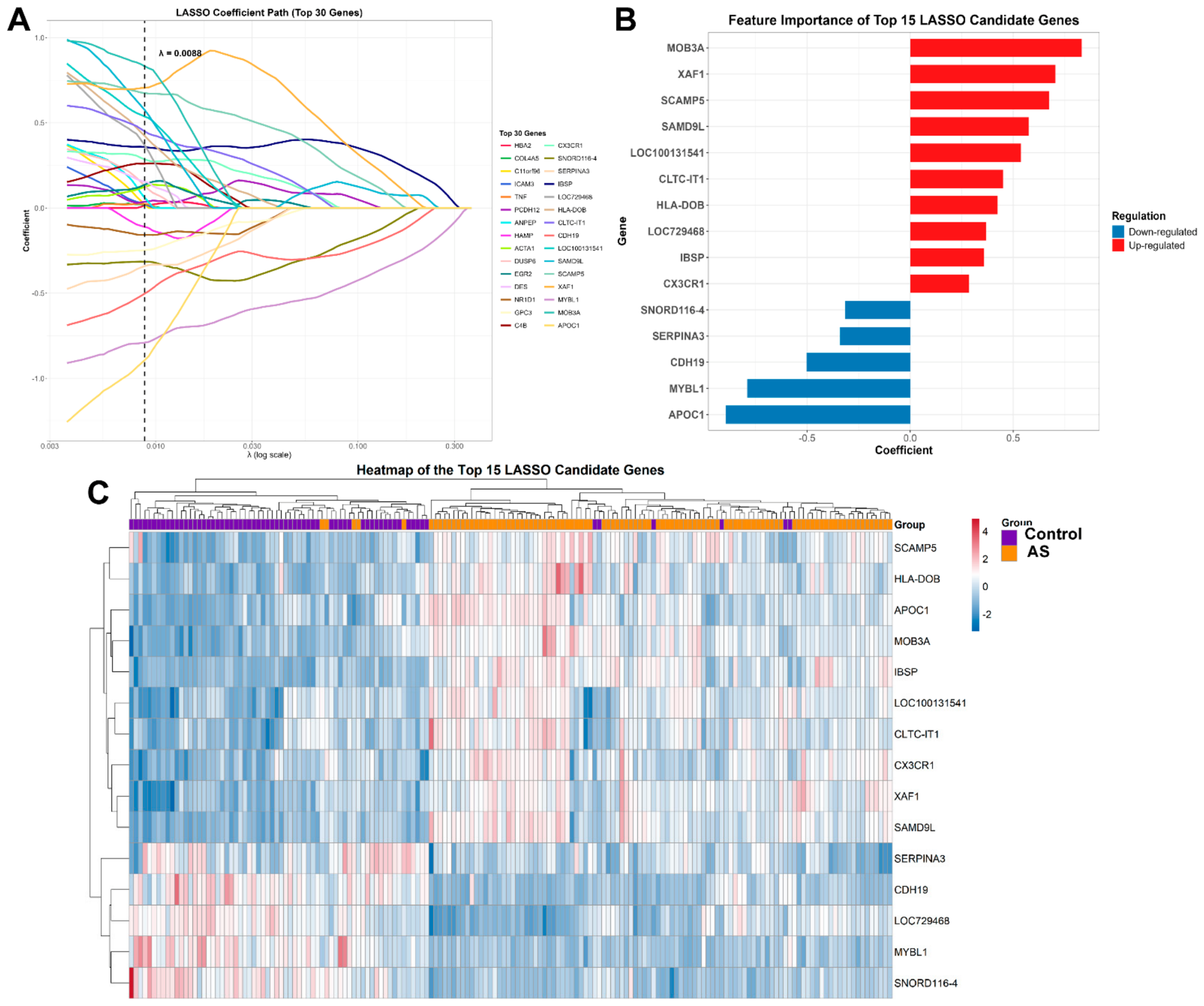

LASSO regression analysis was performed on the 1349 differentially expressed genes (DEGs) to identify robust diagnostic biomarkers for AS. The optimal regularization parameter (λ) was determined using 5-fold cross-validation, and the lambda.1se criterion was selected to construct a more parsimonious model. Using the selected lambda.1se value, 16 candidate genes with non-zero coefficients were retained, including MYBL1, IBSP, SAMD9L, XAF1, CDH19, SNORD116-4, SCAMP5, EGR2, CX3CR1, PCDH12, HLA-DOB, GPC3, SMPX, CLTC-IT1, NR1D1, and SERPINA3. The complete list of the 30 LASSO-selected candidate genes and their corresponding coefficients is provided in Supplementary Table S5. The LASSO coefficient path plot illustrated the shrinkage of gene coefficients with increasing penalty (Figure 5A). The regression coefficients of the top 15 candidate genes are shown in Figure 5B, and the heatmap further demonstrated their distinct expression patterns between AS and Control samples (Figure 5C).

Subsequently, random Forest analysis was performed using these 16 candidate genes, and gene importance was evaluated according to MeanDecreaseAccuracy and MeanDecreaseGini (Supplementary Table S6 and Figure S4). Based on the MeanDecreaseGini ranking, the top eight candidate genes were retained. Because SNORD116-4 was unavailable across the independent validation datasets due to platform differences, it was excluded from subsequent analyses. Consequently, seven hub genes, namely IBSP, XAF1, SCAMP5, SAMD9L, MYBL1, PCDH12, and CDH19, were retained for diagnostic model construction, expression validation, external validation, and immune infiltration analysis (

Table 2. Seven hub genes selected by the intersection of LASSO and Random Forest.

Rank	Gene	LASSO_Coefficient	RF_Importance	Regulation
1	IBSP	0.38	4	Up
2	XAF1	0.763	1	Up
3	SCAMP5	0.464	3	Up
4	SAMD9L	6.50 × 10−5	8	Up
5	MYBL1	−0.57	2	Down
6	PCDH12	0.115	7	Up
7	CDH19	−0.295	6	Down

Note: LASSO regression (lambda.1se) and Random Forest feature importance ranking were applied to the DEGs in the training cohort. The final hub genes were defined as the overlapping genes between LASSO-selected candidates and the top-ranking features from Random Forest. LASSO_Coefficient represents the regression coefficient from the LASSO model. RF_Importance indicates the rank of each gene in Random Forest feature importance.

).

3.5. Construction and Evaluation of the Diagnostic Model

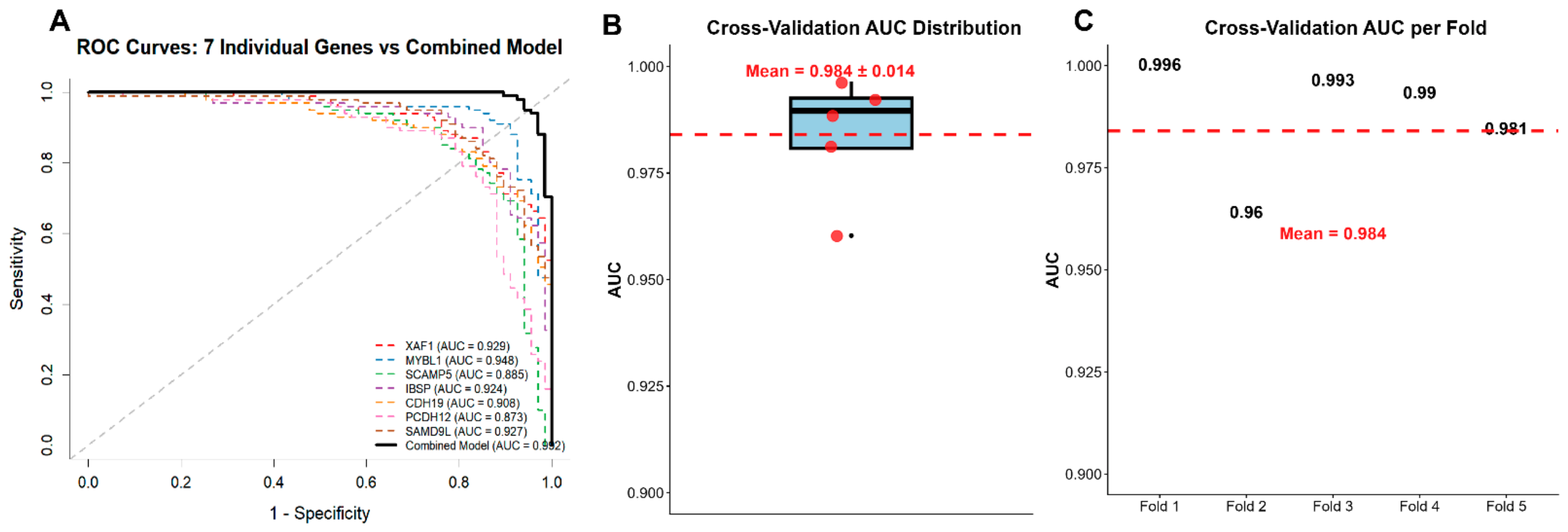

A multivariable logistic regression model was constructed using the seven hub genes. In the training cohort, the model demonstrated excellent diagnostic performance, achieving an AUC of 0.992 (95% CI: 0.981–1.000), with a sensitivity of 0.950 and a specificity of 0.970 at the optimal cutoff value (0.765), as determined by the Youden index (Figure 6A). To evaluate the robustness of the diagnostic model, 5-fold cross-validation was performed. The model achieved a mean AUC of 0.984 (SD = 0.014), with individual fold AUC values of 0.996, 0.960, 0.993, 0.990, and 0.981. The distribution of AUC values across the five folds is shown in Figure 6B, whereas the AUC achieved in each fold is presented in Figure 6C. In addition, the calibration curve demonstrated good agreement between the predicted probabilities and the observed outcomes in the training cohort, indicating that the 7-gene logistic regression model was well calibrated (Figure S3).

3.6. Expression Validation of the Seven Hub Genes

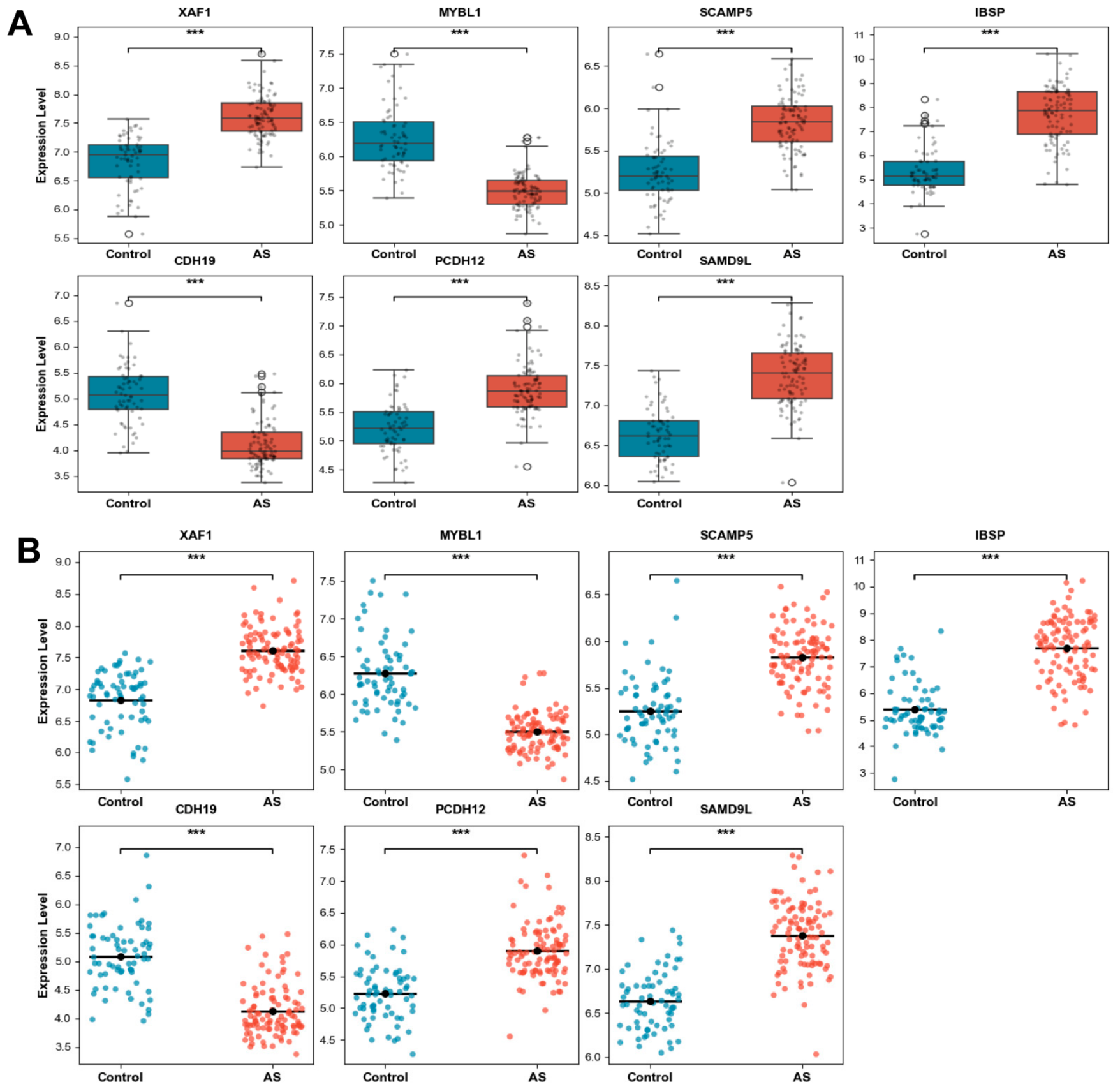

The expression patterns of the seven hub genes identified by the machine learning pipeline were evaluated by comparing their expression levels between AS and Control samples in the training cohort. As shown in Figure 7A, all seven hub genes were differentially expressed between the two groups (all FDR < 0.001, Wilcoxon rank-sum test). Specifically, XAF1, SCAMP5, IBSP, PCDH12, and SAMD9L were significantly upregulated in AS samples, whereas MYBL1 and CDH19 were significantly downregulated compared with the Control group. Scatter plots further demonstrated the distribution of individual samples and confirmed the distinct expression patterns of the seven hub genes between the two groups (Figure 7B). These findings confirmed the differential expression patterns of the seven hub genes and further supported their potential as diagnostic biomarkers for AS.

3.7. External Validation of the Diagnostic Model

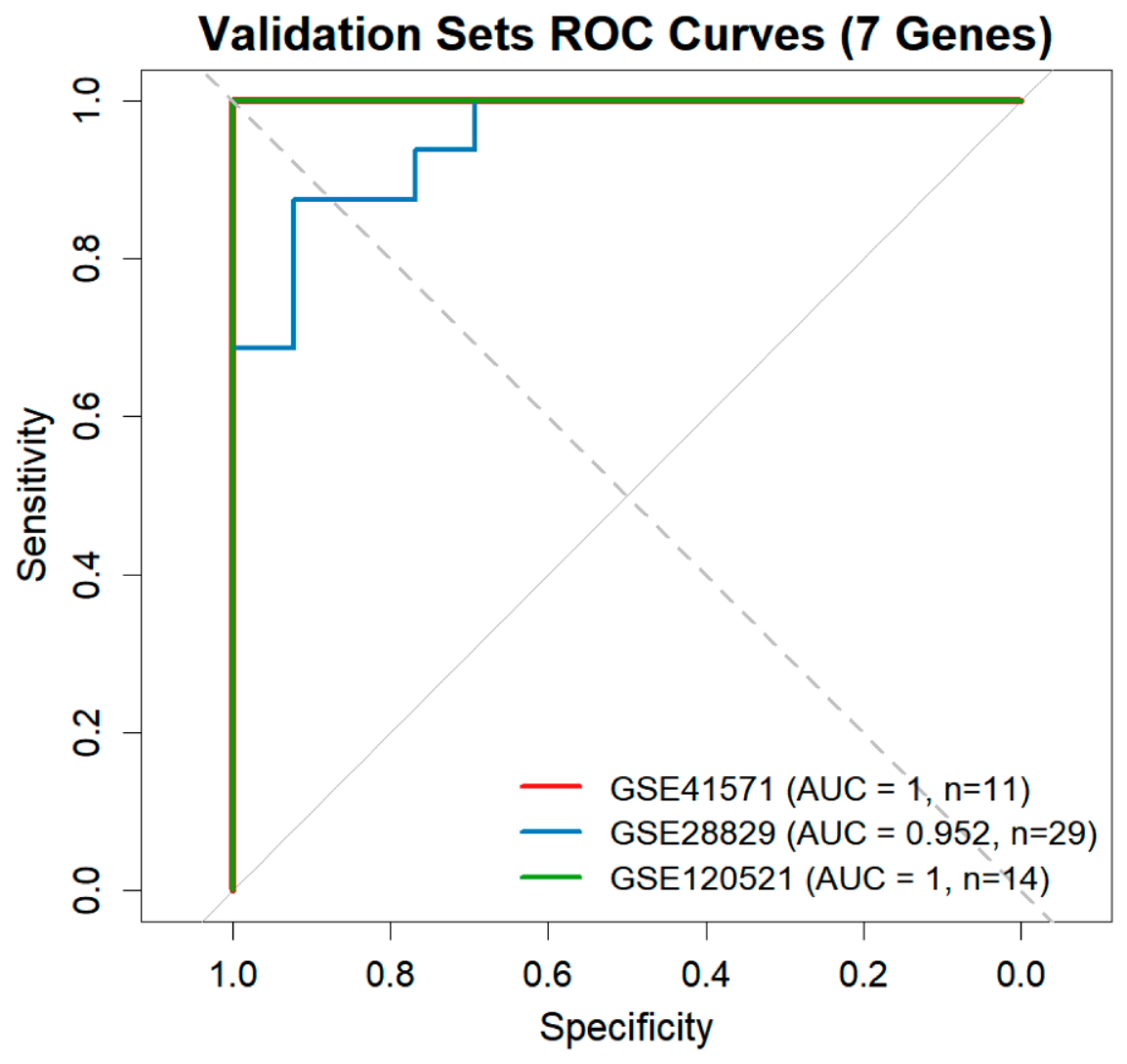

The generalizability of the 7-gene model was evaluated in three independent cohorts (GSE41571, GSE28829, and GSE120521). As shown in Figure 8, the model achieved AUCs of 1.000 (95% CI: 1.000–1.000, n = 11), 0.952 (95% CI: 0.886–1.000, n = 29), and 1.000 (95% CI: 1.000–1.000, n = 14), respectively, with a mean AUC of 0.984 (

Table 3. Diagnostic performance of the 7-gene model in the training cohort and three independent validation cohorts.

Dataset	AUC	95% CI	Sensitivity	Specificity	N
Training	0.992	0.981–1.000	0.950	0.970	168
GSE41571	1.000	1.000–1.000	1.000	1.000	11
GSE28829	0.952	0.886–1.000	0.875	0.923	29
GSE120521	1.000	1.000–1.000	1.000	1.000	14

Note: The model was constructed using logistic regression based on the seven hub genes. Sensitivity and specificity were calculated at the optimal cutoff determined by the Youden index. AUC: area under the ROC curve; N: number of samples in each cohort.

). Although the validation cohorts represented different plaque phenotypes and progression stages rather than AS versus Control classification, the model consistently demonstrated high diagnostic performance across all three cohorts. Notably, the largest validation cohort (GSE28829, n = 29) achieved an AUC of 0.952, supporting the robustness of the diagnostic model in an independent dataset.

3.8. Immune Cell Infiltration Analysis

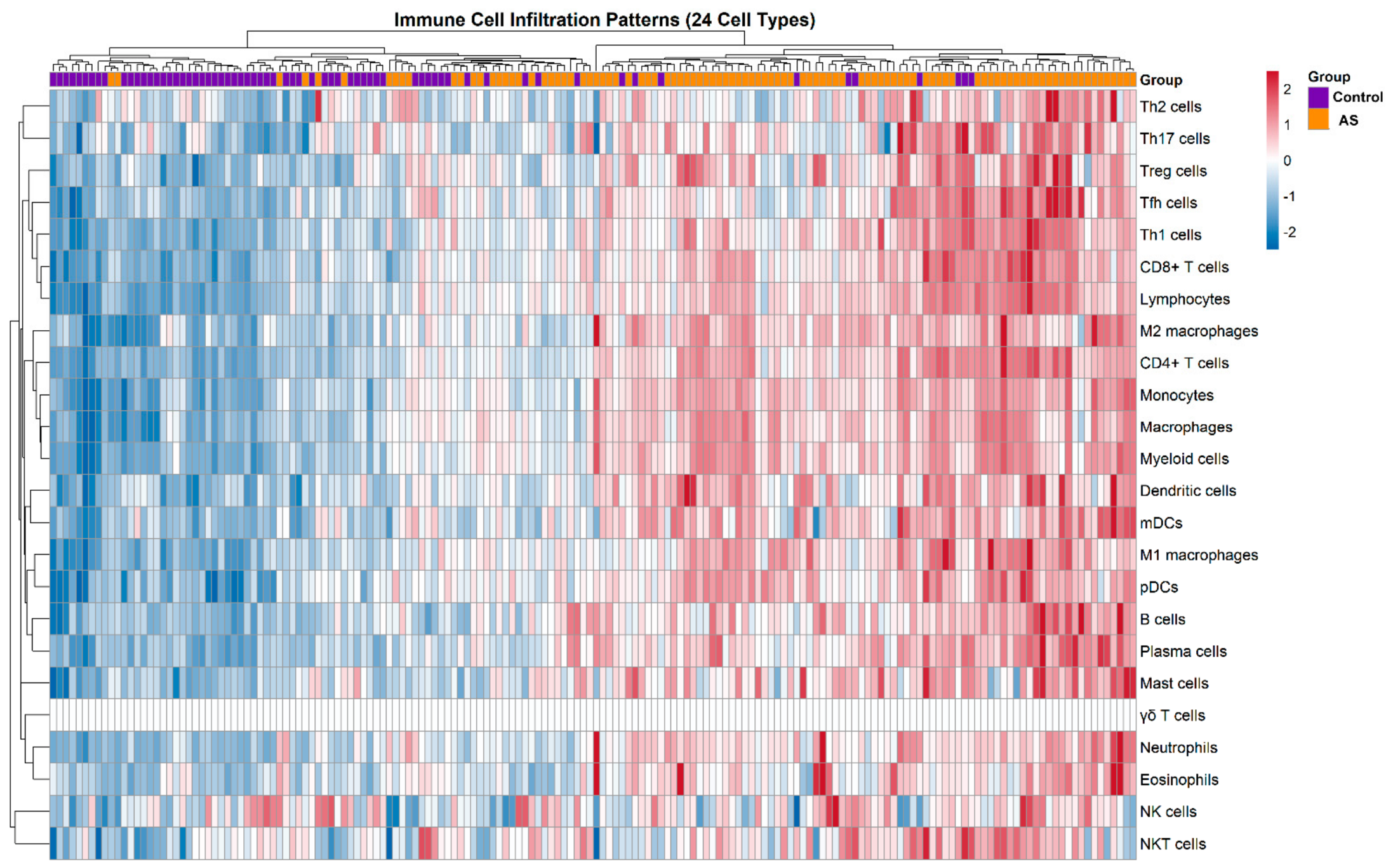

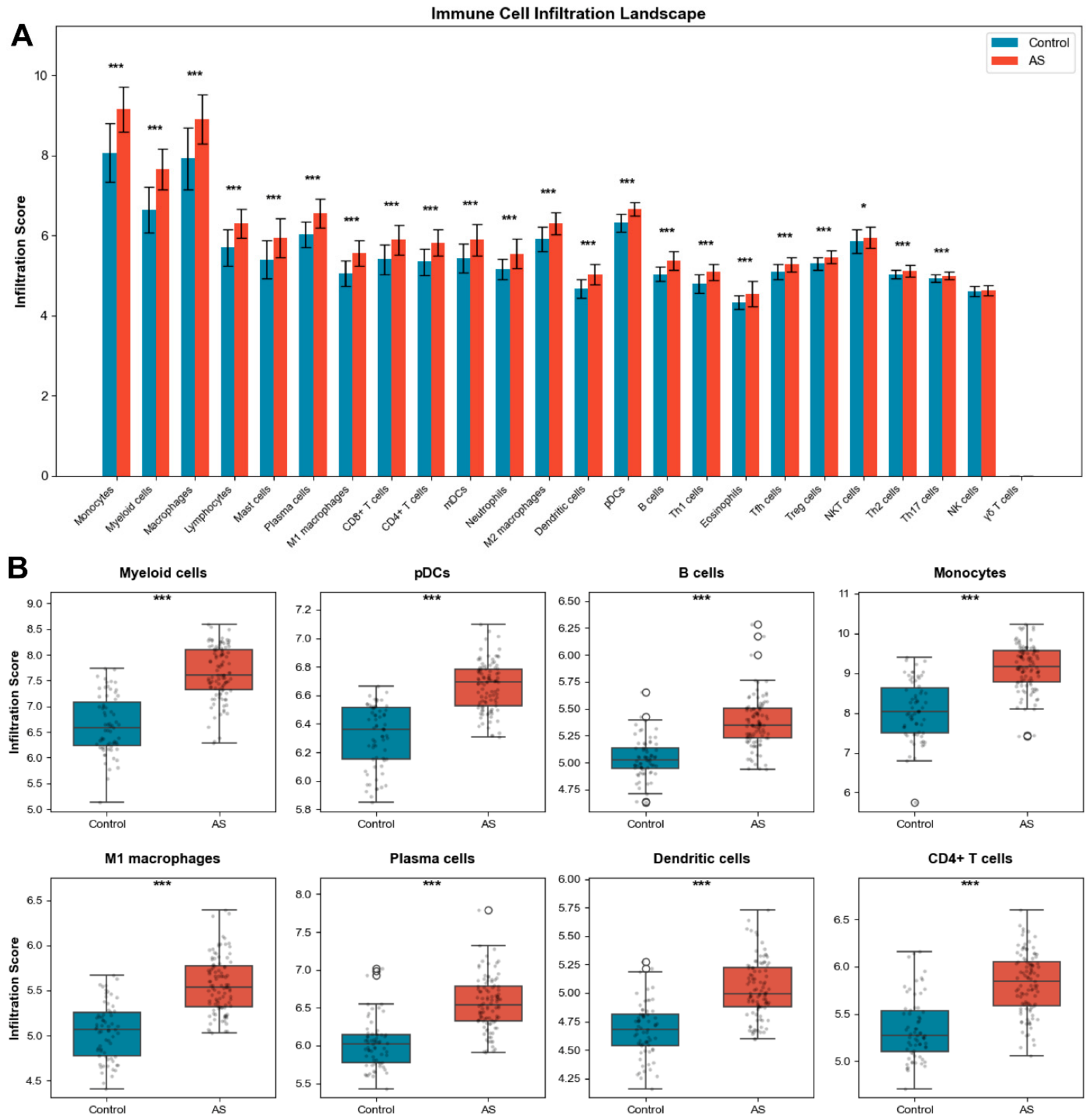

The immune landscape of the training cohort was characterized by quantifying the infiltration levels of 24 immune cell types using single-sample gene set enrichment analysis (ssGSEA). As shown in Figure 9, AS samples generally exhibited higher immune infiltration levels than Control samples, indicating an enhanced inflammatory immune microenvironment.

The overall immune infiltration patterns were further summarized in the bar plot, which displayed the mean infiltration scores of all 24 immune cell types (Figure 10A). Differential analysis demonstrated that 22 of the 24 immune cell types showed significantly increased infiltration in the AS group after Benjamini–Hochberg false discovery rate (FDR) correction (FDR < 0.05). For clarity, boxplots of eight representative immune cell types showing significant differences between the two groups are presented (Figure 10B). Among all differentially infiltrated immune cell types, monocytes (log₂FC = 1.084), myeloid cells (log₂FC = 1.015), and macrophages (log₂FC = 0.985) exhibited the largest increases in infiltration levels. In contrast, NK cells showed no statistically significant difference between the AS and Control groups. Detailed statistical results, including the mean infiltration scores, standard deviations, log₂FC values, and FDR-adjusted p values for all 24 immune cell types, are provided in Supplementary Table S7. The top 10 differentially infiltrated immune cells with the largest effect sizes are summarized in

Table 4. Top 10 differentially infiltrated immune cells between Control and AS groups in the training cohort.

Cell_Type	Control_Mean_SD	AS_Mean_SD	log2FC	FDR
Monocytes	8.07 ± 0.74	9.15 ± 0.57	1.084	6.47 × 10−16
Myeloid cells	6.64 ± 0.57	7.65 ± 0.51	1.015	4.73 × 10−17
Macrophages	7.93 ± 0.77	8.91 ± 0.62	0.985	9.57 × 10−13
Lymphocytes	5.70 ± 0.45	6.29 ± 0.36	0.592	5.55 × 10−13
Mast cells	5.40 ± 0.47	5.94 ± 0.48	0.54	1.42 × 10−10
Plasma cells	6.03 ± 0.33	6.56 ± 0.35	0.529	2.17 × 10−15
M1 macrophages	5.05 ± 0.31	5.56 ± 0.31	0.517	1.11 × 10−15
CD8+ T cells	5.40 ± 0.37	5.89 ± 0.36	0.488	3.03× 10−12
CD4+ T cells	5.34 ± 0.33	5.83 ± 0.33	0.485	7.31× 10−14
mDCs	5.43 ± 0.36	5.89 ± 0.39	0.462	2.01× 10−11

Note: Immune cell infiltration scores were quantified using ssGSEA based on the ComBat corrected expression matrix. Data are presented as mean ± SD. Differences between groups were assessed using the Mann–Whitney U test with Benjamini–Hochberg FDR correction. FDR < 0.05 was considered statistically significant.

.

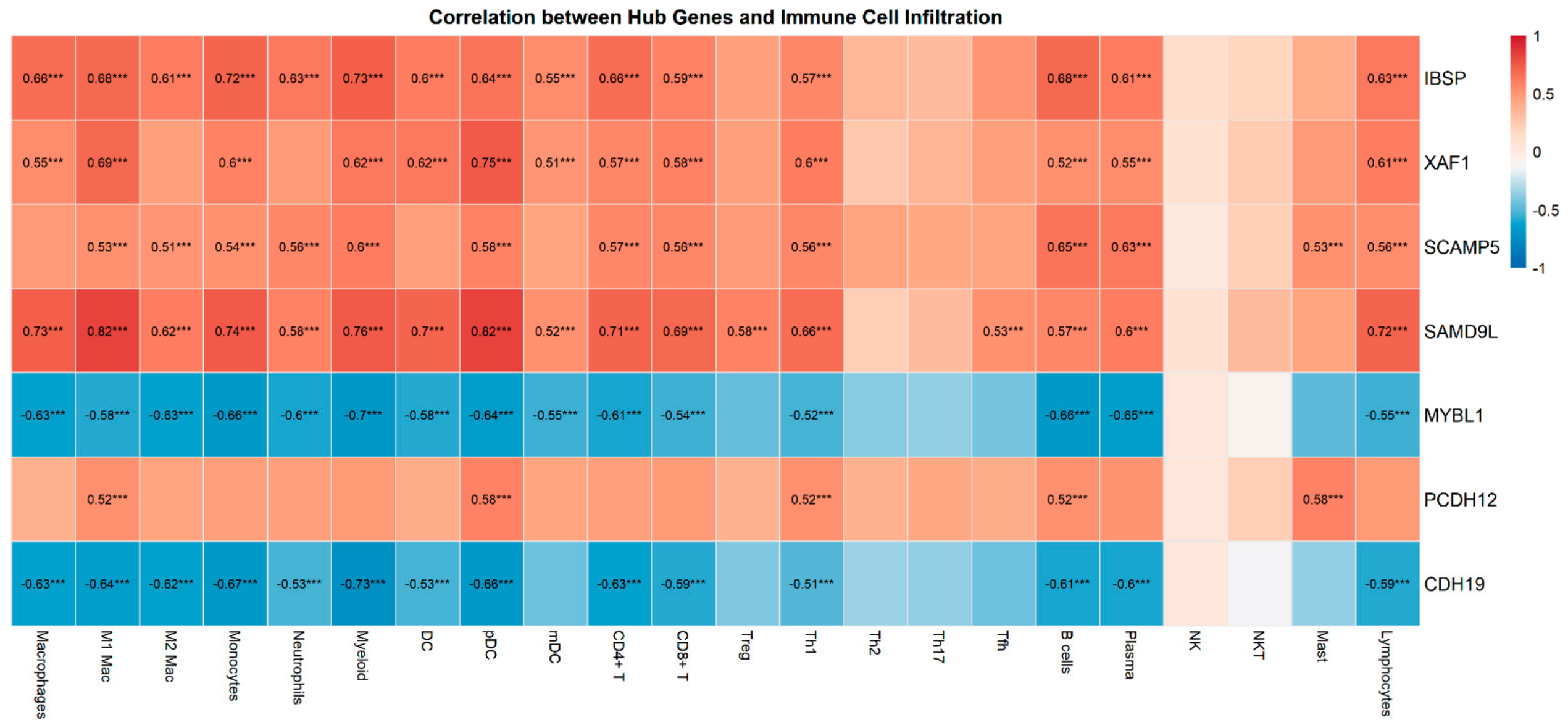

The relationships between the seven hub genes and immune cell infiltration were subsequently evaluated using Spearman correlation analysis (Figure 11). SAMD9L exhibited the strongest positive correlations with M1 macrophages (ρ = 0.823) and plasmacytoid dendritic cells (pDCs; ρ = 0.821). IBSP was strongly positively correlated with myeloid cells (ρ = 0.735), monocytes (ρ = 0.716), and macrophages (ρ = 0.664). Conversely, MYBL1 and CDH19 showed significant negative correlations with multiple immune cell populations, whereas PCDH12 displayed moderate positive correlations with selected immune cell subsets. The major correlations are summarized in

Table 5. Spearman correlations between the 7 hub genes and key immune cell types in the training cohort.

Gene	Macrophages	Monocytes	Myeloid	M1_Mac	pDC	Lymphocytes
IBSP	0.664 ***	0.716 ***	0.735 ***	0.677 ***	0.640 ***	0.631 ***
XAF1	0.554 ***	0.595 ***	0.616 ***	0.689 ***	0.749 ***	0.605 ***
SCAMP5	—	0.535 ***	0.602 ***	0.534 ***	0.584 ***	0.555 ***
SAMD9L	0.730 ***	0.744 ***	0.755 ***	0.823 ***	0.821 ***	0.716 ***
MYBL1	−0.626 ***	−0.659 ***	−0.697 ***	−0.585 ***	−0.644 ***	−0.553 ***
PCDH12	—	—	—	0.521 ***	0.581 ***	—
CDH19	−0.633 ***	−0.667 ***	−0.726 ***	−0.644 ***	−0.659 ***	−0.594 ***

Note: The Spearman correlation coefficients (ρ) were calculated between the expression levels of each hub gene and the infiltration scores of six key immune cell types. Only |ρ| ≥ 0.5 and FDR < 0.05 are displayed. *** FDR < 0.001—indicates |ρ| < 0.5.

, and the complete correlation matrix is provided in Supplementary Table S8. These findings indicate that the identified hub genes are closely associated with immune cell infiltration and the inflammatory immune microenvironment in atherosclerosis.

4. Discussion

AS is a chronic inflammatory disease characterized by complex interactions between lipid metabolism, immune responses, and vascular remodeling. In this study, we integrated two independent gene expression datasets and performed batch effect correction using the ComBat algorithm to improve data comparability. Differential expression analysis identified 1349 DEGs between atherosclerosis and control samples. To explore the biological relevance of these genes, functional enrichment analysis was performed, revealing that immune- and inflammation-related pathways were significantly enriched. Subsequently, a combination of LASSO regression and Random Forest analysis was applied to identify robust diagnostic biomarkers, resulting in the selection of seven hub genes, including IBSP, XAF1, SCAMP5, SAMD9L, MYBL1, PCDH12, and CDH19.

A multivariable logistic regression model based on these seven genes demonstrated excellent diagnostic performance in the training cohort, with strong discrimination ability and stable cross-validation results. Furthermore, three independent external validation cohorts confirmed the robustness and generalizability of the model. Finally, immune infiltration analysis revealed significant alterations in the immune microenvironment of atherosclerosis, and correlation analysis suggested close associations between hub genes and immune cell infiltration. Overall, these findings provide a multi-level understanding of the molecular characteristics of atherosclerosis and highlight potential diagnostic biomarkers and immune-related mechanisms involved in disease progression.

Functional enrichment analysis demonstrated that the identified DEGs were predominantly involved in immune- and inflammation-related biological processes, highlighting the central role of immune dysregulation in AS. GO analysis showed significant enrichment in leukocyte activation, leukocyte migration, T-cell activation, and leukocyte-mediated immunity, suggesting that abnormal immune cell recruitment and activation are major pathological characteristics of atherosclerotic lesions. These findings are consistent with previous studies demonstrating that persistent leukocyte infiltration and chronic vascular inflammation contribute to endothelial dysfunction, foam cell formation, and plaque progression [31].

KEGG pathway analysis further supported this conclusion. Several significantly enriched pathways, including the chemokine signaling pathway, phagosome, cell adhesion molecules (CAMs), lysosome, and osteoclast differentiation, have been implicated in the development of atherosclerosis. Chemokine signaling regulates the recruitment and migration of circulating monocytes and lymphocytes into the arterial wall, thereby initiating and sustaining vascular inflammation [31]. Cell adhesion molecules facilitate leukocyte adhesion to activated endothelial cells, representing a critical early event during plaque formation [32,33]. Meanwhile, phagosome- and lysosome-related pathways are closely associated with macrophage phagocytosis, lipid metabolism, and foam cell formation [34,35]. In addition, the osteoclast differentiation pathway reflects inflammatory activation of myeloid-derived cells and has been associated with vascular calcification in atherosclerosis [36].

Collectively, these enrichment results indicate that inflammatory activation, immune cell recruitment, and innate immune responses represent fundamental biological processes underlying AS, providing biological support for the subsequent identification of immune-related diagnostic biomarkers.

The present study identified seven hub genes, namely IBSP, XAF1, SCAMP5, SAMD9L, MYBL1, PCDH12, and CDH19, through the combined application of LASSO regression and Random Forest analysis. Compared with using a single machine learning algorithm, this integrated strategy reduced feature redundancy and improved the robustness of biomarker selection, ultimately yielding a compact diagnostic signature with excellent predictive performance in both the training cohort and three independent validation cohorts.

Among these hub genes, IBSP demonstrated particularly strong diagnostic performance and exhibited close associations with immune cell infiltration, especially monocytes, macrophages, and myeloid cells. Although IBSP has traditionally been recognized as a bone matrix protein involved in osteogenesis and mineralization, accumulating evidence indicates that it also participates in vascular calcification, extracellular matrix remodeling, and inflammatory responses [37,38,39]. Vascular calcification is an important pathological characteristic of advanced atherosclerotic lesions and is closely associated with plaque instability and adverse cardiovascular events [40]. Therefore, the significant upregulation of IBSP observed in the present study suggests that it may contribute not only to vascular calcification but also to inflammation-mediated plaque progression.

Another notable finding was the significant upregulation of SAMD9L and XAF1, both of which are involved in interferon-mediated immune responses. SAMD9L has been reported to regulate innate immunity and inflammatory signaling, whereas XAF1 functions as a pro-apoptotic factor induced by interferons and has been implicated in immune activation under inflammatory conditions [41,42]. Previous studies have further demonstrated that XAF1 promotes macrophage apoptosis and necrotic core formation during atherosclerosis, suggesting a potential role in plaque progression [43]. The strong positive correlations between SAMD9L and M1 macrophages as well as plasmacytoid dendritic cells observed in the present study further support its potential role in shaping the inflammatory immune microenvironment during AS progression.

In contrast, MYBL1 and CDH19 were significantly downregulated in AS and exhibited predominantly negative correlations with immune cell infiltration. MYBL1 is a transcription factor associated with cell proliferation and differentiation, whereas CDH19 belongs to the cadherin family and contributes to cell–cell adhesion [44,45]. Their decreased expression may reflect disruption of normal vascular homeostasis during chronic inflammation. In addition, SCAMP5 and PCDH12 may participate in vesicle trafficking and endothelial cell function, respectively, although their precise roles in atherosclerosis remain incompletely understood [46,47]. Notably, these relatively understudied genes consistently demonstrated favorable diagnostic performance across multiple independent cohorts and showed close associations with immune cell infiltration, suggesting that they may represent novel molecular candidates involved in AS pathogenesis. Despite the limited evidence regarding the involvement of these genes in atherosclerosis, their reproducible diagnostic performance across three independent validation cohorts and their close associations with immune cell infiltration support their potential as promising biomarker candidates warranting further mechanistic investigation. These findings suggest that the seven hub genes represent multiple biological processes involved in AS rather than a single inflammatory pathway, highlighting the complex molecular mechanisms underlying disease progression.

Immune cell infiltration is increasingly recognized as a hallmark of atherosclerosis and plays a critical role throughout plaque initiation, progression, and destabilization [48]. Consistent with this concept, ssGSEA analysis demonstrated extensive remodeling of the immune microenvironment in AS, characterized by increased infiltration of multiple immune cell populations. In particular, monocytes, macrophages, and myeloid cells exhibited the most pronounced increases, highlighting the importance of innate immune activation during disease progression [49].

Monocytes are recruited from the circulation into the arterial intima, where they differentiate into macrophages and subsequently form lipid-laden foam cells through excessive uptake of modified lipoproteins [50,51]. Activated macrophages further amplify local inflammation by secreting pro-inflammatory cytokines, chemokines, and matrix-degrading enzymes, thereby accelerating plaque growth and promoting plaque instability [52]. The prominent enrichment of monocyte–macrophage-associated immune cells observed in the present study is therefore consistent with the well-established inflammatory characteristics of atherosclerosis.

Correlation analysis further strengthened the biological relevance of the identified hub genes. Among them, SAMD9L exhibited the strongest positive correlations with M1 macrophages and plasmacytoid dendritic cells, suggesting its potential involvement in pro-inflammatory immune activation. Similarly, IBSP showed strong positive correlations with monocytes, macrophages, and myeloid cells, indicating that its increased expression may be closely linked to inflammatory cell recruitment and vascular remodeling. In contrast, MYBL1 and CDH19 demonstrated predominantly negative correlations with immune cell infiltration, implying that their reduced expression may accompany progressive disruption of vascular homeostasis during chronic inflammation.

Taken together, these findings suggest that the seven hub genes are not only diagnostic biomarkers but are also closely associated with immune microenvironment remodeling in AS. The coordinated interactions between inflammatory gene expression and immune cell infiltration may contribute to plaque progression and provide potential therapeutic targets for immunomodulatory intervention.

The present findings may also have important clinical implications. The seven-gene diagnostic signature demonstrated excellent performance in both the training cohort and three independent validation cohorts, suggesting its potential utility for the early identification of individuals with atherosclerosis. Compared with single-gene biomarkers, the multigene model integrates complementary biological information and therefore provides greater diagnostic robustness. Moreover, the close associations between the identified hub genes and immune cell infiltration indicate that these biomarkers may also reflect inflammatory activity within atherosclerotic lesions, providing a potential molecular basis for individualized risk assessment and future immunomodulatory therapeutic strategies. Although the present signature was developed from plaque tissue transcriptomic data, future studies are warranted to evaluate its applicability in minimally invasive clinical specimens, such as peripheral blood, circulating leukocytes, plasma-derived exosomes, or cell-free RNA, before clinical translation can be considered.

It should be noted that disease diagnosis (AS vs. Control) and plaque risk stratification represent related but distinct clinical tasks. Although the external validation cohorts involved different plaque phenotypes, including early versus advanced lesions and stable versus unstable plaques, these conditions share common pathological mechanisms, such as chronic inflammation, immune dysregulation, extracellular matrix remodeling, and macrophage activation. Therefore, the consistent diagnostic performance observed across these independent cohorts suggests that the seven-gene signature captures core molecular alterations associated with atherosclerotic plaque biology rather than dataset-specific transcriptional characteristics. Nevertheless, prospective validation in larger AS versus Control cohorts is still required before clinical application.

Several strengths of the present study should be highlighted. First, unlike many previous transcriptomic studies that directly merged public datasets, batch effects between the two training datasets were removed using the ComBat algorithm prior to downstream analyses. Principal component analysis confirmed effective correction of batch effects, thereby improving the reliability and comparability of the integrated transcriptomic data. Second, hub genes were identified using a combination of LASSO regression and Random Forest analysis, which reduced feature redundancy and improved the robustness of biomarker selection. Third, the diagnostic model demonstrated stable performance through 5-fold cross-validation and was further validated in three independent external cohorts, supporting its robustness and generalizability. Finally, the integration of immune infiltration analysis with hub gene correlation analysis provided additional biological evidence linking the identified biomarkers to immune microenvironment remodeling in AS, thereby improving the biological interpretability of the diagnostic model.

Several limitations should also be acknowledged. First, all analyses were based on publicly available transcriptomic datasets, and prospective validation in large clinical cohorts is still required. Second, although three independent external validation cohorts were included, the overall sample size remained relatively limited. Third, the present study was primarily based on bioinformatics analyses, and the biological functions and molecular mechanisms of the identified hub genes require further experimental validation using in vitro and in vivo models. Finally, although ComBat batch correction and subsequent PCA/PERMANOVA analyses indicated effective removal of batch effects, residual heterogeneity related to differences in patient characteristics, tissue processing, and microarray platforms cannot be completely excluded. Future studies integrating multicenter clinical cohorts and functional experiments will help clarify the translational potential of these biomarkers.

In summary, the present study established a robust inflammation-related diagnostic signature for atherosclerosis by integrating transcriptomic analysis, machine learning, external validation, and immune infiltration analysis. The seven identified hub genes exhibited excellent diagnostic performance and were closely associated with immune microenvironment remodeling. These findings provide new insights into the molecular mechanisms underlying atherosclerosis and identify potential biomarkers that may facilitate early diagnosis and future immunomodulatory therapeutic strategies.

5. Conclusions

In conclusion, this study integrated multiple GEO transcriptomic datasets to systematically investigate the molecular characteristics of AS. Functional enrichment analysis demonstrated that the identified differentially expressed genes were predominantly involved in immune- and inflammation-related biological processes and pathways, highlighting the central role of immune dysregulation in AS. Using a combined machine learning strategy based on LASSO regression and Random Forest analysis, seven hub genes (IBSP, XAF1, SCAMP5, SAMD9L, MYBL1, PCDH12, and CDH19) were identified, and a seven-gene logistic regression model demonstrated excellent diagnostic performance in both the training cohort and three independent external validation cohorts.

Furthermore, immune infiltration analysis revealed extensive remodeling of the immune microenvironment in AS, particularly increased infiltration of monocytes, macrophages, and myeloid cells. Correlation analysis further demonstrated close associations between the identified hub genes and immune cell infiltration, suggesting that these biomarkers are closely linked to inflammatory immune remodeling during AS progression. Collectively, these findings provide new insights into the molecular mechanisms underlying AS and identify potential diagnostic biomarkers that may facilitate early diagnosis, risk assessment, and future investigations of immune-related therapeutic strategies.
