Predicting Essential Proteins Based on Integration of Local Fuzzy Fractal Dimension and Subcellular Location Information
Abstract
:1. Introduction
2. Methods

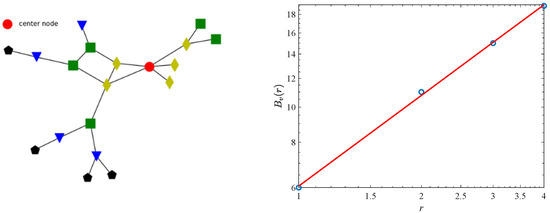

2.1. Local Fractal Dimension

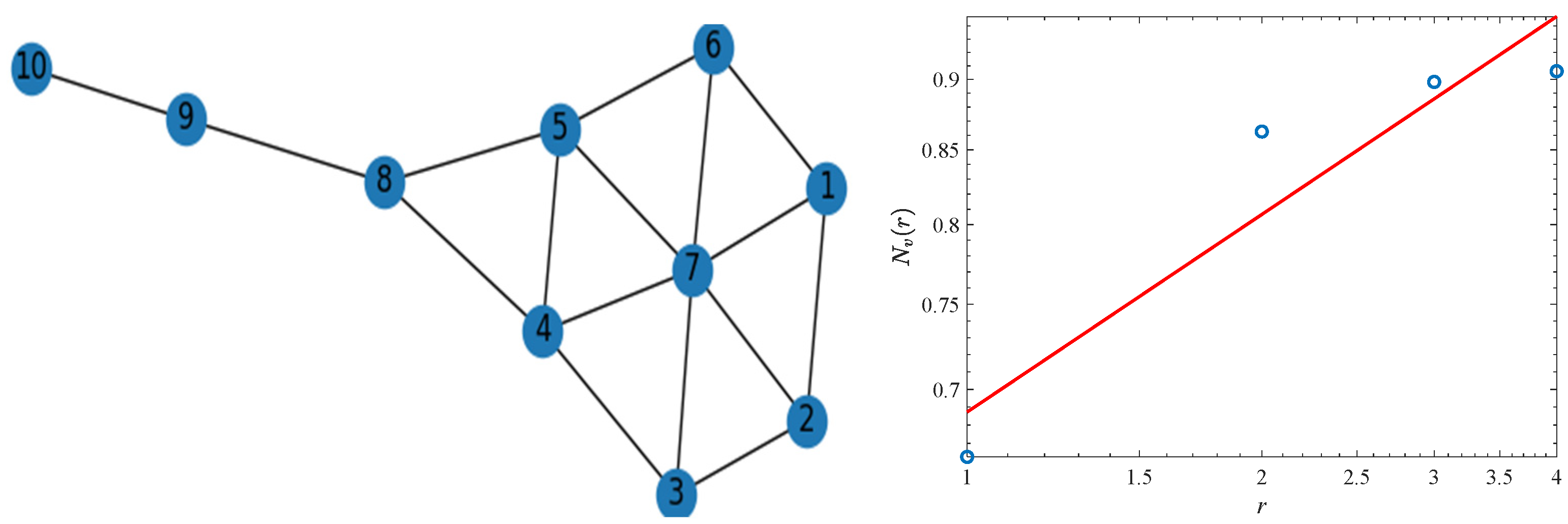

2.2. Local Fuzzy Fractal Dimension
2.3. Subcellular Compartment Score
2.4. LDS Algorithm
3. Results and Discussion
3.1. Experimental Data

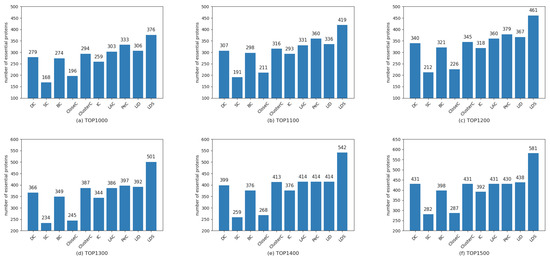

3.2. Performance of the LDS Algorithm

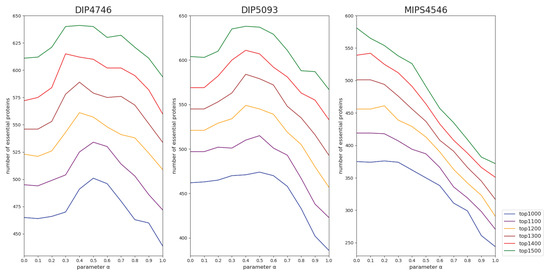

3.3. Influence of the Parameter α
4. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Jeong, H.; Mason, S.P.; Barabasi, A.L.; Oltvai, Z.N. Lethality and centrality in protein networks. Nature 2001, 411, 41–42. [Google Scholar] [CrossRef] [Green Version]
- Wang, J.; Peng, X.; Peng, W.; Wu, F.X. Dynamic protein interaction network construction and applications. Proteomics 2013, 14, 338–352. [Google Scholar] [CrossRef] [PubMed]
- Kamath, R.S.; Fraser, A.G.; Dong, Y.; Poulin, G.; Durbin, R.; Gotta, M.; Kanapin, A.; Le Bot, N.; Moreno, S.; Sohrmann, M.; et al. Systematic functional analysis of the Caenorhabditis elegans genome using RNAi. Nature 2003, 421, 231–237. [Google Scholar] [CrossRef]
- Giaever, G.; Chu, A.M.; Ni, L.; Connelly, C.; Riles, L.; Véronneau, S.; Dow, S.; Lucau-Danila, A.; Anderson, K.; André, B.; et al. Functional profiling of the Saccharomyces cerevisiae genome. Nature 2002, 418, 387–391. [Google Scholar] [CrossRef] [PubMed]
- Cullen, L.M.; Arndt, G.M. Genome-wide screening for gene function using RNAi in mammalian cells. Immunol. Cell Biol. 2005, 83, 217–223. [Google Scholar] [CrossRef]
- Roemer, T.; Jiang, B.; Davison, J.; Ketela, T.; Veillette, K.; Breton, A.; Tandia, F.; Linteau, A.; Sillaots, S.; Marta, C.; et al. Large-scale essential gene identification in Candida albicans and applications to antifungal drug discovery. Mol. Microbiol. 2003, 50, 167–181. [Google Scholar] [CrossRef]
- Ho, Y.; Gruhler, A.; Heilbut, A.; Bader, G.D.; Moore, L.; Adams, S.-L.; Millar, A.; Taylor, P.; Bennett, K.L.; Boutilier, K.; et al. Systematic identification of protein complexes in Saccharomyces cerevisiae by mass spectrometry. Nature 2002, 415, 180–183. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Fields, S.; Song, O.-K. A novel genetic system to detect protein–protein interactions. Nature 1989, 340, 245–246. [Google Scholar] [CrossRef] [PubMed]
- Ito, T.; Chiba, T.; Ozawa, R.; Yoshida, M.; Hattori, M.; Sakaki, Y. A comprehensive two-hybrid analysis to explore the yeast protein interactome. Proc. Natl. Acad. Sci. USA 2001, 98, 4569–4574. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Puig, O.; Caspary, F.; Rigaut, G.; Rutz, B.; Bouveret, E.; Bragado-Nilsson, E.; Wilm, M.; Séraphin, B. The Tandem Affinity Purification (TAP) Method: A General Procedure of Protein Complex Purification. Methods 2001, 24, 218–229. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Brohée, S.; van Helden, J. Evaluation of clustering algorithms for protein-protein interaction networks. BMC Bioinform. 2006, 7, 488. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Braun, P.; Gingras, A.C. History of protein-protein interactions: From egg-white to complex networks. Proteomics 2012, 12, 1478–1498. [Google Scholar] [CrossRef] [PubMed]
- Jordán, F.; Nguyen, T.P.; Liu, W.C. Studying protein-protein interaction networks: A systems view on diseases. Brief. Funct. Genom. 2012, 11, 497–504. [Google Scholar] [CrossRef]
- Zhong, M.; Lee, G.M.; Sijbesma, E.; Ottmann, C.; Arkin, M.R. Modulating protein–protein interaction networks in protein homeostasis. Curr. Opin. Chem. Biol. 2019, 50, 55–65. [Google Scholar] [CrossRef] [PubMed]
- Sun, P.G.; Quan, Y.N.; Miao, Q.G.; Chi, J. Identifying influential genes in protein–protein interaction networks. Inf. Sci. 2018, 454–455, 229–241. [Google Scholar] [CrossRef]
- Vallabhajosyula, R.; Chakravarti, D.; Lutfeali, S.; Ray, A.; Raval, A. Identifying Hubs in Protein Interaction Networks. PLoS ONE 2009, 4, e5344. [Google Scholar] [CrossRef] [Green Version]
- Ning, K.; Ng, H.K.; Srihari, S.; Leong, H.W.; Nesvizhskii, A.I. Examination of the relationship between essential genes in PPI network and hub proteins in reverse nearest neighbor topology. BMC Bioinform. 2010, 11, 505. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Estrada, E.; Rodriguez-Velazquez, J.A. Subgraph centrality in complex networks. Phys. Rev. E 2005, 71, 056103. [Google Scholar] [CrossRef] [Green Version]
- Joy, M.P.; Brock, A.; Ingber, D.E.; Huang, S. High-Betweenness Proteins in the Yeast Protein Interaction Network. J. Biomed. Biotechnol. 2005, 2005, 96–103. [Google Scholar] [CrossRef] [PubMed]
- Wuchty, S.; Stadler, P.F. Centers of complex networks. J. Theor. Biol. 2003, 223, 45–53. [Google Scholar] [CrossRef] [Green Version]
- Watts, D.J.; Strogatz, S.H. Collective dynamics of ‘small-world’ networks. Nature 1998, 393, 440–442. [Google Scholar] [CrossRef] [PubMed]
- Stephenson, K.; Zelen, M. Rethinking centrality: Methods and examples. Soc. Networks 1989, 11, 1–37. [Google Scholar] [CrossRef]
- Li, M.; Wang, J.; Chen, X.; Wang, H.; Pan, Y. A local average connectivity-based method for identifying essential proteins from the network level. Comput. Biol. Chem. 2011, 35, 143–150. [Google Scholar] [CrossRef]
- Qi, Y.; Luo, J. Prediction of Essential Proteins Based on Local Interaction Density. IEEE/ACM Trans. Comput. Biol. Bioinform. 2016, 13, 1170–1182. [Google Scholar] [CrossRef]
- Li, M.; Zhang, H.; Wang, J.X.; Pan, Y. A new essential protein discovery method based on the integration of protein-protein interaction and gene expression data. BMC Syst. Biol. 2012, 6, 15. [Google Scholar] [CrossRef] [Green Version]
- Lei, X.; Wang, S.; Wu, F. Identification of Essential Proteins Based on Improved HITS Algorithm. Genes 2019, 10, 177. [Google Scholar] [CrossRef] [Green Version]
- Ren, J.; Wang, J.; Li, M.; Wu, F. Discovering essential proteins based on PPI network and protein complex. Int. J. Data Min. Bioinform. 2015, 12, 24–43. [Google Scholar] [CrossRef]
- Peng, W.; Wang, J.; Wang, W.; Liu, Q.; Wu, F.X.; Pan, Y. Iteration method for predicting essential proteins based on orthology and protein-protein interaction networks. BMC Syst. Biol. 2012, 6, 87. [Google Scholar] [CrossRef] [Green Version]
- Tang, X.-W. Predicting Essential Proteins Using a New Method. In Proceedings of the International Conference on Intelligent Computing, Liverpool, UK, 7–10 August 2017; Springer: Singapore, 2017; pp. 301–308. [Google Scholar]
- Song, C.; Havlin, S.; Makse, H.A. Origins of fractality in the growth of complex networks. Nat. Phys. 2006, 2, 275–281. [Google Scholar] [CrossRef] [Green Version]
- Song, C.; Havlin, S.; Makse, H.A. Self-similarity of complex networks. Nature 2005, 433, 392–395. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Song, C.; Gallos, L.K.; Havlin, S.; Makse, H.A. How to calculate the fractal dimension of a complex network: The box covering algorithm. J. Stat. Mech. Theory Exp. 2007, 2007, P03006. [Google Scholar] [CrossRef] [Green Version]
- Gao, L.; Hu, Y.; Di, Z. Accuracy of the ball-covering approach for fractal dimensions of complex networks and a rank-driven algorithm. Phys. Rev. E 2008, 78, 046109. [Google Scholar] [CrossRef]
- Zhou, W.-X.; Jiang, Z.-Q.; Sornette, D. Exploring self-similarity of complex cellular networks: The edge-covering method with simulated annealing and log-periodic sampling. Phys. A Stat. Mech. Its Appl. 2007, 375, 741–752. [Google Scholar] [CrossRef] [Green Version]
- Silva, F.N.; Costa, L. Local Dimension of Complex Networks. arXiv 2012, arXiv:1209.2476. [Google Scholar]
- Li, M.; Li, W.; Wu, F.X.; Pan, Y.; Wang, J. Identifying essential proteins based on sub-network partition and prioritization by integrating subcellular localization information. J. Theor. Biol. 2018, 447, 65–73. [Google Scholar] [CrossRef] [PubMed]
- Binder, J.X.; Pletscher-Frankild, S.; Tsafou, K.; Stolte, C.; O’Donoghue, S.; Schneider, R.; Jensen, L.J. COMPARTMENTS: Unification and visualization of protein subcellular localization evidence. Database 2014, 2014, bau012. [Google Scholar] [CrossRef] [Green Version]
- Mewes, H.-W. MIPS: Analysis and annotation of proteins from whole genomes in 2005. Nucleic Acids Res. 2006, 34, D169–D172. [Google Scholar] [CrossRef] [PubMed]
- Cherry, J.M.; Adler, C.; Ball, C.; Chervitz, S.A.; Dwight, S.S.; Hester, E.T.; Jia, Y.; Juvik, G.; Roe, T.; Schroeder, M.; et al. SGD: Saccharomyces Genome Database. Nucleic Acids Res. 1998, 26, 73–79. [Google Scholar] [CrossRef] [PubMed]
- Zhang, R.; Lin, Y. DEG 5.0, a database of essential genes in both prokaryotes and eukaryotes. Nucleic Acids Res. 2009, 37, D455–D458. [Google Scholar] [CrossRef] [Green Version]
- Xenarios, I.; Rice, D.W.; Salwinski, L.; Baron, M.K.; Marcotte, E.M.; Eisenberg, D. DIP: The Database of Interacting Proteins. Nucleic Acids Res. 2000, 28, 289–291. [Google Scholar] [CrossRef] [PubMed] [Green Version]
Datasets | Proteins | Interactions | Essential Proteins | Non-Essential Proteins |
---|---|---|---|---|
DIP4746 | 4746 | 15,166 | 1130 | 3616 |
DIP5093 | 5093 | 24,743 | 1167 | 3926 |
MIPS4546 | 4546 | 12,319 | 1016 | 3530 |
Datasets | Methods | SN | SP | PPV | NPV | F-Measure | ACC |
---|---|---|---|---|---|---|---|
DIP4746 | DC | 0.5469 | 0.7561 | 0.412 | 0.8423 | 0.470 | 0.7063 |
SC | 0.500 | 0.7414 | 0.3767 | 0.8259 | 0.4297 | 0.6839 | |
BC | 0.4681 | 0.7315 | 0.3527 | 0.8148 | 0.4023 | 0.6688 | |
CloseC | 0.4611 | 0.7293 | 0.3473 | 0.8124 | 0.3962 | 0.6654 | |
ClusterC | 0.5336 | 0.7519 | 0.402 | 0.8376 | 0.4586 | 0.700 | |
IC | 0.5478 | 0.7564 | 0.4127 | 0.8426 | 0.4707 | 0.7067 | |
LAC | 0.5451 | 0.7555 | 0.4107 | 0.8417 | 0.4684 | 0.7054 | |
PeC | 0.4717 | 0.7326 | 0.3553 | 0.8161 | 0.4053 | 0.6705 | |
LID | 0.554 | 0.7583 | 0.4173 | 0.8447 | 0.4760 | 0.7097 | |
LDS | 0.5673 | 0.7624 | 0.4273 | 0.8494 | 0.4875 | 0.716 | |
DIP5093 | DC | 0.4901 | 0.7636 | 0.3813 | 0.8344 | 0.4289 | 0.701 |
SC | 0.4559 | 0.7534 | 0.3547 | 0.8233 | 0.399 | 0.6853 | |
BC | 0.4165 | 0.7417 | 0.324 | 0.8105 | 0.3645 | 0.6672 | |
CloseC | 0.4422 | 0.7494 | 0.344 | 0.8188 | 0.387 | 0.679 | |
ClusterC | 0.4773 | 0.7598 | 0.3713 | 0.8302 | 0.4177 | 0.6951 | |
IC | 0.4876 | 0.7629 | 0.3793 | 0.8336 | 0.4267 | 0.6998 | |
LAC | 0.5193 | 0.7723 | 0.404 | 0.8439 | 0.4544 | 0.7143 | |
PeC | 0.4619 | 0.7552 | 0.3593 | 0.8252 | 0.4042 | 0.688 | |
LID | 0.5261 | 0.7743 | 0.4093 | 0.8461 | 0.4604 | 0.7175 | |
LDS | 0.5467 | 0.7804 | 0.4253 | 0.8528 | 0.4784 | 0.7269 | |
MIPS4546 | DC | 0.4242 | 0.6972 | 0.2873 | 0.8079 | 0.3426 | 0.6362 |
SC | 0.2776 | 0.655 | 0.188 | 0.759 | 0.2242 | 0.5706 | |
BC | 0.3917 | 0.6878 | 0.2653 | 0.7971 | 0.3164 | 0.6216 | |
CloseC | 0.2825 | 0.6564 | 0.1913 | 0.7607 | 0.2281 | 0.5728 | |
ClusterC | 0.4242 | 0.6972 | 0.2873 | 0.8079 | 0.3426 | 0.6361 | |
IC | 0.3858 | 0.6861 | 0.2613 | 0.7951 | 0.3116 | 0.619 | |
LAC | 0.4242 | 0.6972 | 0.2873 | 0.8079 | 0.3426 | 0.6362 | |
PeC | 0.4232 | 0.6969 | 0.2867 | 0.8076 | 0.3418 | 0.6357 | |
LID | 0.4311 | 0.6992 | 0.292 | 0.8102 | 0.3482 | 0.6392 | |
LDS | 0.5719 | 0.7397 | 0.3873 | 0.8572 | 0.4618 | 0.7022 |
