Article

Plastid Phylogenomics of Paeonia and the Evolution of Ten Flower Types in Tree Peony

by
Wen Li
1,†,
Xin-Cheng Huang
2,†,
Yi-Lei Wang
1,
Rui-Ju Zhang
1,
Dong-Yan Shi
1,
Teng-Fei Li
1,
Guang-Can Zhou
1,* and
Jia-Yu Xue
2,*
1
College of Agricultural and Biological Engineering (College of Tree Peony), Heze University, Heze 274015, China
2
College of Horticulture, Academy for Advanced Interdisciplinary Studies, Nanjing Agricultural University, Nanjing 210095, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Genes 2022, 13(12), 2229; https://doi.org/10.3390/genes13122229
Submission received: 19 October 2022 / Revised: 13 November 2022 / Accepted: 24 November 2022 / Published: 27 November 2022
(This article belongs to the Special Issue Advances in Evolution of Plant Organelle Genome)
Browse Figures
Review Reports Versions Notes

Abstract

:
Paeonia suffruticosa Andr., a member of Paeoniaceae, is native to China. In its 1600 years’ cultivation, more than 2000 cultivars for different purposes (ornamental, medicinal and oil use) have been inbred. However, there are still some controversies regarding the provenance of tree peony cultivars and the phylogenetic relationships between and within different cultivar groups. In this study, plastid genome sequencing was performed on 10 representative tree peony cultivars corresponding to 10 different flower types. Structure and comparative analyses of the plastid genomes showed that the total lengths of the chloroplast genome of the 10 cultivars ranged from 152,153 to 152,385 bp and encoded 84–88 protein-coding genes, 8 rRNAs and 31–40 tRNAs. The number of simple sequence repeats and interspersed repeat sequences of the 10 cultivars ranged from 65–68 and 40–42, respectively. Plastid phylogenetic relationships of Paeonia species/cultivars were reconstructed incorporating data from our newly sequenced plastid genomes and 15 published species, and results showed that subsect. Vaginatae was the closest relative to the central plains cultivar group with robust support, and that it may be involved in the formation of the group. Paeonia ostii was recovered as a successive sister group to this lineage. Additionally, eleven morphological characteristics of flowers were mapped to the phylogenetic skeleton to reconstruct the evolutionary trajectory of flower architecture in Paeoniaceae.

1. Introduction

P. suffruticosa, which originated in China, has been honored as the national flower of the Tang, Ming and Qing dynasties for its bright colors and elegant flowers. Andrews [1] initially completed the systematic naming of tree peony. In the following 200 years, both the Engler System and the Hooker System placed tree peony under Ranunculaceae. It was not until the 20th century that Worsdell [2] separated Paeonia from Ranunculaceae based on the difference in stamen arrangement between Ranunculaceae and Paeonia, and the new family was named Paeoniaceae [3]. To classify the species of Paeonia more accurately, Stern [4] further improved the classification proposed by Lynch [5] and proposed dividing the genus into sections Onaepia, Paeonia and Moutan. Sect. Moutan comprises only woody taxa (tree peony) in Paeonia, consisting of nine species and two subspecies that are mainly distributed in nine provinces and autonomous regions in China, including Shandong and Henan Province [6,7,8]. Sect. Moutan is further divided into subsections Vaginatae and Delavayanae based on the characteristics of the disc [4].
In more than 1600 years’ cultivation history, tree peony has formed seven cultivar groups worldwide, covering more than 2000 cultivars in total [9,10,11]. Four cultivar groups are located in the central plains, southwest, northwest and Jiangnan of China, and three other cultivar groups are distributed in Japan, Europe and the United States. Over the past decades, many studies have been conducted on the taxonomy, phylogenetic relationships and genetic diversity of tree peonies. With regard to the origin of tree peony cultivars, Hong [12] compared morphological characteristics and believed that the wild species P. cathayana was a close relative of P. suffruticosa, and was mainly involved in the formation of traditional tree peony cultivars in China, while Pan [13] believed that tree peony cultivars were mainly domesticated from P. jishanensis. Li [14] proposed the tree peony cultivars should have “multi-field and multi-origins”. Cheng [15] and Pei [16] considered all wild species of tree peonies to be involved in the origin of cultivated tree peony. The only difference between them was that Cheng believed that P. delavayi and P. ludlowii in subsect. Delavayanae were not involved in the formation of traditional tree peony cultivars in China. Cheng [15] also mentioned that P. delavayi and P. lutea were introduced to Europe and the United States at the end of the 19th century and then crossed with P. suffruticosa and the Japanese cultivar group to form the Lutea cultivar group. On the other hand, with the further studies using molecular markers, Meng [17], Hou [18] and Yu [19] all agreed that there was a closer kinship between cultivated tree peony and P. ostii and, based on randomly amplified polymorphic DNA (RAPD), amplified fragment length polymorphism (AFLP) and simple sequence repeats (SSR) markers, respectively, while there was a big disagreement concerning the kinship between other wild species and cultivated tree peony. Li [9] believed that the southwest cultivar group in China has a closer relationship with Japanese, French and American groups based on sequence-related amplified polymorphism (SRAP). In addition, Chou [20], Lin [21] and Zhao [22] reported that the DNA barcoding sequence of ITS, Adh and GPAT, respectively, were suitable for the study of genetic relationships among tree peony species, and these results were consistent with those based on morphological characteristics classification [23].
Flower type is one of the important ornamental characteristics of tree peony and is also an important basis for its classification. According to the ratio of diameter to height of a flower, the number, shape, size and arrangement of petals, the petaloid degree and position of stamens, and the degeneration degree of pistils, the flower types of tree peony could be divided into 10 types, including single-lobe type, lotus type, rose type, chrysanthemum type, globular type, crown type, anemone type, golden circle type, melaleuca proliferate-flower type and tower-like proliferate-flower type [24,25,26]. The natural increase in the number of petals and the centripetal petaloid of stamens formed the evolution of the melaleuca type from single-lobe type to lotus type to chrysanthemum type to rose type. In the tower-like type, the centrifugal petaloid of stamens results in the evolution from anemone type to golden circle type to crown type to globular type. Proliferate-flower types were evolved due to the massive differentiation of carpel primordia and were successively transformed and developed into various floral organs such as calyxes and petals in the melaleuca and tower-like flower types [27,28]. To date, studies on the classification and phylogenetic relationships of tree peony flower types have been rarely performed. Hosoki [29] classified 19 Chinese tree peony cultivars based on RAPD and found that only cultivars of P. suffruticosa cv. ‘Shou An Hong’ and ‘Yao Huang’ were consistent with Yu’s [30] classification results which combined flower types and leaf types. This may be because the designed random amplification primers did not amplify the related traits. Therefore, more molecular techniques are needed to analyze the evolutionary relationships among different flower types in tree peony.
The chloroplast is an important location for photosynthesis and a special organelle with a semi-autonomous replication ability in plant cells. With the development of high-throughput sequencing technology and the reduction of sequencing costs, the number of chloroplast genomes of angiosperms in the National Center for Biotechnology Information (NCBI) has increased exponentially. Chloroplast genomes are widely used in the study of phylogenetic relationships among orders, families, genera, species and cultivars of angiosperms [31,32,33,34,35,36] due to their characteristics of maternal inheritance, moderate rate of molecular evolution, and significant differences in the evolution of gene coding and non-coding regions [37,38,39]. In Paeoniaceae, Zhou [40] conducted phylogenetic analyses for traditional cultivars and wild species of tree peony based on 14 fast-evolved chloroplast genomic regions and 25 single-copy nuclear genes, and the results showed that the phylogeny of the wild species inferred from the nuclear genes was fully resolved and largely congruent with morphology and classification, while the chloroplast markers did not effectively resolve the interspecies relationships due to gene flow between the wild species. Moreover, by comparing the nuclear and chloroplast phylogenies, the cultivated tree peonies were proposed to have originated from homoploid hybridization among five wild species [40]. Recently, Wu [41] and Guo [42] reported that the complete chloroplast genomes showed high resolution in identification and phylogenetic analysis of the species or cultivars of tree peony. Therefore, the chloroplast genome is an ideal material for the phylogenetic study of Paeoniaceae and the 10 tree peony flower types, which have a complex genetic background and high heterozygosity. In this study, we obtained the complete chloroplast genomes of 10 representative tree peony cultivars and gained a better understanding of the evolutionary relationships among the 10 tree peony flower types through robust phylogeny.

2. Materials and Methods

2.1. Species of Paeoniaceae and Cultivars Represented by 10 Flower Types

To analyze the genetic relationship more comprehensively between the 10 tree peony flower types and species of Paeoniaceae, and to determine the evolutionary trend of tree peony in an artificial cultivation environment more systematically, we collected 15 species of Paeoniaceae with complete chloroplast genome sequences from NCBI. The 15 species were P. brownii from sect. Onaepia; P. lactiflora, P. mairei, P. obovate and P. veitchii from sect. Paeonia; P. delavayi, P. lutea, P. potaninii and P. ludlowii from subsect. Delavayanae, sect. Moutan; and P. decomposita, P. jishanensis, P. ostii, P. qiui, P. rockii and P. suffruticosa from subsect. Vaginatae, sect. Moutan. In addition, we obtained the chloroplast genome sequences of P. ostii cv. ‘Feng Dan’ (single-lobe type) and P. suffruticosa cv. ‘Shou An Hong’ (crown type) from NCBI (data from Guo et al. 2020) [42].
The other eight representative cultivars of 10 tree peony flower types were P. suffruticosa cv. ‘Da Jin Fen’ (lotus type), P.×lemoinei ‘High Noon’ (chrysanthemum type), P. suffruticosa cv. ‘Da Zong Zi’ (rose type), P. suffruticosa cv. ‘Greendragon sleeping pool’ (anemone type), P. suffruticosa cv. ‘Yao Huang’ (golden circle type), P. suffruticosa cv. ‘Dou Lv’ (globular type), P. suffruticosa cv. ‘Cao Zhou Hong’ (melaleuca proliferate-flower type) and P. suffruticosa cv. ‘Guan Qun Fang’ (tower-like proliferate-flower type). These cultivars, confirmed by Yi-Lei Wang, were obtained from the tree peony germplasm resources nursery of Heze Academy of Agricultural Sciences, Shandong Province, China in 2020. Additionally, these representative cultivars of 10 tree peony flower types [26] (Figure 1) are all traditional varieties and important resources for genetic breeding, possessing economic and ornamental values, e.g., different colors (white, red, green, yellow, pink, purple) and architectures of flower organs, medicinal uses and serving as a major woody oil plant species containing highly unsaturated fatty acids.

2.2. Sampling, DNA Extraction and Sequencing

The fresh and mature leaves of eight tree peony cultivars were sampled and frozen by nitrogen and stored in a freezer (−80 °C) for the usage of DNA extraction. A Genomic DNA Kit (TianGen Biotech CO., Beijing, China) was used to extract DNA from the leaves. The purity of the extracted DNA was tested with a NanoDrop-2000 spectrophotometer (Thermo Fisher Scientific, Wilmington, DE). Shotgun library with a 250 bp fragments interruption was built according to the manual (Vazyme Biotech Co. Ltd., Nanjing, China). After library was qualified, high-throughput sequencing with a PE150 reading length was carried out based on the Illumina novaseq 6000 platform (Annoroad Gene Technology Co., Ltd., Beijing, China).

2.3. Assembly and Annotation of Chloroplast Genomes

First, Trimmomatic v0.38 [43] was used to filter the adaptors and low-quality sequences in the raw data obtained by sequencing and to obtain high-quality clean reads. Subsequently, the chloroplast genome assembly software GetOrganelle v1.7.5.0 [44] was used to conduct the automatic assembly of clean reads from eight tree peony cultivars using P. ludlowii as a reference sequence under default parameters. The assembly results were then evaluated in combination with Bandage v0.8.1 [45]. Except for P. suffruticosa cvs. ‘Cao Zhou Hong’ and ‘Da Jin Fen,’ the chloroplast genomes of other cultivars showed a standard tetrad structure. Two cultivars with unloop chloroplast genome assembly results were assembled using P. ludlowii as the reference sequence under default parameters using NOVOPlasty v4.3.1 [46], and contigs of different lengths were mapped to the reference sequence using Geneious v2022.0.2 [47]. A high-quality chloroplast genome was obtained after gap filling and overlap removal. Finally, PGA software [48] was used to automatically annotate the assembled eight chloroplast genome sequences with P. ludlowii as the reference sequence, and Geneious v2022.0.2 was used to manually calibrate the annotation results. The chloroplast genomes of eight peony cultivars were uploaded to NCBI (GenBank accession number: ON243818, ON243819, ON243820, ON243821, ON243822, ON227528, ON227529, ON209192).

2.4. Structure, Comparison and Phylogenetic Analysis of Chloroplast Genomes

To more intuitively show the content and order of genes in the chloroplast genome, Chloroplot [49] was used to visually map the chloroplast genome. The Pfam database and TBtools [50] were then used to annotate and visualize the functional domain of the protein-coding sequences. To further determine whether there was consistency in codon usage between tree peony cultivars, CodonW v1.4.2 [51] was used to conduct codon bias analysis on 10 tree peony cultivars with default parameters. Simple sequence repeats (SSRs) were searched via MISA v1.01 [52] with the following criteria: 10, 5, 5, 5, 5 and 3 repeat units for mono-, di-, tri-, tetra-, penta- and hexa-nucleotides, respectively. Interspersed repeated sequences were searched using REPuter [53] with a Hamming distance, maximum computed repeats and minimal repeat size of 3, 80 and 30, respectively. The contraction and expansion of the four regions connected to the IR regions in the chloroplast genome were detected by IRscope [54]. mVISTA [55,56,57] was used to compare the chloroplast genomes of tree peony cultivars to detect the variation. In the process of phylogenetic tree construction, Mafft v7.453 [58] was first used to compare the whole chloroplast genomes of 15 species of Paeoniaceae and 10 tree peony flower types, and then iqtree v1.6.12 [59] was used to select the model and construct the phylogenetic tree. ML analysis was conducted with a bootstrap of 1000 repetitions.

2.5. Reconstruction of Ancestral Characteristics for Flower Architecture

Reconstruction for ancestral flower architectures of Paeoniaceae species was based on our highly supported phylogenetic relationships of Paeoniaceae. The morphological characteristics of flowers of Paeoniaceae species and cultivars were collected through self-observation and records from the online edition of Chinese Flora iPlant (http://www.iplant.cn/frps) (accessed on 9 May 2022) [60] (flora--Plant Species Information System; last accessed 9 May 2022) (Supplementary Table S1). All flower characteristics were further categorized into 11 traits. Mesquite V3.04 [61] was used to analyze ancestral characteristics based on the parsimony ancestral state reconstruction method used in the study of Rosaceae fruit types evolution [62].

3. Results

3.1. Basic Characteristics of the Chloroplast Genome of 10 Tree Peony Flower Types

The chloroplast genomes of 10 tree peony flower types showed a typical tetrad structure, consisting of a long single-copy region (LSC), a short single-copy region (SSC) and a pair of inverted repeat regions (IR) (Figure 2). (The chloroplast genome maps of 10 tree peony cultivars are shown in Supplementary Figures S1–S10). The chloroplast genome length ranged from 152,153 to 152,835 bp, while the genome length of the LSC, SSC and IR regions ranged from 84,213 to 85,373 bp, 17,026 to 17,056 bp and 24,863 to 25,649 bp, respectively. The GC content in the chloroplast genome ranged from 38.3 to 38.4%, and the GC content in the IR regions was significantly higher than that in the LSC and SSC regions (Table 1).
In terms of the number and order of genes in the chloroplast genome, 10 tree peony flower types were highly consistent except for P. ostii cv ‘Feng Dan’ and P. suffruticosa cv ‘Shou An Hong,’ and 136 genes were annotated. Each of the eight peony cultivars contained 88 protein-coding genes, 8 rRNAs and 40 tRNAs. Among the 136 genes, 17 contained introns, including 12 protein-coding genes and 5 tRNA genes. Most of these genes contained only one intron, while ycf3, clpP and rps12 contained two introns, among which the rps12 gene was a trans-splicing gene with a 5′ end in the LSC region and a 3′ end in the IR regions (Supplementary Table S2). Through the identification of the functional domains of 88 protein-coding genes, most were found to contain only one to three domains, and the rpoB genes had five functional domains (Supplementary Figure S11).
Codon bias exists widely in natural protein translation and is influenced by many factors, including mutational pressure, natural selection and genetic drift [63,64,65]. In this study, relative synonymous codon usage (RSCU) was used to measure the codon bias of 10 tree peony cultivars because it is easy to calculate and can intuitively reflect the codon bias. The chloroplast genome contains 64 codons encoding 20 amino acids. Leucine had the most frequent codons, whereas cysteine had the least. The number of RSCU > 1 was 31, of which only UUG and UCC were G/C-ending codons, and the other 29 codons ended in A/U. Among the remaining 33 codons with RSCU ≤ 1, 30 codons ended in G/C, and only three codons (CUA, AUA and UGA) ended in A/U. The chloroplast genomes of the 10 flower types were more likely to select codons ending in A/U for amino acid synthesis (Supplementary Figure S12 and Table S3). GC3s refers to, in addition to Met, Ser and termination codons, the frequency of G and C bases in the third codon base of synonymous codons encoding the same amino acid. The GC3s values of the 10 flower types ranged from 0.283 to 0.285, indicating that the 10 flower types had a higher bias for codons ending in A/T (Supplementary Table S4).
Interspersed repeated sequences are widely present in the chloroplast genome and include forward (F), reverse (R), complement (C) and palindromic repeat sequences (P), which repeat units with 30 bp or more. The total number of interspersed repeated sequences in the chloroplast genome of the 10 tree peony flower types was 40–44. The detected interspersed repeated sequences were forward and palindromic repeat sequences, and there were no reverse or complement repeat sequences. The lengths of the forward and palindromic repeat sequences are mainly concentrated between 30 and 60 bp. The differences between the interspersed repeated sequences of different cultivars were mainly reflected in the palindromic repeat sequences (Supplementary Figure S13 and Table S5).
Simple sequence repeats (SSRs), also known as microsatellite DNA, are second-generation molecular markers composed of 1–6 tandem repeating nucleotide units and are often used to describe genetic differences at the individual level [66]. The total number of SSRs in the chloroplast genomes of the 10 tree peony cultivars ranged from 65 to 68. Among them, the longest tandem repeat unit was four, and no SSRs with five or six repeat units were detected. In SSRs, the number of SSRs with mononucleotides was 42–45, accounting for 61.76–69.23% of the total SSRs. There were 11–14 SSRs with dinucleotides, accounting for 16.92–20.59% of the total SSRs (Supplementary Figure S14 and Table S6).
The IR regions of the chloroplast genome have a lower rearrangement and mutation rate than the LSC and SSC regions, which play a crucial role in the stability of the chloroplast genome [67]. Analysis of the IR regions of the chloroplast genome of 10 tree peony flower types showed that the rps19 gene of P. ostii cv. ‘Feng Dan’ was completely located in the LSC region, however, the rps19 gene of the other nine tree peony flower types was located across the LSC and IRb regions, most of which was located in LSC, and only 2 bp was located in the IRb region. The rpl2 gene in P. ostii cv. ‘Feng Dan’ straddles the boundary of LSC and IRb, and the two regions are similar in length (718 bp and 778 bp, respectively). The rpl2 gene in the other nine flower types was completely located in IRb. This may be due to the contraction of the IR region. In the SSC/IRb and SSC/IRa boundary regions, two transboundary genes, ycf1 and ndhF, showed high consistency among the 10 flower types. However, the location of trnH genes in the LSC/IRa regions was different in different tree peony flower types; they were located in the LSC region and 3–79 bp away from the IRa region (Supplementary Figure S15).
The genome comparison was based on mVISTA software using P. ludlowii of subsect. Delavayanae as a reference. It showed that the chloroplast genomes of the 10 tree peony cultivars selected in this experiment were relatively conserved overall, with mutations mainly occurring in some intron regions and intergenic regions and highly conserved in the protein-coding region and four rRNA (rrn16, rrn23, rrn4.5 and rrn5) regions (similarity > 90%). In terms of the four components of the chloroplast genome, the mutation rate in the IR regions was significantly lower than that in the LSC and SSC regions, indicating that the IR regions were highly conserved (Supplementary Figure S16).

3.2. Phylogenetic Analysis of the Chloroplast Genomes of 15 Paeoniaceae Species and 10 Tree Peony Flower Types

To accurately unveil the evolutionary relationships between wild species and cultivars of Paeoniaceae, we reconstructed the phylogenetic tree (Figure 3) based on the chloroplast genomes of 15 Paeoniaceae species and 10 tree peony flower types using the maximum likelihood method (ML). Our results showed that sects. Paeonia and Onaepia were each resolved as one monophyletic branch. Section Moutan, however, was polyphyletic, and showed a complicated composition, with subsect. Delavayanae containing an alien P.×lemoinei ‘High Noon’, and the other subsect, Vaginatae, inserted by P. ostii cv. ‘Feng Dan’ and P. suffruticosa. In subsect. Delavayanae, P. lutea was more closely related to P. ludlowii than P. delavayi and P. potaninii. In addition, P. delavayi was recovered as the sister group to P. potaninii, despite being earlier proposed as a different species by Li [27]. In subsect. Vaginatae, four species (P. rockii, P. qiui, P. decomposita and P. jishanensis) clustered into a monophyletic branch, with P. rockii having a closer kinship with P. qiui, and P. decomposita being more closely related to P. jishanensis. This branch did not group with the other species of the same subsection (P. ostii). P. suffruticosa was resolved as the sister to all other cultivars of this species and placed at the junction node of subsect. Vaginatae and the central plains cultivar group. Both the bootstrap support values for these were 100%.
With regard to phylogenetic relationship of 10 tree peony flower types, P. ostii cv. ‘Feng Dan’ (single-lobe type) and P. ostii gathered in one branch, and P.×lemoinei ‘High Noon’ (chrysanthemum type), an intrasubsectional introduction from the US, showed a closer kinship with P. ludlowii and P. lutea. The remaining eight flower types belonged to the central plains cultivar group. Among the melaleuca flower types, P. suffruticosa cv. ‘Da Jin Fen’ (lotus type) showed a close genetic relationship to P. suffruticosa cv. ‘Cao Zhou Hong’ (multi-layer proliferate-flower type), and P. suffruticosa cv. ‘Da Zong Zi’ (rose type) was genetically close to P. suffruticosa cv. ‘Guan Qun Fang’ (tower proliferate-flower type). All tower-like types clustered into a monophyletic group, with P. suffruticosa cv. ‘Shou An Hong’ (crown type) sister to a lineage comprising P. suffruticosa cv. ‘Greendragon sleeping pool’ (anemone type), P. suffruticosa cv ‘Yao Huang’ (golden circle type) and P. suffruticosa cv. ‘Dou Lv’ (globular type). Our results based on the plastid genomes differed from the inference of flower type evolution by Wang [28], which were based on the morphological characteristics of flower buds.

3.3. Reconstruction of Evolutionary Trajectory of Flower Characteristics of Paeoniaceae

Based on the robust phylogenetic relationship of Paeoniaceae and the morphological characteristics of flowers of extant Paeoniaceae species, we reconstructed the flower structure characteristics for Paeoniaceae ancestors and the evolutionary trajectory of flower architecture. (Figure 4). We inferred that the flowers of in the last common ancestor of Paeoniaceae should have two rounds of petals and that the shape of the petals was typically obovate. In terms of the number of stamens, Paeoniaceae ancestors maintained more than 100 stamens. The pistil type was apocarpous, with two to six carpels varying between individuals and smooth and hairless surfaces. In the natural evolution of the wild species of Paeoniaceae, characteristics such as petal shape, petal round number (Figure 5a), ovary position and fruit type were retained, but some distinct morphological characteristics have obviously evolved among different subgroups. One of these was the disc, a specialized receptacle in the flower between the calyx and the pistil. In the ancestors of Paeoniaceae, the receptacle between the calyx and the pistil specialized to form fleshy dentate or fleshy shallow cup-shaped discs that wrapped the base of the carpel. In later evolutions, a leathery epidermis, named a carpellary disc, appeared on the disc of the subsect. Vaginatae, and the disc area expanded until it completely covered the carpel; only when the petals were fully blossomed did a partially mature carpel emerge (Figure 5b). In addition, subsect. Vaginatae in sect. Moutan and some species of sect. Paeonia developed a dense tomentum on the carpel (Figure 5c), and the number of carpels in P. ludlowii decreased to one, in rare cases to two. This may have evolved to provide more pollination opportunities for pistils and more nutrients for fruit [62].

4. Discussion

Research on the origin of tree peony cultivars and the genetic relationship between cultivars has gained much help from the application of molecular technology in recent years [18,20,21,22,68]. However, studies on different molecular markers still produce controversial results due to the limitations of experimental materials and methods. In this study, the phylogenetic relationships among the 10 tree peony cultivars with different flower types and the origins of the cultivars were explored based on the data of complete chloroplast genomes. In terms of phylogenetic relationships among cultivars, P.×lemoinei ‘High Noon’ (Lutea cultivar group), P. ostii cv ‘Feng Dan’ (Jiangnan cultivar group) and the other 8 cultivars (central plains cultivar group) were each grouped into one clade according to the classification of cultivar groups. These results indicate that there were genetic discrepancies among different cultivar groups due to different origins from different ancestral species. In terms of the origin of cultivars, the phylogenetic topology showed that the tree peony model plant P. suffruticosa was more closely related to the central plains cultivar group, which was consistent with the suggestion by Hong [12] that P. suffruticosa was involved in the formation of traditional Chinese tree peony cultivars. Further tracing of the ancestors of the central plains cultivar group revealed that wild species of subsect. Vaginatae were more closely related to the central plains cultivar group. This is consistent with the inference by Meng and Zhang [17], who studied the relationship between wild tree peony species and cultivars based on RAPD, and suggested that wild species of subsect. Vaginatae participated in the formation of the original cultivar groups. However, Wang [69], Li [14] and Yu [70] proposed that, based on evidence from morphology and cytology, P. jishanensis, P. rockii and P. ostii were mainly involved in the formation of the central plains cultivar group, and our study further proposed that, compared with P. jishanensis, P. ostii might be more genetically involved according to the phylogeny. Meng [17], Hou [18] and Han [71] obtained the same results as this study using RAPD, AFLP and SRAP markers, respectively. However, there are still some discrepancies between the chloroplast genome and the above molecular markers with regard to the relationships of P. decomposita and P. qiui to the central plain cultivar group. It is speculated that the chloroplast genome is maternally inherited, and there is a preference for parental selection in the cultivation process of tree peony cultivars [72], resulting in discordance between the chloroplast genome and nuclear markers.
The emergence of simple and double flower traits in tree peony is a significant feature [27], and an obvious sign of flower type artificial evolution, probably under strong and directional selection. Additionally, attention has been paid to other ornamental characteristics of tree peony, such as petal color and shape in the process of artificial breeding; thus, there is no obvious evolution in disc shape, carpel number or other characteristics compared with wild species. However, the numbers of petals and petal rounds have evolved rapidly. Based on the features of flower bud differentiation, Wang [28] proposed the evolutionary forms of melaleuca and tower-like flower types, which provided a reference for predicting the variation amplitude of flower types and the characteristics of further evolution. Among the 10 tree peony flower types in this study, the melaleuca and tower-like flower types each clustered into one branch, indicating that cultivars with different evolutionary degrees of the same flower type probably had similar evolutionary relationships, which has important reference significance for selecting parents for directional breeding of flower types. However, the evolutionary sequence within the same flower type was somewhat different from Wang [28], which may be related to the differences in the ancestor species and flower color of the 10 tree peony flower types [73]. Therefore, cultivars with a common ancestor and different flower types of the same color system can be selected for further study.
In the long-term evolution process of Paeoniaceae, the tree peony flower types gradually diversified and complicated due to the extensive homoploid hybridization involved in tree peony domestication [24,40]. The flower types of tree peony could be divided into 10 types based on the ratio of diameter to height of a flower, the number, shape, size and arrangement of petals, the petaloid degree and position of stamens and the degeneration degree of pistils [24,25]. Among these variable factors, the petaloid of stamens and degeneration of pistils are the main reasons that affect the diversity of flower types in tree peony. Moreover, the phenomena of centripetal and centrifugal petaloid of stamens are common in tree peony [26], whereas only centripetal stamen petaloid exists in some other plants, such as the formation of double flowers in Malus halliana [74], rose [75], Prunus mume [76] Actaea rubra [77] and Camellia japonica [78]. The centrifugal petaloid of stamens provides the basis for the formation of the rich floral types of tree peonies, as the case of golden-circle type tree peony with stamens between the normal petals and petaloid stamens. Similarly, the peony, a herb perennial taxa and sister to tree peony in Paeonia, had the diversified and complicated flower types formed by centripetal and centrifugal petaloid of stamens [79]. Gao [80] speculated that the evolution mechanism of tree peony flower type accorded with the ABC model of floral development in angiosperm species [81]. Recently, studies of genes associated with the petaloid of stamens had been performed in some species, and showed that the homeotic ABC genes encode members of the MADS-domain class of transcription factors regulating the petaloid of stamens in Camellia changii [77], Paeonia lactiflora [82] and Nelumbo necifera [83]. According to the ABC model, it was inferred that the mechanism of gene over-expression and homologous heterologous inheritance were the main regulatory mechanisms for the diversity of flower types in tree peony.
In this study, based on the phylogenetic relationship between wild species of Paeoniaceae and 10 tree peony flower types, we reconstructed their ancestral characteristics to gain a deeper understanding of the evolutionary relationship between wild species and cultivars of Paeoniaceae. However, further studies are needed to explore the deep network evolution between cultivars and ancestral species and the molecular evolutionary relationship between different flower types. A systematic understanding of the evolutionary relationship between wild species and high-value cultivars of tree peony is not only beneficial to the utilization of rich genetic resources of wild species and traditional cultivars, but also has important guiding significance for individualized directional breeding.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/genes13122229/s1, Figure S1: Chloroplast genome map of P. suffruticosa cv. ‘Cao Zhou Hong’; Figure S2: Chloroplast genome map of P. suffruticosa cv. ‘Da Jin Fen’; Figure S3: Chloroplast genome map of P. suffruticosa cv. ‘Da Zong Zi’; Figure S4: Chloroplast genome map of P. suffruticosa cv. ‘Dou Lv’; Figure S5: Chloroplast genome map of P. ostii cv. ‘Feng Dan’; Figure S6: Chloroplast genome map of P. suffruticosa cv. ‘Guan Qun Fang’; Figure S7: Chloroplast genome map of P.×lemoinei ‘High Noon’; Figure S8: Chloroplast genome map of P. suffruticosa cv. ‘Greendragon sleeping pool’; Figure S9: Chloroplast genome map of P. suffruticosa cv. ‘Shan An Hong’; Figure S10: Chloroplast genome map of P. suffruticosa cv. ‘Yao Huang’; Figure S11: Protein functional domains of protein-coding genes in 10 tree peony flower types; Figure S12: Heat map of relative synonymous codon usage (RSCU) values among 10 tree peony cultivars with different flower types; Figure S13: Types and amounts of long repeat sequences in the chloroplast genomes of 10 tree peony cultivars with different flower types; Figure S14: Types and amounts of SSRs in the chloroplast genomes of 10 tree peony cultivars with different flower types; Figure S15: Comparative analysis of chloroplast genomic boundaries of 10 tree peony cultivars with different flower types; Figure S16: Comparison and analysis based on the chloroplast genome of 10 tree peony cultivars with different flower types. The orientation of the genes is indicated by arrows denoting the alignments. Purple, blue, pink, and gray bars correspond to exons, untranslated regions, non-coding sequences, and mRNA, respectively. The y-axis indicates the percentage of genetic similarity. Genetic similarities between 50% and 100% are shown in the figure; Figure S17: Reconstruction of ancestral carpel number in the context of the topology in Figure 2; Figure S18: Reconstruction of ancestral carpel wrapped situation in the context of the topology in Figure 2; Figure S19: Reconstruction of the ancestral ovary connation in the context of the topology in Figure 2; Figure S20: Reconstruction of the ancestral petal shape in the context of the topology in Figure 2; Figure S21: Reconstruction of ancestral receptacle feature in the context of the topology in Figure 2; Figure S22: Reconstruction of ancestral sepal number in the context of the topology in Figure 2. Table S1: Information for 11 morphological characters of 15 species in Paeoniaceae and ten flower types of peony; Table S2: Statistics on the number of protein-coding genes, tRNAs and rRNAs and the distribution of introns in ten chloroplast genomes of Ten flower types of Peony; Table S3: Relative synonymous codon usage (RSCU) values among Ten flower types of Peony; Table S4: Codon usage of the Ten flower types of Peony; Table S5: Types and amounts of long repeat sequences in Ten flower types of Peony chloroplast genome; Table S6: Types and amounts of SSRs in Ten flower types of Peony chloroplast genome.

Author Contributions

W.L, X.-C.H., G.-C.Z. and J.-Y.X. designed the study and analyzed the data, W.L., G.-C.Z., Y.-L.W., R.-J.Z., D.-Y.S. and T.-F.L. collected samples and conducted experiments, X.-C.H. assembled and annotated the chloroplast genomes, and conducted phylogenetic analyses, W.L. and X.-C.H. wrote the manuscript, and G.-C.Z. and J.-Y.X. supervised the work. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by grants from the State Key Laboratory of Palaeobiology and Stratigraphy (Nanjing Institute of Geology and Palaeontology, CAS) (No. 213124) (provided to J.-Y.X.), the Doctoral Fund (No. XY19BS15) of Heze University (provided to G.-C.Z.), and the Qingchuang Science and Technology Support Program of Shandong Provincial College.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The datasets generated for this study can be found in the National Center for Biotechnology Information (NCBI) (https://www.ncbi.nlm.nih.gov/, accessed on 17 October 2022) and obtained from GenBank under accession (numbers ON209192, ON227528, ON227529, ON243818, ON243819, ON243820, ON243821, and ON243822).

Conflicts of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as potential conflicts of interest.

References

  1. Andrews, H.C. Paeonia suffruticosa. Bot. Repos. 1804, 6, 373. [Google Scholar]
  2. Worsdell, W.C. A study of the vascular system in certain orders of the Ranales. Ann. Bot 1908, 22, 663. [Google Scholar] [CrossRef]
  3. Yang, Y.; Sun, M.; Li, S.; Chen, Q.; Teixeira da Silva, J.A.; Wang, A.; Yu, X.; Wang, L. Germplasm resources and genetic breeding of Paeonia: A systematic review. Hortic. Res. 2020, 7, 107. [Google Scholar] [CrossRef] [PubMed]
  4. Stern, F.C. A Study of the Genus Paeonia. R. Hortic. Soc. Lond. 1946, 1, 155. [Google Scholar]
  5. Lynch, R.I. A new classification of the genus Paeonia. J. R. Hortic. Soc. 1890, 12, 428–445. [Google Scholar]
  6. Hong, D.Y.; Pan, K.Y. A revision of the Paeonia suffruticosa complex (Paeoniaceae). Nord. J. Bot. 1999, 19, 289–300. [Google Scholar] [CrossRef]
  7. Hong, D.Y.; Pan, K.Y. Taxonomical history and revision of Paeonia sect. Moutan (Paeoniaceae). Acta Phytotaxon. Sin. 1999, 37, 351–368. [Google Scholar]
  8. Hong, D.Y.; Zhou, S.L.; He, X.J.; Yuan, J.H.; Zhang, Y.L.; Cheng, F.Y.; Zeng, X.L.; Wang, Y.; Zhang, X.X. Current status of wild tree peony species with special reference to conservation. Biodivers. Sci. 2017, 25, 781–793. [Google Scholar] [CrossRef]
  9. Li, Z.; Yang, K.; Zhao, Y.; Lin, P. Genetic diversity analysis based on sequence-related amplified polymorphism (SRAP) reveals the genetic background of Xinan tree peony group cultivars from different geographical provenances. Hortic. Environ. Biotechnol. 2018, 59, 567–574. [Google Scholar] [CrossRef]
  10. Wang, L.; Shiraishi, A.; Hashimoto, F.; Aoki, N.; Shimizu, K.; Sakata, Y. Analysis of Petal Anthocyanins to Investigate Flower Coloration of Zhongyuan (Chinese) and Daikon Island (Japanese) Tree Peony Cultivars. J. Plant Res. 2001, 114, 33–43. [Google Scholar] [CrossRef]
  11. America Peony Society (APS). Peony Registry. Available online: https://americanpeonysociety.org (accessed on 18 May 2022).
  12. Hong, D.Y. Notes on taxonomy of Paeonia sect. Moutan DC. (Paeoniaceae). Acta Phytotaxon. Sin. 2005, 43, 169–177. [Google Scholar] [CrossRef] [Green Version]
  13. Pan, K.Y. Paeonia. Flora of China. Beijing Sci. Press 1979, 27, 37. [Google Scholar]
  14. Li, J.J. Studies on the Origin of Chinese Mudan (Tree Peony). J. Beijing For. Univ. 1998, 20, 22–26. [Google Scholar]
  15. Cheng, F.Y. Advances in the Breeding of tree peonies and a Cultivar System for the Cultivar Group. International Journal of Plant Breeding 2007, 2, 89–104. [Google Scholar]
  16. Pei, Y.L. Preliminary study on the origin of cultivated peony. Northern Horticulture. 1996, 2, 55. [Google Scholar]
  17. Meng, L.; Zheng, G.S. Phylogenetic Relationship Analysis among Chinese Wild Species and Cultivars of Paeonia sect.Moutan Using RAPD Markers. Sci. Silvae Sin. 2004, 40, 110–115. [Google Scholar]
  18. Hou, X.G.; Yin, W.L.; Li, J.J.; Wang, H.F. Phylogenetic relationship of dwarf tree peony cultivars by AFLP analysis. J. Beijing For. Univ. 2006, 28, 73–77. [Google Scholar]
  19. Yu, H.P. Development of simple sequence repeat (SSR) markers from Paeonia ostii and its unilization in genetic relationship analysis. Beijing For. Univ. 2013, 164, 58–64. [Google Scholar]
  20. Chou, H.; Tang, H. Interspecific Relationship among the Wild Species of Paeonia Sect. Moutan DC with ITS and matK Sequence. Bull. Bot. Res. 2017, 37, 603–612. [Google Scholar] [CrossRef]
  21. Lin, Q.; Zhou, Z.; Zhao, X.; Pan, K.; Hong, D. Interspecific Relationships among the Wild Species of Paeonia Sect.Moutan DC.Based on DNA Sequences of Adh Gene Family. Acta Hortic. Sin. 2004, 31, 627–632. [Google Scholar] [CrossRef]
  22. Zhao, X.; Zhou, Z.Q.; Lin, Q.B.; Pan, K.Y.; Hong, D.Y. Molecular evidence for the interspecific relationships in Paeonia sect. Moutan: PCR-RFLP and sequence analysis of glycerol-3-phosphate acyltransferase (GPAT) gene. Acta Phytotaxon. Sin. 2004, 42, 236–244. [Google Scholar]
  23. Yuan, T.; Wang, L.Y. Pollen Morphology of Several Tree Peony Wild Species and Discussion on Its Evolution and Taxonomy. J. Beijing For. Univ. 1999, 21, 17–21. [Google Scholar]
  24. Wang, L.Y. Atlas of Tree Peony Varieties in China; Beijing China For. Press: Beijing, China, 1997; pp. 150–200. ISBN 978-7-5038-1770-0. [Google Scholar]
  25. Zhao, L.Y. Cultivation and Appreciation of Tree Peony in China; Beijing Gold. Shield Press: Beijing, China, 2004; pp. 46–50. ISBN 7-5082-2880-4. [Google Scholar]
  26. Wang, L.Y.; Yuan, T. Pictorial Record of Chinese Tree Peony Varieties: Continuation; Beijing China For. Press: Beijing, China, 2015; pp. 129–131. ISBN 978-7-5038-7915-9. [Google Scholar]
  27. Li, J.J.; Zhang, X.F.; Zhao, X.Q. Tree Peony of China; Beijing Encycl. China Press: Beijing, China, 2011; pp. 49–89. ISBN 978-7-5000-8522-5. [Google Scholar]
  28. Wang, L.Y. Observation on the morphological of flower bud differentiation of cultivars of tree peony and the analysis on the formation of flower forms. Acta Hortic. Sin. 1986, 13, 203–208. [Google Scholar]
  29. Hosoki, T.; Kimura, D.; Hasegawa, R.; Nagasako, T.; Nishimoto, K.; Ohta, K.; Sugiyama, M.; Haruki, K. Comparative study of Chinese tree peony cultivars by random amplified polymorphic DNA (RAPD) analysis. Sci. Hortic. 1997, 70, 67–72. [Google Scholar] [CrossRef]
  30. Yu, H. He Ze Tree Peony; Shandong Science and Technology Press: Shandong, China, 1980; pp. 15–50. [Google Scholar]
  31. Bruun-Lund, S.; Clement, W.L.; Kjellberg, F.; Rønsted, N. First plastid phylogenomic study reveals potential cyto-nuclear discordance in the evolutionary history of Ficus L. (Moraceae). Mol. Phylogenetics Evol. 2017, 109, 93–104. [Google Scholar] [CrossRef]
  32. Li, H.; Yi, T.; Gao, L.; Ma, P.; Zhang, T.; Yang, J.; Gitzendanner, M.A.; Fritsch, P.W.; Cai, J.; Luo, Y.; et al. Origin of angiosperms and the puzzle of the Jurassic gap. Nat. Plants 2019, 5, 461–470. [Google Scholar] [CrossRef]
  33. Wang, R.; Liu, K.; Zhang, X.; Chen, W.; Qu, X.; Fan, S. Comparative Plastomes and Phylogenetic Analysis of Cleistogenes and Closely Related Genera (Poaceae). Front. Plant Sci. 2021, 12, 638597. [Google Scholar] [CrossRef] [PubMed]
  34. Zhang, S.-D.; Jin, J.-J.; Chen, S.-Y.; Chase, M.W.; Soltis, D.E.; Li, H.-T.; Yang, J.-B.; Li, D.-Z.; Yi, T.-S. Diversification of Rosaceae since the Late Cretaceous based on plastid phylogenomics. New Phytol. 2017, 214, 1355–1367. [Google Scholar] [CrossRef] [Green Version]
  35. Khan, I.A.; Azim, M.K. Variations in intergenic spacer rpl20-rps12 of mango (Mangifera indica) chloroplast DNA: Implications for cultivar identification and phylogenetic analysis. Plant Syst. Evol. 2011, 292, 249–255. [Google Scholar] [CrossRef]
  36. Suzuki, J.Y.; Geib, S.M.; Carlsen, M.M.; Henriquez, C.L.; Amore, T.D.; Sim, S.B.; Matsumoto, T.K.; Keith, L.M.; Myers, R.Y. Development of chloroplast single nucleotide polymorphisms (SNPs) as a tool towards interspecies typing of Anthurium germplasm. Acta Horticulturae. 2017, 1167. [Google Scholar] [CrossRef]
  37. Drouin, G.; Daoud, H.; Xia, J. Relative rates of synonymous substitutions in the mitochondrial, chloroplast and nuclear genomes of seed plants. Mol. Phylogenetics Evol. 2008, 49, 827–831. [Google Scholar] [CrossRef]
  38. Hu, S.Y. A cytological study of plastid inheritance in angiosperms. Acta Bot. Sin. 1997, 39, 363–371. [Google Scholar]
  39. Zhang, Q.; Liu, Y.; Sodmergen. Examination of the Cytoplasmic DNA in Male Reproductive Cells to Determine the Potential for Cytoplasmic Inheritance in 295 Angiosperm Species. Plant Cell Physiol. 2003, 44, 941–951. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  40. Zhou, S.-L.; Zou, X.-H.; Zhou, Z.-Q.; Liu, J.; Xu, C.; Yu, J.; Wang, Q.; Zhang, D.-M.; Wang, X.-Q.; Ge, S.; et al. Multiple species of wild tree peonies gave rise to the ‘king of flowers’, Paeonia suffruticosa Andrews. Proc. R. Soc. B Biol. Sci. 2014, 281, 20141687. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  41. Wu, L.; Nie, L.; Xu, Z.; Li, P.; Wang, Y.; He, C.; Song, J.; Yao, H. Comparative and Phylogenetic Analysis of the Complete Chloroplast Genomes of Three Paeonia Section Moutan Species (Paeoniaceae). Front. Genet. 2020, 11, 980. [Google Scholar] [CrossRef] [PubMed]
  42. Guo, L.; Guo, S.; Xu, J.; He, L.; Carlson, J.E.; Hou, X. Phylogenetic analysis based on chloroplast genome uncover evolutionary relationship of all the nine species and six cultivars of tree peony. Ind. Crop. Prod. 2020, 153, 112567. [Google Scholar] [CrossRef]
  43. Bolger, A.M.; Lohse, M.; Usadel, B. Trimmomatic: A flexible trimmer for Illumina sequence data. Bioinformatics 2014, 30, 2114–2120. [Google Scholar] [CrossRef] [Green Version]
  44. Jin, J.-J.; Yu, W.-B.; Yang, J.-B.; Song, Y.; dePamphilis, C.W.; Yi, T.-S.; Li, D.-Z. GetOrganelle: A fast and versatile toolkit for accurate de novo assembly of organelle genomes. Genome Biol. 2020, 21, 241. [Google Scholar] [CrossRef]
  45. Wick, R.R.; Schultz, M.B.; Zobel, J.; Holt, K.E. Bandage: Interactive visualization of de novo genome assemblies. Bioinformatics 2015, 31, 3350–3352. [Google Scholar] [CrossRef] [Green Version]
  46. Dierckxsens, N.; Mardulyn, P.; Smits, G. NOVOPlasty: De novo assembly of organelle genomes from whole genome data. Nucleic Acids Res. 2017, 45, 18. [Google Scholar] [CrossRef] [Green Version]
  47. Kearse, M.; Moir, R.; Wilson, A.; Stones-Havas, S.; Cheung, M.; Sturrock, S.; Buxton, S.; Cooper, A.; Markowitz, S.; Duran, C.; et al. Geneious Basic: An integrated and extendable desktop software platform for the organization and analysis of sequence data. Bioinformatics 2012, 28, 1647–1649. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  48. Qu, X.-J.; Moore, M.J.; Li, D.-Z.; Yi, T.-S. PGA: A software package for rapid, accurate, and flexible batch annotation of plastomes. Plant Methods 2019, 15, 50. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  49. Zheng, S.; Poczai, P.; Hyvönen, J.; Tang, J.; Amiryousefi, A. Chloroplot: An Online Program for the Versatile Plotting of Organelle Genomes. Front. Genet. 2020, 11, 576124. [Google Scholar] [CrossRef]
  50. Chen, C.; Chen, H.; Zhang, Y.; Thomas, H.R.; Frank, M.H.; He, Y.; Xia, R. TBtools: An Integrative Toolkit Developed for Interactive Analyses of Big Biological Data. Mol. Plant 2020, 13, 1194–1202. [Google Scholar] [CrossRef] [PubMed]
  51. Sharp, P.M.; Li, W.-H. The codon adaptation index-a measure of directional synonymous codon usage bias, and its potential applications. Nucleic Acids Res. 1987, 15, 1281–1295. [Google Scholar] [CrossRef]
  52. Beier, S.; Thiel, T.; Münch, T.; Scholz, U.; Mascher, M. MISA-web: A web server for microsatellite prediction. Bioinformatics 2017, 33, 2583–2585. [Google Scholar] [CrossRef] [Green Version]
  53. Kurtz, S.; Choudhuri, J.V.; Ohlebusch, E.; Schleiermacher, C.; Stoye, J.; Giegerich, R. REPuter: The manifold applications of repeat analysis on a genomic scale. Nucleic Acids Res. 2001, 29, 4633–4642. [Google Scholar] [CrossRef] [Green Version]
  54. Amiryousefi, A.; Hyvönen, J.; Poczai, P. IRscope: An online program to visualize the junction sites of chloroplast genomes. Bioinformatics 2018, 34, 3030–3031. [Google Scholar] [CrossRef]
  55. Brudno, M.; Malde, S.; Poliakov, A.; Do, C.B.; Couronne, O.; Dubchak, I.; Batzoglou, S. Glocal alignment: Finding rearrangements during alignment. Bioinformatics 2003, 19, 54–62. [Google Scholar] [CrossRef] [Green Version]
  56. Frazer, K.A.; Pachter, L.; Poliakov, A.; Rubin, E.M.; Dubchak, I. VISTA: Computational tools for comparative genomics. Nucleic Acids Res. 2004, 32, 273–279. [Google Scholar] [CrossRef] [Green Version]
  57. Mayor, C.; Brudno, M.; Schwartz, J.R.; Poliakov, A.; Rubin, E.M.; Frazer, K.A.; Pachter, L.S.; Dubchak, I. VISTA: Visualizing global DNA sequence alignments of arbitrary length. Bioinformatics 2000, 16, 1046–1047. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  58. Katoh, K.; Kuma, K.-i.; Toh, H.; Miyata, T. MAFFT version 5: Improvement in accuracy of multiple sequence alignment. Nucleic Acids Res. 2005, 33, 511–518. [Google Scholar] [CrossRef] [PubMed]
  59. Minh, B.Q.; Schmidt, H.A.; Chernomor, O.; Schrempf, D.; Woodhams, M.D.; von Haeseler, A.; Lanfear, R. IQ-TREE 2: New Models and Efficient Methods for Phylogenetic Inference in the Genomic Era. Mol. Biol. Evol. 2020, 37, 1530–1534. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  60. iPlant. Flora Reipublicae Popularis Sinicae. Available online: http://www.iplant.cn/frps (accessed on 9 May 2022).
  61. Maddison, G.K.; Maddison, D.R. Mesquite: A Modular System for Evolutionary Analysis. 2004. Available online: http://mesquiteproject.org (accessed on 21 May 2022).
  62. Xiang, Y.; Huang, C.-H.; Hu, Y.; Wen, J.; Li, S.; Yi, T.; Chen, H.; Xiang, J.; Ma, H. Evolution of Rosaceae Fruit Types Based on Nuclear Phylogeny in the Context of Geological Times and Genome Duplication. Mol. Biol. Evol. 2017, 34, 262–281. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  63. Fennoy, S.L.; Bailey-serres, J. Synonymous codon usage in Zea mays L. nuclear genes is varied by levels of C and G-ending codons. Nucleic Acids Res. 1993, 21, 5294–5300. [Google Scholar] [CrossRef] [PubMed]
  64. Ikemura, T. Codon usage and tRNA content in unicellular and multicellular organisms. Mol. Biol. Evol. 1985, 2, 13–34. [Google Scholar] [CrossRef] [PubMed]
  65. Wang, Z.; Wang, F. Biological Genome Evolution and Codon Usage; National Defense Industry Press: Beijing, China, 2014; pp. 19–51. ISBN 978-7-118-09366-7. [Google Scholar]
  66. Kaundun, S.S.; Matsumoto, S. Heterologous nuclear and chloroplast microsatellite amplification and variation in tea, Camellia sinensis. Genome 2002, 45, 1041–1048. [Google Scholar] [CrossRef] [PubMed]
  67. Palmer, J.D. CHAPTER 2—Plastid Chromosomes: Structure and Evolution. Mol. Biol. Plast. 1991, 7, 5–53. [Google Scholar] [CrossRef]
  68. Han, X.Y.; Wang, L.S.; Shu, Q.Y.; Liu, Z.A.; Xu, S.X.; Tetsumura, T. Molecular Characterization of Tree Peony Germplasm Using Sequence-Related Amplified Polymorphism Markers. Biochem. Genet. 2008, 46, 162–179. [Google Scholar] [CrossRef]
  69. Wang, L.Y. A Map of Tree Peony Cultivars in China; Beijing China For. Publ. House: Beijing, China, 1997; pp. 150–200. ISBN 978-7-5038-1770-0. [Google Scholar]
  70. Yu, L.; He, L.X.; Li, J.J. Comparative Studies on Chromosome in Varieties of Paeonia rockii and Paeonia suff ruticosa. Acta Hortic. Sin. 1997, 24, 79–83. [Google Scholar]
  71. Han, X.; Wang, L.; Liu, Z.a.; Jan, D.R.; Shu, Q. Characterization of sequence-related amplified polymorphism markers analysis of tree peony bud sports. Sci. Hortic. 2008, 115, 261–267. [Google Scholar] [CrossRef]
  72. Jiang, Z.; Geng, X.; Zhu, Z.; Sheng, Q. Research Progress on Cross Breeding of Tree Peony. Mol. Plant Breed. 2021. Available online: http://kns.cnki.net/kcms/detail/46.1068.s.20210527.1903.018.html (accessed on 17 October 2022).
  73. Shi, Q. Study on Genetic Diversity of Chinese Traditional Cultivars of Tree Peony. Chin. Acad. For. 2012. Available online: https://kns.cnki.net/kcms/detail/detail.aspx?FileName=1012423632.nh&DbName=CMFD2012 (accessed on 17 October 2022).
  74. Wei, J.; Peng, Y.; Yang, L. Comparison of Floral Organ Morphology and Development of Single and Double Petaled Malus halliana. Acta Bot. Boreal 2021, 41, 2072–2079. [Google Scholar] [CrossRef]
  75. Jiang, S.; Yi, X.-W.; Xu, T.-L.; Yang, Y.; Yu, C.; Luo, L.; Cheng, T.-R.; Wang, J.; Zhang, Q.-X.; Pan, H.-T. Genetic analysis of petal number in Rosa. Plant Sci. J. 2021, 39, 142–151. [Google Scholar] [CrossRef]
  76. Zhao, Y.-Q.; Liu, Q.-L. Research Advances in the Formation Mechanism and Genetic Characters of Double Flowers. Acta Bot. Boreal 2009, 29, 0832–0841. [Google Scholar]
  77. Zhu, G.; Li, J.; Ni, S.; Fan, Z.-Q.; Yin, H.-F.; Li, X.; Zhou, X.-W. The potential role of B-function gene involved in floral development for double flowers formation in Camellia changii Ye. Afr. J. Biotechnol. 2011, 10, 16757–16762. [Google Scholar]
  78. Lehmann, N.L.; Sattler, R. Floral Development and Homeosis in Actaea rubra (Ranunculaceae). Int. J. Plant Sci. 1994, 155, 658–671. [Google Scholar] [CrossRef]
  79. Zhao, H.-J.; Zhang, W.-T. Floral type classification and genesis of Paeonia lactiflora. North. Hortic. 1999, 05, 26–27. [Google Scholar]
  80. Gao, Z.; Mu, S.; Li, X.; Pan, H. The evolvement rule analysis of tree peony flower types using molecular mechanism of model plants flower development. Adv. Ornam. Hortic. Res. China 2009, 2009, 129–133. [Google Scholar]
  81. Irish, V. The ABC model of floral development. Curr. Biol. 2017, 27, 887–890. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  82. Wu, Y.Q. Screening of candidate genes regulating the anemone flower type and study of expression and regulation mechanism in herbaceous peony (Paeonia lactiflora Pall). Yangzhou Univ. 2019, 10–15. Available online: https://kns.cnki.net/kcms/detail/detail.aspx?FileName=1020025126.nh&DbName=CDFD2020 (accessed on 17 October 2022).
  83. Lin, Z.; Damaris, R.N.; Shi, T.; Li, J.; Yang, P. Transcriptomic analysis identifies the key genes involved in stamen petaloid in lotus (Nelumbo nucifera). BMC Genom. 2018, 19, 554. [Google Scholar] [CrossRef] [PubMed]
Genes 13 02229 g001 550
Figure 1. Flower types of all 10 tree peony cultivars. From left to right, from top to bottom were P. ostii cv. ‘Feng Dan’ (single-lobe type), P. suffruticosa cv. ‘Da Jin Fen’ (lotus type), P.×lemoinei ‘High Noon’ (chrysanthemum type), P. suffruticosa cv. ‘Da Zong Zi’ (rose type), P. suffruticosa cv. ‘Cao Zhou Hong’ (melaleuca proliferate-flower type), P. suffruticosa cv. ‘Greendragon sleeping pool’ (anemone type), P. suffruticosa cv. ‘Yao Huang’ (golden circle type), P. suffruticosa cv. ‘Shou An Hong’ (crown type), P. suffruticosa cv. ‘Dou Lv’ (globular type) and P. suffruticosa cv. ‘Guan Qun Fang’ (tower-like proliferate-flower type).
Figure 1. Flower types of all 10 tree peony cultivars. From left to right, from top to bottom were P. ostii cv. ‘Feng Dan’ (single-lobe type), P. suffruticosa cv. ‘Da Jin Fen’ (lotus type), P.×lemoinei ‘High Noon’ (chrysanthemum type), P. suffruticosa cv. ‘Da Zong Zi’ (rose type), P. suffruticosa cv. ‘Cao Zhou Hong’ (melaleuca proliferate-flower type), P. suffruticosa cv. ‘Greendragon sleeping pool’ (anemone type), P. suffruticosa cv. ‘Yao Huang’ (golden circle type), P. suffruticosa cv. ‘Shou An Hong’ (crown type), P. suffruticosa cv. ‘Dou Lv’ (globular type) and P. suffruticosa cv. ‘Guan Qun Fang’ (tower-like proliferate-flower type).
Genes 13 02229 g001
Genes 13 02229 g002 550

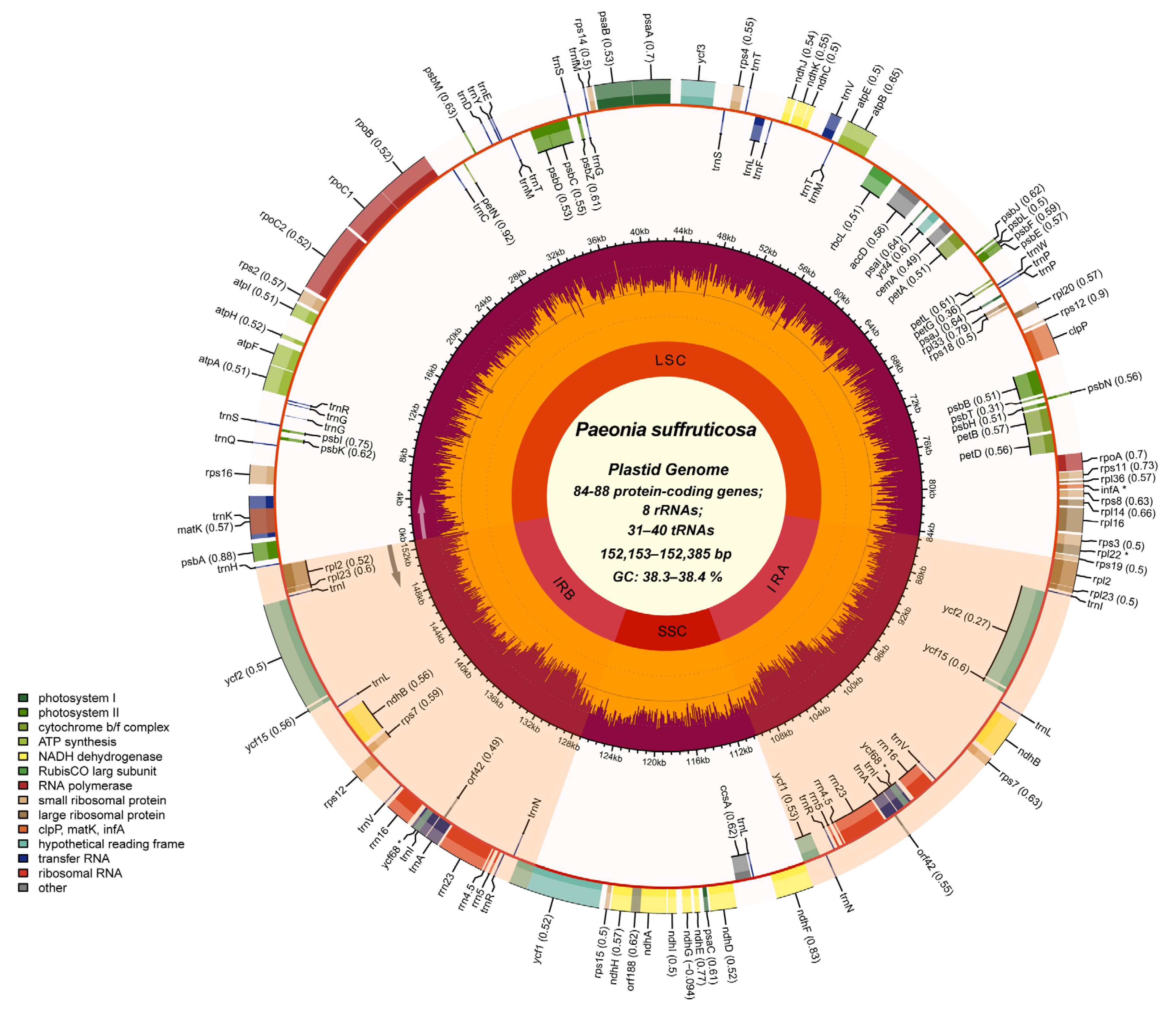

Figure 2. Chloroplast genome map of 10 tree peony flower types using P. suffruticosa cv. ‘Da Zong Zi’ as the template. The gradient GC content of the genome was plotted in the second circle, with a zero level based on the outer circle. The gene names and their codon usage biases were labeled on the outermost layer. An * in the name of a gene indicates that the gene is a pseudogene. The gene-specific GC content was depicted with the proportion of shaded areas. Represented with arrows, the transcription directions for the inner and outer genes are listed clockwise and anticlockwise, respectively. (The chloroplast genome maps of the 10 tree peony cultivars are shown in Supplementary Figures S1–S10).
Figure 2. Chloroplast genome map of 10 tree peony flower types using P. suffruticosa cv. ‘Da Zong Zi’ as the template. The gradient GC content of the genome was plotted in the second circle, with a zero level based on the outer circle. The gene names and their codon usage biases were labeled on the outermost layer. An * in the name of a gene indicates that the gene is a pseudogene. The gene-specific GC content was depicted with the proportion of shaded areas. Represented with arrows, the transcription directions for the inner and outer genes are listed clockwise and anticlockwise, respectively. (The chloroplast genome maps of the 10 tree peony cultivars are shown in Supplementary Figures S1–S10).
Genes 13 02229 g002
Genes 13 02229 g003 550
Figure 3. Phylogenetic tree constructed using the maximum likelihood (ML) method based on the complete chloroplast genome sequences of 15 Paeoniaceae species and 10 tree peony flower types. (a). P. lactiflora; (b). P. brownii; (c). P.×lemoinei ‘High Noon’; (d). P. delavayi; (e). P. jishanensis, (f). P. ostii cv. ‘Feng Dan’; (g). P. suffruticosa; (h). P. suffruticosa cv. ‘Cao Zhou Hong,’ (i). P. suffruticosa cv. ‘Da Jin Fen’; (j). P. suffruticosa cv. ‘Shou An Hong’; (k). P. suffruticosa cv. ‘Yao Huang’; (l). P. suffruticosa cv. ‘Dou Lv’; (m). P. suffruticosa cv. ‘Greendragon sleeping poor’; (n). P. suffruticosa cv. ‘Da Zong Zi’; (o). P. suffruticosa cv. ‘Guan Qun Fang.’ Among the 25 chloroplast genome sequences for phylogenetic tree construction, species (cultivar) names in bold were taken from self-sequenced data, whereas those not in bold were downloaded from the NCBI database.
Figure 3. Phylogenetic tree constructed using the maximum likelihood (ML) method based on the complete chloroplast genome sequences of 15 Paeoniaceae species and 10 tree peony flower types. (a). P. lactiflora; (b). P. brownii; (c). P.×lemoinei ‘High Noon’; (d). P. delavayi; (e). P. jishanensis, (f). P. ostii cv. ‘Feng Dan’; (g). P. suffruticosa; (h). P. suffruticosa cv. ‘Cao Zhou Hong,’ (i). P. suffruticosa cv. ‘Da Jin Fen’; (j). P. suffruticosa cv. ‘Shou An Hong’; (k). P. suffruticosa cv. ‘Yao Huang’; (l). P. suffruticosa cv. ‘Dou Lv’; (m). P. suffruticosa cv. ‘Greendragon sleeping poor’; (n). P. suffruticosa cv. ‘Da Zong Zi’; (o). P. suffruticosa cv. ‘Guan Qun Fang.’ Among the 25 chloroplast genome sequences for phylogenetic tree construction, species (cultivar) names in bold were taken from self-sequenced data, whereas those not in bold were downloaded from the NCBI database.
Genes 13 02229 g003
Genes 13 02229 g004 550

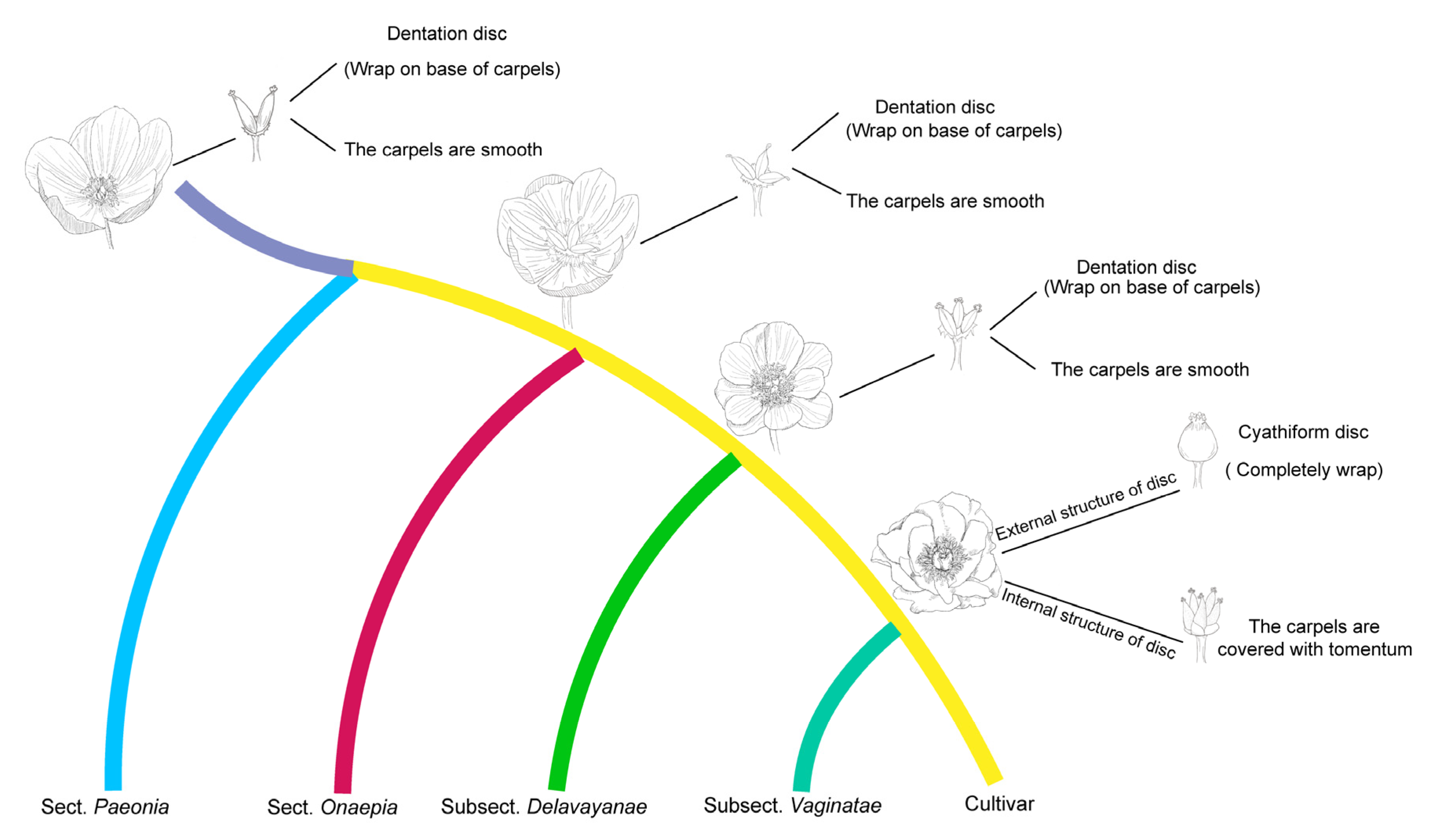

Figure 4. Evolutionary histories of flower types in Paeoniaceae. The evolutionary history of different flower types in Paeoniaceae was reconstructed based on Paeoniaceae phylogenetic relationship and 11 morphological characteristics. Based on the reconstruction results of ancestral characteristics, we predicted the representative flower types of the four evolutionary node species of Paeoniaceae. The evolution of floral organs mainly focuses on the shape and number of petals, the characteristics of disc and the number of carpels.
Figure 4. Evolutionary histories of flower types in Paeoniaceae. The evolutionary history of different flower types in Paeoniaceae was reconstructed based on Paeoniaceae phylogenetic relationship and 11 morphological characteristics. Based on the reconstruction results of ancestral characteristics, we predicted the representative flower types of the four evolutionary node species of Paeoniaceae. The evolution of floral organs mainly focuses on the shape and number of petals, the characteristics of disc and the number of carpels.
Genes 13 02229 g004
Genes 13 02229 g005 550
Figure 5. Reconstruction of ancestral characteristics in the context of the topology in Figure 2. The color in the square represents the specific characteristics of this morphological trait in the species (cultivars). The colors of different nodes in the topology represent the inference results of the corresponding ancestral characteristics based on the morphological characteristics of the species (cultivars) and the topology of Figure 2. (The other six reconstruction results of the ancestral characteristics of Paeoniaceae based on morphological features and topological structure are located in Supplementary Figures S17–S22). (a) Reconstruction of ancestral petal round numbers in the context of the topology in Figure 2; (b) Reconstruction of ancestral receptacle shape in the context of the topology in Figure 2; (c) Reconstruction of the ancestral carpel feature in the context of the topology in Figure 2.
Figure 5. Reconstruction of ancestral characteristics in the context of the topology in Figure 2. The color in the square represents the specific characteristics of this morphological trait in the species (cultivars). The colors of different nodes in the topology represent the inference results of the corresponding ancestral characteristics based on the morphological characteristics of the species (cultivars) and the topology of Figure 2. (The other six reconstruction results of the ancestral characteristics of Paeoniaceae based on morphological features and topological structure are located in Supplementary Figures S17–S22). (a) Reconstruction of ancestral petal round numbers in the context of the topology in Figure 2; (b) Reconstruction of ancestral receptacle shape in the context of the topology in Figure 2; (c) Reconstruction of the ancestral carpel feature in the context of the topology in Figure 2.
Genes 13 02229 g005
Table
Table 1. Basic information of chloroplast genomes of ten flower types.
Table 1. Basic information of chloroplast genomes of ten flower types.
CultivarAll LengthGC%LSC LengthGC%SSC LengthGC%IR LengthGC%GenBank Accession Numbers
P. ostii cv. ‘Feng Dan’152,153 bp38.385,373 bp36.717,054 bp32.724,863 bp43.1MG585274.1
P. suffruticosa cv. ‘Da Jin Fen’152,835 bp38.384,485 bp36.617,056 bp32.625,647 bp43.1ON243818
P.×lemoine ‘High Noon’152,519 bp38.484,213 bp36.717,026 bp32.825,640 bp43.1ON243821
P. suffruticosa cv. ‘Da Zong Zi’152,820 bp38.484,471 bp36.617,051 bp32.625,649 bp43.1ON243822
P. suffruticosa cv. ‘Greendragon sleeping pool’152,820 bp38.484,475 bp36.617,051 bp32.625,647 bp43.1ON243820
P. suffruticosa cv. ‘Yao Huang’152,819 bp38.484,474 bp36.617,051 bp32.625,647 bp43.1ON227529
P. suffruticosa cv. ‘Shou An Hong’152,819 bp38.484,474 bp36.617,051 bp32.625,647 bp43.1MK701996.1
P. suffruticosa cv. ‘Dou Lv’152,819 bp38.484,474 bp36.617,051 bp32.625,647 bp43.1ON243819
P. suffruticosa cv. ‘Cao Zhou Hong’152,835 bp38.384,485 bp36.617,056 bp32.625,647 bp43.1ON227528
P. suffruticosa cv. ‘Guan Qun Fang’152,820 bp38.484,471 bp36.617,053 bp32.625,649 bp43.1ON209192
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Li, W.; Huang, X.-C.; Wang, Y.-L.; Zhang, R.-J.; Shi, D.-Y.; Li, T.-F.; Zhou, G.-C.; Xue, J.-Y. Plastid Phylogenomics of Paeonia and the Evolution of Ten Flower Types in Tree Peony. Genes 2022, 13, 2229. https://doi.org/10.3390/genes13122229

AMA Style

Li W, Huang X-C, Wang Y-L, Zhang R-J, Shi D-Y, Li T-F, Zhou G-C, Xue J-Y. Plastid Phylogenomics of Paeonia and the Evolution of Ten Flower Types in Tree Peony. Genes. 2022; 13(12):2229. https://doi.org/10.3390/genes13122229

Chicago/Turabian Style

Li, Wen, Xin-Cheng Huang, Yi-Lei Wang, Rui-Ju Zhang, Dong-Yan Shi, Teng-Fei Li, Guang-Can Zhou, and Jia-Yu Xue. 2022. "Plastid Phylogenomics of Paeonia and the Evolution of Ten Flower Types in Tree Peony" Genes 13, no. 12: 2229. https://doi.org/10.3390/genes13122229

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
