Article

Identification of Liver Fibrosis-Related MicroRNAs in Human Primary Hepatic Stellate Cells Using High-Throughput Sequencing

by
Xu Liu
1,2,
Heming Ma
1,2,
Ruihong Wu
1,
Huan Wang
3,
Hongqin Xu
1,
Shuxuan Li
4,
Guangyi Wang
4,
Guoyue Lv
4,* and
Junqi Niu
1,2,*
1
Department of Hepatology, First Hospital of Jilin University, Changchun 130021, China
2
Center of Infectious Diseases and Pathogen Biology, First Hospital of Jilin University, Changchun 130021, China
3
Department of Infectious Diseases, Union Hospital, Tongji Medical College, Huazhong University of Science and Technology, Wuhan 430022, China
4
Department of Hepatobiliary and Pancreatic Surgery, First Hospital of Jilin University, Changchun 130021, China
*
Authors to whom correspondence should be addressed.
Genes 2022, 13(12), 2201; https://doi.org/10.3390/genes13122201
Submission received: 28 October 2022 / Revised: 19 November 2022 / Accepted: 21 November 2022 / Published: 24 November 2022
(This article belongs to the Section RNA)
Browse Figures
Versions Notes

Abstract

:
MicroRNAs (miRNAs) participate in hepatic stellate cell (HSC) activation, which drives liver fibrosis initiation and progression. We aimed to identify novel hepatic fibrosis targets using miRNA sequencing (miRNA-seq) of human primary HSCs. Surgically resected liver tissues were used to extract HSCs. Based on next-generation sequencing, miRNA-seq was performed on four pairs of HSCs before and after in vitro culture. Additionally, we compared our data with open access miRNA-seq data derived from fourteen cirrhotic and nine healthy liver tissues. Selected miRNAs associated with fibrosis were verified by quantitative real-time PCR. Target mRNAs of differentially expressed (DE) miRNAs were predicted to construct co-expression networks. We identified 230 DEmiRNAs (118 upregulated and 112 downregulated) upon HSC activation. Of the 17 miRNAs with the most significant differences in expression, liver disease-related miRNAs included miR-758-3p, miR-493-5p, miR-409-3p, miR-31-5p, miR-1268a, and miR-381-3p, which might play roles in hepatic fibrosis. Moreover, let-7g-5p, miR-107, miR-122-5p, miR-127-3p, miR-139-5p, miR-148a-3p, miR-194-5p, miR-215-5p, miR-26a-5p, miR-340-5p, miR-451a, and miR-99a-5p were common between our data and the publicly available sequencing data. A co-expression network comprising 1891 matched miRNA–mRNA pairs representing 138 DEmiRNAs and 1414 DEmRNAs was constructed. MiR-1268a and miR-665, possessing the richest target DEmRNAs, may be vital in HSC activation. The targeted genes were involved in collagen metabolism, extracellular matrix structural constituent, cytoskeletal protein binding, and cell adhesion. The miRNAs we identified may provide a basis and reference for the selection of diagnostic and therapeutic targets for hepatic fibrosis.

1. Introduction

Hepatic fibrosis is a pathological repair response characterized by diffuse over-deposition and abnormal distribution of the extracellular matrix (ECM) [1,2]. Hepatitis B virus, hepatitis C virus, alcohol, and high-fat diets are the most common etiologies of cirrhosis [3]. Epidemiologically, cirrhosis causes approximately 1.2 million deaths worldwide each year, leading to an increase in healthcare utilization and presenting a major social burden [4]. Hepatic stellate cells (HSCs) constitute the main ECM-producing cell population in the liver [5]. HSC activation, proliferation, and transformation play pivotal roles in the process of hepatic fibrosis. Consequently, elucidation of the molecular mechanisms of HSC activation could be crucial for identifying early diagnostic and therapeutic targets of liver fibrosis.
MicroRNAs (miRNAs) are approximately 22-nucleotide-long single-stranded non-coding RNAs [6], accounting for 1–2% of all mammalian genes. They are expressed in a tissue-specific and time-sequential fashion, and have been implicated in the regulation of several mRNAs through miRNA response elements. A single miRNA can affect tens to hundreds of different transcripts by inducing post-transcriptional effects on mRNA stability and translation [7,8]. More than 60% of coding genes contain miRNA target sequences, and nearly 1/3 of human genes can be regulated by miRNAs [9,10,11]. Dysregulation of endogenous miRNAs may underlie a variety of human diseases, including infections, cancer, and vascular and nervous system diseases [12,13,14,15].
Recent studies have suggested that divergent miRNAs are involved in the development of hepatic fibrosis and activation of HSCs. Numerous miRNAs have been associated with liver fibrogenesis [6,16,17]. For example, the overexpression of the miR-199 or miR-200 families was positively correlated with the activation of the transforming growth factor-β (TGF-β)/Smad signaling pathway [18,19]. In contrast, miR-150 and miR-194 inhibited the activation of HSCs and production of ECM to a certain extent by inhibiting the expression of C-myb and RAC1 [20]. Additionally, serological concentrations of miR-122 and miR-29a can be used to monitor the progression of liver fibrosis [21]. MiR-21 promoted the progression of fibrosis in multiple organs [22,23,24]; however, its role in fibrogenesis is debatable. Caviglia et al. [25] suggested that miR-21 does not influence fibrosis or hepatocellular carcinoma (HCC) formation.
Several studies have analyzed miRNA expression profiles of HSCs using microarray technology [26,27,28], mostly using animal models. However, the influence of species-related differences can be avoided using human-derived primary cells, and high-throughput sequencing has gradually replaced microarrays in recent years [29].
To this end, we attempted to identify the potential genes associated with hepatic fibrosis using microRNA sequencing (miRNA-seq) of human primary HSCs based on next-generation sequencing (NGS) technology, in order to determine novel strategies for the management of liver fibrosis. Considering that the spontaneous activation of HSCs in culture is similar to that in vivo when fibrosis occurs [30,31], freshly isolated and culture-activated human primary HSCs were compared in our study.

2. Materials and Methods

2.1. Isolation, Culture, and Validation of Human Primary HSCs

In our study, the digestion method using ethylene glycol tetraacetic acid (0.5 mM, Sigma, St. Louis, MO, USA)/collagenase type IV (0.8 mg/mL, Sigma) and density gradient centrifugation using Gey’s balanced salt solution (Sigma) and OptiprepTM (Axis-Shield, Oslo, Norway) was performed to isolate primary HSCs from human liver tissues, as described previously [32] (Figure 1). Samples were obtained from the abandoned tissue blocks of patients who had undergone liver transplantation or partial hepatectomy at the First Hospital of Jilin University (Changchun, China). Isolated human primary HSCs were cultured in Dulbecco’s modified Eagle’s medium (Gibco, Grand Island, NY, USA), supplemented with 10% fetal calf serum (Biological Industries, Kibbutz Beit-Haemek, Israel), at 37 °C in a 5% CO2 atmosphere. Culture-activated HSCs were harvested after 14 d of cultivation.
This study was approved by the ethics committee of the First Hospital of Jilin University (approval number 2018-408).
Autofluorescence of lipid droplets (LDs) (excitation: 328 nm) was performed to verify freshly isolated HSCs. The anti-α-smooth muscle actin (α-SMA) primary monoclonal antibody (1:500 dilution, Abcam, Cambridge, UK) and secondary polyclonal goat anti-rabbit IgG (Alexa Fluor® 488) (1:1000 dilution; Abcam) were used for immunofluorescence staining of cultured HSCs, whereas 4’,6-diamidino-2-phenylindole was used to stain the nuclei. The HSC line LX-2 was used as a positive control.

2.2. RNA Isolation, Library Construction, and Sequencing

The total RNAs containing miRNAs were purified using TRIzol reagent (Invitrogen, Carlsbad, CA, USA). Agarose gel electrophoresis was performed to preliminarily monitor RNA degradation and contamination. RNA purity and integrity were measured with a NanoPhotometer® spectrophotometer (IMPLEN, USA) and an Agilent Bioanalyzer 2100 system (Agilent Technologies, Palo Alto, CA, USA). Qualified RNA (~3 µg/sample) was used to construct a cDNA library, which was generated using the NEBNext® Multiplex Small RNA Library Prep Set of Illumina® (NEB, USA), per the manufacturer’s recommendations. Following amplification, targeted DNA fragments were recovered, and quality was assessed by the Agilent Bioanalyzer 2100 system using DNA high-sensitivity chips. Index codes were added in order to identify each sample. Clustering of index-coded samples was performed on a cBot Cluster Generation System using the TruSeq SR Cluster Kit v3-cBot-HS (Illumina, San Diego, IL, USA). Finally, the samples prepared by the library were sequenced using an Illumina Hiseq 2500 platform (Illumina), and 50 bp single-end reads were generated after cluster generation.

2.3. MiRNA-Seq Analysis

Quality control and read mapping were performed using the Bowtie software [33] to generate small RNA alignments. Subsequently, reads originating from protein-coding genes, repeat sequences, ribosomal RNAs, or other small RNAs were removed using RepeatMasker, the Rfam database, or species-specific data. Using the miRBase database as a reference, known and novel miRNAs were distinguished using miREvo [34], mirdeep2 [35], and sRNA-tools-cli. MiRNA expression was estimated by transcripts per million (TPM) using the normalization formula (normalized expression = mapped read count/total reads × 1,000,000). Pearson’s correlation and principal component analysis (PCA) were used to test the correlation of the expression profile and the clustering nature among the samples. Differential expression analysis between freshly isolated and culture-activated HSCs was performed using the DESeq2 method [36], based on the negative binomial distribution model. After screening for differentially expressed (DE) miRNAs, hierarchical clustering analysis was performed to determine the expression patterns of DEmiRNAs in different samples. In addition, our data were compared with open access miRNA-seq data derived from cirrhotic (n = 14) and healthy (n = 9) liver tissues [37].

2.4. Quantitative Real-Time PCR Analysis

Relative quantitative real-time PCR (qRT-PCR) was performed to confirm the expression of miRNAs associated with hepatic fibrosis in human primary HSCs. TransScript® miRNA First-Strand cDNA Synthesis SuperMix (TransGen Biotech, Beijing, China) and PerfectStartTM Green qPCR SuperMix (TransGen Biotech) were used for the tailing reaction method. The PrimeScriptTMRT reagent Kit with gDNA Eraser (Takara, Tokyo, Japan) and TB Green® Premix Ex TaqTM II (Takara) were used for the stem-loop method when reverse transcription and PCR were performed according to the manufacturer’s instructions. After 40–45 cycles on the Mx3005P system (Agilent Technologies), the relative expression of the selected miRNAs was calculated using the comparative cycle threshold method (2−ΔΔCt), with U6 as the endogenous control, to normalize the data. The primer sequences for the miRNAs used are listed in Supplementary Table S1.

2.5. Prediction of MiRNA-mRNA Interactions

The results from miRanda [38], PITA [39], and RNAhybrid [40] were intersected to predict the target genes of the miRNAs, in combination with the mRNA-seq data obtained by our team (Transcript Profiling: PRJNA762498). Pearson’s correlation was used to evaluate the tightness of miRNAs and their targeted mRNAs, including correlation coefficients and corresponding p-values. Subsequently, co-expression networks were constructed using Cytoscape [41]. Gene Ontology (GO) functional analysis and Kyoto Encyclopedia of Genes and Genomes (KEGG) pathway enrichment analysis were used to predict the target genes of DEmiRNAs using GOseq [42] and KOBAS [43].

2.6. Statistical Analyses

In miRNA-seq, demographic and clinical characteristics, as well as laboratory indices of patients, were expressed as the median (25th and 75th percentiles) or constituent ratios. p-values obtained by DESeq2 analysis were adjusted using the Benjamini and Hochberg method [44] to control the false discovery rate (FDR). A corrected p-value (defined as q) of 0.05 was set as the threshold for significant differential expression between the two groups. When the absolute value of Pearson’s correlation coefficient was ≥0.7 with p < 0.05, miRNAs and targeted mRNAs were considered to have potential functional interactions. In GO or KEGG enrichment analyses, q < 0.05 was selected as the differentially detected signal. A paired t-test was conducted to analyze the differences in miRNA expression from the qRT-PCR results, and * p < 0.05, ** p < 0.01, and **** p < 0.0001, from GraphPad Prism 8.0 (GraphPad Software, San Diego, CA, USA), were defined as statistically significant.

3. Results

3.1. Basic Characteristics of the Sequencing Subjects

MiRNA-seq analyses were conducted on human primary HSCs before and after in vitro culture (denoted by Group_Fre and Group_Act). HSCs were isolated from four patients (three men and one woman; the median age was 62 years) who underwent surgical procedures; detailed patient information is listed in Supplementary Table S2. The liver function of these patients was acceptable—aspartate aminotransferase and alanine aminotransferase levels were within the normal range, which minimized interference from intrahepatic inflammation in subsequent miRNA-seq results.

3.2. Acquisition of Human Primary HSCs

After repeated attempts, we successfully harvested 105–106 HSCs per gram of liver tissue; cell validation is shown in Figure 2. Freshly separated cells were round, small in volume, and rich in LDs (Figure 2a), with strong refraction. With extended incubation, HSCs became larger in volume and irregular in shape, with protrusions on the surface, loss of LDs, and deterioration of their refractive properties (Supplementary Figure S1a). Significant differences among individuals were observed when humans were the research object, and the activation process of HSCs was different. Generally, proliferation occurred after 7–10 days of culture, and HSCs were fully activated after 14 days of culture, along with a significant upregulation of α-SMA (Figure 2b), a specific biomarker of activated HSCs [3]. Therefore, 14 days was selected as the cutoff point for subsequent studies.

3.3. MiRNA Profiling

An assessment of miRNA integrity and purity was performed before sequencing, and the results met the requirements for database construction (Supplementary Table S3). The data quality produced by small RNA sequencing demonstrated that the overall error rate for each sample ranged from 0.00% to 0.01%, and Q30 values were over 98% (Supplementary Table S4), a prerequisite for effective downstream analyses. An average of 93.63% of small RNAs were mapped to the human genome. From the mapped miRNA sequences, 1529 known matures and 1313 known precursors were obtained, and 96 novel matures and 98 novel precursors were predicted after excluding coding sequences and their degradation products, repetitive sequences, ribosomal RNAs, and other small RNAs ( ). TPM values were used to estimate the normalized transcription levels of miRNAs. The correlation matrix and PCA plot indicated high consistency and clustering within each group, as well as significant differences before and after HSC culture, suggesting that miRNAs were significantly altered by HSC activation (Figure 3b,c). Expression levels of COL1A1, COL1A2, and ACTA2 in the four pairs of samples used for miRNA-seq are shown in Supplementary Figure S1b, in order to demonstrate the activation status of HSCs.

3.4. Identification of DEmiRNAs

We identified 230 DEmiRNAs, including 226 known and 4 novel miRNAs, per the absolute value of log2 fold change (FC) set at greater than or equal to 1.0 (|log2 FC| ≥ 1.0), and that of q set at <0.05 (Supplementary Table S5). During HSC activation in vitro, the expression of 118 and 112 miRNAs was significantly upregulated and downregulated, respectively (Figure 3d). Hierarchical clustering of DEmiRNAs revealed that the expression patterns of DEmiRNAs among the samples in the same group were similar, but changed after HSC activation (Figure 3e).
In order to search for key candidate miRNAs, we focused on miRNAs with the most significant expression differences (|log2 FC| > 5.0 and q < 0.05; Table 1); most of them (70.59%) were significantly upregulated. Through a search of the literature, miR-758-3p, miR-493-5p, miR-409-3p, miR-31-5p, miR-1268a, miR-381-3p, miR-127-5p, miR-375-3p, and miR-548ah-5p were identified as closely related to liver diseases [45,46,47,48,49,50,51,52,53,54,55,56,57], and they mainly play a role in HCC. Except for miR-375-3p [56], the relationship between these miRNAs and hepatic fibrosis has not been elucidated. Therefore, our study was carried out with special attention to these miRNAs.
We compared our data with open access miRNA-seq data from 2018, from 14 cirrhotic and 9 healthy liver tissue samples [37]. Comparison with 87 DEmiRNAs in the published results identified 15 overlapping DEmiRNAs (17.24%), including let-7g-5p, miR-101-3p, miR-107, miR-122-5p, miR-127-3p, miR-139-5p, miR-148a-3p, miR-192-5p, miR-194-5p, miR-215-5p, miR-24-3p, miR-26a-5p, miR-340-5p, miR-451a, and miR-99a-5p, suggesting that they are related to hepatic fibrosis in both studies (Figure 3f). To be consistent with the published data, log2FC values of DEmiRNAs in our study were converted to FC. A total of 12 miRNAs (80%) had a concordant expression pattern in the two comparison schemes; the same miRNA was upregulated or downregulated in liver cirrhosis and activation of HSCs (Table 2). However, the expression of miR-101-3p, miR-192-5p, and miR-24-3p was contradictory between the two datasets.
In order to further validate the selected DEmiRNAs, qRT-PCR was performed. When HSCs were activated in vitro, miR-375-3p, a hepatic fibrosis-related miRNA, was significantly downregulated (p < 0.0001) (Figure 4b), in accordance with a previous study [56]. As expected from miRNA-seq, the expression of miRNAs associated with liver diseases, such as miR-409-3p, miR-31-5p, miR-1268a, miR-758-3p, miR-493-5p, and miR-381-3p, was confirmed to be significantly increased compared to that in the control group (p < 0.05). However, no significant difference in the expression of miR-127-5p or miR-548ah-5p was observed (Figure 4a). Regarding the common miRNAs with contradictory expression results between the two datasets, miR-101-3p and miR-192-5p were significantly downregulated in activated HSCs (p < 0.0001), supporting our miRNA-seq data. Although miR-24-3p was upregulated, this was not statistically significant (Figure 4c).

3.5. Target Prediction and Co-Expression Analysis

Since miRNAs play a biological role by targeting mRNAs, we combined the data from this study with previous mRNA data from our team (Transcript Profiling: PRJNA762498) and predicted and evaluated target mRNAs using several software packages and screening conditions (Supplementary Table S6). We constructed miRNA–mRNA co-expression networks using Cytoscape. Figure 5a illustrates the relationship between all DEmiRNAs and their target genes. Of the 230 DEmiRNAs, 175 (76.1%) were strongly correlated with their corresponding target mRNAs. The network map between DEmiRNAs and target DEmRNAs when the differential expression information of mRNAs (q < 0.05) is also taken into account is displayed in Figure 5b. Ultimately, the network consisted of 1891 miRNA–mRNA pairs, containing 138 DEmiRNAs and corresponding to 1414 DEmRNAs (1193 genes). MiR-665 exhibited the most correlations (208 targets).
Target genes of liver disease-related miRNAs that showed significant differences were confirmed by qRT-PCR analysis and are summarized in Table 3. MiR-1268a had the most targets, indicating a potentially important role in the regulation of mRNA expression, which might affect the development of fibrosis. Thereafter, we attempted to transfect the human HSC line (LX-2) with miRNA mimics or inhibitors in order to observe their effect on cells. Prior results indicated that COL1A1 expression was significantly upregulated after transfection with the miR-1268a inhibitor or miR-665 mimic (Supplementary Table S7 and Supplementary Figure S2).
In order to explore the function of miRNAs, we performed GO functional and KEGG pathway enrichment analyses. The cellular component (CC), molecular function (MF), and biological process (BP) of the targeted genes (only DEmRNAs were included) were described in the GO analysis. We found that the DEmRNAs were significantly enriched in 417 terms (BP: 308 terms; CC: 74 terms; MF: 35 terms; q < 0.05; Figure 5c). In the CC category, the most enriched GO terms were involved in the cytoplasm, plasma membrane, extracellular region, and other components; in the MF category, DEmRNAs were significantly enriched in “cytoskeletal protein binding”, “cell adhesion molecule binding”, “ECM structural constituent”, “ion binding”, “catalytic activity”, and “molecular function regulator”; and in the BP category, “cell adhesion”, “organic acid metabolism”, “lipid metabolism”, and “collagen metabolism” were the most significant GO terms. KEGG analysis revealed that DEmRNAs were engaged in 262 pathways, such as tyrosine metabolism and complement and coagulation cascades. However, no significantly enriched pathways were found, since dispersed pathways were involved.

4. Discussion

In end-stage conditions, decompensated hepatocirrhosis and HCC are the main causes of death in patients with hepatic fibrosis [58,59]. However, the relevant mechanisms remain unelucidated. The activation and proliferation of HSCs is a dominant event in hepatic fibrosis [2,60]; therefore, studies specific to HSCs are needed to elucidate the underlying critical events in the progression of this disease. Endogenous miRNAs, originally considered “junk” substances, have fundamental effects on the regulation of physiological and pathological processes, and have a strong predictive value for the assessment and diagnosis of numerous diseases [61,62,63]. Unlike animal models of cirrhosis, our study used clinical samples to determine the miRNA expression profile in human primary HSCs using NGS technology. High-throughput sequencing of miRNAs enabled us to identify previously overlooked miRNAs involved in hepatic fibrosis.
To a certain extent, HSCs appear to be “activated” spontaneously after in vitro culture and develop a fibroblastic morphology, which has much in common with the response of HSCs in the occurrence of hepatic fibrosis caused by chronic liver damage [30,31,64]. Moreover, the gene expression pattern of HSCs could be altered after a short period of culture. Comparative analysis of human primary HSCs before and after activation was an attempt to simulate the disease process, thereby minimizing the variability of experimental results due to differences in the etiology, disease stage, or collection procedure of samples. Meanwhile, a matched-pair analysis avoided the impacts of individual differences and provided reliable data for the purpose of accurately identifying changes in diseases.
In this study, the 230 selected DEmiRNAs included four novel miRNAs; however, their properties are unclear. The purpose of this study was to identify the unknown characteristics and functions of known miRNAs. In addition to KEGG analysis and the protein–protein interaction network, comparison of FC values used to measure gene expression was a convenient method to explore candidate biomarkers. After in vitro activation of HSCs, several miRNAs were significantly upregulated or downregulated, suggesting that they may promote or interfere with HSC activation, thus influencing fibrogenesis. Thereafter, we highlighted a subset of these miRNAs.
Related studies have implicated miR-758-3p, miR-381-3p, miR-31-5p, miR-493-5p, miR-1268a, and miR-127-5p in HCC. Overexpression of these miRNAs suppressed the proliferation and invasion of HCC cells by targeting the corresponding genes [45,46,47,48,49,50,55]. Using network analysis, Tang et al. [52] found that miR-381-3p may be a core regulatory molecule in HCC, and Lu et al. [54] reported that a low expression of miR-1268a is an independent risk factor for HCC prognosis. MiR-548 family members are associated with impaired interferon signaling in chronic HBV infection [57]. MiR-409-3p was upregulated in mice with non-alcoholic fatty liver disease (NAFLD), and might be a key regulator of NAFLD progression as well as a non-invasive diagnostic indicator of NAFLD severity and progression [51].
Although these eight miRNAs have been previously described in the study of various liver diseases, they are not known to be involved in hepatic fibrosis; therefore, we selected them for subsequent qRT-PCR verification. PCR results suggested that following HSC activation, the differential expression of six liver disease-related miRNAs, including miR-409-3p, miR-31-5p, miR-1268a, miR-758-3p, miR-493-5p, and miR-381-3p, was consistent with the transcriptome analysis. Therefore, these miRNAs might also have certain effects on hepatic fibrosis. Yang et al. [56] found that a high fructose intake reduced the expression of miR-375-3p, activated the TGF-β/Smad signaling pathway, and induced epithelial-mesenchymal transition and liver fibrosis. Similarly, our findings showed that miR-375-3p was downregulated when HSCs were activated.
Our study focused on HSCs cultured in vitro, and lacked comparison between normal and cirrhotic livers. We considered published data in order to fill this gap. Koduru et al. [37] reported significant differences in the expression of 87 miRNAs in cirrhotic liver tissues compared with normal tissues, of which 15 miRNAs also appeared in our list of DEmiRNAs. After integrating the two gene expression profile datasets, we found that it was more reliable to use commonly altered miRNAs as candidate biomarkers for the diagnosis of hepatic fibrosis. The expression patterns of miR-101-3p, miR-192-5p, and miR-24-3p were contradictory in the two datasets, which could be attributed to inaccurate sequencing or differences between HSC activation in cirrhotic liver tissues, both in vivo and in vitro. Furthermore, miR-101-3p was downregulated in the human HSC line LX-2, and its overexpression could inhibit the proliferation and migration of LX-2 cells [65], supporting the findings of our study.
In contrast to siRNAs, miRNAs, as endogenous transcriptional fragments, target mRNAs and influence the expression of coding genes [66]. The prediction and enrichment analyses of target genes could be of considerable significance for studying the function of miRNAs that have not yet been implicated in fibrosis, and the description of the co-expression regulatory network could also provide additional information. In general, “|Pearson’s correlation coefficient| > 0.7” is considered a strong correlation between variables, and the reliability of target genes is high under such conditions. Collectively, 138 DEmiRNAs were potentially bound to 1193 DE genes, which were involved in different types of collagen (COL4A1, COL4A2, COL13A1, COL14A1, COL16A1, and COL26A1), lysyl oxidase-like 2 (LOXL2) [67], platelet-derived growth factor receptor β (PDGFRβ) [68], and other fibrosis-related genes. They participated in biological processes, such as collagen metabolism, ECM structural composition, cytoskeleton protein binding, and cell adhesion, suggesting that these DEmiRNAs are associated with critical paths of fibrosis. In addition, retinoid X receptor α (RXRα) is an important nuclear receptor that plays a key regulatory role in liver fibrosis [69,70]. From the miRNA–mRNA interaction network, miR-654-5p was predicted to target RXRα, which has not been reported before. We also found that miR-654-5p was significantly upregulated, while RXRα expression was downregulated in activated HSCs (from mRNA-seq data). On the basis of the above results, our team elucidated that miR-654-5p aggravated liver fibrosis by blocking RXRα [71]. Among the numerous miRNAs, miR-665 and miR-1268a had the highest regulatory associations, and might be promising markers for hepatic fibrosis. Coincidentally, a recent study showed that the high expression of miR-665 contributed to larger tumor volume and more severe vascular invasion and pathological grade in patients with HCC [72].
During fibrosis, the expression of miRNAs can be upregulated or downregulated. Upregulated miRNAs could be reversed by miRNA-masking antisense oligonucleotide technology, whereas downregulated expression could be restored by transfection of miRNA mimics, plasmids, or viral vectors [73,74]. In our study, transfection with miRNA mimics or inhibitors was used to artificially interfere with the role of miRNAs, and the effects of miR-1268a and miR-665 on hepatic fibrosis were preliminarily analyzed. In LX-2 cells, miR-1268a silencing or miR-665 overexpression elevated COL1A1 mRNA levels.
Overall, we gained a deeper insight into miRNA regulation in hepatic fibrosis, but some limitations exist in this study. First, previous assumptions were based on animal experiments or cell lines, with no or limited evidence from human studies. Because human tissues are difficult to obtain, the number of samples included was small, and the comparison between normal and cirrhotic livers was lacking. Second, using transcriptome analysis, we preliminarily identified some miRNAs that might have important effects on HSC activation; however, their specific functions and pathways need to be explored.

5. Conclusions

This study presents the expression information of miRNAs during the activation of human HSCs and potential miRNA–mRNA co-expression networks using NGS. Our findings provide a clear direction for the study of the specific mechanism of miRNAs in liver fibrosis, which could yield novel potential diagnostic biomarkers or therapies for patients with liver fibrosis or cirrhosis.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/genes13122201/s1, Figure S1: The characteristics of activated HSCs. (a) Cell morphology of HSCs cultured in vitro for 14 days as shown in a light microscopic field (original magnification: 100×). (b) Expression levels of liver fibrosis-related genes in four pairs of HSCs used for miRNA-seq. The results are derived from mRNA-seq data obtained by our team (Transcript Profiling: PRJNA762498); Figure S2: Effects of miR-1268a and miR-665 on the expression of COL1A1. Expression of COL1A1 mRNA after transfection of (a) miR-1268a inhibitor and (b) miR-665 mimic. negative control, NC.; Table S1: Primer sequences of miRNAs for qRT-PCR; Table S2: Basic characteristics of patients in miRNA-seq; Table S3: Purity and integrity of RNAs for miRNA-seq; Table S4: Quality assessment of small RNA sequencing data; Table S5: The list of 230 DEmiRNAs; Table S6: The list of target DEmRNAs; Table S7: Sequences of RNAs for transfection and primer sequences of miRNAs for qRT-PCR.

Author Contributions

Conceptualization, G.L. and J.N.; formal analysis, R.W. and H.X.; investigation, X.L., H.M. and H.W.; resources, S.L., G.W. and G.L.; data curation, X.L.; writing—original draft preparation, X.L.; project administration, J.N. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China, grant numbers 81970519 and 81700534; the Program for JLU Science and Technology Innovative Research Team, grant number 2017TD-08; and the Fundamental Research Funds for the Central Universities.

Institutional Review Board Statement

The study was approved by the Ethics Committee of the First Hospital of Jilin University (approval number 2018-408).

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study.

Data Availability Statement

The datasets generated and/or analyzed during the current study will not be publicly available for four years (SRA number: PRJNA753987) due to our intention to conduct further research, but are available from the corresponding author upon reasonable request.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

References

  1. Bataller, R.; Brenner, D.A. Liver fibrosis. J. Clin. Investig. 2005, 115, 209–218. [Google Scholar] [CrossRef] [PubMed]
  2. Tsuchida, T.; Friedman, S.L. Mechanisms of hepatic stellate cell activation. Nat. Rev. Gastroenterol. Hepatol. 2017, 14, 397–411. [Google Scholar] [CrossRef] [PubMed]
  3. Zhang, C.Y.; Yuan, W.G.; He, P.; Lei, J.H.; Wang, C.X. Liver fibrosis and hepatic stellate cells: Etiology, pathological hallmarks and therapeutic targets. World J. Gastroenterol. 2016, 22, 10512–10522. [Google Scholar] [CrossRef] [PubMed]
  4. Moon, A.M.; Singal, A.G.; Tapper, E.B. Contemporary epidemiology of chronic liver disease and cirrhosis. Clin. Gastroenterol. Hepatol. 2020, 18, 2650–2666. [Google Scholar] [CrossRef] [PubMed]
  5. Kitano, M.; Bloomston, P.M. Hepatic stellate cells and microRNAs in pathogenesis of liver fibrosis. J. Clin. Med. 2016, 5, 38. [Google Scholar] [CrossRef]
  6. He, Y.; Huang, C.; Zhang, S.P.; Sun, X.; Long, X.R.; Li, J. The potential of microRNAs in liver fibrosis. Cell Signal. 2012, 24, 2268–2272. [Google Scholar] [CrossRef]
  7. Guil, S.; Esteller, M. RNA-RNA interactions in gene regulation: The coding and noncoding players. Trends Biochem. Sci. 2015, 40, 248–256. [Google Scholar] [CrossRef]
  8. Fan, H.X.; Tang, H. Complex interactions between microRNAs and hepatitis B/C viruses. World J. Gastroenterol. 2014, 20, 13477–13492. [Google Scholar] [CrossRef]
  9. Ebert, M.S.; Sharp, P.A. Roles for microRNAs in conferring robustness to biological processes. Cell 2012, 149, 515–524. [Google Scholar] [CrossRef] [Green Version]
  10. Bartel, D.P. MicroRNAs: Target recognition and regulatory functions. Cell 2009, 136, 215–233. [Google Scholar] [CrossRef]
  11. Carthew, R.W.; Sontheimer, E.J. Origins and mechanisms of miRNAs and siRNAs. Cell 2009, 136, 642–655. [Google Scholar] [CrossRef] [Green Version]
  12. Rupaimoole, R.; Slack, F.J. MicroRNA therapeutics: Towards a new era for the management of cancer and other diseases. Nat. Rev. Drug Discov. 2017, 16, 203–222. [Google Scholar] [CrossRef]
  13. Barwari, T.; Joshi, A.; Mayr, M. MicroRNAs in cardiovascular disease. J. Am. Coll. Cardiol. 2016, 68, 2577–2584. [Google Scholar] [CrossRef] [Green Version]
  14. Saraiva, C.; Esteves, M.; Bernardino, L. MicroRNA: Basic concepts and implications for regeneration and repair of neurodegenerative diseases. Biochem. Pharmacol. 2017, 141, 118–131. [Google Scholar] [CrossRef]
  15. Haneklaus, M.; Gerlic, M.; O’Neill, L.A.; Masters, S.L. MiR-223: Infection, inflammation and cancer. J. Intern. Med. 2013, 274, 215–226. [Google Scholar] [CrossRef]
  16. Zhou, W.C.; Zhang, Q.B.; Qiao, L. Pathogenesis of liver cirrhosis. World J. Gastroenterol. 2014, 20, 7312–7324. [Google Scholar] [CrossRef]
  17. Hyun, J.; Jung, Y. MicroRNAs in liver fibrosis: Focusing on the interaction with hedgehog signaling. World J. Gastroenterol. 2016, 22, 6652–6662. [Google Scholar] [CrossRef]
  18. Zhao, Z.; Lin, C.Y.; Cheng, K. SiRNA- and miRNA-based therapeutics for liver fibrosis. Transl. Res. 2019, 214, 17–29. [Google Scholar] [CrossRef]
  19. Murakami, Y.; Toyoda, H.; Tanaka, M.; Kuroda, M.; Harada, Y.; Matsuda, F.; Tajima, A.; Kosaka, N.; Ochiya, T.; Shimotohno, K. The progression of liver fibrosis is related with overexpression of the miR-199 and 200 families. PLoS ONE. 2011, 6, e16081. [Google Scholar] [CrossRef]
  20. Venugopal, S.K.; Jiang, J.; Kim, T.H.; Li, Y.; Wang, S.S.; Torok, N.J.; Wu, J.; Zern, M.A. Liver fibrosis causes downregulation of miRNA-150 and miRNA-194 in hepatic stellate cells, and their overexpression causes decreased stellate cell activation. Am. J. Physiol. Gastrointest. Liver Physiol. 2010, 298, G101–G106. [Google Scholar] [CrossRef]
  21. Sakai, M.; Spee, B.; Grinwis, G.C.M.; Penning, L.C.; van Wolferen, M.E.; van der Laan, L.J.W.; Fieten, H. Association of circulating microRNA-122 and microRNA-29a with stage of fibrosis and progression of chronic hepatitis in labrador retrievers. J. Vet. Intern. Med. 2019, 33, 151–157. [Google Scholar] [CrossRef] [PubMed]
  22. Liu, G.; Friggeri, A.; Yang, Y.; Milosevic, J.; Ding, Q.; Thannickal, V.J.; Kaminski, N.; Abraham, E. MiR-21 mediates fibrogenic activation of pulmonary fibroblasts and lung fibrosis. J. Exp. Med. 2010, 207, 1589–1597. [Google Scholar] [CrossRef] [PubMed]
  23. Chau, B.N.; Xin, C.; Hartner, J.; Ren, S.; Castano, A.P.; Linn, G.; Li, J.; Tran, P.T.; Kaimal, V.; Huang, X.; et al. MicroRNA-21 promotes fibrosis of the kidney by silencing metabolic pathways. Sci. Transl. Med. 2012, 4, 121ra18. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Thum, T.; Gross, C.; Fiedler, J.; Fischer, T.; Kissler, S.; Bussen, M.; Galuppo, P.; Just, S.; Rottbauer, W.; Frantz, S.; et al. MicroRNA-21 contributes to myocardial disease by stimulating MAP kinase signalling in fibroblasts. Nature 2008, 456, 980–984. [Google Scholar] [CrossRef] [PubMed]
  25. Caviglia, J.M.; Yan, J.; Jang, M.K.; Gwak, G.Y.; Affo, S.; Yu, L.; Olinga, P.; Friedman, R.A.; Chen, X.; Schwabe, R.F. MicroRNA-21 and dicer are dispensable for hepatic stellate cell activation and the development of liver fibrosis. Hepatology 2018, 67, 2414–2429. [Google Scholar] [CrossRef] [Green Version]
  26. Guo, C.J.; Pan, Q.; Li, D.G.; Sun, H.; Liu, B.W. MiR-15b and miR-16 are implicated in activation of the rat hepatic stellate cell: An essential role for apoptosis. J. Hepatol. 2009, 50, 766–778. [Google Scholar] [CrossRef]
  27. Lakner, A.M.; Steuerwald, N.M.; Walling, T.L.; Ghosh, S.; Li, T.; McKillop, I.H.; Russo, M.W.; Bonkovsky, H.L.; Schrum, L.W. Inhibitory effects of microRNA 19b in hepatic stellate cell-mediated fibrogenesis. Hepatology 2012, 56, 300–310. [Google Scholar] [CrossRef] [Green Version]
  28. Roderburg, C.; Urban, G.W.; Bettermann, K.; Vucur, M.; Zimmermann, H.; Schmidt, S.; Janssen, J.; Koppe, C.; Knolle, P.; Castoldi, M.; et al. Micro-RNA profiling reveals a role for miR-29 in human and murine liver fibrosis. Hepatology 2011, 53, 209–218. [Google Scholar] [CrossRef]
  29. Mutz, K.O.; Heilkenbrinker, A.; Lönne, M.; Walter, J.G.; Stahl, F. Transcriptome analysis using next-generation sequencing. Curr. Opin. Biotechnol. 2013, 24, 22–30. [Google Scholar] [CrossRef]
  30. Friedman, S.L.; Rockey, D.C.; McGuire, R.F.; Maher, J.J.; Boyles, J.K.; Yamasaki, G. Isolated hepatic lipocytes and Kupffer cells from normal human liver: Morphological and functional characteristics in primary culture. Hepatology 1992, 15, 234–243. [Google Scholar] [CrossRef] [PubMed]
  31. Xu, L.; Hui, A.Y.; Albanis, E.; Arthur, M.J.; O‘Byrne, S.M.; Blaner, W.S.; Mukherjee, P.; Friedman, S.L.; Eng, F.J. Human hepatic stellate cell lines, LX-1 and LX-2: New tools for analysis of hepatic fibrosis. Gut 2005, 54, 142–151. [Google Scholar] [CrossRef] [Green Version]
  32. Schreiber, R.; Taschler, U.; Wolinski, H.; Seper, A.; Tamegger, S.N.; Graf, M.; Kohlwein, S.D.; Haemmerle, G.; Zimmermann, R.; Zechner, R.; et al. Esterase 22 and β-glucuronidase hydrolyze retinoids in mouse liver. J. Lipid Res. 2009, 50, 2514–2523. [Google Scholar] [CrossRef] [Green Version]
  33. Langmead, B.; Trapnell, C.; Pop, M.; Salzberg, S.L. Ultrafast and memory-efficient alignment of short DNA sequences to the human genome. Genome Biol. 2009, 10, R25. [Google Scholar] [CrossRef] [Green Version]
  34. Wen, M.; Shen, Y.; Shi, S.; Tang, T. MiREvo: An integrative microRNA evolutionary analysis platform for next-generation sequencing experiments. BMC Bioinform. 2012, 13, 140. [Google Scholar] [CrossRef] [Green Version]
  35. Friedländer, M.R.; Mackowiak, S.D.; Li, N.; Chen, W.; Rajewsky, N. MiRDeep2 accurately identifies known and hundreds of novel microRNA genes in seven animal clades. Nucleic Acids Res. 2012, 40, 37–52. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Love, M.I.; Huber, W.; Anders, S. Moderated estimation of fold change and dispersion for RNA-seq data with DESeq2. Genome Biol. 2014, 15, 550. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  37. Koduru, S.V.; Leberfinger, A.N.; Kawasawa, Y.I.; Mahajan, M.; Gusani, N.J.; Sanyal, A.J.; Ravnic, D.J. Non-coding RNAs in various stages of liver disease leading to hepatocellular carcinoma: Differential expression of miRNAs, piRNAs, lncRNAs, circRNAs, and sno/mt-RNAs. Sci. Rep. 2018, 8, 7967. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  38. Enright, A.J.; John, B.; Gaul, U.; Tuschl, T.; Sander, C.; Marks, D.S. MicroRNA targets in drosophila. Genome Biol. 2003, 5, R1. [Google Scholar] [CrossRef] [Green Version]
  39. Kertesz, M.; Iovino, N.; Unnerstall, U.; Gaul, U.; Segal, E. The role of site accessibility in microRNA target recognition. Nat. Genet. 2007, 39, 1278–1284. [Google Scholar] [CrossRef]
  40. Krüger, J.; Rehmsmeier, M. RNAhybrid: MicroRNA target prediction easy, fast and flexible. Nucleic Acids Res. 2006, 34, W451–W454. [Google Scholar] [CrossRef]
  41. Shannon, P.; Markiel, A.; Ozier, O.; Baliga, N.S.; Wang, J.T.; Ramage, D.; Amin, N.; Schwikowski, B.; Ideker, T. Cytoscape: A software environment for integrated models of biomolecular interaction networks. Genome Res. 2003, 13, 2498–2504. [Google Scholar] [CrossRef]
  42. Young, M.D.; Wakefield, M.J.; Smyth, G.K.; Oshlack, A. Gene ontology analysis for RNA-seq: Accounting for selection bias. Genome Biol. 2010, 11, R14. [Google Scholar] [CrossRef] [Green Version]
  43. Mao, X.; Cai, T.; Olyarchuk, J.G.; Wei, L. Automated genome annotation and pathway identification using the KEGG Orthology (KO) as a controlled vocabulary. Bioinformatics 2005, 21, 3787–3793. [Google Scholar] [CrossRef]
  44. Haynes, W. Benjamini-Hochberg method. In Encyclopedia of Systems Biology; Springer: New York, NY, USA, 2013. [Google Scholar] [CrossRef]
  45. Jiang, D.; Cho, W.C.; Li, Z.; Xu, X.; Qu, Y.; Jiang, Z.; Guo, L.; Xu, G. MiR-758-3p suppresses proliferation, migration and invasion of hepatocellular carcinoma cells via targeting MDM2 and mTOR. Biomed. Pharmacother. 2017, 96, 535–544. [Google Scholar] [CrossRef]
  46. Gailhouste, L.; Liew, L.C.; Yasukawa, K.; Hatada, I.; Tanaka, Y.; Kato, T.; Nakagama, H.; Ochiya, T. MEG3-derived miR-493-5p overcomes the oncogenic feature of IGF2-miR-483 loss of imprinting in hepatic cancer cells. Cell Death Dis. 2019, 10, 553. [Google Scholar] [CrossRef] [Green Version]
  47. Wang, G.; Fang, X.; Han, M.; Wang, X.; Huang, Q. MicroRNA-493-5p promotes apoptosis and suppresses proliferation and invasion in liver cancer cells by targeting VAMP2. Int. J. Mol. Med. 2018, 41, 1740–1748. [Google Scholar] [CrossRef] [Green Version]
  48. Zhao, J.; Xu, T.; Wang, F.; Cai, W.; Chen, L. MiR-493-5p suppresses hepatocellular carcinoma cell proliferation through targeting GP73. Biomed. Pharmacother. 2017, 90, 744–751. [Google Scholar] [CrossRef]
  49. Tang, W.; Lv, B.; Yang, B.; Chen, Y.; Yuan, F.; Ma, L.; Chen, S.; Zhang, S.; Xia, J. TREM2 acts as a tumor suppressor in hepatocellular carcinoma by targeting the PI3K/Akt/β-catenin pathway. Oncogenesis 2019, 8, 9. [Google Scholar] [CrossRef] [Green Version]
  50. Zhao, G.; Han, C.; Zhang, Z.; Wang, L.; Xu, J. Increased expression of microRNA-31-5p inhibits cell proliferation, migration, and invasion via regulating Sp1 transcription factor in HepG2 hepatocellular carcinoma cell line. Biochem. Biophys. Res. Commun. 2017, 490, 371–377. [Google Scholar] [CrossRef]
  51. Tryndyak, V.P.; Marrone, A.K.; Latendresse, J.R.; Muskhelishvili, L.; Beland, F.A.; Pogribny, I.P. MicroRNA changes, activation of progenitor cells and severity of liver injury in mice induced by choline and folate deficiency. J. Nutr. Biochem. 2016, 28, 83–90. [Google Scholar] [CrossRef]
  52. Tang, Q.; Wang, Q.; Zhang, Q.; Lin, S.Y.; Zhu, Y.; Yang, X.; Guo, A.Y. Gene expression, regulation of DEN and HBx induced HCC mice models and comparisons of tumor, para-tumor and normal tissues. BMC Cancer 2017, 17, 862. [Google Scholar] [CrossRef] [Green Version]
  53. Liu, Z.; Ma, C.; Tang, X.; Tang, Q.; Lou, L.; Yu, Y.; Zheng, F.; Wu, J.; Yang, X.B.; Wang, W.; et al. The reciprocal interaction between lncRNA CCAT1 and miR-375-3p contribute to the downregulation of IRF5 gene expression by solasonine in HepG2 human hepatocellular carcinoma cells. Front. Oncol. 2019, 9, 1081. [Google Scholar] [CrossRef] [Green Version]
  54. Lu, Y.L.; Yao, J.G.; Huang, X.Y.; Wang, C.; Wu, X.M.; Xia, Q.; Long, X.D. Prognostic significance of miR-1268a expression and its beneficial effects for post-operative adjuvant transarterial chemoembolization in hepatocellular carcinoma. Sci. Rep. 2016, 6, 36104. [Google Scholar] [CrossRef] [Green Version]
  55. Huan, L.; Bao, C.; Chen, D.; Li, Y.; Lian, J.; Ding, J.; Huang, S.; Liang, L.; He, X. MicroRNA-127-5p targets the biliverdin reductase B/nuclear factor-kappaB pathway to suppress cell growth in hepatocellular carcinoma cells. Cancer Sci. 2016, 107, 258–266. [Google Scholar] [CrossRef] [Green Version]
  56. Yang, Y.Z.; Zhao, X.J.; Xu, H.J.; Wang, S.C.; Pan, Y.; Wang, S.J.; Xu, Q.; Jiao, R.Q.; Gu, H.M.; Kong, L.D. Magnesium isoglycyrrhizinate ameliorates high fructose-induced liver fibrosis in rat by increasing miR-375-3p to suppress JAK2/STAT3 pathway and TGF-beta1/Smad signaling. Acta Pharmacol. Sin. 2019, 40, 879–894. [Google Scholar] [CrossRef]
  57. Xing, T.; Xu, H.; Yu, W.; Wang, B.; Zhang, J. Expression profile and clinical significance of miRNAs at different stages of chronic hepatitis B virus infection. Int. J. Clin. Exp. Med. 2015, 8, 5611–5620. [Google Scholar]
  58. Villanueva, A. Hepatocellular carcinoma. N. Engl. J. Med. 2019, 380, 1450–1462. [Google Scholar] [CrossRef] [Green Version]
  59. Asrani, S.K.; Devarbhavi, H.; Eaton, J.; Kamath, P.S. Burden of liver diseases in the world. J. Hepatol. 2019, 70, 151–171. [Google Scholar] [CrossRef]
  60. Li, J.T.; Liao, Z.X.; Ping, J.; Xu, D.; Wang, H. Molecular mechanism of hepatic stellate cell activation and antifibrotic therapeutic strategies. J. Gastroenterol. 2008, 43, 419–428. [Google Scholar] [CrossRef]
  61. Farid, W.R.; Verhoeven, C.J.; de Jonge, J.; Metselaar, H.J.; Kazemier, G.; van der Laan, L.J. The ins and outs of microRNAs as biomarkers in liver disease and transplantation. Transpl. Int. 2014, 27, 1222–1232. [Google Scholar] [CrossRef]
  62. Vicentini, C.; Galuppini, F.; Corbo, V.; Fassan, M. Current role of non-coding RNAs in the clinical setting. Noncoding RNA Res. 2019, 4, 82–85. [Google Scholar] [CrossRef] [PubMed]
  63. Liu, N.; Wang, Z.Z.; Zhao, M.; Zhang, Y.; Chen, N.H. Role of non-coding RNA in the pathogenesis of depression. Gene 2020, 735, 144276. [Google Scholar] [CrossRef] [PubMed]
  64. De Minicis, S.; Seki, E.; Uchinami, H.; Kluwe, J.; Zhang, Y.; Brenner, D.A.; Schwabe, R.F. Gene expression profiles during hepatic stellate cell activation in culture and in vivo. Gastroenterology 2007, 132, 1937–1946. [Google Scholar] [CrossRef]
  65. Meroni, M.; Longo, M.; Erconi, V.; Valenti, L.; Gatti, S.; Fracanzani, A.L.; Dongiovanni, P. MiR-101-3p downregulation promotes fibrogenesis by facilitating hepatic stellate cell transdifferentiation during insulin resistance. Nutrients 2019, 11, 2597. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  66. Yamamura, S.; Imai-Sumida, M.; Tanaka, Y.; Dahiya, R. Interaction and cross-talk between non-coding RNAs. Cell. Mol. Life Sci. 2018, 75, 467–484. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  67. Puente, A.; Fortea, J.I.; Cabezas, J.; Arias Loste, M.T.; Iruzubieta, P.; Llerena, S.; Huelin, P.; Fábrega, E.; Crespo, J. LOXL2-a new target in antifibrogenic therapy? Int. J. Mol. Sci. 2019, 20, 1634. [Google Scholar] [CrossRef] [Green Version]
  68. Wang, X.; Gao, Y.; Li, Y.; Huang, Y.; Zhu, Y.; Lv, W.; Wang, R.; Gou, L.; Cheng, C.; Feng, Z.; et al. Roseotoxin B alleviates cholestatic liver fibrosis through inhibiting PDGF-B/PDGFR-β pathway in hepatic stellate cells. Cell Death Dis. 2020, 11, 458. [Google Scholar] [CrossRef]
  69. He, L.; Yuan, H.; Liang, J.; Hong, J.; Qu, C. Expression of hepatic stellate cell activation-related genes in HBV-, HCV-, and nonalcoholic fatty liver disease-associated fibrosis. PLoS ONE. 2020, 15, e0233702. [Google Scholar] [CrossRef]
  70. Wang, Z.; Xu, J.; Zheng, Y.; Chen, W.; Sun, Y.; Wu, Z.; Luo, M. Effect of the regulation of retinoid X receptor-α gene expression on rat hepatic fibrosis. Hepatol. Res. 2011, 41, 475–483. [Google Scholar] [CrossRef]
  71. Ma, H.; Wang, X.; Liu, X.; Wang, C.; Gao, X.; Niu, J. MiR-654-5p contributes to the activation and proliferation of hepatic stellate cells by targeting RXRα. Front. Cell Dev. Biol. 2022, 10, 841248. [Google Scholar] [CrossRef]
  72. Hu, Y.; Yang, C.; Yang, S.; Cheng, F.; Rao, J.; Wang, X. MiR-665 promotes hepatocellular carcinoma cell migration, invasion, and proliferation by decreasing Hippo signaling through targeting PTPRB. Cell Death Dis. 2018, 9, 954. [Google Scholar] [CrossRef] [Green Version]
  73. Cheng, K.; Mahato, R.I. Biological and therapeutic applications of small RNAs. Pharm. Res. 2011, 28, 2961–2965. [Google Scholar] [CrossRef] [Green Version]
  74. Czech, M.P. MicroRNAs as therapeutic targets. N. Engl. J. Med. 2006, 354, 1194–1195. [Google Scholar] [CrossRef]
Genes 13 02201 g001 550
Figure 1. Isolation procedure of human primary HSCs from liver tissue specimens. (a) Perfusion catheters were inserted into the larger blood vessels, and the section of liver tissue was closed. (b) Liver tissue was digested by recirculating perfusion for 15–25 min using collagenase type IV. (c) The digested liver tissue was shredded with tweezers to prepare the cell suspension. (d) Hepatocytes were removed by centrifugation (50× g, 5 min, 4 °C, 3 times), and HSCs were isolated by density gradient centrifugation (1400× g, 20 min, 4 °C). Hepatic stellate cells, HSCs; Kupffer cells, KCs; liver sinusoidal endothelial cells, LSECs.
Figure 1. Isolation procedure of human primary HSCs from liver tissue specimens. (a) Perfusion catheters were inserted into the larger blood vessels, and the section of liver tissue was closed. (b) Liver tissue was digested by recirculating perfusion for 15–25 min using collagenase type IV. (c) The digested liver tissue was shredded with tweezers to prepare the cell suspension. (d) Hepatocytes were removed by centrifugation (50× g, 5 min, 4 °C, 3 times), and HSCs were isolated by density gradient centrifugation (1400× g, 20 min, 4 °C). Hepatic stellate cells, HSCs; Kupffer cells, KCs; liver sinusoidal endothelial cells, LSECs.
Genes 13 02201 g001
Genes 13 02201 g002 550
Figure 2. Identification of HSCs isolated from human liver tissues. (a) Autofluorescence of cytoplasmic vitamin A in freshly isolated HSCs. (b) Immunofluorescence staining of culture-activated HSCs and LX-2 cells for α-SMA (magnification: 400×; in (a,b)). α-smooth muscle actin, α-SMA; hepatic stellate cells, HSCs.
Figure 2. Identification of HSCs isolated from human liver tissues. (a) Autofluorescence of cytoplasmic vitamin A in freshly isolated HSCs. (b) Immunofluorescence staining of culture-activated HSCs and LX-2 cells for α-SMA (magnification: 400×; in (a,b)). α-smooth muscle actin, α-SMA; hepatic stellate cells, HSCs.
Genes 13 02201 g002
Genes 13 02201 g003 550
Figure 3. Evaluation of sequencing data and identification of candidate DEmiRNAs. (a) The number of miRNA matures and precursors from sequencing. (b) Pearson correlation heat-map of miRNA expression in different samples. R2—The square of Pearson’s correlation coefficients. (c) PCA plot between groups. Each point represents one sample. The red square represents a sample from Group_Act and the blue circle represents a sample from Group_Fre. (d) Volcano plot of miRNAs differentially expressed between Group_Fre and Group_Act. Each point represents one detectable miRNA. (e) Cluster of 230 DEmiRNAs between groups. Log10 (TPM + 1) values were used for clustering. (f) A Venn diagram of miRNA-seq data for HSCs and liver tissues. Four novel miRNAs in our data were not considered. Differentially expressed microRNAs, DEmiRNAs; principal component analysis, PCA; hepatic stellate cells, HSCs; microRNA sequencing, miRNA-seq; versus, VS.
Figure 3. Evaluation of sequencing data and identification of candidate DEmiRNAs. (a) The number of miRNA matures and precursors from sequencing. (b) Pearson correlation heat-map of miRNA expression in different samples. R2—The square of Pearson’s correlation coefficients. (c) PCA plot between groups. Each point represents one sample. The red square represents a sample from Group_Act and the blue circle represents a sample from Group_Fre. (d) Volcano plot of miRNAs differentially expressed between Group_Fre and Group_Act. Each point represents one detectable miRNA. (e) Cluster of 230 DEmiRNAs between groups. Log10 (TPM + 1) values were used for clustering. (f) A Venn diagram of miRNA-seq data for HSCs and liver tissues. Four novel miRNAs in our data were not considered. Differentially expressed microRNAs, DEmiRNAs; principal component analysis, PCA; hepatic stellate cells, HSCs; microRNA sequencing, miRNA-seq; versus, VS.
Genes 13 02201 g003
Genes 13 02201 g004 550

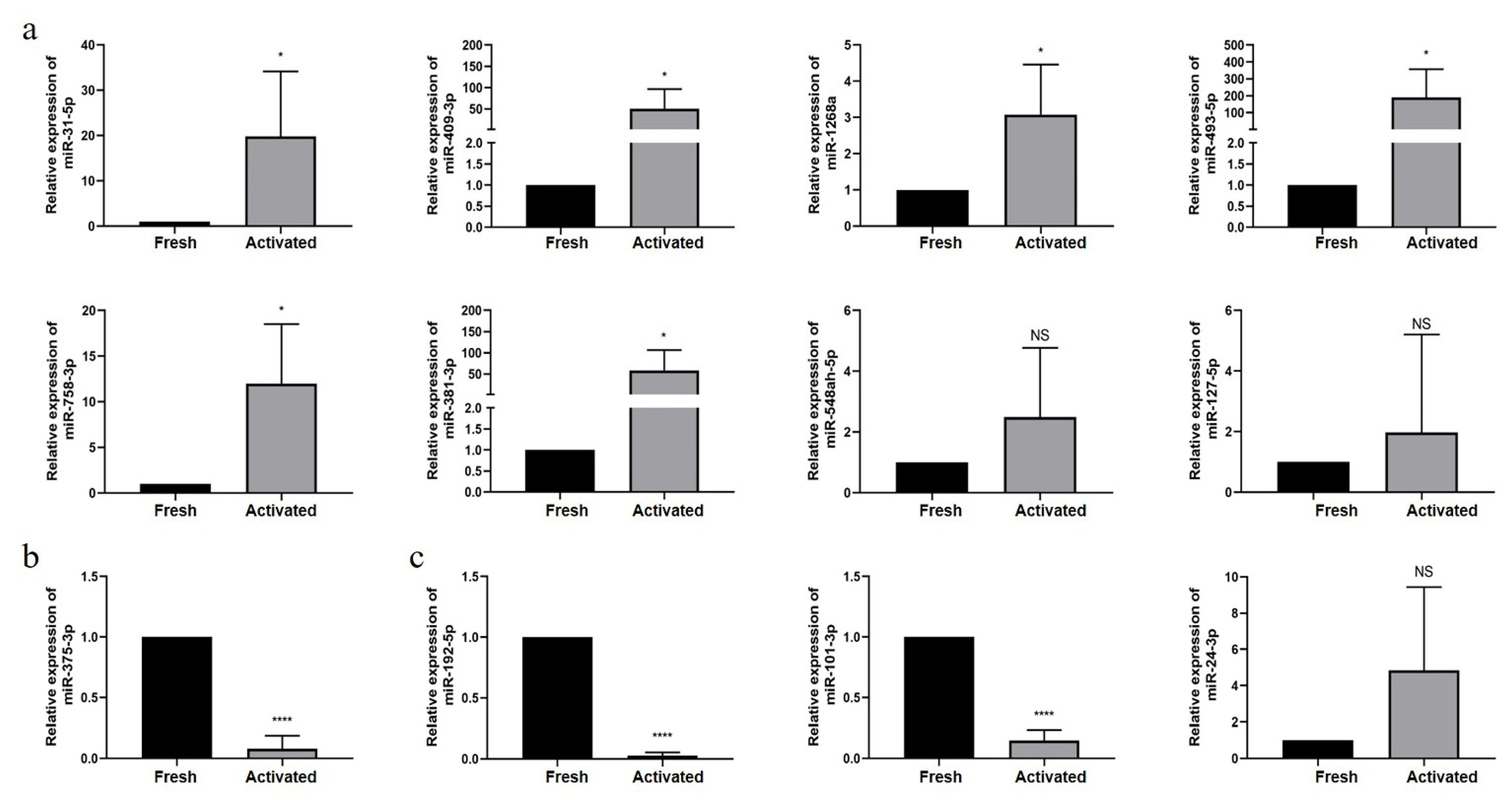

Figure 4. QRT-PCR validation of the expression of miRNAs. QRT-PCR validation of the expression of (a) miRNAs associated with liver diseases, (b) miR-375-3p, the miRNA associated with cirrhosis, and (c) miRNAs with contradictory expression. * p < 0.05, **** p < 0.0001, and NS, p ≥ 0.05 versus freshly isolated HSCs.
Figure 4. QRT-PCR validation of the expression of miRNAs. QRT-PCR validation of the expression of (a) miRNAs associated with liver diseases, (b) miR-375-3p, the miRNA associated with cirrhosis, and (c) miRNAs with contradictory expression. * p < 0.05, **** p < 0.0001, and NS, p ≥ 0.05 versus freshly isolated HSCs.
Genes 13 02201 g004
Genes 13 02201 g005 550
Figure 5. Construction of the co-expression networks for miRNAs–mRNAs and functional analysis of targeted genes. Construction of co-expression networks for (a) DEmiRNAs–mRNAs and (b) DEmiRNAs–DEmRNAs. Data with |Pearson’s correlation coefficient| ≥ 0.7 and p < 0.05 are shown in the networks. Red, green, and blue dots represent significantly upregulated miRNAs, significantly downregulated miRNAs, and targeted mRNAs, respectively. The pink and green lines represent positive and negative correlations, respectively. (c) Top 30 GO terms in the GO enrichment analysis of targeted DEmRNAs. Green, orange, and purple represent BP, CC, and MF, respectively. MicroRNA, miRNA; differentially expressed, DE; biological process, BP; cellular component, CC; molecular function, MF.
Figure 5. Construction of the co-expression networks for miRNAs–mRNAs and functional analysis of targeted genes. Construction of co-expression networks for (a) DEmiRNAs–mRNAs and (b) DEmiRNAs–DEmRNAs. Data with |Pearson’s correlation coefficient| ≥ 0.7 and p < 0.05 are shown in the networks. Red, green, and blue dots represent significantly upregulated miRNAs, significantly downregulated miRNAs, and targeted mRNAs, respectively. The pink and green lines represent positive and negative correlations, respectively. (c) Top 30 GO terms in the GO enrichment analysis of targeted DEmRNAs. Green, orange, and purple represent BP, CC, and MF, respectively. MicroRNA, miRNA; differentially expressed, DE; biological process, BP; cellular component, CC; molecular function, MF.
Genes 13 02201 g005
Table
Table 1. DEmiRNAs in culture-activated HSCs versus freshly isolated HSCs (|log2fold change| > 5 and q < 0.05).
Table 1. DEmiRNAs in culture-activated HSCs versus freshly isolated HSCs (|log2fold change| > 5 and q < 0.05).
MiRNAsLog2fold ChangepqAssociated with Liver Disease or not (from Pubmed)
miR-758-3p6.741.22 × 10161.89 × 1014HCC
miR-493-5p6.431.88 × 10197.28 × 1017HCC
miR-31-3p6.257.30 × 10125.66 × 1010-
miR-376a-3p5.589.45 × 1092.71 × 107-
miR-12935.503.65 × 1076.02 × 106-
miR-654-5p5.401.29 × 10173.34 × 1015-
miR-31-5p5.381.19 × 10161.89 × 1014HCC
miR-495-3p5.171.31 × 10131.46 × 1011-
miR-409-3p5.125.13 × 10146.63 × 1012NAFLD
miR-381-3p5.122.72 × 10101.40 × 108HCC
miR-1268a5.077.03 × 1081.60 × 106HCC
miR-127-5p5.043.70 × 1091.19 × 107HCC
miR-1295a−5.095.65 × 1066.02 × 105-
miR-375-3p−5.382.39 × 10201.85 × 1017Hepatic fibrosis and HCC
miR-1295b-3p−5.461.21 × 1072.60 × 106-
miR-548ah-5p−5.612.72 × 1074.91 × 106CHB
novel_365−6.477.35 × 10137.12 × 1011-
The literature retrieval included results published until the middle of 2020. MicroRNAs, miRNAs; non-alcoholic fatty liver disease, NAFLD; hepatocellular carcinoma, HCC; chronic hepatitis B, CHB.
Table
Table 2. Overlapping DEmiRNAs with concordant expression between HSCs’ miRNA-seq data and liver tissues’ miRNA-seq data.
Table 2. Overlapping DEmiRNAs with concordant expression between HSCs’ miRNA-seq data and liver tissues’ miRNA-seq data.
MiRNAsHSCs’ miRNA-Seq DataLiver Tissues’ MiRNA-seq Data *
Fold Changeq ValueFold Changeq Value
let-7g-5p−3.761.90 × 103−204.402.12 × 104
miR-107−5.942.20 × 103−2.621.55 × 102
miR-122-5p−18.514.12 × 106−312.731.58 × 108
miR-127-3p18.643.01 × 10817.153.85 × 104
miR-139-5p−9.326.02 × 105−14.074.82 × 103
miR-148a-3p−10.933.65 × 105−10.942.52 × 104
miR-194-5p−21.865.35 × 107−1.862.04 × 102
miR-215-5p−7.165.79 × 106−3.074.17 × 102
miR-26a-5p−4.201.60 × 103−3.795.34 × 103
miR-340-5p−6.115.10 × 105−4.049.41 × 103
miR-451a−4.862.22 × 102−62.963.56 × 104
miR-99a-5p−6.969.00 × 104−12.341.77 × 104
* Data were cited from a published study, DOI:10.1038/s41598-018-26360-1. MicroRNAs, miRNAs; hepatic stellate cells, HSCs.
Table
Table 3. The number of mRNAs targeted by miRNAs.
Table 3. The number of mRNAs targeted by miRNAs.
MiRNAsNumber of Target mRNAsNumber of Target DEmRNAs
miR-758-3p21
miR-493-5p31
miR-31-5p2313
miR-409-3p11
miR-381-3p32
miR-1268a12547
miR-375-3p00
Target mRNAs with |Pearson’s correlation coefficient| ≥ 0.7 and p < 0.05 were counted in the table. MicroRNAs, miRNAs; differentially expressed mRNAs, DEmRNAs.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Liu, X.; Ma, H.; Wu, R.; Wang, H.; Xu, H.; Li, S.; Wang, G.; Lv, G.; Niu, J. Identification of Liver Fibrosis-Related MicroRNAs in Human Primary Hepatic Stellate Cells Using High-Throughput Sequencing. Genes 2022, 13, 2201. https://doi.org/10.3390/genes13122201

AMA Style

Liu X, Ma H, Wu R, Wang H, Xu H, Li S, Wang G, Lv G, Niu J. Identification of Liver Fibrosis-Related MicroRNAs in Human Primary Hepatic Stellate Cells Using High-Throughput Sequencing. Genes. 2022; 13(12):2201. https://doi.org/10.3390/genes13122201

Chicago/Turabian Style

Liu, Xu, Heming Ma, Ruihong Wu, Huan Wang, Hongqin Xu, Shuxuan Li, Guangyi Wang, Guoyue Lv, and Junqi Niu. 2022. "Identification of Liver Fibrosis-Related MicroRNAs in Human Primary Hepatic Stellate Cells Using High-Throughput Sequencing" Genes 13, no. 12: 2201. https://doi.org/10.3390/genes13122201

APA Style

Liu, X., Ma, H., Wu, R., Wang, H., Xu, H., Li, S., Wang, G., Lv, G., & Niu, J. (2022). Identification of Liver Fibrosis-Related MicroRNAs in Human Primary Hepatic Stellate Cells Using High-Throughput Sequencing. Genes, 13(12), 2201. https://doi.org/10.3390/genes13122201

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
