Article

Identification of Imprinted Genes Based on Homology: An Example of Fragaria vesca

by
Yaping Liu
,
Xiaotong Jing
,
Hong Zhang
,
Jinsong Xiong
and
Yushan Qiao
*
Laboratory of Fruit Crop Biotechnology, College of Horticulture, Nanjing Agricultural University, No. 1 Weigang, Nanjing 210095, China
*
Author to whom correspondence should be addressed.
Genes 2021, 12(3), 380; https://doi.org/10.3390/genes12030380
Submission received: 21 January 2021 / Revised: 28 February 2021 / Accepted: 4 March 2021 / Published: 8 March 2021
(This article belongs to the Section Plant Genetics and Genomics)
Browse Figures
Versions Notes

Abstract

:
Genomic imprinting has drawn increasing attention in plant biology in recent years. At present, hundreds of imprinted genes have been identified in various plants, and some of them have been reported to be evolutionarily conserved in plant species. In this research, 17 candidate genes in Fragaria vesca were obtained based on the homologous imprinted genes in Arabidopsis thaliana and other species. We further constructed reciprocal crosses of diploid strawberry (F. vesca) using the varieties 10-41 and 18-86 as the parents to investigate the conservation of these imprinted genes. Potentially informative single nucleotide polymorphisms (SNPs) were used as molecular markers of two parents obtained from candidate imprinted genes which have been cloned and sequenced. Meanwhile, we analyzed the SNP site variation ratios and parent-of-origin expression patterns of candidate imprinted genes at 10 days after pollination (DAP) endosperm and embryo for the hybrids of reciprocal cross, respectively. A total of five maternally expressed genes (MEGs), i.e., FvARI8, FvKHDP-2, FvDRIP2, FvBRO1, and FvLTP3, were identified in the endosperm, which did not show imprinting in the embryo. Finally, tissues expression analysis indicated that the five imprinted genes excluding FvDRIP2 mainly expressed in the endosperm. This is the first report on imprinted genes of Fragaria, and we provide a simple and rapid method based on homologous conservation to screen imprinted genes. The present study will provide a basis for further study of function and mechanism of genomic imprinting in F. vesca.

1. Introduction

Genomic imprinting is a phenomenon in which paternal and maternal alleles are differentially expressed in the offspring depending on their parental origin [1]. Therefore, based on their parent-of-origin manner, imprinted genes are divided into two groups, maternally expressed genes (MEGs) and paternally expressed genes (PEGs). Until now, genomic imprinting has been identified in fungi, mammals, and flowering plants [2]. Gene imprinting in flowering plants occurs mainly in the endosperm, and only a few imprinted genes are described in the embryo [3,4,5,6,7]. The endosperm and embryo of flowering plants are both derived from a double fertilization event: the egg cell (1n) and central cell (2n) fuse with two sperm cells (1n) to form the diploid embryo (2n) and the triploid endosperm (3n), composed of two maternal and one paternal genome copy, respectively [8,9,10].
It has been demonstrated that genomic imprinting is an epigenetic modification process which includes DNA methylation and trimethylation of histone H3 lysine 27 (H3K27me3) [11], and many genes involved in this process are imprinted ones. For example, in A. thaliana, MEDEA (MEA), and FERTILIZATION-INDEPENDENT ENDOSPERM (FIE), the components of polycomb repressive complex 2 (PRC2) that mediate H3K27me3 were found maternally expressed during endosperm development [12,13,14,15,16]. Interestingly, studies on maize found that the homologs of MEA and FIE were also imprinted [17,18]. Moreover, in rice, OsFIE was also identified as an imprinted gene [19]. Besides the genes of PRC2, YUCCA10, VIM5, VIM1, and ARID-BRIGHT DNA binding domain from A. thaliana and their homologs in rice and maize, 29765.m000727 from castor bean and its homolog in A. thaliana, rice and maize, have also been identified as imprinted genes [20,21]. These studies indicated that genomic imprinting is evolutionarily conserved in flowering plants.
In this study, based on evolutionary conservation of genomic imprinting across plant species, we constructed a reciprocal cross of wild diploid strawberry F. vesca to test the conservation of PRC2-related genes MEA, FIE, and 16 other conserved imprinted genes in strawberry. By analyzing the imprinting status of candidate conserved imprinted genes based on SNP site variation ratios and parent-of-origin expression patterns, we found that five genes were conserved imprinted in strawberry endosperm. Moreover, the tissue-specific expression characteristics of these five genes are similar to the reported imprinted genes in other plants [7,22]. Our findings not only give us a preliminary understanding of strawberry genomic imprinting, but also provide evidence of the conservation of imprinted genes. It will help us to better explore the function and mechanisms of imprinted genes.

2. Results

2.1. Identification of Candidate Imprinted Genes

According to the conserved imprinted gene information from A. thaliana, rice, and maize, 11 candidate genes were obtained, namely, FvFIE, FvYLS9, FvMLP, FvUNP, FvARI8, FvKH, FvCAL, FvUNP1, FvMIA40, FvAMI, and FvTAR4. BioXM software was used to analyze the similarity of the protein sequences of A. thaliana and F. vesca, and the amino acid sequence similarities were 75.48%, 69.3%, 71.25%, 50.53%, 74.5%, 85.92%, 50.68%, 57.38%, 46.88%, 60.57%, and 43.5%, respectively. Using the same method, four candidate genes similar to conserved imprinted genes of A. thaliana, rice, and sorghum were obtained from F. vesca, namely, FvVIP2, FvKHDP-2, FvDRIP2, and FvBRO1. Besides, FvLTP3 and FvYLS3 were potential orthologs of conserved imprinted genes from A. thaliana and castor bean. Homologous protein of MEA was not found in the F. vesca. Detailed information is shown in Table 1.

2.2. SNP Information of Candidate Imprinted Genes in Parents

In total, 17 homologous genes were obtained by BLASTP from F. vesca, and the coding sequences (CDs) of candidate genes were obtained by RT-PCR cloning and sequencing. SNPs were analyzed based on the sequencing results of 17 candidate genes from 10-41 and 18-86 leaves. Among the 17 genes we amplified, 10 candidate genes (FvFIE, FvYLS9, FvMLP, FvUNP, FvKH, FvVIP2, FvYLS3, FvUNP1, FvMIA40, and FvAMI) lacked SNP sites between two F. vesca ecotypes, which means that there is no difference among these sequences between the parents. The remaining seven candidate genes have SNPs between parental ecotypes, of which FvARI8 has 1 SNP site, FvBRO1 has 2, FvKHDP-2 has 19, FvDRIP2 has 17, FvLTP3 has 3, FvTAR4 has 11, and FvCAL has 2 (Table S1).

2.3. Biallelic Expression of FvTAR4 and FvCAL Genes in Endosperm

FvTAR4 and FvCAL genes have 11 and 2 SNPs, respectively. Amplification and sequencing results showed that there are two types of expression at the SNP site of the hybrid endosperms. At position 314 of FvTAR4, the SNP site has two different bases, A and T (Figure S1A). Similarly, FvCAL has A and G at position 406 (Figure S1B), and it was estimated that the base variation ratio of its SNP site is close to 2: 1, which is in line with the expected value. Thus, we speculated that FvTAR4 and FvCAL genes are not imprinted genes.

2.4. Five Genes Show Imprinting in the Endosperm of Wild Strawberry

There is only one SNP site in the coding region of FvARI8 in the 10-41 and 18-86 parents. The expression pattern of this SNP site in reciprocal cross endosperm is shown in Figure 1. In the hybrid endosperm of 10-41 maternal, the SNP site of FvARI8 at the same position is the same as the parent 10-41; and in the hybrid endosperm of the 10-86 maternal parent, the SNP site at the same position is the same as 18-86. In other words, FvARI8 showed monoallelic expression in a parent-of-origin-dependent manner, indicating this gene is not only a MEG but also a binary imprinting. Expression patterns of FvKHDP-2, FvDRIP2, FvBRO1, and FvLTP3 genes in the hybrid endosperm at the SNP site are shown in Figures S2–S5 and their expression patterns are the same as FvARI8, which confirmed that gene imprinting was conserved in some plants.

2.5. Candidate Imprinted Genes Show Non-Imprinting in the Embryos

We tested the seven candidate genes with SNPs between two ecotypes of F. vesca, and verified the imprinted genes in the reciprocal cross embryo of 10 days after pollination (DAP). Results are shown in Figure S6. Alleles of the maternal and paternal of FvARI8, FvKHDP-2, FvDRIP2, FvBRO1, FvLTP3, FvCAL, and FvTAR4 genes are all expressed in the embryos of the hybrid combinations 18-86 × 10-41 and 10-41 × 18-86, and base variation ratio at the SNP site is close to the expected value of 1:1. We surmised that these genes are non- imprinted genes in reciprocal cross embryo.

2.6. Expression Patterns of Imprinted Genes in Different Tissues

In order to investigate whether five MEGs have specific expression characteristics in endosperm, qRT-PCR was used to analyze expression patterns of these genes in different tissues of F. vesca. Expression patterns of FvARI8 and FvBRO1 are similar, all showing a lower expression level in nutritional tissues, and some reproductive tissues such as style, fruit, and ovary, but higher expression in endosperm and pollen (Figure 2A,D). FvBRO1 has a higher expression level in the hybrid endosperm and embryo tissues of 10 DAP compared with other tissues except pollen, and a lower expression in style. Expression of FvBRO1 in green fruit, ripe fruit, receptacle, and achene is extremely low, indicating that it may be less important in the development of fruit (Figure 2D). FvKHDP-2 shows weakly expressed in pollen (Figure 2B). Tissue-specific higher expression of FvDRIP2 was observed in achenes and embryo (Figure 2C). The low expression pattern of FvLTP3 in nutritional tissues is similar to that of FvARI8 and FvBRO1, whereas FvLTP3 shows a higher expression level in embryo, endosperm, and pollen (Figure 2E). In addition, we found all of the imprinted genes have a low expression in root and runner.

3. Discussion

The phenomenon of genomic imprinting has been widely observed in animals and plants. In plants, the imprinted gene was first identified in maize by phenotypic identification methods [23]. However, only a handful of imprinted genes had been identified in plants until the emergence of next-generation sequencing technology. At present, more and more imprinted genes have been identified and characterized in other plant species, including A. thaliana [4,5,7,24,25], rice [26,27,28], maize [20,22,29], sorghum [30], castor bean [21], wheat [31], tomato [32,33], Capsella rubella [34], and Brassica [35,36]. Further study indicated that many imprinted genes were found to be conserved among different species. For example, 24 imprinted genes in A. lyrata were found to be imprinted in A. thaliana [25], and 55.6% imprinted genes are reported as conserved imprinted genes in hexaploid wheat and its close relative tetraploid [31]. Chen et al. [37] compared the imprinted genes obtained in rice with those in A. thaliana, maize, and sorghum, and found that several of these genes were conserved imprinted genes in these species. They further identified eight homologous imprinted genes in barley (Hordeum vulgare) through the conservative imprinted genes from rice.
In this study, MEA, FIE, and 16 conserved imprinted genes in A. thaliana and their homologs of four other plants were used as inquiry genes to screening imprinted homologs in diploid strawberry F. vesca. As shown in Table 1, all genes except MEA have homologs in F. vesca, indicating that this is a feasible approach to identify imprinted genes in plants. To verify that the 17 candidates were true imprinted genes, we cloned and sequenced the CDs of 17 genes from the respective parents. Sequence analysis indicated that 10 of the 17 candidates lacked SNPs between parents. Therefore, it is difficult to determine whether these 10 genes are imprinted genes. The remaining seven candidate genes that contained more than one SNPs were further analyzed in both endosperm and embryo. Results indicated that five of the seven genes, i.e., FvARI8, FvKHDP-2, FvDRIP2, FvBRO1, and FvLTP3, were imprinted in endosperm. Interestingly, these seven genes all showed non-imprinting expression in reciprocal cross embryo. These results were consistent with research results that indicate that gene imprinting in flowering plants mainly occurs in endosperm [3,4,5,6,7].
The identification of imprinted genes in the endosperm and embryo can be confounded by maternal tissues [38,39] and parent-of-origin effects [40]. The seed coat, a maternal tissue that surrounds and protects the seed, can lead to false-positive MEGs. To reduce false-positive MEGs, Pignatta et al. 2014 [7] censored the genes with expression that was more than twice as high in seed coat relative to endosperm during RNA-seq analyses. In this study, we also analyzed the expression of imprinted genes in the seed coat (Figure 2), the results showed that they have a lower expression level in seed coat relative to endosperm excluding FvDRIP2. In previous studies, the imprinted genes regulated by specific epigenetic marks, such as MEA [14,15,16], FIS2 [15], LORELEL [41], NUWA [42], and Mez1 [17], etc., have a monoallelic expression. Similarly, five imprinted genes identified in this study also show a monoallelic expression in a parent-of-origin-dependent manner. However, examples of monoallelic expression of non-imprinted genes have also been reported, which was contribute to phenotypic diversity in poplar [43], barley [44], rice [45], and A. thaliana [46]. In addition, maternal effects can lead to the appearance of a parent-of-origin effect because of the deposition of mRNA from gametophytic in the fertilized egg cell (zygote) or fertilized central cell (endosperm) during early seed development, which will increase contamination of RNA-seq analyses [38]. In this regard, sequencing cannot distinguish imprinting from contamination or parent-of-origin effects, hence we need further research to prove that these genes show a monoallelic expression in a parent-of-origin-dependent manner are modified by specific epigenetic marks.
Further analysis indicated that the five strawberry endosperm imprinted genes were MEGs; however, their homologs in other plants belong to PEGs. For example, FvKHDP2 and its homolog in A. thaliana are MEG, while its ortholog in rice and Sorghum bicolor is PEG, indicating that although they are conservative imprinted genes, the regulatory mechanism of imprinted expression in different species may be different. MEGs and PEGs differ in their targeting by 24-nt small RNAs and asymmetric DNA methylation, suggesting different mechanisms establishing DNA methylation at MEGs and PEGs [34,47,48]. Batista and Köhler [11] thought that MEGs were dependent on parental DNA methylation asymmetries, and that PEGs were dependent on parental asymmetric DNA methylation and H3K27me3.
Among the five imprinted genes, FvARI8 and FvDRIP2 belong to the E3 ubiquitin ligase RING protein family; FvARI8 is structurally similar to AtARI8 in A. thaliana, with a RING1-IBR-RING domain, a supercoiled domain and a leucine-rich region at the C-terminus, which plays an important role in maintaining protein binding; AtARI8 is expressed in stems, leaves, flowers, and silique [49]; and FvARI8 is also expressed in these tissues, which may have similar functions, but we have not found any functional studies. Amino acid sequences of FvDRIP2 and Vigna unguiculata VuDRIP are 48.85% similar. VuDRIP interacted with VuDREB2A was detected by yeast two hybrids, DRIP negatively regulates DREB2A, which reduces the expression of DREB2A under non-stress conditions, thereby reducing the metabolic burden [50]. FvDRIP2 may also participate in stress-related regulation. FvKHDP-2 contains the KH domain. Proteins containing KH domains perform multiple cellular functions. KH domain is essential for establishing a post-transcriptional regulatory network, and it also has E3 ubiquitin ligase activity [51,52,53]. FvBRO1 is a member of the heavy-metal-associated protein family. Studies have shown that members of this family are mainly involved in the process of heavy metal accumulation in A. thaliana [54]. FvLTP3 is a non-specific lipid transfer protein, it plays an important role in plant defense and should also be applied to abiotic stresses such as drought, cold, and salt [55,56].
The five strawberry MEGs’ expression characteristics are similar to the imprinted gene expression patterns in maize [22] and A. thaliana [7], that is, they are both highly expressed in the endosperm and may be involved in the seed development. Tissue expression specificity analysis also found that identified imprinted genes have expression levels in various tissues, indicating that imprinted genes play a role in other tissues in addition to their role in endosperm development. Similarly, 67% of MEGs in castor bean were found to be expressed in other tissues [21], which suggests that imprinted genes also play a role in the development of other tissues. Future study will be undertaken to characterize the functions of these strawberry imprinted genes. In summary, this simple and rapid method of identifying imprinted genes based on homology is feasible. Although the number of imprinted genes obtained is limited, as more imprints are discovered, this method will show greater power. To our knowledge, this is the first to find imprinted genes in the endosperm in the Fragaria.

4. Materials and Methods

4.1. Plant Materials

Wild F. vesca ecotype 10-41 (collected from Europe) and 18-86 (collected from Tianshan, Fukang, Xinjiang, China) were planted in the greenhouse at Baima Teaching and Scientific Research Base of Nanjing Agricultural University, Nanjing, China. Unopened flowers were emasculated; then, the pollinated flowers were bagged at the beginning of flowering in April.
Developing achenes from reciprocal cross 18-86 and 10-41 at 10 DAP were collected. Embryos, endosperms, and seed coats were manually dissected and washed using tissue separation buffer (5 mM MES (Methyl ethanesulfonate), 0.3 M Sorbitol, pH5.7). Then, we collected the 10-41 naturally growing root, runner, crown, leaf, green fruit (18 DAP), ripe fruit (30 DAP), ripe achene, style (including stigma), ovary (excluding stigma), corolla, receptacle, calyx, and pollen. All tissues were immediately frozen by liquid nitrogen and then stored at −80 °C until use.

4.2. Acquisition of Candidate Imprinted Genes

Some conserved imprinted genes have been reported in plants, was listed in Table 2. Using the protein sequences encoded by imprinted genes in A. thaliana as the query sequences, BLASTP was performed in the F. vesca protein database based on National Center for Biotechnology Information (NCBI) (E-value < 10 × 10−10). Multiple sequence alignment of proteins was performed between species by using BioXM (https://cbi.njau.edu.cn/BioXM/ (accessed on January 2014)) and MEGA-X [57] to further confirm their similarity.

4.3. RNA Isolation and Cloning of Candidate Imprinted Genes

Total RNA from different tissues was extracted using an RNA extraction kit (Tiangen, Beijing, China), and RNAs were reverse-transcribed into complementary DNA (cDNA) using the PrimeScript RT reagent kit (TaKaRa, Dalian, China). According to the candidate gene sequences from NCBI, Primer 5.0 software was used to design specific primers among the CDs (Table 3). The cDNAs of leaves from the parents, endosperm, and embryo of the reciprocal cross between F. vesca ecotypes 10-41 and 18-86 at 10 DAP were performed using PCR amplification with primers in the CDs. The PCR program was as follows: 1 cycle of 5 min at 98 °C; 35 cycles of 30 s at 94 °C, 30 s at 55 °C, 1 min at 68 °C; and a final extension for 10 min at 68 °C. All PCR products were analyzed by agarose gel electrophoresis, and the target band was recovered using an AxyPrep DNA gel recovery kit (Axygen, Union City, CA, USA). Then, the target fragment was ligated into a pCloneEASY Blunt Vector Kit (TransGen Biotech, China) and transformed into Escherichia coli DH5α (Tsingke Biotechnology, China). Finally, 20 single colonies for each fragment were picked and grown overnight at 37 °C for Sanger sequencing. Sanger sequencing was performed by Tsingke Biotechnology Ltd. (Beijing, China).

4.4. Identification of Imprinted Genes in Wild Strawberry

Potentially informative SNP sites were obtained by aligning the Sanger sequencing data from leaves of 10-41 and 18-86 with the BioXM (https://cbi.njau.edu.cn/BioXM/ (accessed on January 2014)) and MEGA-X [57]. Candidate imprinted genes with pure SNP site were retained, otherwise it would be eliminated. Then, we analyzed SNP information from endosperm and embryo of reciprocal cross to observe the expression manners of alleles based on their parent of origin. Finally, expression ratios of maternal and paternal alleles were calculated for the genes that had SNP sites in endosperm and embryo tissue according to the method of Liu and Qian [59] and ImageJ software [60]. The expression ratio of maternal and paternal alleles is theoretically 2:1 and 1:1 in hybrid endosperm and embryo, respectively [61,62]. In the reciprocal crosses endosperm, MEG was a defined gene with a ratio higher than 4m:1p, and PEG was a defined gene with a ratio higher than 2p:1m. We defined MEG and PEG as being higher than the ratio 3:1 (3m:1p, 3p:1m, respectively) in the reciprocal crosses embryo.

4.5. Expression Profiles Analysis of Imprinted Genes

RT-qPCR was performed using an ABI 7300 Real-Time PCR System (Applied Biosystems, Foster City, CA, USA) and SYBR Green Real-time PCR Master Mix (Toyobo, Osaka, Japan). A total reaction volume (20 μL) comprised 10 μL SYBR Green Master Mix, 8.4 μL ddH2O, 1 μL cDNA sample (equivalent to 100 pg of total RNA), and 0.3 μL of each primer (the final concentration of all primers was 10 μM). The primers involved are listed in Table 4. The reactions were incubated at 95 °C for 4 min, followed by 40 cycles at 94 °C for 20 s, 62 °C for 20 s, and 72 °C for 40 s (extending and gathering the fluorescent signal). Four technical replicates were performed for three biological replicates of each sample. Quantitative analysis of gene expression was performed using the 2−ΔΔCT [63] method, and SPSS software version 25.0 was used for statistical analysis.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4425/12/3/380/s1, Figure S1: FvTAR4 and FvCAL are biallellic expressions in the endosperms of the hybrid of two Fragaria vesca ecotypes. Sequencing of FvTAR4 and FvCAL was used to confirm imprinting status in 10-41 × 18-86 and 18-86 × 10-41. At least ten colonies were sequenced for each amplicon. SNP sites are shaded in blue. FvTAR4 and FvCAL show a biallellic expression, and their variation ratio of SNPs is close to the 2:1 expected ratio in reciprocal cross. Figure S2: Monollelic expression of FvKHDP-2 in reciprocal cross endosperm of two Fragaria vesca strains. Figure S3: Monollelic expression of FvDRIP2 in reciprocal cross endosperm of two Fragaria vesca strains. Figure S4: Monollelic expression of FvBRO1 in reciprocal cross endosperm of two Fragaria vesca strains. Figure S5: Monollelic expression of FvLTP3 in reciprocal cross endosperm of two Fragaria vesca strains. Figure S6: Biallelic expression of seven candidate genes in reciprocal cross embryo of two Fragaria vesca ecotypes. Seven candidate genes with SNPs were cloned in reciprocal cross embryos, and sequencing showed that their variation ratio of SNPs is close to the 1:1 expected ratio. We only show part of the biallelic expression of SNPs, because there is enough to confirm that these candidate genes are not imprinted genes. Table S1: SNP information of candidate gene between F. vesca 10-41 and 18-86.

Author Contributions

Y.L. and X.J contributed equally to this work. Conceptualization, Y.L. and Y.Q.; methodology, H.Z.; validation, Y.L., X.J. and H.Z.; formal analysis, Y.L. and X.J.; investigation, Y.L. and X.J.; resources, Y.Q.; writing—original draft preparation, Y.L.; writing—review and editing, X.J., Y.Q. and J.X.; visualization, X.J.; supervision, Y.Q.; project administration, Y.Q.; funding acquisition, Y.Q. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China, grant number 31872056 and the Fundamental Research Funds for the Central Universities, grant number KYZZ201921.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data sharing not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Köhler, C.; Wolff, P.; Spillane, C. Epigenetic mechanisms underlying genomic imprinting in plants. Annu. Rev. Plant Biol. 2012, 63, 331–352. [Google Scholar] [CrossRef] [PubMed]
  2. Pires, N.D.; Grossniklaus, U. Different yet similar: Evolution of imprinting in flowering plants and mammals. F1000prime Rep. 2014, 6, 63. [Google Scholar] [CrossRef] [PubMed]
  3. Jahnke, S.; Scholten, S. Epigenetic resetting of a gene imprinted in plant embryos. Curr Biol. 2009, 19, 1677–1681. [Google Scholar] [CrossRef] [Green Version]
  4. Gehring, M.; Missirian, V.; Henikoff, S. Genomic analysis of parent-of-origin allelic expression in Arabidopsis thaliana seeds. PLoS ONE 2011, 6, e23687. [Google Scholar] [CrossRef] [Green Version]
  5. Hsieh, T.-F.; Shin, J.; Uzawa, R.; Silva, P.; Cohen, S.; Bauer, M.J.; Kirkbride, R.C.; Harada, J.J.; Zilberman, D.; Fischer, R.L. Regulation of imprinted gene expression in Arabidopsis endosperm. Proc. Natl. Acad. Sci. USA 2011, 108, 1755–1762. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. León, G.D.T.-D.; García-Aguilar, M.; Gillmor, C.S. Nonequivalent contributions of maternal and paternal genomes to early plant embryogenesis. Nature 2014, 514, 624–627. [Google Scholar] [CrossRef]
  7. Pignatta, D.; Erdmann, R.M.; Scheer, E.; Picard, C.L.; Bell, G.W.; Gehring, M. Natural epigenetic polymorphisms lead to intraspecific variation in Arabidopsis gene imprinting. eLife 2014, 3, e03198. [Google Scholar] [CrossRef] [Green Version]
  8. Scott, R.J.; Spielman, M.; Bailey, J.; Dickinson, H.G. Parent-of-origin effects on seed development in Arabidopsis thaliana require DNA methylation. Development 2000, 125, 3329–3341. [Google Scholar]
  9. Vinkenoog, R.; Scott, R.J. Autonomous endosperm development in flowering plants: How to overcome the imprinting problem? Sex. Plant Reprod. 2001, 14, 189–194. [Google Scholar] [CrossRef]
  10. Baroux, C.; Grossniklaus, U. Seeds—An evolutionary innovation underlying reproductive success in flowering plants. Curr. Top. Dev. Biol. 2019, 131, 605–642. [Google Scholar] [PubMed]
  11. Batista, R.A.; Köhler, C. Genomic imprinting in plants—revisiting existing models. Genes Dev. 2020, 34, 24–36. [Google Scholar] [CrossRef]
  12. Köhler, C.; Hennig, L.; Bouveret, R.; Gheyselinck, J.; Grossniklaus, U.; Gruissem, W. Arabidopsis MSI1 is a component of the MEA/FIE Polycomb group complex and required for seed development. EMBO J. 2003, 22, 4804–4814. [Google Scholar] [CrossRef] [Green Version]
  13. Gehring, M.; Choi, Y.; Fischer, R.L. Imprinting and seed development. Plant Cell 2004, 16, S203–S213. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Kinoshita, T.; Yadegari, R.; Harada, J.; Goldberg, R.; Fischer, R. Imprinting of the MEDEA polycomb gene in the Arabidopsis endosperm. Plant Cell 1999, 11, 1945–1952. [Google Scholar] [CrossRef] [Green Version]
  15. Luo, M.; Bilodeau, P.; Dennis, E.S.; Peacock, W.J.; Chaudhury, A. Expression and parent-of-origin effects for FIS2, MEA, and FIE in the endosperm and embryo of developing Arabidopsis seeds. Proc. Natl. Acad. Sci. USA 2000, 97, 10637–10642. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Grossniklaus, U.; Vielle-Calzada, J.P.; Hoeppner, M.A.; Gagliano, W.B. Maternal control of embryogenesis by MEDEA, a Polycomb group gene in Arabidopsis. Science 1998, 280, 446–450. [Google Scholar] [CrossRef]
  17. Haun, W.J.; Laoueillé-Duprat, S.; O’Connell, M.J.; Spillane, C.; Grossniklaus, U.; Phillips, A.R.; Kaeppler, S.M.; Springer, N.M. Genomic imprinting, methylation and molecular evolution of maize Enhancer of zeste (Mez) homologs. Plant J. 2007, 49, 325–337. [Google Scholar] [CrossRef]
  18. Danilevskaya, O.N.; Hermon, P.; Hantke, S.; Muszynski, M.G.; Kollipara, K.; Ananiev, E.V. Duplicated fie genes in maize: Expression pattern and imprinting suggest distinct functions. Plant Cell 2003, 15, 425–438. [Google Scholar] [CrossRef] [Green Version]
  19. Luo, M.; Platten, D.; Chaudhury, A.; Peacock, W.J.; Dennis, E.S. Expression, imprinting, and evolution of rice homologs of the Polycomb group genes. Mol. Plant. 2009, 2, 711–723. [Google Scholar] [CrossRef] [PubMed]
  20. Zhang, M.; Zhao, H.; Xie, S.; Chen, J.; Xu, Y.; Wang, K.; Zhao, H.; Guan, H.; Hu, X.; Jiao, Y.; et al. Extensive, clustered parental imprinting of protein-coding and noncoding RNAs in developing maize endosperm. Proc. Natl. Acad. Sci. USA 2011, 108, 20042–20047. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  21. Xu, W.; Dai, M.; Li, F.; Liu, A. Genomic imprinting, methylation and parent-of-origin effects in reciprocal hybrid endosperm of castor bean. Nucleic Acids Res. 2014, 42, 6987–6998. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Waters, A.J.; Makarevitch, I.; Eichten, S.R.; Swanson-Wagner, R.A.; Yeh, C.T.; Xu, W.; Schnable, P.S.; Vaughn, M.W.; Gehring, M.; Springer, N.M. Parent-of-origin effects on gene expression and DNA methylation in the maize endosperm. Plant Cell 2011, 23, 4221–4233. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Kermicle, J.L. Dependence of the R-mottled aleurone phenotype in maize on mode of sexual transmission. Genetics 1970, 66, 69–85. [Google Scholar] [CrossRef]
  24. Wolff, P.; Weinhofer, I.; Seguin, J.; Roszak, P.; Beisel, C.; Donoghue, M.T.; Spillane, C.; Nordborg, M.; Rehmsmeier, M.; Köhler, C. High-resolution analysis of parent-of-origin allelic expression in the Arabidopsis endosperm. Plos Genet. 2011, 7, e1002126. [Google Scholar] [CrossRef]
  25. Klosinska, M.; Picard, C.; Gehring, M. Conserved imprinting associated with unique epigenetic signatures in the Arabidopsis genus. Nat. Plants 2016, 2, 16145. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Luo, M.; Taylor, J.M.; Spriggs, A.; Zhang, H.; Wu, X.; Russell, S.; Singh, M.; Koltunow, A. A genome-wide survey of imprinted genes in rice seeds reveals imprinting primarily occurs in the endosperm. PLoS Genet. 2011, 7, e1002125. [Google Scholar] [CrossRef] [Green Version]
  27. Rodrigues, J.A.; Ruan, R.; Nishimura, T.; Sharma, M.K.; Sharma, R.; Ronald, P.C.; Fischer, R.L.; Zilberman, D. Imprinted expression of genes and small RNA is associated with localized hypomethylation of the maternal genome in rice endosperm. Proc. Natl. Acad. Sci. USA 2013, 110, 7934–7939. [Google Scholar] [CrossRef] [Green Version]
  28. Yuan, J.; Chen, S.; Jiao, W.; Wang, L.; Wang, L.; Ye, W.; Lu, J.; Hong, D.; Cheng, Z.; Yang, D.; et al. Both maternally and paternally imprinted genes regulate seed development in rice. New Phytol. 2017, 10, 111. [Google Scholar] [CrossRef] [Green Version]
  29. Xin, M.; Yang, R.; Li, G.; Chen, H.; Laurie, J.; Ma, C.; Wang, D.; Yao, Y.; Larkins, B.A.; Sun, Q.; et al. Dynamic expression of imprinted genes associates with maternally controlled nutrient allocation during maize endosperm development. Plant Cell 2013, 25, 3212–3227. [Google Scholar] [CrossRef] [Green Version]
  30. Zhang, M.; Li, N.; He, W.; Zhang, H.; Yang, W.; Liu, B. Genome-wide screen of genes imprinted in sorghum endosperm, and the roles of allelic differential cytosine methylation. Plant J. 2016, 85, 424–436. [Google Scholar] [CrossRef] [Green Version]
  31. Yang, G.; Liu, Z.; Gao, L.; Yu, K.; Feng, M.; Yao, Y.; Peng, H.; Hu, Z.; Sun, Q.; Ni, Z.; et al. Genomic imprinting was evolutionarily conserved during wheat polyploidization. Plant Cell 2018, 30, 37–47. [Google Scholar] [CrossRef] [Green Version]
  32. Florez-Rueda, A.M.; Paris, M.; Schmidt, A.; Widmer, A.; Grossniklaus, U.; Städler, T. Genomic imprinting in the endosperm is systematically perturbed in abortive hybrid tomato seeds. Mol. Biol. Evol. 2016, 33, 2935–2946. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Roth, M.; Florez-Rueda, A.M.; Paris, M.; Städler, T. Wild tomato endosperm transcriptomes reveal common roles of genomic imprinting in both nuclear and cellular endosperm. Plant J. 2018, 95, 1084–1101. [Google Scholar] [CrossRef]
  34. Hatorangan, M.R.; Laenen, B.; Steige, K.A.; Köhler, C. Rapid evolution of genomic imprinting in two species of the Brassicaceae. Plant Cell 2016, 28, 1815–1827. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Liu, J.; Li, J.; Liu, H.; Fan, H.; Surinder, S.; Zhou, X.; Hu, Z.; Wang, H.; Wei, H. Genome-wide screening and analysis of imprinted genes in rapeseed (Brassica napus L.) endosperm. DNA Res. 2018, 25, 629–640. [Google Scholar] [CrossRef]
  36. Yoshida, T.; Kawanabe, T.; Bo, Y.; Fujimoto, R.; Kawabe, A. Genome-wide analysis of parent-of-origin allelic expression in endosperms of Brassicaceae species, Brassica rapa. Plant Cell Physiol. 2018, 59, 2590–2601. [Google Scholar] [CrossRef]
  37. Chen, C.; Li, T.; Zhu, S.; Liu, Z.; Shi, Z.; Zheng, X.; Chen, R.; Huang, J.; Shen, Y.; Luo, S.; et al. Characterization of imprinted genes in rice reveals conservation of regulation and imprinting with other plant species. Plant. Physiol. 2018, 177, 1754–1771. [Google Scholar] [CrossRef] [Green Version]
  38. Tuteja, R.; McKeown, P.C.; Ryan, R.; Morgan, C.C.; Donoghue, M.T.A.; Downing, T.; O’Connell, M.J.; Spillane, C. Paternally expressed imprinted genes under positive Darwinian selection in Arabidopsis thaliana. Mol. Biol. Evol. 2019, 36, 1239–1253. [Google Scholar] [CrossRef]
  39. Picard, C.L.; Gehring, M. Identification and comparison of imprinted genes across plant species. In Plant Epigenetics and Epigenomics, 2nd ed.; Spillane, C., McKeown, P., Eds.; Methods in Molecular Biology: New York, NY, USA, 2020; Volume 2093, pp. 173–201. [Google Scholar]
  40. Lawson, H.A.; Cheverud, J.M.; Wolf, J.B. Genomic imprinting and parent-of-origin effects on complex traits. Nat. Rev. Genet. 2013, 14, 609–617. [Google Scholar] [CrossRef] [Green Version]
  41. Wang, Y.; Tsukamoto, T.; Noble, J.A.; Liu, X.; Mosher, R.A.; Palanivelu, R. Arabidopsis LORELEI, a maternally expressed imprinted gene, promotes early seed development. Plant Physiol. 2017, 175, 758–773. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  42. He, S.; Sun, Y.; Yang, Q.; Zhang, X.; Huang, Q.; Zhao, P.; Sun, M.; Liu, J.; Qian, W.; Qin, G.; et al. A novel imprinted gene NUMA controls mitochondrial function in early seed development in Arabidopsis. PloS Genet. 2017, 13, e1006553. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Zhuang, Y.; Adams, K.L. Extensive allelic variation in gene expression in Populus F1 hybrids. Genetics 2007, 177, 1987–1996. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Von Korff, M.; Radovic, S.; Choumane, W.; Stamati, K.; Udupa, S.M.; Grando, S.; Ceccarelli, S.; Mackay, I.; Powell, W.; Baum, M.; et al. Asymmetric allele-specific expression in relation to developmental variation and drought stress in barley hybrids. Plant J. 2009, 59, 14–26. [Google Scholar] [CrossRef] [Green Version]
  45. Takamiya, T.; Hosobuchi, S.; Noguchi, T.; Paterson, A.H.; Lijima, H.; Murakami, Y.; Okuizumi, H. The application of restriction landmark genome scanning method for surveillance of non-Mendelian inheritance in F1 hybrids. Comp. Funct. Genom. 2009, 2009, 1–6. [Google Scholar] [CrossRef] [Green Version]
  46. Zhang, X.; Borevitz, J.O. Global analysis of allele-specific expression in Arabidopsis thaliana. Genetics 2009, 182, 943–954. [Google Scholar] [CrossRef] [Green Version]
  47. Xin, M.; Yang, R.; Yao, Y.; Ma, C.; Peng, H.; Sun, Q.; Wang, X.; Ni, Z. Dynamic parent-of-origin effects on small interfering RNA expression in the developing maize endosperm. BMC Plant Biol. 2014, 14, 192. [Google Scholar] [CrossRef] [Green Version]
  48. Zhang, M.; Xie, S.; Dong, X.; Zhao, X.; Zeng, B.; Chen, J.; Li, H.; Yang, W.; Zhao, H.; Wang, G. Genome-wide high resolution parental-specific DNA and histone methylation maps uncover patterns of imprinting regulation in maize. Genome Res. 2014, 24, 167–176. [Google Scholar] [CrossRef] [Green Version]
  49. Mladek, C.; Guger, K.; Hauser, M.T. Identification and characterization of the ARIADNE gene family in Arabidopsis. A group of putative E3 ligases. Plant Physiol. 2003, 131, 27–40. [Google Scholar] [CrossRef] [Green Version]
  50. Sadhukhan, A.; Panda, S.K.; Sahoo, L. The cowpea RING ubiquitin ligase VuDRIP interacts with transcription factor VuDREB2A for regulating abiotic stress responses. Plant Physiol. Biochem. 2014, 83, 51–56. [Google Scholar] [CrossRef]
  51. Draper, B.W.; Mello, C.C.; Bowerman, B.; Hardin, J.; Priess, J.R. MEX-3 is a KH domain protein that regulates blastomere similarity in early celegans embryos. Cell 1996, 87, 205–216. [Google Scholar] [CrossRef] [Green Version]
  52. Valverde, R.; Edwards, L.; Regan, L. Structure and function of KH domains. FEBS J. 2008, 275, 2712–2726. [Google Scholar] [CrossRef] [PubMed]
  53. Nicastro, G.; García-Mayoral, M.F.; Hollingworth, D.; Kelly, G.; Martin, S.R.; Briata, P.; Gherzi, R.; Ramos, A. Noncanonical G recognition mediates KSRP regulation of let-7 biogenesis. Nat. Struct. Mol. Biol. 2012, 19, 1282–1286. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  54. Sautron, E.; Mayerhofer, H.; Giustini, C.; Danièle, P.; Crouzy, S.; Stéphanie, R.; Pebay-Peyroula, E.; Rolland, N.; Catty, P.; Daphné, S.B. HMA6 and HMA8 are two chloroplast Cu+-ATPases with different enzymatic properties. Biosci. Rep. 2015, 35, e00201. [Google Scholar] [CrossRef] [PubMed]
  55. Buhot, N.; Douliez, J.P.; Jacquemard, A.; Marion, D.; Tran, V.; Maume, B.F.; Milat, M.L.; Ponchet, M.; Mikes, V.; Kader, J.C.; et al. A lipid transfer protein binds to a receptor involved in the control of plant defence responses. FEBS Lett. 2001, 509, 27–30. [Google Scholar] [CrossRef] [Green Version]
  56. Jang, C.; Lee, H.; Chang, S.; Seo, Y. Expression and promoter analysis of the TaLTP1 gene induced by drought and salt stress in wheat (Triticum aestivum L.). Plant Sci. 2004, 167, 995–1001. [Google Scholar] [CrossRef]
  57. Kumar, S.; Stecher, G.; Li, M.; Knyaz, C.; Tamura, K. MEGA X: Molecular Evolutionary Genetics Analysis across computing platforms. Mol. Biol. Evol. 2018, 35, 1547–1549. [Google Scholar] [CrossRef]
  58. Dai, M. Verification, Characteristics and Preliminary Analysis of Imprinted Genes in Castor Endosperm. Master’s Thesis, University of Chinese Academy of Sciences, Beijing, China, 2014. [Google Scholar]
  59. Liu, G.; Qian, J. A Method for Quantitative Analysis of Base Variation Ratio Based on Sequencing Peak Shape Graph. China Medical University, Beijing, China. CN103559428A, 5 February 2014. [Google Scholar]
  60. Abramoff, M. Image Processing with Image. Biophotonics Int. 2003, 11, 36–42. [Google Scholar]
  61. Gehring, M.; Satyaki, P.R. Endosperm and imprinting, inextricably linked. Plant Physiol. 2017, 173, 143–154. [Google Scholar] [CrossRef] [Green Version]
  62. Anderson, S.N.; Springer, N.M. Potential roles for transposable elements in creating imprinted expression. Curr. Opin. Genet. Dev. 2018, 49, 8–14. [Google Scholar] [CrossRef]
  63. Livak, K.J.; Schmittgen, T.D. Analysis of relative gene expression data using real-time quantitative PCR and the 2−ΔΔCT method. Methods 2001, 25, 402–408. [Google Scholar] [CrossRef]
Genes 12 00380 g001 550

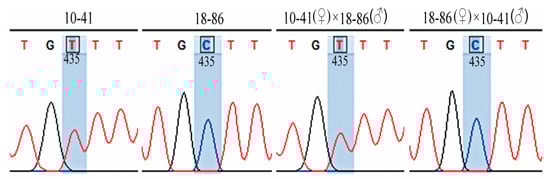

Figure 1. Monollelic expression of FvARI8 in reciprocal cross endosperm of two Fragaria vesca ecotypes. Sequencing showing that FvARI8 is a monollelic-specific gene, and expressed in a maternal parent-of-origin-dependent manner.
Figure 1. Monollelic expression of FvARI8 in reciprocal cross endosperm of two Fragaria vesca ecotypes. Sequencing showing that FvARI8 is a monollelic-specific gene, and expressed in a maternal parent-of-origin-dependent manner.
Genes 12 00380 g001
Genes 12 00380 g002 550

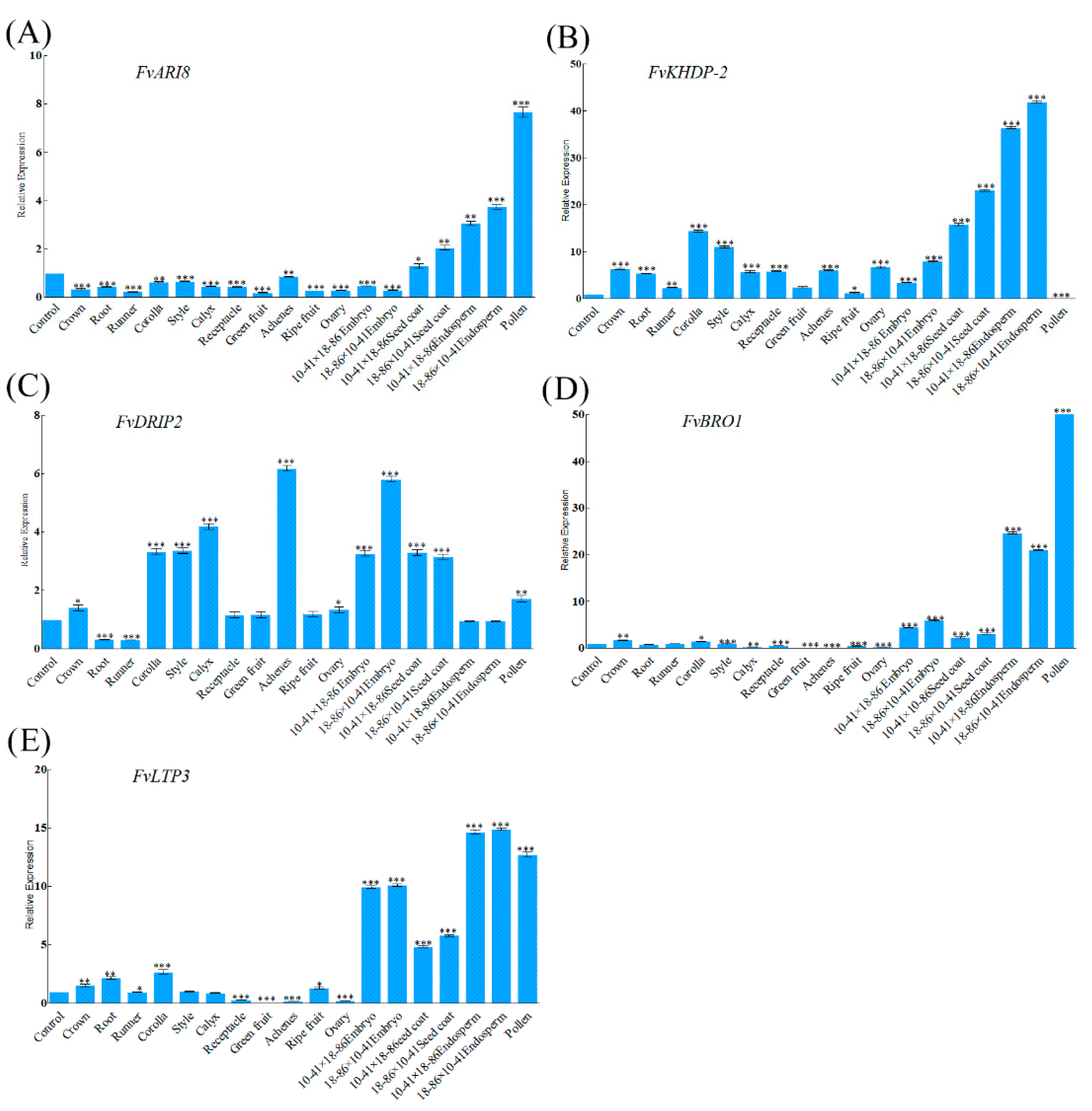

Figure 2. Expression of five imprinted genes in different tissues of F. vesca. Error bars represent standard deviation (SD). Columns with asterisks indicate significant difference: * represents p ≤ 0.05, ** represents p ≤ 0.01, *** represents p ≤ 0.001. FvARI8(A), FvBRO1(D), FvKHDP-2(B), and FvLTP3(E) showed a similar expression pattern, whereas FvDRIP2(C) has a lower expression level in endosperm and pollen.
Figure 2. Expression of five imprinted genes in different tissues of F. vesca. Error bars represent standard deviation (SD). Columns with asterisks indicate significant difference: * represents p ≤ 0.05, ** represents p ≤ 0.01, *** represents p ≤ 0.001. FvARI8(A), FvBRO1(D), FvKHDP-2(B), and FvLTP3(E) showed a similar expression pattern, whereas FvDRIP2(C) has a lower expression level in endosperm and pollen.
Genes 12 00380 g002
Table
Table 1. Details of 17 candidate imprinted genes of Fragaria vesca.
Table 1. Details of 17 candidate imprinted genes of Fragaria vesca.
Query
Sequence		BLASTP ResultGene nameE-ValueSimilarity (%)Length of Coded Proteins/aa
AtMEANot found
AtFIEXP_004294343.1FvFIE075.48370
AT5G22200XP_004303497.1FvYLS9069.3210
AT1G24020XP_004297655.1FvMLP071.25157
AT2G27385XP_004291583.1FvUNP1 × 10−4250.53178
AT2G31510XP_004302175.1FvARI8074.5596
AT3G08620XP_004302513.1FvKH085.92282
AT5G10140XP_004306305.1FvCAL1 × 10−2050.68219
AT1G07705XP_004294625.1FvVIP24 × 10−13775.75664
AT2G03110XP_011467948.1FvKHDP-2050.98549
AT3G23060XP_004289907.1FvDRIP2041.41426
AT4G16380XP_004293392.1FvBRO11 × 10−3049.63267
AT1G62790XP_004298676.1FvLTP31 × 10−1745.45151
AT1G62790XP_011464483.1FvYLS32 × 10−3244.19169
AT3G49540XP_004307185.1FvUNP11 × 10−2257.38185
AT3G49540XP_004300088.1FvMIA405 × 10−1646.88144
AT3G49540XP_004290526.1FvAMI060.57603
AT1G23320XP_004290481.1FvTAR42 × 10−7443.5485
Table
Table 2. Conserved imprinted genes between A. thaliana and four other species.
Table 2. Conserved imprinted genes between A. thaliana and four other species.
Imprinted Genes of A. thaliana Conserved Imprinted Genes of Four Species a
Oryza sativaZea maysSorghum bicolorRicinus communisReferences
AtMEA m ZmMez1 m [14,17]
AtFIE mOsFIE1mZmFIE1 m [15,18,19]
AT5G22200 mLOC_Os04g58860 mGRMZM2G358540 m [37]
AT5G22200 mLOC_Os11g05860 m [37]
AT1G24020 mLOC_Os04g39150 mGRMZM2G102356 m [37]
AT2G27385 mLOC_Os10g05750 mGRMZM2G003909 m [37]
AT2G31510 mLOC_Os04g41470 pGRMZM2G006428 p [37]
AT3G08620 mLOC_Os07g12490 pGRMZM2G472052 p 29765.m000727 m[21,37]
AT5G10140 pLOC_Os12g10540 mGRMZM2G010669 m [37]
AT1G07705 pLOC_Os02g54120 p Sb04g035110 p [37]
AT2G03110 mLOC_Os10g35220 p Sb07g005630 p [37]
AT3G23060 mLOC_Os12g40790 m Sb08g020500 m [37]
AT4G16380 mLOC_Os05g13940 m Sb08g022000 p [37]
AT1G62790 m 30190.m011003 m[58]
AT3G49540 mLOC_Os09g31080 mGRMZM2G129781 mSb02g003315 m [37]
AT1G23320 pLOC_Os05g07720 pGRMZM2G127160 pSb09g005080 m [37]
a, the genes in the same row are conserved with imprinted genes of A. thaliana. m, conserved imprinted gene was identified as maternally expressed gene (MEG). p, conserved imprinted gene was identified as paternally expressed gene (PEG).
Table
Table 3. Primer sequences for cloning candidate genes.
Table 3. Primer sequences for cloning candidate genes.
Gene NameFroward Primer (5′–3′)Reverse Primer (5′–3′)Expected Size/bp
FvFIEATGGCCAAGTTCGCTTTGTCAAGAATTTTCCATGACATCCC1113
FvYLS9ATGTCTTCGAAAGACTGCGTCATATGCTTACCTTGCATCGC633
FvMLPATGGCGCCTTCAGATGTTGGTCAATGAGCGAGGACATAGTC474
FvUNPATGGCTACTCTTTCCGGCTTAGGGTATGCCTATGATAGGGAAG537
FvARI8ATGGAATCAGAGGACGATTTCGCTACCGGCGTTGTTGGCA1791
FvKHATGTCAGGGTTGTATAATCCCTCATCGACCTGTTTTGGCAC849
FvCALATGGGAAGAGGGAAGGTGCCTAAAACAAATTAAGCACTGGATG 660
FvVIP2ATGTCTGGATTACTTAATTCAGTGCTGAGGTAACGT1995
FvKHDP-2ATGGCCGGCCAGAGAAACAAATGTAACCATAGTTTCTCCGCCG1647
FvDRIP2ATGGCGAATCAGGTGGTGGAGGTACAATAATGGCAATGG1281
FvBRO1ATGGGCGAAAAAAAGGTGACGTTACATGATGGCGCACGCTT804
FvLTP3ATGGGTTGCGGCAACATTTCCTAGTAATACATGACGGAAGCC456
FvYLS3ATGGCTTCAAAGTGTCTGTTCTAAAATGCTGCTGCTGGAAT510
FvUNP1ATGGGTGCTTCCAACTCCATCTATTGCTTCCCCTCAGACGAA558
FvMIA40ATGGGAGGTGCTTCCATCACCTAACCTTCTTGCTTGTCAG435
FvAMIATGGCGGATCAGGAGGATGATCAGACAATACTAGGCGCATCC1812
FvTAR4ATGGCTAAGCTACAACAAAGCTCCCTACTTACGTGACTTGCGTCT1458
Table
Table 4. qRT-PCR primer sequence of imprinted gene of F. vesca.
Table 4. qRT-PCR primer sequence of imprinted gene of F. vesca.
Gene nameFroward Primer (5′–3′)Reverse Primer (5′–3′)Expected Size/bp
FvARI8CATCCAGTGCCAACCTGAGTGGCATGTTCGTGGTCAGGTA152
FvKHDP-2AGCTCAGGGTGGACACAAAGTCCTCAAAGCCGTTCGTCTC178
FvDRIP2ATGGCGAATCAGGTGGTGAAACACTGCCCAGATCGGTTTT197
FvBRO1CTTACTGCGCCTCCGTTTCCAGGGTTAGCAGGAACAACCG168
FvLTP3ACCTCAACAACACCGACCAATGGCGATTCTAACAGCGGAG153
EF1-αCATGCGCCAGACTGTTGCTGTGACCGACTCAGAATACTAGTAGC186
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Liu, Y.; Jing, X.; Zhang, H.; Xiong, J.; Qiao, Y. Identification of Imprinted Genes Based on Homology: An Example of Fragaria vesca. Genes 2021, 12, 380. https://doi.org/10.3390/genes12030380

AMA Style

Liu Y, Jing X, Zhang H, Xiong J, Qiao Y. Identification of Imprinted Genes Based on Homology: An Example of Fragaria vesca. Genes. 2021; 12(3):380. https://doi.org/10.3390/genes12030380

Chicago/Turabian Style

Liu, Yaping, Xiaotong Jing, Hong Zhang, Jinsong Xiong, and Yushan Qiao. 2021. "Identification of Imprinted Genes Based on Homology: An Example of Fragaria vesca" Genes 12, no. 3: 380. https://doi.org/10.3390/genes12030380

APA Style

Liu, Y., Jing, X., Zhang, H., Xiong, J., & Qiao, Y. (2021). Identification of Imprinted Genes Based on Homology: An Example of Fragaria vesca. Genes, 12(3), 380. https://doi.org/10.3390/genes12030380

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
