Genes 2019, 10(11), 849; https://doi.org/10.3390/genes10110849

Article
Genomic Insights into the Carbon and Energy Metabolism of a Thermophilic Deep-Sea Bacterium Deferribacter autotrophicus Revealed New Metabolic Traits in the Phylum Deferribacteres
1
Winogradsky Institute of Microbiology, Research Center of Biotechnology of the Russian Academy of Sciences, 119071 Moscow, Russia
2
Univ Brest, CNRS, Ifremer, LIA1211, Laboratoire de Microbiologie des Environnements Extrêmes LM2E, F-29280 Plouzané, France
*
Author to whom correspondence should be addressed.
Received: 1 October 2019 / Accepted: 23 October 2019 / Published: 26 October 2019

Abstract

:
Information on the biochemical pathways of carbon and energy metabolism in representatives of the deep lineage bacterial phylum Deferribacteres are scarce. Here, we report the results of the sequencing and analysis of the high-quality draft genome of the thermophilic chemolithoautotrophic anaerobe Deferribacter autotrophicus. Genomic data suggest that CO2 assimilation is carried out by recently proposed reversible tricarboxylic acid cycle (“roTCA cycle”). The predicted genomic ability of D. autotrophicus to grow due to the oxidation of carbon monoxide was experimentally proven. CO oxidation was coupled with the reduction of nitrate to ammonium. Utilization of CO most likely involves anaerobic [Ni, Fe]-containing CO dehydrogenase. This is the first evidence of CO oxidation in the phylum Deferribacteres. The genome of D. autotrophicus encodes a Nap-type complex of nitrate reduction. However, the conversion of produced nitrite to ammonium proceeds via a non-canonical pathway with the participation of hydroxylamine oxidoreductase (Hao) and hydroxylamine reductase. The genome contains 17 genes of putative multiheme c-type cytochromes and “e-pilin” genes, some of which are probably involved in Fe(III) reduction. Genomic analysis indicates that the roTCA cycle of CO2 fixation and putative Hao-enabled ammonification may occur in several members of the phylum Deferribacteres.
Keywords:
autotrophic; thermophile; roTCA cycle; CO oxidation; Fe(III)-reduction; nitrate reduction

1. Introduction

The genus Deferribacter belongs to the phylum Deferribacteres, which represents a deep lineage in the domain Bacteria [1]. Currently, the genus Deferribacter comprises four species, D. thermophilus [2], D. desulfuricans [3], D. abyssi [4], and D. autotrophicus [5]. Members of the genus Deferribacter are thermophilic anaerobes with a Gram-negative type of cell wall, inhabiting deep and shallow marine ecosystems. The metabolism of the Deferribacter species is based on the anaerobic respiration of diverse electron acceptors, such as soluble and insoluble forms of Fe(III) [2,4,5], Mn(IV) oxide [2,5], nitrate [2,3,4,5], and elemental sulfur [3,4,5]; fermentative growth is not revealed. The ability to use specific electron acceptors, as well as the possibility for autotrophic growth, varies among species. Their capacity for the dissimilatory reduction of environmentally relevant compounds makes Deferribacter a potentially important microbial group in the cycling of iron, nitrogen, and sulfur in deep-sea hydrothermal vents and submarine petroleum reservoirs. Several studies show the abundance of Deferribacter among the iron-reducing prokaryotes in various deep-sea hydrothermal systems [6,7,8]. To date, the complete genome has been sequenced only for one representative of Deferribacter: D. desulfuricans [9]. Genome analysis of this bacterium revealed numerous genes for chemoreceptors, chemotaxis-like systems, and signal transduction machineries that may be linked to versatile energy metabolisms and may provide ecophysiological advantages for D. desulfuricans thriving in the physically and chemically fluctuating hydrothermal environment [9]. D. desulfuricans is incapable for autotrophic growth and for reduction of Fe(III) and Mn(IV), so genomic determinants of metal reduction in Deferribacter remain unexplored. The object of this study, D. autotrophicus, isolated from one of the deepest world ocean’s hydrothermal fields [Ashadze field (12°58′21″ N 44°51′47″ W) at a depth of 4100 m, is able to grow chemolithoautotrophically via the oxidation of molecular hydrogen with ferrihydrite, and thus could play a role in the primary production of organic matter in deep-sea ecosystems [5]. Here, we present the results of shotgun de novo sequencing and analysis of the D. autotrophicus SL50T genome and provide insight into the carbon and energy metabolism of this bacterium and other species of the phylum Deferribacteres with complete sequenced genomes.

2. Materials and Methods

2.1. Genome Sequencing and Assembly

Genomic DNA from a pure culture of D. autotrophicus SL50T was extracted with the ISOLATE II™ genomic DNA kit (Bioline, London, United Kingdom), according to manufacturer’s instructions. DNA was quantified by Qubit® dsDNA assay (Thermo Fischer Scientific, Waltham, MA, USA), and quality was assessed using Xpose™ spectrophotometer (Trinean, Gentbrugge, Belgium) and agarose gel electrophoresis. For sequencing of the D. autotrophicus genome, both the fragment and long insert (mate-paired) DNA libraries were used. The fragment library was prepared from 500 ng of genomic DNA with the NEBNext Ultra™ DNA library preparation kit (New England Biolabs, Ipswich, MA, USA) according to the manufacturer’s instructions to obtain the mean library size of 400 bp. Mate-paired libraries were prepared with the Nextera™ mate pair library prep kit (Illumina Inc., San Diego, CA, USA) according to the gel-free library preparation protocol, provided by the supplier. Finally, one paired-end and three mate-paired libraries were sequenced with 2 x 250 bp reads with the MiSeq™ personal sequencing system (Illumina Inc.) with standard settings. After sequencing, all reads were subjected to quality filtering and trimming with CLC genomics workbench 9.5 (Qiagen, Hilden, Germany). The 380,899 obtained read pairs were used for assembly. Removal of junction adaptor and identification of true mate-paired reads was performed with the NextClip tool [10], resulting in 1,258,348 true mate-pairs with a mean insert size of 1751 bp.
Reads were assembled with SPADES 3.9.0 [11]. The obtained contigs were processed manually using the CLC genomics workbench 9.5 package. The resulting assembly consisted of 12 contigs with 2,543,746 bp total length and the N50 value of 319,692 bp. The final assembly coverage was 199.0x.

2.2. Genome Annotation

The primary annotation and genomic analyses were performed in an IMG/M v.5.0 analysis system [12] and further refined by NCBI’s (National Center of Biotechnology Information) prokaryotic genome annotation pipeline [13] and manual curation. The study of orthologous genes between D. autotrophicus and D. desulfuricans megaplasmid was performed by OrthoVenn2 web server [14]. The search and analysis of transposase families was performed by ISSaga web server [15]. Identification and classification of the CRISPR-Cas system was performed by the CRISPRCas Finder web server [16]. The prediction of laterally transferred gene clusters (genomic islands) was performed with the IslandViewer4 web server [17]. Genome visualization was made with the Circos software [18]. For visualization purposes, contigs of D. autotrophicus were ordered according to the alignment of the publicly available D. desulfuricans genome with the contig ordering tool from the MAUVE genome alignment package [19]. Analysis of the COG (Clusters of Orthologous Genes) functional categories was performed with the eggNOG-Mapper tool on the eggnog Database web server [20]. The analysis of the taxonomic distribution of best blast hits was performed with the AAI (Average Amino-acid Identity) Profiler server [21]. Hydrogenase classification has been checked using the HydDB webtool https://services.birc.au.dk/hyddb/ [22].

2.3. Phylogenetic Analysis

The in silico translated proteomes of D. autotrophicus and D. desulfuricans were searched for molybdopterin oxidorecuctases genes, using BLASTp with known molybdopterin oxidorecuctases sequences from [23] as the queries. Eight sequences were found in each of proteomes. The respective 16 proteins were aligned with the dataset of molybdopterin reductases from [23] (except for a few haloarchaeal sequences) using Mafft v. 7 [24]. The evolutionary history was inferred in MEGA6 [25] by using the maximum likelihood method based on the JTT model [26] and 1000 bootstrap replications. All positions with less than 95% site coverage (gaps, missing data, and ambiguous bases) were eliminated. There was a total of 460 amino acid positions in 129 sequences in the final dataset.

2.4. Growth Experiments on Carbon Monoxide Utilization

Deferribacter autotrophicus SL50T was cultivated in 17 mL Hungate tubes (Bellco Glass Inc., Vineland, NJ, USA) filled with 5 mL of the liquid medium. The medium’s composition and preparation are described in [5], the organic electron donors (lactate, acetate) were omitted. The medium contained 100 mg/L of yeast extract (DifcoTM, Seneca, KS, USA) and 10 mM KNO3 (Sigma-Aldrich, p.p.a., St. Louis, MI, USA) as an electron acceptor. The gas phase was filled with CO2 (100%, 1.0 atm, analytical grade, JSC MGPZ, Moscow, Russia). Carbon monoxide (gas, analytical grade, JSC MGPZ) was added to each test tube by syringe to obtain the final CO concentration of 10% (v/v). Cultivation was performed at 60 °C. The growth of bacteria was determined by direct counting of the cells with a phase-contrast microscope (Olympus CX41, Japan) and a counting chamber. CO, H2, alcohols, and volatile fatty acids were analyzed by gas chromatography, as described in [27]. Ammonium was determined by the phenol-hypochlorite reaction; nitrate was analyzed by HPLC, as described in [28]. In growth experiments, series of the Hungate tubes were incubated in parallel, and for each measuring point, three independent test tubes were used. All experiments were repeated three times. Mean square deviations for the six measurements are presented throughout the paper.

2.5. Data Availability

The draft genome of D. autotrophicus SL50T was deposited in DBJ/EMBL/GenBank under the accession nos. VFJB00000000, PRJNA546543, and SAMN11960996 for the Genome, Bioproject, and Biosample, respectively.

3. Results and Discussion

3.1. General Genome Properties, Genome Mobility, and Genomic Islands

Draft genome of D. autotrophicus SL50T consists of 2,542,980 nucleotides and has a GC content of 32.62%. Annotation with PGAP [13] resulted in prediction of 2504 genes, 2451 of which are protein-coding genes, 53 RNA genes, and 23 pseudogenes. The genome of D. desulfuricans harbors a 300 Mbp megaplasmid. With respect to that fact, we performed additional analysis of our data to identify plasmid-related contigs in our assembly. Nevertheless, neither analysis of the assembly coverage, nor the alternative assembly with plasmidSPAdes [29] revealed the presence of any extrachromosomal elements in the D. autotrophicus SL50T genome. On the other hand, the genome of D. autotrophicus SL50T is almost 300 Mbp larger than the chromosome of D. desulfuricans (Table 1). However, this could not be explained by the integration of D. desulfuricans megaplasmid into the chromosome due to the fact that only five orthologues of genes encoded by the megaplasmid were detected in the D. autotrophicus genome by the OrthoVenn2 web server and ProteinOrtho orthology detection tool (Figure 1C, Supplementary Table S1) [14,30]. In turn, analysis of the transposase families present in the D. autotrophicus genome revealed a high level of diversity of IS elements, indicating that a significant number of HGT events occurred during the evolution of this species. Analysis of orthologous genes clusters by the OrthoVenn2 web server [14] showed that D.autotrophicus and D.desulfuricans genomes share 1877 gene clusters and possess 557 and 511 species-specific CDS, respectively (Figure 1C).
Genetic immunity in D. desulfuricans SSM1 is ensured by the I-B type of the CRISPR-Cas system [4,31]. In turn, D. autotrophicus possesses only two genes of I-B type Cas clusters (Cas6—FHQ18_10400 and Cas8b1/Cst1—FHQ18_10405), neighboring two transposase genes, which possibly disrupted the other part of the I-B type effector complex. Taken together, these observations suggest that the increased chromosome size of D. autotrophicus is a result of the loss of genomic immunity systems and subsequent numerous lateral gene acquisition events during the evolution of D. autotrophicus. In accordance with this assumption, the prediction of laterally transferred genes with the IslandViewer4 web server [17] showed that the D. autotrophicus SL50T genome possesses 12 genomic islands of 164 kb total length, which is twice the number and total length of the GIs in the genome of D. desulfuricans (Table 1 and Table S2, Figure 1D). Analysis of the COG functional categories of genes, located in the predicted GIs, showed that apart from the “L—Replication, recombination, and repair” category, largely represented by integrases, transposases, and other genome mobility-related genes, almost one-third of genomic islands were represented by genes involved in the regulation of transcription and signal transduction (Figure 1B, Table S3), ensuring attenuation of gene regulation circuits to changing environmental conditions. Further, 19% of the predicted laterally transferred genes were attributed to cell membrane biogenesis and cell motility functions (Figure 1D, Table S3). Therefore, it might be speculated that genomic islands, acquired by D. autotrophicus, play an important role in the adaptation of D. autotrophicus cells for living in both the sharp and flexible physicochemical gradients of deep-sea hydrothermal vents. In that aspect, D. autotrophicus genome is expectedly similar to D. desulphuricans, also significantly enriched by signal transduction, motility, and chemotaxis-related genes [9]. Nevertheless, analysis of PFAM domains, involved in environmental sensing, showed that despite the genome of D. autotrophicus being slightly smaller than the genome of D. desulfuricans, it possesses a higher number of genes, related to signal transduction systems (Table S4). Observation that at least 13% of these genes are located in detected genomic islands supports the hypothesis regarding the important role of laterally acquired genes in regulatory networks of D. autotrophicus.
Genome-wide analysis of the taxonomic distribution of the best blast hits (BBHs) of proteins showed a similar overall BBH pattern to D. desulfuricans, which is significantly enriched by genes with the closest orthologues in Deltaproteobacteria, Firmicutes, and Aquificae, showing 54.7, 48.6, and 62.3% mean AAI, respectively [9]. Remarkably, the BBH taxonomy affiliation of more than 40% of proteins encoded in the genomic islands points to an extensive gene flow between these taxa. Interestingly, genomic islands were enriched by the genes, encoding proteins with the best orthologs from phylum Spirochaetes (Figure 1A, Table S5). Although this phylum has only a few cultivated thermophilic members [32,33,34], its representatives might have a significant input to the hydrothermal field’s gene pool.

3.2. Central Metabolism

Deferribacter autotrophicus can anaerobically oxidize formate, acetate, lactate, pyruvate, malate, fumarate, succinate, maleinate, maltose, and molecular hydrogen with nitrate, elemental sulfur, Fe(III), or Mn(IV) as electron acceptors [5]. Organic acids could be utilized as energy and carbon sources via the oxidative tricarboxylic acid cycle (TCA). The genome of D. autotrophicus contains all the genes encoding TCA enzymes, including: citrate synthase (FHQ18_06115), aconitate hydratase (FHQ18_06070), isocitrate dehydrogenase (FHQ18_05945), 2-oxoglutarate/2-oxoacid ferredoxin oxidoreductase (FHQ18_01050, FHQ18_01055; FHQ18_05965, FHQ18_05970, FHQ18_05975, FHQ18_05980; FHQ18_06355, FHQ18_06360, FHQ18_06365, FHQ18_06370), succinyl-CoA ligase (FHQ18_05955, FHQ18_05960), succinate dehydrogenase (FHQ18_05990, FHQ18_05995), fumarate hydratase (FHQ18_05155), and malate dehydrogenase (FHQ18_05950). Acetate can enter TCA after activation to acetyl-CoA either in a single-step reaction, catalyzed by an acetyl-CoA synthetase (FHQ18_05360; FHQ18_07465), or (at high acetate concentration [35]) in a two-step reaction, catalyzed by acetate kinase (FHQ18_04100) and phosphate acetyltransferase (FHQ18_04095). The genome of D. autotrophicus contains the full set of genes of the Embden–Meyerhof–Parnas (EMP) pathway and the non-oxidative branch of the pentose phosphate pathway (PP). The EMP and PP pathways in D. autotrophicus probably also operate in the reverse direction and are involved in the synthesis of cell material during autotrophic growth.
Deferribacter autotrophicus is capable of using molecular hydrogen as an energy source. The genome of D. autotrophicus contains two gene clusters encoding membrane-bound [NiFe]-hydrogenases, belonging to the Group 1f and the Group 1c [NiFe]-hydrogenases, respectively, which are likely to be involved in the H2-uptake. The first gene cluster (FHQ18_02875, FHQ18_02880, FHQ18_02885, and FHQ18_02890) encodes three hydrogenase subunits (HyoS, HyoL, and HyoE) and a hydrogenase maturation protease. All three subunits are strongly conserved (84% to 93% amino acid identity) with those of the [NiFe]-hydrogenase of D. desulfuricans, the bacterium capable of H2 utilization. The [NiFe] Group 1f-hydrogenase class is polyphyletic and has been poorly studied. It may contain several loosely-related hydrogenases with different roles, such as oxidative stress defense in Geobacter sulfurreducens [36] or consumption of sub-atmospheric concentrations of H2 in Acidobacterium ailaaui [37]. We can hypothesize that this hydrogenase could be involved in hydrogenotrophic respiration of nitrate or sulfur. The second cluster (FHQ18_08580, FHQ18_08560, 65, 70, and 75) contains the genes of a hydrogenase maturation protease and four subunits (HybO, HybA, HybB, and HybC) of the [NiFe]-hydrogenase, which couples hydrogen oxidation in the periplasm to reduction of the inner membrane quinone pool. Notably, genes of the Fe-S-cluster-containing protein HybA and integral membrane subunit HybB are absent in D. desulfuricans, indicating the incompleteness of the given hydrogenase complex in this microorganism. HybABCO is structurally similar to the hydrogenase 2 of Escherichia coli, which is expressed under anaerobic conditions and is sensitive to oxygen and nitrate [38,39]. The Group 1c [NiFe]-hydrogenases class is described to be involved in anaerobic hydrogen uptake with terminal electron acceptors such as metals, fumarate, and sulfate. In D. autotrophicus, HybABCO might be used for Fe(III) reduction. The [NiFe]-hydrogenase maturation system HypABCDEF in D. autotrophicus is encoded in FHQ18_04530, FHQ18_04535, FHQ18_04540, FHQ18_05795, FHQ18_05800, and FHQ18_06255.

3.3. Autotrophic CO2 Fixation

Deferribacter autotrophicus grows autotrophically using CO2 as the carbon source, molecular hydrogen as an electron donor, and ferric iron as an electron acceptor [5]. In the D. autotrophicus genome, we did not find genes encoding the key enzymes of six microbial carbon fixation pathways, viz. ribulose 1,5-bisphosphate carboxylase (Calvin-Benson cycle), carbon monoxide dehydrogenase/acetyl-CoA synthase complex (reductive acetyl-CoA pathway), ATP-citrate lyase and citryl-CoA lyase (two variants of the reductive tricarboxylic acid cycle), 4-hydroxybutyryl-CoA dehydratase (3-hydroxypropionate/4-hydroxybutyrate and dicarboxylate/4-hydroxybutyrate cycles), and malonyl-CoA reductase (3-hydroxypropionate bi-cycle). However, the genome of D. autotrophicus contains a gene cluster that encodes five enzymes of the reductive TCA cycle (FHQ18_05940-06005). The fumarase gene FHQ18_05155 was located distantly from the cluster. However, the in-silico translation of a pseudogene FHQ18_05935, located within this cluster, was predicted as a fumarase. Besides the four subunit 2-oxoglutarate/2-oxoacid ferredoxin oxidoreductase (FHQ18_05965-80) encoded by genes within the cluster FHQ18_05940-06005, two additional copies of the enzyme are encoded by distantly located genes: two subunits enzyme FHQ18_01050- 55 and four subunits enzyme FHQ18_06355-70. The closest characterized homologs of the first of these genes are from archaea Sulfolobus [40] and Aeropyrum [41] (50.2 and 47.8%/32.3 and 27.6% AA sequence identity for beta and alpha subunits, respectively, with almost 100% coverage) and act in the opposite direction, decarboxylating pyruvate and 2-oxoglutarate, respectively, thereby acting as a part of the oxidative TCA. This is a possible point of the regulation of the direction of the cycle. Moreover, the genome of D. autotrophicus contains one gene of citrate synthase (CS) (FHQ18_06115). Under chemolithoautotrophic conditions, citrate synthase can cleave citrate adenosine triphosphate independently into acetyl coenzyme A and oxaloacetate [42,43]. Therefore, the TCA cycle operated in the reductive direction with the reverse reaction of CS [42,43] (Figure 2). Acetyl-CoA is reductively carboxylated to pyruvate by ferredoxin-dependent pyruvate synthase (FHQ18_06490). The presence of genes of anaplerotic enzymes, pyruvate carboxylase (FHQ18_00520), phosphoenolpyruvate carboxykinase (FHQ18_07095), and oxaloacetate- decarboxylating malate dehydrogenase (malic enzyme, FHQ18_00980, FHQ18_05150), indicates the possibility to maintain the level of the cycle intermediates. Considering all these observations, D. autotrophicus CO2 fixation can occur, most likely, via the recently discovered reversible TCA cycle (“reversed oxidative TCA cycle”) [42,43] (Figure 2).
Among representatives of the phylum Deferribacteres with sequenced genomes, the capacity for autotrophic growth was experimentally shown for D. autotrophicus and suggested for Geovibrio thiophilus, which can be repeatedly transferred with H2 and S0 in the absence of organic compounds [44]. Like D. autotrophicus, the genome of G. thiophilus did not contain genes encoding the key enzymes of the six microbial carbon fixation pathways (see above) but did contain the complete set of genes of TCA cycle. The citrate synthase (CS) of G. thiophilus (WP_128467229) has 77% amino-acid sequence identity with the CS of D. autotrophicus. These findings suggest a similar mode of CO2 assimilation in D. autotrophicus and G. thiophilus and make both microorganisms promising candidates for the experimental testing of the recently proposed reversible TCA cycle. The prediction of roTCA cycle based entirely on bioinformatic data is not currently possible. For instance, the genome of Deferribacter desulfuricans contains all genes of TCA cycle, including putative CS, which is highly similar (98% protein identity) to CS of D. autotrophicus, but D. desulfuricans is incapable for autotrophic growth tested with several electron acceptors [3,9]. It was suggested that the absence of ATP-dependent citrate lyase is the reason of inability of D. desulfuricans to grow autotrophically [9], but D. autotrophicus also lacks genes encoding this enzyme, thus failure of D. desulfuricans for autotrophic growth could be caused by other factors.

3.4. Carbon Monoxide Utilization

The ability of D. autotrophicus to utilize carbon monoxide (CO) has not been tested in the original description [5]. We found that the genome of D. autotrophicus contains two genes that encode anaerobic [Ni, Fe]-containing carbon-monoxide dehydrogenase (CODH), which prompted us to experimentally verify CO utilization. Indeed, D. autotrophicus grew in batch cultures in a liquid anaerobic cultivation medium supplemented with CO (10% v/v in the gas phase) as an electron donor and nitrate (10 mM) as an electron acceptor (Figure 3A). Under these conditions, 100 mg/L of yeast extract was required for sustainable growth. No growth on CO occurred with Fe(III) citrate, ferrihydrite, Mn(IV), elemental sulfur, or in the absence of an electron acceptor. In nitrate-grown cultures, maximal cell density was 8.3 × 107 cells/mL, and the specific growth rate was 0.225 ± 0.004 h−1 (doubling time: 3.15 h). Cell growth was coupled to the removal of CO and nitrate and the accumulation of ammonium. The nitrate was reduced to ammonium: from 3.79 ± 0.53 mM of NO3 consumed, 3.69 ± 0.51 mM of NH4+ was produced. No nitrite, N2, or N2O were detected in the logarithmic or stationary phases of growth. In the non-inoculated chemical controls, the initial CO and nitrate concentration was not changed, and no ammonium accumulation was detected during incubation at 600 °C for 78 h (Figure 3B). Carbon monoxide was presumably oxidized to CO2 (not quantified). Other possible products of CO oxidation, including acetate, ethanol, and C3–C5 volatile fatty acids and alcohols, were not found in the cultivation medium. No production of molecular hydrogen was observed in any phase of growth. The maximal tested CO concentration that supported growth was 50% v/v in the gas phase.
The ratio of CO consumed to ammonium produced was 3.77 ± 0.56. This CO/NH3 ratio is close to the theoretical ratio for the following reaction:
  • 4CO + NO3 + 2H2O = 4CO2 + NH3 + OH
  • [CO/NH3] = 4.00; ΔG°’ = −593.6 kJ per reaction; ΔG°’ = −148.4 kJ·mol−1 CO.
The oxidation of carbon monoxide with nitrate as an electron acceptor has been reported for Moorella thermoautotrophica and Moorella thermoacetica [45]. In these homoacetogenic bacteria, NO3 inhibits CO utilization under autotrophic conditions, but growth on CO, coupled to nitrate reduction to nitrite and ammonium, can be obtained in the medium supplemented with high concentrations of organic compounds such as vanillate (5 mM), syringate (5 mM), or yeast extract (1.0 g/L), which are used as carbon sources [45]. In contrast, D. autotrophicus cannot utilize CO in the absence of nitrate and does not require large amounts of organics for CO-dependent growth.
In the D. autotrophicus genome, [Ni, Fe]-CODH-coding genes are localized in two differently organized gene clusters (Figure 4). Cluster CODH-I consists of the CO-sensing transcriptional regulator RcoM (FHQ18_12160); catalytic CODH subunit CooS (FHQ18_12155); an accessory protein CooC, involved in ATP-dependent Ni-insertion into CODH (FHQ18_12150); iron–sulfur-binding protein CooF, putatively transferring electrons from CooS via the Fe–S clusters (FHQ18_12145); and FAD–NAD(P) oxidoreductase FNOR, probably involved in electron transfer to the quinone pool (FHQ18_12140). A similar organized gene cluster has been described for Geobacter sulfurreducens, which utilizes CO with fumarate as an electron acceptor and has single monofunctional CODH [46]. Amino-acid identity between the D. autotrophicus CooS FHQ18_12155 and CooS of G. sulfurreducens is 74%, and they are grouped together on the phylogenetic tree (Figure 5). The D. autotrophicus cluster CODH-II includes genes of CooF (FHQ18_12005), CooS (FHQ18_12010), CooC (FHQ18_12030), and FNOR (FHQ18_12035), as well as three genes encoding proteins annotated as NADH:ubiquinone oxidoreductase subunits E and F (FHQ18_12015-20) and the 4Fe-4S dicluster protein (FHQ18_12025). Genes of the putative oxidoreductases from COG1905 and COG1894 are often present in the genomic context of [Ni, Fe]-CODH-containing loci. However, functions of the respective proteins in CO metabolism are not clear [47]. Notably, genes encoding the putative NADH:quinone-oxidoreductase subunits E and F, along with the 4Fe-4S domain protein (CarfeDRAFT _00002360 _00002350 _00002340, IMG annotation), are part of the CODH-IV-containing genomic locus in Carboxydothermus ferrireducens that is capable of CO oxidation with fumarate, 9,10-anthraquinone-2,6-disulfonate, or Fe(III) as an electron acceptor [27,48]. Among the [Ni, Fe]-CODHs of carboxydotrophic microorganisms, CooS-II of D. autotrophicus has the highest amino-acid identity (66%), with the CooS of Thermococcus sp. strain AM4 belonging to clade E of anaerobic carbon-monoxide dehydrogenases [47,49,50]. The gene encoding homolog of CO- and redox-sensing regulator protein CooA (FHQ18_06185) is present in the D. autotrophicus genome but is located separately from the two CODH clusters. Genes encoding cox-type aerobic Mo- and Cu-containing CODHs belonging to the xanthine oxidase family were not identified in the D. autotrophicus genome.
The functional role of two D. autotrophicus CODHs is difficult to predict from the genomic data. Considering the high amino-acid identity of the CooSI of D. autotrophicus, a single monofunctional CooS of G. sulfurreducens and the same operon formula of their gene clusters, it is highly likely that in D. autotrophicus, CODH-I is involved in CO oxidation. The biological role of CODH-II of D. autotrophicus is unclear. Its genomic context resembles the CODH-IV gene clusters of Carboxydothermus hydrogenoformans and Carboxydothermus ferrireducens, which are thought to be involved in defense against oxidative stress [52]. However, the D. autotrophicus CODH-II cluster lacks the gene encoding rubrerythrin, which performs the final step of the detoxification–hydrogen peroxide reduction. Protein sequence identities between NADH:ubiquinone oxidoreductase subunits of D. autotrophicus and subunits HndA, HndB, and HndC of electron-bifurcating hydrogenase of Desulfovibrio fructosovorans [53] were 35, 28, and 57%, respectively, thus leaving open the question of similar catalytic mechanisms of these enzymes.
A search for cooS genes among other representatives of the phylum Deferribacteres with sequenced genomes did not yield positive results. Thus, to date, D. autotrophicus is the only known representative of the phylum Deferribacteres capable of CO metabolism.

3.5. Nitrate Reduction

Deferribacter autotrophicus reduces nitrate to ammonium in the course of growth with organic electron donors [5]. Microbial dissimilatory nitrate reduction to ammonium proceeds via the formation of NO2 by rather well-characterized Nap- or Nar-type enzyme complexes, but the step of nitrite reduction to ammonium differs in many microorganisms and is not completely understood [54].
The genome of D. autotrophicus contains a 9-gene cluster (FHQ18_08700- FHQ18_08740) relevant to dissimilatory nitrogen metabolism. This cluster comprises a five-gene locus of the Nap-type nitrate reduction complex and four genes probably involved in the reduction of nitrite. The Nap-type system encoded by napMADGH (FHQ18_08700–FHQ18_08720) includes the small periplasmic cytochrome NapM, the catalytic molybdopterin-binding subunit NapA, the chaperone NapD, and ferredoxin-containing electron transfer subunits, NapG and NapH. The Nap system of D. autotrophicus lacks the membrane-bound quinol-oxidizing tetraheme cytochrome NapC and diheme cytochrome NapB, which is also a characteristic of the Nap systems of deep-sea nitrate-ammonifying thermophiles Dissulfuribacter thermophilus (class Deltaproteobacteria), Thermosulfurimonas dismutans (class Thermodesulfobacteria) [28,55], and Caldithrix abyssi, (phylum Calditrichaeota) [56]. The reduction of the produced nitrite to ammonium does not proceed via the canonical Nrf system because the gene, encoding the key enzyme of this pathway (i.e., pentaheme cytochrome c nitrite reductase NrfA), was not found in the genome. It has been proposed that the Nrf complex could be replaced by an ammonification pathway based on the reversibly acting hydroxylamine oxidoreductases (Hao) [57]. In D. autotrophicus, the enzymes that are presumably a part of this pathway are encoded by other four genes of the 9-genes cluster (FHQ18_08725-40). These proteins include periplasmic octaheme hydroxylamine oxidoreductase (Hao), a small membrane-bound protein of unknown function, hydroxylamine reductase (Hcp), and decaheme cytochrome c with one transmembrane helix. We hypothesize that the reduction of nitrite to ammonium proceeds by the action of cytochrome-containing hydroxylamine oxidoreductase (Hao) and hydroxylamine reductase (Hcp) via the formation of hydroxylamine as an intermediate (Figure 6). It is also possible that Hao directly reduces NO2 to NH3 without the help of Hcp. Alternatively, octaheme tetrathionate reductase (Otr) could be involved in nitrite reduction [58]. The genome of D. autotrophicus contains the otr gene (FHQ18_05250) encoding protein, which seems to be localized in the periplasmic space, as indicated by the presence of a signal peptide. Ammonium transporters are encoded by the genes FHQ18_06975 and FHQ18_08825, the latter located close to the proposed nap-hao gene cluster. The genome of D. autotrophicus does not contain the qcrABC gene cluster that encodes the menaquinol-cytochrome c reductase complex involved in nitrate respiration in some Epsilonproteobacteria [59,60]. Interestingly, the genome of D. desulfuricans, which reduces nitrate to nitrite but does not produce ammonium, also contains a gene cluster (DEFDS_1817-1823) encoding NapMADGH, Hao, and a small membrane-bound protein of an unknown function similar to FHQ18_08730 of D. autotrophicus. However, D. desulfuricans does not contain homologs of the transmembrane decaheme cytochrome c and otr genes present in D. autotrophicus, and the Hcp-coding gene is distantly located from the nap gene cluster. The membrane-bound nitrate-reducing enzymes (Nar: DEFDS_2086-89) present in the genome of D. desulfuricans are absent in D. autotrophicus. This absence is important, since the Nar enzyme complex can generate the proton motive force (pmf), unlike Nap and Hao enzymes, making the D. autotrophicus nitrate/nitrite reduction dependent on other pmf-driving mechanisms.
The genomes of all genome-sequenced cultivated members of the phylum Deferribacteres contain the napMADGH gene cluster (Table 1), but the reduction of nitrite to ammonium in Denitrovibrio acetiphilus and Geovibrio thiophilus apparently occurs without the participation of NrfA, as in the Deferribacter species.

3.6. Iron Reduction

Deferribacter autotrophicus reduces the soluble and insoluble forms of Fe(III) during the course of growth with organic electron donors or molecular hydrogen [5]. The biochemical mechanisms and pathways of dissimilatory iron reduction are diverse, and currently no universal genomic determinants of this process are known. However, it is clear that in many organisms, c-type cytochromes play a key role in electron transfer out of the cell to the extracellular electron acceptor [61,62]. Another suggested mechanism for extracellular electron transport involves electrically conductive pili (‘e-pili’). However, many Fe(III) reducers lack e-pilin genes [63].
In the genome of D. autotrophicus, we did not find homologs of the outer- or inner-membrane cytochromes, MtrA, MtrC, OmcS, CymA, ImcH, and CbcL, and the porin-like outer-membrane proteins, MtrB and OmbB, which have been shown to determine electron transfer in the model Fe(III)-reducing bacteria, Shewanella oneidensis, and Geobacter sulfurreducens [64,65,66,67,68]. The D. autotrophicus genome contains 17 genes that encode putative multiheme c-type cytochromes with a number of heme c-binding motifs from two to 28 (Table S6). Among these, 10 genes encoded transmembrane proteins, and five genes encoded periplasmic proteins possessing signal peptides, which are not bound to the membrane. Cytochrome-containing nitrate reductase subunit NapM (FHQ18_08720), cytochrome c peroxidase (FHQ18_00480), and the cytochrome c oxidase cbb3-type subunit (FHQ18_11250) most probably are not involved in Fe(III) reduction. The functions of the other multiheme c-type cytochromes are not clear. Nine cytochrome genes, including those encoding proteins with 28 and 10 hemes, together with the other six genes of periplasmatic or membrane-bound proteins, are located in a short genome region (FHQ18_02900 - FHQ18_02990) and arranged in the same order as the genes of non-iron-reducing D. desulfuricans (DEFDS_0741-60), while the respective proteins have 49%–82% sequence identity with their D. desulfuricans counterparts. This gene cluster in D. desulfuricans was proposed as a remnant of the metal reduction system [9]. It should be noted that the gene cluster with a high content of cytochromes in the D. autotrophicus genome is adjacent to the gene cluster encoding [Ni-Fe]-containing hydrogenase (FHQ18_02875- FHQ18_02890), but in D. desulfuricans, the cytochrome and hydrogenase clusters are separated. This probably affects the co-expression of proteins involved in lithoautotrophic iron reduction. Only two genes of multiheme c-type cytochromes of D. autotrophicus have no homologs in D. desulfuricans genome: FHQ18_08740, encoding decaheme transmembrane cytochrome, and FHQ18_05250, encoding periplasmic octaheme cytochrome (Otr). Although we propose that these enzymes are involved in nitrite-reduction, it could not be excluded that they also participate in Fe(III) reduction. Similar to the genome of D. desulfuricans, the D. autotrophicus genome contains both the type IV pilin PilA (‘e-pilin’) (FHQ18_03575) and ‘pilA-C’ (FHQ18_03580) genes together in a cluster. FHQ18_03575 encodes a 65 aa immature pilin (57 aa mature pilin, 8 aa leader sequence) with eight aromatic amino acids (Supplementary Figure S1). This is the shortest ‘e-pilin’ reported to date. Other genes required for pilin assembly are scattered throughout the genome in five other clusters (FHQ18_00025–FHQ18_00040, FHQ18_00230–FHQ18_00275, FHQ18_04500–FHQ18_04520, FHQ18_06410–FHQ18_06420, FHQ18_09895–FHQ18_09915). The D. autotrophicus genome did not contain genes encoding the proteins of flavin-based extracellular electron transfer in Gram-positive bacteria [69].
Thus, the biochemical system of Fe(III) reduction in D. autotrophicus remains unresolved. Genomes of both microorganisms, iron-reducing D. autotrophicus and non-iron-reducing D. desulfuricans, have homologous gene clusters encoding the putative components of their Fe(III) reduction machinery—multiheme cytochromes and electrically conductive pili. Among representatives of the phylum Deferribacteres with sequenced genomes, the capacity for Fe(III) reduction was experimentally shown only for D. autotrophicus. Thus, at present, genomic data cannot be convincingly used to study iron reduction in other members of Deferribacteres.

3.7. Sulfur Reduction

Deferribacter autotrophicus couples organotrophic growth with a reduction of elemental sulfur but does not utilize sulfate or thiosulfate as the electron acceptors [5]. The enzymatic elemental sulfur reduction in prokaryotes proceeds either directly or indirectly via a soluble polysulfide intermediate [70].
In D. autotrophicus, the sulfur respiration most likely occurs via the action of polysulfide reductases (Psr), as was already suggested for D. desulfuricans [9]. Psr preferably reduces soluble polysulfide, which forms spontaneously in aqueous solutions containing elemental sulfur and sulfide [71]. In deep-sea hydrothermal vents, polysulfides are particularly abundant and support the energy-generating respiratory processes of numerous thermophiles.
The D. autotrophicus genome has three gene clusters encoding polysulfide reductases (FHQ18_08590-FHQ18_08600; FHQ18_10855-FHQ18_10865; FHQ18_10825-FHQ18_10835). The catalytic subunits (PsrA) in all clusters are members of the molybdopterin superfamily (Psr/Phs) [72,73]. Genes for PsrABC subunits were located in the order typical for other psr/phs. No genes encoding the TorD maturation protein and rhodanese-like sulfur-transferases were found in close vicinity to the psr clusters. In addition to polysulfide reductases, the genome also encompasses a molybdopterin-containing tetrathionate reductase (Ttr), a protein, which reduces tetrathionate to thiosulfate (FHQ18_07155), but the functionality of this enzyme is uncertain due to the absence of an anchoring subunit TtrC. The phylogenetic analysis of subunits A of all eight D. autotrophicus molybdopterin proteins (Figure 7) suggests that the FHQ18_08590 - FHQ18_08600 Psr forms a deep lineage within the Psr branch, thereby indicating its ancient origin or rather old horizontal transfer from Archaea. The other two psr clusters (FHQ18_10855-FHQ18_10865; FHQ18_10825-FHQ18_10835) were recently (after the splitting of D. autotrophicus and D. desulfuricans) duplicated, which is also supported by their close location within a genomic context. D. desulfuricans has two Psr complexes. One is closely related to the duplicated FHQ18_10855-FHQ18_10865; FHQ18_10825-FHQ18_10835, while the other is located in the branch of well-characterized Psr enzymes and has no close homologs in D. autotrophicus (Figure 7). Homologs of bacterial porin (FHQ18_02515) and rhodanese-like sulfur-transferase (FHQ18_07165), encoded by the genes located close to the Ttr cluster, could be involved in the entrance of polysulfide into periplasmic space. The genome of D. autotrophicus did not contain the homologs of NAD(P)H elemental sulfur reductase (NSR) [74], H2:sulfur oxidoreductase, or sulfhydrogenase [75] that were previously proposed to be involved in sulfur reduction in hyperthermophilic archaea and bacteria. It should be noted that later studies have shown that NSR is not essential for energy conservation during S0 reduction [76], while sulfhydrogenase is down-regulated in the presence of S0 [77].
Although, the genomes of all representatives of the phylum Deferribacteres, except Mucispirillum schaedleri, contain from one to three gene clusters related to polysulfide reductase PsrABC (Table 2), none of them besides D. autotrophicus, D. desulfuricans, and Geovibrio thiophilus are capable for S0 reduction [44]. Probably, these molybdopterin enzymes participate in the reduction of different electron acceptors in other Deferribacteres. D. autotrophicus is incapable for sulfide oxidation [5]; most likely, the additional PSRs cannot act in the reversible direction as sulfide dehydrogenase, which was suggested for some Epsilonproteobacteria with several psr copies [78].

4. Conclusions

Genomic analysis of D. autotrophicus SL50T revealed several new remarkable metabolic traits of this bacterium and the Deferribacteres phylum. Genomic data suggest that CO2 assimilation is carried out via a recently discovered reversible TCA cycle. We predicted and experimentally proved the capability of D. autotrophicus to grow by means of the oxidation of carbon monoxide. CO oxidation occurred only with nitrate as an electron acceptor, which was reduced to ammonium. Utilization of carbon monoxide most likely involves anaerobic [Ni, Fe]-containing carbon-monoxide dehydrogenase, encoded in the rcoM-cooS-cooC-cooF-FNOR gene cluster. This is the first evidence of CO metabolism in the phylum Deferribacteres. The nitrate reduction system is represented by the NapMADGH complex. The conversion of nitrite to ammonium proceeds via a non-canonical putative pathway based on the action of hydroxylamine oxidoreductase (Hao) and hydroxylamine reductase (Hcp). The biochemical system of Fe(III) reduction in D. autotrophicus remains unresolved. The D. autotrophicus genome contains 17 genes encoding putative multiheme c-type cytochromes and ‘e-pilin’ genes, some of which are probably involved in Fe(III) reduction. Elemental sulfur reduction in D. autotrophicus presumably occurs due to the action of Psr/Phs-type molybdopterin enzymes, encoded in three psrABC gene clusters.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4425/10/11/849/s1, Figure S1: Protein sequences of type IV pilin PilA (‘e-pilin’) from Deferribacter autotrophicus SL50T, Deferribacter desulfuricans SSM1T and Geobacter metallireducens GS-15T. Table S1. Orthologs of D. autotrophicus chromosome and D. desulfuricans chromosome and plasmid. Table S2: Genomic islands of Deferribacter autotrophicus. Table S3: COGs of the genomic islands of Deferribacter autotrophicus. Table S4. Genes related to signal transduction systems in genomes of D. autotrophicus and D. desulfuricans. Table S5: Best Blast Hit species in the genomic islands of Deferribacter autotrophicus. Table S6: Multiheme c-type cytochromes encoded in the genome of Deferribacter autotrophicus.

Author Contributions

Conceptualization, A.S., E.B.-O., and M.J.; formal analysis, A.S., M.A., K.A., V.S., I.K., and S.T.; investigation, G.S.; writing—original draft preparation, A.S., I.K., and S.T.

Funding

This research was funded by the Russian Foundation for Basic Research, grant number 18-54-15008, by the Ministry of Science and Higher Education of the Russian Federation, by the French–Russian collaborative project (CNRS/RFBR) Neptune, and by the LIA 1211 MicrobSea.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Garrity, G.M.; Holt, J.G. Deferribacteres phy. nov. In Bergey’s Manual of Systematics of Archaea and Bacteria; John Wiley & Sons, Inc: Hoboken, NJ, USA, 2015; ISBN 9781118960608. [Google Scholar] [CrossRef]
  2. Greene, A.C.; Patel, B.K.C.; Sheehy, A.J. Deferribacter thermophilus gen. nov., sp. nov., a novel thermophilic manganese and iron-reducing bacterium isolated from a petroleum reservoir. Int. J. Syst. Bacteriol. 1997, 47, 505–509. [Google Scholar] [CrossRef] [PubMed]
  3. Takai, K.; Kobayashi, H.; Nealson, K.H.; Horikoshi, K. Deferribacter desulfuricans sp. nov., a novel sulfur-, nitrate- and arsenate-reducing thermophile isolated from a deep-sea hydrothermal vent. Int. J. Syst. Evol. Microbiol. 2003, 53, 839–846. [Google Scholar] [CrossRef] [PubMed]
  4. Miroshnichenko, M.L.; Slobodkin, A.I.; Kostrikina, N.A.; L’Haridon, S.; Nercessian, O.; Spring, S.; Stackebrandt, E.; Bonch-Osmolovskaya, E.A.; Jeanthon, C. Deferribacter abyssi sp. nov., an anaerobic thermophile from deep-sea hydrothermal vents of the Mid-Atlantic Ridge. Int. J. Syst. Evol. Microbiol. 2003, 53, 1637–1641. [Google Scholar] [CrossRef] [PubMed]
  5. Slobodkina, G.B.; Kolganova, T.V.; Chernyh, N.A.; Querellou, J.; Bonch-Osmolovskaya, E.A.; Slobodkin, A.I. Deferribacter autotrophicus sp. nov., an iron(III)-reducing bacterium from a deep-sea hydrothermal vent. Int. J. Syst. Evol. Microbiol. 2009, 5, 1508–1512. [Google Scholar] [CrossRef] [PubMed]
  6. Slobodkin, A.; Campbell, B.; Cary, S.C.; Bonch-Osmolovskaya, E.; Jeanthon, C. Evidence for the presence of thermophilic Fe(III)-reducing microorganisms in deep-sea hydrothermal vents at 13 degrees N (East Pacific Rise). FEMS Microbiol. Ecol. 2001, 36, 235–243. [Google Scholar]
  7. Takai, K.; Nunoura, T.; Ishibashi, J.I.; Lupton, J.; Suzuki, R.; Hamasaki, H.; Ueno, Y.; Kawagucci, S.; Gamo, T.; Suzuki, Y.; et al. Variability in the microbial communities and hydrothermal fluid chemistry at the newly discovered Mariner hydrothermal field, southern Lau Basin. J. Geophys. Res.-Biogeosci. 2008, 113, 2031. [Google Scholar] [CrossRef]
  8. Takai, K.; Nunoura, T.; Horikoshi, K.; Shibuya, T.; Nakamura, K.; Suzuki, Y.; Stott, M.; Massoth, G.J.; Christenson, B.W.; deRonde, C.E.; et al. Variability in microbial communities in black smoker chimneys at the NW caldera vent field, Brothers volcano, Kermadec arc. Geomicrobiol. J. 2009, 26, 552–569. [Google Scholar] [CrossRef]
  9. Takaki, Y.; Shimamura, S.; Nakagawa, S.; Fukuhara, Y.; Horikawa, H.; Ankai, A.; Harada, T.; Hosoyama, A.; Oguchi, A.; Fukui, S.; et al. Bacterial lifestyle in a deep-sea hydrothermal vent chimney revealed by the genome sequence of the thermophilic bacterium Deferribacter desulfuricans SSM1. DNA Res. 2010, 17, 123–137. [Google Scholar] [CrossRef]
  10. Leggett, R.M.; Clavijo, B.J.; Clissold, L.; Clark, M.D.; Caccamo, M. NextClip: An analysis and read preparation tool for Nextera Long Mate Pair libraries. Bioinformatics 2014, 30, 566–568. [Google Scholar] [CrossRef]
  11. Nurk, S.; Bankevich, A.; Antipov, D.; Gurevich, A.; Korobeynikov, A.; Lapidus, A.; Prjibelsky, A.; Pyshkin, A.; Sirotkin, A.; Sirotkin, Y.; et al. Assembling genomes and mini-metagenomes from highly chimeric reads. In Proceedings of the Lecture Notes in Computer Science (including subseries Lecture Notes in Artificial Intelligence and Lecture Notes in Bioinformatics), RECOMB 2013, Beijing, China, 7–10 April 2013; Volume 7821, pp. 158–170. [Google Scholar]
  12. Chen, I.-M.A.; Chu, K.; Palaniappan, K.; Pillay, M.; Ratner, A.; Huang, J.; Huntemann, M.; Varghese, N.; White, J.R.; Seshadri, R.; et al. IMG/M v.5.0: An integrated data management and comparative analysis system for microbial genomes and microbiomes. Nucleic Acids Res. 2019, 47, 666–677. [Google Scholar] [CrossRef]
  13. Tatusova, T.; DiCuccio, M.; Badretdin, A.; Chetvernin, V.; Nawrocki, E.P.; Zaslavsky, L.; Lomsadze, A.; Pruitt, K.D.; Borodovsky, M.; Ostell, J. NCBI prokaryotic genome annotation pipeline. Nucleic Acids Res. 2016, 44, 6614–6624. [Google Scholar] [CrossRef]
  14. Xu, L.; Dong, Z.; Fang, L.; Luo, Y.; Wei, Z.; Guo, H.; Zhang, G.; Gu, Y.Q.; Coleman-Derr, D.; Xia, Q.; et al. OrthoVenn2: A web server for whole-genome comparison and annotation of orthologous clusters across multiple species. Nucleic Acids Res. 2019, 47, 52–58. [Google Scholar] [CrossRef]
  15. Varani, A.M.; Siguier, P.; Gourbeyre, E.; Charneau, V.; Chandler, M. ISsaga is an ensemble of web-based methods for high throughput identification and semi-automatic annotation of insertion sequences in prokaryotic genomes. Genome Biol. 2011, 12, 30. [Google Scholar] [CrossRef]
  16. Couvin, D.; Bernheim, A.; Toffano-Nioche, C.; Touchon, M.; Michalik, J.; Néron, B.; Rocha, E.P.C.; Vergnaud, G.; Gautheret, D.; Pourcel, C. CRISPRCasFinder, an update of CRISRFinder, includes a portable version, enhanced performance and integrates search for Cas proteins. Nucleic Acids Res. 2018, 46, 246–251. [Google Scholar] [CrossRef]
  17. Bertelli, C.; Laird, M.R.; Williams, K.P.; Lau, B.Y.; Hoad, G.; Winsor, G.L.; Brinkman, F.S.; Brinkman, F.S.L. IslandViewer 4: Expanded prediction of genomic islands for larger-scale datasets. Nucleic Acids Res. 2017, 45, 30–35. [Google Scholar] [CrossRef]
  18. Krzywinski, M.; Schein, J.; Birol, I.; Connors, J.; Gascoyne, R.; Horsman, D.; Jones, S.J.; Marra, M.A. Circos: An information aesthetic for comparative genomics. Genome Res. 2009, 19, 1639–1645. [Google Scholar] [CrossRef]
  19. Rissman, A.I.; Mau, B.; Biehl, B.S.; Darling, A.E.; Glasner, J.D.; Perna, N.T. Reordering contigs of draft genomes using the Mauve Aligner. Bioinformatics 2009, 25, 2071–2073. [Google Scholar] [CrossRef]
  20. Huerta-Cepas, J.; Forslund, K.; Coelho, L.P.; Szklarczyk, D.; Jensen, L.J.; von Mering, C.; Bork, P. Fast Genome-Wide Functional Annotation through Orthology Assignment by eggNOG-Mapper. Mol. Biol. Evol. 2017, 34, 2115–2122. [Google Scholar] [CrossRef]
  21. Medlar, A.J.; Törönen, P.; Holm, L. AAI-profiler: Fast proteome-wide exploratory analysis reveals taxonomic identity, misclassification and contamination. Nucleic Acids Res. 2018, 46, 479–485. [Google Scholar] [CrossRef]
  22. Søndergaard, D.; Pedersen, C.N.S.; Greening, C. HydDB: A web tool for hydrogenase classification and analysis. Sci. Rep. 2016, 6, 34212. [Google Scholar] [CrossRef]
  23. Sorokin, D.Y.; Kublanov, I.V.; Gavrilov, S.N.; Rojo, D.; Roman, P.; Golyshin, P.; Slepak, V.Z.; Smedile, F.; Ferrer, M.; Messina, E.; et al. Elemental sulfur and acetate can support life of a novel strictly anaerobic haloarchaeon. ISME J. 2016, 10, 240–252. [Google Scholar] [CrossRef] [PubMed]
  24. Katoh, K.; Standley, D.M. MAFFT multiple sequence alignment software version 7: Improvements in performance and usability. Mol. Biol. Evol. 2013, 30, 772–780. [Google Scholar] [CrossRef] [PubMed]
  25. Tamura, K.; Stecher, G.; Peterson, D.; Filipski, A.; Kumar, S. MEGA6: Molecular evolutionary genetics analysis version 6.0. Mol. Biol. Evol. 2013, 30, 2725–2729. [Google Scholar] [CrossRef] [PubMed]
  26. Jones, D.T.; Taylor, W.R.; Thornton, J.M. The rapid generation of mutation data matrices from protein sequences. Comput. Appl. Biosci. 1992, 8, 275–282. [Google Scholar] [CrossRef]
  27. Slobodkin, A.I.; Sokolova, T.G.; Lysenko, A.M.; Wiegel, J. Reclassification of Thermoterrabacterium ferrireducens as Carboxydothermus ferrireducens comb. nov., and emended description of the genus Carboxydothermus. Int. J. Syst. Evol. Microbiol. 2006, 56, 2349–2351. [Google Scholar] [CrossRef]
  28. Slobodkina, G.B.; Mardanov, A.V.; Ravin, N.V.; Frolova, A.A.; Chernyh, N.A.; Bonch-Osmolovskaya, E.A.; Slobodkin, A.I. Respiratory ammonification of nitrate coupled to anaerobic oxidation of elemental sulfur in deep-sea autotrophic thermophilic bacteria. Front. Microbiol. 2017, 8, 87. [Google Scholar] [CrossRef]
  29. Antipov, D.; Hartwick, N.; Shen, M.; Raiko, M.; Lapidus, A.; Pevzner, P.A. plasmidSPAdes: Assembling plasmids from whole genome sequencing data. Bioinformatics 2016, 32, 493. [Google Scholar] [CrossRef]
  30. Lechner, M.; Findeiss, S.; Steiner, L.; Marz, M.; Stadler, P.F.; Prohaska, S.J. Proteinortho: Detection of (co-) orthologs in large-scale analysis. BMC Bioinform. 2011, 12, 124. [Google Scholar] [CrossRef]
  31. Makarova, K.S.; Wolf, Y.I.; Alkhnbashi, O.S.; Costa, F.; Shah, S.A.; Saunders, S.J.; Barrangou, R.; Brouns, S.J.J.; Charpentier, E.; Haft, D.H.; et al. An updated evolutionary classification of CRISPR-Cas systems. Nat. Rev. Microbiol. 2015, 13, 722–736. [Google Scholar] [CrossRef]
  32. Aksenova, H.Y.; Rainey, F.A.; Janssen, P.H.; Zavarzin, G.A.; Morgan, H.W. Spirochaeta thermophila sp. nov., an obligately anaerobic, polysaccharolytic, extremely thermophilic bacterium. Int. J. Syst. Bacteriol. 1992, 42, 175–177. [Google Scholar] [CrossRef]
  33. Pohlschroeder, M.; Leschine, S.B.; Canale-Parola, E. Spirochaeta caldaria sp. nov., a thermophilic bacterium that enhances cellulose degradation by Clostridium thermocellum. Arch. Microbiol. 1994, 161, 17–24. [Google Scholar] [CrossRef]
  34. Imachi, H.; Sakai, S.; Hirayama, H.; Nakagawa, S.; Nunoura, T.; Takai, K.; Horikoshi, K. Exilispira thermophila gen. nov., sp. nov., an anaerobic, thermophilic spirochaete isolated from a deep-sea hydrothermal vent chimney. Int. J. Syst. Bacteriol. 2008, 58, 2258–2265. [Google Scholar] [CrossRef] [PubMed]
  35. Wolfe, A. The acetate switch. Microbiol. Mol. Biol. Rev. 2005, 69, 12–50. [Google Scholar] [CrossRef] [PubMed]
  36. Tremblay, P.-L.; Lovley, D.R. Role of the NiFe hydrogenase Hya in oxidative stress defense in Geobacter sulfurreducens. J Bacteriol. 2012, 194, 2248–2253. [Google Scholar] [CrossRef] [PubMed]
  37. Myers, M.R.; King, G.M. Isolation and characterization of Acidobacterium ailaaui sp. nov., a novel member of Acidobacteria subdivision 1, from a geothermally heated Hawaiian microbial mat. Int. J. Syst. Evol. Microbiol. 2016, 66, 5328–5335. [Google Scholar]
  38. Pinske, C.; Jaroschinsky, M.; Linek, S.; Kelly, C.L.; Sargent, F.; Sawers, R.G. Physiology and bioenergetics of [NiFe]-hydrogenase 2-catalyzed H2-consuming and H2-producing reactions in Escherichia coli. J. Bacteriol. 2015, 197, 296–306. [Google Scholar] [CrossRef]
  39. Beaton, S.E.; Evans, R.M.; Finney, A.J.; Lamont, C.M.; Armstrong, F.A.; Sargent, F.; Carr, S.B. The structure of hydrogenase-2 from Escherichia coli: Implications for H2-driven proton pumping. Biochem. J. 2018, 16, 1353–1370. [Google Scholar] [CrossRef]
  40. Fukuda, E.; Wakagi, T. Substrate recognition by 2-oxoacid: Ferredoxin oxidoreductase from Sulfolobus sp. strain 7. Biochim. Biophys. Acta-Protein Struct. Mol. Enzymol. 2002, 1597, 74–80. [Google Scholar] [CrossRef]
  41. Nishizawa, Y.; Yabuki, T.; Fukuda, E.; Wakagi, T. Gene expression and characterization of two 2-oxoacid: Ferredoxin oxidoreductases from Aeropyrum pernix K1. FEBS Lett. 2005, 579, 2319–2322. [Google Scholar] [CrossRef]
  42. Nunoura, T.; Chikaraishi, Y.; Izaki, R.; Suwa, T.; Sato, T.; Harada, T.; Mori, K.; Kato, Y.; Miyazaki, M.; Shimamura, S.; et al. A primordial and reversible TCA cycle in a facultatively chemolithoautotrophic thermophile. Science 2018, 359, 559–563. [Google Scholar] [CrossRef]
  43. Mall, A.; Sobotta, J.; Huber, C.; Tschirner, C.; Kowarschik, S.; Bačnik, K.; Mergelsberg, M.; Boll, M.; Hügler, M.; Eisenreich, W.; et al. Reversibility of citrate synthase allows autotrophic growth of a thermophilic bacterium. Science 2018, 359, 563–567. [Google Scholar] [CrossRef] [PubMed]
  44. Janssen, P.H.; Liesack, W.; Schink, B. Geovibrio thiophilus sp. nov., a novel sulfur-reducing bacterium belonging to the phylum Deferribacteres. Int. J. Syst. Evol. Microbiol. 2002, 52, 1341–1347. [Google Scholar] [PubMed]
  45. Fröstl, J.M.; Seifritz, C.; Drake, H.L. Effect of nitrate on the autotrophic metabolism of the acetogens Clostridium thermoautotrophicum and Clostridium thermoaceticum. J. Bacteriol. 1996, 178, 4597–4603. [Google Scholar] [CrossRef] [PubMed]
  46. Geelhoed, J.S.; Henstra, A.M.; Stams, A.J.M. Carboxydotrophic growth of Geobacter sulfurreducens. Appl. Microbiol. Biotechnol. 2016, 100, 997–1007. [Google Scholar] [CrossRef]
  47. Inoue, M.; Nakamoto, I.; Omae, K.; Oguro, T.; Ogata, H.; Yoshida, T.; Sako, Y. Structural and phylogenetic diversity of anaerobic carbon-monoxide dehydrogenases. Front. Microbiol. 2019, 9, 3353. [Google Scholar] [CrossRef] [PubMed]
  48. Henstra, A.M.; Stams, A.J. Novel physiological features of Carboxydothermus hydrogenoformans and Thermoterrabacterium ferrireducens. Appl. Environ. Microbiol. 2004, 70, 7236–7240. [Google Scholar] [CrossRef] [PubMed]
  49. Sokolova, T.G.; Jeanthon, C.; Kostrikina, N.A.; Chernyh, N.A.; Lebedinsky, A.V.; Stackebrandt, E.; Bonch-Osmolovskaya, E.A. The first evidence of anaerobic CO oxidation coupled with H2 production by a hyperthermophile archaeon isolated from a deep-sea hydrothermal vent. Extremophiles 2004, 8, 317–323. [Google Scholar] [CrossRef]
  50. Techtmann, S.; Colman, A.S.; Lebedinsky, A.V.; Sokolova, T.G.; Robb, F.T. Evidence for horizontal gene transfer of anaerobic carbon monoxide dehydrogenases. Front. Microbiol. 2012, 3, 132. [Google Scholar] [CrossRef]
  51. Kumar, S.; Stecher, G.; Tamura, K. MEGA7: Molecular evolutionary genetics analysis version 7.0 for bigger datasets. Mol. Biol. Evol. 2016, 7, 1870–1874. [Google Scholar] [CrossRef]
  52. Wu, M.; Ren, Q.; Durkin, A.S.; Daugherty, S.C.; Brinkac, L.M.; Dodson, R.J.; Madupu, R.; Sullivan, S.A.; Kolonay, J.F.; Nelson, W.C.; et al. Life in hot carbon monoxide: The complete genome sequence of Carboxydothermus hydrogenoformans Z-2901. PLoS Genet. 2005, 1, e65. [Google Scholar] [CrossRef]
  53. Kpebe, A.; Benvenuti, M.; Guendon, C.; Rebai, A.; Fernandez, V.; Le Laz, S.; Etienne, E.; Guigliarelli, B.; García-Molina, G.; de Lacey, A.L.; et al. A new mechanistic model for an O2-protected electron-bifurcating hydrogenase, Hnd from Desulfovibrio fructosovorans. BBA Bioenerg. 2018, 1859, 1302–1312. [Google Scholar] [CrossRef] [PubMed]
  54. Simon, J.; Klotz, M.G. Diversity and evolution of bioenergetics systems involved in microbial nitrogen compound transformations. Biochim. Biophys. Acta 2013, 1827, 114–135. [Google Scholar] [CrossRef] [PubMed]
  55. Mardanov, A.V.; Beletsky, A.V.; Kadnikov, V.V.; Slobodkin, A.I.; Ravin, N.V. Genome analysis of Thermosulfurimonas dismutans, the first thermophilic sulfur-disproportionating bacterium of the phylum Thermodesulfobacteria. Front. Microbiol. 2016, 7, 950. [Google Scholar] [CrossRef] [PubMed]
  56. Kublanov, I.V.; Sigalova, O.M.; Gavrilov, S.N.; Lebedinsky, A.V.; Rinke, C.; Kovaleva, O.; Chernyh, N.A.; Ivanova, N.; Daum, C.; Reddy, T.B.K.; et al. Genomic analysis of Caldithrix abyssi, the thermophilic anaerobic bacterium of the novel bacterial phylum Calditrichaeota. Front. Microbiol. 2017, 8, 195. [Google Scholar] [CrossRef] [PubMed]
  57. Hanson, T.E.; Campbell, B.J.; Kalis, K.M.; Campbell, M.A.; Klotz, M.G. Nitrate ammonification by Nautilia profundicola AmH: Experimental evidence consistent with a free hydroxylamine intermediate. Front. Microbiol. 2013, 4, 180. [Google Scholar] [CrossRef]
  58. Simon, J.; Kern, M.; Hermann, B.; Einsle, O.; Butt, J.N. Physiological function and catalytic versatility of bacterial multihaem cytochromes c involved in nitrogen and sulfur cycling. Biochem. Soc. Trans. 2011, 39, 1864–1870. [Google Scholar] [CrossRef]
  59. Hein, S.; Witt, S.; Simon, J. Clade II nitrous oxide respiration of Wolinella succinogenes depends on the NosG, -C1, -C2, -H electron transport module, NosB and a Rieske/cytochrome bc complex. Environ. Microbiol. 2017, 12, 4913–4925. [Google Scholar] [CrossRef]
  60. Garg, N.; Taylor, A.J.; Kelly, D.J. Bacterial periplasmic nitrate and trimethylamine-N-oxide respiration coupled to menaquinol-cytochrome c reductase (Qcr): Implications for electrogenic reduction of alternative electron acceptors. Sci. Rep. 2018, 8, 15478. [Google Scholar] [CrossRef]
  61. Shi, L.; Dong, H.; Reguera, G.; Beyenal, H.; Lu, A.; Liu, J.; Yu, H.Q.; Fredrickson, J.K. Extracellular electron transfer mechanisms between microorganisms and minerals. Nat. Rev. Microbiol. 2016, 14, 651–662. [Google Scholar] [CrossRef]
  62. White, G.F.; Edwards, M.J.; Gomez-Perez, L.; Richardson, D.J.; Butt, J.N.; Clarke, T.A. Mechanisms of bacterial extracellular electron exchange. Adv. Microb. Physiol. 2016, 68, 87–138. [Google Scholar] [CrossRef]
  63. Holmes, D.E.; Dang, Y.; Walker, D.J.F.; Lovley, D.R. The electrically conductive pili of Geobacter species are a recently evolved feature for extracellular electron transfer. Microb. Genom. 2016, 2, e000072. [Google Scholar] [CrossRef] [PubMed]
  64. Shi, L.; Squier, T.C.; Zachara, J.M.; Fredrickson, J.K. Respiration of metal (hydr)oxides by Shewanella and Geobacter: A key role for multihaem c-type cytochromes. Mol. Microbiol. 2007, 65, 12–20. [Google Scholar] [CrossRef] [PubMed]
  65. Shi, L.; Fredrickson, J.K.; Zachara, J.M. Genomic analyses of bacterial porin-cytochrome gene clusters. Front. Microbiol. 2014, 5, 657. [Google Scholar] [CrossRef] [PubMed]
  66. Levar, C.E.; Chan, C.H.; Mehta-Kolte, M.G.; Bond, D.R. An inner membrane cytochrome required only for reduction of high redox potential extracellular electron acceptors. MBio 2014, 5, e02034-14. [Google Scholar] [CrossRef]
  67. Zacharoff, L.; Chan, C.H.; Bond, D.R. Reduction of low potential electron acceptors requires the CbcL inner membrane cytochrome of Geobacter sulfurreducens. Bioelectrochemistry 2016, 107, 7–13. [Google Scholar] [CrossRef]
  68. Wang, F.; Gu, Y.; O’Brien, J.P.; Yi, S.M.; Yalcin, S.E.; Srikanth, V.; Shen, C.; Vu, D.; Ing, N.L.; Hochbaum, A.I.; et al. Structure of microbial nanowires reveals stacked hemes that transport electrons over micrometers. Cell 2019, 177, 361–369. [Google Scholar] [CrossRef]
  69. Light, S.H.; Su, L.; Rivera-Lugo, R.; Cornejo, J.A.; Louie, A.; Iavarone, A.T.; Ajo-Franklin, C.M.; Portnoy, D.A. A flavin-based extracellular electron transfer mechanism in diverse Gram-positive bacteria. Nature 2018, 562, 140–144. [Google Scholar] [CrossRef]
  70. Hedderich, R.; Klimmek, O.; Kröger, A.; Dirmeier, R.; Keller, M.; Stetter, K.O. Anaerobic respiration with elemental sulfur and with disulfides. FEMS Microbiol. Rev. 1999, 22, 353–381. [Google Scholar] [CrossRef]
  71. Schauder, R.; Müller, E. Polysulfide as a possible substrate for sulfur-reducing bacteria. Arch. Microbiol. 1993, 160, 377–382. [Google Scholar] [CrossRef]
  72. Duval, S.; Ducluzeau, A.L.; Nitschke, W.; Schoepp-Cothenet, B. Enzyme phylogenies as markers for the oxidation state of the environment: The case of respiratory arsenate reductase and related enzymes. BMC Evol. Biol. 2008, 8, 206. [Google Scholar] [CrossRef]
  73. Jormakka, M.; Yokoyama, K.; Yano, T.; Tamakoshi, M.; Akimoto, S.; Shimamura, T.; Curmi, P.; Iwata, S. Molecular mechanism of energy conservation in polysulfide respiration. Nat. Struct. Mol. Biol. 2008, 7, 730–737. [Google Scholar] [CrossRef] [PubMed]
  74. Schut, G.J.; Bridger, S.L.; Adams, M.W.W. Insights into the metabolism of elemental sulfur by the hyperthermophilic archaeon Pyrococcus furiosus: Characterization of a coenzyme A-dependent NAD(P)H sulfur oxidoreductase. J. Bacteriol. 2007, 189, 4431–4441. [Google Scholar] [CrossRef] [PubMed]
  75. Ma, K.; Schicho, R.N.; Kelly, R.M.; Adams, M.W. Hydrogenase of the hyperthermophile Pyrococcus furiosus is an elemental sulfur reductase or sulfhydrogenase: Evidence for a sulfur-reducing hydrogenase ancestor. Proc. Natl. Acad. Sci. USA 1993, 90, 5341–5344. [Google Scholar] [CrossRef] [PubMed]
  76. Bridger, S.L.; Clarkson, S.M.; Stirrett, K.; DeBarry, M.B.; Lipscomb, G.L.; Schut, G.J.; Westpheling, J.; Scott, R.A.; Adams, M.W. Deletion strains reveal metabolic roles for key elemental sulfur-responsive proteins in Pyrococcus furiosus. J. Bacteriol. 2011, 193, 6498–6504. [Google Scholar] [CrossRef] [PubMed]
  77. Adams, M.W.; Holden, J.F.; Menon, A.L.; Schut, G.J.; Grunden, A.M.; Hou, C.; Hutchins, A.M.; Jenney, F.E.; Kim, C.; Ma, K.; et al. Key role for sulfur in peptide metabolism and in regulation of three hydrogenases in the hyperthermophilic archaeon Pyrococcus furiosus. J. Bacteriol. 2001, 183, 716–724. [Google Scholar] [CrossRef] [PubMed]
  78. Goris, T.; Schubert, T.; Gadkari, J.; Wubet, T.; Tarkka, M.; Buscot, F.; Adrian, L.; Diekert, G. Insights into organohalide respiration and the versatile catabolism of Sulfurospirillum multivorans gained from comparative genomics and physiological studies. Environ. Microbiol. 2014, 16, 3562–3580. [Google Scholar] [CrossRef] [PubMed]
Figure 1. Genomic features of Deferribacter autotrophicus SL50T. (A) Circular map of the genomic features of D. autotrophicus. Rings from outside to inside: contig ID (corresponding to the locus number suffix, e.g., Ga0300908_101); genomic coordinates in the corresponding contig; plus-strand CDS (light blue); minus-strand CDS (light blue); GI-related features—tRNAs (grey circles) and transposases (grey squares); GC-content, relative to the average GC-value. Genomic islands are shown as light-blue sectors; prophage is shown as the light green sector. Contigs of D. autotrophicus were ordered according to the alignment of the publicly available D. desulfuricans genome (NC_013939) with the contig ordering tool from the MAUVE genome alignment package [19]; (B) Genome-wide (top) and genomic islands (bottom) taxonomic distribution of proteins best blast hits; (C) Venn diagram of protein orthologs shared by the assembly of D. autotrophicus chromosome and plasmid of D. desulfuricans. Orthology analysis of was performed with OrthoVenn2 web server [14] using 0.01 blast e-value and 1.5 orthoMCL grain value. Numbers indicate shared or unique protein clusters and singleton proteins. (D) Distribution of COG functional categories in the genome (blue bars) and in genomic islands (grey bars). Functional categories are represented as follows: Amino acid transport and metabolism [E], Carbohydrate transport and metabolism [G], Cell cycle control, cell division, chromosome partitioning [D], Cell Motility [N], Cell wall/membrane/envelope biogenesis [M], Coenzyme transport and metabolism [H], Defense mechanisms [V], Energy production and conversion [C], Function unknown [S], General function prediction only [R], Inorganic ion transport and metabolism [P], Intracellular trafficking, secretion, and vesicular transport [U], Lipid transport and metabolism [I], Mobilome: prophages, transposons [X], Nucleotide transport and metabolism [F], Posttranslational modification, protein turnover, chaperones [O], Replication, recombination, and repair [L], Secondary metabolites biosynthesis, transport, and catabolism [Q], Signal transduction mechanisms [T], Transcription [K], Translation, ribosomal structure, and biogenesis [J].
Figure 1. Genomic features of Deferribacter autotrophicus SL50T. (A) Circular map of the genomic features of D. autotrophicus. Rings from outside to inside: contig ID (corresponding to the locus number suffix, e.g., Ga0300908_101); genomic coordinates in the corresponding contig; plus-strand CDS (light blue); minus-strand CDS (light blue); GI-related features—tRNAs (grey circles) and transposases (grey squares); GC-content, relative to the average GC-value. Genomic islands are shown as light-blue sectors; prophage is shown as the light green sector. Contigs of D. autotrophicus were ordered according to the alignment of the publicly available D. desulfuricans genome (NC_013939) with the contig ordering tool from the MAUVE genome alignment package [19]; (B) Genome-wide (top) and genomic islands (bottom) taxonomic distribution of proteins best blast hits; (C) Venn diagram of protein orthologs shared by the assembly of D. autotrophicus chromosome and plasmid of D. desulfuricans. Orthology analysis of was performed with OrthoVenn2 web server [14] using 0.01 blast e-value and 1.5 orthoMCL grain value. Numbers indicate shared or unique protein clusters and singleton proteins. (D) Distribution of COG functional categories in the genome (blue bars) and in genomic islands (grey bars). Functional categories are represented as follows: Amino acid transport and metabolism [E], Carbohydrate transport and metabolism [G], Cell cycle control, cell division, chromosome partitioning [D], Cell Motility [N], Cell wall/membrane/envelope biogenesis [M], Coenzyme transport and metabolism [H], Defense mechanisms [V], Energy production and conversion [C], Function unknown [S], General function prediction only [R], Inorganic ion transport and metabolism [P], Intracellular trafficking, secretion, and vesicular transport [U], Lipid transport and metabolism [I], Mobilome: prophages, transposons [X], Nucleotide transport and metabolism [F], Posttranslational modification, protein turnover, chaperones [O], Replication, recombination, and repair [L], Secondary metabolites biosynthesis, transport, and catabolism [Q], Signal transduction mechanisms [T], Transcription [K], Translation, ribosomal structure, and biogenesis [J].
Genes 10 00849 g001

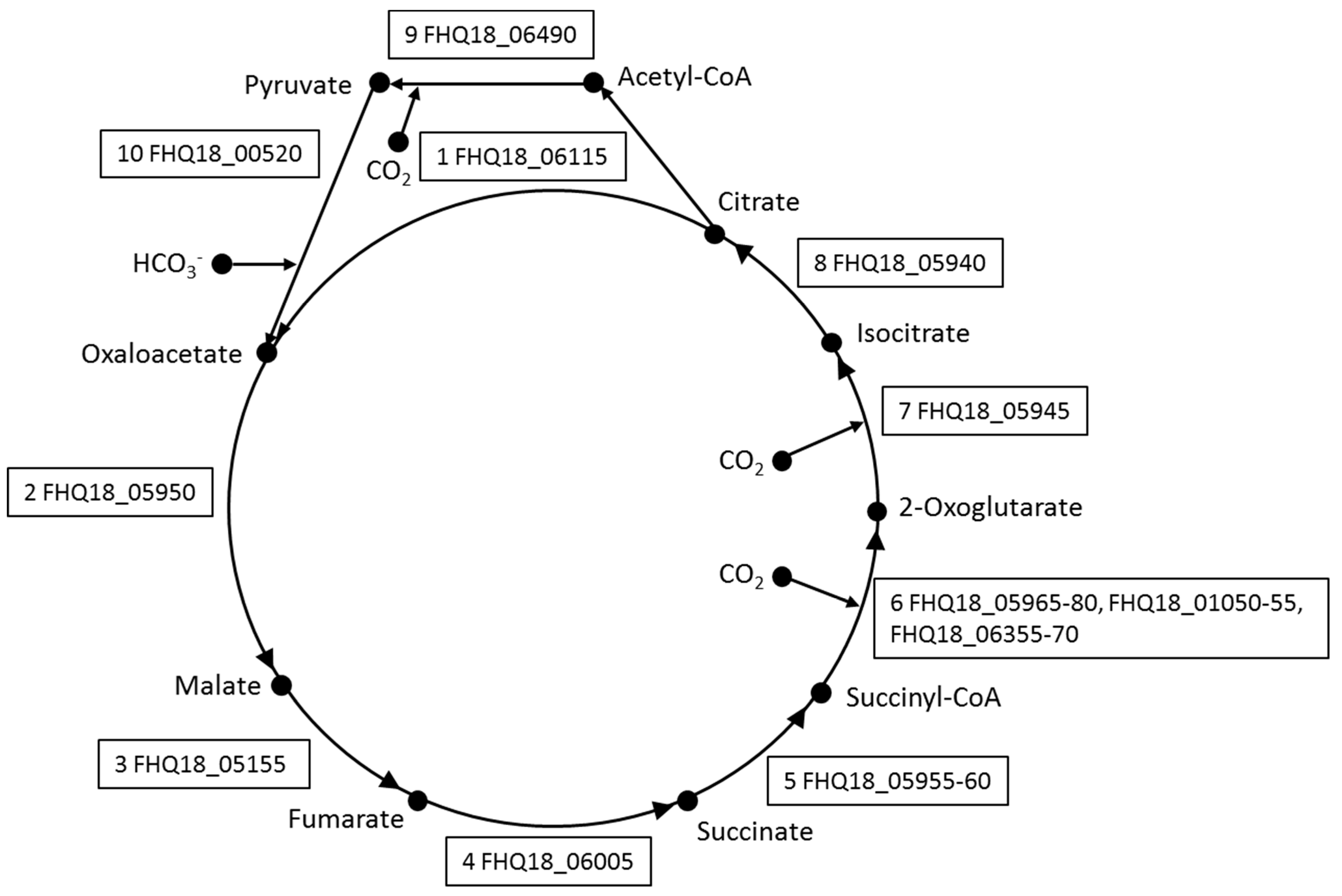

Figure 2. A reversed oxidative TCA cycle in D. autotrophicus reconstructed from the genomic analysis. Enzymes: 1, citrate synthase; 2, malate dehydrogenase; 3, fumarate hydratase; 4, fumarate reductase / succinate dehydrogenase; 5, succinyl-CoA synthetase; 6, 2-oxoglutarate ferredoxin oxidoreductase; 7, isocitrate dehydrogenase; 8, aconitase; 9, pyruvate synthase; 10, pyruvate carboxylase.
Figure 2. A reversed oxidative TCA cycle in D. autotrophicus reconstructed from the genomic analysis. Enzymes: 1, citrate synthase; 2, malate dehydrogenase; 3, fumarate hydratase; 4, fumarate reductase / succinate dehydrogenase; 5, succinyl-CoA synthetase; 6, 2-oxoglutarate ferredoxin oxidoreductase; 7, isocitrate dehydrogenase; 8, aconitase; 9, pyruvate synthase; 10, pyruvate carboxylase.
Genes 10 00849 g002
Figure 3. (A) Growth of D. autotrophicus with CO as an electron donor and nitrate as electron acceptor. (B) In non-inoculated controls, the concentration of CO and nitrate was not changed, and no ammonium accumulation was detected.
Figure 3. (A) Growth of D. autotrophicus with CO as an electron donor and nitrate as electron acceptor. (B) In non-inoculated controls, the concentration of CO and nitrate was not changed, and no ammonium accumulation was detected.
Genes 10 00849 g003

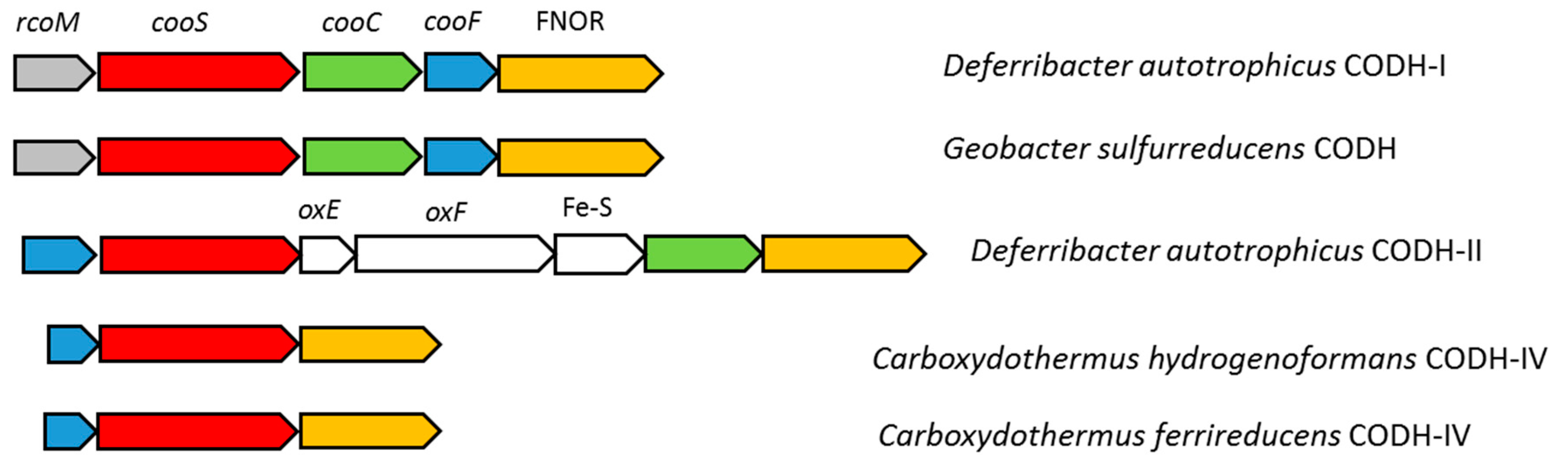

Figure 4. Carbon monoxide dehydrogenase gene clusters in D. autotrophicus and similar gene clusters present in other organisms. The genes of the following proteins are highlighted: rcoM, CO-sensing transcriptional regulator; coos, CO dehydrogenase catalytic subunit; cooC, accessory protein; cooF, Fe–S cluster—binding protein; FNOR, FAD–NAD oxidoreductase; oxE and oxF, NADH:ubiquinone oxidoreductase subunits E and F; Fe-S, 4Fe-4S dicluster protein.
Figure 4. Carbon monoxide dehydrogenase gene clusters in D. autotrophicus and similar gene clusters present in other organisms. The genes of the following proteins are highlighted: rcoM, CO-sensing transcriptional regulator; coos, CO dehydrogenase catalytic subunit; cooC, accessory protein; cooF, Fe–S cluster—binding protein; FNOR, FAD–NAD oxidoreductase; oxE and oxF, NADH:ubiquinone oxidoreductase subunits E and F; Fe-S, 4Fe-4S dicluster protein.
Genes 10 00849 g004

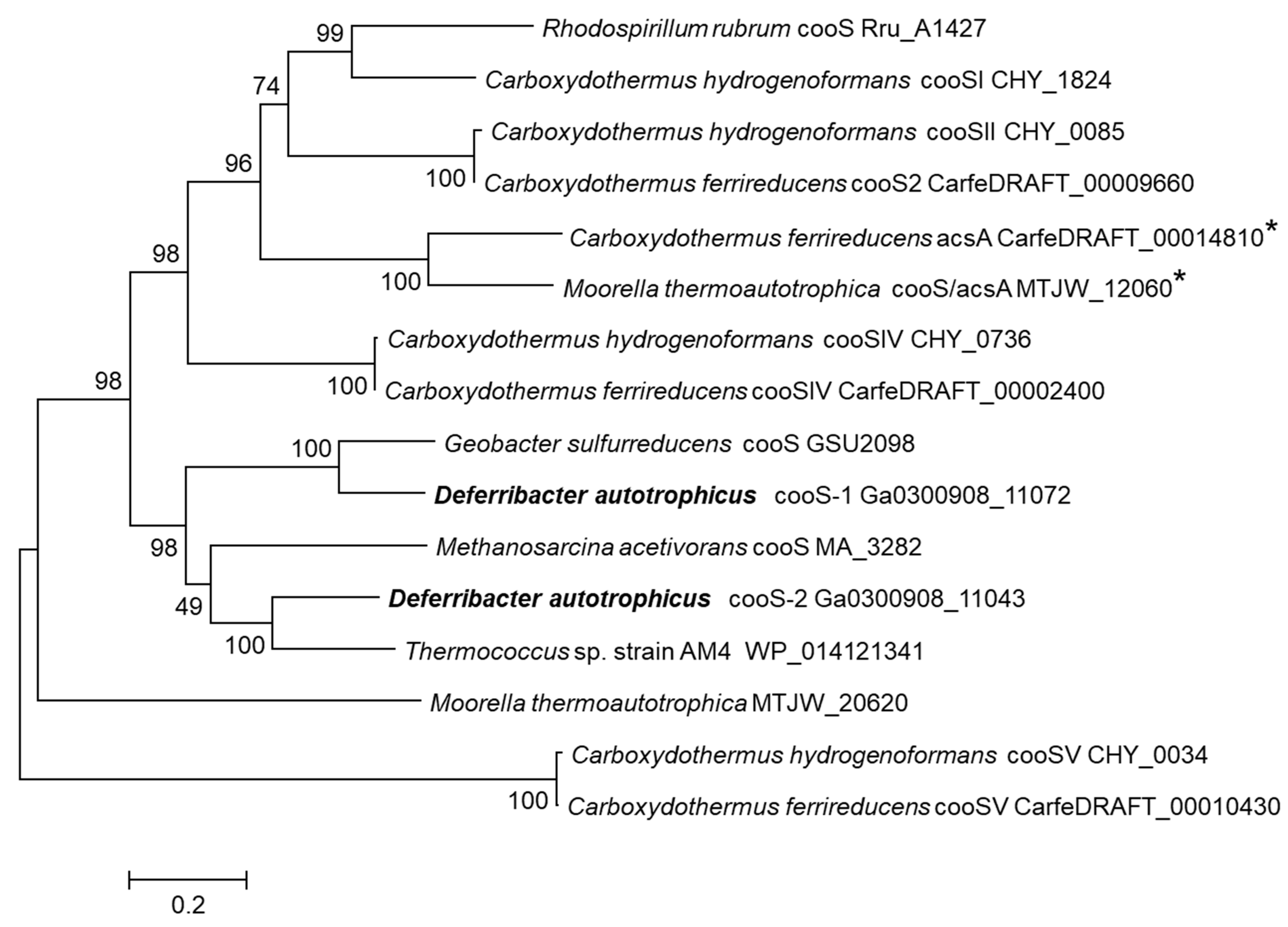

Figure 5. The phylogenetic tree of D. autotrophicus [Ni,Fe]-CODHs. The tree was constructed by the maximum likelihood method using MEGA7 [51] at default parameters after aligning the sequences with the built-in ClustalW at default parameters. Enzymes involved in the Wood–Ljungdahl pathway of acetyl-CoA synthesis from C1 units are marked with an asterisk.
Figure 5. The phylogenetic tree of D. autotrophicus [Ni,Fe]-CODHs. The tree was constructed by the maximum likelihood method using MEGA7 [51] at default parameters after aligning the sequences with the built-in ClustalW at default parameters. Enzymes involved in the Wood–Ljungdahl pathway of acetyl-CoA synthesis from C1 units are marked with an asterisk.
Genes 10 00849 g005

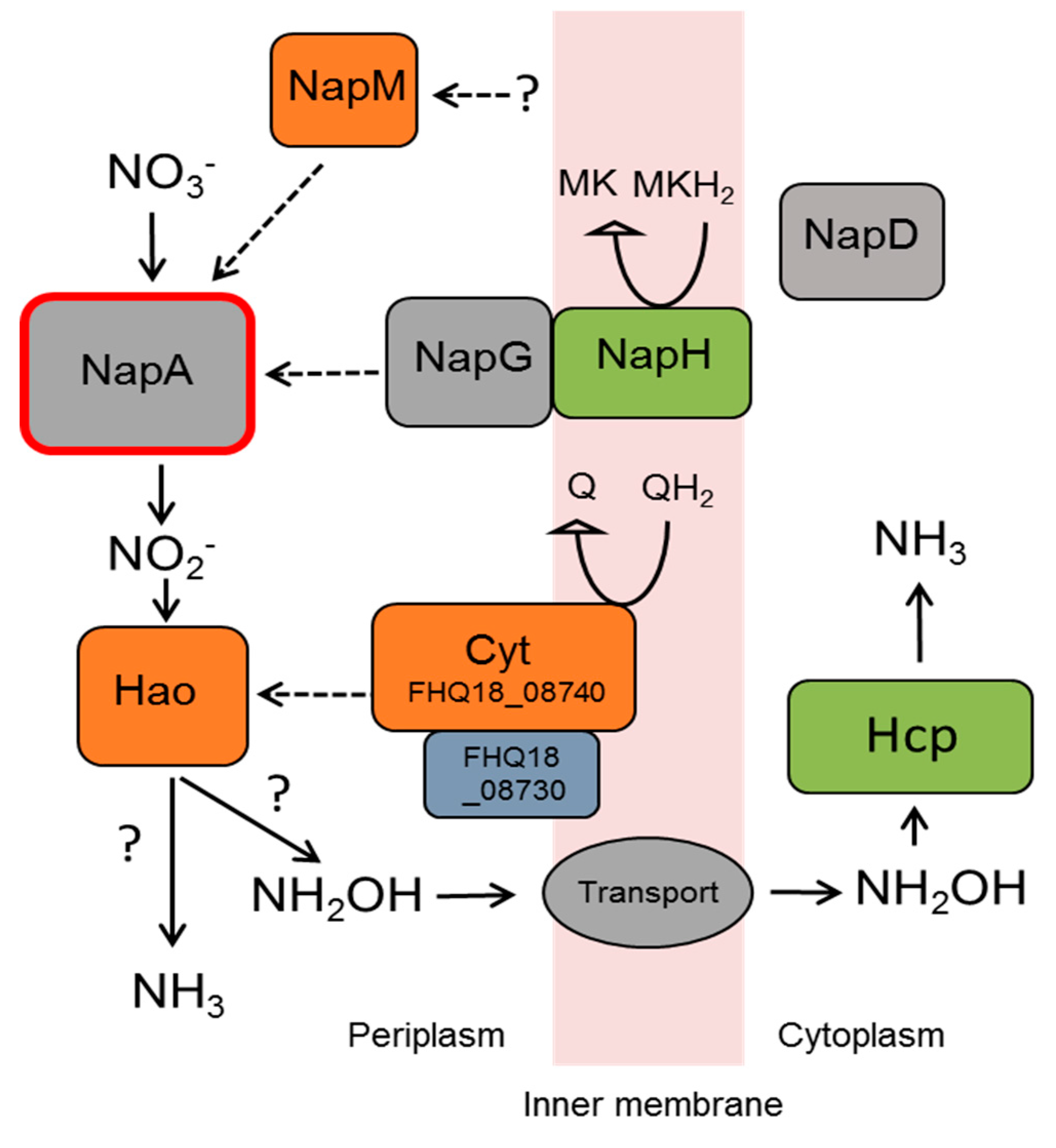

Figure 6. The putative enzymatic system of nitrate reduction to ammonium in D. autotrophicus. See explanations in the text.
Figure 6. The putative enzymatic system of nitrate reduction to ammonium in D. autotrophicus. See explanations in the text.
Genes 10 00849 g006

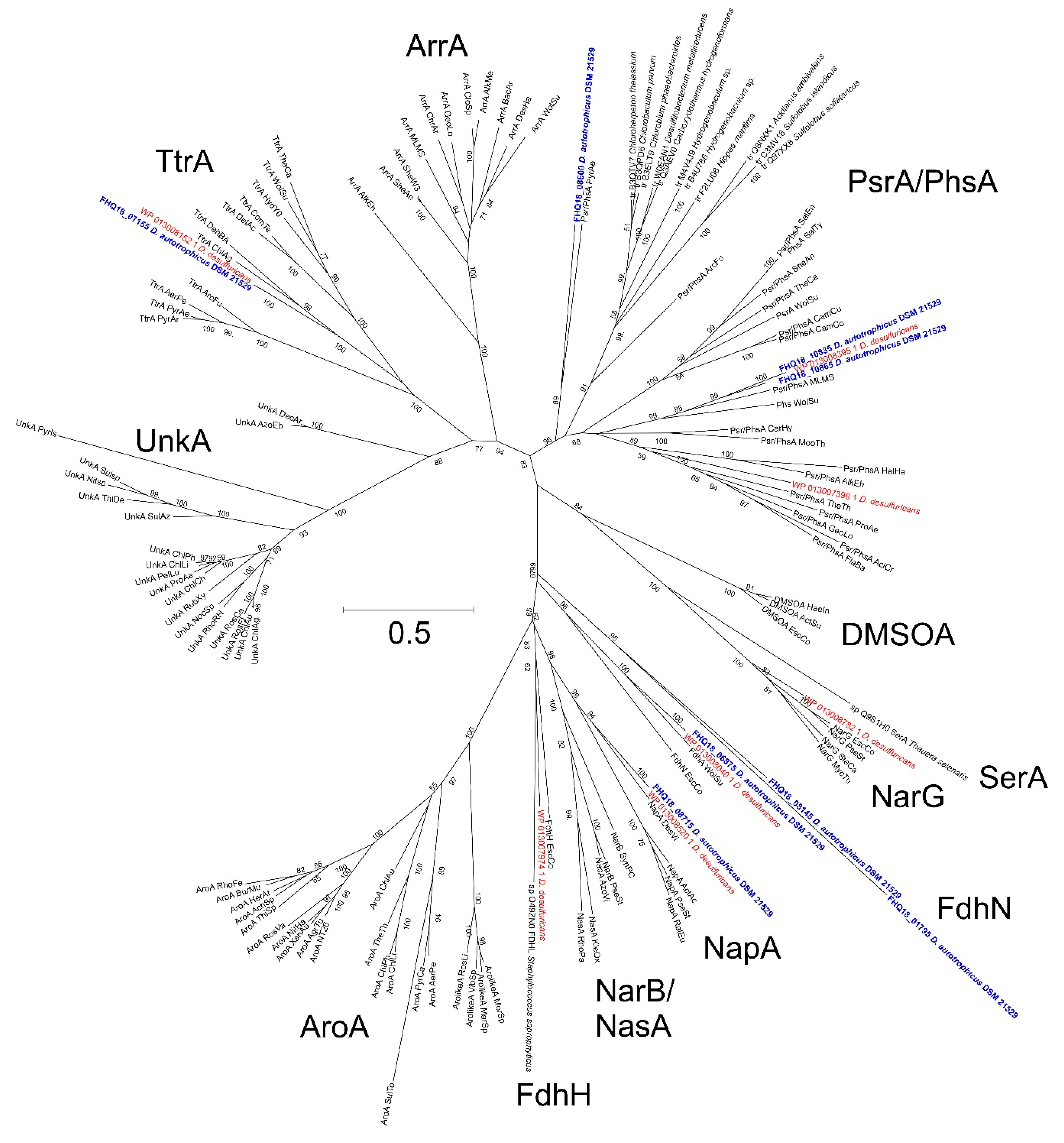

Figure 7. A maximum likelihood phylogenetic tree showing the position of D. autotrophicus (bold blue) and D. desulfuricans (red) molybdopterin oxidoreductase catalytic subunits A among the reference sequences [23], representing various molybdopterin protein families. The tree with the highest log likelihood is shown. The percentages of trees in which the associated taxa clustered together (bootstrap values, 1000 replicates) are shown next to the branches. This tree was inferred in MEGA6. The catalytic subunit clusters shown are: PsrA/PhsA, polysulfide reductase/thiosulfate reductases; AroA, arsenite oxidases; Arr, arsenate reductases; DMSOA, dimethylsulfoxide reductases; FdhN and FdnH, formate dehydrogenases; NapA, periplasmic nitrate reductases; NarG, membrane-bound nitrate reductases; NarB/NasA, assimilatory nitrate reductases (Nas); TtrA, tetrathionate reductases; SerA, selenate reductase; and UnkA, unknown reductases. Branch lengths (see the scale) correspond to the number of substitutions per site with corrections associated with the evolutionary model.
Figure 7. A maximum likelihood phylogenetic tree showing the position of D. autotrophicus (bold blue) and D. desulfuricans (red) molybdopterin oxidoreductase catalytic subunits A among the reference sequences [23], representing various molybdopterin protein families. The tree with the highest log likelihood is shown. The percentages of trees in which the associated taxa clustered together (bootstrap values, 1000 replicates) are shown next to the branches. This tree was inferred in MEGA6. The catalytic subunit clusters shown are: PsrA/PhsA, polysulfide reductase/thiosulfate reductases; AroA, arsenite oxidases; Arr, arsenate reductases; DMSOA, dimethylsulfoxide reductases; FdhN and FdnH, formate dehydrogenases; NapA, periplasmic nitrate reductases; NarG, membrane-bound nitrate reductases; NarB/NasA, assimilatory nitrate reductases (Nas); TtrA, tetrathionate reductases; SerA, selenate reductase; and UnkA, unknown reductases. Branch lengths (see the scale) correspond to the number of substitutions per site with corrections associated with the evolutionary model.
Genes 10 00849 g007
Table 1. Genomic features of D. autotrophicus SL50T and D. desulfuricans SSM1.
Table 1. Genomic features of D. autotrophicus SL50T and D. desulfuricans SSM1.
D. autotrophicus SL50TD. desulfuricans SSM1 [9]
Chromosome Contigs *ChromosomePlasmid
Size2,543,7462,234,389308,544
GC-content32.631.124.5
Protein coding genes
 total24512396287
 pseudogenes23120
RNA genes53
rRNA operons22-
tRNA4244-
small ncRNA42-
IS elements66 *734
IS element familiesIS110, IS21, IS256, ISL3, IS3, IS5, IS1634, IS607IS256, IS5, ISL3IS200/IS605, IS256, IS5
CRISPR-Cas systems
 CRISPR repeat stretches311
 CRISPR spacers26
 Complete Cas gene clusters011
 Cas-related genes5
Genomic islands
Number of GIs125-
Total length of GIs164,61072,606-
* Data in Table 1 refer to draft genome assembly of D. autotrophicus. Therefore, there is a possibility that data in the table does not represent the full set of tRNA genes and IS elements.
Table 2. Dissimilatory nitrate and elemental sulfur reduction and related genes in genome-sequenced Deferribacteres.
Table 2. Dissimilatory nitrate and elemental sulfur reduction and related genes in genome-sequenced Deferribacteres.
Microorganism 1Nitrate ReductionProductnapMADGHnarGHJInrfAhaohcpotrS0 ReductionpsrABC
Calditerrivibrio nitroreducens+NH4++-+-+--+
Deferribacter autotrophicus+NH4++--+++++++
Deferribacter desulfuricans+NO2++-++-++++
Denitrovibrio acetiphilus+NH4+++-++--++
Flexistipes sinusarabicintnt+--++--++
Geovibrio thiophilus+NO2, NH4+++--+-+++
Mucispirillum schaedleri--+-+---nt-
Seleniivibrio woodruffii--+++++--+++
1 Data are presented for the type strains; nt—not tested. Gene abbreviations: nap—periplasmic nitrate reductase, nar—nitrate reductase, nrfA—ammonifying nitrite reductase, hao—hydroxylamine oxidoreductase, hcp—hydroxylamine reductase, otr—octaheme tetrathionate reductase, and psrABC—polysulfide reductase (the number of + corresponds to the number of psrABC clusters).

© 2019 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Back to TopTop
