The Role of Co-Deleted Genes in Neurofibromatosis Type 1 Microdeletions: An Evolutive Approach

by
Larissa Brussa Reis
1,2,
Andreia Carina Turchetto-Zolet
2,
Maievi Fonini
1,
Patricia Ashton-Prolla
1,2,3 and
Clévia Rosset
1,*
1
Laboratório de Medicina Genômica, Centro de Pesquisa Experimental, Hospital de Clínicas de Porto Alegre, Porto Alegre, Rio Grande do Sul 90035-903, Brazil
2
Programa de Pós-Graduação em Genética e Biologia Molecular, Departamento de Genética, UFRGS, Porto Alegre, Rio Grande do Sul 91501-970, Brazil
3
Serviço de Genética Médica do Hospital de Clínicas de Porto Alegre (HCPA), Porto Alegre, Rio Grande do Sul 90035-903, Brazil
*
Author to whom correspondence should be addressed.
Genes 2019, 10(11), 839; https://doi.org/10.3390/genes10110839
Submission received: 28 June 2019 / Revised: 11 September 2019 / Accepted: 16 September 2019 / Published: 24 October 2019
(This article belongs to the Special Issue Neurofibromatosis 1 Genetics)
Browse Figures
Review Reports Versions Notes

Abstract

:
Neurofibromatosis type 1 (NF1) is a cancer predisposition syndrome that results from dominant loss-of-function mutations mainly in the NF1 gene. Large rearrangements are present in 5–10% of affected patients, generally encompass NF1 neighboring genes, and are correlated with a more severe NF1 phenotype. Evident genotype–phenotype correlations and the importance of the co-deleted genes are difficult to establish. In our study we employed an evolutionary approach to provide further insights into the understanding of the fundamental function of genes that are co-deleted in subjects with NF1 microdeletions. Our goal was to access the ortholog and paralog relationship of these genes in primates and verify if purifying or positive selection are acting on these genes. Fourteen genes were analyzed in twelve mammalian species. Of these, four and ten genes showed positive selection and purifying selection, respectively. The protein, RNF135, showed three sites under positive selection at the RING finger domain, which may have been selected to increase efficiency in ubiquitination routes in primates. The phylogenetic analysis suggests distinct evolutionary constraint between the analyzed genes. With these analyses, we hope to help clarify the correlation of the co-deletion of these genes and the more severe phenotype of NF1.

1. Introduction

Neurofibromatosis type 1 (NF1) (OMIM # 162200) is an autosomal dominant tumor predisposition syndrome affecting both sexes in all ethnic groups, with an estimated incidence of one per 3000 [1]. NF1 results from dominant loss-of-function (haploinsufficiency) mutations mainly in the NF1 gene, but this is not the only mutational event that explains the phenotype. NF1 clinical diagnosis is based on criteria approved by the National Institutes of Health Consensus Development Conference [2]. The NF1 phenotype is extremely variable and one possible explanation for this variation is a large number of different mutations in different regions of the NF1 gene [3]. Nearly 20% of NF1 mutations are single or multiexon deletions or duplications; 5–10% of these NF1 deletions are known as microdeletions, surrounding NF1 and its bordering genes. Four types of microdeletions (type 1, 2, 3, and atypical) have been identified and are different in breakpoint location and size [4]. Patients with microdeletions have been described to have a higher risk of malignant peripheral nerve sheath tumors, lower average intelligence, connective tissue dysplasia, skeletal malformations, dysmorphic facial features, cardiovascular malformations, and a higher burden of cutaneous neurofibromas and previous onset of benign neurofibromas [5,6,7,8,9]. Some authors suggest that increased malignancy may be elucidated by variations in the expression of tumor suppressor genes placed in co-deleted regions [10,11], as some of the genes in the deletion interval may have tumor suppressive functions. The analysis of conserved domains in genes in this cluster indicates that many of these genes are presumably involved in the regulation of cell growth and morphology [12]. NF1 clinical symptoms are variable even when comparing individuals with NF1 microdeletions, probably due to the variability characteristic of all patients with NF1, regardless of the type of NF1 gene mutation involved, but also due to changes in deletion size and breakpoint location [13]. Nonetheless, some variability in expression of the clinical symptoms has been detected even within the group of patients that are hemizygous for the same number of genes [14], which could be explained by the expression level of non-deleted genes, as well as by environmental factors. All these findings make the study of genotype–phenotype correlations and the determination of the importance of the co-deleted genes difficult. For this reason, a new approach to investigate the importance of these genes has been proposed by this study, using evolutionary and phylogenetic analyses.
Evolutionary analyses take into account the natural selection, which includes purifying or negative selection and positive selection or neutrality. Most of the genes are affected by purifying selection that decreases the frequency of mutations that disadvantage carriers in a given environment [15,16]. Interspecies neutrality tests use data concerning the divergence between closely related species to detect relatively ancient selective events. Interspecies tests include the non-synonymous and synonymous (dN/dS) test that detects selection acting on protein-coding loci by comparing the ratio of non-synonymous (dN) to synonymous (dS) substitutions [17]. Phylogenetic analyses are important because they enrich our understanding of how genes, genomes, and species evolve. The evolutionary history of living species is usually inferred through the phylogenetic analysis of molecular and morphological information using assorted mathematical models.
In the present study we employed an evolutionary approach to provide further insights into the understanding of the fundamental function of genes that are co-deleted in patients with NF1 microdeletions. Our main goal was to access the ortholog and paralog relationship of these genes in primates and verify if purifying or positive selection are acting on these genes. With these analyses, we hope to help to clarify the correlation of the co-deletion of these genes and the more severe phenotype of NF1.

2. Methodology

2.1. Background

In a previous study conducted by our group ninety-three unrelated NF1 probands who met the NIH diagnostic criteria were recruited at the Oncogenetics clinics of the Hospital de Clínicas de Porto Alegre, located in the state of Rio Grande do Sul, southern Brazil. The study was approved by the Institutional Ethics Committee Board of Hospital de Clínicas de Porto Alegre, under registration number 13-0260, Clinical evaluation and molecular characterization were enrolled in these patients. We found large gene rearrangements in four patients (6%) by multiplex ligation-dependent probe amplification (MLPA) analysis followed by confirmation using chromosomal microarray [18]. One patient presented the classical 1.4 Mb type 1 microdeletion, spanning from SUZ12P1 to LRRC37B, including 22 genes (16 functional). Two patients showed a similar deletion, but their breakpoints differed slightly (one within CRLF3 intron 1 and SUZ12 intron 5, including 19 genes and spanning 1.15 Mb and the other within CRLF3 intron 4 and the SUZ12 gene, including 18 genes and spanning 1.13 Mb). Finally, one patient showed an atypical microdeletion, with breakpoints between SUZ12P1 and LRRC37BP, spanning 890 kb and 15 genes. The fourteen genes deleted in at least one of the four patients were selected for the phylogenetic and selection analyses in this study: CRLF3, ATAD5, TEFM, ADAP2, RNF135, NF1, OMG, EVI2B, EVI2A, RAB11FIP4, COPRS, UTP6, SUZ12, and LRRC37B.

2.2. Genes and Organisms Selected for Analysis

The following fourteen genes that are frequently co-deleted in NF1 patients with microdeletions were included in the analyses: cytokine receptor like factor 3 (CRLF3), ATPase family AAA domain containing 5 (ATAD5), transcription elongation factor, mitochondrial (TEFM), ArfGAP with dual PH domains 2 (ADAP2), ring finger protein 135 (RNF135), neurofibromin 1 (NF1), oligodendrocyte myelin glycoprotein (OMG), ecotropic viral integration site 2B (EVI2B), ecotropic viral integration site 2A (EVI2A), RAB11 family interacting protein 4 (RAB11FIP4), coordinator of PRMT5 and differentiation stimulator (COPRS), UTP6 small subunit processome component (UTP6), SUZ12 polycomb repressive complex 2 subunit (SUZ12), and leucine rich repeat containing 37B (LRRC37B). As the focus of evolutionary analysis was to perform evolutionary analysis of the deleted genes in primates, our ingroup included eight primate species (Homo sapiens, Pan troglodytes, Pongo abelii, Gorilla gorilla gorilla, Nomascus leucogenys, Macaca mulatta, Callithrix Jacchus, and Tarsius syrichta). The Canis lupus familiaris, Bos taurus, Mus musculus, and Rattus norvegicus were used as outgroup. All the included species have their complete genome sequence available in online databases.

2.3. Sequence Alignment and Phylogenetic Analyses

In order to obtain gene sequences in the organisms described above, BlastX was performed for each gene from each organism in the Ensembl Databases (EMBL-EBI and Wellcome Trust Sanger Institute) and the National Center for Biotechnology Information (NCBI) using human sequences encoding the 14 genes as queries. The human genes are located in the frequently deleted region of chromosome 17 and were obtained from the Metazome database (Joint Genome Institute and Center for Integrative Genomics) and confirmed in NCBI. Full-length coding sequencing (CDS) and protein sequences were aligned using MUSCLE [19] implemented in MEGA 7.0 [20] with default parameters. The multiple alignments were manually inspected and edited when necessary in the final analysis. The phylogenetic relationships were reconstructed following nucleotide and protein sequence alignments using a Bayesian method carried out in BEAST v1.8.4 [21]. JModelTest 2.1 [22] and ProTest 2.4 [23] were used to select the best model of nucleotides and protein evolution. The birth-death process was selected as a tree prior to Bayesian analysis, and it was run for 10,000,000 generations with Markov chain Monte Carlo (MCMC) algorithms for both amino acid and nucleotide sequences. Tracer v1.6 [24] was used to verify the convergence of the Markov chains and the adequate effective sample sizes (>200) and the normal distribution curve. Trees off the curve were burned by tree annotator with a posterior probability limit of 0.005. Trees were visualized and edited using FigTree v1.4.3 [25].

2.4. Selection Analysis

Using the alignments of each gene and the respective phylogenetic trees as inputs, the rates of nonsynonymous to synonymous substitutions (dN/dS or ω), homogeneity, and positive selection could be determined using maximum-likelihood models in the program CodeML in PAML v4.9 [26]. First, we used the models allowing ω to vary among sites (site models). The most effective models were: the basic model (M0), which estimates uniform ω ratio among all sites; the site models including M1 (nearly neutral), M2 (selection), M3 (discrete), M7 (beta distribution, ω > 1 disallowed) and M8 (beta distribution, ω > 1 allowed). The likelihood-ratio test (LRT) test is obtained by calculating twice the log-likelihood difference between the alternative and null models (2ΔL). The LRT was performed between the following pairs of the models: M0 vs. M3; M1 vs. M2, and M7 vs. M8. These LRT statistics approximately follow a chi-square distribution, and the number of degrees of freedom is equal to the number of additional parameters in the more complex model [27]. A significantly higher likelihood of the alternative model compared to the null model suggests positive selection. CodeML was also used to estimate different values of ω among the sites and branches according to the branch site model comparing the alternative model (model = 2, Nsites = 2, fix_omega = 0, and omega = 0) with its null model (model = 2, Nsites = 2, fix_omega = 1, and omega = 1) [28]. The model assumes that the branches in the phylogeny are divided in the foreground (the one of interest for which positive selection is expected) and background (those not expected to exhibit positive selection). We set CodeML to estimate branch lengths by using random starting points (fix_blenght = −1). All models were run using the F3x4 option for expected codon frequencies based on third codon positions. Finally, the naive empirical Bayes (NEB) and the Bayes empirical bayes (BEB) approaches were used to calculate the posterior probability (PP) of each site belonging to the site class of positive selection within each alternative model.

3. Results

3.1. Phylogenetic Relationships of the Co-Deleted Genes

The clinical features of all previously analyzed patients are shown in Table S1 and described in full in Rosset et al., 2018 [18]. The deletions found in the patients are shown in Figure S1. One patient showed a typical type one deletion and the other three patients showed a typical NF1 microdeletions.
In order to investigate the presence of the missing genes in the microdeletion region of NF1 patients in other organisms, the fourteen human genes CRLF3, ATAD5, TEFM, ADAP2, RNF135, NF1, OMG, EVI2B, EVI2A, RAB11FIP4, COPRS, UTP6, SUZ12, and LRRC37B were used as query in BLAST searches against the genomes of seven primates and another four mammalian species. The results showed that three genes were found deleted in primate species, such as ATAD5 in Pongo abelli, RNF135 in Nomascus leucogenys, and LRRC37B in Callithrix Jacchus. Figure 1 shows the deleted genes in humans and in the comparative species.
The search for deleted gene sequences in the databases NCBI and Esembl reveals that all genes are located in the same chromosomal unity in humans. The other species show some different locations, such as Nomascus leucogenys that has only CRLF3 and ADAP2 on chromosome 14 and other genes on chromosome 19, and Mus musculus that has all genes on chromosome 10 with the exception of COPRS that is located on chromosome 16. The chromosomal locations of all genes in the analyzed species are shown in Table S2. The best models of nucleotides and protein alignments obtained by JModelTest 2.1 and ProTest 2.4 are shown in Table S3. Phylogenetic analysis was performed for each gene of the ingroup and outgroup species. In general, trees with nucleotide and amino acid sequences showed similar topologies. However, the order of organisms was not always the same and the posterior probabilities were higher in the most phylogenies reconstructed based on nucleotide sequences (Figures S2–S13). Only RNF135 and LRRC37B genes showed better values in the trees imputed with their amino acid sequences (Figures S14 and S15). Additionally, these two genes showed considerable variation among their sequences in the species studied, (red cells from Table S3). The results concerning LRRC37B trees are difficult to interpret since this gene has several pseudogenes in different species and it is not possible to infer if all these sequences are functional. LRRC37B, UTP6, and EVI2B trees grouped Homo sapiens and Pan troglodytes, and Mus musculus and Rattus norvegicus, however, they did not group Canis lupus familiaris and Bos Taurus. SUZ12 trees did not group Homo sapiens and Pan troglodytes, instead the tree grouped Homo sapiens and Gorilla gorilla gorilla. COPRS trees grouped Homo sapiens and Pan troglodytes and did not group Canis lupus familiaris and Bos taurus and Mus musculus and Rattus norvegicus. Nucleotide and amino acid trees generated with ATAD5, ADAP2, NF1, OMG, EVI2A, and TEFM sequences showed all clades in correct positions. Only ATAD5 gene was deleted in Pongo abeli.
CRLF3 is probably a negative regulator of cell cycle [12] and was conserved in all analyzed species. However, the trees do not show Homo sapiens and Pan troglodytes with a common ancestor. Nucleotide sequence tree grouped Homo sapiens and Gorilla gorilla gorilla, whereas amino acid tree grouped Homo sapiens and Pongo abelii. Nucleotide tree showed better posterior values but did not group Bos taurus and Canis lupus familiaris. Finally, RNF135 nucleotide and amino acid trees did not group Homo sapiens and Pan troglodytes; both grouped Bos taurus and Canis lupus familiaris and Mus musculus and Rattus norvegicus. This gene was not found in Nomascus leucogenys and was incomplete in Tarsius syrichta. Moreover, the RNF135 gene could act as a transcription factor, due to the presence of zinc finger domains and the lower conservation found outside the sequence corresponding to protein domains, a common feature in transcription factors.

3.2. Selection Analysis of the Co-Deleted Genes

All genes presented a statistically significant value for M3 × M0 analysis, indicating ω heterogeneity among all sites (Table 1). RNF135, UTP6, LRRC37B, and EVI2B showed statistically significant values for the comparison between the M8 × M7 models (p < 0.005, p < 0.025, p < 0.001, and p < 0.025, respectively), indicating positive selection. In addition, LRRC37B was the only gene that also presented a statistically significant difference in the comparison of M2 × M1 models (Table 1). The naive empirical Bayes (NEB) and Bayes empirical bayes (BEB) analyses demonstrated which sites are under selection (Tables S4–S7), however, presented statistically significant values only for sites in the RNF135 gene. Twenty-seven amino acid sites showed positive selection, with statistical significance for the NEB model (21 sites with I-value >0.005 and 6 sites with p-value >0.001) (Table S4). Figure 2 shows the positively selected sites and positions, including sites located in the RING finger domain of RNF135.
The CRLF3, ATAD5, ADAP2, NF1, SUZ12, OMG, EVI2A, RAB11FIP4, TEFM, and CORPS genes did not present statistically significant values for the comparisons of M2 × M1 and M8 × M7 models, indicating that they may be under purifying selection (Table 1).

4. Discussion

Tumor occurrence in NF1 follows the two hit mechanism proposed by Knudson in 1971 for retinoblastoma. The first hit corresponds to the germ line mutation (haploinsufficiency) that is enough to cause the initial NF1 symptoms. The second hit is somatic and stimulates tumorigenesis in specific tissues involved in NF1 disease [29]. Only a few genotype–phenotype correlations have been established to date in NF1 [30,31,32]. One of the most evident is associated with NF1 microdeletions, independent of the second hit acquisition. The architecture of the genomic regions flanking the NF1 gene in 17q11.2 in humans is characterized by low copy repeats (LCRs). LCRs predisposes to large deletions mediated by mutational mechanisms occurring in the germline of an unaffected parent or during mitotic postzygotic cell divisions [33]. Initially, the breakpoints of large rearrangements were characterized by microdeletion junction-specific PCR assay of 54 NF1 patients. The recombinant event occurred in 46% of cases in a recombination hotspot region of the flanking NF1REPs, also causing three intervals of recombinant events [34]. Later, four types of microdeletions (type 1, 2, 3, and atypical) were identified; the most frequent type of microdeletion is type 1 NF1 deletion which encompass 1.4 Mb and include 14 protein-coding genes as well as four microRNA genes (Figure S1) [35,36,37]. The non-allelic homologous recombination (NAHR) events causing type 1 NF1 deletions are mediated by the low copy repeats, NF1-REPa, and NF1-REPc [36]. Type 2 deletions encompass only 1.2 Mb and are associated with hemizygosity for 13 protein-coding genes. They are also mediated by NAHR but their breakpoints are located within SUZ12 and its highly homologous pseudogene SUZ12P1 which flank NF1-REPc and NF1-REPa, respectively (Figure S1) [37]. Type 3 NF1 deletions are very rare; these 1.0 Mb deletions occur in only 1–4% of all patients with gross NF1 deletions and are mediated by NAHR between NF1-REPb and NF1-REPc leading to hemizygosity for a total of nine protein-coding genes (Figure S1). Atypical large NF1 deletions do not exhibit recurrent breakpoints and are variable considering the number of genes located within the deleted region [38].
In our previously studied cohort [18], one of the NF1 probands showed the well described NF1 type 1 microdeletion. Although the other three patients showed NF1 deletion breakpoints similar to type 2 and type 3 microdeletions, they were considered atypical (Table S2 and Figure S1). One gene in the region between NF1-REPa and NF1-REPb, which is variably included in microdeletions and is deleted in four of our patients, is ring finger protein 135 (RNF135). RNF135 codifies a protein that contains a RING finger domain at the N terminus and a B30.2/SPRY domain at the C terminus. RING domains are specialized zinc-finger motifs that can have ubiquitin and sumo ligase activity [39]. RNF135 loss-of-function mutations, as well as an NF1-REPa to NF1-REPb deletion including this gene, have been implicated in an overgrowth syndrome which includes tall stature, macrocephaly, dysmorphic features, and variable additional features, including learning disability [39]. The dysmorphic facial character as seen in patients with NF1 microdeletions is generally missing in patients with intragenic NF1 mutations. One of the patients from our previous study (Table S1) had an NF1 deletion including NF1-REPa to NF1-REPb and RNF135 and had several dysmorphic features as well as tall stature. However, since only the study conducted by Douglas et al. (2007) [39] analyzed patients with intragenic RNF135 mutations but lacking NF1 microdeletions, more studies are necessary to assess the role of RNF135 co-deletion in NF1. In our study, a different approach was applied to try to elucidate the importance of this gene in NF1 microdeletions. The phylogenetic analysis revealed the evolutionary relationships of each gene among the primate species analyzed. These results showed that some genes are not in agreement with the species tree, suggesting distinct evolutionary constraint between them, which could be expected for genes that present divergence of function during species evolution and are under distinct selection pressure. The distinct statistical values for clades on the phylogenies considering nucleotide and protein sequences could be explained by the differences in nucleotide and protein variation. These differences could be explained by the high synonymous substitution found for some genes. The phylogenetic trees were used to estimate the dN/dS value for molecular evolutionary rate analysis and revealed a distinct selection pattern for each gene. Most genes are under purifying or negative selection, but some present some positively selected sites.
Our results indicate that there is heterogeneity of ω between the sites of all analyzed genes in the different species. This indicates that, in the same position, the amino acids vary among the different groups investigated. Four genes present evidence of being under positive selection (RNF135, UTP6, LRRC37B, and EVI2B), which possibly increased their adaptive values. Of these, the only gene that presented statistically significant differences for its sites in the NEB model was RNF135 (Table S4). The protein RNF135 showed twenty-seven sites under positive selection, and three of them are located in the RING finger domain of the protein. The second positively selected residue is a glutamic acid, with a negative net charge in humans and other primates (Macaca mulatta, Callithrix Jacchus, Pongo abelii, and Pan troglodytes). In organisms that are phylogenetically more distant to humans (e.g., Mus musculus), this site has a positively charged amino acid. The third residue is an aspartic acid, a negative amino acid in the human protein. In the primates Pan troglodytes, Pongo abelii, and Macaca mulatta, the neutral amino acid glicine was selected; in Mus musculus the amino acid in this position is an arginine. Finally, the fourth selected residue is an arginine in humans and other main primates; in Mus musculus, a valine, a polar hidrofobic amino acid, is in this position. These differences in amino acids and their charges could have been selected in humans and other primates to allow better tridimensional conformation of the RNF135 protein and, consequently, a higher efficiency in its ubiquitination function. Most of the ring finger proteins contain two zinc atoms grouped with cistein or cistein-histidin rich clusters. The consensus sequence of this domain is C – X2 – C – X9–39 – C – X1–3 – C – X2 – C – X4–48 – C – X2 – C [40]. The RNF135 gene has this consensus region, represented in Figure 2, which encompass the second, third, and fourth sites under positive selection (shown in red in Figure 2). Genes under this type of selection have important functions and these data support that RNF135 haploinsufficiency contributes to human disease. Other genes showed positive selection in our study (UTP6, LRRC37B, and EVI2B), but without a statistically significant difference in the NEB model (Tables S5–S7).
The other ten genes showed evidence of being under purifying selection, which is related to the importance of maintaining their function during the evolution of organisms. They are fairly conserved genes that are present in all organisms investigated, with the exception of the ATAD5 gene in Pongo abelli. These genes in the co-deleted region may also contribute to the phenotype in microdeleted patients. SUZ12 (also known as JJAZ1) is critical in embryonic development [41]. There are evidences that biallelic SUZ12 loss promotes malignant peripheral nerve sheath tumor (MPNST) progression in NF1 [42]. The SUZ12 protein is a component of the Polycomb repressive complex 2 (PRC2) and is involved in the epigenetic silencing of many different genes by establishing di- and tri-methylation of histone H3 lysine 27 [43]. Loss of histone H3 lysine 27 trimethylation was observed in 50–70% of MPNSTs. By contrast, in benign neurofibromas, the H3 lysine 27 trimethylation is retained, serving as a diagnostic marker for malignant transformation [44]. Another gene, OMG, which encodes the oligodendrocyte myelin glycoprotein is an important inhibitor of neurite overgrowth [45]. Haploinsufficiency of the OMG gene has been proposed to be associated with learning disability. Cardiovascular malformations observed in patients with NF1 microdeletions could be related to hemizygosity of the ADAP2 gene. This conclusion is drawn from the observation that ADAP2 is highly expressed during early stages of heart development in both mice and humans [46]. Haploinsufficiency of UTP6 seems to reduce cellular apoptosis, increasing the risk of tumor development [47]. ATAD5 (ATPase family AAA domain-containing protein 5) is involved in the stabilization of stalled DNA replication forks by regulating proliferating cell nuclear antigen (PCNA) ubiquitination during DNA damage bypass, thereby promoting the exchange of a low-fidelity translesion polymerase back to a high-fidelity replication polymerase [48]. Embryonic fibroblasts from more than 90% of haploinsufficient Atad5+/m mice developed tumors such as sarcomas, carcinomas, and adenocarcinomas that exhibited high levels of genomic instability [49].

5. Conclusions

In our study, we found that four of the frequently co-deleted genes in NF1 patients with microdeletions present evidence of being under positive selection, including specific amino acid sites of RNF135 protein in its main functional domain (RING finger), reinforcing its importance and contribution to human disease. Moreover, the other ten co-deleted genes showed evidence of being under purifying selection, which is related to the importance of maintaining their function during the evolution of organisms. Our in silico analysis could help clarify the function and contribution of the co-deleted genes to disease and, in the future, co-deleted genes could possibly be included in the NF1 molecular diagnostic workup.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4425/10/11/839/s1. Figure S1: Representation of existing microdeletions in patients with neurofibromatosis (type 1, 2 and 3 deletions) and deletions found in the previously analyzed patients, Figure S2: Phylogenetic tree of CRLF3 gene reconstructed based on nucleotides sequences, Figure S3: Phylogenetic tree of ATAD5 gene reconstructed based on nucleotides sequences, Figure S4: Phylogenetic tree of TEFM gene reconstructed based on nucleotides sequences, Figure S5: Phylogenetic tree of ADAP2 gene reconstructed based on nucleotides sequences, Figure S6: Phylogenetic tree of NF1 gene reconstructed based on nucleotides sequences, Figure S7: Phylogenetic tree of OMG gene reconstructed based on nucleotides sequences, Figure S8: Phylogenetic tree of EVI2B gene reconstructed based on nucleotides sequences, Figure S9: Phylogenetic tree of EVI2A gene reconstructed based on nucleotides sequences, Figure S10: Phylogenetic tree of RAB11FIP4 gene reconstructed based on nucleotides sequences, Figure S11: Phylogenetic tree of COPRS gene reconstructed based on nucleotides sequences, Figure S12: Phylogenetic tree of UTP6 gene reconstructed based on nucleotides sequences, Figure S13: Phylogenetic tree of SUZ12 gene reconstructed based on nucleotides sequences, Figure S14: Phylogenetic tree of RNF135 gene reconstructed based on amino acid sequences, Figure S15: Phylogenetic tree of LRRC37B gene reconstructed based on amino acid sequences; Table S1: Clinical characterization of the NF1 patients previously analyzed, Table S2: Information about the sequences obtained in the Ensembl and NCBI databases for all species included in this study, Table S3: The best model of nucleotides and protein alignment, Table S4: Positively selected sites in RNF135 and amino acid differences between species, Table S5: Positively selected sites in UTP6 and amino acid differences between species, Table S6: Positively selected sites in LRRC37B and amino acid differences between species.

Author Contributions

L.B.R. participated in the literature review, in silico analysis, manuscript design, conceptualization, and writing; A.C.T.-Z. participated in the in silico analysis and manuscript writing and revising for intellectual content; M.F. participated in the in silico analysis and methodology design; P.A.-P. participated in the manuscript writing and revising for intellectual content; C.R. participated on the literature review, manuscript design, conceptualization, writing and revising.

Funding

This research was funded by Fundo de Incentivo à Pesquisa (FIPE) of the Hospital de Clínicas de Porto Alegre, grant number 2013-0260 and Conselho Nacional de Desenvolvimento Científico e Tecnológico (CNPq). The APC was funded by Fundo de Incentivo à Pesquisa (FIPE).

Acknowledgments

We would like to thank Fundo de Incentivo à Pesquisa (FIPE) of the Hospital de Clínicas de Porto Alegre and Conselho Nacional de Desenvolvimento Científico e Tecnológico (CNPq).

Conflicts of Interest

The authors stated that they had no interests which might be perceived as posing a conflict or bias.

References

  1. Rasmussen, S.A.; Friedman, J.M. NF1 gene and neurofibromatosis 1. Am. J. Epidemiol. 2000, 151, 33–40. [Google Scholar] [CrossRef] [PubMed]
  2. National Institutes of Health Consensus Development Conference Statement. Neurofibromatosis. Arch. Neurol. Chic. 1998, 45, 575–578. [Google Scholar]
  3. The Human Gene Mutation Database. Available online: http://www.hgmd.cf.ac.uk/ac/index.php (accessed on 16 March 2017).
  4. Messiaen, L.M.; Wimmer, K. NF1 mutational spectrum. Neurofibromatoses. Monogr. Hum. Genet. 2008, 16, 63–77. [Google Scholar]
  5. Venturin, M.; Guarnieri, P.; Natacci, F.; Stabile, M.; Tenconi, R.; Clementi, M.; Hernandez, C.; Thompson, P.; Upadhyaya, M.; Larizza, L.; et al. Mental retardation and cardiovascular malformations in NF1 microdeleted patients point to candidate genes in 17q11.2. J. Med. Genet. 2004, 41, 35–41. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Mensink, K.A.; Ketterling, R.P.; Flynn, H.C.; Knudson, R.A.; Lindor, N.M.; Heese, B.A.; Spinner, R.J.; Babovic-Vuksanovic, D. Connective tissue dysplasia in five new patients with NF1 microdeletions: further expansion of phenotype and review of the literature. J. Med. Genet. 2006, 43, e8. [Google Scholar] [CrossRef] [PubMed]
  7. De Raedt, T.; Brems, H.; Wolkenstein, P.; Vidaud, D.; Pilotti, S.; Perrone, F.; Mautner, V.; Frahm, S.; Sciot, R.; Legius, E. Elevated risk for MPNST in NF1 microdeletion patients. Am. J. Hum. Genet. 2003, 72, 1288–1292. [Google Scholar] [CrossRef] [PubMed]
  8. Descheemaeker, M.J.; Roelandts, K.; De Raedt, T.; Brems, H.; Fryns, J.P.; Legius, E. Intelligence in individuals with a neurofibromatosis type 1 microdeletion. Am. J. Med. Genet. 2004, 131, 325–326. [Google Scholar] [CrossRef]
  9. Zhang, J.; Tong, H.; Fu, X.; Zhang, Y.; Liu, J.; Cheng, R.; Liang, J.; Peng, J.; Sun, Z.; Liu, H.; et al. Molecular characterization of NF1 and neurofibromatosis type 1 genotype- phenotype correlations in a Chinese population. Sci. Rep. 2005, 5, 11291. [Google Scholar] [CrossRef]
  10. Bartelt-Kirbach, B.; Wuepping, M.; Dodrimont-Lattke, M.; Kaufmann, D. Expression analysis of genes lying in the NF1 microdeletion interval points to four candidate modifiers for neurofibroma formation. Neurogenetics 2009, 10, 79–85. [Google Scholar] [CrossRef]
  11. Pasmant, E.; Masliah-Planchon, J.; Lévy, P.; Laurendeau, I.; Ortonne, N.; Parfait, B.; Valeyrie-Allanore, L.; Leroy, K.; Wolkenstein, P.; Vidaud, M.; et al. Identification of genes potentially involved in the increased risk of malignancy in NF1-microdeleted patients. Mol. Med. 2011, 17, 79–87. [Google Scholar] [CrossRef]
  12. Yang, F.; Xu, Y.P.; Li, J.; Duan, S.S.; Fu, Y.J.; Zhang, Y.; Zhao, Y.; Qiao, W.T.; Chen, Q.M.; Geng, Y.Q.; et al. Cloning and characterization of a novel intracellular protein p48.2 that negatively regulates cell cycle progression. Int. J. Biochem. Cell Biol. 2009 41, 2240–2250. [CrossRef]
  13. Sabbagh, A.; Pasmant, E.; Laurendeau, I.; Parfait, B.; Barbarot, S.; Guillot, B.; Combemale, P.; Ferkal, S.; Vidaud, M.; Aubourg, P. Members of the NF France Network. Unravelling the genetic basis of variable clinical expression in neurofibromatosis 1. Hum. Mol. Genet. 2009, 18, 2768–2778. [Google Scholar] [CrossRef] [PubMed]
  14. Mautner, V.F.; Kluwe, L.; Friedrich, R.E.; Roehl, A.C.; Bammert, S.; Högel, J.; Spöri, H.; Cooper, D.N.; Kehrer-Sawatzki, H. Clinical characterization of 29 neurofibromatosis type-1 patients with molecularly ascertained 1.4 Mb type-1 NF1 deletions. J. Med. Genet. 2010, 47, 623–630. [Google Scholar] [CrossRef] [PubMed]
  15. Nielsen, R.C.; Bustamante, A.G.; Clark, S.; Glanowski, T.B.; Sackton, M.J.; Hubisz, A.; Fledel-Alon, A.; Tanenbaum, D.M.; Civello, D.; White, T.J.; et al. A scan for positively selected genes in the genomes of humans and chimpanzees. PLoS Biol. 2005, 3, e170. [Google Scholar] [CrossRef] [PubMed]
  16. Bustamante, C.D.; Fledel-Alon, A.; Williamson, S.; Nielsen, R.; Hubisz, M.T.; Glanowski, S.; Tanenbaum, D.M.; White, T.J.; Sninsky, J.J.; Hernandez, R.D.; et al. Natural selection on protein-coding genes in the human genome. Nature 2005, 437, 1153–1157. [Google Scholar] [CrossRef]
  17. Yang, Z. Likelihood ratio tests for detecting positive selection and application to primate lysozyme evolution. Mol. Biol. Evol. 1998, 15, 568–573. [Google Scholar] [CrossRef] [PubMed]
  18. Rosset, C.; Vairo, F.; Bandeira, I.C.; Fonini, M.; Netto, C.B.O.; Ashton-Prolla, P. Clinical and molecular characterization of neurofibromatosis in southern Brazil. Expert. Rev. Mol. Diagn. 2018, 18, 577–586. [Google Scholar] [CrossRef]
  19. Edgar, R.C. MUSCLE: Multiple sequence alignment with high accuracy and high throughput. Nucleic Acids Res. 2004, 32, 1792–1797. [Google Scholar] [CrossRef]
  20. Tamura, K.; Stecher, G.; Peterson, D.; Filipski, A.; Kumar, S. MEGA6: Molecular Evolutionary Genetics Analysis Version 6.0. Mol. Biol. Evol. 2013, 30, 2725–2729. [Google Scholar] [CrossRef] [Green Version]
  21. Drummond, A.J.; Suchard, M.A.; Xie, D.; Rambaut, A. Bayesian phylogenetics with BEAUti and the BEAST 1.7. Mol. Biol. Evol. 2012, 29, 1969–1973. [Google Scholar] [CrossRef]
  22. Darriba, D.; Taboada, G.L.; Doallo, R.; Posada, D. jModelTest 2: more models, new heuristics and parallel computing. Nat. Methods 2012, 9, 772. [Google Scholar] [CrossRef] [PubMed]
  23. Abascal, F.; Zardoya, R.; Posada, D. ProtTest: selection of best-fit models of protein evolution. Bioinformatics 2005, 21, 2104–2105. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Rambaut, A.; Drummond, A.J.; Xie, D.; Baele, G.; Suchard, M.A. Posterior summarisation in Bayesian phylogenetics using Tracer 1.7. Syst. Biol. 2018, 67, 901–904. [Google Scholar] [CrossRef] [PubMed]
  25. Rambaut, A. FigTree. 2013. Available online: http://tree.bio.ed.ac.uk/software/figtree (accessed on 12 June 2019).
  26. Yang, Z. PAML 4: Phylogenetic analysis by maximum likelihood. Mol. Biol. Evol. 2007, 24, 1586–1591. [Google Scholar] [CrossRef]
  27. Anisimova, M.; Yang, Z. Multiple hypothesis testing to detect lineages under positive selection that affects only a few sites. Mol. Biol. Evol. 2007, 24, 1219–1228. [Google Scholar] [CrossRef]
  28. Zhang, J.; Nielsen, R.; Yang, Z. Evaluation of an improved branch-site likelihood method for detecting positive selection at the molecular level. Mol. Biol. Evol. 2005, 22, 2472–2479. [Google Scholar] [CrossRef]
  29. Knudson, A.G. Mutation and cancer: statistical study of retinoblastoma. Proc. Natl. Acad. Sci. USA 1971, 68, 820–823. [Google Scholar] [CrossRef]
  30. Ruggieri, M.; Polizzi, A.; Spalice, A.; Salpietro, V.; Caltabiano, R.; D’Orazi, V.; Pavone, P.; Pirrone, C.; Magro, G.; Platania, N.; et al. The natural history of spinal neurofibromatosis: a critical review of clinical and genetic features. Clin. Genet. 2015, 87, 401–410. [Google Scholar] [CrossRef]
  31. Upadhyaya, M.; Huson, S.M.; Davies, M.; Thomas, N.; Chuzhanova, N.; Giovannini, S.; Evans, D.G.; Howard, E.; Kerr, B.; Griffiths, S.; et al. An absence of cutaneous neurofibromas associated with a 3-bp inframe deletion in exon 17 of the NF1 gene (c.2970-2972 delAAT): evidence of a clinically significant NF1 genotype-phenotype correlation. Am. J. Hum. Genet. 2007, 80, 140–151. [Google Scholar] [CrossRef]
  32. Rojnueangnit, K.; Xie, J.; Gomes, A.; Sharp, A.; Callens, T.; Chen, Y.; Liu, Y.; Cochran, M.; Abbott, M.A.; Atkin, J.; et al. High incidence of Noonan syndrome features including short stature and pulmonic stenosis in patients carrying NF1 missense mutations affecting p.Arg1809: genotype-phenotype correlation. Hum. Mutat. 2015, 36, 1052–1063. [Google Scholar] [CrossRef]
  33. Jenne, D.E.; Tinschert, S.; Reimann, H.; Lasinger, W.; Thiel, G.; Hameister, H.; Kehrer-Sawatzki, H. Molecular characterization and gene content of breakpoint boundaries in patients with neurofibromatosis type 1 with 17q11.2 microdeletions. Am. J. Hum. Genet. 2001, 69, 516–527. [Google Scholar] [CrossRef] [PubMed]
  34. López-Correa, C.; Dorschner, M.; Brems, H.; Lázaro, C.; Clementi, M.; Upadhyaya, M.; Dooijes, D.; Moog, U.; Kehrer-Sawatzki, H.; Rutkowski, J.L.; et al. Recombination hotspot in NF1 microdeletion patients. Hum. Mol. Genet. 2001, 10, 1387–1392. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Messiaen, L.; Vogt, J.; Bengesser, K.; Fu, C.; Mikhail, F.; Serra, E.; Garcia-Linares, C.; Cooper, D.N.; Lazaro, C.; Kehrer-Sawatzki, H. Mosaic type-1 NF1 microdeletions as a cause of both generalized and segmental neurofibromatosis type-1 (NF1). Hum. Mutat. 2011, 32, 213–219. [Google Scholar] [CrossRef] [PubMed]
  36. Hillmer, M.; Wagner, D.; Summerer, A.; Daiber, M.; Mautner, V.F.; Messiaen, L.; Cooper, D.N.; Kehrer-Sawatzki, H. Fine mapping of meiotic NAHR-associated crossovers causing large NF1 deletions. Hum. Mol. Genet. 2016, 25, 484–496. [Google Scholar] [CrossRef] [PubMed]
  37. Vogt, J.; Mussotter, T.; Bengesser, K.; Claes, K.; Högel, J.; Chuzhanova, N.; Fu, C.; van den Ende, J.; Mautner, V.F.; Cooper, D.N.; et al. Identification of recurrent type-2 NF1 microdeletions reveals a mitotic nonallelic homologous recombination hotspot underlying a human genomic disorder. Hum. Mutat. 2012, 33, 1599–1609. [Google Scholar] [CrossRef] [PubMed]
  38. Pasmant, E.; Sabbagh, A.; Spurlock, G.; Laurendeau, I.; Grillo, E.; Hamel, M.J.; Martin, L.; Barbarot, S.; Leheup, B.; Rodriguez, D.; et al. NF1 microdeletions in neurofibromatosis type 1: from genotype to phenotype. Hum Mutat 2010, 31, e1506–e1518. [Google Scholar] [CrossRef] [PubMed]
  39. Douglas, J.; Cilliers, D.; Coleman, K.; Tatton-Brown, K.; Barker, K.; Bernhard, B.; Burn, J.; Huson, S.; Josifova, D.; Lacombe, D.; et al. Mutations in RNF135, a gene within the NF1 microdeletion region, cause phenotypic abnormalities including overgrowth. Nat. Genet. 2007, 39, 963–965. [Google Scholar] [CrossRef]
  40. Nalepa, G.; Rolf, M.; Harper, Y.W. Drug discovery in the ubiquitin-proteasome system. Nat. Rev. Drug. Discov. 2006, 5, 596–613. [Google Scholar] [CrossRef]
  41. Squazzo, S.L.; O’Geen, H.; Komashko, V.M.; Krig, S.R.; Jin, V.X.; Jang, S.W.; Margueron, R.; Reinberg, D.; Green, R.; Farnham, P.J. Suz12 binds to silenced regions of the genome in a cell-type-specific manner. Genome Res. 2006, 16, 890–900. [Google Scholar] [CrossRef] [Green Version]
  42. Zhang, M.; Wang, Y.; Jones, S.; Sausen, M.; McMahon, K.; Sharma, R.; Wang, Q.; Belzberg, A.J.; Chaichana, K.; Gallia, G.L.; et al. Somatic mutations of SUZ12 in malignant peripheral nerve sheath tumors. Nat. Genet. 2014, 46, 1170–1172. [Google Scholar] [CrossRef]
  43. Di Croce, L.; Helin, K. Transcriptional regulation by Polycomb group proteins. Nat. Struct. Mol. Biol. 2013, 20, 1147–1155. [Google Scholar] [CrossRef] [PubMed]
  44. Asano, N.; Yoshida, A.; Ichikawa, H.; Mori, T.; Nakamura, M.; Kawai, A.; Hiraoka, N. Immunohistochemistry for trimethylated H3K27 in the diagnosis of malignant peripheral nerve sheath tumours. Histopathology 2017, 70, 385–393. [Google Scholar] [CrossRef] [PubMed]
  45. Huang, J.K.; Phillips, G.R.; Roth, A.D.; Pedraza, L.; Shan, W.; Belkaid, W.; Mi, S.; Fex-Svenningsen, A.; Florens, L.; Yates, J.R., 3rd; et al. Glial membranes at the node of Ranvier prevent neurite outgrowth. Science 2005, 310, 1813–1817. [Google Scholar] [CrossRef] [PubMed]
  46. Venturin, M.; Carra, S.; Gaudenzi, G.; Brunelli, S.; Gallo, G.R.; Moncini, S.; Cotelli, F.; Riva, P. ADAP2 in heart development: a candidate gene for the occurrence of cardiovascular malformations in NF1 microdeletion syndrome. J. Med. Genet. 2014, 51, 436–443. [Google Scholar] [CrossRef]
  47. Piddubnyak, V.; Rigou, P.; Michel, L.; Rain, J.C.; Geneste, O.; Wolkenstein, P.; Vidaud, D.; Hickman, J.A.; Mauviel, A.; Poyet, J.L. Positive regulation of apoptosis by HCA66, a new Apaf-1 interacting protein, and its putative role in the physiopathology of NF1 microdeletion syndrome patients. Cell Death Differ. 2007, 14, 1222–1233. [Google Scholar] [CrossRef]
  48. Lee, K.Y.; Fu, H.; Aladjem, M.I.; Myung, K. ATAD5 regulates the lifespan of DNA replication factories by modulating PCNA level on the chromatin. J. Cell Biol. 2013, 200, 31–44. [Google Scholar] [CrossRef]
  49. Bell, D.W.; Sikdar, N.; Lee, K.Y.; Price, J.C.; Chatterjee, R.; Park, H.D.; Fox, J.; Ishiai, M.; Rudd, M.L.; Pollock, L.M.; et al. Predisposition to cancer caused by genetic and functional defects of mammalian Atad5. PLoS Genet 2011, 7, e1002245. [Google Scholar] [CrossRef]
Genes 10 00839 g001 550

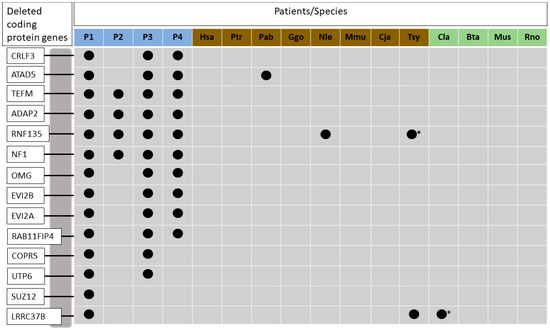

Figure 1. Deleted genes analyzed in this study and in comparative species used for the phylogenetic analysis. Blue squares represent patients with NF1 microdeletions: patient 1, patient 2, patient 3, and patient 4, respectively. Brown squares represent ingroup species: Homo sapiens, Pan troglodytes, Pongo abelii, Gorilla gorila gorila, Nomascus leucogenys, Macaca mulatta, Callithri Jacchus e Tarsius syrichata, respectively. Green squares represent outgroup species: Canis lúpus familiaris, Bos taurus, Mus musculus e Rattus norvegicus, respectively. Deleted genes in each species are represented with dark circles. Asterisk indicates that the Tarsius syrichata RNF135 gene, and Canis lupus LRRC37B are absent because their sequences are mostly incomplete.
Figure 1. Deleted genes analyzed in this study and in comparative species used for the phylogenetic analysis. Blue squares represent patients with NF1 microdeletions: patient 1, patient 2, patient 3, and patient 4, respectively. Brown squares represent ingroup species: Homo sapiens, Pan troglodytes, Pongo abelii, Gorilla gorila gorila, Nomascus leucogenys, Macaca mulatta, Callithri Jacchus e Tarsius syrichata, respectively. Green squares represent outgroup species: Canis lúpus familiaris, Bos taurus, Mus musculus e Rattus norvegicus, respectively. Deleted genes in each species are represented with dark circles. Asterisk indicates that the Tarsius syrichata RNF135 gene, and Canis lupus LRRC37B are absent because their sequences are mostly incomplete.
Genes 10 00839 g001
Genes 10 00839 g002 550

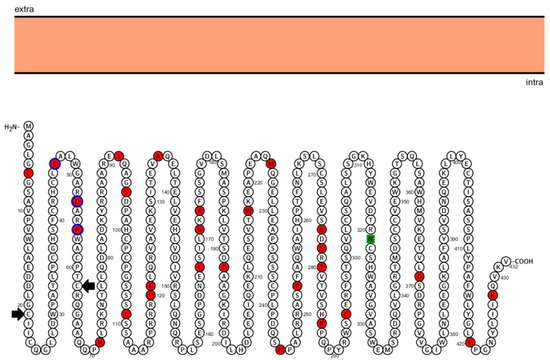

Figure 2. Sequence of human protein RNF135 and their positive selected sites. Representation of the structure of the cytoplasmic protein RNF135 and its 432 amino acids. The orange rectangle represents the cell membrane. The small circles represent the amino acids of the protein, with the names indicated by the letters contained within the circles. The beginning and end of the sequence corresponding to the RING finger domain are indicated by the first and second black arrows respectively. The circles painted in red represent the 27 amino acids that are under positive selection. The green square represents the N-glycosilated motif.
Figure 2. Sequence of human protein RNF135 and their positive selected sites. Representation of the structure of the cytoplasmic protein RNF135 and its 432 amino acids. The orange rectangle represents the cell membrane. The small circles represent the amino acids of the protein, with the names indicated by the letters contained within the circles. The beginning and end of the sequence corresponding to the RING finger domain are indicated by the first and second black arrows respectively. The circles painted in red represent the 27 amino acids that are under positive selection. The green square represents the N-glycosilated motif.
Genes 10 00839 g002
Table
Table 1. CodeML analysis of the entire dataset using the site models.
Table 1. CodeML analysis of the entire dataset using the site models.
Gene FamilyModel/LikelihoodComparisonParameters/Significance
CRLF3M0/-3789,882728M3 vs. M02ΔL = 31.37 (df = 4)/p << 0.001 *
M1/-3774,195335M2 vs. M12ΔL = −6.51(df = 2)/p < 0.99
M2/-3777,450354M8 vs. M72ΔL = 0.79(df = 2)/p < 0.5
M3/-3774,195335
M7/-3774,904179
M8/-3774,50421
ATAD5M0/-22006,87329M3 vs. M02ΔL = 301.11 (df = 4)/p < 0.001 *
M1/-21865,9053M2 vs. M12ΔL = 0 (df = 2)/p < 0.99
M2/-21865,9053M8 vs. M72ΔL = 4.26 (df = 2)/p < 0.5
M3/-21856,31708
M7/-21859,57933
M8/-21857,4487
ADAP2M0/-4320,93576M3 vs. M02ΔL = 83.94 (df = 4)/p < 0.001 *
M1/-4283,476747M2 vs. M12ΔL = 0 (df = 2)/p < 0.99
M2/-4283,476747M8 vs. M72ΔL = 0.176 (df = 2)/p < 0.99
M3/-4278,962315
M7/-4279,346509
M8/-4279,258106
RNF135M0/-5802,616454M3 vs. M02ΔL = 116.5 (df = 4)/p < 0.001 *
M1/-5745,76494M2 vs. M12ΔL = 2.80 (df = 2)/p < 0.1
M2/-5744,363479M8 vs. M72ΔL = 11.65 (df = 2)/p < 0.005 *
M3/-5744,351541
M7/-5750,260024
M8/-5744,430178
NF1M0/-20275,12645M3 vs. M02ΔL = 73.08 (df = 4)/p < 0.001 *
M1/-20240,46408M2 vs. M12ΔL = −4 × 10−6 (df = 2)/p < 0.99
M2/-20240,46408M8 vs. M72ΔL = 1.57 (df = 2)/p < 0.99
M3/-20238,58367M3 vs. M0
M7/-20239,50865
M8/-20238,71939
UTP6M0/-6507,150936M3 vs. M02ΔL = 154.60 (df = 4)/p < 0.001 *
M1/-6433,008949M2 vs. M12ΔL = 0 (df = 2)/p < 0.99
M2/-6433,008949M8 vs. M72ΔL = 8.52 (df = 2)/p < 0.025 *
M3/-6429,850049
M7/-6434,194703
M8/-6429,931052
SUZ12M0/-4810,097946M3 vs. M02ΔL = 14.64 (df = 4)/p < 0.005 *
M1/-4803,610839M2 vs. M12ΔL = 0 (df = 2)/p < 0.99
M2/-4803,610839M8 vs. M72ΔL = −0.000288 (df = 2)/p < 0.99
M3/-4802,77363
M7/-4802,776934
M8/-4802,777078
OMGM0/-3421,827547M3 vs. M02ΔL = 20.99 (df = 4)/p < 0.001 *
M1/-3412,432711M2 vs. M12ΔL = 0 (df = 2)/p < 0.99
M2/-3393,13422M8 vs. M72ΔL = 0.018 (df = 2)/p < 0.99
M3/-3412,246309
M7/-3412,265355
M8/-3412,256186
LRRC37BM0/-16071,4708M3 vs. M02ΔL = 120.7 (df = 4)/p < 0.001 *
M1/-16018,91532M2 vs. M12ΔL = 9.87 (df = 2)/p < 0.005 *
M2/-16013,97878M8 vs. M72ΔL = 13.30 (df = 2)/p < 0.001 *
M3/-16011,07676
M7/-16018,02362
M8/-16011,36949
EVI2AM0/-2792,694611M3 vs. M02ΔL = 44.45 (df = 4)/p < 0.001 *
M1/-2771,253237M2 vs. M12ΔL = 1.32 (df = 2)/p < 0.99
M2/-2770,590286M8 vs. M72ΔL = 4.28 (df = 2)/p < 0.1
M3/-2770,464944
M7/-2772,654596
M8/-2770,510367
EVI2BM0/-5998,097719M3 vs. M02ΔL = 71.86 (df = 4)/p < 0.001 *
M1/-5964,792227M2 vs. M12ΔL = 1.85 (df = 2)/p < 0.1
M2/-5963,862998M8 vs. M72ΔL = 6.25 (df = 2)/p < 0.025 *
M3/-5962,167576
M7/-5965,886294
M8/-5962,759212
RAB11FIP4M0/-8519,576811M3 vs. M02ΔL = 214.76 (df = 4)/p < 0.001 *
M1/-8500,408316M2 vs. M12ΔL = 0 (df = 2)/p < 0.99
M2/-8500,408316M8 vs. M72ΔL = 3.27 (df = 2)/p < 0.1
M3/-8412,192643
M7/-8412,081211
M8/-8410,442254
TEFMM0/-4523,914053M3 vs. M02ΔL = 95.54 (df = 4)/p < 0.001 *
M1/-4479,041925M2 vs. M12ΔL = 2.70 (df = 2)/p < 0.1
M2/-4477,690271M8 vs. M72ΔL = 3.91 (df = 2)/p < 0.1
M3/-4476,141837
M7/-4478,690601
M8/-4476,734719
CORPSM0/-2021,525059M3 vs. M02ΔL = 39.62 (df = 4)/p < 0.001 *
M1/-2001,718453M2 vs. M12ΔL = 0 (df = 2/p < 0.99
M2/-2001,718453M8 vs. M72ΔL = 0.26 (df = 2)/p < 0.5
M3/-2001,71364
M7/-2001,856893
M8/-2001,724449
* Statistical significant result obtained by Fisher chi-square.

Share and Cite

MDPI and ACS Style

Brussa Reis, L.; Turchetto-Zolet, A.C.; Fonini, M.; Ashton-Prolla, P.; Rosset, C. The Role of Co-Deleted Genes in Neurofibromatosis Type 1 Microdeletions: An Evolutive Approach. Genes 2019, 10, 839. https://doi.org/10.3390/genes10110839

AMA Style

Brussa Reis L, Turchetto-Zolet AC, Fonini M, Ashton-Prolla P, Rosset C. The Role of Co-Deleted Genes in Neurofibromatosis Type 1 Microdeletions: An Evolutive Approach. Genes. 2019; 10(11):839. https://doi.org/10.3390/genes10110839

Chicago/Turabian Style

Brussa Reis, Larissa, Andreia Carina Turchetto-Zolet, Maievi Fonini, Patricia Ashton-Prolla, and Clévia Rosset. 2019. "The Role of Co-Deleted Genes in Neurofibromatosis Type 1 Microdeletions: An Evolutive Approach" Genes 10, no. 11: 839. https://doi.org/10.3390/genes10110839

APA Style

Brussa Reis, L., Turchetto-Zolet, A. C., Fonini, M., Ashton-Prolla, P., & Rosset, C. (2019). The Role of Co-Deleted Genes in Neurofibromatosis Type 1 Microdeletions: An Evolutive Approach. Genes, 10(11), 839. https://doi.org/10.3390/genes10110839

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
