Article

Cytokines Explored in Saliva and Tears from Radiated Cancer Patients Correlate with Clinical Manifestations, Influencing Important Immunoregulatory Cellular Pathways

1
Department of Oral Surgery and Oral Medicine, Faculty of Dentistry, University of Oslo, 0317 Oslo, Norway
2
Department of Health Sciences, Kristiania University College, 0153 Oslo, Norway
3
Section for Head and Neck Oncology, Oslo University Hospital, 0379 Oslo, Norway
4
Department of Medical Biochemistry, Oslo University Hospital, 0450 Oslo, Norway
5
Department of Cariology and Gerodontology, Faculty of Dentistry, University of Oslo, 0455 Oslo, Norway
6
Department of Otorhinolaryngology-Head and Neck Surgery Division for Head, Neck and Reconstructive Surgery, Oslo University Hospital, 0450 Oslo, Norway
7
Department of Plastic and Reconstructive Surgery, Oslo University Hospital, 0450 Oslo, Norway
8
Department of Oral Biology, Faculty of Dentistry, University of Oslo, 0316 Oslo, Norway
9
The Norwegian Dry Eye Clinic, 0366 Oslo, Norway
*
Author to whom correspondence should be addressed.
Cells 2020, 9(9), 2050; https://doi.org/10.3390/cells9092050
Submission received: 5 August 2020 / Revised: 31 August 2020 / Accepted: 4 September 2020 / Published: 8 September 2020

Abstract

:
Although radiotherapy is a common form of treatment for head and neck cancer, it may lead to tissue damage in the salivary and lacrimal glands, possibly affecting cytokine expression in the gland fluid of treated individuals. Cytokine profiles in saliva and tear fluid of 29 radiated head and neck cancer patients and 20 controls were screened using a multiplex assay. Correlations between cytokine expression and clinical oral and ocular manifestations were examined, and cellular pathways influenced by these cytokines were assessed using the Functional Enrichment Analysis Tool. Significantly elevated cytokines identified in patient saliva were CCL21, IL-4, CX3CL1, CCL2, CXCL1 and CCL15. Many of these cytokines correlated positively with objective signs of oral dryness, and reduced saliva production in the patients. Although CCL21 and IL-4 levels were significantly lower in patient tear fluid, they correlated with subjective ocular symptoms. These increased salivary cytokines affected pro-inflammatory and apoptotic cellular pathways, including T cell signalling, several interleukin signalling pathways, TNF and TGF-β receptor signalling, and the apoptotic p53 pathway. In conclusion, the upregulated salivary cytokines identified suggest an interplay between innate and adaptive immunity, affecting immunoregulatory cellular pathways. Whether this is due to late effects of radiotherapy or tissue repair remains to be investigated.

1. Introduction

Head and neck cancer constitutes a group of cancers located in the pharynx, larynx, oral cavity, sino-nasal cavities and salivary glands [1]. Symptoms depend on the tumour location and include a lump and/or sore throat, and/or a mucosal ulceration that does not heal, trouble swallowing, voice change, unusual bleeding, facial swelling, numbness, and difficulty breathing [2]. It is the sixth most common cancer in the world, being responsible for 1–2% of tumour deaths worldwide [3]. When it comes to malignancies of the head and neck area, oral- and oropharyngeal cancers are the most prevalent, where squamous cell carcinoma represents more than 90% of such cases [4].
When treating head and neck cancers, radiotherapy is often employed, either alone or in combination with surgery [5,6,7,8]. In order to reduce normal tissue toxicity, the use of intensity-modulated radiotherapy has been implemented [9]. This technique maximises delivery to the targeted tissue, and minimises the dose to the surrounding healthy tissue [10]. Factors other than the radiotherapy technique used may also contribute to adjacent normal tissue damage, such as damage to the salivary and lacrimal glands [11]. These include radiation doses above 15–20 Gy, the localisation of the tumour and the volume of the targeted tissue [12].
Radiotherapy of head and neck cancer may damage salivary and lacrimal gland function, resulting in decreased saliva and tear production and symptoms such as dry mouth and dry eyes in patients. Despite decades of research, the pathogenic mechanisms associated with ocular and oral dryness are still not fully understood. Clinical tools that are implemented for measuring oral and ocular signs are often susceptible to subjective interpretation. In contrast, protein analysis has the advantage of being less prone to such subjective bias [13]. Inflammatory cytokine levels are expected to be elevated in fluids from affected glands [14]. Cytokines are intercellular signalling proteins that play a role in regulating cell growth, cellular proliferation, angiogenesis, tissue repair, and immune responses to infection, injury and inflammation [15]. Therefore, saliva and tear fluid may contain valuable biomarkers for diagnostic and therapeutic purposes [16]. Advances in the technology of multiplex bead arrays have allowed this technique to be applied in identifying proteins of low abundance in small sample volumes, while also demonstrating consistency with findings from ELISA assays [17,18]. These verifications make multiplex immunobead assays an attractive method for studying saliva and tear fluid from patients treated with radiotherapy.
Previous studies have described several salivary cytokines detected 1-3 weeks after radiotherapy in head and neck cancer patients [19,20,21,22,23]. The studies utilised both multiplex bead-based immunoassays and ELISA to identify pro- and anti-inflammatory cytokines, such as interleukin (IL)-1α, IL-1β, IL-4, IL-6, IL-8, IL-10, MCP-1, and TNF-α. These elevated cytokine levels also correlated with the radiation dose. Interestingly, in several oral and systemic conditions, including periodontal disease, Sjögren’s syndrome, and rheumatoid arthritis, levels of inflammatory cytokines are shown to increase in saliva [24]. We have previously explored cytokine levels in saliva and tear fluid from primary Sjögren’s syndrome patients in the search for disease-specific biomarkers. Our results demonstrated elevated levels of IP-10 and MIP-1a in saliva, and IL-1ra, IL-2, IL-4, IL-8, IL-12p70, IL-17A, IFN-γ, IP-10, MIP-1b, and RANTES in tear fluid [14].
To date, limited work has been published related to the concurrent investigation of cytokine profiles in saliva and tear fluid from radiated head and neck cancer patients. It is assumed that an interdisciplinary approach could increase the knowledge basis and lead to a better evaluation of late effects in these patients. Hence, in the present study, we aimed to investigate how late effects of radiotherapy might influence cytokine profiles, oral and ocular clinical outcomes, and immunoregulatory cellular pathways, in the saliva and tear fluid of radiated head and neck cancer patients, explored at least 6 months after radiation treatment. Our results demonstrate enhanced cytokine levels that suggest an interplay between innate and adaptive immune responses, affecting immunoregulatory cellular pathways, and notably, correlating with oral manifestations and ocular symptoms.

2. Materials and Methods

Study participants. This study was performed in compliance with the tenets of the Declaration of Helsinki, in the period September 2018 to March 2019. The participants included 29 patients diagnosed with head and neck cancer who had completed intensity-modulated radiotherapy treatment at least 6 months prior to recruitment, and 20 age- and sex-matched healthy individuals with no complaints of dry mouth or dry eyes. Written informed consent was obtained from all participants, and the Regional Medical Ethical Committee of South-East Norway approved the study (2018/1313).
All recruited patients had undergone radiotherapy for head and neck cancer, at the Department of Oncology, Oslo University Hospital, Norway. Fourteen patients had been treated with primary radiotherapy, receiving a total dose of 68–70 Gy, and fifteen patients had received postoperative radiotherapy with a total dose of 50–66 Gy. The average radiation dose to the parotid gland was 23.1 ± 10.2 Gy (range, 1.6 to 48.5 Gy), and to the lacrimal gland 1.8 ± 4.2 Gy (range, 0.3 to 17.5 Gy). The radiotherapy was delivered as 2 Gy per fraction, administered 5–6 times per week, in accordance with standard treatment guidelines. The treatment volume varied according to tumour localisation and extension. In accordance with treatment guidelines, no shield was used to protect the lacrimal gland or the eye, since treatment volumes were distant from the eye. Furthermore, concomitant chemotherapy was given to patients under 70 years of age as part of the primary treatment for stage III-IV disease, or as part of the post-operative treatment in cases where there was marginal or perinodal infiltration. A total of twelve patients received concurrent cisplatin or cetuximab, every week for 3–6 weeks. The distribution of tumour location of the patients is shown in Figure 1, while patient demographics are presented in Table 1.
Clinical evaluation of oral and ocular dryness. Upon recruitment it was verified that all radiated head and neck cancer patients were currently cancer free. Individuals in the control group had no history of dry mouth/dry eye complaints, no systemic disorders or diseases with potential oral and/or ocular involvement, no previous surgery, and no use of medications that may affect lacrimal and salivary gland secretion. The oral examinations were performed at the Dry Mouth Clinic, Institute of Clinical Dentistry, Faculty of Dentistry, University of Oslo, Oslo, Norway, while the clinical ocular evaluations were performed at the Norwegian Dry Eye Clinic, Oslo, Norway, as described previously [25,26]. Participants were asked not to have anything in the mouth for at least 1 h before their oral assessment, and to avoid using any eye drops at least 2 h prior to their eye examination.
At the Dry Mouth Clinic, the Summated Xerostomia Inventory-Dutch Version (SXI-D) [27] questionnaire with a sum score (range: 5–15) was used to determine the severity of subjective feelings of xerostomia. The Clinical Oral Dryness Score (CODS) index was used to acquire an objective clinical score (range: 0–10) for oral dryness [28]. Moreover, the presence of candida growth was assessed, and unstimulated whole saliva (UWS) and chewing-stimulated whole saliva (SWS) samples were collected, as previously described [25]. Since saliva composition may be influenced by the circadian rhythm, sample collection was performed between 10:00 a.m. and 14:30 p.m. The SWS samples were aliquoted and stored at −80 °C until further cytokine analysis.
At the Norwegian Dry Eye Clinic, the severity of subjective dry eye symptoms was evaluated using the Ocular Surface Disease Index (OSDI) questionnaire. This was followed by tear quality evaluation using tear film break-up time (TFBUT) after instillation of 5 µL of 2% fluorescein sodium in each eye. Grading of corneal staining (CS) (range: 0–5) and bulbar conjunctival (ocular surface) staining (OSS) (range: 0–15) with fluorescein was recorded according to the Oxford scoring scheme [29]. Tear production was measured using Schirmer’s test, while assessment of the meibomian gland (MG) functionality and meibomian gland expressibility (ME) were assessed, as previously described [26]. Meibography images were obtained using the non-contact infrared camera system Oculus Keratograph 5 after eversion of the eyelids: meibomian gland dropout score (MGDS) in upper (UL) and lower (LL) lids was evaluated using a four-point grading scale (meiboscore) from 1 to 4 (meiboscore 1: 0–25% area loss of MG; score 2: 26–50% area loss of MG; score 3: 51–75% area loss of MG; and score 4: area loss over 75%). Tear fluid was collected using the Schirmer’s tear test strip (Haag-Streit, Essex, UK). Each Schirmer strip was transferred to an Eppendorf tube containing 500 µL of 0.1 µm filtered phosphate-buffered saline (PBS) pH 7.4 (Gibco, ThermoFisher Scientific, Oslo, Norway), and stored at −80 °C until cytokine analysis.
Cytokine profiling of saliva and tear fluid. Cytokine concentrations in the saliva and tear fluid, collected from all 29 patients and 20 controls, were measured using immunoassay technology (Bio-Plex xMap; Luminex Corp., Austin, TX, USA) with the commercial instrument Luminex IS 200 (Bio-Rad Laboratories, Inc., Hercules, CA, USA). Prior to analysis, Eppendorf tubes with Schirmer strips stored in PBS were thawed on ice and vortexed. Tear fluid and saliva samples were transferred into fresh tubes and diluted five folds with PBS containing BSA (final BSA concentration 0.5%). All samples were centrifuged at 10,000× g for 10 min at 4 °C, and 25 µL of the supernatant were then loaded onto 96-well plates.
The multiplex analysis was performed according to a previously published protocol [30]. The broad screening kit was used for the analysis (Bio-Plex Pro Human Cytokine 40-plex Assay, Cat. No. 171AK99MR2, Bio-Rad Laboratories, Inc.) and included targets against: CCL21, CXCL13, CCL27, CXCL5, CCL24, CCL26, CCL11, CX3CL1 (also known as fractalkine), CXCL6, GM-CSF, CXCL1, CXCL2, CCL1, CXCL11, IFN-γ, IL-1β, IL-2, IL-4, IL-6, IL-8, IL-10, IL-16, IP-10, CCL2 (also referred to as MCP-1), MCP-2, MCP-3, MCP-4, CCL22, MIF, CXCL9, MIP-1α, CCL15 (also called MIP-1δ), MIP-3α, MIP-3β, CCL23, CXCL16, CXCL12, CCL17, CCL25, and TNF-α.
All values obtained from the assay were in an acceptable range according to recommendations from the manufacturer (intra-percent coefficient of variation <11 and inter-percent coefficient of variation >21). Total protein concentrations in the Schirmer strip suspensions and saliva were estimated using the Pierce BCA Protein Assay Kit (Thermo Scientific, Rockford, IL, USA) and were expressed as mg/mL. The levels of cytokines were adjusted with total protein concentration and expressed as (pg of cytokine)/(mg of total protein).
Data processing and statistical analyses. Statistical analyses were performed using SPSS software version 25.0 (IBM Corporation, Armonk, NY, USA). Reported results were presented as means ± standard deviation. The Shapiro–Wilk test was used to assess the normality of the variables. The Mann–Whitney U test was applied to determine whether there was any statistical significance between patients and controls. Associations of cytokine levels with numerical clinical parameters and radiation dosages were determined using Spearman rank correlation. In all analyses, a p-value of < 0.05 was considered significant.
For functional analysis of the cytokine data, the Functional Enrichment Analysis Tool (FunRich) (http://www.funrich.org/) was applied to visualise the percentage of significantly upregulated cytokines involved in each of the affected signalling pathways.

3. Results

3.1. Elevated Levels of Immunoregulatory Cytokines Detected in the Saliva of Radiated Head and Neck Cancer Patients Correlated with Clinical Oral Manifestations

Through the application of multiplex assay analysis, we were able to perform a broad screening of cytokines in saliva of radiated head and neck cancer patients as compared to healthy individuals. Our results revealed significantly higher levels of CCL21, CX3CL1, CXCL1, IL-4, CCL2, and CCL15 in the patient group when compared to healthy controls (Figure 2). The patients also had more subjective oral complaints, showing higher SXI-D questionnaire scores, than the healthy controls. Clinical examinations showed that the patients had a significantly higher mean objective oral dryness than controls as shown by the CODS index [28]. In addition, compared to healthy controls, the patients had lower unstimulated and stimulated whole saliva secretion rates, and higher candida counts (Figure 3).
When viewed as a whole, the levels of upregulated cytokines correlated significantly with clinical dry mouth findings, but not with smoking status, treatment with chemotherapy, total radiation dose, nor with radiation dose administered to the parotid glands. More specifically, the level of CX3CL1 correlated with CODS (r = 0.486, p < 0.009) and UWS secretion rate (r = −0.420, p < 0.026). The level of CXCL1 was correlated with SXI (r = 0.417, p < 0.027), CODS (r = 0.760, p < 0.0001), UWS secretion rate (r = −0.433, p < 0.021), and SWS secretion rate (r = −0.394, p < 0.038). Similarly, IL-4 correlated with CODS (r = 0.595, p < 0.001) and UWS secretion rate (r = −0.490, p < 0.008), while CCL15 levels only corresponded with CODS (r = 0.511, p < 0.005). A more detailed representation of the relationship between summed CODS scores and the concentrations of upregulated salivary cytokines detected in each patient are presented in Table 2.

3.2. Cytokines Detected in the Tear Fluid of Radiated Head and Neck Cancer Patients Correlated with Clinical Ocular Symptoms

In tear fluid, the cytokine profiling analysis showed that levels of CCL21 and IL-4 were significantly lower in the patient group than in the control group (Figure 4). Other cytokine levels did not show statistically significant differences between patients and controls. However, regarding the dry eye evaluation, the patients had more severe subjective dry eye symptoms, as shown by a higher OSDI score than the controls. The MGDS_UL was also significantly higher in the patients, whereas other ocular examinations did not demonstrate statistically significant differences between the two groups (Figure 5). When comparing the two downregulated cytokines in tear fluid with clinical dry eye tests, levels of CCL21 showed significant correlations with OSDI score (r = 0.385, p < 0.047) and ME (r = 0.488, p < 0.010), but not with other dry eye tests, smoking status, treatment with chemotherapy, nor radiation dose.

3.3. Cytokines Detected in Radiated Head and Neck Cancer Patients Affected Pro-Inflammatory and Apoptotic Cellular Pathways

After identifying significantly elevated cytokines in saliva, we wished to investigate which cellular pathways were affected by these particular cytokines. For such functional analysis of the cytokine data the FunRich analysis tool was applied, and the fraction of elevated cytokines influencing each of the cellular pathways detected was also estimated (presented as percentages). These pathways involved T cell JNK, and CD40/CD40L signalling (20%). Moreover, signalling pathways mediated by IL-1 (20%), IL-2 (20%), IL-3 (60%), IL-4 (20%), IL-5 (60%), IL-12 (20%), and IL-23 (40%) were also affected, in addition to TNF and TGF-β receptor signalling (20%). Finally, the apoptotic p53 pathway (20%) was also influenced by upregulated salivary cytokines (Figure 6).

4. Discussion

The present study marks the first time cytokine profiles were simultaneously explored in the saliva and tear fluid of patients with head and neck cancer post-radiotherapy. In spite of our patient group being rather small and heterogenous, representing subjects with primary and adjuvant radiotherapy (with and without chemotherapy), we identified significantly elevated cytokines in the saliva that have not been reported previously. This could be explained by the timing of the sample collection. In order to explore the late effects of radiotherapy, we recruited patients for cytokine analyses at least 6 months after treatment, while cytokine screening in previous reports had been conducted already 1–3 weeks after radiotherapy [19,20,21,22,23]. Therefore, the upregulated cytokines discovered in the present study could be part of a biological reaction to radiotherapy that may be associated with late effects, as indicated by the immunoregulatory and apoptotic cellular pathways identified [20]. However, their overexpression could also be due to tissue repair following radiotherapy. Radiation doses above 15–20 Gy, and treatment involving a larger volume of the targeted tissue could contribute to more severe damage to the glands [11], which may in turn trigger tissue repair mechanisms. The patients in this study received a total radiation dose of 64.5 ± 4.8 Gy (range 50 to 70), with a stronger average radiation dose directed to the saliva-producing parotid glands (23.1 ± 10.2 Gy, range 1.6 to 48.5), than to the smaller tear-producing lacrimal glands (mean 1.8 ± 4.2 Gy, range 0.3 to 17.5). In this respect, tear fluid measurements could be viewed as a control for the influence of radiotherapy, since only modest radiation doses were applied to the lacrimal glands, and our objective ocular examinations did not detect a pertinent difference between patients and controls. Notably, more prominent oral manifestations were observed in the patients, as compared to ocular findings.
Out of the six significantly elevated cytokines found when screening the saliva of these patients, CCL21 and IL-4 were significantly lower in the patients’ tear fluid than in the control participants. This may have been due to the anti-inflammatory roles of CCL21 and IL-4 in regulating disease progression. One function of CCL21 is to guide CCR7-expressing naïve T cells to T cell zones in the lymph nodes [31,32,33]. It is noteworthy that for most of the patients receiving radiotherapy to their parotid glands, the radiation field also covered the lymph nodes in the upper neck region. Hence, elevated levels of CCL21 in the saliva of the patients could be a result of tissue repair [31]. On the other hand, reduced CCL21 levels in the tear fluid of these same individuals could be a consequence of the lower radiation dose administered to their lacrimal glands, in turn leading to less tissue damage. This explanation is also supported by the fact that the objective ocular examinations did not exhibit statistically significant differences in results when comparing the patient group to the healthy controls. Furthermore, a positive correlation was only shown with the symptom-assessing ocular surface damage questionnaire (r = 0.385, p < 0.047), and expression ability of the meibomian glands in the eyelids (r = 0.488, p < 0.010). This further explains why the lower radiation dose administered to the lacrimal glands could have resulted in less severe clinical ocular manifestations.
The high level of IL-4 in saliva of the head and neck cancer patients in this study was consistent with a previous study by Citrin et al., who also found the expression levels to be dependent on the radiation dose [20]. Furthermore, IL-4 levels also correlated with clinical oral dryness scores (r = 0.595, p < 0.001) and unstimulated saliva secretion rates (r = −0.490, p < 0.008) in the patient group. Considering that IL-4-mediated cellular pathways were also affected in the FunRich analysis, this emphasises the central role of this cytokine in humoral immunity, by inducing differentiation of naïve helper T cells to Th2 cells (CD4 + Th cells), which in turn plays a central role in regulating B cell activation [20,34].
Other significantly elevated cytokines detected in the saliva of head and neck cancer patients included CX3CL1, CCL2, CXCL1 and CCL15, most of which correlated with UWS secretion rates and objective oral dryness (CODS). In particular, CXCL1 exhibited the highest concentrations that correlated strongly with high CODS values (r = 0.760, p < 0.0001), while other cytokines also displayed an evident association between cytokine levels in saliva and CODS, as illustrated in the colour scheme of Table 2. This further suggests a relationship between objective signs of oral dryness and cytokine production in these radiated head and neck cancer patients, a finding that exhibits relatively long after radiotherapy treatment.
Among the significantly elevated salivary cytokines identified, the CX3CL1 chemokine is known to induce chemotaxis of monocytes and cytotoxic T cells, while itself being a direct target of the tumour suppressor protein p53 [35]. Interestingly, the p53 pathway was one of the affected cellular pathways identified in the FunRich analysis, suggesting enhanced tumour suppression and apoptosis in the treated patients. Similarly, CCL2, also referred to as monocyte chemoattractant protein 1 (MCP-1), recruits monocytes, memory T cells, and dendritic cells to the sites of inflammation [36,37], as indicated in the CD40/CD40L cellular pathway identified in our study. MCP-1 has previously been detected in the saliva of head and neck cancer patients [19] soon after radiation therapy, and it remained significantly elevated in our analysis at a later time point. Meanwhile, CXCL1, expressed by macrophages, in addition to neutrophils and epithelial cells, plays a role in the processes of angiogenesis, tumorigenesis, inflammation, and wound healing [38,39]. Interestingly, it has been reported that when head and neck cancer patients with squamous cell carcinoma develop metastases, 66% of these metastases are situated in the pulmonary tissue [40]. This is also in line with the elevated levels of CCL15 in the saliva of our patient group, since this pro-inflammatory chemokine can also be expressed by macrophages in the lung tissue [41,42].
In conclusion, we have demonstrated that upregulated cytokines, particularly those identified in the saliva of radiated head and neck cancer patients, imply an interplay between innate and adaptive immune responses, affecting immunoregulatory cellular pathways, and importantly, correlating with oral manifestations and ocular symptoms. Whether these elevated cytokines are the result of late effects of treatment or the repair process remains to be explored in a larger and less heterogenous cohort in future follow-up studies.

Author Contributions

Study concept and design: L.A.A., X.C., H.H., H.K.G., K.L.W., T.P.U., B.B.H., J.L.J. Patients and Controls Recruitment: H.H., B.B.H., C.A., K.L.W., T.P.U., J.L.J.; Clinical data collection: X.C., H.H., A.Y., M.R., L.H.H., K.L.W., B.B.H., T.P.U., J.L.J., C.A.; Analysis and interpretation of data: S.R., H.C.D.A., X.C., H.H., L.A.A., H.K.G.; Writing the manuscript: L.A.A., X.C., H.H.; Critically evaluating the manuscript: H.K.G., S.R., H.C.D.A., A.Y., L.H.H., M.R., K.L.W., C.A., B.B.H., T.P.U., J.L.J. Project leader: J.L.J. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Faculty of Dentistry, University of Oslo, Norway.

Acknowledgments

We express our appreciation to all patients and control individuals participating in the study. Furthermore, we appreciatively acknowledge the head of the Norwegian Dry Eye Clinic S.R., and Gunnhild Karevold at Oslo University Hospital, Rikshospitalet, in Oslo. We also thank Gro Anita Kjellvold from the Department of Oral Surgery and Oral Medicine, Institute of Clinical Dentistry, Faculty of Dentistry, at the University of Oslo for administrative and clinical support, Eduarda M. Guerreiro for preparing the saliva and tear samples for cytokine analysis, as well as all other staff members at the research and clinical institutions involved for their efforts and dedication. All authors have read and agreed to the published version of the manuscript.

Conflicts of Interest

The authors declare no conflict of interests.

References

  1. Oropharyngeal cancer treatment (Adult) (PDQ®)—Patient version. In PDQ Cancer Information Summaries; National Cancer Institute: Bethesda, MD, USA, 2002.
  2. Oropharyngeal cancer treatment (Adult) (PDQ®)—Health professional version. In PDQ Cancer Information Summaries; National Cancer Institute: Bethesda, MD, USA, 2002.
  3. Nigro, C.L.; Denaro, N.; Merlotti, A.; Merlano, M. Head and neck cancer: Improving outcomes with a multidisciplinary approach. Cancer Manag. Res. 2017, 9, 363–371. [Google Scholar] [CrossRef] [Green Version]
  4. Roscher, I.; Falk, R.S.; Vos, L.; Clausen, O.P.F.; Helsing, P.; Gjersvik, P.; Robsahm, T.E. Notice of retraction and replacement: Roscher et al. Validating 4 staging systems for cutaneous squamous cell carcinoma using population-based data: A nested case-control study. JAMA Dermatol. 2018;154(4):428–434. JAMA Dermatol 2018, 154, 1488–1489. [Google Scholar] [CrossRef] [PubMed]
  5. Kordzińska-Cisek, I.; Cisek, P.; Grzybowska-Szatkowska, L. The role of prognostic factors in salivary gland tumors treated by surgery and adjuvant radio- or chemoradiotherapy—A single institution experience. Cancer Manag. Res. 2020, 12, 1047–1067. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Evers, C.; Ostheimer, C.; Sieker, F.; Vordermark, D.; Medenwald, D. Benefit from surgery with additional radiotherapy in N1 head and neck cancer at the time of IMRT: A population-based study on recent developments. PLoS ONE 2020, 15, e0229266. [Google Scholar] [CrossRef] [PubMed]
  7. Lehrich, B.M.; Goshtasbi, K.; Abiri, A.; Yasaka, T.; Sahyouni, R.; Papagiannopoulos, P.; Tajudeen, B.A.; Kuan, E.C. Impact of induction chemotherapy and socioeconomics on sinonasal undifferentiated carcinoma survival. Int. Forum Allergy Rhinol. 2020, 10, 679–688. [Google Scholar] [CrossRef]
  8. Jelonek, K.; Krzywon, A.; Jablonska, P.; Slominska, E.M.; Smolenski, R.T.; Polanska, J.; Rutkowski, T.; Mrochem-Kwarciak, J.; Składowski, K.; Widlak, P. Systemic effects of radiotherapy and concurrent chemo-radiotherapy in head and neck cancer patients-comparison of serum metabolome profiles. Metabolites 2020, 10, 60. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  9. Nutting, C.M.; Morden, J.; Harrington, K.J.; Urbano, T.G.; Bhide, S.A.; Clark, C.H.; Miles, E.A.; Miah, A.B.; Newbold, K.; Tanay, M.; et al. Parotid-sparing intensity modulated versus conventional radiotherapy in head and neck cancer (PARSPORT): A phase 3 multicentre randomised controlled trial. Lancet Oncol. 2011, 12, 127–136. [Google Scholar] [CrossRef] [Green Version]
  10. Dirix, P.; Vanstraelen, B.; Jorissen, M.; Poorten, V.V.; Nuyts, S. Intensity-modulated radiotherapy for sinonasal cancer: Improved outcome compared to conventional radiotherapy. Int. J. Radiat. Oncol. Biol. Phys. 2010, 78, 998–1004. [Google Scholar] [CrossRef]
  11. Randall, K.; Stevens, J.; Yepes, J.F.; Randall, M.E.; Kudrimoti, M.; Feddock, J.; Xi, J.; Kryscio, R.J.; Miller, C.S. Analysis of factors influencing the development of xerostomia during intensity-modulated radiotherapy. Oral Surg. Oral Med. Oral Pathol. Oral Radiol. 2013, 115, 772–779. [Google Scholar] [CrossRef] [Green Version]
  12. Moore, H.D.; Ivey, R.G.; Voytovich, U.J.; Lin, C.; Stirewalt, D.L.; Pogosova-Agadjanyan, E.L.; Paulovich, A.G. The human salivary proteome is radiation responsive. Radiat. Res. 2014, 181, 521–530. [Google Scholar] [CrossRef] [Green Version]
  13. Hagan, S.; Tomlinson, A. Tear fluid biomarker profiling: A review of multiplex bead analysis. Ocul. Surf. 2013, 11, 219–235. [Google Scholar] [CrossRef] [PubMed]
  14. Chen, X.; Aqrawi, L.A.; Utheim, T.P.; Tashbayev, B.; Utheim, Ø.A.; Reppe, S.; Hove, L.H.; Herlofson, B.B.; Singh, P.B.; Palm, Ø.; et al. Elevated cytokine levels in tears and saliva of patients with primary Sjogren’s syndrome correlate with clinical ocular and oral manifestations. Sci. Rep. 2019, 9, 7319. [Google Scholar] [CrossRef] [PubMed]
  15. Guerra, E.N.S.; Rêgo, D.F.; Elias, S.T.; Coletta, R.D.; Mezzomo, L.A.M.; Gozal, D.; Canto, G.D.L. Diagnostic accuracy of serum biomarkers for head and neck cancer: A systematic review and meta-analysis. Crit. Rev. Oncol. Hematol. 2016, 101, 93–118. [Google Scholar] [CrossRef] [PubMed]
  16. Aqrawi, L.A.; Galtung, H.K.; Vestad, B.; Øvstebø, R.; Thiede, B.; Rusthen, S.; Young, A.; Guerreiro, E.M.; Utheim, T.P.; Chen, X.; et al. Identification of potential saliva and tear biomarkers in primary Sjogren’s syndrome, utilising the extraction of extracellular vesicles and proteomics analysis. Arthritis Res. Ther. 2017, 19, 14. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  17. Lee, Y.J.; Scofield, R.H.; Hyon, J.Y.; Yun, P.-Y.; Lee, H.-J.; Lee, E.Y.; Song, Y.W.; Lee, E.Y.; Lee, E.B. Salivary chemokine levels in patients with primary Sjogren’s syndrome. Rheumatology (Oxford) 2010, 49, 1747–1752. [Google Scholar] [CrossRef] [Green Version]
  18. Zhao, H.; Li, Q.; Ye, M.; Yu, J. Tear luminex analysis in dry eye patients. Med. Sci. Monit. 2018, 24, 7595–7602. [Google Scholar] [CrossRef]
  19. Principe, S.; Dikova, V.; Bagán, J. Salivary cytokines in patients with Head and Neck Cancer (HNC) treated with radiotherapy. J. Clin. Exp. Dent. 2019, 11, e1072–e1077. [Google Scholar] [CrossRef]
  20. Citrin, D.E.; Hitchcock, Y.J.; Chung, E.J.; Frandsen, J.; Urick, M.E.; Shield, W.; Gaffney, D.K. Determination of cytokine protein levels in oral secretions in patients undergoing radiotherapy for head and neck malignancies. Radiat. Oncol. 2012, 7, 64. [Google Scholar] [CrossRef] [Green Version]
  21. Russo, N.; Bellile, E.; Murdoch-Kinch, C.A.; Liu, M.; Eisbruch, A.; Wolf, G.T.; D’Silva, N.J. Cytokines in saliva increase in head and neck cancer patients after treatment. Oral Surg. Oral Med. Oral Pathol. Oral Radiol. 2016, 122, 483–490.e481. [Google Scholar] [CrossRef] [Green Version]
  22. Schapher, M.; Wendler, O.; Gröschl, M. Salivary cytokines in cell proliferation and cancer. Clin. Chim. Acta 2011, 412, 1740–1748. [Google Scholar] [CrossRef]
  23. Sahibzada, H.A.; Khurshid, Z.; Khan, R.S.; Naseem, M.; Siddique, K.M.; Mali, M.; Zafar, M.S. Salivary IL-8, IL-6 and TNF-alpha as potential diagnostic biomarkers for oral cancer. Diagnostics 2017, 7, 21. [Google Scholar] [CrossRef] [Green Version]
  24. Rathnayake, N.; Åkerman, S.; Klinge, B.; Lundegren, N.; Jansson, H.; Tryselius, Y.; Sorsa, T.; Gustafsson, A. Salivary biomarkers for detection of systemic diseases. PLoS ONE 2013, 8, e61356. [Google Scholar] [CrossRef] [Green Version]
  25. Tashbayev, B.; Rusthen, S.; Young, A.; Herlofson, B.B.; Hove, L.H.; Singh, P.B.; Rykke, M.; Aqrawi, L.A.; Chen, X.; Utheim, Ø.A.; et al. Interdisciplinary, comprehensive oral and ocular evaluation of patients with primary Sjogren’s syndrome. Sci. Rep. 2017, 7, 10761. [Google Scholar] [CrossRef] [PubMed]
  26. Chen, X.; Utheim Øygunn, A.; Xiao, J.; Adil, M.Y.; Stojanović, A.; Tashbayev, B.; Jensen, J.L.; Utheim, T.P. Meibomian gland features in a Norwegian cohort of patients with primary Sjogren’s syndrome. PLoS ONE 2017, 12, e0184284. [Google Scholar]
  27. Thomson, W.M.; Van Der Putten, G.-J.; De Baat, C.; Ikebe, K.; Matsuda, K.-I.; Enoki, K.; Hopcraft, M.S.; Ling, G.Y. Shortening the xerostomia inventory. Oral Surg. Oral Med. Oral Pathol. Oral Radiol. Endod. 2011, 112, 322–327. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  28. Osailan, S.; Pramanik, R.; Shirlaw, P.; Proctor, G.; Challacombe, S.J. Clinical assessment of oral dryness: Development of a scoring system related to salivary flow and mucosal wetness. Oral Surg. Oral Med. Oral Pathol. Oral Radiol. 2012, 114, 597–603. [Google Scholar] [CrossRef]
  29. Bron, A.J.; Evans, V.E.; Smith, J.A. Grading of corneal and conjunctival staining in the context of other dry eye tests. Cornea 2003, 22, 640–650. [Google Scholar] [CrossRef]
  30. Landsend, E.C.S.; Utheim, Ø.A.; Pedersen, H.R.; Aass, H.C.D.; Lagali, N.; Dartt, D.A.; Baraas, R.C.; Utheim, T.P. The level of inflammatory tear cytokines is elevated in congenital aniridia and associated with meibomian gland dysfunction. Investig. Ophthalmol. Vis. Sci. 2018, 59, 2197–2204. [Google Scholar] [CrossRef] [Green Version]
  31. Lin, Y.; Sharma, S.; John, M.S. CCL21 cancer immunotherapy. Cancers (Basel) 2014, 6, 1098–1110. [Google Scholar] [CrossRef]
  32. Oliveira-Neto, H.H.; Souza, P.P.C.; Da Silva, M.R.B.; Mendonça, E.F.; Silva, T.; Batista, A.C. The expression of chemokines CCL19, CCL21 and their receptor CCR7 in oral squamous cell carcinoma and its relevance to cervical lymph node metastasis. Tumour Biol. 2013, 34, 65–70. [Google Scholar] [CrossRef]
  33. Haghshenas, M.R.; Ashraf, M.J.; Khademi, B.; Ghaderi, A.; Erfani, N.; Razmkhah, M. Chemokine and chemokine receptor patterns in patients with benign and malignant salivary gland tumors: A distinct role for CCR7. Eur. Cytokine Netw. 2017, 28, 27–35. [Google Scholar] [CrossRef] [PubMed]
  34. Aziz, S.; Ahmed, S.S.; Ali, A.; Khan, F.A.; Zulfiqar, G.; Iqbal, J.; Khan, A.A.; Shoaib, M. Salivary immunosuppressive cytokines IL-10 and IL-13 are significantly elevated in oral squamous cell carcinoma patients. Cancer Investig. 2015, 33, 318–328. [Google Scholar] [CrossRef] [PubMed]
  35. Shiraishi, K.; Fukuda, S.; Mori, T.; Matsuda, K.; Yamaguchi, T.; Tanikawa, C.; Ogawa, M.; Nakamura, Y.; Arakawa, H. Identification of fractalkine, a CX3C-type chemokine, as a direct target of p53. Cancer Res. 2000, 60, 3722–3726. [Google Scholar]
  36. Connolly, K.A.; Belt, B.A.; Figueroa, N.M.; Murthy, A.; Patel, A.; Kim, M.; Lord, E.M.; Linehan, D.C.; Gerber, S.A. Increasing the efficacy of radiotherapy by modulating the CCR2/CCR5 chemokine axes. Oncotarget 2016, 7, 86522–86535. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  37. Ling, Z.; Yang, X.; Chen, X.; Xia, J.; Cheng, B.; Tao, X. CCL2 promotes cell migration by inducing epithelial-mesenchymal transition in oral squamous cell carcinoma. J. Oral Pathol. Med. 2019, 48, 477–482. [Google Scholar] [CrossRef]
  38. Wolff, H.A.; Rolke, D.; Rave-Fränk, M.; Schirmer, M.; Eicheler, W.; Doerfler, A.; Hille, A.; Hess, C.F.; Matthias, C.; Rödel, R.M.W.; et al. Analysis of chemokine and chemokine receptor expression in squamous cell carcinoma of the head and neck (SCCHN) cell lines. Radiat. Environ. Biophys. 2011, 50, 145–154. [Google Scholar] [CrossRef] [Green Version]
  39. Khurram, S.A.; Bingle, L.; McCabe, B.M.; Farthing, P.M.; Whawell, S.A. The chemokine receptors CXCR1 and CXCR2 regulate oral cancer cell behaviour. J. Oral Pathol. Med. 2014, 43, 667–674. [Google Scholar] [CrossRef]
  40. Ferlito, A.; Shaha, A.R.; Silver, C.E.; Rinaldo, A.; Mondin, V. Incidence and sites of distant metastases from head and neck cancer. ORL J. Otorhinolaryngol. Relat. Spec. 2001, 63, 202–207. [Google Scholar] [CrossRef]
  41. Coulin, F.; Power, C.A.; Alouani, S.; Peitsch, M.C.; Schroeder, J.-M.; Moshizuki, M.; Clark-Lewis, I.; Wells, T.N.C. Characterisation of macrophage inflammatory protein-5/human CC cytokine-2, a member of the macrophage-inflammatory-protein family of chemokines. Eur. J. Biochem. 1997, 248, 507–515. [Google Scholar] [CrossRef]
  42. Watanabe, M.; Horimasu, Y.; Iwamoto, H.; Yamaguchi, K.; Sakamoto, S.; Masuda, T.; Nakashima, T.; Miyamoto, S.; Ohshimo, S.; Fujitaka, K.; et al. C-C motif chemokine ligand 15 May be a useful biomarker for predicting the prognosis of patients with chronic hypersensitivity pneumonitis. Respiration 2019, 98, 212–220. [Google Scholar] [CrossRef] [Green Version]

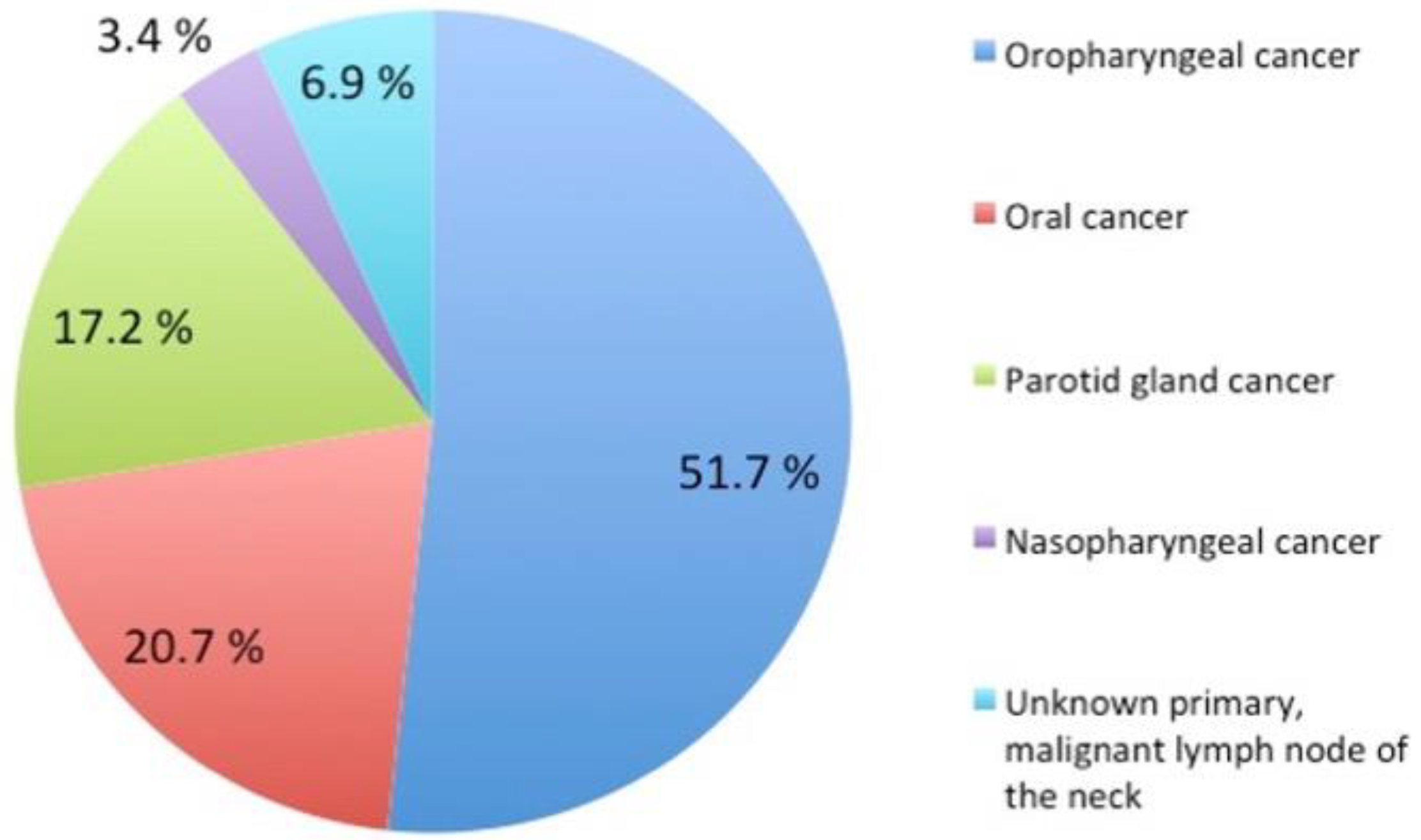

Figure 1. Disease location in patients with head and neck cancer (n = 29).
Figure 1. Disease location in patients with head and neck cancer (n = 29).
Cells 09 02050 g001

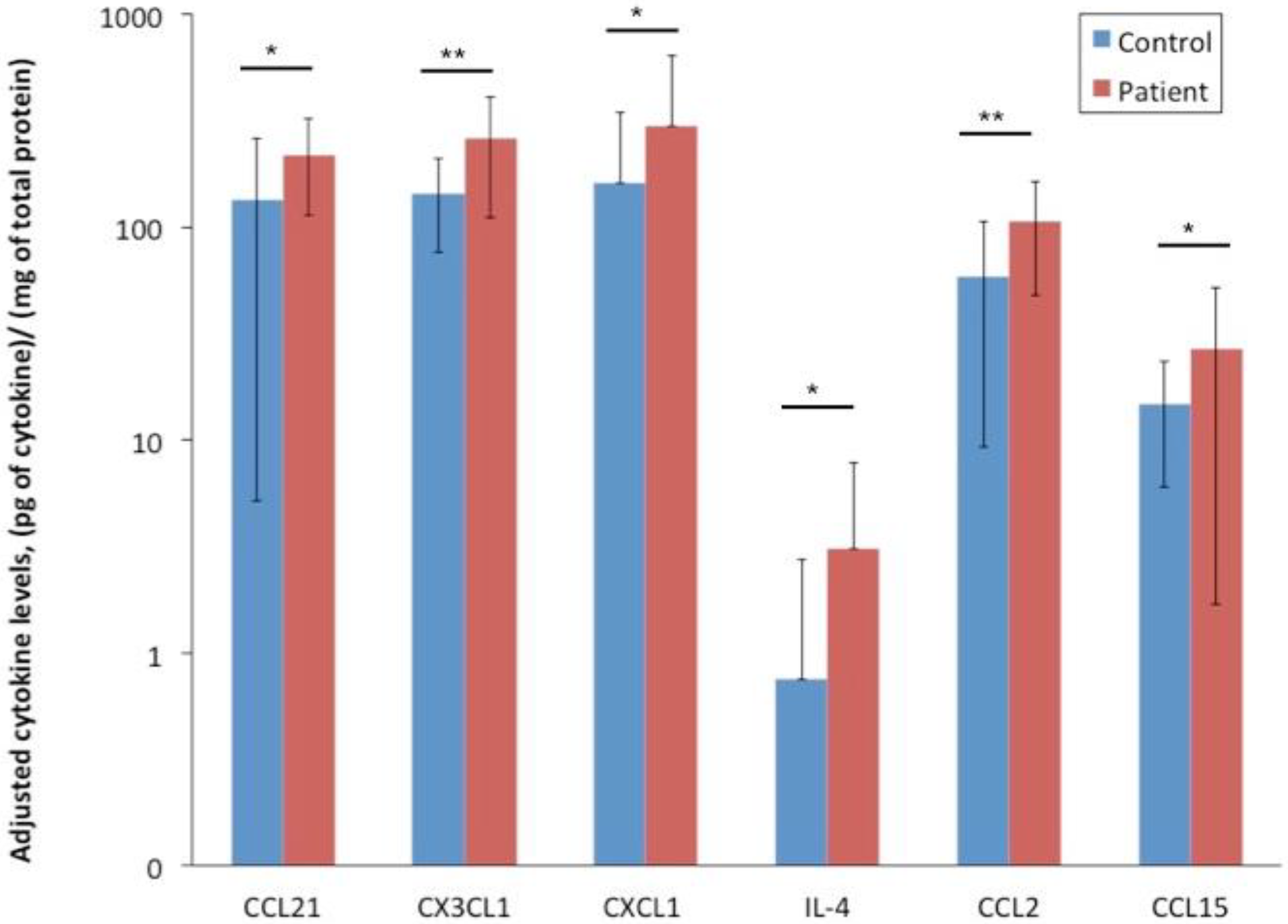

Figure 2. Elevated cytokine levels in the saliva of radiated head and neck cancer patients and healthy controls. Multiplex assay measurement of the cytokine levels in the patients’ saliva after radiotherapy revealed significantly higher levels of CCL21, CX3CL1, CXCL1, IL-4, CCL2, and CCL15, when compared to the controls. * represents p < 0.05; ** represents p < 0.01.
Figure 2. Elevated cytokine levels in the saliva of radiated head and neck cancer patients and healthy controls. Multiplex assay measurement of the cytokine levels in the patients’ saliva after radiotherapy revealed significantly higher levels of CCL21, CX3CL1, CXCL1, IL-4, CCL2, and CCL15, when compared to the controls. * represents p < 0.05; ** represents p < 0.01.
Cells 09 02050 g002

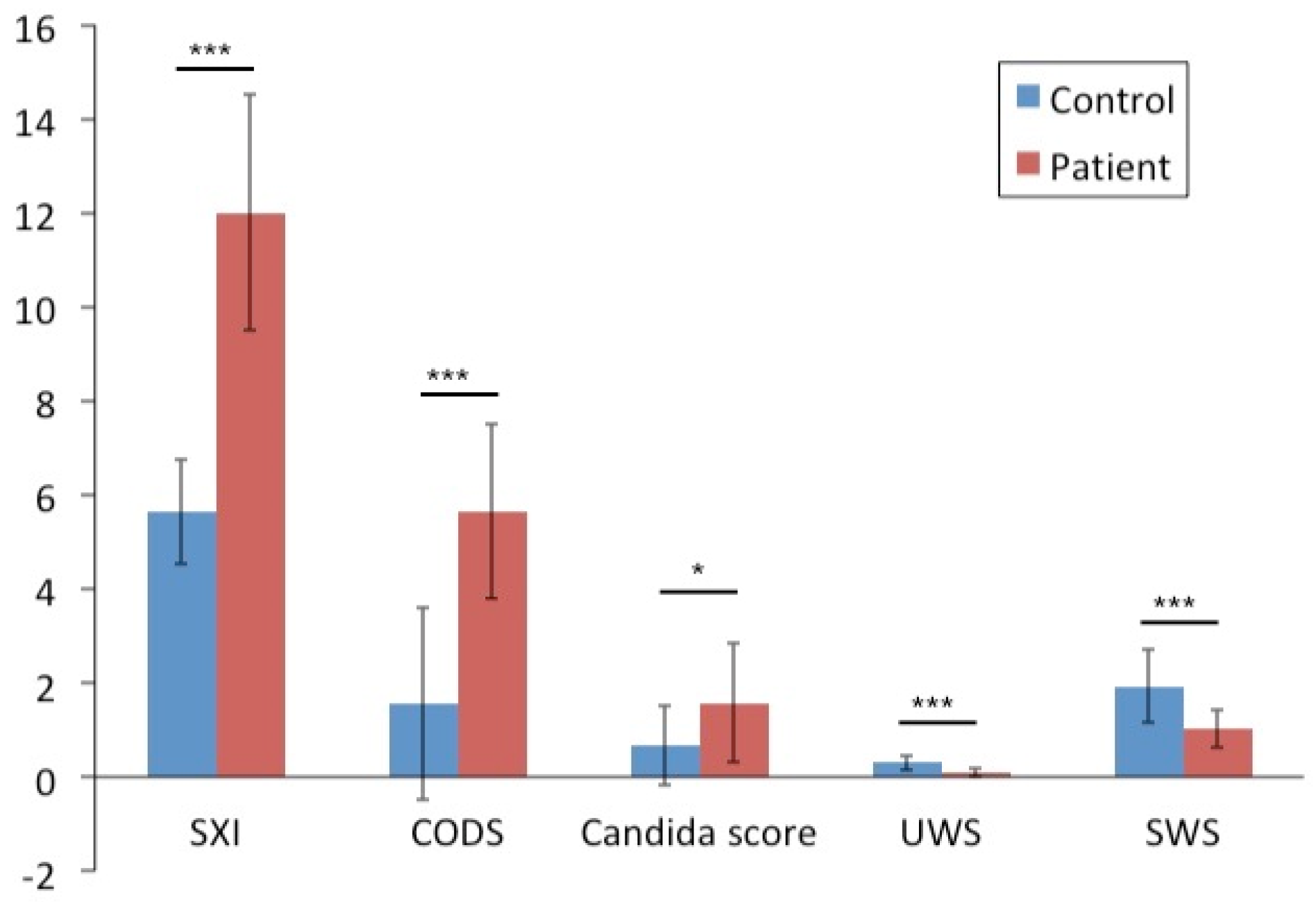

Figure 3. Clinical oral evaluations in patients and controls. Radiated head and neck cancer patients displayed significantly higher mean oral dryness score compared to the healthy controls in terms of both the subjective Summated Xerostomia Inventory (SXI) questionnaire and the objective Clinical Oral Dryness Score (CODS). Moreover, the patients showed lower unstimulated whole saliva (UWS) and stimulated whole saliva (SWS) production, and higher candida counts. SXI: Summated Xerostomia Inventory questionnaire score; CODS: Clinical Oral Dryness Score index; UWS: unstimulated whole saliva secretion rate (ml/min); SWS: stimulated whole saliva secretion rate (ml/min). The x-axis includes the clinical oral evaluations conducted. The y-axis illustrates the different scores attained from these examinations. * represents p < 0.05; *** represents p < 0.001.
Figure 3. Clinical oral evaluations in patients and controls. Radiated head and neck cancer patients displayed significantly higher mean oral dryness score compared to the healthy controls in terms of both the subjective Summated Xerostomia Inventory (SXI) questionnaire and the objective Clinical Oral Dryness Score (CODS). Moreover, the patients showed lower unstimulated whole saliva (UWS) and stimulated whole saliva (SWS) production, and higher candida counts. SXI: Summated Xerostomia Inventory questionnaire score; CODS: Clinical Oral Dryness Score index; UWS: unstimulated whole saliva secretion rate (ml/min); SWS: stimulated whole saliva secretion rate (ml/min). The x-axis includes the clinical oral evaluations conducted. The y-axis illustrates the different scores attained from these examinations. * represents p < 0.05; *** represents p < 0.001.
Cells 09 02050 g003

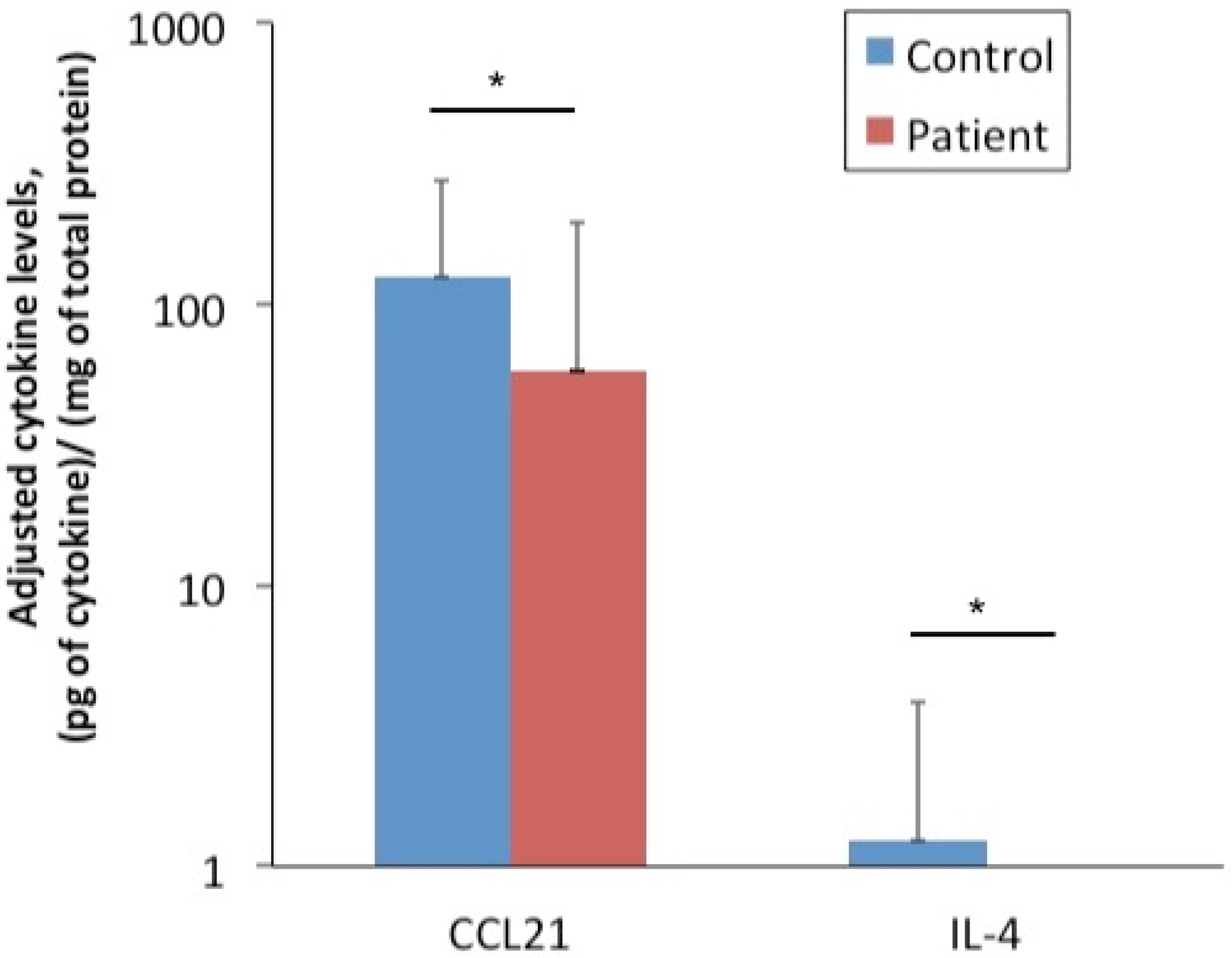

Figure 4. Comparison of cytokine levels in the tear fluid of radiated head and neck cancer patients and controls. Multiplex assay of the cytokine levels in tear fluid reveal significantly lower levels of both CCL21 and IL-4 in the patient group as compared to the controls. Other cytokine levels do not show statistically significant differences between patients and controls. * represents p < 0.05.
Figure 4. Comparison of cytokine levels in the tear fluid of radiated head and neck cancer patients and controls. Multiplex assay of the cytokine levels in tear fluid reveal significantly lower levels of both CCL21 and IL-4 in the patient group as compared to the controls. Other cytokine levels do not show statistically significant differences between patients and controls. * represents p < 0.05.
Cells 09 02050 g004

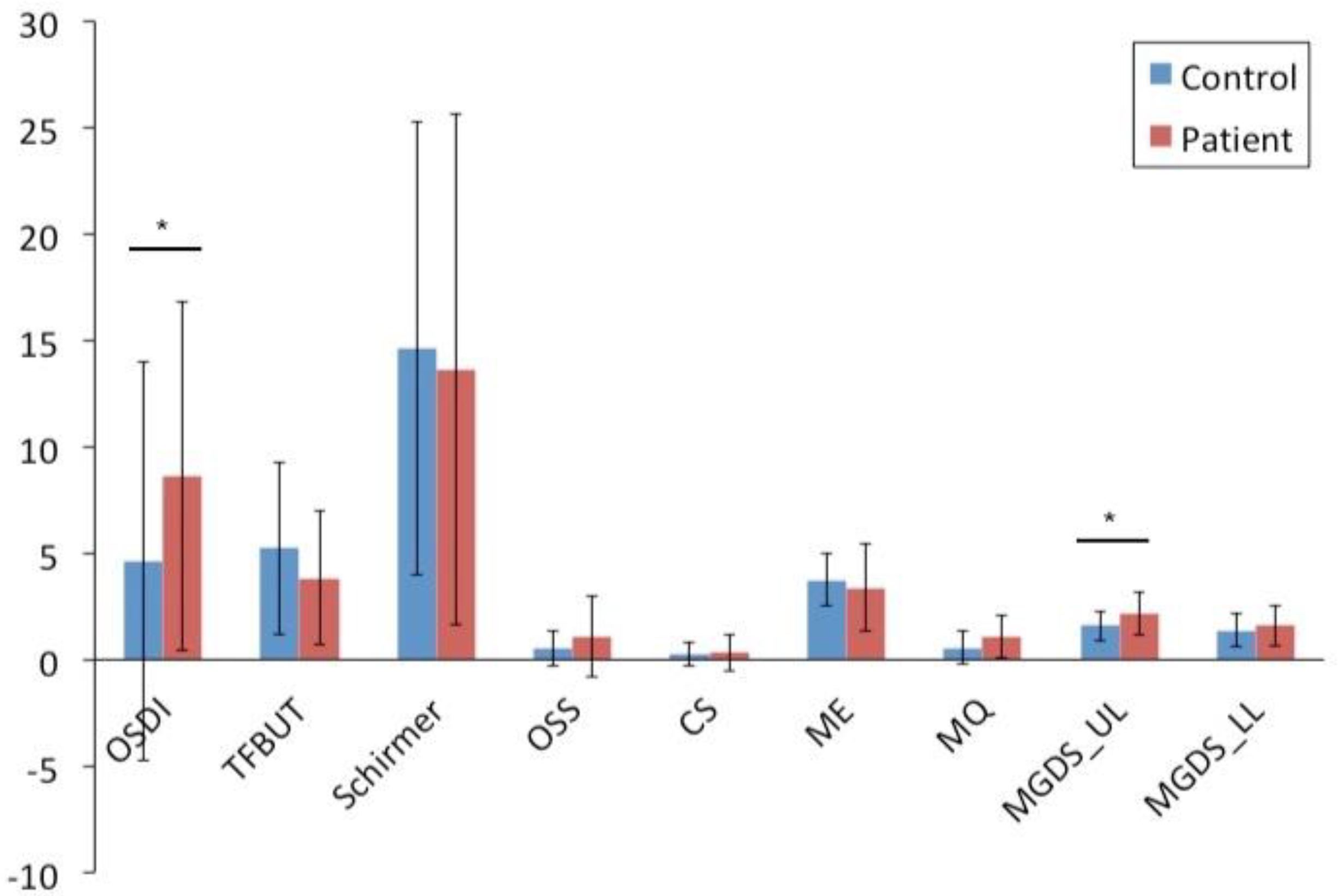

Figure 5. Clinical dry eye tests in patients and healthy individuals. Radiated patients show significantly more severe subjective dry eye symptoms when compared to controls, as indicated by a higher Ocular Surface Disease Index (OSDI) score, and significantly higher meibomian gland dropout score on the upper lid (MGDS_UL). Other ocular examinations do not exhibit statistically significant differences between the two groups. OSDI: Ocular Surface Disease Index questionnaire score; TFBUT: tear film breakup time; OSS: ocular surface staining; CS: corneal staining; ME: meibomian gland expressibility; MQ: meibum quality; MGDS: meibomian gland dropout score; UL: upper lid; LL: lower lid. The x-axis includes the clinical ocular evaluations conducted. The y-axis illustrates the different scores attained from these examinations. * represents p < 0.05.
Figure 5. Clinical dry eye tests in patients and healthy individuals. Radiated patients show significantly more severe subjective dry eye symptoms when compared to controls, as indicated by a higher Ocular Surface Disease Index (OSDI) score, and significantly higher meibomian gland dropout score on the upper lid (MGDS_UL). Other ocular examinations do not exhibit statistically significant differences between the two groups. OSDI: Ocular Surface Disease Index questionnaire score; TFBUT: tear film breakup time; OSS: ocular surface staining; CS: corneal staining; ME: meibomian gland expressibility; MQ: meibum quality; MGDS: meibomian gland dropout score; UL: upper lid; LL: lower lid. The x-axis includes the clinical ocular evaluations conducted. The y-axis illustrates the different scores attained from these examinations. * represents p < 0.05.
Cells 09 02050 g005

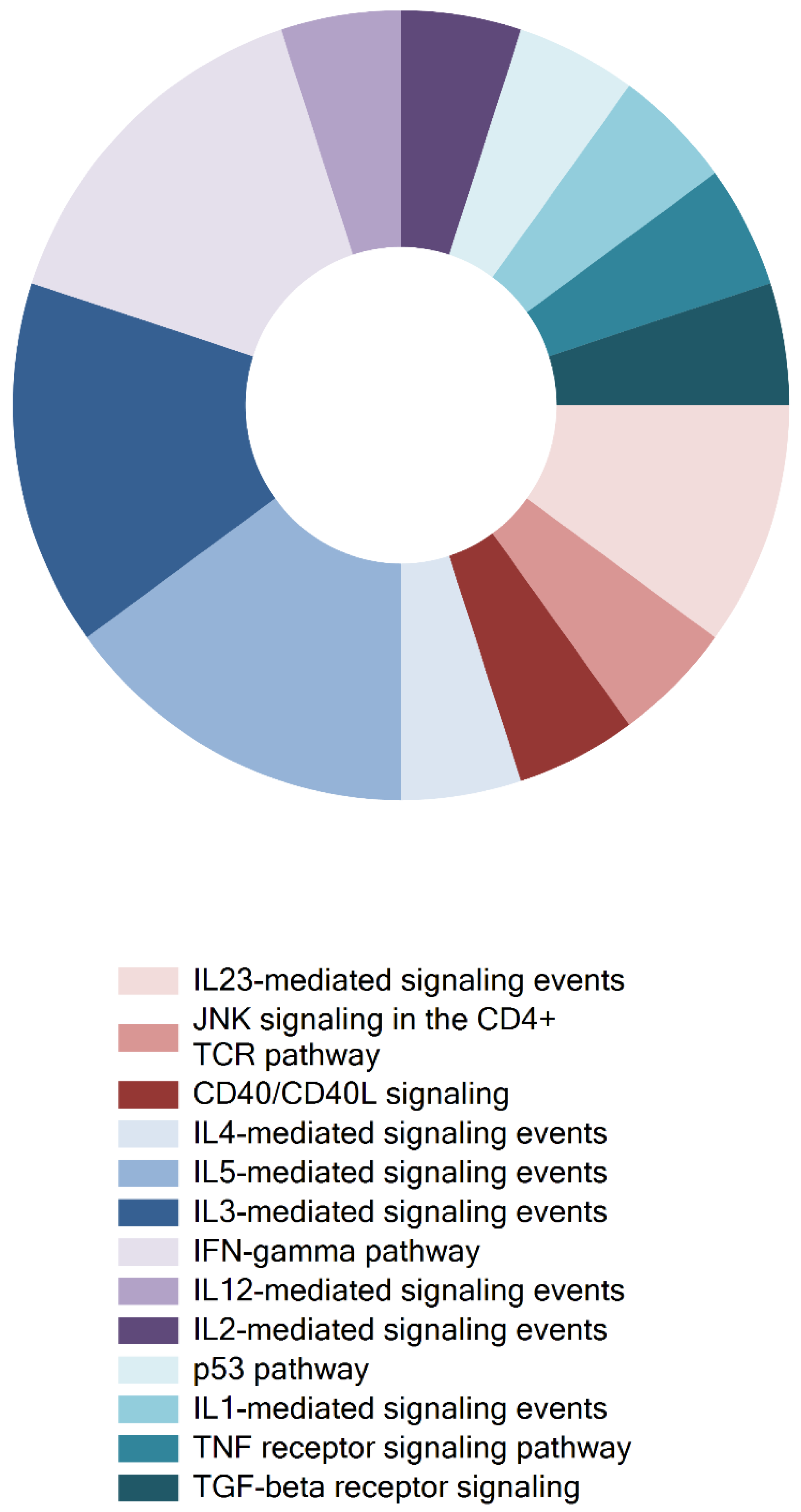

Figure 6. Elevated cytokine levels in saliva of radiated head and neck patients affected pro-inflammatory and apoptotic cellular pathways. The FunRich analysis of cytokines that were significantly upregulated in the saliva samples from the patients revealed which cellular pathways were influenced by these elevated cytokines, and the fractions of total upregulated cytokines that were involved in affecting these different cellular pathways. These included T cell JNK (20%), and CD40/CD40L (20%) signalling, IL-1 (20%), IL-2 (20%), IL-3 (60%), IL-4 (20%), IL-5 (60%), IL-12 (20%), and IL-23 (40%) signalling, in addition to TNF (20%) and TGF-β (20%) receptor signalling, and finally the apoptotic p53 pathway (20%).
Figure 6. Elevated cytokine levels in saliva of radiated head and neck patients affected pro-inflammatory and apoptotic cellular pathways. The FunRich analysis of cytokines that were significantly upregulated in the saliva samples from the patients revealed which cellular pathways were influenced by these elevated cytokines, and the fractions of total upregulated cytokines that were involved in affecting these different cellular pathways. These included T cell JNK (20%), and CD40/CD40L (20%) signalling, IL-1 (20%), IL-2 (20%), IL-3 (60%), IL-4 (20%), IL-5 (60%), IL-12 (20%), and IL-23 (40%) signalling, in addition to TNF (20%) and TGF-β (20%) receptor signalling, and finally the apoptotic p53 pathway (20%).
Cells 09 02050 g006
Table 1. Clinical characteristics of patients included in the study.
Table 1. Clinical characteristics of patients included in the study.
Patient No.AgeSexSmoking
Status
Type of Radiotherapy Treatment *Total Radiation Dose (Gy)Chemo-Therapy
154MaleNoPrimary68+
275MaleNoPrimary68
363FemaleNoPrimary70+
482FemaleNoPrimary68
561MaleNoPrimary68+
670MaleNoPrimary68+
769FemaleYesPrimary68
858MaleNoPrimary68+
967MaleNoPrimary68+
1059MaleYesPrimary68
1153MaleNoPrimary68+
1264MaleNoPrimary68+
1357MaleYesPrimary68+
1468MaleNoPrimary68+
1573MaleNoPostoperative56
1666FemaleNoPostoperative66
1765FemaleNoPostoperative60
1873FemaleNoPostoperative66
1971FemaleNoPostoperative60
2066FemaleNoPostoperative66
2151FemaleYesPostoperative66
2258MaleNoPostoperative60-
2341FemaleYesPostoperative60+
2482MaleNoPostoperative60
2551FemaleNoPostoperative60+
2665FemaleNoPostoperative66
2758MaleNoPostoperative60
2860FemaleYesPostoperative50
2982MaleNoPostoperative60
* All patients received radiotherapy. Some received radiation alone (primary), while others underwent excision surgery prior to radiation (postoperative).
Table 2. Summed CODS scores vs. concentration of upregulated salivary cytokines identified in head and neck cancer patients.
Table 2. Summed CODS scores vs. concentration of upregulated salivary cytokines identified in head and neck cancer patients.
Sum CODS *CXCL 1 **IL-4 **CCL 15 **CCL21 **CX3CL1 **CCL2 **
85511283418488163
8570154025824270
854682616221352
842413611217250
812521144256437143
8200037348213195
7270521327314136
7235026303221135
7274215202358160
782013305185202
7264010243221154
729003819030071
6245921417442160
651013192186111
612363023825598
6110309718
6266020211183100
610208147271123
572018012628
5150311124389748211
415242414133154
4560513312947
4228012256507162
33701617313747
318801418814265
36804116710024
315806181125139
21180916416849
* The Clinical Oral Dryness Score index (CODS), ranging from 0 to 10, is arranged in descending order, where the highest score has the darkest colour and the lowest score has the lightest colour. ** The concentrations of upregulated cytokines (ng cytokine per mg total protein) detected in each patient’s saliva are shown, with the highest concentrations having the darkest colour, and the lowest concentration having the lightest colour.
