Article

In Vivo Monitoring of Fabp7 Expression in Transgenic Zebrafish

by
Sol Pose-Méndez
*,
Michel Rehbock
,
Alexandra Wolf-Asseburg
and
Reinhard W. Köster
*
Cellular and Molecular Neurobiology, Zoological Institut, Technische Universität Braunschweig, 38106 Braunschweig, Germany
*
Authors to whom correspondence should be addressed.
Cells 2024, 13(13), 1138; https://doi.org/10.3390/cells13131138
Submission received: 13 February 2024 / Revised: 20 June 2024 / Accepted: 29 June 2024 / Published: 2 July 2024
(This article belongs to the Topic Applications of the Zebrafish Model)

Abstract

:
In zebrafish, like in mammals, radial glial cells (RGCs) can act as neural progenitors during development and regeneration in adults. However, the heterogeneity of glia subpopulations entails the need for different specific markers of zebrafish glia. Currently, fluorescent protein expression mediated by a regulatory element from the glial fibrillary acidic protein (gfap) gene is used as a prominent glia reporter. We now expand this tool by demonstrating that a regulatory element from the mouse Fatty acid binding protein 7 (Fabp7) gene drives reliable expression in fabp7-expressing zebrafish glial cells. By using three different Fabp7 regulatory element-mediated fluorescent protein reporter strains, we reveal in double transgenic zebrafish that progenitor cells expressing fluorescent proteins driven by the Fabp7 regulatory element give rise to radial glia, oligodendrocyte progenitors, and some neuronal precursors. Furthermore, Bergmann glia represent the almost only glial population of the zebrafish cerebellum (besides a few oligodendrocytes), and the radial glia also remain in the mature cerebellum. Fabp7 regulatory element-mediated reporter protein expression in Bergmann glia progenitors suggests their origin from the ventral cerebellar proliferation zone, the ventricular zone, but not from the dorsally positioned upper rhombic lip. These new Fabp7 reporters will be valuable for functional studies during development and regeneration.

1. Introduction

Radial glial cells (RGCs) play essential roles as a source for neural progenitors and glia subpopulations, as a scaffold for cell migration, and as a reservoir during regeneration. RGCs are derived from neuroepithelial cells (NECs) [1] and have been shown in mice and zebrafish to express several evolutionarily conserved RGC marker genes including Glial fibrillary acidic protein (Gfap), S100 calcium binding protein B (S100b), the estrogen-synthesizing enzyme Aromatase B, and Brain Lipid Binding Protein (Blbp)—also named Fatty acid binding protein 7 (Fabp7) [2,3,4,5]. Differing from mammalians, the production of new neurons from radial glial cells is maintained in multiple areas of the central nervous system (CNS) of zebrafish until and during adulthood, under both physiological and regenerative conditions [3].
Fatty acid binding protein 7 is involved in lipid metabolism and membrane synthesis, strongly binding to omega-3 polyunsaturated fatty acids, such as docosahexaenoic acid (DHA) [2], is expressed in RGCs at very early stages, and is co-expressed with well-established radial glia markers such as gfap and aromatase B [2,3,4,5].
The expression of Fabp7 in teleosts (zebrafish) differs from other glial markers, such as the intermediate filament Glial fibrillary acidic protein (Gfap), since Gfap expression is activated only in RGCs, while Fabp7 is already expressed in the NECs, the RGC progenitors [6]. In some zebrafish studies, though, Gfap cells colocalizing with Nestin (another neuroepithelial cell marker) were detected, for example, in the embryonic spinal cord [7]. In fact, the transition of neuroepithelial cells to radial glial cells to mature glia is poorly defined based on marker gene expression in species different than mice. Therefore, further markers and in vivo tools to study radial glia are needed to better understand the developmental time course of glia in zebrafish.
Currently, the only regulatory elements for driving expression in radial glial cells in zebrafish are the enhancer of the glial fibrillary acidic protein (gfap), as the most commonly used glial specific enhancer, and aromatase-B, used only in few studies so far, which drive expression in fabp7 expressing RGCs but not in NECs [8]. gfap mRNA and Gfap protein expression show similar patterns, but it has also been reported that Gfap expression could be regulated at the level of translation, and cells producing gfap mRNA may not translate it, which could lead to misinterpretations about the glial identity of a cell [9,10].
The RGC marker Fabp7 is involved in brain development and adult neurogenesis [11], as well as in the maintenance of neural stem cell fate, acting as a downstream target of Notch signaling and Pax6 [12,13]. The Fabp7 protein is encoded by the gene brain-type fatty acid binding protein 7Fabp7 [12]. Due to the genomic duplication that occurred in teleost fish [14], the fabp7 gene in zebrafish was duplicated to fabp7a and fabp7b. According to the levels of mRNA expression, fabp7a was determined to be the main isoform present in the adult zebrafish brain [2,11]. The specificity of the antibody against Fabp7 and its distribution in the whole brain of adult zebrafish has already been described in detail [2]. Thus, this RGC marker has been commonly used in multiple zebrafish studies about glio- and neurogenesis [4,7]. As informative as such immunohistochemical studies are, they are limited to fixed tissue and provide static information but do not allow for in vivo observations of fabp7-expressing cells and their descendants for assessing their behavior in longitudinal studies.
We have tested a Fabp7 regulatory element from a mouse, which mediates expression in radial glia, immature astrocytes, and Bergmann glia [13,15]. This regulatory element was combined with an adenoviral basal promoter (E1b) [16] in zebrafish. Three different transgenic reporter lines for detecting cells expressing fluorescent proteins under the control of the mouse Fabp7 regulatory element in zebrafish were created, and their prominent fluorescent reporter protein expression confined to the central nervous system was compared to endogenous Fabp7 and early gliogenic and neurogenic markers. These lines will be powerful genetic tools for dissection brain development, glia differentiation, neurogenesis, and regeneration.

2. Materials and Methods

Fish husbandry: All animals were raised and kept in the zebrafish facility in accordance with established guidelines adhering to the regulations of the local government [17,18]. AB wild-type or brass pigmentation mutant zebrafish were used for mating. No selection criteria were used to allocate zebrafish of both sexes to any experimental group. Embryos and larvae were maintained in zebrafish 30% Danieau rearing medium [100% Danieau: 58 mM NaCl, 0.7 mM KCl, 0.4 mM MgSO4, 0.6 mM Ca(NO3)2, and 5 mM HEPES (N-2-hydroxyethylpiperazine-N-2-ethane sulfonic acid), pH7.2]. All imaging and analysis of larvae were performed at 2 and 5 days post-fertilization (dpf). Adults were maintained in fish tanks according to standard protocols at 28 °C, under light–dark conditions (simulating day-night cycle), and constant running water exchange. Stable transgenic reporter lines used in this work include Tg(Mmu.Fabp7-E1B:MScarlet-MYC)bz23, Tg(Mmu.Fabp7:E1B:mClover)bz25 and Tg(Mmu.Fabp7-E1B:FMA-mseCFP-2A-H2B-mseCFP)bz24, approved by the Niedersächsisches Landesamt für Verbraucherschutz und Lebensmittelsicherheit LAVES (AZ 33.19-42502-04-17/2693), Tg(gfap:EGFP)mi2001 [19], Tg(olig2:EGFP)vu12 [20], Tg(nkx2.2:GFP) [21], Tg(Xla.Tubb:DsRed, previously NBT-dsRED) [22], Tg(zic4:Gal4TA4, UAS:mCherry)hzm5, Tg(4xUAS:GFP)hzm3 both by [23], Tg(ptf1a:EGFP) [24], and Tg(atoh1a:GAL4TA4)hzm2 [25]. For simplicity reasons double transgenic Tg(atoh1a: GAL4TA4)hzm2 × Tg(4xUAS:GFP)hzm3 larvae were named Tg(atoh1a:GFP). All efforts were made to use only the minimum number of experimental animals necessary to obtain reliable scientific data.
Generation of transgenic lines: Previously a regulatory element from the mouse Fabp7 gene driving expression in radial glial cells has been identified and analyzed in detail [15,26]. This sequence of the mouse Fabp7 regulatory element followed by the E1b basal promoter is shown in Supplementary Figure S1. mClover3 [27] and mScarlet [28] were chosen as fluorescent reporters as they are among the brightest fluorescent proteins available in the green and red emission range, mseCFP is a derivative of ECFP [29], but it can be excited as well in the UV range (405 nm) offering co-expression analysis with a greater range of fluorescent reporter proteins. Zebrafish embryos were injected at the one-cell stage with plasmids containing a Tol2-transgene cassette and Tol2-encoding mRNA (25 ng/l each, volume: 1.5 nl). After raising fluorescent embryos to adulthood, germline transmission of the transgene was tested by individual crosses against wild-type fish. Transgenic founders were raised and used to establish stable transgenic strains [30]. Reporter fish with fluorescent protein expression mediated by the Fabp7 regulatory element are currently maintained in the F2 and F3 generations, respectively.
Immunohistochemistry: Larvae were processed for immunostaining as whole mount isolated brains. Brain isolation was performed after prefixing in 4% paraformaldehyde (PFA) for 20–30 min on ice. After washing with PBS, antigen retrieval with 10 mM citrate buffer was achieved by heating samples in a water bath until boiling. After cooling to room temperature, the brains were rinsed 5 times in PBS-T (PBS with 1% Triton X-100) for 5 min each, incubated in 100% precooled acetone for 15 min at −20 °C to improve tissue permeabilization, followed by additional 5 PBS-T washing steps. Nonspecific protein binding sites were blocked in 5% normal goat serum in PBS-DT-I (PBS, 1% bovine serum albumin (BSA), 1% DMSO, 1% Triton X-100) for 1 h at room temperature followed by primary antibody incubation in PBS-DT-II (PBS, 1% BSA, 1% DMSO, 0,3% Triton X-100) overnight at 4 °C and additional 3 h at room temperature. The primary antibodies are as follows: rabbit anti-FABP7 (IF 1:500, commercially named as anti-BLBP, Millipore ABN14, Burlington, MA, USA), rat anti-RFP—for detecting mScarlet fluorescent protein—(IF 1:1000, Chromotek 5F8-100, Planegg, Germany), and chicken anti-GFP (IF 1:1000, Aves Labs GFP-1010, Davis, CA, USA). Subsequently, brains were washed 5 times in PBS-T for 5 min each at room temperature with constant agitation and incubated with the secondary antibody diluted in PBS-DT-II overnight at 4 °C. Secondary antibodies: Alexa goat anti-rabbit 488 (IF 1:1000, Thermo Fisher A21206, Waltham, MA, USA), Alexa goat anti-rat 546 (IF 1:1000, Thermo Fisher A11081, Waltham, MA, USA), donkey anti-chicken (IF 1:1000, Jackson ImmunoResearch, 703-545-155, West Grove, PA, USA). Finally, brains were thoroughly rinsed in PBS-T and PBS before imaging.
Imaging and data analysis: For in vivo imaging, larvae were anesthetized with 0.015–0.02% Tricaine (Sigma Aldrich, St. Louis, MO, USA) dissolved in 1% low melting agarose/Danieau solution. For fixed and immunostained samples, the brains were embedded in 1% low melting agarose/PBS. Images of the larval zebrafish (at 2 and 5 dpf) were acquired using an SP8 laser scanning confocal microscope (Leica Microsystems, Wetzlar, Germany) using a 40× objective. Images were processed with the Leica LasX (LAS X 3.5.7.23225) and FIJI imaging (ImageJ-win64) and analysis software. For quantitative analysis, semi-automated counting of cells was performed with the cell counter plugin of the FIJI software, in which every cell was initially identified manually, followed by their automated detection within a z-stack of images, to avoid that cells were counted twice.
The design of the figures was carried out with CorelDraw software (Corel Corporation Ottawa, Ontario, Canada). Statistical analysis and graphics design were undertaken using Prism software (Graph Pad Software, Version 6, and 9.0.0 (121), San Diego, CA, USA).

3. Results

3.1. Generation and Characterization of Transgenic Reporter Lines Expressing Fluorescent Proteins under Control of a Mouse Fatty Acid Binding Protein 7 (Fabp7) Derived Regulatory Element

For the generation of transgenic lines, a previously identified 750 bp regulatory element derived from the mouse Fabp7 genomic region [26] was cloned in front of the adenoviral basal promoter E1b [16]. This was followed by the open reading frame either of the green fluorescent protein mClover [27], the red fluorescent protein mScarlet [28] fused to a myc tag sequence at its C-terminus, or a combination of membrane targeted monomeric super-enhanced CFP (mseCFP) [29] Fyn-mseCFP followed by a self-cleaving T2A-sequence [31] and a nuclear-localized Histone2B-fusion of mseCFP (H2BmseCFP). Transgenic fish strains were obtained by established Tol2-transposon protocols [30] (Figure 1A).
While the transgenic reporter lines Tg(Mmu.Fabp7-E1B:MScarlet-MYC)bz23 [abbreviated name: Tg(Fabp7:mScarlet)] and Tg(Mmu.Fabp7-E1B:mClover)bz25 [abbreviated name: Tg(Fabp7:mClover)] express the mScarlet and mClover fluorescent protein in the cytoplasm (Figure 1B), mseCFP expression in the transgenic line Tg(Mmu.Fabp7-E1B:FMA-mseCFP-2A-H2B-mseCFP)bz24 [abbreviated name: Tg(Fabp7:mseCFP)] is localized to the cell membrane and the nucleus respectively (Figure 1C). In all three lines, expression becomes visible already in the brain at early embryonic stages around 14 hpf, which is similar to gfap enhancer-mediated expression [19], and fluorescent cells at 30 hpf are distributed only in the central nervous system [32], which is extensively labeled through the whole brain and spinal cord of young larvae, in the three transgenic reporter lines (Figure 1D–K, for a direct comparison of the expression patterns in the CNS among the three established lines please see Supplementary Figure S2) reminiscent to antisense mRNA in situ hybridization against fabp7a and fabp7b in zebrafish [11,33,34]. It is noteworthy that cells with Fabp7 enhancer-mediated fluorescent protein expression are enriched in the most medial areas (in the midsagittal plane along the ventricular zone), such as those located in the telencephalon, habenula, optic tectum, cerebellum, caudal rhombencephalon, and spinal cord (arrowheads in Figure 1H–K), and show a more dispersed cell density in parenchymal areas of the aforementioned brain structures (Figure 1H–K). The strongest expression combined with a higher cell density of Fabp7 enhancer-mediated fluorescent protein-expressing cells appears located in the most rostral area of the telencephalon (Figure 1H, H’), in the caudal area of the cerebellum, and in dorsal-paramedian areas of the caudal rhombencephalon (Figure 1H–K). In the cerebellum, Fabp7-regulatory element-mediated expression can be found in radially oriented cells with a unique branching of their membrane process visible in the molecular layer—the most dorsal cell layer of the cerebellar cortex (Figure 1H,H’’,I–K). Long Fabp7 enhancer-regulated fluorescent protein-expressing processes without branches are also observed in the lateral areas of the optic tectum and caudal rhombencephalon (Figure 1E–F,I–K).

3.2. Colocalization among Different Fluorescent Fabp7 Enhancer-Controlled Reporter Lines

The consistency of the expression pattern among the three different Fabp7 enhancer-regulated reporter transgenic lines was tested by analyzing the level of colabeling of mScarlet, mClover, and mseCFP fluorescent proteins in respective double transgenic offspring.
Larvae derived from Tg(Fabp7:mScarlet) × Tg(Fabp7:mClover) and Tg(Fabp7:mScarlet) × Tg(Fabp7: mseCFP) crosses of heterozygous carriers showed largely overlapping expression patterns throughout various regions of the CNS (Figure 1H-M and Figure 2A–F), as illustrated in the telencephalon (rostral part in Figure 2A, D) habenula (mostly located in the marginal zone, and a few in the parenchymal area, Figure 2B,D), cerebellum (mostly in the area of the ventricular zone, Figure 2C,E), and spinal cord (Figure 2F), with the majority of cells double positive for the respective fluorescent proteins in 5 dpf larvae (arrows in Figure 2).
Three CNS areas were selected to support this observation by quantification. This analysis showed that in Tg(Fabp7:mScarlet) × Tg(Fabp7:mseCFP) double transgenic larvae, about 90% of cells expressing mseCFP also expressed mScarlet fluorescent protein without a significant difference between the cerebellum (90.6%), caudal rhombencephalon (91.9%), and spinal cord (89.8%), (Figure 2G). Of note, in order to test the consistency in the spatial expression of both lines, the percentage of the total mScarlet expressing cells double positive in the spinal cord was also quantified (93.4%), which did not appear significantly different from the total amount of mseCFP+ cells. That it could not be detected in all cell expressions of both fluorescent proteins likely depends on the different strength of fluorescence, with mseCFP being clearly weaker in its emission than mScarlet. In addition, the half-life of maturation and turnover of both reporter proteins may differ.

3.3. Specificity of Fabp7 Enhancer-Mediated Reporter Line Expression Pattern

The specificity of the expression pattern of the transgenic line Tg(Fabp7:mScarlet) was tested by colocalization analysis of mScarlet with the endogenous Fabp7 protein using immunohistochemistry and commercially available antibodies (Figure 3A–E). The quantification of fluorescent cells (anti-mScarlet+/anti-Fabp7+) revealed that the vast majority of mScarlet-expressing cells were double positive co-expressing both proteins (telencephalon 88.6%, habenula 96%, optic tecum 78.5%, cerebellum 91.2%, and rhombencephalon 95%). Almost perfect colabeling was observed in the ventricular/subventricular zones, paramedian and lateral or parenchymal areas of all brain structures analyzed: telencephalon (rostro-medial zone, Figure 3A), habenula (marginal zone, Figure 3B), optic tectum (median area, Figure 3C), cerebellum and caudal rhombencephalon (paramedian area, Figure 3D). These findings support the specificity of the mouse Fabp7 regulatory element mediating fluorescent reporter protein expression in cells expressing Fabp7 endogenously in zebrafish. A few exceptions, though, were noticed, for example, in the lateral areas of the optic tectum, where the percentage of colabeled cells was significantly lower compared to other brain regions for currently unclear reasons (Figure 3E).
The observation of about 10% of the cells being positive only for mScarlet could be due to the long half-life of fluorescent proteins, likely displaying a slower turnover compared to the Fabp7 protein. Yet, the possibility of ectopic expression in a few cells and/or insufficient fluorescence intensity detection of the anti-Fabp7 antibody into the tissue cannot be completely ruled out. Nevertheless, comparative analysis of the expression pattern in the transgenic Fabp7 regulatory element-controlled reporter line with other specific cell type reporter lines might help to provide further confirmation of the specificity of the Fabp7 enhancer-mediated expression pattern.
Altogether, the colocalization of the anti-Fabp7 antibody staining and Fabp7:mScarlet, as well as the overlapping expression pattern of the Tg(Fabp7:mScarlet) and Tg(Fabp7:mClover) and Tg(Fabp7:mseCFP) lines, suggest that the three reporter lines are indeed specific for cells expressing Fabp7 endogenously and can be used interchangeably.

3.4. Comparison of Fabp7 Enhancer-Regulated Reporter Lines to Other Cell Type-Specific Transgenic Reporter Lines

Comparison of transgenic fluorescent protein reporter strains helps to further characterize the spatio-temporal activity of the Fabp7 enhancer-mediated fluorescent protein expression. We have therefore examined different areas of the brain and the spinal cord, with particular attention to the cerebellum, by comparing the expression of our Fabp7 regulatory element-controlled reporter to fluorescent protein expression patterns in other cell type-specific reporter strains.

3.4.1. Coexpression of Fabp7- and gfap-enhancer-Mediated Reporter Strains in Radial Glia

To further confirm the expression of the Fabp7 regulatory element in radial glial cells, we compared Fabp7 enhancer-mediated reporter protein expression to the expression of the green fluorescent protein in the Tg(gfap:GFP)mi2001 strain, in which a regulatory element of the glial fibrillary acidic protein-encoding gene (gfap) was shown to activate reporter protein expression in radial glia [19]. In the majority of Fabp7:mScarlet red fluorescent cells, colabeling by the green fluorescent protein GFP was observed at 5 dpf in double transgenic [Tg(fabp7:mScarlet) x Tg(gfap:GFP)] offspring. Comparison of the percentage of Fabp7-gfap mediated reporter protein colabeling of cells in the cerebellum (ventricular and subventricular zone, arrows in Figure 3G) and other brain regions and spinal cord (arrows in Figure 3F–H and Figure 7C), revealed similar degrees of cell colabeling in the telencephalon 87%, the habenula 89.5%, the cerebellum 86.1%, and the spinal cord 82.9% (Figure 3I and Figure 7A). The small number of some mScarlet single positive cells, like a few scattered cells in lateral areas of the telencephalon, might be an indication for the minor heterogeneity of Fabp7 enhancer-mediated and gfap enhancer-controlled expression in the different radial glia and progenitor cell subpopulations.

3.4.2. Oligodendrocytes: A Subset of Fabp7-Expressing Cells Become Oligodendrocytes

In mice, gfap-expressing radial glia mostly differentiate into astrocytes [35]. While in zebrafish, glia with a typical astrocyte morphology, as observed in mammals, are not present, astrocyte-like cells have been identified in zebrafish [36]. Besides such astrocytic-like cells, glia progenitors also give rise to oligodendrocytes, of which the progenitors are known to express the transcription factors Olig2 and Nkx2.2a [21]. Double transgenic larvae from matings of the Tg(Fabp7:mScarlet) reporter line with carriers of the Tg(olig2:GFP) and Tg(nkx2.2:GFP) reporter strains revealed colabeling of cells with Fabp7 regulatory element-mediated fluorescent reporter protein expression with both oligodendrocyte reporters, mostly located in lateral/parenchymal areas (Figure 4A–K), in the telencephalon (arrow in paramedian zone, Figure 4D), optic tectum (arrows in paramedian and submarginal zones, Figure 4A,E), cerebellum (arrows in lateral areas, Figure 4B,G), and caudal hindbrain (arrows in lateral zone, Figure 4C). Quantification of olig2 enhancer regulated GFP expressing cells co-expressing Fabp7 regulatory element-mediated mScarlet expression revealed a high degree of GFP and mScarlet co-expression in the telencephalon 85.8%, the optic tectum 78.2%, and the spinal cord 72.4%, and about half of the population in the caudal rhombencephalon (Figure 3A–C,L and Figure 7A,C). Intriguingly, the cerebellum presented an exception with only 4.7% of olig2 expressing cells co-expressing the Fabp7 enhancer-regulated reporter (Figure 4B,L). This observation is due to the fact that not only oligodendrocytes are very low in numbers in the cerebellum, but also that olig2 expression in the cerebellum is largely confined to a neuronal population of eurydendroid cells as the main cerebellar efferent neurons [37].
With respect to the oligodendrocyte reporter Tg(nkx2.2:GFP), double transgenic Tg(Fabp7:mScarlet) x Tg(nkx2.2:GFP) larvae and the majority of GFP-expressing cells were also positive for Fabp7:mScarlet expression with 97.6% of colabeled cells in the telencephalon and 84.4.% colabeled cells in the cerebellum (although representing only about 8% of the Fabp7:mScarlet cells colabeled with GFP, as the majority of Fabp7-enhancer expressing cells develop into radial glia and only a minor portion into oligodendrocytes, as it is the case in the telencephalon as well, Figure 7A) because nkx2.2a expression is confined to the oligodendrocyte lineage but is not expressed in olig2-expressing eurydendroid neurons. This suggests that oligodendrocyte progenitors are derived from Fabp7 enhancer-controlled fluorescent protein-expressing glial cells (Figure 4D–K,M and Figure 7A,C). Of note, in all structures analyzed, the double positive cells were mainly found in lateral areas of the central nervous system, suggesting that these glial cells differentiating into oligodendrocytes are separated from the proliferative regions. In the spinal cord, only 21.8% of nkx2.2:GFP expressing cells co-expressed Fabp7:mScarlet with many solely nkx2.2:GFP positive cells being located in ventral positions. These cells may not give rise to oligodendrocytes but have been shown in mice and chicken embryos to be involved in ventral neural tube patterning being expressed in floorplate cells and later in somatic and visceral motoneurons [38,39,40].

3.4.3. Neuronal Cells: Some Fabp7 Regulatory Element-Mediated Fluorescent Protein Expressing Cells Are Neurogenic

The regulatory element derived from the Xenopus laevis neural-specific beta-tubulin gene mediates pan-neuronal expression of the fluorescent protein DsRed in the transgenic zebrafish strain Tg(Xla.Tubb:DsRed) [22]. The carriers of this strain were used to compare Fabp7 regulatory element-derived expression to neuronal expression. The analysis of double transgenic larvae of the genotype Tg(Fabp7:mseCFP) × Tg(Xla.Tubb:DsRed) revealed mostly complementary and non-overlapping expression patterns since the Fabp7 enhancer-mediated mseCFP-expressing cells were more concentrated in the ventricular areas, and Xla.Tubb+ cells were mainly located in the paramedian and parenchymal areas of the telencephalon (Figure 5A), the cerebellum, the caudal rhombencephalon (Figure 5B), and the spinal cord (Figure 5C) (Figure 5A–C and Figure 7C). This supports the fact that the Fabp7 regulatory element-induced expression is mostly confined to glial and not neuronal lineages.
However, at least a few Fabp7 and XIa.Tubb enhancer-mediated fluorescent proteindouble positive cells were detected (arrows in Figure 5), mostly located in the subventricular zone, as would be expected for recently differentiated neuronal cells. For instance, in the habenula (5.6% of Fabp7: mseCFP-cells were positive for DsRed), the caudal rhombencephalon (2.4%) and the spinal cord (2.3%) co-expression of both fluorescent proteins were displayed by a small subset of cells. This rate was lowest for the cerebellum (0.2%) and highest for the telencephalon (6.4%) (Figure 5D and Figure 7A). These findings of Fabp7-Xla.Tubb enhancer-mediated fluorescent protein double positive cells suggest that some Fabp7 regulatory element-controlled fluorescent protein-expressing cells differentiate further into neurons, which can be observed due to the high stability and slow turnover of the mseCFP fluorescent protein compared to the endogenous Fabp7 protein detected by immunohistochemistry.
Indeed, different from immunohistochemistry with the anti-Fabp7 antibody, the mseCFP reporter allowed for temporarily tracing the offspring of at least some Fabp7+ regulatory element-mediated fluorescent protein-expressing cells to develop into a neuronal fate, as at least a few differentiated neurons showed remaining mseCFP fluorescence. This finding could further explain the aforementioned small percentage of cells from the Fabp7 regulatory element-regulated transgenic reporter line that was apparently negative for the anti-Fabp7 antibody (Figure 3E).

3.4.4. Fabp7 Regulatory Element-Mediated Fluorescent Protein Expression in Neural Progenitor Cells of the Hindbrain

Next, focusing on the cerebellum, the expression of Fabp7 enhancer-regulated reporter expression in neural progenitors of the dorsal hindbrain was analyzed by using a transgenic zebrafish strain Et(zic4:Gal4TA4, UAS:mCherry)hzm5 [abbreviated name Tg(zic4:mCherry)]. In this transgenic strain, the red fluorescent protein mCherry is expressed under the control of a regulatory element of the zic1/zic4 genomic locus in zebrafish [23]. These zinc finger-containing transcription factors are expressed early during central nervous system development and are involved in the regulation of cell proliferation in the dorsal neuroectoderm and formation of the hindbrain ventricle prior to the appearance of gliogenic and neurogenic lineages [41]. In double transgenic [Tg(Fabp7:mseCFP) x Tg(zic4::mCherry)] larvae, cells expressing both fluorescent reporter proteins (Figure 6A–F and Figure 7) were observed in all areas of the brain (as illustrated in the rostral most telencephalon, arrow in Figure 6A, and ventricular zone of the cerebellum, arrow in Figure 6D) as well as in the spinal cord (arrow in dorsal area, Figure 6F).
As zic4-expression is mostly confined to the dorsal part of the ventricular zone, dorsal CNS structures, such as the habenula and the cerebellum, showed the highest percentage of Fabp7 regulatory element-controlled mseCFP fluorescent reporter protein-expressing cells also expressing zic4 enhancer-mediated mCherry, with ratios of 94% and 54% respectively (Figure 6C,D and Figure 7A,C). Since zic4-expression is hardly expressed in ventral, tegmental areas, compartments derived from both alar and basal plates showed a significantly lower average percentage of Fabp7 regulatory element-mediated fluorescent protein-expressing cells co-expressing the zic4 reporter such as 16% in the telencephalon, 30% in the rhombencephalon, and 14% in the spinal cord (Figure 6A–G and Figure 7A,C). Nevertheless, these findings reveal that Fabp7 enhancer-mediated reporter protein expression is expressed very early during cerebellum development in neural progenitors and is maintained in glia but not in neuronal lineages.

3.4.5. Fabp7-Regulatory Element Regulated Fluorescent Protein Expression is expressed in Cerebellar Bergman Glia, which are derived from Cerebellar Ventricular Zone

Specifically focusing on the cerebellum, two dorsally located germinal zones can be distinguished, the dorsal most positioned rhombic lip and the ventrally adjacent ventricular zone, which can be distinguished molecularly by their mutually exclusive expression of the transcription factor-encoding genes atonal1a (atoh1a) and pancreas transcription factor 1 (ptf1a) respectively [42]. The ptf1a enhancer-mediated GFP expressing ventricular zone cells have been shown to give rise to important neuronal populations of the cerebellum, including Purkinje cells, eurydendroid cells, and inhibitory interneurons. Furthermore, Bergmann glia have been shown to originate from gfap and ptf1a enhancer-mediated fluorescent protein-labeled progenitor cells [43]. To further corroborate the origin of Bergmann glia, we crossed Tg(Fabp7:mScarlet) fish with Tg(ptf1a:GFP) carriers. Double transgenic larvae revealed a clear coexpression of the two fluorescent reporter proteins in about 20% of the ptf1a enhancer-mediated GFP expressing cells derived from the ventricular zone at 5 dpf (Figure 6H,I and Figure 7A,C).
This was consistent with our previous observations of Fabp7 immunohistochemistry staining in ptf1a enhancer-mediated fluorescent reporter protein-expressing cells, in which a fraction of about 10% of ptf1a:GFP green fluorescent cells in the zebrafish cerebellum was positive for Fabp7 expression [44]. Instead, only about 1% of atoh1-regulatory element-mediated fluorescent reporter protein-positive cells in Tg(Fabp7:mScarlet)/Tg(atoh1a:GFP) double transgenic larvae were double positive for both fluorescent reporters (meaning a total of only 1 to 6 double positive cells in the cerebellum of each larvae, being only of 0.9% of the total Fabp7 enhancer-controlled fluorescent protein-expressing cell population as well), which may represent maintained Fabp7 regulatory element-mediated reporter expression in very early neuroepithelial cells in which atoh1a and ptf1a enhancer-mediated fluorescent reporter protein expressing lineages have not been separated [45]. This Fabp7 regulatory element-driven fluorescent protein-expressing subpopulation of ptf1a regulatory element-controlled fluorescent protein-expressing ventricular zone-derived cells represented about half (53%) of the Fabp7 enhancer-mediated fluorescent reporter protein-expressing cells in the cerebellum (Figure 6H,I and Figure 7A,C) and may well represent progenitors of Bergmann glia as these double positive cells were mainly localized along the medial and caudal ventricular zone. Bergmann glia represent the almost only glia population of the cerebellum besides the few oligodendrocytes and are somewhat special as Bergmann glia differentiate into astrocytes of the cerebellum, but maintain characteristics of radial glia with radial fibers projecting to the pial surface in mammals as well as in zebrafish [5,46]. In the latter organism, they further contribute to the radial migration of granule cells during adult stages [5], which is considered a typical property of radial glia. Indeed, Fabp7 regulatory element-controlled fluorescent protein-expressing cells from the Tg(Fabp7:mScarlet) reporter line are still detected in the adult cerebellum, which, as typical Bergmann glia in adult zebrafish, present the soma located at the boundary between Purkinje cell layer and granular cell layer, and ramified branching in the molecular layer (Supplementary Figure S3). Therefore, Fabp7 regulatory element-mediated reporter protein expression is maintained in mature Bergmann glia and these cells marked by Fabp7 regulatory element-mediated fluorescent protein expression can be found throughout the zebrafish cerebellar cortex. Currently, we cannot rule out that a small subpopulation of Bergmann glia is derived from rhombic lip progenitor cells, but our findings further confirm that Bergmann glia represent a subpopulation of cells being produced by the ptf1a enhancer-mediated fluorescent protein-expressing cells of the ventricular zone of the zebrafish cerebellum [43].

4. Discussion

So far, the prominent enhancer for studying radial glial cells in zebrafish was the regulatory element of the intermediate filament Glial fibrillary acidic protein-encoding gene gfap. Due to the heterogeneity of glial cells, the characterization of a new enhancer of the Fatty acid binding protein Fabp7 from mice, as a reliable marker of proliferating and differentiating radial glial cells, provides a new tool for detecting a wider range of glial cells in zebrafish. The high degree of evolutionary conservation of the Fabp7 genomic sequence allows its use in zebrafish in combination with a teleostian basal promoter. Its small size of only 742 bp (compared to 7 kb of the gfap enhancer), provides a valuable tool for further functional studies, for example, to create multi-cistronic constructs for monitoring consequences of transgene expression in radial glia.
The colocalization of the Fabp7 regulatory element-mediated fluorescent reporter protein-expressing cells from the transgenic line Tg(Fabp7:mScarlet) with the immunolabeling of the anti-Fabp7 antibody supports the specificity of the new Fabp7 promoter in zebrafish. Additional proof of the Fabp7 promoter specificity for radial glial cells is evident by its coexpression with reporter fluorescent proteins mediated by the gfap promoter in a transgenic reporter strain (mi2001). Yet, it should be noted that a different transgenic GFP reporter line exists (zf167Tg) in which a BAC clone covering the genomic gfap locus of zebrafish has been used as a larger regulatory element to drive reporter protein expression, and both gfap reporter strains show slight differences in their reporter protein expression [47]. Nevertheless, the expression patterns of our new Fabp7 regulatory element-controlled reporter lines in larvae appear to match with the distribution of the Fabp7 protein previously described within the adult zebrafish brain, in particular for cells in the ventricular zone of different adult brain regions [2,4,5]. Furthermore, the overlapping expression of the fluorescent proteins among the new different Fabp7 regulatory element-controlled reporter lines observed in double transgenic larvae [Tg(Fabp7:mScarlet) vs. Tg(Fabp7:mClover) and Tg(Fabp7:mScarlet) vs. Tg(Fabp7:mseCFP)], argues that the Tg(Fabp7:mClover) and Tg(Fabp7:mseCFP) reporter lines are also specific for the Fabp7-expressing cells. The generation of these three Fabp7 enhancer-controlled reporter lines, expressing reporter fluorescent proteins with different excitation and emission properties, greatly expands the possibilities of combinations with other cell type-specific transgenic reporter lines for research in zebrafish.
Despite the high degrees of overlapping expression of endogenous Fabp7 proteins detected by immunohistochemistry and fluorescent reporter protein expression mediated by the Fabp7 regulatory element, the limitations of these reporter strains have to be mentioned as well. While the lack of perfect colabeling could be derived from the different half-lives of the zebrafish Fabp7 protein and the fluorescent reporter proteins, it is also possible that the Fabp7 regulatory element is not representing the entire enhancer of the endogenous Fabp7 homologs in zebrafish. If some enhancer or silencer elements are missing in the genomic fragment, small subpopulations of cells may ectopically express the fluorescent reporter or, conversely, may lack the expression of the reporter. Hence, the fluorescent protein expression in the Fabp7 regulatory element containing transgenic zebrafish reporter lines may not fully reflect the entire spatio-temporal expression of the endogenous Fabp7 homologs in zebrafish. For example, expression of fluorescent proteins in retinal Müller glia could not be found, and some weak expression in the retina may point to ectopic expression in retinal cells. Therefore, interpretations of findings of coexpression need to be cautiously made and should be confirmed independently.
To clarify the contribution of Fabp7 regulatory element-controlled fluorescent protein-expressing cells to different cell populations in the zebrafish brain, coexpression analysis in double transgenic larvae with various transgenic reporter strains was performed (Figure 7A–C). These revealed that oligodendrocytes marked by olig2 and nkx2.2 enhancer-mediated reporter protein expression are derived from Fabp7-regulatory element-controlled fluorescent protein-positive radial glia. Indeed, colocalization of Fabp7/olig2/nkx2.2 enhancer-mediated fluorescent reporter protein expression was observed in all brain areas and spinal cord. Of note, in previous studies, olig2 enhancer-mediated fluorescent protein-expressing cells were negative for the radial glial cell line, in which fluorescent reporter protein expression is mediated by a gfap gene-derived regulatory element [3,48]. Yet, we recently showed that in the cerebellum, isolated cells with olig2 enhancer-mediated fluorescent protein expression could be colabeled by immunohistochemistry against the Fabp7 protein [44]. This further suggests that oligodendrocyte precursors express Fabp7, and thus, Fabp7 enhancer-mediated fluorescent reporter protein expression allows the discrimination of different radial glia-derived subpopulations of glial cells.
Since Fabp7 expression is known to occur in proliferating neuroepithelial and radial glial cells, we also carried out a combined analysis with the neurogenic marker gene zic4. Indeed, a subset of Fabp7 enhancer-mediated fluorescent protein-expressing cells coexpressed zic4 enhancer-controlled fluorescent reporter protein expression, demonstrating that Fabp7 regulatory element-mediated reporter expression can be found in early neuroepithelial cells. The long half-life of the fluorescent reporter protein allowed us to temporally follow Fabp7 regulatory element-derived reporter protein expressing descendants. Such studies revealed that, unlike gfap-positive cells, despite some exceptions [7,12], Fabp7 expression is found in neurogenic progenitors that give rise to Fabp7/Xla.Tubb enhancer-mediated fluorescent protein reporter double positive neurons, which escape the detection by Fabp7 immunohistochemistry [2]. Intriguingly, during the processes of neuroregeneration, cells derived from gfap regulatory element-controlled reporter protein expression are also strongly involved in the production of neurons as well [12].
In the cerebellum, two proliferation zones can be distinguished and marked by the mutually exclusive expression of neurogenic marker genes atoh1a and ptf1a. Here, half of the Fabp7-regulatory element-mediated fluorescent protein-expressing cells coexpressed the ventricular zone, marking fluorescent protein expression controlled by the ptf1a regulatory element, and hardly any coexpression of fluorescent reporter proteins mediated by the Fabp7 and the atoh1a enhancers was found. Since Bergmann glia, the almost only glial cell population of the cerebellum, remain radially organized in the mouse cerebellum and also in the mature zebrafish cerebellum [5,46] and are known to express Fabp7 endogenously, these Bergmann glial cells are likely to be derived from the ptf1a regulatory element-mediated fluorescent protein-expressing ventricular zone and not from the atoh1a regulatory element-mediated fluorescent protein-expressing upper rhombic lip. Since in zebrafish, two additional atoh1 homologs exist with atoh1b and atoh1c [49], the origin of some radial glial cells from upper rhombic lip precursors cannot be completely ruled out. Nevertheless, the overlap in expression of Fabp7 and ptf1a enhancer-controlled fluorescent reporter protein expression argues against the existence of a third cerebellar proliferation zone—different from the ventricular zone and upper rhombic lip—and that cerebellar glia are derived largely from the more ventrally positioned ventricular zone, which is supported by recent Fabp7 antibody staining found in cerebellar ptf1a enhancer-mediated fluorescent protein-expressing cells [44]. Moreover, these findings further support previous studies in zebrafish, where gfap regulatory element-mediated fluorescent protein-expressing glia were also detected to coexpress the ptf1a enhancer-controlled fluorescent protein expression in the cerebellar ventricular zone [43]. Indeed, in mammalians, astrocytes derive mostly from ventricular neuroepithelia as well [50]. Our findings of different glial cell types and neuronal cells derived from Fabp7-regulatory element-mediated fluorescent reporter protein-expressing cells further confirm the previously described heterogeneity within radial glial cells [2].
Furthermore, the newly generated Fabp7 enhancer-controlled transgenic reporter lines provide helpful tools for developmental and regeneration studies by in vivo imaging in transparent zebrafish larvae. The stability of the fluorescent reporter proteins allows for detecting descendants of Fabp7 enhancer-mediated fluorescent protein-expressing cells until their differentiation and could be used for comparing neuroepithelial and radial glia cell contributions under conditions of neurological diseases and processes of neuroregeneration. For example, the effect of Purkinje cell degeneration in the genetic zebrafish models of human neurodegenerative diseases Spinocerebellar Ataxia Type 1 and Type 13 could be analyzed in double transgenic specimens [51,52]. In addition, zebrafish have recently been shown to recover from specific ablation of cerebellar Purkinje cells, yet the contribution of radial glia as potential progenitors of cerebellar Purkinje cell regeneration has remained unclear [44] due to the lack of suitable genetic tools presented here. Similarly, the response of radial glia to local wounding or large injuries in the central nervous system [1,53,54,55], for example, in increasing proliferation, extending membrane protrusions, phagocytosing cellular debris, or migrating towards injury sites could be studied in vivo using bioimaging approaches. Thus, a number of informative applications could be foreseen for the radial glia reporter strains established here.
Moreover, the evolutionary conservation of the regulation of the mouse genomic Fabp7 enhancer element in the teleost zebrafish further promises to hold true for other recently established teleostian model organisms such as Danionella cerebrum and Notobranchius furzeri [56,57]. Since these model organisms are accessible for genetic manipulations such as the generation of transgenic strains [58,59,60], genetically targeting radial glia in these models may allow us to further understand the contribution of radial glia to processes of circuitry formation, plasticity, and function in the teleost brain using adult in vivo imaging of Danionella cerebrum [61] or to address the contribution of radial glia to processes of central nervous system aging in Notobranchius furzeri [62]. Therefore, the Fabp7 regulatory element-mediated reporter strains and the characterization of the Fabp7 regulatory element represent powerful tools for in vivo research on glial cells in various fish model organisms.

Supplementary Materials

The following supporting information can be downloaded at https://www.mdpi.com/article/10.3390/cells13131138/s1, Figure S1: Sequence of mouse regulatory element from the genomic Fabp7 locus from XhoI until SbfI followed by the adenoviral E1b basal promoter until EcoRI; Figure S2: Comparison of expression fluorescent protein expression patterns in Tg(Fabp7:mClover), (Fabp7:mScarlet) (Fabp7:mseCFP) transgenic zebrafish larvae at 5 dpf; Figure S3: Expression of Fabp7 regulatory element-driven mScarlet reporter protein expression in the adult brain from the Tg(Fabp7:mScarlet) transgenic reporter line; Table S1: Table showing average number and percentage ± standard deviation (SD), of cells expressing the fluorescent reporter proteins from the Fabp7 transgenic reporter lines, and double positive cells from crosses of double transgenic offspring with other cell type specific transgenic reporter zebrafish lines, as well as co-labelling with the endogenous Fabp7 protein; corresponding to the quantification shown in the graphs from Figure 2, Figure 3, Figure 4, Figure 5 and Figure 6.

Author Contributions

Conceptualization, S.P.-M. and R.W.K.; Methodology, S.P.-M., M.R., A.W.-A. and R.W.K.; Formal Analysis, S.P.-M.; Investigation, S.P.-M., M.R. and A.W.-A.; Data Curation, S.P.-M.; Writing—Original Draft Preparation, S.P.-M.; Writing—Review and Editing, S.P.-M., M.R. and R.W.K.; Visualization, S.P.-M. and M.R.; Supervision, R.W.K.; Project Administration, R.W.K.; Funding Acquisition, S.P.-M. and R.W.K. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the European Union (Horizon 2020 research and innovation program under the Marie Sklodowska-Curie actions Individual Fellowships H2020-MSCA-IF-2015, grant agreement No 703961, to S.P.-M.) and the Volkswagenstiftung (project HOMEO-HIRN, ZN3673, to R.W.K.).

Institutional Review Board Statement

The protocol for generation of transgenic zebrafish was approved by the Niedersächsisches Landesamt für Verbraucherschutz und Lebensmittelsicherheit LAVES (AZ 33.19-42502-04-17/2693). Date of approval: 26 January 2018.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are contained within the article. The data presented in this study are available on request from the corresponding authors.

Acknowledgments

We thank Todd Anthony and Nathaniel Heintz for providing the p1.6blbp-EGFP construct containing the Fabp7 regulatory element used in this study. We are grateful to Barbara Winter and Annika Karau for their excellent experimental support. We thank Timo Fritsch for zebrafish care and maintenance and all Köster laboratory members for helpful discussions.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study, in the collection, analyses, or interpretation of data, in the writing of the manuscript, or in the decision to publish the results.

References

  1. Kaslin, J.; Kroehne, V.; Ganz, J.; Hans, S.; Brand, M. Distinct Roles of Neuroepithelial-like and Radial Glia-like Progenitor Cells in Cerebellar Regeneration. Development 2017, 144, 1462–1471. [Google Scholar] [CrossRef] [PubMed]
  2. Diotel, N.; Vaillant, C.; Kah, O.; Pellegrini, E. Mapping of Brain Lipid Binding Protein (Blbp) in the Brain of Adult Zebrafish, Co-Expression with Aromatase B and Links with Proliferation. Gene Expr. Patterns 2016, 20, 42–54. [Google Scholar] [CrossRef] [PubMed]
  3. Than-Trong, E.; Bally-Cuif, L. Radial Glia and Neural Progenitors in the Adult Zebrafish Central Nervous System. Glia 2015, 63, 1406–1428. [Google Scholar] [CrossRef] [PubMed]
  4. März, M.; Chapouton, P.; Diotel, N.; Vaillant, C.; Hesl, B.; Takamiya, M.; Lam, C.S.; Kah, O.; Bally-Cuif, L.; Strähle, U. Heterogeneity in Progenitor Cell Subtypes in the Ventricular Zone of the Zebrafish Adult Telencephalon. Glia 2010, 58, 870–888. [Google Scholar] [CrossRef] [PubMed]
  5. Kaslin, J.; Ganz, J.; Geffarth, M.; Grandel, H.; Hans, S.; Brand, M. Stem Cells in the Adult Zebrafish Cerebellum: Initiation and Maintenance of a Novel Stem Cell Niche. J. Neurosci. 2009, 29, 6142–6153. [Google Scholar] [CrossRef] [PubMed]
  6. Docampo-Seara, A.; Santos-Durán, G.N.; Candal, E.; Rodríguez Díaz, M.Á. Expression of Radial Glial Markers (GFAP, BLBP and GS) during Telencephalic Development in the Catshark (Scyliorhinus canicula). Brain Struct. Funct. 2019, 224, 33–56. [Google Scholar] [CrossRef] [PubMed]
  7. Johnson, K.; Barragan, J.; Bashiruddin, S.; Smith, C.J.; Tyrrell, C.; Parsons, M.J.; Doris, R.; Kucenas, S.; Downes, G.B.; Velez, C.M.; et al. Gfap-Positive Radial Glial Cells Are an Essential Progenitor Population for Later-Born Neurons and Glia in the Zebrafish Spinal Cord. Glia 2016, 64, 1170–1189. [Google Scholar] [CrossRef] [PubMed]
  8. Tong, S.-K.; Mouriec, K.; Kuo, M.-W.; Pellegrini, E.; Gueguen, M.-M.; Brion, F.; Kah, O.; Chung, B. A Cyp19a1b-Gfp (Aromatase B) Transgenic Zebrafish Line That Expresses GFP in Radial Glial Cells. Genesis 2009, 47, 67–73. [Google Scholar] [CrossRef] [PubMed]
  9. Nolte, C.; Matyash, M.; Pivneva, T.; Schipke, C.G.; Ohlemeyer, C.; Hanisch, U.K.; Kirchhoff, F.; Kettenmann, H. GFAP Promoter-Controlled EGFP-Expressing Transgenic Mice: A Tool to Visualize Astrocytes and Astrogliosis in Living Brain Tissue. Glia 2001, 33, 72–86. [Google Scholar] [CrossRef]
  10. Preston, A.N.; Cervasio, D.A.; Laughlin, S.T. Chapter Six—Visualizing the Brain’s Astrocytes. In Chemical and Synthetic Biology Approaches To Understand Cellular Functions—Part B; Shukla, A.K., Ed.; Academic Press: Cambridge, MA, USA, 2019; Volume 622, pp. 129–151. ISBN 0076-6879. [Google Scholar]
  11. Liu, R.-Z.; Denovan-Wright, E.M.; Wright, J.M. Structure, MRNA Expression and Linkage Mapping of the Brain-Type Fatty Acid-Binding Protein Gene (Fabp7) from Zebrafish (Danio rerio). Eur. J. Biochem. 2003, 270, 715–725. [Google Scholar] [CrossRef]
  12. Raymond, P.A.; Barthel, L.K.; Bernardos, R.L.; Perkowski, J.J. Molecular Characterization of Retinal Stem Cells and Their Niches in Adult Zebrafish. BMC Dev. Biol. 2006, 6, 36. [Google Scholar] [CrossRef]
  13. Anthony, T.E.; Mason, H.A.; Gridley, T.; Fishell, G.; Heintz, N. Brain Lipid-Binding Protein Is a Direct Target of Notch Signaling in Radial Glial Cells. Genes Dev. 2005, 19, 1028–1033. [Google Scholar] [CrossRef] [PubMed]
  14. Meyer, A.; Schartl, M. Gene and Genome Duplications in Vertebrates: The One-to-Four (-to-Eight in Fish) Rule and the Evolution of Novel Gene Functions. Curr. Opin. Cell Biol. 1999, 11, 699–704. [Google Scholar] [CrossRef] [PubMed]
  15. Feng, L.; Heintz, N. Differentiating Neurons Activate Transcription of the Brain Lipid-Binding Protein Gene in Radial Glia through a Novel Regulatory Element. Development 1995, 121, 1719–1730. [Google Scholar] [CrossRef] [PubMed]
  16. Scheer, N.; Campos-Ortega, J.A. Use of the Gal4-UAS Technique for Targeted Gene Expression in the Zebrafish. Mech. Dev. 1999, 80, 153–158. [Google Scholar] [CrossRef] [PubMed]
  17. Aleström, P.; D’Angelo, L.; Midtlyng, P.J.; Schorderet, D.F.; Schulte-Merker, S.; Sohm, F.; Warner, S. Zebrafish: Housing and Husbandry Recommendations. Lab. Anim. 2019, 54, 213–224. [Google Scholar] [CrossRef] [PubMed]
  18. Westerfield, M. The Zebrafish Book. In A Guide for the Laboratory Use of Zebrafish (Danio Rerio), 5th ed.; University of Orgeon: Eugene, OR, USA, 2007. [Google Scholar]
  19. Bernardos, R.L.; Raymond, P.A. GFAP Transgenic Zebrafish. Gene Expr. Patterns 2006, 6, 1007–1013. [Google Scholar] [CrossRef]
  20. Shin, J.; Park, H.-C.; Topczewska, J.M.; Mawdsley, D.J.; Appel, B. Neural Cell Fate Analysis in Zebrafish Using Olig2 BAC Transgenics. Methods Cell Sci. 2003, 25, 7–14. [Google Scholar] [CrossRef] [PubMed]
  21. Kucenas, S.; Snell, H.; Appel, B. Nkx2.2a Promotes Specification and Differentiation of a Myelinating Subset of Oligodendrocyte Lineage Cells in Zebrafish. Neuron Glia Biol. 2008, 4, 71–81. [Google Scholar] [CrossRef]
  22. Peri, F.; Nüsslein-Volhard, C. Live Imaging of Neuronal Degradation by Microglia Reveals a Role for V0-ATPase A1 in Phagosomal Fusion In Vivo. Cell 2008, 133, 916–927. [Google Scholar] [CrossRef]
  23. Distel, M.; Wullimann, M.F.; Köster, R.W. Optimized Gal4 Genetics for Permanent Gene Expression Mapping in Zebrafish. Proc. Natl. Acad. Sci. USA 2009, 106, 13365–13370. [Google Scholar] [CrossRef] [PubMed]
  24. Godinho, L.; Mumm, J.S.; Williams, P.R.; Schroeter, E.H.; Koerber, A.; Park, S.W.; Leach, S.D.; Wong, R.O.L. Targeting of Amacrine Cell Neurites to Appropriate Synaptic Laminae in the Developing Zebrafish Retina. Development 2005, 132, 5069–5079. [Google Scholar] [CrossRef] [PubMed]
  25. Distel, M.; Hocking, J.C.; Volkmann, K.; Köster, R.W. The Centrosome Neither Persistently Leads Migration nor Determines the Site of Axonogenesis in Migrating Neurons in Vivo. J. Cell Biol. 2010, 191, 875–890. [Google Scholar] [CrossRef]
  26. Anthony, T.E.; Klein, C.; Fishell, G.; Heintz, N. Radial Glia Serve as Neuronal Progenitors in All Regions of the Central Nervous System. Neuron 2004, 41, 881–890. [Google Scholar] [CrossRef] [PubMed]
  27. Lam, A.J.; St-Pierre, F.; Gong, Y.; Marshall, J.D.; Cranfill, P.J.; Baird, M.A.; McKeown, M.R.; Wiedenmann, J.; Davidson, M.W.; Schnitzer, M.J.; et al. Improving FRET Dynamic Range with Bright Green and Red Fluorescent Proteins. Nat. Methods 2012, 9, 1005–1012. [Google Scholar] [CrossRef] [PubMed]
  28. Bindels, D.S.; Haarbosch, L.; van Weeren, L.; Postma, M.; Wiese, K.E.; Mastop, M.; Aumonier, S.; Gotthard, G.; Royant, A.; Hink, M.A.; et al. MScarlet: A Bright Monomeric Red Fluorescent Protein for Cellular Imaging. Nat. Methods 2017, 14, 53–56. [Google Scholar] [CrossRef] [PubMed]
  29. Matsuda, T.; Miyawaki, A.; Nagai, T. Direct Measurement of Protein Dynamics inside Cells Using a Rationally Designed Photoconvertible Protein. Nat. Methods 2008, 5, 339–345. [Google Scholar] [CrossRef]
  30. Kawakami, K.; Asakawa, K.; Muto, A.; Wada, H. Chapter 2—Tol2-Mediated Transgenesis, Gene Trapping, Enhancer Trapping, and Gal4-UAS System. In The Zebrafish; Detrich, H.W., Westerfield, M., Zon, L.I., Eds.; Academic Press: Cambridge, MA, USA, 2016; Volume 135, pp. 19–37. ISBN 0091-679X. [Google Scholar]
  31. Kim, J.H.; Lee, S.-R.; Li, L.-H.; Park, H.-J.; Park, J.-H.; Lee, K.Y.; Kim, M.-K.; Shin, B.A.; Choi, S.-Y. High Cleavage Efficiency of a 2A Peptide Derived from Porcine Teschovirus-1 in Human Cell Lines, Zebrafish and Mice. PLoS ONE 2011, 6, e18556. [Google Scholar] [CrossRef]
  32. Russo, G.; Unkauf, T.; Meier, D.; Wenzel, E.V.; Langreder, N.; Schneider, K.-T.; Wiesner, R.; Bischoff, R.; Stadler, V.; Dübel, S. In Vitro Evolution of Myc-Tag Antibodies: In-Depth Specificity and Affinity Analysis of Myc1-9E10 and Hyper-Myc. Biol. Chem. 2022, 403, 479–494. [Google Scholar] [CrossRef]
  33. Rieger, S.; Senghaas, N.; Walch, A.; Köster, R.W. Cadherin-2 Controls Directional Chain Migration of Cerebellar Granule Neurons. PLOS Biol. 2009, 7, e1000240. [Google Scholar] [CrossRef]
  34. Li, S.; Yin, M.; Liu, S.; Chen, Y.; Yin, Y.; Liu, T.; Zhou, J. Expression of Ventral Diencephalon-Enriched Genes in Zebrafish. Dev. Dyn. 2010, 239, 3368–3379. [Google Scholar] [CrossRef]
  35. Guo, Z.; Wang, X.; Xiao, J.; Wang, Y.; Lu, H.; Teng, J.; Wang, W. Early Postnatal GFAP-Expressing Cells Produce Multilineage Progeny in Cerebrum and Astrocytes in Cerebellum of Adult Mice. Brain Res. 2013, 1532, 14–20. [Google Scholar] [CrossRef] [PubMed]
  36. Neely, S.A.; Lyons, D.A. Insights Into Central Nervous System Glial Cell Formation and Function From Zebrafish. Front. Cell Dev. Biol. 2021, 9, 754606. [Google Scholar] [CrossRef]
  37. McFarland, K.A.; Topczewska, J.M.; Weidinger, G.; Dorsky, R.I.; Appel, B. Hh and Wnt Signaling Regulate Formation of Olig2+ Neurons in the Zebrafish Cerebellum. Dev. Biol. 2008, 318, 162–171. [Google Scholar] [CrossRef]
  38. Prakash, N.; Wurst, W. Genetic Networks Controlling the Development of Midbrain Dopaminergic Neurons. J. Physiol. 2006, 575, 403–410. [Google Scholar] [CrossRef] [PubMed]
  39. Ahsan, M.; Riley, K.; Schubert, F.R. Molecular Mechanisms in the Formation of the Medial Longitudinal Fascicle. J. Anat. 2007, 211, 177–187. [Google Scholar] [CrossRef] [PubMed]
  40. Danesin, C.; Soula, C. Moving the Shh Source over Time: What Impact on Neural Cell Diversification in the Developing Spinal Cord? J. Dev. Biol. 2017, 5, 4. [Google Scholar] [CrossRef]
  41. Elsen, G.E.; Choi, L.Y.; Millen, K.J.; Grinblat, Y.; Prince, V.E. Zic1 and Zic4 Regulate Zebrafish Roof Plate Specification and Hindbrain Ventricle Morphogenesis. Dev. Biol. 2008, 314, 376–392. [Google Scholar] [CrossRef]
  42. Kani, S.; Bae, Y.-K.; Shimizu, T.; Tanabe, K.; Satou, C.; Parsons, M.J.; Scott, E.; Higashijima, S.; Hibi, M. Proneural Gene-Linked Neurogenesis in Zebrafish Cerebellum. Dev. Biol. 2010, 343, 1–17. [Google Scholar] [CrossRef]
  43. Kaslin, J.; Kroehne, V.; Benato, F.; Argenton, F.; Brand, M. Development and Specification of Cerebellar Stem and Progenitor Cells in Zebrafish: From Embryo to Adult. Neural Dev. 2013, 8, 9. [Google Scholar] [CrossRef]
  44. Pose-Méndez, S.; Schramm, P.; Winter, B.; Meier, J.C.; Ampatzis, K.; Köster, R.W. Lifelong Regeneration of Cerebellar Purkinje Cells after Induced Cell Ablation in Zebrafish. Elife 2023, 12, e79672. [Google Scholar] [CrossRef] [PubMed]
  45. Itoh, T.; Uehara, M.; Yura, S.; Wang, J.C.; Nakanishi, A.; Shimizu, T.; Hibi, M. Foxp- and Skor-Family Proteins Control Differentiation of Purkinje Cells from Ptf1a and Neurogenin1-Expressing Progenitors in Zebrafish. bioRxiv 2023, 2023.04.06.535843. [Google Scholar] [CrossRef]
  46. Xu, H.; Yang, Y.; Tang, X.; Zhao, M.; Liang, F.; Xu, P.; Hou, B.; Xing, Y.; Bao, X.; Fan, X. Bergmann Glia Function in Granule Cell Migration During Cerebellum Development. Mol. Neurobiol. 2013, 47, 833–844. [Google Scholar] [CrossRef] [PubMed]
  47. Lam, C.S.; März, M.; Strähle, U. Gfap and Nestin Reporter Lines Reveal Characteristics of Neural Progenitors in the Adult Zebrafish Brain. Dev. Dyn. 2009, 238, 475–486. [Google Scholar] [CrossRef] [PubMed]
  48. Park, H.-C.; Shin, J.; Roberts, R.K.; Appel, B. An Olig2 Reporter Gene Marks Oligodendrocyte Precursors in the Postembryonic Spinal Cord of Zebrafish. Dev. Dyn. 2007, 236, 3402–3407. [Google Scholar] [CrossRef] [PubMed]
  49. Kidwell, C.U.; Su, C.-Y.; Hibi, M.; Moens, C.B. Multiple Zebrafish Atoh1 Genes Specify a Diversity of Neuronal Types in the Zebrafish Cerebellum. Dev. Biol. 2018, 438, 44–56. [Google Scholar] [CrossRef] [PubMed]
  50. Buffo, A.; Rossi, F. Origin, Lineage and Function of Cerebellar Glia. Prog. Neurobiol. 2013, 109, 42–63. [Google Scholar] [CrossRef] [PubMed]
  51. Elsaey, M.A.; Namikawa, K.; Köster, R.W. Genetic Modeling of the Neurodegenerative Disease Spinocerebellar Ataxia Type 1 in Zebrafish. Int. J. Mol. Sci. 2021, 22, 7351. [Google Scholar] [CrossRef] [PubMed]
  52. Namikawa, K.; Dorigo, A.; Zagrebelsky, M.; Russo, G.; Kirmann, T.; Fahr, W.; Dübel, S.; Korte, M.; Köster, R.W. Modeling Neurodegenerative Spinocerebellar Ataxia Type 13 in Zebrafish Using a Purkinje Neuron Specific Tunable Coexpression System. J. Neurosci. 2019, 39, 3948–3969. [Google Scholar] [CrossRef]
  53. Kroehne, V.; Freudenreich, D.; Hans, S.; Kaslin, J.; Brand, M. Regeneration of the Adult Zebrafish Brain from Neurogenic Radial Glia-Type Progenitors. Development 2011, 138, 4831–4841. [Google Scholar] [CrossRef]
  54. Hentig, J.; Cloghessy, K.; Lahne, M.; Jung, Y.J.; Petersen, R.A.; Morris, A.C.; Hyde, D.R. Zebrafish Blunt-Force TBI Induces Heterogenous Injury Pathologies That Mimic Human TBI and Responds with Sonic Hedgehog-Dependent Cell Proliferation across the Neuroaxis. Biomedicines 2021, 9, 861. [Google Scholar] [CrossRef] [PubMed]
  55. Zupanc, G.K.H.; Hinsch, K.; Gage, F.H. Proliferation, Migration, Neuronal Differentiation, and Long-Term Survival of New Cells in the Adult Zebrafish Brain. J. Comp. Neurol. 2005, 488, 290–319. [Google Scholar] [CrossRef] [PubMed]
  56. Genade, T.; Benedetti, M.; Terzibasi, E.; Roncaglia, P.; Valenzano, D.R.; Cattaneo, A.; Cellerino, A. Annual Fishes of the Genus Nothobranchius as a Model System for Aging Research. Aging Cell 2005, 4, 223–233. [Google Scholar] [CrossRef] [PubMed]
  57. Britz, R.; Conway, K.W.; Rüber, L. The Emerging Vertebrate Model Species for Neurophysiological Studies Is Danionella Cerebrum, New Species (Teleostei: Cyprinidae). Sci. Rep. 2021, 11, 18942. [Google Scholar] [CrossRef] [PubMed]
  58. Hartmann, N.; Englert, C. A Microinjection Protocol for the Generation of Transgenic Killifish (Species: Nothobranchius furzeri). Dev. Dyn. 2012, 241, 1133–1141. [Google Scholar] [CrossRef] [PubMed]
  59. Poeschla, M.; Valenzano, D.R. The Turquoise Killifish: A Genetically Tractable Model for the Study of Aging. J. Exp. Biol. 2020, 223, jeb209296. [Google Scholar] [CrossRef] [PubMed]
  60. Schulze, L.; Henninger, J.; Kadobianskyi, M.; Chaigne, T.; Faustino, A.I.; Hakiy, N.; Albadri, S.; Schuelke, M.; Maler, L.; Del Bene, F.; et al. Transparent Danionella Translucida as a Genetically Tractable Vertebrate Brain Model. Nat. Methods 2018, 15, 977–983. [Google Scholar] [CrossRef] [PubMed]
  61. Lam, P.-Y. Longitudinal in Vivo Imaging of Adult Danionella Cerebrum Using Standard Confocal Microscopy. Dis. Model. Mech. 2022, 15, dmm049753. [Google Scholar] [CrossRef]
  62. Platzer, M.; Englert, C. Nothobranchius Furzeri: A Model for Aging Research and More. Trends Genet. 2016, 32, 543–552. [Google Scholar] [CrossRef]
Figure 1. Transgenic zebrafish reporter lines at two and five days post-fertilization (dpf) expressing fluorescent reporter proteins under control of a mouse Fatty acid binding protein 7 (Fabp7) regulatory element. (A) Schematic representation of the constructs from the transgenic reporter lines [Tg(Fabp7:mScarlet), Tg(Fabp7:mClover), and Tg(Fabp7:mseCFP)]. (B,C) Detail pictures of the double transgenic larvae Tg(Fabp7:mScarlet) × Tg(Fabp7:mClover) and Tg(Fabp7:mScarlet) × Tg(Fabp7:mseCFP), showing mScarlet and mClover expression in the cytoplasm (B,C), and mseCFP expression in the nucleus and cell membrane (C). (DM) Representative overview (D,H,IM) and detail (EG,H’H’’’) images showing the Fabp7-regulatory element mediated fluorescent protein expression pattern throughout the whole central nervous system from dorsal (EG), lateral (M), and transverse view (H’H’’’). Arrows point to double positive cells. Rostral is to the left. Abbreviations: Fabp7 Fatty acid binding protein 7 regulatory element, Tel telencephalon, Ha habenula, Cb cerebellum, HB hindbrain, MB midbrain, OT optic tectum, Rh rhombencephalon, Spc spinal cord.
Figure 1. Transgenic zebrafish reporter lines at two and five days post-fertilization (dpf) expressing fluorescent reporter proteins under control of a mouse Fatty acid binding protein 7 (Fabp7) regulatory element. (A) Schematic representation of the constructs from the transgenic reporter lines [Tg(Fabp7:mScarlet), Tg(Fabp7:mClover), and Tg(Fabp7:mseCFP)]. (B,C) Detail pictures of the double transgenic larvae Tg(Fabp7:mScarlet) × Tg(Fabp7:mClover) and Tg(Fabp7:mScarlet) × Tg(Fabp7:mseCFP), showing mScarlet and mClover expression in the cytoplasm (B,C), and mseCFP expression in the nucleus and cell membrane (C). (DM) Representative overview (D,H,IM) and detail (EG,H’H’’’) images showing the Fabp7-regulatory element mediated fluorescent protein expression pattern throughout the whole central nervous system from dorsal (EG), lateral (M), and transverse view (H’H’’’). Arrows point to double positive cells. Rostral is to the left. Abbreviations: Fabp7 Fatty acid binding protein 7 regulatory element, Tel telencephalon, Ha habenula, Cb cerebellum, HB hindbrain, MB midbrain, OT optic tectum, Rh rhombencephalon, Spc spinal cord.
Cells 13 01138 g001
Figure 2. Double transgenic Fabp7 enhancer-mediated reporters in zebrafish larvae at 5 dpf. (AC) Representative images of Tg(Fabp7:mScarlet) × Tg(Fabp7:mClover) double transgenic larvae showing the colocalization of both fluorescent proteins in the majority of cells. (DG) Representative images (DF) and quantitative analysis of double positive cells (G) in the Tg(Fabp7:mScarlet) × Tg(Fabp7:mseCFP) double transgenic larvae showing the colocalization of both fluorescent proteins in the majority of cells (average number and percentage of cells, corresponding to the quantification indicated in the graphs, are detailed in Supplementary Table S1). Arrows point to double positive cells. Dotted box indicates the area corresponding to detail picture (solid box) included in the figure. Rostral is to the left. Statistical method: Kruskal–Wallis multiple comparison test for nonparametric data was applied. Abbreviations: Cb cerebellum, ns no significant differences, Rh rhombencephalon, Spc spinal cord, Tel telencephalon.
Figure 2. Double transgenic Fabp7 enhancer-mediated reporters in zebrafish larvae at 5 dpf. (AC) Representative images of Tg(Fabp7:mScarlet) × Tg(Fabp7:mClover) double transgenic larvae showing the colocalization of both fluorescent proteins in the majority of cells. (DG) Representative images (DF) and quantitative analysis of double positive cells (G) in the Tg(Fabp7:mScarlet) × Tg(Fabp7:mseCFP) double transgenic larvae showing the colocalization of both fluorescent proteins in the majority of cells (average number and percentage of cells, corresponding to the quantification indicated in the graphs, are detailed in Supplementary Table S1). Arrows point to double positive cells. Dotted box indicates the area corresponding to detail picture (solid box) included in the figure. Rostral is to the left. Statistical method: Kruskal–Wallis multiple comparison test for nonparametric data was applied. Abbreviations: Cb cerebellum, ns no significant differences, Rh rhombencephalon, Spc spinal cord, Tel telencephalon.
Cells 13 01138 g002
Figure 3. Comparison of the Fabp7 enhancer-mediated reporter expression to anti-Fabp7 immunohistochemistry and radial glia expression in transgenic gfap enhancer-mediated reporter zebrafish larvae at 5 dpf. (AE) Pictures (AD) and quantitative analysis (E) of reporter protein expression in the transgenic line Tg(Fabp7:mScarlet) and the antibody anti-Fabp7. (FI) Pictures (FH) and quantitative analysis of double positive cells (I) in the double transgenic larvae Tg(Fabp7:mScarlet) × Tg(gfap:GFP) (average number and percentage of cells, corresponding to the quantification indicated in the graphs, are detailed in Supplementary Table S1). Arrows point to double positive cells. Dotted box indicates the area corresponding to detail pictures (solid box) included in the figures. Rostral is to the left. Statistical method: Ordinary one-way ANOVA, Sidák’s (E, for parametric or normal distribution data), and Kruskal–Wallis (I, for nonparametric data) multiple comparison tests were applied, level of significance: p < 0.001 (***). Abbreviations: Cb cerebellum, Ha habenula, ns no significant differences, OT optic tectum, Spc spinal cord, Tel telencephalon.
Figure 3. Comparison of the Fabp7 enhancer-mediated reporter expression to anti-Fabp7 immunohistochemistry and radial glia expression in transgenic gfap enhancer-mediated reporter zebrafish larvae at 5 dpf. (AE) Pictures (AD) and quantitative analysis (E) of reporter protein expression in the transgenic line Tg(Fabp7:mScarlet) and the antibody anti-Fabp7. (FI) Pictures (FH) and quantitative analysis of double positive cells (I) in the double transgenic larvae Tg(Fabp7:mScarlet) × Tg(gfap:GFP) (average number and percentage of cells, corresponding to the quantification indicated in the graphs, are detailed in Supplementary Table S1). Arrows point to double positive cells. Dotted box indicates the area corresponding to detail pictures (solid box) included in the figures. Rostral is to the left. Statistical method: Ordinary one-way ANOVA, Sidák’s (E, for parametric or normal distribution data), and Kruskal–Wallis (I, for nonparametric data) multiple comparison tests were applied, level of significance: p < 0.001 (***). Abbreviations: Cb cerebellum, Ha habenula, ns no significant differences, OT optic tectum, Spc spinal cord, Tel telencephalon.
Cells 13 01138 g003
Figure 4. Comparison of the Fabp7 enhancer-regulated reporter expression to transgenic olig2 and nkx2.2 oligodendrocyte zebrafish reporter strains at 5 dpf. (AC,L) Pictures (AC) and quantitative analysis (L) of the double transgenic larvae Tg(Fabp7:mScarlet) × Tg(olig2:GFP). (DK,M) Pictures (DK) and quantitative analysis of double positive cells (M) in the double transgenic larvae Tg(Fabp7:mScarlet) × Tg(nkx2.2:GFP) (H,I) (average number and percentage of cells, corresponding to the quantification indicated in the graphs, are detailed in Supplementary Table S1). Arrows point to double positive cells. Dotted box indicates the area corresponding to detail picture (solid box) included in the figure. Rostral is to the left. Statistical method: ANOVA test for multiple group comparison (ordinary one-way ANOVA followed by Šidák’s multiple comparisons test for parametric or normal distribution data (M) or Kruskal–Wallis (L) for nonparametric data), level of significance: p < 0.05 (*), p < 0.001 (***), p < 0.0001 (****). Abbreviations: Cb cerebellum, Ha habenula, Mes mesencephalon, ns no significant differences, OT optic tectum, Rh rhombencephalon, Spc spinal cord, Tel telencephalon.
Figure 4. Comparison of the Fabp7 enhancer-regulated reporter expression to transgenic olig2 and nkx2.2 oligodendrocyte zebrafish reporter strains at 5 dpf. (AC,L) Pictures (AC) and quantitative analysis (L) of the double transgenic larvae Tg(Fabp7:mScarlet) × Tg(olig2:GFP). (DK,M) Pictures (DK) and quantitative analysis of double positive cells (M) in the double transgenic larvae Tg(Fabp7:mScarlet) × Tg(nkx2.2:GFP) (H,I) (average number and percentage of cells, corresponding to the quantification indicated in the graphs, are detailed in Supplementary Table S1). Arrows point to double positive cells. Dotted box indicates the area corresponding to detail picture (solid box) included in the figure. Rostral is to the left. Statistical method: ANOVA test for multiple group comparison (ordinary one-way ANOVA followed by Šidák’s multiple comparisons test for parametric or normal distribution data (M) or Kruskal–Wallis (L) for nonparametric data), level of significance: p < 0.05 (*), p < 0.001 (***), p < 0.0001 (****). Abbreviations: Cb cerebellum, Ha habenula, Mes mesencephalon, ns no significant differences, OT optic tectum, Rh rhombencephalon, Spc spinal cord, Tel telencephalon.
Cells 13 01138 g004
Figure 5. Comparison of the Fabp7 reporter expression to transgenic XIa.Tubb pan-neuronal zebrafish reporter strain at 5 dpf. (AD) Pictures (AC) and quantitative analysis of double positive cells (D) in the double transgenic larvae Tg(Fabp7:mseCFP) × Tg(XIa.Tubb:DsRed) (average number and percentage of cells, corresponding to the quantification indicated in the graph, are detailed in Supplementary Table S1). Arrows point to double positive cells. Dotted box indicates the area corresponding to detail pictures (solid box) included in the figures. Rostral is to the left. Statistical method: Ordinary one-way ANOVA, Kruskal–Wallis multiple comparison test for nonparametric data was applied, level of significance: p < 0.001 (***). Abbreviations: Cb cerebellum, Ha habenula, ns no significant differences, Rh rhombencephalon, Spc spinal cord, Tel telencephalon.
Figure 5. Comparison of the Fabp7 reporter expression to transgenic XIa.Tubb pan-neuronal zebrafish reporter strain at 5 dpf. (AD) Pictures (AC) and quantitative analysis of double positive cells (D) in the double transgenic larvae Tg(Fabp7:mseCFP) × Tg(XIa.Tubb:DsRed) (average number and percentage of cells, corresponding to the quantification indicated in the graph, are detailed in Supplementary Table S1). Arrows point to double positive cells. Dotted box indicates the area corresponding to detail pictures (solid box) included in the figures. Rostral is to the left. Statistical method: Ordinary one-way ANOVA, Kruskal–Wallis multiple comparison test for nonparametric data was applied, level of significance: p < 0.001 (***). Abbreviations: Cb cerebellum, Ha habenula, ns no significant differences, Rh rhombencephalon, Spc spinal cord, Tel telencephalon.
Cells 13 01138 g005
Figure 6. Zebrafish Bergmann glia in the cerebellum are derived from ptf1a enhancer-mediated fluorescent reporter expressing neural progenitor cells of the cerebellar ventricular zone. Colocalization of Fabp7 enhancer-mediated reporter expressing cells with progenitor cells in zebrafish larvae at 5 dpf. (AG) Pictures (AF) and quantitative analysis of double positive cells (G) in double transgenic larvae Tg(Fabp7:mseCFP) × Tg(zic4:mCherry). (H,I) Pictures (H) and quantitative analysis of double positive cells (I) in double transgenic larvae Tg(Fabp7:mScarlet) × Tg(ptf1a:GFP). (J,K) Pictures (J) and quantitative analysis of double positive cells (K) in double transgenic larvae Tg(Fabp7:mScarlet) × Tg(atoh1a:GFP). Arrows point to double positive cells. Rostral is to the left. The average number and percentage of cells, corresponding to the quantification indicated in the graphs, are detailed in Supplementary Table S1. Statistical method: Ordinary one-way ANOVA, Sidák’s multiple comparison test for parametric, or normal distribution data were applied, level of significance: p < 0.0001 (****). Abbreviations: Cb cerebellum, Spc spinal cord, Tel telencephalon.
Figure 6. Zebrafish Bergmann glia in the cerebellum are derived from ptf1a enhancer-mediated fluorescent reporter expressing neural progenitor cells of the cerebellar ventricular zone. Colocalization of Fabp7 enhancer-mediated reporter expressing cells with progenitor cells in zebrafish larvae at 5 dpf. (AG) Pictures (AF) and quantitative analysis of double positive cells (G) in double transgenic larvae Tg(Fabp7:mseCFP) × Tg(zic4:mCherry). (H,I) Pictures (H) and quantitative analysis of double positive cells (I) in double transgenic larvae Tg(Fabp7:mScarlet) × Tg(ptf1a:GFP). (J,K) Pictures (J) and quantitative analysis of double positive cells (K) in double transgenic larvae Tg(Fabp7:mScarlet) × Tg(atoh1a:GFP). Arrows point to double positive cells. Rostral is to the left. The average number and percentage of cells, corresponding to the quantification indicated in the graphs, are detailed in Supplementary Table S1. Statistical method: Ordinary one-way ANOVA, Sidák’s multiple comparison test for parametric, or normal distribution data were applied, level of significance: p < 0.0001 (****). Abbreviations: Cb cerebellum, Spc spinal cord, Tel telencephalon.
Cells 13 01138 g006

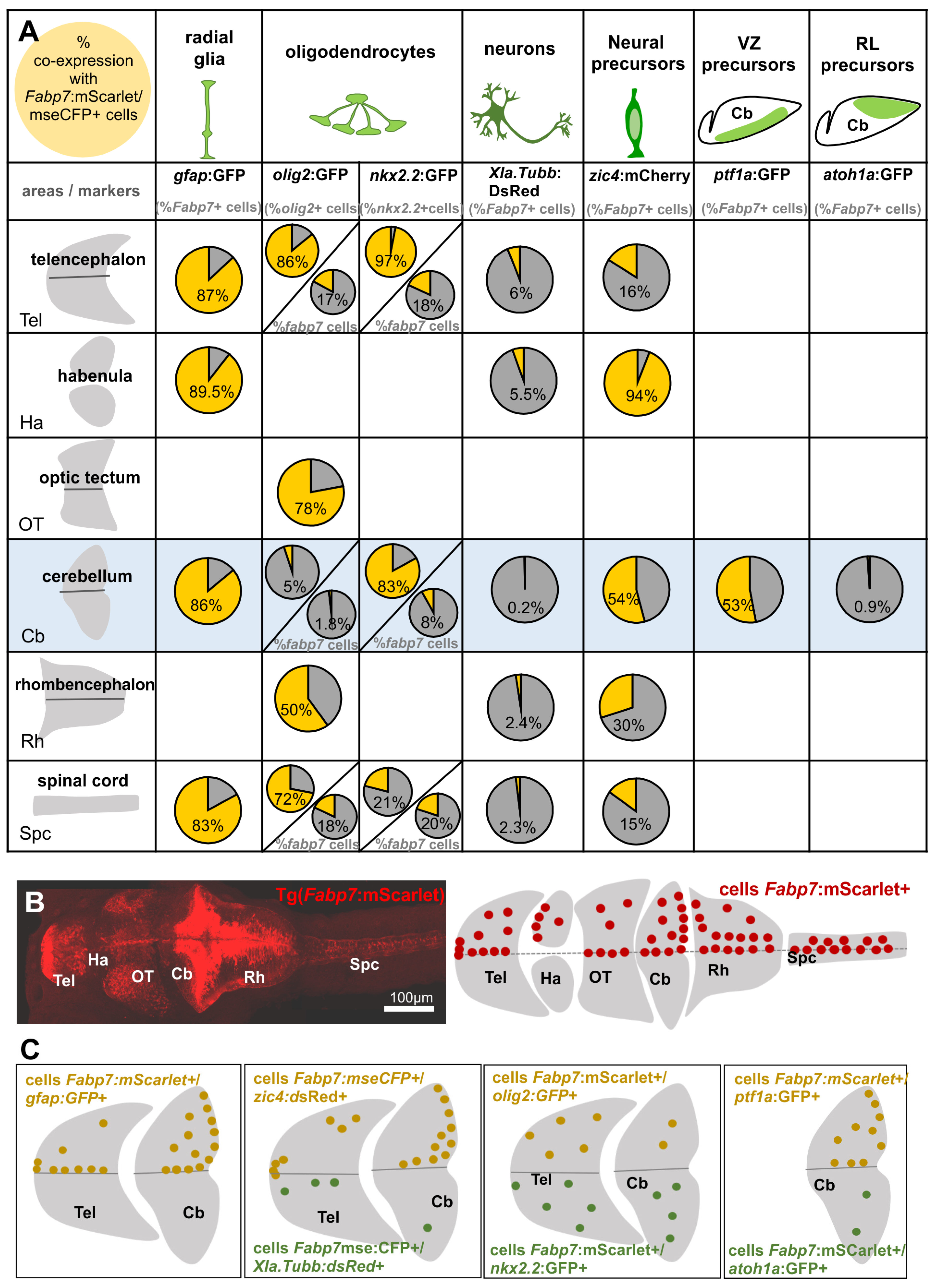

Figure 7. Schematic summary of the percentage and distribution of cells with fluorescent reporter protein expression mediated by the mouse Fabp7 regulatory element with cells co-expressing other cell markers in different main areas of the brain and spinal cord. (A) Average of the percentage of double positive cells expressing Fabp7 enhancer-controlled fluorescent protein expression and other glial (gfap, olig2, nkx2.2), neuronal (Xla.Tubb) cell, and cell precursor (zic4, ptf1a, atoh1a) markers. In the case of oligodendrocyte markers, in addition to the percentage of Fabp7 enhancer-mediated fluorescent protein-expressing cells colabeled with olig2 and nkx2.2 enhancer-mediated fluorescent protein expression (lower chart), percentage of olig2 and nkx2.2 enhancer-mediated fluorescent protein-expressing cells colabeled with Fabp7 enhancer-mediated fluorescent protein expression is also indicated (in order to show the ratio of oligodendrocytes derived from Fabp7 expressing cells, upper chart). (B) Overview picture and schematic drawing of the distribution of Fabp7 regulatory element expressing cells. (C) Schematic drawing of the distribution of cells double positive for Fabp7 enhancer-controlled fluorescent protein expression and other specific cell markers in the telencephalon and cerebellum. Rostral is to the left. Abbreviations: Fabp7 fatty acid binding protein regulatory element 7, Cb cerebellum, Ha habenula, OT optic tectum, Rh rhombencephalon, RL rhombic lip, Spc spinal cord, Tel telencephalon, VZ ventricular zone.
Figure 7. Schematic summary of the percentage and distribution of cells with fluorescent reporter protein expression mediated by the mouse Fabp7 regulatory element with cells co-expressing other cell markers in different main areas of the brain and spinal cord. (A) Average of the percentage of double positive cells expressing Fabp7 enhancer-controlled fluorescent protein expression and other glial (gfap, olig2, nkx2.2), neuronal (Xla.Tubb) cell, and cell precursor (zic4, ptf1a, atoh1a) markers. In the case of oligodendrocyte markers, in addition to the percentage of Fabp7 enhancer-mediated fluorescent protein-expressing cells colabeled with olig2 and nkx2.2 enhancer-mediated fluorescent protein expression (lower chart), percentage of olig2 and nkx2.2 enhancer-mediated fluorescent protein-expressing cells colabeled with Fabp7 enhancer-mediated fluorescent protein expression is also indicated (in order to show the ratio of oligodendrocytes derived from Fabp7 expressing cells, upper chart). (B) Overview picture and schematic drawing of the distribution of Fabp7 regulatory element expressing cells. (C) Schematic drawing of the distribution of cells double positive for Fabp7 enhancer-controlled fluorescent protein expression and other specific cell markers in the telencephalon and cerebellum. Rostral is to the left. Abbreviations: Fabp7 fatty acid binding protein regulatory element 7, Cb cerebellum, Ha habenula, OT optic tectum, Rh rhombencephalon, RL rhombic lip, Spc spinal cord, Tel telencephalon, VZ ventricular zone.
Cells 13 01138 g007
