Review

Radiologic Assessment of Osteosarcoma Lung Metastases: State of the Art and Recent Advances

by
Anna Maria Chiesa
*,
Paolo Spinnato
,
Marco Miceli
and
Giancarlo Facchini
Diagnostic and Interventional Radiology Unit, IRCCS Istituto Ortopedico Rizzoli, 40136 Bologna, Italy
*
Author to whom correspondence should be addressed.
Cells 2021, 10(3), 553; https://doi.org/10.3390/cells10030553
Submission received: 28 January 2021 / Revised: 28 February 2021 / Accepted: 2 March 2021 / Published: 4 March 2021
(This article belongs to the Special Issue Research Advances and Therapy of Human Osteosarcoma)
Browse Figures
Review Reports Versions Notes

Abstract

:
The lung is the most frequent site of osteosarcoma (OS) metastases, which are a critical point in defining a patient’s prognosis. Chest computed tomography (CT) represents the gold standard for the detection of lung metastases even if its sensitivity widely ranges in the literature since lung localizations are often atypical. ESMO guidelines represent one of the major references for the follow-up program of OS patients. The development of new reconstruction techniques, such as the iterative method and the deep learning-based image reconstruction (DLIR), has led to a significant reduction of the radiation dose with the low-dose CT. The improvement of these techniques has great importance considering the young-onset of the disease and the strict chest surveillance during follow-up programs. The use of 18F-fluorodeoxyglucose (FDG) positron emission tomography (PET)/CT is still controversial, while volume doubling time (VDT) and computer-aided diagnosis (CAD) systems are recent diagnostic tools that could support radiologists for lung nodules evaluation. Their use, well-established for other malignancies, needs to be further evaluated, focusing on OS patients.

1. Introduction

Osteosarcoma (OS) is the most common primary malignant bone tumor. OS incidence follows a bimodal age distribution with two dominant peaks involving senior adults and adolescents: it is estimated that every year approximately 400 children and adolescents receive an OS diagnosis in the United States [1].
The lung is the most frequent metastatic site of high-grade OS followed by other skeletal sites, while low-grade OS rarely metastasizes. Thus, detection of lung metastases at the first evaluation is crucial in defining patients’ prognosis and treatment.
Plain radiography has been for decades the only available tool along the diagnostic pathway. Since 1980, with the advent of cross-sectional imaging, several advancements have been made in CT technology with an improvement of diagnostic performance and dose reduction. Consequently, CT has completely replaced plain radiography offering an accurate and reliable evaluation of the lung in these patients.

2. Epidemiology and Risk Factors

According to previous studies, 15 to 20% of patients have detectable metastases at the time of diagnosis and the majority of them present lung as a single metastatic site [2,3].
Even if the addition of adjuvant and neoadjuvant chemotherapy to surgery significantly improved the overall survival, this still remains strictly related to the presence of lung metastases at diagnosis: if patients with localized OS could achieve 60–70% 5-year survival rate, this falls down to 10–30% in case of metastatic disease [4]. Furthermore, patients with lung metastases at diagnosis have a major risk of recurrence [5].
According to current literature, axial OS with a tumor diameter larger than 5 cm is related to a higher risk of lung metastasis at the time of diagnosis [6], while age and primary tumor location are not risk factors for disease dissemination [7,8,9,10].
With regard to histologic subtypes, a recent large population study, including more than 1000 patients, showed that osteosarcoma’s grade in Paget’s disease of bone and small cell osteosarcoma were correlated to a greater risk for lung dissemination [11]. Osteosarcoma patients with higher-grade tumors, cytoplasmatic HER-2 expression [12], monocyte ratio > 1 and neutrophil/lymphocyte ratio (NLR) > 1 was also more likely to metastasize [13].
Interestingly, a meta-analysis published in 2017 highlighted also that clinical presentation with pathologic fractures had been shown to potentially increase the risk of subsequent metastases [14], even if this finding needs to be further confirmed.

3. Imaging Evaluation

3.1. Typical and Atypical Manifestation of Lung Metastases

The typical radiologic appearance of lung metastases includes multiple round nodules of variable size, peripherally located and diffuse interstitial thickening. However, in daily practice, it is not unusual to visualize lung metastases with atypical radiologic features. This represents a challenge in the differential diagnosis with other benign pulmonary diseases.
According to Seo et al., the CT appearance of lung metastases is extremely heterogeneous and can be visualized as calcification, hemorrhage’s halo around nodules, cavitation, pneumothorax, tumor embolism, endobronchial localization, a solitary mass, dilated vessels within a mass and sterilized metastasis [15]. Usually, the detection of calcification within a lung nodule is a typical finding of benign lesions (granuloma or hamartoma) [16], but calcification or ossification can also occur in metastatic nodules from osteosarcoma or chondrosarcoma. Based on radiological findings, to date, no algorithm has been identified that is able to make a differential diagnosis between benign and malignant pulmonary nodules [17].
Changes in size or morphology during chemotherapy are usually considered a factor that predicts a metastatic origin. However, Picci et al., in a retrospective study, have demonstrated that both malignant and benign nodules could change in number and size during chemotherapy and none of the radiological criteria considered was reliable enough to predict or exclude metastatic origin in patients affected by OS [18]. Another study showed that calcified nodules or nodules greater than 5 mm were more frequently malignant [16]. Dudeck et al. suggested that malignant lesions were usually solid and rounded, while benign findings showed ground-glass density and complex shape [19]. Conversely, a study conducted in a pediatric population reported that almost 32% of lung metastases were not classically solid, rounded with a well-defined margin [20].
A retrospective analysis of Ciccarese et al. comparing CT findings and pathology reports of resected nodules demonstrated that about 14% of OS metastases were not nodular and could appear as striae, consolidations, pleural nodules, plaques or masses, cavitated lesions and ground-glass opacities. Authors highlighted striae as a possible source of pitfall since they could be wrongly interpreted as areas of atelectasis or fibrosis [21]. Spontaneous pneumothorax in patients with a known history of OS can also be the first sign of pulmonary localization. [22]
Another radiological challenge is represented by CT surveillance after metastasectomy due to scars and staple lines. In these patients, it is particularly difficult to discriminate between postoperative sequelae and recurrence: a focal pleural thickening still remains the most reliable sign [23].
In conclusion, CT can provide some essential hints about an abnormal finding, but none of the previously mentioned represent a certain criterion to predict the definitive nature of a lung nodule.

3.2. Plain Radiography

It is well known that a chest CT is superior to a chest X-ray for the detection of pulmonary nodules. Nevertheless, CT is burdened by more consistent radiation exposure (especially in children and young patients) and higher costs [24,25], and it is still debated if the prognosis of OS patients could be influenced by the use of CT for the follow-up. Furthermore, chest CT has a higher number of false-positive findings compared to chest X-ray [26,27,28] and is still limited by the intrinsic inability to make a reliable diagnosis on small lesions (malignant vs. benign) [29,30].
Even if some studies still promote the routine use of chest X-rays during the follow-up after treatment (chemotherapy and/or surgery) [31] and some others suggest limited use of chest CTs only for few definite conditions (high neoplastic grade, the bigger size of the primary lesion and for specific subtypes [29,30]), a recent article has widely demonstrated that a follow-up performed with a chest CT compared to a chest X-ray is definitely better and effective. Paioli and colleagues showed that a chest CT follow-up was associated with a higher rate of second complete remission and better prognosis up to 5 years, thanks to the early diagnosis of recurrence and a consequently effective and timely surgery [32].
However, the chest plain radiograph still plays a role in early postoperative evaluation after metastasectomy for detection of complications like pneumothorax or pleural effusion [33].

3.3. CT and Low Dose CT

The most important goal during the follow-up in patients with OS is early detection of metastases in order to make surgery always possible [34]. The chest CT represents the cornerstone in the detection of lung metastases, both in adults and pediatric patients, as also suggested by the Children’s Oncology Group (COG) [35]. Even if the CT is the most sensitive method for the detection of lung metastases, its sensitivity widely ranges in the literature (from 56 to 84%) [36], and its accuracy needs to be further improved given the fact that almost 15% of lung lesions are atypical [21].
Surgeons still proclaim the supremacy of manual lung inspection during open thoracotomy compared to preoperative CT since it could fail in the identification of all metastases in more than one-third of patients. These results have not significantly changed during the last two decades. Thus, they are independent of the total number of lesions or from CT slice thickness [37].
Considering the fact that the risk of lung metastases falls sharply at five years after the end of chemotherapy, usually, follow-up in OS patients includes repeated chest CT scans in this period of time [32].
Ordinarily, the standard CT protocol does not include the use of intravenous contrast medium unless there are involvement of the chest wall, hilar or mediastinal structures [35].
In a recent review, Detterbeck et al. suggested that an appropriate protocol in patients with suspected pulmonary metastases should be performed with a spiral CT scan with 3–5 mm reconstruction thickness during a single breath-hold and suggested to review images as maximum intensity projection (MIP) in order to increase nodules detection [38]. The reduction of the slice thickness implicates an increase in the detection of pulmonary nodules < 5 mm [39], but at the same time, it is also related to an increase of false-positives, especially in adults.
The topic of radiation exposure has generated considerable attention in both the general population and the medical community since Brenner et al. in 2001 published an article in which concerns were raised about the use of repeated CTs in children as a possible cause of radiation-induced malignancies [40].
A recent study has calculated that the average total radiation dose for a pediatric patient with sarcoma was about 37.1 mGy (equivalent to the lifetime dose of nuclear power plant workers), considering the total number of ionizing radiation scans during and after the end of chemotherapy, including chest radiographs, chest CTs, positron emission tomography and bone scans [41].
Given the longer life expectancy and the higher susceptibility to carcinogenic effects of ionizing radiation, the problem of cumulative dose represents a crucial issue for pediatric patients [42,43].
Significant progress in terms of dose reduction has been obtained thanks to the improvement of the CT image reconstruction techniques. The iterative reconstruction method represented by adaptive statistical iterative reconstruction (ASIR-GE Healthcare, Waukesha, WI, USA) AIDR 3D (Toshiba Medical Systems, Otawara, Japan), iDose, iDose4 (Philips Healthcare, Cleveland, OH, USA), and IRISTM and SAFIRETM (Siemens Healthcare, Forchheim, Germany) has overcome the traditional method of filtered back projection (FBP). The iterative reconstruction method has a higher image quality with a decreased noise (in particular in volume-rendered images with the result of enhanced low-contrast lesions) and ultimately provides a significant dose-reduction (40–50%) [44,45,46].
“Veo” (Figure 1) is the commercial name of a full iterative reconstruction model-based (MBIR) algorithm introduced by GE Healthcare, which has already shown a significant decrease in radiation dose in the pediatric population [47]. A recent study by Kim specifically evaluated the impact of MBIR on pediatric patients. Despite the exiguous number of patients affected by lung metastases (29/57), the authors were able to demonstrate that an ultra-low–dose chest CT can be achieved using MBIR without image quality worsening, allowing a significant dose-reduction [48].
However, several studies have documented that all iterative reconstruction methods show an “oversmoothing” appearance of images due to aggressive noise-reduction that could influence the interpretation of imaging findings [49,50,51].
The use of deep learning-based image reconstruction (DLIR) methods using deep convolutional neural networks has been proposed to reinforce dose-reduction with no decrease in image quality and diagnostic performance of CT scans [52]. A recent study has demonstrated that DLIR significantly reduces the image noise in chest scan images maintaining superior image quality compared to iterative reconstruction [53].
Considering the huge number of chest CT scans recommended by follow-up programs and the young-onset of OS, the improvement of low-dose techniques is extremely important, and further research is needed.

3.3.1. Follow-Up and CT Evaluation

The aim of OS surveillance programs is to identify a recurrence when complete resection of all the known localizations is still feasible. In fact, the treatment of recurrent OS is the complete resections of all pulmonary metastases, even in case of subsequent recurrences [54,55].
Because of the absence of any formal prospective study focused on follow-up, an evidence-based program is still lacking. However, in 2018 ESMO (European SOCIETY for Medical Oncology), in partnership with the European Reference Network for Rare Adult Solid Cancers (EURACAN) and the European Reference Network for Pediatric Oncology (PedCan), proposed comprehensive guidelines on clinical practice for bone sarcomas [56]. This document stresses the importance of strict surveillance within the first 4–5 years from the onset of the disease, with particular attention on the chest and the primary tumor site. In particular, when chemotherapy is concluded, a CT follow-up program for chest is recommended as follows: approximately every 3 months for the first 2 years, every 6 months for years 3–5, every 6–12 months for years 5–10, and thereafter every 0.5–2 years depending on local practice. It is also strongly recommended to perform low-dose chest CT, in particular in younger patients [56].
The improvement of CT technologies has increased the detection of <5 mm nodules of uncertain clinical significance, which could represent transient benign findings (such as infections) or simply different degrees of sensitivity between scanners and radiologists.
According to Cipriano et al., no significant differences have been observed in the outcome of patients without pulmonary nodules compared to those with a single nodule < 5 mm. Moreover, the number of pulmonary nodules detected on thin-slice CT scans performed at the onset of the disease may have a greater prognostic significance than their size [57]. This point supports the definition of metastatic disease of the Children’s Oncology Group (COG), which is defined by a single nodule > 10 mm or more than 3 nodules > 5 mm.

3.3.2. Volume Doubling Time (VDT)

Although RECIST criteria are still based on a diameter assessment of lung cancer, volumetric evaluation demonstrated several notable advantages, especially in terms of overall survival [58].
Volumetric assessment of solid lung nodules (Figure 2), using semi-automatically measured volume and volume-doubling time (VDT), showed to be superior to the classical diameter-based assessment of lesions [59]; its use is now strongly recommended for the purpose of lung cancer screening [60]. In the same way, VDT showed to be an accurate and reproducible method to evaluate and quantify lung metastases growth in patients with sarcoma [61]. VDT offers essential prognostic information: patients with shorter sarcoma lung metastases VDT have the worst sarcoma-specific survival compared with patients with longer VDT [61]. Further research, focused on the application of VDT on osteosarcoma lung metastases, is needed to assess the specific role of this instrument.

3.3.3. Computer-Aided Diagnosis (CAD)

Recently, computer-aided diagnosis (CAD) systems have become an essential part of the detection of lung cancer on CT images in many screening programs [62]. For each patient, thousands of images are acquired, and it is extremely hard for a single physician to analyze all of them in detail [63]. Furthermore, human analysis is limited because of its subjective nature, in particular when comparing nodules pattern [64]. Conversely, computers/artificial intelligence can accomplish a specific procedure with high precision, often in a shorter time. Previous studies have also demonstrated that CAD systems are able to find lesions that are missed by multiple readers (Figure 3) [65,66]. The recent growing interest in CAD systems can lead to an improvement in CT image analysis and small nodules detection with a reduction of the diagnostic time [67,68]. For lung cancer has been reported that CAD might be used as an effective second reader, which could detect up to 70% of the nodules missed by radiologists [69]. In the same way, the application of CAD systems to OS patients could represent an effective tool that may help radiologists in this hard evaluation and should be deeply explored.

3.4. Positron Emission Tomography (PET)-CT

The role of PET/CT with 18F-fluorodeoxyglucose (FDG) in the management of osteosarcoma, such as in other pediatric sarcomas, is still controversial [70]. The application of this method during the disease staging is limited because of the resolution that does not allow the detection and characterization of small nodules (<5–6 mm in diameter) [71]. This limit makes CT alone still the ideal imaging study for the detection of lung nodules. Nevertheless, PET-CT has an established role in the detection of bone metastases with higher sensitivity compared to bone scans. Several studies suggest that PET may be a promising tool for response to therapy prediction in OS patients [72,73].

4. Conclusions

The early identification of lung metastases in OS represents a crucial point in determining a patient’s prognosis and in choosing treatment strategies. Radiologists, oncologists as well as other physicians involved in patients’ care should know the possibilities, advantages and disadvantages of each imaging tool available for the assessment of osteosarcoma lung metastases. (Table 1)
The standard CT scan without intravenous contrast medium represents the gold standard for the detection of lung metastases even if its sensitivity still widely ranges and atypical CT manifestations are not so uncommon.
Considering the importance of strict surveillance within the first 4–5 years and the young-onset of the disease, the improvement of low-dose CT techniques is a priority.
The volumetric assessment of lung nodules and CAD system represent reliable tools that could become concrete support for the radiologist and could give some important prognostic information. VDT and CAD need to be further implemented in the follow-up setting of OS patients.
PET-CT has a limited role for OS disease staging, while it is effective in detecting bone metastases and in evaluating systemic response to adjuvant treatments.

Author Contributions

Writing—original draft preparation, A.M.C.; writing—review and editing, P.S. and G.F.; supervision, M.M. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by “Istituto Ortopedico Rizzoli” to cover publication costs.

Acknowledgments

We would like to thank Sarcoma European and Latin American Network (SELNET), a consortium granted by the European Commission (number: SEP-210512885), for supporting the idea of this Special Issue.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Mirabello, L.; Troisi, R.J.; Savage, S.A. Osteosarcoma incidence and survival rates from 1973 to 2004: Data from the surveillance, epidemiology, and end results program. Cancer 2009, 115, 1531–1543. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Isakoff, M.S.; Bielack, S.S.; Meltzer, P.; Gorlick, R. Osteosarcoma: Current treatment and a collaborative pathway to success. J. Clin. Oncol. Off. J. Am. Soc. Clin. Oncol. 2015, 33, 3029–3035. [Google Scholar] [CrossRef] [Green Version]
  3. Link, M.P.; Gebhardt, M.C.; Meyers, P.A. Osteosarcoma. In Principles and Practice of Pediatric Oncology, 4th ed.; Pizzo, P.A., Poplack, D.G., Eds.; Lippincott Williams and Wilkins: Baltimore, MD, USA, 2002; pp. 1051–1089. [Google Scholar]
  4. Kaste, S.C.; Pratt, C.B.; Cain, A.M.; Jones-Wallace, D.J.; Rao, B.N. Metastases detected at the time of diagnosis of primary pediatric extremity osteosarcoma at diagnosis: Imaging features. Cancer 1999, 86, 1602–1608. [Google Scholar] [CrossRef]
  5. Daw, N.C.; Chou, A.J.; Jaffe, N.; Rao, B.N.; Billups, C.A.; Rodriguez-Galindo, C.; Meyers, P.A.; Huh, W.W. Recurrent osteosarcoma with a single pulmonary metastasis: A multi-institutional review. Br. J. Cancer 2015, 112, 278–282. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Munajat, I.; Zulmi, W.; Norazman, M.Z.; Faisham, W.W. Tumour volume and lung metastasis in patients with osteosarcoma. J. Orthop. Surg. 2008, 16, 182–185. [Google Scholar] [CrossRef] [PubMed]
  7. Hauben, E.; Bielack, S.; Grimer, R.; Jundt, G.; Reichardt, P.; Sydes, M.; Taminiau, A.; Hogendoorn, P. Clinico-histologic parameters of osteosarcoma patients with late relapse. Eur. J. Cancer 2006, 42, 460–466. [Google Scholar] [CrossRef]
  8. Junior, R.Z.B.; Camargo, O.P. Prognostic factors in the survival of patients diagnosed with primary non-metastatic osteosarcoma with a poor response to neoadjuvant chemotherapy. Clinics 2009, 64, 1177–1186. [Google Scholar] [CrossRef] [Green Version]
  9. Smeland, S.; Bielack, S.S.; Whelan, J.; Bernstein, M.; Hogendoorn, P.; Krailo, M.D.; Gorlick, R.; Janeway, K.A.; Ingleby, F.C.; Anninga, J.; et al. Survival and prognosis with osteosarcoma: Outcomes in more than 2000 patients in the EURAMOS-1 (European and American Osteosarcoma Study) cohort. Eur. J. Cancer 2019, 109, 36–50. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  10. Kim, M.S.; Lee, S.-Y.; Lee, T.R.; Cho, W.H.; Song, W.S.; Koh, J.-S.; Lee, J.A.; Yoo, J.Y.; Jeon, D.-G. Prognostic nomogram for predicting the 5-year probability of developing metastasis after neo-adjuvant chemotherapy and definitive surgery for AJCC stage II extremity osteosarcoma. Ann. Oncol. 2009, 20, 955–960. [Google Scholar] [CrossRef]
  11. Hunag, X.; Zhao, J.; Bai, J.; Shen, H.; Zhang, B.; Deng, L.; Sun, C.; Liu, Y.; Zhang, J.; Zheng, J. Risk and clinicopathological features of osteosarcoma metastasis to the lung: A population-based study. J. Bone Oncol. 2019, 16, 100230. [Google Scholar] [CrossRef] [PubMed]
  12. Zhou, H.; Randall, R.L.; Brothman, A.R.; Maxwell, T.; Coffin, C.M.; Goldsby, R.E. HER-2/neu expression in osteosarcoma increases risk of lung metastasis and can Be associated with gene amplification. J. Pediatric Hematol. Oncol. 2003, 25, 27–32. [Google Scholar] [CrossRef] [PubMed]
  13. Wang, S.; Zheng, S.; Hu, K.; Sun, H.; Zhang, J.; Rong, G.; Gao, J.; Ding, N.; Gui, B. A predictive model to estimate the pretest probability of metastasis in patients with osteosarcoma. Medicine 2017, 96, e5909. [Google Scholar] [CrossRef]
  14. Zhou, Y.; Lu, Q.; Xu, J.; Yan, R.; Zhu, J.; Xu, J.; Jiang, X.; Li, J.; Wu, F. The effect of pathological fractures on the prognosis of patients with osteosarcoma: A metaanalysis of 14 studies. Oncotarget 2017, 8, 73037–73049. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Seo, J.B.; Im, J.-G.; Goo, J.M.; Chung, M.J.; Kim, M.-Y. Atypical pulmonary metastases: Spectrum of radiologic Findings1. Radiographics 2001, 21, e17. [Google Scholar] [CrossRef] [PubMed]
  16. Brader, P.; Abramson, S.J.; Price, A.P.; Ishill, N.M.; Emily, Z.C.; Moskowitz, C.S.; La Quaglia, M.P.; Ginsberg, M.S.; Zabor, E.C. Do characteristics of pulmonary nodules on computed tomography inchildren with known osteosarcoma help distinguish whether the nodules aremalignant or benign? J. Pediatric Surg. 2011, 46, 729–735. [Google Scholar] [CrossRef] [Green Version]
  17. CSilva, T.; Amaral, J.G.; Moineddin, R.; Doda, W.; Babyin, P.S. CT characteristics of lung nodules present at diagnosis of extrapulmonary malignancy in children. AJR Am. J. Roentgenol. 2010, 194, 772–778. [Google Scholar] [CrossRef]
  18. Picci, P.; Vanel, D.; Briccoli, A.; Talle, K.; Haakenaasen, U.; Malaguti, C.; Monti, C.; Ferrari, C.; Bacci, G.; Saeter, G.; et al. Computed tomography of pulmonary metastases from osteosarcoma: The less poor technique. A study of 51 patients with histological correlation. Ann. Oncol. 2001, 12, 1601–1604. [Google Scholar] [CrossRef]
  19. Dudeck, O.; Zeile, M.; Andreou, D.; Schnapauff, D.; Pech, M.; Wieners, G.; Ricke, J.; Reichardt, P.; Tunn, P.-U. Computed tomographic criteria for the discrimination of subcentimeter lung nodules in patients with soft-tissue sarcomas. Clin. Imaging 2011, 35, 174–179. [Google Scholar] [CrossRef]
  20. Rothermundt, C.; Seddon, B.M.; Dileo, P.; Strauss, S.J.; Coleman, J.; Briggs, T.W.; Haile, S.R.; Whelan, J.S. Follow-up practices for high-grade extremity Osteosarcoma Rothermundt et al. BMC Cancer 2016, 16, 301. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  21. Ciccarese, F.; Bazzocchi, A.; Ciminari, R.; Righi, A.; Rocca, M.; Rimondi, E.; Picci, P.; Reggiani, M.L.B.; Albisinni, U.; Zompatori, M.; et al. The many faces of pulmonary metastases of osteosarcoma: Retrospective study on 283 lesions submitted to surgery. Eur. J. Radiol. 2015, 84, 2679–2685. [Google Scholar] [CrossRef]
  22. Rimondi, E.; Pelotti, P.; Ciminari, R. Spontaneous pneumothorax in patients with osteosarcoma treated by combined chemotherapy. Minerva Med. 1989, 80, 1215–1217. [Google Scholar]
  23. McCarville, M.B.; Kaste, S.C.; Cain, A.M.; Goloubeva, O.; Rao, B.N.; Pratt, C.B. Prognostic factors and imaging patterns of recurrent pulmonary nodules after thoracotomy in children with osteosarcoma. Cancer 2001, 91, 1170–1176. [Google Scholar] [CrossRef]
  24. Goel, A.; Christy, M.E.; Virgo, K.S.; Kraybill, W.G.; Johnson, F.E. Costs of follow-up after potentially curative treatment for extremity soft-tissue sarcoma. Int. J. Oncol. 2004, 25, 429–435. [Google Scholar] [CrossRef]
  25. Vanel, D.; Henry-Amar, M.; Lumbroso, J.; Lemalet, E.; Couanet, D.; Piekarski, J.D.; Masselot, J.; Boddaert, A.; Kalifa, C.; Le Chevalier, T.; et al. Pulmonary evaluation of patients with osteosarcoma: Roles of standard radiography, tomography, CT, scintigraphy, and tomoscintigraphy. AJR Am. J. Roentgenol. 1984, 143, 519–523. [Google Scholar] [CrossRef]
  26. Fahimi, J.; Herring, A.; Harries, A.; Gonzales, R.; Alter, H. Computed tomography use among children presenting to emergency departments with abdominal pain. Pediatrics 2012, 130, e1069–e1075. [Google Scholar] [CrossRef] [Green Version]
  27. McCarville, M.B.; Lederman, H.M.; Santana, V.M.; Daw, N.C.; Shochat, S.J.; Li, C.-S.; Kaufman, R.A. Distinguishing benign from malignant pulmonary nodules with helical chest CT in children with malignant solid tumors. Radiology 2006, 239, 514–520. [Google Scholar] [CrossRef]
  28. Kayton, M.L.; Huvos, A.G.; Casher, J.; Abramson, S.J.; Rosen, N.S.; Wexler, L.H.; Meyers, P.; LaQuaglia, M.P. Computed tomographic scan of the chest underestimates the number of metastatic lesions in osteosarcoma. J. Pediatric Surg. 2006, 41, 200–206. [Google Scholar] [CrossRef]
  29. Shikada, Y.; Yano, T.; Maruyama, R.; Takenoyama, M.; Maehara, Y. Effective utilization of chest x-ray for follow-up of metastatic lung tumor due to soft tissue sarcoma. Ann. Thorac. Cardiovasc. Surg. 2013, 19, 103–106. [Google Scholar] [CrossRef]
  30. Davis, S.D. CT evaluation for pulmonary metastases in patients with extrathoracic malignancy. Radiology 1991, 180, 1–12. [Google Scholar] [CrossRef]
  31. Puri, A.; Gulia, A.; Hawaldar, R.; Ranganathan, P.; Badwe, R.A. Does intensity of surveillance affect survival after surgery for sarcomas? Results of a randomized noninferiority trial. Clin. Orthop. Relat. Res. 2014, 472, 1568–1575. [Google Scholar] [CrossRef] [Green Version]
  32. Paioli, A.; Rocca, M.; Cevolani, L.; Rimondi, E.; Vanel, D.; Palmerini, E.; Cesari, M.; Longhi, A.; Eraldo, A.M.; Marchesi, E.; et al. Osteosarcoma follow-up: Chest X-ray or computed tomography? Clin. Sarcoma Res. 2017, 7, 3. [Google Scholar] [CrossRef] [Green Version]
  33. Shields, T.W. General features and complications of pulmonary resections. In General Thoracic Surgery, 4th ed.; Shields, T.W., Ed.; Williams & Wilkins: Philadelphia, PA, USA, 1994; Volume 1, pp. 401–414. [Google Scholar]
  34. Bielack, S.S.; Hecker-Nolting, S.; Blattmann, C.; Kager, L. Advances in the management of osteosarcoma [version 1; peer review: 2 approved]. Version 1. F1000Research 2016, 5, 2767. [Google Scholar] [CrossRef] [PubMed]
  35. Meyer, J.S.; Nadel, H.R.; Marina, N.; Womer, R.B.; Brown, K.L.; Eary, J.F.; Gorlick, R.; Grier, H.E.; Randall, R.L.; Lawlor, E.R.; et al. Imaging guidelines for children with Ewing sarcoma and osteosarcoma: A report from the Children’s Oncology Group Bone Tumor Committee. Pediatric Blood Cancer 2008, 51, 163–170. [Google Scholar] [CrossRef] [PubMed]
  36. Parsons, A.M.; Detterbeck, F.C.; Parker, L.A. Accuracy of helical CT in the detection of pulmonary metastases: Is intraoperative palpation still necessary? Ann. Thorac. Surg. 2004, 78, 1910–1918. [Google Scholar] [CrossRef]
  37. Heaton, T.E.; Hammond, W.J.; Farber, B.A.; Pallos, V.; Meyers, P.A.; Chou, A.J.; Price, A.P.; LaQuaglia, M.P. A 20-year retrospective analysis of CT-based pre-operative identification of pulmonary metastases in patients with osteosarcoma: A single-center review. J. Pediatric Surg. 2017, 52, 115–119. [Google Scholar] [CrossRef] [Green Version]
  38. Detterbeck, F.C.; Grodzki, T.; Gleeson, F.; Robert, J.H. Imaging requirements in the practice of pulmonary metastasectomy. J. Thorac. Oncol. 2010, 5 (Suppl. 2), S134–S139. [Google Scholar] [CrossRef] [PubMed]
  39. Pfannschmidt, J.; Bischoff, M.; Muley, T.; Kunz, J.; Zamecnik, P.; A Schnabel, P.; Hoffmann, H.; Dienemann, H.; Heussel, C.P. Diagnosis of pulmonary metastases with helical CT: The effect of imaging techniques. Thorac. Cardiovasc. Surg. 2008, 56, 471–475. [Google Scholar] [CrossRef] [PubMed]
  40. Brenner, D.J.; Elliston, C.D.; Hall, E.J.; Berdon, W.E. Estimated risks of radiation induced fatal cancer from pediatric CT. Am. J. Roentgenol. 2001, 176, 289–296. [Google Scholar] [CrossRef] [Green Version]
  41. Danley, K.; Sane, N.P.; Kent, P.M. Radiation exposure in pediatric sarcoma patients receiving initial curative chemotherapy. J Pediatric Hematol. Oncol. 2020, 42, e7–e11. [Google Scholar] [CrossRef] [PubMed]
  42. Macias, C.G.; Sahouria, J.J. The appropriate use of CT: Quality improvement and clinical decision-making in pediatric emergency medicine. Pediatric Radiol. 2011, 41 (Suppl. 2), 498–504. [Google Scholar] [CrossRef]
  43. Menoch, M.J.A.; Hirsh, D.A.; Khan, N.S.; Simon, H.K.; Sturm, J.J. Trends in computed tomography utilization in the pediatric emergency department. Pediatrics 2012, 129, e690–e697. [Google Scholar] [CrossRef] [Green Version]
  44. Deák, Z.; Grimm, J.M.; Treitl, M.; Geyer, L.L.; Linsenmaier, U.; Körner, M.; Reiser, M.F.; Wirth, S. Filtered back projection, adaptive statistical iterative reconstruction, and a model-based iterative reconstruction in abdominal CT: An experimental clinical study. Radiology 2013, 266, 197–206. [Google Scholar] [CrossRef] [Green Version]
  45. Silva, A.C.; Lawder, H.J.; Hara, A.; Kujak, J.; Pavlicek, W. Innovations in CT dose reduction strategy: Application of the adaptive statistical iterative reconstruction algorithm. AJR Am. J. Roentgenol. 2010, 194, 191e9. [Google Scholar] [CrossRef]
  46. Shin, H.O.; Falck, C.V.; Galanski, M. Low-contrast detectability in volume rendering: A phantom study on multidetector-row spiral CT data. Eur. Radiol. 2004, 14, 341e9. [Google Scholar] [CrossRef]
  47. Thibault, J.-B. Veo: CT Model-Based Iterative Reconstruction. 2010. Available online: http://www.gehealthcare.com (accessed on 10 September 2013).
  48. Kim, H.J.; Yoo, S.-Y.; Jeon, T.Y.; Kim, J.H. Model-based iterative reconstruction in ultra-low-dose pediatric chest CT: Comparison with adaptive statistical iterative reconstruction. Clin. Imaging 2016, 40, 1018–1022. [Google Scholar] [CrossRef]
  49. Singh, S.; Kalra, M.K.; Gilman, M.D.; Hsieh, J.; Pien, H.H.; Digumarthy, S.R.; Shepard, J.-A.O. Adaptive statistical iterative reconstruction technique for radiation dose reduction in chest CT: A pilot study. Radiology 2011, 259, 565–573. [Google Scholar] [CrossRef]
  50. Yamada, Y.; Jinzaki, M.; Tanami, Y.; Shiomi, E.; Sugiura, H.; Abe, T.; Kuribayashi, S. Model based iterative reconstruction technique for ultralow-dose computed tomography of the lung: A pilot study. Investig. Radiol. 2012, 47, 482–489. [Google Scholar] [CrossRef]
  51. Gordic, S.; Morsbach, F.; Schmidt, B.; Allmendinger, T.; Flohr, T.; Husarik, D.; Baumueller, S.; Raupach, R.; Stolzmann, P.; Leschka, S.; et al. Ultra-low-dose chest computed tomography for pulmonary nodule detection: First performance evaluation of single energy scanning with spectral shaping. Investig. Radiol. 2014, 49, 465–473. [Google Scholar] [CrossRef] [Green Version]
  52. Akagi, M.; Nakamura, Y.; Higaki, T.; Narita, K.; Honda, Y.; Zhou, J.; Yu, Z.; Akino, N.; Awai, K. Deep learning reconstruction improves image quality of abdominal ultra-high-resolution CT. Eur. Radiol. 2019, 29, 6163–6171. [Google Scholar] [CrossRef]
  53. Kim, J.H.; Yoon, H.J.; Lee, E.; Kim, I.; Cha, Y.K.; Bak, S.H. Validation of deep-learning image reconstruction for low-dose chest computed tomography scan: Emphasis on image quality and noise. Korean J. Radiol. 2020, 21, e120. [Google Scholar] [CrossRef]
  54. Kempf-Bielack, B.; Bielack, S.S.; Jürgens, H.; Branscheid, D.; Berdel, W.E.; Exner, G.U.; Göbel, U.; Helmke, K.; Jundt, G.; Kabisch, H.; et al. Osteosarcoma relapse after combined modality therapy: An analysis of unselected patients in the Cooperative Osteosarcoma Study Group (COSS). J. Clin. Oncol. 2005, 23, 559–568. [Google Scholar] [CrossRef]
  55. Chen, F.; Miyahara, R.; Bando, T.; Okubo, K.; Watanabe, K.; Nakayama, T.; Toguchida, J.; Date, H. Repeat resection of pulmonary metastasis is beneficial for patients with osteosarcoma of the extremities. Inst. Rep. Thorac. Oncol. Interact. Cardiovasc. Thoracic Surg. 2009, 9, 649–653. [Google Scholar] [CrossRef] [Green Version]
  56. Casali, P.; Bielack, S.; Abecassis, N.; Aro, H.; Bauer, S.; Biagini, R.; Bonvalot, S.; Boukovinas, I.; Bovee, J.V.M.G.; Brennan, B.; et al. Bone sarcomas: ESMO–PaedCan–EURACAN clinical practice guidelines for diagnosis, treatment and follow-up. Ann. Oncol. 2018, 29 (Suppl. 4), iv79–iv95. [Google Scholar] [CrossRef]
  57. Cipriano, C.; Brockman, L.; Romancik, J.; Hartemayer, R.; Ording, J.; Ginder, C.; Krier, J.; Gitelis, S.; Kent, P. The clinical significance of initial pulmonary micronodules in young sarcoma patients. J. Pediatric Hematol. Oncol. 2015, 37, 548–553. [Google Scholar] [CrossRef] [Green Version]
  58. Hayes, S.A.; Pietanza, M.C.; O’Driscoll, D.; Zheng, J.; Moskowitz, C.S.; Kris, M.G.; Ginsberg, M.S. Comparison of CT volumetric measurement with RECIST response in patients with lung cancer. Eur. J. Radiol. 2016, 85, 524–533. [Google Scholar] [CrossRef] [Green Version]
  59. Oudkerk, M.; Devaraj, A.; Vliegenthart, R.; Henzler, T.; Prosch, H.; Heussel, C.P.; Bastarrika, G.; Sverzellati, N.; Mascalchi, M.; Delorme, S.; et al. European position statement on lung cancer screening. Lancet Oncol. 2017, 18, e754–e766. [Google Scholar] [CrossRef]
  60. Spinnato, P. Low-dose computed tomography screening proposal for the “Big-3 Diseases”: Lung cancer, chronic obstructive pulmonary disease, and cardiovascular disease. Acad. Radiol. 2021, 28, 46–48. [Google Scholar] [CrossRef]
  61. Nakamura, T.; Matsumine, A.; Matsubara, T.; Asanuma, K.; Uchida, A.; Sudo, A. Clinical impact of the tumor volume doubling time on sarcoma patients with lung metastases. Clin. Exp. Metastasis 2011, 28, 819–825. [Google Scholar] [CrossRef]
  62. Doi, K. Computer-aided diagnosis in medical imaging: Historical review, current status and future potential. Comput. Med. Imaging Graph. 2007, 31, 198–211. [Google Scholar] [CrossRef] [Green Version]
  63. Zhang, Y.; Oikonomou, A.; Wong, A.; Haider, M.A.; Khalvati, F. Radiomics-based prognosis analysis for non-small cell lung cancer. Sci. Rep. 2017, 7, 46349. [Google Scholar] [CrossRef]
  64. Shariaty, F.; Mousavi, M. Application of CAD systems for the automatic detection of lung nodules. Inform. Med. Unlocked 2019, 15, 100173. [Google Scholar] [CrossRef]
  65. Jacobs, C.; van Rikxoort, E.M.; Twellmann, T.; Scholten, E.T.; de Jong, P.A.; Kuhnigk, J.M.; Oudkerk, M.; de Koning, H.J.; Prokop, M.; Schaefer-Prokop, C.; et al. Automatic detection of subsolid pulmonary nodules in thoracic computed tomography images. Med. Image Anal. 2014, 18, 374–384. [Google Scholar] [CrossRef]
  66. Drew, T.; Vo, M.L.-H.; Olwal, A.; Jacobson, F.; Seltzer, S.E.; Wolfe, J.M. Scanners and drillers: Characterizing expert visual search through volumetric images. J. Vis. 2013, 13, 1–13. [Google Scholar] [CrossRef]
  67. Doi, K. Current status and future potential of computer-aided diagnosis in medical imaging. Br. J. Radiol. 2005, 78 (Suppl. 1), s3–s19. [Google Scholar] [CrossRef]
  68. Van Ginneken, B.; Schaefer-Prokop, C.M.; Prokop, M. Computer-aided diagnosis: How to move from the laboratory to the clinic. Radiology 2011, 261, 719–732. [Google Scholar] [CrossRef]
  69. Jungheum, C.; Jihang, K.; Kyong, J.L.; Chang, M.N.; Sung, H.Y.; Hwayoung, S.; Junghoon, K.; Ye Ra, C.; Kyung, H.L.; Kyung, W.L. Incidence lung cancer after a negative ct screening in the national lung screening trial: Deep learning-based detection of missed lung cancers. J. Clin. Med. 2020, 9, 3908. [Google Scholar] [CrossRef]
  70. Douglas, J.H.; Marguerite, T.P.; Hedieh, K.; Barry, L.S. PET with 18F-Fluorodeoxyglucose/Computed Tomography in the Management of Pediatric Sarcoma. PET Clin. 2020, 15, 333–347. [Google Scholar] [CrossRef]
  71. Adler, S.; Seidel, J.; Choyke, P.; VKnopp, M.; Binzel, K.; Zhang, J.; Barker, C.; Conant, S.; Maass-Moreno, R. Minimum lesion detectability as a measure of PET system performance. EJNMMI Phys. 2017, 4, 13. [Google Scholar] [CrossRef] [Green Version]
  72. Polverari, G.; Ceci, F.; Passera, R.; Crane, J.; Du, L.; Li, G.; Fanti, S.; Bernthal, N.; Eilber, F.C.; Allen-Auerbach, M.; et al. [18F]FDG PET/CT for evaluating early response to neoadjuvant chemotherapy in pediatric patients with sarcoma: A prospective single-center trial. EJNMMI Res. 2020, 10, 122. [Google Scholar] [CrossRef]
  73. Harrison, D.J.; Parisi, M.T.; Shulkin, B.L. The role of 18F-FDG-PET/CT in pediatric sarcoma. Semin. Nucl. Med. 2017, 47, 229–241. [Google Scholar] [CrossRef] [PubMed]
Cells 10 00553 g001 550

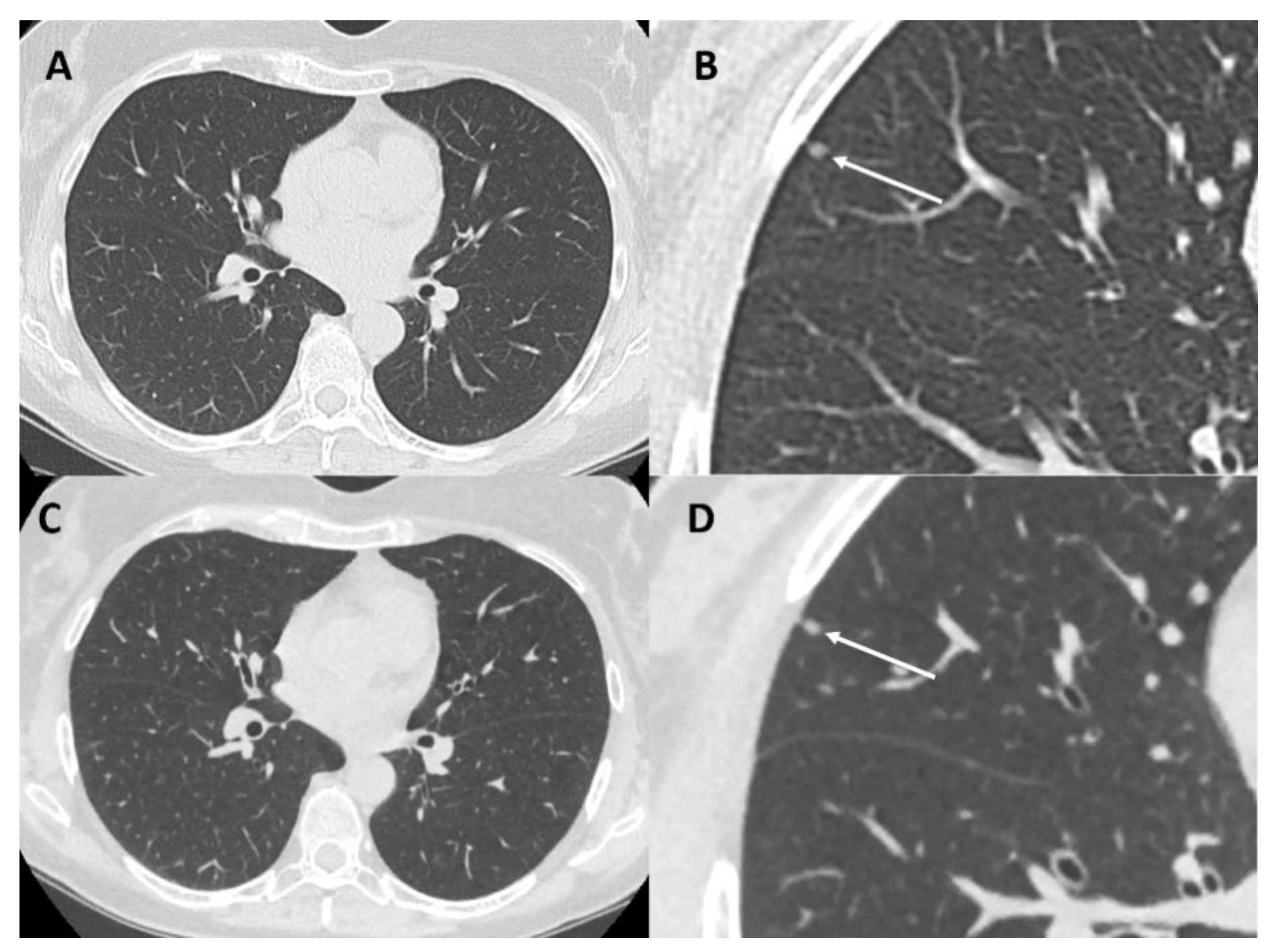

Figure 1. Chest computed tomography (CT) of a 36-year-old woman with osteosarcoma at baseline (panel (A,B)) with standard protocol (DLP = 248 mGy/cm) and at two-month follow-up (panel (C,D)) with full IR model-based (MBIR) algorithm (VEO) protocol (DLP = 45 mGy/cm) both well demonstrate a small solid nodule (arrows-diameter 2 mm). DLP = dose length product.
Figure 1. Chest computed tomography (CT) of a 36-year-old woman with osteosarcoma at baseline (panel (A,B)) with standard protocol (DLP = 248 mGy/cm) and at two-month follow-up (panel (C,D)) with full IR model-based (MBIR) algorithm (VEO) protocol (DLP = 45 mGy/cm) both well demonstrate a small solid nodule (arrows-diameter 2 mm). DLP = dose length product.
Cells 10 00553 g001
Cells 10 00553 g002 550

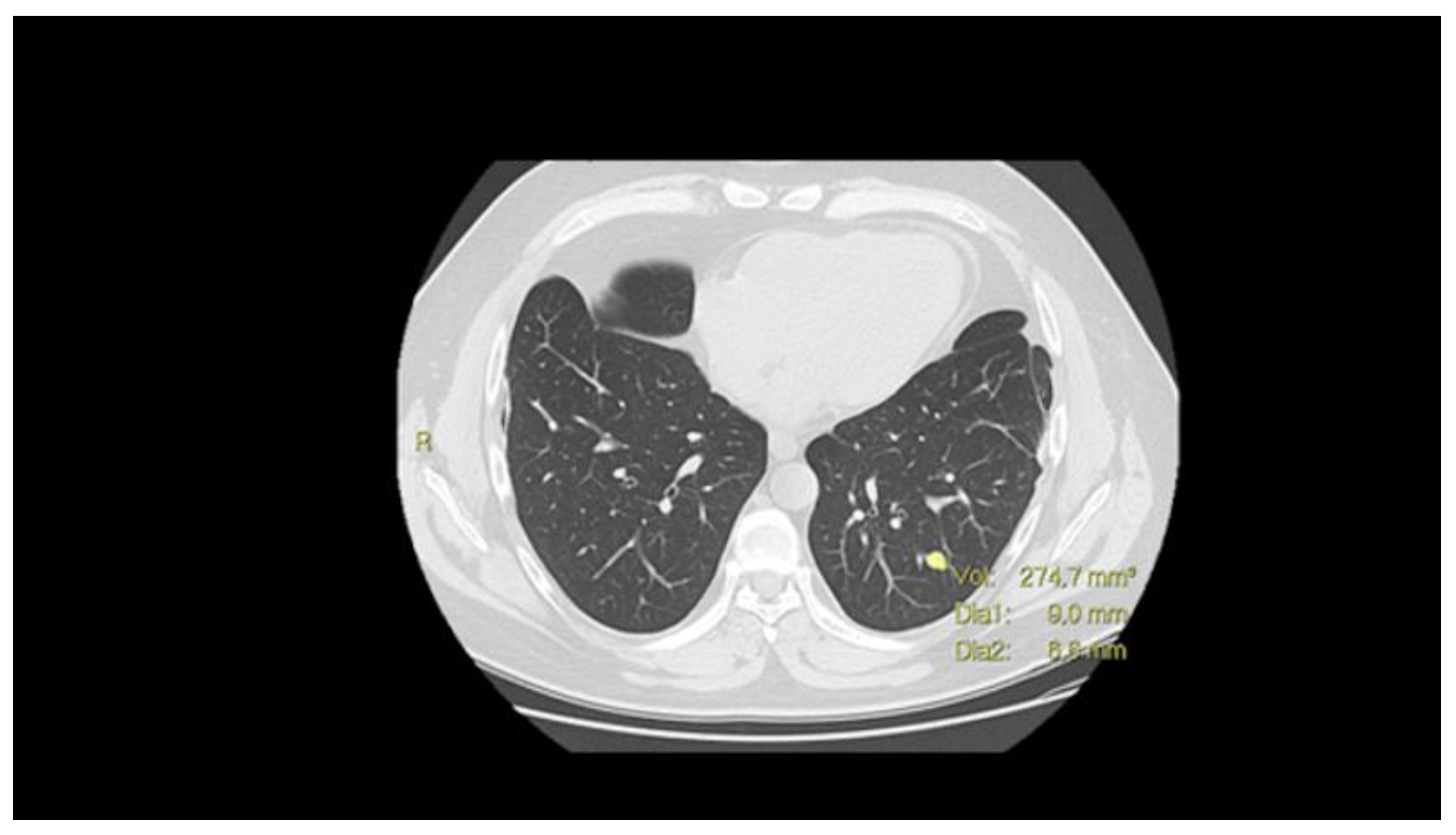

Figure 2. CT scan with nodule volume evaluation (mm3) and maximum diameters.
Figure 2. CT scan with nodule volume evaluation (mm3) and maximum diameters.
Cells 10 00553 g002
Cells 10 00553 g003 550

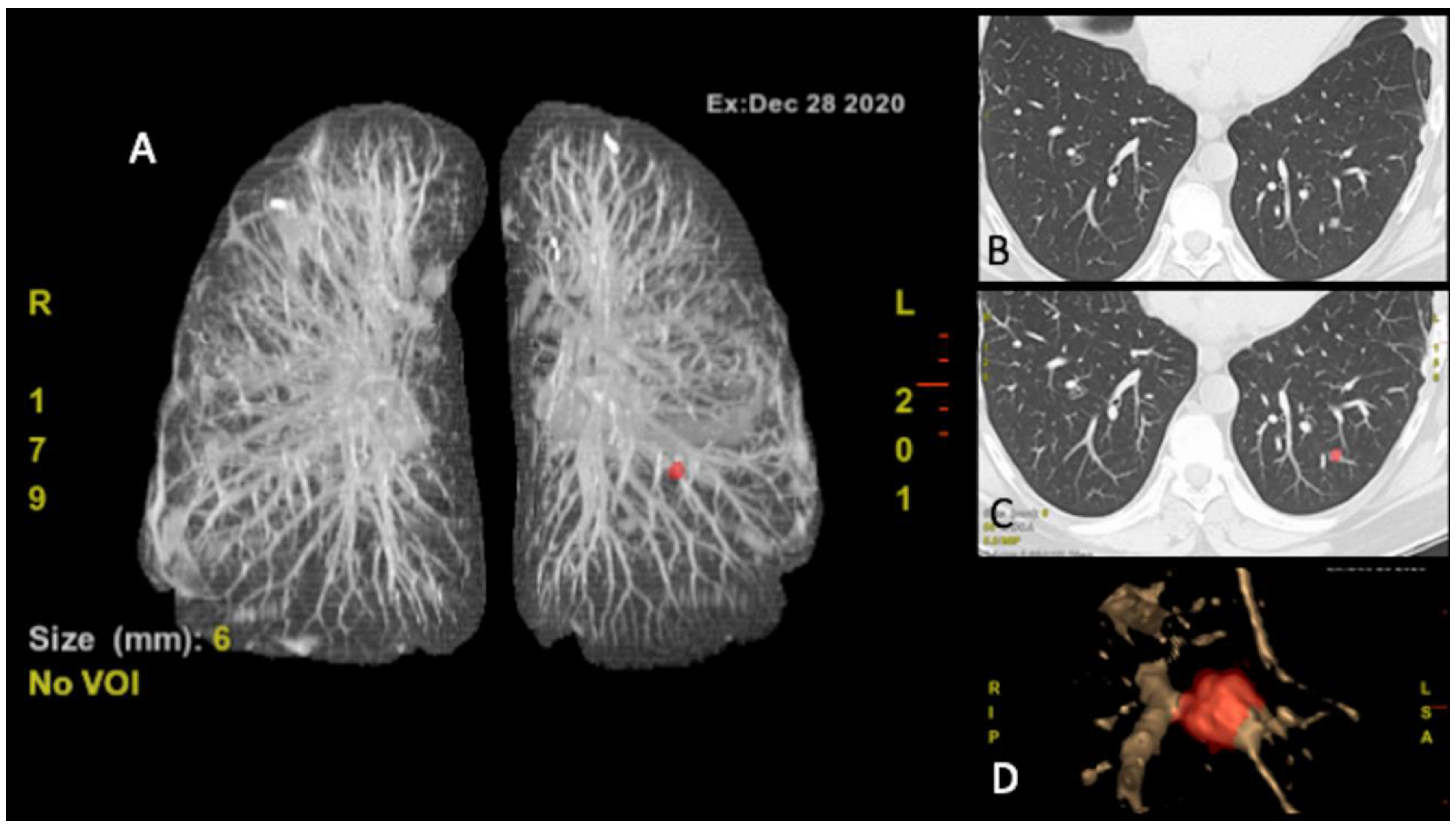

Figure 3. Computer-aided diagnosis (CAD) CT (A) figure nodule localizer (red), (B) CT scan, (C) CT scan nodule identification (red), (D) nodule volume rendering.
Figure 3. Computer-aided diagnosis (CAD) CT (A) figure nodule localizer (red), (B) CT scan, (C) CT scan nodule identification (red), (D) nodule volume rendering.
Cells 10 00553 g003
Table
Table 1. Imaging tools in the assessment of osteosarcoma lung metastases.
Table 1. Imaging tools in the assessment of osteosarcoma lung metastases.
Small Lesion Detection (<1 cm)Response to Treatments EvaluationPrognostic RelevanceCostsX-rays ExposureIndication of Use
X-ray

−

+/−

+/−

+/−

+/−

CA, PM
CT
+++
++
++
+
++
S, CTR, F, CA, PM
Low-dose CT


++


++


++


+


+/−


F, CTR, CA, PM
PET-CT
+/−+++++++++++S, CTR, C
− (no/unable), +/− (negligible/low), + (moderate), ++ (high), +++ (very high); (S) staging, chemotherapy response (CTR); follow-up (F), complications assessment PNX/effusion (CA), post-surgical metastasectomy evaluation (PM), controversial (C).
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Chiesa, A.M.; Spinnato, P.; Miceli, M.; Facchini, G. Radiologic Assessment of Osteosarcoma Lung Metastases: State of the Art and Recent Advances. Cells 2021, 10, 553. https://doi.org/10.3390/cells10030553

AMA Style

Chiesa AM, Spinnato P, Miceli M, Facchini G. Radiologic Assessment of Osteosarcoma Lung Metastases: State of the Art and Recent Advances. Cells. 2021; 10(3):553. https://doi.org/10.3390/cells10030553

Chicago/Turabian Style

Chiesa, Anna Maria, Paolo Spinnato, Marco Miceli, and Giancarlo Facchini. 2021. "Radiologic Assessment of Osteosarcoma Lung Metastases: State of the Art and Recent Advances" Cells 10, no. 3: 553. https://doi.org/10.3390/cells10030553

APA Style

Chiesa, A. M., Spinnato, P., Miceli, M., & Facchini, G. (2021). Radiologic Assessment of Osteosarcoma Lung Metastases: State of the Art and Recent Advances. Cells, 10(3), 553. https://doi.org/10.3390/cells10030553

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
