Agronomy 2018, 8(11), 250; https://doi.org/10.3390/agronomy8110250

Article
Genome-Wide Identification and Expression Profiling Analysis of the Galactinol Synthase Gene Family in Cassava (Manihot esculenta Crantz)
by Ruimei Li 1,†, Shuai Yuan 1,2,†, Yingdui He 1,3,†, Jie Fan 1,2, Yangjiao Zhou 1,2, Tingting Qiu 1,2, Xuejun Lin 1,2, Yuan Yao 1, Jiao Liu 1, Shaoping Fu 1, Xinwen Hu 2,* and Jianchun Guo 1,2,*
1
Institute of Tropical Bioscience and Biotechnology, Chinese Academy of Tropical Agricultural Sciences, Haikou 571101, China
2
Hainan Key Laboratory for Sustainable Utilization of Tropical Bioresource, Institute of Tropical Agriculture and Forestry, Hainan University, Haikou 570228, China
3
Haikou Experimental Station (Institute of Tropical Fruit Tree Research), Chinese Academy of Tropical Agricultural Sciences, Haikou 570102, China
*
Correspondence: [email protected] (X.H.); [email protected] (J.G.); Tel.: +86-898-6625-8020 (X.H.); +86-898-6696-2953 (J.G.)
These authors contributed equally to this work.
Received: 10 October 2018 / Accepted: 1 November 2018 / Published: 3 November 2018

Abstract

:
Galactinol synthases (GolSs) are the key enzymes that participate in raffinose family oligosaccharides (RFO) biosynthesis, which perform a big role in modulating plant growth and response to biotic or abiotic stresses. To date, no systematic study of this gene family has been conducted in cassava (Manihot esculenta Crantz). Here, eight MeGolS genes are isolated from the cassava genome. Based on phylogenetic background, the MeGolSs are clustered into four groups. Through predicting the cis-elements in their promoters, it was discovered that all MeGolS members act as hormone-, stress-, and tissue-specific related elements to different degrees. MeGolS genes exhibit incongruous expression patterns in various tissues, indicating that different MeGolS proteins might have diverse functions. MeGolS1 and MeGolS36 are highly expressed in leaves and midveins. MeGolS36 are highly expressed in fibrous roots. Quantitative real-time Polymerase Chain Reaction (qRT-PCR) analysis indicates that several MeGolSs, including MeGolS1, 2, 5, 6, and 7, are induced by abiotic stresses. microRNA prediction analysis indicates that several abiotic stress-related miRNAs target the MeGolS genes, such as mes-miR156, 159, and 169, which also respond to abiotic stresses. The current study is the first systematic research of GolS genes in cassava, and the results of this study provide a basis for further exploration the functional mechanism of GolS genes in cassava.
Keywords:
galactinol synthase; gene expression pattern; abiotic stress; Manihot esculenta; cassava

1. Introduction

Galactinol synthases (GolS, EC 2.4.1.123) are the enzymes that catalyze the reaction of myo-inositol and UDP-galactose to generate galactinol. Galactinol is one of the organic osmolytes in plants [1], and also is considered to be one of plant defense molecules [2]. It is known as the substrate to provide galactosyl in raffinose family oligosaccharides (RFOs) biosynthesis pathway for generation of the raffinose, stachyose, verbascose, and other larger soluble oligosaccharides [3]. Galactinol and RFOs participate in a variety of physiological and developmental functions in plant life [4]. The RFOs accumulate in seeds to protect the embryo from dehydration damage, and are associated with seed longevity [5,6], and act as galactose stores for rapid germinating requirements [7]. They accumulate in vegetative tissues and act as signaling molecules in answer to a series of biotic [2,8] and abiotic stresses [1,9,10] suffered by plants.
GolS participates in the initial stage of RFO biosynthesis. Since it plays important roles in plants, more and more GolS genes have been investigated from various plants, for instance, Arabidopsis (Arabidopsis thaliana L.) [11], rapeseed (Brassica napus L.) [12], tobacco (Nicotiana tabacum L.) [12], maize (Zea mays L.) [13], Tea plant (Camellia sinensis (L.) O. Ktze) [14], wheat (Triticum aestivum L.) [15], tomato (Solanum lycopersicum Mill.) [16], chickpea (Cicer arietinum L.) [17], and so on. Previous studies indicate that the expression of the GolS genes went hand in hand with abiotic stress. Seven GolS genes have been characterized in Arabidopsis, in which the expressions of AtGolS1 and AtGolS2 responded to drought and salinity while AtGolS3 responded to cold [11]. Some studies have also revealed that AtGolS1 also responded to heat stress [18,19,20]. Over-expression of AtGolS2 in rice significantly improved the capability of transgenic plants to tolerant to drought, and increased the grain yield under drought conditions [21]. Regarding chickpea, CaGolS1 and CaGolS2 responded to abiotic stresses and CaGolS1 was induced prior to CaGolS2 under both heat and oxidative stressors [17]. Considering wheat, TaGolS1 and TaGolS2 responded to cold stress, but not drought, heat stressors, or abscisic acid (ABA). Over-expression of TaGolS1 or TaGolS2 in rice found that the transgenic rice could improve cold tolerance and accumulate significantly higher standards of galactinol and raffinose [22]. In wheat, the TaGolS3 was upregulated by heavy metal, cold, and salinity stressors. By over-expression of TaGolS3 in transgenic Arabidopsis and transgenic rice, it was revealed that TaGolS3 can improve their zinc stress tolerance by regulating the reactive oxygen species (ROS) production [15]. Found in Ammopiptanthus nanus (M. Pop.) Cheng f., AnGolS1 responded to cold, salinity, and drought pressures [23].
Cassava (Manihot esculenta Crantz), which belongs to Euphorbiaceae, is a starch-rich root crop found in tropical and subtropical areas. It has outstanding soil nutrient- and water-use efficiency and can grow in barren and arid soil where other crops cannot grow and develop normally. It has a strong tolerance to drought and can withstand 4–6 months of continuous drought stress, quickly restoring growth and development when the rainy season arrives [24]. However, it is sensitive to low temperatures and salinity [25], and the storage root deteriorates easily after harvest. The molecular processes of cassava in answering to abiotic stresses are still unclear. Although several papers have reported the functions of GolS genes in other species, their features and functions in cassava are still unclear. Considering the significant roles of galactinol synthase in plant growth and response to environmental stressors, eight MeGolS genes in cassava are amplified according to the latest cassava genome database shared online (http://www.phytozome.net/cassava). The phylogenetic relationship, gene structures, conserved motifs, chromosome localization, and mode of expression of MeGolSs in plant organs or tissue and their response to abiotic stressors are systematically analyzed. The results will lay a basis for further investigation of the regulating functions of MeGolS genes in cassava.

2. Materials and Methods

2.1. Plant Materials and Treatments

One-month-old cassava seedlings (Manihot esculenta Crantz cultivar, SC8) were treated with 200 mM NaCl for salt stress, 20% PEG6000 for drought stress, and 4 °C for cold stress for inducible expression analysis of MeGolS genes under abiotic stresses. The one-month-old cassava seedlings without NaCl, PEG6000, and 4 °C treatment were used as control. Young leaves (the first to third fully expanded leaves from top position) were harvested at 0 h, 3 h, 6 h, 9 h, 12 h, and 24 h after the three abiotic stress treatments, respectively. Three biological replicates were set in this experiment. The harvested leaves were immediately frozen in liquid nitrogen and analyzed by qRT-PCR.

2.2. Identification, Isolation, and Analysis of MeGolS Family Genes

To identify the MeGolS members in cassava, the previously identified Galactinol synthase amino acid sequences from the Arabidopsis thaliana genome database were downloaded as well as the BLASTP of the Manihot esculenta V6.1 database. Reverse transcription PCR was performed to obtain the full-length cDNAs of GolS from cassava, and the primers utilized are listed in Table S1. The PCR products were confirmed by sequencing and uploaded to GenBank. The predicted amino acids of MeGolSs were analyzed by Jellyfish software (LabVelocity Inc., Los Angeles, CA, USA). Each amino acids sequence of MeGolSs was further verified by the Pfam [26] and SMART [27] online tools. The physicochemical properties of each MeGolS protein was calculated by the online tool ProtParam, including molecular weight (MW), theoretical isoelectric point (pI), and hydrophilic mean (GRAVY) [28]. The possible subcellular location of GolS proteins from cassava and Arabidopsis were predicted using the CELLO2GO tool [29].

2.3. Chromosomal Localization of MeGolS Family Genes

The information of chromosomal localization of the MeGolS family genes from the cassava genomics resource (Bioproject: PRJNA234389) were searched. A chromosomal localization map of these genes was drawn by Mapinspect software (Mike Lischke, Berlin, Germany) based on the relative location of each gene on each chromosome. Then the Figure was enhanced by Photoshop software CS (San Jose, CA, USA).

2.4. Prediction of MeGolS Gene Structures and the Conserved Motifs

The GolS amino acid sequences from Arabidopsis and cassava were aligned by ClustalW to produce the phylogenetic tree based on the NJ-method (neighbor-joining) using molecular evolutionary genetics analysis (MEGA7.0, Institute of Molecular Evolutionary Genetics The Pennsylvania State University, University Park, PA 16802, USA) software [30]. The gene structures of AtGolSs and MeGolSs were drawn by the online software GSDS (Gene Structure Display Server, Center for Bioinformatics (CBI), Peking University, Beijing, China) [31]. The conserved motifs in GolSs were analyzed by using the online Motif alignment and search tool-MEME Suite 4.12.0 [32].

2.5. Cis-Element Analysis within the MeGolS Family Gene Promoters

To analyze the cis-elements of MeGolS promoters, the 1500 base pair (bp) sequences upstream of the initiation codons (ATG) of each MeGolS genes were obtained from the cassava genome database. The website of PlantCARE database (http://bioinformatics.psb.ugent.be/webtools/plantcare/html/) was used to predict the cis-elements within promoters of MeGolS genes. The data was processed by Microsoft Office Excel software to obtain table and figure.

2.6. The Expression Profiles of MeGolS Genes in Cassava

To further understand the diverse gene expression profiles of the MeGolS family genes, the authors downloaded the publicly available M. esculenta RNA sequencing (RNA-seq) data from the NCBI website and constructed a heatmap using the OmicShare tools (http://www.omicshare.com/tools). Expression data of the 8 MeGolS genes were drawn from the Transcriptome sequencing datasets (Bioproject ID PRJNA324539). The 11 different cassava tissues were the leaf blade, leaf mid-veins, petioles, stems, lateral buds, shoot apical meristems (SAM), storage roots, fibrous roots, root apical meristems (RAM), somatic organized embryogenic structures (OES), and friable embryogenic callus (FEC).

2.7. MeGolS Gene Expression Profiles under Drought, Cold, and Salt Stresses

The relative expression profiles of MeGolSs were obtained by qRT-PCR using the ABI7900HT FastReal-Time PCR System (Applied Biosystems, Foster City, CA, USA). To evaluate the relative expression level of MeGolS genes, the 2−△△Ct method was used. The relative expression levels were equal to the mean values and transform log2 values to draw heatmap by the OmicShare tools (http://www.omicshare.com/tools). The MeGolS gene primers, and internal reference gene primers used for qRT-PCR, are listed in Table S1. Each sample was analyzed with three technical replicates.

2.8. Prediction of microRNAs Targeting to MeGolS Genes

Genome sequences of 8 MeGolS genes were used in an online tool (psRNATarget Server, http://plantgrn.noble.org/psRNATarget/) to search against cassava microRNAs to predict the potential miRNAs targeting MeGolS genes. The interaction network between the MeGolS genes and predicted miRNAs was built by Cytoscape software (http://www.cytoscape.org/).

3. Results

3.1. Identification and Cloning of MeGolS Family Genes in Cassava

There were eight GolS genes in the M. esculenta genome were identified based on the BLASTP program constructed on the known AtGolS amino acid sequences as references. The full-length CDS sequences of MeGolS18 were isolated by reverse transcription PCR. Detailed information about the CDS sequences of MeGolS18 and the corresponding amino acids were deposited in GenBank, the accession numbers can be found in Table 1. The protein length and molecular weight of these MeGolS proteins ran from 320–338 aa, and 37.14–38.60, respectively. All the MeGolS proteins were acidic since their isoelectric points were smaller than seven. All the MeGolS proteins were hydrophilic proteins since their GRAVY scores were negative. Subcellular localization predication indicated that MeGolS3 was located in two organelles, the cytoplasm and chloroplast. The other seven MeGolSs were located in one organelle; MeGolS1, 2, 4, and 8 were located in the cytoplasm, MeGolS5 and MeGolS6 were located in the plasma membrane, and MeGolS7 was located in ER (Table 1).

3.2. Chromosomal Location and Distribution of MeGolS Family Genes

The physical chromosomal locations of MeGolS genes were searched on phytozome (Manihot esculenta V6.1 database). Eight members of MeGolSs were distributed in seven chromosomes of M. esculenta, respectively (Figure 1). Two genes (MeGolS5 and MeGolS7) were located on chromosome 08. The remaining six genes, MeGolS1, MeGolS2, MeGolS3, MeGolS4, MeGolS6, and MeGolS8, were distributed separately on six different chromosomes, Chr03, Chr15 Chr13, Chr05, Chr09, and Chr01, respectively. The MeGolS1, 2, 3, 6, and 8 had the same orientation, and MeGolS4, 5, and 7 had the opposite orientation.

3.3. Analysis of Phylogenesis, Conserved Motifs, and Gene Structures of GolS Family Genes in Cassava and Arabidopsis

Multiple sequence alignment was used to manage the GolS protein sequences from cassava and Arabidopsis. After that, a neighbor-joining tree was established by MEGA7.0 (Figure 2A). All the GolSs were divided into four (groups I–IV) groups. Group I contained MeGolS5–7, AtGolS2–3. Group II contained MeGolS4, MeGolS8, and AtGolS1. Group III contained MeGolS1–2, AtGolS5–6. Group IV contained MeGolS3, AtGolS4, and AtGolS7. To investigate the GolS gene structures, the GSDS online software was used to analyze the MeGolS and AtGolS gene exon-intron structures. Except for MeGolS8 having 5 exons and 4 introns, all the other GolS genes had 4 exons and 3 introns. Both MeGolS8 and AtGolS7 did not have upstream and downstream factors. MeGolS7, AtGolS5, and AtGolS6 contained only downstream and no upstream features. The other genes had both upstream and downstream aspects. Obviously, the first intron length of MeGolS8 was significantly longer than the other genes, at more than 8 Kb (Figure 2B). To predict the function of MeGolS proteins, the conserved motifs of GolSs from cassava and Arabidopsis were compared. Ten conserved motifs of GolS proteins were detected by the MEME online tool (Figure 2C, Table S2). These conserved motifs ranged in length from 11 to 50 aa. All the GolS proteins from cassava and Arabidopsis contained the motifs of 1, 2, 3, 4, 5, 7, 8, and 9. However, motif 6 was found in all the GolS proteins except MeGolS8; Motif 10 was only distributed on MeGolS4, 5, 6, 7, 8, not on any AtGolSs. Thus, it was deduced that the same conserved motifs in the homologous GolSs might have similar functions; and motif 10 in MeGolSs might have a special function that is different from Arabidopsis.

3.4. The Cis-Element Analysis within MeGolS Family Gene Promoters

To better uncover the potential function of the MeGolS genes, the cis-elements within these promoters were identified by PlantCARE. A total of 74 types of cis-acting elements were detected in the promoters of MeGolSs (Table S3), among which were 10 types of hormone-related, 7 tissue specific-related, and 7 stress-related elements (Figure 3). These hormone-related elements included abscisic acid responsive elements (ABRE), MeJA-responsive elements (CGTCA-motif and TGACG-motif), ethylene-responsive elements (ERE), salicylic acid responsive elements (TCA-element), gibberellin-responsive (GARE-motif, P-box and TATC-box), and auxin-responsive elements (TGA-box and TGA-element). ABRE elements were found to be the most abundant hormone-related elements in six of eight MeGolSs. MeGolS4 had nine of the 10 hormone-related elements. MeGolS1 and MeGolS2 had one hormone-related element ABRE or TCA-element, respectively. These tissue specific-related elements included a shoot-specific expressive element (as-2-box), meristem expressive elements (CAT-box and CCGTCC-box), endosperm expressive elements (GCN4-motif and Skn-1-motif), a seed-specific expressive element (RY-element), and a nodule-specific expressive element (Nodule-site2). The Skn-1 motif was the most abundant tissue specific-related element in MeGolS promoters. The numbers of tissue specific-related elements in each MeGolS promoter ranged from one to three. These stress-responsive elements included heat stress (HSE), low-temperature stress (LTR), drought stress (MBS), wound stress (WUN-motif), anaerobic stress (ARE), anoxic stress (GC-motif), and defense and stress responsive element (TC-rich repeats). At least three of these stress-responsive elements were found to be included in each MeGolS promoter. HSE was the most abundant stress responsive related element and was found in all the 8 MeGolS promoters.

3.5. Tissue-Specific Expression of MeGolS in Cassava

To understand the expression abundance of the MeGolS gene family in different tissues or organs, 11 tissues or organs of cassava were analyzed based on the RNA-seq datasets from cassava. The heatmap results showed that the eight MeGolS genes had different expression patterns in tissues and organs (Figure 4). Seven of eight MeGolS genes were expressed in mid-vein (except MeGolS7), fibrous roots (FR) (except MeGolS1), stem (except MeGolS7), and petiole (except MeGolS2); six of eight MeGolS genes were expressed in root apical meristem (RAM) (except MeGolS1, and MeGolS7); five of eight MeGolS genes were expressed in somatic organized embryogenic structures (OES) (except MeGolS1, 2, and 7), shoot apical meristem (SAM) (except MeGolS1, 2, and 8); only 4 MeGolS genes (MeGolS3, 4, 6, and 8) were expressed in storage roots (SR). The genes with the highest expression levels were, MeGolS3 in leaf, mid-vein, stem, and petiole; MeGolS4 in the lateral bud, OES, FEC, SR, and SAM, MeGolS5 in RAM; and MeGolS6 in FR. At gene expression levels, three MeGolS genes (MeGolS3, 4 and 6) were expressed in all 11 tissues and organs; MeGolS5 and 8 were slightly expressed in 10 tissues and organs, respectively, except MeGolS5 in SR and MeGolS8 in SAM; MeGolS2 is slightly expressed in seven tissues and organs except OES, SR, petiole, and SAM; MeGolS1 was only expressed in leaf, mid-vein, lateral bud, FEC, stem, and petiole; while MeGolS7 was only slightly expressed in leaf, lateral bud, FEC, FR, petiole, and SAM.
Leaf, leaf blade; midvein, leaf mid-vein; SAM, shoot apical meristem; SR, storage roots; FR, fibrous roots; RAM, root apical meristem; OES, somatic organized embryogenic structures; FEC, friable embryogenic callus. The bar on the upper right corner indicated the FPKM (fragments per kilobase of exon per million reads mapped) values that corrected by Log2, and different colors indicate different expression levels.

3.6. The Inducible Expressions of MeGolSs under Abiotic Stress

To establish the MeGolS gene expressions under abiotic stresses, quantitative real-time RT-PCR data from different abiotic stressors (drought, cold, and salinity) and different treatment times (3 h, 6 h, 9 h, 12 h, and 24 h) were gathered to construct a heatmap. The expression abundance of each MeGolSs was obviously different among different stresses and treatment times (Figure 5). The expression patterns of MeGolS5 and MeGolS6 were similar in response to drought stress, during which both were upregulated and peaked at 3 h; MeGolS1 and MeGolS2 had similar expression patterns and peaked at 12 h; MeGolS3, 4, and 8 were downregulated. Regarding response to cold stress, six of eight tested MeGolSs except MeGolS3 and 8 were upregulated, during which MeGolS5 and MeGolS6 had similar expression patterns, with higher expressions from 3 h to 24 h except at 12 h; MeGolS1, MeGolS2, and MeGolS7 peaked their expressions at 12 h; MeGolS4 was slightly upregulated, and peaked at 24 h; however, MeGolS3 and 8 were downregulated at all time points. MeGolS1 was highly induced at all time points in response to salinity and peaked at 12 h; MeGolS5 and MeGolS7 had similar expression patterns, which were downregulated at 3 h, then upregulated from 6 h to 24 h, with a peak expression at 12 h; MeGolS2 and 6 were downregulated from 3 h to 9 h, and upregulated from 12 h to 24 h; MeGolS2 was highly expressed at 24 h; and MeGolS4 was upregulated at 6 h and 24 h. MeGolS3 and 8 were downregulated in all stages.

3.7. Prediction of MicroRNA Targeting MeGolS Genes

To predict the microRNA (miRNA) targeting MeGolS genes, the genomic sequences of all MeGolS genes were used to BLAST against the cassava microRNA database. A total of 70 putative miRNAs were predicted to target eight MeGolS genes (Figure 6, Table S4). The numbers of miRNAs predicted to target MeGolS18 were 13, 2, 6, 3, 30, 3, 8, and 19, respectively. Nine mes-miR156 families and two mes-miR403 families targeted MeGolS1. Twenty-eight members of the mes-miR169 family and two members of the mes-miR2111 family target MeGolS5. MeGolS8 is targeted by six miRNA families, including mes-miR319, mes-miR171, mes-miR1446, mes-miR2275, mes-miR403, and mes-miR827. Two mes-miR403 families target MeGolS2. Four mes-miR164 families and two mes-miR403 families target MeGolS3. mes-miR2275 and two mes-miR159 families target MegolS4. mes-miR397 and two mes-miR172 families target MeGolS6. Four mes-miR169 families, two mes-miR159 and two mes-miR828 families target MeGolS7. Furthermore, mes-miR403a and mes-miR403b were identified to target three MeGolS genes (MeGolS1, MeGolS5 and MeGolS8), the most targeted MeGolS genes in this study. Both mes-miR403a and mes-miR403b were found to have two target sites on MeGolS8 as well.
The red dot indicates the MeGolS genes, the blue dot indicates the miRNAs that targeting MeGolSs.

4. Discussion

Cassava has a strong tolerance to drought and infertility but is sensitive to low temperature and salinity. However, there still insufficient information to reveal the mechanisms by which cassava treats various abiotic stress. Generally, raffinose family oligosaccharides (RFOs) have been reported to be kinds of important metabolites in response to various abiotic stresses including drought, cold, and salinity. Galactinol synthase, as a key enzyme in RFO synthases, plays vital roles in various aspects of the plant growth, including seed maturation and abiotic and biotic stress tolerances. However, the systematic analysis of the GolS gene family in cassava is still lacking. GolS family genes have been identified in seven GolS genes from Arabidopsis [11], nine GolS genes from poplar (Populus trichocarpa Torr. & Gray) [33], four GolS genes in tomato [16], nine GolS genes from tobacco [12], three GolS genes from tea plant [14], and others. Eight GolS genes were isolated from cassava in this study. The diversity of gene number might be associated with the diversity in evolution and genome duplication or genome sizes in plants.
Phylogenetic analysis revealed that GolS proteins in cassava and Arabidposis are divided into four groups. This classification is consistent with that previous reported in other species, such as poplar [33], tomato [16], rapeseed [12], tobacco [12], and sesame (Sesamum indicum L.) [34]. The proteins clustered together might have similar functions. MeGolS4 and MeGolS8 are clustered with AtGolS1, MeGolS5–7 are clustered with AtGolS2–3, MeGolS1–2 are clustered with AtGolS5 and AtGolS6, and MeGolS3 is clustered with AtGolS4 and AtGolS7 (Figure 2A) in this study. Previous studies indicated that AtGolS1, AtGolS2, and AtGolS3 are related to response to abiotic stresses, such as drought, salinity [11], and temperature stresses [19]. Thus, MeGolS4–8 might have the function to respond to abiotic stresses.
Genomic comparison is a rapid means of obtaining knowledge about less-studied taxon. Eight MeGolS protein sequences have been identified and isolated in this study, which have a very close amino acid length (320–338 amino acids) and molecular weight (37.1–38.6 kDa) with PI value in the range of 5.04–5.47. Similar results can be found in other plant species, including coffee (Coffea canephora Pierre ex Froehn) [35], cotton (Gossypium hirsutum L.) [36], tomato [16,37], and purple false-brome (Brachypodium distachyon) [16]. All the eight MeGolS genes in this study have four exons and three introns. According to previous research, the exon numbers of GolS genes in different species vary between two and four, such as GolS genes in cotton have three exons [36], in pea (Pisum sativum L.) with at least three exons [38], in tomato with three to four exons, and in B. distachyon with four exons [16]. This suggests that there is a slightly different gene structure diversity of GolS genes in different species.
Expression abundance of MeGolS genes in different tissues or organs of cassava revealed that MeGolS genes exhibit incongruous expression patterns in various tissues (Figure 4), indicating that different MeGolS proteins might have diverse functions. The tissue specific expression levels of GolS genes have been described in other species, including poplar [33], tomato [16], rapeseed [12], tobacco [12], and sesame [34]. Previous research indicates that GolS expression in leaves is associated with phloem export, carbon storage, and plant protection against abiotic stress and oxidative damage [39]. GolS expression in roots is associated with the osmotic stress [40]. In this study, MeGolS1 and MeGolS36 are highly expressed in leaves and midveins. MeGolS36 are highly expressed in fibrous roots. It is reported that Pa3gGolSI homologue and BnGolS3 subfamily members were highly expressed in leaves [3,12]. However, not all the plants have high GolS gene expression in leaves. For example, there were no highly expressed GolS genes observed in tobacco leaves [12]. Thus, these tissue specific expression MeGolS genes might have important functions in phloem export, carbon storage, and plant protection against abiotic stress and oxidative damage.
Plants frequently face abiotic stressors such as drought, cold, and high salinity. In order to help plants avoid the damage of adverse conditions, researchers are constantly exploring genetic resources that are beneficial to plants against cold [41,42,43,44], drought [45,46,47], salt [48,49,50,51], and so on. In this paper, qRT-PCR was employed to calculate the transcript levels of each MeGolS under different abiotic stressors. Differential expressions of GolS linking to abiotic stresses have been reported in several plants [11,12,16,33,34,52]. The stresses of salt, low temperature, and drought could be strongly represented by MeGolS genes in the current study. The response to the three treatments varied among the respective MeGolS genes (Figure 4), which also was found in other plants, for instance in Verbascum. phoeniceum L., where VpGolSs showed diverse expression under salt, cold, and drought stresses [53]. In poplar, the expression of Pa × gGolSII isoform were highly temperature related, while the Pa3gGolSI isoform persistent expression throughout the year [3], which suggests that each member of the gene family may play a different physiological role. MeGolS5 and MeGolS6 were induced by drought stress and could rapidly peak at three hours after drought treatment. MeGolS1, 2 and 7 were also responsive to drought stress (Figure 4). As described in the phylogenetic analysis, MeGolS57 are clustered with AtGolS2 and 3 (which were proven to be significant for drought stress [11]), thus there was no surprise that they were induced by drought stress. MeGolS5 was highly responsive to cold, followed by MeGolS6 (Figure 4). These results indicated that the GolS genes expression mechanisms under drought and cold stress might be similar. MeGolS1 could rapidly respond to salt stress and reached peak expression at 12 h, thus it is a very salt sensitive MeGolS gene. Additionally, MeGolS2 and 7 are involved in salt stress, but their response is comparatively weaker than MeGolS1. The upregulated GolS genes to salt stress are also found in other plants, such as AtGolS1 and 2 from Arabidopsis [11], PtrGolS3, 4, and 6 from P. Trichocarpa [52]. However, in cassava, the most salt sensitive gene, MeGolS1, is not clustered with AtGolS1 and AtGolS2 in phylogenetic analysis. Thus, the current results indicate that cassava might have a specific mechanism to respond to salt stress. Generally, several MeGolS genes are induced by salt, drought, and cold treatments, indicating that these genes might be crucial for cassava response to abiotic stresses.
miRNAs were crucial for regulating gene expression to adapt to biotic and abiotic stresses [54,55,56,57]. There were 14 miRNAs in wild eggplant roots (Solanum linnaeanum L.) [58], 71 miRNAs in radish (Raphanus sativus, L.) [59], 123 miRNAs in tomato [60], and 37 miRNAs in maize (Zea mays L.) [61] that showed significant changes in expression under salt stress. There were 18 miRNAs in rice (Orazy sativa L.) [62] and 30 miRNAs in Populus tomentosa Carr [63] that were identified to be cold-responsive. There were also 35 miRNAs in tef (Eragrostis tef, (Zucc.) Trotter) [64], 13 miRNAs in wild emmer wheat (Triticum dicoccoides ssp. dicoccoides (Korn.) Thell.) [65], and 34 miRNAs in citrus (Citrus junos Siebold) [66] responses to drought stress. Regarding cassava, 881 miRNAs have been reported to identified by high-throughput sequencing [67], among which another 38 new miRNAs have been identified from cassava [68]. Here, 70 mes-miRNAs have been predicted to target eight MeGolS genes in cassava. These miRNAs belong to 14 miRNA families, mes-miR156, 159, 164, 169, 171, 172, 319, 397, 403, 827, 828, 2111, 1446, and 2275. Previous studies indicate that miR156, 159, 169 are related to temperature, drought, and salt stresses [69,70,71,72,73,74,75,76]. Thus, the cleavage or translation activities of mes-miR156, 159, and 169 targeted to MeGolS1, MeGolS5, MeGolS6, or MeGolS7 might account for the qRT-PCR results of these genes response to abiotic stresses. The prediction of miRNA targeting to MeGolS may be useful to understanding the regulatory network of MeGolS involved in responding to abiotic stress in cassava.

5. Conclusions

In the cassava genome, 8 MeGolSs were identified and their physicochemical properties, gene structure, protein motifs, and classification were investigated. By combining promoter cis-element prediction, expression patterns in tissue and in response to abiotic stress, and with the prediction of miRNA targeting to the MeGolSs, we have increased the functional knowledge of MeGolS genes. Finally, these results would be useful in further study of the biological functions of MeGolSs in cassava.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4395/8/11/250/s1, Table S1: The primers were used for gene cloning and qRT-PCR analysis of MeGolS genes, Table S2: List of the putative motifs of GolS proteins from cassava and Arabidopsis, Table S3: Predicted cis-acting elements in the promoter regions of MeGolSs, Table S4: Predicted miRNAs targeted to MeGolS genes.

Author Contributions

R.L. and Y.H. were responsible for all aspects of the research, including experimental design, data acquisition and analysis, and manuscript preparation. S.Y., J.F., Y.Z., T.Q. and X.L. worked on the preparation of the studied materials, gene cloning and qRT-PCR. Y.Y., J.L. and S.F. worked on primer design, and technical and informatics analyses of these genes. X.H. and J.G. were responsible for the programs and all experiments, critically revised the manuscript, and provided the final approval of the article.

Funding

This research was funded by the National Natural Science Foundation of China (No.31601359; 31600196 and 31671767), the key research and development projects of Hainan Province (No. ZDYF2017073), the Earmarked Fund for China Agriculture Research System (No.CARS-11-HNGJC), and Central Public-interest Scientific Institution Basal Research Fund for Chinese Academy of Tropical Agricultural Sciences (No. 1630052016004).

Acknowledgments

We fully appreciate the editors and all anonymous reviewers for their constructive comments on this manuscript.

Conflicts of Interest

The authors declare that they have no competing interests.

References

  1. Pluskota, W.E.; Szablińska, J.; Obendorf, R.L.; Górecki, R.J.; Lahuta, L.B. Osmotic stress induces genes, enzymes and accumulation of galactinol, raffinose and stachyose in seedlings of pea (Pisum sativum, L.). Acta Physiol. Plant. 2015, 37, 156. [Google Scholar] [CrossRef]
  2. Meyer, T.; Vigouroux, A.; Aumont-Niçaise, M.; Comte, G.; Vial, L.; Lavire, C.; Moréra, S. The plant defense signal galactinol is specifically used as a nutrient by the bacterial pathogen Agrobacterium fabrum. J. Biol. Chem. 2018, 293, 7930–7941. [Google Scholar] [CrossRef] [PubMed]
  3. Unda, F.; Canam, T.; Preston, L.; Mansfield, S.D. Isolation and characterization of galactinol synthases from hybrid poplar. J. Exp. Bot. 2012, 63, 2059–2069. [Google Scholar] [CrossRef] [PubMed]
  4. Sengupta, S.; Mukherjee, S.; Basak, P.; Majumder, A.L. Significance of galactinol and raffinose family oligosaccharide synthesis in plants. Front. Plant Sci. 2015, 6, 656. [Google Scholar] [CrossRef] [PubMed]
  5. De Souza Vidigal, D.; Willems, L.; van Arkel, J.; Dekkers, B.J.; Hilhorst, H.W.; Bentsink, L. Galactinol as marker for seed longevity. Plant Sci. 2016, 246, 112–118. [Google Scholar] [CrossRef] [PubMed]
  6. Pereira Lima, J.J.; Buitink, J.; Lalanne, D.; Rossi, R.F.; Pelletier, S.; da Silva, E.A.A.; Leprince, O. Molecular characterization of the acquisition of longevity during seed maturation in soybean. PLoS ONE 2017, 12, e0180282. [Google Scholar] [CrossRef] [PubMed]
  7. Roman, G.; Raimund, T. Raffinose family oligosaccharides act as galactose stores in seeds and are required for rapid germination ofarabidopsisin the dark. Front. Plant Sci. 2016, 7, 111. [Google Scholar]
  8. Kim, M.S.; Cho, S.M.; Kang, E.Y.; Im, Y.J.; Hwangbo, H.; Kim, Y.C.; Ryu, C.M.; Yang, K.Y.; Chung, G.C.; Cho, B.H. Galactinol is a signaling component of the induced systemic resistance caused by Pseudomonas chlororaphis O6 root colonization. Mol. Plant-Microbe Interact. 2008, 21, 1643–1653. [Google Scholar] [CrossRef] [PubMed]
  9. Zhang, Q.; Song, X.; Bartels, D. Sugar metabolism in the desiccation tolerant grass Oropetium thomaeum in response to environmental stresses. Plant Sci. 2018, 270, 30–36. [Google Scholar] [CrossRef] [PubMed]
  10. Song, C.; Chung, W.S.; Lim, C.O. Overexpression of heat shock factor gene HsfA3 increases galactinol levels and oxidative stress tolerance in Arabidopsis. Mol. Cells 2016, 39, 477–483. [Google Scholar] [CrossRef] [PubMed]
  11. Taji, T.; Ohsumi, C.; Iuchi, S.; Seki, M.; Kasuga, M.; Kobayashi, M.; Yamaguchi-Shinozaki, K.; Shinozaki, K. Important roles of drought- and cold-inducible genes for galactinol synthase in stress tolerance in Arabidopsis thaliana. Plant J. 2002, 29, 417–426. [Google Scholar] [CrossRef] [PubMed]
  12. Fan, Y.; Yu, M.; Liu, M.; Zhang, R.; Sun, W.; Qian, M.; Duan, H.; Chang, W.; Ma, J.; Qu, C.; et al. Genome-wide identification, evolutionary and expression analyses of the galactinol synthase gene family in rapeseed and tobacco. Int. J. Mol. Sci. 2017, 18, 2768. [Google Scholar] [CrossRef] [PubMed]
  13. Zhao, T.Y.; Thacker, R.; Iii, J.W.C.; Snyder, J.C.; Meeley, R.B.; Obendorf, R.L.; Downie, B. Expression of the maize galactinol synthase gene family: (i) expression of two different genes during seed development and germination. Physiol. Plant. 2010, 121, 634–646. [Google Scholar] [CrossRef]
  14. Zhou, Y.; Liu, Y.; Wang, S.; Shi, C.; Zhang, R.; Rao, J.; Wang, X.; Gu, X.; Wang, Y.; Li, D.; et al. Molecular cloning and characterization of galactinol synthases in Camellia sinensis with different responses to biotic and abiotic stressors. J. Agric. Food Chem. 2017, 65, 2751. [Google Scholar] [CrossRef] [PubMed]
  15. Wang, Y.; Liu, H.; Wang, S.; Li, H.; Xin, Q. Overexpression of a common wheat gene galactinol synthase3, enhances tolerance to zinc in Arabidopsis, and rice through the modulation of reactive oxygen species production. Plant Mol. Biol. Report. 2015, 34, 794–806. [Google Scholar] [CrossRef]
  16. Filiz, E.; Ozyigit, I.I.; Vatansever, R. Genome-wide identification of galactinol synthase (GolS) genes in Solanum lycopersicum and Brachypodium distachyon. Comput. Biol. Chem. 2015, 58, 149–157. [Google Scholar] [CrossRef] [PubMed]
  17. Salvi, P.; Kamble, N.U.; Majee, M. Stress inducible galactinol synthase of chickpea (CaGolS) implicates in heat and oxidative stress tolerance through reducing stress induced excessive reactive oxygen species accumulation. Plant Cell Physiol. 2018, 59, 155–166. [Google Scholar] [CrossRef] [PubMed]
  18. Nishizawa, A.; Yabuta, Y.; Yoshida, E.; Maruta, T.; Yoshimura, K.; Shigeoka, S. Arabidopsis heat shock transcription factor A2 as a key regulator in response to several types of environmental stress. Plant J. 2010, 48, 535–547. [Google Scholar] [CrossRef] [PubMed]
  19. Panikulangara, T.J.; Eggersschumacher, G.; Wunderlich, M.; Stransky, H.; Schöffl, F. Galactinol synthase1. A novel heat shock factor target gene responsible for heat-induced synthesis of raffinose family oligosaccharides in Arabidopsis. Plant Physiol. 2004, 136, 3148–3158. [Google Scholar] [CrossRef] [PubMed]
  20. Nishizawayokoi, A.; Yoshida, E.; Yabuta, Y.; Shigeoka, S. Analysis of the regulation of target genes by an Arabidopsis heat shock transcription factor, HsfA2. J. Agric. Chem. Soc. Jpn. 2009, 73, 890–895. [Google Scholar]
  21. Selvaraj, M.G.; Ishizaki, T.; Valencia, M.; Ogawa, S.; Dedicova, B.; Ogata, T.; Yoshiwara, K.; Maruyama, K.; Kusano, M.; Saito, K.; et al. Overexpression of an Arabidopsis thaliana galactinol synthase gene improves drought tolerance in transgenic rice and increased grain yield in the field. Plant Biotechnol. J. 2017, 15, 1465–1477. [Google Scholar] [CrossRef] [PubMed]
  22. Shimosaka, E.; Ozawa, K. Overexpression of cold-inducible wheat galactinol synthase confers tolerance to chilling stress in transgenic rice. Breed. Sci. 2015, 65, 363–371. [Google Scholar] [CrossRef] [PubMed][Green Version]
  23. Liu, Y.; Zhang, L.; Chen, L.; Ma, H.; Ruan, Y.; Xu, T.; Xu, C.Q.; He, Y.; Qi, M.F. Molecular cloning and expression of an encoding galactinol synthase gene (AnGolS1) in seedling of Ammopiptanthus nanus. Sci. Rep. 2016, 6, 36113. [Google Scholar] [CrossRef] [PubMed]
  24. Utsumi, Y.; Tanaka, M.; Morosawa, T.; Kurotani, A.; Yoshida, T.; Mochida, K.; Matsui, A.; Umemura, Y.; Ishitani, M.; Shinozaki, K.; et al. Transcriptome analysis using a high-density oligomicroarray under drought stress in various genotypes of cassava: An important tropical crop. DNA Res. 2012, 19, 335–345. [Google Scholar] [CrossRef] [PubMed]
  25. El-Sharkawy, M.A. Drought-tolerant cassava for Africa, Asia, and Latin America. Bioscience 1993, 43, 441–451. [Google Scholar] [CrossRef]
  26. Finn, R.D.; Coggill, P.; Eberhardt, R.Y.; Eddy, S.R.; Mistry, J.; Mitchell, A.L.; Potter, S.C.; Punta, M.; Qureshi, M.; Sangrador-Vegas, A.; et al. The Pfam protein families database: Towards a more sustainable future. Nucleic Acids Res. 2016, 44, D279–D285. [Google Scholar] [CrossRef] [PubMed]
  27. Letunic, I.; Bork, P. 20 years of the SMART protein domain annotation resource. Nucleic Acids Res. 2018, 46, 493–496. [Google Scholar] [CrossRef] [PubMed]
  28. Gasteiger, E.; Hoogland, C.; Gattiker, A.; Duvaud, S.; Wilkins, M.R.; Appel, R.D.; Bairoch, A. Protein identification and analysis tools in the ExPASy Server. In The Proteomics Protocols Handbook; John, M.W., Ed.; Humana Press: New York, NY, USA, 2005; pp. 571–607. [Google Scholar]
  29. Yu, C.S.; Cheng, C.W.; Su, W.C.; Chang, K.C.; Huang, S.W.; Hwang, J.K.; Lu, C.H. CELLO2GO: A web server for protein subcellular localization prediction with functional gene ontology annotation. PLoS ONE 2014, 9, e99368. [Google Scholar] [CrossRef] [PubMed]
  30. Kumar, S.; Stecher, G.; Tamura, K. MEGA7: Molecular evolutionary genetics analysis version 7.0 for bigger datasets. Mol. Biol. Evol. 2016, 33, 1870. [Google Scholar] [CrossRef] [PubMed]
  31. Hu, B.; Jin, J.; Guo, A.Y.; Zhang, H.; Luo, J.; Gao, G. GSDS 2.0: An upgraded gene feature visualization server. Bioinformatics 2014, 31, 1296. [Google Scholar] [CrossRef] [PubMed]
  32. Bailey, T.L.; Boden, M.; Buske, F.A.; Frith, M.; Grant, C.E.; Clementi, L.; Ren, J.; Li, W.W.; Noble, W.S. Meme suite: Tools for motif discovery and searching. Nucleic Acids Res. 2009, 37, W202–W208. [Google Scholar] [CrossRef] [PubMed]
  33. Geislerlee, J.; Geisler, M.; Coutinho, P.M.; Segerman, B.; Nishikubo, N.; Takahashi, J.; Aspeborg, H.; Djerbi, S.; Master, E.; Andersson-Gunneras, S. Poplar carbohydrate-active enzymes. Gene identification and expression analyses. Plant Physiol. 2006, 140, 946–962. [Google Scholar] [CrossRef] [PubMed]
  34. You, J.; Wang, Y.; Zhang, Y.; Dossa, K.; Li, D.; Rong, Z.; Wang, L.; Zhang, X. Genome-wide identification and expression analyses of genes involved in raffinose accumulation in sesame. Sci. Rep. 2018, 8, 4331. [Google Scholar] [CrossRef] [PubMed]
  35. Santos, T.B.D.; de Lima, R.B.; Nagashima, G.T.; Petkowicz, C.L.; Carpentieri-pípolo, V.; Pereira, L.F.P.; Domingues, D.S.; Vieira, L.G.E. Galactinol synthase transcriptional profile in two genotypes of Coffea canephora with contrasting tolerance to drought. Genet. Mol. Biol. 2015, 38, 182–190. [Google Scholar] [CrossRef] [PubMed]
  36. Zhou, T.; Zhang, R.; Guo, S. Molecular cloning and characterization of ghgols1, a novel gene encoding galactinol synthase from cotton (Gossypium hirsutum). Plant Mol. Biol. Report. 2012, 30, 699–709. [Google Scholar] [CrossRef]
  37. Downie, B.; Gurusinghe, S.; Dahal, P.; Thacker, R.R.; Snyder, J.C.; Nonogaki, H. Expression of a galactinol synthase gene in tomato seeds is up-regulated before maturation desiccation and again after imbibition whenever radicle protrusion is prevented. Plant Physiol. 2003, 131, 1347–1359. [Google Scholar] [CrossRef] [PubMed]
  38. Lahuta, L.B.; Pluskota, W.E.; Stelmaszewska, J.; Szablińska, J. Dehydration induces expression of galactinol synthase and raffinose synthase in seedlings of pea (Pisum sativum L.). J. Plant Physiol. 2014, 171, 1306–1314. [Google Scholar] [CrossRef] [PubMed]
  39. Nishizawa, A.; Yabuta, Y.; Shigeoka, S. The contribution of carbohydrates including raffinose family oligosaccharides and sugar alcohols to protection of plant cells from oxidative damage. Plant Signal. Behav. 2008, 3, 1016–1018. [Google Scholar] [CrossRef][Green Version]
  40. Lahuta, L.B.; Górecki, R.J. Raffinose in seedlings of winter vetch (Vicia villosa, Roth.) under osmotic stress and followed by recovery. Acta Physiol. Plant. 2011, 33, 725–733. [Google Scholar] [CrossRef]
  41. Da Maia, L.C.; Cadore, P.R.; Benitez, L.C.; Danielowski, R.; Braga, E.J.; Fagundes, P.R.; Magalhães, A.M.; de Oliveira, A.C. Transcriptome profiling of rice seedlings under cold stress. Funct. Plant Biol. 2017, 44, 419–429. [Google Scholar] [CrossRef]
  42. Kumar, M.; Gho, Y.S.; Jung, K.H.; Kim, S.R. Genome-wide identification and analysis of genes, conserved between japonica and indica rice cultivars, that respond to low-temperature stress at the vegetative growth stage. Front. Plant Sci. 2017, 8, 1120. [Google Scholar] [CrossRef] [PubMed]
  43. Yang, T.; Huang, X.S. Deep sequencing-based characterization of transcriptome of pyrus ussuriensis in response to cold stress. Gene 2018, 661, 109–118. [Google Scholar] [CrossRef] [PubMed]
  44. Hao, J.; Yang, J.; Dong, J.; Fei, S.Z. Characterization of BdCBF, genes and genome-wide transcriptome profiling of BdCBF3 -dependent and -independent cold stress responses in Brachypodium Distachyon. Plant Sci. 2017, 262, 52. [Google Scholar] [CrossRef] [PubMed]
  45. Zhang, F.; Zhou, Y.; Zhang, M.; Luo, X.; Xie, J. Effects of drought stress on global gene expression profile in leaf and root samples of Dongxiang wild rice (Oryza rufipogon). Biosci. Rep. 2017, 37. [Google Scholar] [CrossRef] [PubMed]
  46. Yadav, R.; Verma, O.P.; Padaria, J.C. Transcript profiling and gene expression analysis under drought stress in Ziziphus Nummularia, (Burm.f.) Wright & Aarn. Mol. Biol. Rep. 2018, 45, 1–12. [Google Scholar]
  47. Zhao, X.; Li, C.; Wan, S.; Zhang, T.; Yan, C.; Shan, S. Transcriptomic analysis and discovery of genes in the response of Arachis hypogaea to drought stress. Mol. Biol. Rep. 2018, 45, 1–13. [Google Scholar] [CrossRef] [PubMed]
  48. Sun, X.; Xu, L.; Wang, Y.; Luo, X.; Zhu, X.; Kinuthia, K.B.; Nie, S.; Feng, H.; Li, C.; Liu, L. Transcriptome-based gene expression profiling identifies differentially expressed genes critical for salt stress response in radish (Raphanus sativus L.). Plant Cell Rep. 2016, 35, 1–18. [Google Scholar] [CrossRef] [PubMed]
  49. Zhang, D.; Wan, Q.; He, X.; Ning, L.; Huang, Y.; Xu, Z.; Liu, J.; Shao, H. Genome-wide characterization of the ankyrin repeats gene family under salt stress in soybean. Sci. Total Environ. 2016, 568, 899–909. [Google Scholar] [CrossRef] [PubMed][Green Version]
  50. Du, X.; Wang, G.; Ji, J.; Shi, L.; Guan, C.; Jin, C. Comparative transcriptome analysis of transcription factors in different maize varieties under salt stress conditions. Plant Growth Regul. 2017, 81, 1–13. [Google Scholar] [CrossRef]
  51. Cui, J.; Ren, G.; Qiao, H.; Xiang, X.; Huang, L.; Chang, J. Comparative Transcriptome Analysis of Seedling Stage of Two Sorghum Cultivars Under Salt Stress. J. Plant Growth Regul. 2018, 6, 1–13. [Google Scholar] [CrossRef]
  52. Zhou, J.; Yang, Y.; Yu, J.; Wang, L.; Yu, X.; Ohtani, M.; Kusano, M.; Saito, K.; Demura, T.; Zhuge, Q. Responses of Populus trichocarpa galactinol synthase genes to abiotic stresses. J. Plant Res. 2014, 127, 347–358. [Google Scholar] [CrossRef] [PubMed]
  53. Mccaskill, A.; Turgeon, R. Phloem loading in Verbascum phoeniceum L. depends on the synthesis of raffinose-family oligosaccharides. Proc. Natl. Acad. Sci. USA 2007, 104, 19619–19624. [Google Scholar] [CrossRef] [PubMed]
  54. Sunkar, R.; Chinnusamy, V.; Zhu, J.; Zhu, J.K. Small RNAs as big players in plant abiotic stress responses and nutrient deprivation. Trends Plant Sci. 2007, 12, 301–309. [Google Scholar] [CrossRef] [PubMed]
  55. Shukla, L.I.; Chinnusamy, V.; Sunkar, R. The role of microRNAs and other endogenous small RNAs in plant stress responses. BBA–Gene Regul. Mech. 2008, 1779, 743–748. [Google Scholar] [CrossRef] [PubMed]
  56. Khraiwesh, B.; Zhu, J.K.; Zhu, J. Role of miRNAs and siRNAs in biotic and abiotic stress responses of plants. Biochim. Et Biophys. Acta 2012, 1819, 137–148. [Google Scholar] [CrossRef] [PubMed][Green Version]
  57. Sunkar, R. MicroRNAs with macro-effects on plant stress responses. Semin. Cell Dev. Biol. 2010, 21, 805–811. [Google Scholar] [CrossRef] [PubMed]
  58. Zhuang, Y.; Zhou, X.H.; Liu, J. Conserved miRNAs and Their Response to Salt Stress in Wild Eggplant Solanum linnaeanum Roots. Int. J. Mol. Sci. 2014, 15, 839–849. [Google Scholar] [CrossRef] [PubMed][Green Version]
  59. Sun, X.; Xu, L.; Wang, Y.; Yu, R.; Zhu, X.; Luo, X.; Gong, Y.; Wang, R.; Limera, C.; Zhang, K.; et al. Identification of novel and salt-responsive miRNAs to explore miRNA-mediated regulatory network of salt stress response in radish (Raphanus sativus, L.). BMC Genomics 2015, 16, 1–16. [Google Scholar] [CrossRef] [PubMed]
  60. Zhao, G.; Yu, H.; Liu, M.; Lu, Y.; Ouyang, B. Identification of salt-stress responsive microRNAs from Solanum lycopersicum, and Solanum pimpinellifolium. Plant Growth Regul. 2017, 83, 1–12. [Google Scholar] [CrossRef]
  61. Fu, R.; Zhang, M.; Zhao, Y.; He, X.; Ding, C.; Wang, S.; Feng, Y.; Song, X.; Li, P.; Wang, B. Identification of Salt Tolerance-related microRNAs and Their Targets in Maize (Zea mays L.) Using High-throughput Sequencing and Degradome Analysis. Front. Plant Sci. 2017, 8, 864. [Google Scholar] [CrossRef] [PubMed]
  62. Lv, D.K.; Bai, X.; Li, Y.; Ding, X.D.; Ge, Y.; Cai, H.; Ji, W.; Wu, N.; Zhu, Y.M. Profiling of cold-stress-responsive miRNAs in rice by microarrays. Gene 2010, 459, 39–47. [Google Scholar] [CrossRef] [PubMed]
  63. Chen, L.; Zhang, Y.; Ren, Y.; Xu, J.; Zhang, Z.; Wang, Y. Genome-wide identification of cold-responsive and new microRNAs in Populus tomentosa by high-throughput sequencing. Biochem. Biophys. Res. Commun. 2012, 417, 892–896. [Google Scholar] [CrossRef] [PubMed]
  64. Martinelli, F.; Cannarozzi, G.; Balan, B.; Siegrist, F.; Weichert, A.; Blösch, R.; Tadele, Z. Identification of miRNAs linked with the drought response of tef [Eragrostis tef, (Zucc.) Trotter]. J. Plant Physiol. 2018, 224, 163–172. [Google Scholar] [CrossRef] [PubMed]
  65. Kantar, M.; Lucas, S.J.; Budak, H. miRNA expression patterns of Triticum dicoccoides in response to shock drought stress. Planta 2011, 233, 471–484. [Google Scholar] [CrossRef] [PubMed]
  66. Xie, R.; Zhang, J.; Ma, Y.; Pan, X.; Dong, C.; Pang, S.; He, S.; Deng, L.; Yi, S.; Zheng, Y.; et al. Combined analysis of mRNA and miRNA identifies dehydration and salinity responsive key molecular players in citrus roots. Sci. Rep. 2017, 7, 42094. [Google Scholar] [CrossRef] [PubMed][Green Version]
  67. Carolina, B.T.; Germán, P.; Sarah, A.; Fausto, R.Z.; Jorge, D.; Joe, T. Identification of cassava microRNAs under abiotic stress. Int. J. Genomics 2013, 2013, 857986. [Google Scholar]
  68. Khatabi, B.; Arikit, S.; Xia, R.; Winter, S.; Oumar, D.; Mongomake, K.; Meyers, B.C.; Fondong, V.N. High-resolution identification and abundance profiling of cassava (Manihot esculenta Crantz) microRNAs. BMC Genomics 2016, 17, 85. [Google Scholar] [CrossRef] [PubMed]
  69. Cui, N.; Sun, X.; Sun, M.; Jia, B.; Duanmu, H.; Lv, D.; Duan, X.; Zhu, Y. Overexpression of OsmiR156k, leads to reduced tolerance to cold stress in rice (Oryza sativa). Mol. Breed. 2015, 35, 214. [Google Scholar] [CrossRef]
  70. Arshad, M.; Feyissa, B.A.; Amyot, L.; Aung, B.; Hannoufa, A. MicroRNA156 improves drought stress tolerance in alfalfa (Medicago sativa) by silencing SPL13. Plant Sci. 2017, 258, 122–136. [Google Scholar] [CrossRef] [PubMed]
  71. Arshad, M.; Gruber, M.Y.; Wall, K.; Hannoufa, A. An insight into microRNA156 role in salinity stress responses of alfalfa. Front. Plant Sci. 2017, 8, 658. [Google Scholar] [CrossRef] [PubMed]
  72. Patade, V.Y.; Suprasanna, P. Short-term salt and peg stresses regulate expression of microRNA, miR159 in sugarcane leaves. J. Crop Sci. Biotechnol. 2010, 13, 177–182. [Google Scholar] [CrossRef]
  73. Yang, J.; Zhang, N.; Mi, X.; Wu, L.; Ma, R.; Zhu, X.; Yao, L.; Jin, X.; Si, H.; Wang, D. Identification of miR159s and their target genes and expression analysis under drought stress in potato. Comput. Biol. Chem. 2014, 53, 204–213. [Google Scholar] [CrossRef] [PubMed]
  74. Li, H.; Wang, Y.; Wang, Z.; Guo, X.; Wang, F.; Xia, X.J.; Zhou, J.; Shi, K.; Yu, J.Q.; Zhou, Y.H. Microarray and genetic analysis reveals that csa-miR159b plays a critical role in abscisic acid-mediated heat tolerance in grafted cucumber plants. Plant Cell Environ. 2016, 39, 1790–1804. [Google Scholar] [CrossRef] [PubMed]
  75. Luan, M.; Xu, M.; Lu, Y.; Zhang, L.; Fan, Y.; Wang, L. Expression of zma-miR169 miRNAs and their target ZmNF-YA genes in response to abiotic stress in maize leaves. Gene 2015, 555, 178–185. [Google Scholar] [CrossRef] [PubMed]
  76. Yang, J.; Zhang, N.; Zhou, X.; Si, H.; Wang, D. Identification of four novel stu-miR169s and their target genes in Solanum tuberosum, and expression profiles response to drought stress. Plant Syst. Evol. 2016, 302, 55–66. [Google Scholar] [CrossRef]

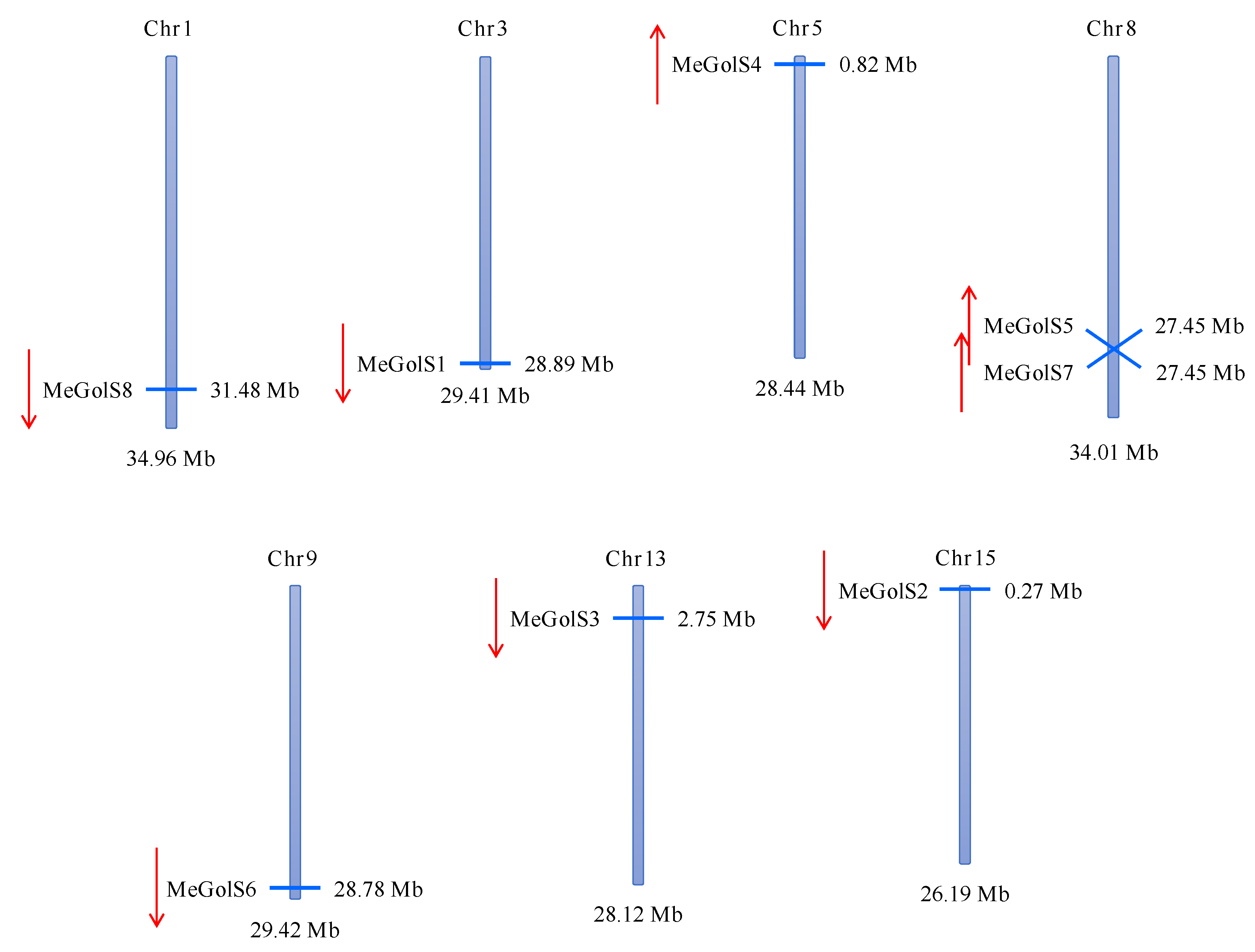

Figure 1. Chromosomal locations of 8 predicted MeGolS genes. The chromosome number is marked upon each chromosome. The red arrows indicate gene orientation on chromosomes. The number below each chromosome indicates chromosome size. The number next to each gene represents the position of the gene on the chromosome.
Figure 1. Chromosomal locations of 8 predicted MeGolS genes. The chromosome number is marked upon each chromosome. The red arrows indicate gene orientation on chromosomes. The number below each chromosome indicates chromosome size. The number next to each gene represents the position of the gene on the chromosome.
Agronomy 08 00250 g001

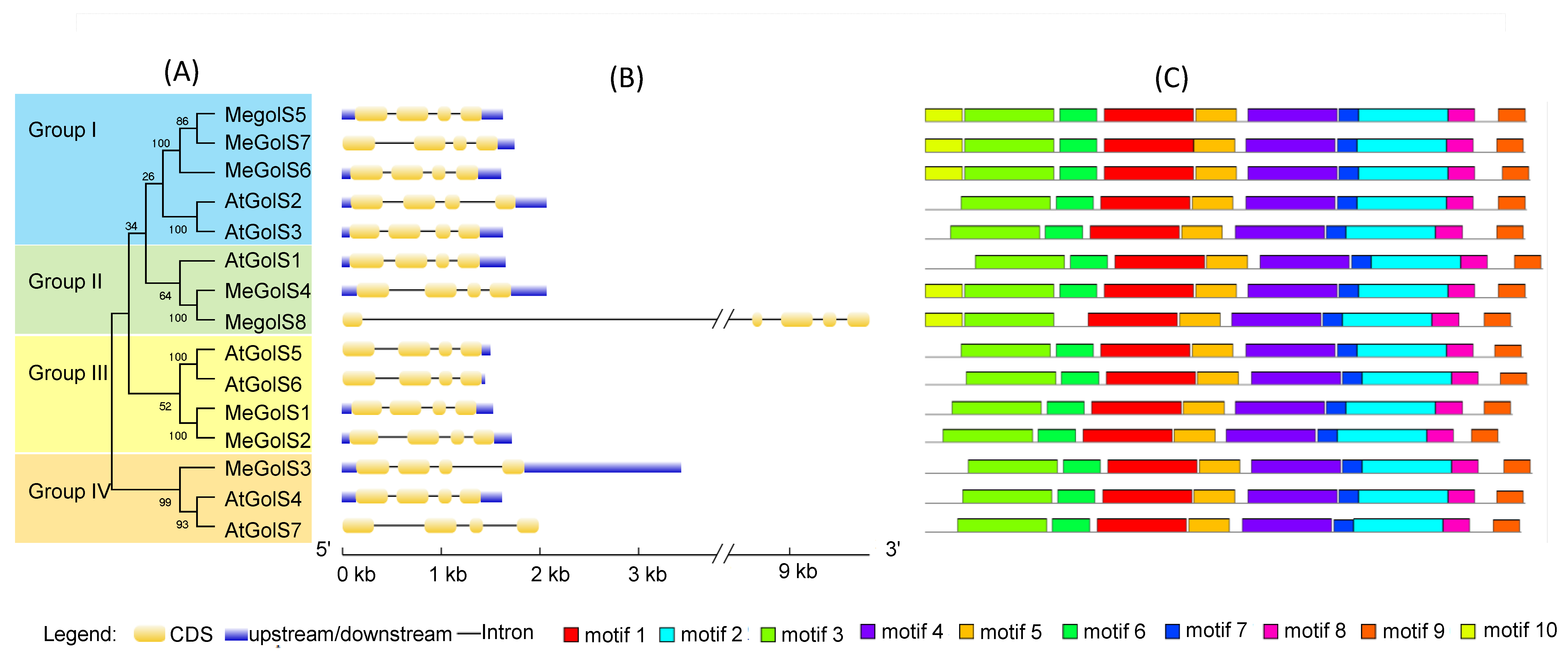

Figure 2. Comparative analysis of the phylogenetics, structure, and conserved motifs of GolSs from cassava and Arabidopsis. (A) The phylogenetic tree of MeGolSs and AtGolSs was constructed by using MEGA 7.0 and all the GolSs were classed into four groups. (B) GSDS software was employed to generate the gene structures of MeGolSs and AtGolSs. The yellow boxes are CDS, the blue boxes are 5′UTR or 3′UTR, and the black lines are introns. (C) Conserved motifs of MeGolSs and AtGolSs proteins from cassava and Arabidopsis. The gene order in B and C is similar to A.
Figure 2. Comparative analysis of the phylogenetics, structure, and conserved motifs of GolSs from cassava and Arabidopsis. (A) The phylogenetic tree of MeGolSs and AtGolSs was constructed by using MEGA 7.0 and all the GolSs were classed into four groups. (B) GSDS software was employed to generate the gene structures of MeGolSs and AtGolSs. The yellow boxes are CDS, the blue boxes are 5′UTR or 3′UTR, and the black lines are introns. (C) Conserved motifs of MeGolSs and AtGolSs proteins from cassava and Arabidopsis. The gene order in B and C is similar to A.
Agronomy 08 00250 g002

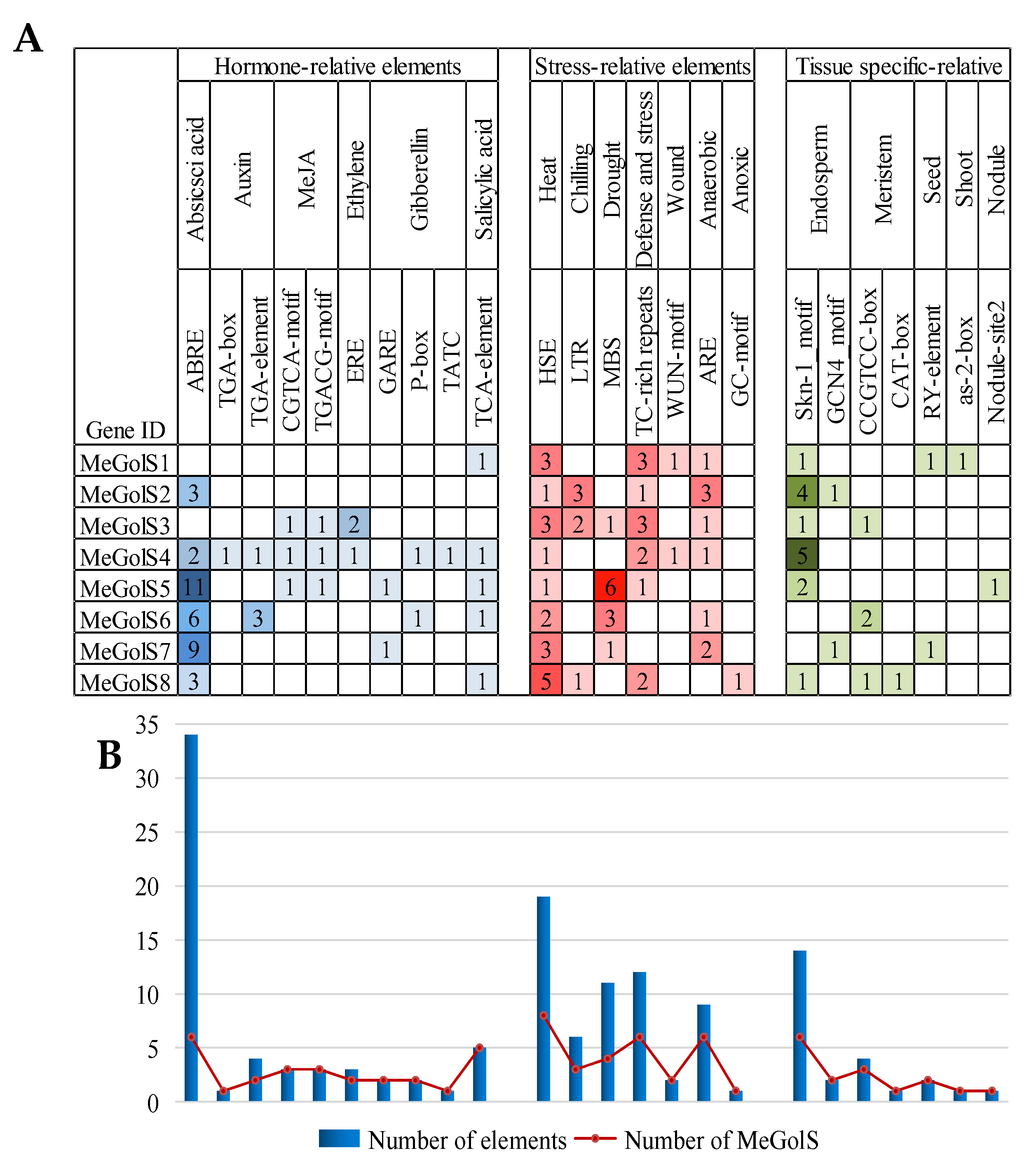

Figure 3. Cis-acting elements in cassava GolS gene promoters. (A) Number of every selected cis-acting element in the MeGolS gene promoters. (B) Statistics for total number of MeGolS genes containing the corresponding cis-acting elements (red dots) and the total number of cis-acting elements in every MeGolS (blue boxes).
Figure 3. Cis-acting elements in cassava GolS gene promoters. (A) Number of every selected cis-acting element in the MeGolS gene promoters. (B) Statistics for total number of MeGolS genes containing the corresponding cis-acting elements (red dots) and the total number of cis-acting elements in every MeGolS (blue boxes).
Agronomy 08 00250 g003

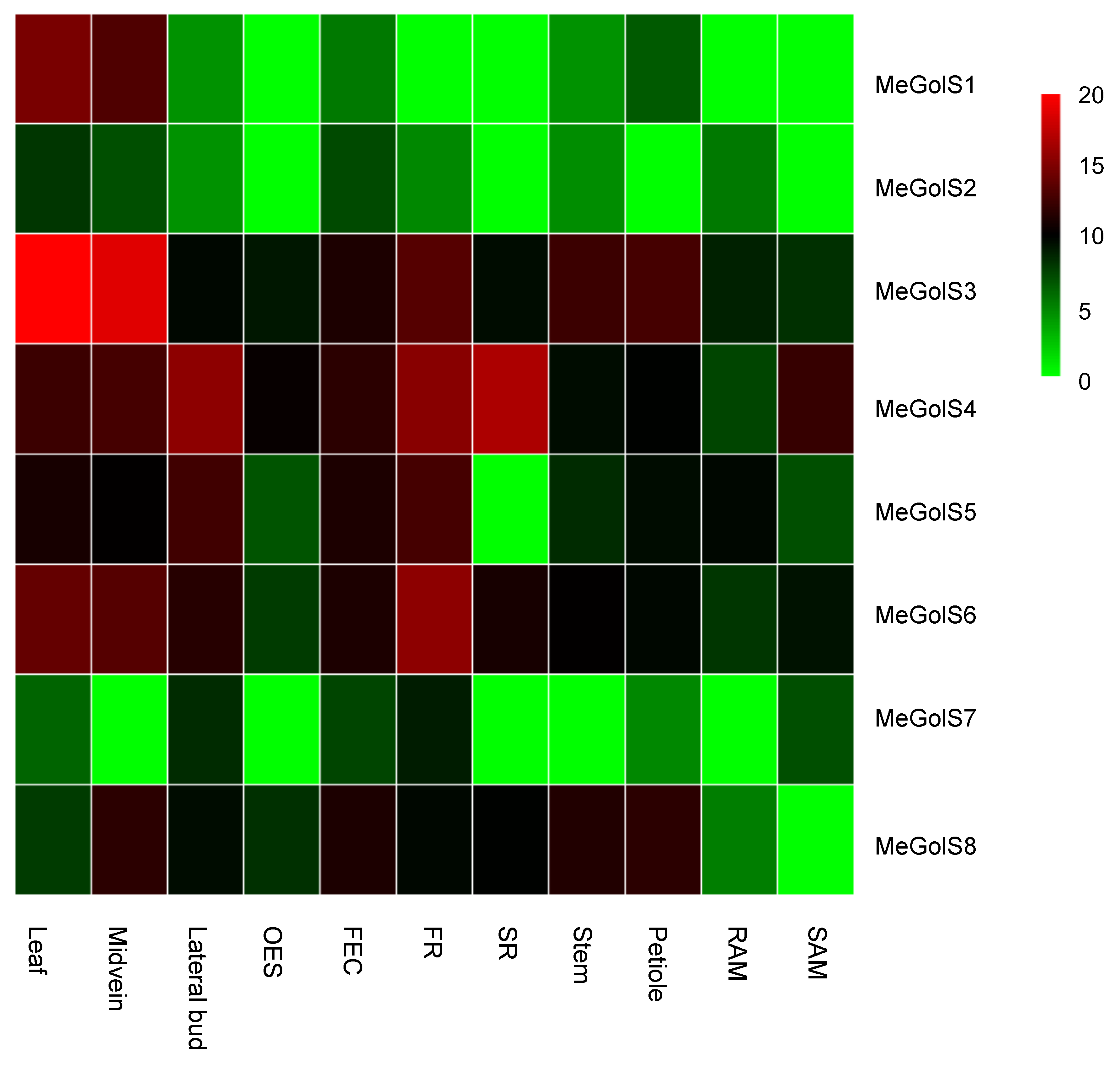

Figure 4. Expression abundance of MeGolSs in different tissues and organs of cassava.
Figure 4. Expression abundance of MeGolSs in different tissues and organs of cassava.
Agronomy 08 00250 g004

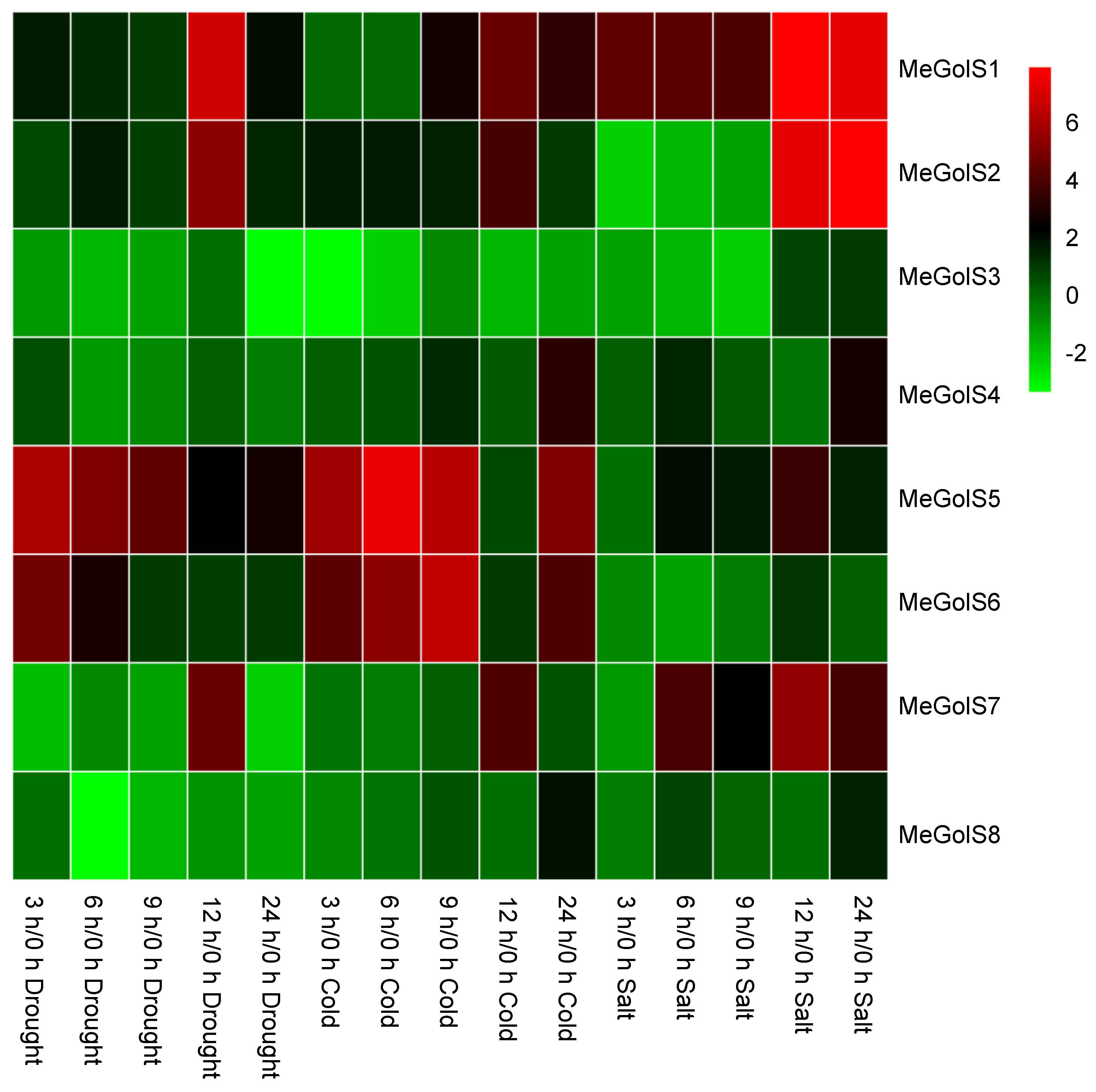

Figure 5. Expression abundance of MeGolSs under drought, cold, and salinity abiotic stresses in cassava. The bars indicated the relative gene expression levels, calculated based on the 2−△△Ct method. The expression levels were equal to the mean values and transform log2 values.
Figure 5. Expression abundance of MeGolSs under drought, cold, and salinity abiotic stresses in cassava. The bars indicated the relative gene expression levels, calculated based on the 2−△△Ct method. The expression levels were equal to the mean values and transform log2 values.
Agronomy 08 00250 g005

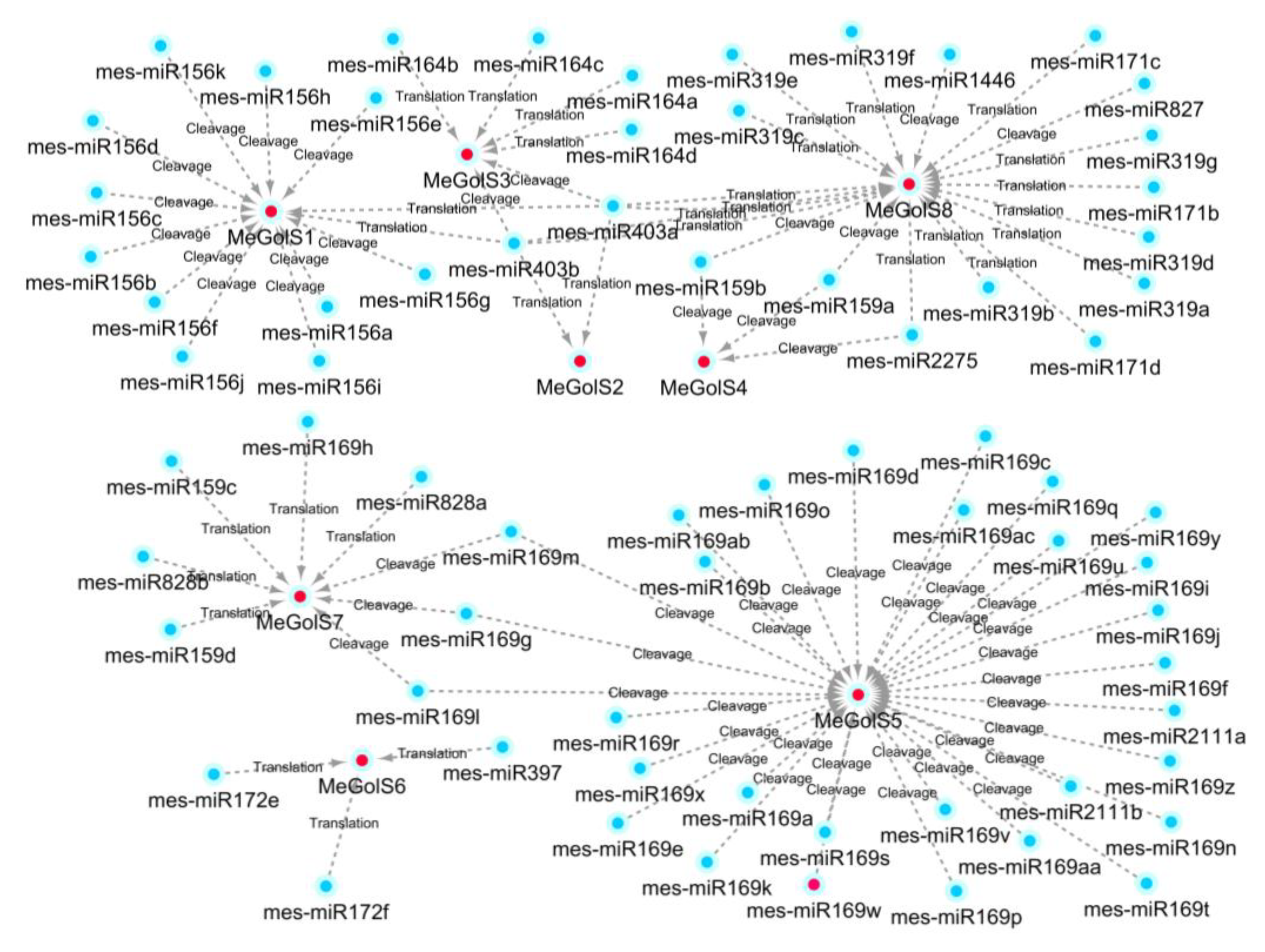

Figure 6. Prediction of microRNA targeting MeGolS genes.
Figure 6. Prediction of microRNA targeting MeGolS genes.
Agronomy 08 00250 g006
Table 1. Information of 8 MeGolSs.
Table 1. Information of 8 MeGolSs.
GenBank IDGene NameLocus NameChromosomal LocationGenomic Position (5′–3′)gDNA (bp)ORF (bp)Protein Length (aa)pIMW (KD)ExonGRAVYSubcellular Location Prediction
KF793045MeGolS1Manes.03G208800Chr0328896616–2889813715229843275.0437.704–0.378Cytoplasmic
KF793046MeGolS2Manes.15G003200Chr15272870–27457817099633205.237.144–0.339Cytoplasmic
KJ722606MeGolS3Manes.13G029000Chr132755754–2759184343110173385.2738.605–0.193Cytoplasmic, Chloroplast
KJ722605MeGolS4Manes.05G012000Chr05822143–824202206010083355.3938.304–0.213Cytoplasmic
KJ722604MeGolS5Manes.08G109300Chr0827446317–27447941162510083355.0838.104–0.162Plasma Membrane
KJ722603MeGolS6Manes.09G179100Chr0928784797–28786402160610143375.4738.194–0.19Plasma Membrane
KJ816317MeGolS7Manes.08G109400Chr0827451435–27453176174210053345.3338.104–0.167ER
MH535931MeGolS8Manes.01G231500Chr0131476735–3148654498109843275.2737.355–0.182Cytoplasmic
gDNA, genomic DNA; ORF, open reading frame; aa, amino acid; MW, molecular weight; pI, isoelectric point; GRAVY, Grand average of hydropathicity.

© 2018 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Back to TopTop
