Use of Detached Leaf Inoculation Method for the Early Selection of Coffea arabica L. for Resistance to Hemileia vastatrix Berk and Broome

by
Julio Quiroga-Cardona
1,*,
Luisa Fernanda López-Monsalve
1,
Vítor Manuel Pinto Várzea
2 and
Claudia Patricia Flórez-Ramos
1
1
Plant Breeding, National Coffee Research Center, Cenicafé, Manizales 170009, Colombia
2
LEAF—Linking Landscape, Environment, Agriculture and Food, Instituto Superior de Agronomia, Universidade de Lisboa, 1349-017 Lisboa, Portugal
*
Author to whom correspondence should be addressed.
Agronomy 2024, 14(6), 1283; https://doi.org/10.3390/agronomy14061283
Submission received: 1 May 2024 / Revised: 31 May 2024 / Accepted: 5 June 2024 / Published: 14 June 2024

Abstract

:
Three hybrid populations (F1) of Coffea arabica were evaluated under field and laboratory conditions, derived from sources carrying the SH1 coffee leaf rust (CLR) resistance gene and the CX.2385 line, obtained from the Caturra × Timor Hybrid CIFC-1343. The results obtained under controlled conditions and analyzed using survival curves allowed to estimate the probable times (p < 0.05) for the development of symptoms associated with CLR in the plants of populations evaluated. Phenotypic variation was observed as a defense response to Hemileia vastatrix infection, and plants with incomplete resistance to CLR were identified via an evaluation using the increasing lesions scale. The plants with incomplete resistance exhibited a delay in the development of the incubation period and an absence of the development of the dormancy period. Data suggest that when resistance genes in the sources are defeated by compatible strains, their recombination can give rise to new levels of resistance in the progeny. Additionally, the detached leaf methodology is recommended as an alternative to preselect genotypes with resistance to CLR, thus reducing the number of plants that are finally planted for field evaluations.

1. Introduction

In Coffee arabica, the coffee leaf rust (CLR) resistance genes SH1, SH2 and SH4 were identified through reactions induced by different pathotypes of Hemileia vastatrix [1], and it was proposed that the interactions between these resistance mechanisms in the plant and the virulence mechanisms in CLR adapted to the gene-for-gene theory [2]. In coffee, this relationship is often applied to resistance factors in the plant and virulence factors in the pathogen in the homozygous state, as long as the resistance comes from dominant genes and the virulence from recessive genes [3]. However, resistance genes in C. arabica and virulence genes in H. vastatrix are not completely dominant [4].
Currently, the protection conferred by the genes encoding C. arabica SH1, SH2, and SH4 is of little interest due to the speed with which variants of H. vastatrix can overcome it. However, plants harboring these genes may exhibit incomplete resistance when specific resistance is overcome by the pathogen [5,6]. In this way, incomplete resistance can become effective in the field for a longer time, providing protection to plants against pathogens that cause limiting diseases, compared to complete resistance, and its quantification can only be carried out through the study of races of the pathogen compatible with the host [7]. On the other hand, incomplete resistance is affected by various factors, including the environment [8], nutritional status [9,10,11], age, phenology, ontogenetic state of organs [8,12,13], and production potential of varieties [14,15].
In C. arabica, incomplete resistance to H. vastatrix is affected by the age of the leaves [16], the productivity of the plant [17], the interaction between the genotype and the environment [18,19,20,21,22], the physiological and nutritional status of the crop [9,10,11,23], and its genetic basis [24]. Studies on the latter factor have shown that incomplete resistance in C. arabica is related to interactions between genes with greater effects and genes with weaker effects that act in an additive manner [24]. The constitutive genetic background of the plant can have an effect, as can a homozygous state of the gene and its combination with other resistance mechanisms [24]. These mechanisms are probably similar to those of the genes with a greater effect, SH6 through SH9, identified in the Timor Hybrid (HdT) [3], and their control is oligogenic but is determined by a variable number of genes [24].
In the search to shorten selection times for the development of coffee varieties, reduce resources, and make the evaluation and selection processes for disease resistance in the field more efficient, there are alternative methods that can be used, such as the use of detached leaves [25]. These methods require a short processing time evaluation and replicate the infection reactions caused by the pathogen under field conditions [25]. These methods have been adjusted for coffee [5,26]. The use of detached leaf inoculation of such alternative methods makes it possible to measure the components of incomplete resistance [26]. In coffee, these components quantified under laboratory conditions, present a high correlation (r = 0.83) with the severity of disease observed under natural conditions of the crop, which has allowed us to select coffee genotypes with an incomplete resistance to CLR. [24]. However, this process involves the collection of continuous records, which are essential for determining the times at which one or more specific symptoms occur. This large volume of information is highly useful when investigating the behavior of plants against the attack of pathogens and disease development [27].
The information obtained in this type of research, when adjusted to statistical assumptions, is generally obtained from parametric statistics. When this does not occur, it is necessary to resort to other statistical approaches for analysis, including time to event analysis [28]. This method is also known as survival analysis or reliability analysis [28,29]. This type of analysis has been implemented to study the interactions between different species [30,31,32,33,34]. Countless cases of plant-pathogen interactions can be cited, but the time until the occurrence of events is rarely used, and coffee is no exception.
Due to the importance of developing techniques in plant breeding for the evaluation and selection of CLR-resistant genotypes and the ability to establish a balance between the time required for the analysis and the efficiency of the selection, the present investigation aimed to select genotypes resistant to CLR using the detached leaf inoculation method. The data were analyzed using nonparametric statistics.

2. Materials and Methods

2.1. Location

The plants were established at the Naranjal Experimental Station of the National Coffee Research Center, Cenicafé, located in Chinchiná-Caldas, Colombia (04°59′ N, 75°39′ W, 1381 masl). This research center has an average temperature of 21.4 °C, 2782 mm of annual precipitation, and 77.5% relative humidity.

2.2. Genotypes

Twenty plants from three populations derived from complex crosses between Ethiopian introductions, carriers of the SH1 gene (CCC.32 and CCC.66), and varieties Caturra and Catuaí, which are susceptible to CLR, were evaluated: Population 1: [[(Caturra × CCC.32) × (Caturra × CCC.66)] × CX.2385], Population 2: [CX.2385 × [(Caturra × CCC.32) × (Caturra × CCC.66)]], and Population 3: [Catuaí × [(Caturra × CCC.66)] × CX.2385]. In previous works developed at the Centro de Investigação das Ferrugens do Cafeeiro (CIFC for its name in Portuguese), it was determined that these crosses segregate for the physiological resistance Groups C and EC (SH1.5, SH5), respectively. These populations were crossed with the CX.2385 line, a carrier of incomplete resistance to the disease, which was obtained from a cross between the Caturra variety and the HdT CIFC-1343.

2.3. Field Evaluations

The incidence of CLR was quantified under field conditions using the scale of incidence in the field [35]. This scale takes the entire plant as the unit of observation. Between 2017 and 2019, in the months with the highest incidence of the disease in Colombia (April and August), two evaluations of incidence were carried out per year. All the plants were evaluated for their incomplete resistance to CLR using the detached leaf inoculation method. Fully extended young leaves were taken from branches of the second third of the tree, located in the first two nodes, from the outside to the inside. The leaves were collected with the petiole, washed, and disinfected by being immersed in a 3% hypochlorite solution under constant agitation for 30 to 40 s. Immediately after, they were washed with distilled water and then immersed in alcohol at a concentration of 70% for 1 min. The alcohol was removed by rinsing them with distilled water, followed by rinsing with sterile distilled water. Four leaves were deposited per genotype, arranged with the underside facing up, in transparent plastic boxes with a lid (37 cm wide by 26 cm high by 40 cm long) acting as a humid chamber. The leaves were then kept for 12 h in complete darkness.

2.4. Laboratory Evaluations

The inoculum was obtained from isolated plants the CX.2385 line (Figure 1A), with the scraping technique on a Petri dish, and prepared in a solution with sterile distilled water and 0.7 mg of urediniospores being added to each ml of water. The dispersion of the urediniospores and homogenization of the solution were carried out by shaking under ultrasound for 20 s. Finally, the solution was subjected to constant magnetic stirring, and, with a micropipette, 8 drops of 5 µL were deposited on each leaf and then incubated in complete darkness for 48 h (Figure 1B). The inoculated leaves were subjected to alternating periods of illumination, 9 h of light and 15 h of darkness, for 60 days with LED light lamps; the configuration was 70% intensity, red color 100%, blue color 100%, green color 0% and 30 µmol m2s−1, and it was set up 75 cm above the leaves (Figure 1C). The quantification of luminosity was carried out with the TARGAS-1 portable photosynthesis system device; the precision was ±1 µmol m2s−1.
It was guaranteed that the interior humidity of each chamber stayed close to the saturation point, the temperature was between 22 and 24 °C, and the progression of the disease was recorded from day 10 after inoculation (DAI) (Figure 2) on a scale comprising increasing severity of lesions for the evaluation of incomplete resistance [5].

2.5. Experimental Design and Analysis

The experiment was replicated four times in a completely randomized design. The data were analyzed by survival analysis, taking the leaf as an experimental unit and each inoculated site as an observation unit. The survival estimators that correspond to the appearance of each symptom were obtained by the Kaplan–Meier method [34] with 95% confidence intervals (p < 0.05) using Equation (1). The data were processed using R and the survival and survminer packages.
S (t) = P (T ≥ t)
where
-
S (t) = survival function.
-
T = the most likely time at which symptoms develop in each genotype.
-
P (t) = the conditional probability function that describes the instantaneous risk for the symptom to develop at time t, from day 10 DAI to day 60 DAI.

3. Results

3.1. Incidence of CLR under Field Conditions

Six evaluations were performed under field conditions, with a maximum value of 3 and a minimum value of 1, according to the incidence scale of Eskes and Toma-Braghini [35] (Table 1). Although grade 3 can be considered a degree of apparent susceptibility, it was classified as a resistance reaction due to the non-effect of the disease on production.

3.2. Probable Times of Symptom Onset under Controlled Conditions

The average DAI at the appearance of small, discolored lesions (grade 1) and the percentage of inoculated sites that developed grade 1 lesions was evaluated. Variation between genotypes was seen (Figure 3 and Figure 4 and Table 2). The Caturra variety and the CX.2385 line exhibited the shortest incubation periods, with 14.34 and 14.94 DAI, respectively (Figure 4).
In all the plants evaluated, some tissue was affected by CLR. The survival estimators (p < 0.05) showed that the most likely times for the development of the fungus during the incubation period were not absolute but rather highly variable (Figure 4). The incubation period was 14.34 DAI in the Caturra variety, 14.94 DAI in the CX.2385 line, and 22.50 DAI in the plant 128 (population 3).
The symptom values recorded in the incubation period were variable, ranging from 32.8% to 100%. The lowest percentage (32.8%) was presented by plant 128, which did not develop more advanced symptoms. In the other plants, symptoms were detected in 87.5% to 100% of the lesions (Table 2). Lesions of genotypes 33, 34, 35, 51, and 53, Caturra variety, and CX.2385 line showed sporulation, with visible differences in density, indicating different levels of resistance for each plant (Table 2). In all cases, the disease developed gradually, with intense chlorotic zones, followed by the formation of uredosporic sori.
The times to reach the most advanced stages of the disease within the incubation period varied from plant to plant. The earliest expression of grade 2 was observed in the Caturra variety (18.2 DAI), the latest in plant 32 (36.4 DAI). The CX.2385 line developed symptoms 4.3 days later than the Caturra variety and 13.9 days earlier than the most recent genotype (plant 32) (Figure 4).
The maximum grade reached by plant 65 was 2, which was visible in 93.8% of the lesions (Table 2) at 26 DAI. This time was 8 days later than that of the Caturra variety and 4.2 days later than that of CX.2385 line. In the other plants, symptoms arose between 19.0 and 23.0 DAI. Plants 35 and 51 developed symptoms at the same time (Figure 4).
In Caturra variety, grade 3 was observed 3.6 days after presenting grade 2. The progression of the disease was slower in plant 32, at 17.1 days after CX.2385 line and 22.2 days after the Caturra variety (Figure 4). Plants 31 and 127 presented equal times for the development of grade 3 symptoms. Grade 3 was present to different degrees, with values ranging from 6.3% to 100% (Table 2).
The shortest latency periods (grade 4) were recorded for the CX.2385 line (34.5 DAI) and the Caturra variety (36 DAI). This symptom developed in only 25% of the evaluated plants (33, 34, 35, 51, and 53). The highest percentages of sporulating sites were observed in plants 51 and 53 (Table 2). Plant 34 was the latest to develop sporulating sites, 24 days later than the Caturra variety did and 25.5 days after the CX.2385 line did.
The stages of disease development greater than the latency period (grades 5, 6, and 7) were detected only in plants 33, 35, 51, and 53 and in the Caturra variety and CX.2385 line. Grade 6 was detected in CX.2385 line at 37.4 DAI, affecting 24% of the inoculated sites, and at 42.7 DAI in the Caturra variety, affecting 78.1%. With a difference of a few days, the same degree was recorded in plants 35, 51, and 53, which presented widely dissimilar infection values, ranging from 0.8% to 40.6% (Figure 3 and Figure 4 and Table 2).
Grade 7 was observed in the Caturra variety and CX.2385 line. Genotypes 35 and 51 developed the same symptoms at 48 and 44 DAI, respectively (Figure 4). The lesions appeared in variable percentages, between 5% and 30% (Figure 3 and Table 2). The percentage affecting genotype 35 was 18.6% less than that of CX.2385 line and 71.8% less than that of the Caturra variety. The effect of plant 51 was 5.5% greater than that of CX.2385 line but 47.6% lower than that of the Caturra variety. The percentages of grade 7 lesions in the Caturra variety and CX.2385 line were widely dissimilar, with values greater than 75% in the Caturra variety and less than 25% in the CX.2385 line (Table 2).

3.3. Probability of Survival to the Expression of CLR Symptoms in Coffee Population

Population 1, made up of plants 31, 32, 33, 34, and 35, presented heterogeneity in resistance reactions from day 10 to day 60 DAI (Figure 5). Under the exposure conditions, evaluation time, and inoculum used, the development of grade 4 fungi was not present in plants 31 and 32. In plants 31, 32, and 35, the development of the different symptoms did not occur quickly. In contrast, in plants 33 and 34, the symptoms were most common during the first 35 days of observation.
In population 2, there was also a variation in the reactions of resistance to CLR. Plants 52, 54, 55, 61, 62, 63, and 64 showed no development of a latency period (grade 4), similar to what we observed in plants 31 and 32 of population 1. Plants 51 and 53 had the highest incidence, which was similar to that of the CX.2385 line. Plant 65, which did not develop to a degree higher than 2, stood out (Figure 6).
Population 3 presented resistance similar to that described for population 2 (Figure 5). Plants that did not develop grade 3 resistance symptoms were found. Plant 128 was of great interest and stood out among all the genotypes analyzed. This plant was characterized by late development of the infection period and a delayed symptom effect. Symptoms were occasionally observed at all the inoculated sites (Figure 7), reaching only grade 1, and no more advanced symptoms developed.
No plants of the Caturra variety or the CX.2385 line survived until the development of the maximum degree of disease. In these genotypes, the disease developed and presented all its stages of development. Short durations (compared with those of the other genotypes) were the most likely to be present, indicating a greater risk of disease development in the first days after contact between the rust and the plant. The genotypes expressed all the symptoms of the disease in less than 60 days (Figure 8).
The controlled conditions in which the research was conducted guaranteed that all the evaluated genotypes presented an equal opportunity to be infected by the fungus. However, as the observation time increased, the probability that the disease did not develop on each genotype decreased. In the case of plants 65 and 128, a low probability of CLR developing during the infection period was observed (p < 0.05), without symptoms developing beyond grade 2, an effect attributed to the genetic resistance that the plants presented the used inoculum (Figure 9). Likewise, the formation of chlorotic halos of variable size was observed, and in some cases swollen tissues were observed.
Regarding the controls, in the Caturra variety and CX.2385 line, the fungus developed spores, reaching the maximum degree according to the evaluation scale. The greatest effect was observed in the Caturra variety (Table 2).

4. Discussion

When the objective of a breeding program is to find resistant plants for limiting and potential diseases, it is necessary to evaluate large plant populations, such as the plants with favorable resistance alleles, which are are more likely to emerge. The size of the population will be a function of the number of loci that the breeders want to introgress into the same genotype, and the variation in the expression of the resistance components will be the result of the level of homozygosity of the resistance genes in the parents. In F1 plants, the absence of segregating patterns is expected when the resistance mechanisms are in a homozygous state. In contrast, the results obtained in this research suggest that CLR resistance segregates within the evaluated populations, a behavior that has been reported in hybrid populations developed from sources of C. arabica [4]. In the plants evaluated in this work, an apparent segregation by resistance was observed, expressed by longer periods required to develop a latency period, a lower density of sporulating lesions, and, in some cases, early necrosis of the lesions, which is consistent with other reports [4].
In C. arabica, the percentages of urediniospores that germinate and infect tissues are similar in resistant and susceptible plants [36]. However, in genotypes considered resistant, the plant responses occur a few days after the fungus begins the infection process. These reactions in the plant against the attack of pathogens are modulated by the expression of proteins that regulate defense responses, blockages in the formation of the appressorium, mycelial growth, and modifications of the cell wall, affecting the synthesis of lignin in the cells that surround stomatal tissue and sometimes cytoplasmic tissue [37,38,39,40].
All this leads to the development of chlorosis, swelling of the tissues, and a reduction in the penetration of the fungus, making it difficult to establish, preventing colonization and reducing the reproduction of the pathogen on the tissue [36,41]. These resistance reactions generally occur because the defense mechanisms that plants deploy to attack pathogens involve quantitative and polygenic inheritance [40].
In this study, no plants immune to the pathogen were identified, that is, all of them presented some degree of disease. However, highly resistant plants with variable phenotypic responses, including the development of chlorotic zones of different intensities and swelling, were identified (plants 65 and 128). These symptoms are frequently observed in the Rubiaceae family, where tissue deformation occurs at the site of infection, accompanied by chlorotic regions, and these symptoms are considered reactions that occur in incomplete resistance responses of coffee to H. vastatrix [42]. In resistant genotypes of Coffea, during infection by H. vastatrix, the cells of the mesophyll develop hypertrophy as an effect of the activation of secondary metabolites, accumulation of phenolic components, and thickening of the cell wall [36]. These responses are the product of the activation of the metabolic pathway of shikimic acid, which is the same pathway that yields the biochemical compounds that lignin is made from. Lignin is responsible for the thickening of cell walls, the first barrier of plants in defense against the attack of phytopathogens.
These variations in resistance, to a large extent, are related to different factors, including environmental factors [9,10,11,16], genetic factors [8,24], and the product of interactions between them [18,19,20,21,22]. Therefore, to decrease the effects of interactions between genotype and the environment, this work was carried out under controlled conditions.
When any of the parents are not homozygous, a segregation of hybrid populations occurs, in which case resistance and susceptibility are not the absolute attributes of the plant. In contrast, they are characterized by compatible or incompatible specific interactions between the host, its resistance mechanisms, the pathogen, and its virulence mechanisms [43]. In the case of the resistance conferred by genes from C. arabica SH1, SH2, and SH4, its resistance capacity is regulated by its level of homozygosity and interaction with other resistance genes present in the plant [3,44].
The resistance reactions we observed show that the combination of the SH1 gene with the resistance genes derived from HdT can have a genetic control effect on the pathotype used, allowing the expression of various phenotypic resistance reactions and the apparent additive action of genes. Therefore, it is possible to phenotypically select resistant plants, facilitating the combination of resistance alleles in a genotype and providing an efficient barrier against the pathogen [40]. Additionally, in the HdT and its derived varieties, resistance is controlled by genes with independent segregation [45], allowing the genetic configurations of the progeny to be diverse in their reactions to disease [8].
In the three populations evaluated, some plants presented intermediate reactions in terms of intensity (grade 3), with a progressive increase in chlorotic tissue. This type of resistance reaction is most common in plants when they are affected by the rust causing fungi [41]. In plants classified as susceptible, the resistance response is delayed, allowing the development, growth, and sporulation of fungus [36], which is consistent with what was observed within the plants of the evaluated populations. In this research, late phenotypic defense responses were observed, but these responses allow the pathogen to affect tissues in different proportions. The level of resistance of the evaluated plants and the infectivity rates of the pathogen were decisive in each genotype to restrict the development of the fungus, and this plant-pathogen interaction caused variations in each genotype’s risk per se of developing symptoms associated with the disease.
The survival curves allowed us to identify the probability and model the level of resistance of the plant to the development of H. vastatrix. What was observed was adjusted to what was expected in this type of experiment [28,31,32,33]. The symptoms observed in resistant plants are often preceded by the cessation of growth and colonization of the pathogen [3,36], making this characteristic an indicator of its high genetic value and agronomic interest. We must bear in mind that when breeding and selection are carried out to seek genetic resistance against pathogens that limits crop production, yield reductions may occur [14,15]. Additionally, the relationship between genetic resistance to a pathogen and the production capacity of the plant will always be closely related to the effects of the environment and the genetic configuration of the varieties [8].
All plants presented incomplete resistance under field conditions, but two presented the lowest incidence of the disease under conditions of pressure from virulent races (Table 1). Therefore, a strict selection was carried out based on the incidence values under controlled conditions, and it was complemented with the values obtained under field conditions. The latter parameter (field evaluations) indisputably reflects the level of genetic resistance of the plant under conditions of high pressure from the inoculum to specific races.
In the selection process within any plant breeding program for the resistance to diseases, the selection parameters must always be as high as possible to reduce the future risk that the pathogen will pass through introgressed resistance mechanisms, which is a natural and inevitable process. Given this risk, the ideal strategy to mitigate the impacts of a possible loss of resistance is to make use of genetic diversity. Its uses and benefits are documented for different crops [46,47,48], and coffee is no exception. Its genetic diversity has yielded a wide spectrum of benefits, including economic, environmental, and social benefits, as has been demonstrated with the varieties released by the National Federation of Coffee Growers and its research center Cenicafé in Colombia [49].
Although the CX.2385 line exhibited a high CLR incidence in the laboratory, with a grade of 7 on the scale of growing lesions and a grade of 6 under field conditions [5,12], the severity of these lesions under cultivation conditions does not seem to have negative effects on production, confirming its high incomplete resistance to CLR. Contrasting findings were observed for the Caturra variety, which was highly susceptible to normal cultivation conditions in Colombia and whose production can be harmed at any time of the year, at any altitude, and in the absence of chemical control for the disease. Therefore, from the identified and selected plants, we will continue to obtain segregating populations and to advance them to further generations to fix and select progenies for the various characteristics of agronomic value, which will benefit Colombian coffee growers.
In this research, the agronomic management of the plants and the research conditions, temperature, humidity, evaluation times, and light intensity were the same for all the genotypes. This ruled out environmental effects or effects attributed to the physiological state of the plant [9,16]; therefore, the variations in the resistance response observed are the expression of resistance characteristics of the genotype and are undoubtedly related to the genetic background of the parents and the combinations of resistance factors in the progeny.

5. Conclusions

This research allowed us to identify hybrid plants (F1), which are highly resistant to CLR, and they have the potential to be utilized when looking for new sources of genetic resistance to CLR in Colombia. New evidence is presented of the phenotypic response of the combination of resistance factors from C. arabica and HdT, which have different resistance spectra that are expressed when the genes are not combined or are acting individually. The results obtained allow us to recommend the plant preselection methodology under controlled conditions, to quickly identify the genetic potential of resistant plants to H. vastatrix. In the case of Colombia, the costs associated with the process of registering variables essential for the selection of disease resistance—such as CLR, in coffee cultivation—can represent around 30% of the costs per cycle in research processes. The methodology described here contributes to the existing body of literature by reducing the number of plants that reach evaluations under field conditions and is crucial in the efficient use of economic resources in the selection and development of coffee varieties.

Author Contributions

Conceptualization, J.Q.-C. and C.P.F.-R.; investigation, J.Q.-C., L.F.L.-M., and writing—original draft preparation J.Q.-C.; writing—review and editing, J.Q.-C., C.P.F.-R., and V.M.P.V. All authors have read and agreed to the published version of the manuscript.

Funding

This work was funded by the National Coffee Research Center (Cenicafé) (Crossref Funder ID 100019597).

Data Availability Statement

Restrictions apply to the dataset. The data sets presented in this article are not easily available because they were obtained with resources from the National Federation of Coffee Growers of Colombia and are part of the development program for C. arabica varieties with genetic resistance to CLR. Requests to access the data sets should be directed to the National Coffee Research Center—Cenicafé.

Acknowledgments

The authors thank the university interns who were linked to the plant breeding program of the Coffee Research Center—Cenicafé during this research study and who supported the assembly and registration of the information.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Noronha Wagner, M.; Bettencourt, A.J. Genetic study of the resistance of Coffea spp. to leaf rust-Identification and behavior of four factors conditioning disease reaction in Coffea arabica to twelve physiologic races of Hemileia vastatrix. Can. J. Bot. 1967, 45, 2021–2031. [Google Scholar] [CrossRef]
  2. Flor, H.H. Inheritance of pathogenicity in Melampsora lini. Phytopathology 1942, 32, 653–669. [Google Scholar]
  3. do Céu Silva, M.; Rijo, L.; Rodrigues, C.J., Jr.; Vasconselos, M.I. Histological study of the heterozigosity effect of coffee resistance genes SH1 and SH4, SH5 towards Hemileia vastatrix. Broteria Genética 1992, XIII, 169–184. [Google Scholar]
  4. Eskes, A.B.; Carvalho, A. Variation for incomplete resistance to Hemileia vastatrix in Coffea arabica. Euphytica 1983, 32, 625–637. [Google Scholar] [CrossRef]
  5. Leguizamón Caicedo, J. Contribution a la Connaissnace de la Resistance Incomplete du Cafier arabica (Coffea arabica L.) a la Rouille Orangee (Hemileia vastatrix Berk. et Br.); IRCC: Montpellier, France, 1985. [Google Scholar]
  6. Castillo Zapata, J.; Leguizamón Caicedo, J. Viruelencia de Hemileia vastatrix determinada por medio de plantas diferenciales de café en Colombia. Cenicafé 1992, 43, 114–124. [Google Scholar]
  7. Rios, J.A.; Debona, D. Efeito epidemiológico da resistência de hospedeiro. In Resistência Genética de Plantas a Patógenos; Dallagnol, J.L., Ed.; UFPel: Pelotas, Brasil, 2018; p. 437. [Google Scholar]
  8. Ficke, A.; Cowger, C.; Bergstrom, G.; Brodal, G. Understanding Yield Loss and Pathogen Biology to Improve Disease Management: Septoria nodorum Blotch—A Case Study in Wheat. Plant Dis. 2018, 102, 696–707. [Google Scholar] [CrossRef]
  9. Toniutti, L.; Breitler, J.-C.; Etienne, H.; Campa, C.; Doulbeau, S.; Urban, L.; Lambot, C.; Pinilla, J.-C.H.; Bertrand, B. Influence of Environmental Conditions and Genetic Background of Arabica Coffee (C. arabica L.) on Leaf Rust (Hemileia vastatrix) Pathogenesis. Front. Plant Sci. 2017, 8, 2025. [Google Scholar] [CrossRef]
  10. Pérez, C.P.; Pozza, E.A.; Pozza, A.A.; de Freitas, A.S.; Silva, M.G.; Gomes Guimarães, D.D. Impact of nitrogen and potassium on coffee rust. Eur. J. Plant Pathol. 2019, 155, 219–229. [Google Scholar] [CrossRef]
  11. Ghufron Rosyady, M.; Anom Wijaya, K.; Wulanjari, D.; Wafa, A. Role of Mineral Elements to Induce the Resistance of Arabica Coffee against Rust Disease at Lowland Area. E3S Web Conf. 2020, 142, 3. [Google Scholar] [CrossRef]
  12. Eskes, A.B.; Toma-Braghini, M. The effect of leaf age on incomplete resistance of coffee to Hemileia vastatrix. Neth. J. Plant Pathol. 1982, 88, 219–230. [Google Scholar] [CrossRef]
  13. Marla, S.R.; Chu, K.; Chintamanani, S.; Multani, D.S.; Klempien, A.; DeLeon, A.; Bong-Suk, K.; Dunkle, L.D.; Dilkes, B.P.; Johal, G.S. Adult plant resistance in maize to northern leaf spot is a feature of partial loss-of-function alleles of Hm1. PLoS Pathog. 2018, 14, e1007356. [Google Scholar] [CrossRef]
  14. Ning, Y.; Liu, W.; Wang, G.L. Balancing Immunity and Yield in Crop Plants. Trends Plant Sci. 2017, 22, 1069–1079. [Google Scholar] [CrossRef] [PubMed]
  15. Li, W.; Chern, M.; Yin, J.; Wang, J.; Chen, X. Recent advances in broad-spectrum resistance to the rice blast disease. Curr. Opin. Plant Biol. 2019, 50, 114–120. [Google Scholar] [CrossRef] [PubMed]
  16. Countinho, T.A.; Rijkenberg, F.J.; van Asch, M. The effect of leaf age on infection of Coffea genotypes by Hemileia vastatrix. Plant Pathol. 1994, 43, 97–103. [Google Scholar] [CrossRef]
  17. Alvarado Alvarado, G. El Café y la roya: Estrategias de Resistencia Incompleta; FNC–Cenicafé: Chinchiná, Colombia, 2011. [Google Scholar]
  18. DaMatta, F.M. Ecophysiological constraints on the production of shaded and unshaded coffee: A review. Field Crops Res. 2004, 86, 99–114. [Google Scholar] [CrossRef]
  19. Romero Guerrero, G.; Herrera Pinilla, J.C.; Ligarreto Moreno, G.A.; Alvarado Alvarado, G. Análisis genético de la resistencia incompleta a Hemileia vastatrix en progenies de Caturra x Híbrido de Timor. Cenicafé 2008, 59, 103–119. [Google Scholar]
  20. Liebig, T.; Ribeyre, F.; Läderach, P.; Poehling, H.-M.; Asten, P.V.; Avelino, J. Interactive effects of altitude, microclimate and shading system on coffee leaf rust. J. Plant Interact. 2019, 14, 407–415. [Google Scholar] [CrossRef]
  21. Belachew, K.; Senbeta, G.A.; Garedew, W.; Barreto, R.W.; Del Ponte, E.M. Altitude is the main driver of coffee leaf rust epidemics: A large-scale survey in Ethiopia. Trop. Plant Pathol. 2020, 45, 511–521. [Google Scholar] [CrossRef]
  22. Merle, I.; Pico, J.; Granados, E.; Boudrot, A.; Tixier, P.; Filho, E.d.M.V.; Cilas, C.; Avelino, J. Unraveling the Complexity of Coffee Leaf Rust Behavior and Development in Different Coffea arabica Agroecosystems. Phytopathology 2020, 110, 418–427. [Google Scholar] [CrossRef]
  23. Vasco, G.B.; Pozza, E.A.; Silva, M.G.; Pozza, A.A.; Chaves, E. Interaction of K and B in the intensity of coffee rust in nutrient solution. Coffee Sci. 2018, 13, 238–244. [Google Scholar] [CrossRef]
  24. Eskes, A.B.; Da Costa, W.M. Characterization of incomplete resistance to Hemileia vastatrix in the icatu coffee population. Euphytica 1983, 32, 649–657. [Google Scholar] [CrossRef]
  25. Zadoks, J.C. A case of race differentiation of brown rust on mature plants of wheat. Neth. J. Plant Pathol. 1963, 69, 145–167. [Google Scholar] [CrossRef]
  26. Eskes, A.B. The use of leaf disk inoculations in assessing resistance to coffee leaf rust (Hemileia vastatrix). Neth. J. Plant Pathol. 1982, 88, 127–141. [Google Scholar] [CrossRef]
  27. Scherm, H.; Ojiambo, P.S. Applications of Survival Analysis in Botanical Epidemiology. Phytopathology 2004, 94, 1022–1026. [Google Scholar] [CrossRef] [PubMed]
  28. Kaplan, E.L.; Meier, P. Nonparametric Estimation from Incomplete Observation. J. Am. Stat. Assoc. 1958, 53, 45–481. [Google Scholar] [CrossRef]
  29. Romano, A.; Stevanato, P. Germination Data Analysis by Time-to-Event Approaches. Plants 2020, 9, 617. [Google Scholar] [CrossRef] [PubMed]
  30. Madden, L.V.; Nault, L.R. Differential Pathogenicity of Corn Stunting Mollicutes to Leafhopper Vectors in Dalbulus and Baldulus species. Phytopathology 1983, 73, 1608–1614. [Google Scholar] [CrossRef]
  31. Westra, G.A.A.; Arneson, C.P.; Slack, S.A. Effect of Interaction of Inoculum Dose, Cultivar, and Geographic Location on the Development of Foliar Symptoms of Bacterial Ring of Potato. Ecol. Epidemiol. 1994, 84, 410–415. [Google Scholar] [CrossRef]
  32. Jules, E.S.; Kauffman, M.J.; Ritts, W.D.; Carroll, A.L. Spread of an Invasive Pathogen over a Variable Landscape: A Nonnative Root Rot on Port Orford Cedar. Ecology 2002, 83, 3167–3181. [Google Scholar] [CrossRef]
  33. Neher, D.A.; Wilkinson, H.T.; Augspurger, C.K. Progression of damping-off epidemics in Glycine populations of even-age and mixed-age structure. Can. J. Bot. 1992, 70, 1032–1038. [Google Scholar] [CrossRef]
  34. Stalpers, L.J.; Kaplan, E.L.; Edward, L. Kaplan and the Kaplan-Meier Survival Curve. J. Br. Soc. Hist. Math. 2018, 33, 109–135. [Google Scholar] [CrossRef]
  35. Eskes, A.B.; Toma Braghini, M. Assessment methods for resistance to coffee leaf rust (Hemileia vastatrix Berk. and Br.). FAO-Plant-Prot.-Bull. 1981, 29, 56–66. [Google Scholar]
  36. do Céu Silva, M.; Nicole, M.; Guerra Guimaraes, L.; Rodrigues, C.J., Jr. Hypersensitive cell death and post-haustorial defence responses arrest the orange rust (Hemileia vastatrix) growth in resistant coffee leaves. Physiol. Mol. Plant Pathol. 2002, 60, 169–183. [Google Scholar] [CrossRef]
  37. Andersen, E.J.; Ali, S.; Byamukama, E.; Yen, Y.; Nepal, M.P. Disease Resistance Mechanisms in Plants. Genes 2018, 9, 339. [Google Scholar] [CrossRef] [PubMed]
  38. Albert, M.; Axtell, M.J.; Timko, M.P. Mechanisms of resistance and virulence in parasitic plant–host interactions. Plant Physiol. 2021, 185, 1282–1291. [Google Scholar] [CrossRef] [PubMed]
  39. Silva, M.D.C.; Guerra-Guimarães, L.; Diniz, I.; Loureiro, A.; Azinheira, H.; Pereira, A.P.; Tavares, S.; Batista, D.; Várzea, V. An Overview of the Mechanisms Involved in Coffee-Hemileia vastatrix Interactions: Plant and Pathogen Perspectives. Agronomy 2022, 12, 326. [Google Scholar] [CrossRef]
  40. Simardeep, K.; Kumar Samota, M.; Choudhary, M.; Choudhary, M.; Pandey, A.K.; Sharma, A.; Thakur, J. How do plants defend themselves against pathogens-Biochemical mechanisms and genetic interventions. Physiol. Mol. Biol. Plants 2022, 28, 485–504. [Google Scholar] [CrossRef] [PubMed]
  41. Gill, U.S.; Lee, S.; Mysore, K.S. Host Versus Nonhost Resistance: Distinct Wars with Similar Arsenals. Phytopathology 2015, 105, 580–587. [Google Scholar] [CrossRef] [PubMed]
  42. Eskes, A.B. Resistance. In Coffee Rust: Epidemiology, Resistance and Management; Kushalappa, A.C., Eskes, A.B., Eds.; Boca CRC Press, Inc.: Ratón, FL, USA, 1989; p. 345. [Google Scholar]
  43. Zambolim, L.; Teixeira Caixeta, E. An Overview of Physiological Specialization of Coffee Leaf Rust–New Designation of Pathotypes. Int. J. Curr. Res. 2021, 13, 15564–15575. [Google Scholar] [CrossRef]
  44. Eskes, A.B. The effect of light intensity on incomplete resistance of coffee to Hemileia vastatrix. Neth. J. Plant Pathol. 1982, 88, 191–202. [Google Scholar] [CrossRef]
  45. Capucho, A.S.; Caixeta, E.T.; Zambolim, E.M.; Zambolim, L. Herança da resistência do Híbrido de Timor UFV 443-03 à ferrugem-do-cafeeiro. Pesqui. Agropecuária Bras. 2009, 44, 276–282. [Google Scholar] [CrossRef]
  46. Parvatha Reddy, P. Variety Mixtures/Cultivar Mixtures/Multilines. In Recent Advances in Crop Protection; Springer: New Delhi, India, 2013; pp. 201–221. [Google Scholar] [CrossRef]
  47. Chai, Y.; Pardey, P.G.; Silverstein, K.T. Scientific selection: A century of increasing crop varietal diversity in US wheat. Proc. Natl. Acad. Sci. USA 2022, 119, e2210773119. [Google Scholar] [CrossRef] [PubMed]
  48. Castro, D.G.; de Moura, A.M.; Alves, N.B.; Tomé, L.M.; Botelho, F.B.S.; Neto, A.R.; de Souza, D.C. Multiline aiming at phenotypic stability and rice blast resistance. Biosci. J. 2022, 38, e38100. [Google Scholar] [CrossRef]
  49. Flórez, C.P.; Arias, J.C.; Cortina, H.; Moncada-Botero, M.; Quiroga-Cardona, J.; Molina, D.M.; García-López, J.C. Variedades Castillo® Zonales. Resistencia a la roya con mayor productividad. Avances Técnicos Cenicafé. 2018, 489, 1–8. [Google Scholar] [CrossRef]

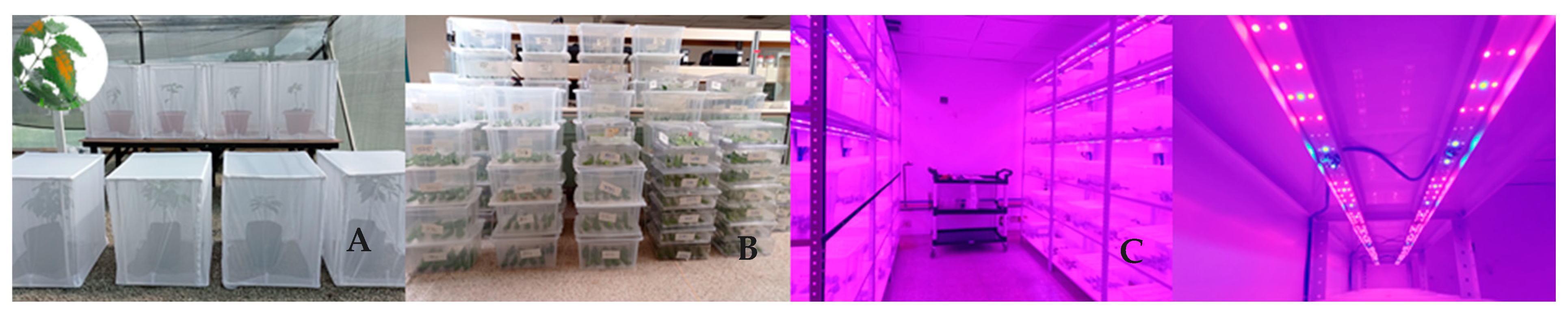

Figure 1. (A) CX.2385 plants isolated to obtain the CLR inoculum. (B) Inoculation boxes containing detached leaves inoculated with CLR. (C) Lighting conditions of the detached leaf evaluation room.
Figure 1. (A) CX.2385 plants isolated to obtain the CLR inoculum. (B) Inoculation boxes containing detached leaves inoculated with CLR. (C) Lighting conditions of the detached leaf evaluation room.
Agronomy 14 01283 g001
Figure 2. Scale of increasing lesions to quantify severity to CLR. (0) Absence of visible injury. (1) Appearance of small, discolored lesions. (2) Increased lesion surface and deeper discoloration. (3) Intensification of lesions and discoloration. (4) The appearance of the first spores. (5) Sporulation in less than 25% of the lesion surface. (6) Sporulation between 25% and 50% of the lesion surface. (7) Sporulation in more than 50% of the lesion surface.
Figure 2. Scale of increasing lesions to quantify severity to CLR. (0) Absence of visible injury. (1) Appearance of small, discolored lesions. (2) Increased lesion surface and deeper discoloration. (3) Intensification of lesions and discoloration. (4) The appearance of the first spores. (5) Sporulation in less than 25% of the lesion surface. (6) Sporulation between 25% and 50% of the lesion surface. (7) Sporulation in more than 50% of the lesion surface.
Agronomy 14 01283 g002

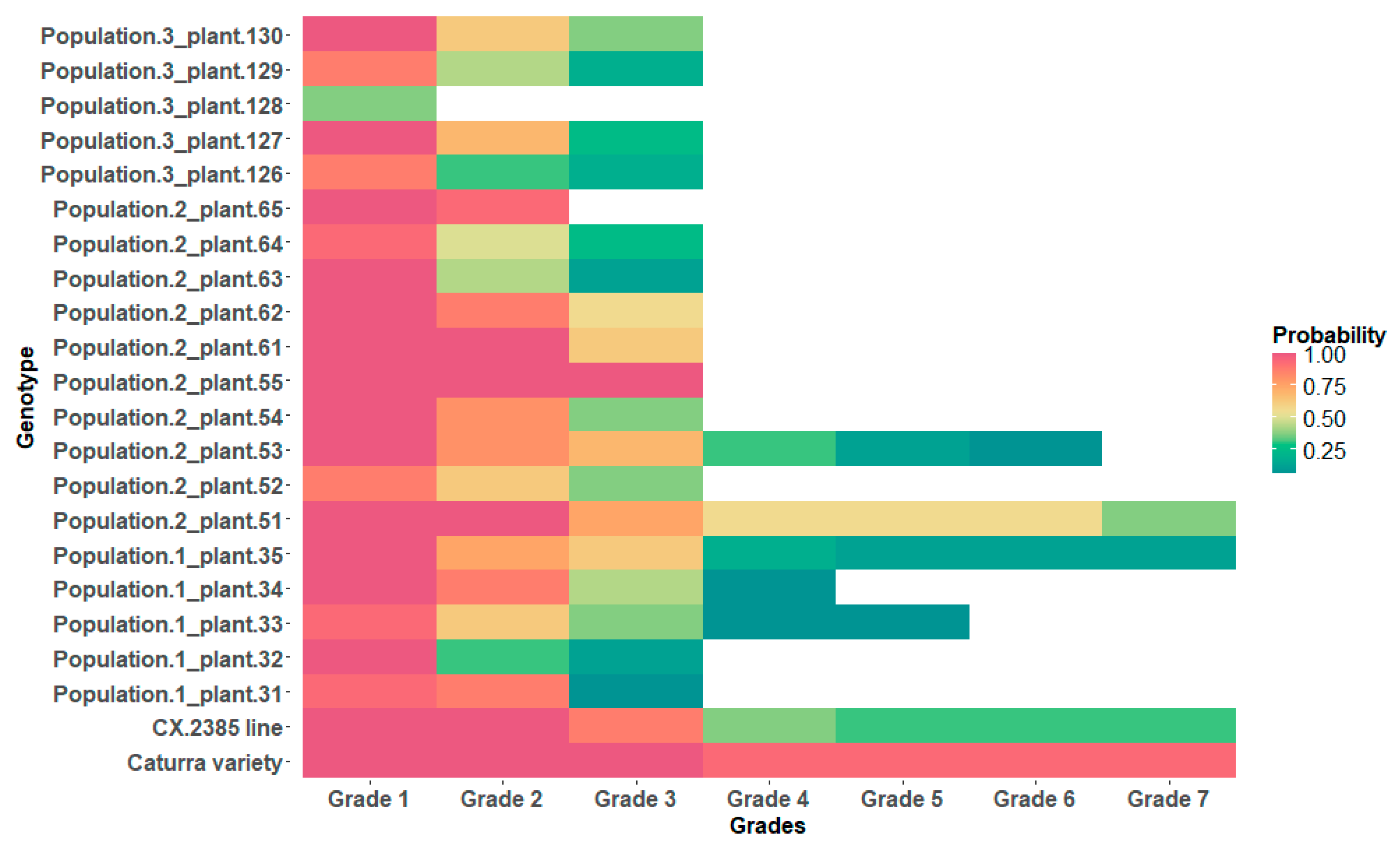

Figure 3. Probability of developing CLR symptoms in the coffee population evaluated according to survival estimators (p < 0.05).
Figure 3. Probability of developing CLR symptoms in the coffee population evaluated according to survival estimators (p < 0.05).
Agronomy 14 01283 g003

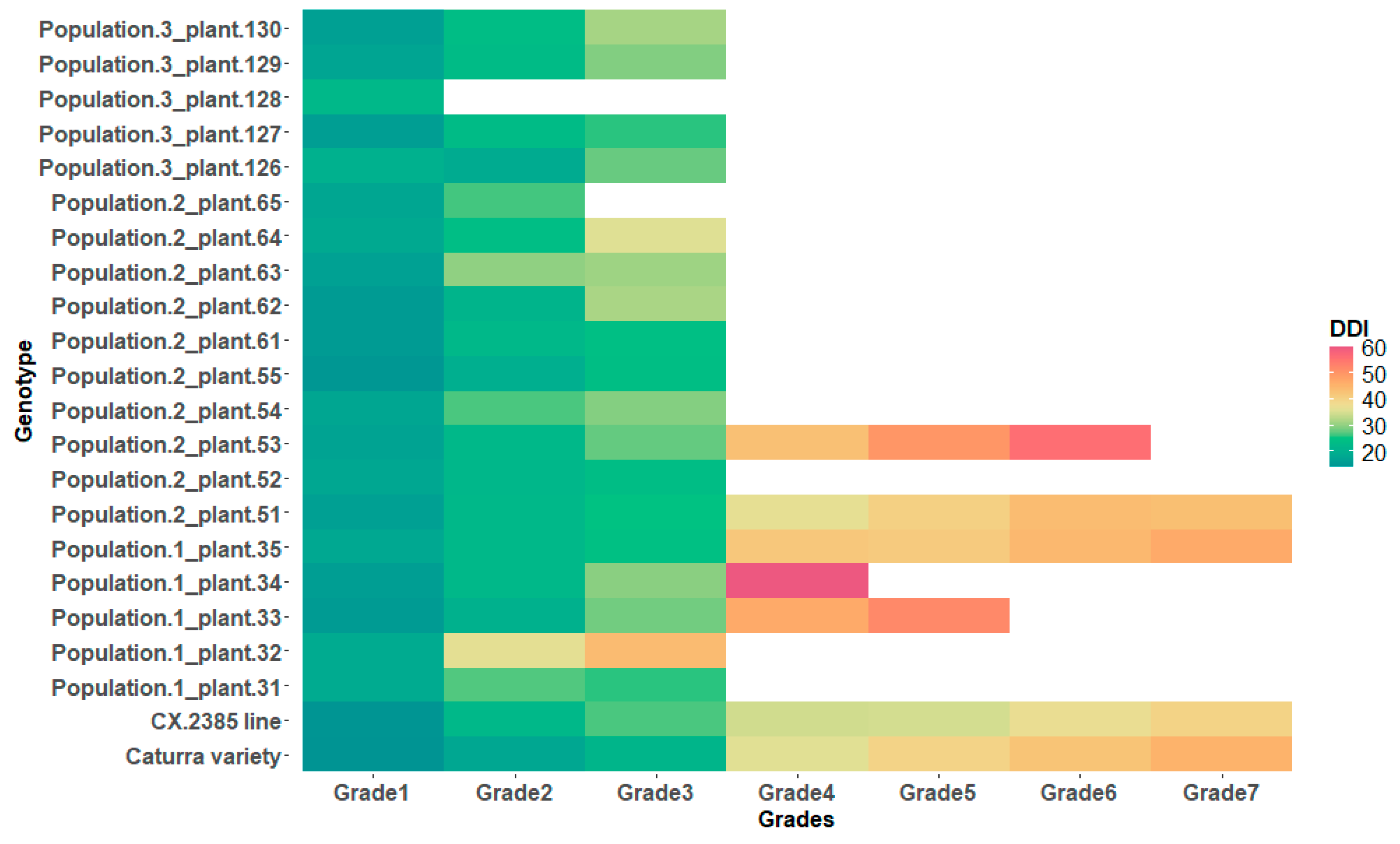

Figure 4. Probable days of developing CLR symptoms in the coffee population evaluated according to survival estimators (p < 0.05).
Figure 4. Probable days of developing CLR symptoms in the coffee population evaluated according to survival estimators (p < 0.05).
Agronomy 14 01283 g004

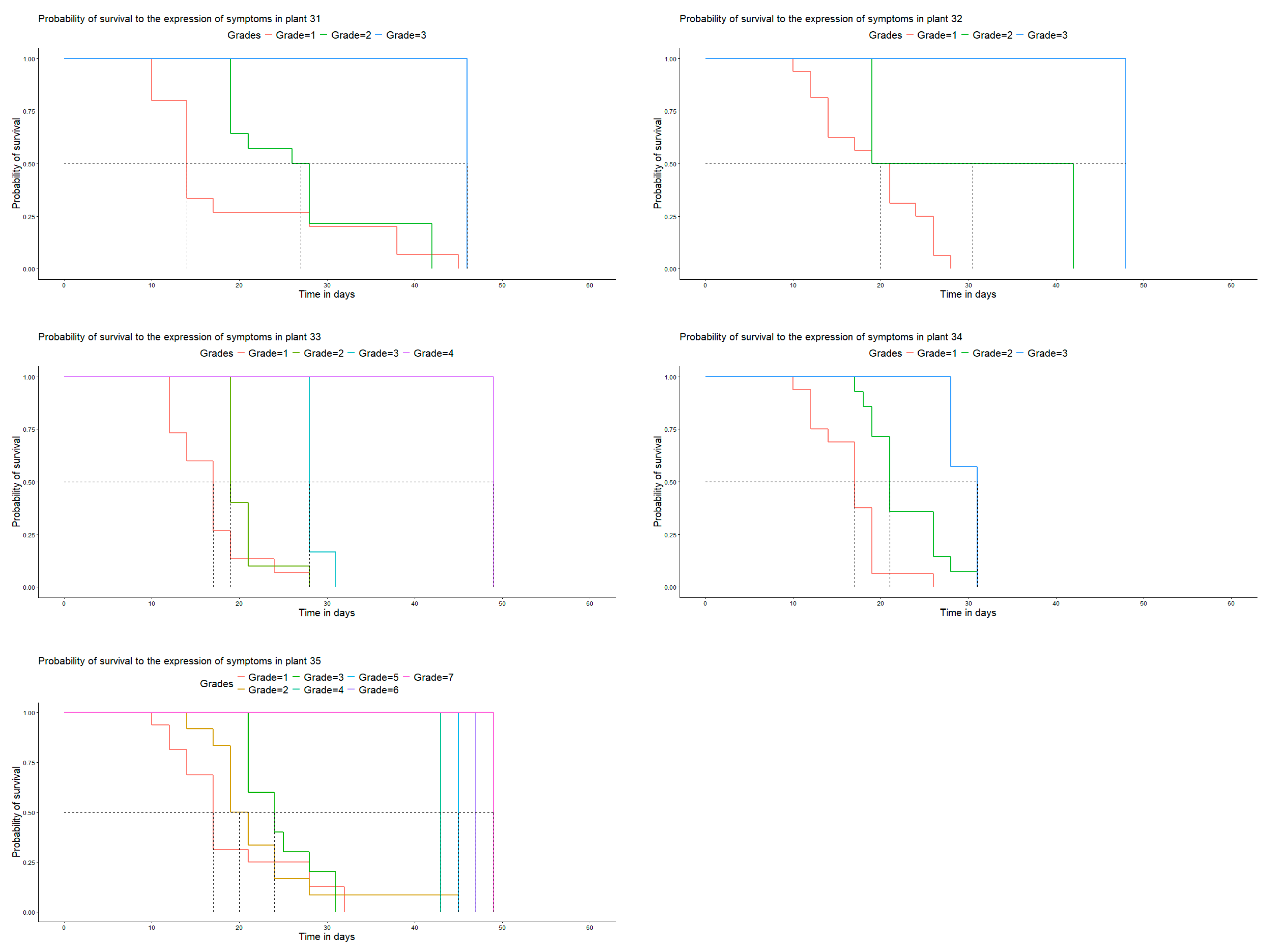

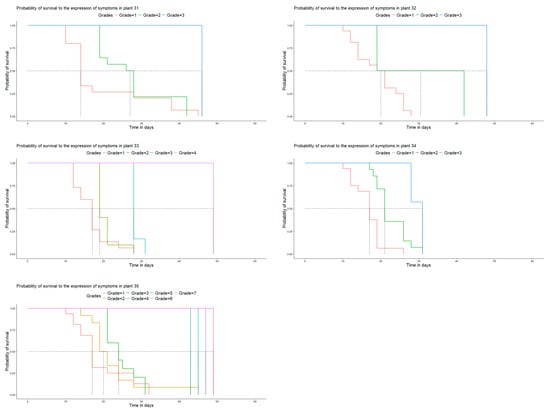

Figure 5. Days vs. probability of survival to disease development in the genotypes of population 1 under laboratory conditions. Dashed lines: median number of days to reach each degree and median probability of survival.
Figure 5. Days vs. probability of survival to disease development in the genotypes of population 1 under laboratory conditions. Dashed lines: median number of days to reach each degree and median probability of survival.
Agronomy 14 01283 g005

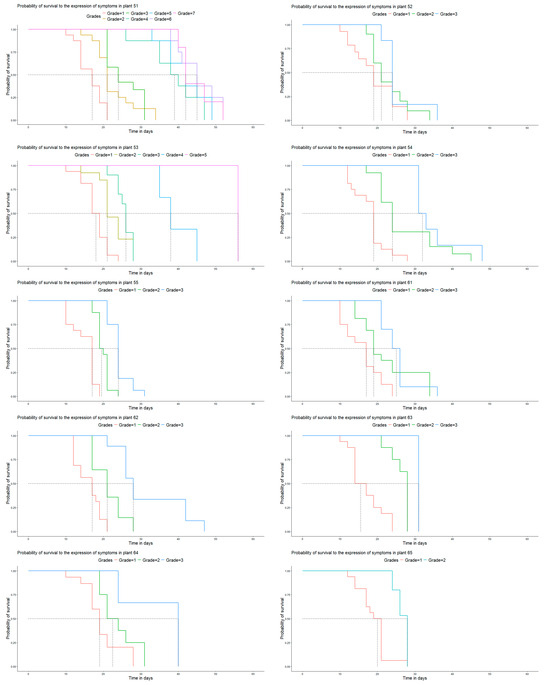

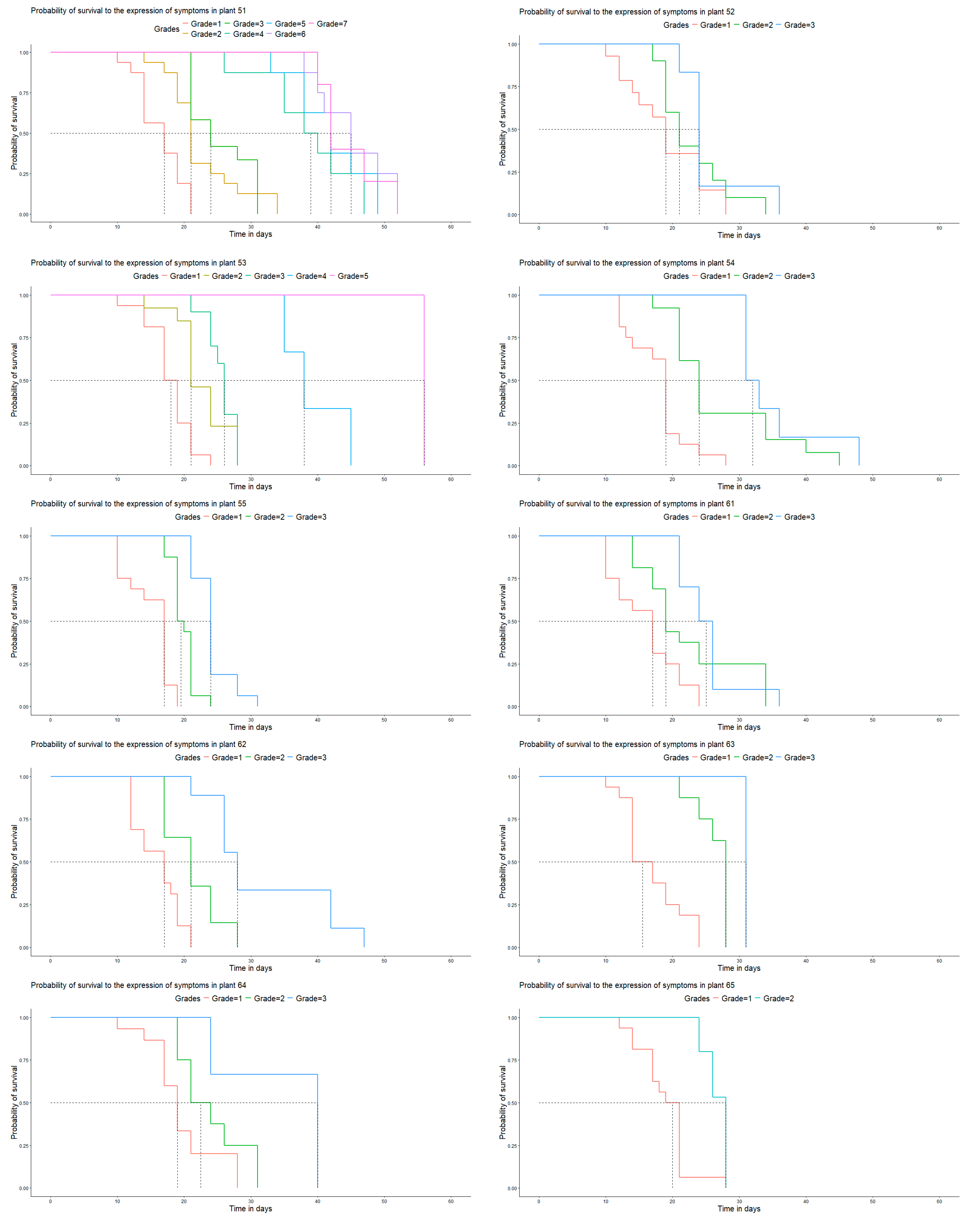

Figure 6. Days vs. probability of survival to CLR disease development in the genotypes of population 2 under laboratory conditions. Dashed lines: median number of days to reach each degree and median probability of survival.
Figure 6. Days vs. probability of survival to CLR disease development in the genotypes of population 2 under laboratory conditions. Dashed lines: median number of days to reach each degree and median probability of survival.
Agronomy 14 01283 g006

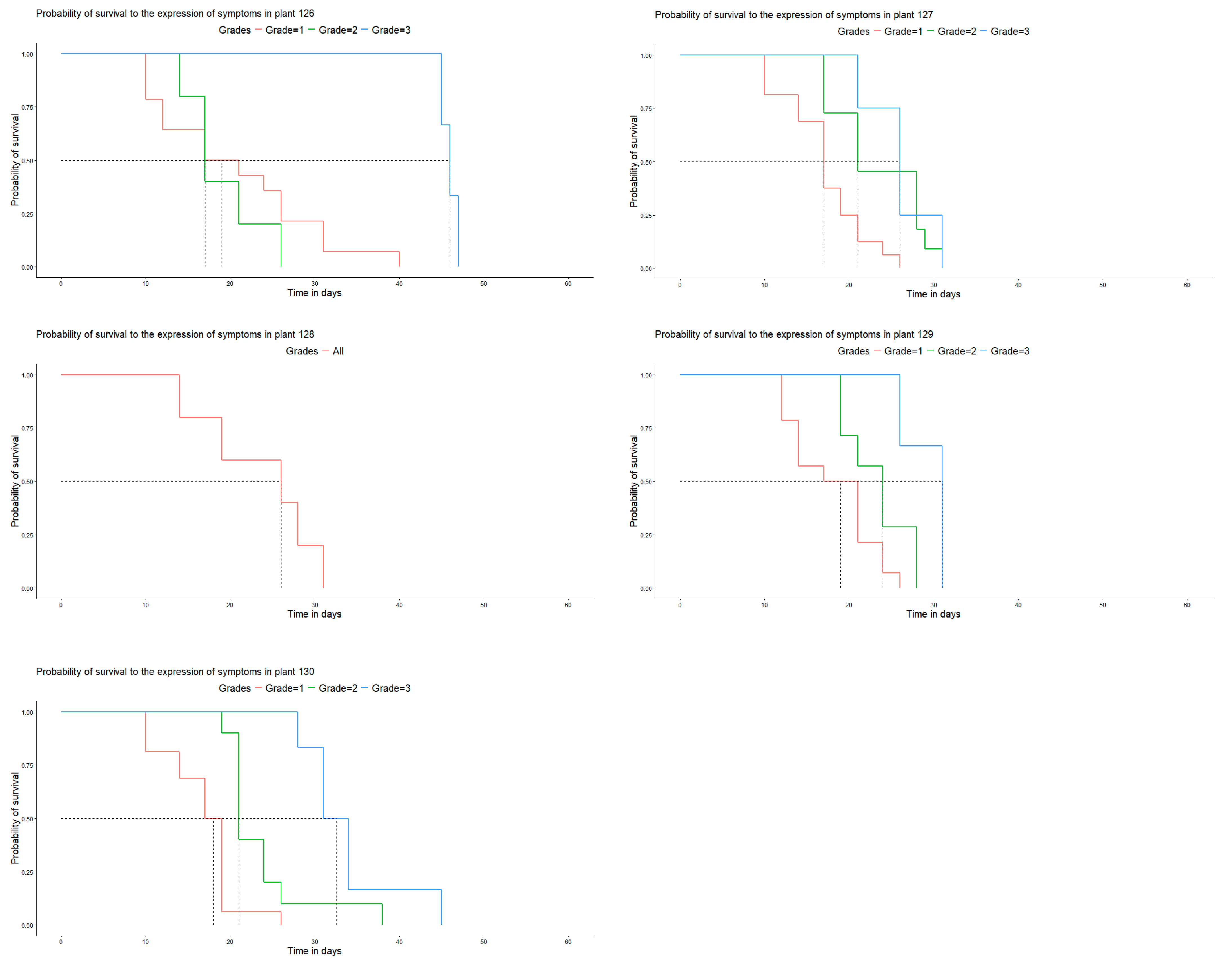

Figure 7. Days vs. probability of survival to CLR disease development in the genotypes of population 3 under laboratory conditions. Dashed lines: median number of days to reach each degree and median probability of survival.
Figure 7. Days vs. probability of survival to CLR disease development in the genotypes of population 3 under laboratory conditions. Dashed lines: median number of days to reach each degree and median probability of survival.
Agronomy 14 01283 g007

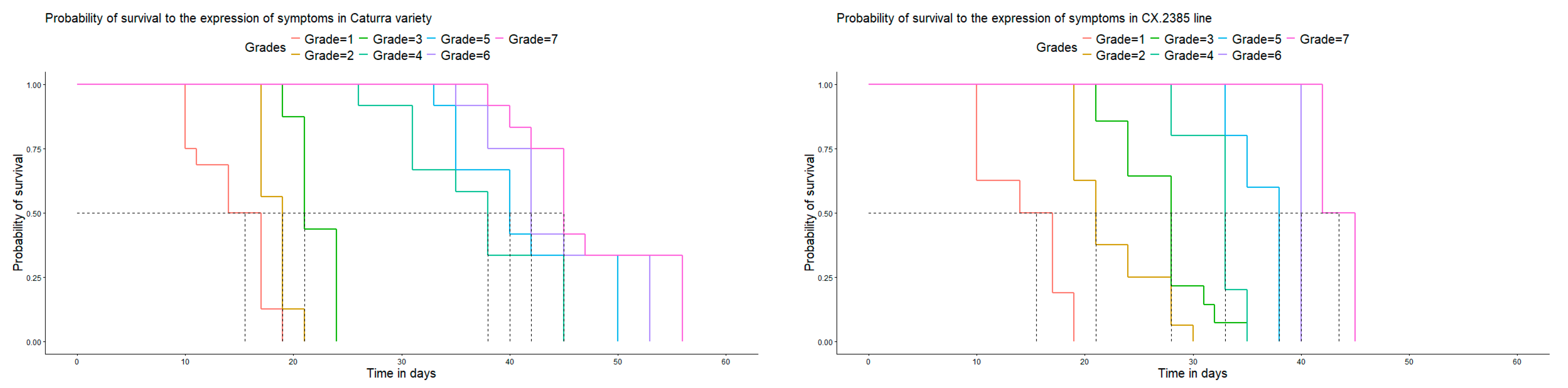

Figure 8. Days vs. probability of survival to the development of the CLR disease in the Caturra variety and CX.2385 line under laboratory conditions. Dashed lines: median number of days to reach each degree and median probability of survival.
Figure 8. Days vs. probability of survival to the development of the CLR disease in the Caturra variety and CX.2385 line under laboratory conditions. Dashed lines: median number of days to reach each degree and median probability of survival.
Agronomy 14 01283 g008

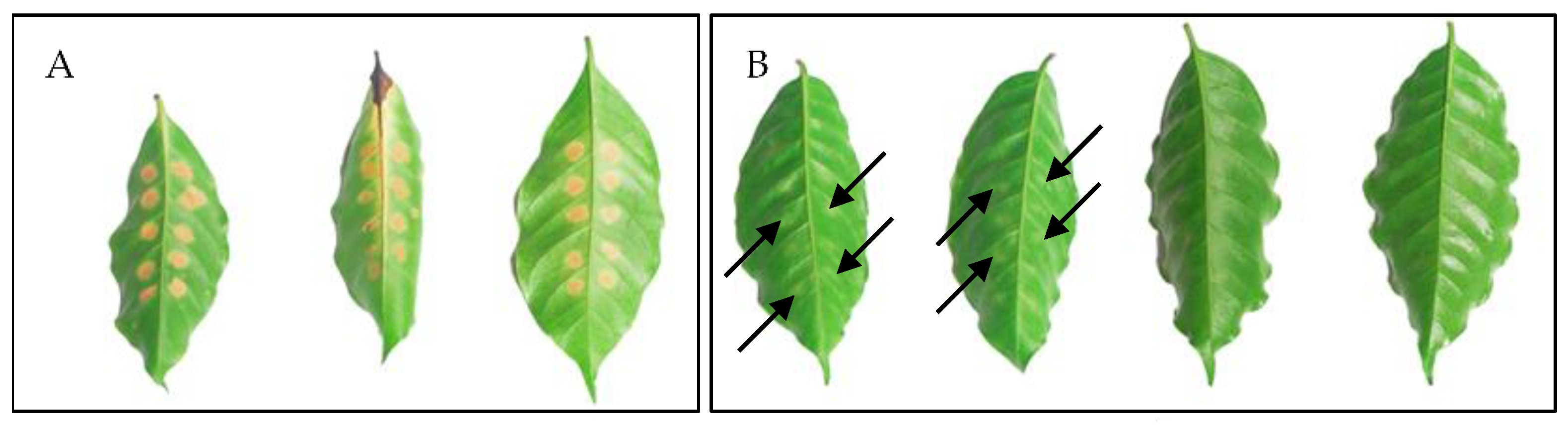

Figure 9. (A) Symptoms of Caturra variety susceptible to CLR and, (B) plants resistant to CLR selected at 60 DDI. The arrows indicate grade 2 lesions in resistant plants.
Figure 9. (A) Symptoms of Caturra variety susceptible to CLR and, (B) plants resistant to CLR selected at 60 DDI. The arrows indicate grade 2 lesions in resistant plants.
Agronomy 14 01283 g009
Table 1. CLR incidence in the field in the three populations evaluated.
Table 1. CLR incidence in the field in the three populations evaluated.
PopulationCLR Incidence in Field
0123456789 Total Plants
1. [(Caturra × CCC.32) × (Caturra × CCC.66)] × CX.2385 5
2. CX.2385 × [(Caturra × CCC.32) × (Caturra × CCC.66)] 19 10
3. [Catuaí × (Caturra × CCC.66)] × CX.2385 1 4 5
Total Plants 1118 20
Table 2. CLR observed symptoms and percentages of injuries evaluated in coffee population according to the scale of increasing injuries.
Table 2. CLR observed symptoms and percentages of injuries evaluated in coffee population according to the scale of increasing injuries.
PopulationPlantPercentages of Involvement in the Scale of Increasing Injuries
Grade 1Grade 2Grade 3Grade 4Grade 5Grade 6Grade 7
13193.8087.506.30
32100.0027.309.40
3393.8062.5037.503.900.80
34100.0087.5043.800.80
35100.0075.0062.506.305.505.505.50
251100.00100.0075.0046.1044.5040.6029.70
5287,5062.5037.50
53100.0081.3063.3018.006.300.80
54100.0081.3037.50
55100.00100.00100.00
61100.00100.0062.50
62100.0087.5056.30
63100.0043.8012.50
6493.8050.0021.90
65100.0093.80
312687.5031.3018.80
127100.0068.8025.00
12832.80
12987.5043.8018.80
130100.0062.5037.50
Caturra variety100.00100.00100.0078.1078.1078.1077.30
CX.2385 line100.00100.0087.5026.6025.8024.2024.20
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Quiroga-Cardona, J.; López-Monsalve, L.F.; Várzea, V.M.P.; Flórez-Ramos, C.P. Use of Detached Leaf Inoculation Method for the Early Selection of Coffea arabica L. for Resistance to Hemileia vastatrix Berk and Broome. Agronomy 2024, 14, 1283. https://doi.org/10.3390/agronomy14061283

AMA Style

Quiroga-Cardona J, López-Monsalve LF, Várzea VMP, Flórez-Ramos CP. Use of Detached Leaf Inoculation Method for the Early Selection of Coffea arabica L. for Resistance to Hemileia vastatrix Berk and Broome. Agronomy. 2024; 14(6):1283. https://doi.org/10.3390/agronomy14061283

Chicago/Turabian Style

Quiroga-Cardona, Julio, Luisa Fernanda López-Monsalve, Vítor Manuel Pinto Várzea, and Claudia Patricia Flórez-Ramos. 2024. "Use of Detached Leaf Inoculation Method for the Early Selection of Coffea arabica L. for Resistance to Hemileia vastatrix Berk and Broome" Agronomy 14, no. 6: 1283. https://doi.org/10.3390/agronomy14061283

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
