Effects of Drip Irrigation and Fertilization Frequency on Yield, Water and Nitrogen Use Efficiency of Medium and Strong Gluten Wheat in the Huang-Huai-Hai Plain of China

Abstract

Drip irrigation can reduce water and fertilizer use; however, the frequency of topdressing required for drip irrigation for wheat in the Huang-Huai-Hai region is still unclear. Through two continuous wheat season field experiments, yield related traits under traditional surface irrigation (border irrigation) and three drip fertilization frequencies (DF2, DF3, DF4, that was, topdressing water and fertilizer twice, three or four times in the same way during the growth period) of three wheat cultivars (Jimai 22, Jimai 20, Shiluan 02-1) were studied. Increasing the frequency of drip irrigation fertilization could prolong the time of high-level photosynthesis, increase the dry matter distribution amount (DMDA) of stems and leaves, and add the weight of 1000 grains; it could increase the DMDA and nitrogen distribution amount (NDA) of the stems, leaves, and grains of Jimai 22, forming higher harvest index (HI) and nitrogen harvest index (NHI), but could reduce the DMDA of the grains of Jimai 20 and Shiluan 02-1, increasing NDA, reducing the harvest index but forming a higher nitrogen harvest index. The increase in drip irrigation fertilization frequency can improve protein content, increase grain number per spike, decrease spike number, improve the yield of medium gluten wheat, and improve nitrogen partial productivity and water use efficiency, while strong gluten wheat has a decrease in yield, nitrogen partial productivity, and water use efficiency. In summary, medium gluten wheat is more suitable for higher fertilization frequency in the Huang-Huai-Hai wheat region, while strong gluten wheat is the opposite.

1. Introduction

Wheat production in China increased from 557 kg·ha⁻¹ in 1961 to 5810 kg·ha⁻¹ in 2021; the main reason for the increase in grain yield in recent years has been the increase in nitrogen application, but this has also caused environmental damage (National Bureau of Statistics of China, 1961–2021) [1,2]. The supply of water and fertilizer determines a further increase in production [1], but their excessive use may lead to high carbon emissions [3]. Thus, rational nitrogen application provides a way to regulate the physiological development of wheat [4]. Previous studies have shown that the nitrogen use efficiency (NUE) of wheat can be assessed using nitrogen fertilizer consumed per unit grain yield (PFPN) [1]. Determining appropriate nitrogen application rates are required to further tap the potential of increasing yield and nitrogen use efficiency.

The average annual rainfall in the Huang-Huai-Hai region is 500–600 mm, and the average annual temperature is 14.5 °C [5]. The Huang-Huai-Hai Plain has less annual rainfall in China [6], limited water resources [7], and at least 80% of the surface and underground water are used for agricultural irrigation [8]. Irrigation practice and infrastructure investment are relatively low [1], and there is an urgent need to take cultivation measures to improve agricultural water efficiency (WUE) and produce more food with less water [1,9].

Crop grain yield is closely related to dry matter accumulation and distribution [10,11], photosynthetic characteristics [10] as well as water and nitrogen utilization efficiency [11,12]. The dry matter in grains mainly originates from the vegetative organs [13,14]. Reasonable use of water and nitrogen can promote the growth of vegetative organs such as stems and leaves, maintain plant photosynthesis and nutrient transport, promote nitrogen uptake in grains, and increase protein content [13,14,15]. Balancing nitrogen supply and yield demands is the key to improving NUE [16]. Photosynthetic characteristics are significantly affected by soil water content and nitrogen fertilizer levels [17,18]. Water shortage will shorten the photosynthetic time and accelerate flag leaf senescence [19,20], but it may facilitate the degradation of stored substances in the plant and enhance the retransfer of the pre-flowering accumulation of dry matter [19]. Maintaining proper soil moisture content and higher nitrogen fertilizer levels can increase net photosynthetic rates (Pn), enhance grain filling capacity, and increase grain weight [18,20,21].

There have been numerous reports on optimal nitrogen application rates [4,12], drip irrigation [14,22], and irrigation frequency [13,23], but there are few reports on the frequency of drip irrigation fertilization. In this study, different medium and strong gluten wheat varieties were selected, and different fertilization frequencies were set through drip irrigation equipment under appropriate nitrogen application rates. The purpose was to: (1) determine the effects of drip irrigation topdressing frequency on yield, protein content, the distribution and accumulation of dry matter, and the distribution and uptake of nitrogen; (2) study the effects of fractional topdressing on photosynthetic characteristics and water and nitrogen use efficiency of medium gluten and strong gluten wheat; (3) optimize the topdressing frequency for medium gluten and strong gluten wheat in the Huang-Huai-Hai wheat region.

2. Materials and Methods

2.1. Experimental Site and Design

The field experiment of two wheat seasons was conducted in the Modern Agricultural Science and Technology Demonstration Park (Shandong province, China; 35.53°/N, 119.58°/E) of Qingdao Agricultural University from 2020 to 2022. The area belongs to a temperature monsoon climate (

Table 1. Foundation soil capacity of 0–20 cm soil in the test area.

Growing Season	Organic Matter (g·kg−1)	Soil pH	Hydrolysable N (mg·kg−1)	Available P (mg·kg−1)	Available K (mg·kg−1)
2020–2021	16.21	7.55	127.9	15.14	136.5
2021–2022	17.24	7.62	129.3	15.98	134.2

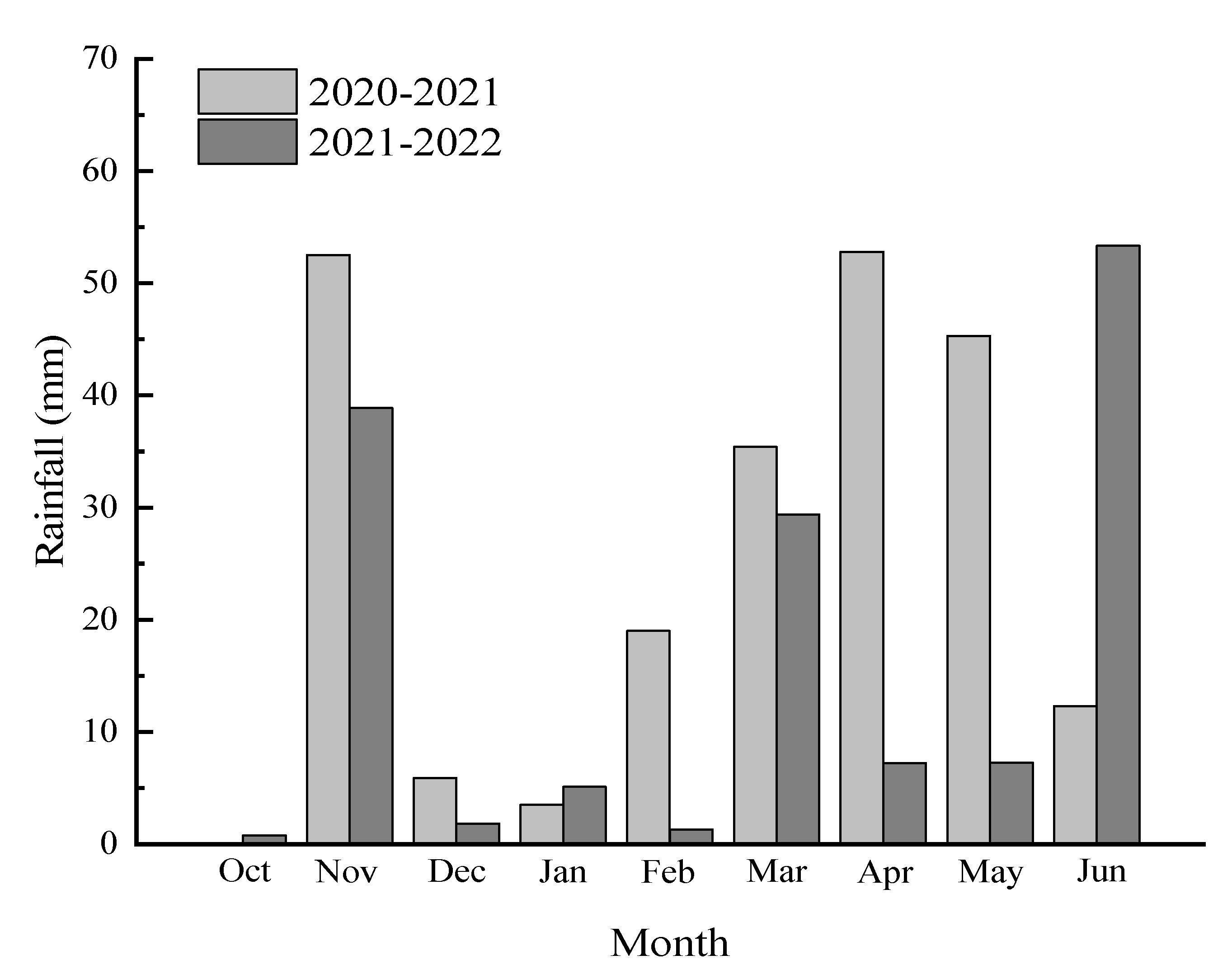

), with the main planting system being wheat corn rotation and the soil being mortar black soil (Figure 1). Medium gluten (Jimai 22) and strong gluten (Jimai 20, Shiluan 02-1) were selected and sown together on 11 October 2020 and 28 October 2021. The basic seedlings were about 2.2 million·ha⁻¹, and 90 kg·ha⁻¹ of P₂O₅ and K₂O were applied; the area of each trial plot was 200 m², and the row spacing of wheat was 20 cm. This experiment used a drip irrigation system with emitters.All three rows of wheat were equipped with a capillary tube with a spacing of 60 cm. The distance between the emitter of each capillary tube was 300 mm, with a flow rate of 2 L/h and a diameter of 16 mm.

The three varieties were medium gluten and strong gluten wheat varieties with relatively high yield and good quality selected previously. Under the premise of 210 kg·ha⁻¹ of total nitrogen application and 90 kg·ha⁻¹ of seed manure, the irrigation volume was measured by a water meter.

Traditional surface irrigation (border irrigation) (120 kg·ha⁻¹ of N fertilizer) was sprayed at the jointing stage. 75 mm irrigation was applied at the jointing stage and flowering stage respectively. Nitrogen application by drip irrigation was accomplished through melting urea into water and injecting it into the field with drip irrigation facilities. Three kinds of frequency of fertilization under drip irrigation were set: Drip irrigation and topdressing twice during the entire growth period (DF2: 60 kg·ha⁻¹ of N fertilizer and 60 mm irrigation were applied at the jointing stage, and the same was true at the flowering stage); Drip irrigation and topdressing three times during the entire growth period (DF3: 40 kg·ha⁻¹ of N fertilizer and 40 mm irrigation were applied in drip irrigation at the jointing stage, and the same was true at the flowering and filling stages); Drip irrigation and topdressing four times during the entire growth period (DF4: 30 kg·ha⁻¹ and irrigation 30 mm of water were applied in drip irrigation at the jointing stage, and the same was true at the booting stage, flowering stage, and filling stage) (

Table 2. Dates of key agronomic measures during wheat growth period.

Wheat Seasons	Dates of Sowing	Dates of Harvest	Dates of Drip Fertigation
			Jointing	Booting	Flowering	Grouting
2020–2021	11 October	17 June	6 April	25 April	7 May	25 May
2021–2022	28 October	18 June	18 April	21 April	13 May	27 May

and

Table 3. Irrigation volumes(mm) and N application(kg·ha⁻¹) during wheat growth period.

Amount of Irrigation and N Fertilizer	Irrigation Method	Treatment	Wheat Growth Period
			Seeding	Jointing	Booting	Flowering	Filling	Total
N application (kg·ha−1)	Border irrigation	CK	90	120				210
	Drip fertigation	DF4	90	30	30	30	30	210
		DF3	90	40		40	40	210
		DF2	90	60		60		210
Irrigation volumes (mm)	Border irrigation	CK		75		75		150
	Drip fertigation	DF4		30	30	30	30	120
		DF3		40		40	40	120
		DF2		60		60		120

).

2.2. Sampling and Measurements

2.2.1. Net Photosynthetic Rate (Pn), Stomatal Conductance (Gs), Transpiration Rate

The net photosynthetic rate (Pn), stomatal conductance (Gs), and transpiration rate (Tr) of wheat flag leaves were measured with the CIRAS-3 Portable Photosynthesis System at 9:00–11:00 a.m. and 2:00–4:00 p.m. every 7 days after flowering. Three leaves were measured for each treatment three times (nine in total).

2.2.2. Dry Matter Accumulation and Distribution, Nitrogen Uptake and Nitrogen Utilization Efficiency

At maturity, 30 aboveground plants of wheat were taken and divided into upper leaves, other leaves (the leaves on the wheat plant except the top three leaves), stems, grains, glumes + rachis, and remaining tillers. After being green at 105 °C for 30 min, they were dried at 75 °C to constant weight. A Kjeldahl automatic nitrogen determination instrument (Gerhardf) was used to measure nitrogen content, and this was repeated three times for each plot. The nitrogen utilization efficiency was represented by partial productivity of wheat nitrogen fertilizer [1]. The calculation formulas were as follows:

HI = (GY_M/DM_a) × 100%

(1)

GPS = (GY_M/DM_S) × 100%

(2)

GPC = GN_C × 5.7

(3)

GPY = GPC × GY

(4)

PFPN = GY/N

(5)

NHI = GN_a/N_a

(6)

where HI (%) is the harvest index, GY_M (kg·ha⁻¹) is the dry weight of grains at maturity, DM_a (kg·ha⁻¹) is the dry matter accumulation at maturity, GPS (%) is the ratio of grains to ears, DM_s (kg·ha⁻¹) is the dry weight of ears, GPC (%) is the protein content, 5.7 is the conversion coefficient of grain nitrogen and protein content, GPY (kg·ha⁻¹) is the protein yield, GY (kg·ha⁻¹) is the wheat yield, PFPN (kg·kg⁻¹) is the partial productivity of wheat nitrogen fertilizer, N (kg·ha⁻¹) is the total nitrogen application amount, NHI (kg·kg⁻¹) is the nitrogen harvest index, GN_a (kg·ha⁻¹) is the nitrogen accumulation amount in grains, and N_a (kg·ha⁻¹) is the nitrogen accumulation amount above ground.

2.2.3. Water Use Efficiency

Evapotranspiration (ET) in the whole growth period of each treatment was calculated as follows:

ET = I + P + G − D − ΔS

(7)

where ET (mm) is the evapotranspiration during the whole growth period, I (mm) is the irrigation water volume, P (mm) is the precipitation, and ΔS (mm) is the change in soil water storage. In this experiment, G (mm) groundwater recharge, R (mm) surface runoff, and D (mm) infiltration below the root zone of crops could be ignored [24].

The water use efficiency (WUE) of wheat from sowing to maturity was calculated as follows [9]:

WUE = GY/ET

(8)

where WUE (kg·ha⁻¹·mm⁻¹) is water use efficiency, GY (kg·ha⁻¹) is wheat yield, and ET (mm) is evapotranspiration during the whole growth period.

2.2.4. Grain Yield

Before harvest, the number of wheat ears was measured (by converting the number of wheat ears in 1 m three rows), as well as the number of grains per ear (the average number of grains in 30 wheat ears). When harvesting, a small harvester was used to harvest 10 m, with an area of 14 m², and this was repeated three times. The wheat yield with 13% water content (13% water content was converted by drying 100 g grains to calculate the water content) and the 1000 grain weight (the total dry weight of 1000 wheat grains) were measured.

2.3. Statistical Analysis

Excel was used to collate the data, SPSS was used to perform the ANOVA of two factor randomized blocks, and the difference was compared at the 0.05 level (Duncan). Origin2019b was used to plot.

3. Results

3.1. Photosynthetic Characteristics

The Pn (net photosynthetic rate), Gs (stomatal conductance), and Tr (transpiration rate) of DF3 were affected by the water and fertilizer topdressing before flowering. At the flowering stage, the Pn, Gs, and Tr of DF3 were higher, while those for DF4 were lower. However, after increasing the frequency of water and fertilizer replenishment at the flowering stage and the filling stage (14 days after flowering), they were improved. In the late stage of grain filling, compared with the border irrigation CK, the treatment with more topdressing times could still maintain higher photosynthetic characteristics (Figure 2).

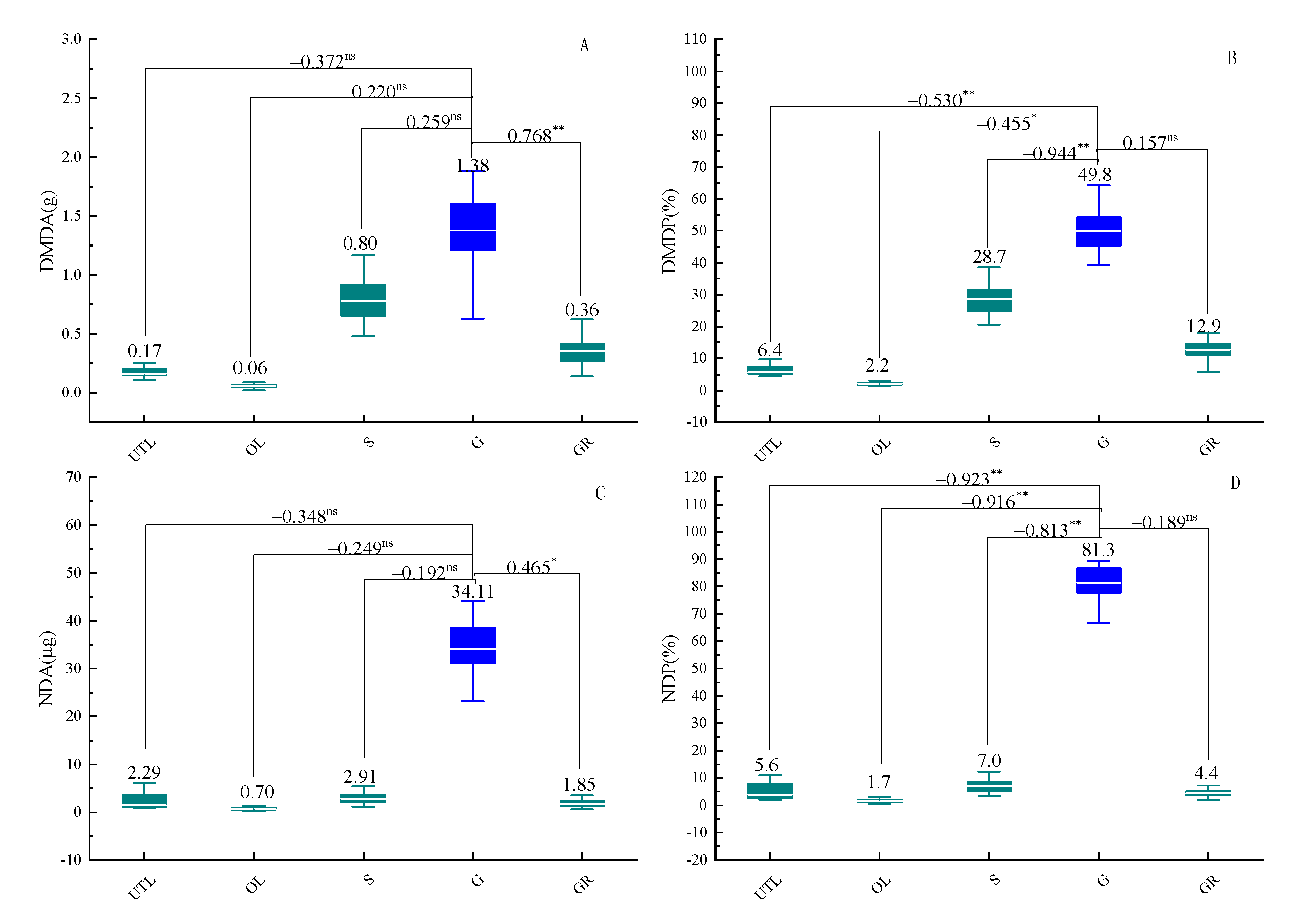

3.2. Distribution and Accumulation of Dry Matter and Nitrogen

The year*variety*Treatment had a very significant impact on the dry matter distribution proportion (DMDP) and nitrogen distribution amount (NDA) of other leaves (Tables S1 and S2). In addition, it had no significant impact on the allocation amount and proportion of dry matter and nitrogen in each organ. The dry matter distribution amount (DMDA) of the upper three leaves of wheat was negatively correlated with that of the grains (p > 0.05), while other leaves, stems, glume+rachiswere positively correlated with that of the grains (p > 0.05) (Figure 3A). This indicated that during the mature stage, more nutrients from the upper three leaves of wheat were transported to the ears, making the grains fuller, while more nutrients were left in other leaves, stems, glume+rachis. There was a significant negative correlation (p < 0.05) between the DMDP of wheat grains and the stems and leaves (Figure 3B). In the same plant, they formed a competitive relationship with the photosynthetic products produced by the leaves. The NDA of leaves and stems was negatively correlated with grains (p > 0.05), while the NDA of glumes and rachis was significantly positively correlated with grains (p < 0.05), indicating that plants with more NDA in the ear had less NDA in other parts (Figure 3C). The dry nitrogen distribution proportion (NDP) of grains, stems, and leaves showed a significant negative correlation (p < 0.01), while in the same plant, more nitrogen was concentrated in grains rather than other organs (Figure 3D). During the two years, the variety had a very significant impact on the allocation amount and proportion of stems and leaves during the mature period (p < 0.01) and had a significant impact on the allocation amount of grains (p < 0.01) (Table S1). The variety and treatment had a significant impact on the nitrogen allocation amount and proportion of leaves (p < 0.01) (Table S2). As the frequency of water and fertilizer increased, the DMDA of stems and leaves increased, and the grain allocation amount increased. However, within the same single plant of wheat, the DMDP of stems, leaves, and grains of Jimai 22 increased, while the DMDP of grains of Jimai 20 and Shiluan 02-1 decreased; the DMDP of stems and leaves was the opposite (Table S1). As the frequency of fertilization increased, the NDA of leaves, stems, and grains in Jimai 22 increased, while the NDA of glume+ rachis decreased. The NDA of leaves, stems, and grains in Jimai 20 and Shiluan 02-1 decreased, while the NDA of grains increased. In the same single plant of wheat, under higher water and fertilizer frequencies, the NDP of leaves, stems, glume+ rachis decreased, while the NDP of grains was on the opposite (Table S2).

Varieties and treatments had extremely significant effects on DMA (the dry matter accumulation; the weight of wheat organs per hectare) and NA (the dry matter uptake; the nitrogen weight of wheat organ per hectare) of upper leaves, grains, remaining stems and total amount, respectively (p < 0.01), and year*variety*treatment had no significant effect on DMA and NA of all organs. The treatment*variety had a significant effect on the NA of grains (p < 0.01) (

Table 4. Dry matter accumulation and nitrogen absorption of various organs in wheat maturity.

Year	Variety	Treatment	Upper Three Leaves		Other Leaves		Stem		Grain		Glume + Rachis		Remaining Tillers		Total
			DMA (kg·ha−1)	NA (kg·ha−1)	DMA (kg·ha−1)	NA (kg·ha−1)	DMA (kg·ha−1)	NA (kg·ha−1)	DMA (kg·ha−1)	NA (kg·ha−1)	DMA (kg·ha−1)	NA (kg·ha−1)	DMA (kg·ha−1)	NA (kg·ha−1)	DMA (kg·ha−1)	NA (kg·ha−1)
2020–2021	Jimai22	CK	1284 bcd	26.7 bc	452 b	5.9 b	5332 cd	18.8 b	7624 def	176.9 b	1783 ab	10.7 bc	68.8 ab	8.9 ab	17,164 c	248 c
		DF2	952 e	19.3 c	296 d	4.9 bc	5206 cd	19.5 b	8314 cd	189.7 b	2485 a	17.3 a	47.7 bc	5.9 bc	17,730 bc	257 c
		DF3	1111 de	19.5 c	350 cd	5.8 b	5940 ab	22.0 ab	9464 ab	227.6 a	2446 a	15.2 ab	54.0 bc	6.6 abc	19,851 a	297 b
		DF4	1177 cde	19.9 c	374 bcd	6.1 b	6342 a	22.7 ab	9940 a	246.0 a	2283 a	14.1 ab	36.4 bcd	4.4 bcd	20,481 a	313 ab
	Jimai20	CK	1471 b	23.1 bc	565 a	8.1 a	6109 a	28.4 a	6744 fg	169.8 b	1429 b	7.4 c	67.4 ab	8.7 ab	16,993 c	246 c
		DF2	962 e	8.2 d	415 bc	4.0 cd	6392 a	25.3 ab	7610 def	191.8 b	2388 a	13.0 ab	90.3 a	10.8 a	18,670 b	253 c
		DF3	974 e	8.1 d	418 bc	3.6 cd	6157 a	22.6 ab	7295 efg	189.6 b	2585 a	13.9 ab	56.7 abc	5.5 bcd	17,997 bc	243 c
		DF4	1026 de	7.6 d	401 bc	3.4 d	6009 a	20.2 ab	6790 fg	181.9 b	2460 a	13.1 ab	39.2 bcd	3.8 cd	17,078 c	230 c
	Shiluan02-1	CK	1795 a	48.4 a	358 cd	8.4 a	4609 e	26.7 ab	6552 g	186.5 b	1948 ab	12.3 ab	23.5 cd	4.0 cd	15,497 d	286 b
		DF2	1439 bc	30.7 b	346 cd	6.4 b	5515 bc	26.6 ab	8923 bc	256.2 a	1891 ab	12.2 ab	43.9 bcd	6.9 abc	18,554 b	339 a
		DF3	1404 bc	28.9 b	346 cd	6.3 b	5270 cd	22.5 ab	8333 cd	240.5 a	1962 ab	12.4 ab	27.2 cd	3.8 cd	17,587 bc	315 ab
		DF4	1453 b	28.6 b	354 cd	6.4 b	5010 de	20.7 ab	7806 de	235.3 a	2107 ab	12.9 ab	9.2 d	1.3 d	16,822 c	305 b
2021–2022	Jimai22	CK	1093 bc	9.8 b	311 cd	2.6 d	4536 ab	13.7 cd	8395 e	188 g	2034 a	7.6 b	198 bc	2.2 c	16,567 f	223 g
		DF2	795 g	5.9 d	269 d	2.5 d	4358 ab	12.1 cd	9149 e	205 fg	2625 a	10.1 b	404 ab	4.8 b	17,601 ef	240 fg
		DF3	835 fg	5.9 d	315 cd	2.7 d	4526 ab	11.0 d	9285 de	209 fg	2593 a	9.9 b	224 bc	2.5 c	17,778 ef	241 fg
		DF4	868 fg	5.8 d	346 bcd	2.5 d	4686 ab	11.3 d	9487 de	217 ef	2487 a	9.4 b	125 c	1.1 c	17,998 de	247 fg
	Jimai20	CK	1301 a	10.1 b	568 a	5.1 ab	4711 ab	15.0 bc	11163 abc	247 cd	2787 a	12.2 ab	307 bc	1.4 c	20,836 ab	290 cd
		DF2	1024 cd	7.8 c	445 b	4.1 bc	4812 ab	15.1 bc	11504 ab	259 bc	2633 a	16.3 a	580 a	4.6 b	20,997 ab	307 bc
		DF3	980 de	6.2 d	449 b	3.5 cd	4600 ab	13.0 cd	10375 cd	239 cde	2536 a	11.6 ab	242 bc	1.7 c	19,182 cd	275 de
		DF4	911 ef	5.3 d	425 bc	3.2 cd	4209 b	11.7 cd	9252 de	222 def	2758 a	11.5 ab	209 bc	1.5 c	17,764 ef	255 ef
	Shiluan02-1	CK	1312 a	14.7 a	385 bc	5.1 ab	4513 ab	21.9 a	8899 e	224 def	2144 a	9.2 b	406 ab	4.4 b	17,660 ef	279 de
		DF2	1100 bc	14.7 a	368 bcd	5.2 a	4971 a	22.4 a	12144 a	305 a	2424 a	12.9 ab	584 a	6.6 a	21,590 a	367 a
		DF3	1137 b	8.1 c	399 bc	3.5 cd	4747 ab	18.2 b	11012 bc	285 ab	2564 a	12.0 ab	366 b	2.6 c	20,226 bc	330 b
		DF4	1086 bc	6.6 d	396 bc	2.8 d	4738 ab	17.9 b	10377 cd	275 b	2580 a	10.8 ab	304 bc	2.0 c	19,482 c	315 bc
2020–2022	Year		**	**	ns	**	**	**	**	**	**	*	**	**	**	ns
	Variety		**	**	**	**	**	**	*	**	ns	ns	**	ns	*	**
	Treatment		**	**	**	**	ns	*	**	**	ns	**	**	**	**	**
	Year*Variety		**	**	**	**	**	**	**	**	ns	**	**	**	**	**
	Year*Treatment		ns	**	ns	**	ns	ns	*	*	ns	ns	Ns	ns	**	*
	Variety*Treatment		ns	*	**	**	**	ns	**	**	ns	ns	Ns	ns	**	**
	Year*Variety*Treatment		ns	ns	ns	ns	ns	ns	ns	ns	ns	ns	Ns	ns	*	ns

Note: DMA means the dry matter accumulation (the weight of wheat organs per hectare); NA means the dry matter absorption (the nitrogen weight of wheat organ per hectare). For the same column in the same year, different lowercase letters represent significant differences at 0.05 level, * represents significant differences at 0.05 level, ** represents extremely significant differences at 0.01 level, and ns represents insignificant differences at 0.05 level.

). The total DMA and NA of Jimai 22 were the highest in DF4, followed by DF3, which increased with the increase in fertilization frequency. On the contrary, Jimai 20 and Shiluan 02-1 had lower CK than DF2. The higher frequency of fertilization (DF3 and DF4) made the stem DMA and NA of Jimai 22 higher, while Jimai 20 and Shiluan 02-1 were the opposite; however, a similarity between the three varieties was that with the increase in fertilization frequency, the total DMA and NA of grains were higher (DF4 > DF3 > DF2 > CK).

3.3. Grain Yield

Over two years, the variety*treatment (interaction between varieties and treatments) had a significant impact on the yield (p < 0.01), and both variety and treatment had a significant impact on the three elements of yield (p < 0.01) (

Table 5. Wheat yield and its three elements, harvest index and grain/ear ratio in two years.

Year	Variety	Treatment	Spike Number (104·ha−1)	Grain Number	1000-Grain Weight	Yield (kg·ha−1)	HI (%)	GPS (%)
2020–2021	Jimai22	CK	614.4 ef	31.00 bcd	42.67 d	7267 bcde	44.4 ab	81.0 abc
		DF2	587.2 fg	31.57 bc	44.14 c	7555 bc	46.9 a	77.1 abc
		DF3	571.1 gh	33.37 ab	44.72 c	7947 ab	47.7 a	79.5 abc
		DF4	569.4 gh	35.16 a	44.20 c	8545 a	48.5 a	81.3 ab
	Jimai20	CK	661.1 cd	26.53 fg	43.94 c	7333 bcd	39.7 c	82.5 a
		DF2	614.4 ef	27.59 efg	45.69 b	7615 abc	40.8 bc	76.2 abc
		DF3	586.7 fg	27.72 efg	46.32 b	7234 bcde	40.6 bc	73.9 bc
		DF4	545.0 h	28.05 efg	47.42 a	6679 cdef	39.8 c	73.4 c
	Shiluan02-1	CK	855.6 a	25.55 g	31.10 g	6082 f	42.1 bc	76.9 abc
		DF2	752.2 b	27.47 efg	33.13 f	6535 def	48.1 a	82.5 a
		DF3	688.9 c	28.59 def	34.37 e	6293 ef	47.4 a	81.0 abc
		DF4	640.0 de	30.09 cde	34.27 e	5109 g	46.4 a	79.0 abc
2021–2022	Jimai22	CK	596.1 de	40.75 abc	38.25 c	9973 bcd	51.0 a	81.1 a
		DF2	572.2 de	40.80 abc	41.03 abc	10,045 bcd	52.0 a	77.8 a
		DF3	561.1 e	42.30 ab	41.21 ab	10,334 abcd	52.2 a	78.2 a
		DF4	526.1 e	44.22 a	42.75 a	11,176 a	52.7 a	79.3 a
	Jimai20	CK	786.7 b	32.83 e	39.55 bc	10,469 abc	53.6 a	80.0 a
		DF2	747.2 bc	37.17 cd	38.78 bc	10,657 ab	54.8 a	81.4 a
		DF3	633.9 d	37.75 cd	40.81 abc	10,078 bcd	54.1 a	80.5 a
		DF4	550.9 e	38.10 cd	41.21 ab	8917 e	52.1 a	78.2 a
	Shiluan02-1	CK	898.8 a	34.50 de	30.09 e	9854 bcd	50.4 a	80.5 a
		DF2	896.7 a	35.82 de	30.03 e	10,105 bcd	56.3 a	83.4 a
		DF3	784.4 b	35.67 de	33.17 d	9572 cde	54.5 a	81.1 a
		DF4	707.2 c	38.33 bcd	33.23 d	9485 de	53.3 a	80.1 a
2020–2022	Year		**	**	**	**	**	ns
	Variety		**	**	**	**	**	ns
	Treatment		**	**	**	ns	*	ns
	Year*Variety		**	ns	**	**	**	ns
	Year*Treatment		**	ns	Ns	ns	ns	ns
	Variety*Treatment		**	ns	Ns	**	ns	ns
	Year*Variety*Treatment		*	ns	Ns	ns	ns	ns

Note: CK refers to border irrigation, and DF2, DF3, and DF4 represent the topdressing of nitrogen fertilizer by drip irrigation for 2, 3, and 4 times respectively. JM22, JM20, and SL02-1, respectively, represent the abbreviations of wheat varieties Jimai22, Jimai20, and Shiluan02-1. For the same column in the same year, different letters represent significant differences at 0.05 level, * represents significant differences at 0.05 level, ** represents extremely significant differences at 0.01 level, and ns represents insignificant differences at 0.05 level.

). Under the appropriate amount of nitrogen and irrigation, the yield of medium gluten wheat Jimai 22 increased, while that of strong gluten wheat Jimai 20 and Shiluan 02-1 decreased with the increase in drip irrigation and topdressing times. The increase in water and fertilizer frequency resulted in fewer ears and increased grains per ear, and the 1000 grain weight of DF3 and DF4 was increased. The harvest index and grain/ear ratio of Jimai 22 increased with the increase in fertilization frequency, while Jimai 20 and Shiluan 02-1 were on the contrary. Compared with border irrigation, the yield of drip irrigation with twice topdressing increased slightly, the number of grains per ear and 1000 grain weight were higher, and the harvest index was lower.

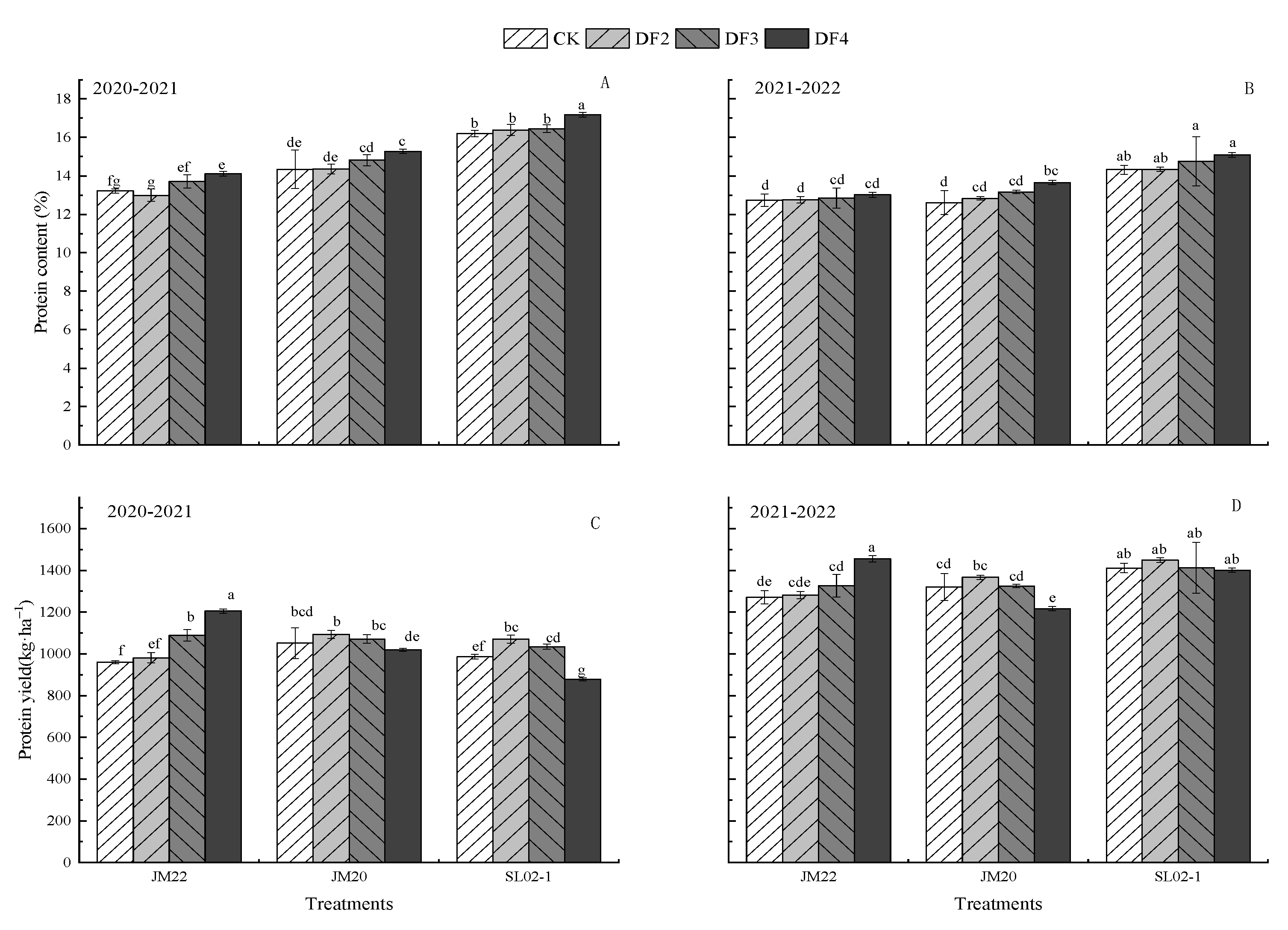

3.4. Protein Content and Protein Yield

The protein content of border irrigation was relatively low, and as the frequency of fertilization increased, the protein content of the three varieties increased accordingly (Figure 4). In the first year, the DF4 of Jimai 22, Jimai 20, and Shiluan 02-1 significantly increased by 8.6%, 6.4%, and 4.9% compared to DF2, respectively. In the second year, there was no significant difference in protein content between different fertilization frequencies. The DF4 protein yield of Jimai 22 increased significantly by 22.8% and 13.5% compared to DF2 in two years, while Jimai 20 decreased significantly by 6.7% and 11%, respectively. Shiluan02-1 in the first year decreased significantly by 18%, and there was no significant difference in the second year.

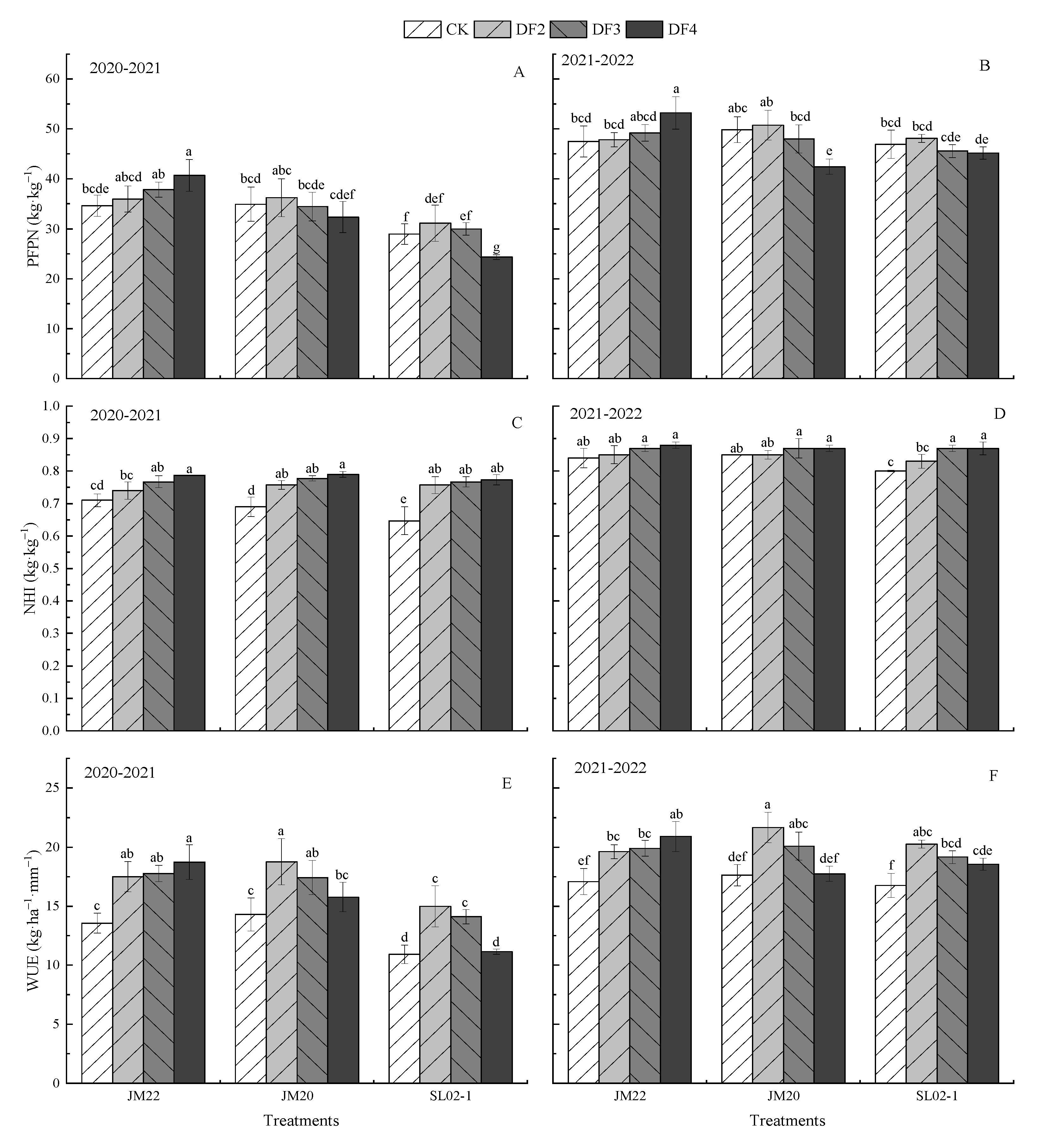

3.5. Water and Nitrogen Utilization Efficiency

With the increase in fertilization frequency, the NHI (nitrogen harvest index) of the three varieties increased (DF4 > DF3 > DF2 > CK) (Figure 5). Over the past two years, with the increase in nitrogen application frequency, the nitrogen fertilizer partial productivity (PFPN) of Jimai 22 increased. There was no significant difference in the first year, and DF4 significantly increased by 11.3% compared to DF2 in the second year. Water use efficiency (WUE) showed an increasing trend, but there was no significant difference between different topdressing frequencies. The PFPN and WUE of Jimai 20 and Shiluan 02-1 increased with the increase in fertilization frequency. In the second year, the PFPN and WUE of DF4 in Jimai 20 were significantly reduced by 19.5% and 22.2%, respectively, compared to DF2. In the first year, the PFPN and WUE of DF4 from Shi Luan 02-1 were significantly reduced by 27.9% and 34.5%, respectively, compared to DF2.

4. Discussion

The Gs value is the surface conductivity of CO₂ and H₂O [25]. The increase in the Gs value indicates that the assimilation of CO₂ increases slightly and the Tr increases slightly, leading to a higher Pn [26]. Previous studies show that under the influence of nitrogen, flag leaf photosynthesis contributes less to yield, has no positive correlation, and is greatly affected by the weather [18]. Some studies also show that nitrogen supplementation in the late growth period can prolong the high level of photosynthetic time [27], delay leaf senescence [28], and increase the Pn, Gs, and Tr, which are beneficial to grain filling and yield [27]. There is a very significant positive correlation between grain filling and 1000 grain weight [29]. In this study, the increase in fertilization frequency delayed flag leaf senescence, prolonged high-level photosynthesis, and increased the 1000-grain weight and grain nitrogen uptake, thereby increasing the NHI and protein content. The increase in DMDP in the grains of medium gluten wheat Jimai 22 resulted in a higher HI for DF4, but the DMDP in the grains of strong gluten wheat Jimai 20 and Shiluan 02-1 decreased, resulting in a lower HI. Ruiqi Ma et al. pointed out that the changes in the distribution proportion of dry matter in wheat with different gluten types are not entirely the same. When the DMDP of strong gluten wheat grains decreases, the DMDP of leaves increases [30]. Previous studies have shown that the distribution and proportion of dry matter and nitrogen affect the total DMA and NA, the dry matter quality of each organ of wheat is shown as grain > stem > glume+ rachis > leaves at maturity [30]. In our study, the distribution, DMDA and DMDP of each organ was shown as grain > stem > glume + rachis > upper three leaves > other leaves.

Previous studies have shown that the DMA has a significant positive correlation with the yield and HI [11]. The yield is significantly affected by the transport of dry matter before anthesis and the DMA after anthesis [14] and by water, fertilizer, and weather conditions [13,31,32]. The fertilization period is particularly important. Different fertilization periods affect the yield and DMA [15]. Different varieties are affected differently by the fertilization period, leading to the differences in DMA and NA between yield at maturity [15,23,33]. The study by Layeth Moradi et al. showed that increasing the frequency of drip irrigation increased the DMDA of mature stems, leaves, and grains [13]. In this study, an increase in the DMDA of stems, leaves, and grains was also observed by increasing the frequency of drip irrigation fertilization. The total DMA and NA of Jimai 22 in medium gluten wheat increased with the increase in fertilization frequency, while strong gluten wheat Jimai 20 and Shi Luan 02-1 showed the opposite effect. This may be affected by the number of ears. Although the DMDA of DF2 grains in strong gluten wheat was lower, the number of ears was higher, affecting the total DMA. Moreover, Huifang Han et al. pointed out that increasing the frequency of irrigation and delaying irrigation will reduce dry matter accumulation [23]. Layeth Moradi et al. believe that increasing the frequency of irrigation can increase yield and dry matter accumulation [13], which may be influenced by the variety and external environment.

Drip irrigation helps to save water and fertilizer when growing wheat. Our previous research showed that optimal nitrogen application was 210 kg·ha⁻¹ [22]. Much research has been conducted on phased irrigation or fertilization [15,23,34]. The yield is determined by three factors (grain number, 1000 grain weight, spiker number). Irrigation [23] and fertilization [15,34] at the jointing stage are beneficial to increase the number of ears. The 1000 grain weight increases with the extension of the nitrogen topdressing period [33,35]. There is an antagonistic relationship between the 1000 grain weight and the number of grains per unit area; medium gluten wheat is more dependent than strong gluten wheat on late fertilization [34]. The results showed that with the increase in drip fertilization frequency, the 1000 grain weight increased, the number of grains per spike increased, and the number of spikes decreased; the yield and harvest index of strong gluten wheat with two times of drip irrigation and topdressing (jointing stage and flowering stage) were the highest. With the increase in fertilization frequency, the grain yield, protein yield, and harvest index decreased. The yield and harvest index of medium gluten wheat under four drip irrigation treatments were the highest. With the increase of fertilization frequency, the yield, protein yield and harvest index decreased.

Previous studies have shown that PFPN (defined as the ratio of yield to nitrogen application) is an important indicator to measure the contribution of nitrogen to yields [1]. A higher yield is usually attributed to a higher nitrogen uptake and nitrogen use efficiency of shoots [36,37]. In this study, a higher yield also had a higher PFPN. Previous studies show that the WUE of strong gluten wheat irrigated twice is the highest [38]. This study showed that the water use efficiency of medium gluten wheat increased with the increase in fertilization frequency, while that of strong gluten wheat was the opposite.

5. Conclusions

In the middle and late filling stage, the PN, GS, and tr of DF4 were higher than those of df2, and the grain weight and DMDP were higher. After increasing the frequency of drip irrigation fertilization, the duration of high-level photosynthesis was prolonged, the DMDA of stems and leaves was increased, and the weight of 1000 grains was increased. This increased the DMDA and NDA of stems, leaves, and grains of Jimai 22, resulting in an increase in HI and NHI. The DMDA and NDA of grains of Jimai 20 and Shiluan 02-1 decreased, resulting in a smaller HI but a higher NHI; increasing the frequency of drip irrigation fertilization can increase protein content; as the frequency of drip irrigation fertilization increased, the number of grains per spike of medium gluten wheat increased and the number of spikes of medium gluten wheat decreased, resulting in an increase in yield, nitrogen partial productivity, and water use efficiency for medium gluten wheat, while for strong gluten wheat, the opposite was true.
