# Synchronous Retrieval of LAI and Cab from UAV Remote Sensing: Development of Optimal Estimation Inversion Framework

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Modeling of UAV Observations

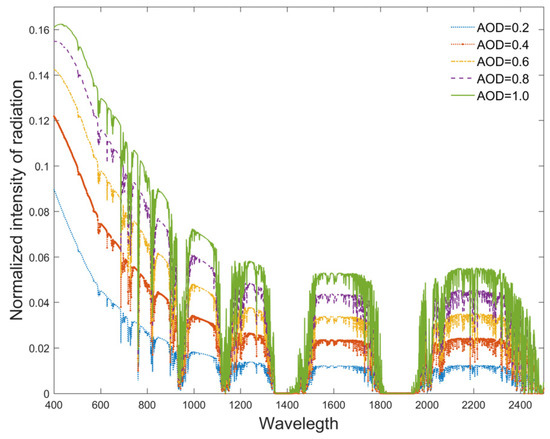

#### 2.1. Atmospheric Radiative Transfer

#### 2.2. Crop Canopy Reflectance

#### 2.3. The Coupling Model for Crop Parameter Inversion

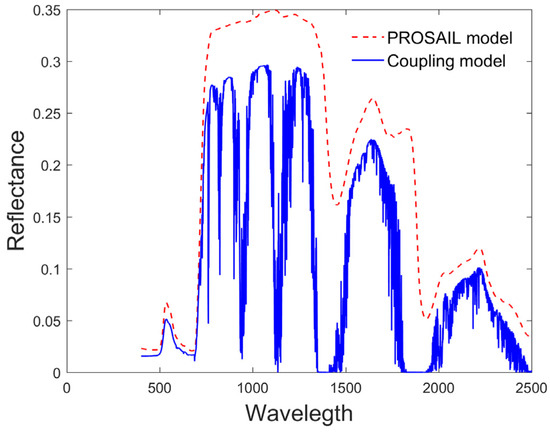

#### 2.3.1. Coupling of Models

#### 2.3.2. Calculation of Jacobians

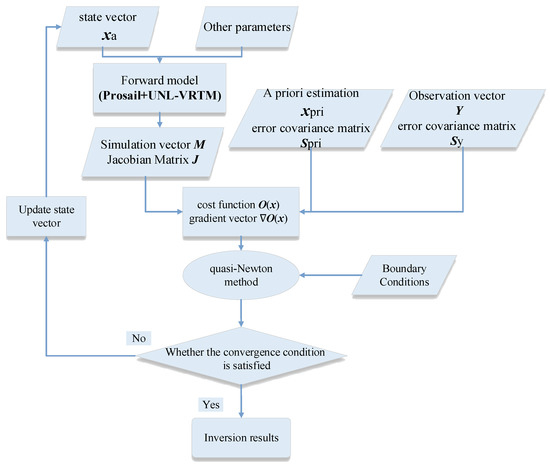

## 3. Method for the Synchronous Retrieval of LAI and Cab

**H**is the inverse matrix of the Hessian matrix constructed with successive gradient vectors in the quasi-Newton method, and ${\alpha}_{\mathrm{p}}$ is the step factor of the iteration.

## 4. Model Analysis for UAV Multispectral Measurements

#### 4.1. The Sensitivity of the Model to Crop Parameters

#### 4.2. Parameters Information Content Analysis

#### 4.3. Setting of State Vectors and Boundary Conditions

## 5. Results

#### 5.1. Validation of the Forward Model

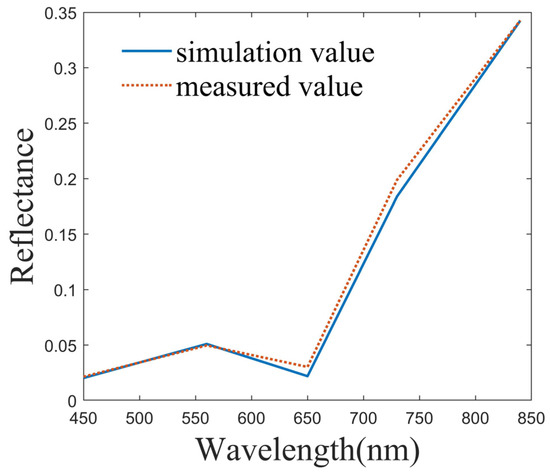

^{2}in Qixian County, Henan Province (114.17° E, 35.6° N), where winter wheat was cultivated annually from October to June, approximately. The region has a warm temperate humid monsoon climate with warm and rainy summer and cold and dry winter. The measured data were derived from the FieldSpec Handheld (a handheld geophysical spectrometer, Analytica Spectra Devices, Inc., Boulder, CO, USA). The spectral range of the measuring instrument is 325~1075 nm, and the spectral resolution was 3 nm at wavelengths 325~700 nm. We collected the test data on 4 March 2021 at about 12:00 when the solar light intensity was stable and the weather was clear and cloudless. The measurement results can represent the true reflectance of the vegetation canopy because the instrument is closer to the target and less influenced by aerosols and water vapor. Figure 7 compares the results between the simulated data at a solar zenith angle of 5° and the measured data at a sampling test point.

#### 5.2. Retrieval Demonstration and Self-Consistency Tests

^{2}) and root-mean-square error (RMSE) are used to verify the consistency of the optimized algorithm. A larger R

^{2}and a smaller RMSE indicate the higher accuracy of the forward model and the better consistency of the inversion framework. The retrieved Cab and LAI synchronously under different observation geometries were compared to the true value as shown in Figure 9a,b.

^{2}value for Cab was 0.9999, while the RMSE was 0.1007, which indicated that the Cab had good retrieval results. Similarly, the verification results of LAI were consistent with Cab. Meanwhile, it is worth noting that the slopes of the fit lines were all close to 1. With the variation of solar zenith angle, the error lines of Cab and LAI were within E = x ± 0.02x ± 0.08 and E = x ± 0.08x ± 0.08, respectively. The error line is defined as a correlation range between the true value and the inversion value. The results showed the final model retrieval values were in good agreement with the real values.

^{2}value and RMSE for Cab were 0.9998 and 0.205, which indicated the uncertainty of the retrieved Cab increased weakly with the varying aerosol loading compared with Figure 9a. It can be seen from Figure 10b that the retrieved LAI value is lower than the true value when the LAI is larger than 6. However, the validation results were almost similar to Figure 9a,b, with the R

^{2}values all larger than 0.99. The results indicated that the developed inversion framework showed good performance regardless of the varied aerosol-loading situation.

## 6. Discussion

## 7. Conclusions

^{2}) between the inversion values and the true values were above 0.99, indicating that UAV multispectral observations can support the inversion of LAI and Cab. It also indicated that the inversion framework can make full use of the available radiation spectral information and has good stability. The findings from this study suggest that our proposed forward model has a strong coupling between vegetation reflectance and atmosphere. Moreover, there were good convergence and consistency for the inversion framework in obtaining inversion LAI and Cab. The optimal inversion framework for the synchronous retrieval of crop phenotypic parameters is expected to be performed on actual observation data in the future and can be applied to the monitoring of crop parameters in the field environment.

## Author Contributions

## Funding

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- Yang, G.J.; Liu, J.G.; Zhao, C.J.; Li, Z.H.; Huang, Y.B.; Yu, H.Y.; Xu, B.; Yang, X.D.; Zhu, D.M.; Zhang, X.Y.; et al. Unmanned aerial vehicle remote sensing for field-based crop phenotyping: Current status and perspectives. Front. Plant Sci.
**2017**, 8, 1111. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Zhang, H.D.; Wang, L.Q.; Tian, T.; Yin, J.H. A review of unmanned aerial vehicle low-altitude remote sensing (uav-lars) use in agricultural monitoring in China. Remote Sens.
**2021**, 13, 1221. [Google Scholar] [CrossRef] - Tattaris, M.; Reynolds, M.P.; Chapman, S.C. A direct comparison of remote sensing approaches for high-throughput phenotyping in plant breeding. Front. Plant Sci.
**2016**, 7, 1131. [Google Scholar] [CrossRef] - Haghighattalab, A.; Perez, L.G.; Mondal, S.; Singh, D.; Schinstock, D.; Rutkoski, J.; Ortiz-Monasterio, I.; Singh, R.P.; Goodin, D.; Poland, J. Application of unmanned aerial systems for high throughput phenotyping of large wheat breeding nurseries. Plant Methods
**2016**, 12, 35. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Gracia-Romero, A.; Kefauver, S.C.; Fernandez-Gallego, J.A.; Vergara-Diaz, O.; Nieto-Taladriz, M.T.; Araus, J.L. UAV and ground image-based phenotyping: A proof of concept with durum wheat. Remote Sens.
**2019**, 11, 1244. [Google Scholar] [CrossRef] [Green Version] - Tao, H.L.; Feng, H.K.; Xu, L.J.; Miao, M.K.; Long, H.L.; Yue, J.B.; Li, Z.H.; Yang, G.J.; Yang, X.D.; Fan, L.L. Estimation of crop growth parameters using UAV-based hyperspectral remote sensing data. Sensors
**2020**, 20, 1296. [Google Scholar] [CrossRef] [Green Version] - Feng, A.J.; Zhou, J.F.; Vories, E.D.; Sudduth, K.A.; Zhang, M.N. Yield estimation in cotton using UAV-based multi-sensor imagery. Biosyst. Eng.
**2020**, 193, 101–114. [Google Scholar] [CrossRef] - Ma, C.Y.; Liu, M.X.; Ding, F.; Li, C.C.; Cui, Y.Q.; Chen, W.N.; Wang, Y.L. Wheat growth monitoring and yield estimation based on remote sensing data assimilation into the SAFY crop growth model. Sci. Rep.
**2022**, 12, 5473. [Google Scholar] [CrossRef] - Velusamy, P.; Rajendran, S.; Mahendran, R.K.; Naseer, S.; Shafiq, M.; Choi, J.G. Unmanned aerial vehicles (UAV) in precision agriculture: Applications and challenges. Energies
**2022**, 15, 217. [Google Scholar] [CrossRef] - Liu, K.; Zhou, Q.B.; Wu, W.B.; Tian, X.; Tang, H.J. Estimating the crop leaf area index using hyperspectral remote sensing. J. Integr. Agric.
**2016**, 15, 475–491. [Google Scholar] [CrossRef] [Green Version] - Darvishzadeh, R.; Atzberger, C.; Skidmore, A.; Schlerf, M. Mapping grassland leaf area index with airborne hyperspectral imagery: A comparison study of statistical approaches and inversion of radiative transfer models. ISPRS J. Photogramm. Remote Sens.
**2011**, 66, 894–906. [Google Scholar] [CrossRef] - Liang, L.; Huang, T.; Di, L.P.; Geng, D.; Di, G.; Yan, J.; Wang, S.G.; Wang, L.J.; Li, L.; Chen, B.Q.; et al. Influence of different bandwidths on LAI estimation using vegetation indices. IEEE J. Sel. Top. Appl. Earth Obs. Remote Sens.
**2020**, 13, 1494–1502. [Google Scholar] [CrossRef] - Viña, A.; Gitelson, A.A.; Nguy-Robertson, A.L.; Peng, Y. Comparison of different vegetation indices for the remote assessment of green leaf area index of crops. Remote Sens. Environ.
**2011**, 115, 3468–3478. [Google Scholar] [CrossRef] - Yu, K.; Lenz-Wiedemann, V.; Chen, X.P.; Bareth, G. Estimating leaf chlorophyll of barley at different growth stages using spectral indices to reduce soil background and canopy structure effects. ISPRS J. Photogramm. Remote Sens.
**2014**, 97, 58–77. [Google Scholar] [CrossRef] - Lin, H.; Liang, L.; Zhang, L.P.; Du, P.J. Wheat leaf area index inversion with hyperspectral remote sensing based on support vector regression algorithm. Trans. Chin. Soc. Agric. Eng.
**2013**, 29, 139–146. [Google Scholar] - Liang, L.; Di, L.P.; Zhang, L.P.; Deng, M.X.; Qin, Z.H.; Zhao, S.H.; Lin, H. Estimation of crop LAI using hyperspectral vegetation indices and a hybrid inversion method. Remote Sens. Environ.
**2015**, 165, 123–134. [Google Scholar] [CrossRef] - Verrelst, J.; Muñoz, J.; Alonso, L.; Delegido, J.; Rivera, J.P.; Camps-Valls, G.; Moreno, J. Machine learning regression algorithms for biophysical parameter retrieval: Opportunities for sentinel-2 and -3. Remote Sens. Environ.
**2012**, 118, 127–139. [Google Scholar] [CrossRef] - Lu, X.P.; Wang, X.X.; Zhang, X.J.; Wang, J.; Yang, Z.N. Winter wheat leaf area index inversion by the genetic algorithms neural network model based on SAR data. Int. J. Digit. Earth
**2022**, 15, 362–380. [Google Scholar] [CrossRef] - Saddik, A.; Latif, R.; Elhoseny, M.; El Ouardi, A. Real-time evaluation of different indexes in precision agriculture using a heterogeneous embedded system. Sustain. Comput. Inform. Syst.
**2021**, 30, 100506. [Google Scholar] [CrossRef] - Saddik, A.; Latif, R.; El Ouardi, A.; Alghamdi, M.I.; Elhoseny, M. Improving Sustainable Vegetation Indices Processing on Low-Cost Architectures. Sustainability
**2022**, 14, 2521. [Google Scholar] [CrossRef] - Duan, S.B.; Li, Z.L.; Wu, H.; Tang, B.H.; Ma, L.L.; Zhao, E.Y.; Li, C.R. Inversion of the PROSAIL model to estimate leaf area index of maize, potato, and sunflower fields from unmanned aerial vehicle hyperspectral data. Int. J. Appl. Earth Obs. Geoinf.
**2014**, 26, 12–20. [Google Scholar] [CrossRef] - Upreti, D.; Huang, W.J.; Kong, W.P.; Pascucci, S.; Pignatti, S.; Zhou, X.F.; Ye, H.C.; Casa, R. A comparison of hybrid machine learning algorithms for the retrieval of wheat biophysical variables from sentinel-2. Remote Sens.
**2019**, 11, 481. [Google Scholar] [CrossRef] [Green Version] - Rivera, J.P.; Verrelst, J.; Leonenko, G.; Moreno, J. Multiple cost functions and regularization options for improved retrieval of leaf chlorophyll content and LAI through Inversion of the PROSAIL Model. Remote Sens.
**2013**, 5, 3280–3304. [Google Scholar] [CrossRef] [Green Version] - He, W.; Yang, H.; Pan, J.J.; Xu, P.P. Exploring Optimal Design of Look-Up Table for PROSAIL Model Inversion with Multi-Angle MODIS Data. In Proceedings of the Land Surface Remote Sensing, Kyoto, Japan, 21 November 2012; SPIE: Bellingham, WA, USA, 2012; Volume 8524, pp. 327–339. [Google Scholar]
- Richter, K.; Hank, T.B.; Vuolo, F.; Mauser, W.; D’Urso, G. Optimal exploitation of the sentinel-2 spectral capabilities for crop leaf area index mapping. Remote Sens.
**2012**, 4, 561–582. [Google Scholar] [CrossRef] [Green Version] - Sun, J.; Wang, L.; Shi, S.; Li, Z.H.; Yang, J.; Gong, W.; Wang, S.Q.; Tagesson, T. Leaf pigment retrieval using the PROSAIL model: Influence of uncertainty in prior canopy-structure information. Crop J.
**2022**, 10, 1251–1263. [Google Scholar] [CrossRef] - Miraglio, T.; Adeline, K.; Huesca, M.; Ustin, S.; Briottet, X. Joint use of PROSAIL and DART for fast LUT building: Application to gap fraction and leaf biochemistry estimations over sparse oak stands. Remote Sens.
**2020**, 12, 2925. [Google Scholar] [CrossRef] - Darvishzadeh, R.; Matkan, A.A.; Ahangar, A.D. Inversion of a radiative transfer model for estimation of rice canopy chlorophyll content using a lookup-table approach. IEEE J. Sel. Top. Appl. Earth Obs. Remote Sens.
**2012**, 5, 1222–1230. [Google Scholar] [CrossRef] - Sun, B.; Wang, C.F.; Yang, C.H.; Xu, B.D.; Zhou, G.S.; Li, X.Y.; Xie, J.; Xu, S.J.; Liu, B.; Zhang, J.; et al. Retrieval of rapeseed leaf area index using the PROSAIL model with canopy coverage derived from UAV images as a correction parameter. Int. J. Appl. Earth Obs. Geoinf.
**2021**, 102, 102373. [Google Scholar] [CrossRef] - Berger, K.; Atzberger, C.; Danner, M.; D’Urso, G.; Mauser, W.; Vuolo, F.; Hank, T. Evaluation of the PROSAIL model capabilities for future hyperspectral model environments: A review study. Remote Sens.
**2018**, 10, 85. [Google Scholar] [CrossRef] [Green Version] - Bassani, C.; Sterckx, S. Calibration of satellite low radiance by AERONET-OC products and 6SV model. Remote Sens.
**2021**, 13, 781. [Google Scholar] [CrossRef] - Rosas, J.; Houborg, R.; McCabe, M.F. Sensitivity of Landsat 8 surface temperature estimates to atmospheric profile data: A study using MODTRAN in dryland irrigated systems. Remote Sens.
**2017**, 9, 988. [Google Scholar] [CrossRef] [Green Version] - Shang, H.; Chen, L.; Breon, F.M.; Letu, H.; Li, S.; Wang, Z.; Su, L. Impact of cloud horizontal inhomogeneity and directional sampling on the retrieval of cloud droplet size by the POLDER instrument. Atmos. Meas. Tech.
**2015**, 8, 4931–4945. [Google Scholar] [CrossRef] [Green Version] - Zheng, F.X. Aerosol Multi-Parameter Optimal Retrieval from Multi-Angle Polarization Satellite Data; University of Chinese Academy of Sciences: Beijing, China, 2019. [Google Scholar]
- Gómez-Dans, J.L.; Lewis, P.E.; Disney, M. Efficient emulation of radiative transfer codes using gaussian processes and application to land surface parameter inferences. Remote Sens.
**2016**, 8, 119. [Google Scholar] [CrossRef] [Green Version] - Mishchenko, M.I.; Travis, L.D.; Lacis, A.A. Scattering, Absorption, and Emission of Light by Small Particles; Cambridge University Press: Cambridge, UK, 2002. [Google Scholar]
- Kaufman, Y.J.; Tanré, D.; Gordon, H.R.; Nakajima, T.; Lenoble, J.; Frouin, R.; Grassl, H.; Herman, B.M.; King, M.D.; Teillet, P.M. Passive remote sensing of tropospheric aerosol and atmospheric correction for the aerosol effect. J. Geophys. Res. Atmos.
**1997**, 102, 16815–16830. [Google Scholar] [CrossRef] [Green Version] - Hou, W.; Li, Z.; Wang, J.; Xu, X.; Goloub, P.; Qie, L. Improving remote sensing of aerosol microphysical properties by near-infrared polarimetric measurements over vegetated land: Information content analysis. J. Geophys. Res. Atmos.
**2018**, 123, 2215–2243. [Google Scholar] [CrossRef] - Wang, J.; Xu, X.G.; Ding, S.G.; Zeng, J.; Spurr, R.; Liu, X.; Chance, K.; Mishchenko, M. A numerical testbed for remote sensing of aerosols, and its demonstration for evaluating retrieval synergy from a geostationary satellite constellation of GEO-CAPE and GOES-R. J. Quant. Spectrosc. Radiat. Transf.
**2014**, 146, 510–528. [Google Scholar] [CrossRef] [Green Version] - Adeluyi, O.; Harris, A.; Verrelst, J.; Foster, T.; Clay, G.D. Estimating the phenological dynamics of irrigated rice leaf area index using the combination of PROSAIL and gaussian process regression. Int. J. Appl. Earth Obs. Geoinf.
**2021**, 102, 102454. [Google Scholar] [CrossRef] - Jacquemoud, S.; Verhoef, W.; Baret, F.; Bacour, C.; Zarco-Tejada, P.J.; Asner, G.P.; François, C.; Ustin, S.L. PROSPECT+SAIL models: A review of use for vegetation characterization. Remote Sens. Environ.
**2009**, 113, S56–S66. [Google Scholar] [CrossRef] - Tripathi, R.; Sahoo, R.N.; Sehgal, V.K.; Tomar, R.K.; Chakraborty, D.; Nagarajan, S. Inversion of PROSAIL model for retrieval of plant biophysical parameters. J. Indian Soc. Remote Sens.
**2012**, 40, 19–28. [Google Scholar] [CrossRef] - Hou, W.; Wang, J.; Xu, X.; Reid, J.S.; Han, D. An algorithm for hyperspectral remote sensing of aerosols: 1. Development of theoretical framework. J. Quant. Spectrosc. Radiat. Transf.
**2016**, 178 (Suppl. C), 400–415. [Google Scholar] [CrossRef] - Zheng, F.X.; Li, Z.Q.; Hou, W.Z.; Qie, L.L.; Zhang, C. Aerosol retrieval study from multiangle polarimetric satellite data based on optimal estimation method. J. Appl. Remote Sens.
**2020**, 14, 014516. [Google Scholar] [CrossRef] - Zheng, F.X.; Hou, W.Z.; Li, Z.Q. Improvement of Aerosol Fine Mode Fraction Retrieval from Skylight Measurements by Degree of Linear Polarization: Information Content Analysis. In Proceedings of the AOPC 2020: Optical Spectroscopy and Imaging; and Biomedical Optics, Beijing, China, 5 November 2020; SPIE: Bellingham, WA, USA, 2020; Volume 11566, p. 1156602. [Google Scholar]
- Spurr, R.; Wang, J.; Zeng, J.; Mishchenko, M.I. Linearized T-matrix and Mie scattering computations. J. Quant. Spectrosc. Radiat. Transf.
**2012**, 113, 425–439. [Google Scholar] [CrossRef] [Green Version] - Combal, B.; Baret, F.; Weiss, M.; Trubuil, A.; Macé, D.; Pragnère, A.; Myneni, R.; Knyazikhin, Y.; Wang, L. Retrieval of canopy biophysical variables from bidirectional reflectance. Remote Sens. Environ.
**2003**, 84, 1–15. [Google Scholar] [CrossRef] - Dubovik, O.; Herman, M.; Holdak, A.; Lapyonok, T.; Tanré, D.; Deuzé, J.L.; Ducos, F.; Sinyuk, A.; Lopatin, A. Statistically optimized inversion algorithm for enhanced retrieval of aerosol properties from spectral multi-angle polarimetric satellite observations. Atmos. Meas. Tech.
**2011**, 4, 975–1018. [Google Scholar] [CrossRef] [Green Version] - Wu, L.; Hasekamp, O.; Van Diedenhoven, B.; Cairns, B. Aerosol retrieval from multiangle, multispectral photopolarimetric measurements: Importance of spectral range and angular resolution. Atmos. Meas. Tech.
**2015**, 8, 2625–2638. [Google Scholar] [CrossRef] [Green Version] - Xu, X.G.; Wang, J. Retrieval of aerosol microphysical properties from AERONET photopolarimetric measurements: 1. Information content analysis. J. Geophys. Res. Atmos.
**2015**, 120, 7059–7078. [Google Scholar] [CrossRef] [Green Version] - Byrd, R.H.; Lu, P.H.; Nocedal, J.; Zhu, C.Y. A limited memory algorithm for bound constrained optimization. SIAM J. Sci. Comput.
**1995**, 16, 1190–1208. [Google Scholar] [CrossRef] - Xiao, Y.H.; Zhang, H.C. Modified subspace limited memory BFGS algorithm for large-scale bound constrained optimization. J. Comput. Appl. Math.
**2008**, 222, 429–439. [Google Scholar] [CrossRef] [Green Version] - Su, W.; Wu, J.Y.; Wang, X.S.; Xie, Z.X.; Zhang, Y.; Tao, W.C.; Jin, T. Retrieving corn canopy leaf area index based on sentinel-2 image and PROSAIL model parameter calibration. Spectrosc. Spectr. Anal.
**2021**, 41, 1891–1897. [Google Scholar] - Jia, J.Q. Study on the Inversion Method of Leaf Area Index of Summer Maize at Different Growth Stages Based on GF-2 Satellite. Northwest University: Kirkland, WA, USA, 2018. [Google Scholar]
- Wan, L.; Zhang, J.F.; Dong, X.Y.; Du, X.Y.; Zhu, J.P.; Sun, D.W.; Liu, Y.F.; He, Y.; Cen, H.Y. Unmanned aerial vehicle-based field phenotyping of crop biomass using growth traits retrieved from PROSAIL model. Comput. Electron. Agric.
**2021**, 187, 106304. [Google Scholar] [CrossRef] - Hou, W.Z.; Wang, J.; Xu, X.G.; Reid, J.S. An algorithm for hyperspectral remote sensing of aerosols: 2. Information content analysis for aerosol parameters and principal components of surface spectra. J. Quant. Spectrosc. Radiat. Transf.
**2017**, 192 (Suppl. C), 14–29. [Google Scholar] [CrossRef] - Wang, G.A.; Mi, H.T.; Deng, T.H.; Li, Y.N.; Li, L.X. Calculation of the change range of the sun high angle and the azimuth of sunrise and sunset in one year. Meteorol. Environ. Sci.
**2007**, 30, 161–164. [Google Scholar] - Jeong, U.; Kim, J.; Ahn, C.; Torres, O.; Liu, X.; Bhartia, P.K.; Spurr, R.J.; Haffner, D.; Chance, K.; Holben, B.N. An optimal-estimation-based aerosol retrieval algorithm using OMI near-UV observations. Atmos. Chem. Phys.
**2016**, 16, 177–193. [Google Scholar] [CrossRef] [Green Version]

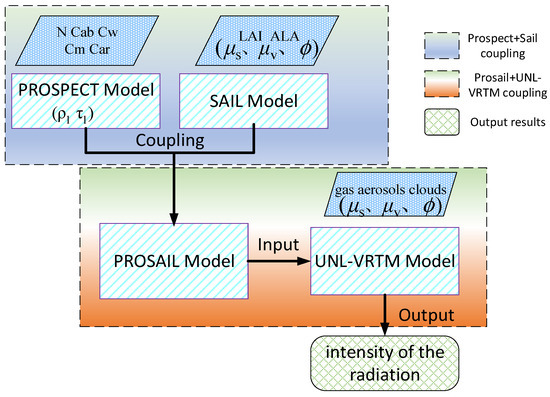

**Figure 1.**Diagram of the coupling model (where ${\mu}_{\mathrm{s}}$ and ${\mu}_{\mathrm{v}}$ are cosine of solar zenith angle and cosine of view zenith angle, respectively, and $\varphi $ is relative azimuth angle.)

**Figure 5.**Spectral response under different input parameter values. (

**a**–

**d**) are the different reflectance changes of physicochemical parameters Cab, Cw, Cm and LAI, respectively. (

**e**,

**f**) are the difference reflectance changes of structure parameter N and geometry parameter ALA, respectively. (

**g**–

**i**) are the difference reflectance changes of parameters Car, Hspot and Psoil, respectively.

**Figure 6.**The DFS of crop parameters: (

**a**) the DFS of different wavelengths for all parameters and (

**b**) the DFS of five bands for each parameter.

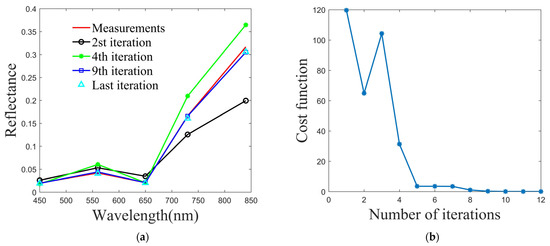

**Figure 8.**Retrieval process demonstration: (

**a**) the illustration of the iterative process for reflectance based on the coupling model and (

**b**) the description of the convergence process for the cost function.

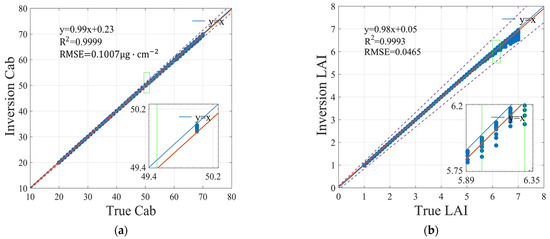

**Figure 9.**Validation of the Cab and LAI with the OE-iteration method: (

**a**) validation of the Cab with the OE-iteration method against the true value under different observation geometries and (

**b**) validation of the LAI with the OE-iteration method against the true value under different observation geometries. The blue solid line, dashed line, and orange solid line are the 1:1 line, error line, and fit line, respectively. The error lines of (

**a**,

**b**) are E = x ± 0.02x ± 0.08 and E = x ± 0.08x ± 0.08. The statistics of the linear fitting result, including slope, intercept, R

^{2}, and RMSE, are listed in the upper left corner of each scatter plot.

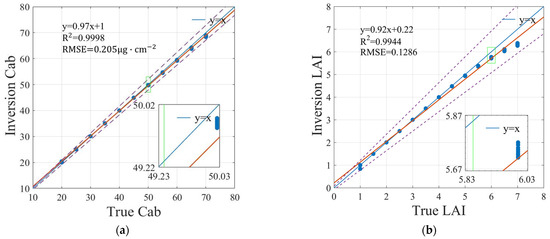

**Figure 10.**Validation of the Cab and LAI with the OE-iteration method: (
