Research on the Hydrological Variation Law of the Dawen River, a Tributary of the Lower Yellow River

Hydrological Center of Tai’an City, Tai’an 271001, China
College of Water Conservancy and Civil Engineering, Shandong Agricultural University, Tai’an 271018, China
Authors to whom correspondence should be addressed.
These authors contributed equally to this work.
Agronomy 2022, 12(7), 1719;
Submission received: 31 May 2022 / Revised: 15 July 2022 / Accepted: 16 July 2022 / Published: 21 July 2022
(This article belongs to the Special Issue Water-Saving in Agriculture: From Soil to Plant)


The natural runoff mechanism of the Dawen River, the main tributary of the lower Yellow River, has been stressed in recent years as a result of human activity, and the hydrological situation has changed dramatically. In this paper, various hydrological statistical methods such as the Mann–Kendall nonparametric test, cumulative anomaly, ordered clustering, sliding T test, and rainfall–runoff double-cumulative curve were used to study the evolution characteristics of hydrological factors in Dawen River. The result revealed that the rainfall and runoff of the Dawen River decreased overall from 1956 to 2016, but the downward trend was not clear, and the runoff variance was high, with 1978 as the variation point. The IHA/RVA and PCA were used to comprehensively evaluate the hydrological variability of the Dawen River, and nine representative indicators were screened out. The overall change was 58%, which is mild, and the difference in hydrological change between the IHA index system and the PCA index system was just 7%, which was predictable. The hydrological situation of the Dawen River has undergone huge changes, and there has been a serious dry-off phenomenon since 1978. The biology, habitat, and structure of the Dawen River have all been irreversibly impacted by changes in its hydrological regime. Furthermore, the key influencing aspect of hydrological variation is the vast building of water conservation schemes. The findings could serve as a theoretical foundation for integrated water resource management and ecological conservation.

1. Introduction

Water availability for agriculture, industry, and cities is important for long-term societal growth [1]. Because of social progress, the public demand for water has increased year by year, and shortages have become widespread [2]. Wang et al. [3] studied runoff changes in 1321 watersheds around the world, and the results showed that global runoff has decreased by an average of 11.9 mm/yr in recent decades. Over the period 1948–2004, Su et al. [4] investigated the long-term flow trends of 916 of the world’s biggest sea-guzzling rivers: 503 had reduced flow, while 408 rivers had an increase. There are more rivers with less flow than with more. The positive flow tendency is more prevalent at high latitudes, while the negative flow trend is more prevalent at low latitudes. River flows in Europe exhibit a south (dry) to north (wet) differential, which is widening [5]. Water scarcity in the Mediterranean region is becoming more acute as a result of climate change, and the water shortage situation in Africa will worsen as the population grows, precipitation and runoff decrease, and evapotranspiration rises [6,7]. In addition, precipitation in India is on the decline [8], a trend that is having a detrimental impact on the region’s weather and environment. Moreover, India’s political, economic, cultural, and social structures will be altered. The level of Lancang–Mekong River, responsible for 60% of the global freshwater flow [9], fell to its lowest level in 50 years in 2010 due to an unusual change in climate, a condition that affects Southeast Asian countries’ long-term socioeconomic development [10].
Changes in hydrological conditions jeopardize the virtuous circle of social economic development and environmental protection and has an impact on human production and existence; however, rainfall and runoff trends can be analyzed to offer useful information on hydrological variables, water resource planning, and management systems. Understanding the performance and features of long-term hydrological and climatic variables is critical for developing countries’ socioeconomic development and for the efficient management and usage of basin water resources [7]. Although China has a vast population, its per capita water resources are just a fifth of the global average. More than half of China’s provinces are experiencing water shortages due to the country’s unique geographical and climatic characteristics. Because China’s water resources are unevenly distributed [11], hydrological factors should receive more attention. It is important to diagnose variation in hydrological and meteorological elements to understand the causes. This has important theoretical significance and practical value for the rational development of basin water resource management and the mastery of the basin water cycle.
In the 1990s, the runoff of rivers in northern China changed dramatically [12]. From 1995 to 2018, the annual runoff of the Haihe, Liaohe, and Yellow River basins decreased significantly, while the annual runoff of the Yangtze, Huaihe, and Pearl River basins in South China decreased slightly. Tian et al. [13] used the IHA–RVA method to analyze the hydrological variation of the Wuding River in northwest China from 1960 to 2016. According to the study, the entire hydrological change of the Wuding River was 69%, and land-use changes and the building of water conservation projects in the region had a significant impact on the hydrological condition. Liu et al. [2] investigated the runoff trend in the Yellow River’s middle and upper sections, as well as the elements that influenced it. The results showed that the runoff is declining sharply over the last 50 years primarily due to climate change. Reduced runoff in the Yellow River’s middle and lower reaches was mostly due to the installation of measures and water conservation projects, as well as water transfer across river basins. Xu et al. [14] investigated temporal and regional variations in Yellow River hydrology over the last 60 years and found that human activity, reservoir construction and control, and water resource exploitation all had a significant impact on hydrological changes.
Richter et al. [15] proposed indicators of hydrologic alteration (IHA) to assess hydrological changes. The IHA comprised 32 indicators, but the number of indicators and their grouping were adjusted to 33 in 1998, divided into five indicator groups [16]. This method is now acknowledged as the most systematic set of indicators. Richter et al. [17] proposed the range of variability approach (RVA) for a better quantitative explanation of the changes, and it has subsequently become widely used. For example, Fantin-Cruz et al. [18] evaluated the impact of water diversion hydropower facilities on the hydrological status of the Correntes River in Brazil; Mwedzi et al. [19] analyzed the degree of change in hydrological indicators in different sections of the Manyame River Basin in Zimbabwe after the dam was built. However, the numerous IHA indicators have a relatively strong association [20], and indicators with a correlation will repeat the description of the degree of change, resulting in a small or large evaluation [21]. Many studies seek to explore and eliminate redundancies between IHA indicators for which the autecology matrix (AM) [22], PCA [23,24,25], and genetic programming (GP) [26] methods are common. The PCA method is widely used because of its objective and reasonable determination of the index weight and standardized calculation process, which is simple to implement on the computer. Identifying the mutation points of hydrological sequences is the foundation for studying hydrological variation laws. The following are all commonly used to identify mutation points in hydrological sequences: the cumulative anomaly method [27,28,29], Mann–Kendall test (MK) [30,31,32], ordered cluster analysis [33], double cumulative-curve method [34,35], Pettitt method [36,37,38], moving t test [39,40], Lee–Heghinian method [13,41], and Hurst method [42,43]. In the study of hydrological variation points, a variety of mutation testing methods are typically used [44,45,46,47].
The Dawen River is the lower Yellow River’s greatest tributary. Downstream of the Dawen River is Dongping Lake, and Dongping Lake undertakes the tasks of flood storage and water transfer from the South to the North. In addition, the Dawen River Basin is home to almost 5.09 million people and 5.4 million hectares of agricultural land. The Dawen River is the main source of water for agricultural irrigation, production, and domestic use in the region. The discharge of the Dawen River has changed dramatically in recent decades as a result of human disturbance [48]. Flow cutoff was first observed in May 1978, according to the measured daily runoff at the Daicun Dam Hydrological Station. Between 1979 and 2016, there were 97 months with no runoff, accounting for 21.3% of the total. It not only has a major impact on water for industrial and agricultural production and people’s domestic use, but also poses a huge threat to the regional ecological environment. Therefore, the study of hydrological variation of Dawen River is of great significance to the development of water resources and the protection of ecological environment.
The main purpose of this study is to explore the evolution characteristics of precipitation and runoff in the Dawen River. At the same time, the combination of PCA and IHA was used to study the hydrological variation law of the Dawen River and to analyze the change of the hydrological situation of the Dawen River and its impact on the river ecological environment. In addition, the main influencing factors of the hydrological variability of the Dawen River were further clarified.

2. Material and Methods

2.1. Study Area

The Dawen River (35°42′ N–36°36′ N, 116° E–118° E) is the lower Yellow River’s greatest tributary [48]. The river is located in Tai’an City, Shandong Province, and flows from east to west. The Dawen River has two tributaries: the Yingwen and Chaiwen rivers. The object of this work is the Daicun Dam Hydrological Station’s control basin (known as the upper and middle reaches of the Dawen River in this paper), which covers 9098 km2. In the east, the terrain is high, while in the west it is flat. Mountainous areas make up 31%, and hilly areas 37%. The average annual precipitation in the Dawen River Basin is 709 mm (1956–2016), with June–September accounting for almost 75%. Drought prevails in other months. Spring precipitation is lower in the basin, temperatures are high, and there are spring droughts. Summer is hot and rainy; autumn is dry, with a significant drop in temperature; and winter is cold and dry, with little precipitation. The climate in the basin is semi-humid. The geographical map of Dawen River Basin is shown in Figure 1.

2.2. Data Sources

The data come from the Yellow River Basin Hydrology Yearbook and are based on annual rainfall data from 26 rainfall stations in the Dawen River Basin from and daily measured runoff data from Daicun Dam Hydrological Station from 1956 to 2016. The dataset for the Digital Elevation Model (DEM) in this paper is ASTER GDEM 30M, which can be found on the Geospatial Data Cloud Platform ( (accessed on 1 March 2022)).

2.3. Hydrological Statistical Analysis Methods

Mann–Kendall text
For trend analyses of hydrological and meteorological variables, the Mann–Kendall (MK) statistical method [49,50] is frequently used [51]. It is a non-parametric test for detecting trends in time series data that does not require the data to follow a normal distribution [52].
The specific method is as follows:
For time series data Y = { y 1 , y 2 , y 3 , , y n } , define its statistics:
S = i = 1 n 1 j = i + 1 n sgn ( y j y i )
In the formula:
sgn ( y j y i ) = { 1   if   y j   >   y i 0   if   y j = y i 1   if   y j   <   y i
The random number sequence S a ( a = 1 , 2 , 3 , , n ) obeys a normal distribution, and its variance is
V ( s ) = n ( n 1 ) ( 2 n + 5 ) 18
Set random sequence S independent and define the M K statistics:
Z MK   = { S 1 V ( s ) S   >   0 0 S = 0 S + 1 V ( s ) S   <   0
When the level of explicitness is β = 0.05 ,   | Z 1 2 β | = 1.96 ; when it is β = 0.01 ,   | Z 1 2 β | = 2.58 . To begin, the random number series is assumed to have a non-changing trend. When | Z MK |   >   | Z 1 2 β | , reject the null hypothesis and the trend becomes more obvious; otherwise, it is not.
Mutation refers to the rapid transition from one state to another state [53].
The basic principle of the Mann–Kendall mutation test is as follows: Construct the order column according to the time series data; calculate the statistics UF and UB according to the order column; after a given significance level, the intersection of the statistics UF and UB within the critical value is the sequence mutation point [53].
If the value of UF or UB is greater than zero, it indicates that the series is in an upward trend, and if it is less than zero, it indicates a downward trend. When they exceed the critical straight line, it indicates a significant upward or downward trend.
Cumulative anomaly method
In hydrological research, the cumulative anomaly method [54] is a statistical tool for analyzing the mutation of hydrological and meteorological data. The following is the procedure for calculating the cumulative anomaly value: first, the difference between the long-series data and the average value is computed. Then, the cumulative anomaly value accumulates year by year according to the time sequence. For sequences x, the cumulative anomaly is i = 1 t ( x i x ) . The following are the normalized cumulative anomalies:
K = i = 1 t ( x i x ) x , t = 1 , 2 , n
If the value K progressively grows, it means that each point in the long-series data is larger than the average and trending upward.

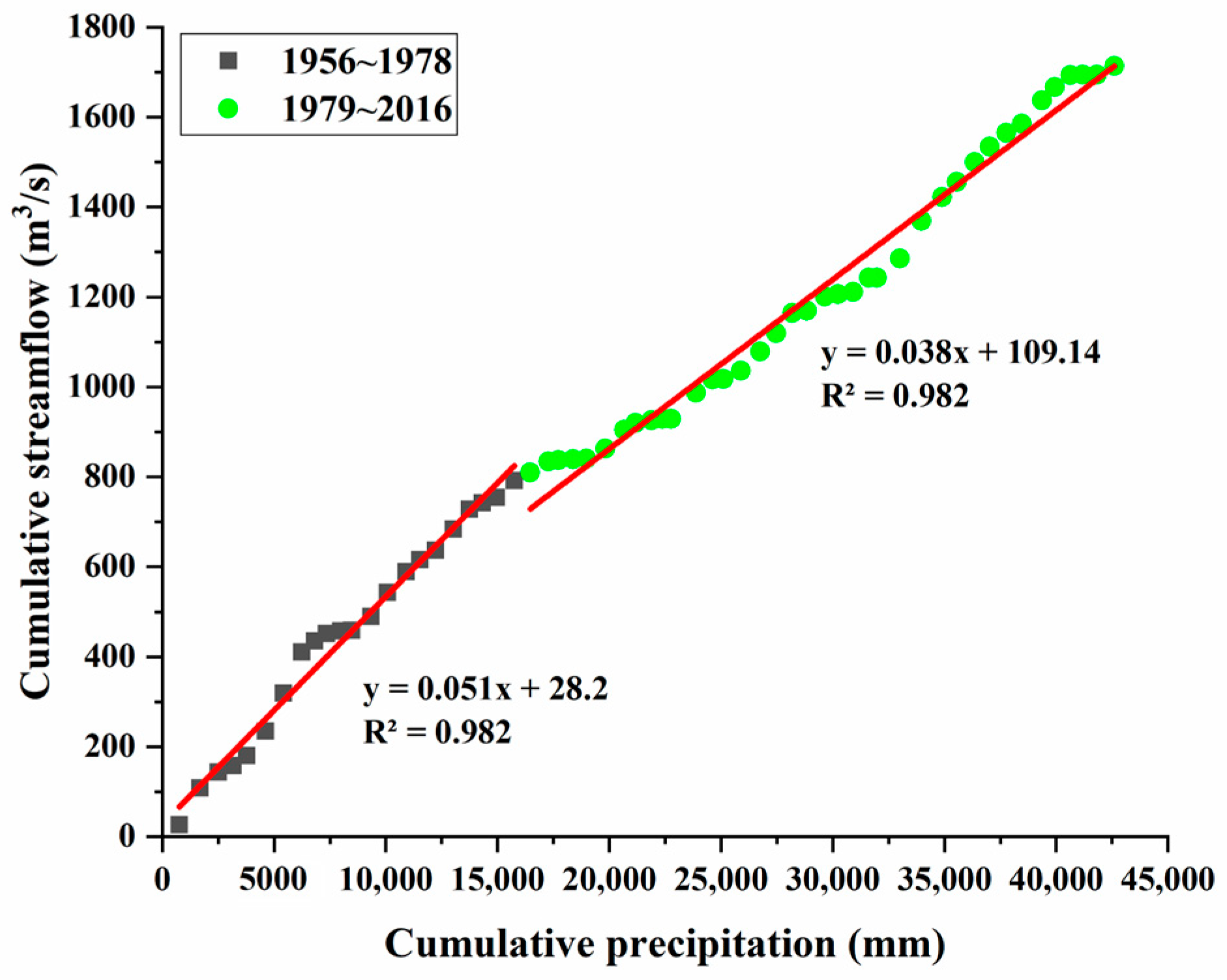

Rainfall–runoff double-cumulative curve
In the statistical study of hydrology, the rainfall–runoff double mass analysis [55] is commonly employed. The underlying premise is that rain and runoff build over the same amount of time. The abscissa represents cumulative rainfall, whereas the ordinate represents cumulative runoff. The rainfall–runoff double-cumulative curve can be used to examine runoff trend change characteristics. If the slope of the rainfall–runoff double-cumulative curve changes, it indicates that the runoff has mutated on this time scale, with the mutation year being the evident slope shift. The mutation points of the precipitation–runoff double-cumulative curve is the starting point for studying precipitation and runoff variations over time. The following is the formula:
X i = i = 1 N X i
Y i = i = 1 N Y i
In the formula: X i is the annual accumulated precipitation (mm); N is the column length; i is the time series; X i is the precipitation in year i (mm); Y i is the annual cumulative streamflow (m3/s); Y i is the streamflow in year i (m3/s).

2.4. IHA/RVA

The Indicators of the Hydrologic Alteration (IHA) method total 33, and they are used to evaluate the characteristics of hydrological changes. These indicators are classified into five ecologically significant indicators: discharge magnitude, time, frequency, duration, and rate of change [15,56]. The grouping of indicators and their corresponding ecosystem impacts are shown in Table 1. The IHA can analyze trends over a single time period or compare two different ones in the hydrological record. If the hydrological system undergoes abrupt changes, such as while constructing a dam, a two-phase analysis should be performed. A single-period study should be employed for hydrological systems that have undergone long-term human change.
The Range of Variability Approach (RVA) is a method for quantifying the degree of hydrological variation in rivers on the basis of the IHA method [16,17]. The method details are as follows: assess the degree of hydrological variability of rivers by analyzing the degree of change in each indicator before and after the mutation point.
The formula of each indicator hydrological change degree A i is
A i = | e i e 0 e 0 |   ×   100 %
In the formula: e i is the number of years for which the i index value is within 25–75% after mutation; e 0 = γ e t ; γ is the proportion of the indicator before the impact that falls within the ecological target threshold (50% in this paper); e t represents the number of years since the mutation.
After mutation, the total hydrological alteration degree A 0 is
A 0 = ( 1 33 I = 1 33 A i 2 )
To express the degree of change in ecological and hydrological indicators qualitatively, when 0 %     | A 0 |     33 % , it is low; when 33 %   <   | A 0 |     67 % , it is moderate; when 67 %   <   | A 0 |     100 % , it is high.

2.5. Principal Component Analysis (PCA)

The principal component analysis is a multi-variable data analysis method established by Harold Hotelling in 1933 to extract the most important information from data sets and produce new orthogonal variables. These variables are linear combinations of the original variables [57], generated by using the original data set’s covariance matrix to generate a new set of axes in the direction of the data set’s largest variance, referred to as principal components (PCs) [51].
The goal of this method is to extract the most important information from the data set, compress the size of the data set by reducing the dimension, and ensure that too much information will not be lost. Therefore, this method is often used in research to screen the indicators that can best summarize the global information.

3. Results

3.1. Evolution Characteristics of Hydrological Factors in Dawen River

3.1.1. Trend Analysis

The precipitation in the upper and middle reaches of the Dawen River (above Daicun Dam hydrological station) showed a decreasing trend year by year, with a decrease of 0.819 mm/yr as shown (Figure 2a). The data used were the average precipitation from 1956 to 2016 at 26 rainfall stations. In this paper, the Mann–Kendall nonparametric test was used to analyze the trend, and the statistic Z was −0.786. Since | Z MK | < 1.96   (β < 0.05 level of significance), the downward trend was not significant. The streamflow trend is shown in Figure 2b, showing a downward trend. Its trend was 8 × 106 m3/a, and the Mann−Kendall test statistic value was 1.458. Similarly, its downward trend was not significant. By making that comparison, it was discovered that streamflow had a more pronounced downward tendency than precipitation, with Hurst values of 0.71 and 0.54, indicating that runoff was more volatile.
As a result, while streamflow’s decreasing trend was not considerable, its volatility was, and this had an influence on ecology, production, and daily life.
The MK test was used to investigate the evolution characteristics of rainfall using average annual precipitation from 26 rainfall stations in the basin from 1956 to 2016, the results are shown in Figure 3. Only one site in this watershed showed a substantial negative tendency from the overall trend, and the tendencies of other stations were not clear (failed to pass the 90 percent significance test). Overall precipitation was decreasing across the entire basin, but this trend was not very significant. The explanation for the minor shift in precipitation is that climate change has not been drastic in recent decades, resulting in minor variations in precipitation. Climate, topography, and other factors all played a role. The rainfall distribution was quite varied from east to west, with rainfall increasing and then decreasing. Rainfall in high−altitude locations was heavier than in low-altitude areas.

3.1.2. Analysis of Mutation

The MK mutation test, cumulative anomaly method, and ordered clustering method were used to conduct the mutation analysis on the measured annual runoff from 1956 to 2016 in the middle and upper reaches of the Dawen River. The results are shown in Table 2. The comprehensive analysis showed that the variation points from 1956 to 2016 at Daicun Dam Hydrological Station were 1964 and 1978. The rainfall in 1964 was 1365 mm, which is significantly greater than the annual average rainfall of 721 mm. The runoff variation in 1964 was caused by a sharp increase in rainfall. When compared to the precipitation-measured runoff double-accumulative curve (Figure 4), the slope of the precipitation–runoff double-accumulative curve dropped after 1978, showing that human activity had a greater influence on runoff. The hydrological variation law of the Dawen River was researched with 1978 as the variation point to better understand the impact of human activity on the hydrological situation of the Dawen River.

3.2. The Law of Hydrological Variation of Dawen River

3.2.1. Degree of Hydrological Change of Dawen River

The research period of the hydrological variation law was separated into two periods on the basis of the year of runoff variation: before variation (1956–1978) and after (1979–2016). We analyzed the changes in 33 indicators using the IHA/RVA method, then calculate the degree of change for each indicator; the results are shown in Table 3. These hydrological indicators changed significantly after the change, and the overall hydrological change rate was 54%. Nine indicators had significant changes, twelve had moderate changes, and twelve indicators had minor changes. There were some disparities in the degree of hydrological change among the groups, as shown in Table 4. The second group of indicators (annual extreme flow intensity and duration) and the fifth (flow change rate and frequency) both had relatively high degrees of change, indicating that human activity had a greater impact on river and bias river runoff towards even distribution. The third group of indicators (the period when the extreme annual flow occurs) showed little variation, demonstrating that the annual rainfall distribution before and after the variation changed little.
Hydrological indicator selection

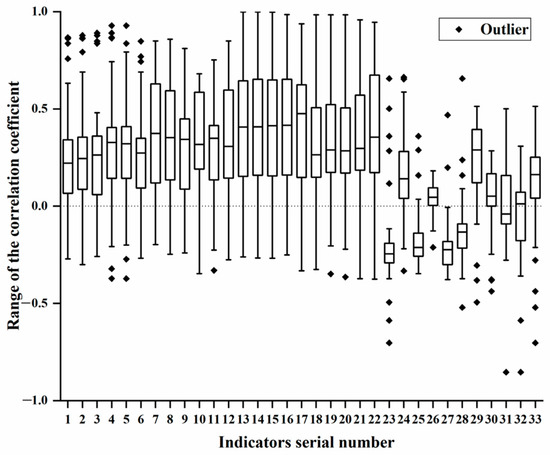

The 33 indicators of the IHA method had significant correlations with each other [58]. Correlation analysis was carried out on 33 indicator values, and the results are shown in Figure 5. The correlation between the indicators was quite high; for the range of absolute values of correlation coefficient, the maximum value was 0.999 and the minimum value was 0, with the average absolute value of the correlation coefficient being 0.332. The 1st to 6th indicators, as well as the 23rd to 33rd, had a large quantity of dispersion and outliers, but the 7th to 22nd indicators had little dispersion and fewer outliers. Indicators from 7 to 22 had a low degree of dispersion and few outliers. The PCA approach was used to assess each indication to reduce the degree of redundancy among the 33 indicators.

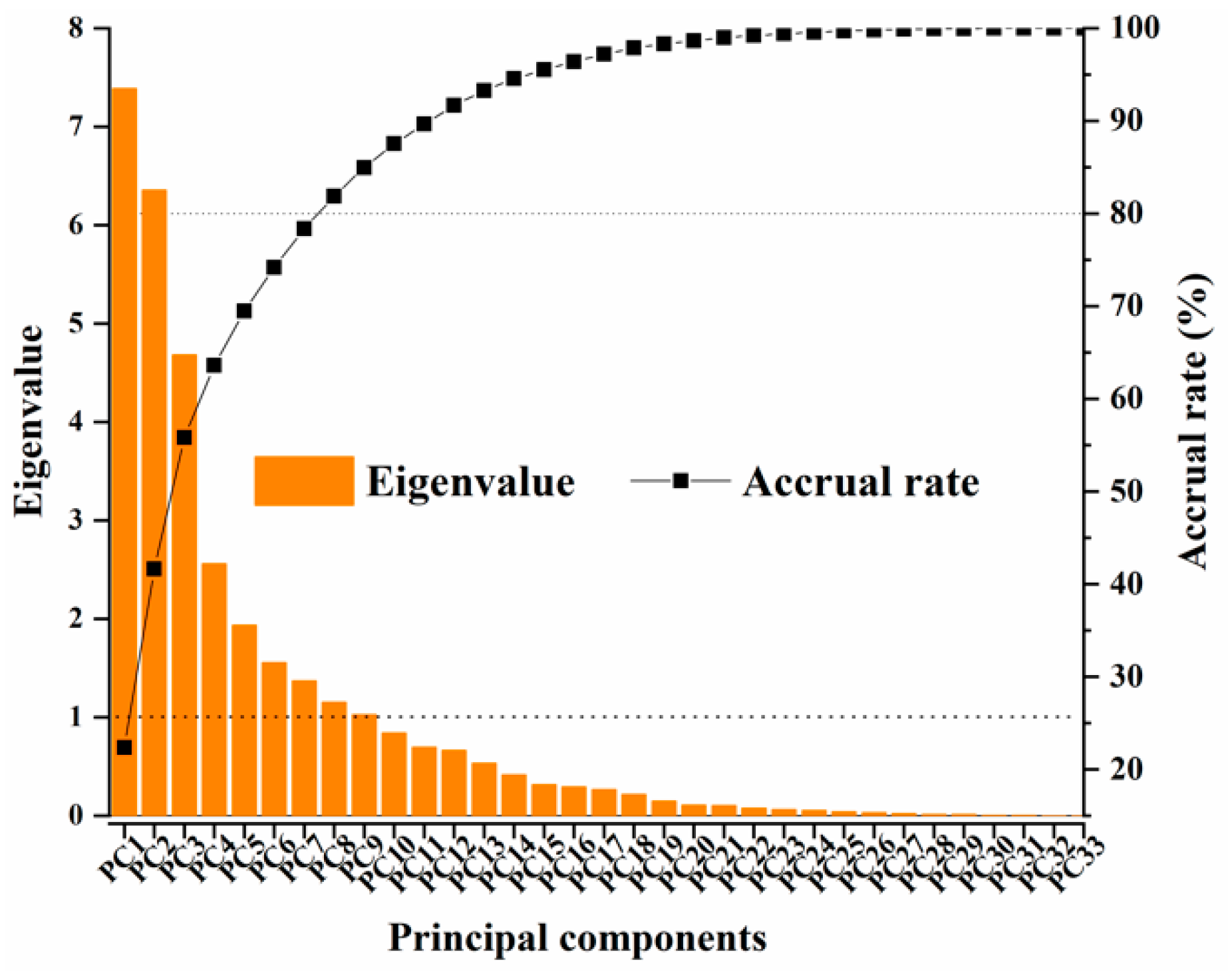

The Kaiser-Guttman criterion was used to determine the number of primary components: the eigenvalue had to be larger than 1 and the cumulative contribution rate had to be at least 80%. The eigenvalues and cumulative contribution rates of the indicators of the 33 IHA methods are shown in Figure 6. The top nine principal component eigenvalues were all greater than 1, and the cumulative contribution rate was 85%, which met the Kaiser-Guttman requirement.
The load values of the top nine principal components are shown in Table 5, and the indicator with the largest load value among the top nine principal components was selected as the representative. A total of nine indicators were selected: 7-day maximum, median streamflow in January; 3-day minimum, fall rate, median streamflow in May; number of reversals, high pulse count, maximum streamflow date, median streamflow in June.
Rationality analysis of preferred indicator

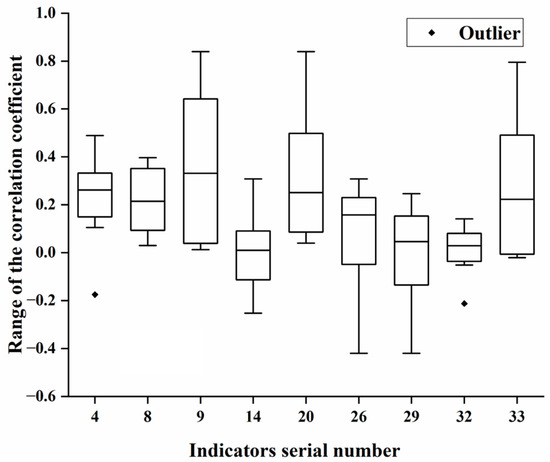

The degree of hydrological change estimated by the 33 IHA method indicators was compared to the total hydrological change of the selected nine indicators to see if they could effectively retain the information in the traditional IHA method indicators. Table 4 and Table 6 illustrate the results. By comparison, total hydrological change of the original 33 indicators was 54%, and the overall hydrological change of the preferred indicators was 58%, both of which were modest changes, with an overall relative inaccuracy of hydrological change of 7%.
Because of the significant correlation among the indicators, they repeated the description of the degree of change in the overall hydrological evaluation, resulting in a small or large evaluation [21]. As a result, a correlation study of the nine indicators was conducted, and the findings are displayed in Figure 7. The result showed that the preferred indicators’ correlation coefficient distribution was more concentrated compared to the original IHA indicators’ (Figure 5). The preferred value of the correlation coefficient of the nine indicators ranged from 0.839 to 0.228, with an average absolute value of 0.228; However, the absolute value of the correlation coefficient for the 33 IHA indicators ranged from 0 to 0.999, with an average value of 0.332. The correlation of the nine preferred indicators was much lower than that of the original 33. Therefore, the nine indicators chosen using principal component analysis are more suited to studying the Dawen River’s hydrological variability.

3.2.2. Analysis of Hydrological Regime Change

This research analyzed the indicators with greater variability and the preferred indicators in the IHA method before and after variation to explore the changes in the Dawen River’s hydrological regime and clarify the Dawen River’s variation law from many perspectives.

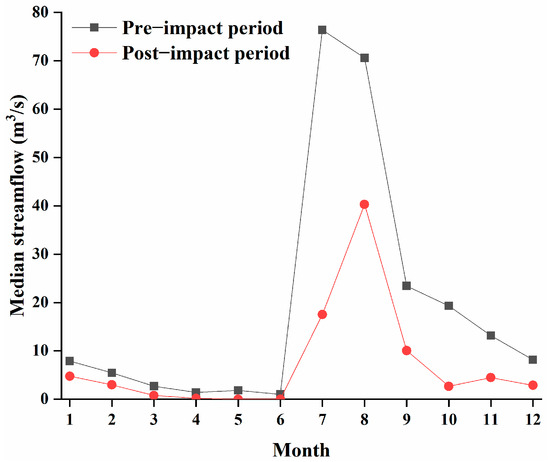

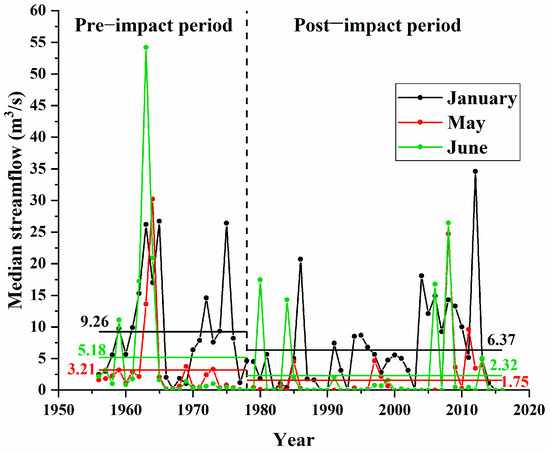

Magnitude of monthly water conditions (Group 1)
The first group contained 12 indicators, among which were the hydrological change degree of two indicators: the median streamflow in May and median streamflow in June. They reached a high degree of change, and the hydrological change degree of the median streamflow in March, April, September, November, and December indicators was moderate. The hydrological changes of the median streamflow indices in January, February, July, August, and October were low. The monthly median streamflow in the two periods before and after the variation is shown in Figure 8. The monthly median streamflow following the mutation was lower than prior to the mutation. Precipitation showed an insignificant declining tendency, according to the interannual variation trend. The maximum median value of streamflow fell by 47% from 76.4 m3/s before mutation to 40.3 m3/s afterwards. The preferred indicators of median streamflow in January, May, and June were analyzed in this paper, and the findings are displayed in Figure 9. The indicator of hydrological change degrees for the median streamflow in May and June were high. Moreover, these streamflows were smaller than that of January because the amount of water from interbasin water diversion in January was greater and irrigation for the basin’s primary crops is concentrated in May and June. The reduction of streamflow will lead to the reduction of aquatic habitats, the decline of groundwater level, and the increase in surface water infiltration, thereby reducing the effective water content of soil and affecting terrestrial plants and terrestrial animals.

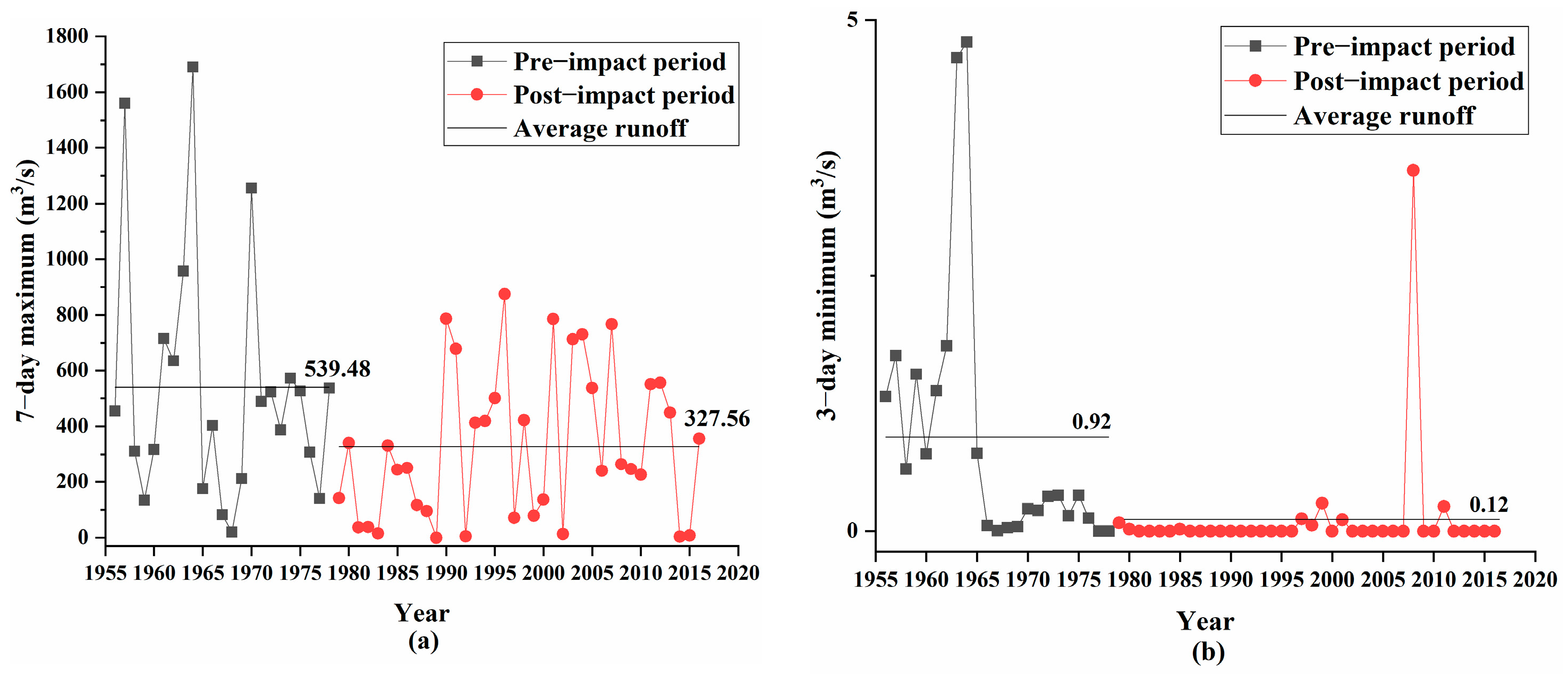

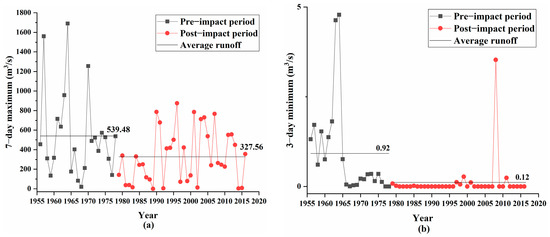

Magnitude of annual extreme discharge events with different durations (Group 2)
There were nine indicators with moderate and high changes among the 12 indicators in this group, as indicated in Table 3. The indicator for zero streamflow days changed from 0 days before the mutation to 59 days afterwards. From 1956 to 1978, the average number of zero streamflow days was 4.17, but from 1979 to 2016, it was 96.5, with obvious differences. The indicator for the 90-day minimum changed from 1.28 m3/s before the mutation to 0.245 m3/s afterwards. It shows that the Daicun Dam Hydrological station on the Dawen River had a cut-out phenomenon following the mutation, and that it was severe, almost reaching a continuous cut-out for 90 days. As illustrated in Figure 10, the paper examined the two preferred indicators: 7-day maximum and 3-day minimum. These two preferred indicators were analyzed, and the results are shown in Figure 10. Compared to values before mutation, the average of the two indicators fell by 39% and 87%, respectively. From the analysis of the 3-day minimum indicator, the number of days with no streamflow increased from 2 before the mutation to 29 afterwards, indicating that the Dawen River’s hydrological variability is quite high and that there is a severe cut-off phenomenon. The morphological structure of river channels and natural habitat conditions, as well as the distribution of plant groups in lakes, ponds, and floodplains, would be affected by changes in this collection of indicators. Soil moisture stress in plants will occur due to the reduction in index values.

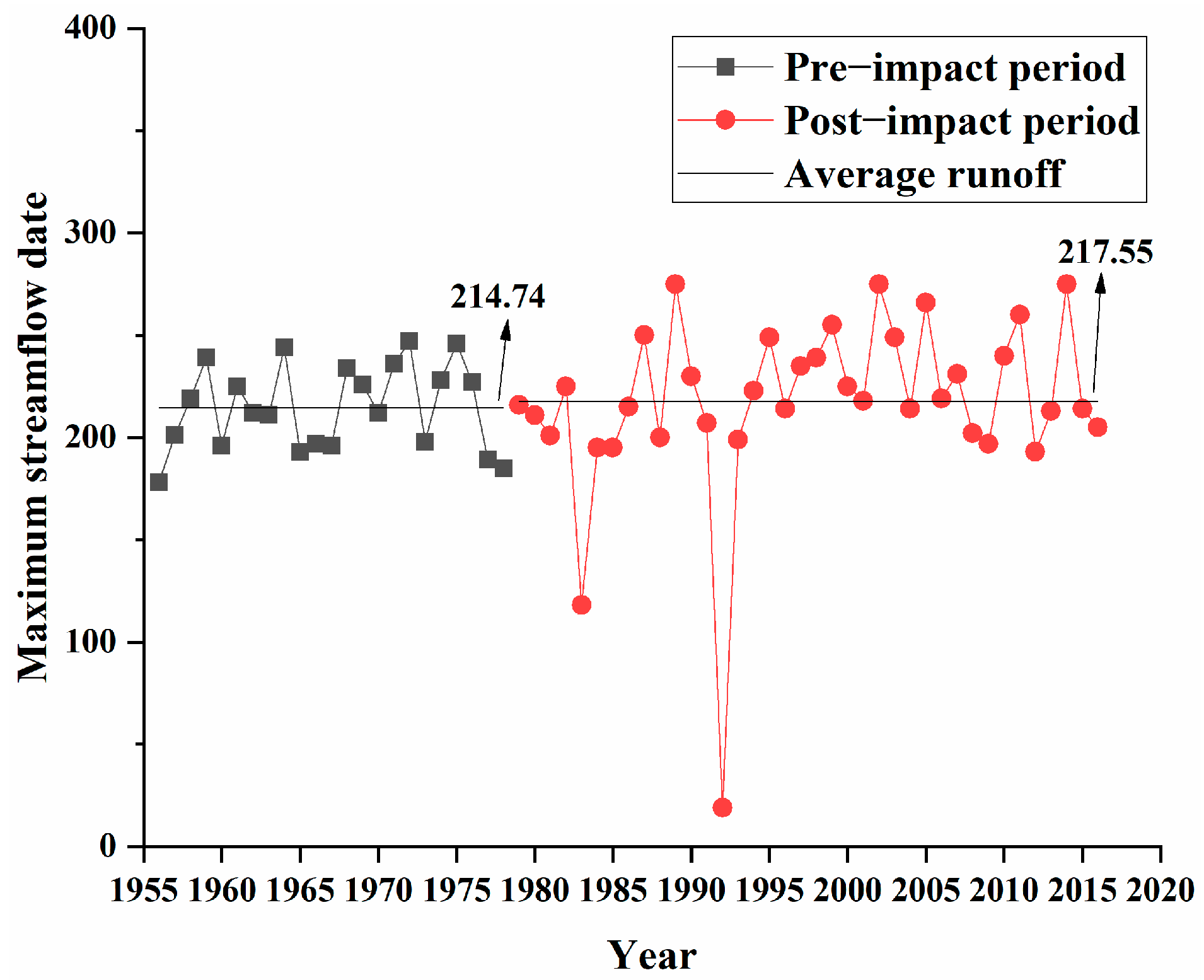

Timing of annual extreme water conditions (Group 3)
The two indicators in this group (minimum and maximum streamflow date) had small changes. The preferred indicator maximum streamflow date was examined, as illustrated in Figure 11. Because the Dawen River is seasonal, heavy rain and flooding are the key influencing factors. The inter-annual fluctuation of torrential rain and floods is not large since the climatic conditions in the basin do not change significantly; therefore, the preferred indicator did not change significantly before or after the variation. However, the years 1983 and 1992 were extremely dry. With no significant rainfall or floods, the rivers essentially stopped running, causing the peak flow to occur earlier. Changes in this group of indicators will lead to the evolution of biological life strategies and behavioral mechanisms.

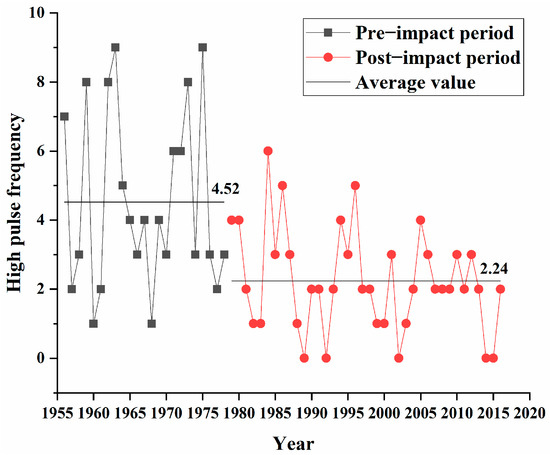

Frequency and duration of high and low pulses (Group 4)
The changes in the two indicators of low pulse duration and high pulse duration were moderate, whereas the changes in low pulse count and high pulse count were low. The number of pulses dropped after the mutation, but the duration of each pulse increased, these changes perhaps leading to an increase in severe flow and increasing the difficulty of rivers overcoming flood seasons. The preferred indicator in this paper was high pulse count, and its change is shown in Figure 12. This indicator’s multi-year average decreased by roughly 50%, from 4.5 times before the mutation to 2.2 times after the mutation. Changes in this group of variables can lead to changes in nutrient and organic matter exchange between rivers and floodplains, as well as oxygen and water stress in plants.

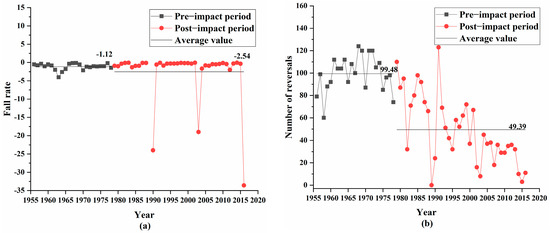

Rate and frequency of water condition changes (Group 5)
In this group of indicators, the number of reversals showed a high degree of change, the rise rate and fall rate indicators showed moderate changes, and the above three indicators all showed a downward trend (Table 3). The authors of this paper analyzed the two preferred indicators, fall rate and number of reversals, as shown in Figure 13. The multi-year average of the number of reversal indicators fell from 99.5 before the mutation to 49.4 after the mutation, while the multi-year average of the fall rate indicator changed from −1.1 to −2.5. These two indicators differed dramatically before and after the variation, and the degree of dispersion rose, affecting the biological population of the river. The downward trend will lead to drought stress in plants and adversely affect the ecological environment.

4. Discussion

This paper studied the evolution law of hydrological properties in the middle and upper portions of the Dawen River. The analysis discovered that both rainfall and runoff had a little decrease trend, with runoff’s negative trend being more visible and volatile than rainfalls. The rainfall trend at most of the basin’s 26 rainfall stations was downward; however, some stations had an upward tendency that was not clear. The mutation point of runoff was discovered to be 1978 during the investigation of the mutation point. The time series was separated into two sections by this mutation point: the pre-influence stage and the post-influence stage. The overall hydrological change degree of the runoff in the Dawen River Basin was 54%, which was a moderate change, according to the IHA/RVA method. This study used the PCA method to tackle the problem of too many indicators in the IHA/RVA method and selected nine more representative indicators. These nine indicators were more suitable for analyzing changes in the Dawen River’s hydrological regime, according to rationality analysis. Since the 1980s, the Daicun Dam Hydrological Station has frequently cut off water flow, with the cut-off time continually increasing; this phenomenon poses a threat to agricultural water use. Some sections are unable to maintain ecological flow, and pollution is becoming increasingly severe. The biology, habitat, and structure of the Dawen River have all been irreversibly impacted by changes in its hydrological regime. Determining the factors responsible for the hydrological variation has attracted the attention of experts and scholars. Climate change mainly affects runoff through precipitation and temperature [59], and in recent years, the precipitation in the Dawen River Basin has shown a downward trend, but it is not obvious. The decrease in precipitation, however, was not enough to account for the height change in the Dawen River or even the disconnection phenomenon. Evaporation in the Dawen River Basin likewise showed a declining trend, but this one was obvious [60]. Although the decrease in evaporation resulted in increased runoff, the measurements of the Dawen River showed it to be on the decline. Therefore, the main influencing factors of runoff change in the Dawen River are not climatic but human [61]. Especially since the 1970s and 1980s, the Dawen River has been the site of a large number of flood control and water-storage projects and land development, which seriously affected the underlying surface conditions causing the hydrological variation.

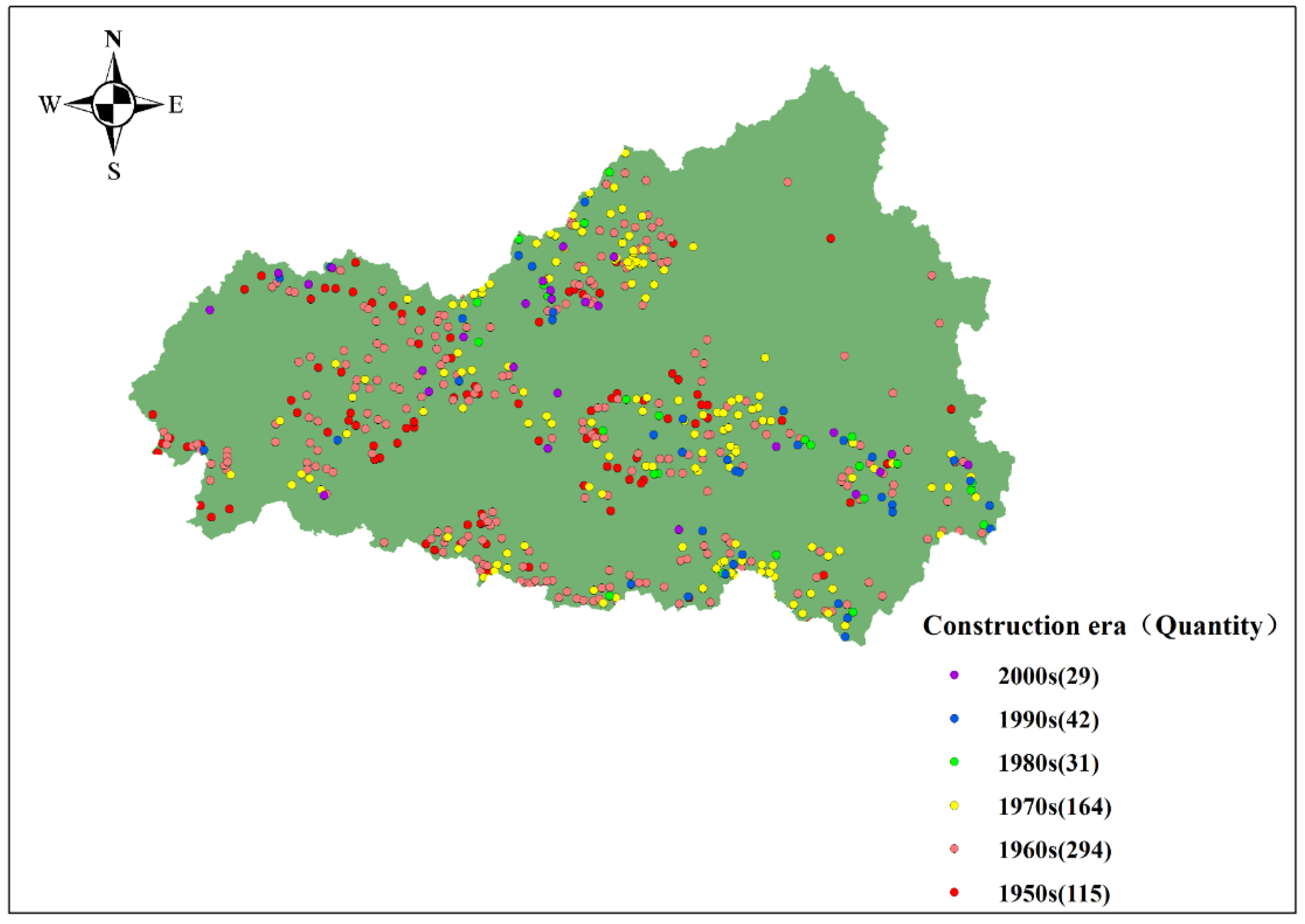

According to statistics, 20 large and medium-sized reservoirs and 438 small reservoirs were built in the basin above the Dawen River Daicun Dam Hydrological Station in the 1960s and 1970s. By 1978, the total capacity of the new reservoirs was 1.14 billion m3. As shown in Table 7 and Figure 14, these projects brought great irrigation and economic benefits to local residents, but they also greatly changed the river’s ecological and hydrological conditions. From 1979 to 2016, construction continued as three medium-sized reservoirs and 110 small reservoirs were built, but they had a total storage capacity of only 140 million m3. In the mountainous areas in the north Dawen River Basin, soil and water loss is very serious, so in the river’s upper reaches, a large amount of soil and water conservation work has recently been carried out: construction of terraces, conversion of cropland to forest and grassland, and digging ecological ditches [62,63]. Soil and water conservation measures, however, reduce the amount of runoff, resulting in river–runoff disconnection, which affects the environment of the whole basin [64]. The underlying surface condition of the Dawen River Basin has significantly changed: as water storage capacity increased, runoff decreased. In addition, with the increase in sand mining in the middle and lower reaches, the original river channel widened, increasing riverbed water storage and reducing runoff. Therefore, the main influencing factors of hydrological variation in the Dawen River are human, which is consistent with the conclusions concerning the main influencing factors of hydrological variation in the Yellow River [58,65].
In recent years, river runoff in northern China has decreased significantly. The Yellow, Songhua, and Haihe rivers, among others, have become typically water deficient. Studies have shown that more than 50% of the reduced runoff is caused by human activity [66], which has attracted wide attention from people of all walks of life. According to Li et al. [67], soil and water conservation measures in the Wuding River, a tributary of the Yellow River, were the most important variables affecting reduced river discharge from 1976 to 1997. Zhao et al. [68] investigated flow fluctuations in the Yellow River Basin’s middle reaches and evaluated the impact of climate change and human activity. The investigation found that water conservation projects, soil and water conservation, and water consumption were the key factors that caused the dramatic decline in annual runoff over the past 60 years. The conclusions of this study are similar with the findings of the previous studies, which suggest that the impact of human activities on runoff is gradually rising.

5. Conclusions

The study of river hydrological variability is the basis for the optimal allocation of river water resources and the study of water ecological protection. In this paper, the evolution characteristics of the hydrological parameters in the Dawen River were studied using a variety of statistical approaches. The method of combining PCA and IHA was used to study the changing law of the hydrological regime of Dawen River. At the same time, the influence of hydrological regime variation on river ecological environment and the influencing factors of hydrological variation were analyzed. In summary, the overall trend of the Dawen River rainfall and runoff was downward, although the negative tendency was more pronounced. The overall hydrological variability of the Dawen River was moderately variable, and since the 1980s, the Dawen River has experienced severe dry-flow phenomena. This not only has a certain impact on the production and domestic water in the region, but also has an irreversible impact on the river’s biology, ecological environment, and structure. In addition, the construction of a large number of water storage projects is the main influencing factor of the hydrological variation of the Dawen River. Therefore, in order to alleviate the shortage of water resources in this area and improve the ecological environment, it is suggested that the water resource allocation of the Dawen River be optimized and that the ecological environment of the river be improved by means of joint scheduling of reservoirs. This achievement has important practical significance and theoretical value for the rational development and utilization of water resources and ecological environment protection.

Author Contributions

Conceptualization, Z.Z., Y.W. and J.L. (Jingqiang Liu); methodology, Y.L. and L.Z.; software, L.Z.; investigation, Y.L. and L.Z.; data curation, L.H. and J.L. (Jingqiang Liu); writing—original draft preparation, Y.L., L.Z. and L.H.; writing—review and editing, Y.L., L.Z., L.H. and J.L. (Jianxin Li); funding acquisition, L.H. All authors have read and agreed to the published version of the manuscript.


This research was funded by the Open Research Fund for State Key Laboratory of Simulation and Regulation of Water Cycle in River Basin, China Institute of Water Resources and Hydropower Research (No.: IWHR-SKL-202219); Research on the current situation and safeguard measures of ecological flow in the main stream of the Dawen River (No.: tasswzx2022_077); the Water Source Comprehensive Supervision Project (No.: WE0149B052020); and Shandong Province Graduate Education Quality Improvement Plan (No.: SDYAL19128). Informed consent was obtained from all subjects involved in the study.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data sets used and/or analyzed during the current study are available from the corresponding author upon reasonable request.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Arrieta-Castro, M.; Donado-Rodríguez, A.; Acuña, G.J.; Canales, F.A.; Teegavarapu, R.S.V.; Kaźmierczak, B. Analysis of streamflow variability and trends in the meta river, Colombia. Water 2020, 12, 1451. [Google Scholar] [CrossRef]
  2. Liu, W.; Shi, C.; Zhou, Y. Trends and attribution of runoff changes in the upper and middle reaches of the yellow river in China. J. Hydro-Environ. Res. 2021, 37, 57–66. [Google Scholar] [CrossRef]
  3. Wang, S.; McVicar, T.R.; Zhang, Z.; Brunner, T.; Strauss, P. Globally partitioning the simultaneous impacts of climate-induced and human-induced changes on catchment streamflow: A review and meta-analysis. J. Hydrol. 2020, 590, 125387. [Google Scholar] [CrossRef]
  4. Su, L.; Miao, C.; Kong, D.; Duan, Q.; Lei, X.; Hou, Q.; Li, H. Long-term trends in global river flow and the causal relationships between river flow and ocean signals. J. Hydrol. 2018, 563, 818–833. [Google Scholar] [CrossRef]
  5. Gudmundsson, L.; Seneviratne, S.I.; Zhang, X. Anthropogenic climate change detected in European renewable freshwater resources. Nat. Clim. Chang. 2017, 7, 813–816. [Google Scholar] [CrossRef]
  6. Leal Filho, W.; Totin, E.; Franke, J.A.; Andrew, S.M.; Abubakar, I.R.; Azadi, H.; Nunn, P.D.; Ouweneel, B.; Williams, P.A.; Simpson, N.P. Understanding responses to climate-related water scarcity in Africa. Sci. Total Environ. 2022, 806, 150420. [Google Scholar] [CrossRef]
  7. Chauluka, F.; Singh, S.; Kumar, R. Rainfall and streamflow trends of thuchila river, southern Malawi. Mater. Today Proc. 2021, 34, 846–855. [Google Scholar] [CrossRef]
  8. Kakkar, A.; Rai, P.K.; Mishra, V.N.; Singh, P. Decadal trend analysis of rainfall patterns of past 115 years & its impact on Sikkim, India. Remote Sens. Environ. 2022, 26, 100738. [Google Scholar] [CrossRef]
  9. Anthony, M.; Cook, A. Non-Traditional Security in Asia: Issues, Challenges and Framework for Action; Institute of Southeast Asian Studies: Singapore, 2013. [Google Scholar]
  10. Li, H.; Song, W. Characteristics of climate change in the Lancang-Mekong sub-region. Climate 2020, 8, 115. [Google Scholar] [CrossRef]
  11. Wu, W.P.; Zhu, Y.F.; Zeng, W.K.; Wang, M.; Yang, D.X.; Chen, W. Green efficiency of water resources in northwest China: Spatial-temporal heterogeneity and convergence trends. J. Clean. Prod. 2021, 320, 128651. [Google Scholar] [CrossRef]
  12. Yang, L.; Zhao, G.; Tian, P.; Mu, X.; Tian, X.; Feng, J.; Bai, Y. Runoff changes in the major river basins of China and their responses to potential driving forces. J. Hydrol. 2022, 607, 127536. [Google Scholar] [CrossRef]
  13. Tian, X.; Zhao, G.; Mu, X.; Zhang, P.; Tian, P.; Gao, P.; Sun, W. Hydrologic alteration and possible underlying causes in the Wuding River, China. Sci. Total Environ. 2019, 693, 133556. [Google Scholar] [CrossRef] [PubMed]
  14. Xu, M.; Wang, G.; Wang, Z.; Hu, H.; Kumar Singh, D.; Tian, S. Temporal and spatial hydrological variations of the yellow river in the past 60 years. J. Hydrol. 2022, 609, 127750. [Google Scholar] [CrossRef]
  15. Richter, B.D.; Baumgartner, J.V.; Powell, J.; Braun, D.P. A method for assessing hydrologic alteration within ecosystems. Conserv. Biol. 1996, 10, 1163–1174. [Google Scholar] [CrossRef] [Green Version]
  16. Richter, B.D.; Baumgartner, J.V.; Braun, D.P.; Powell, J. A spatial assessment of hydrologic alteration within a river network. Regul. Rivers Res. Manag. 1998, 14, 329–340. [Google Scholar] [CrossRef]
  17. Richter, B.; Baumgartner, J.; Wigington, R.; Braun, D. How much water does a river need? Freshw. Biol. 1997, 37, 231–249. [Google Scholar] [CrossRef] [Green Version]
  18. Fantin-Cruz, I.; Pedrollo, O.; Girard, P.; Zeilhofer, P.; Hamilton, S.K. Effects of a diversion hydropower facility on the hydrological regime of the Correntes River, a tributary to the Pantanal floodplain, Brazil. J. Hydrol. 2015, 531, 810–820. [Google Scholar] [CrossRef]
  19. Mwedzi, T.; Katiyo, L.; Mugabe, F.T.; Bere, T.; Bangira, C.; Mangadze, T.; Kupika, O.L. A spatial assessment of stream-flow characteristics and hydrologic alterations, post dam construction in the Manyame catchment, Zimbabwe. Water SA 2016, 42, 194–202. [Google Scholar] [CrossRef] [Green Version]
  20. Smakhtin, V.U.; Shilpakar, R.L.; Hughes, D.A. Hydrology-based assessment of environmental flows: An example from Nepal. Hydrol. Sci. J. 2010, 51, 207–222. [Google Scholar] [CrossRef] [Green Version]
  21. Poff, N.; Zimmerman, J. Ecological responses to altered flow regimes: A literature review to inform the science and management of environmental flows. Freshw. Biol. 2010, 55, 194–205. [Google Scholar] [CrossRef]
  22. Suen, J.P. Ecologically Based Methods for Multi-Objective Water Resources Management in Taiwan. Ph.D. Thesis, University of Illinois, Urbana, IL, USA, 2005. [Google Scholar]
  23. Olden, J.D.; Poff, N.L. Redundancy and the choice of hydrologic indices for characterizing streamflow regimes. River Res. Appl. 2003, 19, 101–121. [Google Scholar] [CrossRef]
  24. Yang, T.; Zhang, Q.; Chen, Y.D.; Tao, X.; Xu, C.-Y.; Chen, X. A spatial assessment of hydrologic alteration caused by dam construction in the middle and lower yellow river, China. Hydrol. Process. 2008, 22, 3829–3843. [Google Scholar] [CrossRef]
  25. Gao, Y.; Vogel, R.M.; Kroll, C.N.; Poff, N.L.; Olden, J.D. Development of representative indicators of hydrologic alteration. J. Hydrol. 2009, 374, 136–147. [Google Scholar] [CrossRef]
  26. Yang, Y.-C.E.; Cai, X.; Herricks, E.E. Identification of hydrologic indicators related to fish diversity and abundance: A data mining approach for fish community analysis. Water Resour. Res. 2008, 44, W04412. [Google Scholar] [CrossRef]
  27. Xu, F.; Jia, Y.; Niu, C.; Liu, J.; Hao, C. Changes in annual, seasonal and monthly climate and its impacts on runoff in the Hutuo River basin, China. Water 2018, 10, 278. [Google Scholar] [CrossRef] [Green Version]
  28. Liu, Y.G.; Yuan, F.H.; Wang, A.Z.; Wu, J.B.; Zheng, X.B.; Yin, H.; Guan, X. Characteristics of climate change in changbai mountain ecological functional area, northeast China. Ying Yong Sheng Tai Xue Bao/J. Appl. Ecol. 2019, 30, 1503–1512. [Google Scholar] [CrossRef]
  29. Musa, I.H.; Musa, J.J.; Otache, M.Y.; Odofin, A.J.; Odofin, A.J.; Otuaro, E.A. Spatiotemporal variation of land use pattern and land cover changes in gidan kwano watershed area in north central Nigeria. Open J. Ecol. 2022, 12, 271–286. [Google Scholar] [CrossRef]
  30. Alifujiang, Y.; Abuduwaili, J.; Groll, M.; Issanova, G.; Maihemuti, B. Changes in intra-annual runoff and its response to climate variability and anthropogenic activity in the lake Issyk-Kul Basin, Kyrgyzstan. Catena 2021, 198, 104974. [Google Scholar] [CrossRef]
  31. Mohammed, A.; Tommaso, C.; Andrzej, W.; Nir, K.; Tarek, H. Analysis of the spatiotemporal annual rainfall variability in the Wadi Cheliff Basin (Algeria) over the period 1970 to 2018. Water 2021, 13, 1477. [Google Scholar] [CrossRef]
  32. Xie, Z.; Mu, X.; Gao, P.; Wu, C.; Qiu, D. Impacts of climate and anthropogenic activities on streamflow regimes in the Beiluo river, China. Water 2021, 13, 2892. [Google Scholar] [CrossRef]
  33. Yao, R.; Zhang, W.; Zhang, D. Period division-based markov models for short-term traffic flow prediction. IEEE Access 2020, 8, 178345–178359. [Google Scholar] [CrossRef]
  34. Lei, Y.X.; Jiang, X.H.; Geng, W.J.; Zhang, J.Y.; Zhao, H.; Ren, L.Q. The variation characteristics and influencing factors of base flow of the Hexi inland rivers. Atmosphere 2021, 12, 356. [Google Scholar] [CrossRef]
  35. Sohrab, K.; Ali, S.; Amirpouya, S. Spatio-temporal variations of discharge and sediment in rivers flowing into the anzali lagoon. Sustainability 2022, 14, 507. [Google Scholar] [CrossRef]
  36. He, Y.; Hu, Y.; Song, J.; Jiang, X. Variation of runoff between southern and northern China and their attribution in the Qinling mountains, China. Ecol. Eng. 2021, 171, 106374. [Google Scholar] [CrossRef]
  37. Sharifi, A.; Mirabbasi, R.; Ali Nasr-Esfahani, M.; Torabi Haghighi, A.; Fatahi Nafchi, R. Quantifying the impacts of anthropogenic changes and climate variability on runoff changes in central plateau of Iran using nine methods. J. Hydrol. 2021, 603, 127045. [Google Scholar] [CrossRef]
  38. Malede, D.A.; Agumassie, T.A.; Kosgei, J.R.; Linh, N.T.T.; Andualem, T.G. Analysis of rainfall and streamflow trend and variability over birr river watershed, Abbay basin, Ethiopia. Environ. Chall. 2022, 7, 100528. [Google Scholar] [CrossRef]
  39. Chen, L.; Wang, Y.; Touati, B.; Guan, H.; Leng, G.; Liu, W.; Lv, S.; Huang, S.; Pan, Z. Temporal characteristics detection and attribution analysis of hydrological time-series variation in the seagoing river of southern China under environmental change. Acta Geophysica. 2018, 66, 1151–1170. [Google Scholar] [CrossRef]
  40. Lei, X.; Gao, L.; Wei, J.; Ma, M.; Xu, L.; Fan, H.; Li, X.; Gao, J.; Dang, H.; Chen, X.; et al. Contributions of climate change and human activities to runoff variations in the Poyang Lake basin of China. Phys. Chem. Earth Parts A/B/C 2021, 123, 103019. [Google Scholar] [CrossRef]
  41. Wang, X.; Engel, B.; Yuan, X.; Yuan, P. Variation analysis of streamflows from 1956 to 2016 along the yellow river, China. Water 2018, 10, 1231. [Google Scholar] [CrossRef] [Green Version]
  42. Wu, L.; Wang, S.J.; Bai, X.Y.; Luo, W.J.; Tian, Y.C.; Zeng, C.; Luo, G.J.; He, S.Y. Quantitative assessment of the impacts of climate change and human activities on runoff change in a typical karst watershed, SW China. Sci. Total Environ. 2017, 601–602, 1449–1465. [Google Scholar] [CrossRef]
  43. Fu, J.; Gong, Y.; Zheng, W.; Zou, J.; Zhang, M.; Zhang, Z.; Qin, J.; Liu, J.; Quan, B. Spatial-temporal variations of terrestrial evapotranspiration across China from 2000 to 2019. Sci. Total Environ. 2022, 825, 153951. [Google Scholar] [CrossRef] [PubMed]
  44. Hekmatzadeh, A.A.; Kaboli, S.; Torabi Haghighi, A. New indices for assessing changes in seasons and in timing characteristics of air temperature. Theor. Appl. Climatol. 2020, 140, 1247–1261. [Google Scholar] [CrossRef] [Green Version]
  45. Kakaei Lafdani, E.; Saarela, T.; Laurén, A.; Pumpanen, J.; Palviainen, M. Purification of forest clear-cut runoff water using biochar: A meso-scale laboratory column experiment. Water 2020, 12, 478. [Google Scholar] [CrossRef] [Green Version]
  46. Liang, W.; Bai, D.; Wang, F.; Fu, B.; Yan, J.; Wang, S.; Yang, Y.; Long, D.; Feng, M. Quantifying the impacts of climate change and ecological restoration on streamflow changes based on a Budyko hydrological model in China’s loess plateau. Water Resour. Res. 2015, 51, 6500–6519. [Google Scholar] [CrossRef]
  47. Sattari, M.T.; Mirabbasi, R.; Jarhan, S.; Sureh, F.S.; Ahmad, S. Trend and abrupt change analysis in water quality of Urmia Lake in comparison with changes in lake water level. Environ. Monit. Assess. 2020, 192, 623. [Google Scholar] [CrossRef] [PubMed]
  48. Niu, B.; Li, X.; Li, F.; Wang, Y.; Hu, X. Vegetation dynamics and its linkage with climatic and anthropogenic factors in the Dawen river watershed of China from 1999 through 2018. Environ. Sci. Pollut. Res. 2021, 28, 52887–52900. [Google Scholar] [CrossRef]
  49. Mann, H.B. Nonparametric tests against trend. Econometrica 1945, 13, 245–259. [Google Scholar] [CrossRef]
  50. Kendall, M.G. Rank Correlation Methods; Griffin: New York, NY, USA, 1948. [Google Scholar]
  51. He, Y.; Tian, P.; Mu, X.; Gao, P.; Zhao, G.; Wang, F.; Li, P. Changes in daily and monthly rainfall in the middle yellow river, China. Theor. Appl. Climatol. 2017, 129, 139–148. [Google Scholar] [CrossRef]
  52. Lv, X.; Zuo, Z.; Ni, Y.; Sun, J.; Wang, H. The effects of climate and catchment characteristic change on streamflow in a typical tributary of the yellow river. Sci. Rep. 2019, 9, 14535. [Google Scholar] [CrossRef] [Green Version]
  53. Berger, W.H.; Labeyrie, L.D. Abrupt Climatic Change: Evidence and Implications; Springer Science & Business Media: Berlin/Heidelberg, Germany, 1987. [Google Scholar]
  54. Wang, S.; Yan, Y.; Yan, M.; Zhao, X. Quantitative estimation of the impact of precipitation and human activities on runoff change of the Huangfuchuan River Basin. J. Geogr. Sci. 2012, 22, 906–918. [Google Scholar] [CrossRef]
  55. Shah, S.A.; Jehanzaib, M.; Lee, J.H.; Kim, T.W. Exploring the factors affecting streamflow conditions in the Han River basin from a regional perspective. KSCE J. Civ. Eng. 2021, 25, 4931–4941. [Google Scholar] [CrossRef]
  56. Mathews, R.; Richter, B. Application of the indicators of hydrologic alteration software in environment flow setting. J. Am. Water Resour. As. 2007, 43, 1400–1413. [Google Scholar] [CrossRef]
  57. Mohd Salleh, N.A.; Hassan, M.S. Discrimination of lard and other edible fats after heating treatments using partial least square regression (plsr), principal component regression (pcr) and linear support vector machine regression (svmr). J. Phys. Conf. Ser. 2019, 1366, 012114. [Google Scholar] [CrossRef]
  58. Yang, T.; Cui, T.; Xu, C.-Y.; Ciais, P.; Shi, P. Development of a new IHA method for impact assessment of climate change on flow regime. Glob. Planet Chang. 2017, 156, 68–79. [Google Scholar] [CrossRef]
  59. Zhong, D.; Dong, Z.; Fu, G.; Bian, J.; Kong, F.; Wang, W.; Zhao, Y. Trend and change points of streamflow in the yellow river and their attributions. J. Water Clim. Chang. 2021, 12, 136–151. [Google Scholar] [CrossRef]
  60. Zhang, R.; Duan, Z.; Wang, W.; Li, J. Analysis on the changing trend and influence of water resources in Dawen river under changing environment. Yellow River 2015, 37, 67–69. [Google Scholar] [CrossRef]
  61. Sun, R.; Sun, X.L.; Gong, X.L.; Lu, C.X. Runoff series consistency test of Daicun dam in Dawen river. Water Resour. Power 2017, 35, 17–21. [Google Scholar]
  62. Jie, X.; Xu, G. A brief discussion on the characteristics and countermeasures of flood disaster in Dawen river basin. J. Econ. Water Resour. 2003, 21, 59–62. [Google Scholar] [CrossRef]
  63. Guo, K.; Xu, Y. Study on health status and control measures in Dawen river basin. Res. Soil Water Conserv. 2007, 14, 336–337, 340. [Google Scholar] [CrossRef]
  64. Zhang, X. Effects of soil and water conservation on water resources and water environment. Henan Water Resour. South-North Water Divers. 2020, 49, 6–17. [Google Scholar] [CrossRef]
  65. Shen, Z.T.; Zhao, Q.; Li, X. Analysis of rainfall-runoff variation characteristics and influencing factors in the Dawen river basin in the past 50 years. IOP Conf. Ser. Earth Environ. Sci. 2020, 619, 012091. [Google Scholar] [CrossRef]
  66. Guan, X.; Zhang, J.; Bao, Z.; Liu, C.; Jin, J.; Wang, G. Past variations and future projection of runoff in typical basins in 10 water zones, China. Sci. Total Environ. 2021, 798, 149277. [Google Scholar] [CrossRef] [PubMed]
  67. Li, L.J.; Zhang, L.; Wang, H.; Wang, J.; Yang, J.W.; Jiang, D.J.; Li, J.Y.; Qin, D.Y. Assessing the impact of climate variability and human activities on streamflow from the Wuding river basin in China. Hydrol. Processes 2007, 21, 3485–3491. [Google Scholar] [CrossRef]
  68. Zhao, G.; Tian, P.; Mu, X.; Jiao, J.; Wang, F.; Gao, P. Quantifying the impact of climate variability and human activities on streamflow in the middle reaches of the yellow river basin, China. J. Hydrol. 2014, 519, 387–398. [Google Scholar] [CrossRef]

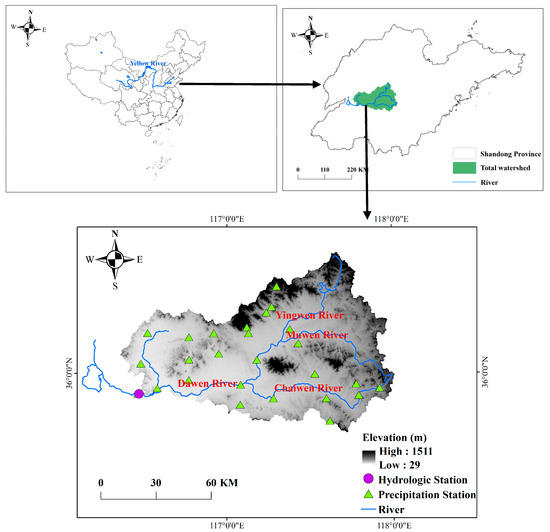

Figure 1. Geographical map of the study area.
Figure 1. Geographical map of the study area.
Agronomy 12 01719 g001

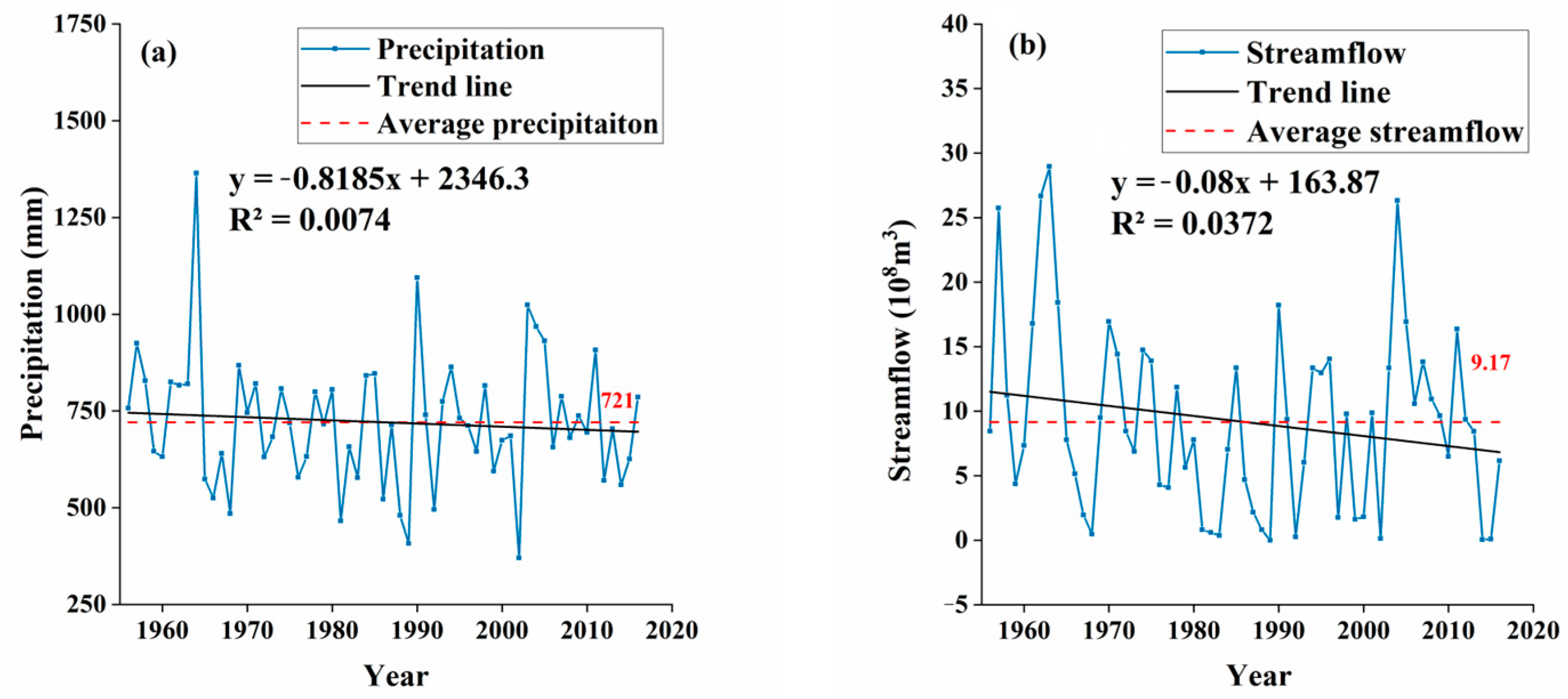

Figure 2. Precipitation (a) and streamflow (b) trend map of Dawen River Daicun Dam Basin.
Figure 2. Precipitation (a) and streamflow (b) trend map of Dawen River Daicun Dam Basin.
Agronomy 12 01719 g002

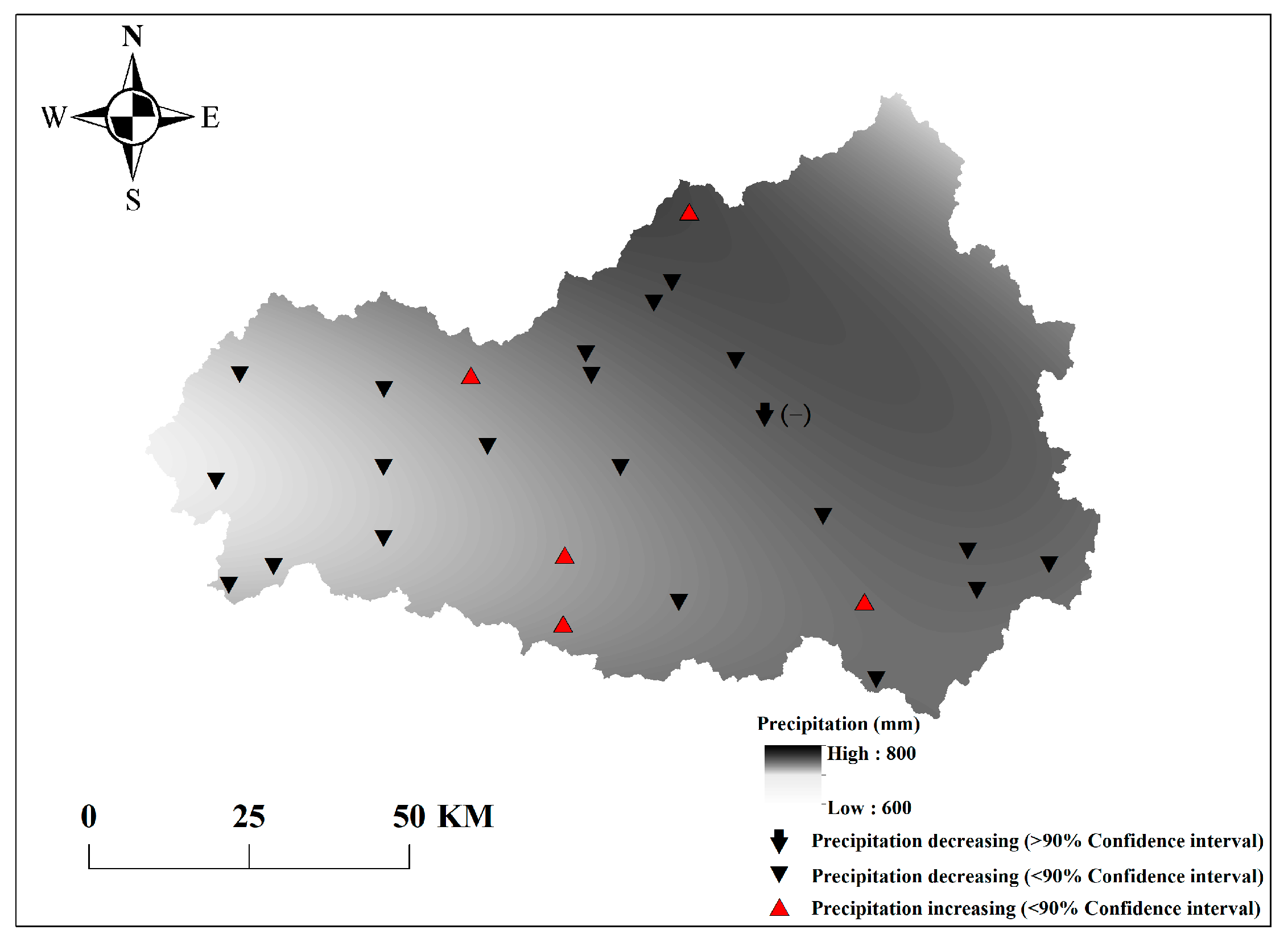

Figure 3. Spatial distribution of the annual precipitation trend from the MK test in the middle and upper reaches of the Dawen River.
Figure 3. Spatial distribution of the annual precipitation trend from the MK test in the middle and upper reaches of the Dawen River.
Agronomy 12 01719 g003
Figure 4. Precipitation–streamflow double-accumulative curve at Daicun Dam Hydrological Station.
Figure 4. Precipitation–streamflow double-accumulative curve at Daicun Dam Hydrological Station.
Agronomy 12 01719 g004
Figure 5. Correlation coefficients among the 33 IHA statistics.
Figure 5. Correlation coefficients among the 33 IHA statistics.
Agronomy 12 01719 g005
Figure 6. Eigenvalues and cumulative contribution rates for principal component analysis.
Figure 6. Eigenvalues and cumulative contribution rates for principal component analysis.
Agronomy 12 01719 g006
Figure 7. Correlation coefficient between 9 preferred indicators.
Figure 7. Correlation coefficient between 9 preferred indicators.
Agronomy 12 01719 g007
Figure 8. Monthly median streamflow.
Figure 8. Monthly median streamflow.
Agronomy 12 01719 g008
Figure 9. Median streamflow for January, May, and June.
Figure 9. Median streamflow for January, May, and June.
Agronomy 12 01719 g009
Figure 10. 7-day maximum (a) and 3-day minimum (b).
Figure 10. 7-day maximum (a) and 3-day minimum (b).
Agronomy 12 01719 g010
Figure 11. Maximum streamflow date.
Figure 11. Maximum streamflow date.
Agronomy 12 01719 g011
Figure 12. High pulse count.
Figure 12. High pulse count.
Agronomy 12 01719 g012
Figure 13. Fall rate (a) and number of reversals (b).
Figure 13. Fall rate (a) and number of reversals (b).
Agronomy 12 01719 g013
Figure 14. Distribution of new reservoirs in the Dawen River Basin during the study period.
Figure 14. Distribution of new reservoirs in the Dawen River Basin during the study period.
Agronomy 12 01719 g014
Table 1. The conventional 33 IHA indicators.
Table 1. The conventional 33 IHA indicators.
IHA Parameter GroupHydrologic ParametersEcosystem Influences
Group 1
Magnitude of monthly water conditions
Median streamflow for each
(Subtotal 12 parameters)
  • Habitat availability for aquatic organisms
  • Soil moisture availability for plants
  • Availability of water for terrestrial animals
  • Availability of food/cover for fur-bearing mammals
  • Reliability of water supplies for terrestrial animals
  • Access by predators to nesting sites
  • Influences water temperature, oxygen levels, photosynthesis in water column
Group 2
Magnitude of annual extreme discharge
events with different durations
1-day minimum
3-day minimum
7-day minimum
30-day minimum
90-day minimum
1-day maximum
3-day maximum
7-day maximum
30-day maximum
90-day maximum
Zero streamflow days
Base streamflow index
(Subtotal 12 parameters)
  • Balance of competitive, ruderal, and stress-tolerant organisms
  • Creation of sites for plant colonization
  • Structuring of aquatic ecosystems by abiotic vs. biotic factors
  • Structuring of river channel morphology and physical habitat conditions
  • Soil moisture stress in plants
  • Dehydration in animals
  • Anaerobic stress in plants
  • Duration of stressful conditions such as low oxygen and concentrated chemicals in aquatic environments
  • Distribution of plant communities in lakes, ponds, floodplains
  • Duration of high flows for waste disposal, aeration of spawning beds in channel sediments
Group 3
Timing of annual extreme water
Minimum streamflow date
Maximum streamflow date (Subtotal 2 parameters)
  • Compatibility with life cycles of organisms
  • Predictability/avoidability of stress for organisms
  • Access to special habitats during reproduction or to avoid predation
  • Spawning cues for migratory fish
  • Evolution of life history strategies, behavioral mechanisms
Group 4
Frequency and duration of high and low
Low pulse count
Low pulse duration
High pulse count
High pulse duration
(Subtotal 4 parameters)
  • Frequency and magnitude of soil moisture stress for plants
  • Frequency and duration of anaerobic stress for plants
  • Availability of floodplain habitats for aquatic organisms
  • Nutrient and organic matter exchanges between river and floodplain
  • Soil mineral availability
  • Access for waterbirds to feed, rest, and reproduce
  • Influences bedload transport, channel sediment textures, and duration of substrate disturbance (high pulses)
Group 5
Rate and frequency of water condition
Rise rate
Fall rate
Number of reversals
(Subtotal 3 parameters)
  • Drought stress on plants (falling levels)
  • Entrapment of organisms on islands, floodplains (rising levels)
  • Desiccation stress on low-mobility streamedge (varial zone) organisms
Table 2. Result of the mutation test of annual measured runoff of Dawen River.
Table 2. Result of the mutation test of annual measured runoff of Dawen River.
Hydrologic StationMutation YearVariation Point
Mann–Kendall TestCumulative Anomaly MethodMoving t Test
Daicun Dam1964, 1968, 1978, 19931964, 19781964, 1969, 1975, 1978, 20021978
Table 3. Changes of hydrological indicators in the basin.
Table 3. Changes of hydrological indicators in the basin.
GroupSerial NumberIHA Indicators Pre-Impact PeriodPost-Impact PeriodRVA BoundariesHydrologic Alteration
LowHighNumerical Value (%)Degree of Change
Group 11Median streamflow in October12.32.872.7821.4−28%L
2Median streamflow in November13.24.477.7818.1−54%M
3Median streamflow in December8.162.875.1812.6−61%M
4Median streamflow in January7.625.004.519.76−8%L
5Median streamflow in February4.233.322.698.305%L
6Median streamflow in March2.321.411.113.31−48%M
7Median streamflow in April1.150.2210.6271.98−61%M
8Median streamflow in May1.630.0000.4542.24−80%H
9Median streamflow in June0.8810.0000.2941.63−67%H
10Median streamflow in July76.411.532.1118−15%L
11Median streamflow in August61.840.332.9104−8%L
12Median streamflow in September23.410.115.760.4−41%M
Group 2131-day minimum0.3220.0000.1460.689−87%H
143-day minimum0.3520.0000.1480.803−87%H
157-day minimum0.3730.0000.2211.14−87%H
1630-day minimum0.6140.0000.2961.42−87%H
1790-day minimum1.280.2450.5822.15−54%M
181-day maximum9634166031254−28%L
193-day maximum669328414801−34%M
207-day maximum455251311539−41%M
2130-day maximum207141161295−28%L
2290-day maximum10177.571.615618%L
23Zero streamflow days0.00059.00.0000.000−73%H
24Base streamflow index0.0220.0000.080.028−93%H
Group 325Minimum streamflow date152151128174−28%L
26Maximum streamflow date21221819822718%L
Group 427Low pulse count3.002.001.926.006%L
28Low pulse duration6.2525.05.0015.6−41%M
29High pulse count4.−31%L
30High pulse duration7.0017.05.4614.4−54%M
Group 531Rise rate0.6620.3820.4470.991−54%M
32Fall rate−1.00−0.355−1.16−0.532−48%M
33Number of reversals10038.092.0108−82%H
Remarks: The overall hydrological change was 54%, H means high change; M means moderate change; L means low change. Base streamflow index: 7-day minimum streamflow/mean streamflow for year. Rise/fall rates: median of all positive/negative differences between consecutive daily values. Number of reversals: by dividing the hydrologic record into “rising” and “falling” periods, the number of times that flow switches from one type of period to another. Low/high pulse: a day is classified as a pulse if it is greater than or less than a specified threshold. For this analysis, pulse thresholds are calculated using data in the pre-impact period only.
Table 4. Hydrological change degree of each group of IHA indicators.
Table 4. Hydrological change degree of each group of IHA indicators.
Hydrologic Change Degree of Each Group (%)Degree of Overall Hydrologic Change (%)
Group 1Group 2Group 3Group 4Group 5
47 (M)66 (M)24 (L)37 (M)63 (M)54 (M)
Remarks: M means moderate change; L means low change.
Table 5. Load value of each indicator of PC1 to PC9.
Table 5. Load value of each indicator of PC1 to PC9.
IHA IndicatorsPrincipal Component
Median streamflow in October0.0450.8970.011−0.027−0.0630.0060.1310.0010.126
Median streamflow in November0.1260.906−0.069−0.101−0.0510.0190.1760.1010.008
Median streamflow in December0.0820.936−0.052−0.0470.134−0.0790.0130.133−0.036
Median streamflow in January0.1240.941 *0.064−0.1170.0990.0230.018−0.0560.035
Median streamflow in February0.0970.8760.068−0.1050.2220.007−0.057−0.167−0.001
Median streamflow in March0.0510.772−0.050−0.0530.402−0.121−0.0920.094−0.199
Median streamflow in April0.0360.456−0.009−0.1140.716−0.188−0.0990.151−0.192
Median streamflow in May−0.0720.0410.191−0.0310.872 *0.0810.156−0.0950.067
Median streamflow in June−0.084−0.061−0.036−0.108−0.041−0.1090.0360.0940.861 *
Median streamflow in July0.2110.1820.148−0.0050.2090.0930.2910.7330.123
Median streamflow in August0.6120.144−0.130−0.022−0.1390.0350.415−0.0840.006
Median streamflow in September0.3990.234−0.0540.0190.044−0.0120.709−0.2210.169
1-day minimum0.111−0.0270.971−0.0760.0930.006−0.0340.0740.023
3-day minimum0.092−0.0010.977 *−0.0700.0830.017−0.0220.0780.016
7-day minimum0.0580.0370.975−0.0450.0840.075−0.0030.0880.018
30-day minimum0.0250.0220.952−0.0480.1640.1510.0530.0650.042
90-day minimum0.0180.2750.349−0.1320.8210.0310.0730.085−0.004
1-day maximum0.9290.0500.1000.103−0.005−0.073−0.075−0.073−0.021
3-day maximum0.9530.093−0.0130.0870.022−0.121−0.012−0.032−0.033
7-day maximum0.959 *0.0550.0410.0420.047−0.1470.0290.003−0.053
30-day maximum0.9390.0650.0230.104−0.015−0.0730.1570.062−0.034
90-day maximum0.8590.1580.0510.093−0.004−0.0010.3710.0970.131
Zero streamflow days−0.019−0.143−0.2410.689−0.237−0.4760.132−0.045−0.118
Base streamflow index−0.162−0.0520.871−0.0980.0360.066−0.048−0.057−0.058
Minimum streamflow date−0.021−0.309−0.1610.5760.2680.169−0.12−0.066−0.246
Maximum streamflow date0.1840.042−0.1070.0030.092−0.0120.287−0.792 *−0.011
Low pulse count−0.403−0.112−0.049−0.022−0.0860.757−0.1210.012−0.105
Low pulse duration−0.215−0.029−0.1690.392−0.232−0.569−0.0670.0640.147
High pulse count0.2820.2340.309−0.0430.0270.332−0.448−0.0750.491
High pulse duration0.2880.0090.0560.1240.212−0.3170.729 *0.088−0.126
Rise rate0.212−0.084−0.0520.853−0.091−0.0920.0480.052−0.004
Fall rate−0.1440.0930.039−0.897 *0.0980.243−0.0680.0190.007
Number of reversals−0.053−0.0990.256−0.288−0.0970.761 *−0.1780.1510.068
Remarks: * indicates the highest load value in the corresponding principal component.
Table 6. Results of preferred indicator evaluation.
Table 6. Results of preferred indicator evaluation.
Serial NumberIHA IndicatorsHydrologic Alteration (%)
4Median streamflow in January8%
8Median streamflow in May80%
9Median streamflow in June67%
143-day minimum87%
207-day maximum41%
26Maximum streamflow date18%
29High pulse count31%
32Rise rate48%
33Number of reversals82%
Remarks: The overall hydrological change was 58%, which was a moderate change.
Table 7. Comparison of the number of new reservoirs before and after the mutation.
Table 7. Comparison of the number of new reservoirs before and after the mutation.
New Construction
from 1956 to 1978
New Construction
from 1979 to 2016
Large reservoirs20
Medium reservoirs183
Small reservoirs542110
Total storage capacity (104 m3)114,183.1714,253.78
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Li, Y.; Zhao, L.; Zhang, Z.; Li, J.; Hou, L.; Liu, J.; Wang, Y. Research on the Hydrological Variation Law of the Dawen River, a Tributary of the Lower Yellow River. Agronomy 2022, 12, 1719.

AMA Style

Li Y, Zhao L, Zhang Z, Li J, Hou L, Liu J, Wang Y. Research on the Hydrological Variation Law of the Dawen River, a Tributary of the Lower Yellow River. Agronomy. 2022; 12(7):1719.

Chicago/Turabian Style

Li, Yan, Long Zhao, Zhe Zhang, Jianxin Li, Lei Hou, Jingqiang Liu, and Yibing Wang. 2022. "Research on the Hydrological Variation Law of the Dawen River, a Tributary of the Lower Yellow River" Agronomy 12, no. 7: 1719.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
