Effects of Nitrogen and Phosphorus Addition on Agronomic Characters, Photosynthetic Performance and Anatomical Structure of Alfalfa in Northern Xinjiang, China

Abstract

The productivity of alfalfa is associated with a large amount of nitrogen (N) and phosphorus (P); the addition of exogenous N and P fertilizers can fully exploit the growth potential of alfalfa. However, there is uncertainty about the relationship between changes in alfalfa productivity and photosynthetic physiology and anatomy. We conducted field fertilization experiments on alfalfa in the second and third years under drip irrigation, as well as measurement of the photosynthetic physiology, anatomical structure and agronomic traits of alfalfa at different levels of N (0, 120 kg·ha⁻¹) and different levels of P₂O₅ (0, 50, 100 and 150 kg·ha⁻¹). The results showed that the dry matter yield (DMY), crude protein (CP), net photosynthetic rate (P_n) and specific leaf weight (SLW) were increased by 2.10~11.82%, 4.95~11.93%, 4.71~7.59% and 2.02~7.12% in the N application treatment compared with the non-N application treatment, while the DMY, CP, P_n and SLW were increased by 3.19~17.46%, 1.99~8.42%, 6.15~24.95% and 2.16~11.90% in the P application treatment compared with the non-P application treatment. N and P increase the thickness of the spongy tissue (ST) of alfalfa, which will facilitate the entry and exit of gas and water, and will further affect the photosynthetic indexes, such as stomatal conductance (G_s) and transpiration rate (T_r), of alfalfa leaves. Increased palisade tissue (PT) thickness will also enhance the adaptability of plant leaves to strong sunlight, thereby increasing the maximum net photosynthetic rate (P_max) and light saturation point (LSP). Fertilization treatment showed the highest utilization efficiency for low light and better adaptation to strong light, but the R_d decreased. The comprehensive scores of principal component analysis for anatomical structure, photosynthetic performance and agronomic traits were N₁P₂ > N₀P₂ > N₁P₃ > N₁P₁ > N₀P₃ > N₀P₁ > N₁P₀ > N₀P₀. Therefore, the application of N and P fertilizers contributed to the adaptive changes in alfalfa leaf anatomy and the improvement of photosynthetic capacity, which were beneficial to the improvement of alfalfa dry matter yield, growth traits and nutritional quality, with the most obvious improvement effect obtained with the application of 120 kg·ha⁻¹ of N and 100 kg·ha⁻¹ of P₂O₅.

1. Introduction

Alfalfa (Medicago sativa L.) is a perennial leguminous plant with high yield, rich nutrition and strong adaptability [1,2]. Soil available nitrogen (AN) and available phosphorus (AP) deficiency are some of the most important factors limiting the productivity of alfalfa [3]. Alfalfa growth requires a large amount of N; the N fixation of rhizobia converts molecular N in the air into ammonium N that can be absorbed and utilized by alfalfa [4]. However, there is still considerable uncertainty about whether alfalfa needs additional N fertilizer [5,6]. Measuring the effect of N fertilization on alfalfa growth must take into account rhizobial activity, soil microenvironment and fertility and environmental factors. P has been shown to significantly improve alfalfa yield and quality, but its effect varies depending on the level of available P in the soil. P is abundant in soil, but the majority of it is difficult to obtain due to the low solubility of inorganic forms of P in water, resulting in P concentrations of 10 μm or less in soil solution and poor soil P mobility [7,8].

Plant leaves are the major location of photosynthesis, which serves as the center for energy conversion in primary producers. Simultaneously, they are more sensitive to environmental and soil changes, and alterations in their epidermal tissue, palisade tissue, spongy tissue and other leaf anatomical features are critical for photosynthesis [9]. N has been demonstrated to promote the division and development of plant leaf palisade cells as well as the formation of sponge cells, particularly during the middle and late phases of plant growth, and this boosting impact progressively rises as the N concentration increases [10]. Under the condition of leaf N deficiency, the addition of appropriate N fertilizer may assist in enhancing plant light energy use efficiency, promoting plant growth and increasing above-ground biomass [11]. Alfalfa is a plant that requires a lot of P and is very sensitive to both an abundance and deficiency of P [12,13]. Studies have shown that without P fertilizer, the absorption and utilization of alfalfa will result in P deficiency in the soil, which in turn will cause a halt in alfalfa growth. In contrast, excessive P application results in a surplus of soil P, leading to P accumulating in the soil [14]. When the soil is deficient in P, the radial thickening of the vascular column in the fine root anatomy, the degree of lignification and the number of ducts increase significantly, thereby increasing the transport capacity of the plant root system. Simultaneously, the cells in the root endothelium disintegrate and release dephosphorylated elements, relieving the plant of its stress caused by the P-deficient environment. By contrast, as a result of P stress, the thickness of the spongy and palisade tissues inside plant leaf tissue tends to diminish [15]. Meanwhile, the strength of plant photosynthesis directly affects its dry matter accumulation, soluble sugar and starch as the main products of photosynthesis; when P stress affects plant photosynthesis, this will also indirectly affect the synthesis of soluble sugar and starch in leaves [16].

Although some progress has been made in research on the production performance of alfalfa under different fertilization conditions, no research has paid attention to the deeper reasons for the high dry matter yield, good growth traits and good nutritional quality of alfalfa. Here, we tested the following three hypotheses: (1) N and P fertilization can improve alfalfa productivity by increasing photosynthetic efficiency and photosynthetic area; (2) N and P fertilization promotes anatomical structure, leading to a wider range of light intensity adaptive changes, promotes photosynthetic pigment production and further enhances photosynthesis; and (3) alfalfa growth performance and nutrient supply are intimately connected, and N and P fertilizer treatments increase dry matter production and nutritional quality compared to those without fertilization.

2. Materials and Methods

2.1. Experimental Site

The field experiments were conducted at the Modern Water-Saving Irrigation Corp’s Key Laboratory Test Base in Shihezi (44°20′ N, 86°30′ E), Xinjiang province, China, in 2020 and 2021. Shihezi is located in the arid regions in the northwest part of China, where agriculture is mainly based on drip irrigation water-saving techniques with integrated water–fertilizer. The average annual temperature is 7.5 °C, the precipitation is 225 mm, the sunshine duration is 2770 h, and the evaporation is 1250 mm, and gray desert soils dominate the experimental area. The soil tillage layer (0~20 cm) contained 21.56 g·kg⁻¹ organic matter, 1.18 g·kg⁻¹ total nitrogen, 0.53 g·kg⁻¹ total phosphorus, 19.30 mg·kg⁻¹ available phosphorus, 145.47 mg·kg⁻¹ alkaline nitrogen, 119.80 mg·kg⁻¹ available potassium and pH = 7.95. The daily (10:00–20:00) average photosynthetically active radiation during the photosynthesis measurement in 2020 was 1574.17 μmol·m⁻²·s⁻¹ and maximum photosynthetically active radiation was 1998.02 μmol·m⁻²·s⁻¹. The average field CO₂ concentration during the photosynthesis measurement was 405.52 μmol·mol⁻¹, the relative air humidity was 24.59%, the atmospheric temperature was 33.19 °C, and leaf surface saturated vapor pressure was 3.40 kPa. In 2021, the daily average photosynthetically active radiation during the photosynthesis measurement was 1587.89 μmol·m⁻²·s⁻¹ and maximum photosynthetically active radiation was 1989.24 μmol·m⁻²·s⁻¹; the average field CO₂ concentration during the photosynthesis measurement was 401.54 μmol·mol⁻¹, the air relative humidity was 25.19%, the atmospheric temperature was 34.27 °C, and the leaf surface saturated vapor pressure was 3.39 kPa.

2.2. Experimental Design and Crop Management

A two-factor randomized complete block design with three replicates was implemented in each treatment. The experimental treatments were the factorial combinations of two gradients of N fertilizer (as N equivalent; 0 (N₀), 120 kg·ha⁻¹ (N₁)), and four gradients of P fertilizer (as P₂O₅ equivalent; 0 (P₀), 50 (P₁), 100 (P₂) and 150 (P₃) kg·ha⁻¹)—a total of 8 treatments were applied with N and P interaction. The N and P addition trials were conducted for two consecutive years, during which no rhizobia inoculation was carried out. The N fertilizers used in the experiment were urea (containing N 46%) and mono-ammonium phosphate (containing P₂O₅ 11%). The P fertilizer was mono-ammonium phosphate (containing P₂O₅ 52%). N₀ and N₁ treatments were applied by adding N fertilizer to maintain the same level of N under different P treatments, and fertilizer was applied through a drip irrigation system in the highly efficient water- and fertilizer-saving method of “fertilizer follows water”. Fertilizer was applied by a drip irrigation system with water at the branching stage (19 April 2020 and 18 April 2021) and 3–5 days after mowing of the first three cuts (25 May, 4 July, 14 August, 2020, 27 May, 3 July, 4 August 2021).

The WL366HQ alfalfa seeds were sown manually in strips in 2019 at a seeding rate of 18.0 kg·ha⁻¹, a row spacing of 20 cm and a sowing depth of 2 cm. Deep ploughing of the land before sowing provides a suitable environment for the deep penetration of alfalfa roots, and timely suppression after sowing is conducive to the close combination of seed and soil, and the moisture retention of the soil surface. The drip irrigation tape was buried shallowly to 10 cm below the soil layer with a spacing of 60 cm. The specifications of each plot were 4 m × 6 m, and a 1 m protection row was set between the plots to prevent the infiltration of nutrients. In addition to fertilization, other management measures such as watering, weeding and insect control were carried out uniformly following local high-yielding alfalfa field production habits.

2.3. Sampling and Measurements

2.3.1. Agronomic Traits

Dry matter yield (DMY) was measured by the sampling method at the early flowering stage of alfalfa (flowering 5~10%). Meanwhile, plant height (PH) stem diameter (SD) and stem to leaf ratio (S/L) were measured.

Nutritional quality: Total nitrogen content was determined using the Kjeldahl method, and total crude protein (CP) was calculated by multiplying the obtained results by 6.25; the neutral detergent fiber (NDF) and acid detergent fiber (ADF) content were determined by the Van Soest method, and the ether extract (EE) was determined by the ether extraction method.

2.3.2. Photosynthetic Indexes

Sunny and cloudless weather was selected for field photosynthesis measurements using an LI-6400 gas exchange device and a chlorophyll fluorescence induction system (LI-COR Inc., Lincoln, NE, USA) from 11:00 a.m. to 13:00 a.m., in the first flowering of the second cut of alfalfa (26 June 2020 and 28 June 2021). The measurement indexes included net photosynthetic rate (P_n), intercellular CO₂ concentration (C_i), stomatal conductance (G_s) and transpiration rate (T_r); meanwhile, environmental factors such as photosynthetically active radiation (PAR), field CO₂ concentration (C_a), relative air humidity (RH), atmospheric temperature (T_a) and leaf surface saturated vapor pressure (V_pdl) were recorded. The calculation formulas for instantaneous water use efficiency (WUE) and stomatal limit value (L_s) are as follows:

$$\mathrm{WUE}=P_{\mathrm{n}}/T_{\mathrm{r}}$$

(1)

$$L_{\mathrm{s}}=\left(C_{\mathrm{a}}-C_{\mathrm{i}}\right)/C_{\mathrm{a}}$$

(2)

We used the LI-6400 portable photosynthesis instrument and the LI-6400-02B red and blue light source to measure the light response parameters of the leaves. The leaves were induced under 1200 μmol·m⁻²·s⁻¹ light intensity for 20 min before measurement. The photosynthetically active radiation (PAR) gradient was set to 2000, 1500, 1000, 800, 600, 400, 100, 50, 20 and 0 μmol·m⁻²·s⁻¹. Maximum net photosynthetic rate (P_max), light compensation point (LCP) and light saturation point (LSP) were calculated by fitting photosynthetic data using the C3 plant light response model [17], and apparent quantum yield (AQY) and dark respiration rate (R_d) were calculated using a response linear fit of the photosynthetic low light intensity below 200 μmol·m⁻²·s⁻¹.

2.3.3. Photosynthetic Physiological and Biochemical Indexes

Photosynthetic pigment: Chlorophyll content (Chl) and carotenoid content (Car) were determined by the spectrophotometer method [18].

Leaf area: The leaves were brought back to the laboratory, scanned using a scanner to form images, and the leaf area (LA) was calculated using Image Pro Plus software (Media Cybernetics, Silver Spring, MD, USA).

Specific leaf weight (SLW): The whole green mature leaves of alfalfa were cut, and their total area was determined by the above-mentioned leaf area determination method; then, they were dried and weighed, measurement was repeated 3 times, and the average value was taken. Specific leaf weight is the ratio of the dry matter weight of whole alfalfa leaves to leaf area.

2.3.4. Anatomical Structure

To analyze the anatomical structure of alfalfa leaves, before cutting the alfalfa, the mature and healthy fresh leaves at the same leaf position (middle leaflet of the trifoliate compound leaf in the 3rd leaf position) were taken before alfalfa mowing and immediately fixed in FFA; after immersion for 12 h, paraffin sections were made. Photographs were taken at 100× magnification using a computer connected to an Olympus BX43F microscope (Olympus Inc., Tokyo, Japan). Leaf total thickness (LT), main vein thickness (MVT), up-epidermal thickness (UE), down-epidermal thickness (DE), palisade tissue thickness (PT) and spongy tissue thickness (ST) were measured using the software tools provided in Image Pro Plus 6.1 and averaged over multiple measurements. The specific formulas for the compaction of leaf tissue (CTR) and porosity of leaf tissue (SR) are as follows:

$$\mathrm{CTR}=\left(\mathrm{PT}/\mathrm{LT}\right)\times 100\%$$

(3)

$$\mathrm{SR}=\left(\mathrm{ST}/\mathrm{LT}\right)\times 100\%$$

(4)

2.4. Data Analysis

The effects of N and P on the indicators of alfalfa were examined using a two-way (N, P, N × P) ANOVA for each year, and multiple comparisons were performed using Duncan’s method. The assumptions of normality (Shapiro–Wilk test) and homogeneity (Bartlett’s test) were tested before subjecting the data to ANOVA.

Structural equation modeling (SEM) was performed using IBM SPSS AMOS 24 (SPSS Inc., Chicago, IL, USA) software to predict the interactions among chlorophyll, palisade tissue, spongy tissue, P_n, T_r and DMY, and several model fitness parameters were used to judge the reasonableness of the model, mainly including the ratio of chi-square value to the degree of freedom (CHI/DF < 3), test p-value (p > 0.05), asymptotic residual mean square and root square (RMSEA < 0.08), goodness of fit index (GFI > 0.9) and value-added fit number (NFI > 0.9), and when the model met these conditions, it indicated reasonable model fitness.

The C3 plant light response model is:

$$P_{\mathrm{n}}\left(I\right)=\frac{\alpha I\left(1-\beta I\right)}{\left(1+\gamma I\right)}-\epsilon$$

(5)

Among them, I is photosynthetically active radiation; α, β, γ and ε are 4 coefficients. We set the initial values of α, β, γ and ε to 0.01, 0.0001, 0.001 and 0.5, respectively, and substituted the light response curve data and initial values into the model equation to calculate the coefficients α, β, γ and ε of the model by the Myquart method.

The calculation formula of the P_max is:

$$P_{\max }=\alpha (\frac{\sqrt{\beta +\gamma }-\sqrt{\beta }}{\gamma }{)}^2-\epsilon$$

(6)

The calculation formula of the LCP is:

$$\mathrm{LCP}=\frac{\alpha -\gamma \epsilon -\sqrt{({\left(\gamma \epsilon -\alpha \right)}^2-4\alpha \beta \epsilon )}}{2\alpha \beta }$$

(7)

The calculation formula of the LSP is:

$$\mathrm{LSP}=\frac{\sqrt{\left(\beta +\gamma \right)/\beta }-1}{\gamma }$$

(8)

The linear fitting equation for a low light intensity–net photosynthetic rate below 200 μmol·m⁻²·s⁻¹ is:

$$P_{\mathrm{n}}\left(I\right)=\delta I-R_{\mathrm{d}}$$

(9)

where δ is the slope of the straight line fitting equation. When I = 0 μmol·m⁻²·s⁻¹, P_n is the R_d; when I = 200 μmol·m⁻²·s⁻¹, δ is the AQY.

3. Results

3.1. Agronomic Traits

Under the same N application conditions, the DMY, PH, SD and CP of alfalfa tended to increase first and then decrease with increasing P application. In contrast, S/L, NDF and ADF tended to drop initially and subsequently rise as P application increased (Figure 1). The PH, CP and DMY in P₂ treatment were significantly greater than those in non-P treatment (p < 0.05), but the NDF, ADF and S/L in non-P treatment were significantly lower (p < 0.05). In 2020, the EE of the P₃ treatment was significantly higher than the other three treatments (p < 0.05), and in 2021, the EE of the P₂ and P₃ treatments were significantly greater than those of the P₀ and P₁ treatments (p < 0.05). Furthermore, although there was no significant difference in SD among the P application treatments in 2020 (p > 0.05), the SD for the P₂ treatment was significantly greater than the other three treatments in 2021 (p < 0.05). The DMY, PH, SD, CP and EE of alfalfa were increased by 3.19~17.46%, 1.14~8.03%, 0.14~15.4%, 1.99~8.42% and 0.53~22.16%, and the S/L, NDF and ADF of alfalfa were decreased by 3.26~11.55%, 1.24~11.57% and 1.44~8.19% in the P application treatment compared with the non-P application treatment. Under identical P application conditions, N application resulted in significantly greater PH and CP than non-N treatment (p < 0.05), but non-N treatment resulted in significantly lower NDF and ADF (p < 0.05). In 2020, the DMY and SD of the N treatment were significantly greater than those of the non-N treatment under the P₀ and P₃ treatments (p < 0.05), and the S/L of the N treatment was lower than that of the non-N treatment (p < 0.05), while the EE of the N treatment was significantly higher than that of non-N treatment under the P₃ treatment (p < 0.05). In 2021, the DMY, SD and EE of alfalfa under the N treatment were significantly higher than the non-N treatment (p < 0.05). The S/L was significantly lower than without N treatment (p < 0.05). The DMY, PH, SD, CP and EE of alfalfa were increased by 2.10~11.82%, 3.39~6.67%, 3.52~10.17%, 4.71~7.59% and 1.07~10.25%, and the S/L, NDF and ADF of alfalfa were decreased by 0.41~6.05%, 4.61~7.11% and 4.28~6.83% in the N application treatment compared with the non-N application treatment.

3.2. Photosynthetic Performance

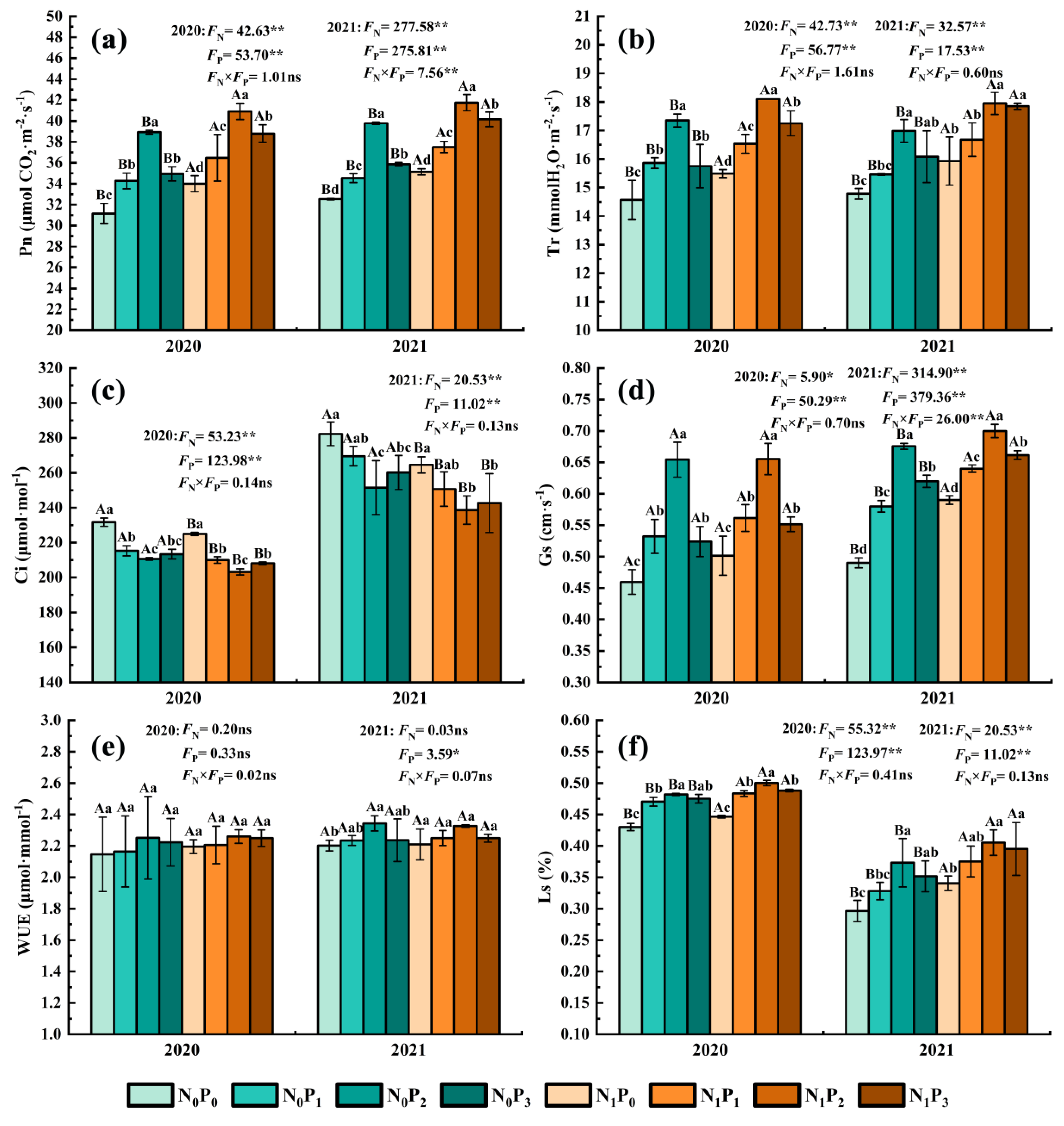

Under the same N application conditions, the P_n, T_r, G_s, WUE and L_s of alfalfa leaves increased firstly and then decreased with increasing P application. In comparison, the C_i of leaves dropped first and subsequently rose as the amount of P applied increased (Figure 2). P₂ treatment significantly increased the P_n, T_r, G_s and L_s of alfalfa leaves compared to non-P treatment (p < 0.05), and non-P treatment significantly increased the C_i of alfalfa leaves compared to the other three P treatments (p < 0.05). There was no significant difference in WUE between different P application treatments in 2020 (p > 0.05). However, P₂ treatment was significantly greater than non-P treatment under the non-N treatment in 2021 (p < 0.05). The P_n, T_r, G_s, WUE and L_s of alfalfa leaves were increased by 6.15~24.95%, 4.60~19.13%, 8.47~42.40%, 0.49~6.43% and 8.26~25.87%, and the C_i of alfalfa leaves were decreased by 4.50~10.90% in the P application treatment compared with the non-P application treatment. Under the same P application circumstances, the P_n, T_r and L_s of alfalfa leaves treated with N were considerably greater than non-N treatment (p < 0.05), whereas the C_i of leaves was significantly lower than that in N application treatment (p < 0.05). In 2020, the G_s and WUE of alfalfa leaves treated with various N concentrations were not significantly different (p > 0.05), while the G_s of alfalfa leaves under N treatment were significantly greater than those under non-N treatment in 2021 (p < 0.05). The P_n, T_r, G_s, WUE and L_s of alfalfa leaves were increased by 4.95~11.93%, 4.24~11.02%, 0.15~20.41%, −0.75~2.28% and 2.72~14.89%, and the C_i of alfalfa leaves were decreased by 2.72~14.89% in the N application treatment compared with the non-N application treatment.

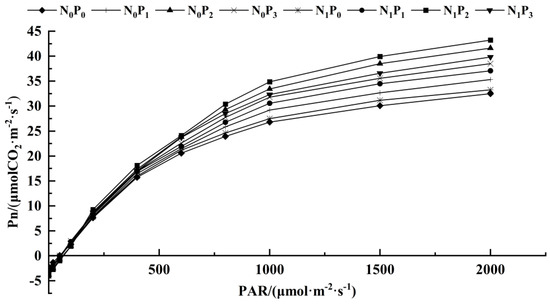

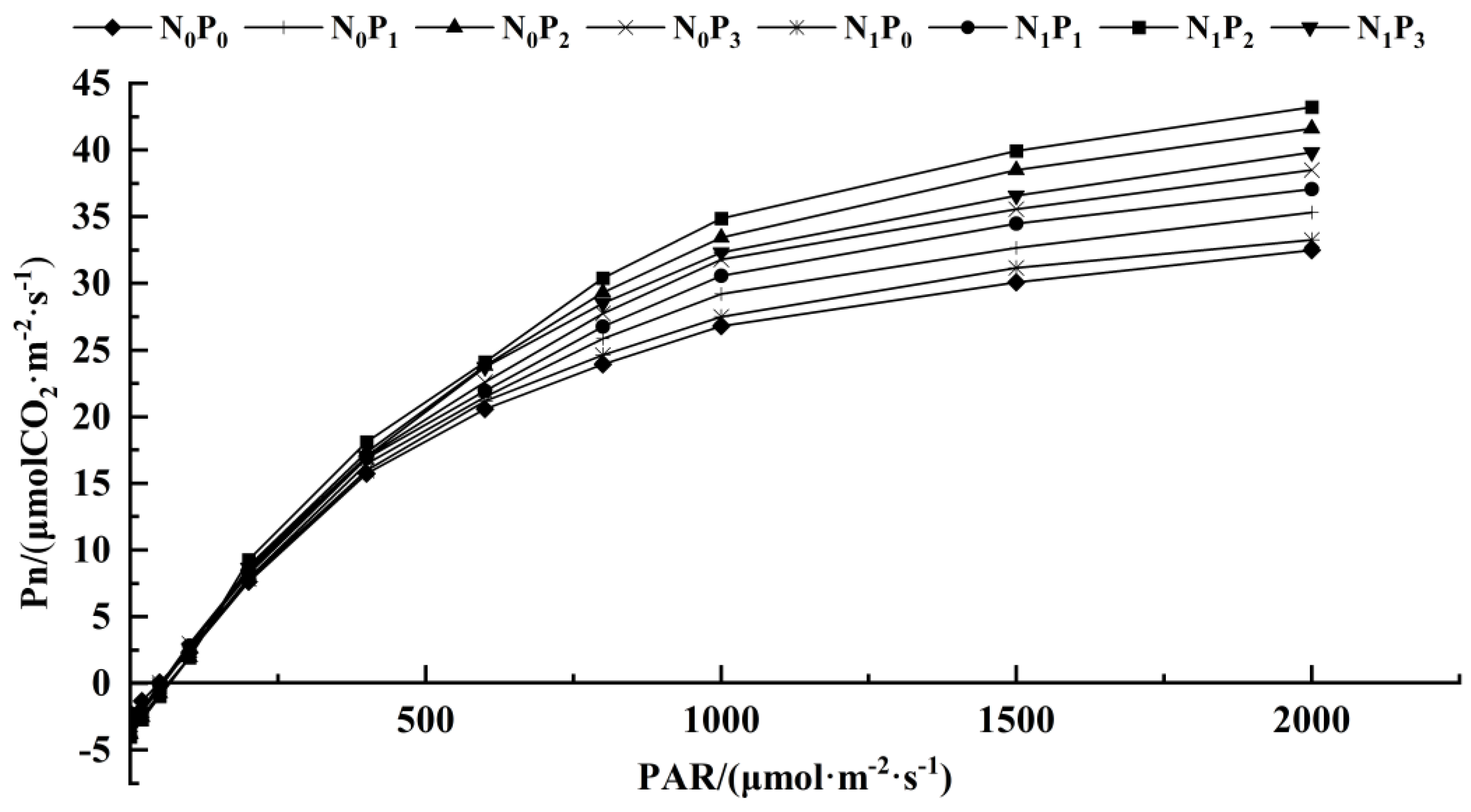

The C3 light response model was applied to fit the P_n to the PAR of alfalfa leaves under different treatments (

Table 1. Light response characteristic parameters of alfalfa under different fertilization treatments.

Treatments	Pmaxa/(μmol CO2·m−2·s−1)	AQY/(CO2·Photon−1)	Rd/(μmol CO2·m−2·s−1)	LCP/(μmol·m−2·s−1)	LSP/(μmol·m−2·s−1)
N0P0	32.4 ± 0.42 ad b	0.0622 ± 0.001 bd	2.77 ± 0.1 bc	44.59 ± 2.58 bc	2309.39 ± 24.39 aa
N0P1	35.34 ± 1.33 bc	0.0658 ± 0.0008 ac	3.35 ± 0.13 ab	50.86 ± 2.28 ab	2326.99 ± 14.01 aa
N0P2	41.91 ± 0.06 ba	0.0691 ± 0.0001 ba	4.06 ± 0.29 aa	58.8 ± 2.06 aa	2371.49 ± 9.51 aa
N0P3	38.63 ± 0.61 bb	0.0674 ± 0.0008 bb	3.44 ± 0.18 ab	50.97 ± 3.04 ab	2340.16 ± 10.84 aa
N1P0	33.36 ± 0.42 ad	0.0666 ± 0.0012 ac	3.34 ± 0.27 ac	50.09±2.33 ab	2360.06 ± 8.94 aa
N1P1	37.3 ± 0.28 ac	0.067 ± 0.0005 ac	3.43 ± 0.18 abc	51.24 ± 1.77 ab	2382.16 ± 11.16 aa
N1P2	43.62 ± 1.23 aa	0.0716 ± 0.0011 aa	4.3 ± 0.21 aa	60.09 ± 1.92 aa	2402.6 ± 48.4 aa
N1P3	39.98 ± 0.67 ab	0.0691 ± 0.0007 ab	3.65 ± 0.16 ab	52.88 ± 2.14 ab	2384.16 ± 80.16 aa
FB c	3.91 *d	3.18 ns	5.28 *	6.95 **	0.05 ns
FN	32.10 **	64.69 **	17.60 **	20.47 **	8.68 **
FP	255.71 **	70.01 **	51.42 **	102.36 **	1.99 ns
FN × FP	0.67 ns	5.37 *	2.35 ns	4.99 **	0.12 ns

^aP_max, Maximum net photosynthetic rate; LCP, Light compensation point; LSP, Light saturation point; AQY, Apparent quantum yield; R_d, Dark respiration rate. ^b Different capital letters indicate significant differences between different N fertilizer levels under the same P application condition (p < 0.05). Different small letters indicate significant differences between different P fertilizer treatments under the same N application condition (p < 0.05). ^c F_N, F_P and F_N × F_P represent the F value under the N application levels, P application levels and the interaction of N and P application levels, respectively. ^d ns indicates no significant difference (p > 0.05), * indicates significant difference (p < 0.05) and ** indicates extremely significant difference (p < 0.01).

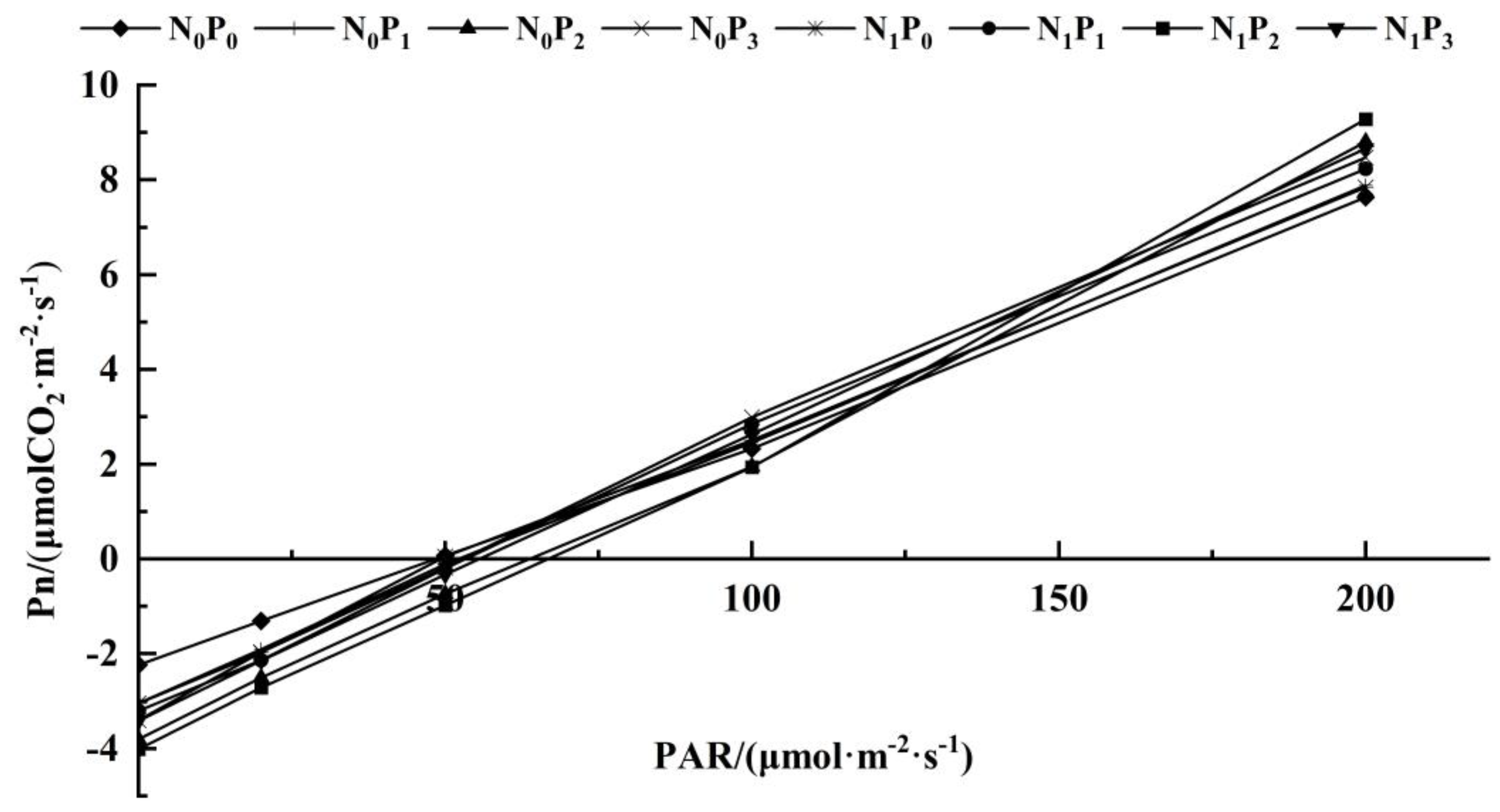

, Figure 3 and Figure 4). Under the same N application conditions, the P_max, AQY, R_d, LCP and LSP of alfalfa leaves increased first and then decreased with the increase in P application. The P_max, AQY, R_d and LCP of alfalfa leaves treated with P₂ were significantly higher than the other three treatments (p < 0.05). Under the same P application conditions, the P_max, AQY, R_d, LCP and LSP of alfalfa leaves treated with N were higher than those without N treatment. The R_d, LCP and AQY of alfalfa were significantly higher than those without N treatment (p < 0.05). Under P₁ conditions, the P_max of alfalfa leaves under N treatment was significantly higher than that without N treatment (p < 0.05). Under the conditions of P₂ and P₃, the AQY and P_max of alfalfa leaves treated with N were significantly higher than those without N treatment (p < 0.05). In addition, there was no significant difference in the LSP of alfalfa leaves among the treatments under different N and P application conditions (p > 0.05).

The N application level had highly significant effects on the P_max, AQY, R_d, LCP and LSP of alfalfa leaves at the first flowering stage (p < 0.01); the N application level had an extremely significant effect on the AQY and the impact was the greatest, followed by the P_max, and the LSP was the lowest. The P application level had a highly significant effect on the P_max, AQY, R_d and LCP of alfalfa leaves at the first flowering stage (p < 0.01), where the P application level had the greatest effect on the P_max, followed by LCP, AQY, R_d and LSP, respectively. The interaction effect of N and P addition significantly (p < 0.05) or highly significantly (p < 0.01) affected the AQY and LCP, with the greatest effect on the AQY and the second highest on the LCP.

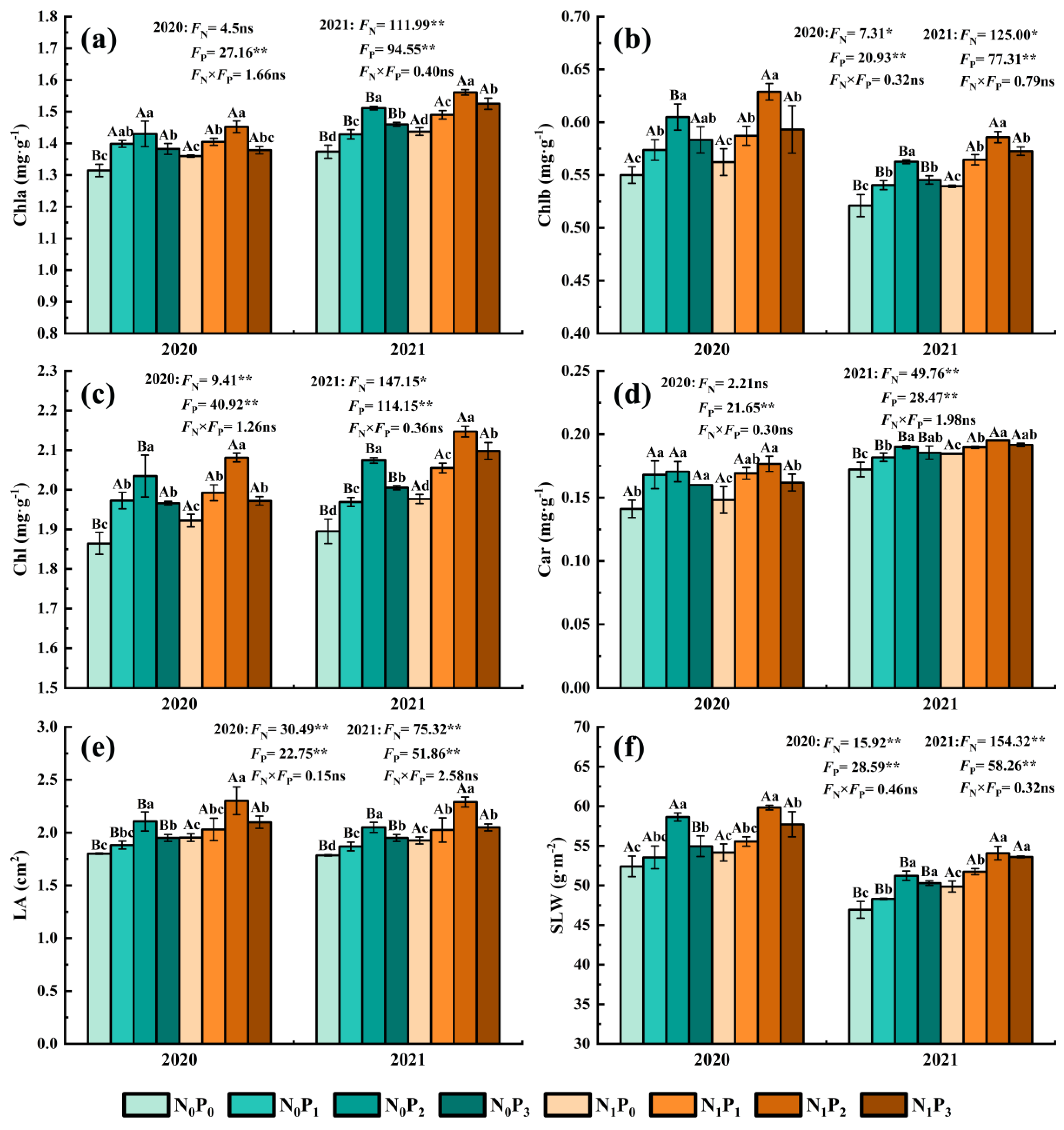

Under the same N application conditions, the Chl a, Chl b, Chl, Car, LA and SLW of alfalfa leaves showed a trend of first increasing and then decreasing with the increase in P application (Figure 5). The Chl a, Chl b, Chl, Car, LA and SLW of the P₂ treatment were significantly greater than those of non-P application treatment (p < 0.05). The Chl a, Chl b, Chl, Car, LA and SLW of alfalfa leaves were increased by 1.39~10.01%, 3.73~11.85%, 2.59~9.45%, 3.86~20.88%, 3.95~18.94% and 2.16~11.90% in the P application treatment compared with the non-P application treatment. Under the same conditions of P application, the LA of all N application treatments was significantly greater than non-N application treatments (p < 0.05), and in 2020, the Chl a and Chl of N application treatments were significantly greater than non-N application treatments under conditions of non-P application (p < 0.05), and the leaf Chl b and Chl of N application treatments were significantly greater (p < 0.05) than non-N application treatments under conditions of P₂, while the SLW in the N application treatment was significantly greater (p < 0.05) than in the non-N treatment under the conditions of P₃. In 2021, Chl a, Chl b, Chl, Car and SLW in the N application treatment were significantly greater (p < 0.05) than in the non-N treatment in 2021. The Chl a, Chl b, Chl, Car, LA and SLW of alfalfa leaves were increased by −0.28~4.61%, 1.68~5.01%, 0.30~4.62%, 0.61~7.11%, 5.15~9.26% and 2.02~7.12% in the N application treatment compared with the non-N application treatment.

3.3. Anatomical Structure

Under the same N application conditions, the LT, PT, ST, CTR, SR and PT/ST of alfalfa showed a trend of increasing and then decreasing with the increase in P application (

Table 2. Anatomic structure indexes of alfalfa under different fertilization treatments.

Treatments	LT a/(μm)	UE/(μm)	DE/(μm)	PT/(μm)	ST/(μm)	CTR/(%)	SR/(%)	PT/ST
N0P0	169.86 ± 5.8 bd b	17.36 ± 1.15 aa	18.67 ± 0.52 aa	82.1 ± 2.1 bd	51.52 ± 2.53 Bd	48.34 ± 0.63 Ac	30.37 ± 2.25 Aa	1.6 ± 0.1 Ab
N0P1	178.15 ± 7.02 bc	17.51 ± 1.36 aa	18.67 ± 1.26 aa	93.68 ± 4.5 bc	54.83 ± 1.98 bc	52.58 ± 0.67 ab	30.84 ± 2.32 aa	1.71 ± 0.14 aab
N0P2	205.66 ± 2.69 ba	17.62 ± 1.22 aa	19.51 ± 0.13 aa	114.75 ± 0.81 ba	63.82 ± 3.03 ba	55.81 ± 1.04 aa	31.02 ± 1.17 aa	1.8 ± 0.09 aa
N0P3	197.41 ± 1.66 bb	17.53 ± 0.44 aa	18.99 ± 0.75 aa	102.21 ± 4.97 bb	60.5 ± 1.11 bb	51.76 ± 2.11 bb	30.65 ± 0.82 aa	1.69 ± 0.11 aab
N1P0	179.98 ± 5.98 ad	17.5 ± 0.18 aa	18.75 ± 0.98 aa	87.32 ± 2.95 ad	54.91 ± 0.04 ad	48.52 ± 0.02 ac	30.53 ± 1aa	1.59 ± 0.05 ab
N1P1	191.24 ± 2.97 ac	17.68 ± 0.11 aa	18.83 ± 0.85 aa	102.62 ± 2.36 ac	59.03 ± 2.28 ac	53.68 ± 2.07 ab	30.88 ± 1.67 aa	1.74 ± 0.03 aab
N1P2	219.25 ± 0.9 aa	17.79 ± 0.31 aa	19.53 ± 0.99 aa	123.48 ± 2.19 aa	68.13 ± 0.65 aa	56.32 ± 0.77 aa	31.08 ± 0.17 aa	1.81 ± 0.01 aa
N1P3	209.13 ± 2 ab	17.52 ± 1.29 aa	19 ± 0.54 aa	112.65 ± 3.29 ab	64.36 ± 2.12 ab	53.86 ± 1.06 ab	30.77 ± 0.72 aa	1.75 ± 0.01 aab
FB c	0.62 ns d	2.40 ns	4.91 ns	3.32 ns	1.28 ns	2.38 ns	0.14 ns	0.08 ns
FN	47.20 **	0.12 ns	0.09 ns	53.85 **	24.98 **	4.28 ns	0.02 ns	0.41 ns
FP	93.80 **	0.11 ns	1.90 ns	164.34 **	51.78 **	44.98 **	0.16 ns	6.05 ns
FN × FP	0.19 ns	0.02 ns	0.03 ns	0.95 ns	0.70 ns	0.81 ns	0.01 ns	0.16 ns

^a LT, Leaf total thickness; UE, Up-epidermal thickness; DE, Down-epidermal thickness; PT, Palisade tissue thickness; ST, Spongy tissue thickness; CTR, Compaction of leaf tissue; SR, Porosity of leaf tissue; PT/ST, Ratio between palisade tissue and spongy tissues. ^b Different capital letters indicate significant differences between different N fertilizer levels under the same P application condition (p < 0.05). Different small letters indicate significant differences between different P fertilizer treatments under the same N application condition (p < 0.05). ^c F_N, F_P and F_N × F_P represent the F value under the N application levels, P application levels and the interaction of N and P application levels, respectively. ^d ns indicates no significant difference (p > 0.05) and ** indicates extremely significant difference (p < 0.01).

, Figure 6). All P₂ treatments were significantly greater than other treatments (p < 0.05), and the LT, UE, DE, PT, ST, CTR, SR and PT/ST of alfalfa were all greater than those of the treatments without N application. At the same time, the LT, PT and ST of alfalfa under the N application treatments were significantly greater (p < 0.05) than those without the N application.

The N application level had a highly significant effect on the LT, PT and ST of alfalfa at the first flowering stage (p < 0.01), with the greatest effect on PT, followed by LT, and the lowest on SR. The P application level had a highly significant effect on the LT, PT, ST and SR of alfalfa at the first flowering stage (p < 0.01), with the greatest effect on PT, the second greatest effect on LT, and the lowest effect on UE. The interaction effect of N and P had the greatest effect on PT, the second greatest effect on leaf CTR and the lowest effect on SR in alfalfa, and none of the effects on anatomical changes were significant.

3.4. Principal Component Analysis and Comprehensive Evaluation

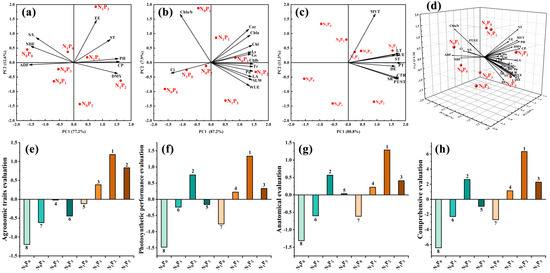

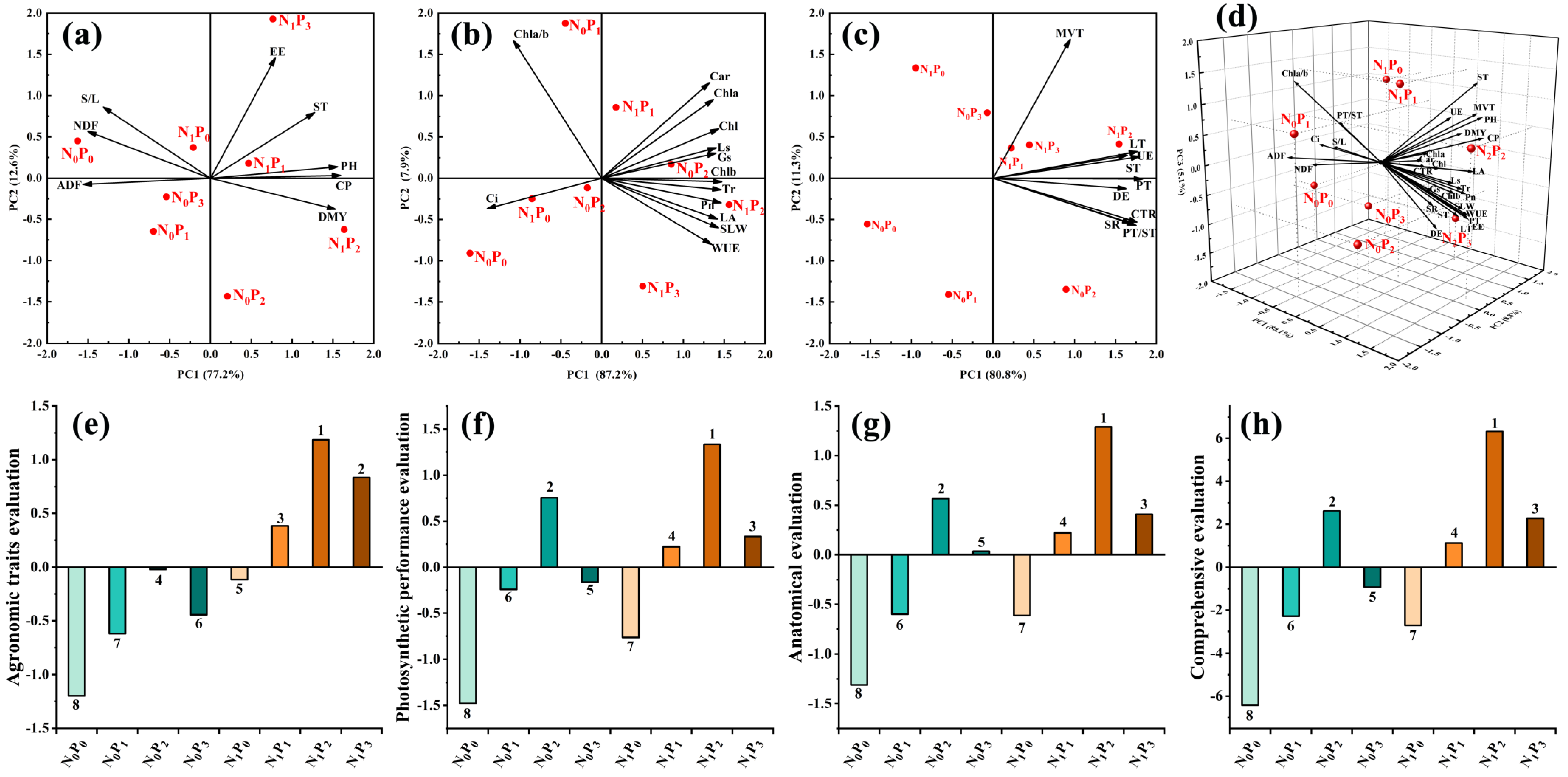

The principal component analysis and comprehensive evaluation of the agronomic traits, photosynthetic performance and anatomical structure of alfalfa with the addition N and P are shown in Figure 7. Principal component analysis extracted the principal components with characteristic roots greater than 1 and a cumulative contribution rate greater than 85%, which can reflect most of the original data information. The agronomic traits (Figure 7a,e) extracted two principal components with characteristic roots greater than 1 and a cumulative contribution rate of 89.8%, and the comprehensive scores were N₁P₂(1.18) > N₁P₃(0.83) > N₁P₁(0.38) > N₀P₂(−0.02) > N₁P₀(−0.11) > N₀P₃(−0.45) > N₀P₁(−0.62) > N₀P₀(−1.20), from the highest to the lowest. Photosynthetic performance (Figure 7b,f) extracted two principal components with characteristic roots greater than 1 and a cumulative contribution rate of 95.1%, and the comprehensive scores were N₁P₂(1.33) > N₀P₂(0.75) > N₁P₃(0.33) > N₁P₁(0.22) > N₀P₃(−0.16) > N₀P₁(−0.24) > N₁P₀(−0.76) > N₀P₀(−1.48), from the highest to the lowest. The two principal components of anatomical structure (Figure 7c,g) were extracted with two characteristic roots greater than 1 and the cumulative contribution rate reached 92.1%, and the comprehensive scores were N₁P₂(1.29) > N₀P₂(0.57) > N₁P₃(0.41) > N₁P₁(0.22) > N₀P₃(0.04) > N₀P₁(−0.60) > N₁P₀(−0.61) > N₀P₀(−1.31). The principal component analysis (Figure 7d,h) of production performance, photosynthetic performance and anatomy extracted three principal components with a root greater than 1 and a cumulative contribution of 94.0%, and the comprehensive scores from high to low were N₁P₂(6.33) > N₀P₂(2.61) > N₁P₃(2.28) > N₁P₁(1.12) > N₀P₃(−0.93) > N₀P₁(−2.28) > N₁P₀(−2.70) > N₀P₀(−6.42).

3.5. Structural Equation Modeling Statistics

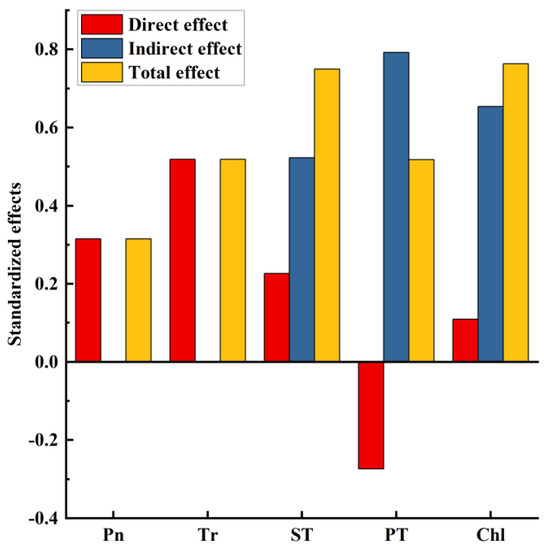

The structural equation model (Figure 8 and Figure 9) showed the direct and indirect effects of key yield-influencing factors on DMY, which explained 77% of the DMY. Generally, P_n (rd = 0.351, rd: direct regression weight coefficient) and T_r (rd = 0.519) had a direct effect on DMY. ST directly (rd = 0.227) and indirectly (ri = 0.522, ri: indirect regression weight coefficient) influenced the formation of DMY through P_n (r = 0.557) and T_r (r = 0.630). PT directly (rd = −0.274) and indirectly (ri = 0.522) through P_n (r = 0.218), T_r (r = 0.213) and ST (r = 0.807) affected the formation of DMY. Total Chl directly (rd = 0.109) and indirectly (ri = 0.654) through fenestrations (r = 0.635), ST (r = 0.169) and P_n (r = 0.557) affected the formation of DMY.

4. Discussion

4.1. Effects of Nitrogen and Phosphorus Addition on Agronomic Characteristics of Alfalfa

Optimizing fertilization measures helps to promote the absorption and utilization of nutrients by plants, increase yield, maintain soil nutrients and prevent a deficiency or excessive accumulation of soil nutrients [19]. Our study found that the growth traits such as DMY and CP of the N application were higher than those of the non-N treatment under the same P application conditions, indicating that N application can promote plant growth and development, increase the productivity of alfalfa and improve nutritional quality. Other studies have shown that N application can increase the intra-plant N content, improve the dry matter and N transport capacity of nutrient organs [11] and promote the redistribution of photosynthetic products and nutrient elements to the above-ground part of the plant, thus achieving coordinated growth of the above-ground and below-ground parts [20]. Under the same N application conditions, growth traits such as DMY, PH, SD and CP of alfalfa showed a trend of increasing and then decreasing with the increase in P application; the S/L, NDF and ADF of alfalfa all showed a trend of decreasing initially and subsequently increasing with increasing P application. This indicates that the amount of P in the soil was insufficient to maintain alfalfa growth, and that the growth of alfalfa and the amount of P applied were positively correlated at this time. However, there is a threshold value for P in alfalfa plants, and when the P concentration exceeds this threshold value, this can have a negative effect on alfalfa’s mechanism due to the redundancy of P, when the increase in the amount of P applied does not further promote alfalfa growth, or even inhibits the growth of alfalfa. Studies have shown that the elements have antagonistic and synergistic effects on each other, and that the accumulation of effective soil P caused by P application inhibits the uptake and utilization of K, Fe, Cu and Zn by alfalfa [21]. Other studies have indicated that excess P in the plant strengthens the respiration of alfalfa and excessive consumption of photosynthetic products, resulting in the dysregulation of nutritional and reproductive growth; moreover, stem and leaf growth is inhibited, thus reducing the biomass of alfalfa [22]. Alfalfa itself can adapt to changes in P levels by altering the root morphology, when excessive P content in the soil will inhibit the growth of alfalfa roots, which will affect the absorption and utilization of other elements [23]. In addition, excess P will also cause soil acidification, salinization, hardening and other problems [24].

4.2. Effects of Nitrogen and Phosphorus Addition on Photosynthetic Performance of Alfalfa

N and P are indispensable nutrients for plants’ normal growth and development. This study discovered that N application significantly increased the chlorophyll content, which in turn encouraged an increase in photosynthetic rate, and also facilitated an increase in G_s to facilitate the entry and exit of CO₂ and water during photosynthesis, which was also consistent with early research on wheat [25]. N is involved in the composition of many essential compounds, including proteins, nucleic acids, photosynthetic enzymes, etc. [26]. The rational application of N facilitates the formation of photosynthetic organs, energy transfer and transport of photosynthetic products, all of which in turn affect the photosynthesis of plants, improve their productivity and facilitate carbon fixation. Additionally, N was involved in the synthesis of photosynthetic pigments in leaves, which are the material basis of photosynthesis and have the role of capturing and transmitting light energy [27]; its content was positively and significantly correlated with photosynthesis. Our research found that P application also increased photosynthetic pigment; the P application significantly improved the P_n and promoted an increase in G_s. Simultaneously, P application also increased the chlorophyll content, most likely because of the synergistic effect of increased exogenous P on alfalfa N uptake [28]. Other studies are basically consistent with ours: P contributes significantly to plant growth and development, photosynthetic regulation and yield quality formation by increasing the efficiency of photosynthetic carboxylation, promoting the formation of various photosynthetic enzymes and improving the uptake of elements such as N [29]. In addition, we discovered that increasing N and P could also promote an increase in leaf area, increase the plant’s ability to capture light energy and thus promote photosynthetic product output [30].

C_i is an indispensable parameter for analyzing stomatal and non-stomatal limitation in photosynthesis plants, acting as a CO₂ mediator in the photosynthetic process, and was found to be influenced by the atmospheric CO₂ concentration as a source, on the one hand, and leaf G_s and photosynthetic consumption on the other hand [31]. Our research found that P_n showed a contrasting pattern of variation compared to C_i, which was consistent with another plant study [32]. This was most likely because the fertilization treatments improved the photosynthetic activity of alfalfa leaves, which resulted in higher P_n, with little causality with regard to intercellular CO₂ changes. Another study demonstrated that P_n was positively correlated with C_i, which was more frequently the case when G_s was restricted during the plant’s “midday depression of photosynthesis”, indicating that the reduction in photosynthetic rate was caused by the decrease in G_s and consequently C_i [33]. Moreover, the reduction in the P_n of plant leaves should be mainly attributed to stomatal factors rather than non-stomatal factors under this variation pattern. Occasionally, a more complicated scenario occurs in which the two are uncorrelated [34], which might be the result of a combination of C_i and photosynthetic activity limitations.

Increased N and P fertilization had a specific effect on the AQY of alfalfa leaves, and the slope of the photosynthetic response curve was greater in the fertilization treatment than in the control treatment under low light conditions, indicating that N and P have a facilitating effect on the AQY of alfalfa leaves and can improve the efficiency of light energy capture by alfalfa leaves [35]. The P_max and R_d of alfalfa leaves in the fertilized treatment were significantly higher than those in the unfertilized treatment, indicating that the fertilized treatment had greater photosynthetic potential under strong light. Meanwhile, the rate at which plants consume photosynthetic products increases, leading to an increase in the rate of dark respiration. The LSP and LCP represent plants’ capacity to adapt to light, plants with high LSP and low LCP having an increased ability to adapt to light, and conversely, plants with a reduced ability to adapt to light have low LSP and high LCP [36]. Both the LSP and LCP of alfalfa leaves in the fertilized treatments were significantly increased compared to non-fertilized treatments, and other studies have proven that the increase in LCP is likely due to the fact that both the synthesis and transport of photosynthetic products require plants to respire for energy, thus requiring a greater photosynthetic rate to balance this [37].

4.3. Effects of Nitrogen and Phosphorus Addition on Anatomical Structure of Alfalfa

Changes in the anatomical structure of plant leaves are closely related to their physiological functions and external environment, and under long-term external fertilization, the morphological structure of leaves will undergo certain physiological adaptations to maximize photosynthetic capacity maintenance [18]. The mesophyll was the primary photosynthesis part of the leaves, and the thickness of PT and ST, as well as the morphological changes in palisade cells, will inevitably affect the leaves’ photosynthetic efficiency [38]. Accordingly, an examination of the changes in the anatomical structure of alfalfa leaves may provide an explanation as to how photosynthesis characteristics have changed. Compared to the no fertilizer treatment, N and P application significantly increased the LT, PT and ST of alfalfa, and this was consistent with previous research [39]. This was because N and P deficiency will lead to changes in plant morphological structure, resulting in a reduction in leaf area and lower leaf transpiration, while excessive N and P supply will lead to imbalances in plant growth and development, which in turn will influence changes in plant anatomy. Plant leaves with a thicker PT under fertilization conditions will contain more chlorophyll, which will increase the plant’s ability to access carbon. Additionally, because the palisade tissues were arranged perpendicularly to the vascular tissues and leaf surface, while fully utilizing light energy, they reduced the transpiration area and prevented the excessive evaporation of water, thereby enhancing the photosynthetic efficiency [14]. It was likely that the thickening of the leaf ST under the fertilization conditions reflected an increase in the leaf’s internal porosity, which promotes gas exchange inside the leaf and can further increase its Ci. In addition, the spongy tissue scatters the sunlight received by the palisade tissue, which means that more light is available to the leaves, thereby providing the possibility of an increased photosynthetic rate [40]. Furthermore, the increase in PT/ST contributes to the greater utilization of light energy, and the increased thickness of the upper epidermis of the leaves facilitated increased plant stress resistance, while the increased thickness of the lower epidermis facilitated the entry and exit of water and gas.

4.4. Relationship between Agronomic Characteristics, Photosynthetic Performance and Anatomical Structure of Alfalfa under Nitrogen and Phosphorus Addition

Changes in plant anatomical structure, photosynthetic efficiency and agronomic traits are closely linked. Photosynthetic physiological and biochemical indicators and anatomical structure changes can promote the enhancement of photosynthesis, which further contributes to alfalfa’s dry matter yield, growth traits and nutritional quality [41]. In general, N can promote an increase in chlorophyll in plant leaves; the content of chlorophyll was positively correlated with leaf thickness. Moreover, chlorophyll was the main pigment involved in photosynthesis activity and played an important role in the absorption, conversion and transmission of light, and the content of chlorophyll was related to the photosynthetic rate of plants [24,42]. In this study, N and P were found to have a strong synergistic effect on the growth traits and photosynthetic physiology of alfalfa and did not simply superimpose their effects, which was the main reason that P application also increased the chlorophyll content. Increased N and P will also increase the thickness of the DE and ST of alfalfa, which facilitated the entry and exit of gas and water, and further affected the photosynthetic indexes of alfalfa leaves, such as G_s and T_r. Increasing the thickness of UE and PT of leaves will also enhance the leaves’ ability to adapt to strong light and further increase P_max and LSP [14,43].

The synergistic improvement in the leaf photosynthetic rate and the photosynthetic area was essential to increase the dry matter yield in alfalfa [44]. N and P can promote the improvement of the photosynthetic performance of plants, mainly from two perspectives: the direct effect increased the chlorophyll content in plant leaves, increasing P_n, and enhancing the photosynthetic enzyme activity can effectively increase the conversion of CO₂ in alfalfa leaves, while increasing G_s can facilitate the transport of CO₂ and water and thereby improve the photosynthetic efficiency [45]. The indirect effect was to increase the effective photosynthetic area by increasing the number of leaves, expanding the leaf area and delaying leaf senescence. In addition, photosynthesis was the largest source of carbon in alfalfa, and the use of light energy in alfalfa does not depend entirely on the photosynthetic rate and leaf area size, but may also be closely related to the photosynthetic angle, spatial arrangement, shape and size of alfalfa leaves, etc. Whether N and P application will affect these factors requires further investigation.

5. Conclusions

This study demonstrated the positive effects of alfalfa physiological and biochemical indicators and anatomy on alfalfa photosynthesis. The synergistic improvement in the photosynthetic efficiency and the photosynthetic area of alfalfa fertilization treatment further contributed to the improvement of alfalfa production performance. We found that T_r (r = 0.519) and P_n (r = 0.351) had a greater direct impact on the formation of dry matter yield, while Chl (r = 0.763) and ST (r = 0.749) had the greatest comprehensive impact. The increased application of N and P fertilizers increased the AQY of alfalfa leaves; the P_max and LSP of alfalfa leaves under N application treatment were significantly higher than those of the non-N treatment. Under the influence of long-term external fertilization, the morphological structure of the leaves undergoes certain physiological adaptations. For example, N and P increase the thickness of the ST of alfalfa, which will facilitate the entry and exit of gas and water, and will further affect the photosynthetic indices, such as stomatal conductance and transpiration rate, of alfalfa leaves. Increased PT thickness will also enhance the adaptability of plant leaves to strong light, and then increase the P_max and LSP. These results indicated that the application of N and P fertilizers contributed to the adaptation of alfalfa’s leaf anatomy and the improvement of the photosynthetic capacity, which was beneficial to the improvement of alfalfa DMY, growth traits and nutritional quality, with the most obvious effect at 120 kg·ha⁻¹ of N and 100 kg·ha⁻¹ of P₂O₅ application.
