2.1. Coir Based
Coir based growing media is one of the most widely used substrates for the production of medicinal cannabis in North America [14
]. The most common growing media for this category are: pure coir (loose), coir and perlite (loose), expandable coir blocks (various formulation of coir pith, fiber, and husk chips), preformed coir (blocks and pyramidal structures), grow bags and grow slabs.
Considered as a residue of the coconut industry, it is now widely used for the production of horticulture crops [18
]. The coir materials are available in various particle sizes ranging from fine particles, also called coir fiber or dust, to large fibrous material (2 cm to 10 cm long) of amorphous shapes and to chunks or various sizes. The main characteristic of coir materials is its hydrophilic property [19
] and having a tough structure. Coir has an excellent wettability and can rewet easily [20
], thus reducing the need for wetting agents. It also has a slow breakdown rate and therefore does not shrink during the growing production cycle. The aeration and drainage are usually high in coir products although it depends on their particle size distribution [20
]. Coir material usually holds a high volume of water [21
] because of its ability to absorb water. It has also a high aeration because of its particle size and structure. Coir products are seen as an alternative to rockwool products and an intermediate solution compared with peat-based products [20
]. Indeed, the aeration and the drainage are high enough for some products to manage irrigation in a similar way compared with rockwool. It is possible to practice several consecutive irrigation events and achieve a leaching point on a per event or day basis in a way similar to rockwool. Despite these similarities, there is a distinct difference between rockwool and coir production in terms of sustainability. Specifically, rockwool is not easily recyclable or reusable after use whereas coconut coir production is relatively sustainable.
Although these attributes make coir products popular, the material available on the market is variable and may cause some problems to inexperienced users [24
]. Particle size may vary from fine dust (1 to 4 mm) to large chunks, 1–4 cm in diameter. That makes a large array of products with variable physical properties available to users. The coir product can be compressed to a 5:1 ratio on a volume basis for example. Compressed products expand and gain their original volume easily when watered (15–19 L of water to hydrate a 5 kg block of coco coir, based on HortGrow [25
]). That property allows coir products to be offered in various sizes and shapes and reduce the volume when stored. Coconut pith, fiber, chunks and blends are offered as compressed bricks, slabs and various pre-shaped stabilized products. Stabilized products are available as rooting cubes, grow cubes of various sizes and shapes. Beside regular cubes, the pyramid grow unit is one the most unusual stabilized products found on the market.
Coir may have a high salts level if it is not washed or buffered. However, salts are relatively soluble and leachable in coir. Unwashed and unbuffered coir is usually rich in sodium, potassium and chloride and therefore may cause a risk of calcium and magnesium deficiency during a lag period. Coir also has a fairly high cation exchange capacity and therefore can help retain nutrients. The chemical structure and the high internal porosity of the fiber contribute to its high exchange capacity (Figure 1
). K, Na and Cl can be present in amounts detrimental to crop developments [21
]. These elements must be mitigated or replaced with more beneficial ones [20
]. A common manufacturer’s technique is to wash coir with fresh water to remove excess salts [26
]. The washing techniques are various such as leaving bulk material to open rainfall. The results are variable and users should test their products before use. A second well known technique in the industry is to use certain mineral salts, most commonly calcium salts, during washing to force the exchange of excess elements with more beneficial elements [26
]. The resulting product is said to be “buffered”. Buffering is a chemical process by which the excess sodium and potassium bound to the coir are replaced by calcium to help prevent calcium and magnesium deficiency during the growth cycle. A period of time is allowed for the exchange to take place, then leached and dried in the open air. The efficacy of buffering is variable among manufacturers and depends on the volume of water for leaching, the buffering salts used, and the time period allowed for cation exchange.
Irrigation practices in the cannabis industry are widely varied. This is largely due to the clandestine background of cannabis production limiting scientifically led investigation into the best practices for cannabis production, as previously mentioned. One major factor relating to the frequency and duration of irrigation events is the volume of substrate that the plants are growing in, as well as the growing style employed. As an example, a grower may only have a large irrigation event once every 2 days because they are growing in a very large pot. Another grower may have a small substrate volume, requiring many irrigation events per day.
Unlike other crops grown in high intensity container based production, there are no agreed upon standards currently for the irrigation strategies in cannabis. This is beginning to change gradually, with a notable shift towards higher frequency irrigation strategies with a smaller volume of substrate. This is more in-line with traditionally grown crops such as greenhouse tomato, cucumber and pepper which have been grown in progressively smaller substrate volumes to reduce cost of production, as well as increase the controllability of the moisture content of the root zone.
One notable property of coir-based growing media is their high aeration [20
], as mentioned above. This helps to maximize the root zone of the crop, increasing root growth, which leads to increased water and nutrient uptake throughout the lifecycle of the crop. Cannabis is notoriously susceptible to root disease, and a lack of oxygen in the root zone is a strong contributing factor for the infection and spread of root pathogens. Coconut coir has a reputation for being difficult to overwater, and is associated with a reduced instance of disease. This has benefits for hobbyists and commercial growers alike. This, among the properties discussed has led to the increased adoption of coir-based growing media into the cannabis industry.
Rockwool is made from basalt rocks or other minerals which are liquefied at high temperature and then spun into fibers [27
]. Rockwool is another one of the soilless options for growing cannabis. It is considered to be an appropriate substrate due to its capabilities to provide moderate to good aeration [21
] and possessing excellent water holding capacity [5
]. Rockwool is available in multiple sizes and shapes for various applications: blocks, cubes and slabs [28
]. The use of rockwool as a growing medium has several advantages. It is a lightweight substrate with a bulk density of about 50–100 g/L [31
] and is easy to handle and to use. Rockwool is homogeneous, consistent and durable which means it does not readily break down and it keeps relatively consistent properties. Rockwool is usually free of phytopathogenic microorganisms due to use of heat to produce rockwool which renders it sterile and safe for growing plants. Because of this heat, rockwool is unlikely to contain naturally occurring beneficial microbial populations when first planted out. However, microbial life does develop in rockwool during the growth cycle of plants. Rockwool is considered as an inert material which means it neither reacts to nor changes the nutrient balance of the applied solution. It has low nutrient retention capacity (CEC about zero).
Rockwool exhibits 91 to 95% total porosity that can be occupied with water when saturated or with air when dried [12
]. It can hold more nutrient solution and air than any other growing medium. This air space makes oxygen, water and nutriment solution easily accessible to plant roots. Rockwool has a high air capacity and high ratio of easily available water (EAW). Rockwool has very low unavailable water (bounded water) and it drains well. It also has a uniform wetting. It promotes root growth, and provides even drainage.
On the contrary, the use of rockwool may face many challenges. Rockwool is not environmentally friendly [21
]. The same quality that makes it durable also makes it an environmental nuisance. Rockwool based growing mediums may require the use of a wetting agent to reduce their hydrophobicity. However, wetting agents can be washed out over time. Rockwool may dry too fast at the end of the season. Due to its zero CEC, all of the fertilizers (nutrients) can be easily leached from it. Rockwool typically has a high pH and nutrient solutions must be adjusted to accommodate for that factor. It is also susceptible to pH shift which creates the need to continuously monitor the pH levels. Although rockwool has a high water retention capacity, it has a restricted root environment and a low buffering capacity for water, pH and nutrients [29
]. The water flow to plant roots may be hindered, even when the water content is apparently high [29
]. Because rockwool stays so moist, algae growth is common. If the green algae turns black and slimy (decaying) it can harbor bacteria or viruses that can affect the plants. The algae developed on rockwool can attract fungus gnats as well as hinder water penetration from drip emitters.
As mentioned above, the low bulk density and high water retention of rockwool make it a suitable growing substrate for crop production. Because water content decreases so sharply as water tension increases, the ideal irrigation strategy for rockwool is to keep it nearly saturated throughout the day [29
]. This is achieved through high frequency, and low volume irrigation [12
]. In the peak of crop growth, a crop may require up to or over 20 irrigation events in one day for a 6-in cube in order to keep up with crop demand.
Low volume irrigation events are the key to rockwool irrigation. This prevents excessive waste in the form of leachate, while keeping the block and plant in the ‘easily available water’ zone (Figure 2
and Table 2
). Growers commonly irrigate by using a leachate fraction target to guide the irrigation frequency, although there is more focus on sensor technology which can accurately determine the volumetric water content or water potential to guide irrigation decisions. Traditionally, leachate fraction targets in greenhouse grown crops is as high as 20–30% in rockwool. This is being reduced with the advent and adoption of accurate sensing technology.
Another reason for high frequency irrigation is to prevent the block from fully drying out. As mentioned, rockwool is hydrophobic when dry. Once a rockwool cube is sufficiently dry, it becomes very difficult to rewet by drip irrigation alone. Some growers will initiate an irrigation event overnight to prevent excessive drying and channeling from occurring.
Low flow drip emitters are a necessity for rockwool irrigation. This is because ‘channeling’ is observed if flow rates are too high (above 1.0 GPH is commonly used as a benchmark). This channeling effect results from a heavy volume of water ‘pushing’ its way through the media, creating a channel that allows the water to freely drain out of the bottom of the rockwool without wetting the substrate. By slowing the flow rate, it allows time for capillary action to draw the nutrient solution laterally throughout the block.
Crop steering is a method of irrigation that pushes a crop towards either ‘generative’ or ‘vegetative’ growth. Irrigation strategies are a common method for reinforcing other signals that can ‘steer’ a crop. Rockwool is a particularly responsive media for this use, although it is possible in any media type. As stated above, rockwool’s properties result in a very sharp decrease in water content as moisture tension increases (Figure 2
). This makes it easier to achieve a crop steering effect without impacting photosynthesis. A common strategy when moving from ‘vegetative’ to ‘generative’ growth is to double the irrigation volume per event, while cutting the total number of irrigation events in half. Effectively, the leachate fraction and total volume will be the same in both cases, but the altered irrigation strategy is enough to elicit a minor drought stress response without impacting photosynthesis by allowing the plant to reach a lower volumetric water content between irrigation events.
2.3. Phenolic Foam
Phenolic foam (PF) is another soilless option for growing cannabis. Phenolic foam is a relatively new soilless substrate that is generally presented as an alternative to rockwool [23
]. It has a range of configurations and sizes for propagation and growing. It is a sterile substrate which allows for a clean and pathogen free start. PF is homogeneous and consistent; however, the material is more fragile than rockwool when handling. Despite its fragility, phenolic foam cells are stable and are able to maintain the original air space after continual waterings. Compared to rockwool, PF shows even a sharper decrease in volumetric water content as moisture tension increases (Figure 2
). This sharp drop of water holding capacity is the main reason for which the phenolic foams are restricted in height (generally <10 cm in height). Due to its high drainage and air porosity (Table 2
), PF is a suitable medium for the crops like cannabis. Phenolic foam is an extremely lightweight substrate with a bulk density of about 15–25 g/L. PF has no important cation exchange capacity (CEC) or buffering capacity which means it neither reacts to nor changes the nutrient balance in solution. PF cells are easy to handle and to use. As opposed to rockwool, there is no need for protective gear or clothing when handling PF.
Excellent aeration and moderate to low water holding capacity (Table 2
) are the features of this type of growing media [23

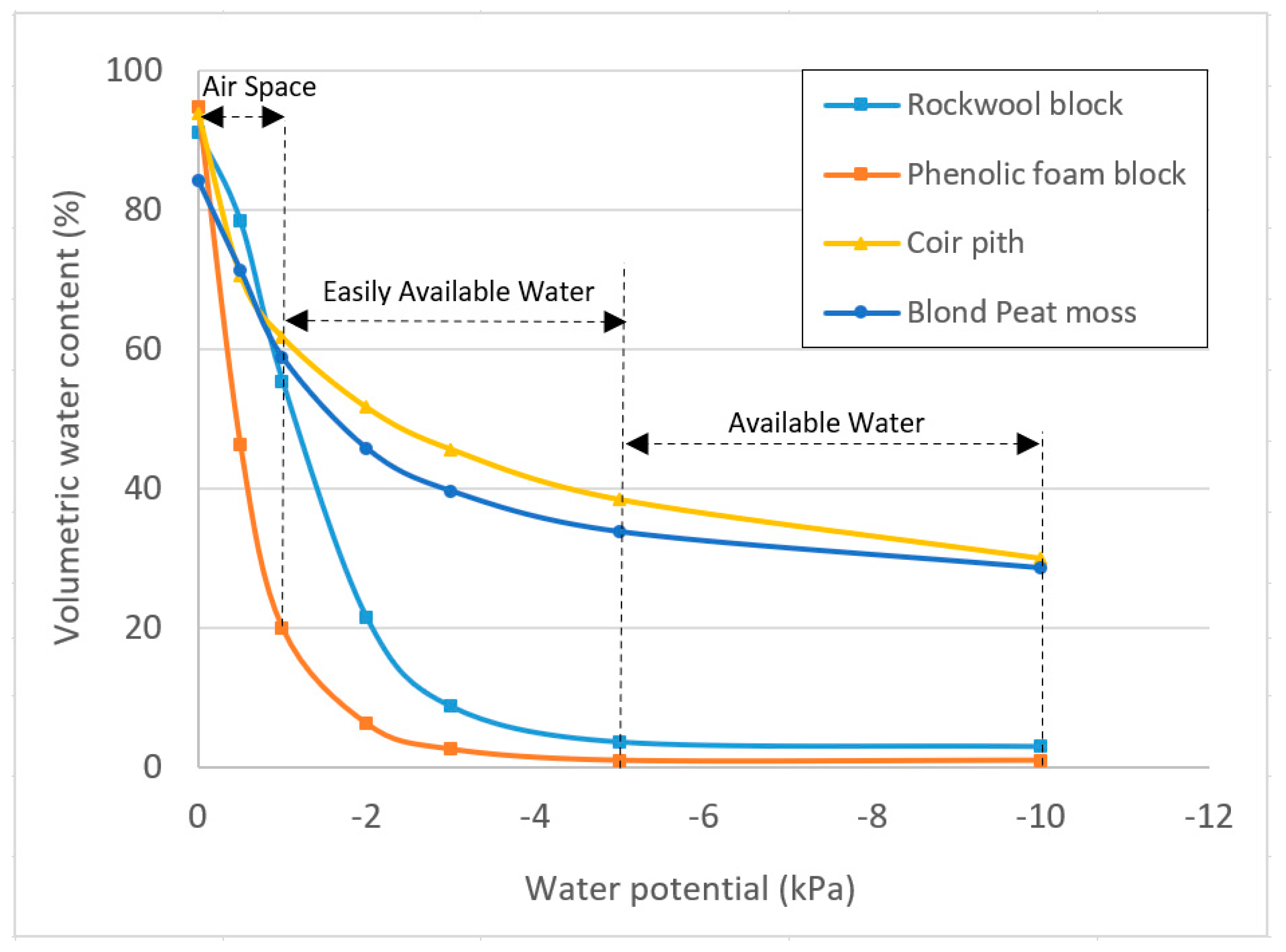

]. The PF based media maintain a high ratio of air to water (Figure 2
and Table 2
) even after a heavy watering due to its higher drainage rate which promotes root development. The superior drainage helps to keep its top surface drier, helping to limit the growth and development of algae [32
]. PF media has the ability to quickly respond to fluctuations in the plant’s rooting environment. PF is usually non-biodegradable and therefore can remain as waste in the environment.
2.4. Peat Based
In terms of popularity, peat-based growing media come after Coir and rockwool. Peat is generally harvested from Canadian sphagnum peat bogs and shipped to the Southern regions. There are also other sources of peat moss that are imported from East European countries namely, Scandinavian and Baltics [33
]. The latter peat mosses are mainly used for horticulture, but they do not represent a large part of the North American market.
Canadian bogs are populated with several sphagnum species, the most common being Sphagnum magellanicum (now renamed as Sphagnum medium
and Sphagnum divinum
), Sphagnum fuscum
, Sphagnum rubellum
and Sphagnum angustifolium
]. The species may vary from a bog to another as well from one region to another [34
]. The incorporation of coarse peat fibers or the mixture of fibrous and chunky materials extracted from bog to the peat moss can be used to increase peat resistance to shrinkage and to compaction and hence helps to maintain the physical properties. Peat moss has a high buffering capacity for water, pH and nutrients. It is acidic, hydrophobic and low in nutrients [24
]. Therefore, additives need to be incorporated to make it suitable for growing plants [22
]. Acid neutralizing agents (dolomitic or calcitic limestone), wetting agents and nutrient charge are incorporated to various levels depending on the manufacturer. Peat has a spongy structure without lignified fiber (Figure 3
). Lignified fibrous material may originate from other species growing on the peat bog if any. Like coir materials, peat moss shows clearly higher volumetric water content than rockwool and phenolic foam as moisture tension increases (Figure 2
, Table 2
). As shown in Table 2
, the blond peat moss shows relatively a lower total porosity (84–90%) and air space (10–20%) and an intermediate level of container capacity (65–74%), easy available water (29–36%), available water (35–43%) and tightly bound water (27–34%), compared to all other materials.
moss is usually mixed with other components to accentuate the physical characteristics of the growing media [33
]. The incorporation of other components helps peat to maintain a good structure. Other reasons to incorporate other components are to increase aeration, to make the growing media less hydrophobic [36
], to improve cation exchange capacity, to contribute to the nutrients charge, and to produce a drier mix. A component can be used alone or in combination with others. Table 3
lists the most common components used in peat-based growing media for growing medicinal cannabis.
2.5. Living Soils
The living soil category includes a vast array of growing media formulations. There are no standards that define living soil for the cultivation of medicinal cannabis. There are numerous soil manufacturers or growers that blend their own growing media and consider them as living soil. Living soil can be as simple as incorporating a microbial inoculant into a growing media but it can be much more complex [37
]. The living soil matrix must support microbial populations, soil flora and evidently the plant growth [37
]. The combination of volume-based ingredients and additives must provide the necessary physical and chemical conditions for optimal growth and development of cannabis. The soil composition must promote microbial activity and diversity since it is the basis of the mineralization, and also favor beneficial species to counterpart adaphic root diseases [37
]. Biodiversity is important in living soil to maintain a balance between mineralization, plant protection and biostimulation. David Bernard Perron from The Green Organic Dutchman (TGOD) considers living soils as bioreactors. The basic components of living soils are peat moss, coir pith, coir chunks, naturally aged bark, wood fiber, composts and natural additives. A variety of inoculants can also be used in living soils: compost, bacterial inoculants, mycorrhizae and actinomyces to name a few. LPs that grow in living soils face several challenges: (1) to constitute a porous growing media with the optimal physical properties, (2) to provide the ample nutrition to support a complete growth cycle, and (3) to manage irrigation to prevent leaching of essential elements.
First challenge is related to the physical properties in living soil. In conventional culture (non-living soil), the cannabis producers prefer to grow in fast draining, coarse, and well aerated media. The use of this type of soilless media ensures a proper leaching of excess nutrients from the soil. In many cases, cannabis growing practices involve a high volume of leaching either per irrigation or per day. Therefore, it is common to frequently replace a part of the soil solution with a fresh fertilizer solution. This practice guarantees the grower to maintain a desired soil solution composition and soluble salt concentration. As opposed to conventional soilless media, in living soil some of the physical properties like the storage and transmission of water and air can be compromised due to limited choice of components as well as the use of fine textured materials like compost and additives. Moreover, the structure of the living soil can be rapidly modified under the activity of the microorganisms and the flora.
Nutrition availability is the second challenge in the living soil. Cannabis is a species that grows very fast and needs nutrients to rapidly become available in high concentrations. The organic greenhouse vegetable industry has overcome this challenge by establishing a microflora that speeds up the mineralization cycle [39
]. However, cannabis is often grown over a shorter period of time compared with cucumber (4 months), and peppers and tomatoes (10 to 11 months). A typical growth period for cannabis is about 11 to 13 weeks that consist of 3 weeks under a vegetative photoperiod and 8 to 10 weeks under a generative photoperiod. In some cases, the growth cycle can be as short as 8 to 9 weeks. LPs experience a challenge to establish an active nutrition system in the living soil in a short period of time. They usually overcharge the growing media with more than necessary amounts of natural fertilizers and additives to ensure the availability of the elements needed up to the maturity of the crop. The biggest downside to living soil is that plants tend to grow a little slower than with other soilless media [17
Irrigation strategy is the third challenge to consider in the living soil. The amount of water per irrigation event must be controlled to ensure an optimal rate of air to water ratio for plants and soil organisms. Ultimately, it is important to better define living soils since they are gaining in popularity for the cultivation of cannabis and numerous other crops. Living soil is a particular growing system compared with conventional growing media and will necessitate setting the standards.
