Considering Human Variability in the Design of Safe Interaction with Agricultural Machinery: The Case of Foldable Roll-Over Protective Structure (FROPS) Manual Handling

Abstract

The foldable roll-over protective structure (FROPS) protects the operators against fatal injuries in tractor roll-over accidents. However, a rear-mounted FROPS is often folded down or removed. In the present study, the accessible zones and grasping areas in a rear-mounted FROPS were redesigned and adapted to the 5th, 50th, and 95th European human anthropometric percentiles to enhance its correct and comfortable use. Then, a rod was proposed as a design solution to make the roll-bar grasping areas fall within the new accessible zones. The rod prototype increased roll-bar reachability and facilitated the raising handling, especially for shorter users. The present study results and the accessible zones redesigned, taking into account the human percentiles, will be helpful in rethinking reachability issues in manual handling of machinery components, to support the correct behaviours, and make human-machine interaction more comfortable and safer for all.

1. Introduction

Tractor roll-over is the most frequent type of accident in the agricultural sector [1,2]. The roll-over protective structures (ROPS), i.e., safety cab, frame, or roll-bar, are mechanical structures fitted on agricultural and forestry tractors. Together with a driver’s retention system, the seatbelt, they avoid or limit the risks to the driver resulting from roll-over of the vehicle during normal use [3,4]. ROPSs have been adopted on tractors since the 1980s, when significant safety and health, and ergonomics progress had been introduced [5]. Proving to be effective measures to prevent injuries during tractor roll-over, they are mandatorily fitted on tractors in many countries [6] because of requirements from public road circulation and occupational safety and health regulations [7]. Foldable two-post ROPS (FROPS) have been designed to facilitate tractor operation in low overhead clearance zones: orchards and vineyards and confined spaces, such as greenhouses and animal husbandry buildings [8]. FROPS are often fitted on narrow tractors (i.e., having at least one axle with a track width not larger than 1150 mm, [9,10]). Two different categories of narrow tractors are internationally recognised under ROPS safety and health regulation requirements [11,12]: tractors with ROPS mounted on the front of the driving station, with a maximum permitted unladen mass of 3500 kg [13], and ROPS fitted on the back of the driver’s seat, without any unladen mass upper limit, unless they have a reversible driver’s position or reversible seat and steering wheel (in this case the maximum permitted unladen mass is limited to 3500 kg) [14].

FROPS also find application on bigger and higher power standard tractors (without any track width and mass limitation regarding safety and health ROPS requirements [3]) when manufacturers need to curb the cost, and the purchase price, in markets with limited economic possibilities, or on entry-level models; frequently, in these cases, the foldable roll-bars are adopted to reduce space during transport and storage at the dealers’ and farmers’ facilities. According to the European Agricultural Machinery Association [15], approximately 43,000 and 38,000 out of 191,000 and 177,000 tractors registered in 2019 and 2018, respectively, in European Union (EU) countries, are equal to or under 37 kW (50 hp), and most likely belong to the narrow tractor category and are potentially equipped with a FROPS. Hence, standard tractors are the most represented category where, even though less common, the rear-FROPS are marketed.

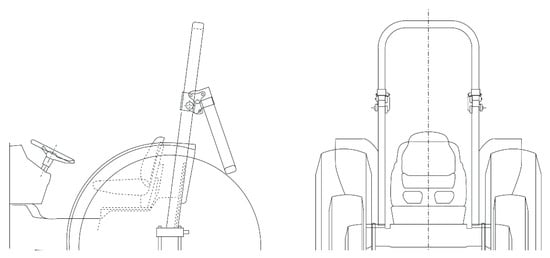

Generally, the FROPS comprises two lower steel components, one for each side of the tractor, mounted in front of or on the back of the driving seat, and an upper inverted U-shaped folding steel tube. The lower and upper parts are joined at a pivot point by a couple of pins on each side of the protective structure, making it possible to fold the upper part frontward or rearward, based on the FROPS type (Figure 1). The folding operation is generally manual, even though some dimensions and mass of the components may overcome the human handling capacity, as observed in previous works [16,17] on standard tractors.

FROPS, as all ROPS, are designed to absorb the energy developed by the impact with the ground in case of overturn, but with a limited deflection to avoid the infringement of the “clearance zone”, a standardised volume representing the space occupied by the driver “when seated either inside the envelope of the structure or within a space bounded by a series of straight lines from the outer edges of the structure to any part of the tractor that might come into contact with flat ground and that is capable of supporting the tractor in that position if the tractor overturns” [3] (p. 3). Recent surveys have revealed a new issue about FROPS-equipped tractors and the fatality rate in agriculture in many developed countries: the number of fatal accidents and severe injuries in tractor roll-over accidents with folded down or removed FROPS has increased in the last years [18,19,20,21]. The manual handling, considered a strenuous operation, and the poor reachability of the rear-mounted FROPS have been recognised as the leading causes for removing or leaving the FROPS in a folded down position [22,23]. Reachability issues especially affect shorter operators, who reported the need to redesign the foldable roll-bar able to respect users’ anthropometric variability [16,17].

According to the ergonomics literature [24,25,26,27,28], the anthropometric and functional variability in the interaction with sizes, volumes, and movements of the machines should be considered to ensure that the machines address, as much as possible, the needs of the broadest audience. Indeed, taking into account reachability, quality of the grip, and postures required to operate machinery parts increases the overall system safety and comfort in use [29,30]. In addition, the European Machinery Directive [31] indicates that the anthropometric variability and ergonomic principles must be taken into account to improve the human–machinery interaction and minimise operators’ discomfort and fatigue.

State of the Art Regarding FROPS Manual Handling Requirements and Aim of the Present Study

Previous studies aiming to promote the comfortable and safe handling of rear-mounted FROPS resorted mainly to technical engineering approaches to develop mechanical solutions [32,33] to ensure the clearance zone is not infringed during strength tests and protect the operator in case of roll-over [12,34,35]. Although the ergonomic issues during FROPS operations have increasingly received attention [8,34], few previous studies stressed the role of anthropometric variability in determining the quality of the human–FROPS interaction; these studies highlighted the need for some redesign to enhance comfort and safe use, especially for shorter operators who are adopting awkward postures and unsafe climbing behaviours when handling the roll-bar [16,17]. The difficulties and the improper behaviours that emerged from these previous field observations represented the rationale of the present study and the resulting proposal of FROPS improvement.

The Organization for Economic Co-operation and Development (OECD) Standard Code 6 for the Official Testing of Agricultural and Forestry Tractors [13] has introduced, since 2016, optional minimum ergonomic requirements to improve the manoeuvrability of front-FROPS fitted on narrow tractors. In 2017, the same requirements were also extended to narrow tractors with rear-FROPS [14]. Such requirements were incorporated, becoming mandatory, in the EU technical requirements for the type-approval of narrow new agricultural and forestry tractors [10]. The OECD Code 7 [14] also acknowledges that tractors with one of the axles less than 1150 mm where a rear-FROPS is fitted do not have any mass limit unless they have a reversible driver’s position or reversible seat and steering wheel; in this relatively uncommon case, the maximum permitted unladen mass is limited to 3500 kg. Therefore, despite their reduced track, the narrow tractors can take a considerable vertical shape, similar to those of standard tractors, making it practically impossible to raise/lower the protective structure standing on the ground.

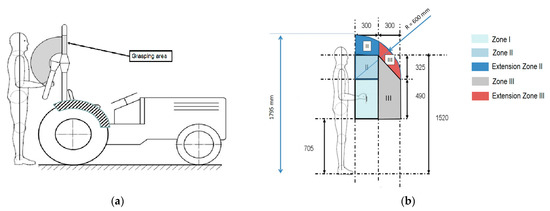

The OECD Codes [13,14] define the grasping area as “the portion of the ROPS and/or additional handle fitted to the ROPS where the operator is allowed to carry out the raising/lowering operations” (Figure 2a) and the accessible zones in the human–FROPS interaction as “the volume where an operator standing on the ground can apply a force to raise/lower the ROPS” [14] (p. 22). The three accessible zones are defined as Zone I—comfort zone, Zone II—accessible zone without forward-leaning of the body, and Zone III—accessible zone with forward-leaning of the body. The two areas above Zone II and Zone III, indicated as Extension of Zone II and Extension of Zone III, are the acceptable extensions of the two respective accessible zones (Figure 2b).

In the accessible zones depicted in the OECD Code 7 [14], the only measurement provided is the operator’s eye height, referable to an approximately 1.60 m tall person (Figure 2b), without any specification regarding either the reason for choosing the manikin characteristics or the anthropometric reference dataset. In the human–machine interaction, beyond the human anthropometric variability, it is relevant to also consider tractor dimensions which are not taken into account in the drawings of OECD Code 7. Indeed, observing these drawings, we can infer that the machine represented is a “small tractor” (fully raised FROPS is as tall as the human figure depicted) and it is not representative of the actual measurements range of tractors with rear-mounted FROPS [3].

Therefore, starting from all the previous considerations, the present study has a threefold purpose: (a) to resize the accessible zones provided by the OECD Codes (using the same 2D graphical style), adjusting them to users’ anthropometric and functional variability, (b) to develop a prototype design solution to increase FROPS reachability based on the redesigned accessible zones, and (c) to test the suggested solution with real users characterised by different anthropometric measurements, to investigate benefits in terms of safety and comfort in roll-bar handling.

In the following sections, we will describe the different phases which led to the redesign of the accessible zones and the development of the prototyped solution. In particular: (a) the redesign of both the human figure and the tractor starting from a set of anthropometric dimensions and previous on-field observations to account for human variability and tractor dimensions; (b) the integration of the analysis of the dimensional characteristics of the human figure and the tractor with functional aspects regarding upper limbs reachability and movements; and (c) the evaluation of a possible design solution, i.e., a rod, to increase FROPS reachability and validate graphical representation with a group of users.

2. Materials and Methods

2.1. Development of the Human Manikin

According to the ergonomic requirements, the adoption of percentiles of anthropometric variables is the most recommended approach in design. Often, the 5th and 95th percentiles are used to define the minimum and maximum values that are considered [36,37]. As reported in Pheasant and Haslegrave [28], many sources of anthropometric data for different populations can be found in the extant literature and international standards [37,38,39,40,41], but “few of the surveys for either national or special populations provide a comprehensive set of anthropometric dimensions (if such a set were possible)” [28] (p. 53). Based on this, “designers are often faced with the need to estimate dimensions for some design parameters even when using the most comprehensive data set” [28] (p. 53).

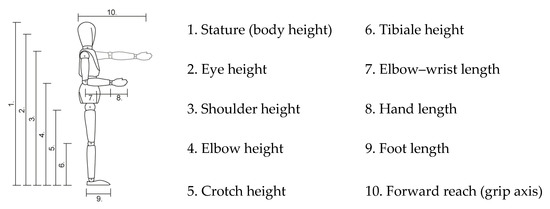

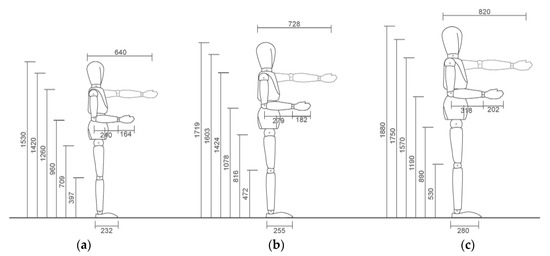

For the aims of the present study, three percentiles, respectively the 5th, the 50th, and the 95th percentiles, were considered, and some specific measures of the body segments were adopted considering the relation between the human reachability and the elements of interaction with the tractor. Thus, 10 anthropometric variables, as defined in International Organization for Standartization (ISO) 7250-1 [42], were considered: two variables (the eye height and the crotch height) corresponded to those considered in the OECD Codes, whereas the other eight variables were stature, forward reach, hand length and foot length, shoulder height, elbow height, tibiale height, and elbow–wrist length (Figure 3). Among the available anthropometric databases, the dataset reported in Jurgens et. al. [37] was considered as the most comprehensive for the 10 variables of interest and all the three percentiles considered (5th, 50th, and 95th). In addition, this dataset has been largely adopted in the European and international standards for anthropometry and human–machine interaction [43,44]. The measurements provided by Jurgens et al. [37] represent the average values for both sexes in a sample of 3 million Europeans with age ranging between 18 and 60 years. Moreover, “a compromise concerning a differentiated solution was found in defining the median (50th percentile) of all measure of the European population by way of the all European calculation, while the limiting percentile 5th and 95th were to be set according to the countries hosting the highest and the lowest body measures in their population respectively” [37] (p. 4) (Figure 4).

In conclusion, based on the only operators’ measurement provided in OECD Code 7 (i.e., the eye height that corresponds to 1.52 m), the stature of the human figure reported on the OECD Codes is estimated to be just over the 5th percentile of an average European subject, and limbs length is between the 5th and the 50th percentile [37].

2.2. Development of the Tractor Model

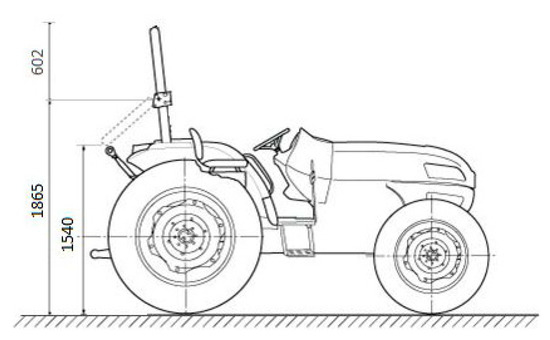

The enhanced image of the tractor has been defined based on the three most important measurements related to the points of interaction with FROPS as observed in previous studies on standard tractors [16,17]: (1) distance from ground to FROPS in the folded-down position (45° angle between the upper folding part and the lower component of FROPS); (2) distance from ground to FROPS pivot pin, which corresponds to the height of FROPS raised forming a 90° angle; (3) distance from FROPS pivot pin to the top of the fully raised roll-bar (Figure 5).

2.3. Development of the Accessible Zones through the Merge of the Human and Tractor Representations

After having graphically and metrically defined both the human figure and the tractor features, the manikins of the 5th, 50th, and 95th percentiles were overlapped to the tractor representation to easily identify the interaction points between the human figure and the machine. The postures of the manikins and their distances from the tractor were designed based on those detected in previous field observations [16,17]. Only as a graphical reference, the manikins reported in the results section have been depicted with the right arm raised, simulating the grasp of the roll-bar when it was at 45°, and the left arm extended, simulating the grasp of the roll-bar when it was at 90°.

To develop the accessible zones adapted to the three percentiles considered, the existing accessible zones used in the OECD Codes were scaled by adopting specific anatomical landmarks and body measurements as a reference. In particular, body measurements as the crotch height and the eye height, which correspond to the lower limit of the accessible Zone I and to the upper limit of the accessible Zone II, respectively, were used as referring points.

Furthermore, with the aim to redesign the accessible zones respecting the ergonomic principles, besides the human dimensional characteristics, the functional ones have also been considered. Thus, the present study also took into account the results summarized in KAN Study 50 [45] (

Table 1. Maximum applicable forces and height from the ground of the gripping point for lifting and lowering swivelling manually operated parts according to the KAN study 50 (2013) when they are at 90° and 45°.

	Swivelling Manually Operated Parts at 45°		Swivelling Manually Operated Parts at 90°
Height from the Ground	Lowering	Lifting	Lowering	Lifting
1920	-	-	500 N	500 N
1610	300 N	500 N	-	-
1380	300 N	400 N	-	-
1220	-	-	500 N	300 N
790	500 N	500 N	-	-

); in particular it reports the relationship between the height of the gripping point from the ground and the maximum forces applicable to operate a swinging component of the machine, to determine the optimal height from the ground to exert as little effort as possible. Considering the position of the roll-bar to be moved when it is grasped by the operators the maximum forcesvalues at 45° and 90° for the lowering and lifting task for male operators from the KAN Study 50 were considered. Such forces area summarized in Table 1.

2.4. Test with Real Users to Validate the Graphical Representation

At the end of the whole redesign process of the accessible zones, a prototype solution to increase the FROPS reachability was developed, fixed on a sample of FROPS and tested with three real users representative of the three percentiles considered (5th, 50th, and 95th) to evaluate benefits in terms of safety and comfort in roll-bar handling. Participants were three young novice farmers. For safety reasons, the prototype of the handle was fixed on an ad hoc structure which simulated the actual dimensions of a real tractor, whereas some specific obstacles, such as those related to the rear wheels, were marked on the floor using a white adhesive tape, asking participants not to cross that limit during the FROPS handling tasks.

3. Results

3.1. Graphical Representation of the Accessible Zones Based on Human Manikins

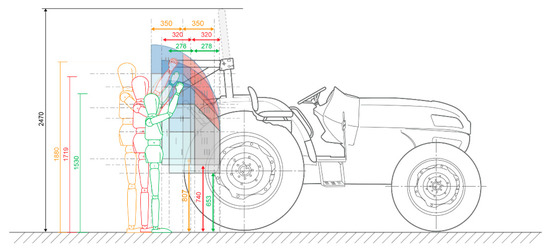

The size of the newly developed accessible zones increases as the measurements of the three human figures grow, as reported in Figure 6 (with the three percentiles depicted separately) and Figure 7 (with the three percentiles overlapped). The figures highlighted the variation of the accessible zones based on the percentile figure considered, extended from 1660 mm to 2070 mm in height and from 556 mm to 700 mm in width, with all its distinct areas depicted proportionally.

When the FROPS is in the folded-down position the manikins can reach the roll-bar by handling it in Zone II and extension of Zone II. In particular, the gripping point is on the upper limit of the Extension of Zone II in the case of the 5th percentile figure, near the lower limit of the same zone for the 50th percentile figure, and within Zone II for the 95th percentile figure. On the other hand, when the roll bar is at 90°, the 5th percentile figure cannot reach the roll-bar since it is above the extension of Zone II, the 50th percentile figure’s gripping point corresponds exactly with the limit of the same area, whereas the 95th percentile figure can reach the FROPS, handling it within the extension of Zone II. Furthermore, from the representations, it is possible to assume that, when the FROPS is fully lowered (i.e., at 0°), the gripping point of the roll-bar is on the edge between Zone II and the extension of Zone II for the 5th percentile figure, within Zone II for the 50th percentile, and on the border between Zone I and Zone II for the 95th percentile figure. However, it is useful to remember that this latter condition did not occur in the actual contexts observed in previous on-field studies, since the roll-bar was not completely folded down, but it maintained an angle of about 45° [16,17].

In addition, in Figure 6 and Figure 7, the manikins were not represented with hands and arms raised when the FROPS has angle over 90° and in the upright position, since it was previously noted that most operators were not always able to reach and grip FROPS in that specific condition [16,17]. Indeed, this condition would be representable only for for users belonging to the 95th percentile, who have to get closer to the tractor machinery and need to change their hand position on the FROPS from the horizontal crossbar to the vertical bars. This means that users placed their hands closer to the pivot pin. However, all the three percentiles considered have their hands outside the accessibility zone.

3.2. The Developed Accessible Zones Supported by the Maximum Applicable Forces

Starting from elements depicted in Figure 6, the grasping area was considered and the real distances from the ground to the manually operated part (i.e., the gripping point of the roll-bar) were compared with those reported in the KAN Study 50 (2013) for swivelling agricultural machines manually operated parts in lifting and lowering movements (Figure 8). The comparison was useful to verify the reliability of the proposed accessible zones with respect to the required posture.

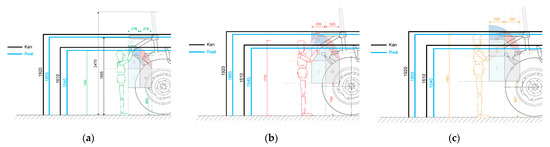

In Figure 8, the three percentiles figures, with the respective redesigned accessible zones in interaction with the FROPS, are represented: the blue lines represent the height of gripping points at 45° and 90°, measured in the real situation (based on [17]); whereas the black ones represent the heights of the gripping point suggested as optimal in the KAN Study 50 [45] for grasping machinery parts at the same angles of the roll-bar. Comparing the two lines for each position of the FROPS, it is possible to note how the dimensions recorded during on-field observations are just below the height values suggested as optimal in the KAN Study 50 for both the roll-bar angles.

Based on Figure 8,

Table 2. Areas of the accessible zones in which the gripping point is at 45° and 90° roll-bar angle and respective height from the ground (in real and optimal conditions) for the three percentile figures.

	Distance Ground-Gripping Point FROPS at 45° (Folded-Down Position)		Distance Ground-Gripping Point FROPS at 90°
Percentile	1540 mm (from Observation)	1610 mm (KAN Study 50)	1865 mm (from Observation)	1920–2150 mm (KAN Study 50)
5th	Extension Zone II	Extension Zone II	/	/
50th	Zone II	Limit Extension Zone II and Zone II	Limit Extension Zone II	/
95th	Zone II	Zone II	Extension Zone II	Extension Zone II

reports the accessible zones in which the gripping point is at 45° and 90° roll-bar angle and the respective height from the ground (in actual and optimal conditions) for the three percentiles figures. With respect to the accessible zones, when the roll-bar is at 45°, the real and optimal gripping points fall within the new accessible zones or their extensions for all the three percentile figures, whereas, when the roll-bar is at an angle of 90°, the gripping points for the 50th and 95th percentile figures fall within the new accessible zones, while the gripping point of the 5th percentile is placed outside all the accessible zones, almost 300 mm above the extension of Zone II.

3.3. Tips for Technical Improvements to Be Fitted on Tractors and Testing against the New Accessible Zones

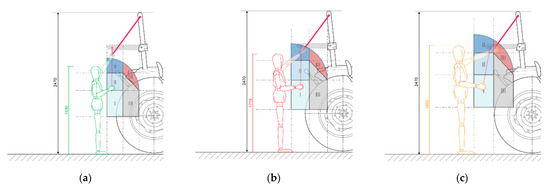

Based on the redesigned accessible zones, and to improve FROPS reachability, a design solution was developed which allowed operators to handle the FROPS standing with their feet on the ground and prevented them from adopting awkward and uncomfortable postures. In detail, through some design sketches adapted for each percentile considered, the research team decided to add a rod that would help operators perform the raising task (Figure 9).

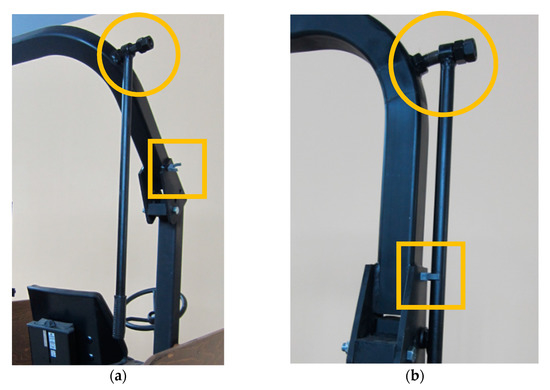

A rod permanently fixed on the outer side and on the folding upper part of the FROPS has been identified as a possible solution. The rod was inserted on a threaded pin fastened on the FROPS and held in place by a nut. This connection allows the free rotation of the rod on the vertical plane; whereas, when the rod is in resting position, it is locked by a retainer placed in the lowest part of the FROPS. The rod, 800 mm long, can pivot on the vertical plane to be operated, enabling the operator to raise and lower the FROPS. See Figure 10 for more datails on the connection and retention solutions adopted.

Finally, after that the prototype was fixed on the FROPS, it was tested thanks to the collaboration of a sample of three users representative of the three percentiles considered (5th, 50th, and 95th). The following figures show the three users while lifting the FROPS using the rod (Figure 11).

Photographs taken while performing the raising task show that the 2D representations made with manikins are rather loyal to the actual conditions. In detail, Figure 11 shows that all the participants belonging to the three percentiles considered could raise the FROPS standing safely with their feet on the ground, with the gripping point of the rod falling within the redesigned accessible zones. In addition, after performing the requested task, users expressed spontaneously their personal opinion related to the device just adopted. Overall, all three users said that “this handle is really useful for handling the FROPS” and “if it is available in the future on tractors, I will be eager to use it”. In detail, the 5th percentile user expressed a greater appreciation for the device as “I found it simple to use”, “handle adoption makes the task less tiring and standing with my feet on the ground, I can better manage the force to raise the FROPS, so I can feel safer and more confident”. Furthermore, it would also provide a postural and behavioural advantage to the 50th percentile and 95th percentile operators, with the gripping point moving from Zone II to Zone I (Figure 9).

4. Discussion

In this study, the accessible zones for rear-FROPS handling on higher tractors were developed through the redesign of those provided in existing standards [3], by adapting them to the anthropometric variability represented by the 5th, 50th, and 95th percentile of the European population [37], and also considering the functional aspects [45]. The results pointed out the relevance of considering the anthropometric variability when designing agricultural machinery and its components, focusing especially on reachability issues of the manually operated parts. Indeed, even though the accessible zones were adjusted to each of the three percentile figures considered (5th, 50th, and 95th), when the roll-bar was at an angle of 90°, the gripping point of the 5th percentile was placed outside all the accessible zones. To provide a gripping point falling within the adjusted accessible zones for the shorter users, we proposed a prototype solution that also represents an affordance for other stature percentiles, following the principles of “Inclusive Design” [46]. The suggested prototype design solution, i.e., the rod, has proven to be particularly appreciated by the users who tested it. It also has the advantages of a limited cost increase of the roll-bar, being easy to be stored on tractors, and available wherever necessary. This simple solution could respond to the needs expressed in previous on-field interviews and observations by the operators [17], who wish for some improvement of the FROPS handling.

However, concerning the FROPS reachability issue of the 5th percentile, the gripping point for these users is at the limit of the accessible zones regardless. Based on this, future studies may evaluate the feasibility of a telescopic rod. In this way, when the rod is at the minimum length, it would not hit other structural parts or components fixed on the tractor; whereas, when the rod reaches the maximum length, it would be longer than the one tested in the present study, thus further reducing the distance from the gripping point and improving rear-mounted FROPS handling for the shorter users. Based on the present results, a set of guidelines for designing and testing possible alternative FROPS design solutions in compliance with the resized and adjusted accessible zones may be developed.

Whenever the proposed solution should be adopted on a FROPS intended for the market, it should be installed on the items submitted to the ROPS test to verify that its installation does not undermine the results of the test itself and that all the conditions of acceptance provided by the OECD Code for the test are fulfilled. Installing such a simple structure on an existing FROPS would require redoing the ROPS tests because, depending on how the rod is connected to the FROPS body, by drilling or welding, it might discredit the results of the test performed on the FROPS, compromising its efficiency in protecting the operator in case of overturning. In addition, in future studies, the fixing method needs to be tested to verify that the retention mechanism guarantees the rod remains fixed on the outside of the FROPS in case of roll-over and does not infringe the operator’s clearance zone. During the designing phase, it is essential to take into account the target market and the anthropometric differences of the populations to which the machine is addressed. This is particularly important for agricultural machinery manufacturing, which is a highly integrated industry with globally marketed products [47]. Respecting anthropometric variability and paying special attention to operators belonging to the 5th percentile, which are particularly disadvantaged in the interaction with components placed at a greater distance from the ground, is crucial in the design of products which are intended for populations with a high inter- and intravariability based on geographical areas (e.g., Northern vs. Southern European populations [37]), gender (relevant for the increasing rate of women in the farming population [48]), and age (relevant for the increasing rate of older farming populations [48,49]).

The design of a rod, or also a telescopic rod, to make the gripping point closer to the operator allows all the percentiles figures to handle the FROPS easily and enhances safety for shorter people, who, in previous on-field studies, were observed climbing muddy and unstable parts of the machinery to grasp the roll-bar [17]. However, technical improvements could not be sufficient to solve safety issues in the human–machine interaction [50]. Therefore, in case of changes in technical features or a new design, it is recommended to introduce information and training activities to promote the correct behaviour and use of the proposed solution [51]. Many previous studies have indeed highlighted the role of training in enhancing safety knowledge and behaviour in a sector such as agriculture, characterised by complex and varied tasks [52,53,54], showing the high efficacy of visual materials [51,55,56] for both local [57,58] and migrant farmworkers [59,60], who represent a relevant percentage of the agricultural workforce in developed countries [61]. In line with this, the 2D graphical representation of the adjusted accessible zones developed in the present study could also be included in users’ manuals and training materials to overcome cultural and language barriers in showing operators not only how to comfortably and safely operate the FROPS, but also the focus on human variability adopted during the design process of the machinery and its parts.

Limitation and Future Developments of the Present Study

Some limitations of the present study should be acknowledged. The suggestions and improvements provided have been tested with a group of one user per percentile considered. In the future development of the research, it will be useful to test the suggested solutions with a larger group of agricultural operators to also investigate the acceptability and the usability of the proposed devices, to promote the comfortable and correct FROPS operation for all users.

Regarding the variability issues, in the future development of the research, it could be beneficial to further verify the accessible zones developed in the present investigation among women and workers with different anthropometric characteristics compared to the European population. Furthermore, it would be useful to involve participants with different previous working experience and ages, considering the decrease in strength and joint mobility with ageing and reduced mobility caused by musculoskeletal disorders (MSD) and injuries [62,63,64,65,66]. In addition, considering that, as reported by NASA RP 1024, the percentiles within a category of data are indeed exclusive, the use of anthropometric manikins designed with the same percentile of all measures can be improved by considering also the variability of the proportions between the different body segments in individuals from both single populations and different populations.

Finally, in this phase of the research, the adoption of the 2D representation was considered as able and sufficient to point out how human variability can influence the safety behaviours and the users’ interaction with the tractor components. The 2D technical drawing adopted is also consistent with the technical representation used in the OECD Codes, and it is recognised as essential for communicating ideas in industry and engineering [67]. However, the authors acknowledge that, in future developments, it could be helpful to perform a deeper analysis using 3D simulation software which will allow reproducing the dynamics of the actual operating conditions.

5. Conclusions

To improve the on-field observed critical interaction between the users and the FROPS, in the present study, the accessible zones for FROPS operation provided by the OECD Codes were resized and adjusted according to the anthropometric characteristics. Building on this, a solution was suggested to benefit the shorter users in FROPS handling and, as a consequence, also the taller ones. In conclusion, the present study highlighted that it is no longer possible to follow the principle of “designing for the average”, which is primarily being used when adjustability is not practical [68], to design industrial equipment and machinery; the design must take into account those users who may have greater difficulties in the interaction with machinery components, especially in terms of reachability. The outcomes of the present research provide knowledge and evidence to regulatory and standardisation bodies; they support a broad reflection on the extent to which human variability should be considered in machinery design, and its impact on thematic policies (e.g., occupational health and safety) in relation to the societal challenges. In particular, the present study represents a contribution to introducing ergonomic requirements for rear-mounted FROPS fitted on standard tractors, such as those considered in the OECD Code 4.
