Molecular Diversity within a Mediterranean and European Panel of Tetraploid Wheat (T. turgidum subsp.) Landraces and Modern Germplasm Inferred Using a High-Density SNP Array

Department of Agriculture, Food, Environment and Forestry (DAGRI), University of Florence, Piazzale delle Cascine, 18-50144 Firenze, Italy
School of Biological Science, Life Sciences Building, 24 Tyndall Avenue, Bristol BS8 1TQ, UK
Department of Biology, Via Madonna del Piano, 6-50019 Sesto Fiorentino, Italy
Author to whom correspondence should be addressed.
Agronomy 2021, 11(3), 414;
Submission received: 3 December 2020 / Revised: 20 February 2021 / Accepted: 21 February 2021 / Published: 24 February 2021
(This article belongs to the Special Issue Old Germplasm for New Needs: Managing Crop Genetic Resources)


High-density single-nucleotide polymorphism (SNP) molecular markers are widely used to assess the genetic variability of plant varieties and cultivars, which is nowadays recognized as an important source of well-adapted alleles for environmental stresses. In our study, the genetic diversity and population genetic structure of a collection of 265 accessions of eight tetraploid Triticum turgidum L. subspecies were investigated using 35,143 SNPs screened with a 35K Axiom® array. The neighbor-joining algorithm, discriminant analysis of principal components (DAPC), and the Bayesian model-based clustering algorithm implemented in STRUCTURE software revealed clusters in accordance with the taxonomic classification, reflecting the evolutionary history of the Triticum turgidum L. subspecies and the phylogenetic relationships among them. Based on these results, a clear picture of the population structure within a collection of tetraploid wheats is given herein. Moreover, the genetic potential of landraces and wild relatives for the research of specific traits of interest is highlighted. This research provides a great contribution to future phenotyping and crossing activities. In particular, the recombination efficiency and gene selection programs aimed at developing durum wheat composite cross populations that are adapted to Mediterranean conditions could be improved.

1. Introduction

Wheat represents the third most important cereal grain and the most widely grown crop in the world [1]. Bread wheat (Triticum aestivum L.) and durum wheat (T. turgidum L. ssp. durum) are the two subspecies predominantly cultivated, used for bread-making or leavened products (cookies, cakes, and pizza) and for semolina products and pasta, respectively. In addition, both wheat species’ byproducts are used for animal feed production.
While bread wheat (T. aestivum) is hexaploid (2n = 6x = 42 chromosomes, AABBDD genomes), durum wheat belongs to the T. turgidum tetraploid subspecies group (2n = 4x = 28 chromosomes, AABB genomes) which includes six other subspecies (Triticum carthlicum, Triticum dicoccum, Triticum dicoccoides, Triticum paleocolchicum, Triticum polonicum, and Triticum turgidum) rarely grown commercially [2,3]. Many studies based on cytological and molecular analysis ascribe tetraploid wheat’s origin to two different evolutionary steps, which started around 10,000 years ago in the Fertile Crescent [4,5]. The first divergent evolution, of which the original progenitor is unknown, gave rise to diploid species including Triticum urartu (A genome), Aegilops tauschii (D genome), Hordeum vulgare (barley), and Secale cereale (rye) [6]. The second evolutionary process was a natural hybridization between T. urartu (the A genome donor) and an unknown Triticum species, often identified as Aegilops speltoides (the B genome donor); this created the wild emmer T. dicoccoides (2n = 4x = 28, BBAA genomes), the progenitor of durum wheat [7]. The history of durum evolution is the result of domestication starting from wild emmer genotypes and of a transition process from a naked emmer type to durum type [8]. Around 7000 years Before Present (BP), durum genotypes reached the Iberian Peninsula, followed by a rapid spread from the East to the West of the Mediterranean Basin [9,10]. Natural and human selection through thousands of years led to the establishment of wheat landraces characterized by strong adaption to the environmental conditions and cultivation practices of different geographic areas [11]. Local traditional farming communities contributed to the maintenance of these landraces that were characterized by different qualitative and quantitative traits until the first decades of the twentieth century [12].
At the beginning of the 20th century, breeders imposed a strong selection based on commercial purposes: local landrace cultivation was progressively abandoned and replaced with improved, widely adapted, and more productive semi-dwarf varieties, resulting in a reduced level of genetic diversity, especially compared to the wild ancestors [13,14,15]. Today, this lack of diversity is widely recognized as a limiting factor in the breeding of high-yielding and stress-resistant varieties [16]. Moreover, under the current climate change events (irregular rainfall, high temperatures during the growing season, rainstorms, and drought) that negatively affect wheat cultivation, the development of new resilient varieties or composite cross populations (CCPs) adapted to different cultivation environments and low-input agriculture has become necessary [17,18,19]. Novel genetic diversity selected by breeders may be introduced into modern genotypes by the introgression of useful alleles from landraces, ancestors, or wild relatives through specific breeding programs [20,21,22]. Durum wheat landraces and other Turgidum subspecies usually show a lower yield when compared to modern varieties [11]; nevertheless, they exhibit reduced productive performance compared to elite germplasm (modern varieties), but their higher genetic variability could be useful, allowing them to cope with environmental stress conditions, and to increase resilience to climate change. They are thus a potential source of favorable alleles to improve grain yield or pest resistance and to give other favorable agronomic traits to new varieties [23,24].
Recent breeding programs have studied and assessed genetic variability or different germplasm panels using different research approaches [25,26,27,28,29,30,30,31,32]. Morphological and agronomical markers have been considerably used [25,26], with variable reproducibility depending on environmental conditions. Nevertheless, this has been overtaken with the use of molecular markers that guarantee the opportunity of studying wheat phenotypes, providing reproducible and environment-independent results [27]. Several DNA markers have been developed and largely used to assess genetic diversity in tetraploid wheats [28,29,30,31], but the high-density genome coverage provided in recent years by single-nucleotide polymorphism (SNP) markers has made them the best choice for wheat genetic analysis [32].
A few years ago, a novel plant breeding approach—evolutionary plant breeding (EB)—relying on human selection acting on a heterogeneous population (i.e., CCPs) started to represent a valuable method for developing populations adaptable to different agricultural contexts [33,34]. Cultivation conditions can drive the selection of more adaptable genotypes that present increased fitness [35,36]. After several years of cultivation and multiplication in the same area under isolated conditions, these populations may reach equilibrium with stable yields, and the genetic diversity among such populations represents a trait resilient to climate and environmental stress [37].
In this study, we investigated the genetic diversity and population structure of a panel of 265 accessions from seven tetraploid T. turgidum subspecies originating from different Mediterranean and European areas using the 35K Wheat Breeders’ Axiom® SNP array. This work will prove to be a groundwork for phenotypic analysis, both in the field and in the lab, aimed at identifying the best lines that could be used in a cross-breeding program for the selection of resilient and nutritionally improved wheat CCPs.

2. Materials and Methods

2.1. Plant Material

A large tetraploid wheat germplasm panel of 265 accessions was assembled at the Department of Agriculture (DAGRI) of the University of Florence (Supplementary Table S1). The core collection was represented by seeds of 8 Turgidum subspecies—ssp. carthlicum (5), dicoccoides (3), dicoccon (28), durum (172), paleocolchicum (3), polonicum (13), turanicum (33), and turgidum (7)—collected from the USDA bank (U.S. Department of Agriculture; (accessed on 3 December 2020)), Wageningen CGN Germplasm bank (Centre for Genetic Resources, The Netherlands; (accessed on 3 December 2020)), and Istituto di Granicoltura di Caltagirone ( (accessed on 3 December 2020)). One T. aestivum variety—Bologna—was added to the panel as outgroup genotypes.
Seeds were sown in peat-based soil in single pots and maintained in a climatic chamber at 15 °C during the night and 25 °C during the day, with a cycle of 16 h light and 8 h dark. Six weeks after germination, leaf tissue (5–6 cm section of a true leaf) was harvested from plants, immediately frozen on liquid nitrogen, and then stored at −80 °C prior to nucleic acid extraction. All plants were then transplanted in the field and grown until maturity in order to collect seeds for single-seed line constitution to be used in future field studies.

2.2. DNA Extraction and Genotyping

Frozen leaf tissues were ground in a TissueLyzer II bead mill (Qiagen, Hilden, Germany), with the tissue and plastic adapter having previously been dipped into liquid nitrogen to avoid sample warming. Genomic DNA was extracted from the leaf powder using a standard cetyltrimethylammonium bromide (CTAB) protocol [38] and then treated with RNase-A (New England Biolabs UK Ltd., Hitchin, UK) according to the manufacturer’s instructions. DNA was checked for quality and quantity by electrophoresis on 1% agarose gel and Qubit™ fluorimetric assay (Thermofisher), respectively. The 35K Axiom® Wheat breed Genotyping Array (Affymetrix, Santa Clara, US) was used to genotype 265 samples for 35,143 SNPs using the Affymetrix GeneTitan® system at Bristol Genomics Facility (Bristol, UK) according to the procedure described in Axiom® 2.0 Assay Manual Workflow User Guide Rev3 ( (accessed on 3 December 2020)). This array contains a range of probes that are located on chromosomes belonging to the A, B, and D genomes [39]. Since in tetraploid wheat the D genome is lacking, the effective number of markers that can be investigated is lower, corresponding to 24,240 SNPs. Allele calling was carried out using the Axiom Analysis suite software [40], and a variant call rate threshold of 92% was used instead of the default value (97%) to account for the great heterogeneity of the set analyzed [41]. The number of monomorphic and polymorphic SNP markers, the heterozygosity level, and the types of nucleotide substitution for each accession were evaluated using the same software. Monomorphic SNP markers and those with missing data points were excluded from analysis. SNP markers were then filtered for minimum allele frequency (MAF) greater than 1% and failure rate lower than 20%.

2.3. Statistical Analysis

The levels and patterns of genetic diversity among accessions were investigated starting from the data obtained from SNP genotyping. The Tamura–Nei method [42] for genetic distance evaluation was applied to obtain a matrix of pairwise distances among accessions. An unrooted Bayesian tree was computed by applying the neighbor-joining algorithm [43], implemented in the ape 3.1 package of R software [44].
To obtain a clear picture of the genetic structure of the tetraploid wheat genotypes, we applied the Bayesian model-based clustering algorithm implemented in STRUCTURE software version 2.3.4 [45]. An admixtured and shared allele frequency model was used to determine the number of clusters (K), assumed to be in the range between 2 and 15, with five replicate runs for each assumed group. For each run, the initial burn-in period was set to 10,000 with 10,000 MCMC (Markov chain Monte Carlo) iterations, with no prior information on the origin of individuals. The best fit for the number of clusters, K, was determined using the Evanno method [46] as implemented in the program STRUCTURE HARVESTER [47]. Structure results were then elaborated using the R package pophelper to align cluster assignments across replicate analyses and produce visual representations of the cluster assignments. Discriminant analysis of principal components (DAPC) was used to infer the number of clusters of genetically related individuals [48] using the adegenet package in R-project [49]. The first step of DAPC was data transformation using principal component analysis (PCA), while the second step was discriminant analysis performed on the retained principal components (PCs). Groups were identified using k-means, a clustering algorithm that finds a given number (k) of groups maximizing the variation between them. k-means was run sequentially with increasing values of k to identify the optimal number of clusters, and different clustering solutions were compared using the Bayesian Information Criterion (BIC). The optimal clustering solution should present the lowest BIC [50].

3. Results

After SNP dataset filtering, 21,051 SNP markers were identified and used in the statistical analysis to evaluate the genetic diversity of the 265 tetraploid wheat accessions. The genetic relationships in the panel were assessed through three different approaches—neighbor-joining tree, discriminant analysis of principal components (DAPC), and STRUCTURE software—in order to better detail and define the genetic relationship variability among the tetraploid accessions.
The Bayesian tree obtained by applying the neighbor-joining algorithm revealed groups in the population that highly agreed with the subspecies classification and origin (Figure 1A). Most of the T. turgidum ssp. durum (shown in yellow in Figure 1A) were placed in a large clade together, with modern varieties that appeared separated from the other accessions. Landraces and old varieties were distributed in branches close together, mostly according to their geographical origin, such as the Syrian and Sicilian accessions. Two other clusters were identified, consisting, respectively, of T. turgidum spp. dicoccon (shown in orange) and T. turgidum ssp. turgidum (blue), while T. turgidum spp. turanicum (brown) was clustered into two groups separated by the set of T. turgidum ssp. polonicum accessions (grey). The two T. turgidum ssp. paleocolchicum accessions (light blue) and their cross seemed to be close, while the few accessions belonging to T. turgidum carthlicum and dicoccoides ssp. appeared to be spread amongst the tree branches.
The wheat genotype arrangement obtained with the Bayesian tree was subsequently confirmed by the DAPC results (Figure 1B, Table S2). Seven clusters (Figure 2) were detected in coincidence with the lowest Bayesian information criterion (BIC) value (Figure S1), and 100 PCs (80% of variance conserved) from PCA were retained. As reported in Figure 1B, the Syrian T. turgidum spp. durum wheats were pooled in Group 5 and clustered separately in the genetic tree. Most of the old varieties and landraces of the same subspecies were collected in Group 3, while Group 4 was formed by approximately half of the T. turgidum spp. turanicum accessions, which belonged to the same genetic cluster in the tree. The remaining genotypes of this last subspecies were grouped together with T. turgidum spp. polonicum wheats which were also clustered in Group 2. Group 1 was entirely composed of T. turgidum ssp. diccocon accessions, while Group 7 identified the modern varieties of T. turgidum ssp. durum.
Moreover, the Bayesian tree and the DAPC analysis largely agreed with the accessions’ geographic origins. In particular, Syrian (Cluster 5), French (part of the Cluster 7), Moroccan (Cluster 6), and Italian and Algerian (Cluster 3) wheats were almost entirely pooled within the same cluster. Iranian (Clusters 3 and 4) and Portuguese and American (Clusters 2 and 6) accessions were equally divided into two clusters.
The optimum number of subpopulations, K, estimated using STRUCTURE software (Figure 3, Table S2) and according to the Evanno method results was 7 (K = 7). This indicated the presence of seven subpopulations, as previously found by the Bayesian tree and DAPC analysis, although characterized mostly by different accessions.

4. Discussion

Genetic diversity represents the basis for crop improvement, providing plant breeders with the germplasm necessary to develop cultivars with adaptive traits and good quality characteristics [51]. To better target their crossing schemes, the genetic structure and variability of 265 tetraploid wheats accessions were assessed.
Clustering done via a Bayesian tree and clusters obtained via DAPC revealed a clear classification of genotypes in accordance with their geographical origin, strengthening the results of previous studies of phylogenetic relationships between cultivated wheats and their wild relatives [52,53].
Concerning T. turgidum ssp. durum accessions, which represented the largest number of genotypes in the panel, their first and second geographical origin centers—Syria and Ethiopia [54]—appeared to be clearly identified in Clusters 5 and 3, respectively. This result agreed with the molecular assessment by Kabbaj et al. [55] regarding a durum wheat collection of cultivars. More interestingly, the Bayesian tree highlighted the proximity between North African (Morocco, Algeria, and Tunisia) and Italian germplasm; this could be linked to the geographical expansion of Romans during the Imperial Period and consequent wheat genotype introduction and cultivation on the African continent, as suggested by Rickman [56].
In addition, the positions of the accessions “Ciceredda”, “Bufala rossa lunga”, “Bufala nera corta”, and “Paola” on the Bayesian tree deserve attention: although they belong to Cluster 3, which grouped almost all the other T. turgidum ssp. durum genotypes, they were gathered in a distant cluster between T. turgidum turgidum and polonicum ssp. The proximity of these accessions could be due to a taxonomic problem, traceable thanks to work by De Cillis [57], which classified these accessions under T. turgidum turgidum ssp. turgidum.
Finally, another relevant observation on the T. turgidum ssp. durum accession arrangement concerns the low genetic variability detected in the modern Italian varieties, different from landraces and old varieties. Through the second half of the 20th century, national breeding programs aimed at increasing wheat yield started to establish new varieties characterized by small size, limited sprouting, reduced leaf area, and shorter crop cycle [58]. Due to genetic improvement only, De Vita et al. [59] confirmed in their work a 44% increase in productivity for the main varieties of durum wheat grown in Italy during the 20th century; however, this resulted in pure line selection and the development of varieties with low genetic variability [60]. Our study reflects this strong selection activity: Italian modern varieties were gathered in the same cluster (Figure 1B) and along neighbor branches, highlighting genetic homogeneity.
On the contrary, the subspecies dicoccon showed the highest genetic variability, as Laidò [61] et al. verified in their research, confirming this wild germplasm as a powerful source of genes.
Today, the unpredictable climate, characterized by irregular rainfall and long dry periods, results in a rather unstable crop production. Under marginal environments, landraces and old varieties show higher stability in low-input agriculture [62,63]; thus, they could represent valuable genetic resources for breeders in order to develop new cultivars or CCP populations with specific qualitative traits such as resistance to biotic and abiotic stress, ability to efficiently use organic nitrogen and better nutritional qualities [64]. With this aim, our results showed the genetic diversity among accessions belonging to eight tetraploid wheat subspecies and identified the correct numbers of genotypes that explain the screened genetic variability well.

5. Conclusions

The genetic diversity of domesticated wheat accessions has been significantly reduced from that of their wild progenitors through a prolonged selection process for those phenotypic traits that better satisfy human needs. On the contrary, landraces’ genetic variability represents a precious source of valuable agronomic traits that could be used for interspecific hybridization and for the introgression of genes and/or alleles into cultivated species. In our work, the genetic diversity and the population structure of 265 tetraploid wheats were investigated in order to understand the genetic relationships between domesticated wheats and their close wild relatives. The results obtained from this research could be used in future phenotyping studies in both field and laboratory tests to select the best lines to be intercrossed for the creation of improved and more resilient durum wheat CCP populations adapted to Mediterranean areas.

Supplementary Materials

The following are available online at Figure S1. Statistical determination of the optimum number of clusters by discriminant analysis of principal components (DAPC). The elbow in the curve matches the smallest BIC and clearly indicates that seven cluster should be retained. Table S1. List of wheat accessions used in the experiment. Table S2. Clusters Membership for each accession defined with DAPC and Structure analyses. For Structure, cluster membership probability was reported for each accession.

Author Contributions

Data curation, P.G. and A.C.; Investigation, P.G., M.G., A.B. and A.M.; Methodology, M.G. and A.B.; Project administration, S.B. (Stefano Biricolti) and A.M.; Supervision, E.P., S.B. (Stefano Biricolti) and S.B. (Stefano Benedettelli); Writing—original draft, P.G. All authors have read and agreed to the published version of the manuscript


This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Part of the data presented in this study are available on request from the corresponding author.


We thank the members of Bristol Genomics Facility Center ( (accessed on 3 December 2020)) for assistance in the genotyping lab work.

Conflicts of Interest

The authors declare no conflict of interest.


  1. FAOSTAT. Available online: (accessed on 3 December 2020).
  2. Bennici, A. Durum Wheat (Triticum durum Desf.). In Crops I Biotechnology in Agriculture and Forestry; Bajaj, Y.P.S., Ed.; Springer: Berlin/Heidelberg, Germany, 1986; pp. 89–104. [Google Scholar]
  3. Brenchley, R.; Spannagl, M.; Pfeifer, M.; Barker, G.L.A.; D’Amore, R.; Allen, A.M.; McKenzie, N.; Kramer, M.; Kerhornou, A.; Bolser, D.; et al. Analysis of the bread wheat genome using whole-genome shotgun sequencing. Nature 2012, 491, 705–710. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Hakan, O.; Willcox, G.; Graner, A.; Salamini, F.; Kilian, B. Geographic distribution and domestication of wild emmer wheat (Triticum dicoccoides). Genet. Resour. Crop Evol. 2010, 58, 11–53. [Google Scholar]
  5. Dubcovsky, J.; Dvorak, J. Genome plasticity a key factor in the success of polyploid wheat under domestication. Science 2007, 316, 1862–1866. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Ling, H.-Q.; Ma, B.; Shi, X.; Liu, H.; Dong, L.; Sun, H.; Cao, Y.; Gao, Q.; Zheng, S.; Li, Y.; et al. Genome sequence of the progenitor of wheat A subgenome Triticum urartu. Nature 2018, 557, 424–428. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Marcussen, T.; Sandve, S.R.; Heier, L.; Spannagl, M.; Pfeifer, M.; Jakobsen, K.S.; Wulff, B.B.H.; Steuernagel, B.; Mayer, K.F.X.; Olsen, O.-A.; et al. Ancient hybridizations among the ancestral genomes of bread wheat. Science 2014, 345, 1–4. [Google Scholar] [CrossRef] [PubMed]
  8. Charmet, G. Wheat domestication: Lessons for the future. Comptes Rendus Biol. 2011, 334, 212–220. [Google Scholar] [CrossRef]
  9. Feldman, M.; Kislev, M.E. Domestication of emmer wheat and evolution of free-threshing tetraploid wheat. Israel J. Plant Sci. 2007, 55, 207–221. [Google Scholar] [CrossRef]
  10. Feldman, M. Origin of cultivated wheat. In The World Wheat Book: A History of Wheat Breeding; Bonjean, A.P., Angus, W.J., Eds.; Lavoisier Publishing: Paris, France, 2001; pp. 3–56. [Google Scholar]
  11. Peng, J.H.; Sun, D.; Nevo, E. Domestication evolution, genetics and genomics in wheat. Mol. Breed. 2011, 28, 281–301. [Google Scholar] [CrossRef]
  12. Jaradat, A.A. Wheat Landraces: Genetic Resources for Sustenance and Sustainability; USDA-ARS: Morris, MN, USA, 2012; pp. 1–20. [Google Scholar]
  13. Kronstad, W.E. Agricultural development and wheat breeding in the 20th Century. In Wheat: Prospects for Global Improvement. Developments in Plant Breeding; Braun, H.J., Altay, F., Kronstad, W.E., Beniwal, S.P.S., McNab, A., Eds.; Springer: Dordrecht, The Netherlands, 1997. [Google Scholar]
  14. Waines, J.G.; Ehdaie, B. Domestication and crop physiology: Roots of green-revolution wheat. Ann. Bot. 2007, 100, 991–998. [Google Scholar] [CrossRef] [Green Version]
  15. Tanksley, S.D.; McCouch, S.R. Seed banks and molecular maps: Unlocking genetic potential from the wild. Science 1997, 277, 1063–1066. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Haudry, A.; Cenci, A.; Ravel, C.; Bataillon, T.; Brunel, D.; Poncet, C.; Hochu, I.; Poirier, S.; Santoni, S.; Glémin, S.; et al. Grinding up wheat: A massive loss of nucleotide diversity since domestication. Mol. Biol. Evol. 2007, 24, 1506–1517. [Google Scholar] [CrossRef] [Green Version]
  17. Wheeler, T.; von Braun, J. Climate change impacts on global food security. Science 2013, 341, 508–513. [Google Scholar] [CrossRef] [PubMed]
  18. Ceccarelli, S.; Grando, S.; Maatougui, M.; Michael, M.; Slash, M.; Haghparast, R.; Rahmanian, M.; Taheri, A.; Al-Yassin, A.; Benbelkacem, A.; et al. Plant breeding and climate changes. J. Agric. Sci. 2010, 148, 627–637. [Google Scholar] [CrossRef]
  19. Matthews, R.B.; Rivington, M.; Muhammed, S.; Newton, A.C.; Hallett, P.D. Adapting crops and cropping systems to future climates to ensure food security: The role of crop modelling. Glob. Food Secur. 2013, 2, 24–28. [Google Scholar] [CrossRef]
  20. Tuberosa, R.; Graner, A.; Varshney, R.K. Genomics of plant genetic resources: An introduction. Plant Genet. Resour. 2011, 9, 151–154. [Google Scholar] [CrossRef] [Green Version]
  21. Kyratzis, A.C.; Nikoloudakis, N.; Katsiotis, A. Genetic variability in landraces populations and the risk to lose genetic variation. The example of landrace ‘Kyperounda’ and its implications for ex situ conservation. PLoS ONE 2019, 14, e0224255. [Google Scholar] [CrossRef] [PubMed]
  22. Döring, T.F.; Knapp, S.; Kovacs, G.; Murphy, K.; Wolfe, M.S. Evolutionary plant breeding in cereals into a new era. Sustainability 2011, 3, 1944–1971. [Google Scholar] [CrossRef] [Green Version]
  23. Mondal, S.; Rutkoski, J.E.; Velu, G.; Singh, P.K.; Crespo-Herrera, L.A.; Guzman, C.G.; Bhavani, S.; Lan, C.; He, X.; Singh, R.P. Harnessing diversity in wheat to enhance grain yield, climate resilience, disease and insect pest resistance and nutrition through conventional and modern breeding approaches. Front. Plant Sci. 2016, 7, 991. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Dwivedi, S.L.; Ceccarelli, S.; Blair, M.W.; Upadhyaya, H.D.; Are, A.K.; Ortiz, R. Landrace germplasm for improving yield and abiotic stress adaptation. Trends Plant Sci. 2016, 21, 31–42. [Google Scholar] [CrossRef]
  25. Jain, S.K.; Qualset, C.O.; Bhatt, G.M.; Wu, K.K. Geographical patterns of phenotypic diversity in a world collection of durum wheats. Crop Sci. 1975, 15, 700–704. [Google Scholar] [CrossRef]
  26. Peccetti, L.; Annicchiarico, P. Grain yield and quality of durum wheat landraces in a dry Mediterranean region of Northern Syria. Plant Breed. 1993, 110, 243–249. [Google Scholar] [CrossRef]
  27. Moragues, M.; Zarco-Hernández, J.; Moralejo, M.A.; Royo, C. Genetic diversity of glutenin protein subunits composition in durum wheat landraces [Triticum turgidum ssp. turgidum convar. durum (Desf.) MacKey] from the Mediterranean Basin. Gen. Res. Crop Evol. 2006, 53, 993–1002. [Google Scholar] [CrossRef]
  28. Fahima, T.; Sun, G.L.; Beharav, A.; Krugman, T.; Beiles, A.; Nevo, E. RAPD polymorphism of wild emmer wheat populations, Triticum dicoccoides, in Israel. Theor. Appl. Genet. 1999, 98, 434–447. [Google Scholar] [CrossRef]
  29. Altıntas, S.; Toklu, F.; Kafkas, S.; Kilian, B.; Brandolini, A.; Ozkan, H. Estimating genetic diversity in durum and bread wheat cultivars from Turkey using AFLP and SAMPL markers. Plant Breed. 2008, 127, 9–14. [Google Scholar] [CrossRef]
  30. Zhuang, P.; Ren, Q.; Li, W.; Chen, G. Genetic diversity of Persian wheat (Triticum turgidum ssp. carthlicum) accessions by EST-SSR markers. Am. J. Biochem. Mol. Biol. 2011, 1, 223–230. [Google Scholar] [CrossRef]
  31. Peleg, Z.; Saranga, Y.; Suprunova, T.; Ronin, Y.; Röder, M.S.; Kilian, A.; Korol, A.B.; Fahima, T. High-density genetic map of durum wheat x wildemmer wheat based on SSR and DArTmarkers. Theor. Appl. Genet. 2008, 117, 103–115. [Google Scholar] [CrossRef] [PubMed]
  32. Rufo, R.; Alvaro, F.; Royo, C.; Soriano, J.M. From landraces to improvedcultivars: Assessment of genetic diversity and population structure of Mediterranean wheat using SNP markers. PLoS ONE 2019, 14, e0219867. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Phillips, S.; Wolfe, M. Evolutionary plant breeding for low input systems. J. Agric. Sci. 2005, 143, 245–254. [Google Scholar] [CrossRef] [Green Version]
  34. Masoni, A.; Calamai, A.; Marini, L.; Benedettelli, S.; Palchetti, E. Constitution of Composite Cross Maize (Zea mays L.) Populations Selected for the Semi-Arid Environment of South Madagascar. Agronomy 2020, 10, 54. [Google Scholar] [CrossRef] [Green Version]
  35. Ceccarelli, S.; Grando, S.; Baum, M. Participatory plant breeding in water-limited environments. Exp. Agric. 2007, 43, 411–435. [Google Scholar] [CrossRef]
  36. Sanchez-Garcia, M.; Álvaro, F.; Martín-Sánchez, J.A.; Sillero, J.C.; Escribano, J.; Royo, C. Breeding effects on the genotype x environment interaction for yield of bread wheat grown in Spain during the 20th century. Field Crops Res. 2012, 126, 79–86. [Google Scholar] [CrossRef]
  37. Ceccarelli, S.; Guimarães, E.P.; Weltzien, E. Plant Breeding and Farmer Participation; Food and Agriculture Organization of the United Nations: Rome, Italy, 2009. [Google Scholar]
  38. Doyle, J.J.; Doyle, J.L. A rapid DNA isolation procedure for small quantities of fresh leaf tissue. Phyt. Bull. 1987, 19, 11–15. [Google Scholar]
  39. Allen, A.M.; Winfield, M.O.; Burridge, A.J.; Downie, R.C.; Benbow, H.R.; Barker, G.L.; Wilkinson, P.A.; Coghil, J.; Waterfall, C.; Davassi, A.; et al. Characterization of a Wheat Breeders’ Array suitable for high-throughput SNP genotyping of global accessions of hexaploid bread wheat (Triticum aestivum). Plant Biotechnol. J. 2017, 15, 390–401. [Google Scholar] [CrossRef] [Green Version]
  40. Ceccarelli, S.; Grando, S. Plant breeding with farmers requires testing the assumptions of conventional plant breeding: Lessons from the ICARDA barley program. In Farmers, Scientists and Plant Breeding: Integrating Knowledge and Practice; David, D.A.C., Soleri, D., Eds.; CAB I Publishing International: Wallingford, UK, 2002; pp. 297–332. [Google Scholar]
  41. Winfield, M.O.; Allen, A.M.; Burridge, A.J.; Barker, G.L.A.; Benbow, H.R.; Wilkinson, P.A.; Coghill, J.; Waterfall, C.; Davassi, A.; Scopes, G.; et al. High-density SNP genotyping array for hexaploid wheat and its secondary and tertiary gene pool. Plant Biotechnol. J. 2016, 14, 1195–1206. [Google Scholar] [CrossRef]
  42. Tamura, K.; Nei, M. Estimation of the number of nucleotide substitutions in the control region of mitochondrial DNA in humans and chimpanzees. Mol. Biol. Evol. 1993, 10, 512–526. [Google Scholar]
  43. Tamura, K.; Stecher, G.; Peterson, D.; Filipski, A.; Kumar, S. MEGA6: Molecular Evolutionary Genetics Analysis Version 6.0. Mol. Bio. Evol. 2013, 2013, 2725–2729. [Google Scholar] [CrossRef] [Green Version]
  44. Paradis, C.J.; Strimmer, K. APE: Analyses of phylogenetics and evolution in R language. Bioinformatics 2004, 20, 289–290. [Google Scholar] [CrossRef] [Green Version]
  45. Pritchard, J.K.; Stephens, M.; Donnelly, P. Inference of population structure using multilocus genotype data. Genetics 2000, 155, 945–959. [Google Scholar]
  46. Evanno, G.; Regnaut, S.; Goudet, J. Detecting the number of clusters of individuals using the software STRUCTURE: A simulation study. Mol. Ecol. 2005, 14, 2611–2620. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  47. Ramasamy, R.K.; Ramasamy, S.; Bindroo, B.B.; Naik, V.G. STRUCTURE PLOT: A program for drawing elegant STRUCTURE bar plots in user friendly interface. SpringerPlus 2014, 3, 431. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  48. Jombart, T.; Devillard, S.; Balloux, F. Discriminant analysis of principal components: A new method for the analysis of genetically structured populations. BMC Genet. 2010, 11, 94. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  49. Jombart, T.; Collins, C. A Tutorial for Discriminant Analysis of Principal Components (DAPC) Using Adegenet 2.0.0; Imperial College London: London, UK, 2015. [Google Scholar]
  50. Chen, S.; Gopalakrishnan, P. Speaker, environment and channel change detection and clustering via the Bayesian Information Criterion. In Proceedings of the DARPA BroadcastNews Transcription and Understanding Workshop, Landsdowne, VA, USA, 8–11 February 1998. [Google Scholar]
  51. Yoshihiro, M. Evolution of Polyploid Triticum Wheats under Cultivation: The Role of Domestication, Natural Hybridization and Allopolyploid Speciation in their Diversification. Plant Cell Physiol. 2011, 52, 750–764. [Google Scholar]
  52. Feldman, M.; Sears, E.R. The wild gene resources of wheat. Sci. Am. 1981, 244, 102–113. [Google Scholar] [CrossRef]
  53. Mac Key, J. Wheat: Its concept, evolution, and taxonomy. In Durum Wheat Breeding: Current Approaches and Future Strategies, 1st ed.; Royo, C., Nachit, M., Difonzo, N., Araus, J., Pfeiffer, W., Slafer, G., Eds.; The Haworth Press: New York, NY, USA, 2005; pp. 3–61. [Google Scholar]
  54. Harlan, J.R. Ethiopia: A center of diversity. Econ. Bot. 1969, 23, 309–314. [Google Scholar] [CrossRef]
  55. Kabbaj, H.; Sall, A.T.; Al-Abdallat, A.; Geleta, M.; Amri, A.; Filali-Maltouf, A.; Belkadi, B.; Ortiz, R.; Bassi, F.M. Genetic Diversity within a Global Panel of Durum Wheat (Triticum durum) Landraces and Modern Germplasm Reveals the History of Alleles Exchange. Front. Plant Sci. 2017, 8, 1277. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  56. Rickman, G. The corn supply of ancient Rome; Oxford University Press: Oxford, UK, 1980; p. 304. [Google Scholar]
  57. De Cillis, U. I frumenti Siciliani, 9th ed.; Stazione sperimentale di granicoltura per la Sicilia: Caltagirone, Italy, 1942; pp. 1–323. [Google Scholar]
  58. De Vita, P.; Matteu, L.; Mastrangelo, A.M.; Di Fonzo, N.; Cattivelli, L. Effects of breeding activity on durum wheat traits breed in Italy during the 20th century. Ital. J. Agron. 2007, 451–462. [Google Scholar] [CrossRef] [Green Version]
  59. De Vita, P.; Nicosia, O.L.D.; Nigro, F.; Platani, C.; Riefolo, C.; Di Fonzo, N.; Cattivelli, L. Breeding progress in morpho-physiological, agronomical and qualitative traits of durum wheat cultivars released in Italy during the 20th century. Eur. J. Agric. 2007, 26, 39–53. [Google Scholar] [CrossRef]
  60. Fu, Y.B. Understanding crop genetic diversity under modern plant breeding. Theor. Appl. Genet. 2015, 128, 2131–2142. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  61. Laidò, G.; Mangini, G.; Taranto, F.; Gadaleta, A.; Blanco, A.; Cattivelli, L.; Marone, D.; Matrangelo, A.; Papa, R.; de Vita, P. Genetic Diversity and Population Structure of Tetraploid Wheats (Triticum turgidum L.) estimated by SSR, DArT and Pedigree Data. PLoS ONE 2013, 8, e67280. [Google Scholar]
  62. Murphy, K.; Lammer, D.; Lyon, S.; Carter, B.; Jones, S.S. Breeding for organic and low-input farming systems: An evolutionary-participatory breeding method for inbred cereal grains. Renew. Agric. Food. Syst. 2005, 20, 48–55. [Google Scholar] [CrossRef]
  63. Ruiz, M.; Aguiriano, E.; Carrillo, J. Effects of N fertilization on yield for low-input production in Spanish wheat landraces (Triticum turgidum L. and Triticum monococcum L.). Plant Breed. 2008, 127, 20–23. [Google Scholar] [CrossRef]
  64. Stagnari, F.; Onofri, A.; Codianni, P.; Pisante, M. Durum wheat varieties in N-deficient environments and Organic farming: A comparison of yield, quality and stability performances. Plant Breed. 2013, 132, 266–275. [Google Scholar] [CrossRef]
Figure 1. (A) Bayesian tree of 265 tetraploid wheat genotypes based on single-nucleotide polymorphism (SNP) genetic markers and colored according to subspecies classification. Branch colors: yellow for T. turgidum ssp. durum, orange for T. turgidum ssp. dicoccon, brown for T. turgidum ssp. turanicum, grey for T. turgidum ssp. polonicum, blue for T. turgidum ssp. turgidum, pale blue for T. turgidum ssp. paleocolchicum, red for T. turgidum ssp. carthlicum, green for T.turgidum dicoccoides, and violet for the T. aestivum outgroup accession. (B) Phylogenetic tree of 265 tetraploid wheat genotypes based on SNP genetic markers and colored according to discriminant analysis of principal components (DAPC) clusterization.
Figure 1. (A) Bayesian tree of 265 tetraploid wheat genotypes based on single-nucleotide polymorphism (SNP) genetic markers and colored according to subspecies classification. Branch colors: yellow for T. turgidum ssp. durum, orange for T. turgidum ssp. dicoccon, brown for T. turgidum ssp. turanicum, grey for T. turgidum ssp. polonicum, blue for T. turgidum ssp. turgidum, pale blue for T. turgidum ssp. paleocolchicum, red for T. turgidum ssp. carthlicum, green for T.turgidum dicoccoides, and violet for the T. aestivum outgroup accession. (B) Phylogenetic tree of 265 tetraploid wheat genotypes based on SNP genetic markers and colored according to discriminant analysis of principal components (DAPC) clusterization.
Agronomy 11 00414 g001

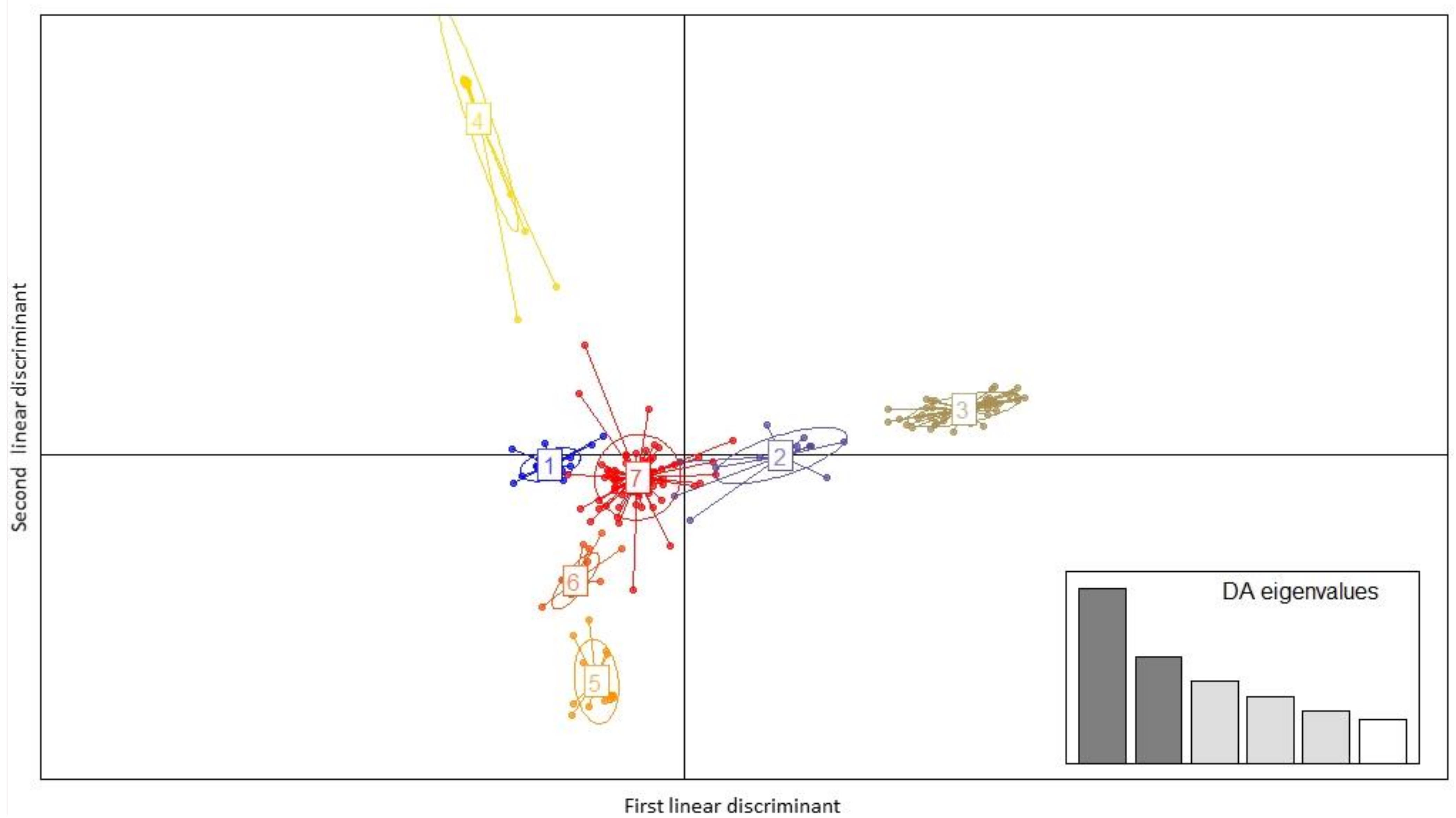

Figure 2. DAPC results for the 265 accessions of Triticum turgidum L. used in the analysis. The first two linear discriminants (LDs) are represented by the axes. Each circle with the relative number and color represents one identified cluster, and each dot represents one accession.
Figure 2. DAPC results for the 265 accessions of Triticum turgidum L. used in the analysis. The first two linear discriminants (LDs) are represented by the axes. Each circle with the relative number and color represents one identified cluster, and each dot represents one accession.
Agronomy 11 00414 g002

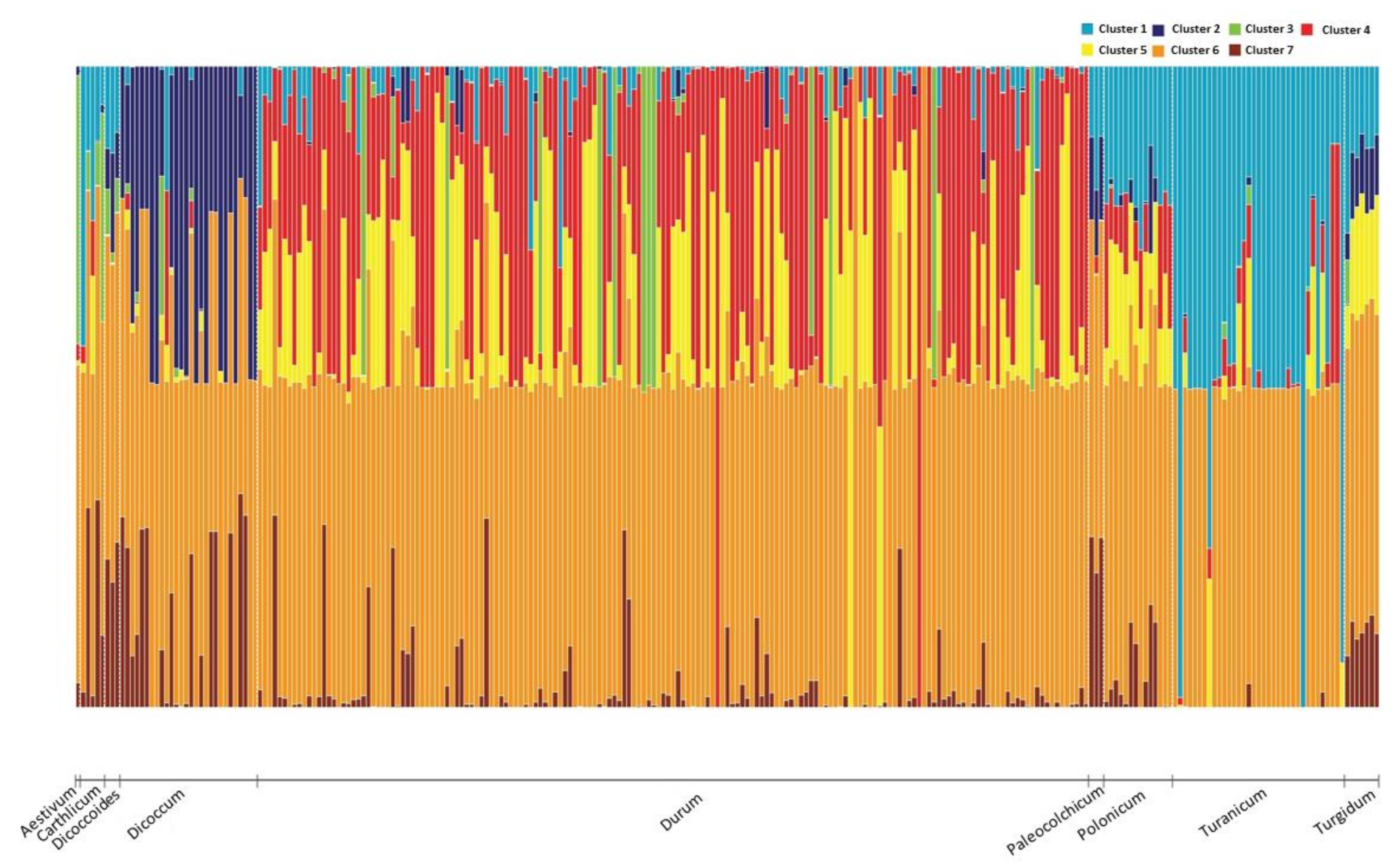

Figure 3. Diversity in admixture analysis by STRUCTURE among the 265 tetraploid wheat accessions. Each individual is represented by a horizontal line. Color codes follow the number of clusters, while the bar line under the graph represents the subspecies groups plus the outgroup genotypes (T. aestivum).
Figure 3. Diversity in admixture analysis by STRUCTURE among the 265 tetraploid wheat accessions. Each individual is represented by a horizontal line. Color codes follow the number of clusters, while the bar line under the graph represents the subspecies groups plus the outgroup genotypes (T. aestivum).
Agronomy 11 00414 g003
