The bleeding heart (Lamprocapnos spectabilis
(L.) Fukuhara) is a root perennial from the family Fumariaceae, originating in China and Japan [1
]. It owes its name to the extraordinary shape of the flowers, which look like a heart with a variety of colors from white through pink to red. In nature, it can be found in the forests of North America and Asia where it forms magnificent clumps. The species is highly appreciated in the pharmaceutical, horticultural, and floristic markets [2
]. Unfortunately, there are just a few studies related to biotechnology and tissue culture of bleeding heart [4
In-vivo cultivation of L. spectabilis
is hampered by weeds, numerous pathogens, and pests, i.e., thrips (Thripidae
), whiteflies (Aleyrodidae
), slugs and snails (Gastropoda
spp., fungal leaf spots (Stemphyllium
), southern blight (Sclerotium rolfsii
Sacc.), gray mold (Botrytis cinerea
Pers.), tobacco rattle tobravirus (which is the most devastating among viruses), tobacco ringspot nepovirus, tobacco mosaic virus, ribgrass mosaic virus, and the aster yellows phytoplasma [2
]. All of them can cause severe plant losses. Maintenance of in-vivo collections is also labor intensive. Moreover, due to the changing climate conditions, resulting in prolonged drought and other abiotic stresses [7
], one of the most urgent needs is to develop effective long-term storage methods of species genetic resources.
The easiest way to conserve plant germplasm is to collect seeds in gene banks. However, this is not the case with bleeding heart. Members of the Fumariaceae family have some of the most complex and extended germination patterns in the plant kingdom [8
]. Bleeding heart produces recalcitrant seeds, for which drying is either fatal or severely deleterious [8
]. Moreover, offspring do not have the same genetic set up when propagated by seed. In-vitro, slow-growth conservation is possible [9
], but it comes with a cost and the possibility that somaclonal variation will occur over time [10
]. Cryopreservation can solve these issues and allows us to store plant genetic resources at the ultra-low temperature of liquid nitrogen (LN), at which biological and chemical activities are halted.
An encapsulation–dehydration cryoprotocol has been described for bleeding heart [11
]. This method, however, is time consuming, and its effectiveness is limited (survival < 40%). Therefore, other techniques based on dehydration with plant vitrification solutions (PVS) should be considered. PVSs are aqueous solutions of penetrating and nonpenetrating cryoprotectants, which can be cooled to temperatures below the glass transition temperature without intracellular or extracellular ice formation [12
]. The most popular PVS (PVS2) was optimized by Prof. Akira Sakai in 1990 for cooling citrus callus and consists of 30% glycerol, 15% ethylene glycol, 15% dimethyl sulfoxide (DMSO), and 0.4 M sucrose. PVS2 easily supercools below −100 °C upon rapid cooling and ‘solidifies’ into a metastable glass at about −115 °C [13
]. DMSO, however, may be toxic for the cells and/or affect the structure of chromosomes and expression of genes [14
]. Ethylene glycol, on the other hand, can lead to premature senescence of tissues [15
]. In 1993, Nishizawa et al. [16
] developed PVS3 (50% glycerol and 50% sucrose), which is preferred for explants that are damaged by DMSO. The final decision on PVS type, concentration, and exposure duration is species- and explant-type-dependent [17
]. Other important elements of a cryopreservation protocol that require consideration are the composition of the bead matrix (in case of encapsulation-based techniques) and selection of plant growth regulators (PGRs) in the recovery medium, as they directly affect the postcryopreservation reaction of explants [17
]. Therefore, the aim of this study was to analyze for the first time the effect of bead composition, type of PVS, and recovery medium in cryopreservation of bleeding heart.
2. Materials and Methods
2.1. Plant Material and General In-Vitro Culture Conditions
Lamprocapnos spectabilis ‘Valentine’ shoot tips with 2–3 young leaves covering the meristem (1.0–2.0 mm in length) were used in the experiments.
Plant material was multiplied by cutting into 1.0-cm-long nodal segments and cultured on modified MS medium [18
] with extra 330-mg·L−1
calcium II chloride (CaCl2
iron sulfate (FeSO4
O, and 3.0-mg·L−1
kinetin (KIN). Plant growth regulators were provided by Sigma–Aldrich®
, St. Louis, MO, USA.
Cultures were kept in the growth room at 23 °C ± 1 °C, under 16-h photoperiod conditions and photosynthetic photon flux density of approximately 30 µmol·m−2·s−1 provided by standard cool daylight TLD 54/36W fluorescent tubes (Philips Electronics N.V., Eindhoven, the Netherlands).
To produce and harden the shoot tips, in-vitro-derived single node explants with removed leaves were cultured for one week on modified MS medium with 9% sucrose, 1.0-mg·L−1 KIN, and 2.62-mg·L−1 of abscisic acid (ABA). The medium was solidified with 0.8% agar (Biocorp, Warsaw, Poland). The pH was adjusted to 5.8 after adding all media components (Chempur, Piekary Śląskie, Poland) before autoclaving at 105 kPa and 121 °C for 20 min. The media (30-mL) were distributed into 350-mL glass jars and sealed with plastic caps. Ten explants were inoculated polarly into one jar.
2.3. Experiment I: Comparison of Bead Matrix and Culture Medium Composition on the Recovery of Non-LN-Stored Shoot Tips of Bleeding Heart
Precultured shoot tips were excised and embedded for 10 min in 3% sodium-alginate (Carlo Erba, Val-de-Reuil, France), based either on the modified MS medium salts (as described above, without CaCl2) or distilled water, supplemented with 9% sucrose. Then, the beads, 3–4 mm in diameter, were hardened in 100-mM CaCl2 solution for 30 min. The encapsulated explants were rinsed three times with distilled sterile water and inoculated on the 30-mL modified MS recovery medium fortified with 3.0-mg·L−1 KIN, 0.5-mg·L−1 6-benzyladenine (BA), or PGRs-free control in a 90-mm Petri dish sealed with a parafilm with 10 explants per dish.
2.4. Experiment II: Comparison of PVS2 and PVS3 Effectiveness in Cryopreservation of Bleeding Heart
Precultured shoot tips were excised and embedded in 3% calcium alginate based on the modified MS medium salts (as described above) and osmoprotected with loading solution (2.0 M glycerol and 0.4 M sucrose) for 20 min. Next, the explants were dehydrated with 1/2 (half-strength) PVS2 (for 10–90 min), PVS2 (10–180 min), or PVS3 (120–180 min) at room temperature. Ten beads were placed in a 2.0-mL sterile cryovial and immersed in LN.
After one hour of storage, the cryovials were removed from LN and rewarmed in a water bath at 39 ± 1 °C for 3 min. The explants were rinsed with washing solution (liquid MS medium with 1.2 M sucrose) for 20 min. Next, the shoot tips were inoculated on the 30-mL modified MS recovery medium with 3% sucrose and 0.5-mg·L−1 BA in a 90-mm Petri dish. The cultures were kept in the same growth room, in darkness. After 48 hours, the explants were transferred to a 16-h photoperiod and kept at the light intensity of approximately 15 µmol·m−2·s−1 for 5 days. One week after rewarming, the shoot tips were cultured under initial lighting conditions.
2.5. Survival and Biometrical Analyses
Recovery of the explants (i.e., their ability to form shoots) was evaluated 45 days after culture initiation. The number, length, fresh weight (FW) and dry weight (DW) of shoots, as well as the number of leaves, were estimated. To analyze DW, shoots were desiccated in a laboratory oven at 105 °C for 180 min. The share of explants regenerating adventitious roots was also counted.
2.6. Statistical Analysis
The first experiment, regarding the composition of the bead matrix and recovery medium without subsequent LN storage, included six combinations (10 explants per combination). The second experiment studied 18 combinations (10 explants per combination). The experiments were repeated twice; a total of 480 explants were used.
The results (completely randomized design) were statistically analyzed with the one-way analysis of variance, and the comparison of means was made with Fisher’s test (p ≤ 0.05) using Statistica 12.0 and ANALWAR-5.2-FR software.
In the present study, a positive influence of BA and KIN on the recovery level of encapsulated shoot tips in L. spectabilis
‘Valentine’ was found. In four chrysanthemum cultivars of the Lady group, the addition of those cytokinins into the culture medium was also necessary to stimulate the germination of synthetic seeds [19
]. Cytokinins, N6-substituted derivates of adenine, promote photosynthesis, growth, and differentiation of cells [20
], which could explain the present results. Similarly, the addition of MS salts into the bead matrix positively affected the recovery of shoots in bleeding heart, probably due to easier access to nutrients in the artificial endosperm. Surprisingly, KIN reduced the length of shoots (8.6–9.0 mm) compared to those from the PGRs-free control medium (11.8–11.9 mm). Usually, this cytokinin is involved in cell elongation and activation of existing meristems. In the present study, explants inoculated on the medium with KIN produced twice as many shoots (1.9–2.0) compared to MS0 (1.0), which could explain their shorter length. Interestingly, in this research, despite the high fresh weight of shoots produced on the BA-supplemented medium, a higher share of DW was found in the presence of KIN and PGRs-free control, especially if MS salts were added into the bead matrix (12.5–12.6%). A higher level of hydration resulting from the long BA treatment was previously reported with Aloe polyphylla
Schönland meristems by Ivanova and Van Staden [21
]. This problem could be overcome by shortening the BA treatment or lowering its concentration in the medium. In several plant species, it was reported that optimal root formation occurred in the presence of auxins and cytokinins [22
]. With bleeding heart, BA was more effective in stimulating rooting than KIN or MS0 medium. As for cherry shoots (Prunus avium
L.), up to 70–100% rhizogenesis efficiency was found on the medium with 0.1 mg·L−1
BA, although similar frequency was found on the PGRs-free control [23
]. As for chrysanthemum synseeds, KIN was more effective in stimulating rooting than BA [19
]. This highlights the species dependency effect of PGRs.
The success of cryopreservation strongly depends on the procedure used for adapting plant material to cryogenic storage. The methods used in this study have proven effectiveness, as even 68.3% of shoot tips survived and recovered after LN storage. Those results are better compared with cryopreservation of ajania ‘Bengo’ shoot tips (8.3% regrowth) and protocorm-like bodies (PBLs) of some orchid species (5–20% regeneration) [24
]. Generally, the viability of bleeding heart explants was stable throughout the entire postrewarming observation period. This fact is important, as survival does not always equal plantlet regrowth as reported by Kulus et al. [27
]. In the present study, however, the LN-derived viable shoot tips undertook their native program of development continuation.

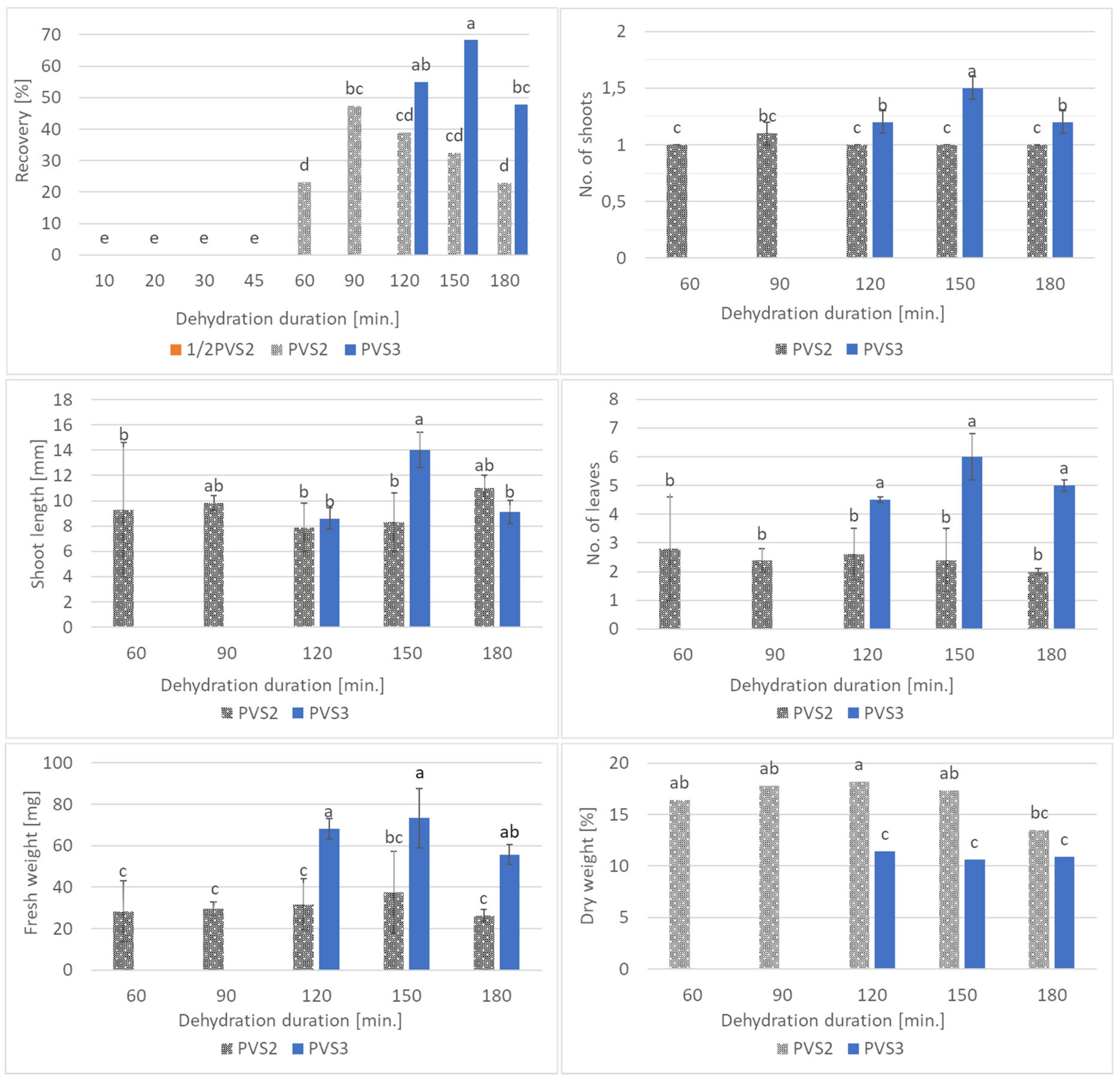

PVS3 was more effective in cryopreservation of bleeding heart shoot tips than PVS2 in terms of survival and biometrical parameters of shoots produced. This coincides with the findings of Kim et al. [12
] in garlic and chrysanthemum in a droplet-vitrification procedure. Additionally, in Allium cepa
L. cryopreserved samples, exposure to PVS3 provided a broader safe-temperature range (−196 °C to −88 °C), compared to that (−196 °C to −116 °C) of PVS2 [28
]. In contrast, the highest recovery rates for both Passiflora suberosa
L. and P. foetida
L. (28% and 60%) were reported with the encapsulation–vitrification protocol after pretreatment with 0.3-M sucrose, followed by exposure to PVS2 for 60 or 120 min, respectively [29
]. Low recovery rates of explants pretreated with PVS2 in the present study (22.9–47.3%) may be either due to toxicity from exposure to cryoprotectant solutions; specifically, DMSO has been noted for its cytotoxicity [28
] and insufficient protection against freezing injury. This hypothesis is supported by the increase in the DW content in PVS2-treated shoots, which might be a result of stress and defense reaction of the cell manifested by the accumulation of lignin and various osmoprotectants in the cell wall [30
]. Analyzing the dynamics of survival change in relation to PVS2-treatment duration, it can be concluded that optimal dehydration was obtained after 90 min of exposure; both shorter and longer expositions were less effective (recovery levels below the so-called “safe limit” of 40%). As for PVS3, a broader safe duration range (120–180 min) was found. Half-strength PVS2 was not able to dehydrate the cells sufficiently enough as no survival was reported in those combinations, regardless of exposition time. Since the regrowth level of non-LN-stored shoot tips reached up to 81.3%, the impact of mechanical damage during excision can be considered minimal.
It is believed that cryopreservation does not affect the parameters of stored biological material. Previous research demonstrated no impact of the encapsulation-based cryoprotocols on the genetic stability in L. spectabilis
]. However, in the present study, slower development of cryopreservation-derived shoot tips was reported (growth was evident one week later than in the precultured–encapsulated but non-LN-stored samples and two weeks later than in the non-treated “naked” explants). There were also no roots found in cryopreservation-derived shoots in contrast to non-LN-stored samples cultured in the same recovery medium. Similarly, control shoots of Rosa dumalis
Bechst. and R. rubiginosa
L. rooted better than postcryopreserved shoots, while there were no differences in rooting between the control and cryopreservation-derived shoots of R. agrestis
Savi and R. canina
]. Therefore, the behavior and functionality of bleeding heart plants recovered from cryopreserved samples should be monitored once they are reintroduced into the natural environment.
