Article

Bacterial Community in Soils Following Century-Long Application of Organic or Inorganic Fertilizers under Continuous Winter Wheat Cultivation

by
Xiufen Li
1,2,
Shiping Deng
1,*,
William R. Raun
1,
Yan Wang
1 and
Ying Teng
3
1
Department of Plant and Soil Sciences, Oklahoma State University, Stillwater, OK 74078, USA
2
Texas A&M AgriLife Research Center at Beaumont, Texas A&M University System, Beaumont, TX 77713, USA
3
Institute of Soil Science, Chinese Academy of Sciences, Nanjing 210008, China
*
Author to whom correspondence should be addressed.
Agronomy 2020, 10(10), 1497; https://doi.org/10.3390/agronomy10101497
Submission received: 30 July 2020 / Revised: 18 September 2020 / Accepted: 29 September 2020 / Published: 1 October 2020
(This article belongs to the Section Soil and Plant Nutrition)
Browse Figures
Versions Notes

Abstract

:
Fertilization is one of the most common agricultural practices to achieve high yield. Although microbes play a critical role in nutrient cycling and organic matter decomposition, knowledge of the long-term responses of the soil bacterial community to organic and inorganic fertilizers is still limited. This study was conducted to evaluate the effects of century-long organic (manure), inorganic (NPK), and no fertilization (control) treatments on soil bacterial community structure under continuous winter wheat (Triticum aestivum L.) cultivation. Fertilization treatments altered the richness, diversity and composition of the soil bacterial community. Compared with the control, manure significantly increased the operational taxonomic units (OTUs), Chao 1 and Shannon indices, and taxonomic groups, while NPK significantly decreased these parameters. Fertilization treatments did not alter the types of dominant phyla but did significantly affect their relative abundances. Acidobacteria and Proteobacteria were the most dominant phyla in all treatments. Manure led to enrichment of most phyla, with a diazotrophic group, Cyanobacteria, being an exception; NPK reduced most phyla, but enriched Chloroflexi; control led to promotion of Cyanobacteria. Soil pH and NO3− were two dominant parameters influencing the bacterial community structure. Soil pH positively correlated with the relative abundances of Proteobacteria and Gemmatimonadetes but negatively correlated with those of Acidobacteria and Chloroflexi; NO3− negatively correlated with the relative abundance of Cyanobacteria, which was 14–52 times higher in control than the fertilized soils. Cyanobacteria, especially M. paludosus and L. appalachiana, could be the key players in maintaining wheat productivity in the century-long unfertilized control.

1. Introduction

Understanding the soil microbial community structure presents understated challenges, largely due to the complex nature of the system and the enormous abundance and diversity of the community residing within [1]. Bacteria comprise over 70% of the total soil microorganisms [1,2,3]. With as many as one billion bacterial cells and an estimated 8.3 million species in each gram of soil [4], the challenges in revealing and understanding the richness, diversity and composition of soil microbial community are thought-provoking. Nevertheless, the importance of the soil microbial community in nutrient acquisition, cycling, and availability is amply evidenced [5,6,7,8].
Numerous studies have demonstrated that healthy soil harbors abundant and diverse microbes, while environmental perturbation and management practices could lead to changes in microbial community structure that impact soil health and productivity [5,6,7,8,9]. Although long-term manure application resulted in enrichment of soil organic matter and microbial abundance [5,10,11,12,13], it did not always translate into higher crop yield than soils supplemented with inorganic fertilizers [5,14]. Long-term inorganic fertilizer addition, on the other hand, may lead to soil acidification and decreases in microbial abundance and diversity [5,11,13,15]. Based on an analysis of 22 soils from a liming experiment spanning > 60 years, Rousk et al. [10] found that both relative abundance and diversity of bacteria were positively correlated with soil pH in the range from 4.0 to 8.3. In contrast, Lauber et al. [16] found that bacterial richness peaked in the near-neutral pH range based on analysis of 132,088 16S rRNA sequences from 88 soils. The observed inconsistency could, in part, be due to gradual system-level changes that make their detection challenging [7,8,17]. Although the dominant bacterial phyla in soil are reported to be Proteobacteria, Acidobacteria, Actinobacteria, Verrucomicrobia, and Bacteroidetes [18], their relative abundances varied considerably in pristine forest, grassland, winter wheat fields, and rice paddies [13,19,20,21,22]. Of soil properties, carbon and N availabilities and pH are recognized as key factors governing changes in the soil bacterial community composition. However, the relative importance of these factors in driving changes in specific bacterial groups that impact ecosystem function and soil productivity is still not clear.
A century-long continuous winter wheat (Triticum aestivum L.) experiment provided an opportunity for extending our understanding of the effect of long-term organic and inorganic fertilizations on the bacterial community structure. We hypothesized that different fertilization practices would differentially affect soil properties and bacterial communities over century-long wheat cultivation. Insights gained from long-term studies are crucial to support sustainable wheat production. The specific objectives were to (1) evaluate richness, diversity, and composition of the soil bacterial community in response to century-long organic, inorganic, and no fertilization regimes under continuous winter wheat cultivation; and (2) identify drivers in these soils that govern the richness, diversity and composition of the bacterial community.

2. Materials and Methods

2.1. Site Description and Soil Sampling

This study was conducted in a century-long continuous winter wheat (Triticum aestivum L.) experimental field established in 1892 in central Oklahoma, USA (36°7′11″ N, 97°5′19″ W). The soil is a Kirkland silt loam (fine, mixed, thermic Udertic Paleustolls) with 37.5% sand, 40% silt, and 22.5% clay. Annual precipitation in this region (CD5 Central Oklahoma, OK, USA) ranged from 483 to 1448 mm (average 874 mm) and annual air temperature ranged from 14.4 to 17.7 °C (average 15.8 °C) based on data from 1895 to 2019 (https://climate.ok.gov). The field was conventionally tilled before planting every year. Comprehensive descriptions of this experimental site, soil properties, and winter wheat yield from 1892–2014 have been reported by Omara et al. [14], Girma et al. [23], and Aula et al. [24]. In this study, soil treatments were: no fertilizer added (Control), organic fertilizer applied in the form of cattle manure (Manure), and inorganic nitrogen, phosphorus, and potassium fertilizers (NPK). The manure treatment was initiated in 1899 and NPK treatment was added in 1929. Cattle manure from a feedlot was applied every four years at 269 kg N ha−1 and inorganic NPK fertilizers were applied annually in October before planting at 67 kg N ha−1, 14.6 kg P ha−1, and 28 kg K ha−1 in the forms of NH4NO3, Ca(H2PO4)2, and KCl, respectively.
When the field experiment was initiated in 1892, the application of statistics to research was not yet firmly established. To compensate for the limited degrees of freedom from replication restrictions, we used an adapted sampling design to obtain three replicated samples from each fertilization treatment and repeated the study in two consecutive years (2012 and 2013). In each year, each treatment plot (30.5 × 6.1 m) was divided into three subplots (10.2 × 6.1 m) after wheat harvest. Five soil cores (0–15 cm) were collected from each subplot and composited as one soil sample. A total of 18 composite soil samples were collected for the three treatments in two years. Following sample collection, soils were placed in a cooler with dry ice and transported to the laboratory. Each field-moist sample was then passed through a 2 mm sieve, mixed thoroughly, and divided into two portions. One portion was air-dried and stored at room temperature for chemical analyses, and the other was freeze-dried and stored at −80 °C for subsequent biological and genetic analyses.
Soil pH was determined using a soil: water ratio of 1:2.5 (v/v) and a combination glass electrode (Mettler-Toledo International Inc., Columbus, OH, USA). Soil organic carbon (SOC) and total nitrogen (TN) were determined using a Carlo-Erba NA 1500 nitrogen/carbon/sulfur analyzer [25]. Soil NH4+ and NO3− were extracted using 2 M KCl and analyzed with a BioTek Epoch 2 microplate reader (BioTek Instruments, Inc., Winooski, VT, USA) at OD660 and OD550, respectively. Microbial biomass carbon (MBC) was determined using the chloroform-fumigation incubation method with a Kc factor of 0.45 [26,27].

2.2. Soil DNA Extraction, PCR Amplification and Sequencing

Soil DNA was extracted from 0.5 g soil using an Ultra Clean Soil DNA Isolation Kit (MO BIO Laboratories, Inc., Carlsbad, CA, USA) according to the manufacturer’s instructions. The quality and quantity of DNA was evaluated utilizing agarose gel electrophoresis and a NanoDrop-1000 spectrophotometer (NanoDrop Technologies, Inc., Wilmington, DE, USA). All extracted DNA had an A260/A280 > 1.8 and was of sufficient purity to be used in a polymerase chain reaction (PCR) following a 10-fold dilution with nuclease-free water.
PCR primers were 27F (5′-AGA GTT TGA TCC TGG CTC AG-3′) and 1492R (5′-GGT TAC CTT GTT ACG ACT T-3′) [28,29]. Each 25 µL PCR reaction mixture contained 1 µL of template DNA at 0.25 ng µL−1, 1 µL each of the forward and reverse primers at 10 µM, 12.5 µL of Taq 2X Master Mix (New England Biolabs Inc., Ipswich, MA, USA), and 9.5 µL of H2O. After an initial denaturation for 2 min at 94 °C, amplification was carried out in 35 cycles with each cycle consisting of denaturation (40 s, 94 °C), annealing (40 s, 49 °C), and extension (40 s, 72 °C). The extension in the final cycle was 2 min. The expected amplicons were about 1465 base pairs (bp). All PCR products were evaluated to confirm the expected size, quantified using a NanoDrop-1000 spectrophotometer, and purified using a Gel/PCR DNA Fragments Extraction Kit (IBI Scientific, Peosta, IA, USA) prior to being sequenced. Sequencing was done using a Roche 454 FLX/FLX+ platform at the Research and Testing Laboratory (RTL), Lubbock, TX (https://www.medicalbiofilm.org/index.html). PCR amplicons in the region 939F to 1492R targeting the V6-V9 hypervariable regions of the 16S rRNA gene were sequenced [30,31].

2.3. Bioinformatics and Statistical Analyses

Prior to downstream analyses, de-noising and chimera checking were performed on the sequences using USEARCH [32] and UCHIME [33] to remove low quality sequences and error reads. Sequences with less than 250 bp, sequences with quality scores less than 25, and all chimeric sequences were removed [32,33,34,35]. The remaining 16S rRNA sequences were clustered into operational taxonomic units (OTUs) at 97% similarity using UPARSE [36]. Clusters with <2 members (singleton clusters) were removed.
The filtered high-quality sequences were analyzed to reveal the richness, diversity, and composition of soil bacterial communities under different fertilization treatments. Microbial α-diversity analyses were conducted using MOTHUR 1.44.1 and the Schloss standard procedure (http://www.mothur.org/) with modifications [37,38]. The 16S rRNA RDP reference database (Trainset9_032012.rdp) [39] was used to support analyses in MOTHUR. The evaluated α-diversity indices included two richness indices, Chao 1 [40] and abundance-based coverage estimator (ACE) [41], and two diversity indices, Shannon [42] and reverse Simpson (Invsimpson) [43]. Taxonomic assignment was conducted using the USEARCH global alignment algorithm against a database of high-quality 16S rRNA sequences derived from NCBI [32]. Three-way Venn diagrams (Venny 2.0, http://bioinfogp.cnb.csic.es/tools/venny/index.html) were used to reveal taxonomic groups that were shared by two or three treatments and taxonomic groups that were specific to one of the treatments.
One-way multivariate analysis of variance (MANOVA) was conducted in R 3.6.3 (https://www.r-project.org/; [44]) to determine whether soil properties, number of OTUs, α-diversity indices, and the relative abundance of bacterial phyla differ among treatments. Mean separation was carried out according to the Tukey’s honestly significant difference post hoc test (HSD, p ≤ 0.05). Pearson’s correlations between soil properties and the relative abundance of each bacterial phylum and their significances (p) were assessed with the “corr” function at p ≤ 0.05.
The variations in bacterial community structure among different treatments (β-diversity) were evaluated by non-metric multi-dimensional scaling (NMDS) analysis using the “vegan” package in R. Bray–Curtis distance matrix and the “ordiellipse” function were used to generate the NMDS plot. Permutational multivariate analysis of variance (PERMANOVA) was performed to test effects of different fertilizers on β-diversity using the “adonis” function (999 permutations) at a p value of 0.05. The multi-response permutation procedure (MRPP) was used to compare the within-groups dissimilarities (WD) and between-groups dissimilarities (BD) at p ≤ 0.05. Pearson’s correlation coefficients (r) between the NMDS scores and tested soil properties were calculated with the “cor” function. Significant treatment differences (p ≤ 0.05) were tested with the post hoc permutation tests with 999 permutations. Vectors of Pearson’s correlations between the NMDS scores and tested soil properties were added to the NMDS plot using the “envfit” function.

3. Results

3.1. Bacterial Richness and Diversity

A total of 42,087 high-quality 16S rRNA gene sequences were used for the microbial community structure analyses. Bacterial rarefaction curves of the observed OTUs numbers approached plateaus in all treatments (Figure 1), indicating that the number of 16S rRNA sequences obtained in each treatment was sufficient to reveal detectable genotypes in the community. Bacterial richness and diversity were evaluated based on the number of OTUs observed in each soil, richness indices, diversity indices, and taxonomic groups specific to each treatment (Table 1 and Table 2, Figure 1 and Figure 2). The sequences were clustered into 1463, 1580, and 834 OTUs at 97% similarity in control, manure, and NPK treatments, respectively (Table 1). Bacterial richness and diversity indices, including Chao 1, Shannon, and Invsimpson, were significantly higher in manure and control treatments, and lower in NPK treatment (Table 1). The number of bacterial groups’ at all taxonomic levels from phylum to species were consistently and significantly lower in NPK than control or manure treatments. Manure had 1–1.3 times the bacterial groups compared with the control, while NPK had 72‒84% of the number of bacterial groups detected in the control (Table 2).
The number of bacterial groups that were shared by two or three treatments and the number of bacterial groups that were specific to one treatment are illustrated in the three-way Venn diagrams (Figure 2). Higher grouping resolutions yielded higher percentages of bacterial groups that were specific to one treatment. At the phylum level, bacterial groups specific to control and manure treatments accounted for 7.7% and 10.3% of total phyla, respectively; bacterial groups specific to the NPK treatment were not detected at this taxonomic level. At the species level, bacterial groups specific to control, manure, and NPK treatments comprised 16.1%, 31.4%, and 10.4% of the total species, respectively. About 64% of the detected phyla were shared among the three treatments; while only 19% of the species were shared among the three soils. Of the soils tested, the number of bacterial groups specific to one treatment was generally highest in manure, followed by control, and lowest in NPK. Of the 399 species detected, 125 were specific to manure, 64 were specific to the control, while 42 species were unique to the NPK treatment. Compared to manure, NPK had a greater degree of impact on soil bacterial richness and diversity. Phyla or classes specific to NPK were not detected. At the species level, about 10.4% were specific to NPK, which was significantly lower than the 16.1% and 31.4% specific to control and manure, respectively.

3.2. Bacterial Community Composition

The non-metric multi-dimensional scaling (NMDS) analysis based on the relative abundance of bacterial groups indicated significant (p ≤ 0.01) differences in the composition of soil bacterial communities under different fertilization regimes (Figure 3). The result was further supported by the significantly (p ≤ 0.01) larger between-groups distance (dissimilarity) than within-group distance based on the MRPP analysis (Figure 3). To further evaluate the effects of different fertilization regimes on the composition of the soil bacterial community, we compared the relative abundance of bacterial phyla among the treatments (Figure 4). Of the 14 phyla detected in one or more soils in both years, Acidobacteria and Proteobacteria were most dominant, averaging 45.8% and 22.0%, respectively. Additional phyla included Actinobacteria (8.6%), Chloroflexi (6.2%), Firmicutes (4.9%), Bacteroidetes (4.4%), Verrucomicrobia (2.7%), Nitrospirae (2.4%), Gemmatimonadetes (1.3%), Cyanobacteria (0.94%), and TM7 (0.40%). Although the relative abundance of Firmicutes was not significantly different among soil treatments, the relative abundance of some bacterial groups varied considerably. For example, the relative abundance of Actinobacteria was highest in control, followed by manure, and lowest in NPK. The relative abundance of Chloroflexi, on the other hand, was highest in NPK, followed by control, and lowest in manure. The abundance of Cyanobacteria, a diazotrophic group, was significantly higher in the unfertilized control (2.59%), compared with manure (0.19%) or NPK (0.05%) treatments. Focusing on Cyanobacteria, Microcoleus paludosus and Leptolyngbya appalachiana were the two most dominant species, with the control population reaching 39 and 55 times of those in manure and NPK treatments, respectively (Figure 5). Compared to the control, manure application generally led to enrichment of Proteobacteria, Nitrospirae, Bacteroidetes, and Gemmatimonadetes, and declines in Acidobacteria, Chloroflexi, Verrucomicrobia, and Cyanobacteria; NPK application resulted in higher relative abundances of Acidobacteria, Chloroflexi, Nitrospirae, Bacteroidetes, and TM7, but lower relative abundances of Actinobacteria, Verrucomicrobia, Cyanobacteria, and Gemmatimonadetes.
Deinococcus-Thermus, Fibrobacteres and Thermodesulfobacteria were less dominant bacterial phyla detected in control and manure treatments, but not in NPK. Deinococcus-Thermus populations were near the detection limit in the control but averaged 0.02% of the community in manure-treated soils. Application of manure also promoted Fibrobacteres, averaging 0.22% of the community compared to 0.04% in the control. The impact of manure treatment on Thermodesulfobacteria was limited, and these bacteria were not detected in NPK-treated soils.

3.3. Soil Parameters and Their Relationships with Bacterial Community Structure

Century-long research plots with different fertilization regimes had significantly different soil pH, ranging from 4.6 (NPK) to 6.6 (manure) (Table 3). The trends observed for soil organic C (SOC), total N (TN), and microbial biomass C (MBC) were similar, being significantly higher in the two fertilized soils compared to the unfertilized control. Differences between manure and NPK treatments were not significant.
Focusing on the plant-available forms of N, NH4+ was significantly higher in manure than NPK, but NO3− was significantly higher in NPK compared to the manure treatment. NMDS analysis and Pearson’s correlation further showed the interrelationships between soil properties and the bacterial community composition (Table 4, Figure 2). Of the evaluated soil properties, soil bacterial community structure was significantly correlated to pH (r = 0.786, p ≤ 0.05) and NO3− (r = 0.933, p ≤ 0.01). Of the 20 dominant phyla detected, pH had significant positive correlations to Proteobacteria (r = 0.703, p ≤ 0.05) and Gemmatimonadetes (r = 0.700, p ≤ 0.05), and significant negative correlations to Acidobacteria (r = −0.744, p ≤ 0.05) and Chloroflexi (r = −0.766, p ≤ 0.05). Similarly, NO3− had a significant positive correlation to Acidobacteria (r = 0.750, p ≤ 0.05), but significant negative correlations to Actinobacteria (r = −0.773, p ≤ 0.05), Verrucomicrobia (r = −0.924, p ≤ 0.0001), and Cyanobacteria (r = −0.911, p ≤ 0.0001) (Table 5).

4. Discussion

4.1. Soil Parameters and Their Relationships with Bacterial Community Structure

All soils used in this study were of the same soil series under long-term continuous winter wheat cultivation. The detected differences in the richness, diversity, and structure of bacterial community would likely reflect impact induced by different long-term soil fertilization regimes, evidenced by the consistent trends in results from samples in both years. Clear separation of the tested treatments in NMDS plot suggested significant effect of soil fertilization regimes on the bacterial community structure (Figure 3). The richness and diversity of the bacterial community in manure treatment were higher or similar to those of control, and both were significantly higher than NPK treatment, which was evidenced by the number of OTUs observed, richness indices, diversity indices, and the number of bacterial groups at each taxonomic level (Table 1 and Table 2; Figure 1 and Figure 2). Compared to manure, NPK had a greater impact on soil bacterial community structure, which was evidenced by the lower percentage of bacterial groups shared between NPK and control than the percentage of bacterial groups shared between manure and control at all taxonomic levels (Figure 2), as well as the larger distance (dissimilarity) in microbial community structure between NPK and control than the distance between manure and control in the NMDS plot (Figure 3).
Promotion of bacterial richness and diversity by long-term application of manure could be due to multifaceted changes in soil, including enrichment of organic C and reduction of acidity. Previous studies using these soils showed significantly higher microbial biomass and enzyme activities in manure treatment than control or NPK treatment [5,7]. Application of manure led to a 16‒20% increase in microbial activity [22,45], a marked increase in the abundance of gram-negative bacteria [21], and proliferation of selected microbial groups and changes in community composition [46,47].
A loss of richness and diversity by long-term application of NPK was clearly demonstrated in this study. It is well established that long-term application of inorganic fertilizer often leads to soil acidification [13,15,48]. Addition of available N, P, and K could shift the microbial community in favor of those that are less competitive in acquiring these nutrients but have higher tolerance to acidity. Therefore, the NPK treatment may have exerted selective pressures that led to reduced diversity and development of a less evenly distributed bacterial community. The relatively low number of bacterial groups and diversity indices observed among the treatments (Table 1 and Table 2; Figure 2) were consistent with shifts in the microbial communities.
Century-long wheat production without fertilization led to marked depletion of soil nutrition and productivity [5]. The average grain yield in the control between 1890 and 2015 was about 52% and 46% of manure and NPK treatments, respectively [14,23]. Nevertheless, control continuously produced an average of >1100 kg ha−1 of wheat grain every year for over a century [14]. Aside from limited nutrients added by rainfall, microbes with the capability to fix atmospheric N2 may have played an important role in maintaining soil productivity.

4.2. Soil Bacterial Groups under Century-Long Fertilization Regimes and Their Ecological Implications

Nutrient availability, especially C and N, may markedly impact the predominant microbial groups found in soils [49,50]. High nutrient availability promoted fast-growing copiotrophs while nutrient-limited soils favored slow-growing oligotrophs [49,51]. In the present study, Acidobacteria and Proteobacteria were the two most dominant phyla in soils under all three fertilization regimes, comprising 43‒52% and 18‒27% of the bacterial community within each soil, respectively (Table 5). This finding is consistent with a number of reports showing that Acidobacteria and Proteobacteria were the two most dominant bacterial groups, with their relative abundance varying considerably across different soil environments [3,13,18,52]. The abundance ratio of Proteobacteria:Acidobacteria can serve as a broad indicator of trophic status across a range of terrestrial soils [53]. In this study, the ratio was highest in manure (0.64), followed by control (0.47), and lowest in NPK (0.35) treatment (Figure 4).
Of the three fertilization treatments, manure generally led to enrichment of all phyla except Cyanobacteria, NPK resulted in shrinking of most phyla but thriving of Chloroflexi, the control led to promotion of Cyanobacteria but detraction of Nitrospirae (Table 5). The lowest relative abundance of Chloroflexi was found in the manure treatment, while the highest abundance was in NPK (Figure 4). The results suggested that Chloroflexi might be less competitive in a diverse community but thrive in disturbed, high-stress environments, consistent with previous reports [19,20,54]. Suleiman et al. [20] reported that Chloroflexi, the most dominant rare (with ≤ 1% abundance) phylum detected, constituted a higher abundance in deforested grassland (0.6%) than pristine forest (0.4%). In agroecosystems, its abundance was higher, especially in soils under long-term cultivation. Sheng et al. [19] reported that Chloroflexi was significant higher in a century-long rice paddy (15.1%) than soils associated with ≤30 years of vegetable cultivation (1.1‒4.3%). In the wheat field of this study, Chloroflexi accounted for 1.7‒10.4% of the bacterial community, and was the third dominant phyla. Assuming pristine forest is a non-disturbed system, deforested grassland and agricultural fields would be systems with higher disturbance and stress. The higher occurrence of Chloroflexi in stressed environments has been reported previously, including permafrost at subzero temperatures [54], CO2-rich hypoxic soil [55], and PCB-contaminated soils [56]. Thus, the thriving of Chloroflexi in NPK could be related to acid stress resilience.
In the century-long unfertilized control plot, microbes with the capability to fix atmospheric N2 may have played an important role in maintaining soil nutrient availability and wheat productivity. Cyanobacteria were most abundant in the control, with relative abundance values 13.6–51.8 times those in the two fertilized soils (Table 2). Another phylum that was promoted in the unfertilized control was Actinobacteria. Interestingly, Actinobacteria also contains strains capable of nitrogen fixation [57]. The dominance of Actinobacteria in soil environments is often reported [58,59], which was also the third most dominant groups in the tested soils. Actinobacteria contribute to biological buffering of soils and organic matter decomposition, as well as producing many bioactive metabolites (antibacterials, antifungals, and growth promoting substances for plants and animals) [60,61].

4.3. Soil Parameters Drive Soil Bacterial Community Structure

Soil properties play key roles in shaping microbial community structure [50]. In this study, soil pH and NO3− content were the two most-dominant factors influencing soil bacterial community structure under different fertilization regimes (Table 4 and Table 5; Figure 3). The results were in agreement with previous studies [12,13,50] indicating nutrient availability (especially C and N) and soil pH are main factors for shifts in soil microbial communities under different fertilization regimes.
Soil acidity, as a crucial factor governing bacterial richness and diversity, could serve as a selective pressure to promote or suppress the growth of specific bacterial groups. In this study, soil pH was lowest in NPK, followed by control, and highest in manure (Table 3), following the trends in bacterial richness and diversity in the three treatments (Table 1 and Table 2; Figure 1 and Figure 2). Furthermore, a significant correlation between pH and NMDS scores suggested an association with bacterial community structure. Fierer and Jackson [62] found that bacterial richness and diversity differed by ecosystem type, and these differences could largely be explained by soil pH (richness r2 = 0.70, p ≤ 0.0001; diversity r2 = 0.58, p ≤ 0.0001). Rousk et al. [10] also reported positive relationships between bacterial richness and soil pH (r2 = 0.75, p ≤ 0.001), with the number of OTUs doubling between pH 4.0 and 8.3. Fierer and Jackson [62] and Zhang et al. [48] reported that most bacteria require a pH of 6.0–8.0, which is suitable for most proteins to function [63]. Of the bacterial phyla detected, pH had significant positive correlations with Proteobacteria and Gemmatimonadetes but significant negative correlations with Acidobacteria and Chloroflexi (Table 5), suggesting that the variations in bacterial richness and diversity in three treatments could be primarily due to the promotion or suppression of microorganisms within these four phyla. With increasing pH from 4.0 to 7.0, Zhang et al. [48] also reported that Acidobacteria and Chloroflexi decreased, while Proteobacteria and Gemmatimonadetes increased.
Nitrogen availability was another determining factor regulating the richness, diversity, and composition of the soil bacterial community. Cyanobacteria was one of the phyla most affected by N content, evidenced by the significant negative correlations between the relative abundance of Cyanobacteria and soil total N (r = −0.867, p ≤ 0.01), NH4+ (r = −0.836, p ≤ 0.01), and NO3− (r = −0.911, p ≤ 0.01) contents (Table 5). Ramirez et al. [17] also reported that the abundance of Cyanobacteria in soil was negatively correlated with N levels (r= −0.50 to −0.64, p ≤ 0.05) during 0–800 kg N ha−1 yr−1.

5. Conclusions

Century-long organic or inorganic fertilization significantly altered the richness, diversity, and composition of the soil bacterial community compared to the unfertilized control. Bacterial richness and diversity were enhanced by manure addition but reduced by NPK application. Different fertilization regimes did not change the types of dominant phyla, but did affect the relative abundance of bacterial phyla in a community. Of the bacterial phyla detected, Acidobacteria and Proteobacteria were the most abundant phyla in all three communities. Of the three fertilization treatments, manure generally led to enrichment of all phyla except Cyanobacteria, NPK resulted in shrinking of most phyla but thriving of Chloroflexi, while century-long wheat cultivation without fertilization promoted the diazotrophic group Cyanobacteria. Soil pH and NO3− availability were the two most dominant parameters governing the richness, diversity, and composition of the soil bacterial community. Soil pH significantly correlated with Acidobacteria, Proteobacteria, Chloroflexi, and Gemmatimonadetes and was major contributors to variations in bacterial richness and diversity among the three treatments. Soil N contents were significantly correlated to Cyanobacteria, whose relative abundance in control was 13.6–51.8 times than those in the fertilized soils. Cyanobacteria, especially Microcoleus paludosus and Leptolyngbya appalachiana, could play an important role in maintaining wheat productivity in the century-long unfertilized control. This study extends our understanding of soil bacterial community structure under long-term organic, inorganic, or no fertilization regimes and provides insight for making improved fertilization strategies.

Author Contributions

All authors contributed significantly to the intellectual inputs for this study and manuscript preparation. X.L. performed the research, analyzed the data, and prepared the initial manuscript. S.D. provided oversight on project design, execution, and analysis. W.R.R. managed the experimental site and provided guidance on manuscript preparation. Y.W. provided technical assistance, and Y.T. helped develop the reviewed manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This work was partially supported by the Oklahoma Agricultural Experiment Station (OAES) under projects h-OKLO2394 and h-OKLO2953.

Acknowledgments

The authors gratefully acknowledge the soil fertility program and high performance computing center at Oklahoma State University for the use of facilities. Special thanks go to Jeremiah Mullock and Dhital Sulochana for their assistance during field sampling.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Kennedy, A.C. Bacterial diversity in agroecosystems. Agric. Ecosyst. Environ. 1999, 74, 65–76. [Google Scholar] [CrossRef]
  2. Rinnan, R.; Bååth, E. Differential utilization of carbon substrates by bacteria and fungi in tundra soil. Appl. Environ. Microbiol. 2009, 75, 3611–3620. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Chen, Y.; Li, X.; Liu, J.; Yuan, M.; Liu, S.; Jiang, W.; Chen, J. Changes in bacterial community of soil induced by long-term straw returning. Sci. Agric. 2017, 74, 349–356. [Google Scholar] [CrossRef]
  4. Gans, J.; Wolinsky, M.; Dunbar, J. Computational improvements reveal great bacterial diversity and high metal toxicity in soil. Science 2005, 309, 1387–1390. [Google Scholar] [CrossRef] [PubMed]
  5. Parham, J.A.; Deng, S.P.; Raun, W.R.; Johnson, G.V. Long-term cattle manure application in soil I. Effect on soil phosphorus levels, microbial biomass C, and dehydrogenase and phosphatase activities. Biol. Fert. Soils 2002, 35, 328–337. [Google Scholar]
  6. Parham, J.A.; Deng, S.P.; Da, H.N.; Sun, H.Y.; Raun, W.R. Long-term cattle manure application in soil. II. Effect on soil microbial populations and community structure. Biol. Fert. Soils 2003, 38, 209–215. [Google Scholar] [CrossRef]
  7. Sun, H.Y.; Deng, S.P.; Raun, W.R. Bacterial community structure and diversity in a century-old manure-treated agroecosystem. Appl. Environ. Microbiol. 2004, 70, 5868–5874. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  8. Upchurch, R.; Chiu, C.Y.; Everett, K.; Dyszynski, G.; Coleman, D.C.; Whitman, W.B. Differences in the composition and diversity of bacterial communities from agricultural and forest soils. Soil Biol. Biochem. 2008, 40, 1294–1305. [Google Scholar] [CrossRef]
  9. Yang, T.; Siddique, K.H.M.; Liu, K. Cropping systems in agriculture and their impact on soil health—A review. Glob. Ecol. Conserv. 2020, 23, e011118. [Google Scholar]
  10. Rousk, J.; Bååth, E.; Brookes, P.C.; Lauber, C.L.; Lozupone, C.; Caporaso, J.G.; Knight, R.; Fierer, N. Soil bacterial and fungal communities across a pH gradient in an arable soil. ISME J. 2010, 4, 1340–1351. [Google Scholar] [CrossRef]
  11. Francioli, D.; Schulz, E.; Lentendu, G.; Wubet, T.; Buscot, F.; Reitz, T. Mineral vs. organic amendments: Microbial community structure, activity and abundance of agriculturally relevant microbes are driven by long term fertilization strategies. Front. Microbiol. 2016, 7, 1446. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Li, F.; Chen, L.; Zhang, J.; Yin, J.; Huang, S. Bacterial community structure after long-term organic and inorganic fertilization reveals important associations between soil nutrients and specific taxa involved in nutrient transformations. Front. Microbiol. 2017, 8, 187. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Cui, X.; Zhang, Y.; Gao, J.; Peng, F.; Peng, G. Long-term combined application of manure and chemical fertilizer sustained higher nutrient status and rhizospheric bacterial diversity in reddish paddy soil of Central South China. Sci. Rep. 2018, 8, 16554. [Google Scholar] [CrossRef] [PubMed]
  14. Omara, P.; Macnack, N.; Aula, L.; Raun, B. Effect of long-term beef manure application on soil test phosphorus, organic carbon, and winter wheat yield. J. Plant Nutr. 2017, 40, 1143–1151. [Google Scholar] [CrossRef]
  15. Pan, Y.; Cassman, N.; de Hollander, M.; Mendes, L.W.; Korevaar, H.; Geerts, R.H.E.M.; van Veen, J.A.; Kuramae, E.E. Impact of long-term N, P, K, and NPK fertilization on the composition and potential functions of the bacterial community in grassland soil. FEMS Microbiol. Ecol. 2014, 90, 195–205. [Google Scholar] [CrossRef]
  16. Lauber, C.L.; Hamady, M.; Knight, R.; Fierer, N. Pyrosequencing-based assessment of soil pH as a predictor of soil bacterial community structure at the continental scale. Appl. Environ. Microbiol. 2009, 75, 5111–5120. [Google Scholar] [CrossRef] [Green Version]
  17. Ramirez, K.S.; Lauber, C.L.; Knight, R.; Bradford, M.A.; Fierer, N. Consistent effects of nitrogen fertilization on soil bacterial communities in contrasting systems. Ecology 2010, 91, 3463–3470. [Google Scholar] [CrossRef]
  18. Janssen, P.H. Identifying the dominant soil bacterial taxa in libraries of 16S rRNA and 16S rRNA genes. Appl. Environ. Microbiol. 2006, 72, 1719–1728. [Google Scholar] [CrossRef] [Green Version]
  19. Sheng, R.; Meng, D.; Wu, M.; Di, H.; Qin, H.; Wei, W. Effect of agricultural land use change on community composition of bacteria and ammonia oxidizers. J. Soil Sediment. 2013, 13, 1246–1256. [Google Scholar] [CrossRef]
  20. Suleiman, A.K.A.; Manoeli, L.; Boldo, J.T.; Pereira, M.G.; Roesch, F.L.W. Shifts in soil bacterial community after eight years of land-use change. Syst. Appl. Microbiol. 2013, 36, 137–144. [Google Scholar] [CrossRef]
  21. Lazcano, C.; Gómez-Brandón, M.; Revilla, P.; Domínguez, J. Short-term effects of organic and inorganic fertilizers on soil microbial community structure and function. Biol. Fertil. Soils 2013, 49, 723–733. [Google Scholar] [CrossRef]
  22. Das, S.; Jeong, S.T.; Das, S.; Kim, P.J. Composted cattle manure increases microbial activity and soil fertility more than composted swine manure in a submerged rice paddy. Front. Microbiol. 2017, 8, 1702. [Google Scholar] [CrossRef] [PubMed]
  23. Girma, K.; Holtz, S.L.; Arnall, D.B.; Tubaña, B.S.; Raun, W.R. The Magruder plots: Untangling the puzzle. Agron. J. 2007, 99, 1191–1198. [Google Scholar] [CrossRef] [Green Version]
  24. Aula, L.; Macnack, N.; Omara, P.; Mullock, J.; Raun, W. Effect of fertilizer nitrogen (N) on soil organic carbon, total N, and soil pH in Long-term continuous winter wheat (Triticum aestivum L.). Commun. Soil Sci. Plant Anal. 2016, 47, 863–874. [Google Scholar] [CrossRef]
  25. Schepers, J.S.; Francis, D.D.; Thompson, M.T. Simultaneous determination of total C, total N, and 15N on soil and plant material. Commun. Soil Sci. Plant Anal. 1989, 20, 949–959. [Google Scholar] [CrossRef]
  26. Jenkinson, D.S.; Ladd, J.N. Microbial biomass in soil: Measurement and turnover. In Soil Biochemistry, Vol 5; Paul, E.A., Ladd, J.N., Eds.; Marcel Dekker: New York, NY, USA, 1981; pp. 415–471. [Google Scholar]
  27. Horwath, W.R.; Paul, E.A. Microbial biomass. In Methods of Soil Analysis: Part 2 Microbiological and Biochemical Properties; Weaver, R.W., Angle, J.S., Bottomley, P.S., Bezdicek, D., Smith, S., Tabatabai, A., Wollum, A., Eds.; Soil Science Society of America, Inc.: Madison, WI, USA, 1994; pp. 753–773. [Google Scholar]
  28. Lane, D.J. 16S/23S rRNA sequencing. In Nucleic Acid Techniques in Bacterial Systematics; Stackebrandt, E., Goodfellow, M., Eds.; Wiley: New York, NY, USA, 1991; pp. 115–175. [Google Scholar]
  29. Frank, J.A.; Reich, C.I.; Sharma, S.; Weisbaum, J.S.; Wilson, B.A.; Olsen, G.J. Critical evaluation of two primers commonly used for amplification of bacterial 16s rRNA genes. Appl. Environ. Microbiol. 2008, 74, 2461–2470. [Google Scholar] [CrossRef] [Green Version]
  30. Barnard, R.L.; Osborne, C.A.; Firestone, M.K. Responses of soil bacterial and fungal communities to extreme desiccation and rewetting. ISME J. 2013, 7, 2229–2241. [Google Scholar] [CrossRef]
  31. Feeser, K.L.; Horn, D.J.V.; Buelow, H.N.; Colman, D.R.; McHugh, T.A.; Okie, J.G.; Schwartz, E.; Takacs-Vesbach, C.D. Local and regional scale herterogeneity drive bacteria community diversity and composition in a polar desert. Front. Microbiol. 2018, 9, 1–14. [Google Scholar] [CrossRef] [Green Version]
  32. Edgar, R.C. Search and clustering orders of magnitude faster than BLAST. Bioinformatics 2010, 26, 2460–2461. [Google Scholar] [CrossRef] [Green Version]
  33. Edgar, R.C.; Haas, B.J.; Clemente, J.C.; Quince, C.; Knight, R. UCHIME improves sensitivity and speed of chimera detection. Bioinformatics 2011, 27, 2194–2200. [Google Scholar] [CrossRef] [Green Version]
  34. Huse, S.M.; Huber, J.A.; Morrison, H.G.; Sogin, M.L.; Welch, D.M. Accuracy and quality of massively parallel DNA pyrosequencing. Genome Biol. 2007, 8, R143. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Quince, C.; Lanzen, A.; Davenport, R.J.; Turnbaugh, P.J. Removing Noise from Pyrosequenced Amplicons. BMC Bioinform. 2011, 12, 38. [Google Scholar] [CrossRef] [PubMed]
  36. Edgar, R.C. UPARSE: Highly accurate OTU sequences from microbial amplicon reads. Nat. Methods 2013, 10, 996–998. [Google Scholar] [CrossRef] [PubMed]
  37. Schloss, P.D.; Westcott, S.L.; Ryabin, T.; Hall, J.R.; Hartmann, M.; Hollister, E.B.; Lesniewski, R.A.; Oakley, B.B.; Parks, D.H.; Robinson, C.J.; et al. Introducing mothur: Open-source, platform-independent, community-supported software for describing and comparing microbial communities. Appl. Environ. Microbiol. 2009, 75, 7537–7541. [Google Scholar] [CrossRef] [Green Version]
  38. Schloss, P.D.; Gevers, D.; Westcott, S.L. Reducing the effects of PCR Amplification and Sequencing Artifacts on 16S rRNA-Based Studies. PLoS ONE 2011, 6. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  39. Cole, J.R.; Wang, Q.; Fish, J.A.; Chai, B.; McGarrell, D.M.; Sun, Y.; Brown, C.T.; Porras-Alfaro, A.; Kuske, C.R. Ribosomal database project: Data and tools for high throughput rRNA analysis. Nucleic Acids Res. 2014, 42, D633–D642. [Google Scholar] [CrossRef] [Green Version]
  40. Chao, A. Nonparametric estimation of the number of classes in a population. Scand. J. Stat. 1984, 11, 265–270. [Google Scholar]
  41. Chao, A.; Lee, S.M. Estimating the number of classes via sample coverage. J. Amer. Statist. Assoc. 1992, 87, 210–217. [Google Scholar] [CrossRef]
  42. Shannon, C.E. A mathematical theory of communication. Bell Syst. Tech. J. 1948, 27, 379–423. [Google Scholar] [CrossRef] [Green Version]
  43. Simpson, E.H. Measurement of diversity. Nature 1949, 163, 688. [Google Scholar] [CrossRef]
  44. Oksanen, J.; Blanchet, F.G.; Kindt, R.; Legendre, P.; Minchin, P.R.; O’Hara, R.B.; Simpson, G.L.; Solymos, P.; Stevens, M.H.H.; Wagner, H. Vegan: Community Ecology Package. R package Vegan, Vers. 2.2-1. 2015. Available online: http://www.cran.r-project.org/package=vegan (accessed on 1 June 2020).
  45. González, M.; Gomez, E.; Comese, R.; Quesada, M.; Conti, M. Influence of organic amendments on soil quality potential indicators in an urban horticultural system. Bioresour. Technol. 2010, 101, 8897–8901. [Google Scholar] [CrossRef]
  46. Marschner, P.; Kandeler, E.; Marschner, B. Structure and function of the soil microbial community in a long-term fertilizer experiment. Soil Biol. Biochem. 2003, 35, 453–461. [Google Scholar] [CrossRef]
  47. Ros, M.; Klammer, S.; Knapp, B.; Aichberger, K.; Insam, H. Long term effects of compost amendment of soil on functional and structural diversity and microbial activity. Soil Use Manag. 2006, 22, 209–218. [Google Scholar] [CrossRef]
  48. Zhang, Y.; Shen, H.; He, X.; Thomas, B.W.; Lupway, N.Z.; Hao, X.; Thomas, M.C.; Shi, X. Fertilization shapes bacterial community structure by alteration of soil pH. Front. Microbiol. 2017, 8, 1325. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  49. Hartmann, M.; Frey, B.; Mayer, J.; Mader, P.; Widmer, F. Distinct soil microbial diversity under long-term organic and conventional farming. ISME J. 2015, 9, 1177–1194. [Google Scholar] [CrossRef] [Green Version]
  50. Sun, R.B.; Zhang, X.X.; Guo, X.S.; Wang, D.Z.; Chu, H.Y. Bacterial diversity in soils subjected to long-term chemical fertilization can be more stably maintained with the addition of livestock manure than wheat straw. Soil Biol. Biochem. 2015, 88, 9–18. [Google Scholar] [CrossRef]
  51. Fierer, N.; Lauber, C.L.; Ramirez, K.S.; Zaneveld, J.; Bradford, M.A.; Knight, R. Comparative metagenomic, phylogenetic and physiological analyses of soil microbial communities across nitrogen gradients. ISME J. 2012, 6, 1007–1017. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  52. Bruce, T.; Martinez, I.B.; Maia, O.N.; Vicente, A.C.; Kruger, R.H.; Thompson, F.L. Bacterial community diversity in the Brazilian Atlantic forest soils. Microb. Ecol. 2010, 60, 840–849. [Google Scholar] [CrossRef]
  53. Smit, E.; Leeflang, P.; Gommans, S.; van den Broek, J.; van Mil, S.; Wernars, K. Diversity and seasonal fluctuations of the dominant members of the bacterial soil community in a wheat field as determined by cultivation and molecular methods. Appl. Environ. Microbiol. 2001, 67, 2284–2291. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  54. Tuorto, S.J.; Darias, P.; McGuinness, L.R.; Panikov, N.; Zhang, T.; Haggblom, M.M.; Kerkhof, L.J. Bacterial genome replication at subzero temperatures in permafrost. ISME J. 2014, 8, 139–149. [Google Scholar] [CrossRef] [Green Version]
  55. Šibanc, N.; Dumbrell, A.J.; Mandić-Mulec, I.; Mačeka, I. Impacts of naturally elevated soil CO2 concentrations on communities of soil archaea and bacteria. Soil Biol. Biochem. 2014, 68, 348–356. [Google Scholar] [CrossRef]
  56. Krzmarzick, M.J.; Crary, B.B.; Harding, J.J.; Oyerinde, O.O.; Leri, A.C.; Myneni, S.C.B.; Novak, P.J. Natural Niche for Organohalide-Respiring Chloroflexi. Appl. Environ. Microbiol. 2012, 78, 393–401. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  57. Valdés, M.A.; Pérez, N.O.; Estrada-de los Santos, P.; Caballero-Mellado, J.; Peña-Cabriales, J.J.; Normand, P.; Hirsch, A.M. Non-Frankia actinomycetes isolated from surface sterilized roots of Casuarina equisetifolia fix nitrogen. Appl. Environ. Microbiol. 2005, 71, 460–466. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  58. Kaluzhnaya, O.V.; Krivich, A.A.; Itskovich, V.B. Diversity of 16S rRNA genes in metagenomic community of the freshwater sponge Lubomirskia baicalensis. Russ. J. Genet. 2012, 48, 855–858. [Google Scholar] [CrossRef]
  59. Keshri, J.; Mishra, A.; Jha, B. Microbial population index and community structure in saline–alkaline soil using gene targeted metagenomics. Microbiol. Res. 2013, 168, 165–173. [Google Scholar] [CrossRef]
  60. Ningthoujam, D.S.; Sanasam, S.; Tamreihao, K.; Nimaichand, S. Antagonistic activities of local actinomycete isolates against rice fungal pathogens. Afr. J. Microbiol. Res. 2009, 3, 737–742. [Google Scholar]
  61. Mahajan, G.B. Antibacterial agents from actinomycetes. Front. Biosci. (Elite Ed.) 2012, 4, 240–253. [Google Scholar] [CrossRef]
  62. Fierer, N.; Jackson, R.B. The diversity and biogeography of soil bacterial communities. Proc. Natl. Acad. Sci. USA 2006, 103, 626–631. [Google Scholar] [CrossRef] [Green Version]
  63. Krulwich, T.A.; Sachs, G.; Padan, E. Molecular aspects of bacterial pH sensing and homeostasis. Nat. Rev. Microbiol. 2011, 9, 330–343. [Google Scholar] [CrossRef] [Green Version]
Agronomy 10 01497 g001 550

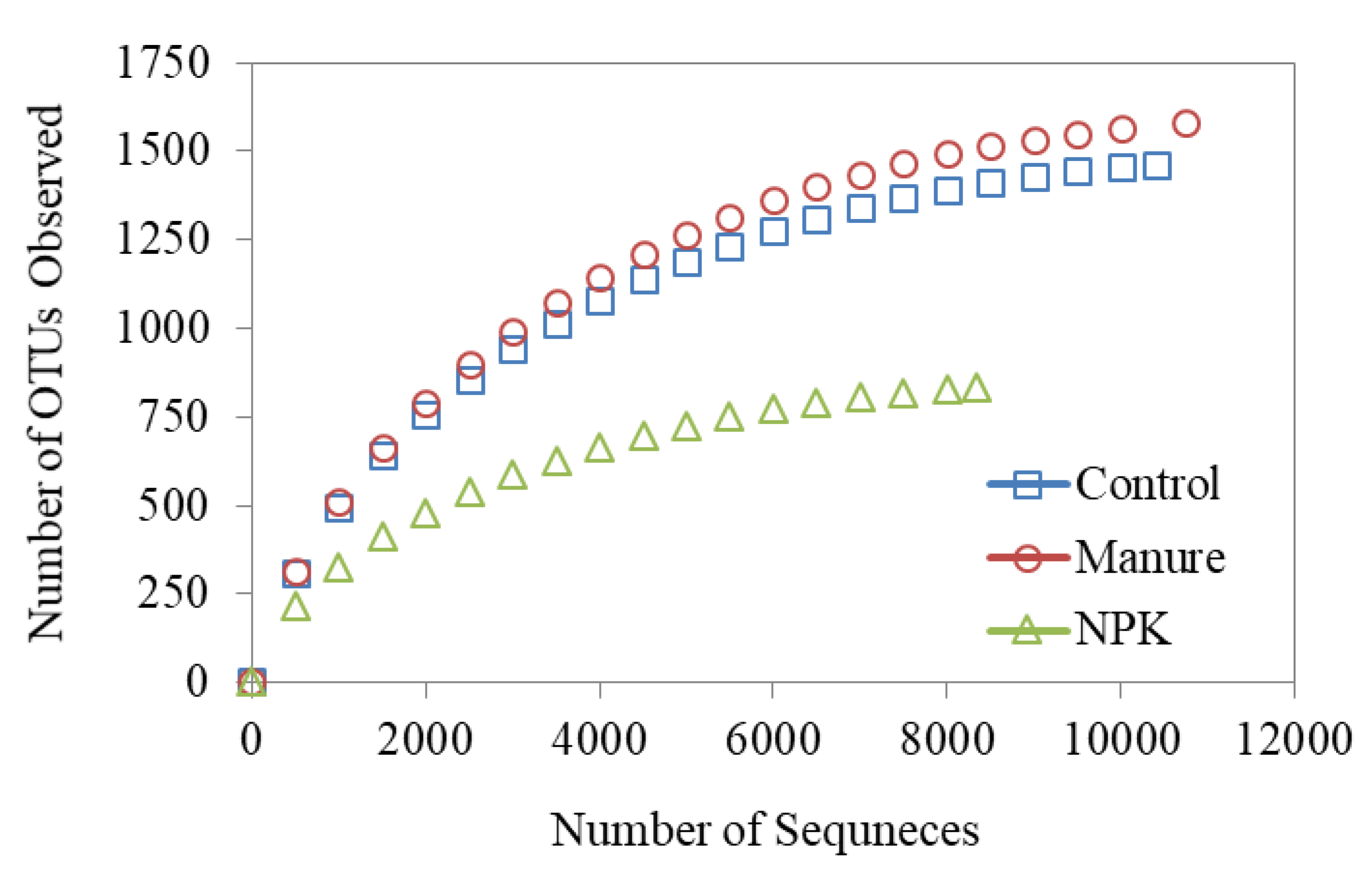

Figure 1. Rarefaction curves of 16S rRNA sequences obtained from soils tested. Curves were constructed based on the number of OTUs observed at 97% similarity per 100 sequences analyzed. Control, century-long continuous wheat cultivation without fertilization; Manure, century-long continuous wheat cultivation received organic fertilizer cattle manure every four years at 269 kg N ha−1; NPK, century-long continuous wheat cultivation received inorganic fertilizer NPK annually at 67 kg N ha−1, 14.6 kg P ha−1, and 28 kg K ha−1.
Figure 1. Rarefaction curves of 16S rRNA sequences obtained from soils tested. Curves were constructed based on the number of OTUs observed at 97% similarity per 100 sequences analyzed. Control, century-long continuous wheat cultivation without fertilization; Manure, century-long continuous wheat cultivation received organic fertilizer cattle manure every four years at 269 kg N ha−1; NPK, century-long continuous wheat cultivation received inorganic fertilizer NPK annually at 67 kg N ha−1, 14.6 kg P ha−1, and 28 kg K ha−1.
Agronomy 10 01497 g001
Agronomy 10 01497 g002 550

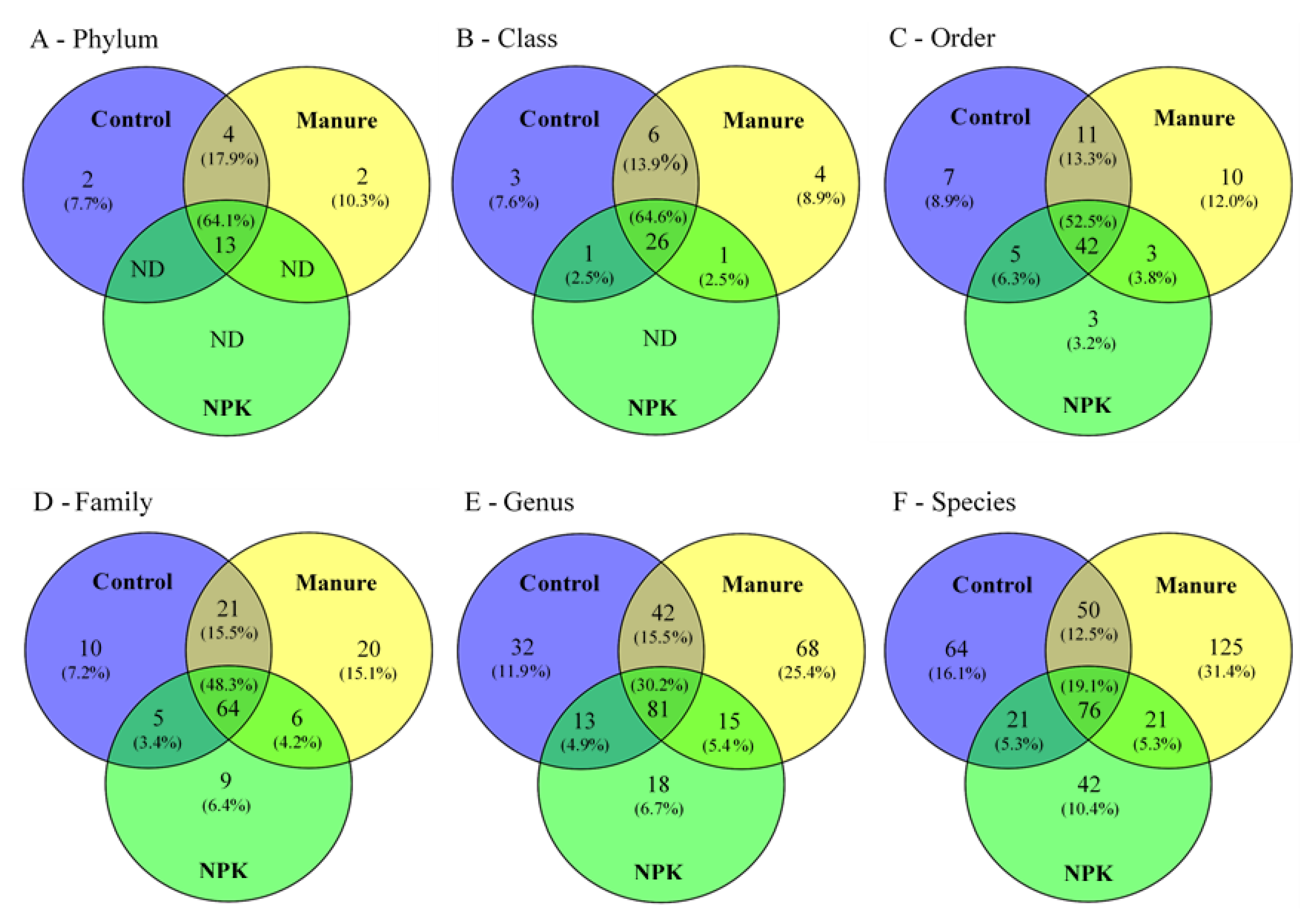

Figure 2. Average number and percentage of taxonomic groups specific to each microbial community or shared by communities in three-way Venn diagrams (Venny 2.0, http://bioinfogp.cnb.csic.es/tools/venny/index. html). ND, not detected. Control, century-long continuous wheat cultivation without fertilization; Manure, century-long continuous wheat cultivation received organic fertilizer cattle manure every four years at 269 kg N ha−1; NPK, century-long continuous wheat cultivation received inorganic fertilizer NPK annually at 67 kg N ha−1, 14.6 kg P ha−1, and 28 kg K ha−1.
Figure 2. Average number and percentage of taxonomic groups specific to each microbial community or shared by communities in three-way Venn diagrams (Venny 2.0, http://bioinfogp.cnb.csic.es/tools/venny/index. html). ND, not detected. Control, century-long continuous wheat cultivation without fertilization; Manure, century-long continuous wheat cultivation received organic fertilizer cattle manure every four years at 269 kg N ha−1; NPK, century-long continuous wheat cultivation received inorganic fertilizer NPK annually at 67 kg N ha−1, 14.6 kg P ha−1, and 28 kg K ha−1.
Agronomy 10 01497 g002
Agronomy 10 01497 g003 550

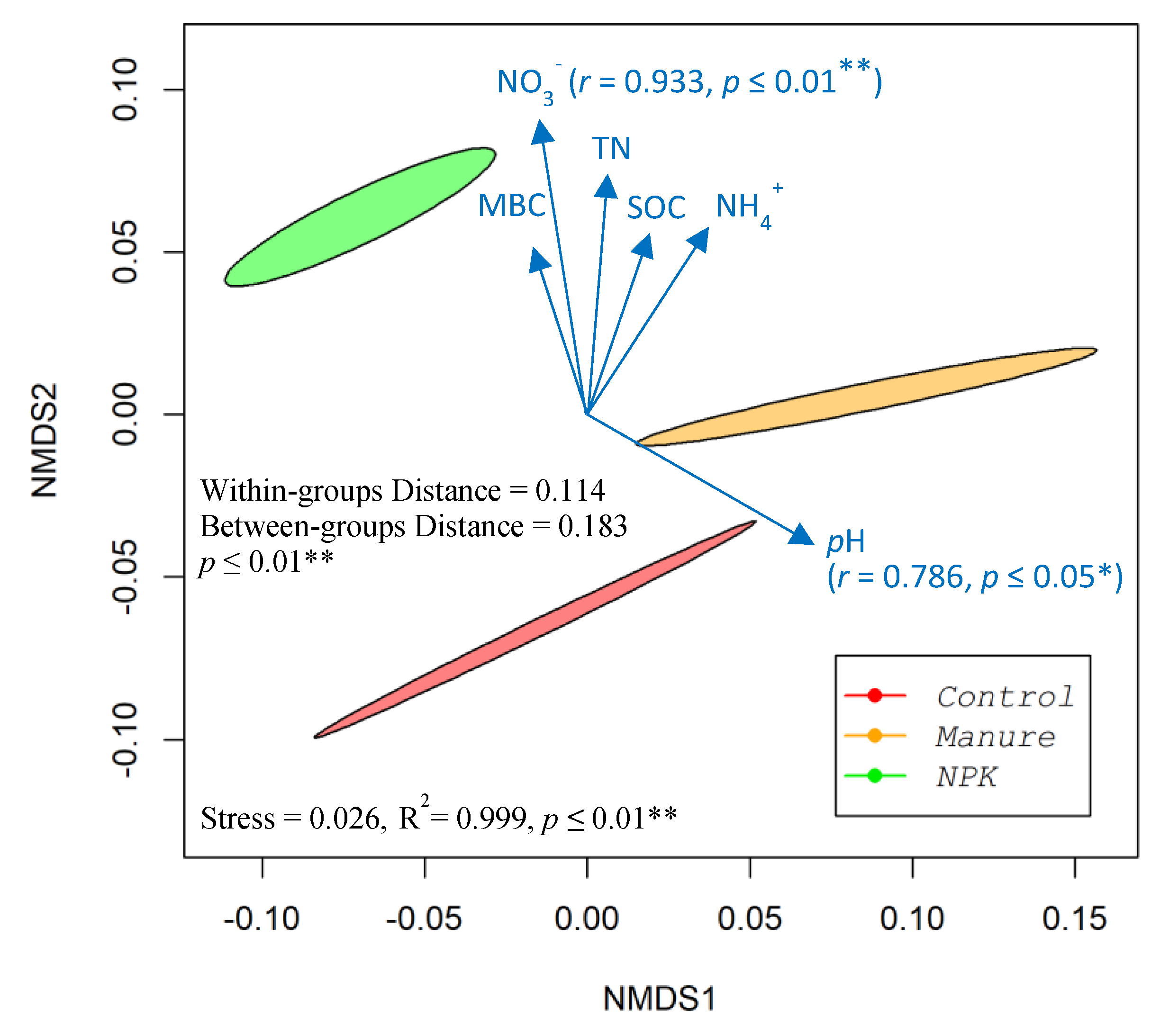

Figure 3. Non-metric multidimensional scaling (NMDS) ordination of soil bacterial community structure in different fertilization regimes. Control, century-long continuous wheat cultivation without fertilization; Manure, century-long continuous wheat cultivation received organic fertilizer cattle manure every four years at 269 kg N ha−1; NPK, century-long continuous wheat cultivation received inorganic fertilizer NPK annually at 67 kg N ha−1, 14.6 kg P ha−1, and 28 kg K ha−1. The degree of separation between groups ranges from −1 to 1, where 0 means not different, 1 means completely different. Ellipses represent the 95% confidence interval for the standard error of the distances of samples in each microbial community. With increasing distance between two ellipses the community structure becomes more dissimilar; ** p ≤ 0.01 means that there was a significant difference in the structure between two microbial communities based on the permutational multivariate analysis of variance (PERMANOVA). WD stands for within-groups distance and BD stands for between-groups distance; * p ≤ 0.05 means that there was a significant difference between WD and BD based on the MRPP analysis. Vectors show Spearman’s correlations of variation in bacterial community composition and soil properties tested. Soil pH and NO3− had significantly strong correlations to the first axis (NMDS1) or second axis (NMDS2) of NMDS ordination.
Figure 3. Non-metric multidimensional scaling (NMDS) ordination of soil bacterial community structure in different fertilization regimes. Control, century-long continuous wheat cultivation without fertilization; Manure, century-long continuous wheat cultivation received organic fertilizer cattle manure every four years at 269 kg N ha−1; NPK, century-long continuous wheat cultivation received inorganic fertilizer NPK annually at 67 kg N ha−1, 14.6 kg P ha−1, and 28 kg K ha−1. The degree of separation between groups ranges from −1 to 1, where 0 means not different, 1 means completely different. Ellipses represent the 95% confidence interval for the standard error of the distances of samples in each microbial community. With increasing distance between two ellipses the community structure becomes more dissimilar; ** p ≤ 0.01 means that there was a significant difference in the structure between two microbial communities based on the permutational multivariate analysis of variance (PERMANOVA). WD stands for within-groups distance and BD stands for between-groups distance; * p ≤ 0.05 means that there was a significant difference between WD and BD based on the MRPP analysis. Vectors show Spearman’s correlations of variation in bacterial community composition and soil properties tested. Soil pH and NO3− had significantly strong correlations to the first axis (NMDS1) or second axis (NMDS2) of NMDS ordination.
Agronomy 10 01497 g003
Agronomy 10 01497 g004 550

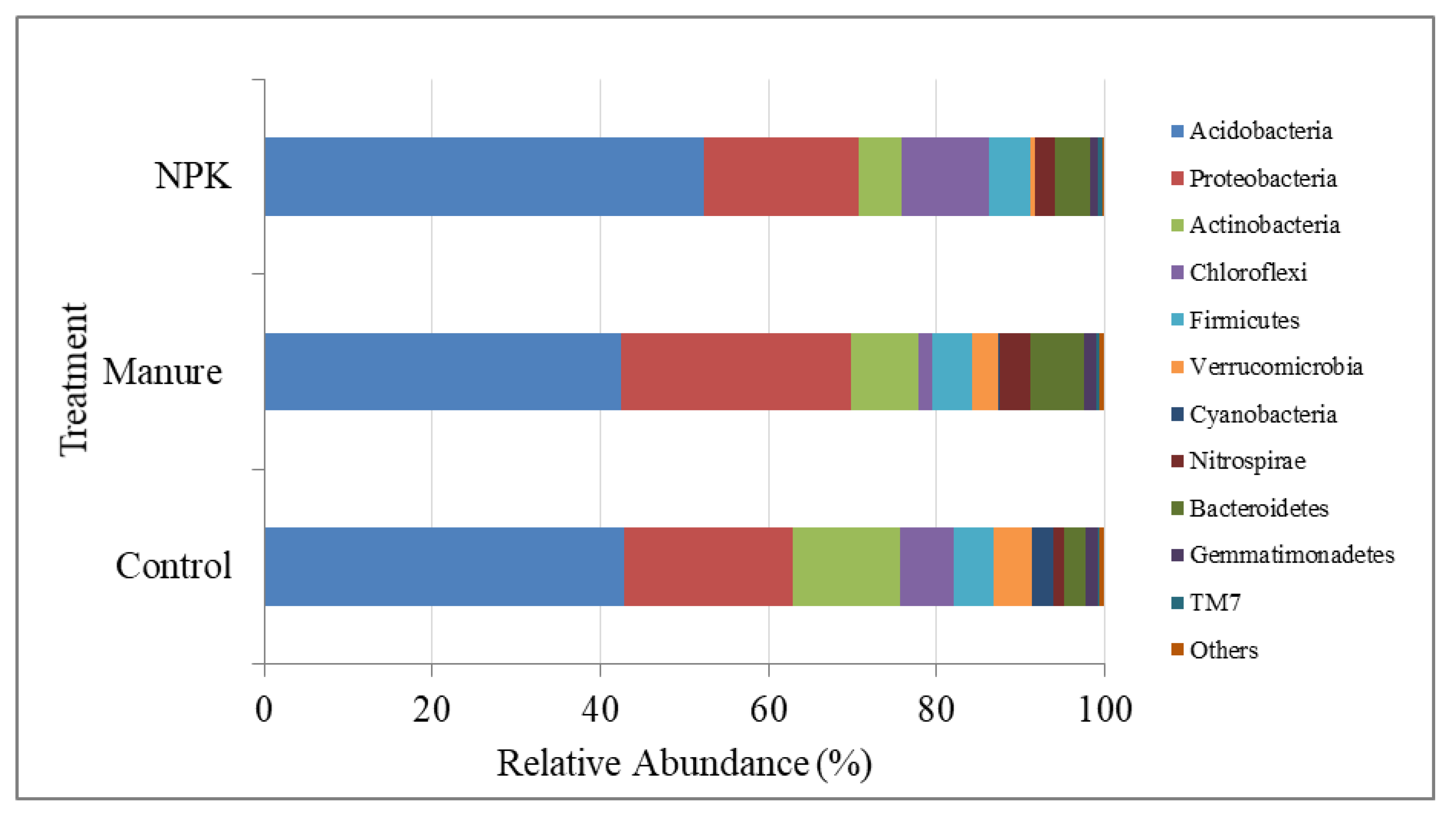

Figure 4. Soil bacterial community composition at the phylum level under different fertilization treatments. Control, century-long continuous wheat cultivation without fertilization; Manure, century-long continuous wheat cultivation received organic fertilizer cattle manure every four years at 269 kg N ha−1; NPK, century-long continuous wheat cultivation received inorganic fertilizer NPK annually at 67 kg N ha−1, 14.6 kg P ha−1, and 28 kg K ha−1.
Figure 4. Soil bacterial community composition at the phylum level under different fertilization treatments. Control, century-long continuous wheat cultivation without fertilization; Manure, century-long continuous wheat cultivation received organic fertilizer cattle manure every four years at 269 kg N ha−1; NPK, century-long continuous wheat cultivation received inorganic fertilizer NPK annually at 67 kg N ha−1, 14.6 kg P ha−1, and 28 kg K ha−1.
Agronomy 10 01497 g004
Agronomy 10 01497 g005 550

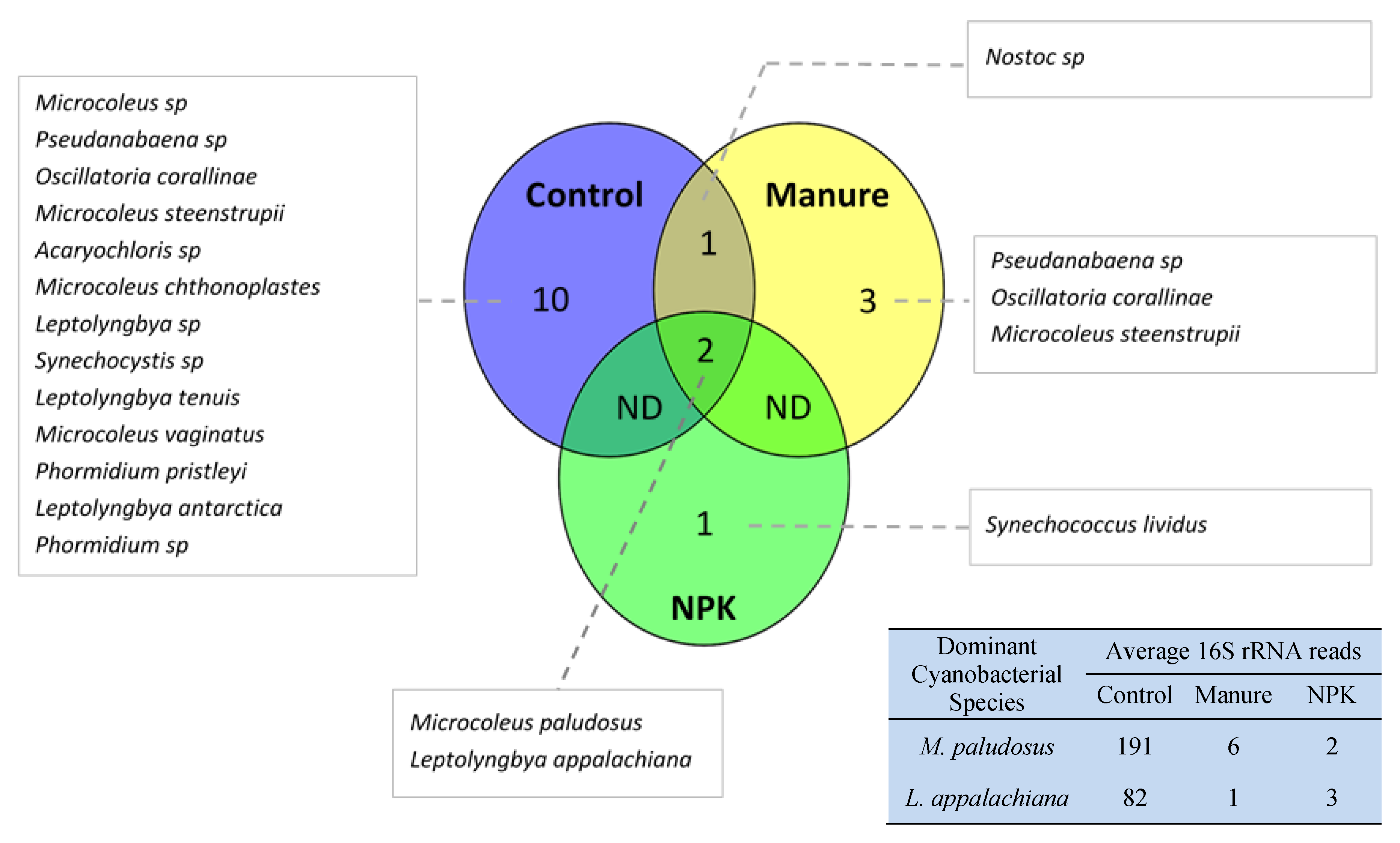

Figure 5. Cyanobacterial species detected in soils under different fertilization treatments. Control, century-long continuous wheat cultivation without fertilization; Manure, century-long continuous wheat cultivation received organic fertilizer cattle manure every four years at 269 kg N ha−1; NPK, century-long continuous wheat cultivation received inorganic fertilizer NPK annually at 67 kg N ha−1, 14.6 kg P ha−1, and 28 kg K ha−1.
Figure 5. Cyanobacterial species detected in soils under different fertilization treatments. Control, century-long continuous wheat cultivation without fertilization; Manure, century-long continuous wheat cultivation received organic fertilizer cattle manure every four years at 269 kg N ha−1; NPK, century-long continuous wheat cultivation received inorganic fertilizer NPK annually at 67 kg N ha−1, 14.6 kg P ha−1, and 28 kg K ha−1.
Agronomy 10 01497 g005
Table
Table 1. Richness and diversity of bacterial communities in soils tested.
Table 1. Richness and diversity of bacterial communities in soils tested.
Richness and DiversityControlManureNPK
Number of OTUs Observed1463 b1580 a834 c
Richness Index
Chao 11860 b2480 a1235 b
ACE2571 a3355 a1897 a
Diversity Index
Shannon6.33 b6.42 a5.45 c
Invsimpson246.2 a237.5 b84.6 c
Note: Control, century-long continuous wheat cultivation without fertilization; Manure, century-long continuous wheat cultivation received organic fertilizer cattle manure every four years at 269 kg N ha−1; NPK, century-long continuous wheat cultivation received inorganic fertilizer NPK annually at 67 kg N ha−1, 14.6 kg P ha−1, and 28 kg K ha−1. Different lower case letters indicate significantly different means according to Tukey’s honestly significant difference (HSD) post hoc test at p ≤ 0.05.
Table
Table 2. Bacteria belonging to major taxonomic ranks of the hierarchy of biological classification in the tested soils based on 16S rRNA gene sequences.
Table 2. Bacteria belonging to major taxonomic ranks of the hierarchy of biological classification in the tested soils based on 16S rRNA gene sequences.
Taxonomic RankNumber Detected in Soils Specified
ControlManureNPKAll soils
Phylum18 a18 a13 b20
Class35 a3628 b40
Order64 a6550 b79
Family99 b11083 c133
Genus168 a205 a127 b268
Species211 a272 a160 b399
Note: Control, century-long continuous wheat cultivation without fertilization; Manure, century-long continuous wheat cultivation received organic fertilizer cattle manure every four years at 269 kg N ha−1; NPK, century-long continuous wheat cultivation received inorganic fertilizer NPK annually at 67 kg N ha−1, 14.6 kg P ha−1, and 28 kg K ha−1. Different lower case letters indicate significantly different means according to Tukey’s honestly significant difference (HSD) post hoc test at p ≤ 0.05.
Table
Table 3. Properties of the soils used.
Table 3. Properties of the soils used.
TreatmentpHSOCTNNH4+NO3−MBC
g kg−1mg kg−1
Control5.4 b6.67 b0.66 b22.1 c5.2 c68 b
Manure6.6 a8.56 a0.82 a39.9 a10.0 b124 a
NPK4.6 c7.97 a0.82 a31.0 b13.9 a126 a
Note: SOC, soil organic carbon; TN, total nitrogen; MBC, soil microbial biomass carbon. Control, century-long continuous wheat cultivation without fertilization; Manure, century-long continuous wheat cultivation received organic fertilizer cattle manure every four years at 269 kg N ha−1; NPK, century-long continuous wheat cultivation received inorganic fertilizer NPK annually at 67 kg N ha−1, 14.6 kg P ha−1, and 28 kg K ha−1. Different lower case letters indicate significantly different means according to Tukey’s honestly significant difference (HSD) post hoc test at p ≤ 0.05.
Table
Table 4. Pearson’s correlation coefficients (r) and p values between nonmetric multidimensional scaling (NMDS) ordination scores of the bacterial community and soil properties.
Table 4. Pearson’s correlation coefficients (r) and p values between nonmetric multidimensional scaling (NMDS) ordination scores of the bacterial community and soil properties.
ParameterNMDS1NMDS2p Value
pH0.786−0.3050.030 *
SOC0.2760.5480.269
TN0.1000.7640.090
NH4+0.5080.5260.091
NO3−−0.2230.9330.002 **
MBC−0.2350.4990.335
Note: Pearson’s correlations between the NMDS scores and tested soil properties were assessed with the “cor” function and “envfit” function and post hoc permutation tests (999 permutations). Correlations with p ≤ 0.05 * and p ≤ 0.01 ** were considered as significant. NMDS1 is the first axis of the NMDS plot, NMDS2 is the second axis of the NMDS plot. SOC, soil organic carbon; TN, total nitrogen; MBC, soil microbial biomass carbon.
Table
Table 5. Pearson’s correlation coefficients (r) between soil parameters and the relative abundance of bacterial phyla.
Table 5. Pearson’s correlation coefficients (r) between soil parameters and the relative abundance of bacterial phyla.
Bacterial PhylapHSOCTNNH4+NO3−MBC
Acidobacteria−0.744 *0.124 ns0.396 ns−0.019 ns0.750 *0.489 ns
Actinobacteria0.211 ns−0.457 ns−0.607 ns−0.472 ns−0.773 *−0.270 ns
Proteobacteria0.703 *0.339 ns0.191 ns0.552 ns−0.084 ns−0.214 ns
Chloroflexi−0.766 *−0.190 ns−0.027 ns−0.414 ns0.313 ns0.155 ns
Firmicutes−0.186 ns−0.083 ns−0.016 ns−0.130 ns0.037 ns0.201 ns
Verrucomicrobia0.502 ns−0.365 ns−0.647 ns−0.341 ns−0.924 ***−0.615 ns
Cyanobacteria−0.068 ns−0.692 *−0.867 **−0.836 **−0.911 ***−0.687 *
Nitrospirae0.403 ns0.455 ns0.522 ns0.658 ns0.355 ns0.838 **
Bacteroidetes0.476 ns0.488 ns0.450 ns0.684 *0.308 ns−0.062 ns
Gemmatimonadetes0.700 *0.061 ns−0.142 ns0.240 ns−0.447 ns−0.514 ns
TM7−0.401 ns0.078 ns0.244 ns0.032 ns0.451 ns−0.077 ns
Others0.419 ns0.039 ns−0.075 ns0.141 ns−0.266 ns0.061 ns
Note: ns, not significant; * p ≤ 0.05, ** p ≤ 0.01, *** p ≤ 0.001; SOC, soil organic carbon; TN, total nitrogen; MBC, soil microbial biomass carbon.

Share and Cite

MDPI and ACS Style

Li, X.; Deng, S.; Raun, W.R.; Wang, Y.; Teng, Y. Bacterial Community in Soils Following Century-Long Application of Organic or Inorganic Fertilizers under Continuous Winter Wheat Cultivation. Agronomy 2020, 10, 1497. https://doi.org/10.3390/agronomy10101497

AMA Style

Li X, Deng S, Raun WR, Wang Y, Teng Y. Bacterial Community in Soils Following Century-Long Application of Organic or Inorganic Fertilizers under Continuous Winter Wheat Cultivation. Agronomy. 2020; 10(10):1497. https://doi.org/10.3390/agronomy10101497

Chicago/Turabian Style

Li, Xiufen, Shiping Deng, William R. Raun, Yan Wang, and Ying Teng. 2020. "Bacterial Community in Soils Following Century-Long Application of Organic or Inorganic Fertilizers under Continuous Winter Wheat Cultivation" Agronomy 10, no. 10: 1497. https://doi.org/10.3390/agronomy10101497

APA Style

Li, X., Deng, S., Raun, W. R., Wang, Y., & Teng, Y. (2020). Bacterial Community in Soils Following Century-Long Application of Organic or Inorganic Fertilizers under Continuous Winter Wheat Cultivation. Agronomy, 10(10), 1497. https://doi.org/10.3390/agronomy10101497

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
