Polymers 2017, 9(8), 372; https://doi.org/10.3390/polym9080372

Microstructural and Mechanical Implications of Microscaled Assembly in Droplet-based Multi-Material Additive Manufacturing

1
INRA, UR1268 Biopolymères Interactions Assemblages, F-44300 Nantes, France
2
IMT Lille Douai, Institut Mines-Télécom, Polymers and Composites Technology & Mechanical Engineering Department, 941 rue Charles Bourseul, 59508 Douai, France
*
Author to whom correspondence should be addressed.
Received: 30 June 2017 / Revised: 15 August 2017 / Accepted: 16 August 2017 / Published: 18 August 2017
(This article belongs to the Special Issue Three-Dimensional Structures: Fabrication and Application)
Full-Text   |   PDF [11670 KB, uploaded 18 August 2017]   |

Abstract

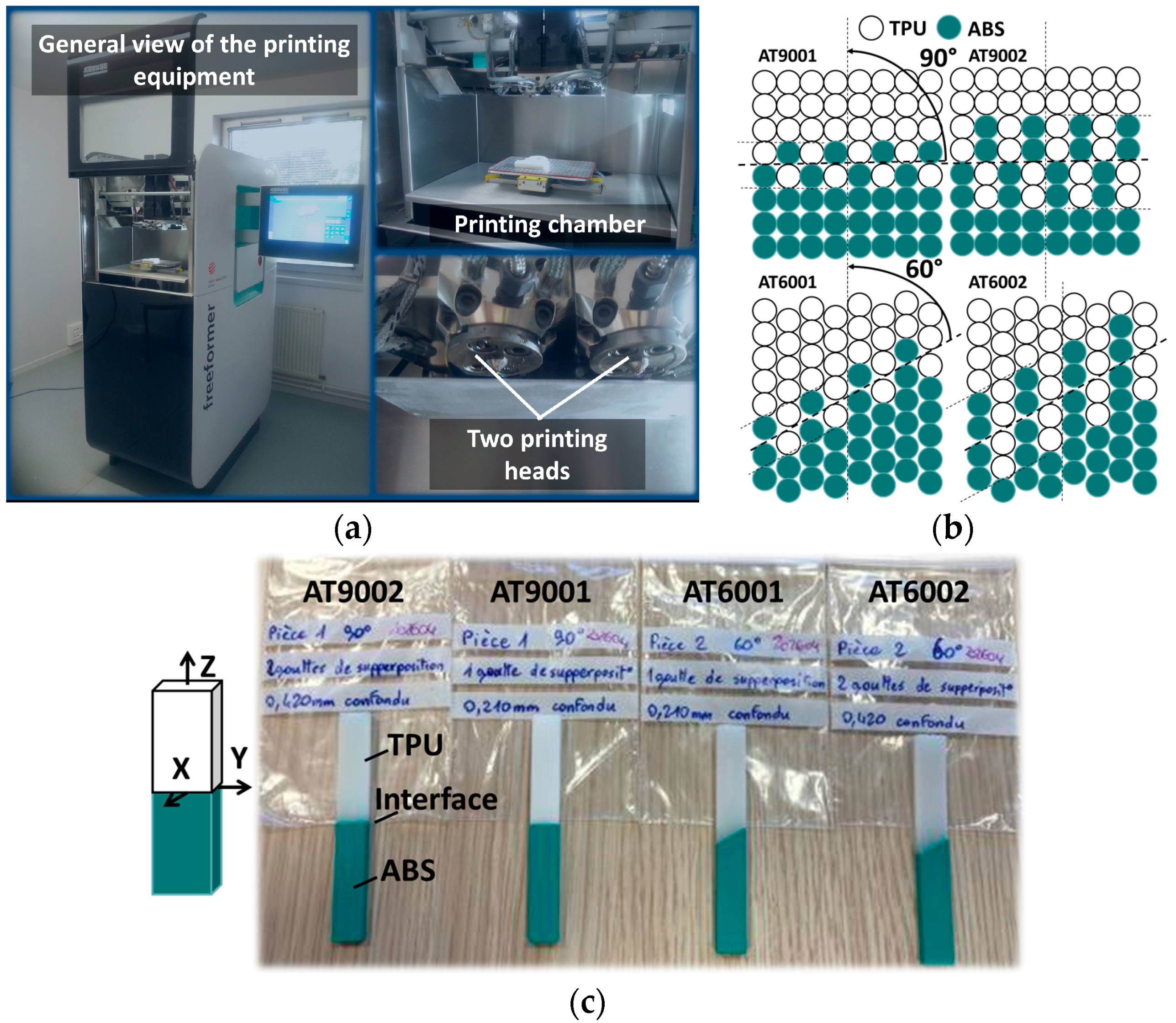

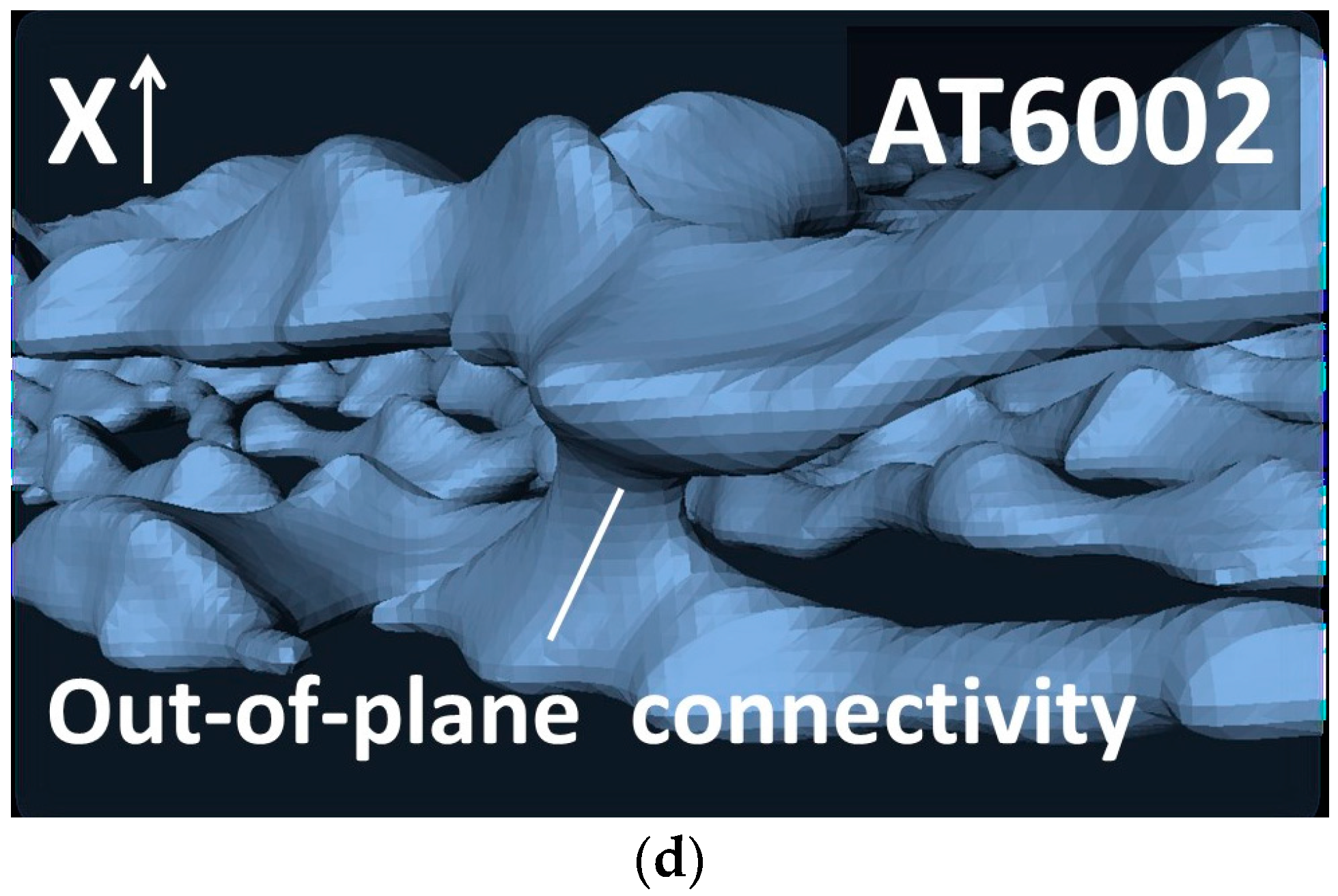

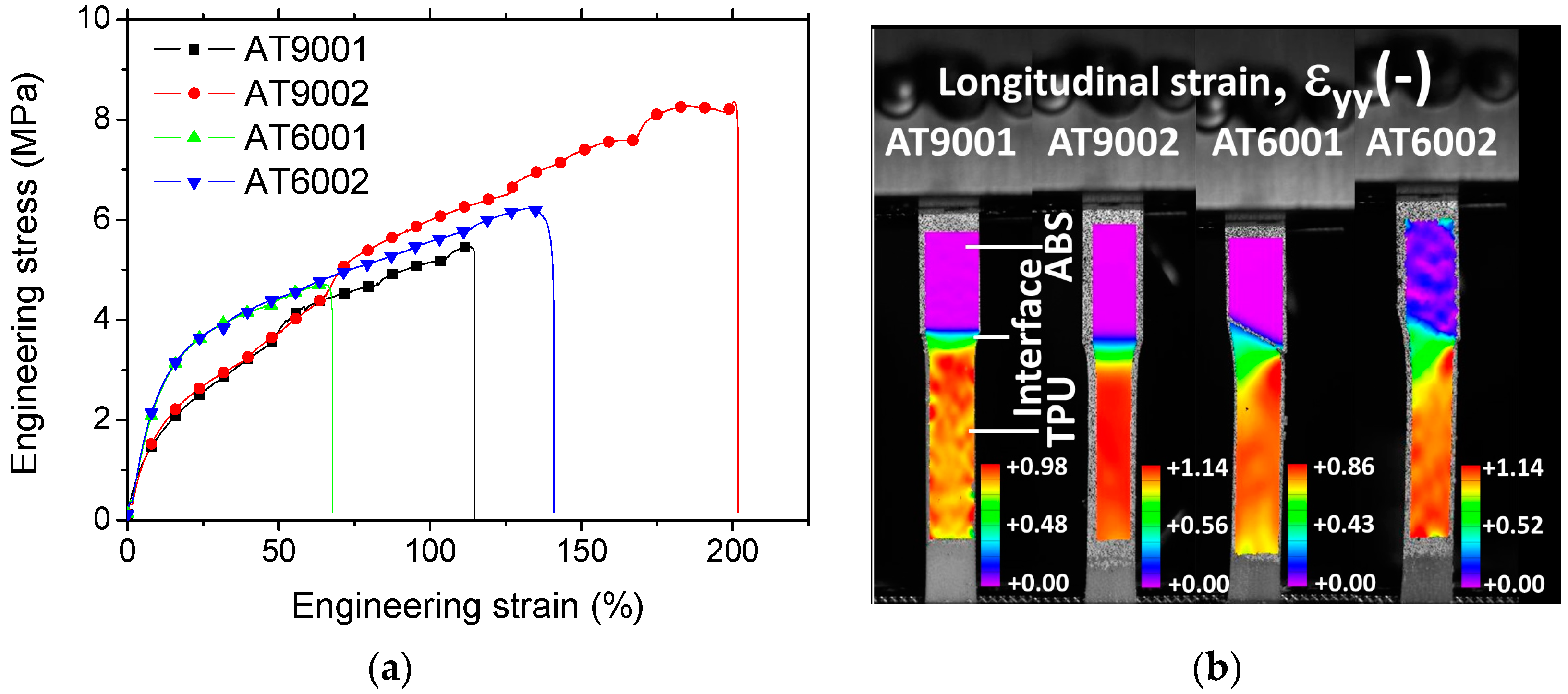

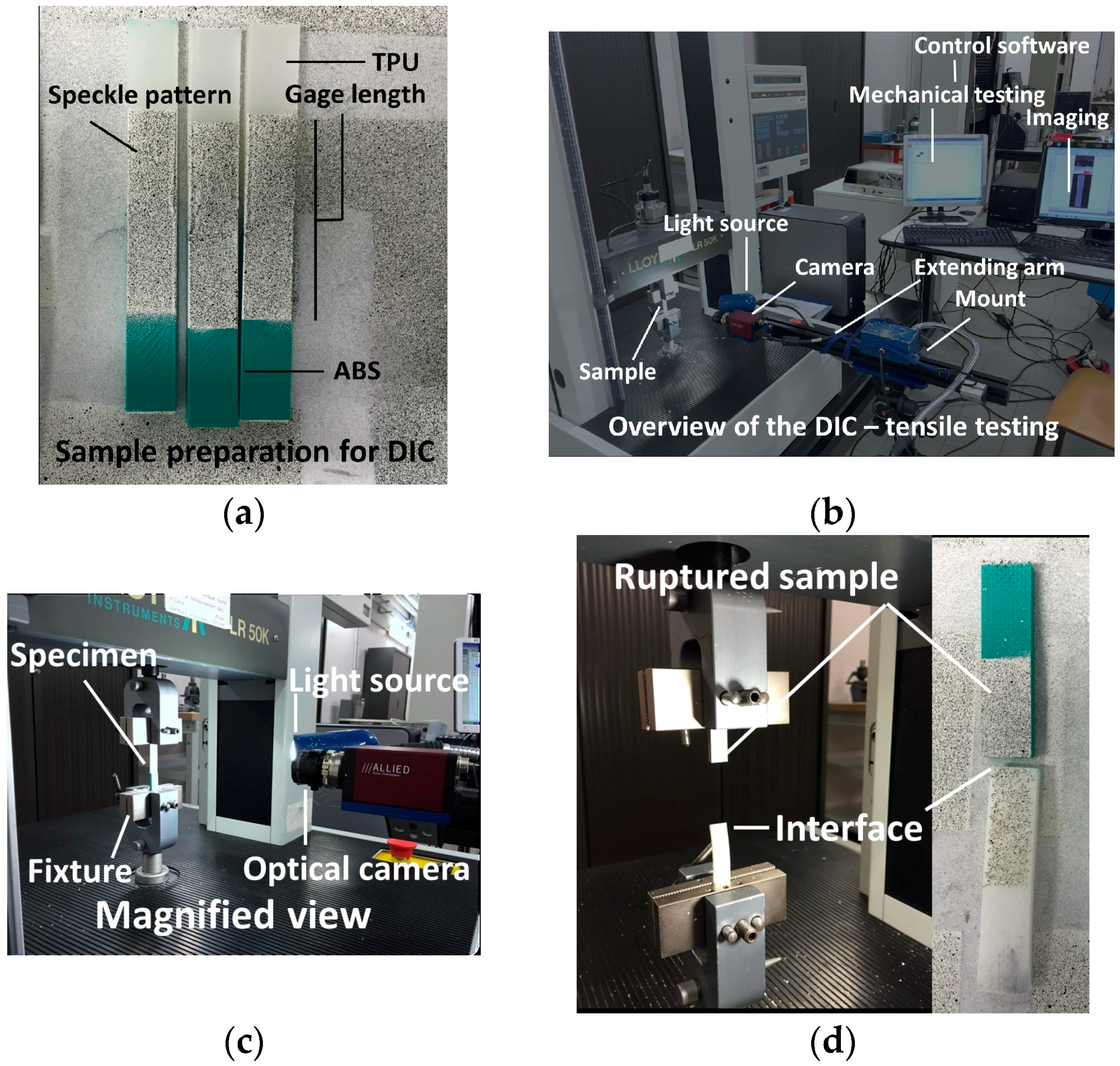

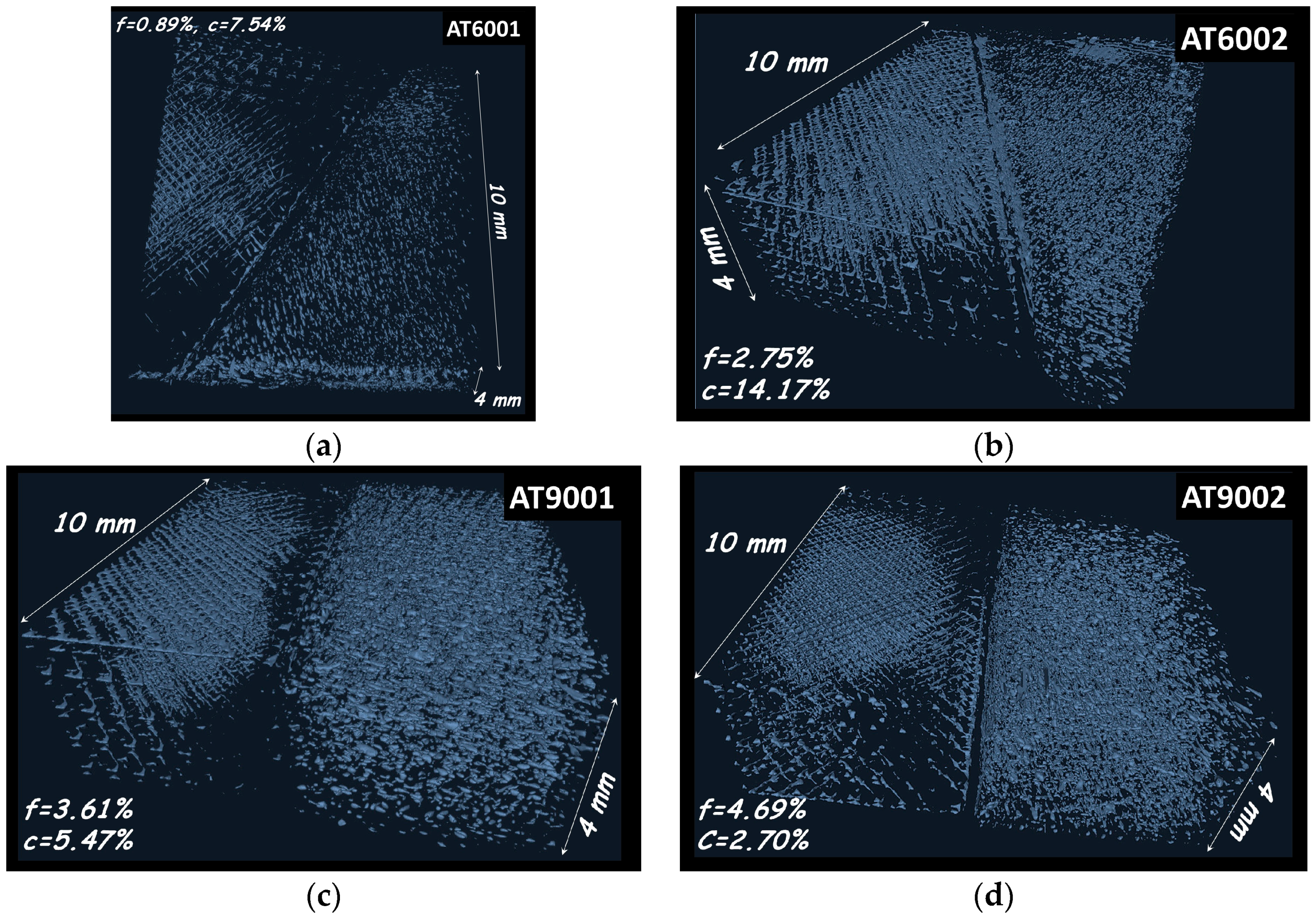

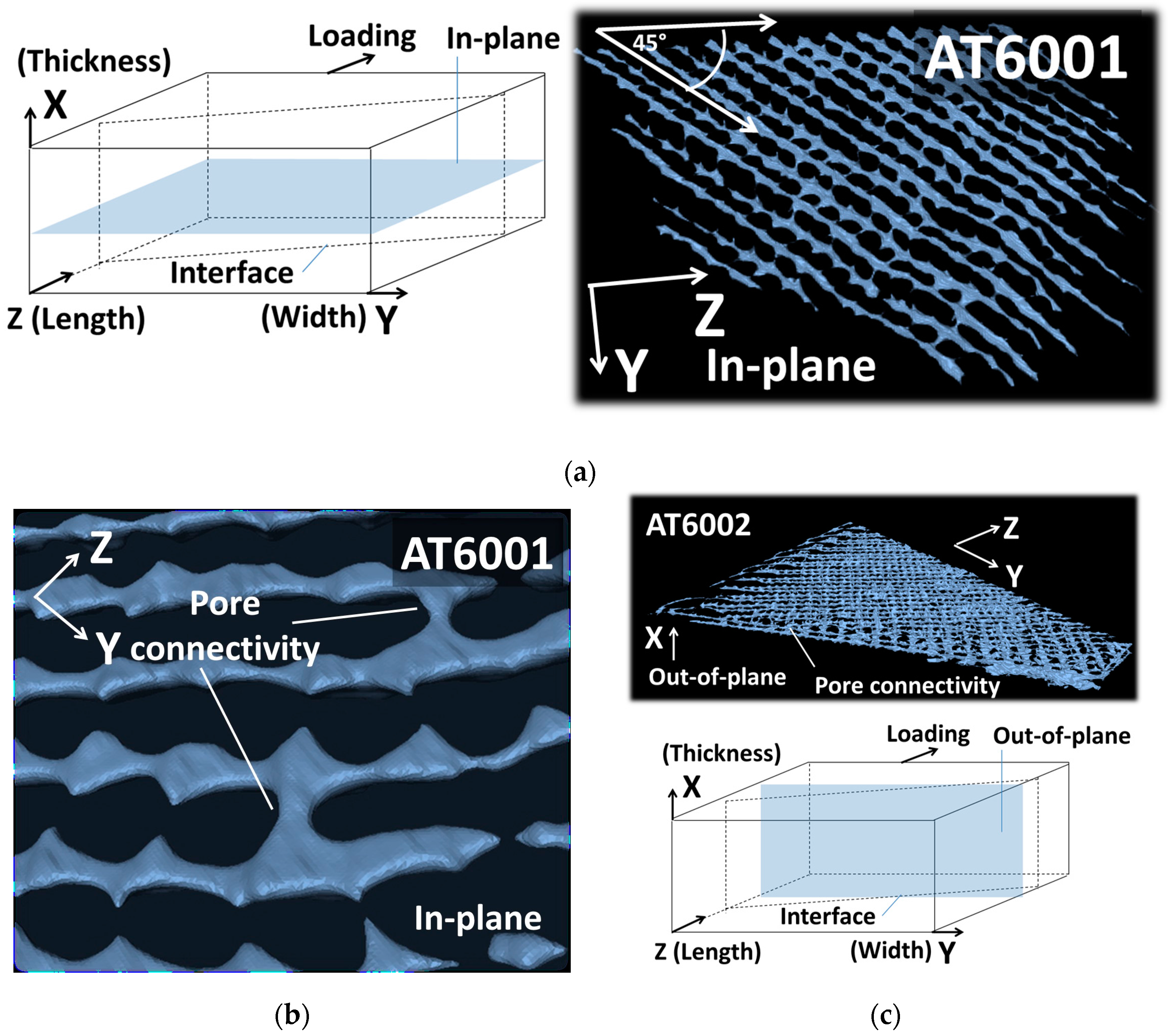

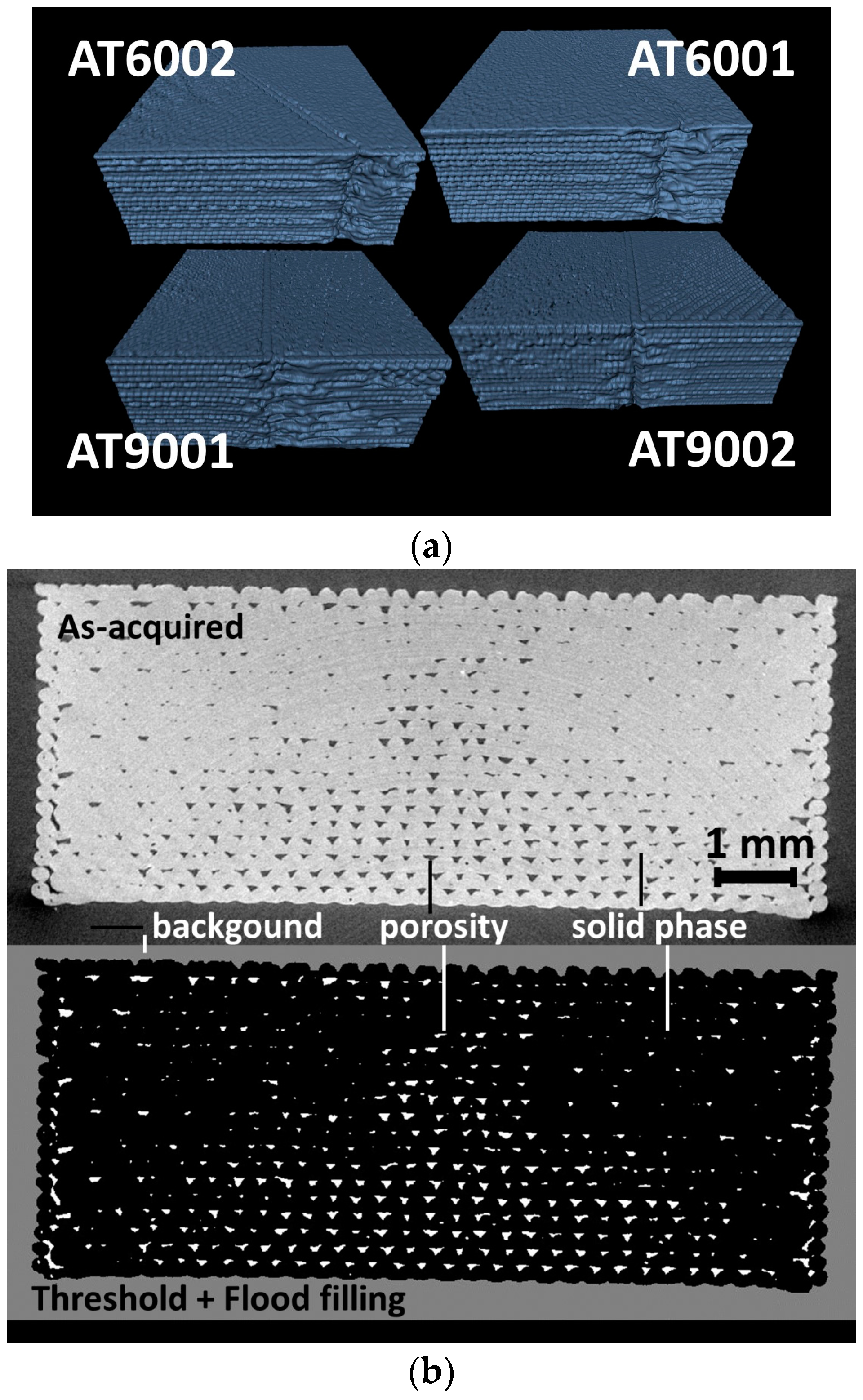

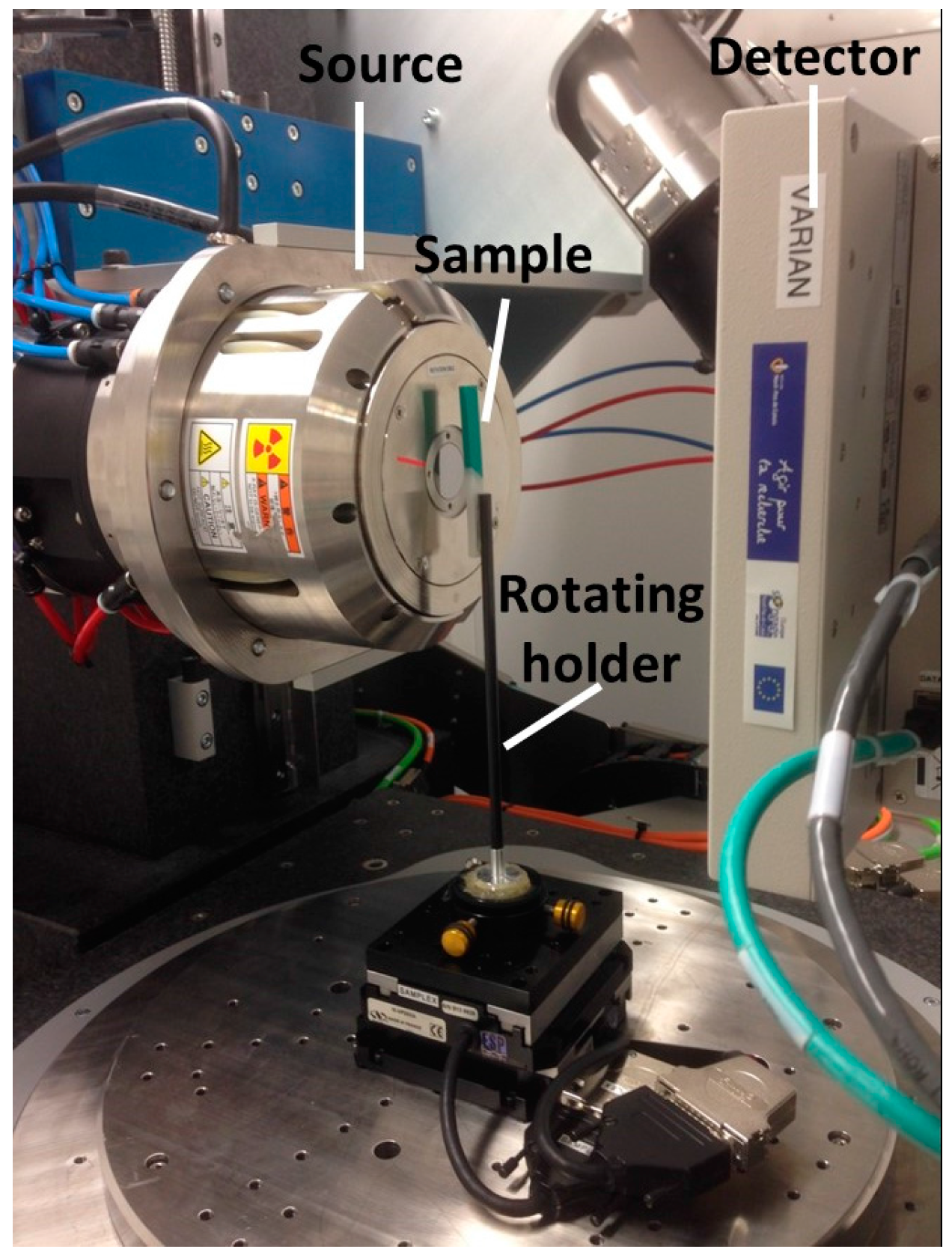

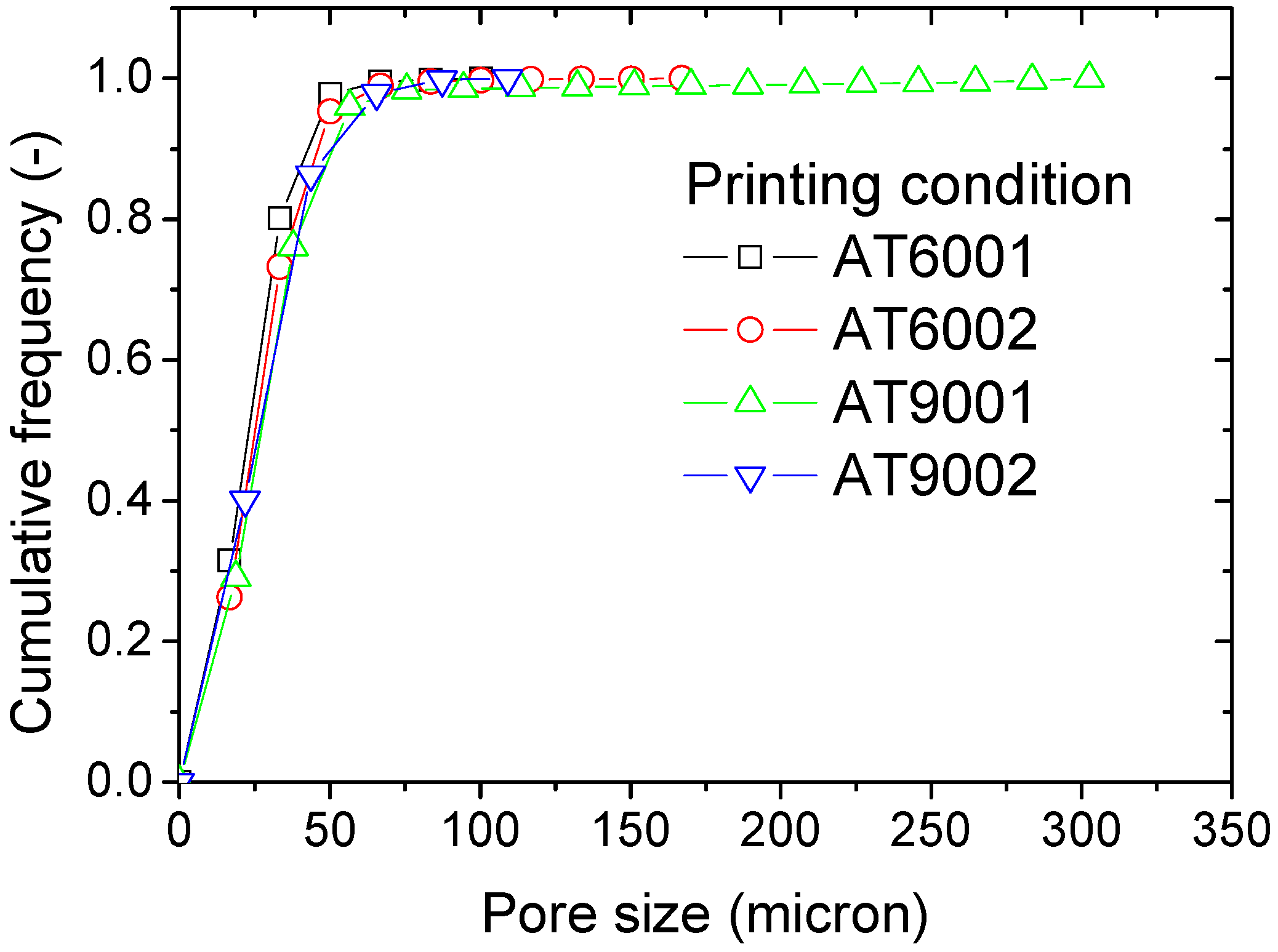

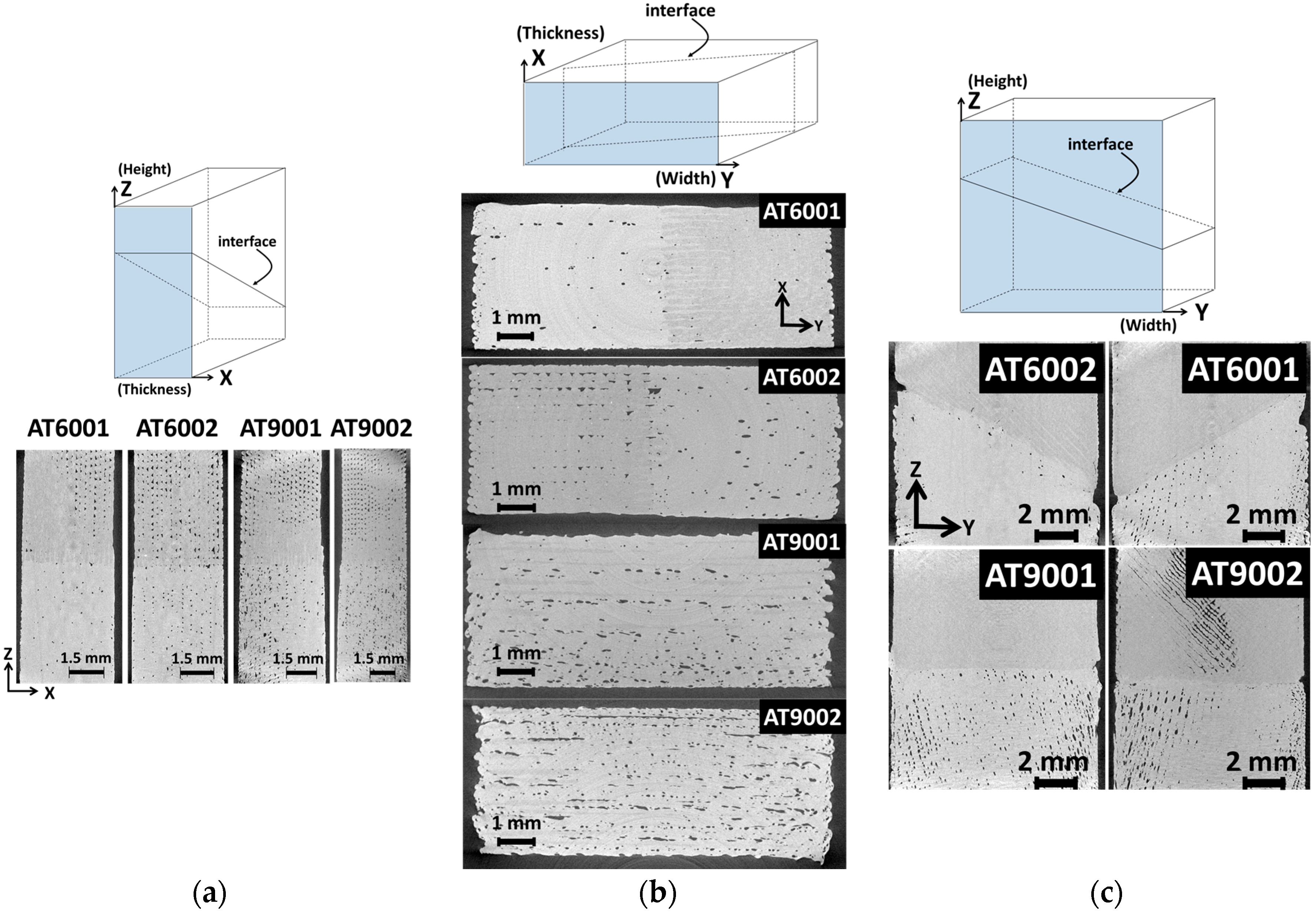

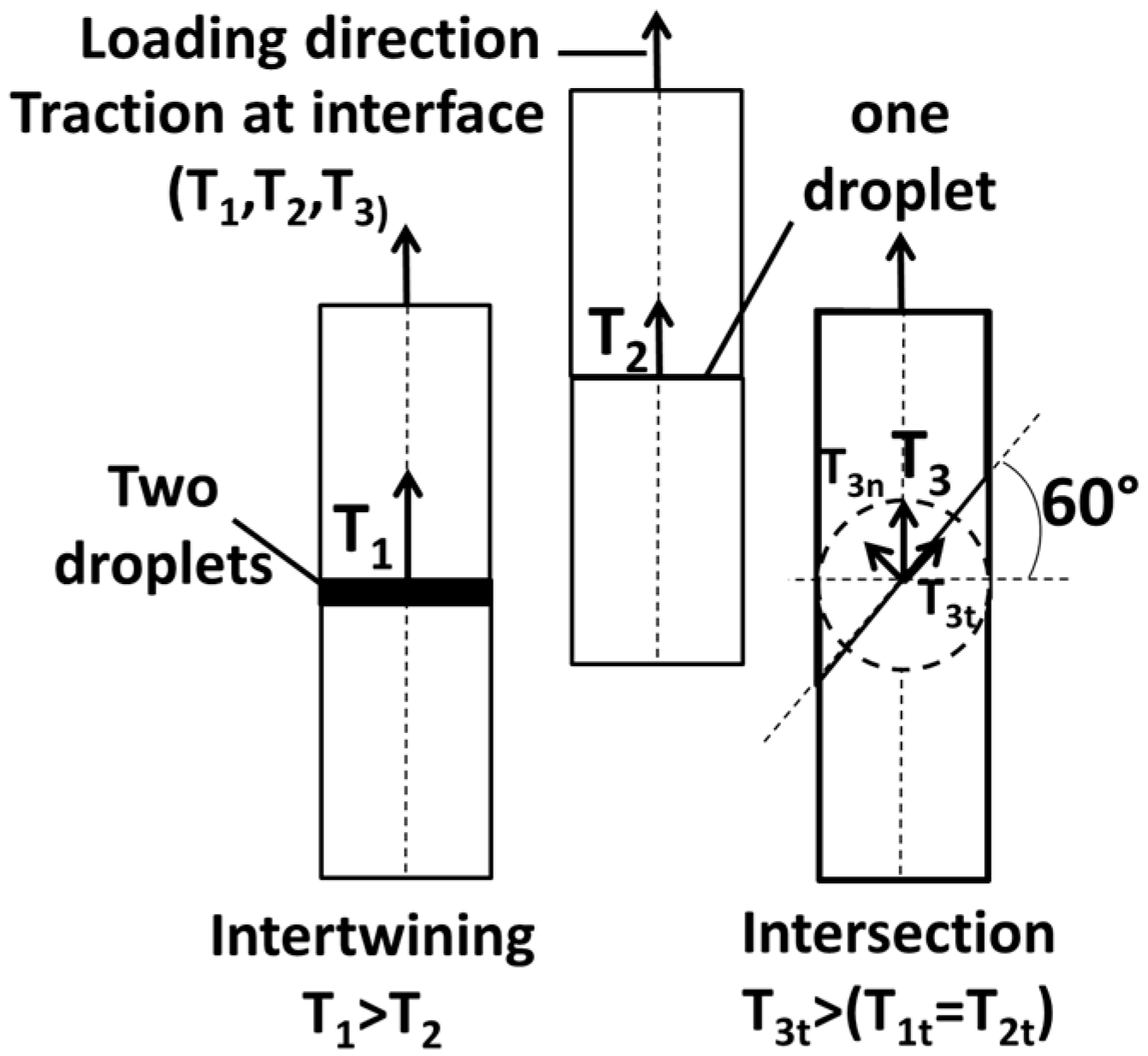

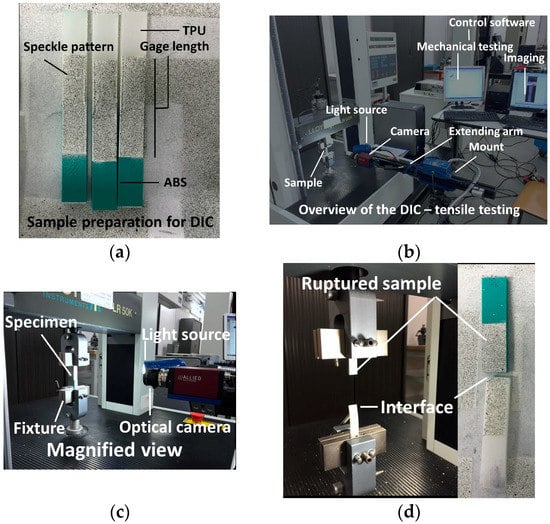

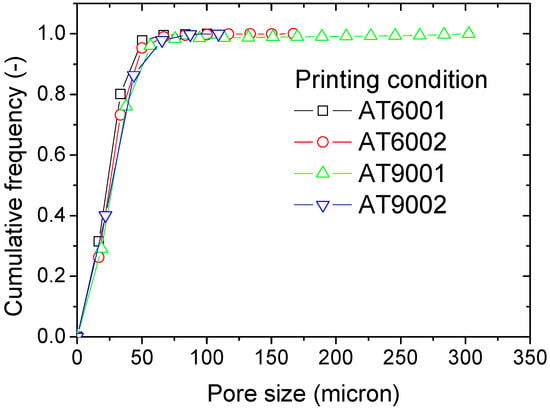

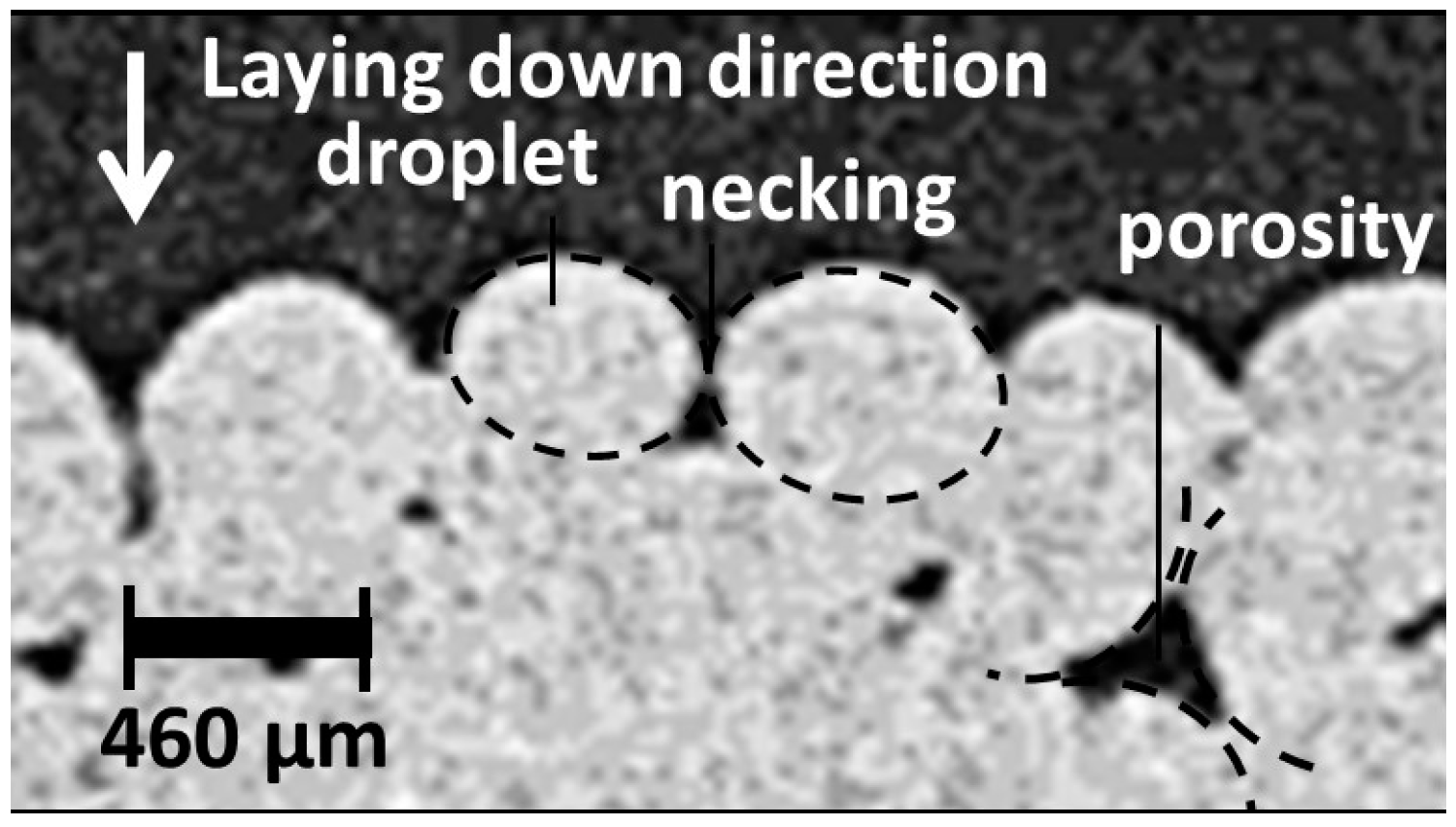

To reveal the potential and limits of multi-material three-dimensional (3D) printed parts in droplet-based additive manufacturing, a study combining tensile experiments and 3D imaging technique is proposed. A polymeric composite structure made of acrylonitrile butadiene styrene and thermoplastic polyurethane is manufactured using a two extrusion head printer. The quality of the interface between the two thermoplastics is quantified by adjusting the number of intertwining droplets at the interface. Tensile experiments assisted with digital image correlation are performed with two-interface orientation to discriminate shearing and traction at the interface. The 3D imaging results, which are based on X-ray micro-tomography, show the distinct features of droplet-based additive manufacturing in terms of porosity content and connectivity. Interface properties are found to control, in an incomparable way, the mechanical response. It is found that the interface quality is determinant for enhancing the ultimate performance whereas the interface orientation is found to be the perfect leverage for varying the slope of the linear part. View Full-Text
Keywords: droplet-based additive manufacturing; X-ray micro-tomography; multi-material print; interface properties droplet-based additive manufacturing; X-ray micro-tomography; multi-material print; interface properties
Figures

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Supplementary material

SciFeed

Share & Cite This Article

MDPI and ACS Style

Guessasma, S.; Nouri, H.; Roger, F. Microstructural and Mechanical Implications of Microscaled Assembly in Droplet-based Multi-Material Additive Manufacturing. Polymers 2017, 9, 372.
