Open AccessArticle
Polymers 2017, 9(12), 734; https://doi.org/10.3390/polym9120734

Preparation and Evaluation of a Polyimide-Coated Ultrafine Gilt Molybdenum Wire and Its Knitted Mesh Used for Electromagnetic Reflectors

1
State Key Laboratory for Modification of Chemical Fibers and Polymer Materials, Donghua University, Shanghai 201620, China
2
College of Textiles, Donghua University, Shanghai 201620, China
3
Key Laboratory of High Performance fibers & products, Ministry of Education, Donghua University, Shanghai 201620, China
4
Xi’an Institute of Space Radio Technology; Xi’an 710100, China
*
Author to whom correspondence should be addressed.
Received: 1 December 2017 / Revised: 17 December 2017 / Accepted: 18 December 2017 / Published: 20 December 2017
(This article belongs to the Special Issue Textile and Textile-Based Materials)
Full-Text   |   PDF [2946 KB, uploaded 20 December 2017]   |

Abstract

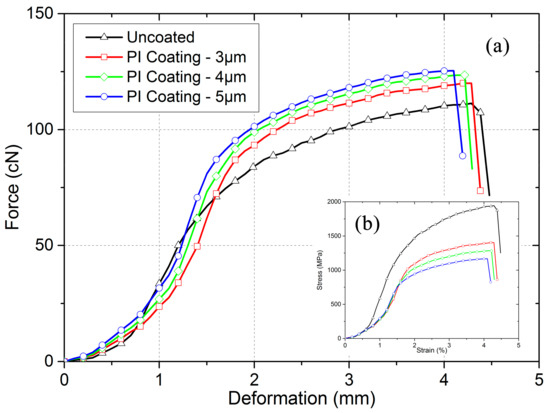

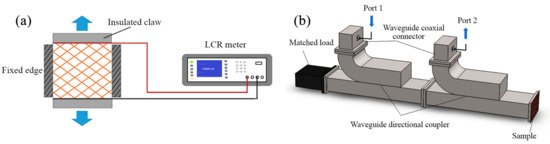

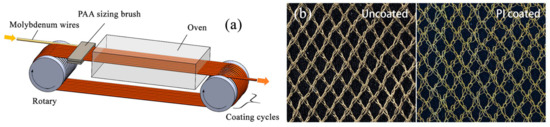

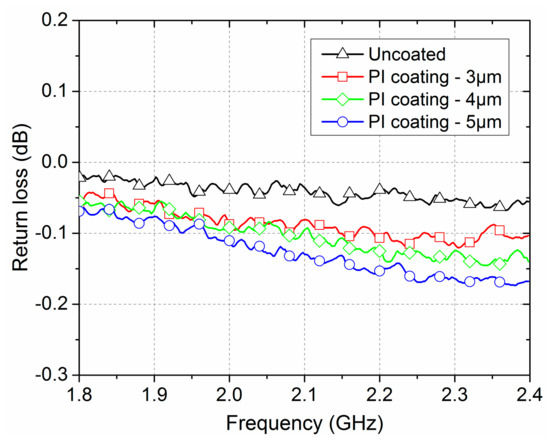

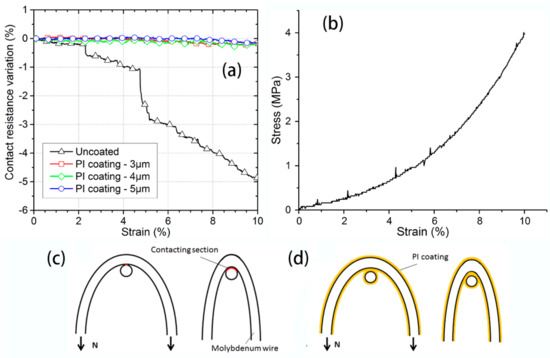

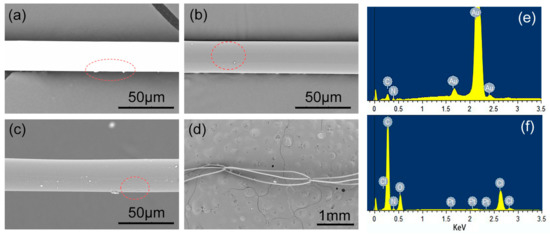

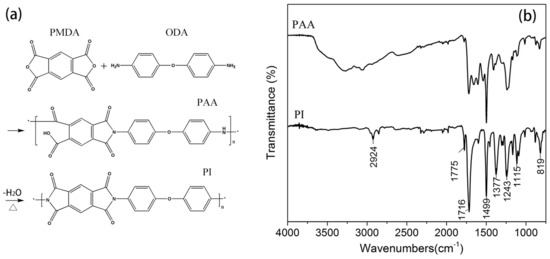

In this work, polyimide (PI) was coated onto an ultrafine gilt molybdenum wire in order to protect the gilt surface and prepare an electrically stable wire mesh material which can be widely used in space. The surface of the PI-coated gilt molybdenum wires was characterized using FTIR, SEM, and EDS. Factors such as temperature stability of the PI coating, mechanical properties of the PI-coated gilt molybdenum wires, contact resistance stability, and electromagnetic microwave reflectivity of the their knitted meshes were also investigated. The results indicate that the PI coating conformed uniformly to the surface of the gilt molybdenum wires. The prepared PI coating exhibited excellent temperature stability in the −196 to 300 °C range and could efficiently protect the gilt surface and improve the stability of contact resistance, while the reflection of its wire meshes showed only a slight decrease of 1.4% with the PI coating thickness of 3 μm for electromagnetic microwaves in the S band. View Full-Text
Keywords: polyimide coating; gilt molybdenum; wire mesh; temperature stability; contact resistance stability; reflection performance polyimide coating; gilt molybdenum; wire mesh; temperature stability; contact resistance stability; reflection performance
Figures

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
