Next Article in Journal
Enhanced Water Vapor Transmission through Porous Membranes Based on Melt Blending of Polystyrene Sulfonate with Polyethylene Copolymers and Their CNT Nanocomposites
Next Article in Special Issue
Recent Advances in Boron-Containing Conjugated Porous Polymers
Previous Article in Journal
Cross-Sectional Unification on the Stress-Strain Model of Concrete Subjected to High Passive Confinement by Fiber-Reinforced Polymer
Previous Article in Special Issue
The Effects of Cryomilling CNTs on the Thermal and Electrical Properties of CNT/PMMA Composites
Article Menu

Export Article

Open AccessArticle
Polymers 2016, 8(5), 189;

Synthesis and Characterization of PEDOT:P(SS-co-VTMS) with Hydrophobic Properties and Excellent Thermal Stability

Department of Chemical and Biomolecular Engineering, Yonsei University, 134 Shinchon-Dong, Seodaemoon-Gu, Seoul 120-749, Korea
Author to whom correspondence should be addressed.
Academic Editors: Changsik Song and Hyeonseok Yoon
Received: 16 February 2016 / Revised: 18 April 2016 / Accepted: 5 May 2016 / Published: 12 May 2016
(This article belongs to the Special Issue Conductive Polymers 2016)
Full-Text   |   PDF [3266 KB, uploaded 12 May 2016]   |

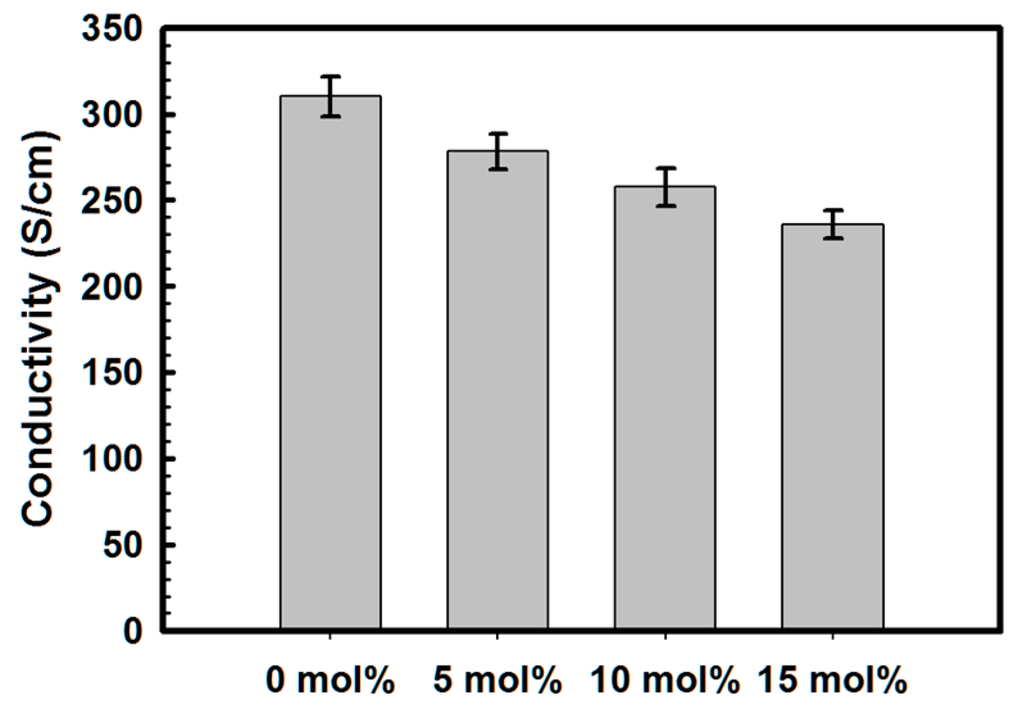

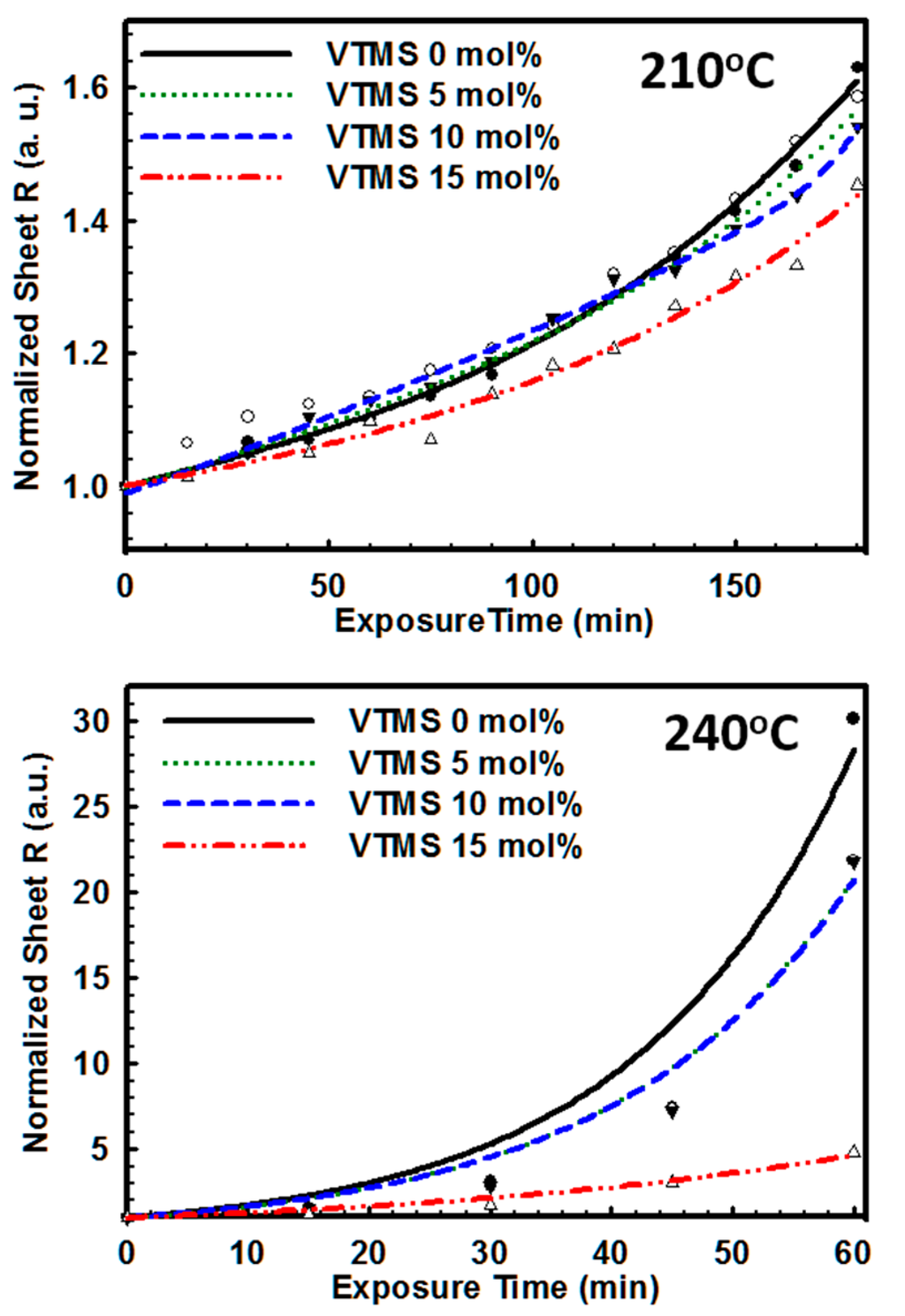

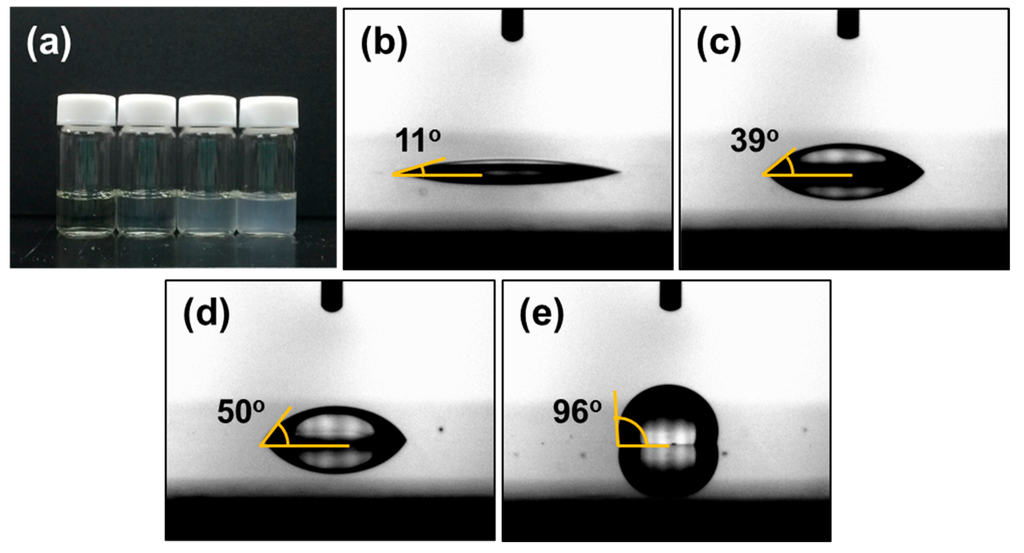

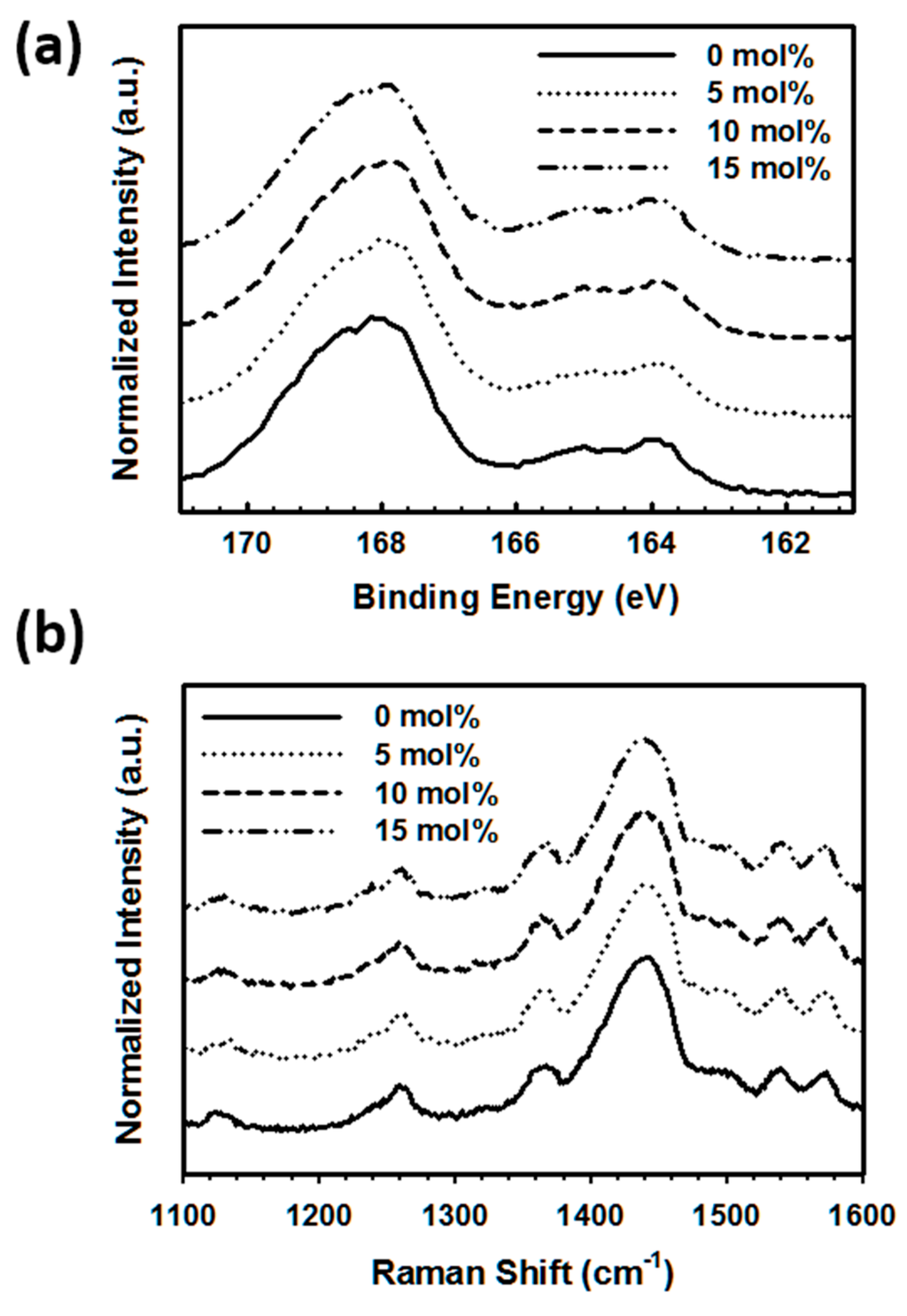

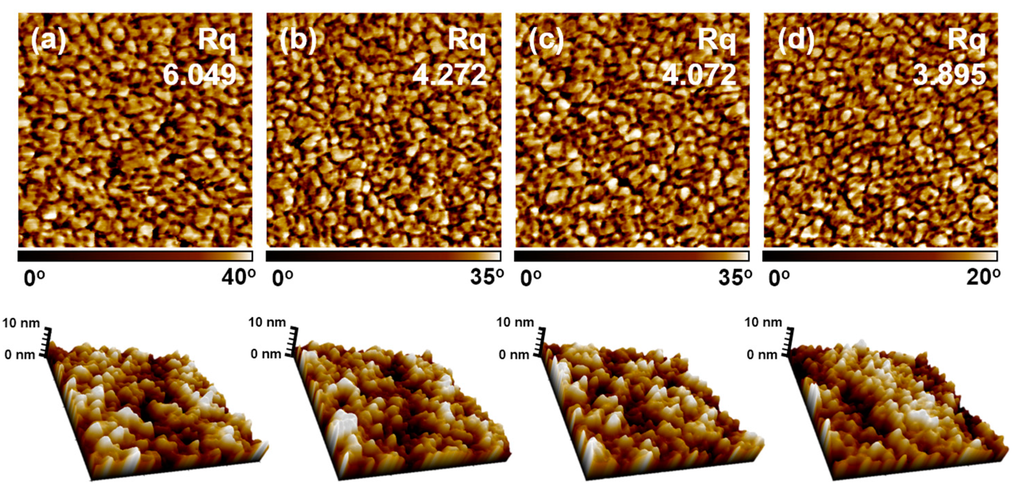

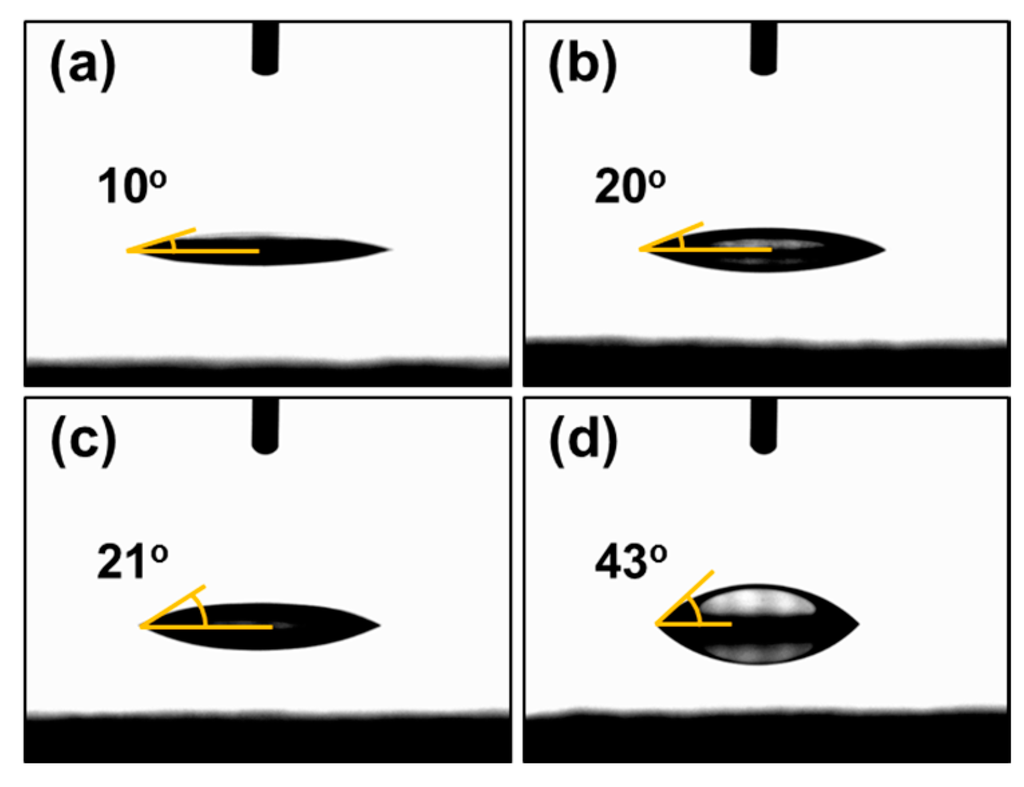

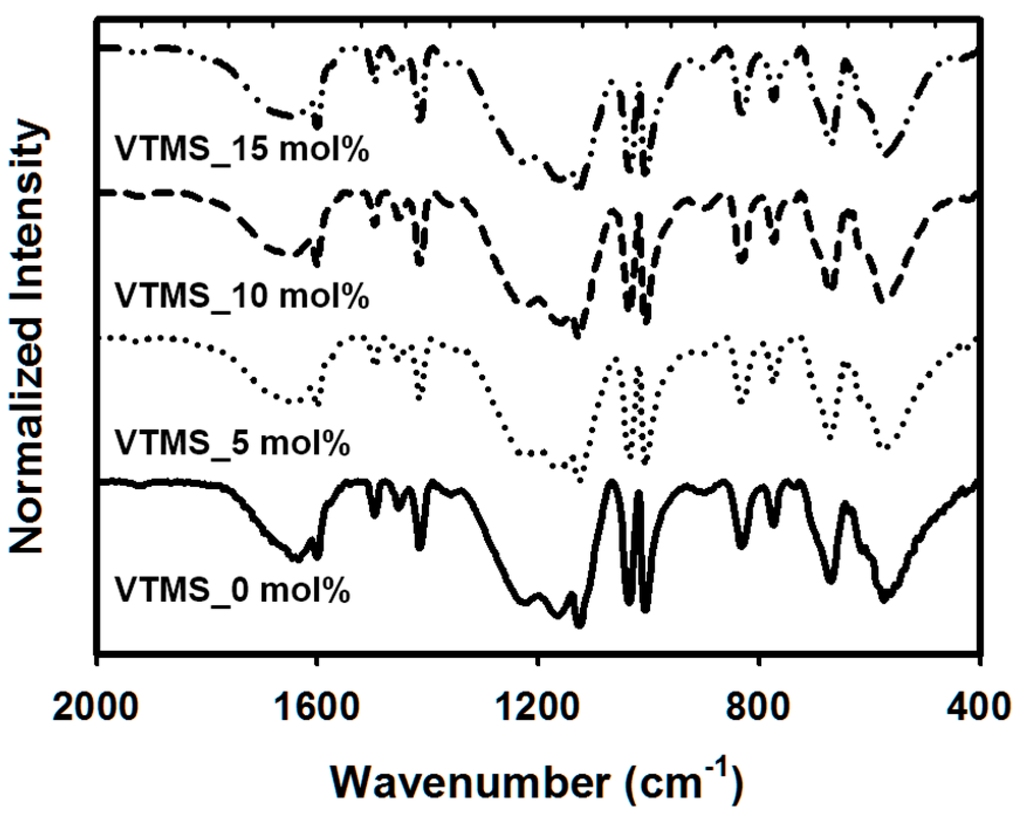

Hydrophobic and comparatively thermally-stable poly(3,4-ethylenedioxythiophene), i.e., poly(styrene sulfonate-co-vinyltrimethoxysilane) (PEDOT:P(SS-co-VTMS)) copolymer was successfully synthesized via the introduction of silane coupling agent into the PSS main chain to form P(SS-co-VTMS) copolymers. PSS and P(SS-co-VMTS) copolymers were successfully synthesized via radical solution polymerization, and PEDOT:P(SS-co-VTMS) was synthesized via Fe+-catalyzed oxidative polymerization. The characterization of PEDOT:P(SS-co-VTMS) was performed through an analysis of Fourier transform infrared spectroscopy (FTIR) results, water contact angle and optical images. The electrical properties of conductive PEDOT:P(SS-co-VTMS) thin films were evaluated by studying the influence of the VTMS content on the electrical and physical properties. The conductivity of PEDOT:P(SS-co-VTMS) decreased with an increase in the VTMS content, but was close to that of the PEDOT:PSS, 235.9 S·cm−1. The introduction of VTMS into the PSS copolymer improved the mechanical properties and thermal stability and increased the hydrophobicity. The thermal stability test at a temperature over 240 °C indicated that the sheet resistance of PEDOT:PSS increased by 3,012%. The sheet resistance of PEDOT:P(SS-co-VTMS), on the other hand, only increased by 480%. The stability of PEDOT:P(SS-co-VTMS) was six-times higher than that of the reference PEDOT:PSS. View Full-Text
Keywords: PEDOT:PSS; conducting polymer; PSS copolymer PEDOT:PSS; conducting polymer; PSS copolymer

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Supplementary material


Share & Cite This Article

MDPI and ACS Style

Cho, W.; Im, S.; Kim, S.; Kim, S.; Kim, J.H. Synthesis and Characterization of PEDOT:P(SS-co-VTMS) with Hydrophobic Properties and Excellent Thermal Stability. Polymers 2016, 8, 189.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics



[Return to top]
Polymers EISSN 2073-4360 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
