Polymers 2016, 8(1), 12; https://doi.org/10.3390/polym8010012

Article
Iminopyridine-Based Cobalt(II) and Nickel(II) Complexes: Synthesis, Characterization, and Their Catalytic Behaviors for 1,3-Butadiene Polymerization
Key Laboratory of Synthetic Rubber, Changchun Institute of Applied Chemistry, Chinese Academy of Sciences, Changchun 130022, China
*
Correspondence: Tel.: +86-431-85262304 (C.B.); +86-431-85262305 (Y.H.)
These authors contributed equally to this work.
Received: 22 December 2015 / Accepted: 7 January 2016 / Published: 12 January 2016

Abstract

:
A series of iminopyridine ligated Co(II) (1a7a) and Ni(II) (1b7b) complexes were synthesized. The structures of complexes 3a, 4a, 5a, 7a, 5b, and 6b were determined by X-ray crystallographic analyses. Complex 3a formed a chloro-bridged dimer, whereas 4a, 5a, and 7a, having a substituent (4a, 5a: CH3; 7a: Br) at the 6-position of pyridine, producing the solid structures with a single ligand coordinated to the central metal. The nickel atom in complex 5b features distorted trigonal-bipyramidal geometry with one THF molecule ligating to the metal center. All the complexes activated by ethylaluminum sesquichloride (EASC) were evaluated in 1,3-butadiene polymerization. The catalytic activity and selectivity were significantly influenced by the ligand structure and central metal. Comparing with the nickel complexes, the cobalt complexes exhibited higher catalytic activity and cis-1,4-selectivity. For both the cobalt and nickel complexes, the aldimine-based complexes showed higher catalyst activity than their ketimine counterparts.
Keywords:
iminopyridine; cobalt; nickel; 1,3-butadiene; polybutadiene

1. Introduction

Conjugated diene polymerization is a long-standing research subject of considerable interest from the viewpoints of fundamental and practical perspectives. 1,3-butadiene (BD) polymerization is capable of producing polybutadienes (PBDs) with different isomeric forms such as cis-1,4, trans-1,4, 1,2-syndiotactic, 1,2-isotactic, and 1,2-atactic, and each exhibits different properties and consequently find diverse applications [1]. Due to the elastomeric character, cis-1,4-polybutadiene is one of the most important raw materials in rubber industry. Industrially, Ziegler–Natta catalysts based on Ti, Nd, Co, Ni, and other transition metals are used in the production of cis-1,4-PBDs [2,3,4].
Cobalt-based catalysts attract special interests as the microstructure of the product, including cis-1,4-PBD and syndiotactic 1,2-PBD, depending on the structure of the ligand coordinated to central metal. As a result, a variety of cobalt complexes have been designed and exploited for cis-1,4 and 1,2-selected polymerization, such as the cobalt halides and carboxylates, or the combination of alkylphosphines and pyridyl adducts as electron donors when activated by methylaluminoxane (MAO) [5,6]. Because of their ill-defined nature, these multi-site catalysts often produced polymers with broad molecular weight distribution, resulting in poor mechanical properties. In order to gain better control over molecular weight, molecular weight distribution, and, more importantly, stereoselectivity of the polymerization, academic and industrial research has focused on well-defined organometallic single-site catalysts. For example, four-coordinated (salen)cobalt(II) ([ONNO]2−) [7] and bis(salicylaldiminate)cobalt(II) [8], three-coordinated bis(imino)pyridine cobalt (II) [9], bis(benzimidazolyl)amine cobalt (II) [10], bis(benzimidazolyl) pyridine [11,12] cobalt(II), bis(thiazolinyl)pyridine cobalt(II) [13], 2-arylimino-6-(alcohol)pyridine/2-arylamino-6-(alcohol) pyridine cobalt(II) [14], and 3-aryliminomethyl-2-hydroxybenzaldehyde cobalt(II) [15] exhibited high activity and high cis-1,4 selectivity in 1,3-butadiene polymerization in combination with MAO or EASC. The nickel-based catalysts are also of particular interest in the production of high cis-1,4-PBD. For example, (salen)nickel(II) ([ONNO]2−) [16], nickel-tropolonoide, and nickel-1,3-propanedionate ([OO]) [17] afforded polymers with high cis-1,4 content, whereas nickel dihalide complexes bearing neutral α-diimine ligands ([NN]) [16,18] or bis(imino)pyridine ligands ([NNN]) [17,19] were less active for the polymerization of 1,3-butadiene. Li et al. found that 2-arylimino-6-(alcohol)pyridine/2-arylamino-6-(alcohol)pyridine nickel (II) [14] produced the polymers with low molecular weight (Mn = 6000–9000) in high yields and the molecular weight distributions were somewhat broad (Mw/Mn = 3.18–4.25), while the ligand environments did not influence the stereoregularity of the resulting polymers.
We have been interested in the synthesis of transition metal complexes to promote 1,3-butadiene polymerization over the past decades. For example, cis-1,4 selective polymerization of 1,3-butadiene was achieved by bis(imino)pyridine cobalt(II) complexes/MAO catalyst [9], and the incorporation of electron-withdrawing groups could enhance activity and selectivity simultaneously. Moreover, other catalyst systems usually focused on the steric and electronic effects of the substitutions at the iminoaryl rings on the catalytic activity and properties of resulting polymers. Even though some of these complexes based on the iminopyridine ligands have been reported for ethylene polymerization and oligomerization [20,21,22,23,24], iminopyridine cobalt(II) and nickel(II) complexes for 1,3-butadiene polymerization have not been investigated yet. In the present study, iminopyridine cobalt(II) and nickel(II) complexes were synthesized, and the influences of the substituents at the 6-position of the pyridine ring and in the imino bridge on catalytic activity and selectivity in 1,3-butadiene polymerization were investigated.

2. Materials and Methods

2.1. General Considerations and Materials

All the manipulations were carried out in a nitrogen atmosphere by using standard Schlenk techniques. 1,3-Butadiene (Jinzhou Petrochemical Company, Jinzhou, China) was purified by passing through two columns containing potassium hydroxide and active alumina. Hexane (Beijing Reagents Factory, Beijing, China) was refluxed over sodium benzophenone ketyl until the solution turned blue, and then distilled before use. Ethylaluminum sesquichloride (EASC) was purchased from Acros Chemicals (Geel, Belgium). CoCl2, NiBr2 and all the anilines were obtained from Alfa Aesar (Ward Hill, UK). Other chemicals were commercially available and used without further purification.
FTIR spectra were performed on a BRUKE Vertex-70 FTIR spectrometer (Bruker Optics, Ettlingen, Germany). Elemental analysis was performed using an elemental Vario EL spectrophotometer (Elementar, Hanau, Germany). The molecular weights (Mw and Mn) and molecular weight distributions (Mw/Mn) of polymers were measured at 30 °C by gel permeation chromatography (GPC) equipped with a Waters 515HPLC pump, a series of four columns (HMW7THF, HMW6ETHF(two), HMW2THF) and a Waters 2414 refractive index detector (Waters, Massachusetts, UK). Tetrahydrofuran was used as an eluent at a flow rate of 1.0 mL/min.
X-ray crystallography measurements. Single crystals of 3a, 4a, 5a, 7a, 5b, and 6b suitable for X-ray diffraction were obtained by a slow diffusion of diethyl ether into their THF solution. Data collections were performed at −85 °C on a BRUKE SMART APEX diffractometer (Bruker, Bremen, Germany) with a CCD area detector, using graphite monochromated Mo K radiation (λ = 0.71073 Å). The determination of crystal class and unit cell parameters was carried out by the SMART program package. The raw frame data were processed using SAINT and SADABS to yield the reflection data file. The structures were solved by using SHELXTL program. Refinement was performed on F2 anisotropically for all non-hydrogen atoms by the full-matrix least-squares method. The hydrogen atoms were placed at the calculated positions and were included in the structure calculation without further refinement of the parameters.

2.2. Procedure for 1,3-Butadiene Polymerization

A typical procedure for the polymerization is as follows: a toluene solution of 1,3-butadiene (1.0 g, 1.85 × 10−2 mol) was added to a moisture free ampoule preloaded with complex 1a (7.3 mg, 1.85 × 10−5 mol), and EASC (1.156 × 10−3 mol/mL, 0.4 mL) was then injected to initiate the polymerization at 20 °C. After 15 min, methanol was added to the system to quench the polymerization. The mixture was poured into a large quantity of methanol containing 2,6-di-tertbutyl-4-methylphenol (1.0 wt %) as a stabilizer. Via filtering and drying under vacuum at 40 °C, polybutadiene resulted at a constant weight (0.569 g, 56.9%).

2.3. Synthesis of Ligand (L1–L7)

2.3.1. 2,6-Bis(1-methylethyl)-N-(2-pyridinylmethylene)phenylamine (L1)

Ligand L1 was prepared according to the reported method [21]. Pyridine-2-carbaldehyde (2.0 g, 0.0187 mol) was dissolved in 30 mL of methanol, then 2,6-di(1-methylethyl)phenylamine (3.55 g, 0.02 mol), and a few drops of formic acid were subsequently added. This mixture was refluxed for 12 h. The solvent was evaporated in vacuo. The remaining crude product was dissolved in n-pentane, and the solution was dried with Na2SO4. After filtration, the compound L1 was crystallized from n-pentane at −25 °C, producing yellow crystals. Yield: 3.75 g (75.4%). 1H NMR (400 MHz, CDCl3, δ, ppm): 1.17 (d, 12 H, CHMe2), 2.97 (m, 2 H, CHMe2), 7.11–7.28 (m, 3 H, Hphenyl), 7.41 (t, 1 H, Hpyridine,5), 7.85 (t, 1 H, Hpyridine,4), 8.26 (d, 1 H, Hpyridine,3), 8.31 (s, 1 H, CH=N), 8.72 (d, 1 H, Hpyridine,6). 13C NMR (100 MHz, CDCl3, δ, ppm): 162.80 (CH=N), 149.51, 148.22, 137.05, 136.54, 125.12, 124.30, 122.88, 122.57, 121.14, 27.77 (CHMe2), 23.27 (CHMe2). IR (KBr, cm−1): 2959, 1633, 1586, 1470, 1385, 808, 779, 754. Anal. Calcd. For C18H22N2: C, 81.16; H, 8.32; N, 10.52. Found: C, 81.59; H, 7.96; N, 10.45.

2.3.2. 2,6-Bis(1-methylethyl)-N-[1-(2-pyridinyl)-ethylidene]phenylamine (L2)

The procedure as above in (4.2.1) by using 2-acetyl-pyridine (1.0 g, 0.0083 mol) and 2,6-di(1-methylethyl)phenylamine (1.77 g, 0.01 mol) produced L2 as yellow compound crystallized from methanol at −25 °C in 82.2% yield. 1H NMR (400 MHz, CDCl3, δ, ppm): 1.16 (d, 12 H, CHMe2), 2.21 (s, 3 H, C(CH3)=N), 2.75 (m, 2 H, CHMe2), 7.07–7.15 (m, 3 H, Hphenyl), 7.39 (t, 1 H, Hpyridine,5), 7.79 (t, 1 H, Hpyridine,4), 8.35 (t, 1 H, Hpyridine,3) 8.69 (t, 1 H, Hpyridine,6). 13C NMR (100 MHz, CDCl3, δ, ppm): 166.77 (CMe=N), 156.29, 148.39, 146.25, 136.25, 135.58, 124.57, 123.40, 122.80, 121.11, 28.06 (CHMe2), 23.03 (CHMe2), 22.69 (CHMe2), 17.11 (C(CH3)=N). IR (KBr, cm−1): 2958, 1637, 1585, 1566, 1363, 933, 824, 775, 743. Anal. Calcd. For C19H24N2: C, 81.38; H, 8.63; N, 9.99. Found: C, 81.78; H, 8.24; N, 9.98.

2.3.3. 2,6-Bis(1-methylethyl)-N-(phenyl-2-pyridinylmethylene)phenylamine (L3)

Phenyl-2-pyridinylmethanone (2.0 g, 0.01 mol) was dissolved in 30 mL of methanol, then 2,6-di(1-methylethyl)phenylamine (1.95 g, 0.011 mol) and a few drops of concentrated H2SO4 were added. This mixture was refluxed for 12 h. The solvent was evaporated in vacuo. The yellow raw product was dissolved in 50 mL of dichloromethane, filtered, washed with 50 mL of water and dried with Na2SO4. After filtration and solvent evaporation, the yellow residue was purified by crystallization from methanol at −25 °C, affording yellow, needle-like crystals in 46.7% yield. 1H NMR (400 MHz, CDCl3, δ, ppm): 0.89 (d, 3 H, CHMe2), 0.96 (d, 3 H, CHMe2), 1.13 (d, 6H, CHMe2), 2.86 (m, 1 H, CHMe2), 2.96 (m, 1 H, CHMe2), 6.96-7.21 (m, 6 H, Harom), 7.44 (m, Harom), 7.81 (m, Harom), 8.23 (d, Harom), 8.61 (d, Harom). 13C NMR (100 MHz, CDCl3, δ, ppm): 165.26 (C(Phenyl)=N), 164.04, 157.52, 154.25, 148.91, 148.59, 145.91, 138.17, 136.36, 135.31, 134.69, 130.36, 129.39, 129.06, 128.03, 127.33, 123.46, 123.09, 122.41, 28.15 (CHMe2), 23.74 (CHMe2), 23.64 (CHMe2), 21.81 (CHMe2), 21.71(CHMe2). IR (KBr, cm−1): 2955, 1616, 1584, 1380, 831, 799, 774. Anal. Calcd. For C24H26N2: C, 84.17; H, 7.65; N, 8.18. Found: C, 84.65; H, 8.02; N, 7.33.

2.3.4. 2,6-Bis(1-methylethyl)-N-[(6-methyl-2-pyridinyl)-methylene]phenylamine (L4)

The procedure as above in (4.2.1) by using 6-methyl-pyridine-2-carbaldehyde (1.0 g, 0.0083 mol) and 2,6-di(1-methylethyl)phenylamine (1.77g, 0.01 mol) produced L4 as yellow compound crystallized from methanol at −25 °C in 92.6% yield. 1H NMR (400 MHz, CDCl3, δ, ppm): 1.16 (d, 12 H, CHMe2), 2.64 (s, 3 H, Hpyridine,6-Me), 2.97 (m, 2 H, CHMe2), 7.09–7.28 (m, 3 H, Hphenyl), 7.28 (d, 1 H, Hpyridine,5), 7.72 (t, 1 H, Hpyridine,4), 8.07 (d, 1 H, Hpyridine,3), 8.27 (s, 1 H, CH=N). 13C NMR (100 MHz, CDCl3, δ, ppm): 163.06 (CH=N), 158.28, 153.69, 148.33, 136.98, 136.67, 124.78, 124.14, 122.78, 118.21, 27.72 (CHMe2), 24.18 (Cpyridine, 6-Me), 23.23 (CHMe2). IR (KBr, cm−1): 2959, 1642, 1588, 1456, 1318, 856, 795, 748. Anal. Calcd. For C19H24N2: C, 81.38; H, 8.63; N, 9.99. Found: C, 81.26; H, 8.85; N, 9.89.

2.3.5. 2,6-Bis(1-methylethyl)-N-[1-(6-methyl-2-pyridinyl)-ethylidene]phenylamine (L5)

The procedure as above in (4.2.1) by using 6-methyl-2-acetylpyridine (2.0 g, 0.0148 mol) and 2,6-di(1-methylethyl)phenylamine (2.66 g, 0.015 mol) produced L5 as yellow compound crystallized from methanol at −25 °C in 89.2% yield. 1H NMR (400 MHz, CDCl3, δ, ppm): 1.13 (d, 12 H, CHMe2), 2.20 (s, 3 H, C(CH3)=N), 2.62 (s, 3 H, Hpyridine, 6-Me), 2.75 (m, 2 H, CHMe2), 7.06–7.24 (m, 3 H, Hphenyl), 7.24 (d, 1 H, Hpyridine,5), 7.68 (t, 1 H, Hpyridine,4), 8.14 (d, 1 H, Hpyridine,3). 13C NMR (100 MHz, CDCl3, δ, ppm): 167.18 (CH=N), 157.16, 155.77, 146.47, 136.35, 135.63, 124.00, 123.27, 122.77, 118.04, 28.04 (CHMe2), 24.37 (Cpyridine, 6-Me), 23.05 (CHMe2), 22.73 (CHMe2), 17.11 (C(CH3)=N). IR (KBr, cm−1): 2961, 1643, 1586, 1458, 1192, 892, 763, 742. Anal. Calcd. For C20H26N2: C, 81.59; H, 8.90; N, 9.51. Found: C, 81.83; H, 9.33; N, 8.84.

2.3.6. 2,6-Bis(1-methylethyl)-N-[(6-bromo-2-pyridinyl)-methylene]phenylamine (L6)

6-Bromo-pyridine-2-carbaldehyde (1.0 g, 0.005 mol) was dissolved in 30 mL of methanol, then 2,6-di(1-methylethyl)phenylamine (1.06 g, 0.006 mol), and a few drops of formic acid were subsequently added. This mixture was stirred at room temperature, a yellow precipitate was formed after 10 min. The mixture was stirred for another 5 h, then the precipitation was collected and washed twice with cold methanol, yielding the analytically pure compound L6 ( 1.64 g, 95.4%) as a yellow powder. 1H NMR (400 MHz, CDCl3, δ, ppm): 1.15 (d, 12 H, CHMe2), 2.92 (m, 2 H, CHMe2), 7.11-7.18 (m, 3 H, Hphenyl), 7.60 (d, 1 H, Hpyridine,3), 7.71 (t, 1 H, Hpyridine,4), 8.24 (s, 1 H, CH=N), 8.26 (d, 1 H, Hpyridine,5). 13C NMR (100 MHz, CDCl3, δ, ppm): 161.31 (CH=N), 155.28, 147.75, 141.69, 138.83, 136.85, 129.64, 124.53, 122.90, 119.71, 27.78 (CHMe2), 23.22 (CHMe2). IR (KBr, cm−1): 2959, 1644, 1574, 1362, 1185, 809, 796, 763. Anal. Calcd. For C18H21BrN2: C, 62.61; H, 6.13; N, 8.11. Found: C, 61.59; H, 5.81; N, 8.64.

2.3.7. 2,6-Bis(1-methylethyl)-N-[1-(6-bromo-2-pyridinyl)-ethylidene]phenylamine (L7)

The procedure as above in (4.2.6) using 2-bromo-6-acetylpyridine (1.0 g, 0.005 mol) and 2,6-di(1-methylethyl)phenylamine (0.975 g, 0.0055 mol) produced L7 as yellow compound in 74.6% yield. 1H NMR (400 MHz, CDCl3, δ, ppm): 1.12–1.15 (m, 12 H, CHMe2), 2.18 (s, 3 H, C(Me)=N), 2.69 (m, 2 H, CHMe2), 7.07–7.16 (m, 3 H, Hphenyl), 7.56 (d, 1 H, Hpyridine,3), 7.65 (t, 1 H, Hpyridine,4), 8.33 (d, 1 H, Hpyridine,5). 13C NMR (100 MHz, CDCl3, δ, ppm): 165.72 (C(Me)=N), 157.22, 145.94, 140.79, 138.56, 135.44, 131.56, 128.98, 123.61, 122.83, 120.26, 119.83, 28.08 (CHMe2), 23.01 (CHMe2), 22.64 (CHMe2), 17.07 (C(Me)=N). IR (KBr, cm−1): 2960, 1640, 1551, 1436, 1361, 1306, 834, 753, 734. Anal. Calcd. For C19H23BrN2: C, 63.51; H, 6.45; N, 7.80. Found: C, 62.94; H, 6.62; N, 8.10.

2.4. Preparation of Cobalt and Nickel Complexes

2.4.1. (2,6-Bis(1-methylethyl)-N-(2-pyridinylmethylene)phenylamine)cobalt(II) dichloride, 1a

A mixture of L1 (0.2 g, 0.00075 mol) and anhydrous CoCl2 (0.1 g, 0.00075 mol) were added to a flask containing 5 mL THF. The mixture was stirred at room temperature for 24 h, a green suspension was formed. Diethyl ether was added and a suspension formed. The precipitate was collected by filtration and washed with 4 × 5 mL heptane. The desired product (0.21 g, 70.7%) was obtained after dried in vacuo at 40 °C. IR (KBr, cm−1): 2968, 1625, 1593, 1465, 1383, 806, 775, 762. Anal. Calcd. For C18H22Cl2CoN2: C, 54.56; H, 5.60; N, 7.07. Found: C, 53.86; H, 6.01; N, 7.26.

2.4.2. (2,6-Bis(1-methylethyl)-N-[1-(2-pyridinyl)-ethylidene]phenylamine)cobalt(II) dichloride, 2a

Procedure similar for 2a was adopted by using L2, and CoCl2 produced 2a as a green powder in 82.3% yield. IR (KBr, cm−1): 2968, 1612, 1591, 1572, 1373, 939, 846, 783, 753. Anal. Calcd. For C19H24Cl2CoN2: C, 55.63; H, 5.90; N, 6.83. Found: C, 56.03; H, 6.17; N, 6.65.

2.4.3. (2,6-Bis(1-methylethyl)-N-(phenyl-2-pyridinylmethylene)phenylamine) cobalt(II) dichloride, 3a

Procedure similar for 3a was adopted by using L3, and CoCl2 produced 3a as a green powder in 52.8% yield. IR (KBr, cm−1): 2974, 1609, 1570, 1384, 800, 778, 765. Anal. Calcd. For C24H26Cl2CoN2: C, 61.03; H, 5.55; N, 5.93. Found: C, 61.24; H, 5.75; N, 6.02.

2.4.4. (2,6-Bis(1-methylethyl)-N-[(6-methyl-2-pyridinyl)-methylene]phenylamine) cobalt(II) dichloride, 4a

Procedure similar for 4a was adopted by using L4, and CoCl2 produced 4a as a green powder in 92.7% yield. IR (KBr, cm−1): 2966, 1633, 1596, 1466, 1328, 866, 802, 742. Anal. Calcd. For C19H24Cl2CoN2: C, 55.63; H, 5.90; N, 6.83. Found: C, 55.37; H, 6.22; N, 7.29.

2.4.5. (2,6-Bis(1-methylethyl)-N-[1-(6-methyl-2-pyridinyl)-ethylidene]phenylamine) cobalt(II) dichloride, 5a

Procedure similar for 5a was adopted by using L5, and CoCl2 produced 5a as a green powder in 86.4% yield. IR (KBr, cm−1): 2963, 1618, 1593, 1460, 1196, 888, 779, 740. Anal. Calcd. For C20H26Cl2CoN2: C, 56.62; H, 6.18; N, 6.60. Found: C, 56.80; H, 6.03; N, 6.58.

2.4.6. (2,6-Bis(1-methylethyl)-N-[(6-bromo-2-pyridinyl)-methylene]phenylamine) cobalt(II) dichloride, 6a

Procedure similar for 6a was adopted by using L6, and CoCl2 produced 6a as a green powder in 91.2% yield. IR (KBr, cm−1): 2961, 1630, 1584, 1365, 1177, 813, 803, 765. Anal. Calcd. For C18H21BrCl2CoN2: C, 45.50; H, 4.46; N, 5.90. Found: C, 44.72; H, 4.77; N, 6.28.

2.4.7. (2,6-Bis(1-methylethyl)-N-[1-(6-bromo-2-pyridinyl)-ethylidene]phenylamine) cobalt(II) dichloride, 7a

Procedure similar for 7a was adopted by using L7, and CoCl2 produced 7a as a green powder in 88.1% yield. IR (KBr, cm−1): 2966, 1619, 1555, 1445, 1367, 1311, 859, 755, 730. Anal. Calcd. For C19H23BrCl2CoN2: C, 46.65; H, 4.74; N, 5.73. Found: C, 47.09; H, 4.52; N, 6.27.

2.4.8. (2,6-Bis(1-methylethyl)-N-(2-pyridinylmethylene)phenylamine)nickel(II) dibromide, 1b

To a suspension of NiBr2(dme) (0.11 g, 0.00036 mol) in 5 mL, CH2Cl2 was added into the solution of ligand L1 (0.1 g, 0.00036 mol) in 5 mL CH2Cl2. The orange-red reaction mixture was formed and stirred for 24 h at room temperature, and the precipitate was collected by filtration, washed with pentane (2 × 10 mL), and dried under vacuum to produce complex 1b as an orange-red powder. Yield: 0.15 g (83.6%). IR (KBr, cm−1): 2964, 1630, 1596, 1387, 802, 775, 760. Anal. Calcd. For C18H22Br2N2Ni: C, 44.59; H, 4.57; N, 5.78. Found: C, 44.69; H, 4.77; N, 5.44.

2.4.9. (2,6-Bis(1-methylethyl)-N-[1-(2-pyridinyl)-ethylidene]phenylamine)nickel(II) dibromide, 2b

Procedure similar for 2b was adopted by using L2, and NiBr2(dme) produced 2b as a green powder in 91.7% yield. IR (KBr, cm−1): 2966, 1612, 1591, 1571, 1373, 940, 816, 781, 752. Anal. Calcd. For C19H24Br2N2Ni: C, 46.74; H, 4.85; N, 5.61. Found: C, 46.99; H, 4.81; N, 5.87.

2.4.10. (2,6-Bis(1-methylethyl)-N-(phenyl-2-pyridinylmethylene)phenylamine) nickel(II) dibromide, 3b

Procedure similar for 3b was adopted by using L3, and NiBr2(dme) produced 3b as a green powder in 47.5% yield. IR (KBr, cm−1): 2964, 1632, 1596, 1379, 801, 776, 741. Anal. Calcd. For C24H26Br2N2Ni: C, 51.38; H, 4.67; N, 4.99. Found: C, 51.06; H, 4.37; N, 5.12

2.4.11. (2,6-Bis(1-methylethyl)-N-[(6-methyl-2-pyridinyl)-methylene]phenylamine) nickel(II) dibromide, 4b

Procedure similar for 4b was adopted by using L4, and NiBr2(dme) produced 4b as a green powder in 76.7% yield. IR (KBr, cm−1): Ni: 2962, 1632, 1597, 1467, 1330, 867, 800, 741. Anal. Calcd. For C19H24Br2N2Ni: C, 45.74; H, 4.85; N, 5.61. Found: C, 45.85; H, 5.09; N, 4.62

2.4.12. (2,6-Bis(1-methylethyl)-N-[1-(6-methyl-2-pyridinyl)-ethylidene]phenylamine) nickel(II) dibromide, 5b

Procedure similar for 5b was adopted by using L5, and NiBr2(dme) produced 5b as a green powder in 83.4% yield. IR (KBr, cm−1): Ni: 2965, 1617, 1595, 1461, 1196, 890, 779, 738. Anal. Calcd. For C20H26Br2N2Ni: C, 46.83; H, 5.11; N, 5.46. Found: C, 47.24; H, 5.34; N, 5.71

2.4.13. (2,6-Bis(1-methylethyl)-N-[(6-bromo-2-pyridinyl)-methylene]phenylamine) nickel(II) dibromide, 6b

Procedure similar for 6b was adopted using L6, and NiBr2(dme) produced 6b as a green powder in 93.6% yield. IR (KBr, cm−1): 2961, 1626, 1585, 1365, 1175, 810, 800, 763. Anal. Calcd. For C18H21Br3N2Ni: C, 38.35; H, 3.75; N, 4.97. Found: C, 37.86; H, 3.94; N, 5.12.

2.4.14. (2,6-Bis(1-methylethyl)-N-[1-(6-bromo-2-pyridinyl)-ethylidene]phenylamine) nickel(II) dibromide, 7b

Procedure similar for 7b was adopted by using L7, and NiBr2(dme) produced 7b as a green powder in 85.1% yield. IR (KBr, cm−1): 2965, 1613, 1553, 1440, 1369, 1315, 828, 764, 733. Anal. Calcd. For C19H23Br3N2Ni: C, 39.49; H, 4.01; N, 4.85. Found: C, 40.10; H, 3.71; N, 4.99.

3. Results and Discussions

3.1. Synthesis and Characterization of Iminopyridine Ligands (L1–L7) and Their Cobalt(II) and Nickel(II) Complexes

The iminopyridine ligands L1, L2, L4-L7 were prepared by the condensation of 2-pyridinecarboxaldehydes or 2-pyridylketones with 2,6-di(1-methylethyl)phenylamine in the presence of a catalytic amount of formic acid in methanol (Scheme 1). Ligand L3 was synthesized with a few drops of concentrated H2SO4 as catalyst, and anhydrous Na2SO4 was used to remove the water formed during the reaction according to the literature [21]. All the ligands were identified by FT-IR, elemental analysis, and NMR spectra. Cobalt complexes 1a7a were prepared by the reaction of anhydrous cobalt(II) chloride with the corresponding ligand in THF. All of the complexes were isolated as green air-stable powders in high yields. Nickel complexes 1b7b were prepared by the reaction of the corresponding ligand with NiBr2(dme) in CH2Cl2. The structures of these complexes were determined by FT-IR spectra and elemental analysis. The structures of complexes 3a, 4a, 5a, 7a, 5b, and 6b were further characterized by X-ray crystallographic analysis.

3.2. Crystal Structure of Complexes

Single crystals of 3a, 4a, 5a, 7a, 5b, and 6b suitable for X-ray diffraction analysis were obtained by crystallization from their THF or diethyl ether solutions. The crystal data together with the data collection and structure refinement parameters are presented in Table 1. Selected bond lengths and angles for cobalt complexes (3a, 4a, 5a and 7a) are given in Table 2. Selected bond lengths and angles for nickel complexes (5b and 6b) are given in Table 3.
Scheme 1. Synthesis of cobalt complexes 1a7a and nickel complexes 1b7b.
Scheme 1. Synthesis of cobalt complexes 1a7a and nickel complexes 1b7b.
Polymers 08 00012 g008
Table 1. Crystal data and data collection parameters of cobalt and nickel complexes.
Table 1. Crystal data and data collection parameters of cobalt and nickel complexes.
3a·Et2O4a5a7a5b·THF6b
FormulaC52H62Cl4Co2N4OC19H24Cl2CoN2C20H26Cl2CoN2C19H23BrCl2CoN2C24H34Br2N2NiOC36H42Br6N4Ni2
Molecular weight1,018.72410.23424.26489.13585.061,127.62
Wavelength (Å)0.710730.710730.710730.710730.710730.71073
Crystal systemMonoclinicMonoclinicMonoclinicMonoclinicMonoclinicMonoclinic
Space groupP21/cP21/cP21/nP21/cP21/cP21/c
a (Å)9.1341 (8)10.1638 (6)8.9107 (8)16.6693 (12)10.6823 (5)10.336 (2)
b (Å)16.4268 (15)19.5791 (11)16.0155 (14)10.4115 (7)18.6756 (8)19.755 (4)
c (Å)18.2838 (16)20.5215 (11)14.5532 (13)12.4751 (9)14.7019 (7)20.644 (4)
α (deg)90.0090.0090.0090.0090.0090.00
β (deg)103.371 (1)95.071 (1)90.034 (1)106.366 (1)109.092 (1)93.835 (4)
γ (deg)90.0090.0090.0090.0090.0090.00
V (Å3)2,669.0 (4)4067.8 (4)2,076.9 (3)2,077.4 (3)2,771.7 (2)4,205.8 (14)
Z284444
Dcalcd (Mg/m3)1.2681.3401.3571.5641.4021.781
Absorp coeff (mm−1)0.861.111.093.013.606.625
F (000)1,064170488498811922208
Crystal size (mm)0.28 × 0.13 × 0.090.25 × 0.21 × 0.090.28×0.17 × 0.100.21×0.12 × 0.070.27 ×0.13 × 0.100.25×0.16 × 0.11
θ Range (deg)2.3–26.02.3–24.92.5–24.52.6–26.02.3–26.02.2–24.5
No. of reflns collected15,74323,65915,34714,49820,67626,672
No. of indep reflns52437,1784,0714,0345,4558,310
No. of data/restraints/params5,243/7/313 (Rint = 0.026)7,178/0/443 (Rint = 0.042)4,071/0/232 (Rint = 0.038)4,034/0/231 (Rint = 0.023)5,455/0/277 (Rint = 0.024)8,310/0/441 (Rint = 0.055)
GOF on F21.050.981.011.041.040.97
R1 (1 > 2sigma(1))0.0450.0380.0360.0300.0250.039
wR20.1450.0900.0900.0830.0680.083
Table 2. Selected bond distances (Å) and angles (°) of cobalt complexes 3a, 4a, 5a and 7a.
Table 2. Selected bond distances (Å) and angles (°) of cobalt complexes 3a, 4a, 5a and 7a.
3a 4a 5a 7a
Bond lengths
Co1–N12.099 (2)Co1–N12.181 (2)Co1–N12.0439 (18)Co1–N12.0667 (18)
Co1–N22.128 (2)Co1–N22.089 (2)Co1–N22.0498 (18)Co1–N22.0514 (17)
Co1–Cl12.2830 (9)Co1–Cl12.2769 (8)Co1–Cl12.2071 (7)Co1–Cl12.2079 (7)
Co1–Cl22.3607 (8)Co1–Cl22.4428 (8)Co1–Cl22.2148 (7)Co1–Cl22.2235 (7)
Co1–Cl2A2.4372 (8)Co2–N42.097 (2)N2–C71.290 (3)N2–C81.451 (3)
Co1A–Cl22.4371 (8)Co2–N32.182 (2)N2–C91.448 (3)N2–C61.285 (3)
C5–C61.493 (4)Co2–Cl32.2709 (8)C5–C71.492 (3)C5–C61.492 (3)
N2–C61.301 (4)Co2–Cl42.4433 (8)C7–C81.490 (3)C6–C71.489 (3)
N2–C131.454 (4)N2–C81.442 (3)C1–C61.491 (3)Br1–C11.888 (3)
C6–C71.489 (4)N2–C61.271 (3)
N4–C271.438 (3)
N4–C251.272 (3)
Bond angles
N1–Co1–N276.36 (9)N1–Co1–N277.69 (8)N1–Co1–N280.68 (7)N2–Co1–N180.14 (7)
N1–Co1–Cl192.08 (7)N1–Co1–Cl191.41 (6)N1–Co1–Cl1118.90 (6)N1–Co1–Cl1118.64 (6)
N2–Co1–Cl1117.17 (7)N2–Co1–Cl1111.97 (6)N2–Co1–Cl1115.04 (6)N2–Co1–Cl1111.66 (5)
N1–Co1–Cl2164.04 (8)N1–Co1–Cl2171.60 (6)N1–Co1–Cl2107.53 (5)N2–Co1–Cl2117.93 (5)
N2–Co1–Cl298.55 (7)N2–Co1–Cl296.91 (6)N2–Co1–Cl2114.54 (6)N1–Co1–Cl2110.67 (5)
Cl1–Co1–Cl2103.60 (3)Cl1–Co1–Cl296.61 (3)Cl1–Co1–Cl2115.44 (3)Cl1–Co1–Cl2113.88 (3)
N1–Co1–Cl2A85.08 (7)N4–Co2–N377.66 (8)C7–N2–C9120.43 (19)N1–C1–Br1116.75 (17)
N2–Co1–Cl2A125.21 (7)N4–Co2–Cl3114.12 (6)N1–C5–C7115.52 (19)C2–C1–Br1119.39 (19)
Cl1–Co1–Cl2A114.55 (3)N3–Co2–Cl394.45 (6)C4–C5–C7122.7 (2)C7–C6–C5118.39 (19)
Cl2–Co1–Cl2A85.73 (3)N4–Co2–Cl496.58 (6)C8–C7–C5118.6 (2)C6–N2–C8120.24 (18)
N2–C6–C7125.8 (3)N3–Co2–Cl4169.32 (6)N2–C7–C8124.9 (2)N2–C6–C7125.0 (2)
C6–N2–C13118.9 (2)Cl3–Co2–Cl496.12 (3)N1–C1–C6116.7 (2)N2–C6–C5116.58 (19)
N2–C6–C5115.7 (3)N2–C6–C5120.4 (2)N2–C7–C5116.4 (2)
Table 3. Selected bond distances (Å) and angles (°) of nickel complexes 5b and 6b.
Table 3. Selected bond distances (Å) and angles (°) of nickel complexes 5b and 6b.
5b 6b
Bond lengths
Ni1–N22.0383 (16)Ni1–N22.049 (4)Br1–Ni1A2.4770 (8)
Ni1–N12.0677 (17)Ni1–N12.092 (3)Br3–C11.887 (5)
Ni1–O12.1478 (15)Ni1–Br22.4153 (8)Br5–Ni2A2.5076 (8)
Ni1–Br12.4376 (3)Ni1–Br1A2.4770 (8)Br6–C191.875 (5)
Ni1–Br22.4602 (3)Ni1–Br12.5230 (8)
C5–C71.492 (3)Ni2–N42.038 (3)
C7–C81.494 (3)Ni2–N32.080 (3)
N2–C71.286 (3)Ni2–Br42.4214 (9)
N2–C91.445 (2)Ni2–Br52.4777 (8)
C1–C61.489 (3)Ni2–Br5A2.5075 (8)
Bond angles
N2–Ni1–N180.22 (6)N2–Ni1–N180.27 (13)N4–Ni2–Br4107.02 (10)
N2–Ni1–Br1106.94 (5)N2–Ni1–Br2107.62 (9)N3–Ni2–Br490.38 (10)
N1–Ni1–Br191.16 (5)N1–Ni1–Br290.87 (9)N4–Ni2–Br5104.32 (10)
N2–Ni1–Br2111.61 (5)N2–Ni1–Br1A104.84 (10)N3–Ni2–Br590.36 (10)
N1–Ni1–Br290.48 (5)N1–Ni1–Br1A90.92 (9)Br4–Ni2–Br5148.29 (3)
Br1–Ni1–Br2141.124 (13)Br2–Ni1–Br1A147.32 (3)N4–Ni2–Br5A100.41 (9)
C5–C7–C8118.23 (17)N2–Ni1–Br1100.45 (9)N3–Ni2–Br5A176.73 (10)
N2–C7–C8125.39 (19)N1–Ni1–Br1176.28 (9)Br4–Ni2–Br5A92.55 (2)
N1–C1–C6118.41 (19)Br2–Ni1–Br192.38 (2)Br5–Ni2–Br5A86.39 (2)
C2–C1–C6120.9 (2)Br1A–Ni1–Br185.37 (2)N2–C6–C5120.1 (4)
C7–N2–C9119.55 (16)N4–Ni2–N380.09 (13)N1–C1–Br3117.2 (3)
Cobalt complexes 4a, 5a, and 7a with a substituent (4a: CH3; 5a: CH3; 7a: Br) at the 6-position of the pyridine ring produced the solid structures with a single ligand coordinated to the central metal. The asymmetric unit of 4a contains two independent, closely resembling molecules (Figure 1), whereas only one molecule is found in the asymmetric unit of complexes 5a (Figure 2) and 7a (Figure 3). In complex 4a crystallizing in a monoclinic space group P21/c, the ligand system adopts a cisoid conformation that allows both the nitrogen centers N1 and N2 (N3 and N4) to coordinate to the cobalt atom. The metal-nitrogen bond lengths are 2.181 Å (Co1–N1) and 2.089 Å (Co1–N2), and the Co–Cl bond lengths are 2.2769 Å (Co1–Cl1) and 2.4428 Å (Co1–Cl2). In complex 4a, the cobalt atom has distorted tetrahedral coordination geometry with N1–Co1–N2 angle of 77.69° and Cl1–Co1–Cl2 angle of 96.61°. The 2,6-diisopropylphenyl substituent at the imine nitrogen atom is almost perpendicular to the plane of the pyridine moiety (angle between the planes: 89.84°). The angle of N2–C5–C6 is 120.4° when there is a H atom in the imino bridge. Crystallizing in a monoclinic space group P21/n and P21/c, complexes 5a and 7a with CH3 group in the imino bridge have a smaller N2–C7–C5 angle of 116.4° and N2–C6–C5 angle of 116.58° than those in complex 4a. Meanwhile, they have longer N–Co bond distances (5a: 2.0439 Å, 2.0498 Å; 7a: 2.0667 Å, 2.0514 Å), shorter Co–Cl bond distances (5a: 2.2071 Å, 2.2148 Å; 7a: 2.2079 Å, 2.2235 Å ), and bigger angles of N1–Co1–N2 (5a, 80.68°; 7a, 80.14°) and Cl1–Co1–Cl2 (5a, 115.44; 7a, 113.88) than complex 4a. The 2,6-diisopropylphenyl substituent at the imine nitrogen atom is also perpendicular to the plane of the pyridine moiety (angle between the planes: 5a, 89.56°; 7a, 83.97°). However, ligand L2 and L3 (H atom at 6-position of the pyridine ring) results in the formation of a chloro-bridged dimer. In complex 2a, reported in a previous report [22], the Co–N bond distances are 2.093 and 2.123 Å, which are longer than those in 5a and 7a but shorter than that in complex 4a; however, the Co–Cl bond distance exhibits the converse regularity (4a > 2a > 5a7a). In complex 3a (Figure 4), with phenyl group in the imino bridge, the coordination geometry of the central metal atom can be best described as distorted trigonal-bipyramidal with two equivalent half molecules in an overall C2-symmetric framework. The pyridyl nitrogen atom (N1) and Cl mark the apical centers of the distorted trigonal bipyramid. The pyridine nitrogen (N1) and the other constituent of the chloro-bridge (Cl2) occupy the axial coordination sites. Complex 3a has a bipyramidal structure most distorted towards a square-based pyramid, with the most acute angle (164.04°) in the vertical axis (N1–Co1–Cl2) and one of the equatorial angles extended to 125.21°.
Figure 1. ORTEP view of complex 4a, drawn at 35% of probability. Hydrogen atoms were omitted for clarity.
Figure 1. ORTEP view of complex 4a, drawn at 35% of probability. Hydrogen atoms were omitted for clarity.
Polymers 08 00012 g001
Figure 2. ORTEP view of complex 5a, drawn at 35% of probability. Hydrogen atoms were omitted for clarity.
Figure 2. ORTEP view of complex 5a, drawn at 35% of probability. Hydrogen atoms were omitted for clarity.
Polymers 08 00012 g002
Figure 3. ORTEP view of complex 7a, drawn at 35% of probability. Hydrogen atoms were omitted for clarity.
Figure 3. ORTEP view of complex 7a, drawn at 35% of probability. Hydrogen atoms were omitted for clarity.
Polymers 08 00012 g003
Figure 4. ORTEP view of complex 3a, drawn at 35% of probability. Hydrogen atoms and one Et2O molecule were omitted for clarity.
Figure 4. ORTEP view of complex 3a, drawn at 35% of probability. Hydrogen atoms and one Et2O molecule were omitted for clarity.
Polymers 08 00012 g004
Nickel complex 5b crystallized from THF in a monoclinic space group P21/c, producing the solid structures with a single ligand and one THF molecule coordinated to the metal center. In complex 5b (Figure 5), the nickel is five coordinate, and the coordination sphere could be best described as a distorted trigonal bypyramidal with the equatorial plane occupied by the imino N atom and the two bromine atoms. The axial positions are coordinated by the pyridine N atom and by the O atom of the THF molecule. A Br–Ni–Br angle of 141.13° was observed within the equatorial plane and a “chelating” angle of N1–Ni–N2 is 80.22°. The distance of Ni–O bond is 2.148 Å, which is a little longer than those of the N–Ni bond (2.0383 Å, 2.0677 Å), indicating a very strongly bound THF ligand. Complex 6b (Figure 6) with Br at the 6-position of the pyridine ring crystallizes as centrosymmetric dimmers with two ligand nitrogen atoms, one terminal bromine and two bridging bromine atoms forming the coordination sphere around the five-coordinate nickel center. Complex 6b contains the halves of two independent and nearly identical molecules, which is similar to complex 4b reported in the literature in that both have nearly the same Co–N bond distance (4b: 2.086, 2.042 Å; 6b: 2.092, 2.049 Å), Ni–Br bond distance (4b: 2.5411, 2.4136 Å; 6b: 2.4214, 2.4777 Å), and N–Ni–N angle (4b: 80.29°; 6b: 80.27°).
Figure 5. ORTEP view of complex 5b, drawn at 35% of probability. Hydrogen atoms and one THF molecule were omitted for clarity.
Figure 5. ORTEP view of complex 5b, drawn at 35% of probability. Hydrogen atoms and one THF molecule were omitted for clarity.
Polymers 08 00012 g005
Figure 6. ORTEP view of complex 6b, drawn at 35% of probability. Hydrogen atoms were omitted for clarity.
Figure 6. ORTEP view of complex 6b, drawn at 35% of probability. Hydrogen atoms were omitted for clarity.
Polymers 08 00012 g006

3.3. Solution Polymerization of 1,3-Butadiene

Cobalt complexes could polymerize 1,3-butadiene activated by ethylaluminum sesquichloride (EASC). Herein, we mainly discuss the influences of the R1 group (H, CH3 and Br) at the 6-position of the pyridine ring and R2 group (H, aldimine; CH3, ketimine) in the imino bridge on catalytic activity and selectivity of the complexes. The polymerization results are summarized in Table 4.
Table 4. Polymerization of 1,3-butadiene with Co (II) complex/EASC catalyst a.
Table 4. Polymerization of 1,3-butadiene with Co (II) complex/EASC catalyst a.
RunComplexYield (%)Mn b × 10−4Mw/Mn bMicrostructure c (%)
Cis-1,41.2Trans-1,4
11a56.923.02.498.11.00.9
22a51.627.72.198.21.00.8
33a92.39.03.396.51.61.9
44a42.931.51.998.30.90.8
55a31.933.81.798.50.90.6
66a92.810.93.097.21.41.4
77a90.812.03.297.01.41.6
a Polymerization in hexane at 20 °C for 15 min, [Bd] = 1.85 mol/L, [BD]/[Co] = 1000, [Al]/[Co] = 50. b Determined by GPC (THF, PSt calibration). c The microstructure was determined by FTIR.
The substituent (R1) at the 6-position of the pyridine ring significantly influence the catalytic performances of the complexes. For the aldimine- and ketimine-based cobalt complexes, the introduction of halogen atom (Br) at 6-position of the pyridine ring afforded polymers in higher yields but with relatively lower molecular weight than the complexes without substituent. The complexes with CH3 group produced polymers in lower yield but with higher molecular weight and narrower molecular weight distribution. For instance, the polymerization of 1,3-butadiene with aldimine cobalt complex 6a (R1 = Br) produced polymer in 92.8% yield, which is much higher than complexes 1a (R1 = H, 56.9%) and 4a (R1 = CH3, 42.9%). Similar to aldimine cobalt complexes, ketimine cobalt complex 7a (R1=Br) displayed higher catalyst activity (polymer yield: 90.8%) than 2a (R1 = H, 51.6%) and 5a (R1 = CH3, 31.9%). On the other hand, the molecular weights of polybutadienes obtained by these cobalt complexes exhibited the converse regularity (in the orders of 6a < 1a < 4a and 7a < 2a < 5a). These results could be explained by the idea that the electron-withdrawing group (Br) at the 6-position reduces the electron density of central metal, and the increased Lewis acidic character facilitates the coordination of 1,3-butadiene molecule, leading to the increment of chain propagation rate. Moreover, due to the electron-contributing and steric hindrance of the CH3 group, the coordination reaction between 1,3-butadiene and the cobalt center was retarded [10] . The CH3 group can serve to raise polymer molecular weight (4a, 31.5 × 104; 5a, 33.8 × 104) and regulate molecular weight distribution (4a, 1.9; 5a, 1.7), suggesting that electron-contributing substituent at 6-position of the pyridine ring retard chain transfer reaction to some extent.
The substituent (R2) in the imino bridge of the iminopyridine cobalt(II) complex was also investigated. Complex 3a with a phenyl group exhibited much higher activity than 1a (R2 = H) and 2a (R2 = CH3). This result indicates that the conjugation of phenyl and imine groups can stabilize the active centers and cause the increased chain propagation rate. In olefin catalysts based on bisiminopyridine transition metal complexes, replacing a ketimine (R2 = CH3) with an aldimine (R1=H) usually leads to difference in molecular weight and molecular weight distribution, particularly the productivity, and usually the catalysts based on an ketimine ligand are approximately one order of magnitude more active than those based on an aldimine ligand [25]. In 1,3-butadiene polymerization, bisiminopyridine cobalt complexes based on ketimine ligand also showed higher catalytic activity than their aldimine counterparts [9]. In the present study, however, iminopyridine cobalt(II) complexes based on aldimine produced the polybutadiene in a higher polymer yield, smaller molecular weight and broader molecular weight distribution than the ketimine complexes, and the results were as follows: 1a (R1=H, 56.9%) > 2a (R1 = H, 51.6%), 4a (R1 = CH3, 42.9%) > 5a (R1 = CH3, 31.9%) and 6a (R1 = Br, 92.8%) > 7a (R1 = Br, 90.8%). This is due to the fact that, during the activation with EASC, the –CH=N groups of the complexes can be deprotonated to yield an anionic amide ligand. This anionic amide ligand is in the form of an ion pair or in the free form, resulting in higher polymerization activity [12,26].
The polybutadienes obtained by these iminopyridine-based cobalt(II) complexes had high cis-1,4 content greater than 96%. Complexes 4a and 5a with CH3 at 6-position of the pyridine ring produced polymers with higher cis-1,4 content (4a, 98.3%; 5a, 98.5%) than the substituent-free (1a, 98.1%; 2a, 98.2%; 3a, 96.5%) and Br-containing complexes (6a, 97.2%; 7a, 97.0%). However, R2 groups in the imino of iminopyridine cobalt(II) complexes did not influence selectivity significantly.
The nature of the metal center had a large influence on the catalytic performance. In general, cobalt-based catalysts were more active than the corresponding nickel-based analogs; under the same conditions, except for a prolonged polymerization time by 3h employed here, iminopyridine-based nickel complexes produced polymers in 29.2% to 79.3% yields. All the nickel complexes 1b7b yielded polymers with much lower molecular weights (7000–9900 g/mol), narrower molecular weight distributions (1.72–2.67), and lower cis-1,4 contents (79.3%–90.7%) than their cobalt counterparts (Entry 8–14 in Table 4). Similarly, as for the nickel complexes, the aldimine (R2 = H) complexes showed higher catalyst activity than the corresponding ketimine (R2 = CH3) complexes in the orders: 1b (R1 = H, 69.7% conv.) > 2b (R1 = H, 35.8% conv.), 4b (R1 = CH3, 75.4% conv.) > 5b (R1 = CH3, 47.1% conv.) and 6b (R1 = Br, 79.3% conv.) > 7b (R1 = Br, 72.8% conv.). Moreover, nickel complexes (6b, 7b) with Br at 6-position of pyridine ring exhibited a higher catalyst activity than the cobalt complexes described. However, 3b with phenyl in the imino bridge showed the lowest catalyst activity, quite different from 3a with the same ligand, indicating that phenyl group in the complex could retard the chain propagation and chain transfer reaction to produce the polymer with lower yield, higher molecular weight, and narrower molecular weight distribution (Entry 10 in Table 5). The results in Table 5 demonstrated that the ligand environment did not significantly influence molecular weight and molecular weight distribution of the obtained polymers, but remarkably influenced the stereoregularity of the polybutadienes. The aldimine complexes produced polymers with lower cis-1,4 content, more trans-1,4 content and nearly invariable 1,2 content compared with ketimine complexes. The 13C NMR spectra of the polymers obtained with 6a and 6b are shown in Figure 7. It is clear that the nickel complex produced the polymers with higher trans-1,4 content than the cobalt complex sharing the same corresponding ligand L6.

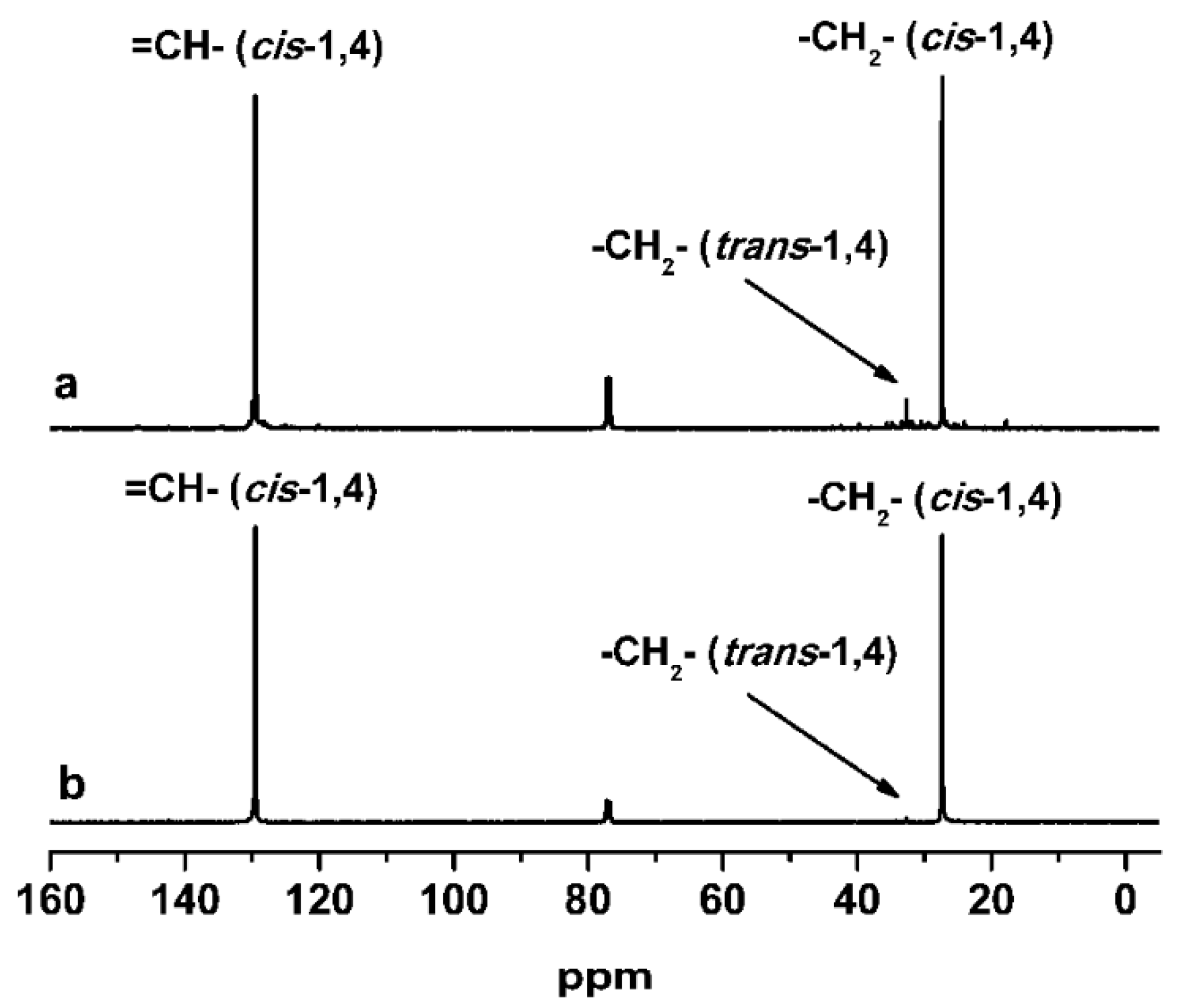

Figure 7. 13C NMR spectra of polybutadienes obtained by 6a/EASC (a) and 6b/EASC (b).
Figure 7. 13C NMR spectra of polybutadienes obtained by 6a/EASC (a) and 6b/EASC (b).
Polymers 08 00012 g007
Table 5. Polymerization of 1,3-butadiene with Ni (II) complexes a.
Table 5. Polymerization of 1,3-butadiene with Ni (II) complexes a.
RunComplexYield (%)Mn bMw/Mn bMicrostructure c (%)
Cis-1,41.2Trans-1,4
81b69.78,1002.4087.13.49.5
92b35.88,7001.8791.63.54.9
103b29.29,9001.7290.73.85.5
114b75.47,1002.3884.11.714.2
125b47.18,5001.8790.73.36.0
136b79.37,2002.6779.31.319.4
147b72.87,0002.1787.12.310.6
a Polymerization in hexane at 20 °C for 3 h, [Bd] = 1.85 mol/L, [BD]/[Ni] = 1000, [Al]/[Ni] = 50. b Determined by GPC (THF, PSt calibration). c The microstructure was determined by FTIR.

4. Conclusions

Structurally well-defined iminopyridine ligated cobalt and nickel complexes were synthesized, and their catalytic behaviors in 1,3-butadiene polymerization were investigated. Activated by EASC, the cobalt complexes exhibited high cis-1,4 selectivity (up to 98.5%), affording high molecular weight polybutadienes (Mn = 9.0–33.8 × 104), while the nickel complexes produced polymers with low molecular weight (Mn = 7000–9000) and cis-1,4 stereoregularity (79.3%–91.6%). In both cases of Co- and Ni-based complexes, the aldimine-based complexes showed higher catalyst activity than their ketimine counterparts.

Acknowledgments

The authors appreciate financial support from National Basic Research Program of China, Grant No. 2015CB654700 (2015CB654702), The CAS Hundred Talents Program (Y220011001), the Funds for National Natural Scientific Foundation of China (No. 51203092, 51203147, and 51473156) and Jilin Provincial Research Fund for Basic Research, China (No. 20130102007JC).

Author Contributions

Xiangyu Jia performed the experiments and analyzed the data. Quanquan Dai contributed to the analysis of the results and to the writing of the manuscript. Yanming Hu contributed to the discussion section and revised the paper. Feng Yang, Chenxi Bai and Xuequan Zhang provided the funds.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix

CCDC numbers 893455(3a), 893456(4a), 893457(5a), 893458(7a), 893459(5b) and 893460(6b) contain the supplementary crystallographic data for this paper. This data can be obtained free of charge from The Cambridge Crystallographic Data Centre via www.ccdc.cam.ac.uk/data_request/cif.

References

  1. Thiele, S.K.H.; Wilson, D.R. Alternate transition metal complex based diene polymerization. J. Macromol. Sci. Polym. Rev. 2003, 43, 581–628. [Google Scholar] [CrossRef]
  2. Cooper, W. Aspects of mechanism of coordination polymerization of conjugated dienes. Ind. Eng. Chem. Prod. Res. Dev. 1970, 9, 457–466. [Google Scholar] [CrossRef]
  3. Furukawa, J. Mechanism of diene polymerization. Pure Appl. Chem. 1975, 42, 495–508. [Google Scholar] [CrossRef]
  4. Oehme, A.; Gebauer, U.; Gehrke, K.; Lechner, M.D. The influence of ageing and polymerization conditions on the polymerization of butadiene using a neodymium catalyst system. Angew. Makromol. Chem. 1996, 235, 121–130. [Google Scholar] [CrossRef]
  5. Gong, D.R.; Dong, W.M.; Hu, Y.M.; Bi, J.F.; Zhang, X.Q.; Jiang, L.S. Syndiotactically enriched 1,2-selective polymerization of 1,3-butadiene initiated by iron catalysts based on a new class of donors. Polymer 2009, 50, 5980–5986. [Google Scholar] [CrossRef]
  6. Lu, J.; Hu, Y.M.; Zhang, X.; Bi, J.F.; Dong, W.M.; Jiang, L.S.; Huang, B.T. Fe(2-EHA)3/Al(i-Bu)3/hydrogen phosphite catalyst for preparing syndiotactic 1,2-polybutadiene. J. Appl. Polym. Sci. 2006, 100, 4265–4269. [Google Scholar] [CrossRef]
  7. Endo, K.; Kitagawa, T.; Nakatani, K. Effect of an alkyl substituted in salen ligands on 1,4-cis selectivity and molecular weight control in the polymerization of 1,3-butadiene with (salen)Co(II). J. Polym. Sci. Polym. Chem. 2006, 44, 4088–4094. [Google Scholar] [CrossRef]
  8. Chandran, D.; Kwak, C.H.; Ha, C.S.; Kim, I. Polymerization of 1,3-butadiene by bis(salicylaldiminate)cobalt(II) catalysts combined with organoaluminium cocatalysts. Catal. Today 2008, 131, 505–512. [Google Scholar] [CrossRef]
  9. Gong, D.R.; Wang, B.L.; Cai, H.G.; Zhang, X.Q.; Jiang, L.S. Synthesis, characterization and butadiene polymerization studies of cobalt(II) complexes bearing bisiminopyridine ligand. J. Organomet. Chem. 2011, 696, 1584–1590. [Google Scholar] [CrossRef]
  10. Cariou, R.; Chirinos, J.J.; Gibson, V.C.; Jacobsen, G.; Tomov, A.K.; Britovsek, G.J.P.; Whitea, A.J.P. The effect of the central donor in bis(benzimidazole)-based cobalt catalysts for the selective cis-1,4-polymerisation of butadiene. Dalton Trans. 2010, 39, 9039–9045. [Google Scholar] [CrossRef] [PubMed]
  11. Gong, D.R.; Jia, X.Y.; Wang, B.L.; Zhang, X.Q.; Jiang, L.S. Synthesis, characterization, and butadiene polymerization of iron(III), iron(II) and cobalt(II) chlorides bearing 2,6-bis(2-benzimidazolyl)pyridyl or 2,6-bis(pyrazol)pyridine ligand. J. Organomet. Chem. 2012, 702, 10–18. [Google Scholar] [CrossRef]
  12. Appukuttan, V.; Zhang, L.; Ha, J.Y.; Chandran, D.; Bahuleyan, B.K.; Ha, C.S.; Kim, I. Stereospecific polymerizations of 1,3-butadiene catalyzed by Co(II) complexes ligated by 2,6-bis(benzimidazolyl)pyridines. J. Mol. Catal. A Chem. 2010, 325, 84–90. [Google Scholar] [CrossRef]
  13. Nobbs, J.D.; Tomov, A.K.; Cariou, R.; Gibson, V.C.; White, A.J.P.; Britovsek, G.J.P. Thio-Pybox and Thio-Phebox complexes of chromium, iron, cobalt and nickel and their application in ethylene and butadiene polymerisation catalysis. Dalton Trans. 2012, 41, 5949–5964. [Google Scholar] [CrossRef] [PubMed]
  14. Ai, P.F.; Chen, L.; Guo, Y.T.; Jie, S.Y.; Li, B.G. Polymerization of 1,3-butadiene catalyzed by cobalt(II) and nickel(II) complexes bearing imino- or amino-pyridyl alcohol ligands in combination with ethylaluminum sesquichloride. J. Organomet. Chem. 2012, 705, 51–58. [Google Scholar] [CrossRef]
  15. Jie, S.Y.; Ai, P.F.; Li, B.G. Highly active and stereospecific polymerization of 1,3-butadiene catalyzed by dinuclear cobalt(II) complexes bearing 3-aryliminomethyl-2-hydroxybenzaldehydes. Dalton Trans. 2011, 40, 10975–10982. [Google Scholar] [CrossRef] [PubMed]
  16. Kwag, G.; Jang, Y.C.; Lee, H. Ligand structure and cocatalyst effects on high 1,4-cis polymerization of 1,3-butadiene using Ni-based catalysts. Polym. J. 1999, 31, 1274–1276. [Google Scholar] [CrossRef]
  17. Suzuki, H.; Matsumura, S.; Satoh, Y.; Sogoh, K.; Yasuda, H. Random and block copolymerizations of norbornene with conjugated 1,3-dienes catalyzed by novel Ni compounds involving N- or O-donated ligands. React. Funct. Polym. 2004, 59, 253–266. [Google Scholar] [CrossRef]
  18. Jang, Y.G.; Choi, D.S.; Han, S. Effects of tris(pentafluorophenyl)borane on the activation of a metal alkyl-free Ni-based catalyst in the polymerization of 1,3-butadiene. J. Polym. Sci. Polym. Chem. 2004, 42, 1164–1173. [Google Scholar] [CrossRef]
  19. Gong, D.R.; Wang, B.L.; Bai, C.X.; Bi, J.F.; Wang, F.; Dong, W.M.; Zhang, X.Q.; Jiang, L.S. Metal dependent control of cis-/trans-1,4 regioselectivity in 1,3-butadiene polymerization catalyzed by transition metal complexes supported by 2,6-bis[1-(iminophenyl)ethyl]pyridine. Polymer 2009, 50, 6259–6264. [Google Scholar] [CrossRef]
  20. Irrgang, T.; Keller, S.; Maisel, H.; Kretschmer, W.; Kempe, R. Sterically demanding iminopyridine ligands. Eur. J. Inorg. Chem. 2007, 2007, 4221–4228. [Google Scholar] [CrossRef]
  21. Laine, T.V.; Piironen, U.; Lappalainen, K.; Klinga, M.; Aitola, E.; Leskela, M. Pyridinylimine-based nickel(II) and palladium(II) complexes: Preparation, structural characterization and use as alkene polymerization catalysts. J. Organomet. Chem. 2000, 606, 112–124. [Google Scholar] [CrossRef]
  22. Bianchini, C.; Giambastiani, G.; Rios, I.G.; Meli, A.; Oberhauser, W.; Sorace, L.; Toti, A. Synthesis of a new polydentate ligand obtained by coupling 2,6-bis(imino)pyridine and (imino)pyridine moieties and its use in ethylene oligomerization in conjunction with iron(II) and cobalt(II) bis-halides. Organometallics 2007, 26, 5066–5078. [Google Scholar] [CrossRef]
  23. Rosa, V.; Carabineiro, S.A.; Aviles, T.; Gomes, P.T.; Welter, R.; Campos, J.M.; Ribeiro, M.R. Synthesis, characterisation and solid state structures of α-diimine cobalt(II) complexes: Ethylene polymerisation tests. J. Organomet. Chem. 2008, 693, 769–775. [Google Scholar] [CrossRef]
  24. Song, S.J.; Xiao, T.P.F.; Liang, T.L.; Wang, F.S.; Redshaw, C.; Sun, W.H. Synthesis, characterization and ethylene oligomerization behaviour of 8-(1-aryliminoethylidene)quinaldinylnickel dihalides. Catal. Sci. Technol. 2011, 1, 69–75. [Google Scholar] [CrossRef]
  25. Britovsek, G.J.P.; Bruce, M.; Gibson, V.C.; Kimberley, B.S.; Maddox, P.J.; Mastroianni, S.; McTavish, S.J.; Redshaw, C.; Solan, G.A.; Strömberg, S.; et al. Iron and cobalt ethylene polymerization catalysts bearing 2,6-bis(imino)pyridyl ligands: Synthesis, structures, and polymerization studies. J. Am. Chem. Soc. 1999, 121, 8728–8740. [Google Scholar] [CrossRef]
  26. Zhang, W.; Sun, W.H.; Zhang, S.; Hou, J.; Wedeking, K.; Schultz, S.; Fröhlich, R.; Song, H. Synthesis, characterization, and ethylene oligomerization and polymerization of [2,6-bis(2-benzimidazolyl)pyridyl] chromium chlorides. Organometallics 2006, 25, 1961–1969. [Google Scholar] [CrossRef]
Polymers EISSN 2073-4360 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
