Next Article in Journal
Synthetic Polymer Scaffolds for Stem Cell Transplantation in Retinal Tissue Engineering
Next Article in Special Issue
Integrated Photonic Devices Incorporating Low-Loss Fluorinated Polymer Materials
Previous Article in Journal
A Possibility for Construction of an Iodine Cleaning System Based on Doping for π-Conjugated Polymers
Open AccessReview

Brillouin Scattering in Polymer Optical Fibers: Fundamental Properties and Potential Use in Sensors

Precision and Intelligence Laboratory, Tokyo Institute of Technology, 4259 Nagatsuta, Midori-ku, Yokohama 226-8503, Japan
*
Author to whom correspondence should be addressed.
Polymers 2011, 3(2), 886-898; https://doi.org/10.3390/polym3020886
Received: 15 April 2011 / Revised: 9 May 2011 / Accepted: 25 May 2011 / Published: 26 May 2011
(This article belongs to the Special Issue Polymers for Optical Applications)

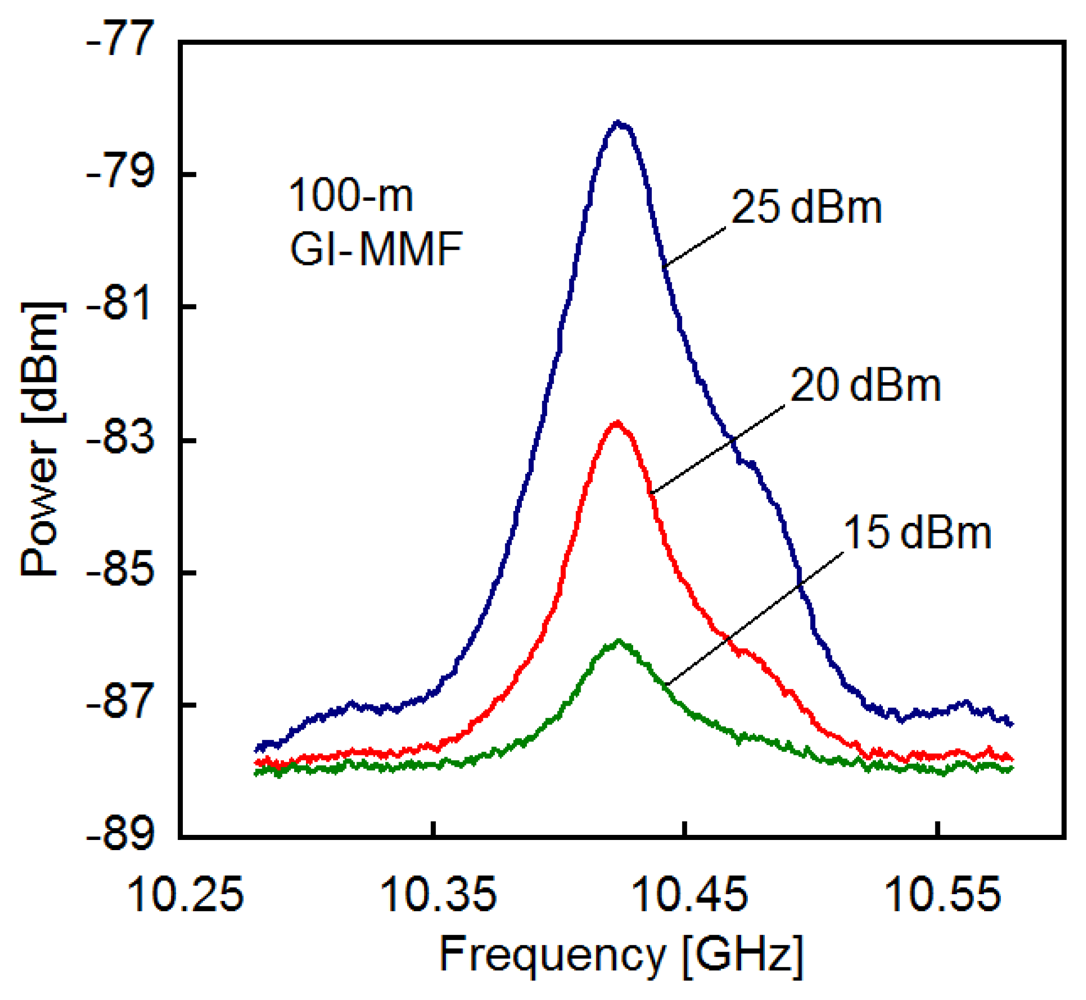

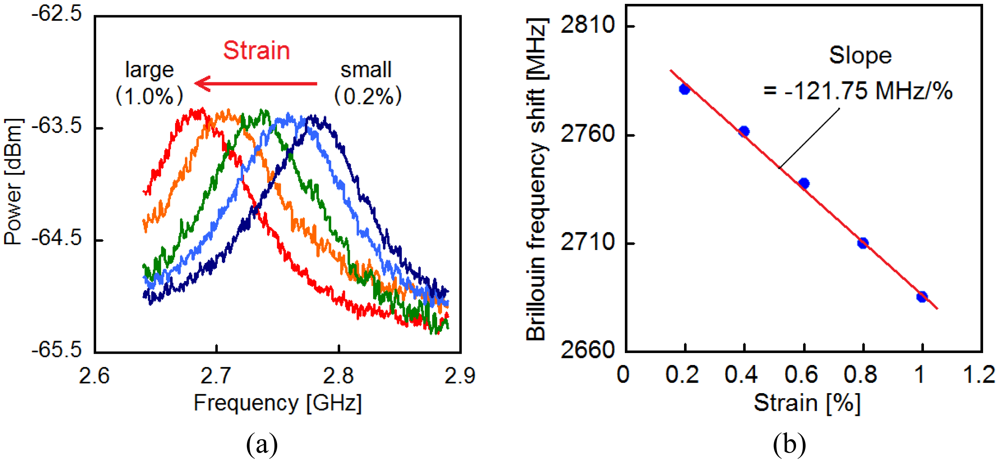

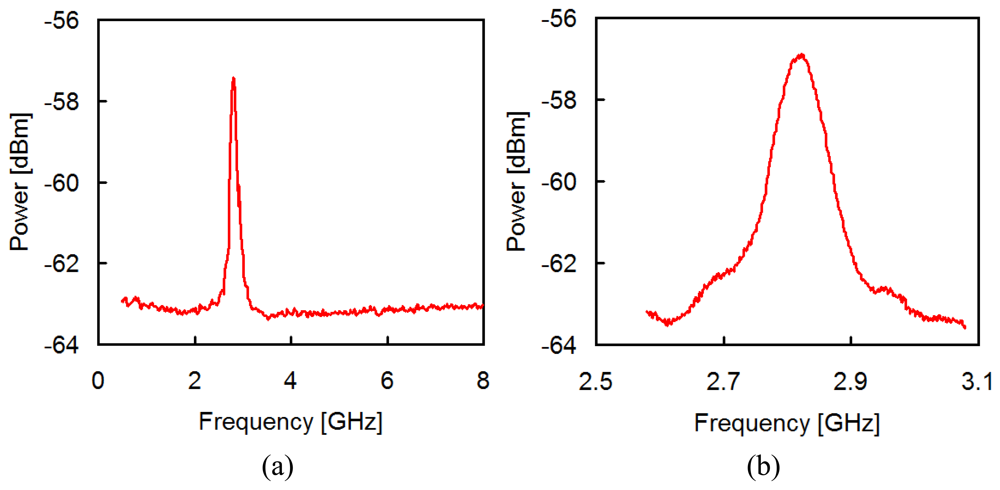

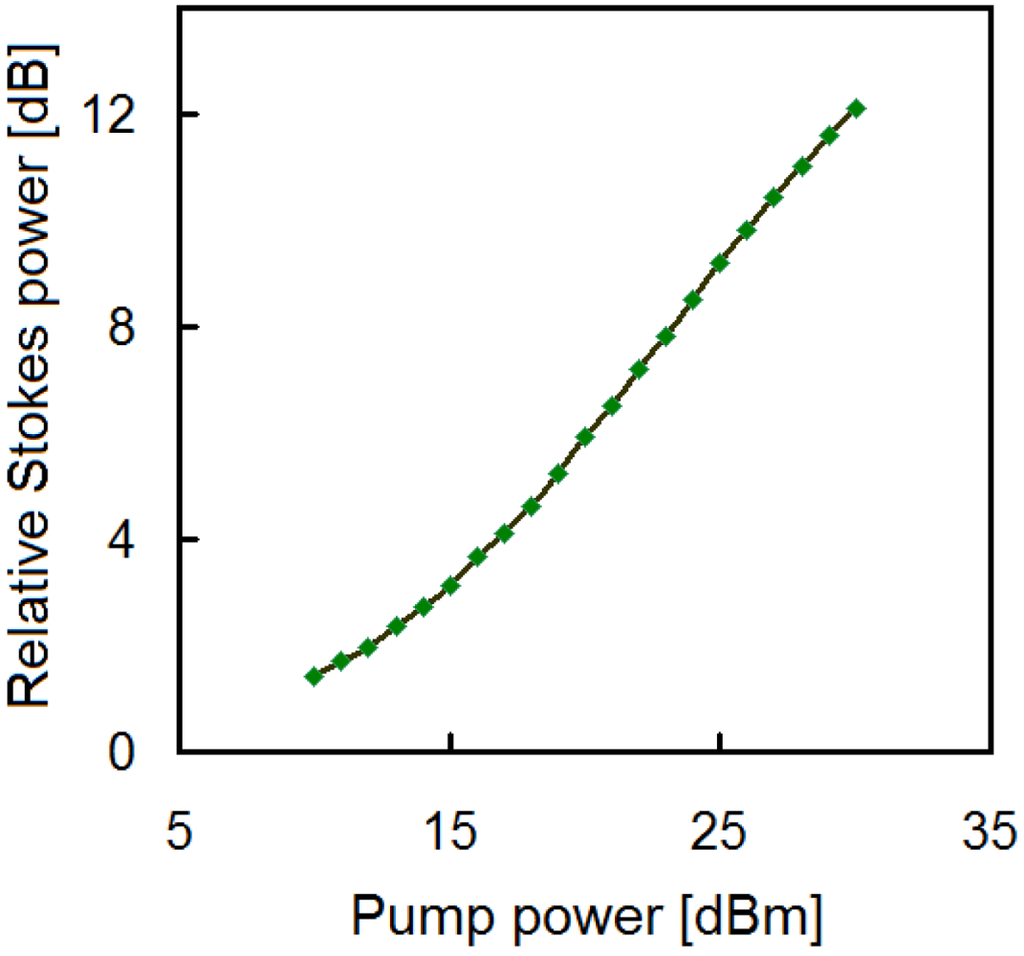

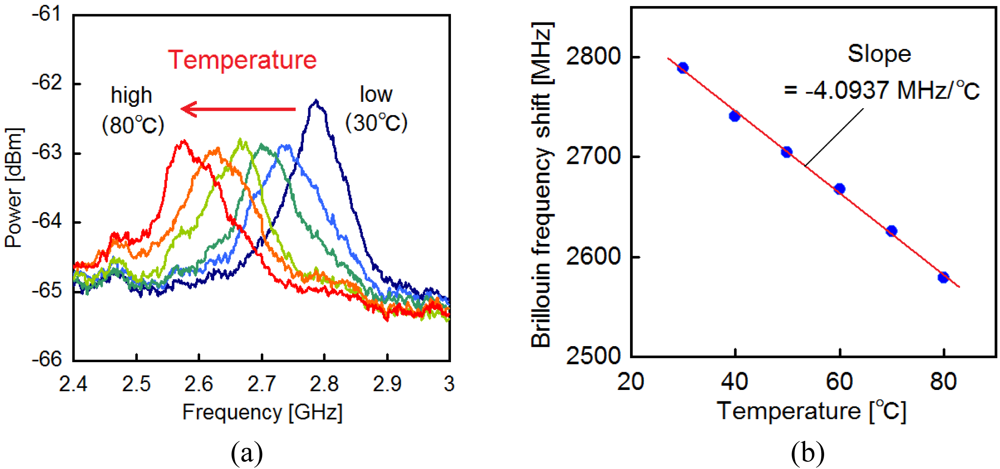

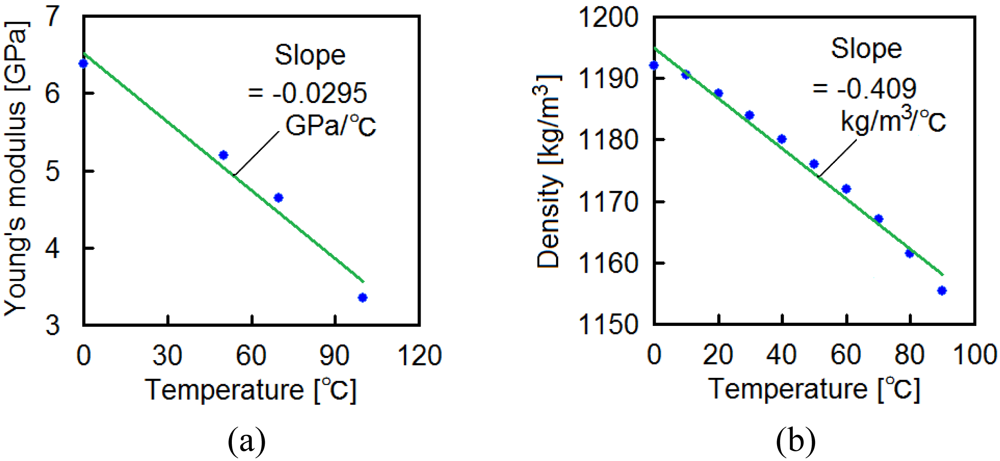

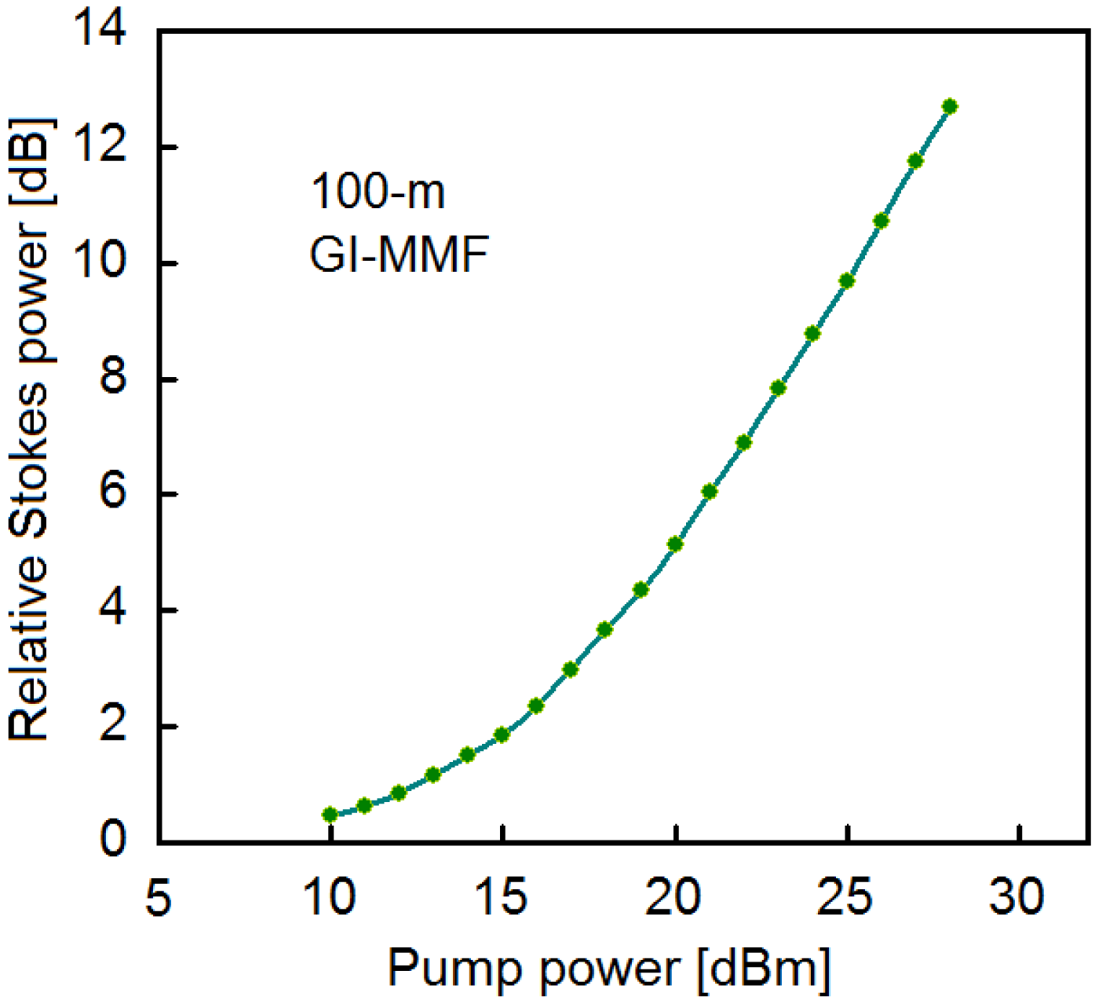

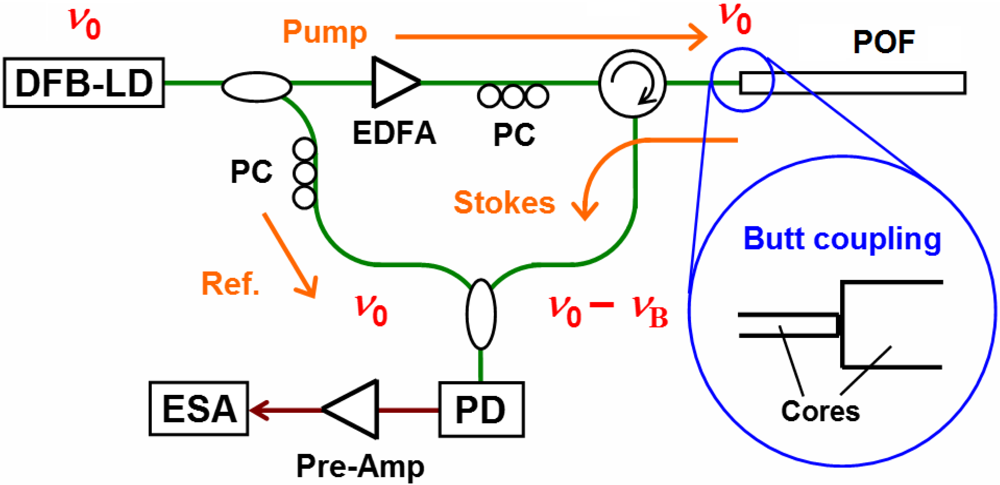

We review the fundamental properties of Brillouin scattering in a perfluorinated graded-index polymer optical fiber (PFGI-POF) with 120 μm core diameter. The experiments were performed at 1.55 μm telecommunication wavelength. The Brillouin frequency shift (BFS) and the Brillouin bandwidth were 2.83 GHz and 105 MHz, respectively. The Brillouin gain coefficient was calculated to be 3.09 × 10−11 m/W, which was comparable to that of fused silica fibers. The Brillouin threshold power of the 100 m POF was estimated to be as high as 24 W, which can be, for practical applications, reduced by using POFs with smaller cores. These properties were compared with those of silica-based graded-index multi-mode fibers. We also investigated the BFS dependences on strain and temperature. They showed negative dependences with coefficients of −121.8 MHz/% and −4.09 MHz/K, respectively, which are −0.2 and −3.5 times as large as those in silica fibers. These BFS dependences indicate that the Brillouin scattering in PFGI-POFs can be potentially applied to high-accuracy temperature sensing with reduced strain sensitivity. View Full-Text
Keywords: Brillouin scattering; polymer optical fiber; fiber-optic sensing; nonlinear optics Brillouin scattering; polymer optical fiber; fiber-optic sensing; nonlinear optics
MDPI and ACS Style

Mizuno, Y.; Nakamura, K. Brillouin Scattering in Polymer Optical Fibers: Fundamental Properties and Potential Use in Sensors. Polymers 2011, 3, 886-898.

Show more citation formats Show less citations formats

Article Access Map

1
Only visits after 24 November 2015 are recorded.
Back to TopTop
