Article

Synergistic Optimization of the Properties of Fiber-Content-Dependent PPS/PTFE/MoS2 Self-Lubricating Composites

by
Zheng Wang
1,
Shuangshuang Li
2,
Liangshuo Zhao
1,*,
Yingjie Qiao
1,3,*,
Yan Wu
3,
Zhijie Yan
1,
Zhongtian Yin
1,
Peng Wang
1,
Xin Zhang
3,
Xiaotian Bian
3,
Lei Shi
4,
Jiajie He
4,
Shujing Yue
4 and
Zhaoding Yao
4
1
School of Materials Science and Engineering, China University of Petroleum (East China), Qingdao 266580, China
2
College of Chemistry and Chemical Engineering, China University of Petroleum (East China), Qingdao 266580, China
3
College of Materials Science and Chemical Engineering, Harbin Engineering University, Harbin 150001, China
4
CRRC Advanced Composites Co., Ltd., Qingdao 266041, China
*
Authors to whom correspondence should be addressed.
Polymers 2026, 18(3), 410; https://doi.org/10.3390/polym18030410
Submission received: 14 January 2026 / Revised: 31 January 2026 / Accepted: 2 February 2026 / Published: 4 February 2026
(This article belongs to the Special Issue Dynamic Behavior of Polymer Composite Materials and Structures, 2nd Edition)
Browse Figures
Versions Notes

Abstract

This study systematically investigates the influence of short carbon-fiber (SCF) content on the mechanical, thermal, and tribological properties of self-lubricating polyphenylene sulfide (PPS) composites filled with PTFE and MoS2, addressing the critical need for high-wear resistance in Carbon-Fiber-Reinforced Thermoplastic (CFRTP) structural applications. The results identified 10 wt% SCF as the optimal content that achieved the best balance between load-bearing capacity and friction performance. The coefficient of friction μ and wear amount were reduced by 29.28% and 29.29%, respectively, compared to the PPS/PTFE/MoS2 composite material without SCF, and by 14.67% and 20.75%, respectively, compared to the material with excessive SCF filling (20 wt%). Finite-Element Analysis-Representative Volume Element (FEA-RVE) reveals the mechanism by which excessive content of SCF at the microscopic level leads to a slight decrease in mechanical properties. Critically, the tribological performance exhibited a discrepancy with bulk mechanical properties: above 15 wt% SCF, the wear rate worsened despite high mechanical strength, revealing that increased fiber agglomeration and micro-abrasion effects were the primary causes of performance deterioration. Further in-depth XPS analysis revealed a synergistic lubrication mechanism: In the optimal sample, an ultra-dense PTFE transfer film was formed to mask the underlying MoS2. This masking, coupled with the high surface activity of MoO3 particles leads to stronger physicochemical interactions with the polymer matrix, ensures the exceptional durability and stability of the tribo-film. This research establishes a complete structure–performance relationship by integrating mechanical, thermal, and tribo–chemical mechanisms, offering critical theoretical guidance for the design of next-generation high-performance self-lubricating CFRTPs.

1. Introduction

Carbon-fiber-reinforced thermoplastic (CFRTP) are increasingly adopted in aerospace and automotive industries due to their superior properties compared to carbon-fiber-reinforced thermosetting resins. CFRTP offers advantages including high fracture toughness at high voids, high productivity, long service-life, multi-level processability, and recyclability [1]. For instance, the Airbus A350 XWB employs CFRTP clamps manufactured through thermoforming to bond the outer skin to the frame, which forms part of the main structure [2]. Semi-crystalline resins like polyphenylene sulfide (PPS) and polyetheretherketone (PEEK) show greater promise in structural applications than amorphous resins due to their enhanced rigidity, strength, and heat resistance. However, PEEK’s high cost limits its large-scale application in composites, while polyamide (PA) with high moisture-absorption rates makes its composites unsuitable for prolonged service in humid environments [3]. In contrast, PPS exhibits excellent flexibility through its sulfur ether bonds, while its benzene rings increase rigidity. PPS also demonstrates outstanding thermal stability, extremely low moisture-absorption, and superior solvent resistance [4,5]. Therefore, CFRTP using PPS as the resin shows greater potential in certain application scenarios.
High-performance equipment such as a high-speed bearing retainer for aeroengine, ship stern shaft, and turbine machinery often operate under extreme conditions including rotational speeds of thousands-to-tens-of-thousands r/min, alternating contact stress, and extreme boundary lubrication or even dry friction [6]. In certain scenarios (e.g., inland navigation vessels), the use of lubricating oils is prohibited [7]. Traditional grease lubrication not only suffers from rapid centrifugal force-induced oil loss at high speeds but also risks contaminating precision components. This imposes integrated performance requirements on materials: “high strength, high heat resistance, and low friction wear.” However, Xu et al. [8] found that PPS/CF exhibits a relatively high intrinsic coefficient of friction (COF) (0.40 for dry sliding). Therefore, introducing solid self-lubricating components into the matrix to reduce friction and wear of PPS/CF under operational conditions is essential.
Polytetrafluoroethylene (PTFE), a classic solid lubricant, boasts advantages like high-temperature resistance and excellent chemical stability. Its tribological performance is primarily determined by the formation of a transfer film along the wear track, which reduces coefficient of frictions by preventing direct contact between friction pairs [9,10], making it the most widely used solid lubricant in industrial applications. Li et al. [11] filled PTFE into PEEK composites, while Zhang et al. [12] incorporated it into polyphenylene sulfone ether ketone (PPESK) composites. Both studies demonstrated significant reductions in coefficient of frictions and wear rates after filling. Shi et al. [13] found that simultaneously adding PTFE and multi-scale short carbon-fiber (SCF) substantially enhanced the tribological properties of PPS. The research indicates that the interlocking network structure formed by PTFE and SCF plays a crucial role in minimizing the coefficient of frictions and wear loss in PPS-based composites. However, Li et al. [14] revealed that excessive PTFE content not only reduces PPS’s coefficient of friction but also severely compromises its mechanical properties, compounded by PTFE’s inadequate lubrication durability under high loads [15,16]. This highlights that single-component additives (fillers or solid lubricants) cannot meet application demands, especially under harsh working conditions. Current research suggests that combining two or more solid lubricants with distinct mechanisms can significantly improve the tribological performance of polymer composites [17,18,19,20]. MoS2 crystals exhibit a hexagonal layered structure with extremely weak interlayer bonding (van der Waals forces), enabling interlayer sliding under external forces to reduce friction energy dissipation. As a non-reactive material, it neither chemically interacts with metal surfaces nor corrodes rubber materials, making it an excellent solid lubricant. Jiang et al. [21] demonstrated that introducing MoS2 as a secondary solid lubricant can compensate for PTFE’s inadequate lubrication durability under high-loads. The work of Hu et al. [22] revealed the synergistic effect of PTFE/MoS2 on the lubrication properties of polyimide-based CFRTP; however, no studies have explored the synergistic effect of PTFE/MoS2 on fiber-content-dependent PPS-based composites, and the performance improvements and underlying mechanisms of such composites remain unclear [23].
This study developed a PPS/PTFE/MoS2 ternary composite matrix incorporating short carbon-fiber (SCF) as the reinforcement phase [24]. Through systematic mechanical property tests (tensile, flexural, and impact), differential scanning calorimetry-thermogravimetry (DSC-TG), differential thermal gravimetry (DTG), fracture morphology observation, friction and wear experiments, and multidimensional surface characterization, combined with finite-element analysis (FEA) [25,26] using the Representative Volume Element (RVE) model for fiber-reinforced composites, we comprehensively investigated the SCF content-dependent structural and performance control mechanisms of the CFRTP. The research aims to meet the integrated requirements of “high strength, high heat resistance, and low friction/wear” for specialized materials under extreme operating conditions. This work provides experimental data and theoretical support for optimizing and engineering applications of self-lubricating CFRTPs in demanding transmission systems with medium-high loads, high rotational speeds, and boundary lubrication/dry friction coupling, demonstrating significant industrial value and scientific significance.

2. Experimental and Finite-Element Analysis

2.1. Materials and Chemical Composition

In this study, PPS/PTFE was used as the matrix, CF as the reinforcement phase, and MoS2 as the lubrication functional filler. The component content of the samples was designed as shown in Table 1. The PPS used was the Q250 model produced by China Binhua Group (Binzhou, China), CF uses the T800 model manufactured by Sinoma Shenying Carbon Fiber Co., Ltd. (Shanghai, China), with a tensile strength of 5490 MPa. The CF surface was thermoplastic modified using a polyamide coupling agent to increase the number of surface active functional groups, thereby enhancing the interfacial strength of the composite material [27]. The PTFE used is 5μ particle size produced by Zhejiang Wannengda Group Co., Ltd. (Quzhou, China), and the MoS2 was provided by Beijing Research Institute of Chemical Industry (Beijing, China), with a particle size of 10 μm in China. To systematically evaluate the performance, two different control groups were employed: Pure PPS was used as the baseline for mechanical tests to assess reinforcement efficiency, while PPS10P (PPS with 10 wt% PTFE) served as the primary benchmark for tribological evaluations to isolate the synergistic effects of MoS2 and SCF on friction and wear. For other material information, please refer to the Supplementary Materials.

2.2. Composite Fabrication

The composite material sample was fabricated via injection molding. First, PPS, PTFE, and MoS2 were heated and blended to form a mixture. The modified carbon-fiber (CF) was then impregnated into the molten mixture. Both the CF and the mixture were fed into a twin-screw extruder [28], where the CF was crushed at 300 rpm. The CF-containing (CF length is approximately 200–400 μm) extruded pellets are obtained by extrusion under pressure, and then are cut into 2 mm particles after cooling and air-drying. The particles are dried in a drying oven at 80 °C for 2 h, and then are injected into a mold preheated to 230 °C.

2.3. Mechanical Properties

Tensile and flexural tests were conducted using the LE-3000 universal mechanical testing machine manufactured by Shanghai Lishi Scientific Instrument Co., Ltd. (Shanghai, China) at a speed of 2 mm/min. Impact tests were performed with the XJUD-5.5 digital display cantilever beam impact tester produced by Chengde Kaosi Scientific Testing Co., Ltd. (Qingdao, China), featuring a 5 kg pendulum with a rated impact energy of 15 J. Three composite samples with varying fiber contents were tested, with the average value serving as the mechanical strength indicator for each composite material. During high-temperature (120 °C) tensile tests, the samples were preheated for 10 min prior to testing. The tensile-strength samples measured 150 mm × 20 mm × 5 mm, while the flexural- and impact-strength samples measured 80 mm × 10 mm × 5 mm. The fracture surfaces of the tested samples were analyzed using a APREO S LOVAC scanning electron microscope (SEM) manufactured by THERMO FISHER (Shanghai, China) [29,30].
In the friction and wear tests, the SFT-2M ball-disk type friction and wear tester was used. The small ball in the friction pair was selected as a Φ4 mm Si3N4 ceramic ball with a rotation radius of 3 mm. In the sliding friction test, the sliding speed was 0.6 m/s, and the load was 9 N. According to the Hertz Formula [31] for the contact between the ball and the plane in (1), the load was calculated as 378.2 MPa, and the friction time was 30 min. A surface observation and calculation of the specific wear rate were performed using a HYBRID C3 model 3CCD true color confocal microscope produced by Ogawa Seiki (Beijing) Trading Co., Ltd. (Beijing, China). The characterization and analysis of the friction surface and the mechanism of its friction behavior changes were conducted using an X-ray photoelectron spectrometer (XPS) produced by Thermo Fisher Scientific Inc. (Shanghai, China) and a APREO S LOVAC scanning electron microscope (SEM) manufactured by THERMO FISHER (Shanghai, China).
σ max = 0.388 P E 2 1 R 2 3
σmax is the maximum contact pressure stress (MPa), P is the concentrated load (N), E is the elastic modulus (MPa), and R is the radius of the sphere (mm).
Each component underwent tribological and mechanical testing using three samples to avoid randomness. The friction curve was selected from the sample with uniform wear tracks. The wear test shall be conducted no less than three times. Mechanical performance testing standards use ASTM D3039 [24].
All binding energies were calibrated by referencing the adventitious C1s peak at 284.8 eV. High-resolution spectra were recorded with a pass energy of 30 eV and a step size of 0.1 eV to ensure sufficient energy resolution for peak deconvolution. Data processing and curve fitting were conducted using Avantage software (2023 Edition), employing a Shirley-type background subtraction.

2.4. Thermal Properties

The thermal stability test was performed using the JCT-1 comprehensive thermal analyzer manufactured by Beijing Hengjiu Experimental Equipment Co., Ltd (Beijing, China). The thermal properties of the designed material were analyzed through three methods: DSC, TG-DSC, and DTG [20,32,33]. The test was conducted at a heating rate of 15 °C/min, with a temperature range from room temperature to 800 °C, under a nitrogen atmosphere with a flow rate of 50 mL/min.

2.5. Multiscale Material Modeling

Digimat-FE can generate realistic RVE models suitable for the microstructure of various materials [34,35,36]. The homogenization method in Digimat-FE predicts the constitutive behavior of each phase in the pre-RVE model [37]. Stress distribution in the SCF reinforcement and matrix components of composites are difficult to analyze through experimental methods, but can be replicated and analyzed using finite-element modeling techniques. Therefore, in this study, Digimat-FE software (2025 Edition) was used to determine the microscale stress distribution in composites, to determine whether changes in mechanical strength are caused by inefficient stress-transfer between the matrix and SCF. The model analysis was completed in three steps. The first step defined pre-phase properties and microstructure, such as size, shape, position, clustering, orientation, and boundary conditions. The second step involved generating the RVE and creating the mesh. Subsequently, loads were applied under appropriate boundary conditions. To achieve better results, periodic boundary conditions were used in this study. The RVE analysis was completed in the final step; the final results were post-processed in probability distributions to provide uniform averages of the required properties. In the finite-element simulation, it was assumed that perfect bonding occurred between the SCF and matrix [38]. Figure 1 shows the RVE generated for all segments using the composite model.

3. Results and Discussion

3.1. Mechanical Property

Figure 2 displays the mechanical properties of the PPS/PTFE/MoS2-based composite, while Figure 3 shows its fracture morphology. The uniform distribution of PTFE within PPS is crucial for enhancing the composites’ tribological and mechanical performance. Results indicate that compared to pure PPS, the PPS/PTFE composite exhibits significantly deteriorated high-temperature tensile and impact properties. PPS molecular chains contain aromatic rings and sulfide bonds, whereas PTFE chains are fully fluorinated, resulting in weak interfacial bonding. As shown in Figure 3d, a microscopic gap exists between the PPS matrix and PTFE particles, forming a continuous “defect network”. Under stress, forces concentrate preferentially in these gaps. High-temperature tensile deformation further widens the gaps, preventing effective stress-transfer from the PPS matrix to PTFE particles through the interface. During impact, the interfacial gaps fail to effectively absorb energy, and PTFE’s mechanical properties are substantially inferior to PPS [39]. Table 2 presents the theoretical density, actual density, and porosity of the PPS/PTFE/MoS2 composite, with the actual density measured using the Archimedes displacement method [40].
The mechanical properties of the composite material show an overall upward trend with increasing SCF content, but slightly decrease when exceeding 15 wt%. Compared to pure PPS, the composite with 15 wt% SCF exhibits a 125.0% increase in tensile strength and a 72.1% increase in flexural strength, along with 369.4% and 334.1% increases in tensile modulus and flexural modulus, respectively. Within the SCF content range of 5 wt% to 15 wt%, SCF acts as a high-load-bearing phase, effectively distributing external loads and reducing local stress concentration by alleviating the matrix’s burden. The high-modulus SCF also limits the matrix’s plastic deformation under stress, thereby enhancing overall rigidity. Additionally, SCF promotes PPS crystallization on its surface, forming a denser microstructure [2]. The fiber-bridging effect further inhibits crack propagation, improving fracture toughness. Figure 4 displays the stress-distribution cloud maps of RVE models for five C1–C5 samples under X-axis tensile loading. Results indicate that in C1–C4 models, SCF (short carbon-fiber) as the high-load-bearing phase primarily bears the load while reducing matrix stress. However, C5’s RVE model reveals significant stress concentration in its matrix compared to C1–C4, suggesting ineffective stress transfer from matrix to SCF. When the SCF content exceeds 20 wt%, the inter-fiber spacing becomes too narrow, which may lead to fiber aggregation and prevent the matrix from fully encapsulating the aggregated fibers. Table 2 shows that porosity increases by 29. 82% at 20 wt% SCF compared to 15 wt%, resulting in a sharp decline in the interfacial bonding strength between matrix and fibers. Consequently, loads are not effectively transferred to fibers, with more stress borne by the matrix around agglomerates. This causes localized matrix stress to directly exceed yield strength, ultimately leading to mechanical property degradation—a finding corroborated by experimental results. According to Auer et al. [41], the reduced tensile and flexural performance of 20 wt% SCF composites may also stem from excessive SCF interfering with PPS crystallization kinetics, restricting crystal growth space and forming distorted or incomplete crystal structures.
Although rigid SCF addition typically reduces the matrix ductility, the impact strength remains high (5.285 kJ/m2) under high fiber-loading (15–20 wt%). This is because the rigid SCF network acts as a weight-bearing skeleton, compensating for the weak interfacial defects introduced by the PTFE soft phase and effectively withstanding impact loads. As shown in Figure 3h, the impact-fracture surface features extensive fiber-extraction grooves, where friction generated during fiber extraction dissipates a significant portion of the impact energy. Additionally, the dense fiber network creates a bridging effect [42], which hinders crack propagation.
Figure 3 demonstrates that SCF-enhanced PPS/PTFE/MoS2 composites exhibit brittle-fracture modes in room-temperature tensile, impact, and flexural tests, primarily due to the brittle fracture of the PPS matrix and interfacial delamination of PTFE. However, Figure 3c,d reveal that at elevated temperatures, C1 exhibits both plastic and brittle fracture zones. This occurs because PPS softens and gains plastic-deformation capacity under high temperatures, while the weak interfacial bonding of PTFE still causes localized brittle-fracture. As SCF content increases, the matrix tearing induced by extensive fiber extraction gradually blurs the boundary between plastic and brittle fracture zones, ultimately transitioning to complete plastic deformation.

3.2. Thermal Performance Analysis

Figure 5a displays the temperature-dependent melting curves of PPS/PTFE composites with varying SCF contents. The curves show relative stability across the 50–100 °C low-temperature range. The pure PPS curve closely follows the SCF-containing composites, indicating no significant thermal transition within this temperature range and confirming the material’s predominantly solid state. Table 3 shows the hot blooded performance parameters.
A peak of exothermicity at 110 °C was observed, which was the cold crystallization peak of PPS. The cold crystallization was the characteristic of the polymer chain reorganization in the amorphous domain during the heating process, which reflected the crystallization ability or mobility of the polymer chain during the heat-treatment process.
At approximately 270 °C, the curve exhibits a distinct endothermic peak corresponding to the melting temperature of PPS, while PTFE’s melting peak occurs around 310 °C. As SCF content increases, the melting temperatures of both PPS and PTFE show a slight decrease. When SCF content reaches 10%, PPS’s melting-peak temperature drops to 267.8 °C, and PTFE’s melting temperature decreases to 307.4 °C. Subsequently, the melting temperatures of both materials exhibit a slight increase with further SCF addition. Meanwhile, the peak width and endothermic peak amplitude of PPS decrease with increasing carbon-fiber content, whereas those of PTFE increase, indicating that SCF significantly influences the thermal behavior during material melting.
As shown in Figure 5b,c, PPS10P and PPS composites with varying SCF content exhibit similar degradation behaviors, as evidenced by their identical TG curves. The thermal decomposition process generally progresses through three stages: (1) The weight loss is minimal at temperatures below 450 °C; (2) Exceeding 50% weight loss between 450 and 680 °C due to pyrolysis of PPS resin matrix into small molecules; (3) Residual carbon decomposition after 680 °C. PPS10P demonstrates a decomposition temperature (T5%) of 496.7 °C at 5 wt% weight loss, while SCF addition shows a significant upward trend in T5% with a maximum increase of 5.2 °C. DTG images reveal the highest weight-loss rate (TdTG) at 550.2 °C. Thermal stability of the composites increases with SCF content before decreasing, with 8 wt% SCF exhibiting optimal thermal stability. This phenomenon results from the combined effects of the fiber-barrier effect [43] and pore-defect-induced effect [44]. As shown in Table 2, SCF content increases porosity from 0.70% to 3.57%. At lower SCF concentrations (5–8 wt%), porosity increases minimally. Rigid carbon-fibers effectively suppress thermal decomposition product diffusion and heat transfer, creating a labyrinth effect [45] that dominates thermal behavior. Consequently, SCF samples at 8 wt% demonstrate the highest thermal stability. However, at higher SCF concentrations (10–20 wt%), the porosity significantly increased to 3.57% due to elevated viscosity and fiber aggregation. The excess voids provided a larger free volume for the volatilization of degradation products. Moreover, the high-porosity-weakened-interfacial bonding, creating initiation sites for thermal degradation. During this phase, the detrimental effects of structural defects outweighed the barrier function of the fibers, resulting in reduced thermal stability for samples with SCF concentrations of 10 wt% to 20 wt%.

3.3. Friction Performance

Figure 6 displays the average coefficient of friction and specific wear rate of this material system, with the specific wear rate [46] calculated using Equation (2). Figure 7 presents the surface friction marks of the material, characterized by 3CCD real-color confocal microscopy [47], alongside the SEM images of the friction surface morphology.
K v = V F   ×   S
Kv is the volumetric specific wear rate [mm3/(N·m)], V is the wear volume (mm3), F is the load (N), and S is the total sliding distance (m). The wear volume V is calculated by multiplying the cross-sectional wear amount obtained from confocal topography measurement by the wear-ring circumference.
The average coefficient of friction was determined by calculating the arithmetic mean of the data recorded during the entire 30 min sliding test. Since the system reached a stable friction state rapidly, the values from the whole duration were representative of the steady-state performance.
As shown in Figure 6, while PTFE + MoS2 can form a slip film to reduce the coefficient of friction in pure matrix conditions, the absence of SCF reinforcement limits the matrix’s load-bearing capacity, resulting in relatively high wear-rates. Although the SCF addition disrupts partial continuity of the PTFE transfer film and increases micro-cutting forces, sacrificing some low-friction properties, it achieves a significant improvement in wear resistance. At low SCF concentrations, the reinforcement effect of SCF balances with the lubrication effect of PTFE + MoS2. The SCF-supported matrix reduces deformation, maintaining a complete and stable lubrication film where wear primarily occurs through “minor film migration”, leading to decreased wear-rates. However, when SCF content reaches 15 wt%, excessive aggregation dilutes the lubricating components, causing discontinuous lubrication films. Simultaneously, exposed SCF triggers abrasive wear, shifting the wear mechanism to “lubrication film failure + abrasive wear”, resulting in a marked increase in wear rates.
The surface morphology in Figure 7 reveals that without SCF (PPS10P), the material exhibits a rough, non-uniform flaky/blocky texture. The surface shows distinct protrusions and depressions, with localized shear-induced tearing edges formed by matrix compression. These characteristics indicate plastic deformation under friction when the thermoplastic composite matrix has a low load-bearing capacity, reflecting significant shear stress on the matrix. Micro-cracks and interfacial delamination traces demonstrate friction-induced bonding failure and matrix micro-cracking. Matrix plastic deformation tears the lubrication film, exposing PPS surfaces directly contacting Si3N4 ceramic balls, which triggers secondary friction, accelerates material spalling, and increases wear rates. When SCF is added, the surface morphology of friction marks shows more pronounced micro-cracks. At 10 wt% SCF content, the wear surface develops a relatively smooth yet rough micro-texture without large-scale tearing or deep pits, resembling a uniformly rough surface formed by wear. This indicates moderate friction exposure, with fine abrasive particles scattered around pits and on the surface—products of material shedding during friction. The results demonstrate that SCF at 10 wt% achieves dynamic equilibrium between its support function and the lubrication effect of PTFE+MoS2. With the addition of excess SCF (10–20 wt%), micro-cracks and tear-like edges gradually appear on the surface morphology. This microstructure is typical of lubrication failure under friction loads, where excessive SCF disrupts the continuity of the lubricating film. As SCF content increases, the C-O-C peak area expands, indicating oxidative degradation of the PPS matrix due to stress concentration and reduced interfacial adhesion. Under frictional shear forces, numerous SCF aggregates interpenetrate between PTFE/MoS2 layers, disrupting the continuous lubricating film distribution. These aggregates become crack sources and Three-body Abrasives, significantly exacerbating wear.
Figure 8 displays XPS energy spectrum analysis of samples with 5 wt%, 10 wt%, and 20 wt% SCF content at the wear scar. Analysis of Figure 8(a1,b1,c1) shows that at 10 wt% SCF, the N and Si elements in the friction pair balls are detected at the lowest levels (50% less than at 20 wt% SCF). This indicates that 10 wt% SCF forms a stable transfer film at the friction interface, significantly preventing direct contact between the composite material and friction pair balls. The minimized shear stress reduces N and Si element shedding from the friction pair balls, validating the trend where the coefficient of friction and specific wear-rate first decrease then increase with SCF content. Observations in Figure 8(a3,a6,b3,b6,c3,c6) reveal that the C-O-C peak area in the O1s spectrum increases with SCF content. After friction, 10 wt% and 20 wt% samples exhibit C-OH (hydroxyl) peaks in the C1s spectrum, indicating positive effects of friction oxidation. The generated C-OH and C-O-C polar groups form hydrogen bonds or chemical adsorption with mating surfaces, stabilizing high-quality transfer films. The 10 wt% sample with optimal lubrication performance shows the largest C-OH peak area, corresponding to the strongest chemical adsorption. This clearly demonstrates the transfer-film anchoring mechanism is induced by friction oxidation. Analysis of Figure 8(a2,b2,c2) reveals that MoS2 peaks appear in the S2p spectra at 5 wt% and 20 wt% concentrations, but the 10 wt% sample with optimal lubrication performance shows no MoS2 peaks. This indicates that in CFRTP composites with PTFE-MoS2 interactions, the PTFE transfer film forms on the outer layer of the MoS2 slip film and the MoS2 layer is covered. When SCF is present at 10 wt%, the composite forms a complete, dense, and continuous transfer film. However, at 5 wt%, the collective support strength is insufficient, causing the transfer film to crack under friction and expose underlying MoS2 layers. At 20 wt%, excessive fiber aggregates interpenetrate between PTFE/MoS2 layers, severely disrupting the transfer film’s continuity. Friction-induced micro-cutting further exposes and detects the underlying MoS2 layers. Analysis of Figure 8(a4,b4,c4) shows MoO3 peaks appearing in the Mo3d spectra, with significantly larger peak areas at 5 wt% and 20 wt% compared to 10 wt% samples. This is because MoS2 readily oxidizes to MoO3 under frictional heat [48,49]. In the 10 wt% sample, the friction temperature rise [50,51] was kept at a low level due to the moderate coefficient of friction and heat dissipation through carbon-fiber conduction. Meanwhile, the intact and continuous transfer film formed by the outer PTFE layer also protected MoS2, thereby inhibiting its conversion to the harmful MoO3 and preserving the lubricating phase of MoS2.
PTFE requires thermal softening through friction, shearing, and wire drawing to form a transfer film on the surface [52,53]. MoS2 readily undergoes partial oxidation under frictional heat, generating MoO3 [54]. As shown in Figure 8(a4,b4,c4), MoO3 peaks were detected in samples containing 5 wt%, 10 wt%, and 20 wt% MoS2 after friction. This indicates that MoS2 likely serves as the primary lubricant during the initial friction phase, protecting the substrate before the PTFE transfer film forms. Additionally, MoO3 exhibits high surface activity, making it prone to stronger physical or chemical interactions with PTFE or other polymer matrices [55], Therefore, it effectively reduces the shedding of the polymer matrix during the friction process. Although these MoO3 particles increase the sliding barrier, they are harder than MoS2. This means that the formation of MoO3 allows the matrix to withstand higher normal pressure and is less prone to lattice distortion.
Figure 9 illustrates the friction performance variation mechanism of fiber-content-dependent thermoplastic composites with PPS/PTFE/MoS2 as the matrix. Figure 10 compares the performance of the SCF/PPS/PTFE/MoS2 system with other self-lubricating composites developed in recent years [56], it can be seen that the SCF/PPS/PTFE/MoS2 system demonstrates high lubrication performance on the basis of low filler content of lubricating components, while still maintaining high mechanical properties.

4. Conclusions

The effects of SCF content on the properties of self-lubricating PPS/PTFE/MoS2 composites were investigated systematically. The synergistic optimization mechanism of SCF content dependence was revealed from the perspectives of structure, mechanics, thermodynamics, and tribological chemistry.
1.
Through comprehensive evaluation of the material’s mechanical, thermal, and tribological properties, we determined that 10 wt% SCF is the optimal ratio to maximize the overall performance of PPS/PTFE/MoS2 composites. The mechanical properties showed significant improvement, with the coefficient of friction (μ) and wear rate decreasing by 29.28% and 29.29%, respectively, compared to PPS/PTFE/MoS2 composites without SCF. These reductions were also 14.67% and 20.75% lower than those observed in materials with excessive SCF (20 wt%).
2.
While 15 wt% SCF content achieves the highest macroscopic mechanical strength, its friction and wear performance begins to deteriorate. This reveals a mismatch between bulk mechanical properties and surface tribological characteristics. Higher SCF concentrations increase localized aggregate defects and amplify micro-cutting effects on surface fibers, disrupting the continuity of the surface transfer-film.
3.
XPS analysis revealed a synergistic lubrication mechanism between PTFE and MoS2: In the 10 wt% sample with optimal lubrication performance, the characteristic peak of MoS2 disappeared. Simultaneously, the detection of MoO3 products in the transfer film indicated moderate frictional oxidation of MoS2. We hypothesize that MoS2 may act as the primary lubricant during the initial friction stage, the generated MoO3 particles have high surface activity and exhibit stronger physicochemical interactions with the polymer matrix, ensuring long-term stability with low friction and wear.
In conclusion, this study not only provides critical parameters for the precise formulation design of high-performance CFRTP self-lubricating composites, but more importantly, establishes a comprehensive theoretical framework to elucidate how SCF regulates the frictional behavior of polymer composites through the triple synergistic effects of structural, thermal, and chemical interactions. Future research should focus on enhancing macroscopic mechanical strength and reducing wear rates by modifying post-processing techniques, optimizing microstructure design, and adjusting filler dimensions, with the goal of achieving more durable ultra-low wear performance under high-load and high-speed operating conditions.

Supplementary Materials

The following supporting information can be downloaded at https://www.mdpi.com/article/10.3390/polym18030410/s1, Table S1. Injection Molding Process Parameter Table; Table S2. Comparison table of SCF’s Mass fraction and Volume fraction; Table S3. FEA-RVE Modeling Details Table.

Author Contributions

Methodology, L.Z. and Y.W.; Software, L.Z.; Validation, Z.W., S.L., L.Z., Z.Y. (Zhijie Yan), Z.Y. (Zhongtian Yin), L.S., J.H., S.Y. and Z.Y. (Zhaoding Yao); Formal analysis, S.L., L.Z., P.W. and X.B.; Investigation, S.L., L.Z., Y.Q., Y.W., Z.Y. (Zhijie Yan), Z.Y. (Zhongtian Yin), P.W., X.Z. and X.B.; Writing—original draft, Z.W., S.L., L.Z., Z.Y. (Zhijie Yan) and Z.Y. (Zhongtian Yin); Writing—review and editing, Z.W., S.L. and L.Z.; Visualization, L.Z.; Supervision, Z.W., L.Z., Yingjie Qiao, Y.W., Z.Y. (Zhijie Yan), Z.Y. (Zhongtian Yin), P.W., X.Z., X.B., L.S., J.H., S.Y. and Z.Y. (Zhaoding Yao); Project administration, Z.W., Y.Q., P.W., X.Z., L.S., J.H., S.Y. and Z.Y. (Zhaoding Yao); Funding acquisition, Z.W., Y.Q., P.W., L.S., J.H., S.Y. and Z.Y. (Zhaoding Yao). All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by CRRC Advanced Composites Co., Ltd., grant number 2024ZD0602200.

Institutional Review Board Statement

Not applicable.

Data Availability Statement

The original contributions presented in this study are included in the article/Supplementary Material. Further inquiries can be directed to the corresponding authors.

Acknowledgments

This work was supported by the National Science and Technology Major Project of China (Grant No. 2024ZD0602200). The authors would also like to express their gratitude to CRRC Advanced Composites Co., Ltd. for its [technical support/provision of experimental materials/financial support].

Conflicts of Interest

Authors Shi Lei, Jiajie He, Shujing Yue and Zhaoding Yao were employed by the company CRRC Advanced Composites Co., Ltd. The remaining authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

References

  1. Meng, Z.; Liu, S.; Hu, K.; Wang, T.; Luo, B.; Zhang, K. A review on the cutting of carbon fiber reinforced thermoplastic composites. Polym. Compos. 2024, 45, 13459–13479. [Google Scholar] [CrossRef]
  2. Oshima, S.; Higuchi, R.; Kato, M.; Minakuchi, S.; Yokozeki, T.; Aoki, T. Cooling rate-dependent mechanical properties of polyphenylene sulfide (PPS) and carbon fiber reinforced PPS (CF/PPS). Compos. Part A Appl. Sci. Manuf. 2023, 164, 107250. [Google Scholar] [CrossRef]
  3. Yang, Y.; Zhou, J.; Li, B.; Sun, Y.; Jia, M.; Fang, X.; Liu, J. Study on preparation and physical properties of PPS/NdFeB composite granule. Polym. Compos. 2025, 46, S722–S733. [Google Scholar] [CrossRef]
  4. Díez-Pascual, A.M.; Naffakh, M. Tuning the properties of carbon fiber-reinforced poly(phenylene sulphide) laminates via incorporation of inorganic nanoparticles. Polymer 2012, 53, 2369–2378. [Google Scholar] [CrossRef]
  5. Zhai, H.; Zhou, X.; Fang, L.; Lu, A. Study on mechanical properties of powder impregnated glass fiber reinforced poly(phenylene sulphide) by injection molding at various temperatures. J. Appl. Polym. Sci. 2010, 115, 2019–2027. [Google Scholar] [CrossRef]
  6. Ghani, S.N.; Alithari, A.S.; Hasan, H.S. Effect of titanium dioxide (Tio2) nanoparticles on the wear rate of marine journal bearings made of composite materials. Results Eng. 2025, 27, 105949. [Google Scholar] [CrossRef]
  7. Yuan, W.; Yao, X.; Guo, Q.; Li, C.; Chi, B.; Yu, J. Tribological Performance of Shaft and Surface Pairs with PPS and its Composites in Seawater under Cyclic Loading. Tribol. Lett. 2024, 72, 98. [Google Scholar] [CrossRef]
  8. Xu, H.; Feng, Z.; Chen, J.; Zhou, H. Tribological behavior of the carbon fiber reinforced polyphenylene sulfide (PPS) composite coating under dry sliding and water lubrication. Mater. Sci. Eng. A 2006, 416, 66–73. [Google Scholar] [CrossRef]
  9. Qiu, X.; Fu, C.; Gu, A.; Gao, Y.; Wang, X.; Yu, Z. Preparation of high-performance PEEK anti-wear blends with melt-processable PTFE. High Perform. Polym. 2020, 32, 645–654. [Google Scholar] [CrossRef]
  10. Li, Y.; Han, T.; Zhao, M.; Han, J.; Zhao, R.; Xu, Z.; Cao, W.; Ma, M.; Zhang, C.; Luo, J. Modulating interfacial shear of nanoconfined hydration layer via surface charging. Nano Energy 2026, 148, 111692. [Google Scholar] [CrossRef]
  11. Li, Y.; Chen, Y.; Guo, Y.; Bian, D.; Zhao, Y. Tribological Behavior of PEEK/PTFE Composites Reinforced with Carbon Fibers and Graphite. Materials 2022, 15, 7078. [Google Scholar] [CrossRef]
  12. Zhang, X.; Liao, G.; Jin, Q.; Feng, X.; Jian, X. On dry sliding friction and wear behavior of PPESK filled with PTFE and graphite. Tribol. Int. 2008, 41, 195–201. [Google Scholar] [CrossRef]
  13. Shi, Y.; Bai, Y.; Lei, Y.; Zhang, H.; Zhou, S.; Zou, H.; Liang, M.; Chen, Y. Simultaneously enhanced heat dissipation and tribological properties of polyphenylene sulfide-based composites via constructing segregated network structure. J. Mater. Sci. Technol. 2022, 99, 239–250. [Google Scholar] [CrossRef]
  14. Li, J.; Li, J.; Xiang, J.; Gong, X.; Xie, P.; Chen, Y.; Liang, M.; Zou, H.; Zhou, S. Improving Tribological Performance of Poly(phenylene sulfide) by Incorporating PTFE Fillers: The Influence of Filler Type and Concentrations. Polymers 2025, 17, 1222. [Google Scholar] [CrossRef] [PubMed]
  15. Li, J. Friction and wear properties of PTFE composites filled with PA6. Polym. Compos. 2010, 31, 38–42. [Google Scholar] [CrossRef]
  16. Song, F.; Wang, Q.; Wang, T. Effects of glass fiber and molybdenum disulfide on tribological behaviors and PV limit of chopped carbon fiber reinforced Polytetrafluoroethylene composites. Tribol. Int. 2016, 104, 392–401. [Google Scholar] [CrossRef]
  17. Min, C.; Liu, D.; Shen, C.; Zhang, Q.; Song, H.; Li, S.; Shen, X.; Zhu, M.; Zhang, K. Unique synergistic effects of graphene oxide and carbon nanotube hybrids on the tribological properties of polyimide nanocomposites. Tribol. Int. 2018, 117, 217–224. [Google Scholar] [CrossRef]
  18. Friedrich, K.; Zhang, Z.; Schlarb, A.K. Effects of various fillers on the sliding wear of polymer composites. Compos. Sci. Technol. 2005, 65, 2329–2343. [Google Scholar] [CrossRef]
  19. Zhu, J.; Shi, Y.; Feng, X.; Wang, H.; Lu, X. Prediction on tribological properties of carbon fiber and TiO2 synergistic reinforced polytetrafluoroethylene composites with artificial neural networks. Mater. Des. 2009, 30, 1042–1049. [Google Scholar] [CrossRef]
  20. Özsarıkaya, B.; Yetgin, S.H.; Durmuş, A.; Çalışkan, F. Effect of silicone, molybdenum disulfide, and multi-walled carbon nanotube on the tribological, mechanical, and thermal properties of polyamide 66/carbon fibre composites. Mater. Sci. Eng. B 2025, 314, 118016. [Google Scholar] [CrossRef]
  21. Jiang, T.; Song, L.; Zhang, B.; Zhang, H.; Wang, P.; Zhou, Y.; Fu, L.; Wang, Y.; Han, H.; Yu, H. Synergistic mechanism of MoS2 and PTFE in reinforcing epoxy-based composite coatings. Surf. Coat. Technol. 2025, 516, 132686. [Google Scholar] [CrossRef]
  22. Hu, H.; He, Y.; Wang, Q.; Tao, L. Preparation and Characterization of the Polyimide-MoS2/PTFE Composite with High Strength and Self-Adaptive Lubricating Performance in Air and Vacuum. ACS Appl. Polym. Mater. 2023, 5, 6516–6528. [Google Scholar] [CrossRef]
  23. Aderikha, V.N.; Krasnov, A.P.; Shapovalov, V.A.; Golub, A.S. Peculiarities of tribological behavior of low-filled composites based on polytetrafluoroethylene (PTFE) and molybdenum disulfide. Wear 2014, 320, 135–142. [Google Scholar] [CrossRef]
  24. Zhang, X.; Ke, H.; Qiao, Y.; Zhang, X.; Zhang, L.; Bai, C.; Lin, L.; Shao, K.; Nan, H.; Wang, X.; et al. High-performance chopped carbon fibers reinforced epoxy adhesive for underwater structural repair and strengthening applications. Structures 2025, 81, 110403. [Google Scholar] [CrossRef]
  25. Zhou, X.; Wu, M.; Li, Y.; Qiao, Y.; Wang, P.; Xie, B.; Wang, B.; Wang, Z.; Zhou, J.; Chen, S.; et al. Repair process of fillet weld defects in oil and gas branch pipes with composite materials: Finite-element modelling and experimental verification. Mater. Technol. 2025, 40, 2569359. [Google Scholar] [CrossRef]
  26. Zhao, L.; Qiao, Y.; Yin, Z.; Xie, B.; Wang, B.; Zhou, J.; Chen, S.; Wang, Z.; Wang, X.; Zhang, X.; et al. A Composite Material Repair Structure: For Defect Repair of Branch Pipe Fillet Welds in Oil and Gas Pipelines. Materials 2026, 19, 222. [Google Scholar] [CrossRef]
  27. Yang, M.; Lu, X.; Meng, F.; Zhang, B.; Zhi, J.; Yang, Y. Synergistic Inorganic–Organic Interfacial Modification for Colored and High-Performance Carbon Fiber/Polyamide Composites. Polym. Compos. 2025, 47, 1247–1259. [Google Scholar] [CrossRef]
  28. Paul, A.; Kesharvani, S.; Agrawal, A.; Dwivedi, G.; Singh, V.; Saxena, K.K. Mechanical and tribological properties of nano clay/PMMA composites extruded with a twin-screw extruder. Proc. Inst. Mech. Eng. Part E J. Process Mech. Eng. 2023. [Google Scholar] [CrossRef]
  29. Li, Y.; Han, Y.; Gao, P.; Qiao, J.; Tang, Z. Hydrogen-Based fluidized bed roasting of refractory limonite Ore: Kinetics, phase Transformation, and microstructural evolution. Fuel 2026, 405, 136539. [Google Scholar] [CrossRef]
  30. Tang, Z.; Li, Y.; Han, Y.; Wu, W.; Gao, P.; Sun, Y. Characterization of iron and manganese in limonite under high-temperature reducing environment: Thermodynamics, phase transformation and migration mechanism. Int. J. Hydrogen Energy 2025, 138, 660–670. [Google Scholar] [CrossRef]
  31. Ciulli, E.; Betti, A.; Forte, P. The Applicability of the Hertzian Formulas to Point Contacts of Spheres and Spherical Caps. Lubricants 2022, 10, 233. [Google Scholar] [CrossRef]
  32. Liu, S.; Hunt, G.; Kallio, K.; Montani, S.; Nilsson, F.; Pallon, L.; Yaghini, N.; Wen, Y.; Hedenqvist, M.S. High temperature testing of PEEK and PPS coatings on copper wires. npj Mater. Degrad. 2025, 9, 26. [Google Scholar] [CrossRef]
  33. Yang, B.; Li, Y.; Lin, H.; Li, W.; Liu, X.; Shen, J. Study on crack resistance and impermeability of functional material modified concrete. Compos. Commun. 2026, 62, 102703. [Google Scholar] [CrossRef]
  34. Xiao, J.; Liu, G.; Yang, D.; Song, X.; Ke, Y. An algorithm for automatically establishing a multi- parameter RVE model for z-pin composite laminates. Compos. Struct. 2023, 319, 117139. [Google Scholar] [CrossRef]
  35. Chen, L.; Gu, B.; Zhou, J.; Tao, J. Study of the Effectiveness of the RVEs for Random Short Fiber Reinforced Elastomer Composites. Fibers Polym. 2019, 20, 1467–1479. [Google Scholar] [CrossRef]
  36. Liu, J.; Fu, Y.; Chen, Y.; Jiang, J.; Zhang, Y.L.; Xu, Y.; Lin, S. A Novel Algorithm in Stochastic Chopped Carbon Fiber Composite Structure-A Study of RVE Size Effect and Homogenization Response of Directional Modulus. Appl. Compos. Mater. 2022, 29, 565–595. [Google Scholar] [CrossRef]
  37. Sasikumar, R.; Babu, B.R.; Subramanian, V.; Jayavel, R. Multifunctionality of MWCNT modified carbon fiber reinforced thermoplastic composite, and reclaiming composite in the pursuit of sustainable energy storage applications: An experimental and numerical analysis. Compos. Sci. Technol. 2024, 248, 110468. [Google Scholar] [CrossRef]
  38. Choudhary, P.K.; Pradhan, P.; Satapathy, A. Study on Mechanical and Tribological Characteristics of Epoxy Composites Reinforced with Short Areca-catechu Fibers. J. Nat. Fibers 2022, 19, 6602–6614. [Google Scholar] [CrossRef]
  39. Mao, Z.; Li, T.; Zhan, H.; Wang, B. Molecular evolution mechanism of flow-induced crystallization in polyphenylene sulfide. Int. J. Mech. Sci. 2023, 240, 107917. [Google Scholar] [CrossRef]
  40. Ren, L.; Zhang, D. Effect of Double-Vacuum-Bag Process on the Void Evolution in Composite Laminates. Fibers Polym. 2025, 26, 773–782. [Google Scholar] [CrossRef]
  41. Auer, C.; Kalinka, G.; Krause, T.; Hinrichsen, G. Crystallization kinetics of pure and fiber-reinforced poly(phenylene sulfide). J. Appl. Polym. Sci. 1994, 51, 407–413. [Google Scholar] [CrossRef]
  42. Yang, B.; Zhou, Q.; Zhang, M.; Wang, L.; Li, W.; Lu, P. Highly foldable, robust and water-resistant cellulose specialty paper reinforced by aramid nanofibers. Cellulose 2022, 29, 2033–2045. [Google Scholar] [CrossRef]
  43. Lv, Q.; Ying, Z.; Wu, D.; Wang, Z.; Zhang, M. Nucleation Role of Basalt Fibers during Crystallization of Poly(ε-caprolactone) Composites. Ind. Eng. Chem. Res. 2017, 56, 2746–2753. [Google Scholar] [CrossRef]
  44. Liu, Z.; Lei, Y.; Zhang, X.; Kang, Z.; Zhang, J. Effect Mechanism and Simulation of Voids on Hygrothermal Performances of Composites. Polymers 2022, 14, 901. [Google Scholar] [CrossRef] [PubMed]
  45. Palza, H.; Vergara, R.; Zapata, P. Improving the thermal behavior of poly(propylene) by addition of spherical silica nanoparticles. Macromol. Mater. Eng. 2010, 295, 899–905. [Google Scholar] [CrossRef]
  46. Dvornik, M.I.; Shichalin, O.O.; Mikhailenko, E.A.; Vlasova, N.M.; Chernyakov, E.V. Dependence of wear rate of sintered WC and cemented carbides on hardness and cobalt content during free ball micro-abrasive wear test. Int. J. Refract. Metals Hard Mater. 2026, 134, 107495. [Google Scholar] [CrossRef]
  47. Bourebia, M.; Meddah, S.; Achouri, S.; Oulabbas, A.; Mebrek, A.; Brunetiere, N.; Laouar, L.; Ghennai, W.; Taleb, A.; Haddad, A.; et al. Investigation of the Mechanical Characteristics and Tribological Performance of a Chrome Molybdenum Steel After Ball Burnishing. J. Mater. Eng. Perform. 2025, 34, 25651–25664. [Google Scholar] [CrossRef]
  48. Guo, C.; Xu, Y.; Deng, N.; Huang, X. Efficient degradation of organophosphorus pesticides and in situ phosphate recovery via NiFe-LDH activated peroxymonosulfate. Chem. Eng. J. 2025, 524, 169107. [Google Scholar] [CrossRef]
  49. Guo, C.; Zhang, L.; Zhang, Q.; Ni, C.; Deng, N.; Huang, X. Efficient Adsorptive Removal of Phosphonate Antiscalant HEDP by Mg-Al LDH. Separations 2025, 12, 259. [Google Scholar] [CrossRef]
  50. Liu, X.; Wu, Y.; Yu, Z. Tribological Properties of Organic Functionalized ZrB2–Al2O3/Epoxy Composites. Tribol. Lett. 2017, 65, 14. [Google Scholar] [CrossRef]
  51. He, H.; Li, G.; Zhu, X.; Duan, H.; Yu, J.; Liu, R.; Qu, Y.; Yin, Y. Suppressed friction-induced temperature rise at energetic β-HMX crystal interfaces by wax coating. Friction 2025, 13, 9441063. [Google Scholar] [CrossRef]
  52. Beckford, S.; Cai, J.; Fleming, R.A.; Zou, M. The Effects of Graphite Filler on the Tribological Properties of Polydopamine/PTFE Coatings. Tribol. Lett. 2016, 64, 42. [Google Scholar] [CrossRef]
  53. Liu, Q.; Luo, W.; Zhou, S.; Zou, H.; Liang, M. Tribological behavior and morphology of PTFE particulate-reinforced POM matrix composites. J. Polym. Eng. 2017, 37, 227–237. [Google Scholar] [CrossRef]
  54. Windom, B.C.; Sawyer, W.G.; Hahn, D.W. A raman spectroscopic study of MoS2 and MoO3: Applications to tribological systems. Tribol. Lett. 2011, 42, 301–310. [Google Scholar] [CrossRef]
  55. Li, Q.; Pu, J.; Su, F. The study on modulation mechanism for anti-corrosion and low-friction of R0-MoS2 by Ti-/Pb-doped model. Tribol. Int. 2024, 194, 109491. [Google Scholar] [CrossRef]
  56. Li, J.; Zhou, S.; Liang, M.; Zou, H. Fabrication of polyphenylene sulfide composites with integrated mechanical and tribological properties by synchronically adding irradiation-treated PTFE powders and short carbon fibers. Tribol. Int. 2023, 186, 108559. [Google Scholar] [CrossRef]
Polymers 18 00410 g001

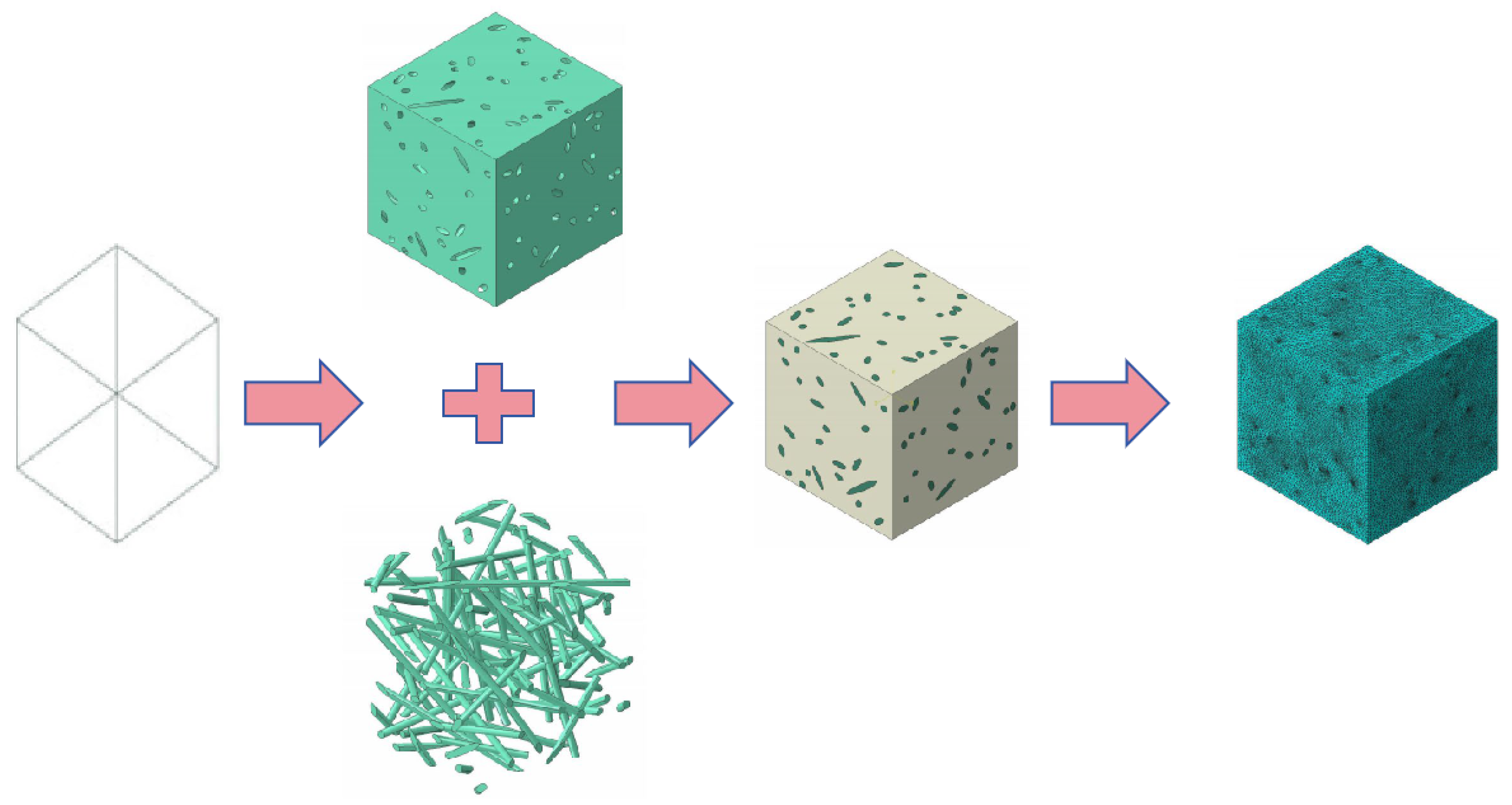

Figure 1. Generation of RVE of all the portions with composite model.
Figure 1. Generation of RVE of all the portions with composite model.
Polymers 18 00410 g001
Polymers 18 00410 g002

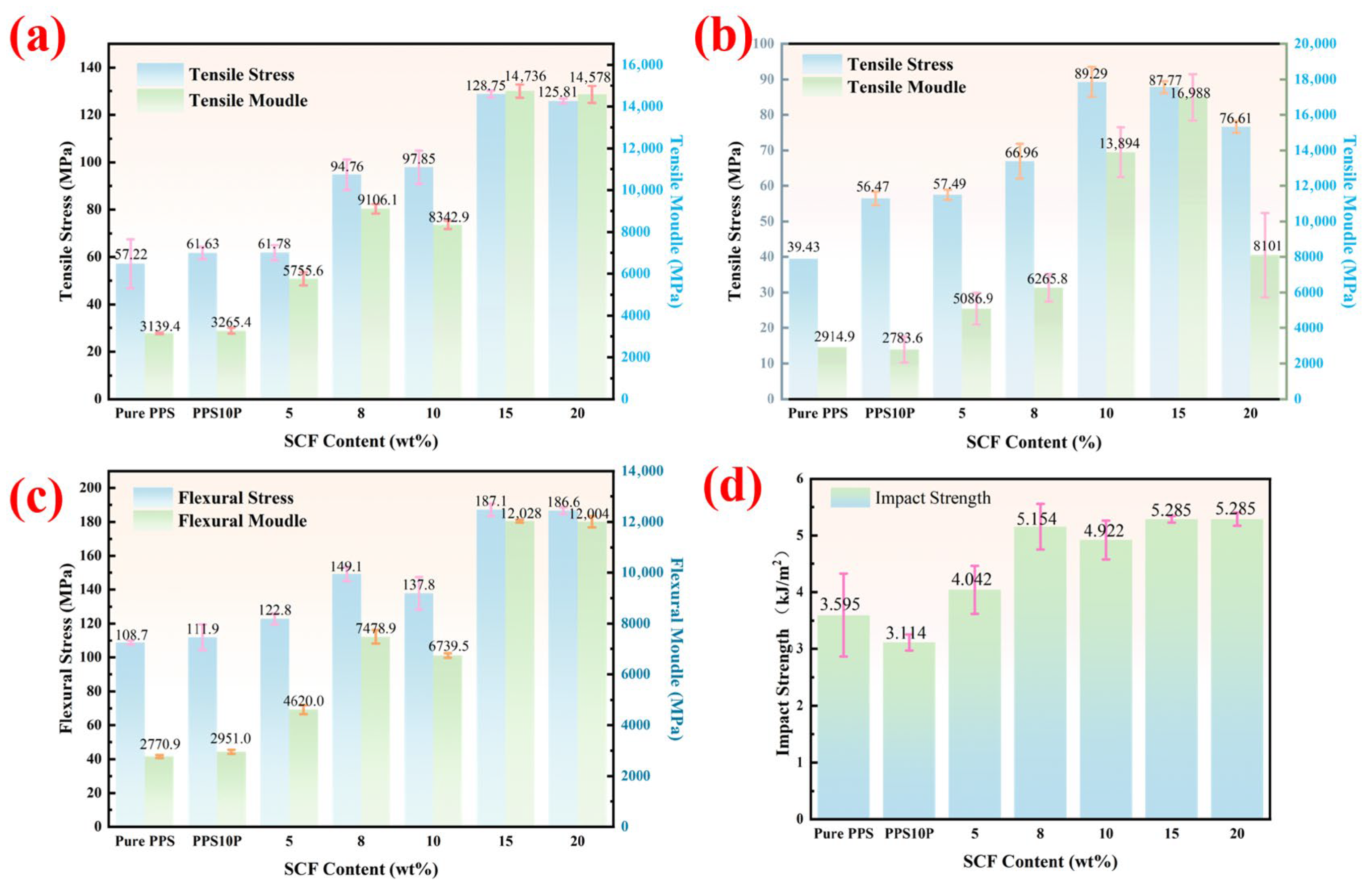

Figure 2. (a) Tensile performance at 25 °C; (b) tensile performance 120 °C; (c) bending performance at 25 °C; (d) impact performance at 25 °C.
Figure 2. (a) Tensile performance at 25 °C; (b) tensile performance 120 °C; (c) bending performance at 25 °C; (d) impact performance at 25 °C.
Polymers 18 00410 g002
Polymers 18 00410 g003

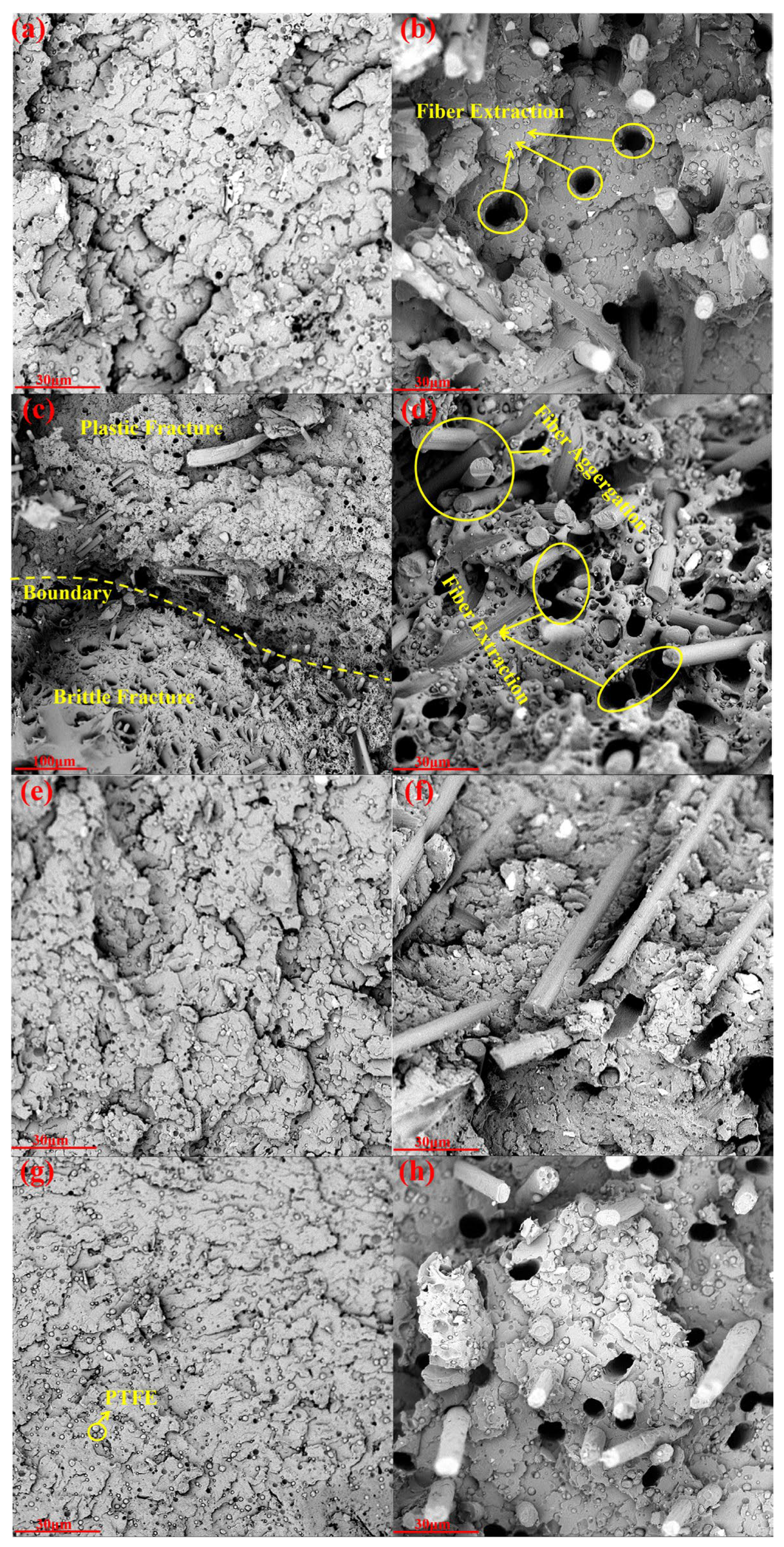

Figure 3. (a) PPS10P tensile fracture morphology at 25 °C; (b) C5 tensile fracture morphology at 25 °C; (c) C1 tensile fracture morphology at 120 °C; (d) C5 tensile fracture morphology at 120 °C; (e) PPS10P bending fracture morphology at 25 °C; (f) C5 bending fracture morphology at 25 °C; (g) PPS10P impact fracture morphology at 25 °C; (h) C5 impact fracture morphology at 25 °C.
Figure 3. (a) PPS10P tensile fracture morphology at 25 °C; (b) C5 tensile fracture morphology at 25 °C; (c) C1 tensile fracture morphology at 120 °C; (d) C5 tensile fracture morphology at 120 °C; (e) PPS10P bending fracture morphology at 25 °C; (f) C5 bending fracture morphology at 25 °C; (g) PPS10P impact fracture morphology at 25 °C; (h) C5 impact fracture morphology at 25 °C.
Polymers 18 00410 g003
Polymers 18 00410 g004

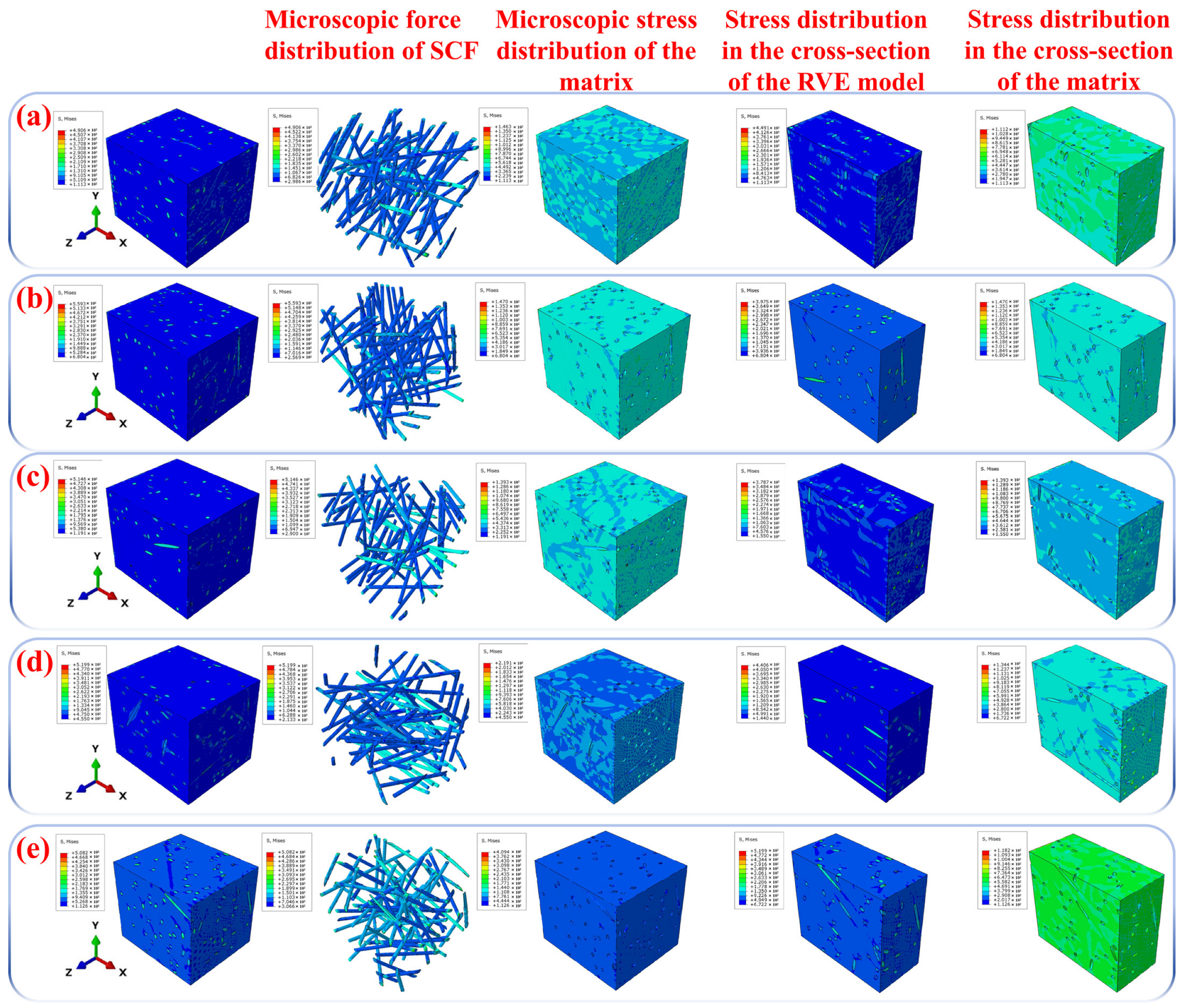

Figure 4. (a) Stress-distribution cloud map of C1’s RVE model after X-axis tension; (b) stress-distribution cloud map of C2’s RVE model after X-axis tension; (c) stress-distribution cloud map of C3’s RVE model after X-axis tension; (d) stress-distribution cloud map of C4’s RVE model after X-axis tension; (e) stress-distribution cloud map of C5’s RVE model after X-axis tension.
Figure 4. (a) Stress-distribution cloud map of C1’s RVE model after X-axis tension; (b) stress-distribution cloud map of C2’s RVE model after X-axis tension; (c) stress-distribution cloud map of C3’s RVE model after X-axis tension; (d) stress-distribution cloud map of C4’s RVE model after X-axis tension; (e) stress-distribution cloud map of C5’s RVE model after X-axis tension.
Polymers 18 00410 g004
Polymers 18 00410 g005

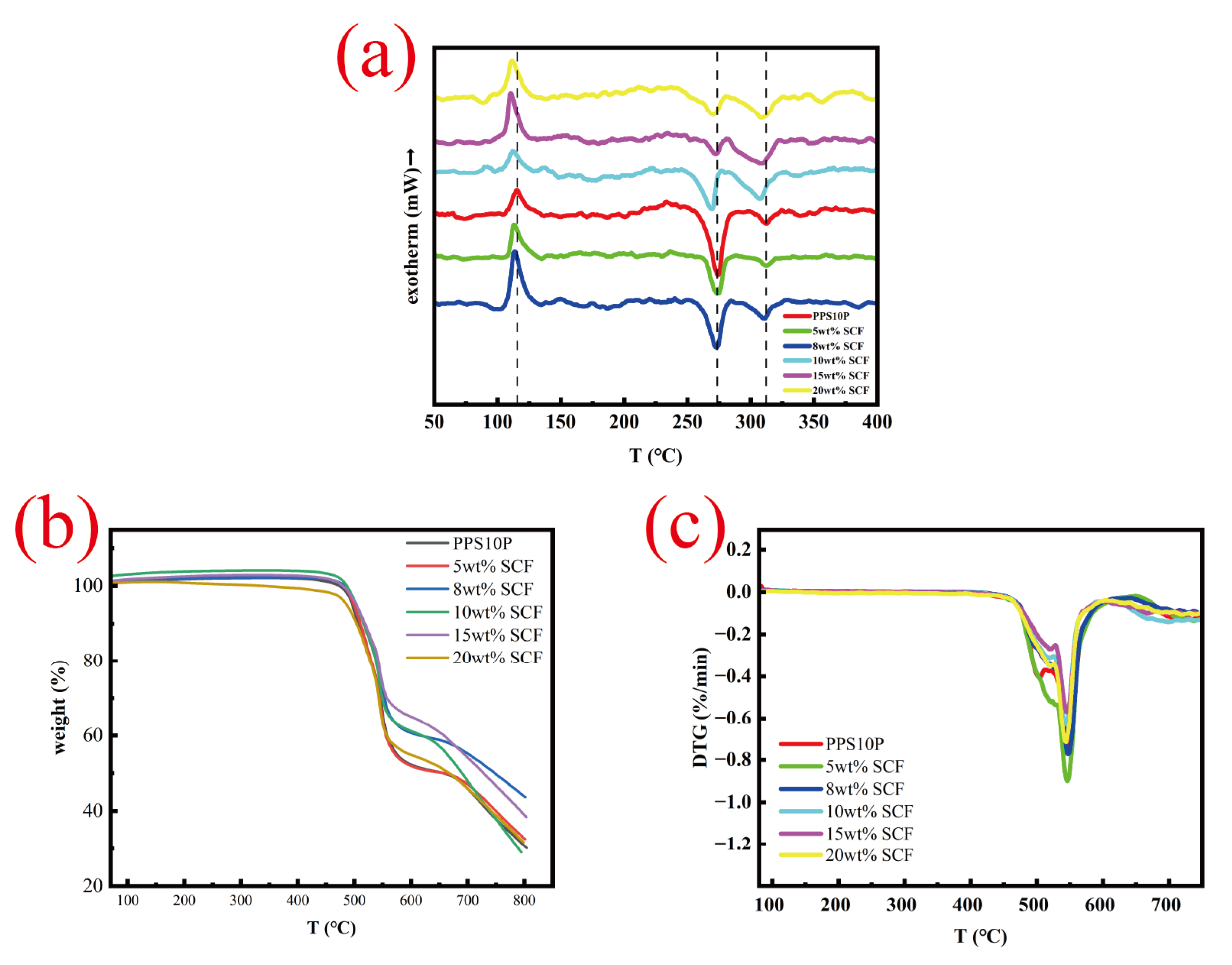

Figure 5. (a) DSC curve of composite materials; (b) TG curve of composite materials; (c) DTG curve of composite materials.
Figure 5. (a) DSC curve of composite materials; (b) TG curve of composite materials; (c) DTG curve of composite materials.
Polymers 18 00410 g005
Polymers 18 00410 g006

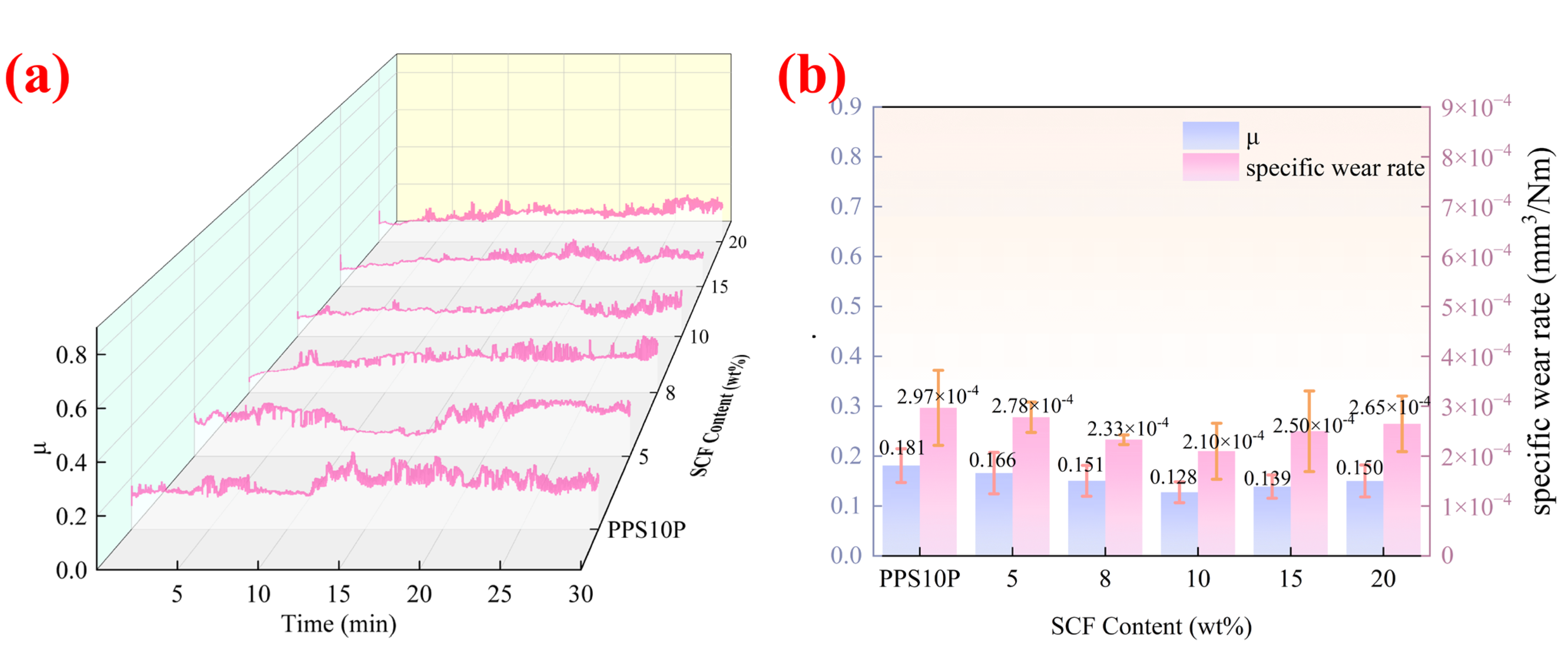

Figure 6. (a) Average coefficient of friction of PPS/PTFE/MoS2-based composites; (b) Specific wear-rate of PPS/PTFE/MoS2-based composites.
Figure 6. (a) Average coefficient of friction of PPS/PTFE/MoS2-based composites; (b) Specific wear-rate of PPS/PTFE/MoS2-based composites.
Polymers 18 00410 g006
Polymers 18 00410 g007

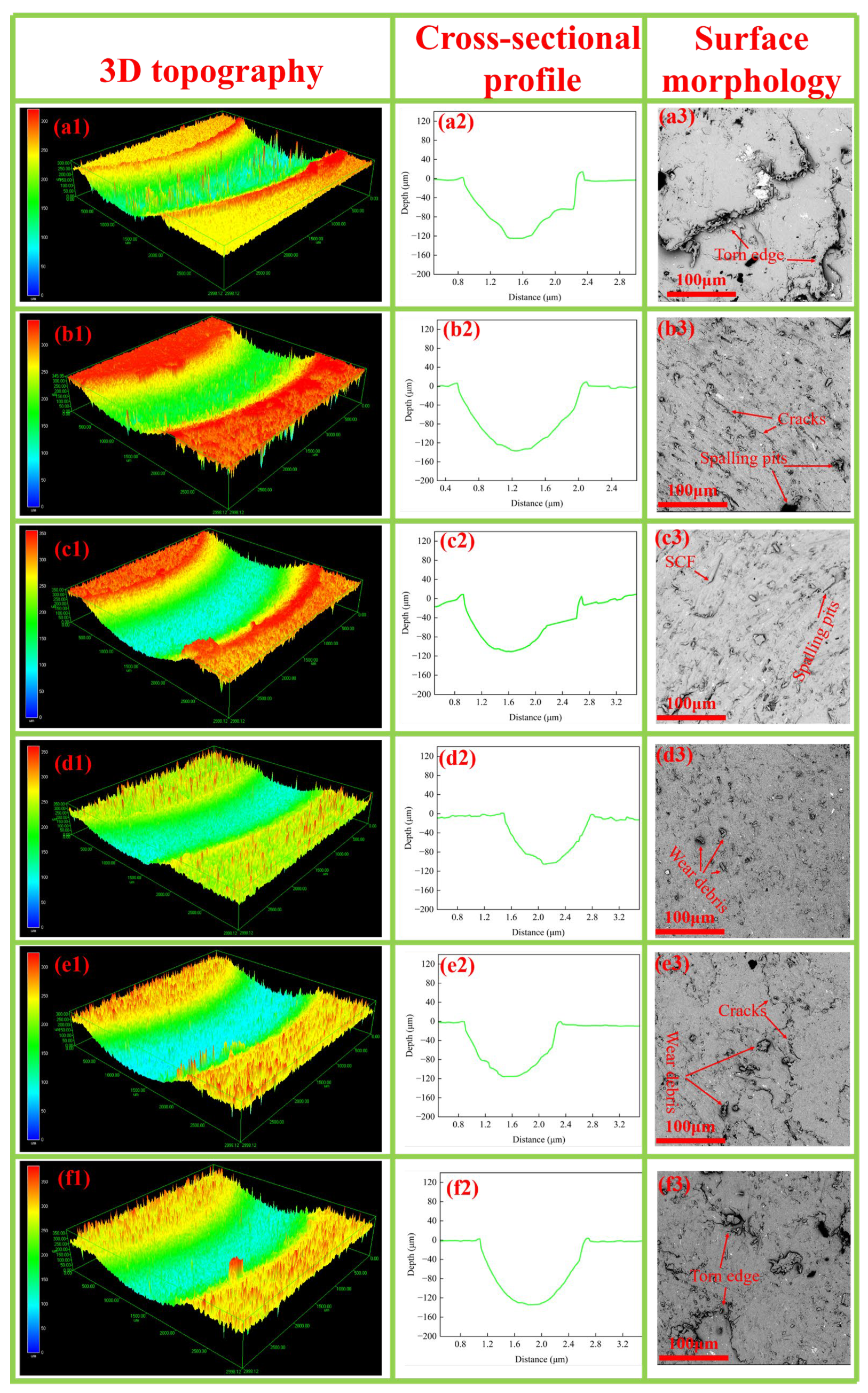

Figure 7. 3D topographies, cross-sectional profiles and surface morphologies of wear tracks of the surface morphology: (a1–a3) PPS10P; (b1–b3) C1; (c1–c3) C2; (d1–d3) C3; (e1–e3) C4; (f1–f3) C5.
Figure 7. 3D topographies, cross-sectional profiles and surface morphologies of wear tracks of the surface morphology: (a1–a3) PPS10P; (b1–b3) C1; (c1–c3) C2; (d1–d3) C3; (e1–e3) C4; (f1–f3) C5.
Polymers 18 00410 g007
Polymers 18 00410 g008

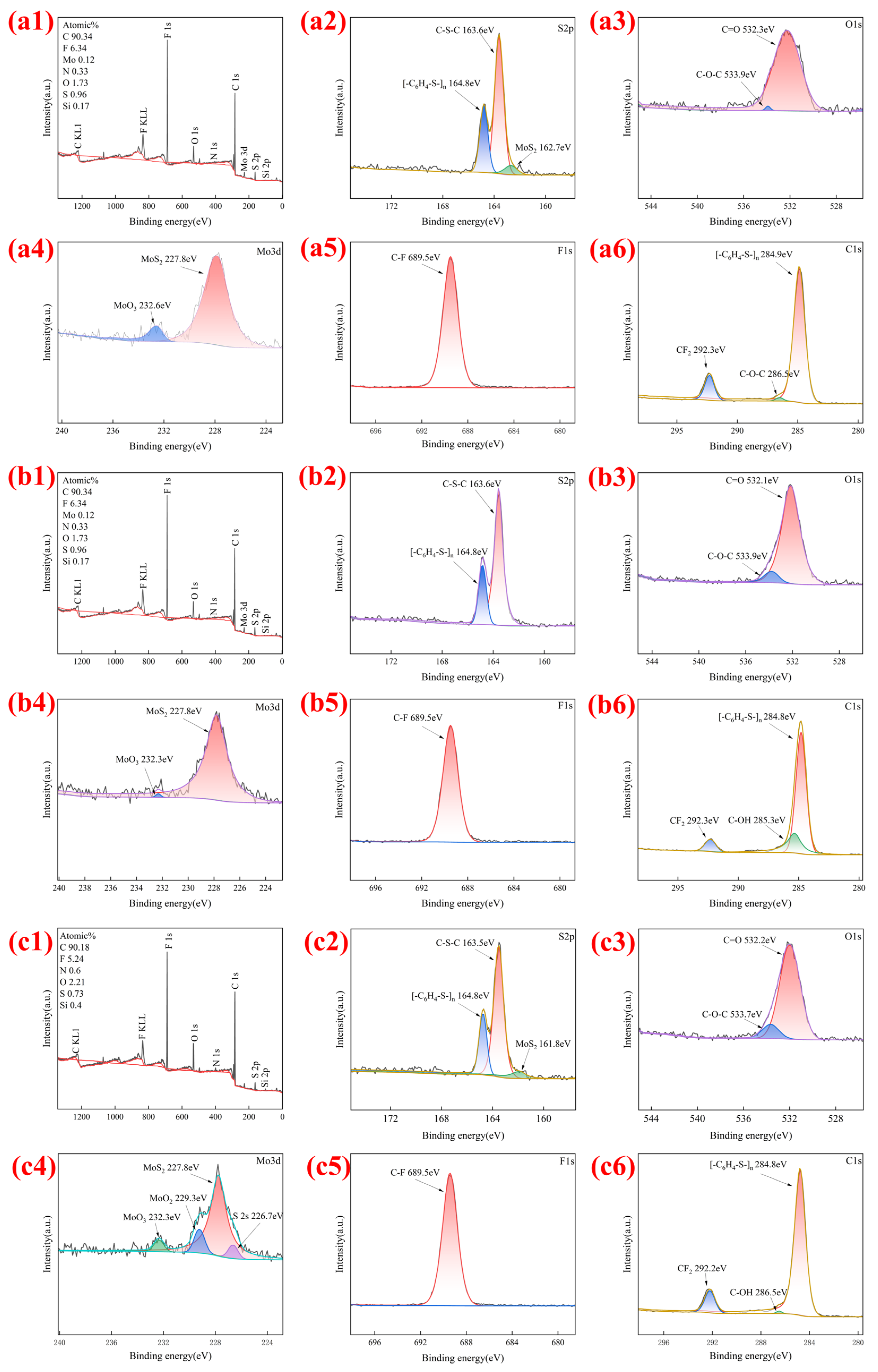

Figure 8. XPS spectrum analysis of friction area. (a1–a6) C1; (b1–b6) C2; (c1–c6) C3.
Figure 8. XPS spectrum analysis of friction area. (a1–a6) C1; (b1–b6) C2; (c1–c6) C3.
Polymers 18 00410 g008
Polymers 18 00410 g009
Figure 9. Mechanism of friction performance changes.
Figure 9. Mechanism of friction performance changes.
Polymers 18 00410 g009
Polymers 18 00410 g010

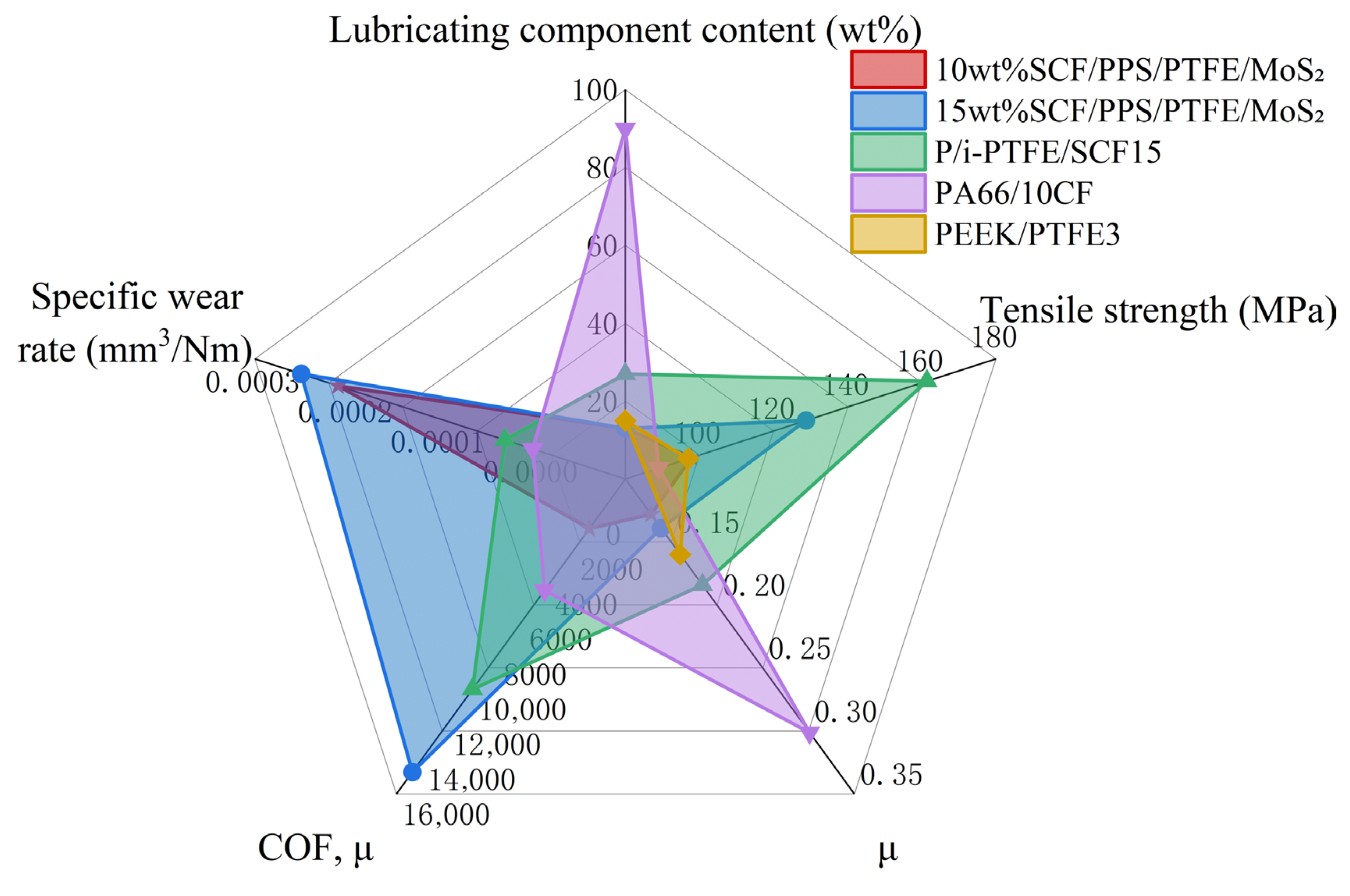

Figure 10. Comparison radar chart of performance of self-lubricating composite materials.
Figure 10. Comparison radar chart of performance of self-lubricating composite materials.
Polymers 18 00410 g010
Table 1. Content design of each component in the sample.
Table 1. Content design of each component in the sample.
NumberPTFE (wt%)MoS2 (wt%)CF (wt%)PPS
PPS10P1030Bal.
C11035Bal.
C21038Bal.
C310310Bal.
C410315Bal.
C510320Bal.
Table 2. Actual density, theoretical density and voids fraction of composites at different wt.% of fiber content.
Table 2. Actual density, theoretical density and voids fraction of composites at different wt.% of fiber content.
NumberTheoretical Density (g/cm3)Actual Density (g/cm3)Porosity (%)
PPS10P1.4361.4260.70
C11.4541.4251.99
C21.4651.4282.53
C31.4731.4302.92
C41.4921.4512.75
C51.5111.4573.57
Table 3. Thermal stability of PPS/PTFE/MoS2—based composite materials.
Table 3. Thermal stability of PPS/PTFE/MoS2—based composite materials.
NumberT5% (℃)T50% (℃)TdTG (℃)
PPS10P496.7655.8549.5
C1497.5641.7547.2
C2501.9745.7550.2
C3497.9684.8544.6
C4501.2725.5546.7
C5485.2666.0545.7
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Wang, Z.; Li, S.; Zhao, L.; Qiao, Y.; Wu, Y.; Yan, Z.; Yin, Z.; Wang, P.; Zhang, X.; Bian, X.; et al. Synergistic Optimization of the Properties of Fiber-Content-Dependent PPS/PTFE/MoS2 Self-Lubricating Composites. Polymers 2026, 18, 410. https://doi.org/10.3390/polym18030410

AMA Style

Wang Z, Li S, Zhao L, Qiao Y, Wu Y, Yan Z, Yin Z, Wang P, Zhang X, Bian X, et al. Synergistic Optimization of the Properties of Fiber-Content-Dependent PPS/PTFE/MoS2 Self-Lubricating Composites. Polymers. 2026; 18(3):410. https://doi.org/10.3390/polym18030410

Chicago/Turabian Style

Wang, Zheng, Shuangshuang Li, Liangshuo Zhao, Yingjie Qiao, Yan Wu, Zhijie Yan, Zhongtian Yin, Peng Wang, Xin Zhang, Xiaotian Bian, and et al. 2026. "Synergistic Optimization of the Properties of Fiber-Content-Dependent PPS/PTFE/MoS2 Self-Lubricating Composites" Polymers 18, no. 3: 410. https://doi.org/10.3390/polym18030410

APA Style

Wang, Z., Li, S., Zhao, L., Qiao, Y., Wu, Y., Yan, Z., Yin, Z., Wang, P., Zhang, X., Bian, X., Shi, L., He, J., Yue, S., & Yao, Z. (2026). Synergistic Optimization of the Properties of Fiber-Content-Dependent PPS/PTFE/MoS2 Self-Lubricating Composites. Polymers, 18(3), 410. https://doi.org/10.3390/polym18030410

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
