Next Article in Journal
Functional Characterization and Antifungal Activity of Insect-Derived Chitinases Expressed in Pichia pastoris
Previous Article in Journal
Thermo-Mechanical Behavior of Carbon Fiber Composites Processed at Elevated Temperatures


Search for Articles:
Title / Keyword
Author / Affiliation / Email
Journal
Article Type


Advanced Search

Section
Special Issue
Volume
Issue
Number
Page

Journals
Polymers
Volume 18
Issue 3
10.3390/polym18030400
polymers-logo
Submit to this Journal Review for this Journal Propose a Special Issue
► Article Menu

Article Menu

share Share announcement Help format_quote Cite question_answer Discuss in SciProfiles
first_page
settings
Order Article Reprints
Font Type:
Arial Georgia Verdana
Font Size:
Aa Aa Aa
Line Spacing:
Column Width:
Background:
Article

Mycelium-Based Composites Using Minimally Processed Industrial Hemp Biomass: Impact of Species and Feedstock Ratio on Mechanical Performance Compared to Polystyrene Packaging

by
Radika Bhaskar
1,*,
Tanisha Rutledge
1,
Kevin Trangone
1 and
Oneal Latimore
2
1
Department of Engineering, Thomas Jefferson University, 4201 Henry Avenue, Philadelphia, PA 19144, USA
2
Eastern Hemp Company, Philadelphia, PA 19144, USA
*
Author to whom correspondence should be addressed.
Polymers 2026, 18(3), 400; https://doi.org/10.3390/polym18030400
Submission received: 31 December 2025 / Revised: 24 January 2026 / Accepted: 25 January 2026 / Published: 3 February 2026
(This article belongs to the Section Biobased and Biodegradable Polymers)
Browse Figures
Versions Notes

Abstract

Mycelium-based composites (MBCs\) are formed from lignocellulosic substrates and biopolymer matrices derived from fungal mycelium. Due to their low fossil energy demand and biodegradability, MBCs represent a versatile and sustainable material suitable for a range of applications, with increasing interest focused on packaging. Hemp fibers are an example of natural fibers with great promise as a substrate to improve the mechanical properties of MBCs. However, the separation of bast and hurd fiber requires processing and commercial-scale facilities that are logistically challenging and may be cost-prohibitive. Here, the potential for minimally processed hemp, with no separation of fibers, is evaluated for the first time to demonstrate feasibility as a substrate for MBCs. Screening included different fiber ratios combined with three different, locally available mushroom strains, which are among the most common in MBC research. The resulting MBCs were tested as an alternative to environmentally harmful expanded polystyrene (EPS, or polystyrene foam), with a focus on compressive strength to reflect load-bearing performance. Some MBCs revealed mechanical performance that met or exceeded EPS, demonstrating the utility of minimally processed hemp fiber in biocomposites for safer packaging.

Graphical Abstract

1. Introduction

Expanded polystyrene (EPS; e.g., Styrofoam or polystyrene foams) is widely used for packaging due to beneficial properties including low cost, low weight, shock absorption, and insulation [1]. However, the environmental impacts of its production and disposal are severe. Polystyrene is a petrochemical derivative, and the manufacturing of EPS has a high global warming potential due to the resources and energy required [2,3]. EPS end-of-life is also of concern as it is neither biodegradable nor compostable [3]. While the material is safely recyclable, few areas implement EPS recycling, resulting in most products ending up in landfills, leading to further greenhouse gas emissions [4]. Thus, taking the entire life-cycle perspective, the product has a high carbon footprint [1].
As businesses shift away from EPS, there is an enormous opportunity for sustainable alternatives. Materials derived from mycelium, the root structure of mushrooms, have many advantages, including 1. low energy requirements, 2. low carbon footprint, 3. The ability to meet many structural or functional needs [5], and 4. biodegradability [6]. These benefits have spurred a growing trend of using fungi as the source for bio-based materials [7].
Mycelium-based composites (MBCs) combine the mycelium, which includes the biopolymers chitin and glucan as the matrix or ‘natural glue’, plus a lignocellulosic fiber as substrate [8]. Fungal species from within the ‘white rot’ mode of wood decomposition can produce enzymes that permit the breakdown of lignin [5], resulting in a higher percentage of cellulose and thereby creating materials with favorable mechanical properties. Within the white rot group, there exists substantial biological variation that can influence the density and compressive strength of the end product [5,9], thus screening a variety of species is critical.
The selection of substrate is also consequential to the final product characteristics. The choice of natural fiber can influence the material’s physical, mechanical, and thermal properties [10]. Hemp fibers are an example of natural fibers with great promise to improve the mechanical properties of the bio-composite and are particularly attractive as a substrate for mycelium matrices due to their high cellulose content and lower lignin content [11].
In addition to considerations of material performance, the selection of substrate presents an opportunity to strategically incorporate lignocellulosic materials from regional organic waste streams. Incorporation of residues from agriculture can provide value to underutilized biomass feedstocks and advance a circular regional bioeconomy [12]. This is the case for industrial hemp (Cannabis sativa L.). In the US, over 45,000 acres were planted in 2024, representing a 64% increase from the previous year, with production anticipated to increase [13]. Analyses have shown that when grown for CBD extracted from the hemp flowers, about 90% of the biomass ends up as residual waste [14]. Harvested industrial hemp stalks can be pre-treated and processed to separate the outer hemp fibers used for textiles, among other high-value applications, and the inner hemp hurd for products such as hempcrete [15]. The hemp hurd has also been successfully used as a substrate for numerous mycelium species [5]. However, the processing of hemp stalks, including chemical pre-treatment and mechanical separation into bast (long fiber) and hurd (also called shives), requires specialized equipment [16], and the time-intensive methods and machinery involved in fiber extraction impact the resulting potential value of the derived products [17]. Even simpler, more environmentally friendly methods of fiber separation still require chemical pre-treatment followed by physical milling [18]. As a result, the minimally processed harvested hemp stalks from local industrial hemp farmers require investigation to determine whether there are higher-value products that can be developed without such involved processing.
While the importance of the choice of feedstock and selection of mycelial strain has been documented, there is less systematic study of how the ratio of substrate to inoculum may influence physical and mechanical properties. There is some suggestion that increasing the percentage of the hemp substrate can increase the compressive strength of the resulting biocomposite [19]. Therefore, we also evaluate varying inoculum/feedstock ratios to assess whether a stronger material could be made by incorporating more of the feedstock, thus providing a means to utilize even more of the currently low-value organic waste material.
Our work aims to explore developing an MBC derived from underutilized hemp stalks from industries in Pennsylvania. By harnessing regional agricultural biomass, we can develop a cost-effective, locally sourced alternative to plastic packaging. We leverage local supply chains to achieve the overarching goal of developing sustainable packaging, an aim that is well-aligned with sustainability trends observed globally. Our objectives are to evaluate the feasibility of using minimally processed hemp stalks as a substrate by screening three locally available fungal species and two different inoculum/feedstock ratios in a full-factorial experiment. We characterize the resulting MBCs for physical and mechanical properties to assess if they are comparable to EPS.

2. Materials and Methods

2.1. Materials

2.1.1. Fungal Species

We selected three mushroom species that are widely available and have important characteristics related to the formation of composites [20]. For example, all are white-rot fungi, a functional category referring to species generally within the Basidiomycota that have enzymes that allow for lignin degradation [21]. Some strains may preferentially consume lignin without impacting cellulose, thus improving MBC strength [5], though interspecific differences exist among white-rot fungi in lignin degradation [22].
The selected fungal strains (Ganoderma sessile, Trametes versicolor, and Pleurotus ostreatus) are species from the top three most studied genera for MBC production [23] and have been shown to grow on a range of lignocellulosic materials [5]. Ganoderma species have been found to have high growth rates and are already used in MBC products on the market [24], which makes them a promising candidate for study. The selected species also vary in how their mycelium networks are structured. P. ostreatus has a monomitic hyphal system, meaning it has only one form of hyphae (generative), whereas T. versicolor and G. sessile are trimitic (with generative, skeletal, and binding hyphae) [25,26]. Species with trimitic systems may exhibit greater structural integrity, resulting in improved mechanical properties compared to monomitic species [26]. Collectively, the three species present a range of attributes relevant to assessing MBC performance.
Mushroom spawn consisting of fungal culture of each strain of mycelium inoculated in the cereal grain millet was procured from MycoSymbiotics (Lemoyne, PA, USA) and served as the inoculum for all trials.

2.1.2. Minimally Processed Chopped Hemp

Stalks of industrial hemp (Cannabis sativa L.) comprise the outer longer fibers as well as the inner hurd (Figure 1A). In this study, minimally processed hemp stalk material was provided by Hemp Alternative (Chester County, PA, USA). The hemp stalks that had been harvested and air-dried in bales (Figure 1B) were subsequently chopped in a grain mill, resulting in a mix of the finer outer fibers and the coarser inner hurd fibers, referred to as chopped hemp. As seen visibly in comparing the materials (Figure 1C), the chopped form shown on the right differs from hemp hurd predominantly due to the inclusion of the longer outer fibers as well as the larger pieces of coarse hurd.
To put the material properties of minimally processed chopped hemp into context, we compared it to building-grade quality hemp hurd available on the market, with European certification to ensure consistency in granule size and other characteristics (visible comparison in Figure 1C). Hemp hurd is the most common form of hemp used in MBCs [27,28]. A comparison of the distribution of different size categories is shown in Table 1 after 50 g of each sample is separated by sieving into different size categories, following a similar protocol to [29], and weight percentages are calculated for each size.
Chopped hemp has a higher percentage of larger-sized components, largely made up of the longer outer fibers.
Water holding capacity was measured by soaking the hemp substrates in water for 5 min, then straining the material without squeezing until water droplets ceased forming, to ensure field capacity. Five trials were performed for 300 g of chopped hemp compared to hemp hurd to calculate the percentage of water absorbed. Chopped hemp had a field capacity of 76%, while hemp hurd had a field capacity of 68%, and chopped hemp also had a lower bulk density (0.11 g/cm3) compared to hemp hurd (0.15 g/cm3). Overall, chopped hemp with the mix of hurd and outer fibers results in a substrate of lower density, higher field capacity, and a different size distribution compared to hemp hurd.

2.2. Fabrication and Feedstock Ratios

The fabrication process generally followed methods used by other studies (see e.g., [30]). In brief, the substrate was steam-sterilized through autoclaving fully water-saturated hemp materials for 30 min at 121 °C following typical procedures [5], and then an aseptic technique was used to prevent contamination for all subsequent steps. The mushroom spawn was mixed with the sterilized hemp following an inoculum/substrate volumetric ratio of either 1:2 or 1:4, and the resulting mass was recorded along with the volume of water necessary to reach field capacity (Table 2).
The hand-mixed materials were then packed into clear plastic molds and pressed with an even 25-pound weight to distribute the substrate as uniformly as possible. Materials were grown in 75 mm × 75 mm square-shaped molds to meet ASTM testing criteria (see Figure 2), packed to a height of 40 mm, and placed in plastic bags in grow tents with humidity levels of 65% for 14 days until fully myceliated (with white mycelial growth evenly visible on all sides). We observed that P. ostreatus and G. sessile samples were visibly mycelated earlier; however, T. versicolor samples had an uneven and weaker growth. Therefore, we left all samples for the same 14-day duration.
Samples were removed from molds and oven-dried at 82 °C for the minimum number of hours needed to deactivate the mycelium through desiccation. This was determined by weighing samples after oven-drying until no change in mass was detected. For P. ostreatus and G. sessile, this required 24 h, and for T. versicolor, 36 h to deactivate the mycelium.

2.3. Characterization

2.3.1. MBC Density

The dry density of the samples was measured prior to mechanical testing. Sample dimensions were measured using digital calipers, and each sample’s mass was measured on a Sartorius laboratory balance accurate to 0.01 g. Dry density was calculated using Equation (1):
d (kg/m3) = m/v
where d = dry density (kg/m3); m = the mass of each sample after oven-drying (kg), and v = the volume of each sample after oven-drying (m3).

2.3.2. Mechanical Testing

Compressive properties, specifically compressive strength and Young’s modulus, were measured according to the Standard Test Method for Compressive Properties of Rigid Cellular Plastics (ASTM D1621, [31]). Compressive strength, σ, was chosen as an important indicator of mechanical strength, as it reflects the ability to resist crushing and withstand evenly distributed loads, as might occur when used for food packaging. Young’s modulus, Ec, is a measure of a material’s compressive stiffness. It is measured in the linear elastic region of a load–displacement curve, in which an object can recover to its original shape once the load is removed and does not display permanent deformation.
All samples were conditioned for a minimum of 24 h in controlled ambient conditions (65 ± 5% RH and 21 ± 2 °C) and then tested using an Instron universal test instrument (Instron Corp., Canton, Mass.) equipped with a 100 kN load cell. The crosshead rate was set to 10% of the specimen thickness per minute, on average 4 mm/min, and stopped once samples had reached 50% strain.
The calculation of compressive strength is shown in Equation (2). As per the test method, the stress used in the calculation should be the stress at the yield point, provided it occurs before 10% deformation; if no yield point is observed, the stress at 10% strain is used instead.
σ (kPa) = F/A
where σ = compressive stress (kPa); F = compressive load (N); and A = initial cross-sectional area of the specimen (mm2).
The calculation of modulus, Ec, is shown in Equation (3).
Ec = WH/AD
where W = load (N); H = initial specimen height (mm); A = cross-sectional area (mm2); and D = deformation or strain (mm).

2.4. EPS Benchmark Testing

To compare the performance of the various MBCs to EPS, we cut specimens from Styrofoam coolers (polystyrene foam insulating coolers; commonly available brands, including Polar Tech) using a hot wire to characterize and test, following the above density and mechanical testing methods, while conducting MBC testing.

2.5. Statistical Analysis

Ten replicate samples of MBCs were used for each combination of species and ratio, which is a higher replication than is often used for testing. Two-way analysis of variance (ANOVA) was used to evaluate the effects of the independent variables (species and ratio) on sample density, compressive strength, and compressive modulus, analyzed using Python 3.1.2, particularly the statsmodels package. Statistical significance of the independent variables and their interaction was assessed at p < 0.05. ANOVA output is presented in the Supplementary Material.

3. Results and Discussion

3.1. Density

MBC samples varied in density from 155 to 270 kg/m3, with an average overall density of 207.5 kg/m3. These values fall within the large range of densities that have been reported for MBCs [32]. MBCs with hemp hurd-based substrates have generally been reported to have lower composite dry density compared to other substrates [27,33], though direct comparisons are difficult because substrate processing and fiber size, as shown in that study, as well as substrate-to-spawn ratio, as demonstrated in this one, both influence MBC density. These findings add to the body of work that suggests substrate choice and processing can greatly modify MBC density. The variability of MBC density and the importance of substrate are observed repeatedly across a number of different species (e.g., [20,27,34]), with substrate carbon/nitrogen ratios and pH noted as important factors determining mycelial growth rates and density for the three genera in this study [35].
Based on the two-way ANOVA, ratio was a significant factor influencing MBC density (F = 23.9, p < 0.001), with a 1:2 ratio exhibiting significantly higher density, as shown in Figure 3 (also see Supplementary Table S1 and Figure S1). Species was not a significant factor (p > 0.05), and neither was the interaction of species × ratio (p > 0.05). This overall suggests that all screened fungal species had a similar response, resulting in a consistently lower MBC density at the higher inoculum/substrate ratio.
The 1:4 ratio results from an increase in hemp substrate relative to millet-based spawn, which was the inoculum. Because specimen density is largely influenced by substrate, the changes in density may be due to the greater density of myceliated millet with less void space compared to the chopped hemp. Grains have been found in other MBCs to increase the overall composite density [36], which is consistent with the observed increase in density in the substrates with a greater percentage of millet. Altering the type of grain for initial inoculation could be a means to modify MBC density, in addition to varying the amount of substrate included; further, as grain inoculum has been found to have higher density than liquid inoculum, switching to a liquid inoculum could be an option to reduce overall MBC density [37].

3.2. Mechanical Behavior

3.2.1. Compressive Strength

Compressive strength is an important property for materials that serve as packaging [38], and MBCs have been widely seen as a promising alternative to EPS packaging [39,40]. To narrow the range of variables that influence composite properties, here we deliberately evaluate a factorial experiment that allows us to test for the influence of fungal strain, substrate ratio, and the interaction.
Per the ASTM test method, here we report the compressive strength at 10% deformation, as no yield point occurred prior to 10% deformation. As seen in Figure 4, generally fungal strains formed composites of comparable compressive strength with wide variation (CV% ranging from 20 to 35). A two-way ANOVA analysis revealed significant differences among species influenced by the level of substrate ratio. Species displayed differential responses to an increasing ratio of inoculum/chopped hemp, resulting in a significant interaction term (F = 5.7, p < 0.01) in the statistical model (Table S1, Figure S1). While P. ostreatus and, to some extent, G. sessile have increased compressive strength at the 1:4 ratio, T. versicolor decreases in compressive strength. These differences could, in part, relate to differential species-specific preferences for the substrate. Another study examining T. versicolor growth on varied substrates, including hemp shives, found comparable values on average, and a wide range of compressive strengths from 29 to 225 kPa [29].
Overall, we observed an average MBC compressive strength of 154.6 ± 48.9 kPa, which is within the range reported for MBCs (see, for example, [36,41]). However, drawing direct comparisons to other results is challenging. Even when comparing the same fungal strain and the same or similar substrate, the lack of standard methodologies for the production of this material, combined with variation in testing methodologies for the same properties, can contribute to wide differences in findings and hinder the ability to draw generalizations. Here, for example, compressive strength is reported at 10% deformation following the ASTM D1621 method conventions, which is a test method technically equivalent to the ISO 844 method [31]; both methods are for rigid cellular plastics. However, MBCs are tested for compression resistance using a wide variety of methods [42], including for wood-based structures, some of which report the maximum force or compressive strength at higher percent deformation.
To illustrate the variation in compressive strength, Table 3 provides a comparison of compressive strength reported at deformation between 10 and 35%, as indicated, with mycelium biocomposites fabricated using the same fungal genus or exact species used in this study and grown with some form of hemp as the substrate.
Reviewing the findings, it is challenging to draw generalizations when there is no consistency in the percentage of reported strains. For example, a reported value for the same species grown on the same substrate can be nearly four times higher at 35% deformation versus 10% deformation [27], observed for both P. ostreatus and G. lucidum as shown in Table 3. Thus, trying to make recommendations for design parameters to suit specific applications (e.g., [47]) requires factoring in this additional dimension of information.
Recognizing the wide diversity of species responses to the same substrates and conditions is also important. This knowledge gap can be addressed by further studies that include multiple species in the overall experimental design. Species may demonstrate contrasting responses or varied emergent composite properties. Another study also observed species-by-substrate interactions, with compressive strength increasing for one species and decreasing for another on two substrates [45].
Table 3 also highlights that the range of compressive strengths in this study is towards the higher end of what has been observed for similar or identical species growing on hemp-based substrates, particularly noting that some of the findings present compressive strength at higher percentage deformation than this study. The compressive strength exceeds even what has been reported for Ecovative [45], which is on the market as a packaging material using hemp hurd. This collectively provides strong evidence that minimally processed hemp can be a viable substrate for mycelium-based composites and points to novel uses for a currently underutilized residue in agriculture.

3.2.2. Compressive Modulus of Elasticity (Young’s Modulus)

Compressive modulus of elasticity (also called Young’s modulus) reflects the stiffness of the material in the elastic (reversible) phase, with a higher stiffness reflecting a material’s greater resistance to deformation. We found the compressive modulus of elasticity significantly differed between species, which was further moderated by the hemp ratio, resulting in a significant interaction (F = 6.4, p < 0.01) (Table S1). For both P. ostreatus and G. lucidum, higher ratios had higher stiffness; the reverse was true for T. versicolor.
MBCs based on hemp hurd substrates have been found to have higher stiffness compared to other lignocellulosic materials, including flax and sawdust [33]. As seen in Table 3 comparing studies of hemp hurd, there is variation in reported elastic modulus, and the values observed in this study are comparable and on the higher end of the range, further speaking to the promise of minimally processed hemp stalks as a substrate for MBCs. Interestingly, processing of lignocellulosic substrate to reduce particle size had a larger impact than substrate type [33], which suggests that any process of size reduction in the minimally processed hemp could increase material stiffness.

3.2.3. Elastic Modulus and Specimen Density

It has been hypothesized that mycelium biocomposites behave in the same way as plastic foam, with a similar range of values and a positive relationship between elastic modulus and density when compared in an Ashby chart [48]. This positive correlation has been observed experimentally [49]; this relationship may become evident only over a larger range in biocomposite densities, such as can be achieved by pressing samples into more rigid materials during the processing stage [50].
In this study, shifts in MBC density are not always paralleled by shifts in elastic modulus (Figure 5). While T. versicolor demonstrates an increase in stiffness with an increase in density, the other two species do not demonstrate this expected correlation, and in fact, P. ostreatus provides a contrasting pattern. This inconsistent relationship is observed in other studies as well [27,32]. Therefore, the relationships among specimen density, elastic modulus, and compressive strength are not in line with expectations for EPS foams, as discussed below in more detail.

3.3. Comparison with EPS

The density of EPS may range widely based on application, but most commonly for protective food packaging, it is designed to be lightweight and is 96+ percent air [51], with densities ranging from 10 to 25 kg/m3 [52]. In this study, polystyrene foam cut from a packaging cooler had a density that fell in this range and was comparable to what other studies have found [29]; see Table 4. In comparison, MBC density in this study was nearly an order of magnitude higher.
Relatively high MBC density is typical, as observed in numerous design factors [27,37]. Though density reduction is needed to reach values comparable with EPS, it may not prohibit adoption for the market. For example, Ecovative materials are already in use despite higher density, and current green biodegradable products on the market have even higher densities [27], suggesting MBCs may still be viable in this application even with elevated values compared to EPS.
The behavior of expanded polystyrene in response to compressive stress has been widely studied both through modeling of closed-cell foam as well as through empirical study. Many of the mechanical properties of interest, including compressive stress at low levels of strain and the compressive elastic modulus, are positively correlated with material density [53,54]. This can be observed in Table 4, which compiles values from the literature [38,51] as well as from this study for EPS density, compressive strength (at 10% strain or as indicated), and elastic modulus. Evaluations of EPS for packaging find that a higher-density specimen results in a higher compressive strength and a higher elastic modulus (Table 4).
Table 4. Physical and mechanical characteristics of EPS from the literature review, as well as ASTM Standard Specification [31], and this study.
Table 4. Physical and mechanical characteristics of EPS from the literature review, as well as ASTM Standard Specification [31], and this study.
Density (kg/m3)Compressive Strength (kPa)%StrainElastic Modulus (MPa)Ref.
1153.3810 [51]
1570.5510 [51]
20111.910 [51]
25138.1410 [51]
22165104.7[38]
23177105.2[38]
16.3 ± 0.986.2 ± 7.3153.26 ± 0.4[55]
26.8 ± 0.6171 ± 4.9157.35 ± 0.2[55]
2210410 [31]
21.5 ± 0.4140.6 ± 2.7105.9 ± 0.7This study
In contrast, the relationships among MBC density, elastic modulus, and compressive strength are not necessarily correlated [32,56] or generalizable, which was also the case in this study.
Overall, MBC specimens exhibit values of compressive strength that meet or largely exceed the EPS compressive strength values that we measured and that are found in the literature (Table 4), including the minimum value listed as the ASTM Standard Specification for EPS of 104 kPa at 10% deformation [31]. This was true for at least some combination with all three species, providing first-of-its-kind evidence that composites made with minimally processed hemp have the potential to meet EPS compressive strength performance.
P. ostreatus has one of the highest values, particularly when grown with a higher proportion of hemp substrate, and further testing is warranted to see if material properties can be improved with decreasing particle size and increasing hemp ratio. This may also help to increase the elastic modulus, which for all MBC values was lower than EPS, suggesting a lower material stiffness.

4. Conclusions

Here we evaluate a novel MBC with minimally processed hemp stalks as substrate and demonstrate that it compares favorably to other MBCs made with hemp substrates requiring more energy- and machinery-intensive processing. Furthermore, the compressive strength meets or exceeds that of EPS-based packaging. These results are timely, as across the globe, legislation banning EPS is creating momentum to develop alternative biopolymer-based sustainable options [57] and advance a circular economy framework [58].
Industrial hemp is a sustainable crop, requiring little water and chemical application [59]. Minimally processed industrial hemp stalks represent readily available and currently underutilized agricultural by-products. Particularly in light of the competitive low-cost production of MBCs [39], there is a growing trend of commercialization [60]. Consequently, these findings identify an opportunity, particularly with the minimal processing of this material, to create a cost-effective, high-value composite with a packaging application. Future directions can evaluate further size reduction in chopped hemp to improve material stiffness and/or density.
We also highlight the importance of considering the interaction of substrate with a variety of fungal strains, as they interact differentially and provide a variety of ways to optimize design and MBC performance. As shown in Figure 6, the suitability of a particular combination of species x ratio will depend on the desired outcome, whether a particular average characteristic is preferred (‘optimal value’) or whether lower variability is prioritized (‘most consistent’).
This form of synthesizing the findings elucidates a potential contrasting influence of ratio, as the higher ratio (substrates incorporating more hemp) may result in MBCs with the desired characteristics on average, and a lower ratio results in lower variability. Further investigation of P. ostreatus is also warranted, with a focus on reducing variability of the ‘optimal’ performing combination, in order to develop an alternative packaging material to Styrofoam with both requisite mechanical properties and consistency.

Supplementary Materials

The following supporting information can be downloaded at https://www.mdpi.com/article/10.3390/polym18030400/s1. Table S1: Two-way ANOVA results; Figure S1: Interaction effect plots.

Author Contributions

Conceptualization, R.B. and O.L.; Methodology, R.B., T.R., K.T. and O.L.; Investigation, T.R. and K.T.; Validation, R.B.; Formal Analysis, R.B. and K.T.; Resources, O.L.; Data Curation, R.B.; Writing—original draft preparation, R.B.; Writing—review and editing, R.B., T.R., K.T. and O.L.; Visualization, R.B., T.R. and K.T.; Supervision, R.B.; Project Administration, R.B.; Funding Acquisition, R.B. and O.L. All authors have read and agreed to the published version of the manuscript.

Funding

This project was financed for two years by the Commonwealth of Pennsylvania, Department of Community and Economic Development.

Institutional Review Board Statement

Not applicable.

Data Availability Statement

The original data presented in the study are openly available at Mendeley: Bhaskar, Radika (2026), ‘Mycelium based composites physical and mechanical characteristics’, Mendeley Data, V1, doi: 10.17632/zd9ncf85k3.1and upon request.

Acknowledgments

Janet Brady, the Bruner Material Characterization lab at Thomas Jefferson University (TJU), assisted in the design of material testing and training of students for compression testing. We would like to thank William Padilla-Brown of MycoSymbiotics for providing assistance with designing optimal growing conditions for mycelium. We are grateful for the hemp stalks provided by Hemp Alternative and Cynthia Petrone-Hudock, and for the assistance in grinding from Brian George (TJU). Undergraduate students Ben Ellenbecker and Manni Zhang from Jefferson’s Engineering Department have helped with the design and building of humidity systems, as well as assisted in the fabrication and monitoring of mycelium growth, and Dana Washington and Jaida Perkins assisted with Instron mechanical testing. We thank Think and Grow Farms for the possibility to use their prototype lab space and grow tents. DiFrancesco and Sons Mushroom Farm and Eastern Hemp Company provided additional materials and support.

Conflicts of Interest

Author Oneal Latimore was employed by the Eastern Hemp Company. The remaining authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

References

  1. Marten, B.; Hicks, A. Expanded Polystyrene Life Cycle Analysis Literature Review: An Analysis for Different Disposal Scenarios. Sustainability 2018, 11, 29–35. [Google Scholar] [CrossRef] [Scilit]
  2. Danny Harvey, L.D. Net Climatic Impact of Solid Foam Insulation Produced with Halocarbon and Non-Halocarbon Blowing Agents. Build. Environ. 2007, 42, 2860–2879. [Google Scholar] [CrossRef] [Scilit]
  3. Lim, Y.S.; Izhar, T.N.T.; Zakarya, I.A.; Yusuf, S.Y.; Zaaba, S.K.; Mohamad, M.A. Life Cycle Assessment of Expanded Polystyrene. IOP Conf. Ser. Earth Environ. Sci. 2021, 920, 012030. [Google Scholar] [CrossRef] [Scilit]
  4. Lindstrom, T.; Hicks, A.L. Life Cycle Assessment of Expanded Polystyrene Shipping Boxes at a Public Research Institution: Insights for Infrastructure at the End of Life. Environ. Res. Infrastruct. Sustain. 2022, 2, 031001. [Google Scholar] [CrossRef] [Scilit]
  5. Sydor, M.; Cofta, G.; Doczekalska, B.; Bonenberg, A. Fungi in Mycelium-Based Composites: Usage and Recommendations. Materials 2022, 15, 6283. [Google Scholar] [CrossRef] [Scilit]
  6. Van, W.A.; Elsacker, E.; Yap, L.L.; Peeters, E.; De, L.L. Mycelium Composites and Their Biodegradability: An Exploration on the Disintegration of Mycelium-Based Materials in Soil. Constr. Technol. Archit. 2022, 1, 652–659. [Google Scholar]
  7. Cerimi, K.; Akkaya, K.C.; Pohl, C.; Schmidt, B.; Neubauer, P. Fungi as Source for New Bio-Based Materials: A Patent Review. Fungal Biol. Biotechnol. 2019, 6, 17. [Google Scholar] [CrossRef] [Scilit]
  8. Vandelook, S.; Elsacker, E.; Van Wylick, A.; De Laet, L.; Peeters, E. Current State and Future Prospects of Pure Mycelium Materials. Fungal Biol. Biotechnol. 2021, 8, 20. [Google Scholar] [CrossRef] [Scilit]
  9. Silverman, J.; Cao, H.; Cobb, K. Development of Mushroom Mycelium Composites for Footwear Products. Cloth. Text. Res. J. 2020, 38, 119–133. [Google Scholar] [CrossRef] [Scilit]
  10. Yang, Z.; Zhang, F.; Still, B.; White, M.; Amstislavski, P. Physical and Mechanical Properties of Fungal Mycelium-Based Biofoam. J. Mater. Civ. Eng. 2017, 29, 04017030. [Google Scholar] [CrossRef] [Scilit]
  11. Lelivelt, R. The Mechanical Possibilities of Mycelium Materials—Eindhoven University of Technology Research Portal. Master’s Thesis, Eindhoven University of Technology, Eindhoven, The Netherlands, 2015. [Google Scholar]
  12. Sherwood, J. The Significance of Biomass in a Circular Economy. Bioresour. Technol. 2020, 300, 122755. [Google Scholar] [CrossRef] [Scilit]
  13. US Department of Agriculture. National Hemp Report. 2025. Available online: https://esmis.nal.usda.gov/publication/national-hemp-report (accessed on 23 January 2026).
  14. Griggs, A.T.; Roulier, A.; Granda, N.A.; Burek, J. Life Cycle Assessments of Residual Hemp Biomass from Cannabidiol Production Focusing on Disposal Pathways and Biomethane Recovery via Anaerobic Digestion. Resour. Conserv. Recycl. 2025, 223, 108525. [Google Scholar] [CrossRef] [Scilit]
  15. Budhathoki, R.; Maraseni, T.; Apan, A. Enviro-economic and Feasibility Analysis of Industrial Hemp Value Chain: A Systematic Literature Review. Glob. Change Biol. Bioenergy 2024, 16, e13141. [Google Scholar] [CrossRef] [Scilit]
  16. Khanal, A.; Shah, A. Techno-Economic Analysis of Hemp Production, Logistics and Processing in the U.S. Biomass 2024, 4, 164–179. [Google Scholar] [CrossRef] [Scilit]
  17. Zimniewska, M. Hemp Fibre Properties and Processing Target Textile: A Review. Materials 2022, 15, 1901. [Google Scholar] [CrossRef] [Scilit]
  18. Bokhari, S.M.Q.; Chi, K.; Catchmark, J.M. Structural and Physico-Chemical Characterization of Industrial Hemp Hurd: Impacts of Chemical Pretreatments and Mechanical Refining. Ind. Crops Prod. 2021, 171, 113818. [Google Scholar] [CrossRef] [Scilit]
  19. McBee, R.M.; Lucht, M.; Mukhitov, N.; Richardson, M.; Srinivasan, T.; Meng, D.; Chen, H.; Kaufman, A.; Reitman, M.; Munck, C.; et al. Engineering Living and Regenerative Fungal-Bacterial Biocomposite Structures. Nat. Mater. 2022, 21, 471–478. [Google Scholar] [CrossRef] [Scilit]
  20. Huang, Z.; Wei, Y.; Hadigheh, S. Variations in the Properties of Engineered Mycelium-Bound Composites (MBCs) under Different Manufacturing Conditions. Buildings 2024, 14, 155. [Google Scholar] [CrossRef] [Scilit]
  21. Zhuo, R.; Fan, F. A Comprehensive Insight into the Application of White Rot Fungi and Their Lignocellulolytic Enzymes in the Removal of Organic Pollutants. Sci. Total Environ. 2021, 778, 146132. [Google Scholar] [CrossRef] [Scilit]
  22. Hermosilla, E.; Rubilar, O.; Schalchli, H.; da Silva, A.S.; Ferreira-Leitao, V.; Diez, M.C. Sequential White-Rot and Brown-Rot Fungal Pretreatment of Wheat Straw as a Promising Alternative for Complementary Mild Treatments. Waste Manag. 2018, 79, 240–250. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  23. Aiduang, W.; Chanthaluck, A.; Kumla, J.; Jatuwong, K.; Srinuanpan, S.; Waroonkun, T.; Oranratmanee, R.; Lumyong, S.; Suwannarach, N. Amazing Fungi for Eco-Friendly Composite Materials: A Comprehensive Review. J. Fungi 2022, 8, 842. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  24. Sharma, M.; Verma, S.; Chauhan, G.; Arya, M.; Kumari, A. Mycelium-Based Biocomposites: Synthesis and Applications. Environ. Sustain. 2024, 7, 265–278. [Google Scholar] [CrossRef] [Scilit]
  25. Porter, D.L.; Naleway, S.E. Hyphal Systems and Their Effect on the Mechanical Properties of Fungal Sporocarps. Acta Biomater. 2022, 145, 272–282. [Google Scholar] [CrossRef] [Scilit]
  26. Parhizi, Z.; Dearnaley, J.; Kauter, K.; Mikkelsen, D.; Pal, P.; Shelley, T.; Burey, P.P. The Fungus among Us: Innovations and Applications of Mycelium-Based Composites. J. Fungi 2025, 11, 549. [Google Scholar] [CrossRef] [Scilit]
  27. Qiu, Y.; Hausner, G.; Yuan, Q. Investigation of Hybrid Substrates of Waste Paper and Hemp Hurds for Mycelium-Based Materials Production. Mater. Today Sustain. 2025, 30, 101101. [Google Scholar] [CrossRef] [Scilit]
  28. Palanisamy, S.; Murugesan, T.M.; Palaniappan, M.; Santulli, C.; Ayrilmis, N. Use of Hemp Waste for the Development of Mycelium-Grown Matrix Biocomposites: A Concise Bibliographic Review. Bioresources 2023, 18, 8771–8780. [Google Scholar] [CrossRef] [Scilit]
  29. Irbe, I.; Loris, G.D.; Filipova, I.; Andze, L.; Skute, M. Characterization of Self-Growing Biomaterials Made of Fungal Mycelium and Various Lignocellulose-Containing Ingredients. Materials 2022, 15, 7608. [Google Scholar] [CrossRef] [Scilit]
  30. Sisti, L.; Gioia, C.; Totaro, G.; Verstichel, S.; Cartabia, M.; Camere, S.; Celli, A. Valorization of Wheat Bran Agro-Industrial Byproduct as an Upgrading Filler for Mycelium-Based Composite Materials. Ind. Crops Prod. 2021, 170, 113742. [Google Scholar] [CrossRef] [Scilit]
  31. ASTM-D1621; Standard Test Method for Compressive Properties of Rigid Cellular Plastics. ASTM International: West Conshohocken, PA, USA, 2016.
  32. Girometta, C.; Picco, A.M.; Baiguera, R.M.; Dondi, D.; Babbini, S.; Cartabia, M.; Pellegrini, M.; Savino, E. Physico-Mechanical and Thermodynamic Properties of Mycelium-Based Biocomposites: A Review. Sustainability 2019, 11, 281. [Google Scholar] [CrossRef] [Scilit]
  33. Elsacker, E.; Vandelook, S.; Brancart, J.; Peeters, E.; De Laet, L. Mechanical, Physical and Chemical Characterisation of Mycelium-Based Composites with Different Types of Lignocellulosic Substrates. PLoS ONE 2019, 14, e0213954. [Google Scholar] [CrossRef] [Scilit]
  34. Aiduang, W.; Kumla, J.; Srinuanpan, S.; Thamjaree, W.; Lumyong, S.; Suwannarach, N. Mechanical, Physical, and Chemical Properties of Mycelium-Based Composites Produced from Various Lignocellulosic Residues and Fungal Species. J. Fungi 2022, 8, 1125. [Google Scholar] [CrossRef] [Scilit]
  35. Schoder, K.A.; Krümpel, J.; Müller, J.; Lemmer, A. Effects of Environmental and Nutritional Conditions on Mycelium Growth of Three Basidiomycota. Mycobiology 2024, 52, 124–134. [Google Scholar] [CrossRef] [Scilit]
  36. Attias, N.; Danai, O.; Abitbol, T.; Tarazi, E.; Ezov, N.; Pereman, I.; Grobman, Y.J. Mycelium Bio-Composites in Industrial Design and Architecture: Comparative Review and Experimental Analysis. J. Clean. Prod. 2020, 246, 119037. [Google Scholar] [CrossRef] [Scilit]
  37. Holt, G.A.; Mcintyre, G.; Flagg, D.; Bayer, E.; Wanjura, J.D.; Pelletier, M.G. Fungal Mycelium and Cotton Plant Materials in the Manufacture of Biodegradable Molded Packaging Material: Evaluation Study of Select Blends of Cotton Byproducts. J. Biobased Mater. Bioenergy 2012, 6, 431–439. [Google Scholar] [CrossRef] [Scilit]
  38. Lu, Z.; Jónsdóttir, F.; Arason, S.; Margeirsson, B. Assessment of Compressive and Flexural Properties and Stacking Strength of Expanded Polystyrene Boxes: Experimental and Simulation Study. Appl. Sci. 2023, 13, 5852. [Google Scholar] [CrossRef] [Scilit]
  39. Aiduang, W.; Jatuwong, K.; Luangharn, T.; Jinanukul, P.; Thamjaree, W.; Teeraphantuvat, T.; Waroonkun, T.; Lumyong, S. A Review Delving into the Factors Influencing Mycelium-Based Green Composites (MBCs) Production and Their Properties for Long-Term Sustainability Targets. Biomimetics 2024, 9, 337. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  40. Camilleri, E.; Narayan, S.; Lingam, D.; Blundell, R. Mycelium-Based Composites: An Updated Comprehensive Overview. Biotechnol. Adv. 2025, 79, 108517. [Google Scholar] [CrossRef] [Scilit]
  41. Elsacker, E.; Vandelook, S.; Van Wylick, A.; Ruytinx, J.; De Laet, L.; Peeters, E. A Comprehensive Framework for the Production of Mycelium-Based Lignocellulosic Composites. Sci. Total Environ. 2020, 725, 138431. [Google Scholar] [CrossRef] [Scilit]
  42. Aiduang, W.; Jinanukul, P.; Thamjaree, W.; Kiatsiriroat, T.; Waroonkun, T.; Lumyong, S. A Comprehensive Review on Studying and Developing Guidelines to Standardize the Inspection of Properties and Production Methods for Mycelium-Bound Composites in Bio-Based Building Material Applications. Biomimetics 2024, 9, 549. [Google Scholar] [CrossRef] [Scilit]
  43. Picco, C.M.; Suarez, N.E.; Regenhardt, S.A. Exploring the Impact of Substrate Composition and Process Parameters on Biomaterial Derived from Fungus Mycelium (Pleurotus Ostreatus) and Agricultural Wastes. MRS Adv. 2023, 9, 33–38. [Google Scholar] [CrossRef] [Scilit]
  44. Răut, I.; Călin, M.; Vuluga, Z.; Oancea, F.; Paceagiu, J.; Radu, N.; Doni, M.; Alexandrescu, E.; Purcar, V.; Gurban, A.; et al. Fungal Based Biopolymer Composites for Construction Materials. Materials 2021, 14, 2906. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  45. Ruiz, A.; Cogdell, C.; Mak, J.; Rowe, A.; Wan, S.; La Saponara, V. Valorization and Biorefinery of Local Agricultural and Textile Wastes Through Mycelium Composites for Structural Applications. Res. Dir. Biotechnol. Des. 2024, 2, e10. [Google Scholar] [CrossRef] [Scilit]
  46. Etinosa, P.O.; Salifu, A.A.; Azeko, S.T.; Obayemi, J.D.; Onche, E.O.; Aina, T.; Soboyejo, W.O. Self-Organized Mycelium Biocomposites: Effects of Geometry and Laterite Composition on Compressive Behavior. J. Mech. Behav. Biomed. Mater. 2023, 142, 105831. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  47. Muiruri, J.K.; Chuan Yeo, J.C.; Zhu, Q.; Ye, E.; Loh, X.J.; Li, Z. Sustainable Mycelium-Bound Biocomposites: Design Strategies, Materials Properties, and Emerging Applications. ACS Sustain. Chem. Eng. 2023, 11, 6801–6821. [Google Scholar] [CrossRef] [Scilit]
  48. Islam, M.R.; Tudryn, G.; Bucinell, R.; Schadler, L.; Picu, R.C. Morphology and Mechanics of Fungal Mycelium. Sci. Rep. 2017, 7, 13070. [Google Scholar] [CrossRef] [Scilit]
  49. Houette, T.; Maurer, C.; Niewiarowski, R.; Gruber, P. Growth and Mechanical Characterization of Mycelium-Based Composites towards Future Bioremediation and Food Production in the Material Manufacturing Cycle. Biomimetics 2022, 7, 103. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  50. Appels, F.V.W.; Camere, S.; Montalti, M.; Karana, E.; Jansen, K.M.B.; Dijksterhuis, J.; Krijgsheld, P.; Wösten, H.A.B. Fabrication Factors Influencing Mechanical, Moisture- and Water-Related Properties of Mycelium-Based Composites. Mater. Des. 2019, 161, 64–71. [Google Scholar] [CrossRef] [Scilit]
  51. Vilău, C.; Dudescu, M. Investigation of Mechanical Behaviour of Expanded Polystyrene under Compressive and Bending Loadings. Mater. Plast. 2019, 57, 199–207. [Google Scholar] [CrossRef] [Scilit]
  52. Song, H.Y.; Cheng, X.X.; Chu, L. Effect of Density and Ambient Temperature on Coefficient of Thermal Conductivity of Heat-Insulated EPS and PU Materials for Food Packaging. Appl. Mech. Mater. 2014, 469, 152–155. [Google Scholar] [CrossRef] [Scilit]
  53. Chen, W.; Hao, H.; Hughes, D.; Shi, Y.; Cui, J.; Li, Z.-X. Static and Dynamic Mechanical Properties of Expanded Polystyrene. Mater. Eng. 2015, 69, 170–180. [Google Scholar] [CrossRef] [Scilit]
  54. Beju, Y.Z.; Mandal, J.N. Expanded Polystyrene (EPS) Geofoam: Preliminary Characteristic Evaluation. Procedia Eng. 2017, 189, 239–246. [Google Scholar] [CrossRef] [Scilit]
  55. Vaitkus, S.; Vėjelis, S.; Šeputytė-Jucikė, J.; Członka, S.; Strzelec, K.; Kairytė, A. Analysis of Active and Passive Deformation of Expanded Polystyrene Foam Under Short-Term Compression. Materials 2022, 15, 7548. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  56. Tacer-Caba, Z.; Varis, J.J.; Lankinen, P.; Mikkonen, K.S. Comparison of Novel Fungal Mycelia Strains and Sustainable Growth Substrates to Produce Humidity-Resistant Biocomposites. Mater. Des. 2020, 192, 108728. [Google Scholar] [CrossRef] [Scilit]
  57. Thapliyal, D.; Karale, M.; Diwan, V.; Kumra, S.; Arya, R.; Verros, G. Current Status of Sustainable Food Packaging Regulations: Global Perspective. Sustainability 2024, 16, 5554. [Google Scholar] [CrossRef] [Scilit]
  58. Saldaña-Pierard, C.; Nguyen, P.M.; Debeaufort, F.; Vitrac, O.; Auras, R. Impact of Emerging Packaging Regulations on International Trade and Product Safety with Emphasis on Plastic Reuse and Recycling in Europe and North America. J. Ind. Ecol. 2025, 29, 1473–1504. [Google Scholar] [CrossRef] [Scilit]
  59. Ahmed, R.; Manik, K.H.; Nath, A.; Shohag, J.R.; Mim, J.J.; Hossain, N. Recent Advances in Sustainable Natural Fiber Composites: Environmental Benefits, Applications, and Future Prospects. Mater. Today Sustain. 2025, 32, 101220. [Google Scholar] [CrossRef] [Scilit]
  60. Madusanka, C.; Udayanga, D.; Nilmini, R.; Rajapaksha, S.; Hewawasam, C.; Manamgoda, D.; Vasco-Correa, J. A Review of Recent Advances in Fungal Mycelium Based Composites. Discov. Mater. 2024, 4, 13. [Google Scholar] [CrossRef] [Scilit]
Polymers 18 00400 g001

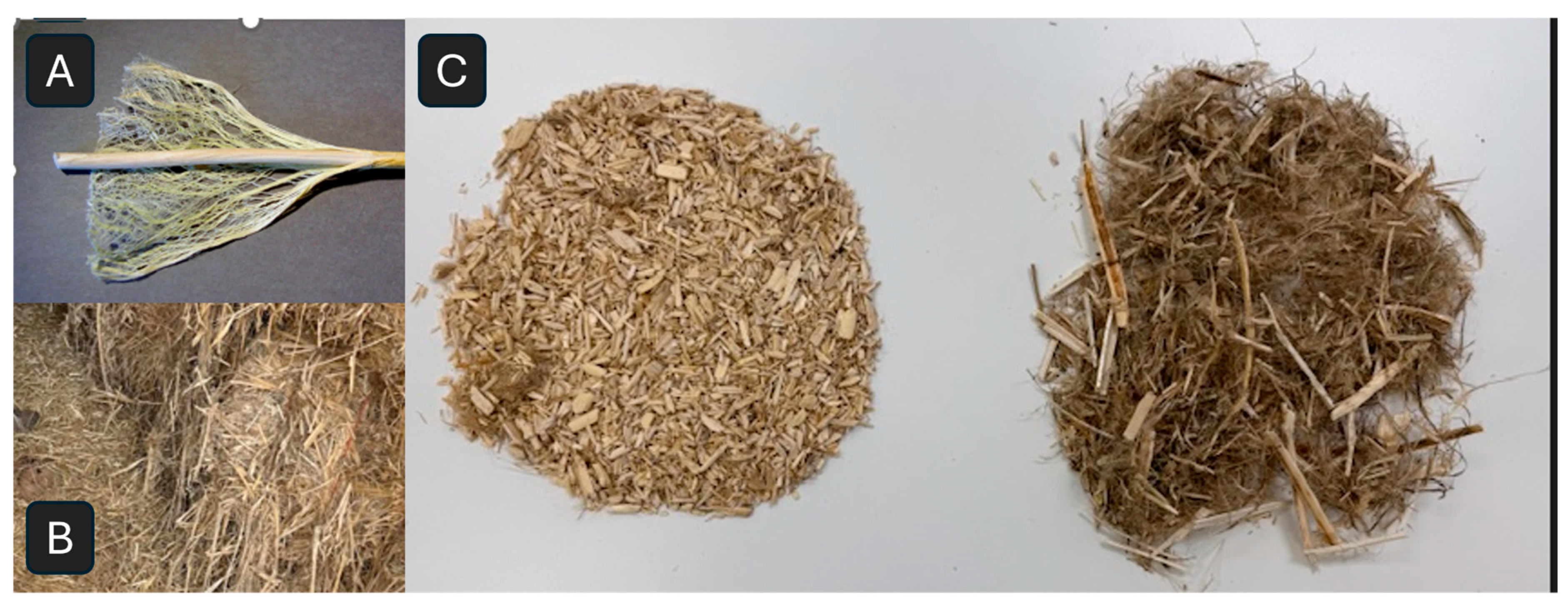

Figure 1. Photos depicting industrial hemp fibers, including (A) hemp stalks comprising both bast and hurd, (B) bales of air-dried harvested stalks with no processing or separation of fiber types, and (C) a comparison of processed, separated (decorticated) hemp hurd on the left versus minimally processed chopped hemp used in this study on the right. Chopped hemp is a mix of fine, longer outer fiber and coarser, shorter hurd fibers.
Figure 1. Photos depicting industrial hemp fibers, including (A) hemp stalks comprising both bast and hurd, (B) bales of air-dried harvested stalks with no processing or separation of fiber types, and (C) a comparison of processed, separated (decorticated) hemp hurd on the left versus minimally processed chopped hemp used in this study on the right. Chopped hemp is a mix of fine, longer outer fiber and coarser, shorter hurd fibers.
Polymers 18 00400 g001
Polymers 18 00400 g002

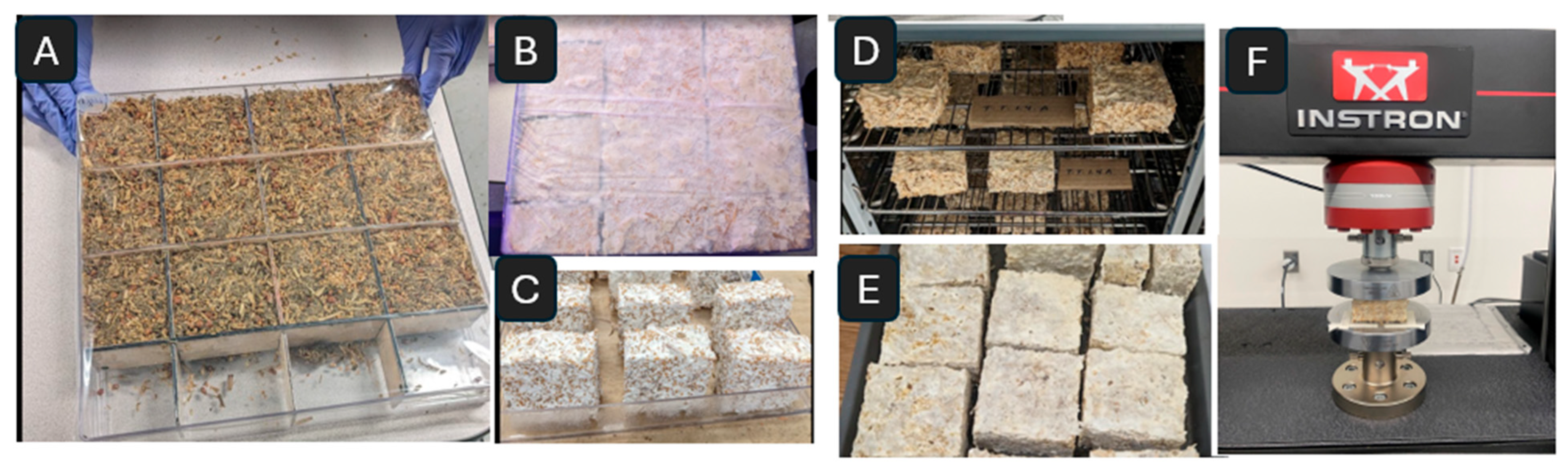

Figure 2. (A) Inoculum-hemp substrate mix packed into plastic molds with square inserts to create 75 mm × 75 mm specimens. (B) Materials covered in plastic and placed in grow tents until (C) all specimens have demonstrable white mycelium covering all sides. (D) Samples oven-dried for 24–36 h at 82 °C. (E) Dried specimens used for characterization and testing, including (F) the Instron testing following ASTM D1621.
Figure 2. (A) Inoculum-hemp substrate mix packed into plastic molds with square inserts to create 75 mm × 75 mm specimens. (B) Materials covered in plastic and placed in grow tents until (C) all specimens have demonstrable white mycelium covering all sides. (D) Samples oven-dried for 24–36 h at 82 °C. (E) Dried specimens used for characterization and testing, including (F) the Instron testing following ASTM D1621.
Polymers 18 00400 g002
Polymers 18 00400 g003
Figure 3. MBC density average (± standard error) for P. ostreatus, G. sessile, and T. versicolor species, for each ratio.
Figure 3. MBC density average (± standard error) for P. ostreatus, G. sessile, and T. versicolor species, for each ratio.
Polymers 18 00400 g003
Polymers 18 00400 g004
Figure 4. Average ± standard error compressive strength at 10% deformation for fungal species × ratio MBC.
Figure 4. Average ± standard error compressive strength at 10% deformation for fungal species × ratio MBC.
Polymers 18 00400 g004
Polymers 18 00400 g005

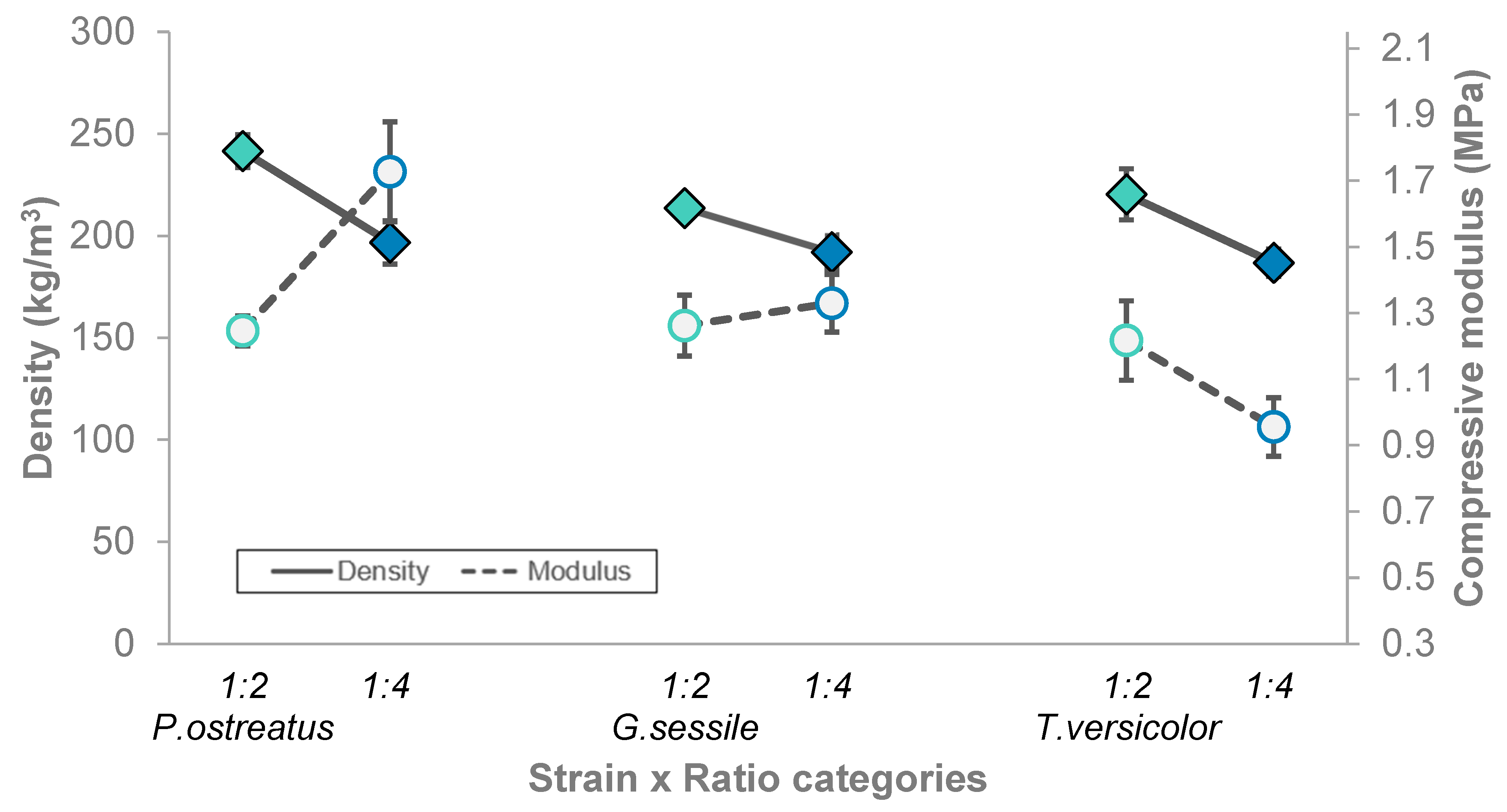

Figure 5. Comparison of MBC specimen density and compressive Young’s modulus for each fungal species and each inoculum/substrate ratio (colors as in Figure 3 and Figure 4 for ratio). Filled diamond and solid line = MBC density (kg/m3), and unfilled circle and dashed line = compressive modulus.
Figure 5. Comparison of MBC specimen density and compressive Young’s modulus for each fungal species and each inoculum/substrate ratio (colors as in Figure 3 and Figure 4 for ratio). Filled diamond and solid line = MBC density (kg/m3), and unfilled circle and dashed line = compressive modulus.
Polymers 18 00400 g005
Polymers 18 00400 g006
Figure 6. Comprehensive conceptual summary. ‘Optimal value’ identifies the particular MBC species x ratio combination with an average value to match the desired attribute state, for example, the lowest MBC density, highest compressive strength, and highest compressive modulus. ‘Most consistent‘ depicts the particular species × ratio combination with the lowest standard deviation for that attribute, reflecting the lowest variability among replicates.
Figure 6. Comprehensive conceptual summary. ‘Optimal value’ identifies the particular MBC species x ratio combination with an average value to match the desired attribute state, for example, the lowest MBC density, highest compressive strength, and highest compressive modulus. ‘Most consistent‘ depicts the particular species × ratio combination with the lowest standard deviation for that attribute, reflecting the lowest variability among replicates.
Polymers 18 00400 g006
Table 1. Particle size and weight percentage of each fraction in the processed hemp hurd compared to the minimally processed chopped hemp used as a substrate in this study.
Table 1. Particle size and weight percentage of each fraction in the processed hemp hurd compared to the minimally processed chopped hemp used as a substrate in this study.
Fraction Size (mm)Hemp Hurd wt %Chopped Hemp wt %
≥44070
24018
1.5188
<1.524
Table 2. Composition of mycelium-based composites at initial fabrication for each inoculum/substrate ratio for each species.
Table 2. Composition of mycelium-based composites at initial fabrication for each inoculum/substrate ratio for each species.
Fungal SpeciesRatioInoculum Mass (g)Substrate Mass (g)H2O
(mL)
Ganoderma sessile1:27503001200
1:43753001200
Trametes versicolor1:27503001200
1:4295236944
Pleurotus ostreatus1:27503001200
1:43753001200
Table 3. MBC mechanical properties with hemp as a substrate, data from the literature review, and results from this study. Fungal species and substrate information, as well as compressive strength (kPa), % deformation, and compressive elastic modulus, are reported.
Table 3. MBC mechanical properties with hemp as a substrate, data from the literature review, and results from this study. Fungal species and substrate information, as well as compressive strength (kPa), % deformation, and compressive elastic modulus, are reported.
Fungal SpeciesLignocellulosic SubstrateCompressive Strength (kPa)%StrainElastic Modulus (MPa)Ref.
P. ostreatus100% hemp fiber18100.2[43]
G. lucidumwheat straw7025 [44]
T. versicolorhemp shives190 ± 15102.938 ± 0.396[29]
proprietaryhemp shives40 ± 1025 [30]
proprietary (Ecovative)hemp hurd124151.138[45]
P. ostreatushemp hurd130 *10 * estimated from [46]
Ganoderma sp.50% hemp hurd158.7 ± 12.415 [19]
Ganoderma sp.40% hemp hurd150.9 ± 18.215 [19]
Ganoderma sp.30% hemp hurd128.8 ± 16.015 [19]
G. lucidum100% hemp hurd72 ± 3100.687 ± 0.024[27]
T. pubescens100% hemp hurd27 ± 1100.255 ± 0.005[27]
G. lucidum100% hemp hurd281 ± 235 [27]
T. pubescens100% hemp hurd104 ± 235 [27]
P. ostreatuschopped hemp (1:2)150.4 ± 29.9101.2 ± 0.1This study
G. sessilechopped hemp (1:2)142.1 ± 39101.2 ± 0.3
T. versicolorchopped hemp (1:2)159.0 ± 57101.2 ± 0.3
P. ostreatuschopped hemp (1:4)194.5 ± 58.5101.7 ± 0.5
G. sessilechopped hemp (1:4)169.9 ± 39.6101.3 ± 0.3
T. versicolorchopped hemp (1:4)111.4 ± 32100.9 ± 0.3
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Bhaskar, R.; Rutledge, T.; Trangone, K.; Latimore, O. Mycelium-Based Composites Using Minimally Processed Industrial Hemp Biomass: Impact of Species and Feedstock Ratio on Mechanical Performance Compared to Polystyrene Packaging. Polymers 2026, 18, 400. https://doi.org/10.3390/polym18030400

AMA Style

Bhaskar R, Rutledge T, Trangone K, Latimore O. Mycelium-Based Composites Using Minimally Processed Industrial Hemp Biomass: Impact of Species and Feedstock Ratio on Mechanical Performance Compared to Polystyrene Packaging. Polymers. 2026; 18(3):400. https://doi.org/10.3390/polym18030400

Chicago/Turabian Style

Bhaskar, Radika, Tanisha Rutledge, Kevin Trangone, and Oneal Latimore. 2026. "Mycelium-Based Composites Using Minimally Processed Industrial Hemp Biomass: Impact of Species and Feedstock Ratio on Mechanical Performance Compared to Polystyrene Packaging" Polymers 18, no. 3: 400. https://doi.org/10.3390/polym18030400

APA Style

Bhaskar, R., Rutledge, T., Trangone, K., & Latimore, O. (2026). Mycelium-Based Composites Using Minimally Processed Industrial Hemp Biomass: Impact of Species and Feedstock Ratio on Mechanical Performance Compared to Polystyrene Packaging. Polymers, 18(3), 400. https://doi.org/10.3390/polym18030400

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
