Article

Using Polymeric Carbon Nitride/ZrO2 Nanocomposite for Low Salinity Water Flooding in Carbonate Porous Media at Real Reservoir Conditions

by
Yaser Ahmadi
* and
Marjan Tanzifi
*
Chemical and Petroleum Engineering Department, Ilam University, Ilam P.O. Box 69315/516, Iran
*
Authors to whom correspondence should be addressed.
Polymers 2025, 17(5), 649; https://doi.org/10.3390/polym17050649
Submission received: 14 December 2024 / Revised: 13 February 2025 / Accepted: 26 February 2025 / Published: 28 February 2025
(This article belongs to the Section Polymer Composites and Nanocomposites)
Browse Figures
Versions Notes

Abstract

:
Nanoparticles and nanocomposites have been used in recent studies to improve oil reservoir recovery. With the introduction of a newly constructed smart water injection scenario, this work investigated the physicochemical characteristics of the polymeric carbon nitride/ZrO2 nanocomposite (ZrO2/g-C3N4), and the results were compared with pure ZrO2 nanoparticles as a known enhanced oil recovery agent. The effects of ZrO2/g-C3N4 and ZrO2 on the wettability change, zeta potential, and interfacial tension under reservoir conditions (78 °C and 3800 psi) were determined after characterization experiments, which included X-ray powder diffraction (XRD), a Fourier transform infrared spectrometer (FTIR), transmission electron microscopy (TEM), a field emission scanning electron microscope (FESEM), energy-dispersive x-ray testing (EDX), and a Brunauer–Emmett–Teller (BET) analysis. Based on the highest zeta potential and the greatest reduction in the contact angle and interfacial tension, the optimum concentrations for ZrO2/g-C3N4 and ZrO2 were determined to be 30 and 40 ppm, respectively. Moreover, the ZrO2/g-C3N4 nanocomposite demonstrated better results in enhancing the oil recovery parameters, and it was selected for low salinity flooding scenarios with three different salinities, including MgCl2 + seawater (SW), CaCl2 + SW, and MgSO4 + SW, at 30 ppm of the nanocomposite. The best readings for the ZrO2/g-C3N4 nanocomposite in its interfacial tension, contact angle, and zeta potential show that 1000 ppm has the best interfacial tension reduction among the tested concentrations of 500–50,000 ppm. At 30 ppm, MgCl2 + SW had the maximum recovery (i.e., 49.36%), and this resulted from better interfacial tension reduction, contact angle reduction, and stability compared to other salinities.

1. Introduction

Nanoscale materials are used in nanotechnology, which has numerous practical usages [1]. To improve oil recovery, researchers have employed nanoparticles to modify the physical properties of oil and enhance its flow through oil and gas reservoirs [2,3,4]. Nanotechnology is used in conjunction with different novel technological processes to recover more oil compared to routine scenarios [5,6,7,8,9]. Nanoparticles and nanocomposites can enhance oil recovery (EOR) by changing the main mechanisms in the reservoir (porous media), including the contact angle (CA) and interfacial tension (IFT) [10,11,12,13]. When applied to porous media, nanofluid flooding scenarios typically decrease the CA and IFT [14,15,16]. Two phases (in this case, oil/water and oil/nanofluid) are necessary for defining the IFT, and it is the force that holds the surface of a certain phase together. A liquid surface (in this case, oil) and a solid surface (in this case, carbonate sheets) meet at an angle called the CA when an immiscible fluid (in this case, nanofluid) is present. Because nanoparticles are smaller than other particles, they may help keep other substances from clogging the rock pores and throats when they are introduced into reservoirs [17]. The reservoir’s temperature, pressure, salinity, synthesis properties, stability of nanoparticles, and concentration all have an impact on the nanofluid’s efficiency in recovering more oil in the reservoir [18,19]. Because of nanoparticles’ electrical and physicochemical properties, which also allow them to absorb at oil–water interfaces, nanoparticles can play an efficient role in EOR [20]. Figure 1 illustrates the many functions of nanoparticles in EOR situations, such as (a) disjoining pressure, (b) blocking pore channels, (c) inhibiting asphaltene precipitation, and (d) altering wettability [21]. The oil droplets are more mobile within the porous surface and achieve better recovery than the conventional approach, as illustrated in Figure 1, because the nanoparticles self-assemble into a wedge-like film at contact and exert high disjoint pressure due to the increased entropy and electrostatic force of repulsion. Increased structural disjoining pressure from nanoparticles, advantageous rheological control, a decrease in IFT, a change in wettability, and the avoidance of asphaltene precipitation all contribute to the displacement recovery process [22,23].
Zirconium dioxide (ZrO2) nanoparticles are regarded as efficient materials in different chemically enhanced oil scenarios [24,25,26,27]. Karimi et al. (2012) examined how ZrO2 nanoparticles affected the EOR process. According to their findings, these nanoparticles might transform carbonate rocks from being strongly oil-wet (tending to adsorb oil on the rock surface) to being strongly water-wet (tending to adsorb water on the rock surface) [24]. The ZrO2 nanoparticles were used in low salinity flooding (in this type, the selected brine concentration was injected into porous media) in combination with a surfactant by Dordzie et al. (2022) in carbonate fracture porous media. Based on their results, using ZrO2 with surfactants was efficient in low salinity water flooding, and the original oil in place in the reservoir was increased to 7% [25].
The combination of nanoparticles/polymers has generated interesting results among different researchers. Mohanty et al. (2021) stated that biopolymers have been employed in EOR due to their high viscosity and their significant effects on waterflooding (injecting water) performance. They used ZrO2/Sodium alginate, and it was observed that enhancing the salinity from 0.015 to 0.1 wt % in the 0.04 wt % ZrO2 nanoparticle suspension comprising 0.1 wt % sodium alginate showed a progressive decrease in viscosity under the temperature range from 25 to 50 °C. The proposed sodium alginate/zirconium oxide nanoparticles from the mentioned results indicate their potential for enhanced oil recovery applications [26]. Salem et al. (2024) recently used zirconia in combination with partially hydrolyzed polyacrylamide (HPAM) for EOR with measurements of the IFT, viscosity, and oil recovery [27].
Combining solid materials with beneficial nanoscale characteristics, in which each of the materials has a high level of efficiency, was recently used in preparing efficient nanocomposites. Based on this idea, Ahmadi et al. (2021) used a ZrO2/zeolite/cerium nanocomposite for changing the EOR parameters during the water alternating gas injection in the reservoir, and based on their results, introducing ZrO2 increased the specific area of the nanocomposite, and this phenomenon was efficient in changing the IFT, CA, and recovery factor. At 100 ppm of the prepared nanocomposite, the recovery was increased from 42.5 to 72% [28]. To enhance the specific surface area of the pure ZrO2, we synthesized two-dimensional nanosheets with a network of numerous and inherently homogeneous pores by combining zirconium with graphitic carbon nitride (g-C3N4). These materials are simple to synthesize and inexpensive, and they were presented as potential agents for EOR scenarios.
Recent research indicates that by converting the wettability of reservoir rocks from oil-wet (OW) to water-wet (WW), the oil recovery increases using low salinity water flooding (LSWF) [29,30,31,32]. LSWF performs better than other EOR techniques in terms of affordability, ease of use, and sustainability [33,34,35,36,37]. Based on the previously demonstrated applications of ZrO2 in effectively changing the EOR, the usage of g-C3N4 in increasing the specific surface area, and high applications of low salinity water flooding, the main focus of this work was the synthesis of the ZrO2/g-C3N4 nanocomposite for low salinity flooding. The results were then compared with pure ZrO2. A range of assays were used to analyze the chemistry, surface, and ZrO2 and ZrO2/g-C3N4 nanocomposite structures. The optimum ZrO2 and ZrO2/g-C3N4 concentrations were found by applying the contact angle, IFT, and zeta potential tests at various concentrations, such as 10, 20, 30, 40, 50, and 60 ppm. The lowest IFT and CA, and the highest zeta potential (ZP), were used to determine the optimum concentrations. The stability of colloidal dispersions and nanoparticle suspensions is largely determined by the ZP. It calculates the electrical potential difference between the stationary layer of fluid affixed to the scattered particle and the liquid’s bulk. Next, the best optimum concentration results, three CaCl2, MgCl2, and MgSO4 results at the optimal nanocomposite concentrations, were used to obtain the best scenarios for low salinity floods. The IFT measurements were conducted at 500, 1000, 2000, 5000, 10,000, and 50,000 ppm of SW+ (CaCl2, MgCl2, and MgSO4) salt concentrations. Finally, the recovery tests were compared using 1000 ppm (which has the best reading) of SW+ (CaCl2, MgCl2, and MgSO4). This work’s primary innovation is that all of the experimental designs were informed by field conditions. The designed scenarios were novel, and in this study, the best optimum scenarios were suggested for carbonate porous media.

2. Materials and Procedures

We chose crude oil and cores from a carbonate oil deposit in western Iran. Oil has a viscosity of 12.45 cP and a density of 0.979 gr/cm3 at 78 °C. The porosity, permeability, core length, and core diameter were 13.40%, 10.78 md, 4.80 cm, and 3.65 cm, respectively. As the brine source for all of the planned tests, we used seawater (SW) containing the salts NaCl (2840 ppm), CaCl2 (138 ppm), MgCl2.6H2 (643 ppm), and KCl (80 ppm). A melamine powder (C3H6N6, 99%) was prepared from Sigma-Aldrich (Louis, Canada). Merck (Rahway, NJ, USA) supplied the following: ammonia solution (NH3, 25%), zirconyl chloride octahydrate (ZrOCl2.8 H2O), and ethanol (C2H5OH).
The ZrO2 was synthesized in a typical process; zirconyl chloride octahydrate (3 g) was added to 40 mL of deionized water and mixed quickly for 60 min. Next, the NH3 solution was added dropwise into the first solution until the pH reached 10.5. After stirring for 60 min, filtering, and washing with distilled water, the obtained white gel was dried for eight hours at 100 °C. The product was then ground and heated for three hours at 500 °C at a ramp rate of 10 °C per minute [38]. The melamine powder was directly annealed twice to create g-C3N4 nanosheets. Initially, a predetermined quantity of melamine was placed in a ceramic crucible with a lid and annealed for four hours at 550 °C (ramp rate of 5 °C/min) in a tube furnace. After milling to a powder, the final product (g-C3N4 bulk) was placed in three open ceramic crucibles and heated for two hours at 500 °C at a ramp rate of 5 °C per minute (g-C3N4 nanosheet) [39]. Ultimately, ZrO2/g-C3N4 nanocomposites were created using the solution mixing–calcination method. The standard procedure involved dispersing the ZrO2 and g-C3N4 (w/w 1:1) in ethanol for 60 min and then stirring for 20 h. The final polymeric nanocomposite was obtained by annealing the powder at 400 °C for one hour after it had been dried, milled, and rinsed with an ethanol/water solution.
The experimental setup for measuring the IFT and CA using carbonate sheets when polymeric nanocomposites are present is depicted in Figure 2. This setup is used for measuring the interfacial tension and contact angles of base (without nanoparticles), ZrO2, and polymeric ZrO2/g-C3N4 nanomaterials at different concentrations and review conditions. Measuring the IFT and CA was used for selecting the optimum concentrations of nanoparticles, and it was performed at different concentrations, including 10, 20, 30, 40, 50, and 60 ppm with a base fluid of seawater containing the salts NaCl (2840 ppm), CaCl2 (138 ppm), MgCl2.6H2 (643 ppm), and KCl (80 ppm). First, the base or nanofluids (ZrO2 and polymeric ZrO2/g-C3N4) were prepared with a combination of nanoparticles with seawater brine and stirring with ultrasound. Second, the prepared nanofluids were brought to the main cell, and the cell pressure and temperature were allowed to become stable at 3800 psi and 78 °C, respectively. The pressure and temperature were applied with a nanofluid pump and heating jacket, respectively. Third, the oil was injected through a syringe inside the main cell. Finally, the camera captured the oil droplet, which is surrounded by nanofluid in the main cell. Through the analysis of this droplet with the in-house software, Petroazma’s program, the IFT was measured. The contact angle was determined in this instance after a droplet came into contact with the carbonate rocks, which had previously been placed in the main cell, but the procedure was the same as for the IFT. Thus, a layer of carbonate rock was first placed in the main cell, and then a base or nanofluid was injected into the main cell in the presence of the rock, setting the pressure and temperature. Finally, as with the IFT, the oil was injected with a syringe, and by analyzing this droplet in contact with the rock using the in-house software, the contact angle was measured. In this study, the contact angle and the IFT tests were conducted three times, and the average is provided.
After selecting the optimum concentrations of nanoparticles, I thoroughly measured the IFT and CA. A series of IFTs and CAs with the same procedure were designed using different brine salinities, including MgCl2 + SW, CaCl2 + SW, and MgSO4 + SW. As the polymeric ZrO2/g-C3N4 had better results than the pure ZrO2, it was selected for performing the imbibition tests at the optimum concentration, which was 30 ppm, as the schematics show in Figure 3. It contains different elements, including a main cell, an oven for applying the temperature, a nanofluid pump for setting the pressure, measuring cells for obtaining the oil volumes, and back pressure for maintaining the pressure of the cell at the reservoir pressure. First, the initial core mass, oil-saturated core mass, space volume, and oil saturation were measured before the imbibition trials. Second, four tests were selected for performing the imbibition tests: (a) base fluid (without nanoparticles), (b) MgCl2 + SW + 30 ppm ZrO2/g-C3N4, (c) CaCl2 + SW + 30 ppm ZrO2/g-C3N4, and (d) MgSO4 + SW + 30 ppm ZrO2/g-C3N4. Next, aged core containing crude oil was placed in the imbibition cell and surrounded by nanofluid (a–d scenarios) at 3800 psi and 78 °C. After setting the pressure and temperature, the extraction volume of the oil was monitored with time. The displacement efficiency is obtained by dividing these obtained oil volumes by the core pore volume.

3. Result and Discussion

Using an X-ray powder diffraction (XRD) analysis, the phase structures of the ZrO2, g-C3N4, and ZrO2/g-C3N4 nanocomposites were investigated. The XRD spectra of the samples are displayed in Figure 4. The (100) and (002) planes of the graphitic carbon nitride phase were indicated by the two diffraction peaks in the g-C3N4 sheet at 12.9° and 27.7°, respectively. These planes were fitted with units of layered and tri-s-triazine [39,40]. According to the results, the produced ZrO2 nanoparticles exhibited both monoclinic (JCPDS 07–0343) and tetragonal (JCPDS 80–2155) phases. The monoclinic phase is easily given to planes (011), (111), (−111), (022), (211), (−112), (−202), and (013), respectively. The diffraction peaks at 2θ correspond to the following: 24.35°, 28.4°, 31.6°, 34.6°, 40.95°, 45.75°, 54.1°, and 55.7°. The tetragonal phase is confirmed by the peaks at 30.4°, 35.13°, 50.475°, and 60.07° 2θ, which correspond to the [101], [110], [112], and [211] planes. Nonetheless, the ZrO2 nanoparticles’ predominant crystalline structure is the monoclinic phase [38]. The ZrO2/g-C3N4 nanocomposite’s diffraction peak at approximately 28.2° may be the result of an overlap between the ZrO2 ((−111) plane) and g-C3N4 ((002) plane) reflection peaks. The assigned ZrO2 nanostructure planes provide additional proof of the ZrO2/g-C3N4 nanocomposite’s successful synthesis.
To have a better understanding of the chemical makeup of both the pure components and their nanocomposites, a Fourier transform infrared spectrometer (FTIR) analysis was employed, as displayed in Figure 5. According to the g-C3N4-associated FTIR spectra, the 808.02 cm−1 sharp peak is caused by a tri-s-triazine vibration bending unit. Furthermore, a broad peak in the 3000–3400 cm−1 range and a series of distinct peaks in the 1000–1700 cm−1 range originate from the primary and secondary amine vibration modes [“N-H” and “NH2”] and the g-C3N4 heterocycle stretching modes [“C-N” and “C=N”], respectively [41,42]. The ZrO2/g-C3N4 nanocomposite sample’s FTIR spectrum resembles that of a pure g-C3N4 nanosheet, as seen in Figure 5. Nonetheless, the existence of peaks at 500 and 3200 cm−1 suggests that ZrO2 nanoparticles are present in the nanocomposite sample. Based on the FTIR study results, the ZrO2/g-C3N4 nanocomposite’s chemical structure remained unchanged after compositing in comparison to the pure components.
A transmission electron microscopy (TEM) analysis is used to morphologically analyze pure materials and nanocomposite materials in order to determine their shape, size, and structural properties. Figure 6 displays the ZrO2 nanoparticles’ TEM picture. The produced ZrO2 is spherical, with an average nanosphere diameter of roughly 20 nm, as can be seen visually. The g-C3N4 nanosheet’s TEM picture is displayed in Figure 6b. The thermal exfoliation of the g-C3N4 bulk results in the sizable, ultrathin, wrinkled nanosheet shape that is clearly seen in pure g-C3N4. The ZrO2 nanoparticles are placed on g-C3N4 nanosheets to create a ZrO2/g-C3N4 nanocomposite, as shown in Figure 6c. The ZrO2 nanoparticles in the nanocomposite sample resemble pure ZrO2 in both size and form. On the surface of the g-C3N4 nanosheet, ZrO2 nanoparticles are equally and evenly distributed, as shown in Figure 6c.
Another field emission scanning electron microscope (FESEM) analysis was used to characterize the morphological examination in order to learn more about the ZrO2/g-C3N4 nanocomposite’s surface. As can be seen in Figure 7, the ZrO2 nanoparticles are uniformly dispersed and have good interaction with g-C3N4 on the material’s broad nanosheet surface.
To confirm that the nanocomposite seen in Figure 6c belongs to both g-C3N4 and ZrO2, an energy-dispersive X-ray testing (EDX) analysis was performed (Figure 8). ZrO2 and g-C3N4 in the produced nanocomposite are confirmed by the presence of components such as carbon (C), nitrogen (N), oxygen (O), and zirconium (Zr).
The textural properties of the produced nanocomposite and pure ZrO2 were examined using the Brunauer–Emmett–Teller (BET) analysis. The N2 adsorption–desorption isotherms for the ZrO2 and ZrO2/g-C3N4 nanocomposite are shown in Figure 9. Both diagrams demonstrate the existence of mesopores and micropores in the samples as-prepared by the type IV isotherm with a loop of H-type (hysteresis loop of H3-type) [41]. As shown, the ZrO2/g-C3N4 nanocomposite’s specific surface area increased to 88.16 m2/g from 49.27 m2/g for pure ZrO2. Additionally, when compared to pure ZrO2 nanoparticles, the ZrO2/g-C3N4 nanocomposite has a total pore volume that is approximately seven times larger (Table 1).
An additional, significant element influencing oil output is wettability alteration (WA). WA, a crucial water displacement factor, was changed by the nanoparticles and improved the minerals’ ability to recover oil. Fluid–rock interactions are changed by nanofluid, and the recovery factor was raised by employing nanocomposites because of the effective modification of the IFT and CA. The effect of the ZrO2 and ZrO2/g-C3N4 nanomaterial concentrations on the contact angle is depicted in Figure 10. The contact angle with base fluid (no nanoparticles) is 101.43°. At 3800 psi pressure and 78 °C, both ZrO2 and ZrO2/g-C3N4 nanofluids improve the carbonate hydrophilicity by decreasing the contact angle. The lowest contact angles, 49.49° (at 30 ppm) and 61.00° (at 40 ppm), were achieved with the ZrO2 and ZrO2/g-C3N4 nanomaterials, respectively. This could be a result of the ZrO2/g-C3N4 nanocomposites enhancing the hydrophilic properties of the carbonate rock. According to Rostami et al., the van der Waals force is the primary factor influencing wettability [43].
The effect of base fluid ZrO2 and ZrO2/g-C3N4 nanomaterials concentrations on the zeta potential is depicted in Figure 11. This test was conducted using the Malvern Zetasizer Nano ZS ZEN3600 (Worcestershire, UK). This experiment demonstrates that nanofluids are significantly stabilized by the addition of ZrO2 (40 ppm) and ZrO2/g-C3N4 (30 ppm) nanomaterial concentrations. The ZrO2/g-C3N4 nanocomposite showed fully stable conditions at 30 ppm, with zeta potentials of −30.14 mV.
Figure 12 illustrates how the presence of ZrO2 and ZrO2/g-C3N4 nanomaterials influences the crude oil–water IFT at 3800 psi pressure and 78 °C. This figure illustrates how ZrO2 and ZrO2/g-C3N4 nanofluids reduced the base fluid’s IFT. The base fluid’s initial IFT decreased from 25.68 mN/m to 11.47 mN/m (at 30 ppm) and 15.9 mN/m (at 40 ppm) upon the addition of the ZrO2 and ZrO2/g-C3N4 nanofluids, respectively.
According to the IFT, CA, and zeta potential results, the optimum concentrations for the ZrO2 and ZrO2/g-C3N4 nanomaterials were 40 and 30 ppm, respectively. Moreover, the ZrO2/g-C3N4 nanocomposite showed better results in the obtained EOR parameters, and it was selected for performing the LSWF at 30 ppm. As seen in Figure 13, a number of IFT tests were conducted for optimal brine solutions employing various ions, such as CaCl2 + SW + 30 ppm ZrO2/g-C3N4, MgCl2 + SW + 30 ppm ZrO2/g-C3N4, and MgSO4 + SW + 30 ppm ZrO2/g-C3N4, at various concentrations, including 500, 1000, 2000, 5000, 10,000, and 50,000 ppm. CaCl2 + SW + 30 ppm ZrO2/g-C3N4, MgCl2 + SW + 30 ppm ZrO2/g-C3N4, and MgSO4 + SW + 30 ppm ZrO2/g-C3N4 had minimal IFTs at 1000 ppm, according to the results. The order of the IFT decrease was as follows: MgCl2 + SW + 30 ppm ZrO2/g-C3N4 > CaCl2+ SW + 30 ppm ZrO2/g-C3N4 > MgSO4+ SW + 30 ppm ZrO2/g-C3N4. The identical sequence for the contact angle decrease is displayed in Table 2 and reflects the following: MgCl2 + SW + 30 ppm ZrO2/g-C3N4 > CaCl2+ SW + 30 ppm ZrO2/g-C3N4 > MgSO4+ SW + 30 ppm ZrO2/g-C3N4.. The presence of MgCl2 + SW + 30 ppm ZrO2/g-C3N4, CaCl2 + SW + 30 ppm ZrO2/g-C3N4, and MgSO4 + SW + 30 ppm ZrO2/g-C3N4 reduced the base contact angle from 101.43° to 38.12°, 50.50°, and 68.33°. Furthermore, all of the created solutions have stable conditions, according to the ZP findings [44]. The ZP is −31.25 mV for MgCl2+ SW + 30 ppm ZrO2/g-C3N4, −30.12 mV for CaCl2+ SW + 30 ppm ZrO2/g-C3N4, and −28.89 mV for MgSO4+ SW + 30 ppm ZrO2/g-C3N4. The findings of the zeta potential, contact angle, and interfacial tension are consistent with those of Lashingkarbolooki et al. (2018) [45]. The Malvern Zetasizer Nano ZS ZEN3600 (Worcestershire, UK) was used in this study to analyze the particle size distributions of the zeolite-zirconia-cerium oxide nanocomposites in the prepared nanofluids.
To observe the designed solutions’ effects in the carbonate reservoir, series imbibition tests were conducted at 1000 ppm of each brine, including CaCl2 + SW, MgCl2 + SW, and MgSO4 + SW, as well as 30 ppm of ZrO2/g-C3N4. We carried out the spontaneous imbibition testing at 70 °C and 3200 psi pressure, much like in the earlier IFT and contact angle tests. As illustrated in Figure 14, the recovery factor increases in the following manner (in order): MgCl2 + SW > CaCl2 + SW > MgSO4 + SW at 1000 ppm, 78 °C, 3800 psi, and 30 ppm of ZrO2/g-C3N4. MgCl2 + SW + 30 ppm ZrO2/g-C3N4, CaCl2+ SW + 30 ppm ZrO2/g-C3N4, and MgSO4 + SW + 30 ppm ZrO2/g-C3N4 yielded the final recovery factors of 49.39%, 41.85%, and 36.32%, respectively, during a 21-day test. The primary causes of the ZrO2/g-C3N4 nanofluid flooding’s increased oil recovery include the WA, IFT, and ZP alterations. Furthermore, in accordance with earlier IFT, CA, and ZP studies, MgCl2 + SW + 30 ppm ZrO2/g-C3N4 nanofluids consistently recover more oil than CaCl2 + SW + 30 ppm ZrO2/g-C3N4 and MgSO4 + SW + 30 ppm ZrO2/g-C3N4.
Table 3 compares the results of this study with other research findings. Based on the results, MgCl2 + SW + 30 ppm, and even other salinities in this study, demonstrated an excellent recovery in carbonate porous media.

4. Conclusions

Novel ZrO2/g-C3N4 nanocomposites were applied in this lab-scale investigation to increase the effectiveness of low salinity flooding in carbonate porous media at 78 °C and 3800 psi, and the results were compared with pure ZrO2 nanoparticles. The primary findings were as follows:
  • The ZrO2/g-C3N4 nanocomposite’s specific surface area increased to 88.16 m2/g from 49.27 m2/g for the pure ZrO2.
  • The optimal concentrations for the ZrO2 and ZrO2/g-C3N4 nanomaterials were 40 and 30 ppm, respectively, based on the IFT, CA, and zeta potential findings (among several tested concentrations, which ranged from 10 to 60 ppm).
  • The IFT, zeta potential, and CA were (11.47 mN/m, −30.14 mV, and 49.49° at 30 ppm), (15.69 mN/m, −27.12 mV, and 61.00° at 40 ppm) for the ZrO2/g-C3N4 and ZrO2, respectively.
  • The ZrO2/g-C3N4 nanocomposites were chosen to perform the LSWF at 30 ppm due to their superior performance in the obtained EOR parameters.
  • The results showed the lowest interfacial tensions at 1000 ppm for CaCl2 + SW + 30 ppm ZrO2/g-C3N4, MgCl2 + SW + 30 ppm ZrO2/g-C3N4, and MgSO4 + SW + 30 ppm ZrO2/g-C3N4, and the interfacial tension and contact angle followed the order as follows: MgCl2 + SW + 30 ppm ZrO2/g-C3N4> CaCl2+ SW + 30 ppm ZrO2/g-C3N4 > MgSO4 + SW + 30 ppm ZrO2/g-C3N4.
  • The MgCl2 + SW + 30 ppm ZrO2/g-C3N4 had the highest stability of any of the brine solutions, measuring −31.25 mV at 1000 ppm.
  • The recovery factor following a 21-day test was 49.39% for MgCl2 + SW + 30 ppm ZrO2/g-C3N4, 41.85% for CaCl2 + SW + 30 ppm ZrO2/g-C3N4, and 36.32% for MgSO4 + 10 SW + 30 ppm ZrO2/g-C3N4.

Author Contributions

Methodology, Y.A. and M.T.; Validation, Y.A. and M.T.; Writing—original draft, Y.A. and M.T.; Writing—review & editing, Y.A. and M.T. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Data Availability Statement

The original contributions presented in this study are included in the article. Further inquiries can be directed to the corresponding authors.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Kalantari, F.; Farahbod, F. Mixing of crude oil with organic ZnO nano-particles from rice bran to improve physical properties of crude oil: A novel agent for enhanced oil recovery. Nat. Resour. Res. 2019, 28, 1183–1196. [Google Scholar] [CrossRef]
  2. Panchal, H.; Patel, H.; Patel, J.; Shah, M. A systematic review on nanotechnology in enhanced oil recovery. Pet. Res. 2019, 6, 204–212. [Google Scholar] [CrossRef]
  3. Shayan Nasr, M.; Shayan Nasr, H.; Karimian, M.; Esmaeilnezhad, E. Application of artificial intelligence to predict enhanced oil recovery using silica nanofluids. Nat. Resour. Res. 2021, 30, 2529–2542. [Google Scholar] [CrossRef]
  4. Sun, Y.; Yang, D.; Shi, L.; Wu, H.; Cao, Y.; He, Y.; Xie, T. Properties of nanofluids and their applications in enhanced oil recovery: A comprehensive review. Energy Fuels 2020, 34, 1202–1218. [Google Scholar] [CrossRef]
  5. Lashari, N.; Ganat, T. Emerging applications of nanomaterials in chemical enhanced oil recovery: Progress and perspective. Chin. J. Chem. Eng. 2020, 28, 1995–2009. [Google Scholar] [CrossRef]
  6. Druetta, P.; Picchioni, F. Polymer and nanoparticles flooding as a new method for Enhanced Oil Recovery. J. Pet. Sci. Eng. 2019, 177, 479–495. [Google Scholar] [CrossRef]
  7. Song, C.; Yoo, H.; Lee, J. Effects of nano-smart water on enhanced oil recovery in carbonate reservoirs: Interfacial tension reduction and wettability alteration, Colloids Surfaces A Physicochem. Eng. Asp. 2024, 696, 134362. [Google Scholar] [CrossRef]
  8. Moradi, B.; Pourafshary, P.; Jalali, F.; Mohammadi, M.; Emadi, M.A. Experimental study of water-based nanofluid alternating gas injection as a novel enhanced oil-recovery method in oil-wet carbonate reservoirs. J. Nat. Gas. Sci. Eng. 2015, 27, 64–73. [Google Scholar] [CrossRef]
  9. Medina, O.E.; Olmos, C.; Lopera, S.H.; Cortés, F.B.; Franco, C.A. Nanotechnology applied to thermal enhanced oil recovery processes: A review. Energies 2019, 12, 4671. [Google Scholar] [CrossRef]
  10. Aminnaji, M.; Fazeli, H.; Bahramian, A.; Gerami, S.; Ghojavand, H. Wettability alteration of reservoir rocks from liquid wetting to gas wetting using nanofluid. Transp. Porous Media 2015, 109, 201–216. [Google Scholar] [CrossRef]
  11. Qing, Y.; Yang, M.; Li, L.; Jiang, W.; Zhao, Y. Effect of organically modified nanosilica on the viscosity and rheological behavior of karamay heavy crude oil. Energy Fuels 2019, 34, 65–73. [Google Scholar] [CrossRef]
  12. Maaref, S. Sweep Efficiency Improvement Using Oil Based Nanofluids in Oil-Wet Media. Doctoral Thesis, University of Calgary, Calgary, AB, Canada, 2020. [Google Scholar]
  13. Liu, R.; Lu, J.; Pu, W.; Xie, Q.; Lu, Y.; Du, D.; Yang, X. Synergetic effect between in-situ mobility control and micro-displacement for chemical enhanced oil recovery (CEOR) of a surface-active nanofluid. J. Pet. Sci. Eng. 2021, 205, 108983. [Google Scholar] [CrossRef]
  14. Kumar, R.S.; Narukulla, R.; Sharma, T. Comparative effectiveness of thermal stability and rheological properties of nanofluid of SiO2–TiO2 nanocomposites for oil field applications. Ind. Eng. Chem. Res. 2020, 59, 15768–15783. [Google Scholar] [CrossRef]
  15. Jiang, R.; Li, K.; Horne, R. A mechanism study of wettability and interfacial tension for EOR using silica nanoparticles. In SPE Annual Technical Conference and Exhibition? SPE: Richardson, TX, USA, 2017; p. D031S046R003. [Google Scholar]
  16. Esmaeilzadeh, P.; Sadeghi, M.T.; Bahramian, A. Production improvement in gas condensate reservoirs by wettability alteration, using superamphiphobic titanium oxide nanofluid. Oil Gas Sci. Technol. Rev. IFP Energ. Nouv. 2018, 73, 46. [Google Scholar]
  17. Ali, J.A.; Kolo, K.; Manshad, A.K.; Mohammadi, A.H. Recent advances in application of nanotechnology in chemical enhanced oil recovery: Effects of nanoparticles on wettability alteration, interfacial tension reduction, and flooding. Egypt. J. Pet. 2018, 27, 1371–1383. [Google Scholar] [CrossRef]
  18. Daryayehsalameh, B.; Ayari, M.A.; Tounsi, A.; Khandakar, A.; Vaferi, B. Differentiation among stability regimes of alumina-water nanofluids using smart classifiers. Adv. Nano Res. 2022, 12, 489–499. [Google Scholar]
  19. Jafarbeigi, E.; Kamari, E.; Salimi, F.; Mohammadidoust, A. Experimental study of the effects of a novel nanoparticle on enhanced oil recovery in carbonate porous media. J. Pet. Sci. Eng. 2020, 195, 107602. [Google Scholar] [CrossRef]
  20. Kundu, P.; Arora, K.; Gu, Y.; Kumar, V.; Mishra, I.M. Formation and stability of water-in-oil nano-emulsions with mixed surfactant using in-situ combined condensation-dispersion method. Can. J. Chem. Eng. 2019, 97, 2039–2049. [Google Scholar] [CrossRef]
  21. Xiaofei, S.; Yanyu, Z.; Chen, G.; Geong, G. Application of Nanoparticles in EOR: A critical review of Recent progress. Energies 2019, 10, 345. [Google Scholar]
  22. Mogghadom, R.N.; Bahramian, A.; Fakhroueian, Z.; Karimi, A.; Arya, S. Comparative study of nanoparticles for enhanced oil recovery: Wettability alteration of carbonate rock. Energy Fuel 2015, 29, 2111–2119. [Google Scholar] [CrossRef]
  23. Fakoya, M.F.; Shah, S.N. Emergence of nanotechnology: Emphasis on the application of the silica Nano particles. Petroleum 2017, 3, 391–405. [Google Scholar] [CrossRef]
  24. Karimi, A.; Fakhroueian, Z.; Bahramian, A.; Pour Khiabani, N.; Darabad, J.B.; Azin, R.; Arya, S. Wettability Alteration in Carbonates using Zirconium Oxide Nanofluids: EOR Implications. Energy Fuels 2012, 26, 1028–1036. [Google Scholar] [CrossRef]
  25. Dordzie, G.; Dejam, M. Enhanced oil recovery from fractured carbonate reservoirs using nanoparticles with low salinity water and surfactant: A review on experimental and simulation studies. Adv. Colloid. Interface Sci. 2021, 293, 102449. [Google Scholar] [CrossRef] [PubMed]
  26. Mohanty, U.S.; Awan, F.U.R.; Ali, M.; Aftab, A.; Keshavarz, A.; Iglauer, S. Physicochemical Characterization of Zirconia Nanoparticle-Based Sodium Alginate Polymer Suspension for Enhanced Oil Recovery. Energy Fuel 2021, 35, 19389–19398. [Google Scholar] [CrossRef]
  27. Salem, K.G.; Salem, A.M.; Tantawy, M.A.; Gawish, A.A.; Gomaa, S.; El-Hoshoudy, A.N. A Comprehensive Investigation of Nanocomposite Polymer Flooding at Reservoir Conditions: New Insights into Enhanced Oil Recovery. J. Polym. Environ. 2024, 32, 5915–5935. [Google Scholar] [CrossRef]
  28. Ahmadi, Y.; Mansouri, M. Using New Synthesis Zirconia-Based Nanocomposites for Improving Water Alternative Associated Gas Tests Considering Interfacial Tension and Contact Angle Measurements. Energy Fuel 2021, 35, 16724–16734. [Google Scholar] [CrossRef]
  29. Mahmood, B.S.; Ali, J.; Nazhat, S.B.; Devlin, D.A. Sensitivity study on low salinity water flooding, Mod. Environ. Sci. Eng. 2017, 4, 231–236. [Google Scholar]
  30. Mahani, H.; Keya, A.L.; Berg, S.; Bartels, W.B.; Nasralla, R.; Rossen, W.R. Insights into the mechanism of wettability alteration by low-salinity flooding (LSF) in carbonates. Energy Fuels 2015, 29, 1352–1367. [Google Scholar] [CrossRef]
  31. Xie, Q.; Saeedi, A.; Pooryousefy, E. Extended DLVO-based estimates of surface force in low salinity water flooding. J. Mol. Liq. 2016, 221, 658–665. [Google Scholar] [CrossRef]
  32. Lashkarbolooki, M.; Riazi, M.; Ayatollahi, S. Investigation of effects of salinity, temperature, pressure, and crude oil type on the dynamic interfacial tensions. Chem. Eng. Res. Des. 2016, 115, 53–65. [Google Scholar] [CrossRef]
  33. Lashkarbolooki, M.; Ayatollahi, S.; Riazi, M. The impacts of aqueous ions on interfacial tension and wettability of an Asphaltenic_Acidic crude oil reservoir during smart water injection. J. Chem. Eng. Data. 2014, 59, 3624–3634. [Google Scholar] [CrossRef]
  34. Austad, T.; Shariatpanahi, S.F.; Strand, S.; Black, C.J.J.; Webb, K.J. Conditions for alow-salinity enhanced oil recovery (EOR) effect in carbonate oil reservoirs. Energy Fuel 2012, 26, 569–575. [Google Scholar] [CrossRef]
  35. Yousef, A.A.; Al-Saleh, S.; Al-Kaabi, A.; Al-Jawfi, M.S. Laboratory investigation of the impact of injection-water salinity and ionic content on oil recovery from carbonate reservoirs. SPE Reserv. Eval. Eng. 2011, 14, 578–593. [Google Scholar]
  36. Yousef, A.A.; Al-Saleh, S.; Al-Jawfi, M.S. Improved/enhanced oil recovery from carbonate reservoirs by tuning injection water salinity and ionic content. In Proceedings of the SPE Improved Oil Recovery Symposium, Tulsa, OK, USA, 14–18 April 2012; p. 154076. [Google Scholar]
  37. Kumar, H.; Rani, R. Structural and Optical Characterization of ZnO Nanoparticles Synthesized by Microemulsion Route. Int. Lett. Chem. 2013, 19, 26–36. [Google Scholar] [CrossRef]
  38. Kumar, S.; Ojha, A.K. Oxygen vacancy induced photoluminescence properties and enhanced photocatalytic activity of ferromagnetic ZrO2 nanostructures on methylene blue dye under ultra-violet radiation. J. Alloys Compd. 2015, 644, 654–662. [Google Scholar] [CrossRef]
  39. Lin, B.; Li, H.; An, H.; Hao, W.; Wei, J.; Dai, Y.; Ma, C.; Yang, G. Preparation of 2D/2D g-C3N4 nanosheet@ZnIn2S4 nanoleaf heterojunctions with well-designed high-speed charge transfer nanochannels towards high efficiency photocatalytic hydrogen evolution. Appl. Catal. B Environ. 2018, 220, 542–552. [Google Scholar] [CrossRef]
  40. Tanzifi, M.; Jahanshahi, M.; Peyravi, M.; Khalili, S. A morphological decoration of g-C3N4/ZrO2 heterojunctions as a visible light activated photocatalyst for degradation of various organic pollutants. J. Environ. Chem. Eng. 2022, 10, 108600. [Google Scholar] [CrossRef]
  41. Jiang, D.; Wang, T.; Xu, Q.; Li, D.; Meng, S.; Chen, M. Perovskite oxide ultrathin nanosheets/g-C3N4 2D–2D heterojunction photocatalysts with significantly enhanced photocatalytic activity towards the photodegradation of tetracycline. Appl. Catal. B Environ. 2017, 201, 617–628. [Google Scholar] [CrossRef]
  42. Zeng, Z.; Li, K.; Yan, L.; Dai, Y.; Guo, H.; Huo, M.; Guo, Y. Fabrication of carbon nitride nanotubes by a simple water-induced morphological transformation process and their efficient visible-light photocatalytic activity. RSC Adv. 2014, 4, 59513–59518. [Google Scholar] [CrossRef]
  43. Rostami, P.; Mehraban, M.F.; Sharifi, M.; Dejam, M.; Ayatollahi, S. Effect of water salinity on oil/brine interfacial behaviour during low salinity waterflooding: A mechanistic study. Petroleum 2019, 5, 367–374. [Google Scholar] [CrossRef]
  44. Bhattacharjee, S. DLS and zeta potential–what they are and what they are not? J. Control. Release 2016, 235, 337–351. [Google Scholar] [CrossRef] [PubMed]
  45. Lashkarbolooki, M.; Ayatollahi, S. Investigating injection of low salinity brine in carbonate rock with the assist of works of cohesion and adhesion and spreading coefficient calculations. J. Pet. Sci. Eng. 2018, 161, 381–389. [Google Scholar] [CrossRef]
  46. Ahmadi, Y.; Javadi, F.; Kikhavandi, T. Effect of different salinity on low permeability carbonate reservoir recovery using a new green polymeric nanocomposites. Energy Sour. Part A Recov. Util. Environ. Effects 2023, 45, 1091–1103. [Google Scholar] [CrossRef]
  47. Han, S.; Lee, Y. Optimizing nanoparticle selection for enhanced oil recovery in carbonate rock using hybrid low salinity water flooding. J. Pet. Explor. Prod. Technol. 2025, 15, 19. [Google Scholar] [CrossRef]
  48. Zhao, M.; Lv, W.; Li, Y.; Dai, C.; Wang, X.; Zhou, H.; Wu, Y. Study on the synergy between silica nanoparticles and surfactants for enhanced oil recovery during spontaneous imbibition. J. Mol. Liq. 2018, 261, 373–378. [Google Scholar] [CrossRef]
  49. Xu, D.; Bai, B.; Wu, H.; Hou, J.; Meng, Z.; Sun, R.; Kang, W. Mechanisms of imbibition enhanced oil recovery in low permeability reservoirs: Effect of IFT reduction and wettability alteration. Fuel 2019, 244, 110–119. [Google Scholar] [CrossRef]
  50. Tajmiri, M.; Ehsani, M.R.; Mousavi, S.M.; Roayaei, E.; Emadi, A. The effect of ZnO nanoparticles on improved oil recovery in spontaneous imbibition mechanism of heavy oil production. AIP Conf. Proc. 2015, 1669, 020024. [Google Scholar]
  51. Keykhosravi, A.; Simjoo, M. Enhancement of capillary imbibition by Gamma-Alumina nanoparticles in carbonate rocks: Underlying mechanisms and scaling analysis. J. Pet. Sci. Eng. 2020, 187, 106802. [Google Scholar] [CrossRef]
Polymers 17 00649 g001

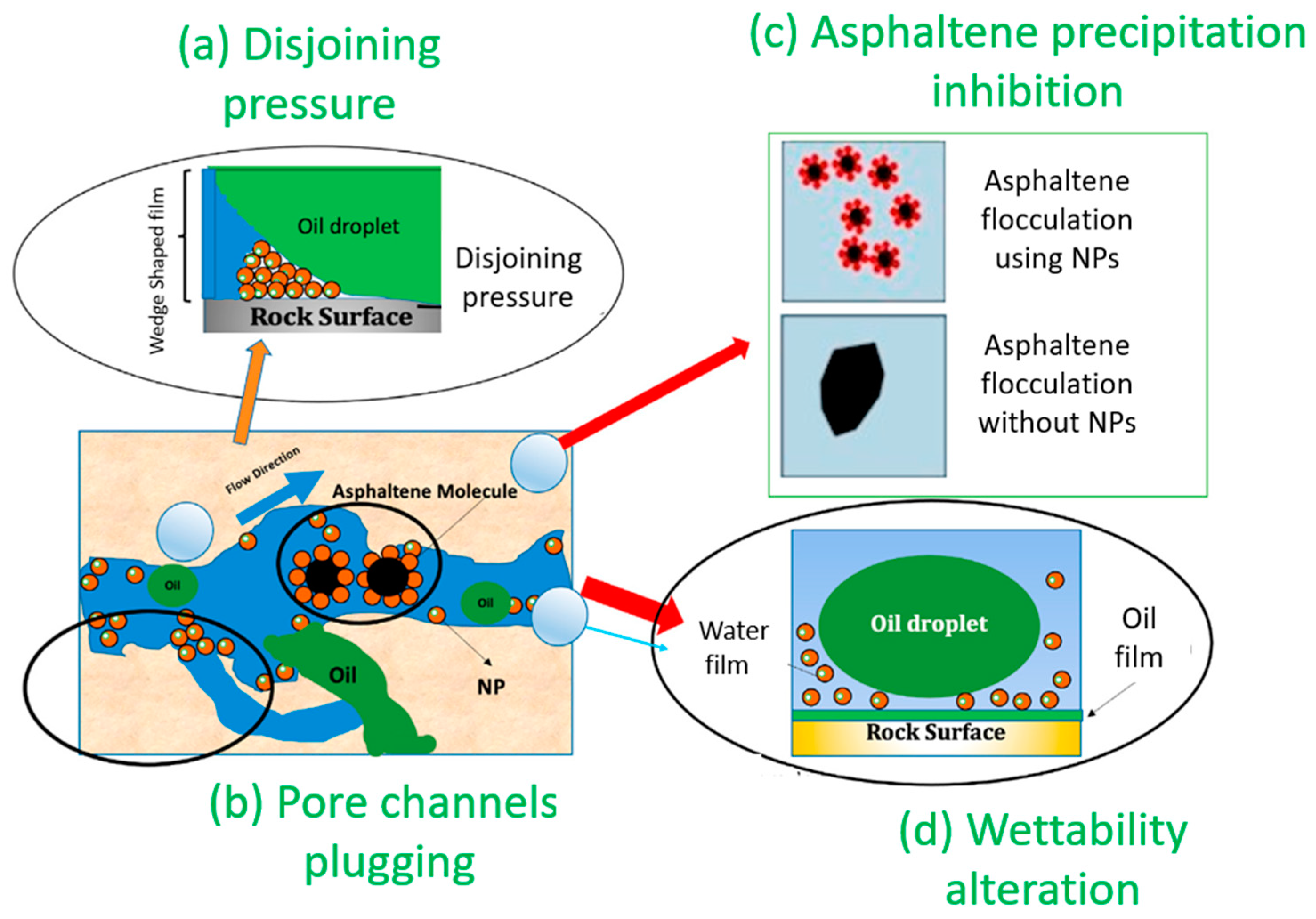

Figure 1. EOR mechanisms using nanoparticles including (a) disjoining pressure, (b) pore channels plugging, (c) asphaltene precipitation inhibition, and (d) wettability alteration [21].
Figure 1. EOR mechanisms using nanoparticles including (a) disjoining pressure, (b) pore channels plugging, (c) asphaltene precipitation inhibition, and (d) wettability alteration [21].
Polymers 17 00649 g001
Polymers 17 00649 g002

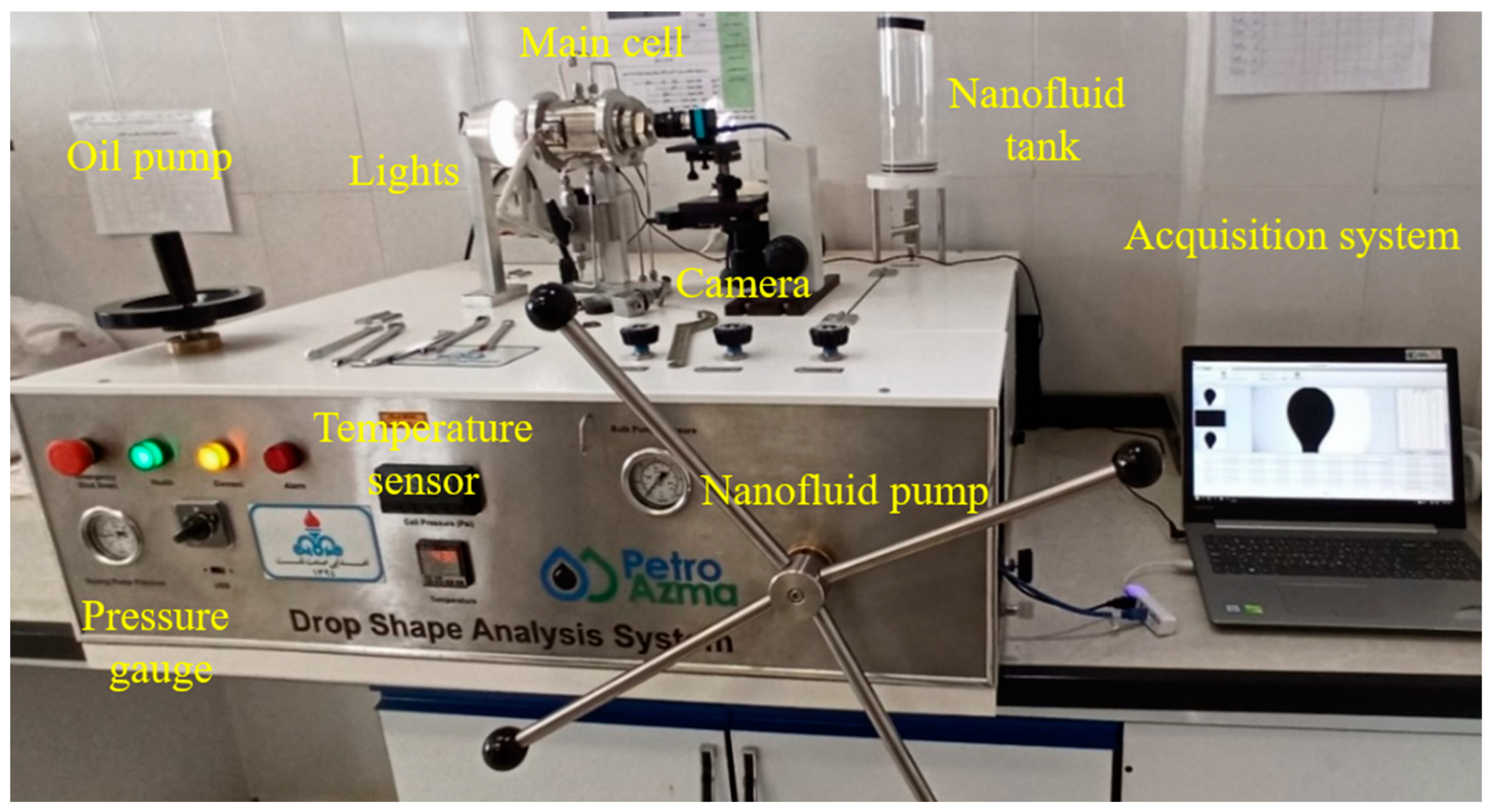

Figure 2. The interfacial tension/contact angle setup using the polymeric nanocomposites. This setup contains the main items, including the main cell, oil and nanofluid pump, temperature and pressure gauges, nanofluid tank, lights, and acquisition and camera system.
Figure 2. The interfacial tension/contact angle setup using the polymeric nanocomposites. This setup contains the main items, including the main cell, oil and nanofluid pump, temperature and pressure gauges, nanofluid tank, lights, and acquisition and camera system.
Polymers 17 00649 g002
Polymers 17 00649 g003

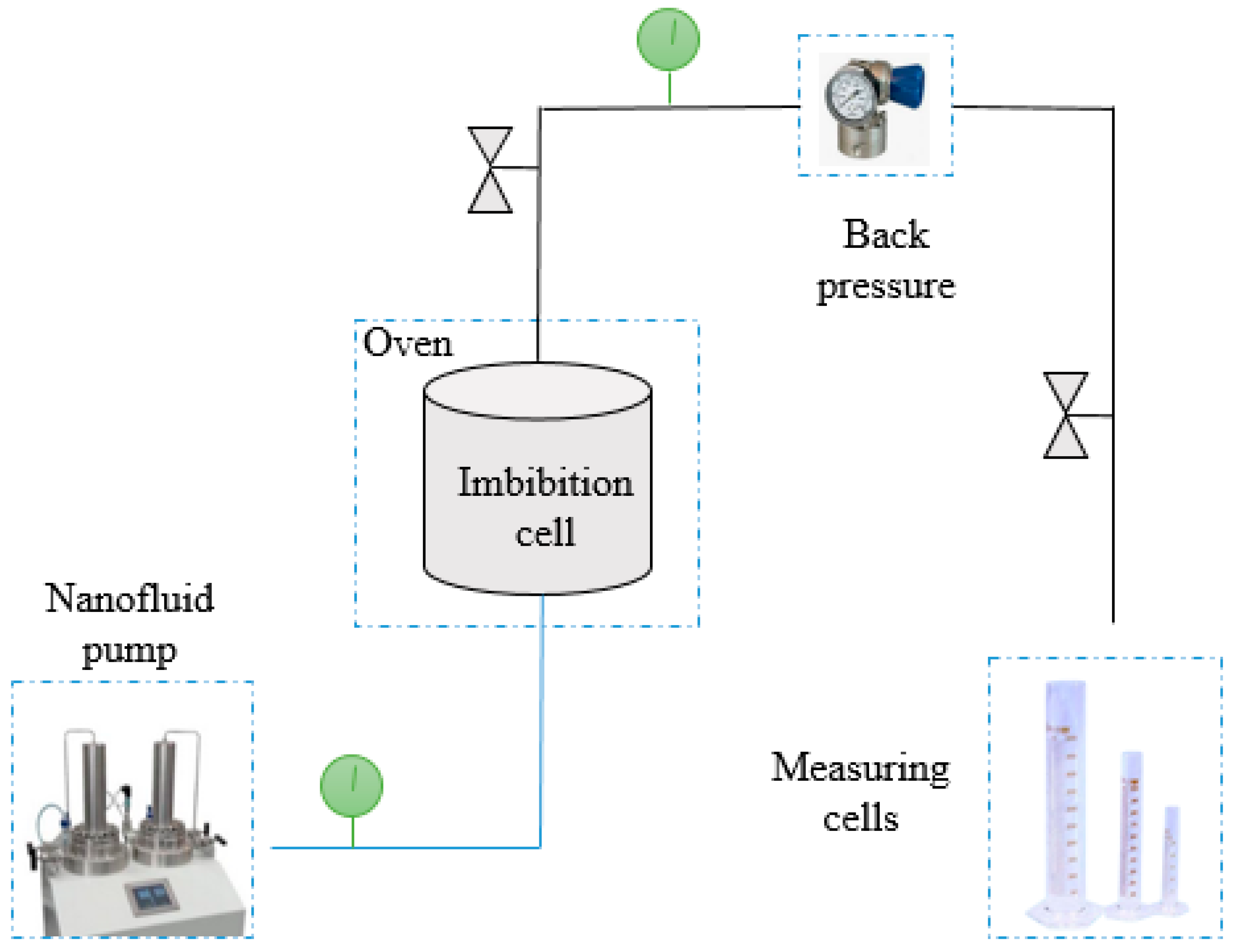

Figure 3. Imbibition apparatus using nanocomposites. Apparatus contains imbibition cell, oven, nanofluid pump, back pressure, and measuring cells.
Figure 3. Imbibition apparatus using nanocomposites. Apparatus contains imbibition cell, oven, nanofluid pump, back pressure, and measuring cells.
Polymers 17 00649 g003
Polymers 17 00649 g004

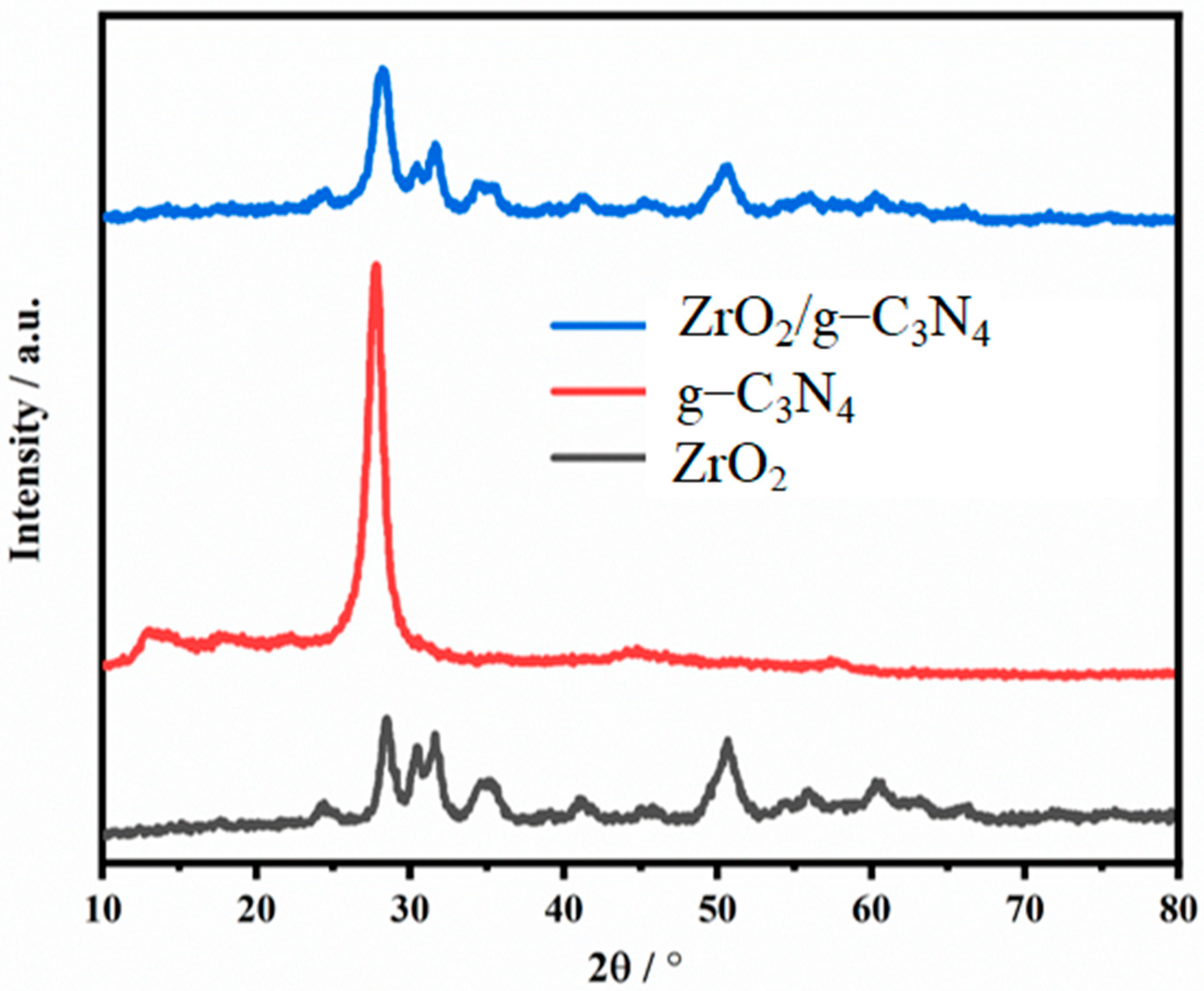

Figure 4. XRD patterns of polymeric ZrO2/g-C3N4 nanocomposite, pure g-C3N4 nanosheet, and pure ZrO2 nanoparticles.
Figure 4. XRD patterns of polymeric ZrO2/g-C3N4 nanocomposite, pure g-C3N4 nanosheet, and pure ZrO2 nanoparticles.
Polymers 17 00649 g004
Polymers 17 00649 g005

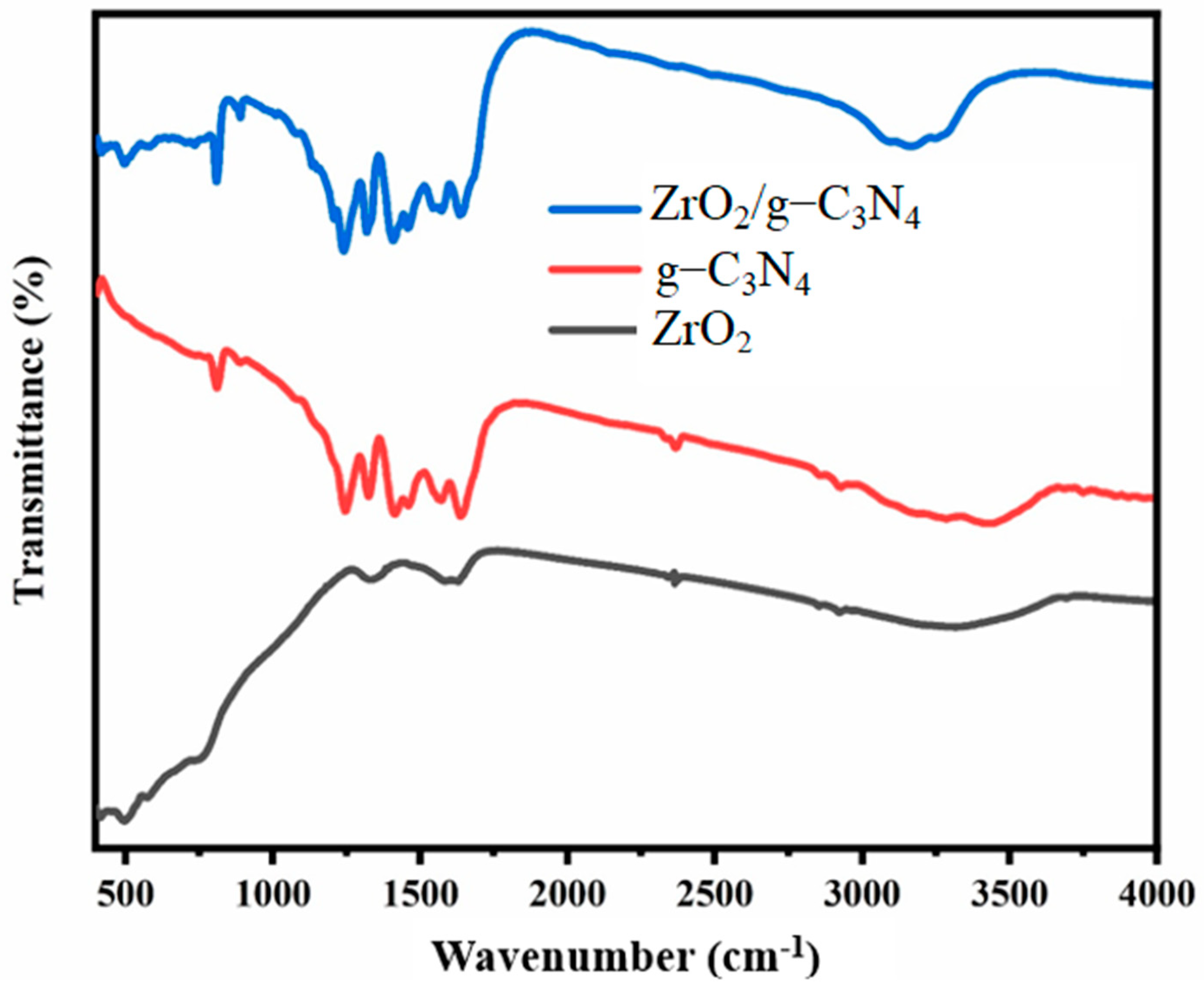

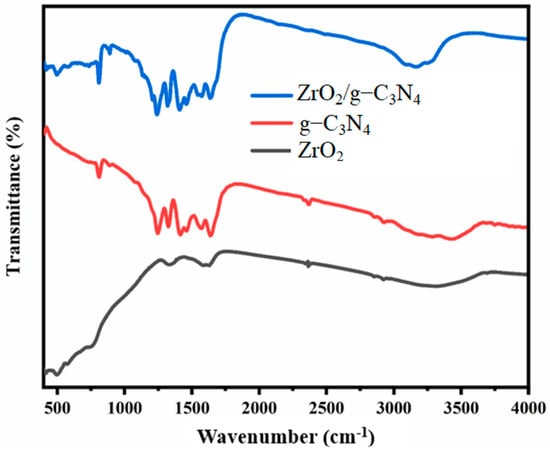

Figure 5. FTIR spectra of pure ZrO2 nanoparticles, pure g-C3N4 nanosheets, and ZrO2/g-C3N4 nanocomposite.
Figure 5. FTIR spectra of pure ZrO2 nanoparticles, pure g-C3N4 nanosheets, and ZrO2/g-C3N4 nanocomposite.
Polymers 17 00649 g005
Polymers 17 00649 g006
Figure 6. TEM images of (a) pure ZrO2 nanoparticles, (b) pure g-C3N4 nanosheet, and (c) ZrO2/g-C3N4 nanocomposite.
Figure 6. TEM images of (a) pure ZrO2 nanoparticles, (b) pure g-C3N4 nanosheet, and (c) ZrO2/g-C3N4 nanocomposite.
Polymers 17 00649 g006
Polymers 17 00649 g007
Figure 7. FESEM images of polymeric ZrO2/g-C3N4 nanocomposite with various magnifications.
Figure 7. FESEM images of polymeric ZrO2/g-C3N4 nanocomposite with various magnifications.
Polymers 17 00649 g007
Polymers 17 00649 g008

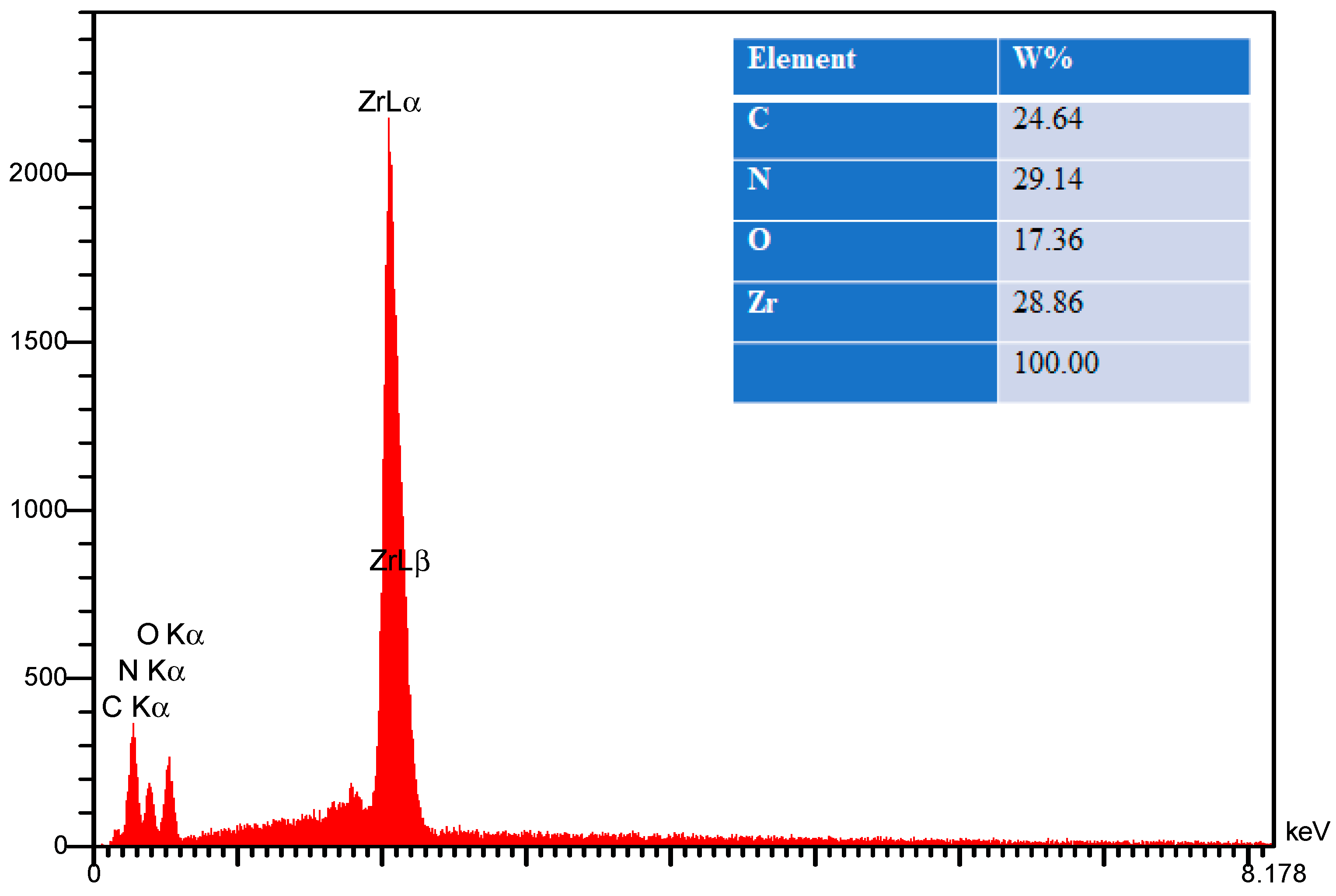

Figure 8. EDX image of polymeric ZrO2/g-C3N4 nanocomposite.
Figure 8. EDX image of polymeric ZrO2/g-C3N4 nanocomposite.
Polymers 17 00649 g008
Polymers 17 00649 g009

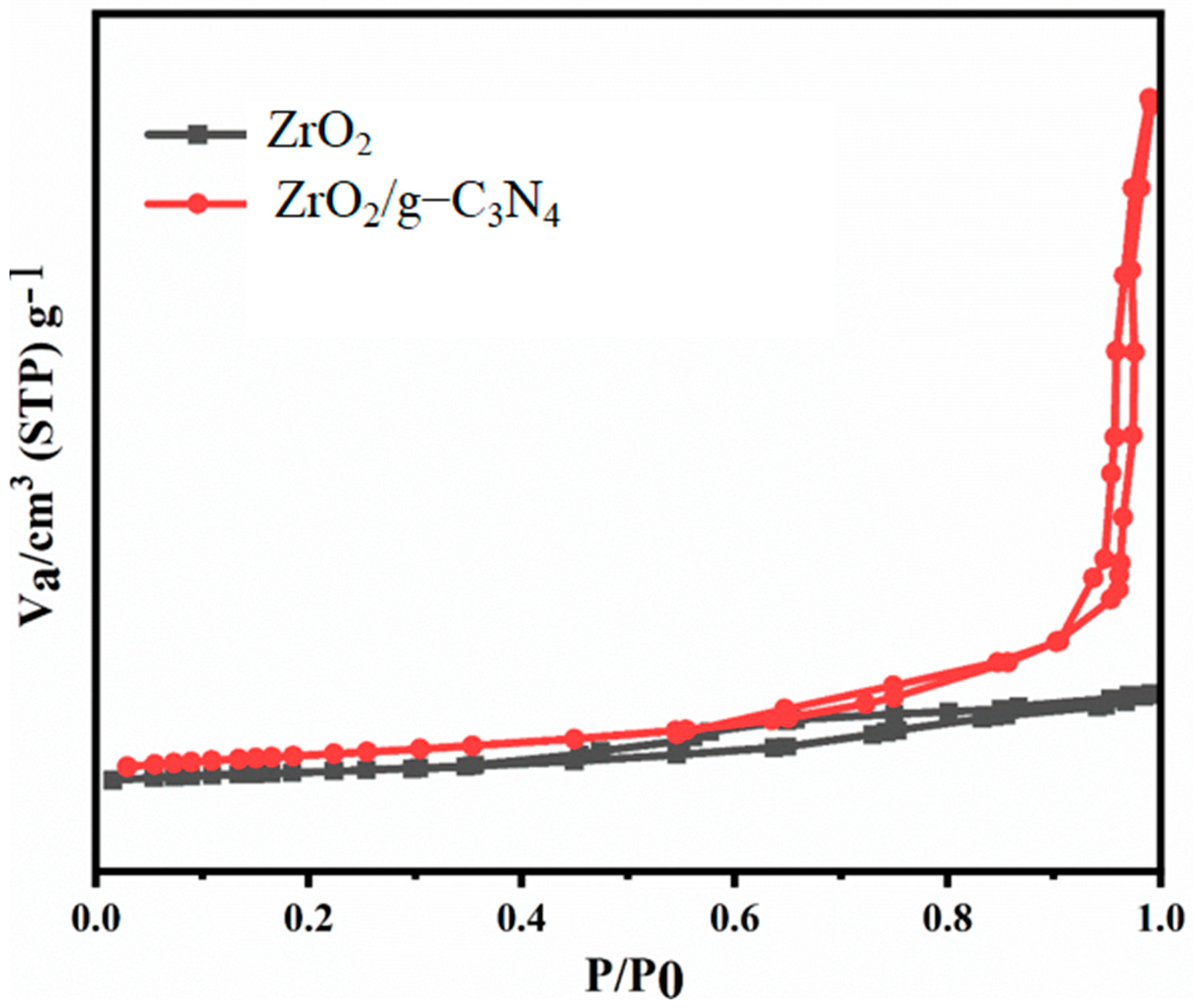

Figure 9. N2 adsorption–desorption isotherms of pure ZrO2 nanoparticles and polymeric ZrO2/g-C3N4 nanocomposite.
Figure 9. N2 adsorption–desorption isotherms of pure ZrO2 nanoparticles and polymeric ZrO2/g-C3N4 nanocomposite.
Polymers 17 00649 g009
Polymers 17 00649 g010

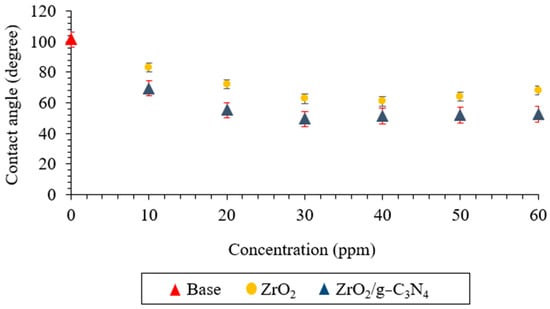

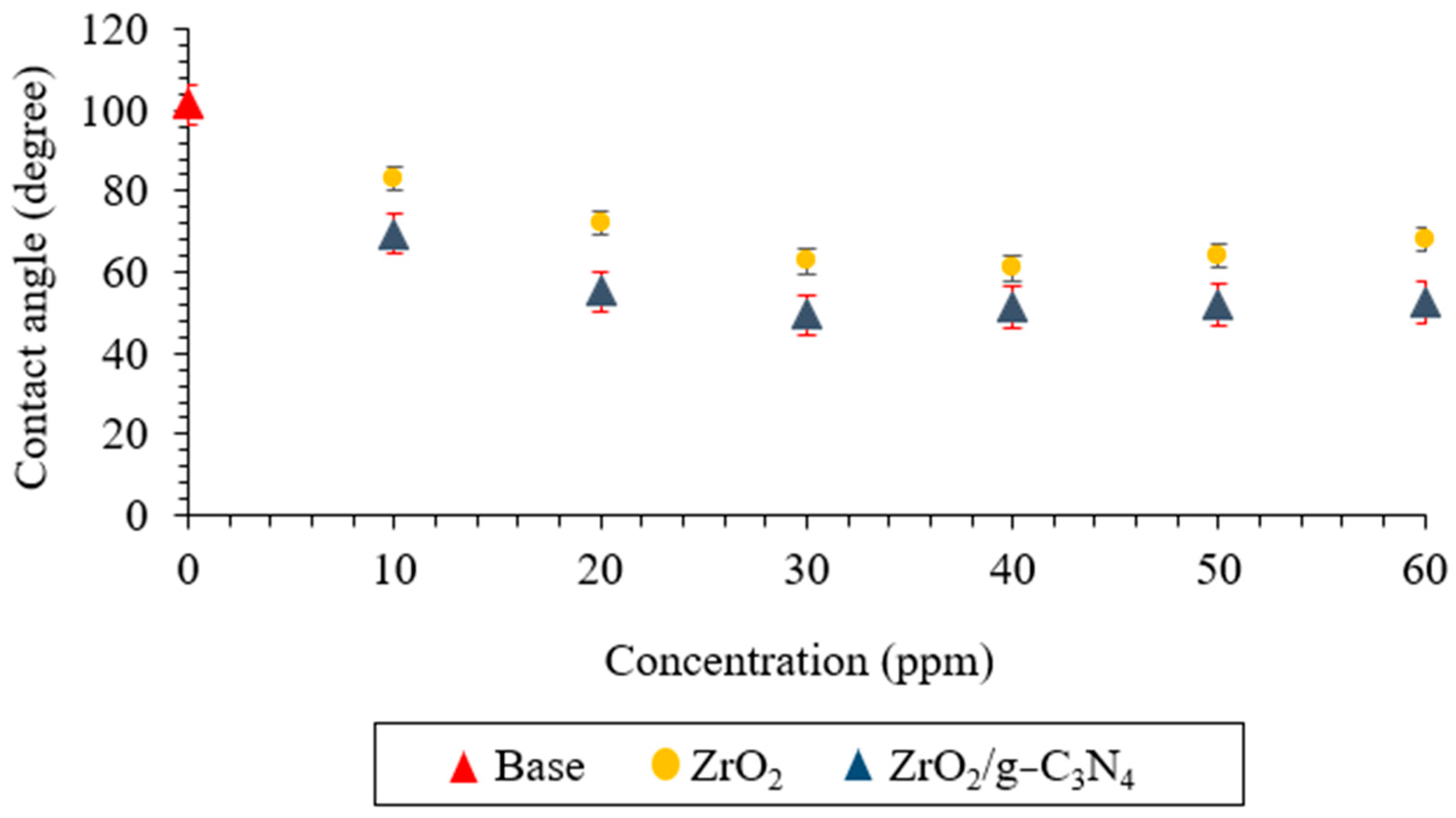

Figure 10. Contact angles using ZrO2 and polymeric ZrO2/g-C3N4 nanomaterials for obtaining optimum concentration.
Figure 10. Contact angles using ZrO2 and polymeric ZrO2/g-C3N4 nanomaterials for obtaining optimum concentration.
Polymers 17 00649 g010
Polymers 17 00649 g011

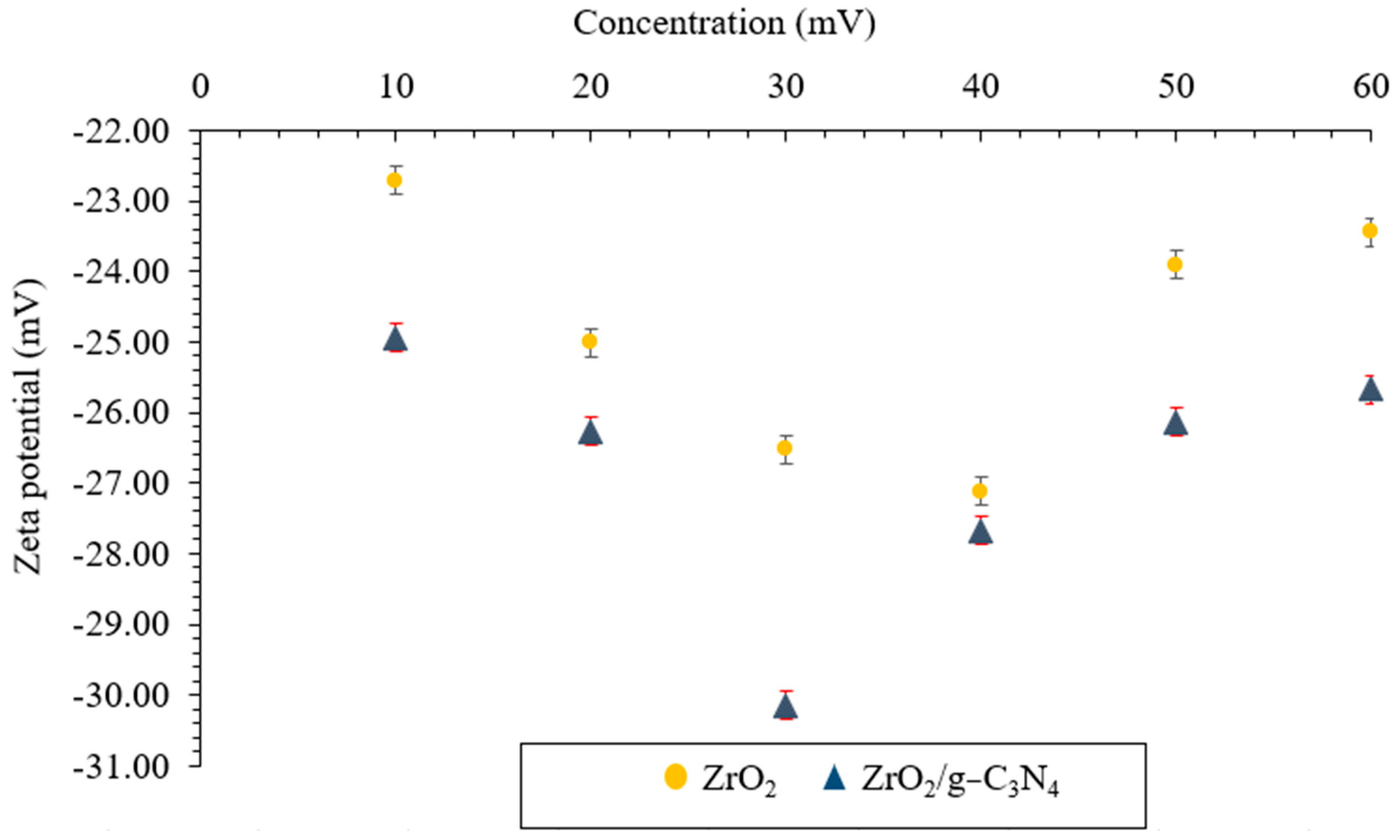

Figure 11. Zeta potentials using ZrO2 and polymeric ZrO2/g-C3N4 nanomaterials.
Figure 11. Zeta potentials using ZrO2 and polymeric ZrO2/g-C3N4 nanomaterials.
Polymers 17 00649 g011
Polymers 17 00649 g012

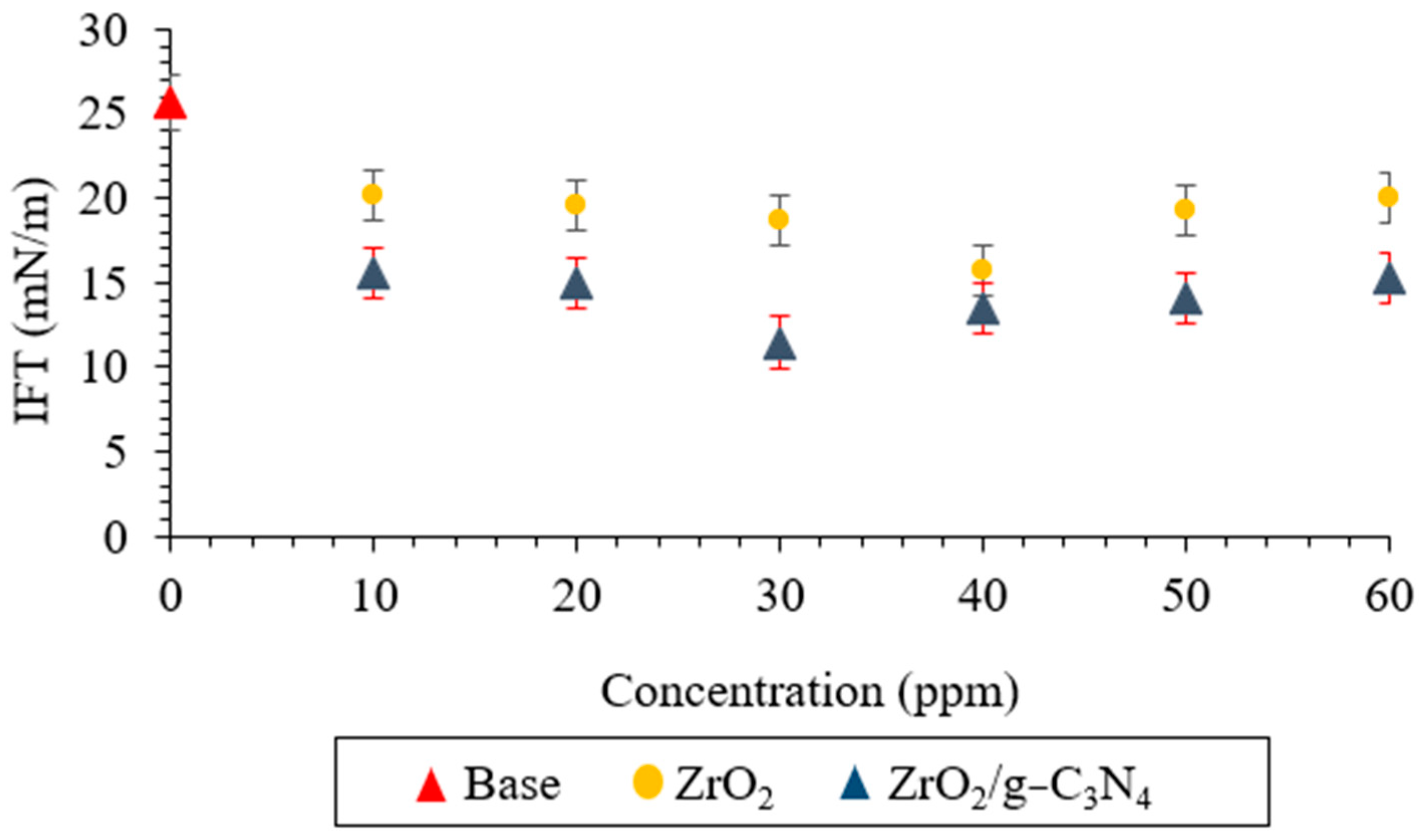

Figure 12. Interfacial tension measurements using ZrO2 and polymeric ZrO2/g-C3N4 nanomaterials.
Figure 12. Interfacial tension measurements using ZrO2 and polymeric ZrO2/g-C3N4 nanomaterials.
Polymers 17 00649 g012
Polymers 17 00649 g013

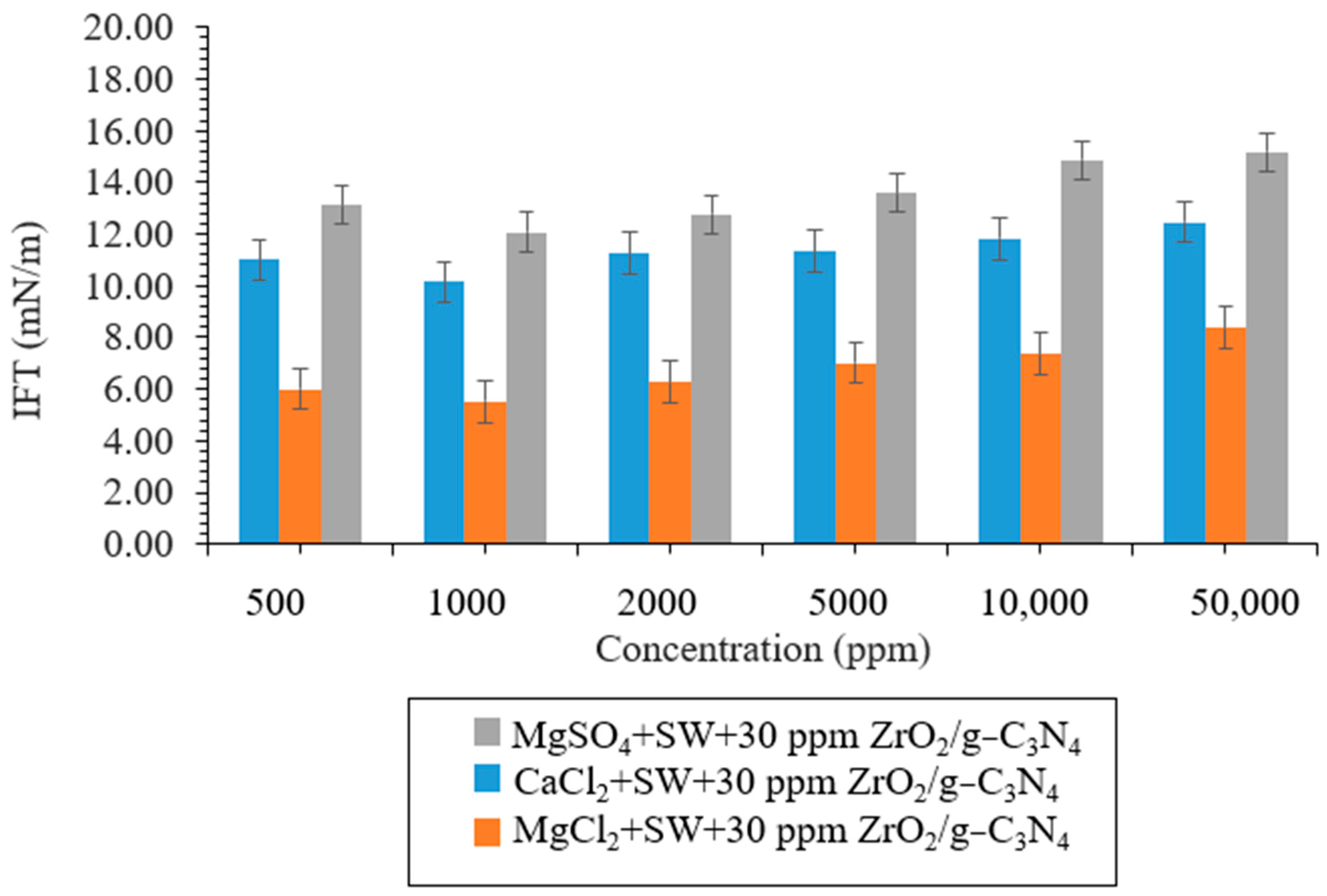

Figure 13. An evaluation of the IFT in the presence of 40 ppm polymeric nanocomposites and different brine concentrations.
Figure 13. An evaluation of the IFT in the presence of 40 ppm polymeric nanocomposites and different brine concentrations.
Polymers 17 00649 g013
Polymers 17 00649 g014

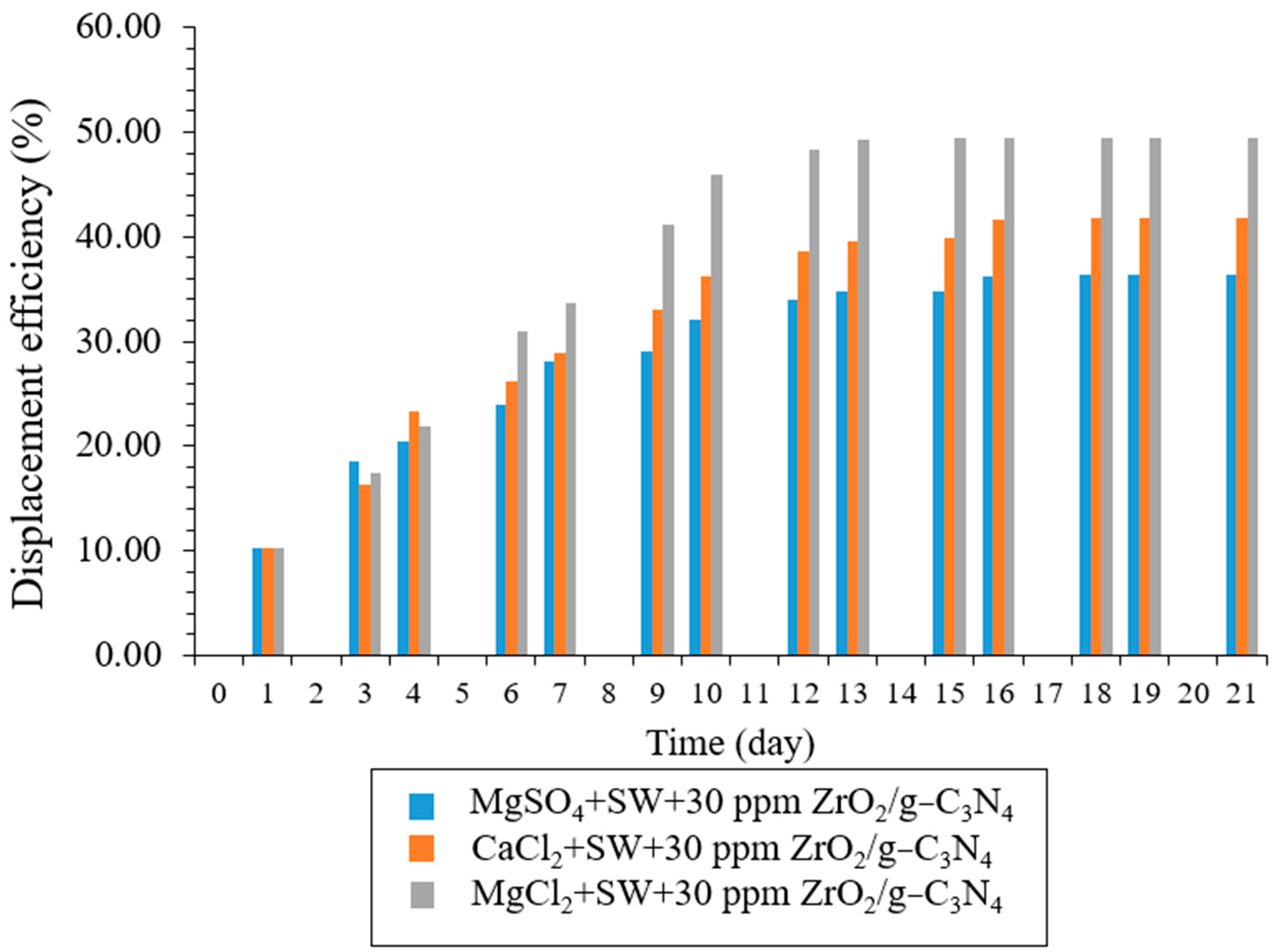

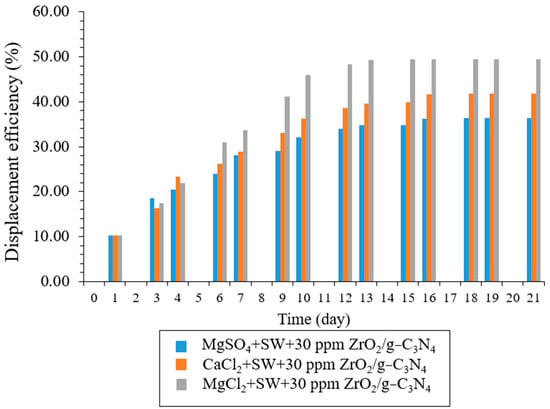

Figure 14. The recovery factor using 30 ppm polymeric nanocomposites and different brine concentrations.
Figure 14. The recovery factor using 30 ppm polymeric nanocomposites and different brine concentrations.
Polymers 17 00649 g014
Table 1. ZrO2 and polymeric ZrO2/g-C3N4 nanocomposite surface area, total pore volume, and pore diameter.
Table 1. ZrO2 and polymeric ZrO2/g-C3N4 nanocomposite surface area, total pore volume, and pore diameter.
SampleSurface Area (m2/g)Pore Diameter (nm)Total Pore Volume (cm3/g)
ZrO249.277.990.0985
ZrO2/g-C3N4 nanocomposite88.1630.990.6832
Table 2. The zeta potentials and contact angles in the presence of 40 ppm polymeric nanocomposites and 2000 ppm of different brine concentrations.
Table 2. The zeta potentials and contact angles in the presence of 40 ppm polymeric nanocomposites and 2000 ppm of different brine concentrations.
Salt TypeSalt Concentration
(ppm)		ZrO2/g-C3N4 Concentration
(ppm)		ZP (mV)CA
(°)
CaCl2 + SW100030−30.1250.50
MgCl2 + SW100030−31.2538.12
MgSO4 + SW100030−28.8968.33
Table 3. Comparing current study with other research.
Table 3. Comparing current study with other research.
NanoparticlesPermeability (mD)Oil Recovery (%)References
MgCl2 + SW + 30 ppm ZrO2/g-C3N410.7849.39Current study
CaCl2+ SW + 30 ppm ZrO2/g-C3N410.7841.85Current study
MgSO4 + SW + 30 ppm ZrO2/g-C3N410.7836.32Current study
Polymeric ZnO/SiO210.4534.10 [46]
Silica5.0016.00 [47]
Deionized/Alumina35.9943.81[48]
Silica0.2116.00 [49]
Zinc oxide0.3098.89 [50]
Gamma-Alumina46–6811.50 [51]
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Ahmadi, Y.; Tanzifi, M. Using Polymeric Carbon Nitride/ZrO2 Nanocomposite for Low Salinity Water Flooding in Carbonate Porous Media at Real Reservoir Conditions. Polymers 2025, 17, 649. https://doi.org/10.3390/polym17050649

AMA Style

Ahmadi Y, Tanzifi M. Using Polymeric Carbon Nitride/ZrO2 Nanocomposite for Low Salinity Water Flooding in Carbonate Porous Media at Real Reservoir Conditions. Polymers. 2025; 17(5):649. https://doi.org/10.3390/polym17050649

Chicago/Turabian Style

Ahmadi, Yaser, and Marjan Tanzifi. 2025. "Using Polymeric Carbon Nitride/ZrO2 Nanocomposite for Low Salinity Water Flooding in Carbonate Porous Media at Real Reservoir Conditions" Polymers 17, no. 5: 649. https://doi.org/10.3390/polym17050649

APA Style

Ahmadi, Y., & Tanzifi, M. (2025). Using Polymeric Carbon Nitride/ZrO2 Nanocomposite for Low Salinity Water Flooding in Carbonate Porous Media at Real Reservoir Conditions. Polymers, 17(5), 649. https://doi.org/10.3390/polym17050649

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
