Article

Scaling Relationships of the Structural and Rheological Behavior of Tadpole Polymer Chains in Dilute Solution Systems Using Brownian Dynamics Simulations

Department of Chemical Engineering, Kyonggi University, 154-42 Gwanggyosan-ro, Yeongtong-gu, Suwon 16227, Kyonggi-do, Republic of Korea
*
Author to whom correspondence should be addressed.
Polymers 2024, 16(20), 2871; https://doi.org/10.3390/polym16202871
Submission received: 13 September 2024 / Revised: 5 October 2024 / Accepted: 8 October 2024 / Published: 11 October 2024
(This article belongs to the Special Issue Rheological Properties of Polymers and Polymer Composites)

Abstract

:
Tadpole polymers, also known as lasso polymers, feature molecular structures that combine a single ring with a single linear side branch, leading to distinct conformational, dynamical, and rheological characteristics compared to their corresponding counterparts, particularly pure linear and pure ring polymers. To elucidate the mechanisms underlying these distinctive behaviors, comprehensive mesoscopic Brownian dynamics (BD) simulations of dilute solution systems of tadpole polymers were conducted using a bead–rod chain model under both equilibrium and flow conditions. Three types of tadpole polymer chains were prepared by varying the ring-to-linear ratio within the tadpole chain and comparing them with the corresponding linear and ring chains. Depending on this ratio, tadpole polymer chains exhibit entirely different structural properties and rotational dynamics, both in equilibrium and under shear flow. As the linear proportion within the tadpole chain increased, the structural, dynamic, and rheological properties of the tadpole polymer chains became more similar to those of pure linear polymers. Conversely, with an increasing ring proportion, these properties began to resemble those of pure ring polymers. Based on these observed tendencies, a simple general scaling expression is proposed for tadpole polymer properties that integrates scaling expressions for both pure linear and pure ring polymers. Our results indicate that the conformational, dynamic, and rheological properties of tadpole polymers, as predicted by these simple scaling expressions, are in good agreement with the simulated values, a result we consider statistically significant.

1. Introduction

Polymer products, essential to modern life, are manufactured through various continuous flow processes, such as injection and extrusion [1,2,3,4]. In these processes, the molecular structure of the raw polymer material significantly influences the conformational, thermal, dynamic, rheological, and topological properties of the final polymer products. Consequently, it is crucial to have a comprehensive understanding of the structure-property-phenomenon relationship in polymers to effectively manufacture these products [1,2,3,4,5,6,7]. However, the vast array of polymer structures, resulting from the numerous combinations of different monomers, complicates the determination of the appropriate structure-property-phenomenon relationship for polymers.
Over the past few decades, significant advances in polymer chemistry have enabled the precise synthesis of new classes of polymers with a wide variety of molecular structures [6,7]. These new polymers exhibit conformational, thermal, dynamic, and topological properties that are distinctly different from those of conventional polymers. Ring, or cyclic, polymers—created by joining the two ends of a conventional linear polymer—are a prime example of this new class [8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27]. For instance, ring polymers display reduced intrinsic viscosity, faster relaxation times, and fewer entanglements compared to their linear counterparts [25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50,51,52]. Additionally, ring polymers exhibit dynamic behavior that cannot be accurately described by conventional linear polymer models, which are based on free-chain ends [4,6]. Consequently, theoretical, experimental, and numerical research efforts over the past few decades have focused on addressing unresolved questions related to ring polymers. Recent advances in ring synthesis [8,9,10,11,12,13,14,15,23,24,25] and purification techniques [53,54,55,56,57] have further accelerated the development of theories and models for these polymers.
Building on the basic understanding of ring polymers, more intricate molecular architectures, known as multicyclic polymers, are now being synthesized [58,59,60,61,62,63,64,65]. Multicyclic polymers combine multiple rings and linear units, allowing them to simultaneously exhibit properties associated with both pure linear and ring polymers. These polymers inherently possess the closed-loop structure of ring polymers and the free chain ends characteristic of linear polymers. Consequently, multicyclic polymers exhibit a greater degree of physicochemical diversity and unique dynamic behaviors compared to their pure linear and ring counterparts [66,67,68,69,70,71,72,73,74,75,76]. In polymer chemistry, multicyclic polymers are classified into three types—fused, spiro, and bridged—depending on the number of rings, linear side branches, and branch points [58]. Tadpole (or lasso) polymers are representative of fused-type multicyclic polymers, featuring the simplest structures, consisting of a single ring and a single linear side branch. Despite their simplicity, tadpole polymers retain the intrinsic closed-loop structure of ring polymers along with the free-chain ends of linear polymers. At present, the practical commercial application of tadpole polymers is limited and remains an object of academic curiosity because there are still many difficulties in the commercial synthesis and purification of tadpole polymers. Our expectation is that tadpole polymers, which have the dual characteristics of pure linear polymers and pure ring polymers, will facilitate the production of new commercial polymer materials with a wide range of tunable properties. As a result of decades of research efforts in biology, a wide variety of ring-shaped (or tadpole-shaped) biomacromolecules have been found in nature. At present, these biomacromolecules can be used in biomedical applications such as drug delivery, gene transfection, and bioaccumulation of tumor cells, in the fabrication of nanoparticles using biodegradable and biocompatible polymers, and in the production of dopants for commercial materials to prevent contamination [25]. Therefore, the fundamental understanding of tadpole polymers can be very useful in the interpretation of the intrinsic properties of tadpole-shaped biomacromolecules and the use of tadpole polymers in a variety of applications. For instance, lasso peptides, which function as antibiotics, resemble tadpole polymers [77,78,79,80,81]. Therefore, research on tadpole polymers is anticipated to play a crucial role in understanding the operating mechanisms of bioprotein molecules such as lasso peptides. Biomacromolecules with structures similar to tadpole polymers are abundant in nature, but not enough experimental work has been done on the intrinsic properties and behavior of tadpole-shaped polymers. Additionally, although polymer models describe the behavior of linear and ring polymers, few accurate models are available to explain the behavior of tadpole polymers.
Previous studies of tadpole-shaped polymer chains have been focused on the synthesis, purification, and characterization of tadpole-shaped polymer chains. Moreover, the nonlinear flow behavior of tadpole-shaped polymer chains can be very challenging to observe in experiments because of the instability of the flow at high flow rates due to edge fracture, wall slip, and so on. To the best of our knowledge, there is insufficient research to elucidate the nonlinear viscoelastic response of tadpole polymer chains under flow conditions. Here, we investigate the structural, dynamic, and rheological properties, and chain tumbling of the tadpole polymers from the linear viscoelastic regime to the nonlinear viscoelastic regime, which is difficult to achieve in conventional rheology experiments, and collect detailed information of tadpole polymer chains from the molecular level to the macroscopic level.
To investigate the conformational, dynamic, and rheological properties of tadpole polymers and support the development of polymer models for these polymers, comprehensive mesoscopic Brownian dynamics (BD) simulations were conducted on dilute solution systems of tadpole polymers using a bead–rod chain model under both equilibrium and flow conditions. In this study, three types of tadpole polymers were prepared by varying the ratio of ring-to-linear units within the chain to analyze the dual characteristics of tadpole polymers in comparison to pure linear and ring polymers. Notably, complex topological constraints that are currently under debate—such as intermolecular ring–ring or ring-linear threading and concatenation between rings—were deliberately excluded from this study to focus on the intrinsic static and dynamic behavior of the tadpole polymer itself.
This study revealed the impact of the ring-to-linear ratio within the tadpole chain on the conformational, dynamic, and rheological behaviors of tadpole polymer chains under flow conditions. Based on these findings, we determined a general scaling expression for each property of the tadpole polymer chain by combining the scaling expressions for the corresponding properties of pure linear and ring chains. The properties of tadpole polymers predicted by these simple scaling expressions were in excellent agreement with the simulated values.

2. Materials and Methods

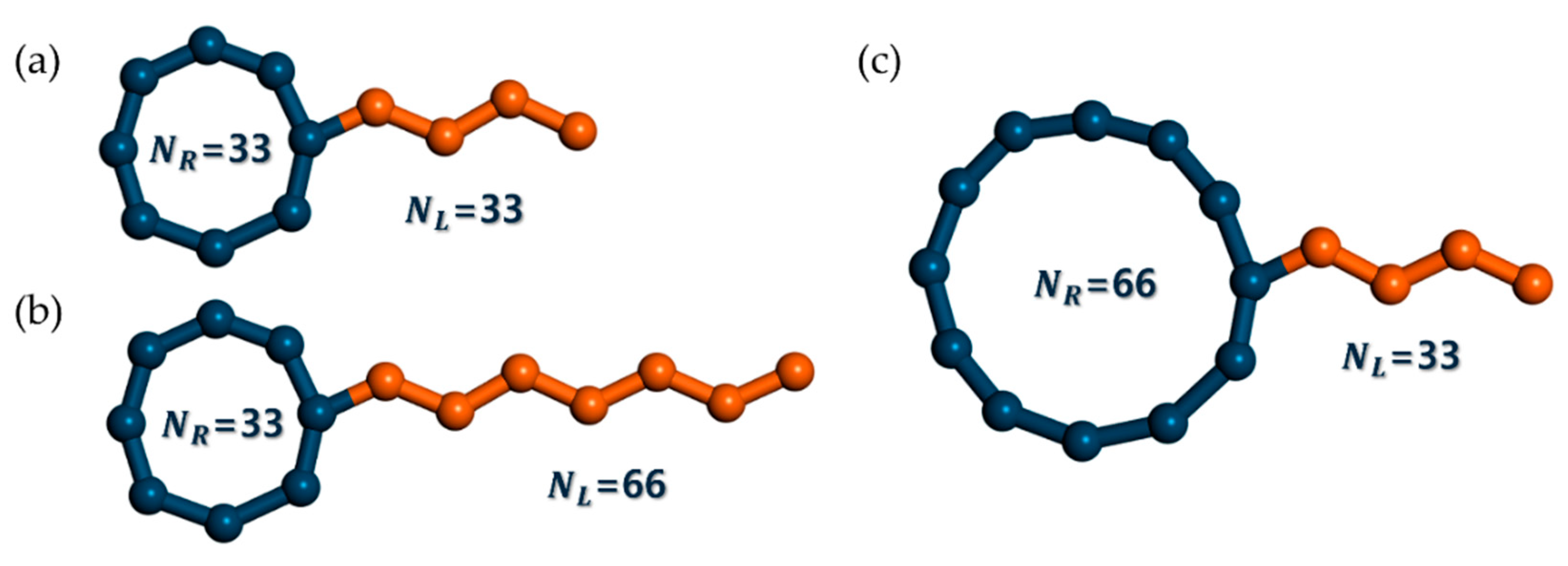

This study investigates the conformational, dynamic, and rheological behaviors of tadpole polymers through extensive mesoscopic Brownian dynamics (BD) simulations for dilute solution systems under both equilibrium and shear flow conditions. In these simulations, the tadpole chains in the dilute solution were modeled as isolated bead–rod chains with an implicit solvent effect. This means that the BD simulation here performs a single chain dynamics simulation. Hundreds of individual isolated test chains are simulated independently in parallel during a BD simulation. The influence of intermolecular and intramolecular interactions on the test chain is indirectly taken into account by means of hydrodynamic interaction (HI) and excluded volume (EV). Therefore, topological constraints are not conceptually possible in the BD simulation of the tadpole chain in the dilute solution system. However, we have observed the intramolecular ring-linear penetration, i.e., the linear side branch of the tadpole chain penetrating the ring part of the tadpole chain. This was a very rare event and did not persist for long periods of time. Consequently, complex topological constraints, such as intermolecular ring–ring threading, intermolecular ring-linear threading, and concatenated structures between rings, were deliberately excluded. By removing all external factors except the molecular structure, we focused on the inherent static and dynamic behaviors of tadpole polymers with the same molecular weight but different molecular architectures. As illustrated in Figure 1, we designed three types of tadpole polymers with identical molecular weights by varying the ratio of ring-to-linear units within the chain: (i) the T_R33L33 chain, with 33 beads in the ring and 33 beads in the linear side branch; (ii) the T_R66L33 chain, with 66 beads in the ring and 33 beads in the linear side branch; and (iii) the T_R33L66 chain, with 33 beads in the ring and 66 beads in the linear side branch. The ring-to-linear ratios within the chain were 1:1 for the T_R33L33 chain, 2:1 for T_R66L33, and 1:2 for T_R33L66 chains, respectively.
To obtain accurate results and facilitate comparisons with previous studies, the number of beads per chain was fixed at appropriate values (e.g., 66 or 99 beads per tadpole chain). For instance, as a single rod approximately corresponds to six CH2 atoms in a polyethylene (PE) molecule under shear flow, the length of a tadpole polymer chain is roughly equivalent to that of C400H804 or C600H1204 PE chains [81]. Then, we carefully selected the ratio of ring-to-linear segments within the chain by studying the molecular architectures of existing synthetic polymers and natural biomacromolecules. For example, a series of tadpole-shaped polystyrene chains with 1:1, 1:2, and 2:1 ratios of ring-to-linear units within the tadpole chain were employed to investigate the linear melt rheology of synthetic tadpole-shaped polymer chains [74]. In addition, previous studies of biomacromolecules have shown that peptides such as Microcin J25, MS-271 (siamycin I), and astexin-1, RES-701-1, and RP 71955 (siamycin II) have a lasso structure with a 1:1 ratio of ring-to-linear units within the chain [79,80,81,82]. Hundreds of identical tadpole chains, each consisting of 66 or 99 beads, were used in each BD simulation to ensure the accuracy of the results. Additionally, BD simulations were performed on dilute solution systems of pure linear and ring polymers, which were closely compared with the results for tadpole polymers. Pure linear and ring polymers are designated by the polymer type and number of beads in the chain (e.g., L33, L66, L99, R33, R66, and R99). Detailed simulation conditions for each system are shown in Table 1. Each simulation has run over several times longer than the longest relaxation time of the system.
BD simulations for dilute solution systems of tadpole polymers were conducted, incorporating hydrodynamic interaction (HI) and excluded volume (EV) effects to accurately reflect intra- and inter-molecular interactions. In the bead–rod BD simulation, the stochastic differential equation (SDE) for the evolution of the bead position, derived by Öttinger [83], is as follows:
d r i = j P i j v 0 + κ r j + l D j l F l + F l ( e ) + F l ( m ) d t + 2 k B T l B j l d W l k B T v = 1 d k j l P i j D k l : 2 g v r l r j R i g v d t k B T v = 1 d k j l P i k D k l 2 g v r l r j R i g v d t + k B T k j l P k j T : r k D j l P i l T d t
where ri indicates the position vector of bead i, and P i j denotes the dynamic projection tensor. The velocity gradient κ describes the streaming velocity field of v 0 + κ r i , D i j and B i j present to the mobility tensor and the decomposed tensor of the mobility tensor, respectively, which are related to D i j = k B i k B j k T . k B is the Boltzmann constant and T is the temperature. F i , F i ( e ) , and F i ( m ) indicate the internal interaction, external forces, and metric forces on bead i, respectively. The Wiener process W i t represents a time-dependent random variable of i-th bead and follows a Gaussian distribution with W i t = 0 and W i t W i t = δ i j min ( t , t ) δ , where δ is the unit tensor, and gv is the constraint. R i indicates the position vector with respect to the center of mass R i = r i r c , where r c is the center of mass position vector. A detailed derivation of converting the diffusion equation with generalized coordinates into an SDE can be found elsewhere [47]. In the mesoscopic bead–rod BD simulation, Equation (1) is numerically integrated using the iterative method proposed by Liu et al. [84]. The HI interaction is defined by the Rotne–Prager–Yamakawa (RPY) tensor [85,86], expressed as follows:
D i j = I i = j 3 σ 4 | r i j | 1 + 2 σ 2 3 r i j 2 I + 1 2 σ 2 r i j 2 r i j r i j T r i j 2 i j , | r i j |   σ 1 9 | r i j | 32 σ I + 3 32 σ | r i j | r i j r i j T i j , | r i j |   < σ
where I is the second-rank unit tensor. The EV interaction is described by the Weeks-Chandler-Andersen (WCA) model [87] as follows:
U L J ( r i j ) = 4 σ r i j 12 σ r i j 6 r i j 2 1 / 6 σ   1 r i j > 2 1 / 6 σ
where r i j = r i j = r i r j denotes the distance between the beads and σ = 0.8 indicates the bead size parameter. In BD simulation, length, forces, and time are nondimensionalized using the inter-bead separation length ( a ) , the thermal scale k B T / a , and the time scale ξ a 2 / k B T , respectively, where ξ is the friction coefficient of the bead. Therefore, all the properties in this study were calculated in dimensionless (or reduced) units. The Weissenberg number (Wi) is defined as the product of the shear rate, γ ˙ , and the longest rotational relaxation time, τ R , of the chain, i.e., W i = γ ˙ τ R .

3. Results and Discussion

3.1. Equilibrium

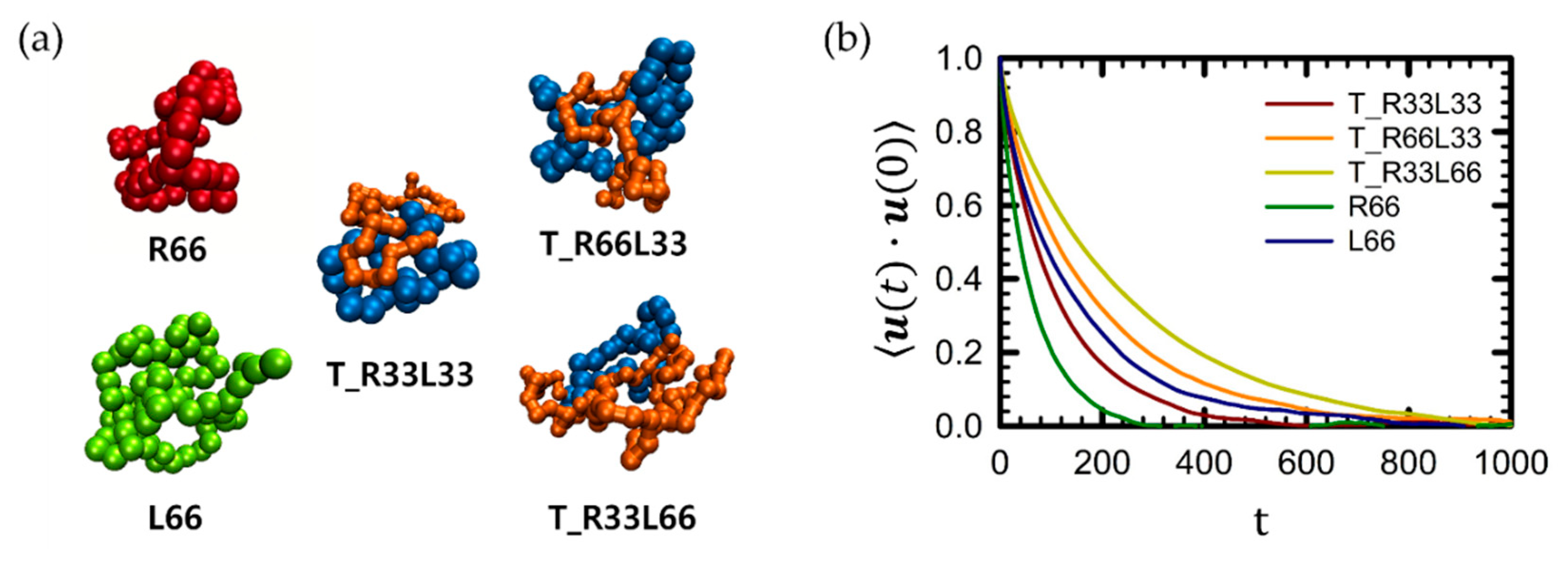

Figure 2a shows randomly selected single chain conformations of each polymer in dilute solution at equilibrium. As illustrated in the figure, each polymer chain maintains a random coil conformation at equilibrium.
To measure the size of tadpole polymer chains in dilute solutions, we calculated the mean-square radius of gyration, R g 2 , of the tadpole polymer chains at equilibrium and compared it with the corresponding pure linear and ring polymer chains. As expected from both theory and experimental results [3,4,5,6,7], R g 2 of all polymer chains increases with increasing molecular weight of the chain. Generally, this increasing trend in R g 2 is described by a conventional scaling law of R g 2 M W a . From Table 2, the conventional scaling expressions for R g 2 of pure linear and ring polymer chains can be approximated as R g 2 L i n e a r 0.14 × M W 1.27 for pure linear chains and R g 2 R i n g 0.07 × M W 1.27 for pure ring chains. MW denotes the molecular weight or number of beads. The scaling exponents obtained from the mesoscopic BD simulation for the dilute solution systems of pure linear and pure ring chains are consistent with those from polymer theory and experiments, specifically 0.635 from BD simulations and 0.588 from polymer theory and experiments under good solvent conditions [3,4,5,6,7,88,89,90,91,92]. Additionally, the BD simulation results for pure linear and pure ring polymer chains aligned with the theoretical predictions from the ring-Rouse model [32,33,34]. According to the theoretical ring-Rouse model [32,33,34], the mean-square radius of gyration of a ring polymer chain is half that of the corresponding linear chain, that is R g 2 Ring = 1 / 2 × R g 2 Linear . As illustrated in Table 2, the BD simulation results for pure linear and pure ring chains satisfied this relationship.
As is well established, ring polymer chains typically exhibit diminished chain dimensions relative to their corresponding linear polymer chains with identical molecular weight [32,47,48]. Therefore, tadpole polymer chains consisting of a single ring and a single linear side branch are expected to have smaller overall chain dimensions compared to corresponding pure linear chains. From Table 2, the R g 2 of tadpole polymer chain falls between the R g 2 of the corresponding pure linear and pure ring chains at the same molecular weight.
For the scaling expression of the tadpole polymer, we employed a new approach instead of deriving it directly from the simulation data. To obtain the scaling expression for the tadpole polymer, we combined the conventional scaling expressions for pure linear and pure ring chains.
R g 2 T a d p o l e k α L i n e a r × M W a L i n e a r + α R i n g × M W b R i n g
where the constant k is estimated to be 1.15 based on the R g 2 of the T_R33L33 chain at equilibrium. Additional variables can be extracted from the above conventional scaling expressions for pure linear chains and pure ring chains at equilibrium. We used Equation (4) to estimate the R g 2 for all tadpole chains and compared it with the simulated values in Table 2. Notably, the estimated R g 2 T a d p o l e for each tadpole polymer system using Equation (4) shows good agreement with the simulated values, as depicted in Table 2.
The longest rotational relaxation time (or Rouse time), τ R , of the tadpole chain was estimated using the time autocorrelation function of the chain unit end-to-end vector with an exponential decay function, that is, u ( t ) u ( 0 ) exp t / τ R [4,5,6]. As expected from both theoretical and experimental results [3,4,5,6,7], τ R of any polymer chain increased with increasing molecular weight (e.g., τ R M W 2 for the melt system and τ R M W 1.5 for dilute solution systems). From Table 3, this increasing trend in the relaxation times of the pure linear and ring polymer chains can be expressed as τ R L i n e a r 0.12 × M W 1.70 for pure linear chains and τ R R i n g 0.04 × M W 1.80 for pure ring chains. Using these equations, we determined the scaling relationship of the relaxation time of the tadpole polymer as follows:
τ R Tadpole k α L i n e a r × M W a L i n e a r + α R i n g × M W b R i n g
where the constant k is 1.61 from the simulation data of the T_R33L33 chain. Other variables are obtained from the above scaling expressions for pure linear chains and pure ring chains at equilibrium. As shown in Table 3, the estimated τ R values for each tadpole polymer system were consistent with the τ R values obtained from the BD simulations. Based on the independent contributions of the linear and ring components in the scaling equation for the tadpole polymer, it can be assumed that these components are not closely related, either structurally or dynamically.

3.2. Shear Flow

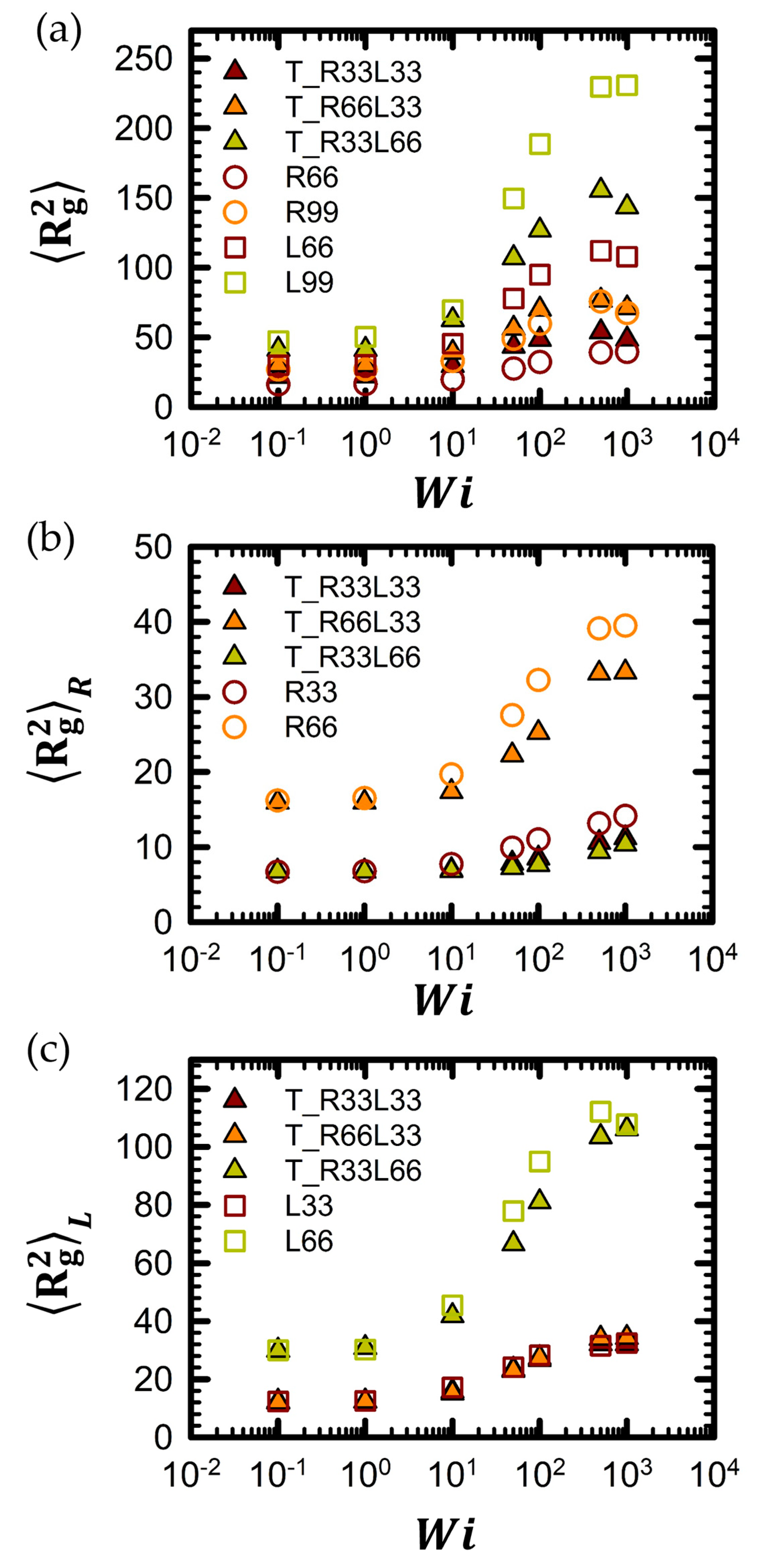

To analyze the structural changes in the tadpole chains, we investigated the mean-square radius of gyration, R g 2 , for all tadpole chains as a function of the flow field strength and compared it with the mean-square radius of gyration, R g 2 , of the pure ring and linear chains, as shown in Figure 3. For further information regarding R g 2 for all tadpole chain systems and their corresponding pure linear and ring chain counterparts, refer to Figure S1 of the Supplementary Material. As depicted in the figure, the overall qualitative behavior of R g 2 exhibits similar trends as a function of Wi. For instance, the curves for all tadpole chain systems remain near equilibrium values in the low Wi regime, and then exhibit a sudden increase in the intermediate Wi regime. In the high Wi regime, the curves reach a plateau before decreasing as Wi increases further. Previous studies [82,91,93,94] have linked this characteristic response of R g 2 to the shear flow field to two main molecular factors: chain stretching and orientation in the low-to-intermediate Wi regime and chain tumbling in the high Wi regime.
Pure ring polymer chains generally exhibit smaller chain dimensions than their linear counterparts with the same molecular weight, both at equilibrium and under flow conditions [32,47,48]. Thus, tadpole polymer chains with a higher proportion of ring units are expected to have smaller overall chain dimensions at the same molecular weight. As shown in Figure 3a, at the same Wi, the overall chain dimensions of the polymer chains decrease in the following order: L99 > T_R33L66 > T_R66L33 > R99. This trend is consistent with our expectations.
For a more detailed examination of the chain dimensions, we separated the R g 2 of the entire chain into two components: R g 2 R for the ring units and R g 2 L of the linear units. These were compared with the corresponding pure linear and ring polymer chains, as shown in Figure 3b,c. Notably, the overall behavior of R g 2 for each component was qualitatively and quantitatively similar to that of the corresponding pure linear and ring polymer chains. This suggests that while the ring and linear parts are connected within the chain, they do not significantly influence each other structurally.
From this perspective, we derived a new scaling expression for R g 2 in tadpole polymers by simply adding the scaling relations of R g 2 for pure linear and cyclic chains.
R g 2 T a d p o l e k M L α L i n e a r × W i a L i n e a r + M R α R i n g × W i b R i n g
where the constant k is found to be 1 based on the simulation data of the T_R33L33 chain. Additional variables can be determined from simulation data pertaining to the pure L33, L66, R33, and R66 chains. Based on the conventional scaling laws for pure linear and ring chains ( R g 2 L i n e a r M W 1.27 and R g 2 R i n g M W 1.27 ), the M L and M R factors were estimated as 2.41 (=L66/L33 = 66 1.27 / 33 1.27 = 2 1.28 ) and 2.41 (=R66/L33 = 66 1.27 / 33 1.27 = 2 1.27 ), respectively. It is noted that the R g 2 values between Wi = 10 and Wi = 500 were used to calculate the scaling exponent of pure linear and pure ring polymer chains. In Table 4, the estimated R g 2 T a d p o l e obtained from Equation (6) was significantly consistent with the simulated R g 2 obtained from BD simulations.

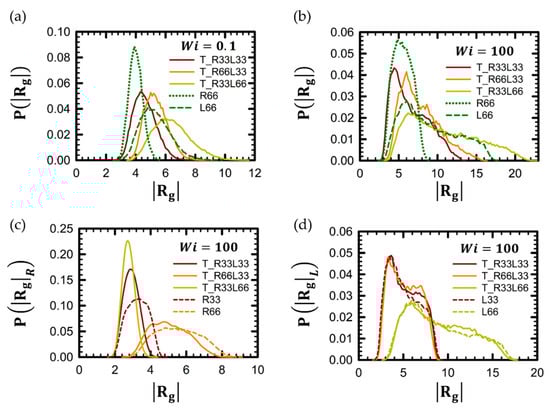

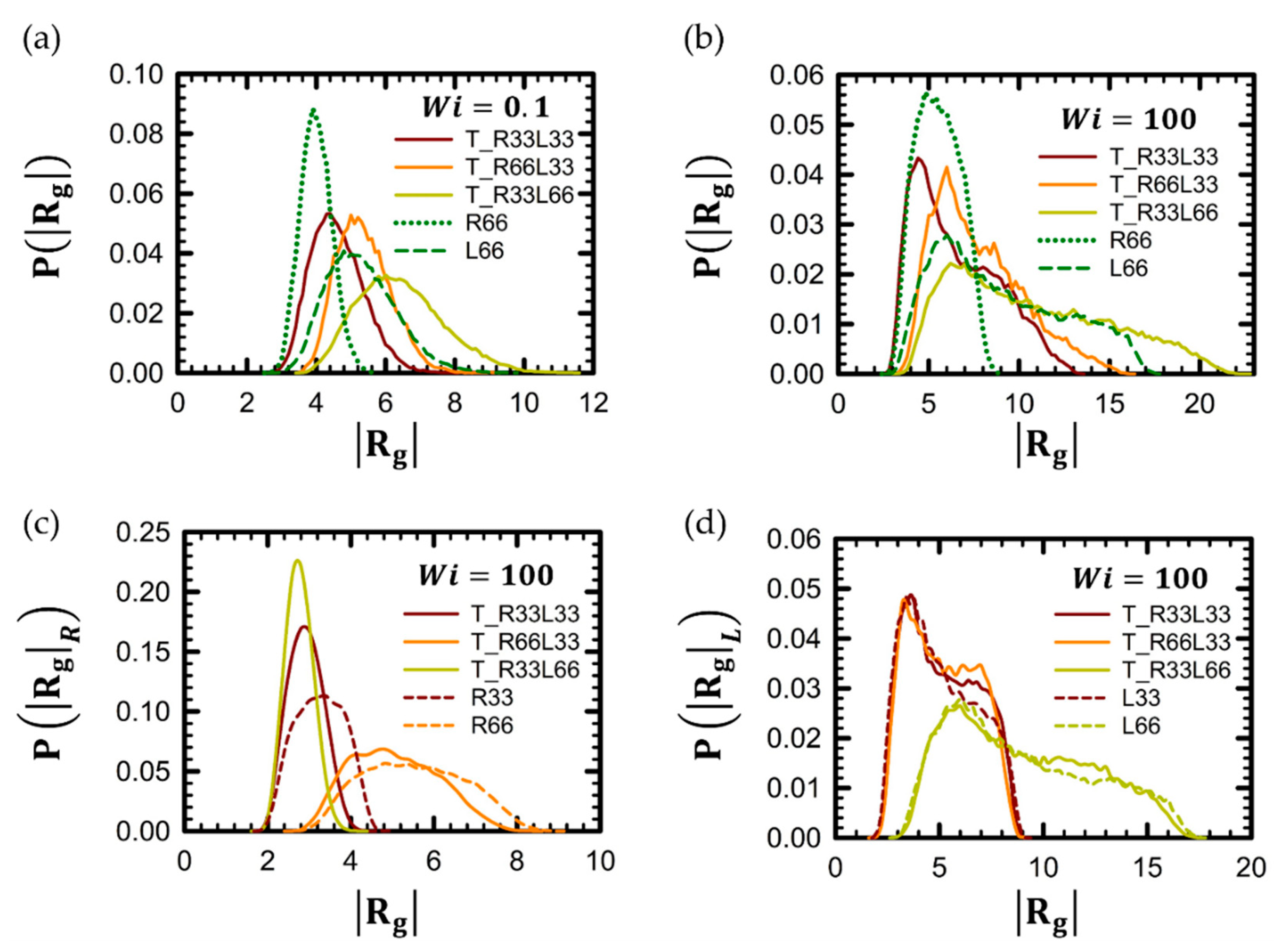

The probability distribution function (PDF) of the radius of gyration, P R g , provides detailed insights into the structural changes in polymer chains. Figure 4 presents the P R g for tadpole polymer chains compared with their linear and ring counterparts at both low and high Wi. In Figure 4a, the overall profile of P R g for tadpole polymer chains maintains a standard Gaussian distribution at low Wi, reflecting the random coil conformation of the tadpole polymer chain at near equilibrium, as shown in snapshots in Figure 2a. In contrast, P R g for tadpole polymer chains exhibits a distinctly non-Gaussian distribution at high Wi. As shown in Figure 4b, the peak of the P R g curve for the tadpole chain features a steep slope toward low values of R g on one side. Instead, the other side of the curve displays a steep drop followed by a gently decreasing slope toward higher values of R g . These non-Gaussian behaviors are further analyzed in Figure 4c,d. From these figures, it is evident that the overall qualitative behavior of P R g for each part of the tadpole chain is very similar to that of P R g for the corresponding pure polymer chain. For example, the overall profile of P R g for a pure R66 chain closely resembles that of the ring unit in a T_R66L33 chain, while the overall profile of P R g for a pure L33 chain is similar to that of the linear unit of the T_R66L33 chain. From these results, we can infer that the overall shape of P R g for the tadpole chain is a straightforward combination of the distributions for pure linear and pure ring chains.
Furthermore, the shape of P R g for the tadpole chain appears to be influenced by its ring-to-linear ratio. For instance, the profile of P R g for a T_R33L66 chain, with a ring-to-linear ratio of 1:2, resembles more closely the profile of P R g for the linear part of the chain rather than the ring part: it features a broad peak with a lower height compared to the pure ring chain and a long, gently decreasing slope toward higher values of R g . In contrast, the profile of P R g for the T_R66L33 chain, with a ring-to-linear ratio of 2:1, is more similar to the profile of P R g for the ring part of the chain: it has a peak height similar to that of the pure ring chain and a shorter, gently decreasing portion.
Notably, the peak of the ring portion in the T_R33L66 chain was higher, narrower, and shifted toward lower R g values compared to the T_R33L33 chain. This suggests that the ring part of the T_R33L66 chain is more compact than that of the T_R33L33 chain, despite both having the same molecular weight in the ring portion. Additionally, the ring part of the tadpole chain appeared more compact than the corresponding pure ring chain (e.g., T_R33L33 and T_R33L66 chains versus the pure R33 chain, as shown in Figure 4c). Conversely, the linear part of the tadpole chain seems to extend more as the molecular weight of the ring increases. This observation is evident from the fact that the height of the gently decreasing part of the P R g curve for the linear portion is higher compared to the pure linear analog, as seen in Figure 4d.

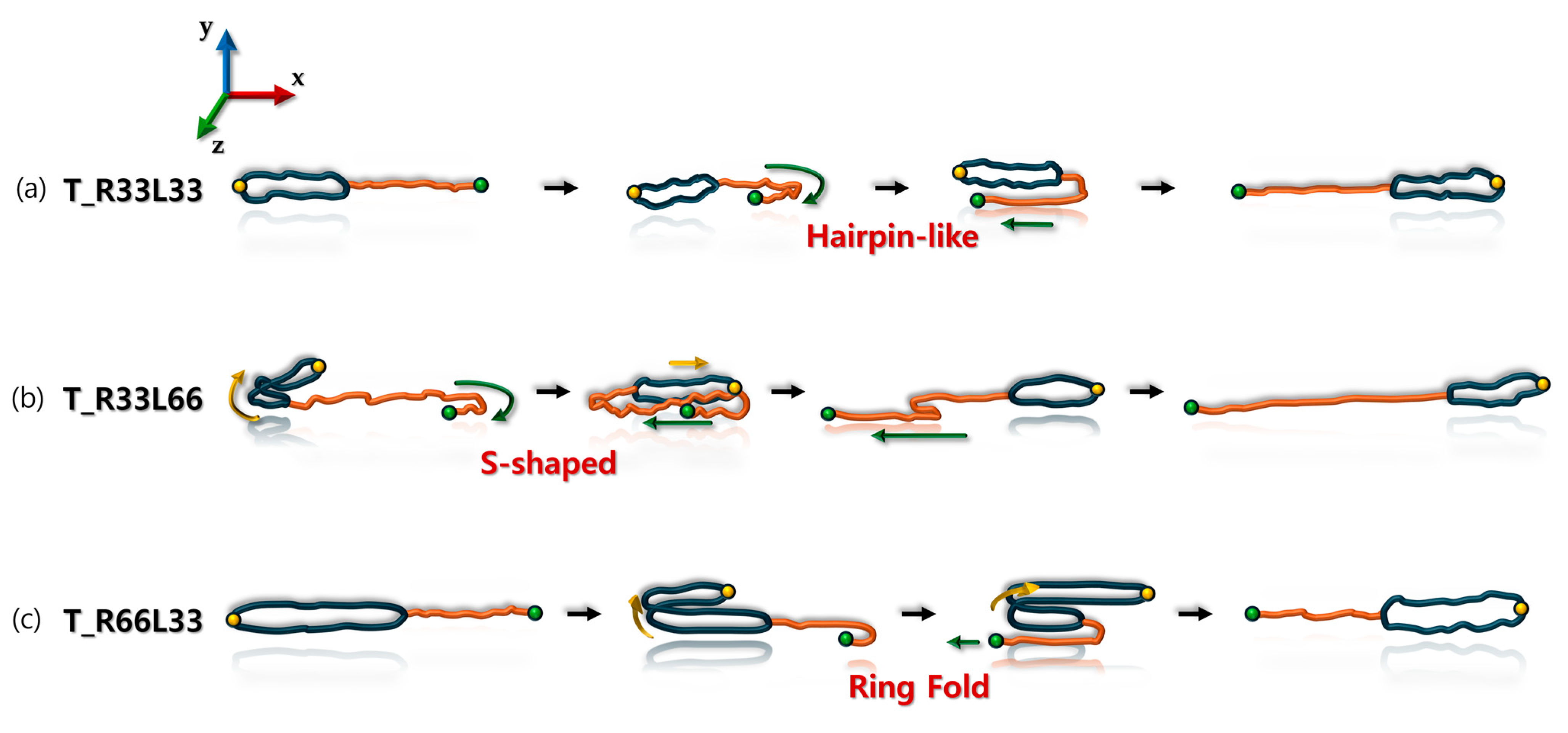

Figure 5 illustrates the representative chain rotation and tumbling mechanisms for each tadpole polymer chain under shear flow. The schematic illustrates a typical chain tumbling cycle at high Wi. As anticipated, the chain rotation and tumbling behaviors are strongly influenced by the ring-to-linear ratio within the tadpole polymers. The T_R33L66 chain, with a ring-to-linear ratio of 1:2, exhibited S-shaped (or hairpin-like) rotational behavior similar to that of a pure linear chain during the tumbling cycle. Most chain tumbling in this system begins at the free chain end of the linear side branch. The ring portion of the T_R33L66 chain does not display the typical rotation and tumbling mechanisms of pure ring polymers. Instead, it alternates between expanded and collapsed conformations during the tumbling cycle. The T_R33L33 chain, with a ring-to-linear ratio of 1:1, also displayed rotational behavior similar to that of the T_R33L66 chain. Specifically, the T_R33L33 chain tumbled in an S-shape (or hairpin) during the chain-tumbling cycle. In contrast, the T_R66L33 chain, with a ring-to-linear ratio of 2:1, exhibited a markedly different rotational behavior compared to the T_R33L66 chain in shear flow. The ring part of the T_R66L33 chain, akin to pure ring polymer chains, tends to extend its closed-loop structure due to complex intramolecular interactions, forming a two-dimensional (2D) planar ellipsoid that lies parallel to the flow vorticity (xz-) plane under shear flow. In this system, most chain tumbling occurred as if a 2D planar ellipsoid of the ring part of the T_R66L33 chain was folded in half and unfolded like a piece of paper. This rotational behavior of ring folding and unfolding has been noted in previous studies [47]. The linear side branch of the T_R66L33 chain exhibited local tumbling motion, alternating between elongated and folded conformations, but seemed to follow the overall rotational motion of the ring during the chain tumbling cycle. Consequently, the rotational response of the T_R66L33 chain appears to be primarily determined by the rotational behavior of the ring part of the chain. This indicates that the rotational dynamics of the tadpole chain are strongly influenced by the ring-to-linear ratio within the tadpole polymer chain.

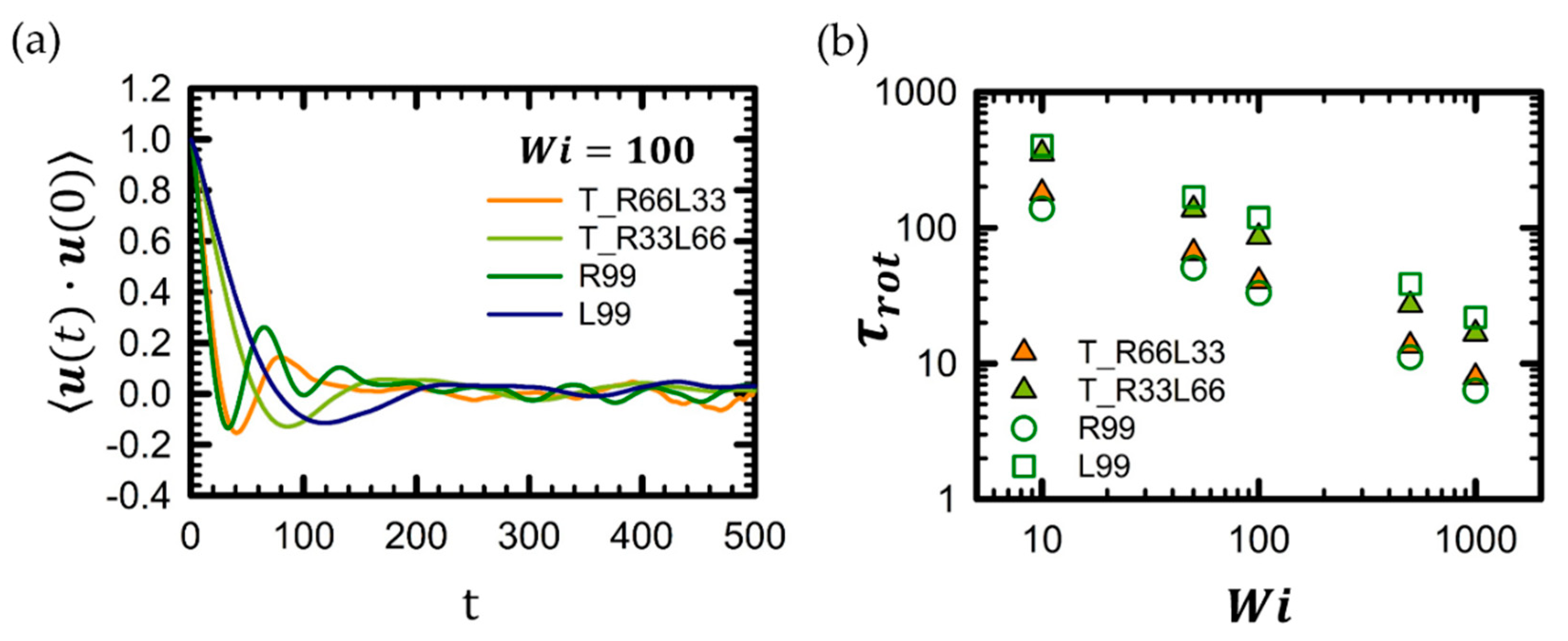

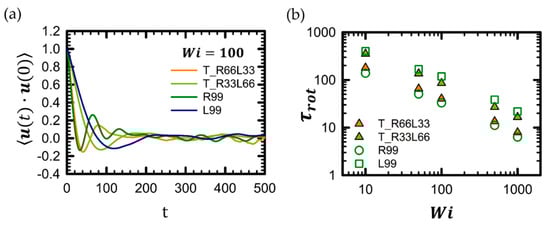

The time correlation functions (TCF) of the chain unit end-to-end vector, u, provide significant insights into the rotation and tumbling behavior of the chain. Figure 6a displays the time correlation function of the chain unit end-to-end vector, u, for the tadpole chain under strong shear flow. The chain rotational time was computed using a simple exponential decay function u ( t ) u ( 0 ) exp t / τ r o t for Wi < 10 and estimated from the characteristic negative minimum of the time correlation function for Wi > 10. The rotational times of the tadpole chain as a function of Wi are shown in Figure 6b. Generally, pure ring polymer chains exhibit faster chain rotation times compared to their linear counterparts of the same molecular weight [32,47]. Therefore, at the same molecular weight, tadpole chains with a higher proportion of ring units are expected to have faster chain rotational times.
As shown in Figure 6b, the rotational time of the tadpole chain falls between the rotational times of the corresponding pure ring and pure linear chains at each Wi. For instance, the rotational times of the T_R33L66 and T_R66L33 chains are situated between those of the pure R99 and pure L99 chains at each Wi. The rotational times increase in the order: pure R99 chain < T_R66L33 chain < T_R33L66 chain < pure L99 chain for each Wi. For further information regarding the rotational times for all tadpole chain systems and their corresponding pure linear and ring chain counterparts, refer to Figure S2 of the Supplementary Material.
From Table 5, the scaling expressions for the rotational time of the chain were estimated as τ r o t L i n e a r 355.63 × W i 0.71 for pure linear chains and τ r o t R i n g 106.91 × W i 0.71 for pure ring chains. It should be noted that for a perfectly affine chain rotation, the scaling expression of the rotational time would be τ r o t W i 1 . In order to establish a general scaling equation for the rotational time of the tadpole polymer, we combined the scaling expressions of rotational time for pure linear and ring chains that were mentioned above.
τ rot Tadpole k M L α L i n e a r × W i a L i n e a r + M R α R i n g × W i b R i n g
where the constant k is determined to be 1.56 based on the simulation data for the T_R33L33 chain. Additional variables can be extracted from the simulation data pertaining to the pure L33, L66, R33, and R66 chains. For example, based on the conventional scaling expressions for pure linear and ring chains (i.e., τ R Linear M W 1.70 and τ R R i n g M W 1.80 ), the M L and M R factors were estimated to be approximately 3.25 (=L66/L33 = 66 1.70 / 33 1.70 = 2 1.70 ) and 3.46 (=R66/L33 = 66 1.80 / 33 1.80 = 2 1.80 ), respectively. Here, the rotational time τ rot Tadpole of the tadpole chain is assumed to be the sum of the rotational times of the corresponding pure ring chain and pure linear chain. τ rot Tadpole of the tadpole chain, calculated using Equation (7), is listed in Table 5 and agrees well with the simulated rotational time obtained from the BD simulations.

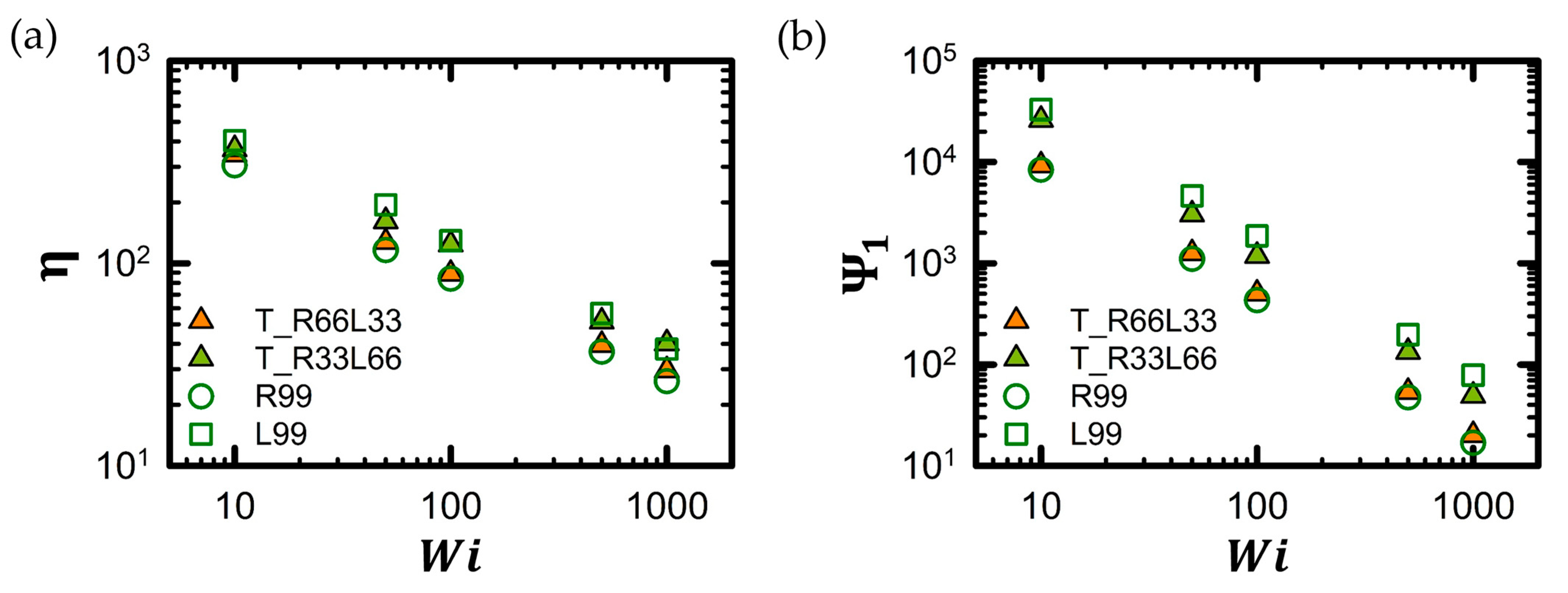

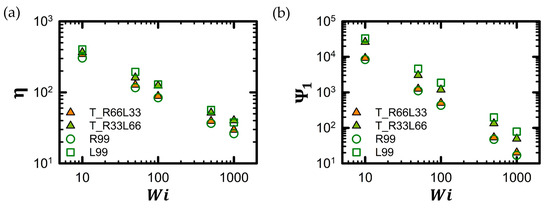

Figure 7 illustrates two key macroscopic rheological properties of the tadpole chain in a dilute solution as a function of Wi. For further information regarding macroscopic rheological properties for all tadpole chain systems and their corresponding pure linear and ring chain counterparts, refer to Figures S3–S5 of the Supplementary Material. As shown in Figure 7a, the viscosity, η , exhibits typical shear-thinning behavior with increasing Wi. The power law expression η W i b is typically used to measure the degree of shear thinning. The power law exponent, b , of the viscosity, calculated using the power law expression, shows very similar values for the pure L99 chain, the pure R99 chain, the T_R33L66 chain, and T_R66L33 chain, i.e., b = 0.48. This is consistent with previous findings for polymeric liquids [1,2,3,4,5,6,7,47,48,82,91,94].
Generally, the viscosity of a pure ring polymer chain is lower than that of the corresponding linear polymer chain under shear flow [32,48]. Therefore, the viscosity of the tadpole polymer chain was expected to decrease as the proportion of the ring part increased. As shown in Figure 7a, the viscosities of the polymer chains increased in the following order: pure R99 chain < T_R66L33 chain < T_R33L66 chain < pure L99 chain.
Analogous to the experimental approach of correlating structural and rheological data to scaling expressions, the scaling equations for the shear viscosity of pure linear and pure ring chains were estimated as a function of Wi from our simulated BD data of pure L33 chain and pure R33 chain systems. The scaling expressions for the shear viscosity were estimated as η L i n e a r 137.40 × W i 0.48 for pure linear chains and η R i n g 80.17 × W i 0.48 for pure ring chains. By simply combining these scaling expressions for the viscosities of pure linear (L33) and pure ring (R33) chains, we developed a new scaling expression for the shear viscosity of the tadpole chains as a function of Wi.
η T a d p o l e k M L α L i n e a r × W i a L i n e a r + M R α R i n g × W i b R i n g
where the constant k is found to be equal to 1.95 based on the simulation data for the T_R33L33 chain. Using the conventional scaling expressions for pure linear chains and pure ring chains (e.g., η L i n e a r M W 2.31 and η R i n g M W 2.16 ), the M L and M R factors were estimated as approximately 4.97 (=L66/L33 = 66 2.31 / 33 2.31 = 2 2.31 ) and 4.45 (=R66/R33 = 66 2.16 / 33 2.16 = 2 2.16 ), respectively. As presented in Table 6, the viscosities of the tadpole chains predicted using Equation (8) agree well with the viscosities measured through mesoscopic BD simulations as a function of Wi. This quantitative agreement between the predicted and measured macroscopic viscosity of the tadpole chains is notable.
The similar viscosity of the estimated and the simulated values implicitly suggests that there is a weak rheological correlation between the ring and linear segments within the tadpole polymer chains. In other words, the ring and linear segments within the tadpole polymer chain appear to behave independently from a rheological perspective. Therefore, due to the rheological independence at a higher (coarse-grained) level between ring and linear segments within the chain, the general scaling expressions consisting of pure linear and pure ring contributions can be used to predict the shear viscosity of tadpole polymer chains at any ratio of ring-to-linear segments.
Figure 7b also shows the typical shear-thinning behavior for the first normal stress coefficient, Ψ 1 , for all tadpole polymer chains. The power law expression Ψ 1 W i b was used to measure the degree of shear thinning for Ψ 1 , and b for Ψ 1 was measured as 1.37 for pure L99 chain, 1.40 for pure R99 chain, 1.39 for T_R66L33, 1.38 for T_R33L66 chain. This agrees well with previous findings for polymeric liquids [1,2,3,4,5,6,7,47,48,82,91,94]. Similar to the macroscopic viscosity, Ψ 1 also decreases as the proportion of the ring part in the tadpole chain increases. Therefore, Ψ 1 increases in the order of pure R99 chain < T_R66L33 chain < T_R33L66 chain < pure L99 chain across the entire range of Wi.
To obtain a scaling expression for the Ψ 1 of the tadpole polymer chain, we employed a procedure similar to that used for macroscopic viscosity.
Ψ 1 T a d p o l e k M L α L i n e a r × W i a L i n e a r + M R α R i n g × W i b R i n g
The variables in the equation were evaluated from the pure L33, L66, R33, and R66 chain results. From our simulated data of pure L33 chain and pure R33 chain systems, we estimated the scaling expressions of the Ψ 1 for pure linear and pure ring chains as Ψ 1 L i n e a r 9772.37 × W i 1.32 for pure linear chains and Ψ 1 R i n g 1862.01 × W i 1.28 for pure ring chains. The M L and M R factors can be derived from the conventional scaling expressions for pure linear and ring chains, i.e., Ψ 1 L i n e a r M W 3.92 and Ψ 1 R i n g M W 4.15 . They can be estimated as 15.13 (=L66/L33 = 66 3.92 / 33 3.92 = 2 3.92 ) and 17.72 (=R66/L33 = 66 4.15 / 33 4.15 = 2 4.15 ), respectively. As listed in Table 7, the Ψ 1 of the tadpole chains, predicted using Equation (9), is consistent with Ψ 1 for the tadpole chain measured using the coarse-grained BD simulations as a function of Wi.
Under both equilibrium and flow conditions, the structural, dynamic (or chain rotational), and rheological behavior of the tadpole polymer chain can be expressed as a simple sum of the pure linear contribution and the pure ring contribution. This implicitly means that the ring and linear segments within the tadpole polymer chains are not tightly coupled, either structurally or dynamically. The physical significance behind the observed trends can be speculated as follows: In the dilute solution, where direct intermolecular interactions and topological constraints are absent, the ring and linear segments within the tadpole polymer chain appear to behave independently at some higher (coarse-grained) level, unaware of each other’s presence, despite the physical connection within the chain. Based on the above conjecture, it can be hypothesized that the unentangled tadpole polymer chains in the dilute solution system would exhibit behavior similar to that of the unentangled linear/ring blend system. Therefore, it would be very interesting to directly compare dilute solutions of tadpole polymer chains with melt solutions of unentangled linear/ring blend systems. Instead, we compared our dilute solutions of the tadpole polymer chains with the melt solutions of the entangled linear/ring blend system obtained from the experiments in Figure S6.

4. Conclusions

This study conducted comprehensive mesoscopic BD simulations of tadpole polymer chains in dilute solutions (or good solvent conditions) under equilibrium and shear flow conditions using the bead–rod chain model. The results were compared with those of the corresponding pure linear polymer chain and pure ring polymer chain. We modeled test chains in dilute solutions as isolated bead–rod chains with an implicit solvent effect, intentionally excluding controversial topological constraints such as intermolecular ring–ring or ring-linear threading. A tadpole polymer chain with a bimolecular structure consisting of a single ring and a single linear side branch was chosen as the test chain because it has the simplest structure among multicyclic polymers. To analyze the structure-property-phenomenon relationship, particularly the dual properties of tadpole polymers with respect to pure linear and ring polymer chains, we tested three types of tadpole polymers with the same molecular weight but different ring-to-linear ratios in the chain.
At equilibrium, the conformational and dynamic behaviors of the tadpole polymer chains in dilute solutions were consistent with previous theoretical, experimental, and numerical results. For instance, tadpole polymer chains exhibit typical scaling behavior for each property as a function of molecular weight, with the scaling exponents displaying values in good agreement with theoretical and experimental findings. The tadpole polymer chains show varying conformational and dynamic properties depending on the ring-to-linear ratio. Specifically, as the ring proportion within the chain increases, the chain size of the tadpole chain decreases, and the relaxation time becomes faster. Interestingly, the scaling expression for each property of the tadpole polymer chain can be represented as a simple sum of the scaling expressions for the corresponding pure linear chain and pure ring chain.
The conformational, dynamic, and rheological behaviors of the tadpole polymer chains in dilute solutions under flow conditions are strongly influenced by the ring-to-linear ratio within the tadpole polymer chain. Similar to the equilibrium case, as the ring proportion within the tadpole chain increases, the chain size decreases at each Wi, and the rotational time becomes faster compared to that of its pure linear counterparts. The tadpole polymer chains exhibit different chain rotations and tumbling behaviors depending on the ring-to-linear ratio. When the linear proportion increases, the tadpole chains display an S-shaped (or hairpin-like) rotation similar to that of the pure linear chain during the chain tumbling cycle. Conversely, as the ring proportion increases, the tadpole chains show ring folding and unfolding tumbling behaviors, akin to those of the pure ring chain. The macroscopic rheological properties, such as viscosity and the first normal stress coefficient, also vary with the ring-to-linear ratio. Both viscosity and the first normal stress coefficient decrease with increasing ring proportion within the tadpole polymer chain at each Wi.
We aimed to construct a general functional form using scaling laws to quantify the effect of the ring-to-linear ratio on each property. Under flow conditions, a general scaling expression for each property of the tadpole polymer chain is expressed as a function of flow strength rather than molecular weight. To develop this general scaling expression, we combined the scaling expressions for the pure linear and pure ring chains and included a term that describes the ring-to-linear ratio within the tadpole chain. The predicted values for the tadpole polymer chain properties, obtained using these general scaling expressions, were in excellent agreement—both qualitatively and quantitatively—with the data from BD simulations. We consider this result to be statistically significant.
The present findings provide an important framework for studying other types of multicyclic polymer chains, such as theta-shaped polymer chains, manacle-shaped chains, and 8-shaped polymer chains, and for designing new ring-shaped (or multicyclic) polymers and materials for specific purposes. In addition, the findings are expected to be very useful in exploiting the duality of tadpole chain polymers to adapt existing polymers and materials for specific purposes. For example, tadpole polymer can be added as an additive to the synthesis process of a conventional polymer or materials to adjust the viscosity of the conventional polymer for its intended use. By controlling the diffusion rate of the tadpole polymer chain or lasso peptide used as the drug by adjusting the ratio of ring-to-linear segments within the chain, the drug delivery time can be efficiently controlled to ensure that the drug is delivered to the desired site. One of the important potentials of this study is that it can contribute to a better understanding of the impact of complex topological constraints for the ring-shaped systems, such as intermolecular ring–ring or intermolecular linear-ring threading, on the physical and dynamical properties of ring-shaped polymers. For instance, comparing the results of an unentangled tadpole polymer chain with no topological constraints to the results of an entangled tadpole polymer chain or an entangled linear/ring blend system with topological constraints implicitly reveals the role of intermolecular ring-linear threading in tadpole polymer systems or linear/ring blend systems. Therefore, it would be very interesting to directly compare unentangled tadpole polymer chains with entangled tadpole polymer chains or entangled linear/ring blend systems.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/polym16202871/s1, Figure S1: The mean square radius of gyration for all chain configurations; Figure S2: The rotation time as a function of Wi; Figure S3: The shear viscosity of tadpole, linear, and ring chain; Figure S4: The first normal stress coefficient vs Wi; Figure S5: Comparison of the reduced viscosity obtained from simulation and experiment; Figure S6: (a) Steady-state viscosity of PS rings, linear and blends vs. shear rates; (b) Steady-state viscosity normalized with the zero-shear viscosity as a function of Wi. Refs. [48,74,96,97,98] are included in Supplementary Materials.

Author Contributions

Conceptualization, J.M.K.; Methodology, J.M.K.; Data curation, C.C.; Writing—original draft, C.C.; Writing—review and editing, J.M.K.; Supervision, J.M.K.; Project administration, J.M.K.; Funding acquisition, J.M.K. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Ministry of Trade, Industry and Energy (MOTIE), Korea Institute for Advancement of Technology (KIAT) through the Virtual Engineering Platform Program (P0022334).

Institutional Review Board Statement

Not applicable.

Data Availability Statement

Data is contained within the article or Supplementary Materials.

Acknowledgments

The simulations were carried out on the computational resources of the Kyonggi University.

Conflicts of Interest

The authors declare no conflicts of interest.
